User Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 General safety instructions.................................. 3
2 Appliance at a glance............................................ 4
2.1 Scope of supply............................................................ 4
2.2 Overview of appliance and equipment..................... 4
2.3 Special features........................................................... 4
2.4 Range of use of appliance.......................................... 5
2.5 Appliance noise emissions......................................... 5
2.6 Conformity..................................................................... 5
2.7 SVHC substances according to REACH regulation. 5
2.8 EPREL database........................................................... 5
3 Setting up and connecting.................................... 5
3.1 Installation requirements........................................... 5
3.2 Appliance dimensions................................................. 6
3.3 Transporting the appliance........................................ 6
3.4 Unpacking appliance................................................... 7
3.5 Reversing the door opening direction...................... 7
3.6 Aligning the door.......................................................... 17
3.7 Installing door handle................................................. 18
3.8 Installing appliance..................................................... 18
3.9 Setting up the appliance so it is level...................... 18
3.10 Installing multiple appliances.................................... 18
3.11 After installation.......................................................... 18
3.12 Disposing of packaging............................................... 19
3.13 Connecting the appliance to the power supply...... 19
4 Functionality of the Touch display....................... 19
4.1 Navigation and symbol explanation......................... 19
4.2 Menus............................................................................. 20
4.3 Sleep mode................................................................... 20
5 Putting into operation........................................... 21
5.1 Switching on appliance (first use)............................ 21
6 Storage.................................................................. 21
6.1 Information regarding storage................................... 21
6.2 Storage times............................................................... 21
7 Controls................................................................. 21
7.1 Control and display elements.................................... 21
7.1.1 Status display........................................................... 22
7.1.2 Display symbols........................................................22
7.1.3 Acoustic signals........................................................22
7.2 Appliance functions..................................................... 22
7.2.1 Notes on the appliance functions......................... 22
7.2.2 Switching appliance on and off ............................ 22
7.2.3 Switching temperature zone off and on..............23
7.2.4 Temperature ............................................................. 24
7.2.5 Temperature recording ........................................... 24
7.2.6 Lighting ..................................................................... 25
7.2.7 Lighting intensity .....................................................26
7.2.8 SuperCool..................................................................26
7.2.9 SuperFrost.................................................................27
7.2.10 HumiditySelect.........................................................27
7.2.11 Display lock ...............................................................27
7.2.12 Maintenance interval reminder .............................28
7.2.13 Language .................................................................. 28
7.2.14 Temperature unit..................................................... 28
7.2.15 Display brightness ..................................................29
7.2.16 WiFi connection ....................................................... 29
7.2.17 LAN connection ........................................................30
7.2.18 Device information ..................................................31
7.2.19 Operating hours ........................................................31
7.2.20 Software ...................................................................31
7.2.21 Defrosting ..................................................................31
7.2.22 Door alarm ............................................................... 32
7.2.23 Light alarm *..............................................................32
7.2.24 Demo mode...............................................................33
7.2.25 Resetting to factory settings ................................33
7.3 Messages...................................................................... 33
7.3.1 Warnings....................................................................33
7.3.2 Reminder....................................................................35
8 Features................................................................. 35
8.1 Safety lock.................................................................... 35
9 Maintenance.......................................................... 35
9.1 Defrosting appliance................................................... 35
9.2 Cleaning the appliance............................................... 36
10 Customer help....................................................... 37
10.1 Technical specifications............................................. 37
10.2 Technical fault.............................................................. 37
10.3 Customer Service......................................................... 38
10.4 Type plate...................................................................... 38
11 Shutting down....................................................... 38
12 Disposal................................................................. 38
12.1 Preparing appliance for disposal.............................. 38
12.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 38
13 Additional information.......................................... 39
The manufacturer is continually working on the further
development of all types and models. Please be aware that
we reserve the right to make changes to the shape, equip‐
ment and technology.

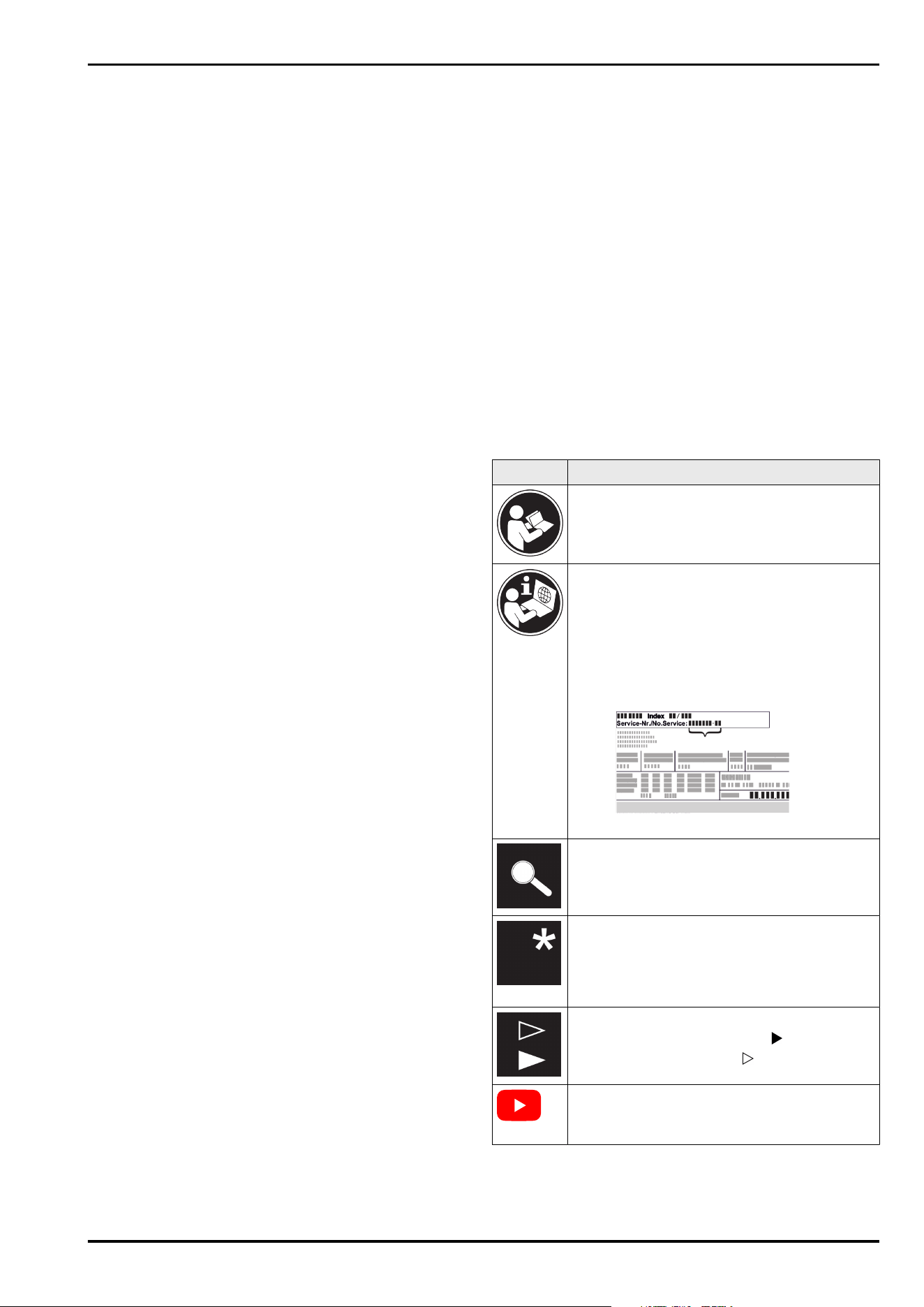

Symbol
Explanation
Read instructions
Please read the information in these instruc‐
tions carefully to understand all of the benefits
of your new appliance.
Additional information on the Internet
The digital manual with additional informa‐
tion and in other languages can be found
via the QR code on the front of the
manual or by entering the service number at
home.liebherr.com/fridge-manuals.
The service number can be found on the serial
tag:
Fig.Example illustration
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of models,
so differences are possible. Sections that
apply to certain models only are marked with
an asterisk (*).
Instructions and results
Instructions are marked with a .
Results are marked with a .
Videos
Videos about the appliances are available on
the YouTube channels of Liebherr-Hausgeräte.
Open source licences:
The appliance contains software components that use
open source licences. Information on the open source
2 * Depending on model and options
licences used can be found here: home.liebherr.com/
open-source-licences
These operating instructions apply to:
-
FCFCvg 4002
-
FCFCvg 4032
-
FCFvg 4002
1 General safety instructions
Please keep these operating instructions in a safe place so
you can refer back to them at any time.
If you pass the appliance on, please hand these operating
instructions to the next user.
Read these operating instructions carefully before use to
ensure safe and correct use of the appliance. Follow the
instructions, safety instructions and warning messages
included at all times. They are important for ensuring you
can operate and install the appliance safely and without any
problems.
Danger for the user:
-
This device can be used by children aged 8 and above
and people with impaired physical, sensory or mental
abilities or with a lack of experience and knowledge
provided that they are supervised or have received
instruction in the safe use of this appliance, and about
the resulting hazards. Children must not play with this
appliance. Cleaning and user maintenance work must not
be carried out by children without adult supervision.
-
The socket must be easily accessible so that the appli‐
ance can be disconnected quickly from the electricity
supply in an emergency. It must not be located in the
area behind the appliance.
-
When disconnecting the appliance from the supply,
always take hold of the plug. Do not pull the cable.
-
In the event of a fault pull out the mains plug or deacti‐
vate the fuse.
-
WARNING: Do not damage the mains power cable. Do
not operate the appliance with a defective mains power
cable.
-
WARNING: Multiple sockets/distributors and other elec‐
tronic equipment (such as halogen transformers) must
not be placed or operated at the rear of the appliance.
-
WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
-
Only customer service or other specially trained staff
may repair or perform other operations on the appliance.
-
Only assemble, connect and dispose of the appliance
according to the instructions.
Fire hazard
-
The coolant used (information on the model plate) is
ecofriendly but also flammable Any leaking coolant may
ignite.
•
WARNING: Do not damage refrigeration circuit.
•
Do not handle ignition sources inside the appliance.
•
WARNING: Do not use electrical appliances in the
fridge compartment which do not comply with the
design recommended by the manufacturer.
•
If the refrigerant leaks: remove any naked flames or
ignition sources from the vicinity of the leakage point.
Properly air the room. Inform customer services.
-
Do not operate the appliance close to explosive gases.
-
Do not store or use petrol or other flammable gases and
liquids close to the appliance.
-
Do not store any explosive substances, such as aerosol
containers with flammable propellant gas, in the appli‐
ance. To identify these spray cans, look for the list of
contents printed on the can, or a flame symbol. Gases
possibly escaping may ignite due to electrical compo‐
nents.
-
Keep burning candles, lamps and other items with naked
flames away from the appliance so that they do not set
the appliance on fire.
-
Please be sure to store alcoholic drinks or other pack‐
aging containing alcohol in tightly closed containers.
Any alcohol that leaks out may be ignited by electrical
components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors etc. as a step or
for support.
Danger of frostbite, numbness and pain:
-
Avoid prolonged skin contact with cold surfaces or refri‐
gerated/frozen goods or take protective measures, e.g.
wear gloves.
Danger of injury and damage:
-
WARNING: Do not use mechanical equipment or other
methods to speed up the defrosting process other than
those recommended by the manufacturer.
-
WARNING: Risk of injury due to electric shock! There are
live electrical parts under the cover.
Only have the LED interior lighting replaced or repaired by
customer service or other suitably trained professionals.
-
NOTICE: Appliance must only be used using original
manufacturer accessories or using accessories from
other providers approved by the manufacturer. The user
bears the risk of using accessories which are not
approved.
Risk of crushing
-
Do not hold the hinge when opening and closing the door.
Fingers may get caught.
Specialist personnel qualifications:
Specialist personnel are persons who, on account of their
specialist training, knowledge and experience as well as
their knowledge of the relevant standards, are able to
assess and perform the work assigned to them and iden‐
tify potential hazards. They must have training, instruc‐
tion, and authorisation to work on the appliance.
Symbols on the appliance:
This symbol may be located on the
compressor. It relates to the oil in the
compressor and makes reference to the
risk that:Swallowing or inhaling can be
fatal. This advice is only relevant to recy‐
cling. There is no danger in normal opera‐
tion.
WARNING: Danger of fire / flammable
materials. This symbol is located on the
compressor and indicates the danger of
flammable materials. Do not remove the
sticker.
This or a similar sticker may be located
on the rear of the appliance. This sticker
indicates that there are vacuum insulation
panels (VIP) or perlite panels in the door
and/or housing. This advice is only relevant
to recycling. Do not remove the sticker.
WARNING: Cold surface! Only touch with
suitable hand protection.
This or similar sticker may be on the appli‐
ance and indicates the danger of frostbite.
Please note the warning messages and other specific
advice in the other chapters:
General safety instructions
* Depending on model and options 3
DANGER
Indicates an immediately hazardous
situation which will lead to death or
serious injuries if it is not avoided.
WARNING
Indicates a hazardous situation which
will lead to death or serious injuries if
it is not avoided.
CAUTION
Indicates a hazardous situation which
will lead to minor or moderate injuries
if it is not avoided.
NOTICE
Indicates a hazardous situation which
may lead to damage to property if it is
not avoided.
Note Indicates useful instructions and tips.
2 Appliance at a glance
2.1 Scope of supply
Check all parts for transport damage. If you have any
complaints, please contact your dealer or Customer Service.
(see 10.3 Customer Service)
The delivery comprises the following parts:
-
Free-standing appliance
-
Equipment *
-
Installation materials *
-
Operating instructions
-
Service brochure
-
Quality certificate *
-
Mains cable

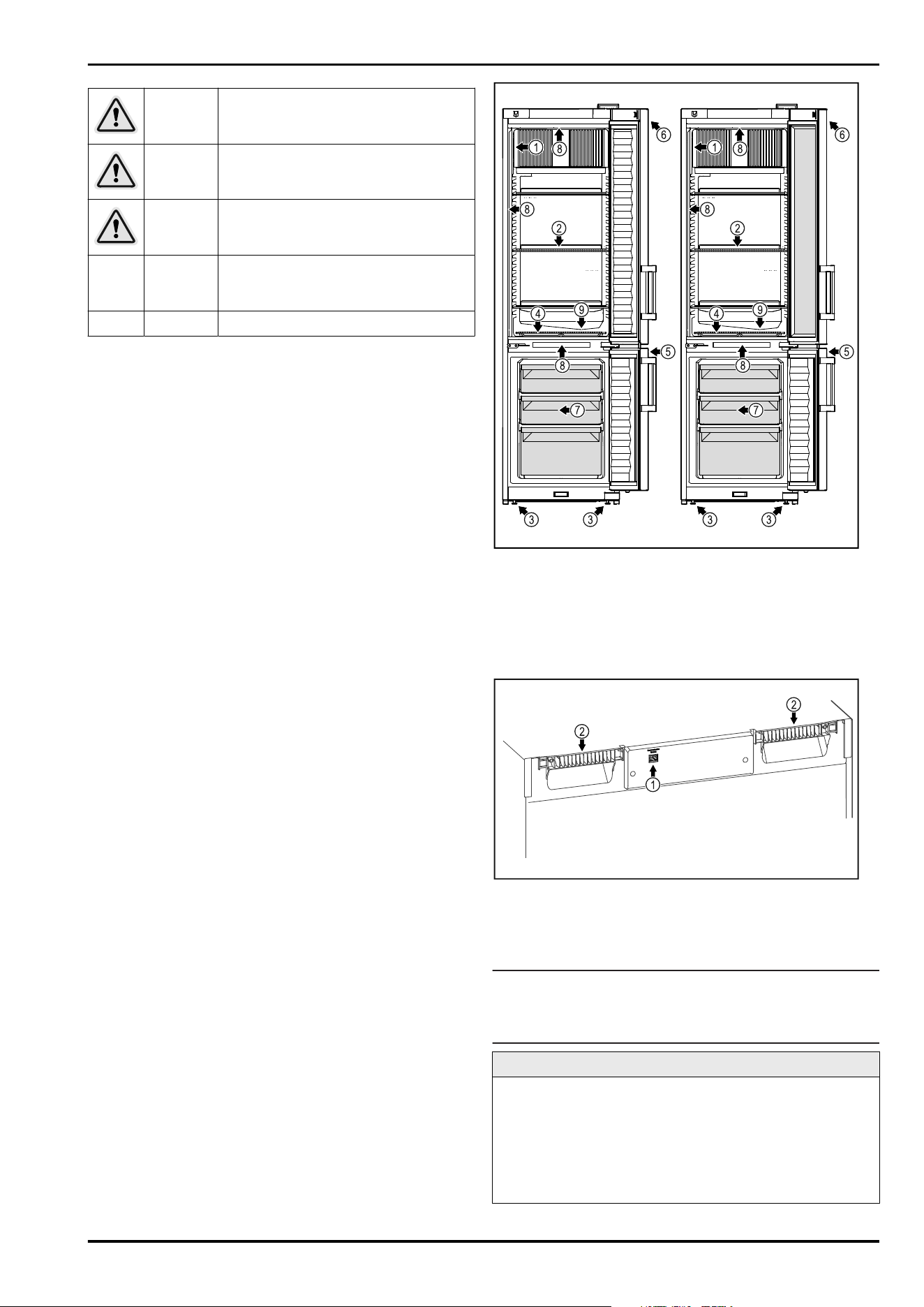

2.2 Overview of appliance and equip‐
ment
FCFCvg 4002
FCFvg 4002
FCFCvg 4032
Fig. 1 Example illustration
(1)
Type plate (6) Control elements and
temperature display
(2) Grid shelves (7) Freezer compartment
(3) Adjusting feet (8) Interior lighting
(4) Floor grating (9) Defrost drain
(5) Lock
Fig. 2 Example illustration
(1)
LAN interface (2) Carrying aid
2.3 Special features
Note
Accessories are available from Customer Service
(see 10.3 Customer Service) and the Liebherr-Hausgeräte
store at home.liebherr.com/shop/de/deu/zubehor.html.

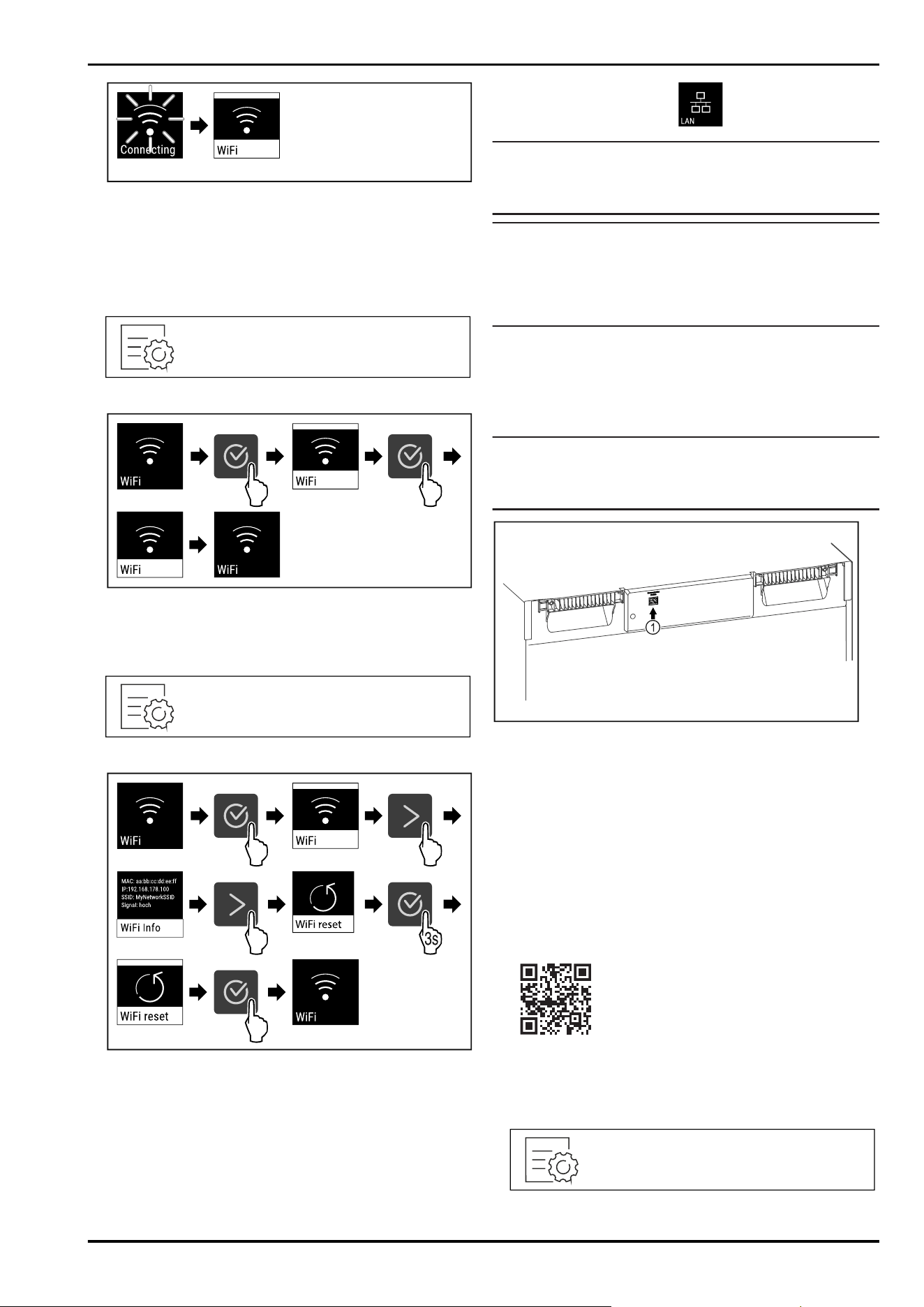

SmartModule
The appliance can be equipped with a SmartModule.
It is a WLAN and LAN interface for the connection between
the appliance and an external documentation and alarm
system such as Liebherr SmartMonitoring dashboard.
Liebherr SmartMonitoring dashboard is not available
in all countries. Check availability via the QR code
(see 7.2.16WiFi connection ) by entering your model.
Appliance at a glance
4 * Depending on model and options
2.4 Range of use of appliance
Intended use
This refrigerator/freezer is appropriate for the professional
storage of chilled/frozen foodstuffs. This appliance is not
intended for the presentation or removal of foodstuffs by
customers.
The appliance is only designed for use in closed rooms.
All other types of use are not permitted.
Foreseeable incorrect use
The following uses are expressly forbidden:
-
Storage and refrigeration of:
•
Chemically unstable flammable or corrosive
substances
•
Medicines, blood plasma, laboratory preparations or
similar substances and products based on the Medical
Device Directive 2007/47/EC
-
Use in potentially explosive atmospheres
-
Use outdoors or in areas exposed to dampness and
splashing water
Improper use of the appliance will result in goods stored
being damaged or spoiled.
Climate classes
The applicable climate class for your appliance is printed on
the type plate.
Fig. 3 Type plate
(X)
The climate class
states the ambient
conditions in which the
appliance can be oper‐
ated safely.
Climate class (X) Max. room tempera‐
ture
Max. rel. humidity
3 +25°C 60%
4 +30°C 55%
5 +40°C 40%
7 +35°C 75%
Note
The minimum permitted room temperature at the setup
location is +10°C.
At limit conditions, slight condensation may form on the
glass door (depending on the equipment) and on the side
walls.
Recommended temperature setting:
Temperature class (Z) Temperature setting
L1 -18°C
M1 +5°C
2.5 Appliance noise emissions
The A-weighted emission sound pressure level during oper‐
ation of the appliance is under 70 dB(A) (sound power rel.
1 pW).
2.6 Conformity
The coolant circuit has been tested for leak-tightness. The
appliance complies with the relevant safety regulations.
EU Declaration of Conformity
Manufacturer/Exhibitor: LIEBHERR-HAUSGERÄTE
LIENZ GMBH
Address: A-9900 Lienz, Dr. Hans
Liebherr Straße 1
The designated product complies with the provisions of
the following European directives and regulations:
(EU) 2019/2020, (EU) 2015/1095, (EU) 2015/1094,
(EU) 2017/1369, 2006/42/EC, 2014/30/EU, 2009/125/EC,
2011/65/EU
The full text of the EU Declaration of Conformity is avail‐
able at the following web address: www.liebherr.de
2.7 SVHC substances according to
REACH regulation
You can check whether your appliance contains SVHC
substances according to REACH regulation at the following
link: home.liebherr.com/de/deu/de/liebherr-erleben/nach‐
haltigkeit/umwelt/scip/scip.html
2.8 EPREL database
Details about the labelling of energy consumption and
ecodesign requirements will be available on the European
Product Database (EPREL) from 1 March 2021. You can
access the product database at the following link: https://
eprel.ec.europa.eu/. You will be asked to enter the model
identification. The model identification can be found on the
type plate.
3 Setting up and connecting
3.1 Installation requirements
The installation conditions are crucial to ensure that you
can operate your appliance safely, efficiently and without
problems.
-
Observe all safety instructions.
-
Consider the location and position in the room.
WARNING
Danger of fire due to incorrect positioning!
If the mains cable or plug touches the back of the appli‐
ance, the vibration can damage the mains cable or the plug
resulting in a short circuit.
► Make sure the mains cable is not trapped under the appli‐
ance when you position the appliance.
► Stand the appliance so that it is not touched by connec‐
tors or main cables.
► Do not connect any appliances to sockets in the area of
the back of the appliance.
► Do not place and operate multi-sockets/power distribu‐
tors and other electronic devices (such as halogen trans‐
formers) at the back of the appliances.
Setting up and connecting
* Depending on model and options 5
WARNING
Fire hazard due to dampness!
If live parts or the mains lead become damp this may cause
short circuits.
► The appliance is designed for use in enclosed areas. Do
not operate the appliance outdoors or in areas where it is
exposed to splash water or damp conditions.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
► Do not damage the pipelines of the coolant circuit and
the compressor.
3.1.1 Installation site
-
A dry and well-ventilated room is an optimum installation
location.
-
If the appliance is installed in a very damp environment,
condensation may form on the appliance exterior.
Always make sure there is good ventilation and aeration
at the installation site.
-
The more refrigerant there is in the appliance, the larger
than room must be in which it is located. In rooms that
are too small, a leak can product a flammable gas/air
mixture. For every 8g of refrigerant, the installation room
must be at least 1 m
3
in size. Information on the refrig‐
erant contained is given on the type plate inside the
appliance.
-
The floor on which the appliance stands must be hori‐
zontal and level.
3.1.2 Position in space
-
Do not place the appliance in direct sunlight or near radi‐
ators or similar sources of heat.
-
Always position the appliance with the rear directly on
the wall.
-
Use in hazardous areas is not permitted.

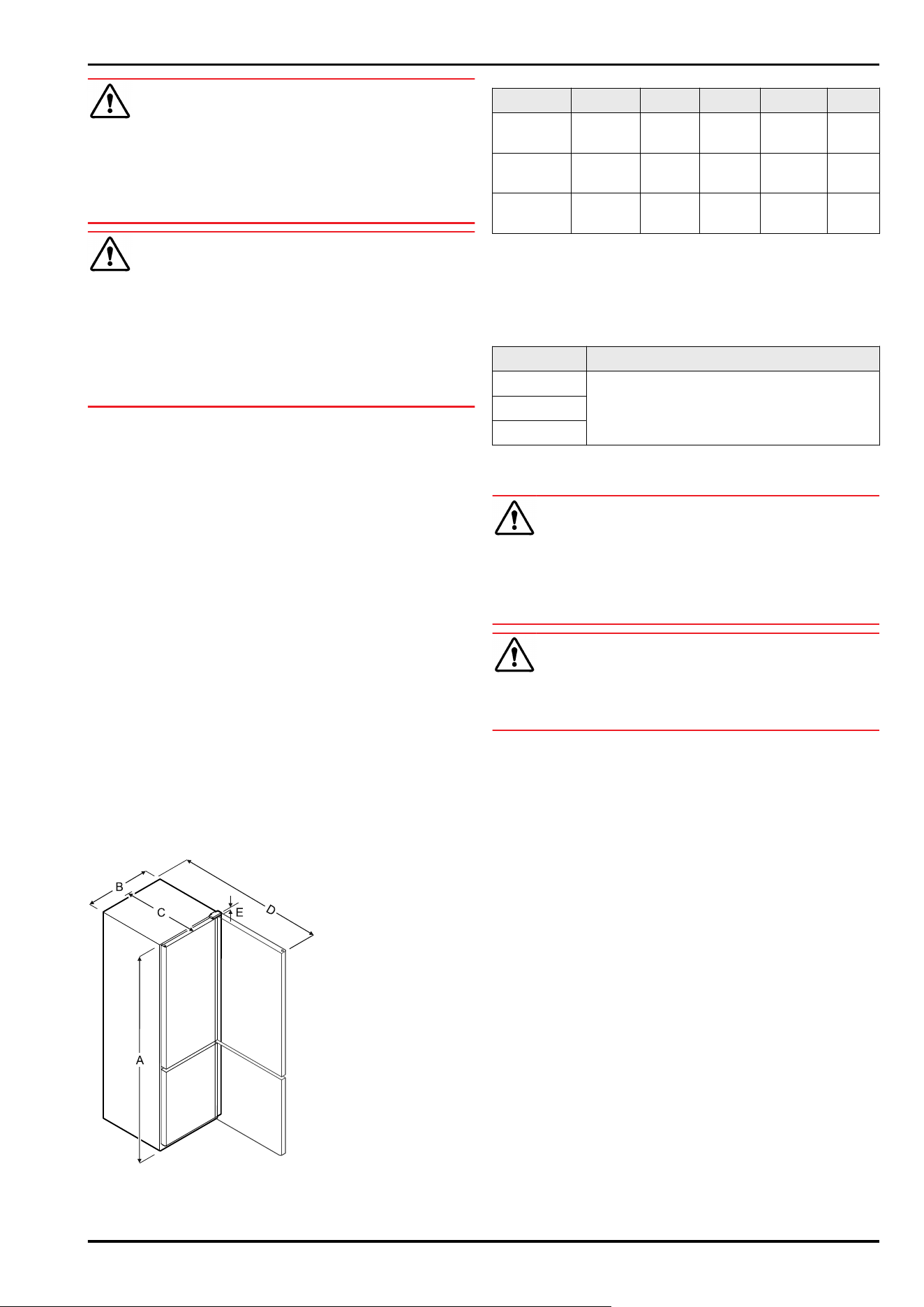

3.2 Appliance dimensions
Fig.4
Model
A B C D E
FCFCvg
4002
2044mm 597mm 654mm 1203mm 23mm
FCFCvg
4032
2044mm 597mm 654mm 1203mm 23mm
FCFvg
4002
2044mm 597mm 654mm 1203mm 23mm
A = appliance height including feet/castors
B=appliance width without handle
C = appliance depth without handle
D = appliance depth with door open
E = hinge height
Model
Net capacity
FCFCvg 4002 (see 2.2 Overview of appliance and equip‐
ment) Type plate
FCFCvg 4032
FCFvg 4002
3.3 Transporting the appliance
WARNING
Risk of injury due to broken glass!*
When transporting at an altitude of more than 1500 m, the
glass panes of the door may break. This can result in sharp-
edged fragments, which can cause serious injuries.
► Take appropriate protective action.
WARNING
Risk of injury and damage due to the appliance tipping over!
► Pay attention to uneven floors and ramps when trans‐
porting appliances.
3.3.1 Transporting the appliance for initial use
Ensure that the following requirements are met:
❑
The appliance is packaged.
❑
The appliance is upright.
► Transport the appliance with the help of two people.
► Unpacking the appliance.
3.3.2 Transporting the appliance after initial
use
Observe the following instructions if you wish to transport
or move the appliance again after initial use.
Ensure that the following requirements are met:
❑
The appliance is emptied.
❑
The appliance is upright.
❑
Door is secured against accidental opening.
❑
The pull-out trolley is secured against accidental
opening.
► Transport the appliance with the help of two people.
After transport:
► Unscrew the adjustable feet on the appliance.
► Align the appliance.
Setting up and connecting
6 * Depending on model and options
3.4 Unpacking appliance
► Check the appliance and the packaging for damage
during transport. Contact the supplier immediately if you
suspect any damage. Do not connect appliance to the
power supply.
► Remove all packaging materials from the rear or the side
walls of the fridge that may prevent proper installation or
prevent air flow and ventilation.

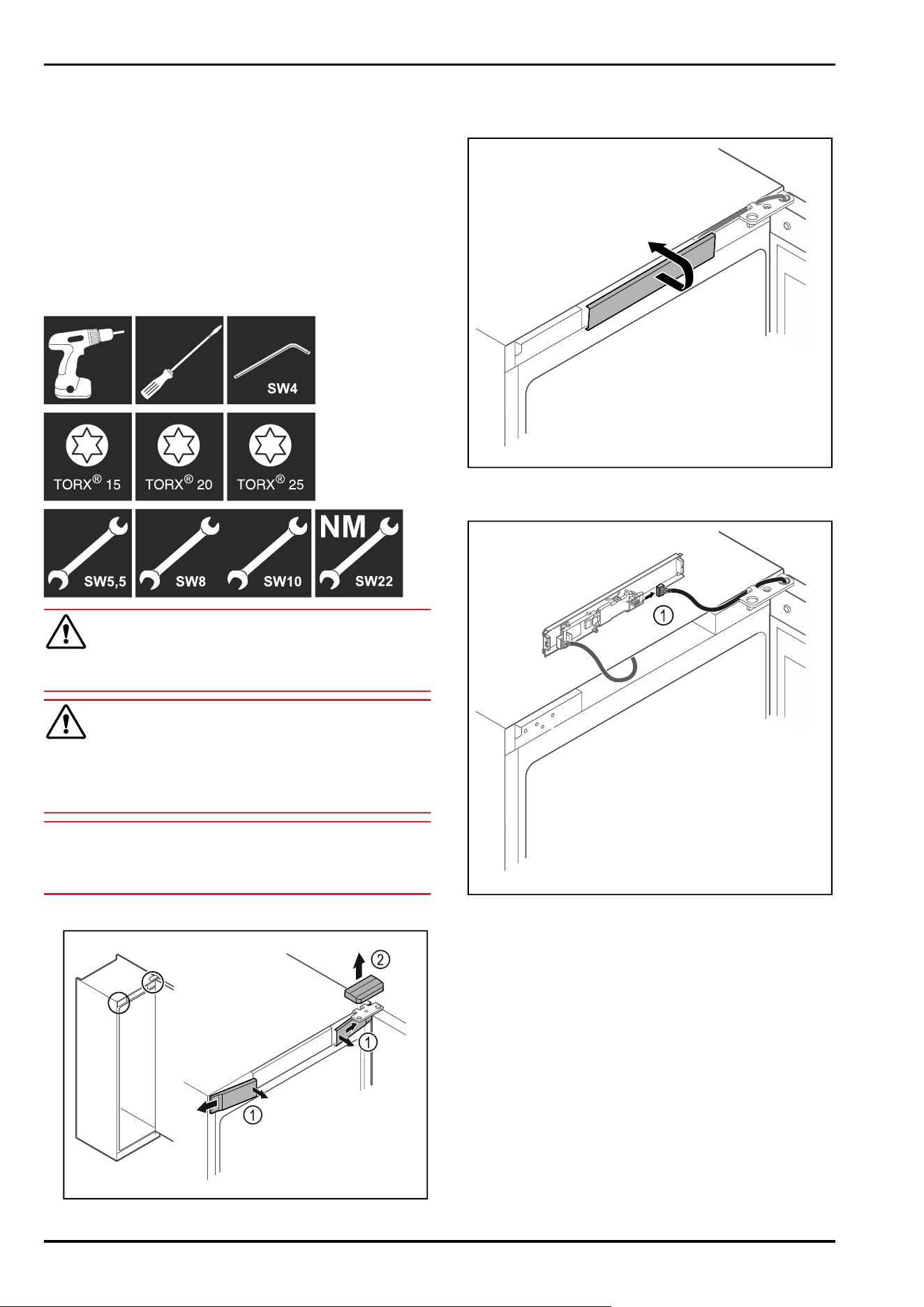

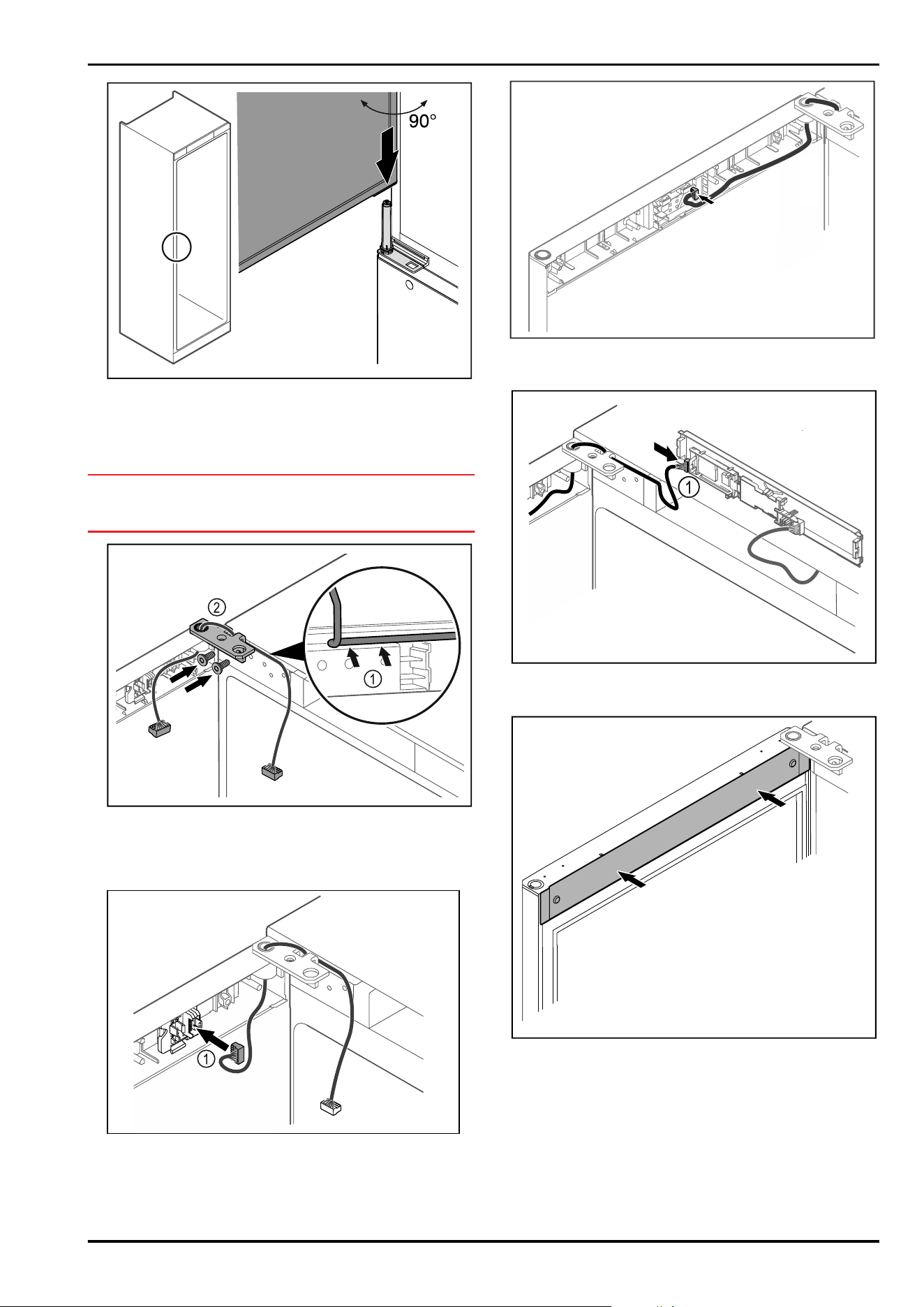

3.5 Reversing the door opening direc‐
tion
Tools
WARNING
Risk of injury if the door is not reversed correctly!
► Replace the door hinge with specialist personnel.
WARNING
Risk of injury and material damage due to heavy door!
► Only perform the conversion if you can carry a weight of
25 kg.
► Always have someone help you carry out the conversion.
NOTICE
Live parts!
Damage to electrical components.
► Remove the mains plug before you reverse the door.
► Open the door.
Fig.5
►
Unlatch the front covers Fig. 5 (1) on the inside and
remove them sideways.
► Lift off the upper cover Fig.5(2).
Fig.6
► Unlatch the middle cover and remove it.
Fig.7

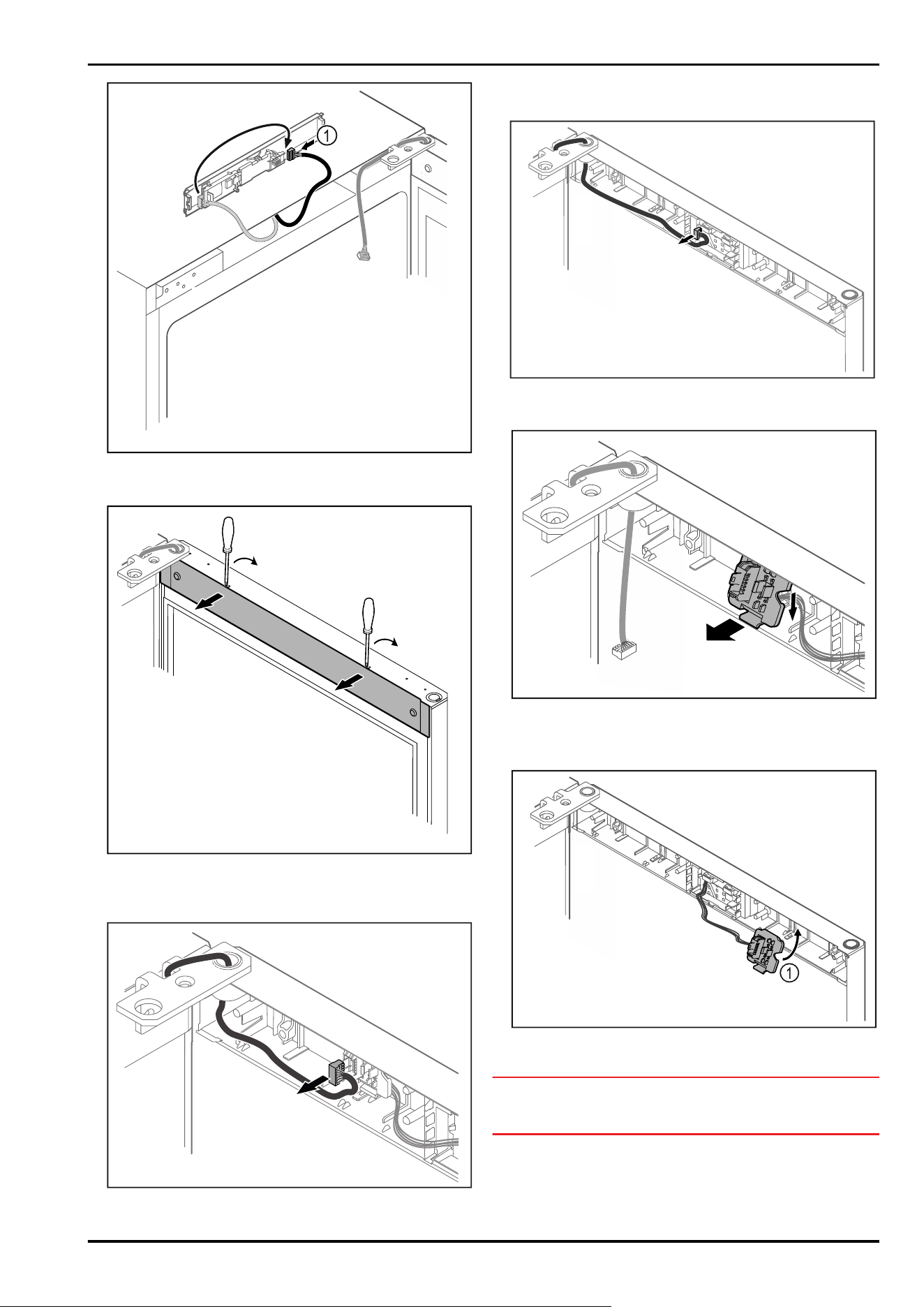

► Disconnect the plug Fig.7(1) from the circuit board.
Setting up and connecting
* Depending on model and options 7
Fig.8
► Connect the plug Fig.8(1) to the circuit board.
Fig.9
► Unlatch the cover with a small screwdriver and take it
off.
Fig. 10
►
Remove the plug from the plug holder.
-or-
Fig.11
► Remove the plug from the circuit board.
Fig. 12 The installation position for the plug holder can be
rotated by 180°.*
► Unlatch the plug holder.*
Fig.13
► Engage the plug holder Fig.13(1) on the opposite side.*
NOTICE
Risk of injury if the door tips out!
► Hold the door.
Setting up and connecting
8 * Depending on model and options

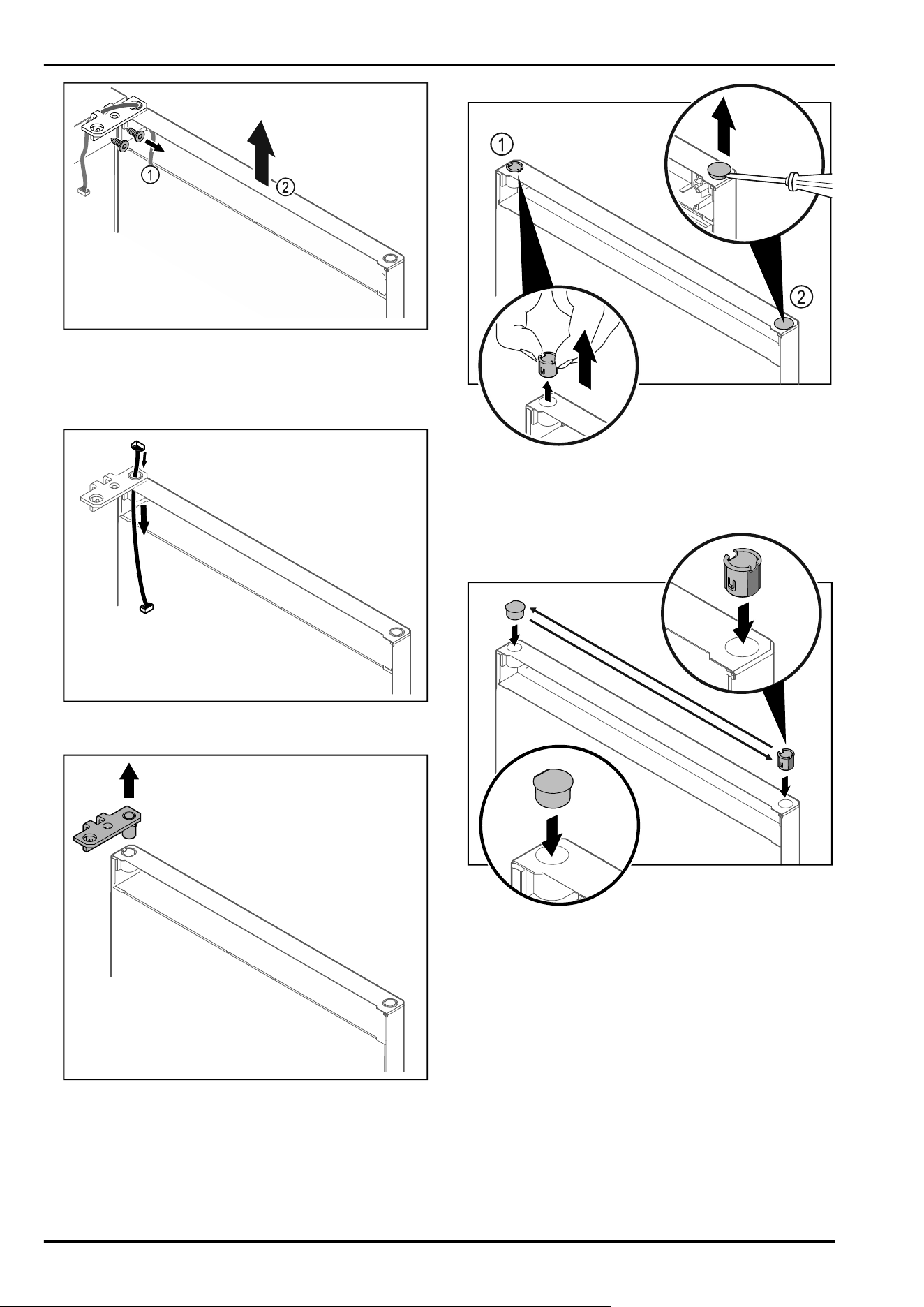

Fig. 14
► Unscrew the hinge Fig. 14(1).
► Lift the door with the hinge straight up by Fig. 14 (2)
roughly 200mm and take it off.
► Carefully place the door on a soft surface.
Fig. 15
► Carefully pull out the cable.
Fig. 16
► Pull out the hinge.
Fig. 17 Fridge compartment door
► Pull out the hinge bushing Fig.17(1) with your fingers.
► Carefully lift the cover plug Fig. 17 (2) with a slotted
screwdriver and pull it out.
Fig. 18 Fridge compartment door
► Insert hinge bushing and cover plug on the opposite side
(the flattened sides face outwards).
Setting up and connecting
* Depending on model and options 9
Fig. 19
► Move the hinge to the opposite side.
WARNING
Risk of injury and material damage if the door tips out!
► Tighten the bearing pins to the specified torque.

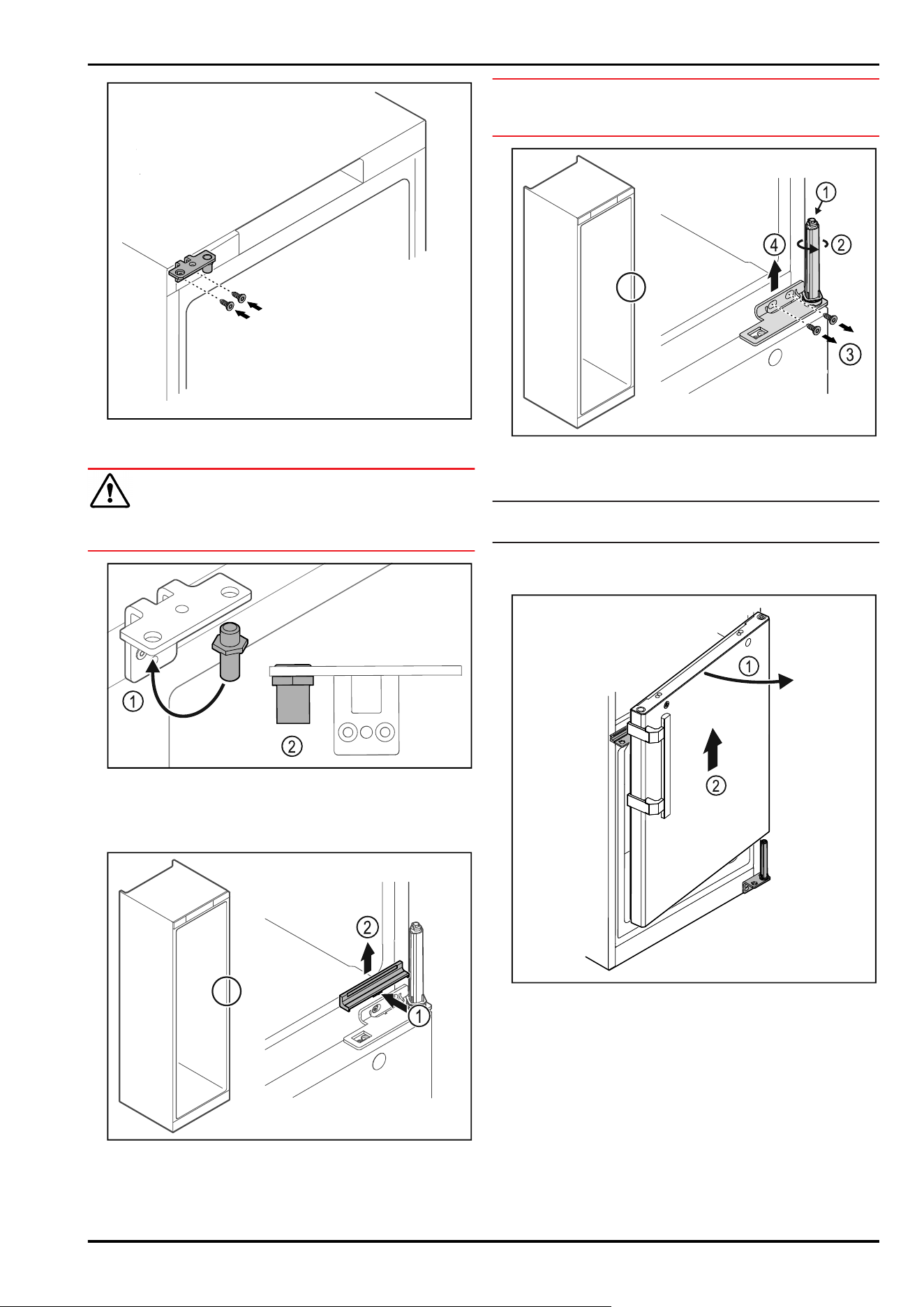

Fig.20
► Put the pin back into the hinge Fig.20(1).
► Tighten the pin Fig.20(2) to a torque of 12 Nm.
► Unscrew the hinge again.
Fig.21
► Gently press the middle of the cover Fig. 21 (1) and lift it
off Fig.21(2).
NOTICE
Risk of injury due to tensioned spring!
► Do not disassemble the door closing system Fig.22(1).
Fig.22
► Turn the closing system Fig.22(2) until it clicks.
▷ The tension of the closing system is released.
Note
► Hold the door.
► Loosen the screws Fig. 22 (3) and lift off the hinge
Fig.22(4).
Fig.23
► Open the door Fig. 23 (1) slightly, lift it straight up by
around 200mm and take it off Fig.23(2).
► Carefully place the door on a soft surface.
Setting up and connecting
10 * Depending on model and options

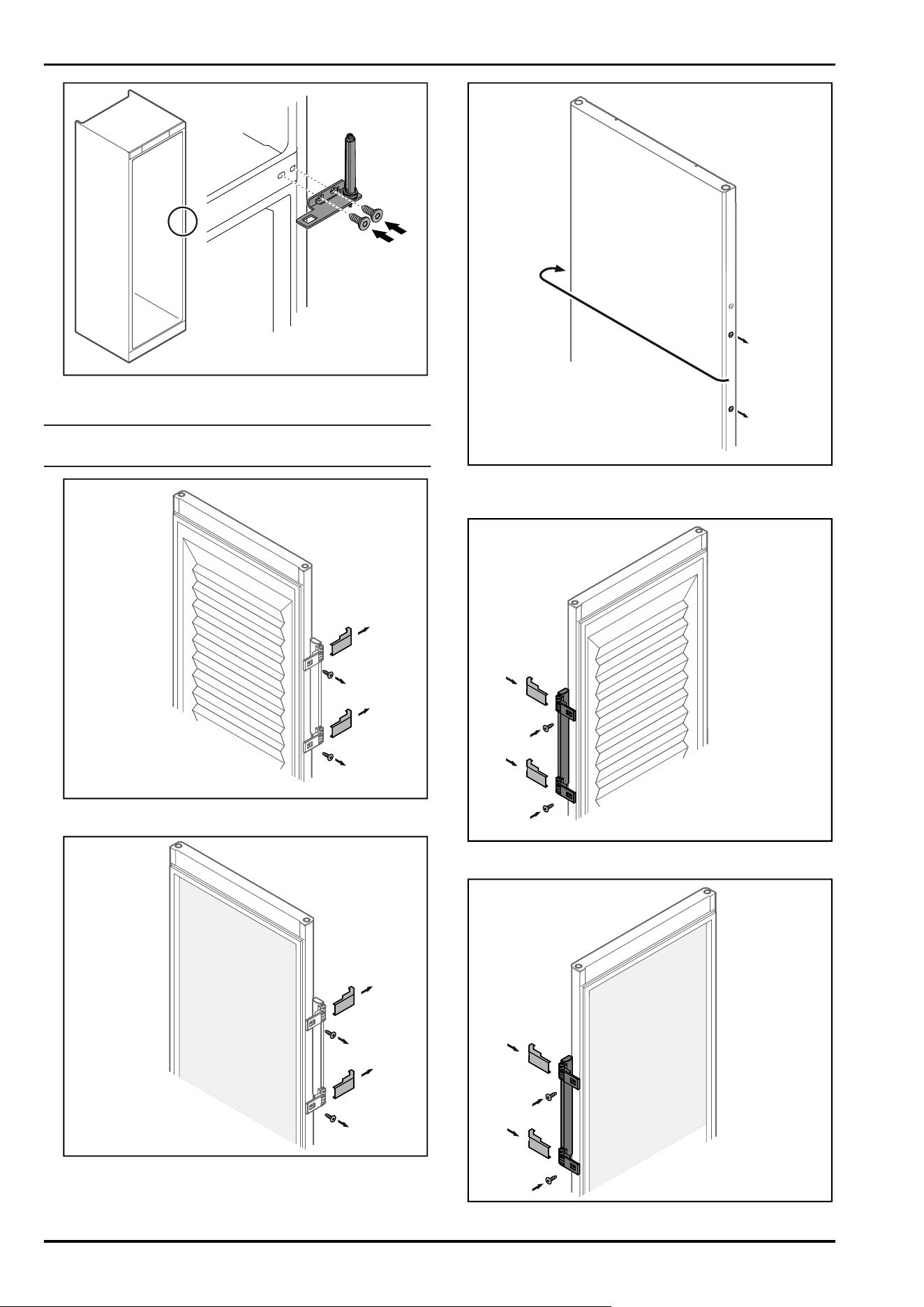

Fig. 24
► Screw the hinge back on.
Note
You must move the handle on both doors.
Fig. 25 Insulated door*
Fig. 26Glass door*
► Remove the panels.
► Unscrew the handle.
Fig.27
► Put the stopper on the opposite side.
Fig. 28 Insulated door*

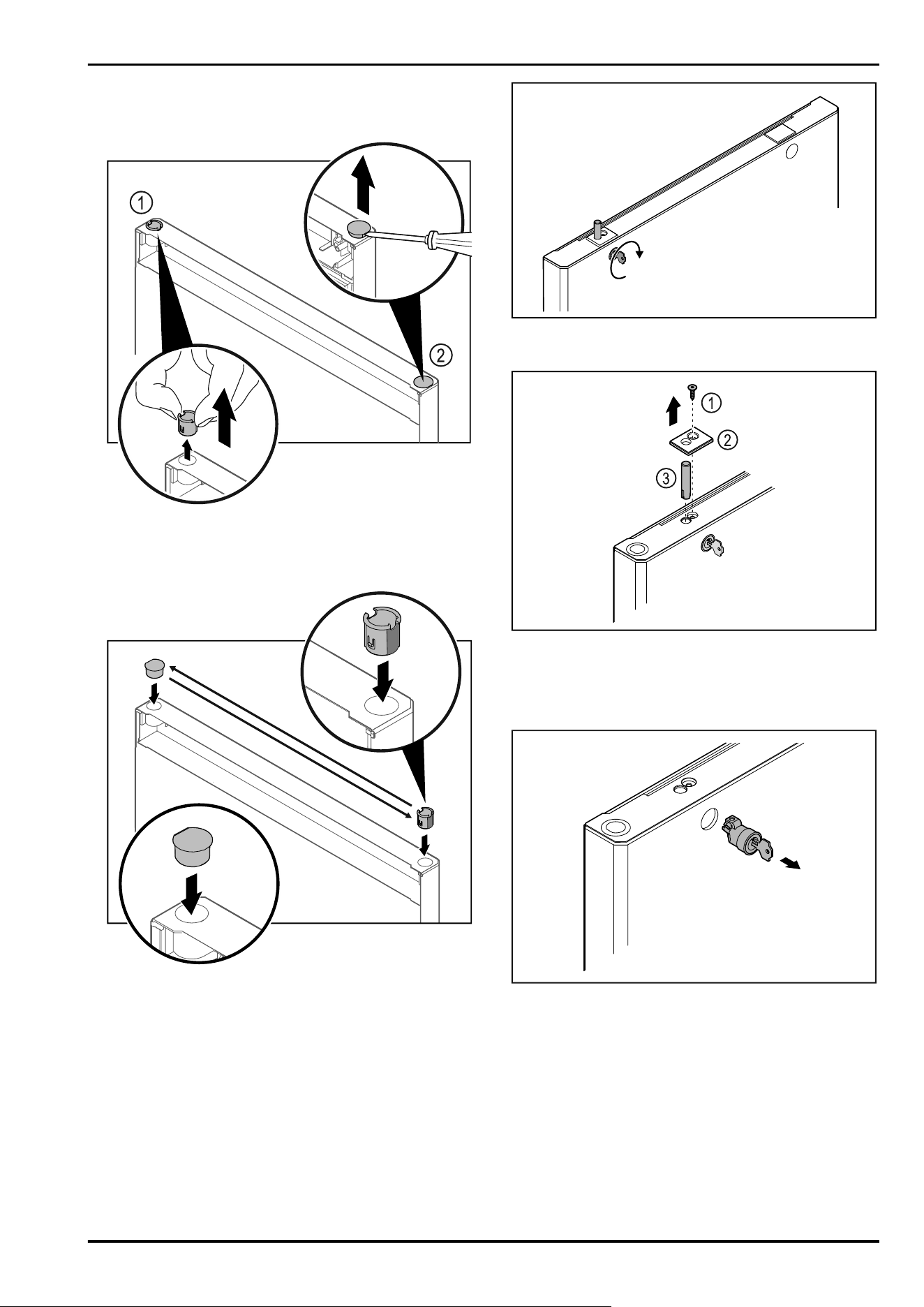

Setting up and connecting
* Depending on model and options 11
Fig.29Glass door*
► Screw the handle onto the opposite side.
► Attach the panels.

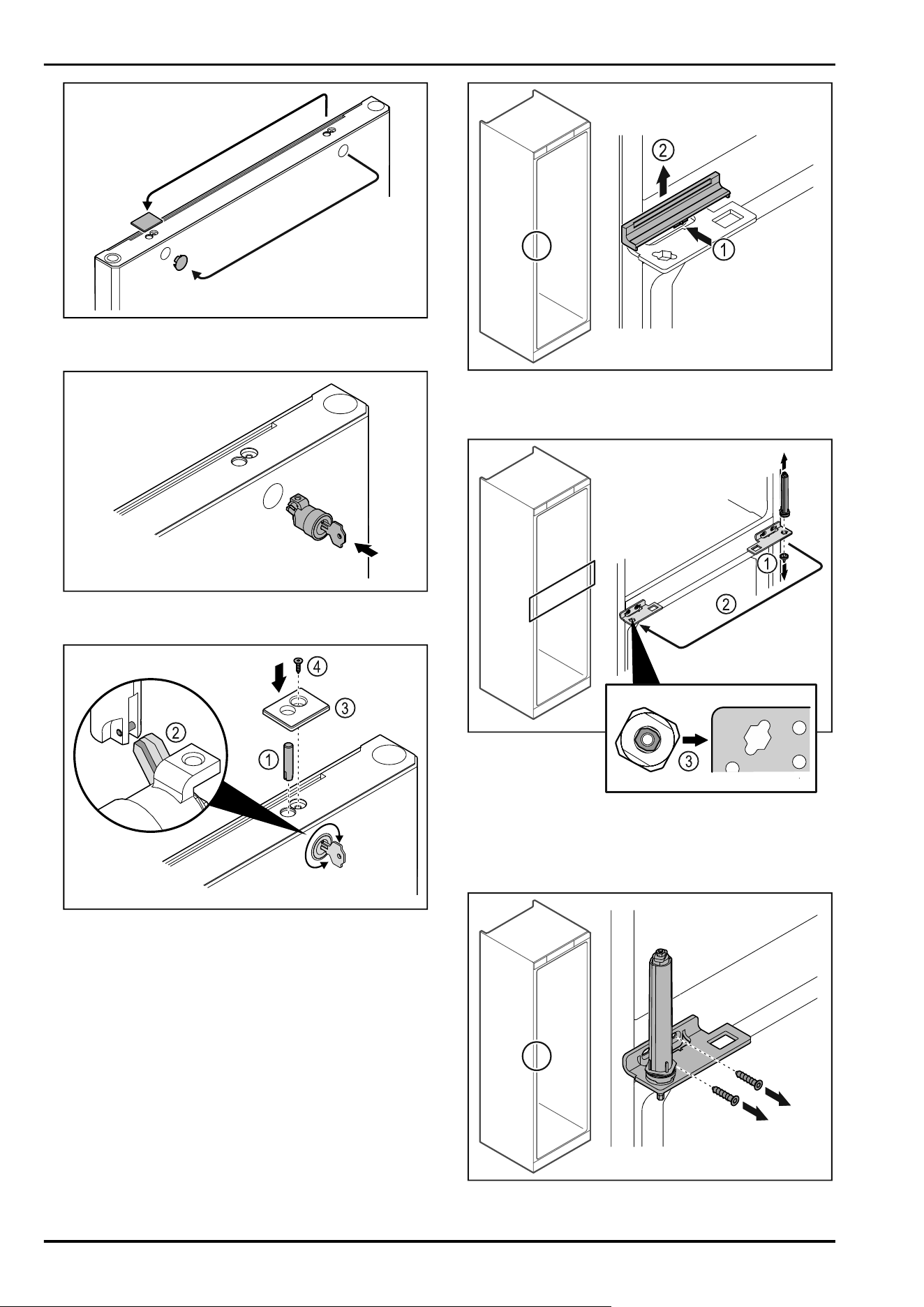

Fig. 30 Freezer compartment door
► Pull out the hinge bushing Fig.30(1) with your fingers.
► Carefully lift the cover plug Fig. 30 (2) with a slotted
screwdriver and pull it out.
Fig. 31 Freezer compartment door
► Insert hinge bushing and cover plug on the opposite side
(the flattened sides face outwards).
Fig. 32 Freezer compartment door
► Engage the lock.
Fig.33
► Remove the screw Fig.33(1).
► Unlatch the cover Fig.33(2) with a small screwdriver and
remove it.
► Pull out the lock bolt Fig.33(3).
Fig.34
► Pull out the lock.
Setting up and connecting
12 * Depending on model and options
Fig.35
► Put the covers on the opposite side.
Fig.36
► Put in the lock.
Fig.37
► Put in the lock bolt Fig.37(1).
► Turn the lock slightly so that the lock bolt Fig. 37 (2)
engages in the slot of the lock.
► Put in the cover Fig.37(3).
► Insert the screw Fig.37(4).
Fig.38
► Gently press the middle of the cover Fig. 38 (1) and lift it
off Fig.38(2).
Fig. 39
► Unscrew the hinge pin Fig. 39(1).
► Move the door closing system Fig. 39(2).
► When inserting, make sure that the door closing system
Fig. 39(3) is correctly aligned.
Fig.40
► Unscrew the hinge.
Setting up and connecting
* Depending on model and options 13

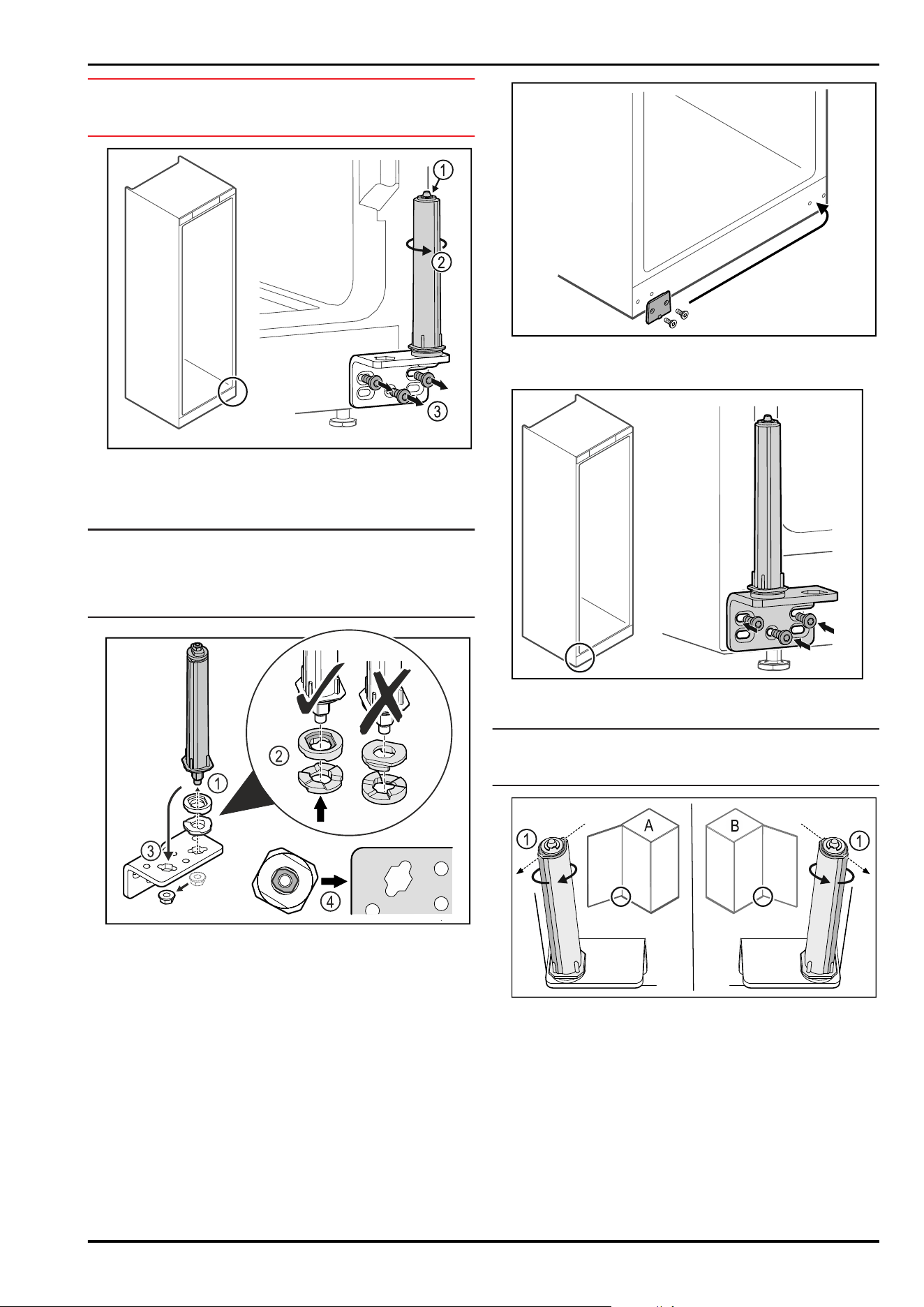

NOTICE
Risk of injury due to tensioned spring!
► Do not disassemble the door closing system Fig. 41(1).
Fig. 41
► Turn the closing system Fig. 41(2) until it clicks.
▷ The tension of the closing system is released.
► Unscrew the hinge Fig. 41(3).
Note
Incorrect positioning of the height adjustment discs.
It is no longer possible to secure the nut sufficiently.
► The washer must snap into place on the bottom of the
locking system.
Fig. 42
► Loosen the nut and remove the door closing system
Fig. 42(1).
► Observe the correct alignment of the height adjustment
washers Fig. 42(2).
► Put the door closing system in the hinge and fix in place
with the nut Fig. 42(3).
► Observe the correct alignment of the door closing system
when doing so Fig. 42(4).
Fig.43
► Put the cover plate on the opposite side.
Fig.44
► Screw the hinge onto the opposite side.
Note
Correct alignment and tension are important for the closing
system to work properly.
Fig. 45 Left-hinged (A) / Right-hinged (B)
► Turn the closing system against the resistance until the
bar of the closing system Fig.45(1) points outwards.
▷ The closing system automatically stays in this position.
▷ The closing system is now aligned and tensioned.
Setting up and connecting
14 * Depending on model and options
Fig.46
► Together with a second person, lift the door from the
ground and place it on the closing system.
Note
► Hold the door.
Fig. 47
► Screw on the hinge.
Fig.48
► Snap on the cover.
Fig. 49
► Put the hinge into the door.
Fig.50
► Carefully push the cable through.
NOTICE
Risk of injury if the door tips out!
► Hold the door.
Fig. 51 Left-hinged (A) / Right-hinged (B)
► Turn the closing system against the resistance until the
bar of the closing system Fig.51(1) points outwards.
▷ The closing system automatically stays in this position.
▷ The closing system is now aligned and tensioned.
Setting up and connecting
* Depending on model and options 15

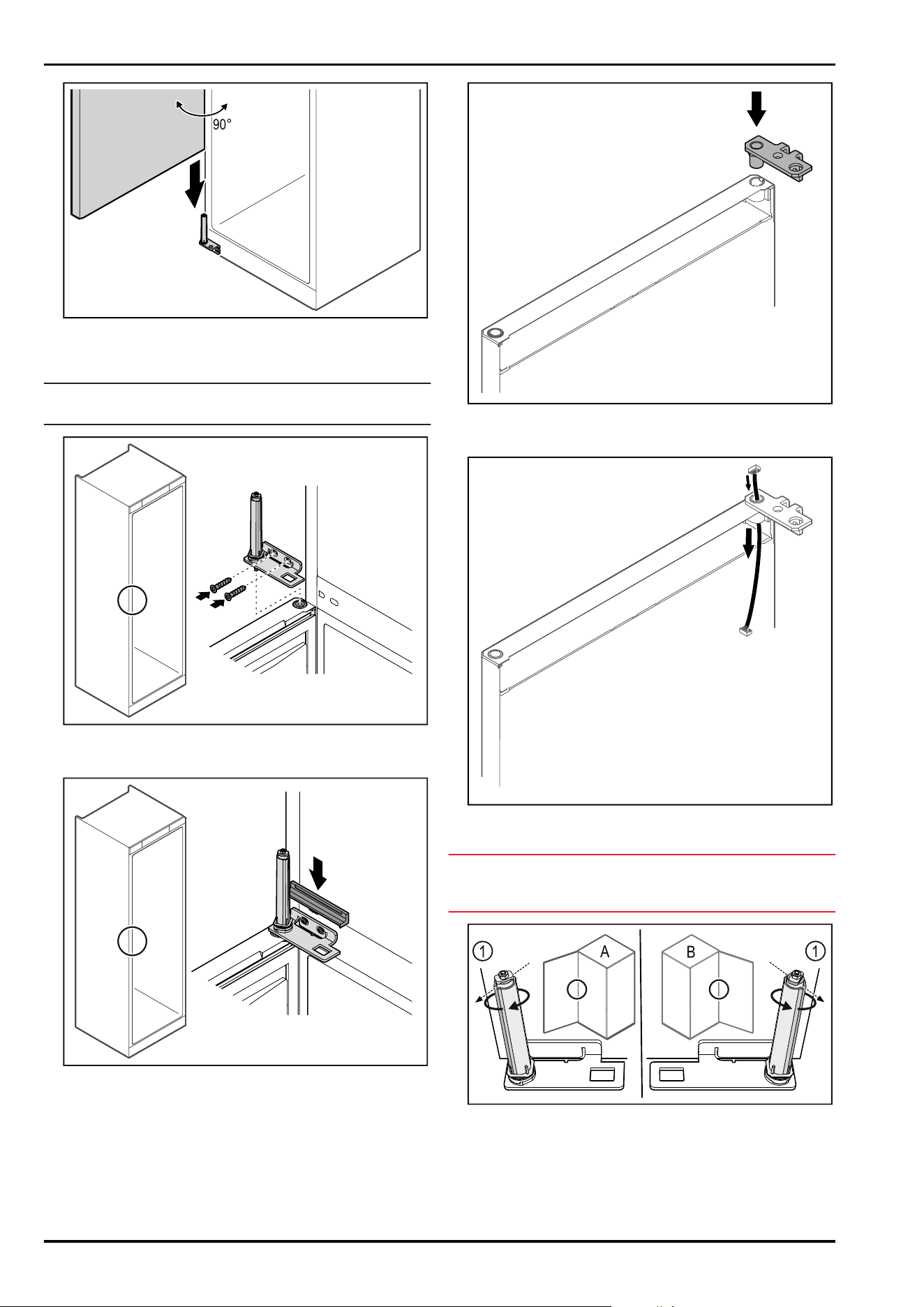

Fig.52
► Together with a second person, lift the door from the
ground.
► Carefully put the door on the closing system with the
door opened at a 90° angle.
NOTICE
Material damage due to incorrect mounting!
► Do not pinch the cable when mounting the hinge.
Fig.53
► Feed the cable through the recess in the hinge and lay it
carefully Fig.53(1).
► Screw on the hinge Fig.53(2).
Fig.54
► Put the plug Fig.54(1) in the plug holder.
-or-
Fig.55
► Plug the connector into the circuit board.
Fig.56
► Connect the plug Fig.56(1) to the circuit board.
Fig.57

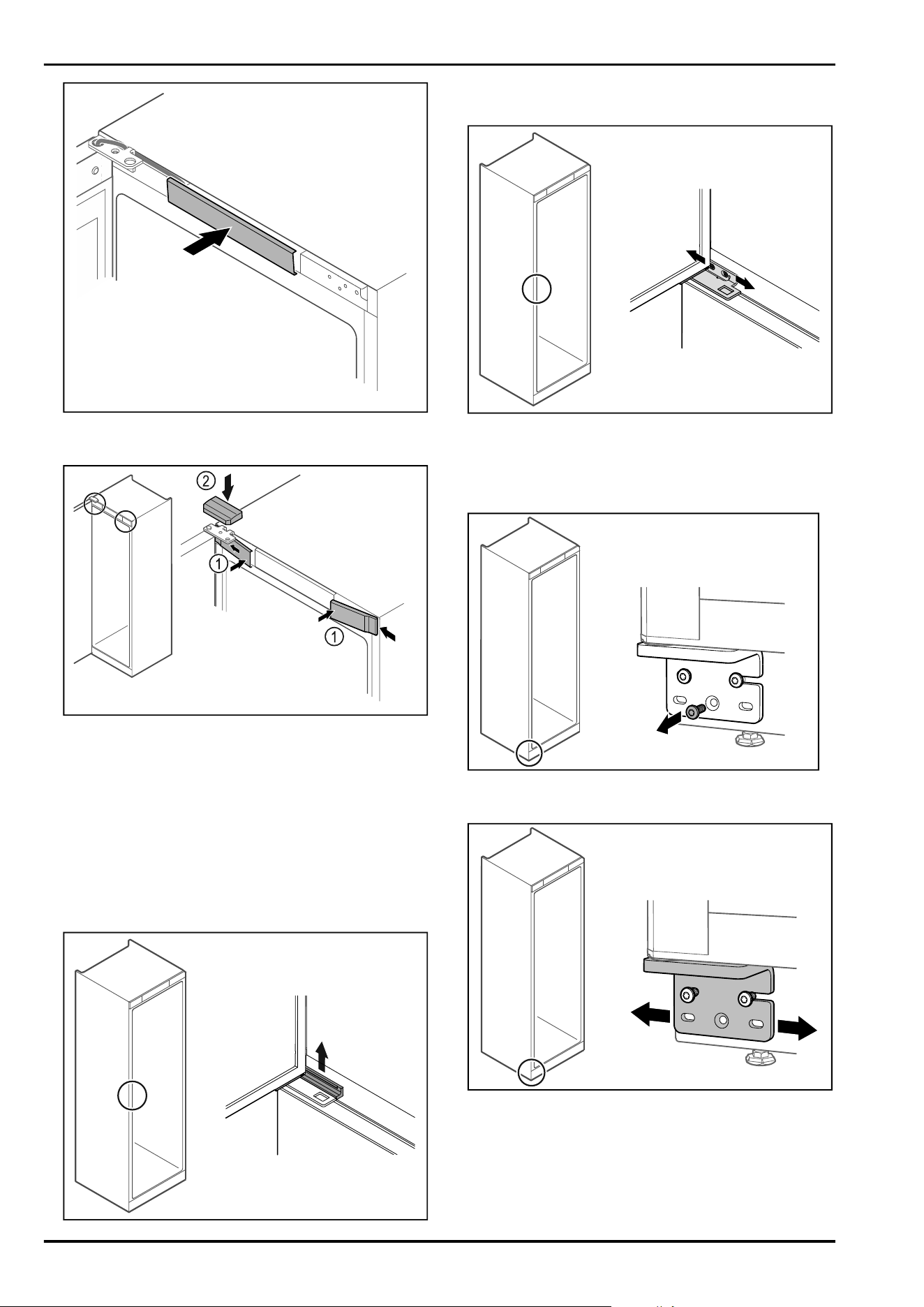

► Put on the cover.
Setting up and connecting
16 * Depending on model and options
Fig.58
► Snap in the middle cover.
Fig. 59
► Hook in the front covers Fig. 59 (1) on the side and snap
them into place.
► Snap on the top cover Fig. 59(2) from above.
► Close the door.
▷ The door has now been reversed.
3.6 Aligning the door
If the door is not straight, you can adjust it on the hinge.
Align the fridge compartment door before the freezer
compartment door.
Fig. 60 Fridge compartment
► Take off the cover.
Fig. 61 Fridge compartment
► Slightly undo both screws and move the door with the
hinge to the left or right.
► Tighten the screws.
► Put on the cover.
Fig. 62 Freezer compartment
► Remove the middle screw on the lower hinge.
Fig. 63 Freezer compartment
► Slightly undo both screws and move the door with the
hinge to the left or right.
► Fully tighten the screws (the middle screw is no longer
needed).
▷ The doors are now aligned.
Setting up and connecting
* Depending on model and options 17
3.7 Installing door handle

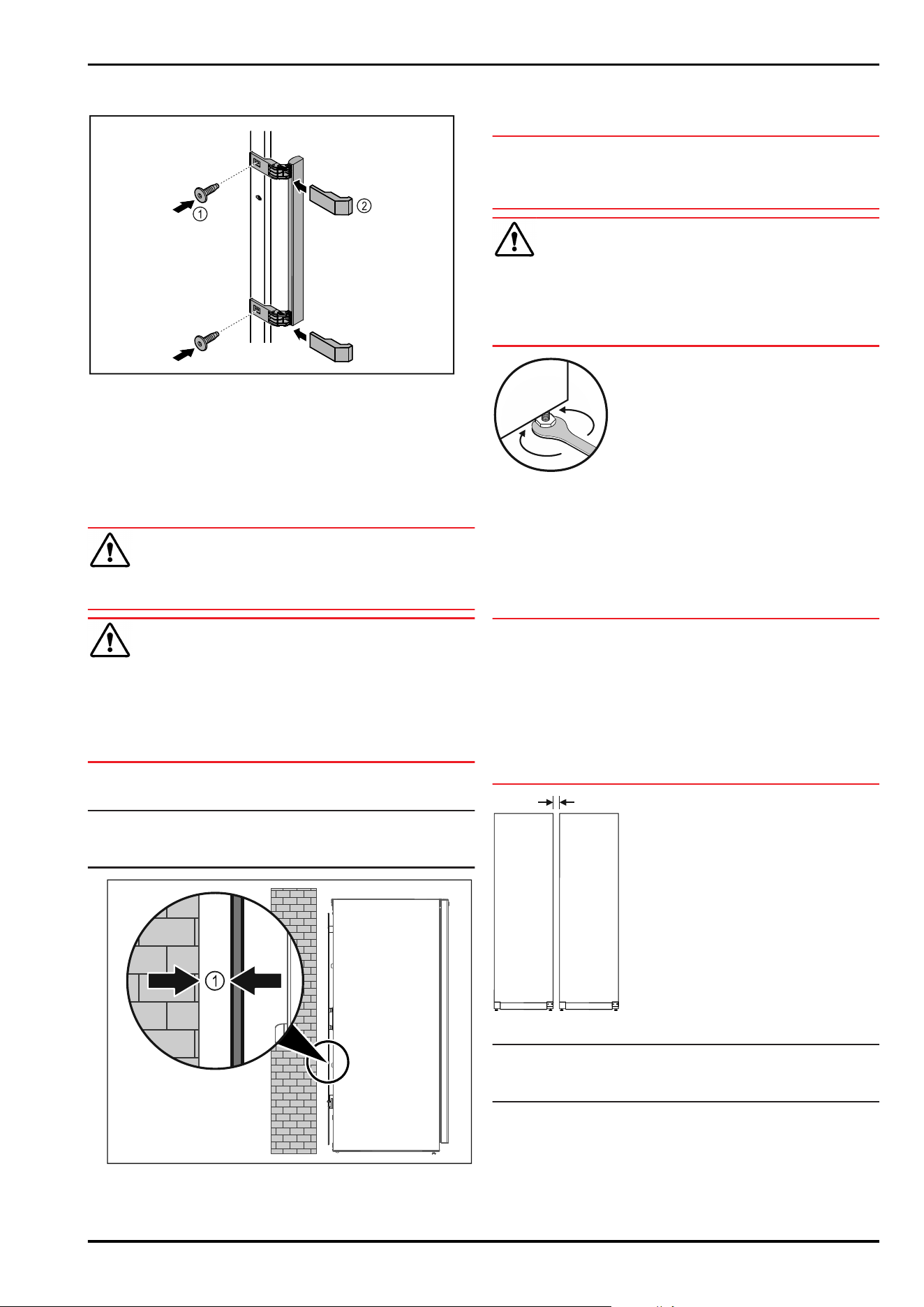

Fig.64
► Attach handle from accessory kit to the door using the
screws supplied Fig.64(1).
► Put on cover Fig.64(2).
► Insert the plug from the accessory pack on the opposite
side. *
3.8 Installing appliance
CAUTION
Risk of injury and damage.
► Use 2 people to install appliance.
CAUTION
Risk of injury and damage.
The door can knock against the wall and become damaged
as a result. In the case of glass doors, the damaged glass
can cause injuries.
► Protect the door from knocking against the wall. Attach
door stopper, e.g. felt stopper, to the wall.
► Connect all necessary components (e.g. mains cable) to
the back of the appliance and route to the side.
Note
Cables can be damaged.
► Do not jam the cable when pushing the appliance back.
Fig.65
► Set up the appliance either free-standing or directly
against a wall at a minimum distance of 5mm Fig.65(1).
3.9 Setting up the appliance so it is
level
NOTICE
Appliance body is deformed and door does not close.
► Align appliance horizontally and vertically.
► Compensate for uneven floors using adjustable feet.
WARNING
Incorrect height adjustment of the adjustable foot!
Can cause severe or even fatal injury. Incorrect height
adjustment can cause the bottom part of the adjustable
foot to come loose and the appliance to tip over.
► Do not unscrew the adjustable foot too far.
Fig.66
Raising appliance:
► Turn adjustable foot clockwise.
Lowering appliance:
► Turn adjustable foot anticlockwise.
3.10 Installing multiple appliances
NOTICE
Risk of damage due to condensation between the side
walls.
► Do not install the appliance directly next to another
fridge.
► Install appliances with a space 3cm between appliances.
► Only install multiple appliances up to temperatures of
35°C and 65% humidity next to one another.
► At higher levels of humidity, increase space between
appliances.
Fig. 67 Side-by-side installation
Note
A side-by-side kit is available as an accessory via Liebherr
Customer Service. (see 10.3 Customer Service)
3.11 After installation
► Peel off the protective films. *
► Clean appliance. (see 9.2Cleaning the appliance)
► If necessary: Disinfect the appliance.
Setting up and connecting
18 * Depending on model and options
► Keep the invoice so you have the appliance and dealer
information available if needed.
3.12 Disposing of packaging
WARNING
Danger of suffocation due to packing material and plastic
film!
► Do not allow children to play with packing material.
The packaging is made of recyclable materials:
-
corrugated board/cardboard
-
expanded polystyrene parts
-
polythene bags and sheets
-
polypropylene straps
-
nailed wooden frame with polyethylene panel*
► Take the packaging material to an official collecting
point.
3.13 Connecting the appliance to the
power supply
WARNING
Danger of electric shock and injury due to damaged appli‐
ance or damaged mains cable!
Danger of cuts and fatal injuries. If the appliance or the
mains cable is damaged during transport, you may be elec‐
trocuted. You could also cut yourself on damaged parts of
the appliance housing.
► Check the appliance and the mains cable for damage
after transport.
► Never put the appliance into operation if the appliance or
the mains cable are damaged.
► Contact Customer Service.
You can connect your appliance to the mains using the
power cable supplied separately. The mains power cable
has an appliance coupler at one end and a mains plug at the
other end.
Make sure that the following requirements are fulfilled:
-
The appliance and power cable are undamaged.
-
The appliance is set up in accordance with the regula‐
tions. (see 3.7 Installing door handle)
-
Requirements for the electrical connection are met.
-
Dimensions for connection in accordance with regula‐
tions are known and observed.
-
Mains voltage and frequency correspond to the specifica‐
tions on the type plate.
-
The socket is earthed according to the regulations and
fused.
-
The fuse tripping current is between 10A and 16A.
-
The socket is easily accessible and is not behind the
appliance.
NOTICE
Danger of damage to incorrect operation!
Damage to the electrical components of the appliance.
► Only use the supplied mains cable.
► Mains cable too short: Order a longer mains cable via
customer service. (see 10.3 Customer Service)

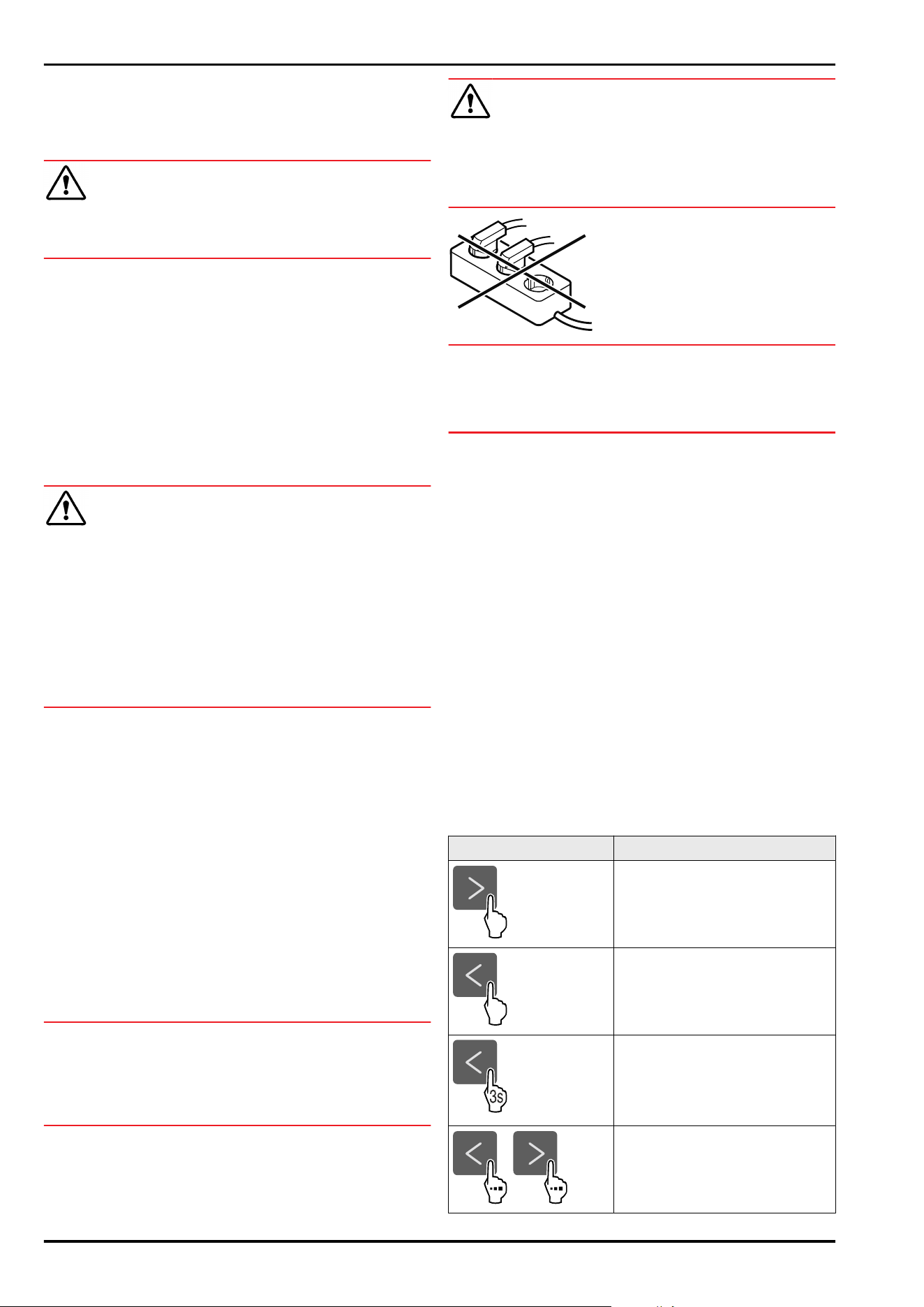

WARNING
Danger of fire due to incorrect connection!
Burns.
Damage to the appliance.
► Do not use an extension cable.
► Do not use distributor blocks.
NOTICE
Danger of damage to incorrect connection!
Damage to the appliance.
► Do not connect the appliance to a stand-alone inverter,
e.g. solar power systems and petrol generators.
► Connect the mains cable plug to the power supply.
Ensure that the plug is tightly in the socket.
▷ The standby symbol appears in the display.
▷ If no action occurs within 60 seconds: The standby
symbol fades or disappears.
▷ The appliance is connected. For information regarding
first use, see the following section or the operating
instructions.
4 Functionality of the Touch
display
You operate your appliance using the Touch display. You
select appliance functions in the Touch display (hereafter
referred to as display) by tapping them. If you do not
perform any action on the display for 10 seconds, the
display either jumps back to the higher-level menu or
directly to the status display.
4.1 Navigation and symbol explanation
In the illustrations, different symbols are used to navigate
the display. The following table describes these symbols.
Symbol
Description
Press the Next navigation
arrow:
Navigates to the next option in
the menu.
Press the Back navigation
arrow:
Jumps back one option in the
menu.
Press and hold the Back naviga‐
tion arrow for 3seconds:
Jumps back to the status
display in the main menu or from
the Settings menu.
Press the navigation arrow
several times in succession:
Navigates in the menu to the
desired function.
Functionality of the Touch display
* Depending on model and options 19

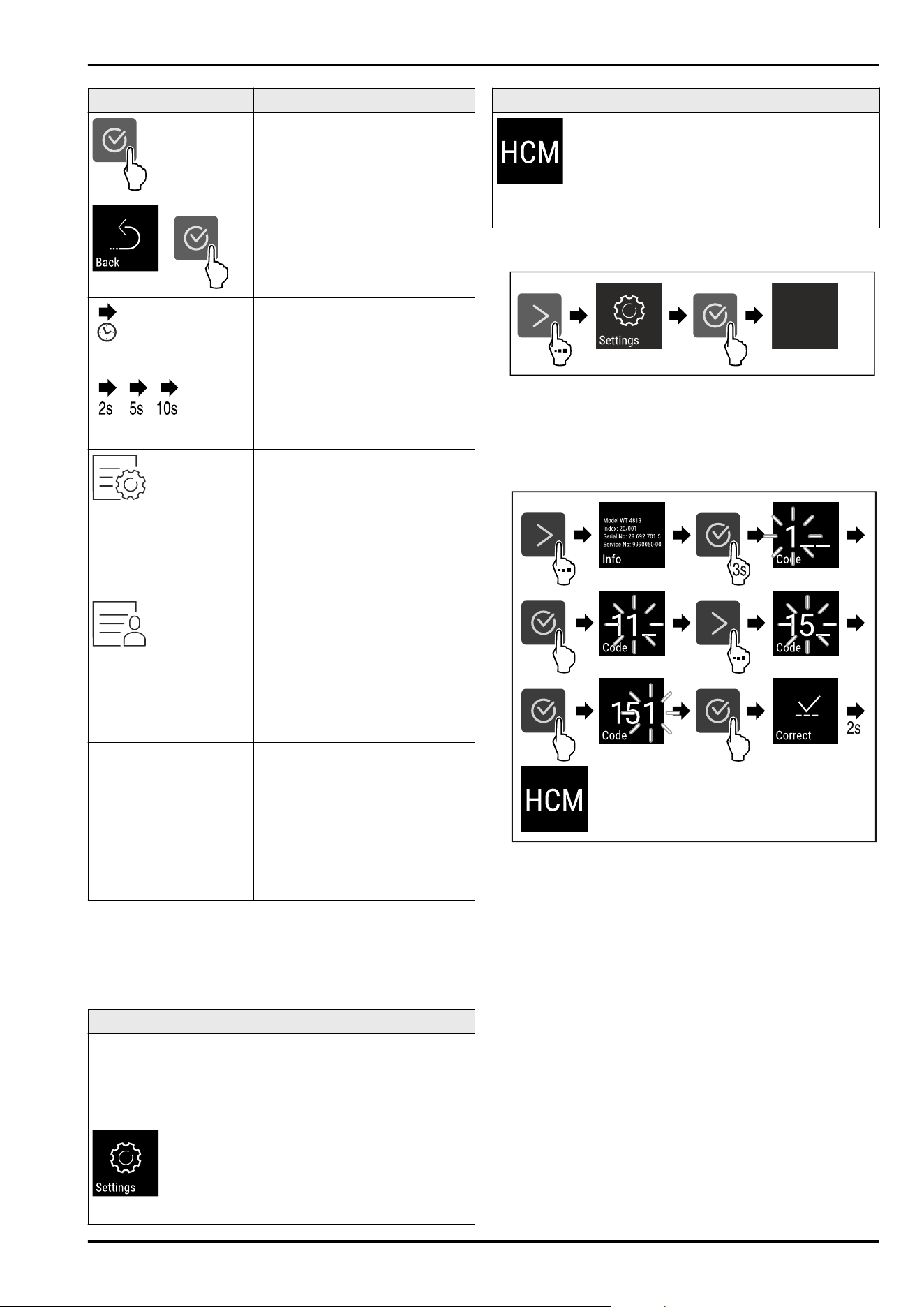

Symbol Description
Press the Confirm symbol:
Activates/deactivates function.
Opens submenu.
Press the Confirm symbol
together with the back icon:
Jumps back one menu level.
Arrow with clock:
It takes more than 10 seconds
for the following message to
appear in the display.
Arrow with a time indication:
It takes the specified amount of
time until the following message
appears in the display.
“Open Settings menu” symbol:
Navigates to the Settings menu
and opens the settings menu.
If necessary: Navigate to the
desired function in the Settings
menu.
(see 4.2.1 Opening the Settings
menu)
“Open Advanced menu” symbol:
Navigates to the Advanced menu
and opens the advanced menu.
If necessary: Navigate to the
desired function in the Advanced
menu.
(see 4.2.2 Opening the Advanced
menu)
No action for
10seconds
If you do not perform any action
on the display for 10 seconds,
the display either jumps back to
the higher-level menu or directly
to the status display.
Opening door and
closing it again
If you open the door and immedi‐
ately close it again, the display
jumps directly back to the status
display.
Note: Illustrations of the display are shown in the English
version.
4.2 Menus
The appliance functions can be found in various menus.
Menu
Description
Main menu When you switch the appliance on, you are
automatically in the main menu.
From here you can navigate to the most
important appliance functions, to the
Settings menu and to the Advanced menu.
Settings menu
The Settings menu contains additional
appliance functions for setting up your
appliance.
(see4.2.1 Opening the Settings menu)
Menu Description
Advanced
menu
The advanced menu contains special
appliance functions for setting up your
appliance. Access to the Advanced menu
is protected by the numerical code 151.
(see4.2.2 Opening the Advanced menu)
4.2.1 Opening the Settings menu
Fig. 68 Example illustration
► Carry out action steps according to the illustration.
▷ Settings menu is open.
► If necessary: Navigate to the desired function.
4.2.2 Opening the Advanced menu
Fig. 69Access with numerical code 151
► Carry out action steps according to the illustration.
▷ The expanded menu is open.
► If necessary: Navigate to the desired function.
4.3 Sleep mode
If you do not touch the display for 1 minute, the display
switches to sleep mode. In sleep mode, the display bright‐
ness is dimmed.
4.3.1 Ending sleep mode
► Press any navigation key.
▷ Sleep mode is ended.
Functionality of the Touch display
20 * Depending on model and options
5 Putting into operation
5.1 Switching on appliance (first use)
Make sure the following prerequisites are met:
- Appliance is installed and connected.
- All adhesive strips, adhesive and protective films and
transport locks are removed from inside and outside the
appliance.

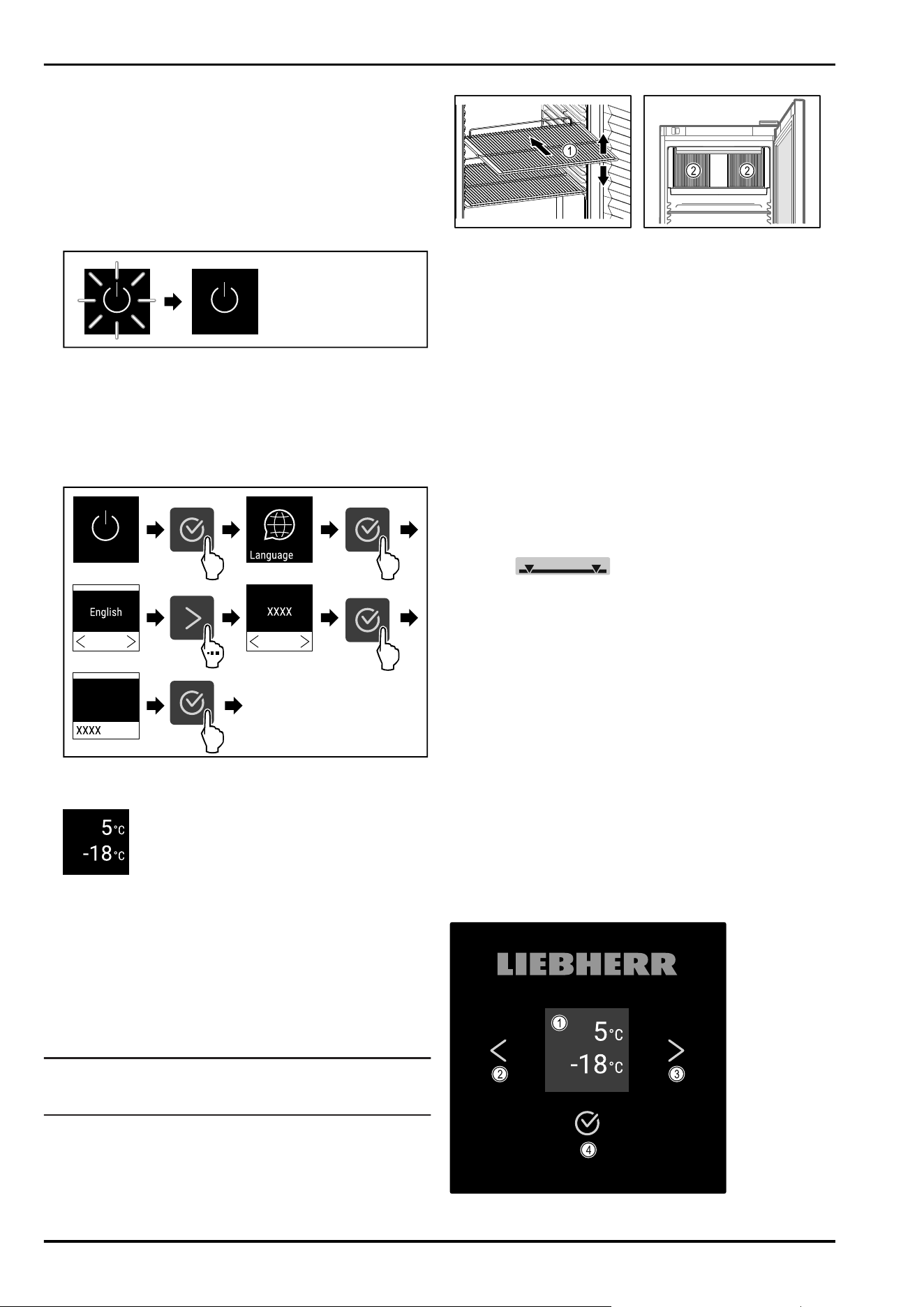

Fig. 70 Example illustration
The standby symbol flashes until the startup process is
complete.
The standby symbol is shown in the display.
If the appliance has been supplied with factory settings, the
screen language first needs to be selected when using for
the first time.
3s
Fig.71
► Carry out action steps according to the illustration.
Fig.72
▷ The appliance is switched on once the temperature
appears in the display.
▷ The temperature display flashes until the set tempera‐
ture is reached.
6 Storage
6.1 Information regarding storage
Note
Failure to follow these guidelines can lead to food becoming
spoiled.
Fig. 73 Example illustration Fig. 74
When stocking observe the following:
❑
If storage surfaces Fig. 73 (1) are movable, adjust them
according to height.
❑
Observe maximum load weight. (see 10.1 Technical speci‐
fications)
❑
Do not load appliance until storage temperature has been
reached (maintain cold chain).
❑
Ventilation slots Fig. 74 (2) for recirculation fan in the
interior must be kept clear.
❑
Refrigerated goods must not touch the rear wall.
❑
Refrigerated items do not protrude beyond the shelves.
❑
Keep liquids in closed containers.
❑
Package raw meat or fish in clean, closed containers.
This will prevent meat or fish from touching or dripping
onto other food.
❑
Leave space when storing items for refrigeration to
ensure good air circulation.
❑
Do not stack refrigerated products above the indicated
height.
This is important for free air circulation and even temper‐
ature distribution in the interior.
6.2 Storage times
The best-before date specified on the packaging should be
used as the reference point for the storage time.
7 Controls
7.1 Control and display elements
The display provides a quick overview of the current appli‐
ance status, the temperature setting, the status of func‐
tions and settings as well as alarm and error messages.
It is operated using the navigation arrows and confirmation
symbol.
Functions can be activated or deactivated and setting
values can be changed.
Putting into operation
* Depending on model and options 21
Fig.75Display
(1) Status display (3) Forward navigation
arrow
(2) Backwards navigation
arrow
(4) Confirm

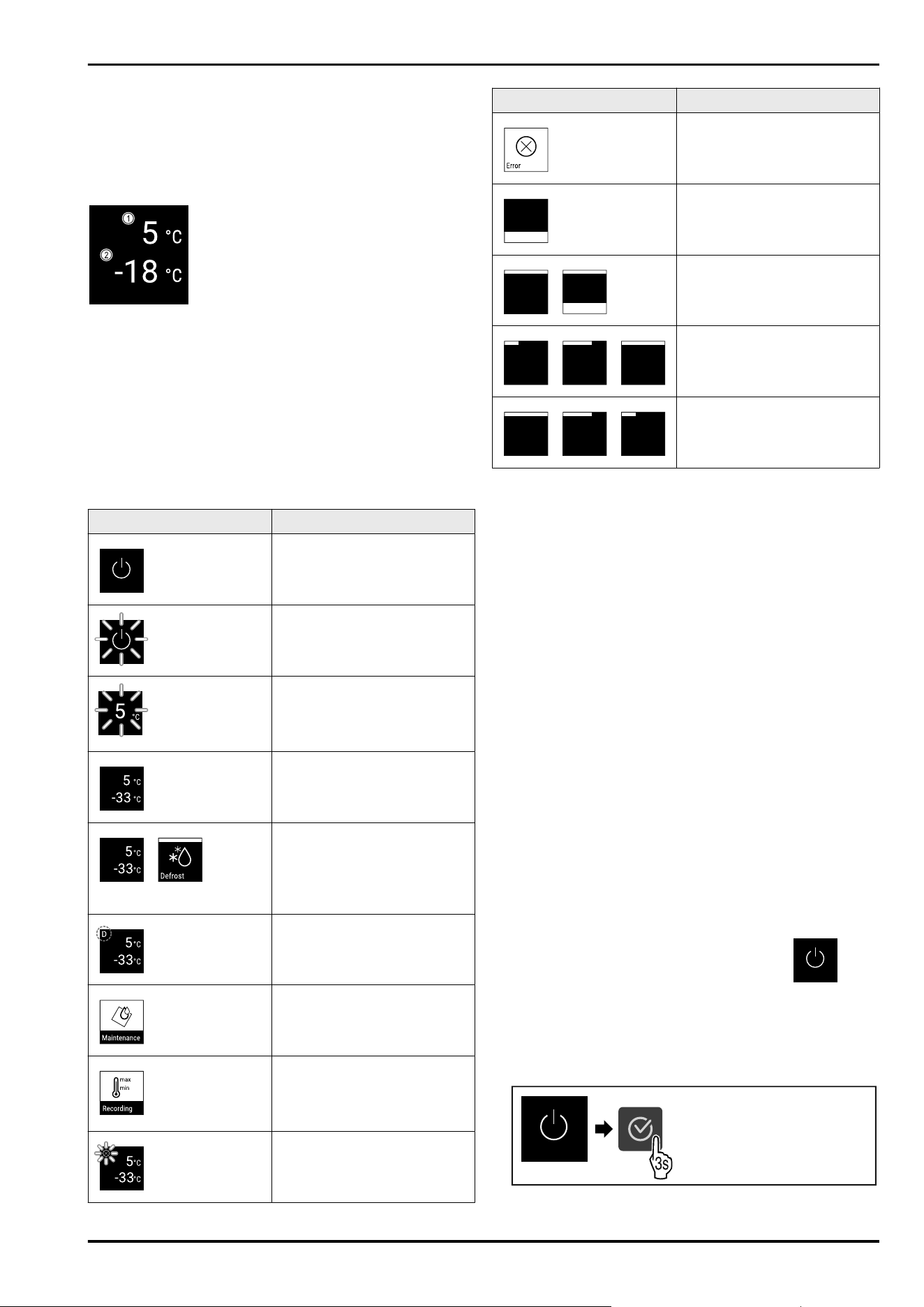

7.1.1 Status display
Fig. 76 Status display
(1)
Temperature, refriger‐
ator compartment
(2) Temperature, freezing
compartment
The status display shows the temperature and is the home
display. You navigate from here to the other functions and
settings. The status display may show a range of display
symbols.
7.1.2 Display symbols
Display symbols provide information about the status of the
appliance.
Symbol
Appliance status
Standby
Appliance is switched off.
Flashing standby symbol
Appliance is starting up.
Flashing temperature
Target temperature not yet
reached. Appliance cooling to
temperature set.
Temperature display
Appliance displays the set
temperature.
Display alternating between
temperature/defrost symbol
with white bar
Appliance is in manual
defrosting mode
D in the display
Appliance is in DemoMode.
Maintenance reminder
The time interval set has
expired.
Data memory full
The data memory (999 hours)
is full. From now, the oldest
data will be overwritten.
Flashing symbol
A fault is still active.
Symbol Appliance status
Error symbol
Appliance is in error state.
White bar at the bottom
Submenu
White bar at the top
Default, active setting or
active value
Increasing bar
Press button for 3 seconds to
activate setting.
Decreasing bar
Press button for 3 seconds to
deactivate setting.
Status display symbols
7.1.3 Acoustic signals
A signal sounds in the following cases:
-
If a function or a value is confirmed.
-
If a function or a value can either not be activated or not
deactivated.
-
As soon as an error occurs.
-
If there is an alarm message.
The alarms can be switched on and off in the customer
menu.
7.2 Appliance functions
7.2.1 Notes on the appliance functions
The appliance functions are set at the factory so that your
appliance is fully functional.
Before you alter, activate or deactivate the device functions,
make sure that the following requirements are met:
❑
You have read and understood the descriptions of how
the display works. (see 4 Functionality of the Touch
display)
❑
You have familiarised yourself with the operating and
display elements of your appliance. (see 7.1 Control and
display elements)

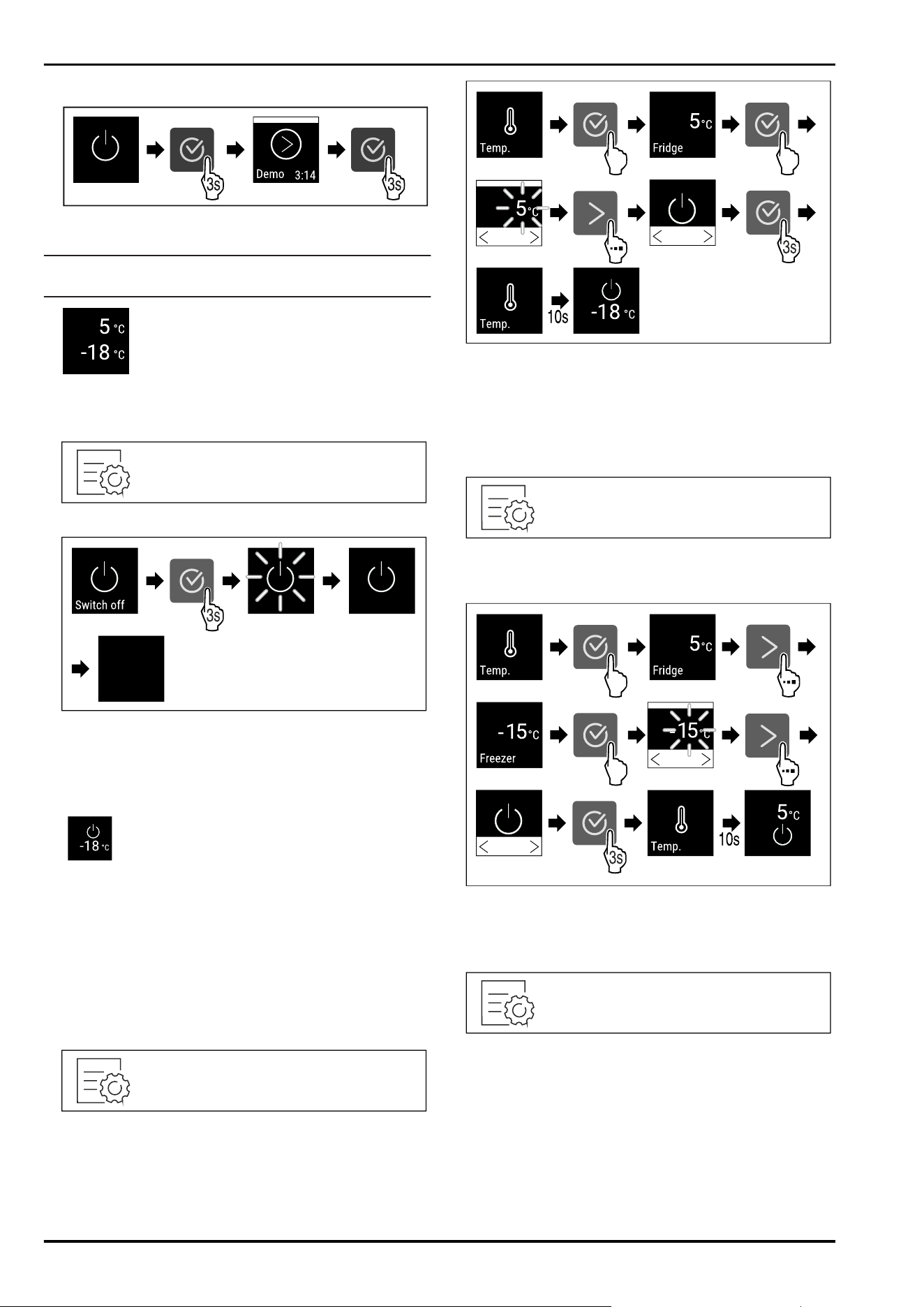

7.2.2 Switching appliance on and off
Using this setting the entire appliance can be switched on
and off.
Switching on appliance
Without activated DemoMode:
Fig.77
► Carry out action steps according to the illustration.
Controls
22 * Depending on model and options
With activated DemoMode:
Fig.78
► Carry out action steps according to the illustration.
Note

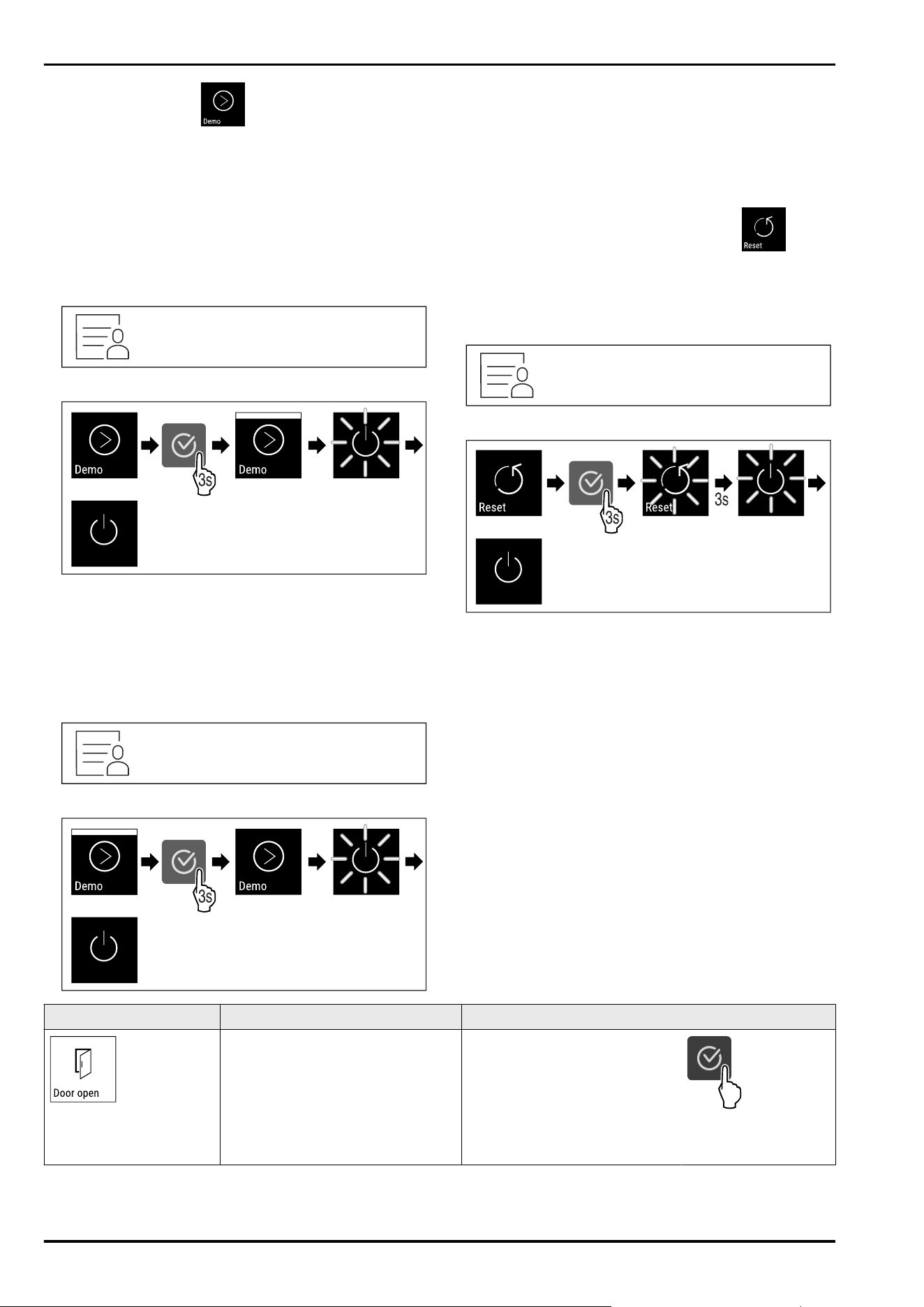

Deactivate DemoMode before countdown finishes.
Fig.79
▷ The temperature appears in the display.
Switching off appliance
Fig.80
Fig.81
► Carry out action steps according to the illustration.
▷ Standby symbol is shown in the display.
▷ Display switches off after approximately 10 minutes.
7.2.3 Switching temperature zone off and
on
You can switch temperature zones of the appliance off inde‐
pendently.
Application:
-
Cleaning
-
Defrosting
Switching the fridge compartment off
Make sure that the following requirements are fulfilled:
❑
Refrigerator compartment has been emptied.
Fig.82
► Tap navigation arrow repeatedly until corresponding
function is displayed.
Fig.83
► Carry out action steps according to the illustration.
▷ Refrigerator compartment is switched off.

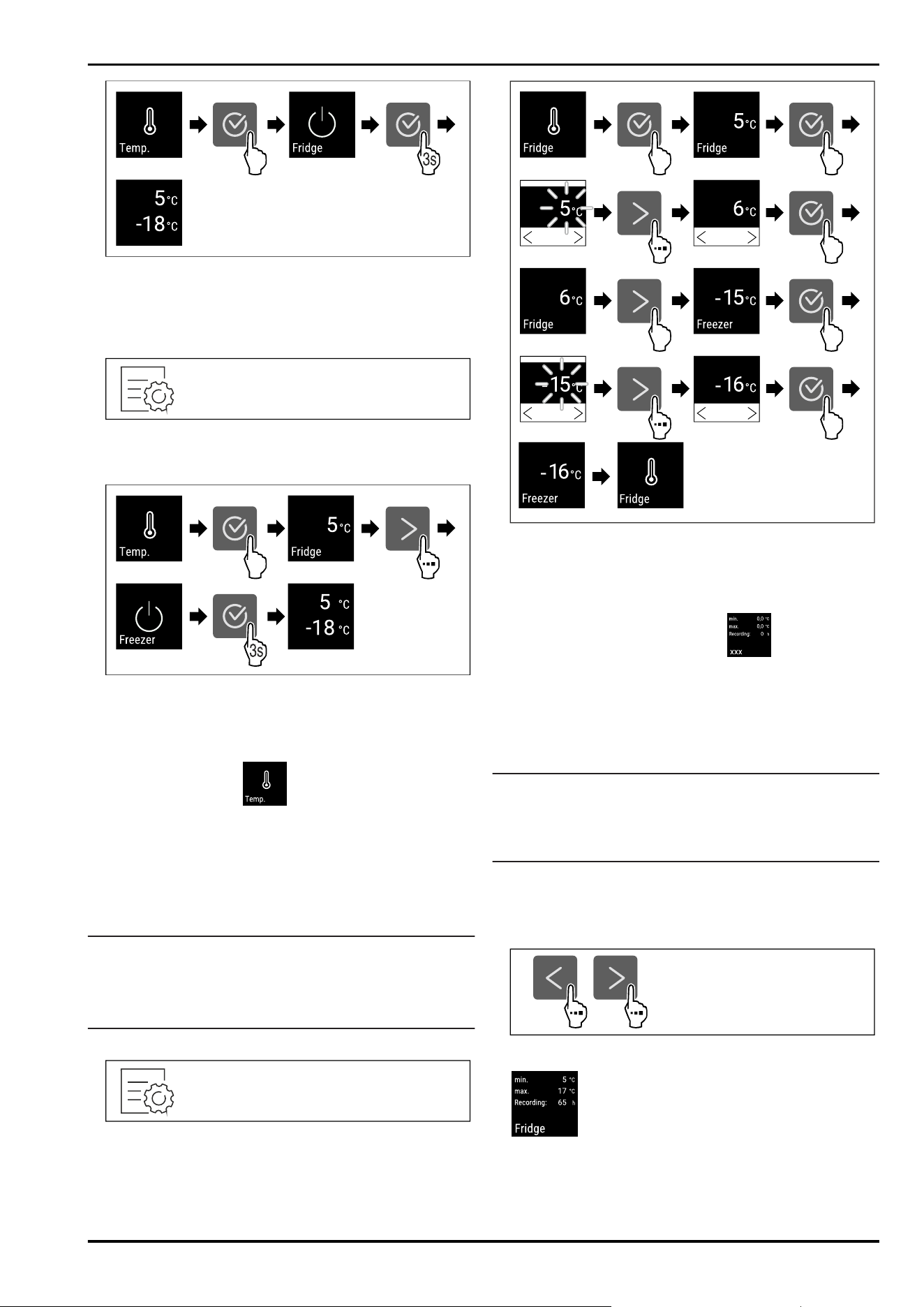

Switching the freezer compartment off
Make sure that the following requirements are fulfilled:
❑
Freezer compartment has been emptied.
Fig.84
► Tap navigation arrow repeatedly until corresponding
function is displayed.
Fig.85
► Carry out action steps according to the illustration.
▷ Freezer compartment is switched off.
Switching the fridge compartment on
Fig.86
► Tap navigation arrow repeatedly until corresponding
function is displayed.
Controls
* Depending on model and options 23
Fig. 87
► Carry out action steps according to the illustration.
▷ Refrigerator compartment is switched on.
▷ The appliance cools to the last set temperature.
Switching the freezer compartment on
Fig.88
► Tap navigation arrow repeatedly until corresponding
function is displayed.
Fig.89
► Carry out action steps according to the illustration.
▷ Freezer compartment is switched on.
▷ The appliance cools to the last set temperature.
7.2.4 Temperature
The temperature depends on the following factors:
-
How often the door is opened
-
How long the door is open for
-
The room temperature of the installation site
-
The type, temperature and amount of frozen/refrigerated
food
Note
The temperature may differ from the temperature displayed
in some areas of the interior.
At the correct temperature, frozen and refrigerated food will
keep for longer. This avoids disposing of food unnecessarily.
Setting temperature
Fig.90
Fig. 91 Changing temperature from 5°C to 6°C and from
-15°C to -16°C
► Carry out action steps according to the illustration.
▷ Temperature is set.
7.2.5 Temperature recording
The appliance displays the minimum and maximum temper‐
atures of the interior. The recording of these temperatures
starts automatically after the appliance is switched on; they
are recorded at one minute intervals. A note indicating that
the data memory is full is displayed after 999 hours (approx.
40 days). The temperature recording should then be reset.
Note
We recommend resetting the temperature recording once
after reaching the set temperature when the appliance is
commissioned. This ensures that the value displayed for the
maximum temperature is a meaningful value.

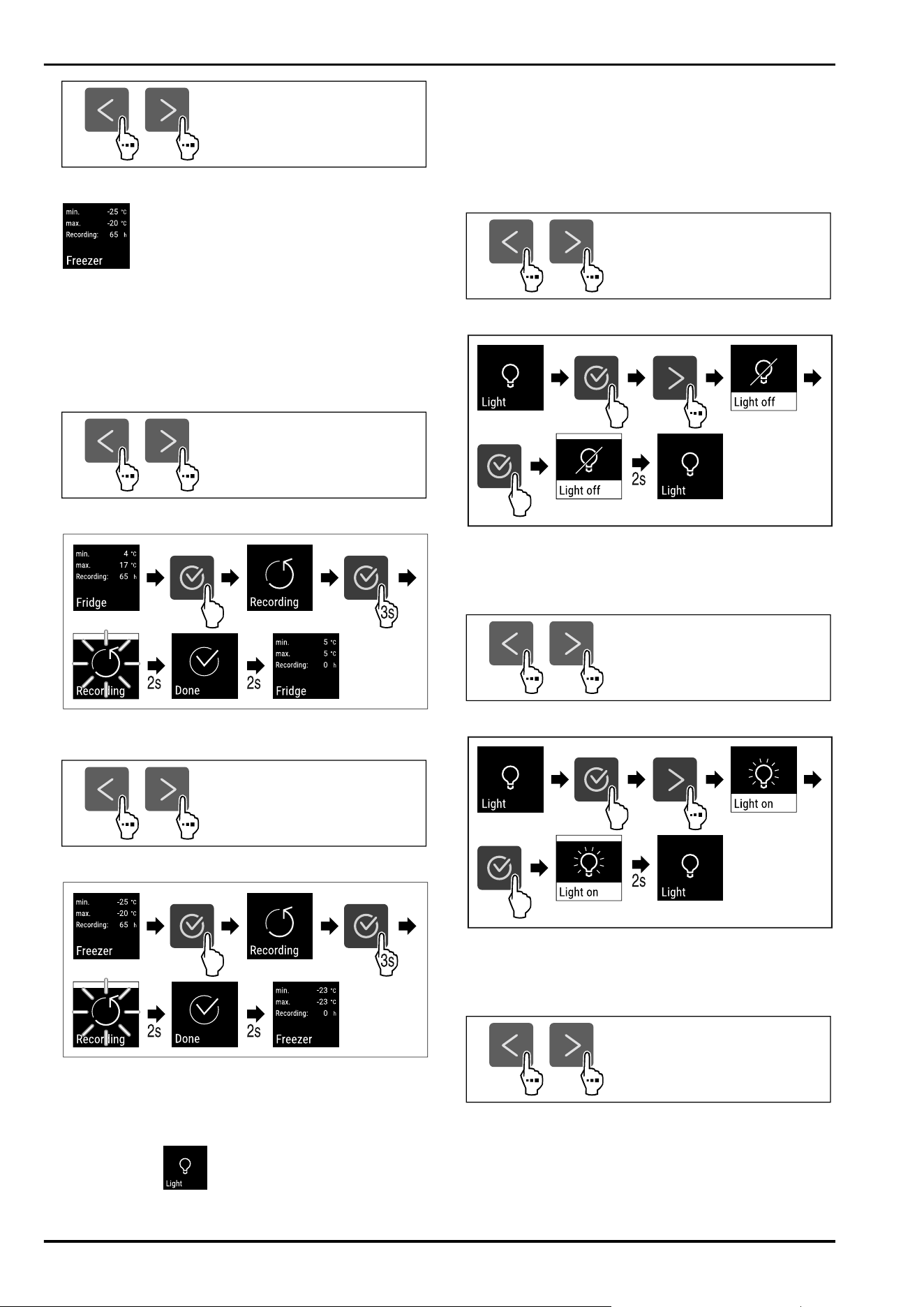

Displaying temperature recording
The temperature recording displays the length of the
recording and the minimum and maximum temperatures
measured during this period of time.
Fig.92
Fig. 93
Controls
24 * Depending on model and options
Fig. 94
Fig.95
▷ Status screen with the temperature recordings is
displayed.
Resetting temperature recording
The displayed minimum and maximum temperatures can be
reset at any time. This deletes the displayed values and the
recording interval starts again.
Fig.96
Fig.97
► Carry out steps according to the illustration.
Fig.98
Fig.99
► Carry out steps according to the illustration.
▷ Temperature recording is reset.
▷ Recording interval starts again.
7.2.6 Lighting
The appliance is fitted with interior lighting.
You can keep the interior lighting on continuously.
(see Switching on lighting*) *
When you open the appliance door, the interior lighting
switches on.
You can also deactivate this function. (see Switching off the
lighting when opening the door*) *
Switching off lighting*
Fig. 100
Fig. 101
► Carry out action steps according to the illustration.
▷ Lighting is switched off.
Switching on lighting*
Fig. 102
Fig. 103
► Carry out action steps according to the illustration.
▷ Lighting is switched on.
Switching off the lighting when opening the door*
Fig. 104
Controls
* Depending on model and options 25
Fig. 105
► Carry out action steps according to the illustration.
▷ The lighting is switched off when the door is opened.
Switching on the lighting when opening the door*
Fig. 106
Fig. 107
► Carry out action steps according to the illustration.
▷ The lighting is switched on when the door is opened.

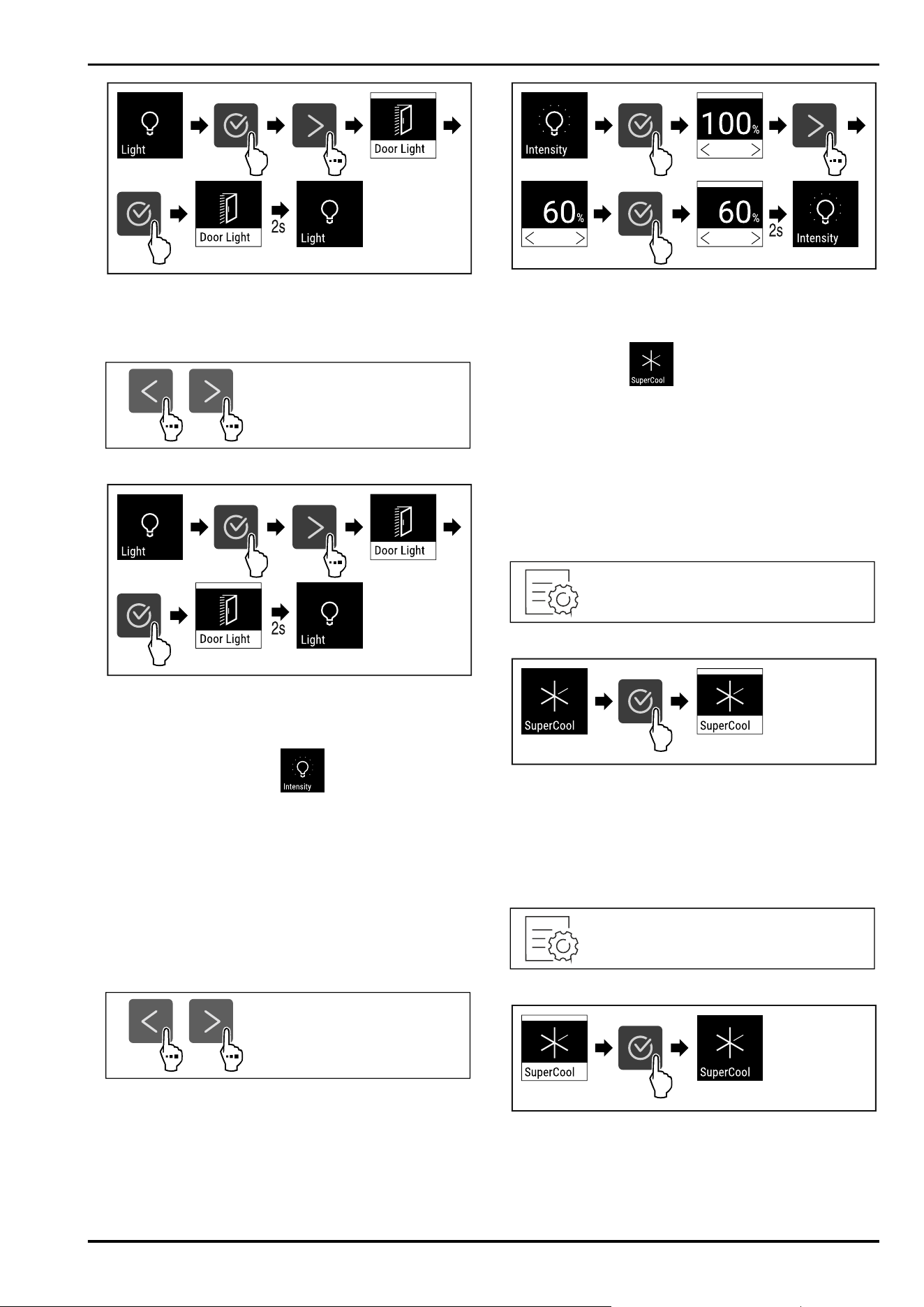

7.2.7 Lighting intensity
This setting allows the interior brightness to be adjusted
incrementally.
The following brightness values can be set:
-
20%
-
40%
-
60%
-
80%
-
100% (default)
Setting lighting intensity
Fig. 108
Fig. 109
► Carry out action steps according to the illustration.
▷ The lighting intensity increases or decreases accordingly.
7.2.8 SuperCool
You can use this function to activate or deactivate Super‐
Cool. If SuperCool is activated, then the appliance increases
the cooling capacity. It allows you to achieve lower cooling
temperatures. You can activate SuperCool when you would
like to cool a large quantity of food quickly.
If the function is active, the appliance operates at higher
power. As a result, the appliance's operating noise may be
temporarily louder and energy consumption will increase.
Activating SuperCool
Fig. 110
Fig.111
► Carry out action steps according to the illustration.
▷ SuperCool is activated.
Deactivating SuperCool
SuperCool is automatically deactivated after 6 to 12 hours
depending on the quantity of the food inserted. However,
you can also deactivate SuperCool manually at any time:
Fig.112
Fig.113
► Carry out action steps according to the illustration.
▷ SuperCool is deactivated.
▷ The appliance continues to run in normal mode.
▷ The appliance cools to the temperature set previously.
Controls
26 * Depending on model and options

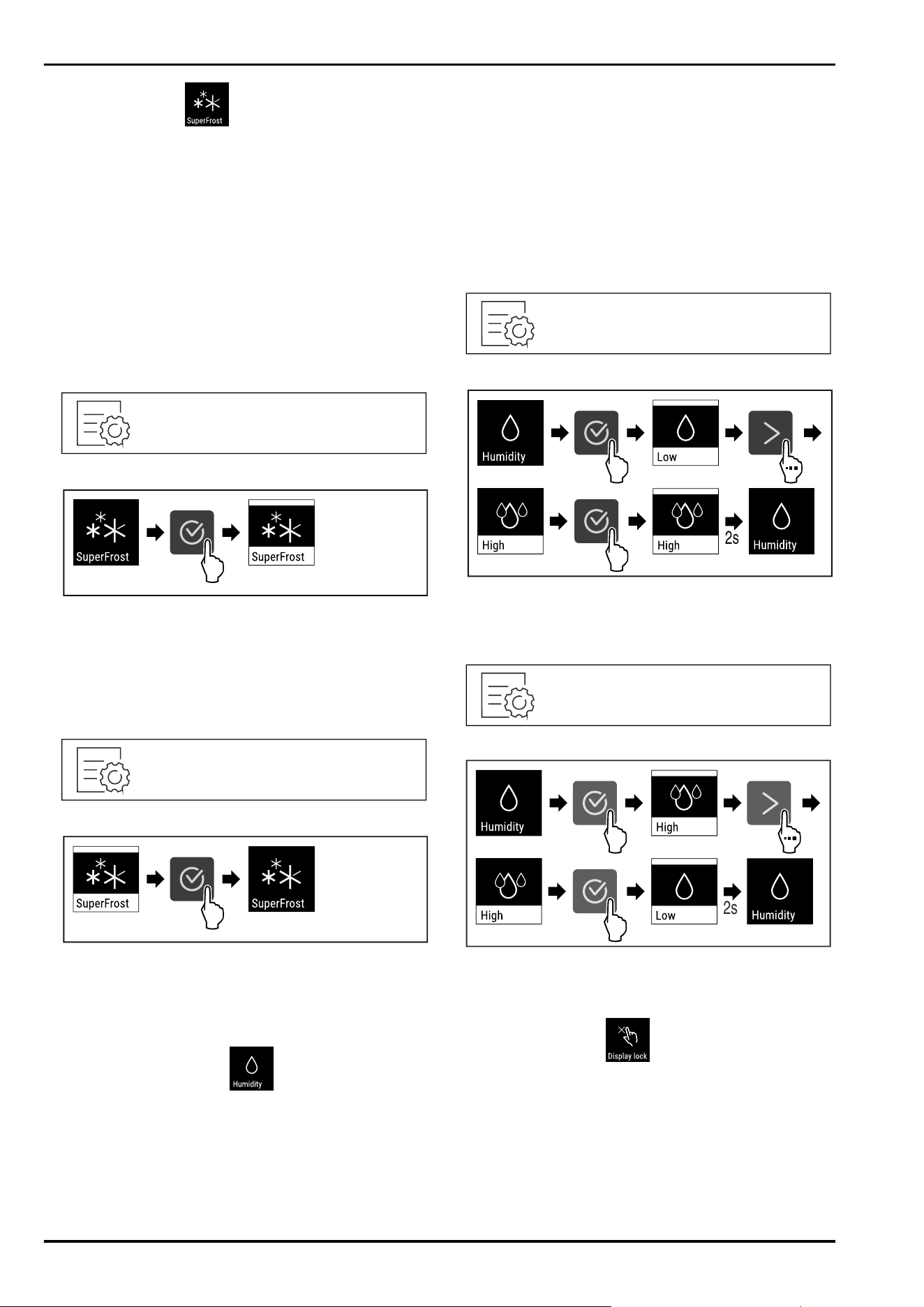

7.2.9 SuperFrost
You can use this function to activate or deactivate
SuperFrost. If SuperFrost is activated, then the appliance
increases the freezing capacity. It allows you to achieve
lower freezing temperatures.
Application:
-
Quickly freeze fresh food through to the core.
This ensures that the nutrition, appearance and taste of
frozen food is maintained.
-
Increase the cold reserve in stored frozen food before
defrosting the appliance.
If the function is active, the appliance operates at higher
power. As a result, the appliance's operating noise may be
temporarily louder and energy consumption will increase.
Activating SuperFrost
Fig. 114
Fig. 115
► Carry out action steps according to the illustration.
▷ SuperFrost is activated.
Deactivating SuperFrost
SuperFrost is automatically deactivated after 8 to 65 hours
depending on the quantity of the food inserted. However,
you can also deactivate SuperFrost manually at any time:
Fig. 116
Fig.117
► Carry out action steps according to the illustration.
▷ SuperFrost is deactivated.
▷ The appliance continues to run in normal mode.
▷ The appliance cools to the temperature set previously.
7.2.10 HumiditySelect
The humidity in the fridge compartment can be adjusted
depending on which food is being stored.
Application:
-
High humidity is suitable for storing loose salad, vegeta‐
bles, fruit with a high moisture content.
-
Low humidity is suitable for storing dry or packaged food
(e.g. dairy produce, meat, sausages, fish). A relatively dry
storage climate is set here.
The following levels can be set:
-
Standard (Low)
-
Medium
-
High
Increasing the humidity in the appliance
Fig. 118
Fig. 119
► Carry out action steps according to the illustration.
▷ Humidity in the appliance increases.
Setting the humidity in the appliance to standard
Fig.120
2s
Fig.121
► Carry out action steps according to the illustration.
▷ Humidity in the appliance decreases.

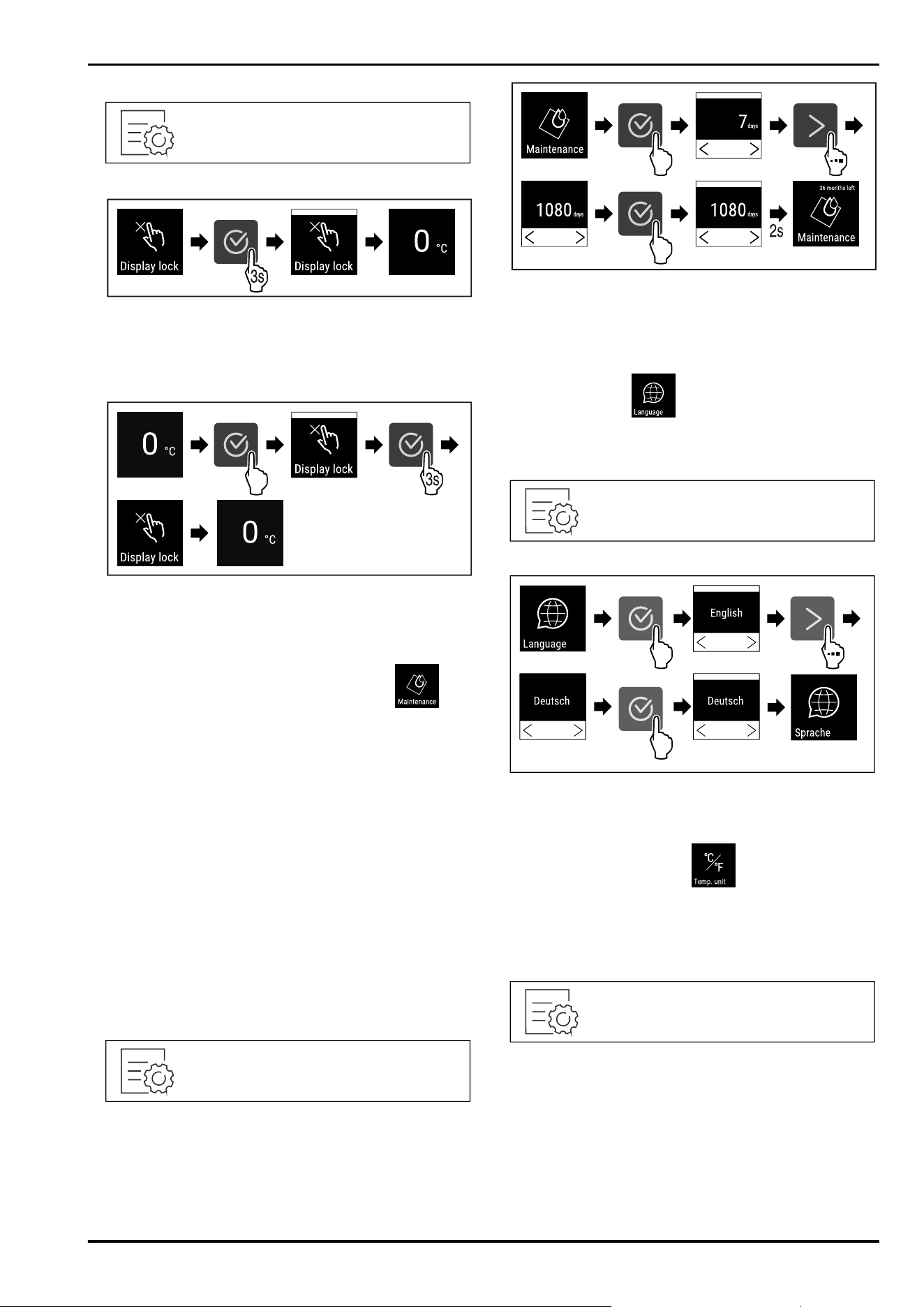

7.2.11 Display lock
This setting avoids accidental operation of the appliance.
Application:
-
Prevent settings and functions being changed uninten‐
tionally.
-
Prevent the appliance being switched off unintentionally.
-
Prevent temperature being set unintentionally.
Controls
* Depending on model and options 27
Activating display lock
Fig.122
Fig.123
► Carry out action steps according to the illustration.
▷ The display lock is activated.
▷ The status display appears.
Deactivating display lock
Fig. 124
► Carry out action steps according to the illustration.
▷ The display lock is deactivated.
▷ The status display appears.
7.2.12 Maintenance interval reminder
Setting for the time interval after which a maintenance
reminder is issued.
The following values can be set:
-
7 days
-
14 days
-
30 days
-
60 days
-
90 days
-
180 days
-
360 days
-
720 days
-
1080 days
-
Off
Setting maintenance interval reminder
The following steps describe how the maintenance interval
is set.
Fig.125
Fig. 126
► Carry out action steps according to the illustration.
▷ The time interval, after which the maintenance reminder
is issued, is set.
▷ The remaining time is displayed.
7.2.13 Language
This setting allows the display language to be set.
Setting language
Fig.127
Fig.128
► Carry out action steps according to the illustration.
▷ The selected language is set.

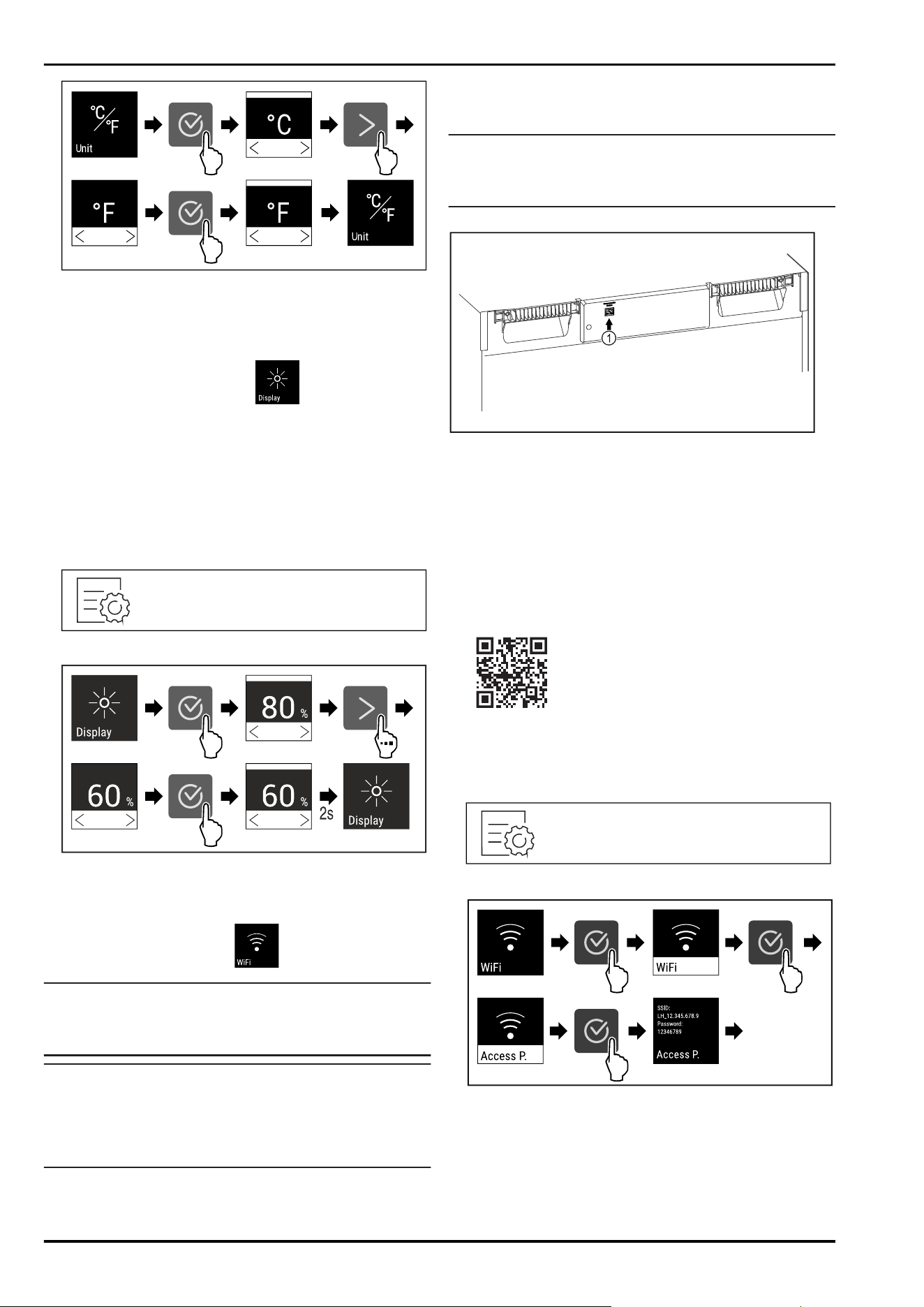

7.2.14 Temperature unit
Use this function to set the temperature unit. You can set
degrees Celsius or degrees Fahrenheit as the temperature
unit.
Setting the temperature unit
Fig.129
Controls
28 * Depending on model and options
Fig. 130 Example illustration: Switch from degreesCelsius
to degrees Fahrenheit.
► Carry out action steps according to the illustration.
▷ The temperature unit is set.
7.2.15 Display brightness
Use this function to set the display brightness in stages.
You can select the following brightness levels:
-
40%
-
60%
-
80%
-
100 % (pre-setting)
Setting the brightness
Fig.131
Fig. 132 Example illustration: Switch from 80 % to 60%.
► Carry out action steps according to the illustration.
▷ The brightness is set.
7.2.16 WiFi connection
Note
Liebherr SmartMonitoring Dashboard is not available in all
countries. Check availability via the QR code by entering
your model.
Note
Use of the Liebherr SmartMonitoring Dashboard at https://
smartmonitoring.liebherr.com requires installation of a
SmartModule and a commercial MyLiebherr account. When
commissioning online you can register using the login data
you have, or register again and create a company account.
This setting establishes a wireless connection between the
appliance and the internet. The connection is controlled via
the SmartModule. The appliance can be integrated via the
browser-based
Liebherr SmartMonitoring Dashboard and
advanced options as well as customised methods relating
to control, administration and monitoring can be used.
Note
Accessories are available from Customer Service
(see 10.3 Customer Service) and the Liebherr-Hausgeräte
store at home.liebherr.com/shop/de/deu/zubehor.html.
Fig.133
Make sure that the following requirements are fulfilled:
❑
SmartModule Fig.133(1) is in use.
Establishing connection
You commission and set up your SmartModule online via the
Liebherr SmartMonitoring Dashboard on your web-enabled
device.
On the Liebherr SmartMonitoring Dashboard, information is
also available about retrofitting the SmartModule.
Fig.134
► Open the Liebherr SmartMonitoring Dashboard (see
Fig.134) .
On the refrigerator or freezer:
Fig.135
Fig.136
► Carry out action steps according to the illustration.
► Continue the set-up procedure on your web-enabled
device: Liebherr SmartMonitoring Dashboard
Controls
* Depending on model and options 29
Fig.137
► Connection is established.
▷ WiFi connecting appears. The symbol flashes.
► Follow the Liebherr SmartMonitoring Dashboard instruc‐
tions.
▷ Connection is established.
Disconnecting
Fig.138
Fig. 139
► Carry out action steps according to the illustration.
▷ There is no connection.
Resetting connection
Fig. 140
Fig. 141
► Carry out action steps according to the illustration.
▷ The WiFi settings are restored to the factory settings.
7.2.17 LAN connection
Note
Liebherr SmartMonitoring Dashboard is not available in all
countries. Check availability via the QR code by entering
your model.
Note
Use of the Liebherr SmartMonitoring Dashboard at https://
smartmonitoring.liebherr.com requires installation of a
SmartModule and a commercial MyLiebherr account. When
commissioning online you can register using the login data
you have, or register again and create a company account.
This setting establishes a wired connection between the
appliance and the internet. The connection is controlled via
the SmartModule. The appliance can be integrated via the
browser-based Liebherr SmartMonitoring Dashboard and
advanced options as well as customised methods relating
to control, administration and monitoring can be used.
Note
Accessories are available from Customer Service
(see 10.3 Customer Service) and the Liebherr-Hausgeräte
store at home.liebherr.com/shop/de/deu/zubehor.html.
Fig. 142
Make sure that the following requirements are fulfilled:
❑
SmartModule Fig. 142(1) is in use.
❑
A network cable is connected.
❑
The network is connected to the internet.
Establishing connection
You commission and set up your SmartModule online via the
Liebherr SmartMonitoring Dashboard on your web-enabled
device.
On the Liebherr SmartMonitoring Dashboard, information is
also available about retrofitting the SmartModule.
Fig. 143
► Open the Liebherr SmartMonitoring Dashboard (see
Fig. 143) .

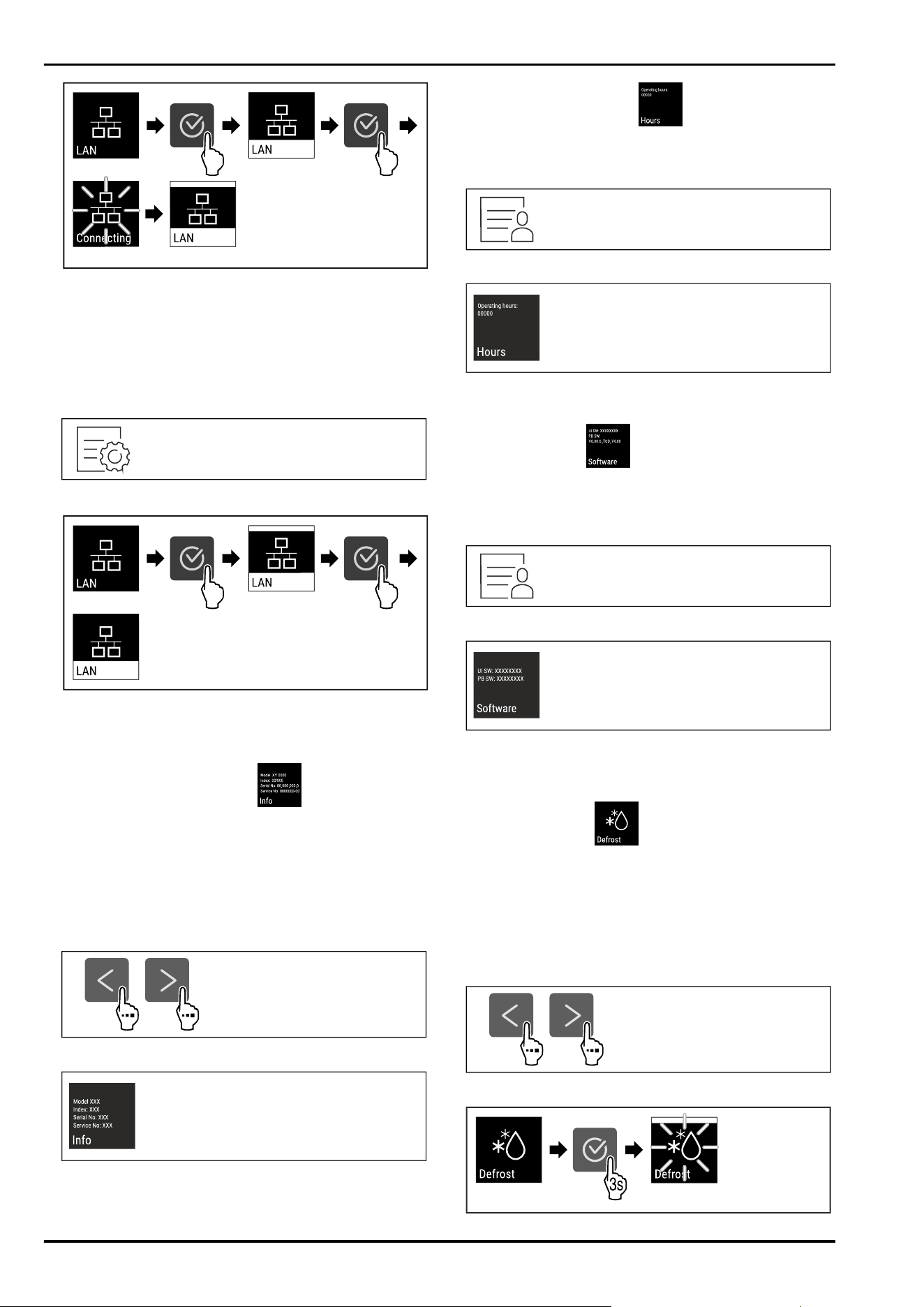

On the refrigerator or freezer:
Fig. 144
Controls
30 * Depending on model and options
Fig. 145
► Carry out action steps according to the illustration.
▷ Connection is established: LAN connecting appears. The
symbol flashes.
► Follow the Liebherr SmartMonitoring Dashboard instruc‐
tions.
▷ Connection is established.
Disconnecting
Fig. 146
Fig. 147
► Carry out action steps according to the illustration.
▷ There is no connection.
7.2.18 Device information
Use this function to indicate the model name, index, serial
number and service number of your device. You will need
the device information when you contact customer service.
(see 10.3 Customer Service)
This function also opens the Advanced menu. (see 4 Func‐
tionality of the Touch display)
Indicating the device information
Fig. 148
Fig. 149
► Carry out action steps according to the illustration.
▷ Display indicates device information.
7.2.19 Operating hours
The display shows the appliance operating hours.
Displaying operating hours
Fig. 150
Fig. 151
▷ The operating hours appear.
7.2.20 Software
Use this function to indicate the software version of your
device.
Indicating the software version
Fig. 152
Fig. 153
► Carry out action steps according to the illustration.
▷ Display indicates software version.
7.2.21 Defrosting
The appliance defrosts automatically in normal operation.
Application:
-
If there is heavy icing in the interior, the automatic
defrosting function can be started manually.
-
Only the fridge section is defrosted.
Starting automatic defrosting manually
Fig. 154
Controls
* Depending on model and options 31
Fig. 155
► Carry out action steps according to the illustration.
▷ Automatic defrosting is started. When the defrosting
process is complete, the appliance automatically
switches back to normal operation.
Note
If there is still ice in the interior after the automatic
defrosting has been started several times, defrost the appli‐
ance manually. (see 9.1 Defrosting appliance)

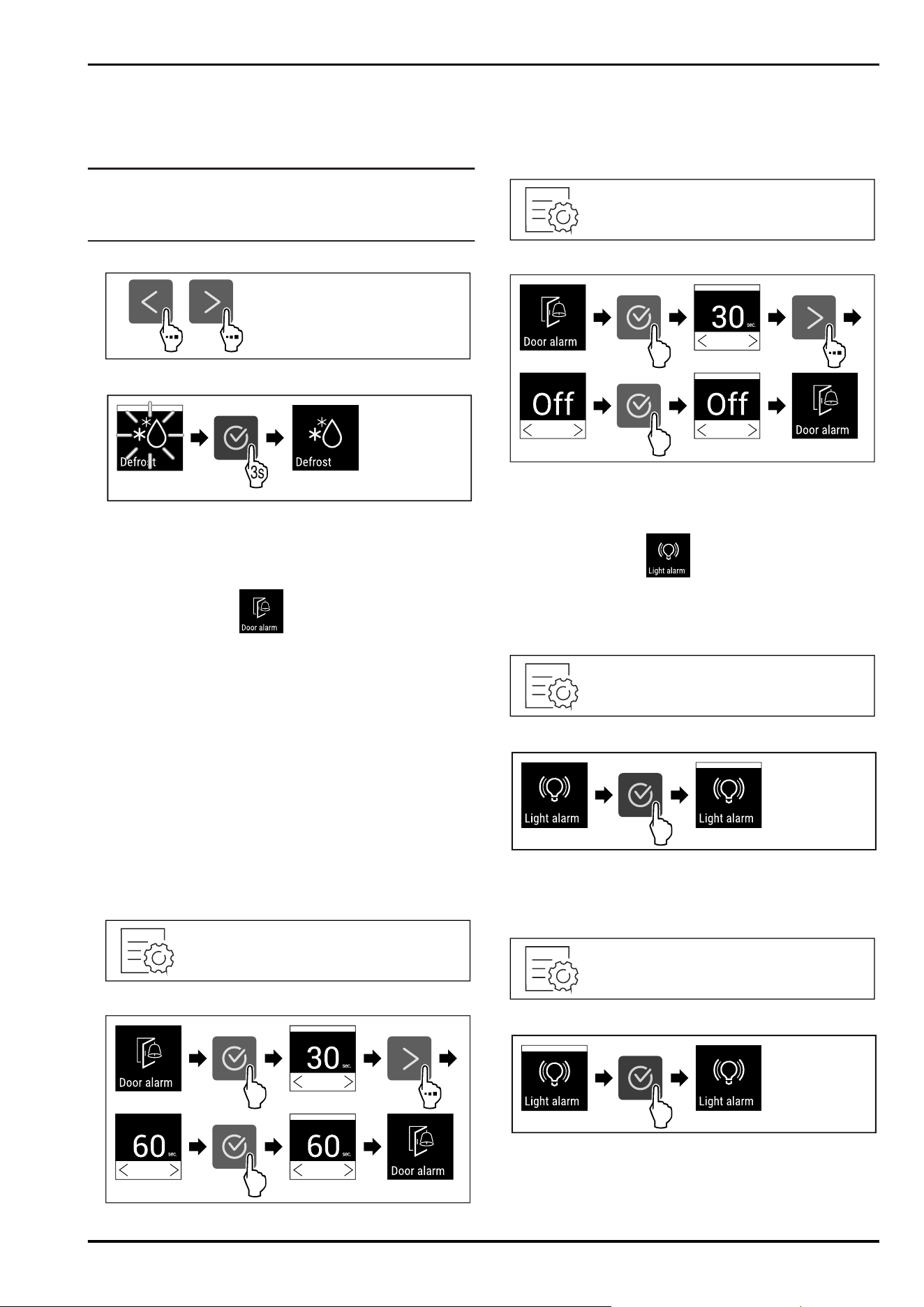

Cancelling a manually started defrosting
Fig. 156
Fig. 157
► Carry out action steps according to the illustration.
▷ Manually started defrosting is cancelled. The appliance
automatically switches back to normal operation.
7.2.22 Door alarm
Use this function to activate or deactivate the door alarm.
The door alarm sounds if the door is open for too long. The
door alarm is activated on delivery. You can set how long
the door may be open before the door alarm sounds.
The following values can be set:
-
15seconds
-
30seconds
-
60seconds
-
90seconds
-
120seconds
-
150seconds
-
180seconds
-
Off
Setting the door alarm
Fig. 158
Fig. 160 Example illustration: Switch door alarm from
30 seconds to 60seconds.
► Carry out action steps according to the illustration.
▷ The door alarm is set.
Deactivating the door alarm
Fig. 161
Fig. 162
► Carry out action steps according to the illustration.
▷ The door alarm is deactivated.
7.2.23 Light alarm *
This setting allows the visual alarm messages in the display
to also be emphasised by flashing appliance lighting.
Activating light alarm
Fig. 163
Fig. 164
► Carry out action steps according to the illustration.
▷ The light alarm is activated.
Deactivating light alarm
Fig. 165
Fig. 166
► Carry out action steps according to the illustration.
▷ The light alarm is activated.
Controls
32 * Depending on model and options
7.2.24 Demo mode
Demo mode is a special feature for dealers who want to
demonstrate appliance features. If you activate demo mode,
all refrigeration functions are deactivated.
If you switch on your appliance and a “D” appears on the
status display, demo mode is already activated.
If you activate and then deactivate demo mode, the appli‐
ance will be reset to factory defaults. (see 7.2.25 Resetting
to factory settings )
Activating demo mode
Fig. 167
Fig. 168
► Carry out action steps according to the illustration.
▷ Demo mode is activated.
▷ Appliance is switched off.
► Switch on the appliance. (see 5.1 Switching on appliance
(first use))
▷ “D” appears in the status display.
Deactivating demo mode
Fig. 169
Fig.170
► Carry out action steps according to the illustration.
▷ Demo mode is deactivated.
▷ Appliance is switched off.
► Switch on the appliance. (see 5.1 Switching on appliance
(first use))
▷ Appliance is reset to factory settings.
7.2.25 Resetting to factory settings
Use this function to reset all settings to factory defaults.
All settings you have made so far are reset to their original
settings.
Performing a reset
Fig.171
Fig.172
► Carry out action steps according to the illustration.
▷ Device is reset.
▷ Device is switched off.
► Restart the device. (see 5.1 Switching on appliance (first
use))
7.3 Messages
7.3.1 Warnings
Warnings are issued by means of an audio signal and visu‐
ally via a symbol on the display. The signal gets louder until
the warning is acknowledged.
Message
Cause Remedy
Door open
This message appears if the door is
open for too long.
Close the door.
Press the confirmation button.
Alarm is ended.
Note
You can set how long it takes
for this message to appear
(see 7.2.22Door alarm ) .
Controls
* Depending on model and options 33

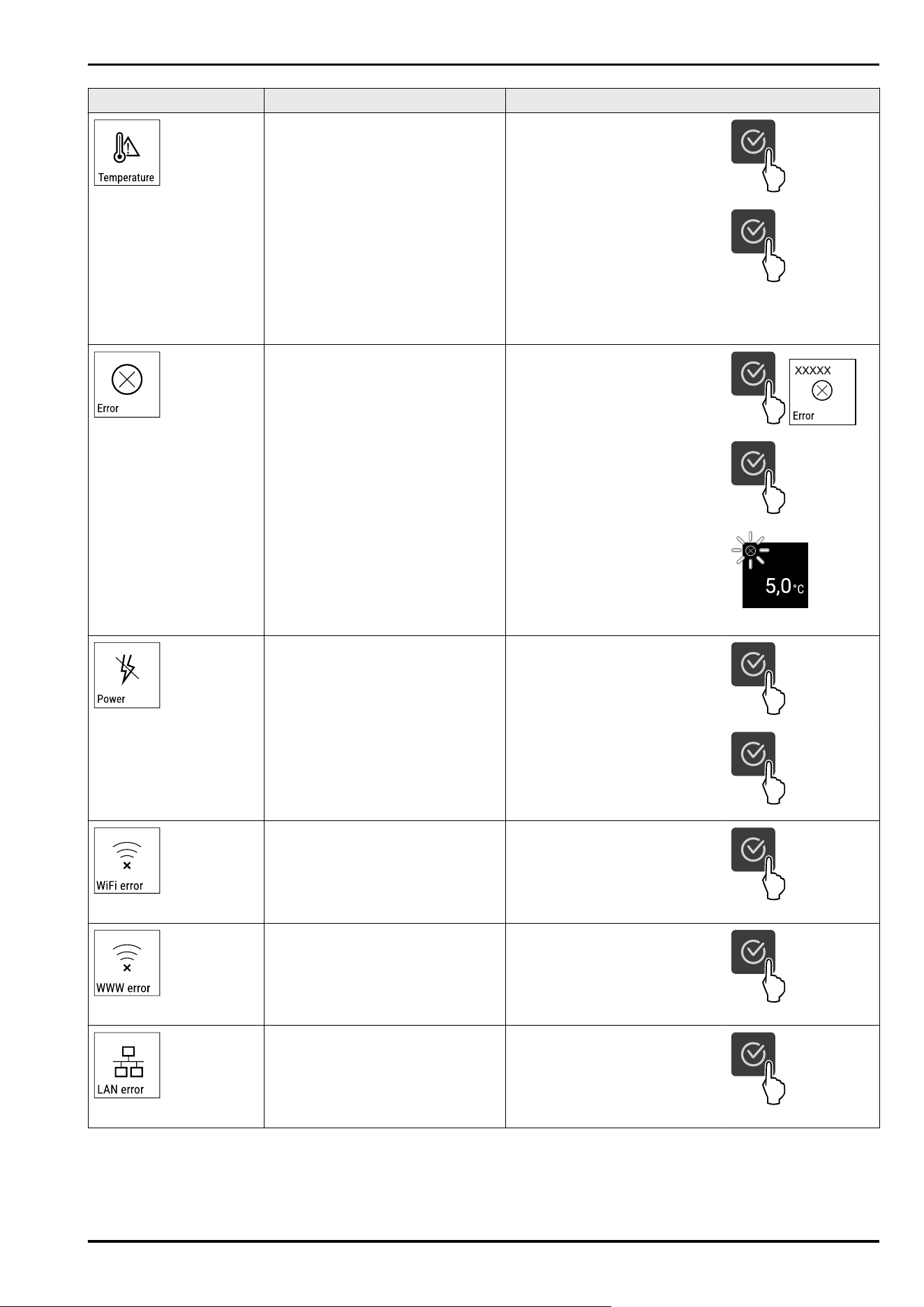

Message Cause Remedy
Temperature alarm
This message appears if the
temperature does not match the set
temperature. Reasons for the differ‐
ences in temperature can be:
⁃ Warm items for refrigeration have
been placed inside.
⁃ Too much warm room air flowed
in when rearranging and removing
refrigerated products.
The power was cut off for a
prolonged period.
Press the confirmation button.
Warmest temperature is
displayed.
Press the confirmation button.
The current temperature flashes
and the display alternates with
the temperature alarm symbol
until the set temperature is
reached.
Check the quality of the refriger‐
ated goods.
Error
The appliance is defective, there is
an appliance fault or a component
of the appliance is faulty.
Transfer refrigerated goods.
Press the confirmation button.
Error code is displayed.
Press the confirmation button.
If present, another error code is
indicated.
or
Status screen with flashing error
symbol is displayed
Pressing the navigation buttons
indicates error code(s) again.
Note the error code(s) and
contact customer service.
Power failure
The message appears after an
interruption in the power supply if
the temperature is above the alarm
limit when the power returns.
Press the confirmation button.
The warmest temperature is
displayed.
Press the confirmation button.
Alarm is cancelled and current
temperature is indicated.
Check the quality of the refriger‐
ated goods.
WLAN error
WLAN connection is interrupted. Check the connection.
Press the confirmation button.
Alarm is ended.
WLAN WWW error
The message appears if there is no
Internet connection via WLAN.
Check the connection.
Press the confirmation button.
Alarm is ended.
LAN error
LAN connection is interrupted. Check connection and network
cable.
Press the confirmation button.
Alarm is ended.
Controls
34 * Depending on model and options
Message Cause Remedy

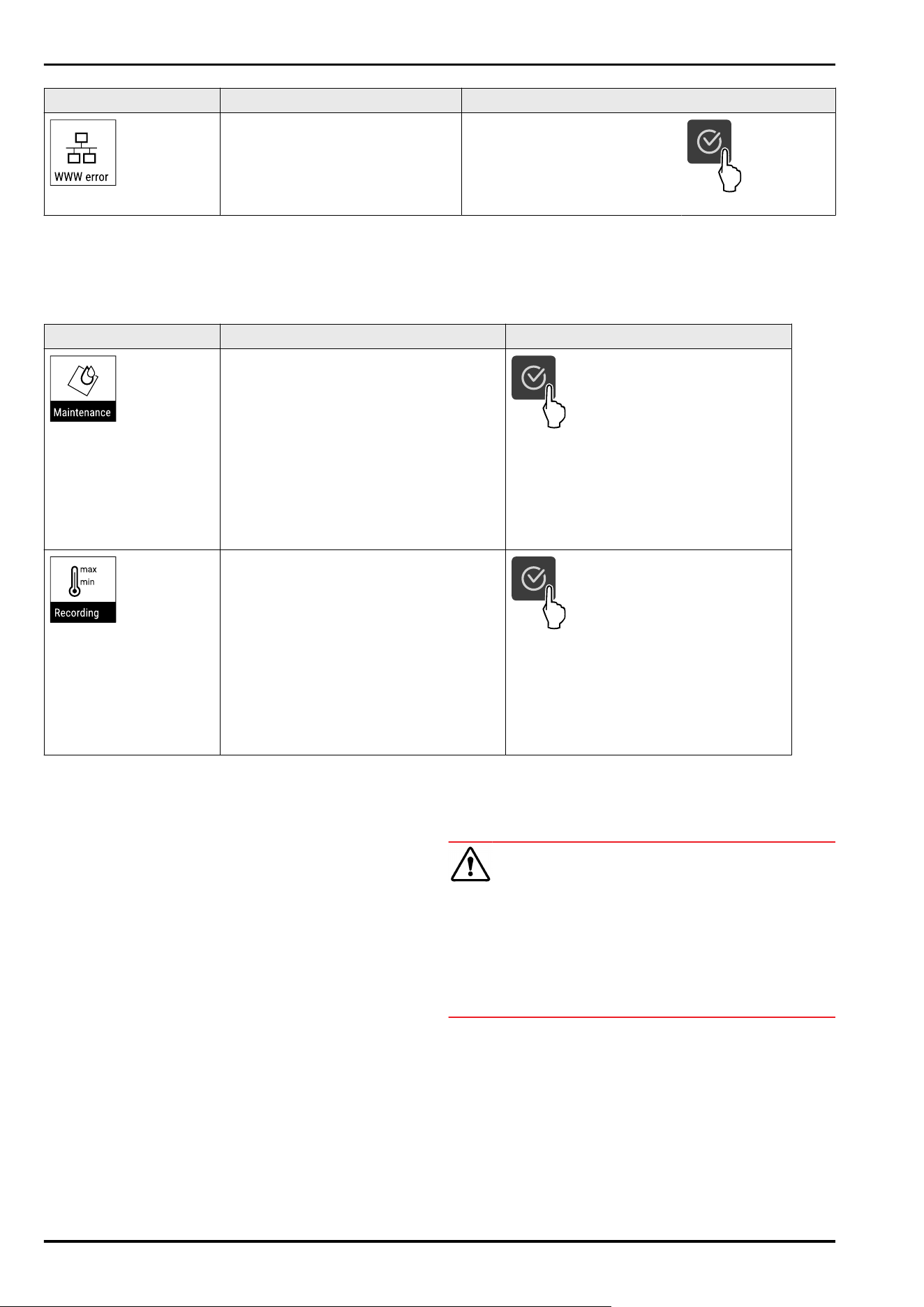

LAN WWW error
The message appears if there is no
Internet connection via LAN.
Check the connection.
Press the confirmation button.
Alarm is ended.
7.3.2 Reminder
Reminders appear when you are being asked to do some‐
thing. They are issued by means of an audio signal and visu‐
ally via a symbol on the display. Acknowledge the message
by pressing the confirmation button.
Message Cause Remedy
Maintenance reminder
The message appears when the timer for
the set maintenance interval has expired.
Press the confirmation button.
Alarm is ended.
Note
The maintenance interval can be
set (see 7.2.12 Maintenance interval
reminder ) .
Recording reminder
This message appears when the tempera‐
ture recording memory (999 hours) is full.
Press the confirmation button.
Alarm is ended.
The oldest data is overwritten.
Note
The temperature recording can be reset
(see 7.2.5 Temperature recording ) .
8 Features
8.1 Safety lock
The lock in the appliance door is equipped with a safety
mechanism.
8.1.1 Locking appliance
Lock freezer compartment.
► Insert key.
► Turn key clockwise by 45°.
▷ The freezer compartment is locked.
Lock freezer and fridge compartment.
► Insert key.
► Turn key clockwise by 90°.
▷ The freezer and fridge compartment is locked.
8.1.2 Unlocking appliance
Unlock fridge compartment.
► Insert key.
► Turn key anticlockwise by 45°.
▷ The fridge compartment is unlocked.
Unlock freezer and fridge compartment.
► Insert key.
► Turn key anticlockwise by 90°.
▷ The freezer and fridge compartment is unlocked.
9 Maintenance
9.1 Defrosting appliance
WARNING
Improper defrosting of the appliance!
Injuries and damage.
► Do not use mechanical equipment or other methods to
speed up the defrosting process other than those recom‐
mended by the manufacturer.
► Do not use electrical heating or steam-cleaning appli‐
ances, naked flames or defroster sprays to defrost.
► Do not use sharp objects to remove ice.
Defrosting is performed automatically. The defrost water
drains through the opening and evaporates.
To maintain the functionality of the appliance, we recom‐
mend defrosting it when there is a high buildup of ice.
Icing in the interior is determined by the location (e.g.
high humidity), settings on the appliance and incorrect user
behaviour.
If the automatic defrosting cycle is insufficient:
► Start automatic defrosting manually.
(see 7.2.21 Defrosting )
If the problem persists, defrost the appliance manually:
Features
* Depending on model and options 35
► Switch off appliance. (see 7.2.2 Switching appliance on
and off )
► Pull out mains plug.
► Store refrigerated items elsewhere.
► Leave appliance door open during defrosting process.
► Soak up remaining defrost water with a cloth, clean drain
opening and the appliance.
9.2 Cleaning the appliance
9.2.1 Preparing
WARNING
Short-circuit hazard due to live parts!
Electric shock or damage to the electronics.
► Switch off the appliance.
► Pull out mains plug or switch off fuse.
WARNING
Risk of fire
► Do not damage the refrigeration circuit.
► Empty the appliance.
► Pull out the mains plug.
► Observe the notes on transporting the appliance.
(see 3.3 Transporting the appliance)
9.2.2 Cleaning housing
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
► Do not use any steam cleaners!
NOTICE
Risk of damage due to short circuit.
► When cleaning the appliance, make sure no water gets
into the electrical components.
► Wipe the housing down with soft, clean cloth. If very
dirty, use lukewarm water with a neutral cleaner. Glass
surfaces can also be cleaned with glass cleaner.
► Clean condenser coil each year. If the condenser coil is
not cleaned, this significantly reduces the efficiency of
the appliance.
9.2.3 Cleaning fan cover
NOTICE
Risk of damage due to short circuit.
► When cleaning the appliance, make sure no water gets
into the electrical components.
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.

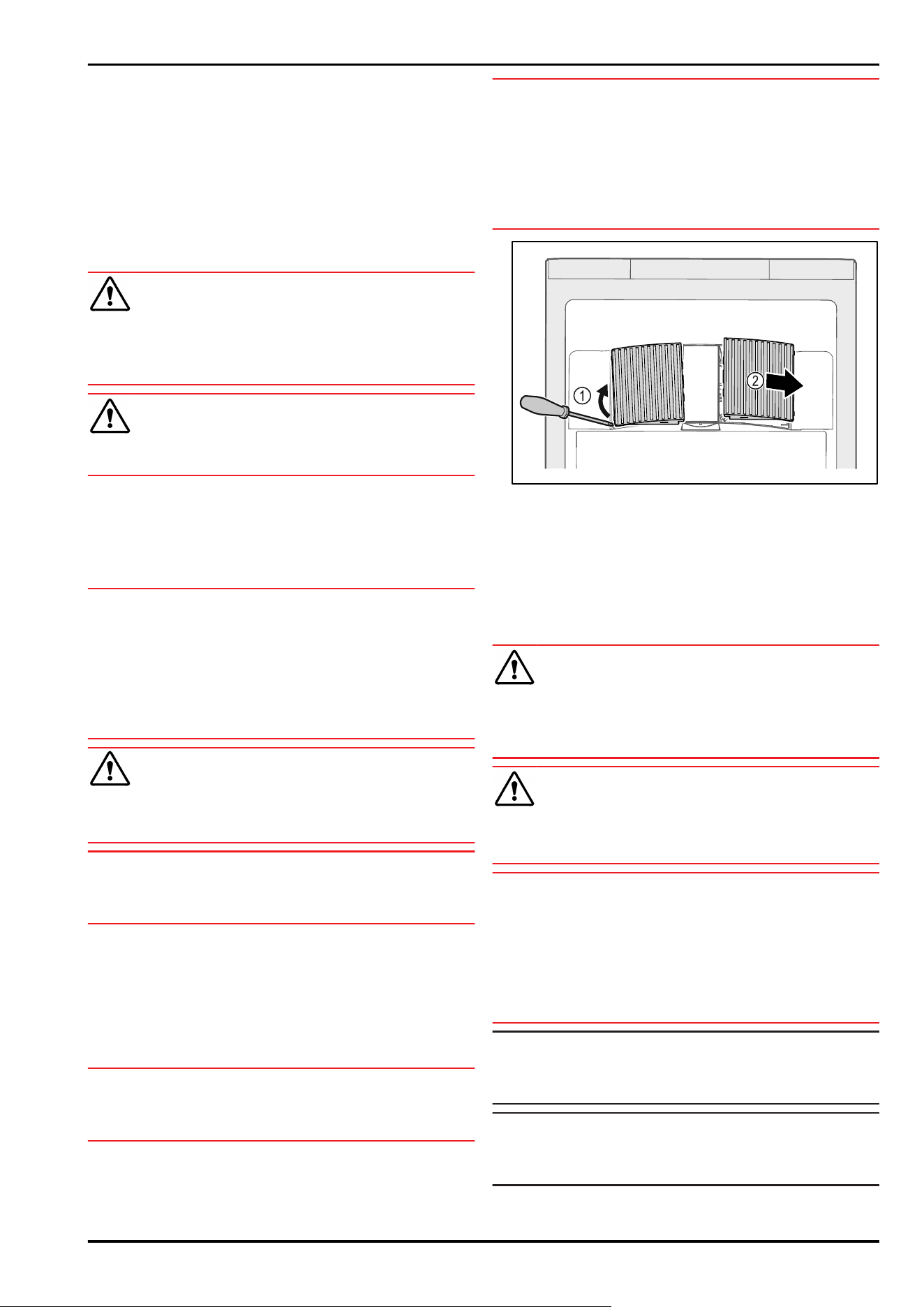

Fig.173
► Carefully lever out fan covers from the side Fig. 173 (1)
and remove towards the front Fig.173(2).
► Rinse the air slots of the fan covers under running water.
If very dirty, use lukewarm water with a neutral cleaner.
► Leave fan covers to air-dry completely.
► Reattach fan covers to the appliance.
9.2.4 Cleaning interior
WARNING
Short-circuit hazard due to live parts!
Electric shock or damage to the electronics.
► Switch off the appliance.
► Pull out mains plug or switch off fuse.
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
► Do not use any steam cleaners!
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Note
► Defrost water drain (see 2.2 Overview of appliance and
equipment) : Remove deposits using a thin material (for
example a cotton bud).
Note
Do not damage or remove the type plate on the inside of the
appliance. The type plate is important for Customer Service.
(see 10.3 Customer Service)
► Open the door.
► Empty the appliance.
Maintenance
36 * Depending on model and options
► Clean interior and equipment parts with lukewarm water
and a little detergent. Do not use any gritty or acidic
cleaning agent or any chemical solvent.
9.2.5 After cleaning
► Wipe appliance and equipment parts dry.
► Connect and switch on appliance.
Once the temperature is sufficiently cold:
► put in items for refrigeration goods.
► Repeat cleaning regularly.
► Clean and remove dust from the refrigeration unit with
heat exchanger once a year.
10 Customer help
10.1 Technical specifications
Temperature range
Cooling +1°C to +15°C
Freezing -9°C to -26°C
Maximum load per shelf
A)
Appliance width 550mm 600mm 750mm
Grid shelves -- 45 kg 60 kg
Glass shelf 40 kg 40 kg 40 kg
Drawer (freezer appliances) 15 kg 15 kg 15 kg
A)
Heavier loads may result in a slight bending of the
shelves.
Net capacity
See net capacity on the type plate. (see 2.2 Overview of
appliance and equipment)
Lighting
Energy efficiency class
A)
Light source
This product contains one or more energy
efficiency class F light sources
LED
A)
The appliance may contain light sources with different
energy efficiency classes. The lowest energy efficiency
class is indicated.
10.2 Technical fault
Your appliance is designed and built to ensure it works reli‐
ably and has a long service life. In the unlikely event that
a fault occurs during operation, please check whether the
fault is due to an operating error. If this is the case, you will
be charged for the cost incurred even if this falls within the
warranty period.
You can fix the following faults yourself.
10.2.1 Appliance function
Defect
Cause Remedy
The appliance is
not working.
→ The appliance is not switched on. ► Switch on the appliance.
→ The mains plug is not properly
plugged into the socket.
► Check the mains plug.
→ There is something wrong with the
fuse in the socket.
► Check fuse.
→ Power cut ► Keep the appliance closed.
► Protect food: Lay cold storage accumulator on top of
the food or use another freezer if the power is off for
a prolonged period.
► Do not re-freeze defrosted food.
→ The IEC socket is not plugged into
the appliance correctly.
► Check the IEC socket.
Temperature is not
cold enough.
→ The appliance door is not closed
properly.
► Close appliance door.
→ Ventilation is not sufficient. ► Clear ventilation grille and clean it.
→ The ambient temperature is too
high.
► Ensure the correct ambient conditions: (see2.4 Range of
use of appliance)
→ The appliance was opened too
many times or for too long.
► Wait to see if the appliance goes back to the required
temperature by itself. If not, contact Customer Service.
(see 10.3 Customer Service)
→ The temperature is set incorrectly. ► Set a colder temperature and check after 24 hours.
→ The appliance is too close to a heat
source (oven, radiator, etc).
► Change where the appliance or the heat source are
located.
Frost formation on
the housing frame
and/or on the
inside of the door.
→ Door seal is damaged. ► Replace the door seal.
Customer help
* Depending on model and options 37
Defect Cause Remedy
→ You have set the temperature too
cold or you have not opened the
door often enough.
► The appliance is not malfunctioning; simply remove any
condensation with a cloth.
10.3 Customer Service
First check whether you can remedy the fault yourself . If
this is not the case, please contact Customer Service.
You can find the address in the enclosed brochure “Liebherr-
Service” or at home.liebherr.com/service.
WARNING
Unprofessional repair!
Injuries.
► Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see9 Maintenance)
► A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
► In the case of appliances with an IEC connector, the
change may be made by the customer.
10.3.1 Contacting Customer Service
Make sure you have the following appliance data at the
ready:
❑
Appliance name (model and index)
❑
Service no. (Service)
❑
Serial no. (S no.)
► Access the appliance information via the display
(see 7.2.18 Device information ) .
-or-
► Refer to the type plate for appliance information.
(see 10.4 Type plate)
► Note down appliance information.
► Inform Customer Service: Report faults and the appliance
information.
▷ This will help us to provide a fast and focussed service.
► Follow any further instructions provided by Customer
Service.

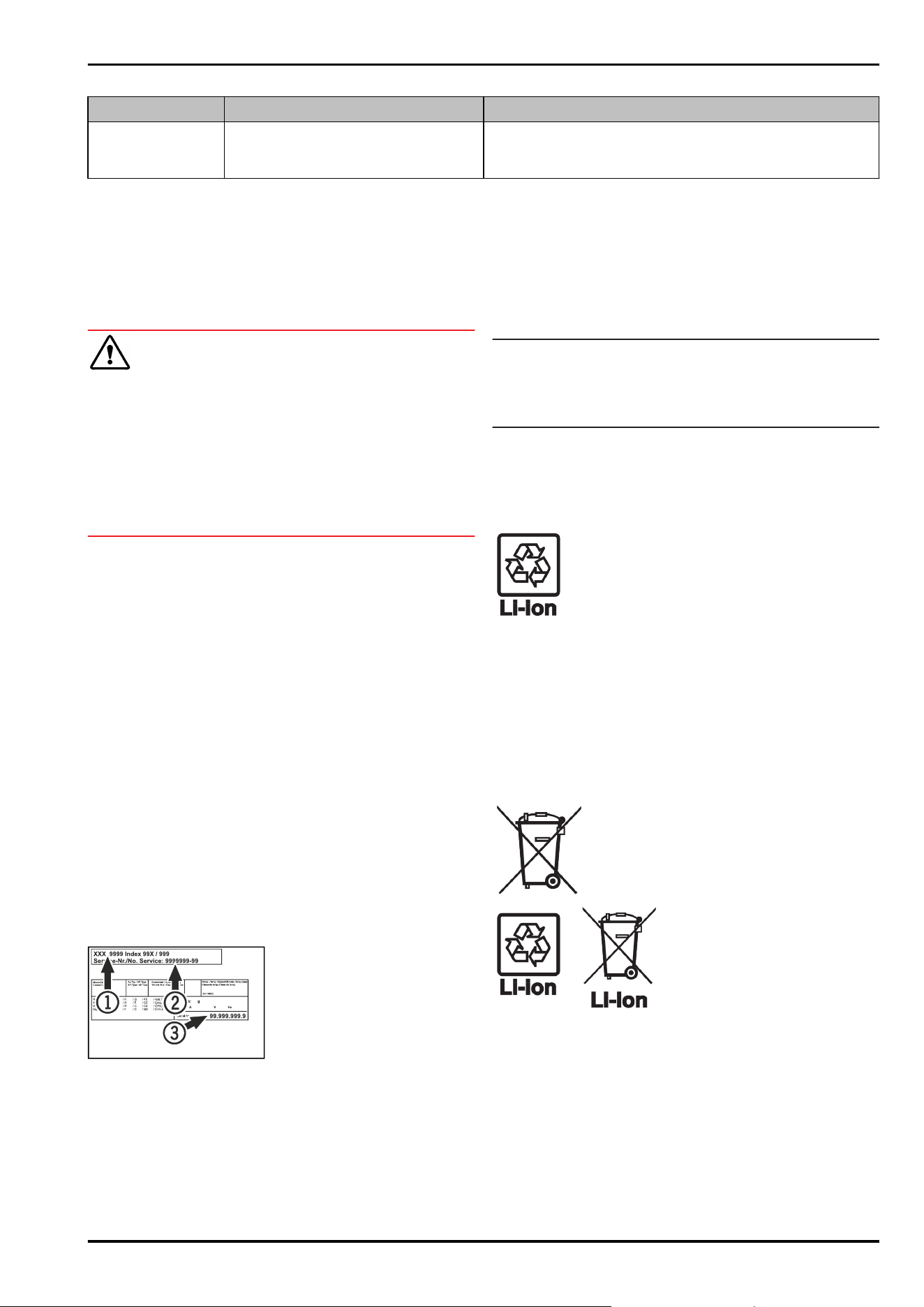

10.4 Type plate
The type plate is inside the appliance. See appliance over‐
view.
Fig. 174
(1)
Appliance designation (3) Serial No.
(2) Service No.
11 Shutting down
► Empty the appliance.
► Switch off the appliance.
► Pull the mains plug out of the socket.
►
Remove the IEC socket if required: Pull the IEC socket out
of the appliance plug and move it to the left and right at
the same time.
► Clean appliance (see 9.2Cleaning the appliance) .
► If present: Remove the covers and insulation from the
sensor feed-through to prevent mould forming.
► Leave the door open so that no bad odours form.
Note
Damage to the appliance and malfunctions!
► After shutting down, only store the appliance at the
permitted room temperature of between -10 °C and
+50°C.
12 Disposal
12.1 Preparing appliance for disposal
Liebherr uses batteries in some of its appli‐
ances. In the EU, for environmental reasons,
legislation obliges the end user to remove
these batteries before disposing of old appli‐
ances. If your appliance contains batteries, a
corresponding notice is attached.
Lamps If you can remove the lamps yourself without
destroying them, also remove these before
disposal.
► Take the appliance out of operation.
► If possible: remove lamps without destroying them.
12.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be disposed of separately from
unsorted municipal waste.
Dispose of batteries separately
from the old appliance. To do
this, you can return the batteries
free of charge to retailers as
well as recycling centres and
collection centres for recyclable
materials.
Lamps Dispose of removed lamps
via the respective collection
systems.
Shutting down
38 * Depending on model and options
For Germany: You can dispose of the appli‐
ance free of charge via the
class 1 collection containers
at the local recycling and
recyclable material collection
centres. When purchasing a new
fridge/freezer, if the sales area
> 400 m
2
, retailers will also take
back the old appliance free of
charge.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
► Do not damage the pipelines of the coolant circuit and
the compressor.
►
Observe the notes on transporting the appliance.
(see 3.3 Transporting the appliance)
► Transport the appliance without damaging it.
► Dispose of batteries, lamps and the appliance according
to the above specifications.
13 Additional information
Further information on warranty conditions can be found in
the enclosed service brochure or on the Internet at https://
home.liebherr.com.
Additional information
* Depending on model and options 39
home.liebherr.com/fridge-manuals
Refrigerator and freezer
ORIGINAL OPERATOR'S MANUAL
Issue date: 20250930
Part number index:7080782-00
Liebherr-Hausgeräte GmbH
Memminger Straße 77-79
88416Ochsenhausen
Deutschland
