ECBN 94 / ECBN 96
7080 406-00
Operating instructions Page 36
Combined refrigerator-freezer
Read the operating instructions before switching on for the first time
EN
Note
All types and models are subject to continuous
improvement. The manufacturer reserves the right to make
modifications to the shape, equipment and technology.
Content
Priority of warnings ................................................................. 36
Symbols on the appliance: .....................................................36
Safety instructions and warnings ...........................................37
Disposal notes ........................................................................ 38
EPREL database: ...................................................................38
Range of appliance use ..........................................................38
Climate rating .........................................................................38
Description of the appliance ................................................... 39
Control panel ..........................................................................40
Switching the appliance on ....................................................40
Main menu .............................................................................. 41
Setting the temperature .......................................................... 42
Setting the temperature
(refrigerator compartment) .....................................................42
Setting the temperature
(freezer compartment) ............................................................ 43
Setting the temperature
(BioFresh-Plus compartment) ................................................43
SuperCool ..............................................................................44
SuperFrost ..............................................................................45
Notes on freezing ...................................................................45
Safety instructions and warnings for the IceMaker ................46
IceMaker description .............................................................. 46
Switching the IceMaker on .....................................................46
Switching the IceMaker o .....................................................47
Switching the IceMaker to maximum ice production ..............47
PartyMode .............................................................................. 48
HolidayMode ..........................................................................48
SabbathMode ......................................................................... 49
Switching the appliance o ....................................................49
Maintenance message ........................................................... 50
Maintenance conrmation ...................................................... 50
Setup menu ............................................................................51
SmartDeviceBox (not supplied in all countries) ...................... 53
Description of the SmartDevice display .................................53
Alarm messages ....................................................................54
Equipment ..............................................................................57
Water dispenser ....................................................................57
BioFresh-Plus compartment ..................................................58
Cleaning .................................................................................58
Maintenance menu .................................................................60
Maintenance ...........................................................................61
Additional functions ................................................................ 64
Saving energy ........................................................................69
Malfunctions ........................................................................... 69
Shutting your appliance down ................................................69
Priority of warnings
DANGER!
identifies a situation involving
direct danger which, if not obvi-
ated, may result in death or severe
bodily injury.
WARNING!
identifies a dangerous situation
which, if not obviated, may result
in death or severe bodily injury.
CAUTION!CAUTION!
identifies a dangerous situation
which, if not obviated, may result
in minor or medium bodily injury.
NOTICE
identies a dangerous situa-
tion which, if not obviated, may
result in damage to property.
Note
identifies useful information and
tips.
Symbols on the appliance:
This symbol may be located on the compressor.
It relates to the oil in the compressor and makes
reference to the risk that: Swallowing or inhaling
can be fatal. This advice is only relevant to re-
cycling. There is no danger in normal operation.
This symbol is located on the compressor and
indicates the danger of flammable materials.
Do not remove the sticker.
This or a similar sticker may be located on the
rear of the appliance. This sticker indicates
that there are vacuum insulation panels (VIP)
or perlite panels in the door and/or housing.
This advice is only relevant to recycling. Do not
remove the sticker.
36
EN
Safety instructions and warnings
- WARNING: do not seal ventilation openings on
the appliance housing or enclosure.
- WARNING: only use the mechanical devices or
other aids recommended by the manufacturer to
help speed up the defrosting process.
- WARNING: do not damage the refrigerant circuit.
- WARNING: do not use any electrical devices
in the refrigerator compartment which do not
comply with the design recommended by the
manufacturer.
- WARNING: the mains cable must not be dam-
aged while installing the appliance.
- WARNING: multi-sockets or distributor strips
and other electronic devices (such as halogen
transformers) must not be positioned and oper-
ated at the rear of appliances.
- WARNING: danger of injury through electric
shock. There are live parts under the cover. Only
have the interior LED light replaced or repaired
by customer service staff or trained personnel.
- WARNING: risk of injury from the LED lamp. The
light intensity of the LED light complies with risk
group RG 2. If the cover is defective, do not look
directly at the light through optical lenses from
close distance. This may damage your eyes.
- WARNING: this appliance must be secured as
described in the operating instructions (installa-
tion instructions) to rule out any potential risks
due to its instability.
- Do not stand on the plinth, drawers or doors or
use them to support anything else.
- This appliance may be used by children aged 8
and over and by people with reduced physical,
sensory or mental abilities or a lack of experi-
ence and expertise if they are supervised or have
been instructed on the safe use of the appliance
and have understood the risks associated with
it. Children must not be allowed to play with the
appliance. Cleaning and user maintenance must
not be carried out by children without supervision.
Children aged 3 or over and 8 or younger may
load and unload the refrigerator/freezer.
- Do not store any explosive substances, such as
aerosol containers with flammable propellant
gas, inside the appliance.
- To prevent injury or damage to the unit, the ap-
pliance should be unpacked and set up by four
people.
- After unpacking it, check the appliance for signs
of damage. Contact the supplier if it is damaged.
Do not connect the appliance to the mains power
supply.
- Avoid prolonged skin contact with cold surfaces
(e.g. chilled/frozen products). If necessary, take
safety action (e.g. gloves).
- Do not consume food which has been stored for
too long, as it could cause food poisoning.
- All repairs and work on the appliance may only
be carried out by customer service personnel
or other trained personnel. The same applies to
changing the mains power cable.
- Only carry out repair and other work on the ap-
pliance when the mains plug has visibly been
disconnected.
- Only install, connect and dispose of the appliance
as described in these operating instructions.
- In the event of a fault, pull out the plug or switch
o the fuse.
- When disconnecting the appliance from the
mains, pull on the plug. Do not pull on the cable.
- If you have a lockable appliance, do not keep the
key near the appliance or within reach of children.
37
Climate rating
The climate rating indicates the room
temperature at which the appliance may
be operated in order to achieve full refrig-
eration performance.
The climate rating is indicated on the
type plate.
The position of the type plate is shown in the section entitled
Description of the appliance.
Climate rating Room temperature
SN +10°C to +32°C
N +16°C to +32°C
ST +16°C to +38°C
T +16°C to +43°C
SN-ST +10°C to +38°C
SN-T +10°C to +43°C
Do not operate the appliance outside the
specified room temperature range.
Disposal notes
The appliance contains reusable materials and should
be disposed of properly - not simply with unsorted
household refuse. Appliances which are no longer
needed must be disposed of in a professional and
appropriate way, in accordance with the current local
regulations and laws.
When disposing of the appliance, ensure that the refrigerant circuit
is not damaged to prevent uncontrolled escape of the refrigerant
it contains (data on type plate) and oil.
• Disable the appliance.
• Pull out the mains plug.
• Cut through the connection cable.
WARNING
Danger of suffocation due to packaging material
and plastic film!
Do not allow children to play with packaging
material.
Take the packaging material to an official collec-
tion point.
EPREL database:
As from 1 March 2021, information about energy labelling and
ecodesign requirements will be available in the European product
database (EPREL). You can access the product database using
the following link: https://eprel.ec.europa.eu/. You will be asked
to enter the model identifier. You will find the model identifier on
the type plate.
Range of appliance use
The appliance is suitable solely for cooling food in
a domestic environment or similar. This includes,
for example, use
- in staff kitchenettes, bed and breakfast establish-
ments,
- by guests in cottages, hotels, motels and other
forms of accommodation,
- in catering and similar services in the wholesale
trade.
Use the appliance solely as is customary within a domestic envi-
ronment. All other types of use are inadmissible. The appliance
is not suitable for storing and cooling medicines, blood plasma,
laboratory preparations or similar substances and products cov-
ered by the 2007/47/EC Medical Devices Directive. Any misuse
of the appliance may result in damage to or spoilage of stored
goods. Furthermore, the appliance is not suitable for operation
in potentially explosive atmospheres.
- The appliance is designed for use in enclosed
areas. Do not operate the appliance outdoors or
in areas where it is exposed to splash water or
damp conditions.
- Do not use the interior LED light to light the room.
The interior LED light is only designed to illuminate
the interior of the appliance.
- Do not allow naked ames or ignition sources to
enter the appliance.
- Alcoholic drinks or other vessels containing al-
cohol should be sealed tightly for storage.
Lighting
Class
1
Light source
This product contains a light source that
meets energy efficiency rating G
LED
1
The appliance may contain light sources with different
energy efficiency classes. The lowest energy efficiency class
is indicated.
38
EN
Description of the appliance

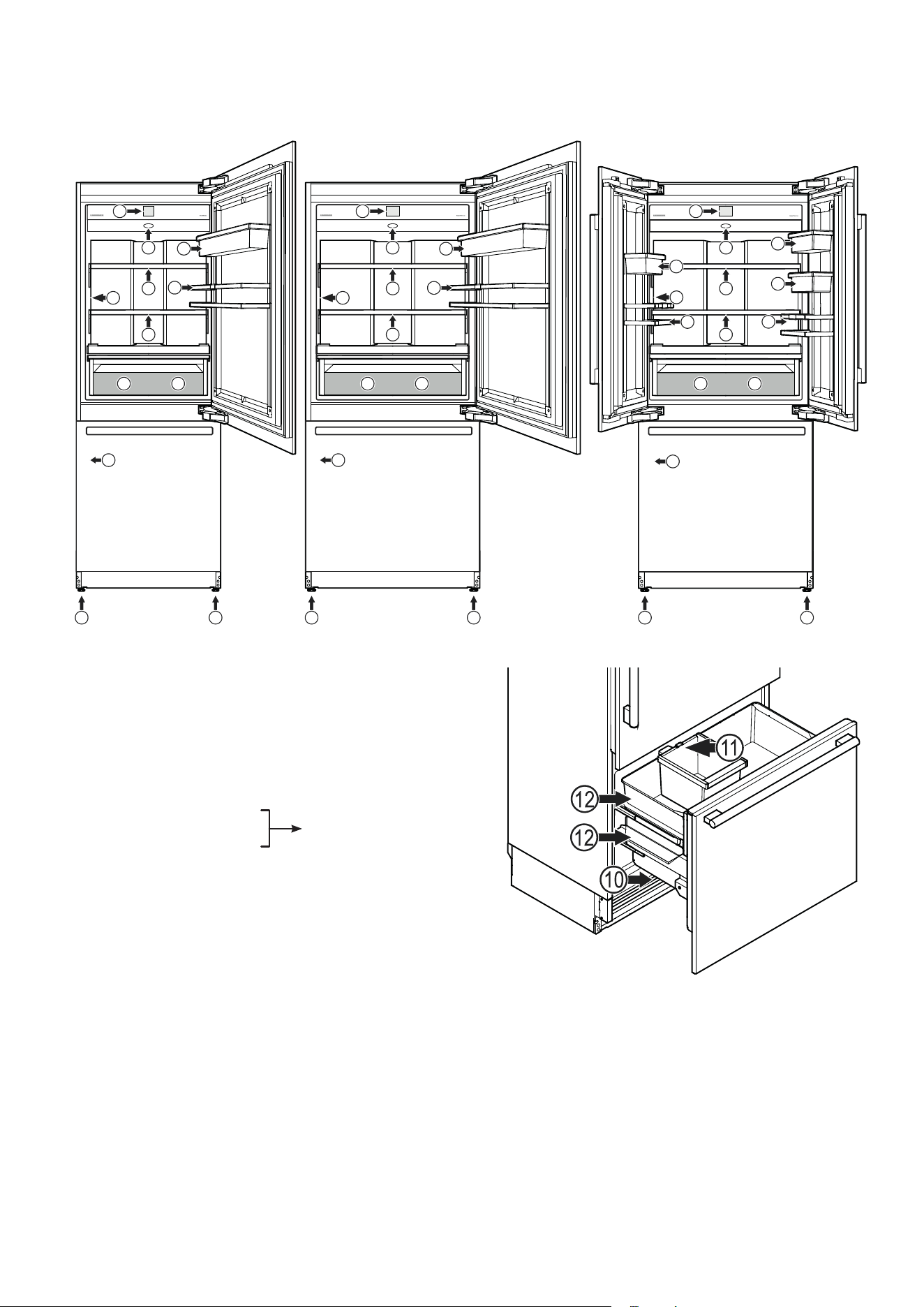

ECBN 9471 ECBN 9671 ECBN 9673
(1) Control panel
(2) Air filter
(3) Adjustable shelves (max. 20 kg)
(4a/b) BioFresh-Plus drawer. For storing food at a temperature
of either 0°C or -2°C.
(5) Adjustable-height feet
(6) Water dispenser
(7) Adjustable door rack
(8) Bottle rack
(9) Type plate (behind the drawer on the left-hand side)
(10) Water filter (behind the ventilation grille)
(11) IceMaker (inside the drawer) and removable ice cube bin
(12) Freezer drawer
1
3
5 5
6
7
8
9
2
5 55 5
11
22
3
3
3
3
3
4a
66
7
7
7
8
8
8
99
4b 4a
4a4b 4b
7
ECBN 9471 (max. 25 kg)
ECBN 9671 (max. 30 kg)
ECBN 9673 (max. 15+15 kg)
39
Control panel
Three different actions to operate the control panel.
Touch
Touch to activate functions.
Press
Press for approx. 2 seconds to
activate functions.
Slide
Slide to right or left to navigate in the
menu or to search for values.

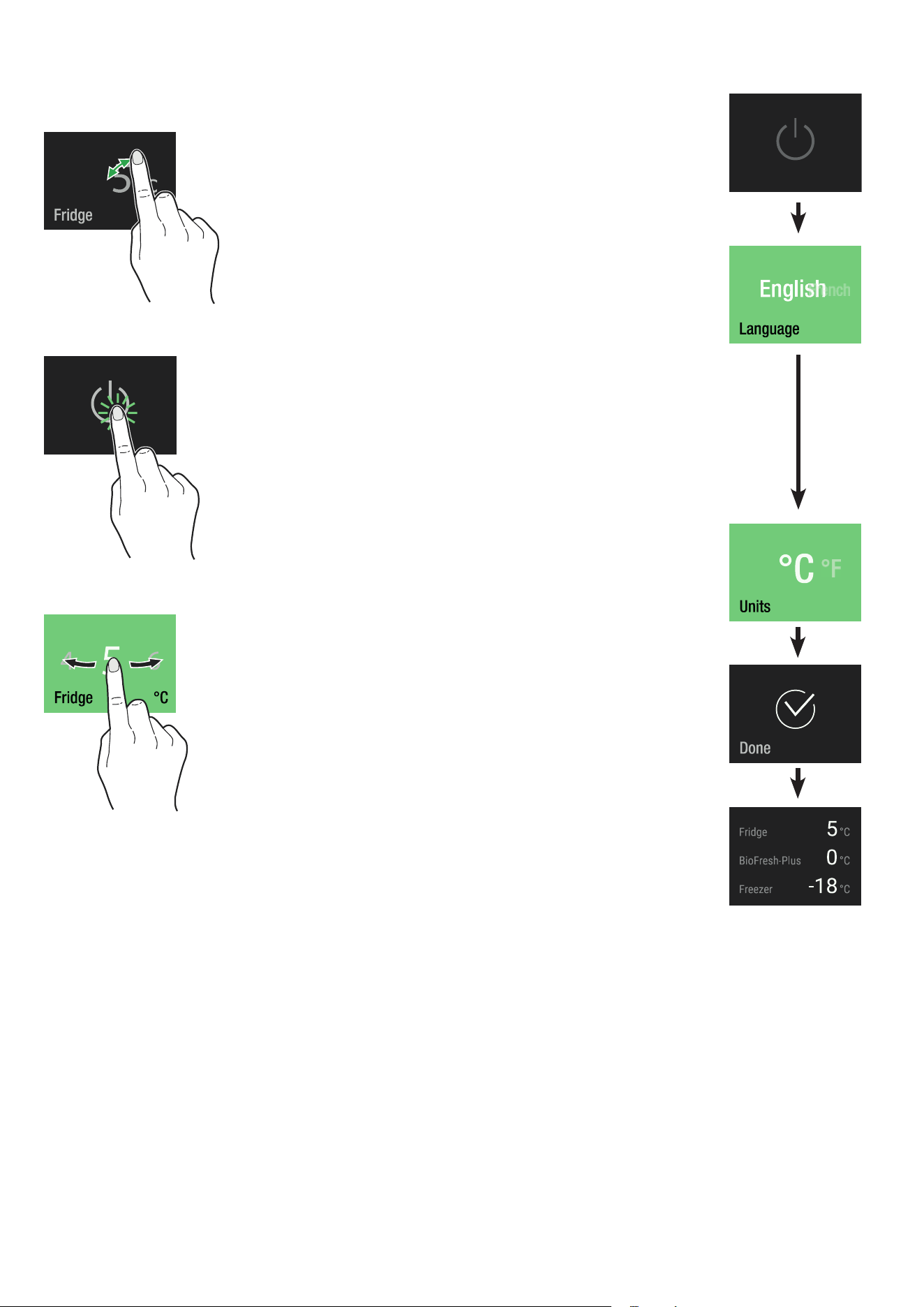

Switching the appliance on
Touch

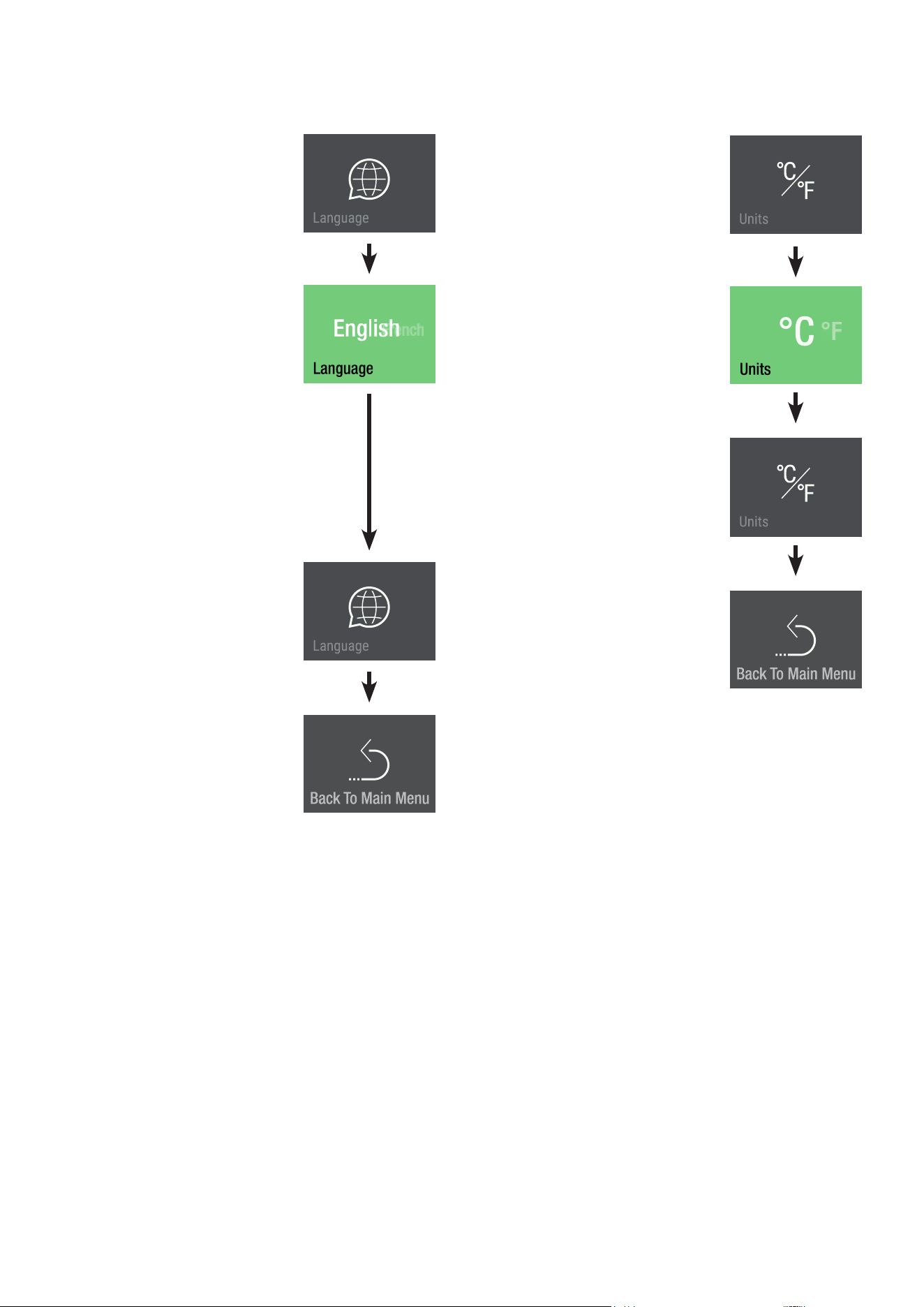

Slide to your language and touch
Slide to the desired temperature unit
and touch
Touch to confirm
or
slide to the right to change the
previous settings again.
Available languages:
• German
• Portuguese (Brazil)
• French
• Spanish
• Italian
• English (GB)
• English (US)
• Chinese
• Russian
40
EN

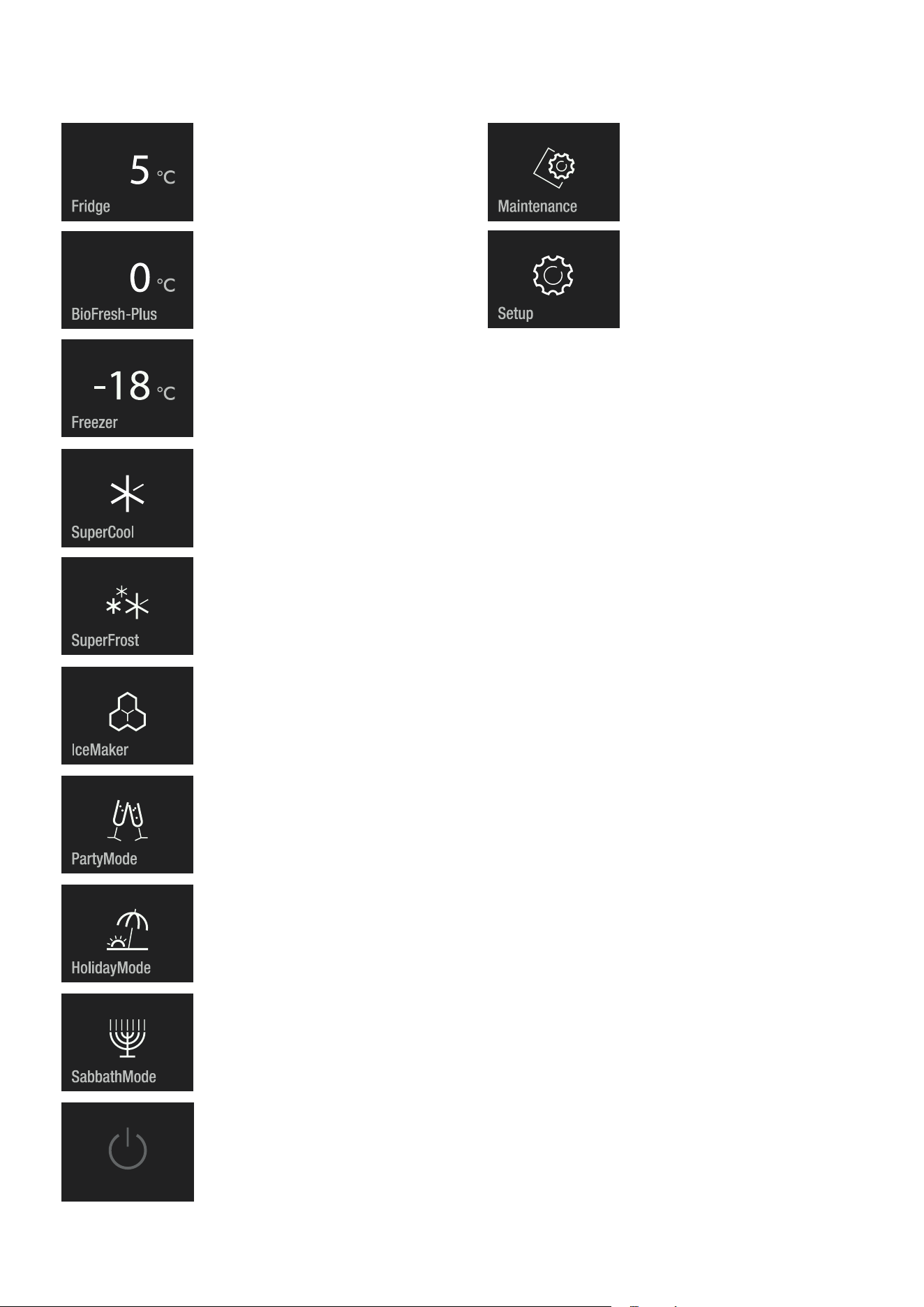

Main menu
Navigation through the main menu. The following functions are
available.
Refrigerator compartment temperature
display and temperature setting.
BioFresh-Plus compartment tem-
perature display and temperature
setting.
For permanent maximum cooling.
Appliance operating mode for Sabbath
and holidays. Complies with STAR-K
Kosher Certification.
Switching the appliance on or off.
Describes how to change the filters and
clean the water dispenser and dust filter.

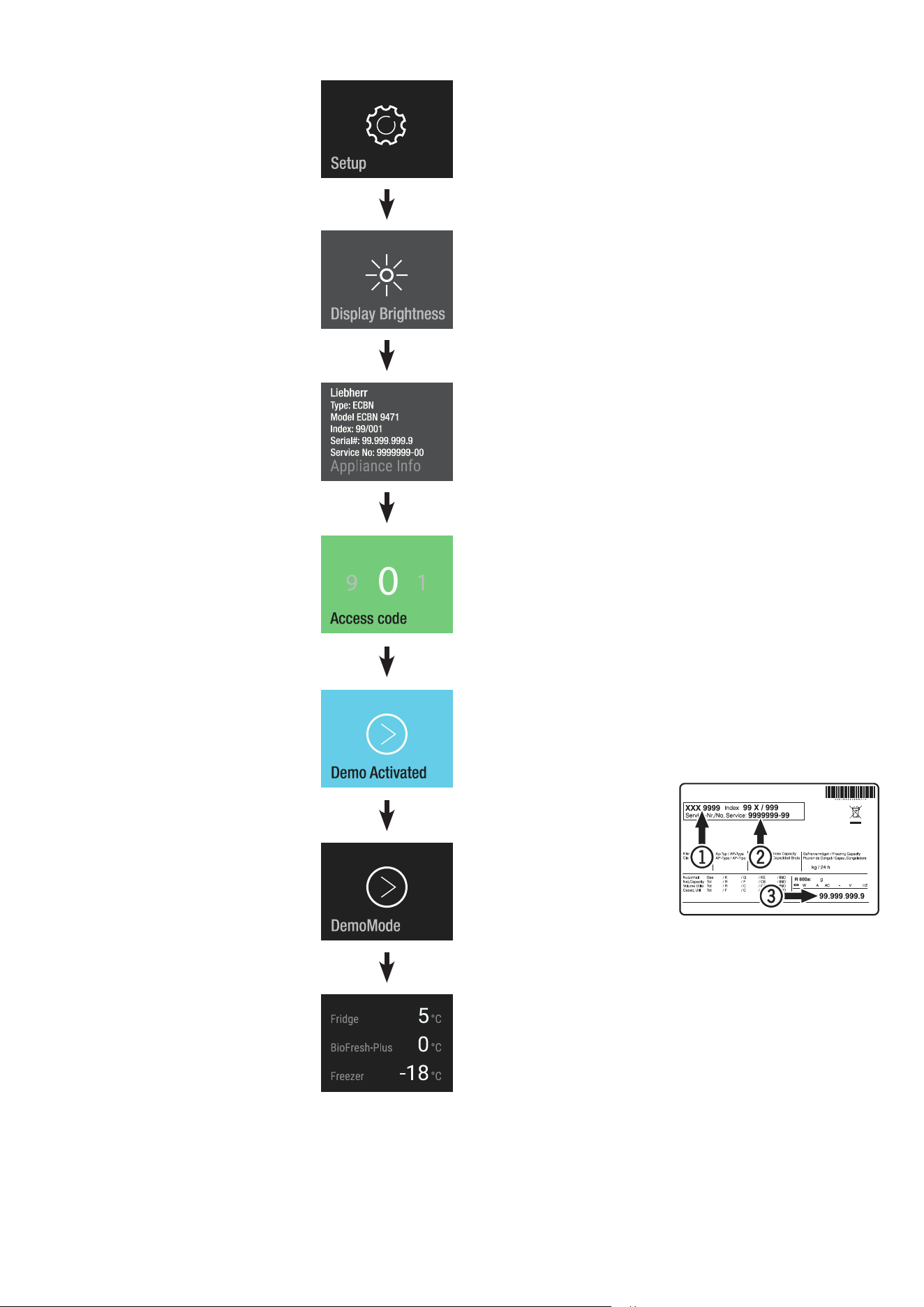

Allows the adjustment of display
brightness and includes the appliance
information (service number, model
name, serial number).
Switches the appliance to an energy-
saving operating mode; the tempera-
ture in the refrigerator compartment is
increased to 15°C.
For maximum cooling with time limit and
automatic return to normal operating
mode.
Freezer compartment temperature
display and temperature setting.
To freeze fresh food as rapidly as
possible to ensure that the nutritional
value, appearance and flavour of the
food remain intact.
To switch the IceMaker on or off and to
maximum ice production.
Note
The temperature in the appliance's compartments may rise
significantly if the door is left open for a lengthy period.
41
Setting the temperature
(refrigerator compartment)
Standard setting is 5 °C.
Setting the temperature
Touch
Slide to the desired target temperature
and touch.
The number flashing at the bottom right
shows the actual interior temperature. It
disappears when the target temperature
is reached.
Display when the door is opened again.
Close the appliance door.
The refrigerator temperature display flashes if the actual refrig-
erator temperature is different to the target temperature. It stops
flashing when the target temperature is reached.
The temperature can be set between 2°C and 7°C.
Slide to the desired zone.
Touch
or
or
Note
The temperature in the warmest section of the appliance
may be higher than the set value.
42
EN

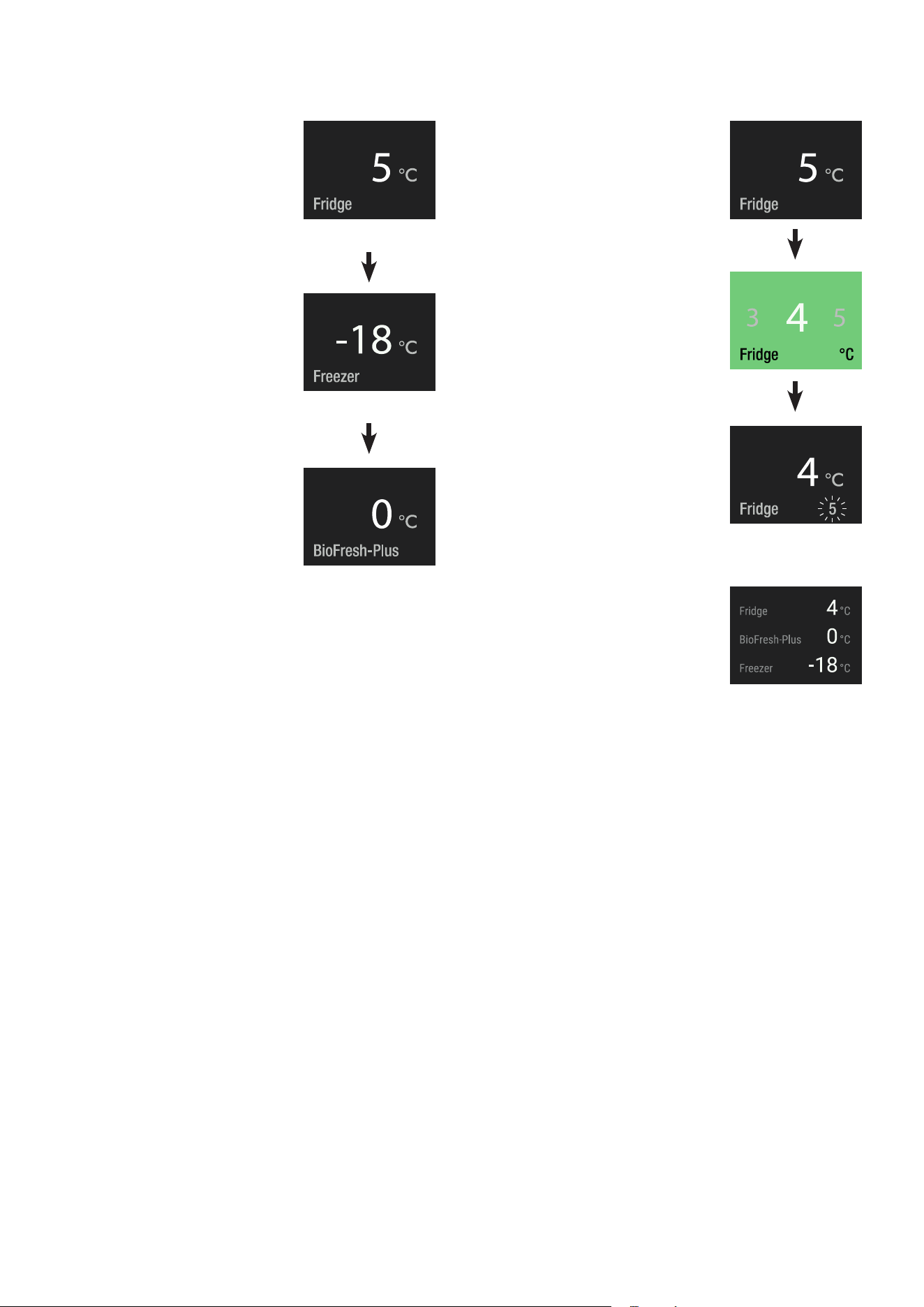

Setting the temperature
(BioFresh-Plus compartment)
Standard setting is 0 °C.
Touch
Slide to the desired target temperature
and touch.
An additional drawer divider must be
inserted to select -2°C/0°C.
Temperature range on the left-hand side
of the drawer: -2°C
Temperature range on the right-hand
side of the drawer: 0°C

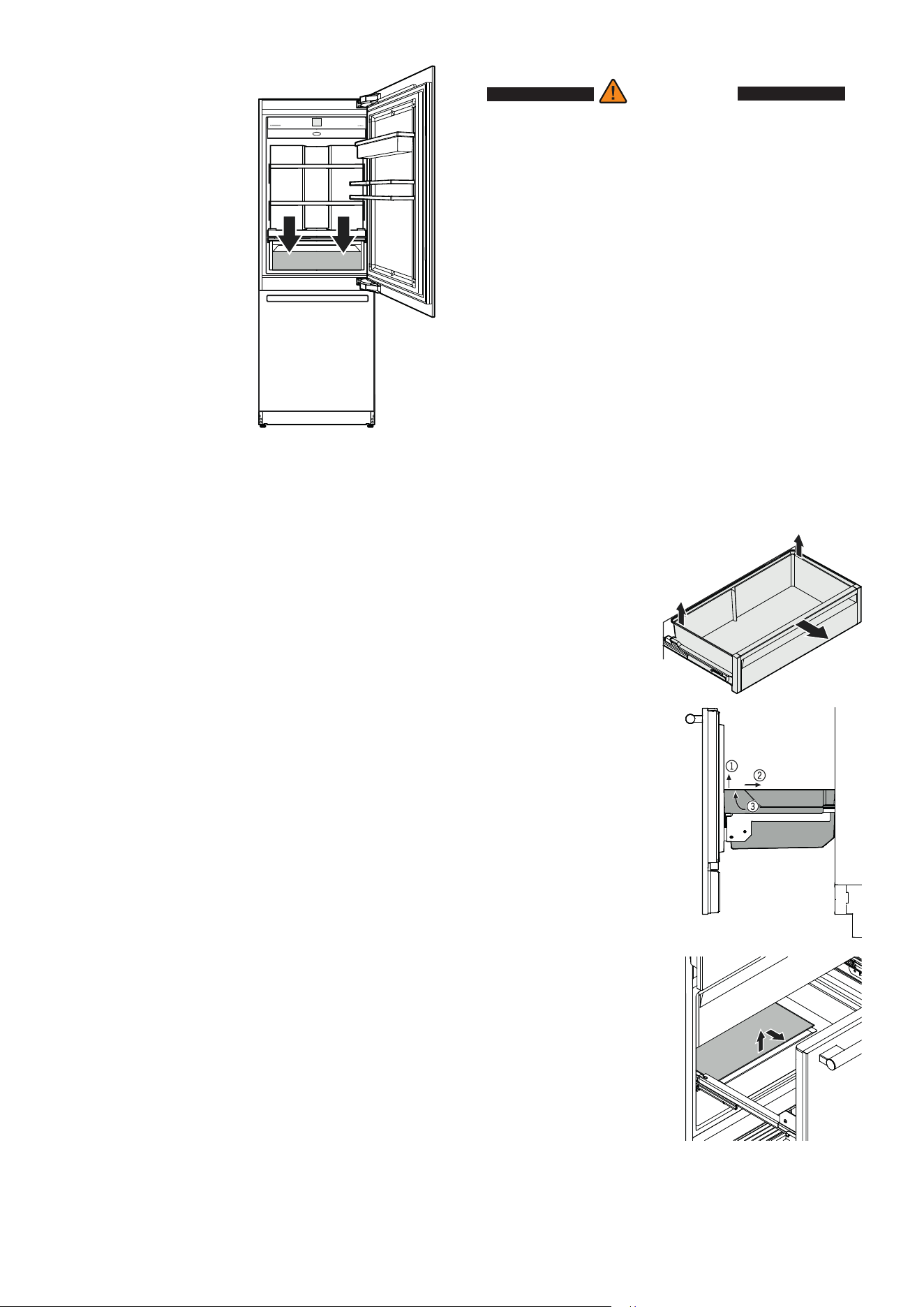

Pull the drawer straight out,
grip at the back and lift out.

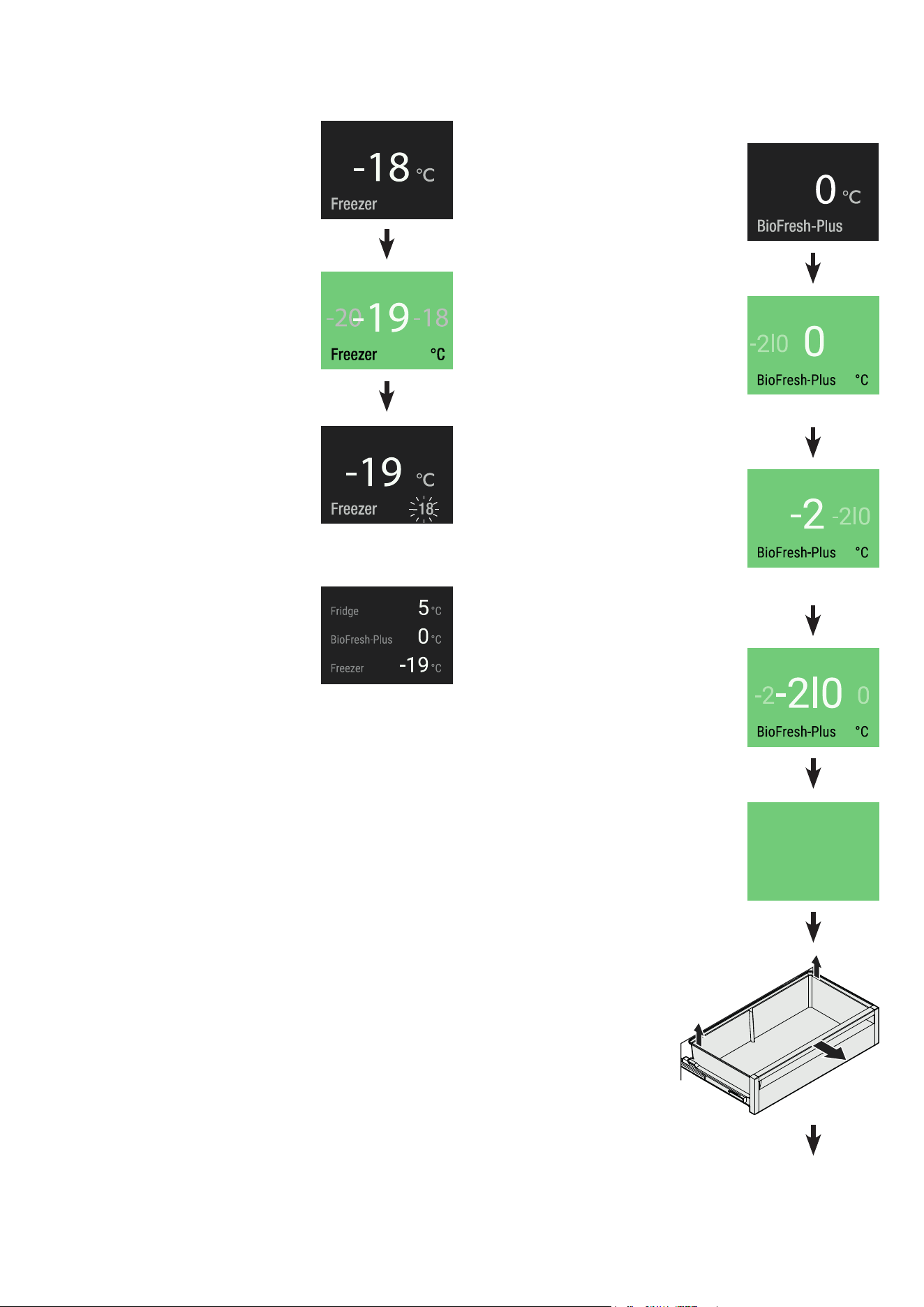

Setting the temperature
(freezer compartment)
Standard setting is -18°C.
Touch
Slide to the desired target temperature
and touch.
The number flashing at the bottom right
shows the actual interior temperature. It
disappears when the target temperature
is reached.
Display when the door is opened again.
Close the appliance door.
The temperature display flashes if the actual interior temperature
is different to the target temperature. It stops flashing when the
target temperature is reached.
The temperature can be set at between -14°C and -27°C.
or
or
For dual temperature
please ensure
the drawer divider
is inserted.
Note
There is no need to remove the
drawer divider for setting to 0°C
or -2°C. The temperature will be
adjusted in both compartments of
the drawer.
43

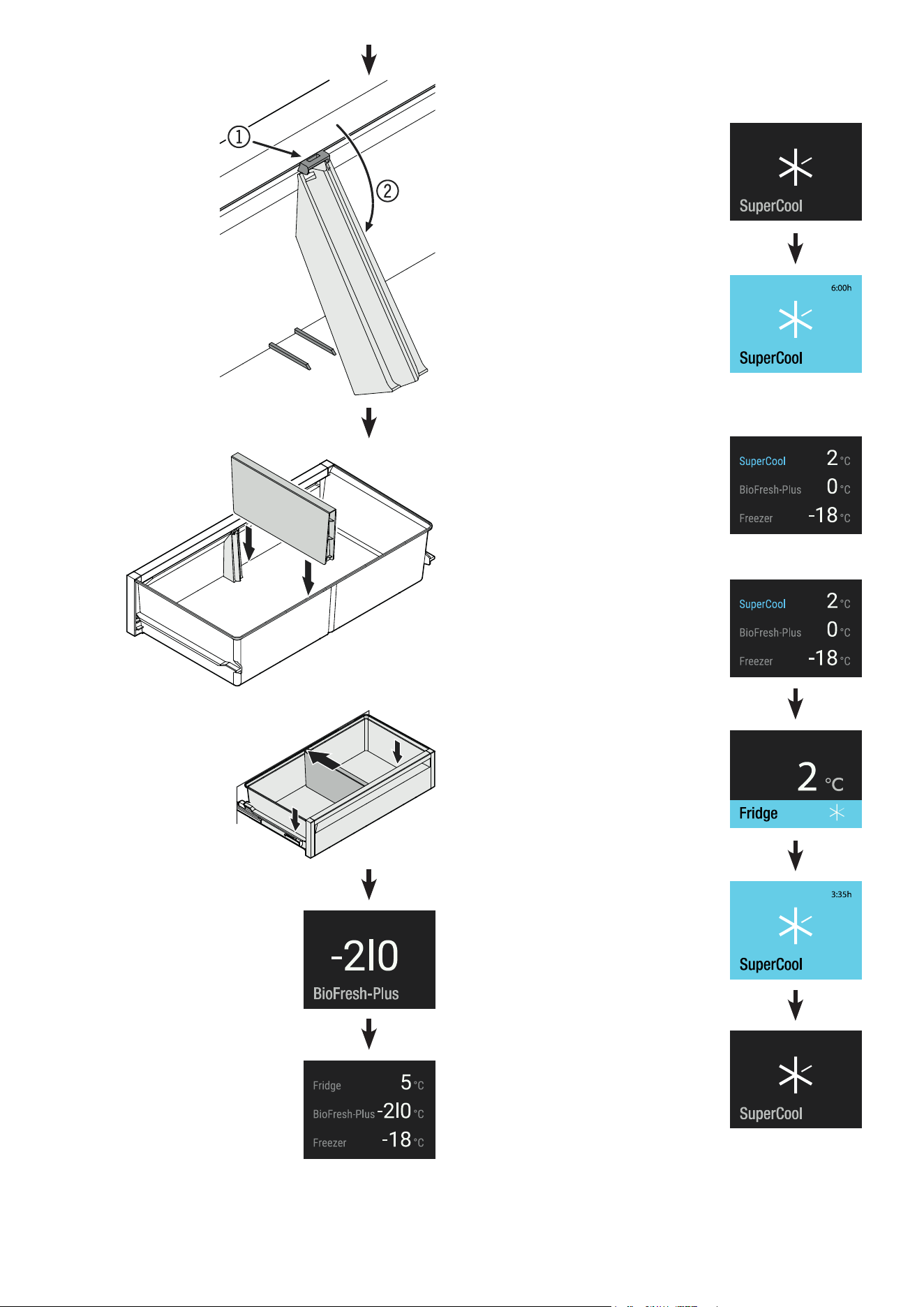

SuperCool
Activate SuperCool if you wish to cool large quantities of food
rapidly. The set temperature is 2°C.
Touch
SuperCool is activated.
At the top right, the remaining run time
of 6 hours is visible. When this time
is up, the appliance switches back to
normal operation.
SuperCool is deactivated.
Display when the door is opened again.
Close the appliance door.
To change the temperature, SuperCool
must be deactivated. Touch the display.
Touch
Touch
Close the appliance door.
Display when the door is opened again.
Attach the holder at the
top (1) and turn it (2).
Insert the drawer divider.
Extend the pull-out rails as
far as they will go. Place the
drawer on the rails and slide
it right in.
44
EN

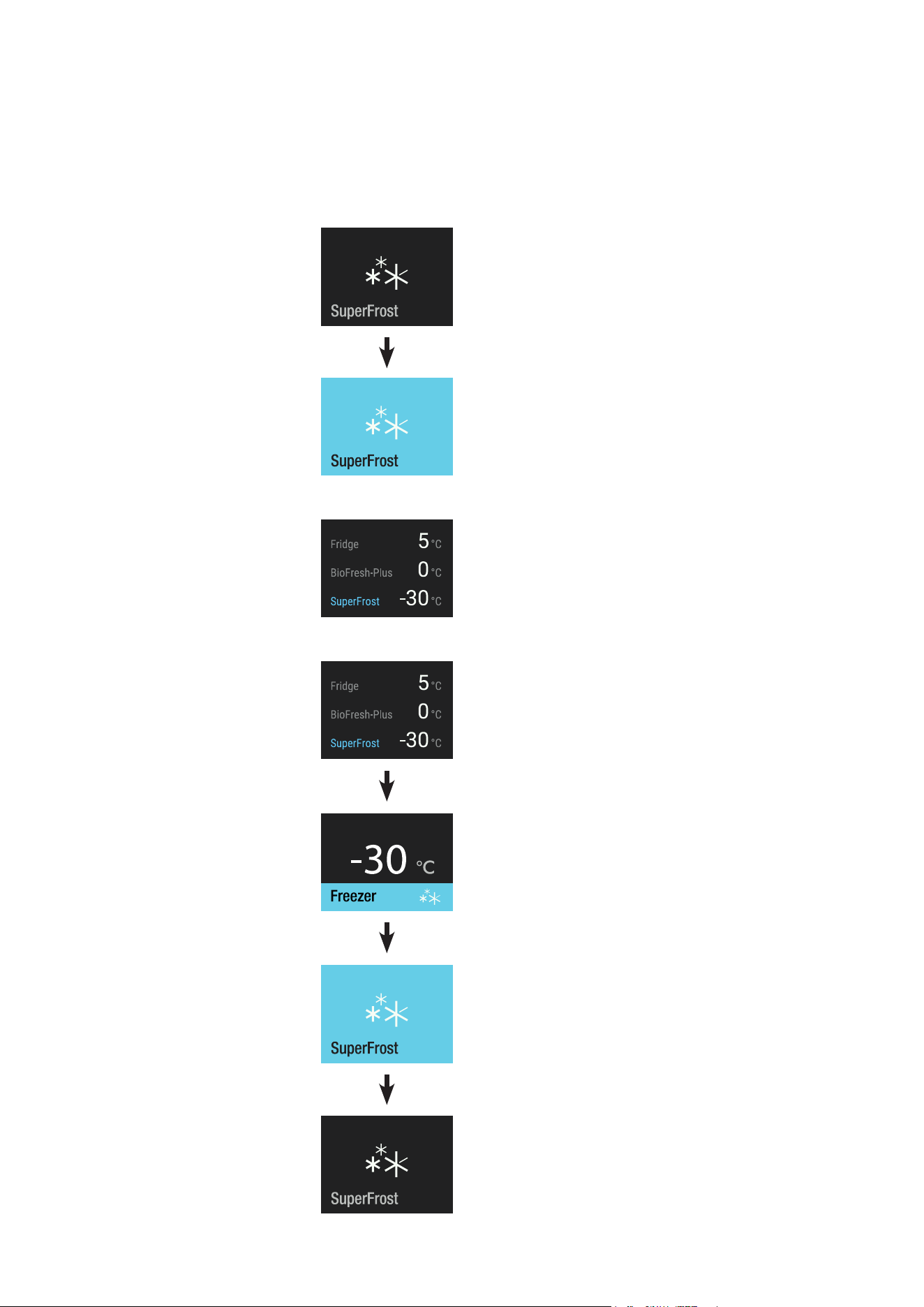

SuperFrost
Fresh food should be frozen completely and as rapidly as possible.
This is provided by the SuperFrost feature and ensures that the
nutritional value, appearance and flavor of the food remains intact.
Touch
SuperFrost is activated.
Wait 24 hours. Then place the food
inside and close the appliance door.
SuperFrost is deactivated.
Display when the door is opened again.
The SuperFrost function switches off
automatically after between 30 and
65 hours depending on the quantity of
food placed inside.
To deactivate SuperFrost earlier, touch
the display.
Touch
Touch
The maximum amount of food in kg which can be frozen in 24
hours is shown on the type plate (Freezing capacity).
Notes on freezing
• Always store identical food items together.
• Pack food which you are freezing yourself in quantities appro-
priate to your household. To ensure that the food freezes right
through, the following quantities should not be exceeded per
pack age:
fruit, vegetables: up to 1 kg,
meat: up to 2.5 kg.
• Pack frozen food in standard freezer bags or reuseable plastic,
metal or aluminium containers.
• Do not allow fresh food which is to be frozen to come into con-
tact with food already frozen. Always keep packs dry in order
to avoid them sticking together.
• Always write the date and contents on the pack and do not
exceed the stated storage time for the food.
• Do not freeze bottles and cans which contain carbonated drinks
as they might burst.
• Only take out as much food as is immediately required for
thawing. Use food which has been thawed in prepared meals
as quickly as possible.
Frozen food can be thawed in the following ways:
– in a fan oven
– in a microwave oven
– at room temperature
– in the refrigerator
45
IceMaker description
The IceMaker is in the top drawer
of the appliance.
The ice cubes fall out of the Ice-
Maker into the drawer.
When the ice reaches a certain
level in the drawer, the appliance
stops producing ice automatically.
After you start the IceMaker for the
first time, it may take up to 24 hours before the first ice cubes
are ready.
Note
The first three batches of ice must not be consumed or
used.

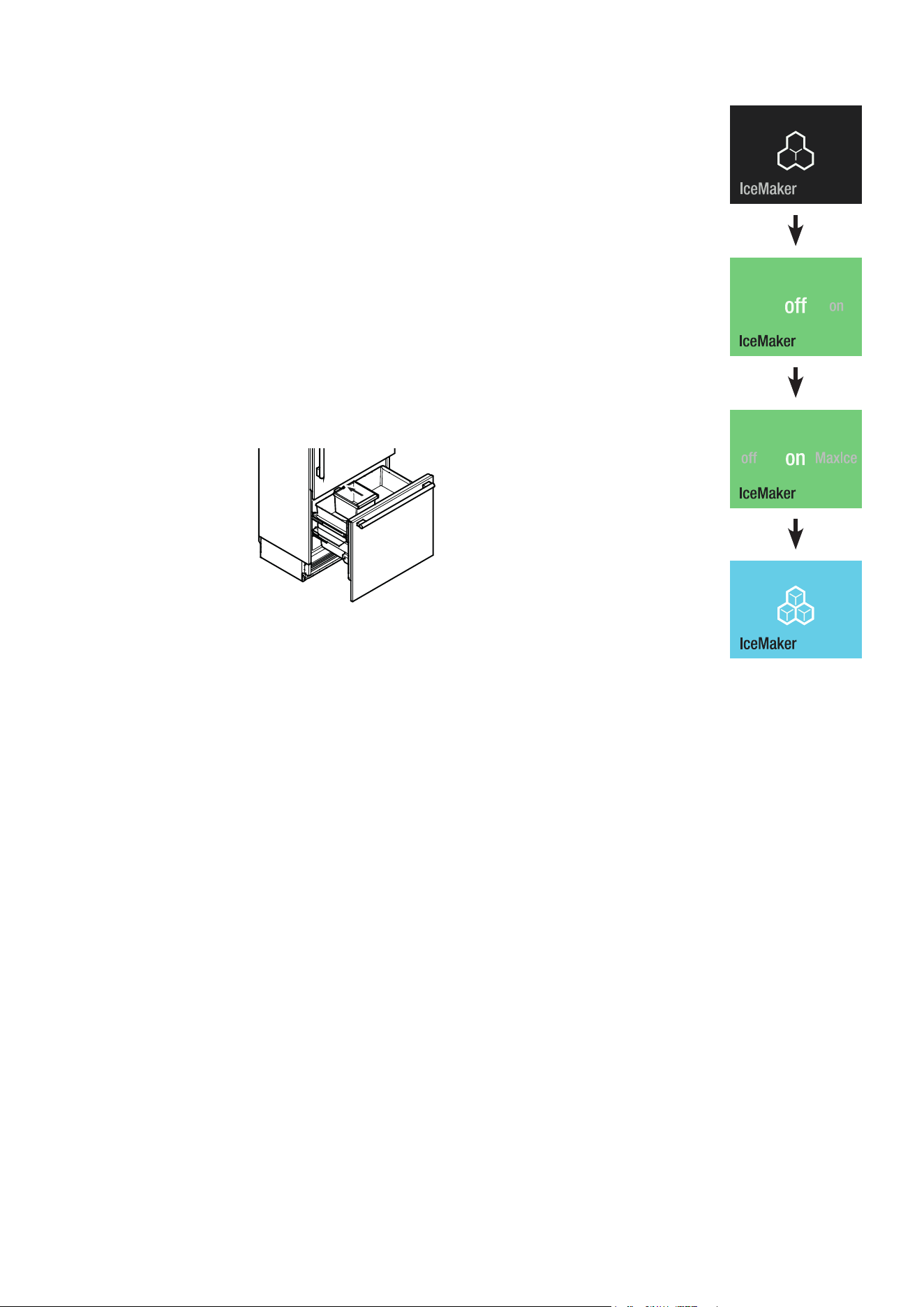

Switching the IceMaker on
Touch
Slide to the left.
Touch
Safety instructions and warnings for the
IceMaker
• The IceMaker is designed exclusively to make ice cubes in
quantities needed by a household.
• All repairs and work on the IceMaker may only be done by
customer service personnel or other appropriately trained
personnel.
• Do not consume or use the first three batches of ice. This
applies both to using the appliance for the first time and
also using it after it has not been used for a long period
of time.
• The manufacturer cannot accept liability for damage
caused by equipment or water lines between the solenoid
valve and the water supply.
The production capacity is 100 to 120 ice cubes in 24 hours at a
temperature of -18°C in the freezer compartment.
The IceMaker is switched on.
46
EN

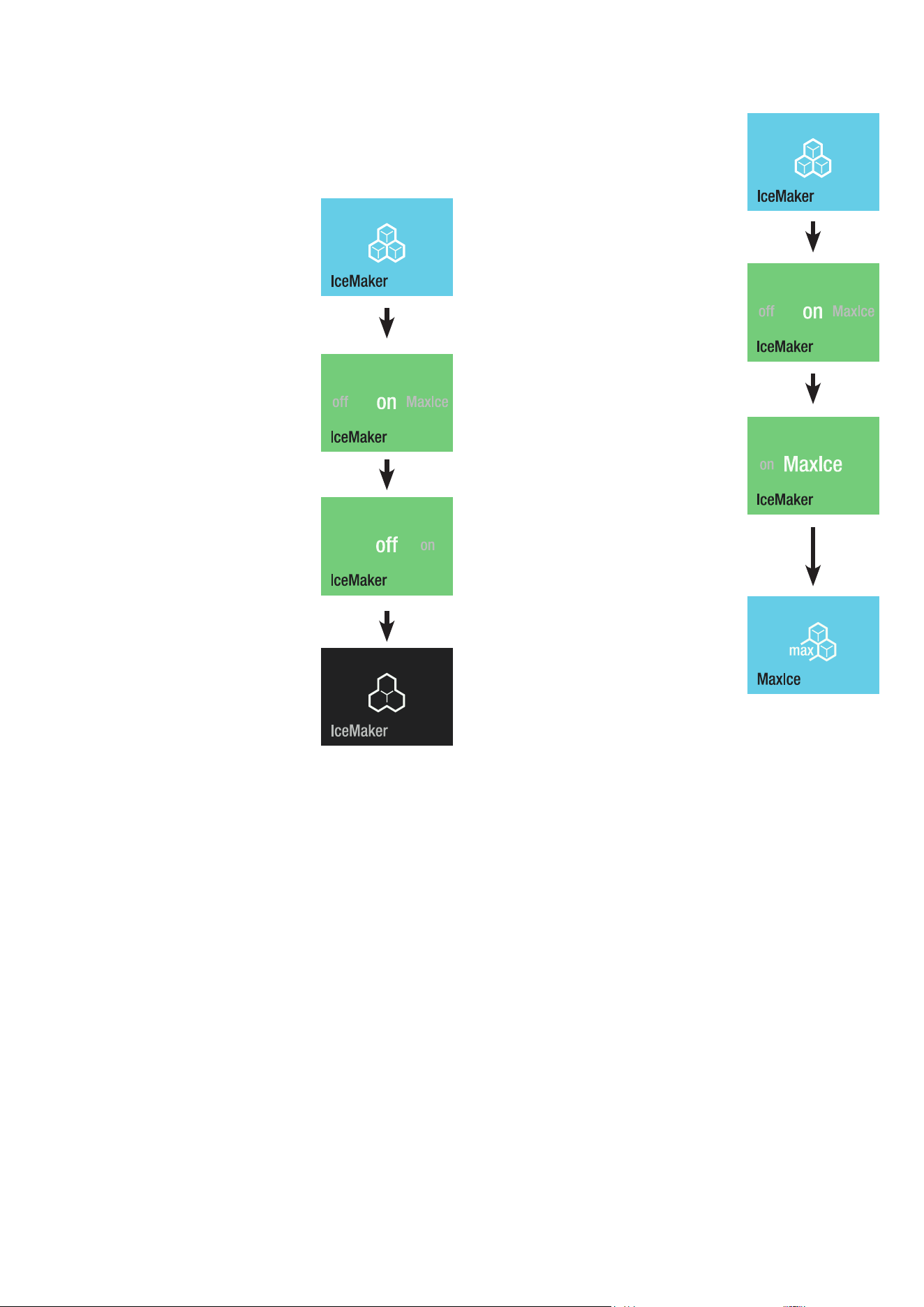

Switching the IceMaker o
Touch
Slide to the right.
Touch
The IceMaker is switched off.
Note
Additional steps required to decommission the appliance or
for a lengthy absence.
• Switch off the water supply.
• Wait for 24 hours or until the water alarm appears.
• Disable the IceMaker.
The production capacity is approx. 150 ice cubes in 24 hours.
Be aware that this increases the energy consumption
slightly.
Switching the IceMaker to maximum ice pro-
duction
Touch
Slide to the left.
Touch
The MaxIce function is activated.
Note
Maximum ice production is switched off after 36 hours.
Note
The temperature in the freezer
compartment is set to the perfect
level for ice production.
47
Touch
PartyMode is activated
It must be deactivated manually.
Close the appliance door.
Display when the door is opened again.

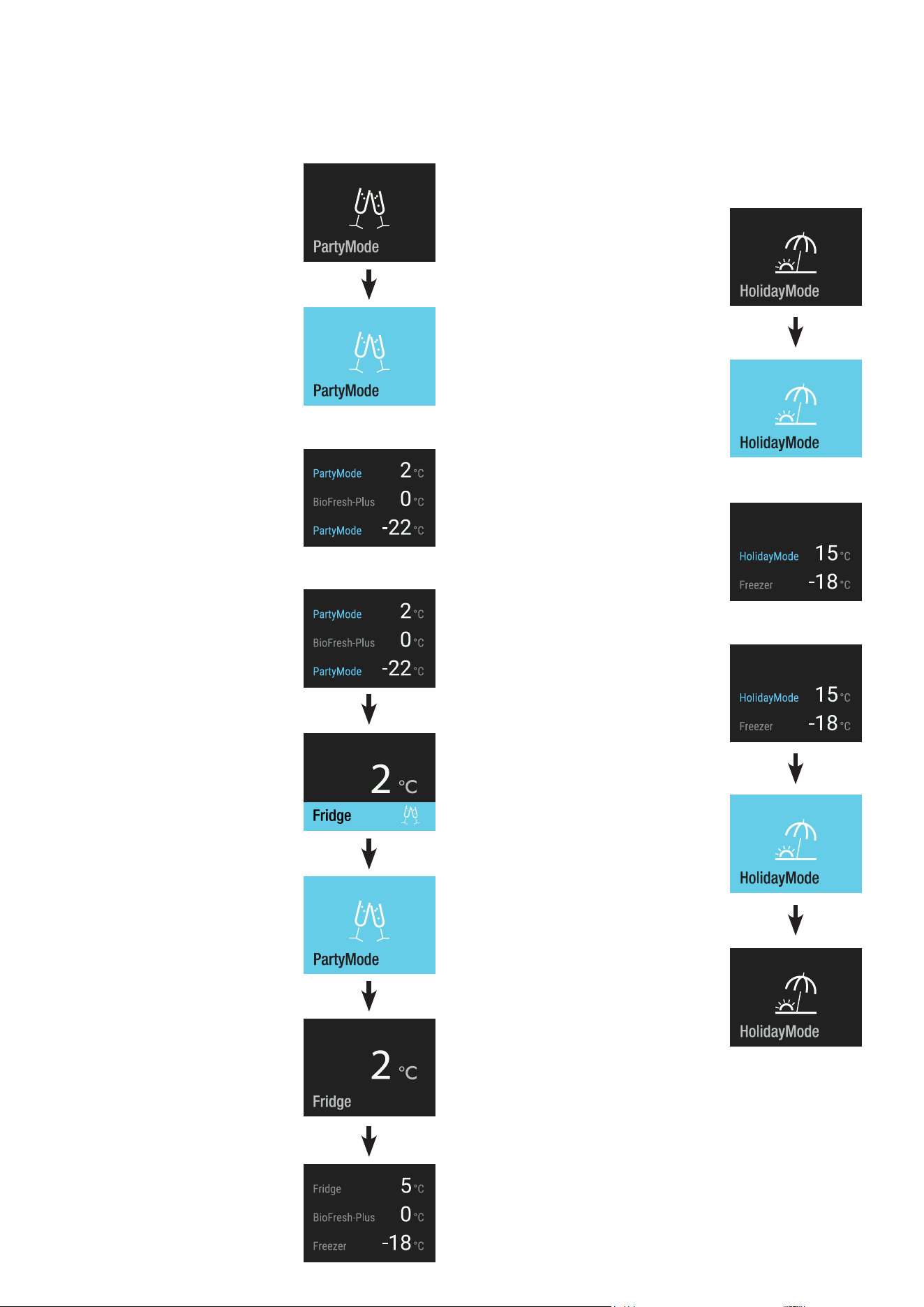

Refrigerator temperature display
flashes.
To change the temperature, PartyMode
must be deactivated. Touch the display.
Touch
Touch
PartyMode
When a large amount of cold food or beverages is needed: place
all the food and beverages in the appliance one day before and
activate PartyMode. SuperCool is activated in the refrigerator
compartment and maximum ice production in the freezer com-
partment.
Display when the door is opened again.
Close the appliance door.
HolidayMode
Before a lengthy absence, use up all the food in the refrigerator
compartment and activate HolidayMode. This ensures that no
unpleasant odours develop inside the appliance, even if the
appliance door is closed. (The temperature in the refrigerator
compartment is increased to 15°C.) The current cycle for ice
cubes will be completed in the freezer compartment and the
IceMaker will be disabled.
Touch
HolidayMode is activated.
Close the appliance door.
Display when the door is opened
again.
The display shows the actual
temperature in the refrigerator
compartment.
Touch
If you want to deactivate
HolidayMode, touch the display.
HolidayMode is deactivated.
48
EN

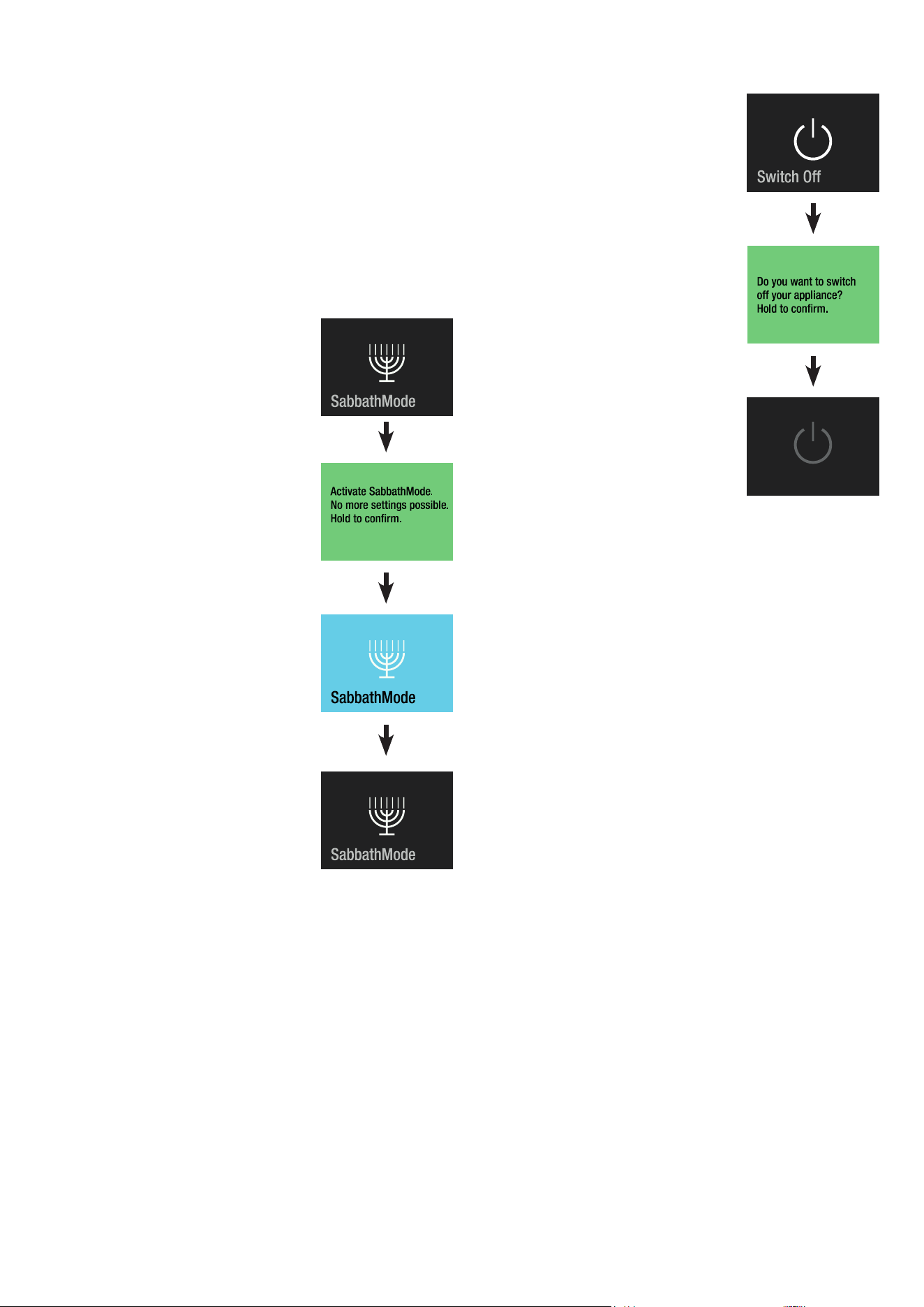

SabbathMode
When SabbathMode is active, some electronic functions are
switched off to comply with STAR-K Kosher Certification.
• The lighting remains off.
• The cooling fan remains in its actual state: if it is on, it remains
on; if it is off, it remains off.
• There is no door alarm.
• There is no temperature alarm.
• Defrost cycles are independent of the number of times and
length of door openings.
• The appliance will return to SabbathMode after a power failure.
Touch
Press for approx. 2 sec. to activate
SabbathMode
or
touch to return to normal operating
mode.
SabbathMode is activated.
SabbathMode switches off automati-
cally after 120 hours.
To deactivate SabbathMode earlier,
touch again.
SabbathMode is deactivated.
Switching the appliance o
Touch
The appliance is switched off.
Press for approx. 2 sec. to switch off
the appliance
or
touch to return to normal operating
mode.
49

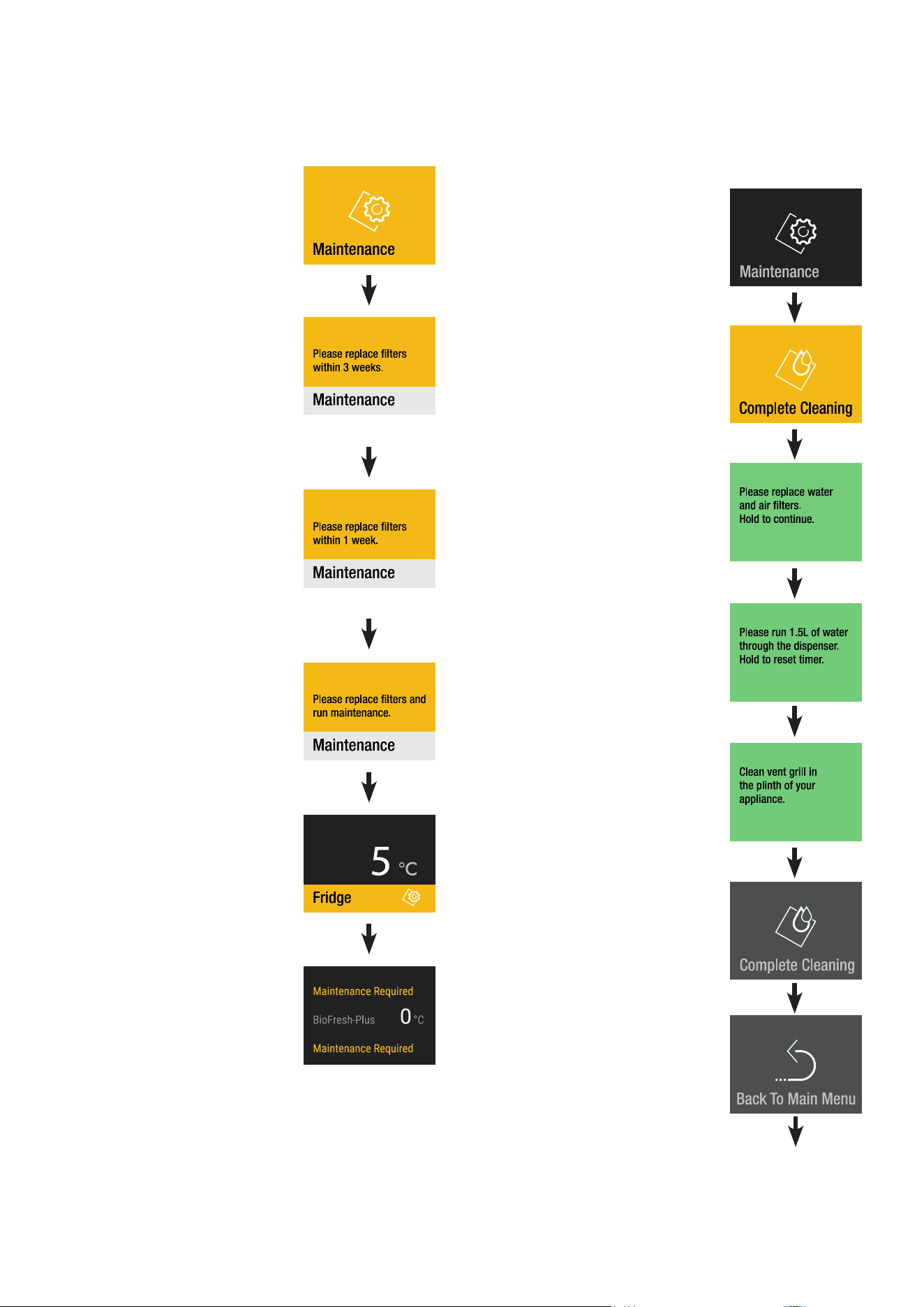

Maintenance message
In regular intervals of operation of the appliance, the maintenance
message comes on (6 months). Filters need to be changed. The
water disperser needs to be flushed. The dust filter needs to be
cleaned.
Touch
or
or
Touch
Close the appliance door.
Display when the appliance door is
opened again.
Obtain water filter and air filter from your dealer and complete the
maintenance procedure.
Maintenance conrmation
Touch
Touch
Change water filter and air filter as
described in chapter „Maintenance“.
Subsequently press for approx. 2 sec.
to continue.
Flush the water dispenser as described
in chapter „Maintenance“. Subse-
quently press for approx. 2 sec. to
continue.
Clean the dust filter as described in
chapter „Maintenance“.
Subsequently press for approx. 2 sec.
to continue.
Slide to the right.
Touch to exit maintenance.
Note
Die ersten drei Chargen Eis dürfen nicht konsumiert oder benutzt
werden, es erscheint eine Erinnerung.
Note
Eiswürfel vor Wartungsbeginn aus dem IceMaker entfernen.
50
EN
Touch

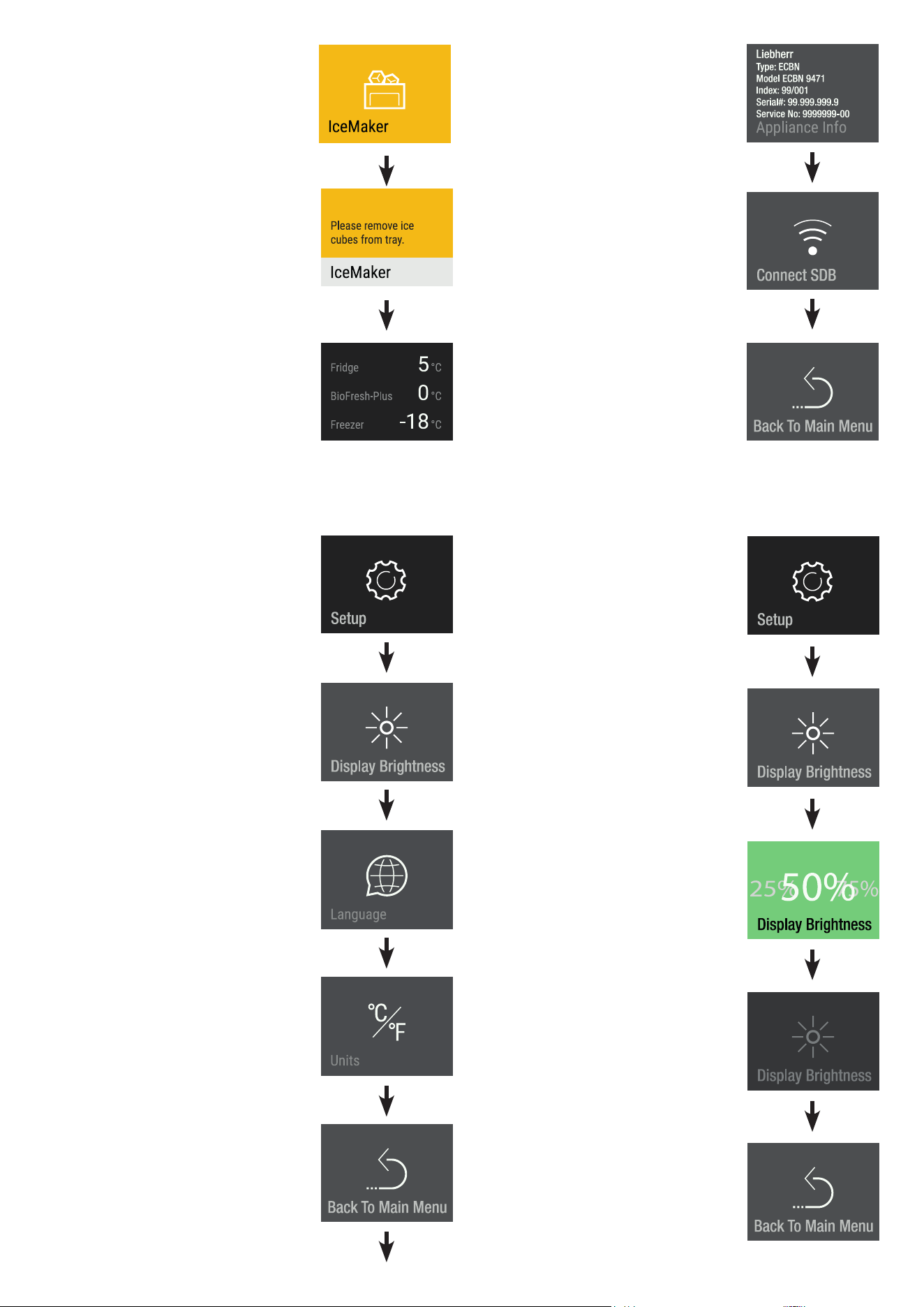

Setup menu
Includes the adjustment for display brightness, language, units,
activation of the SmartDeviceBox and the appliance information.
Slide to the left.
Display shows the appliance informa-
tion.
Slide to the right.
Slide to the left.
Touch to exit.
Slide to the left.
Slide to the left.
Touch
Touch
Display brightness
100% = maximum brightness.
25% = lowest brightness.
Slide to the desired value and touch.
Slide to the left.
Touch to exit.
Slide to the left.
(Only visible when the SmartDeviceBox
is fitted.)
Bitte Eiswürfel aus Schubfach entfernen
und entsorgen.
Touch
Wartungserinnerung nach 3 Zyklen.
Touch
51
Touch
Slide to your language and touch
Touch to exit.
Available languages:
• German
• Portuguese (Brazil)
• French
• Spanish
• Italian
• English (GB)
• English (US)
• Chinese
• Russian
Language
Slide twice to the left.
Touch
Slide to the desired temperature unit
and touch
Touch to exit.
Units
Slide to the left.
52
EN
SmartDeviceBox (not supplied in all countries)
The appliance is ready for integra-
tion into a smart home system and
for extended services.
You will find more information about
availability and prerequisites and
the individual options on the website
smartdevice.liebherr.com.
Download the "SmartDevice" app
to your mobile device.
Start the app on your mobile device and follow the instructions.
SmartDevice func-
tions are not available
in all countries.

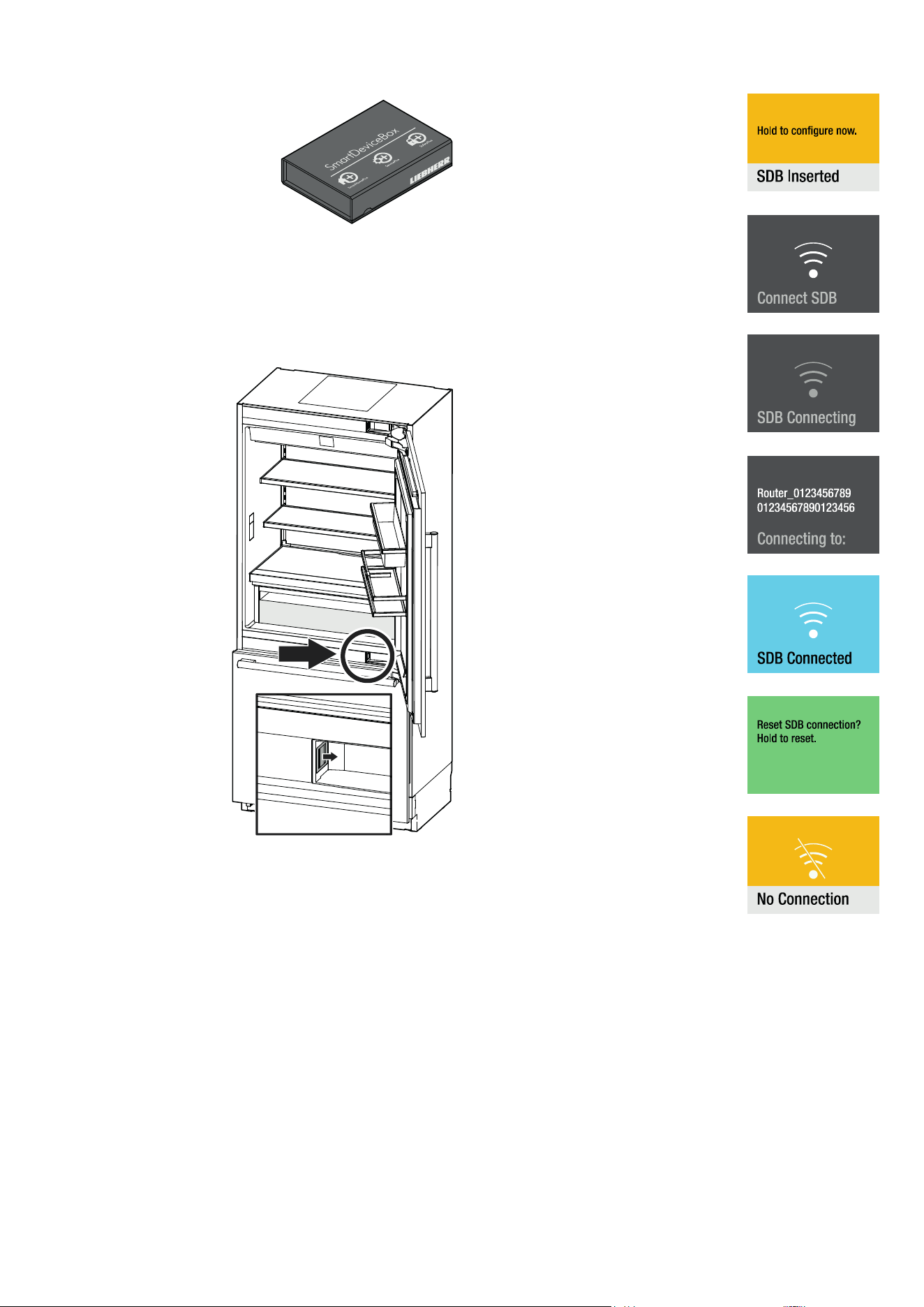

Description of the SmartDevice display
Display to start the WLAN connection.
The symbol flashes.
Connection to WLAN is in progress.
The router credentials are displayed.
Appliance is connected to WLAN.
SmartDeviceBox is inserted.
Connection reset.
This message informs you of any router
or Internet problems.
53
Device Failure

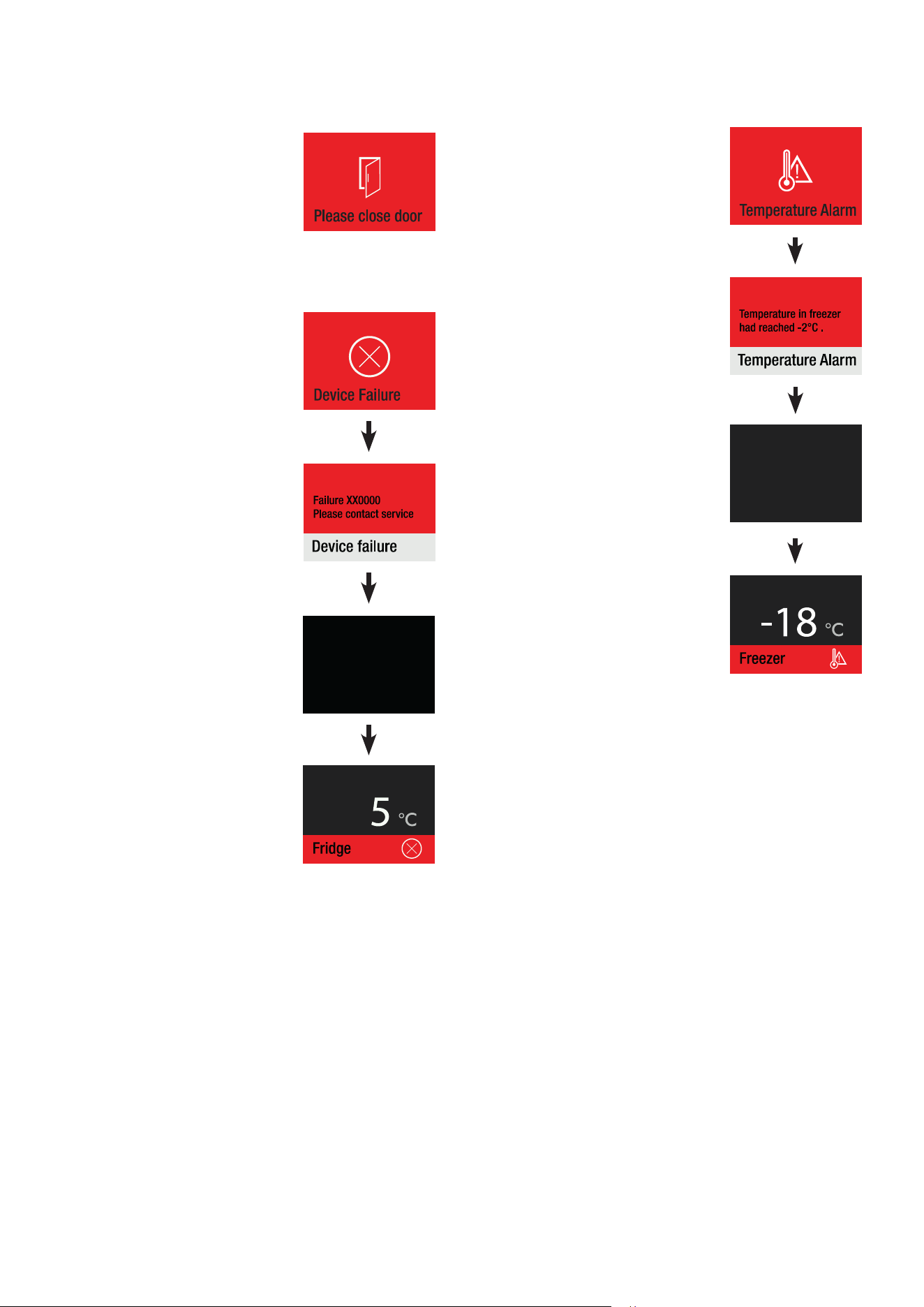

Alarm messages
Door has been left open for longer than
60 seconds.
Action
Close the appliance door.
Electronic fault.
Touch
Action
Contact the customer service depart-
ment, stating the failure code displayed.
Touch
Door open alarm
Electronic fault alarm
Touch
Press for approx. 2 seconds to read
failure code again.
Fridge
BioFresh-Plus
Temperature Alarm
°C
5
°C
0
Touch
Temperature alarm
The interior temperature was too high.
Touch
Action
Check the quality of the stored food.
The alarm display disappears as soon
as the set temperature is reached.
Touch
54
EN

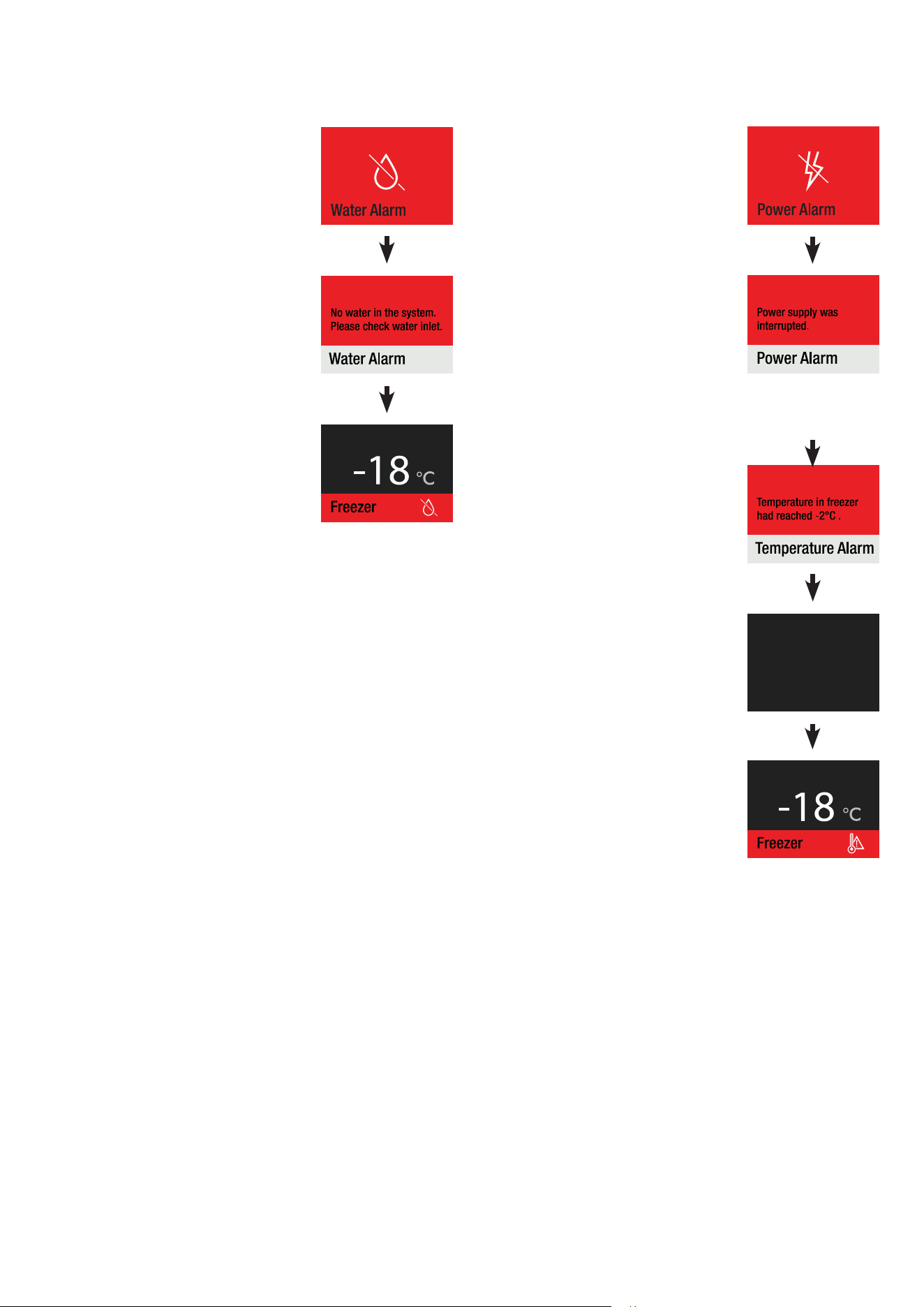

Water alarm
Touch
No water in the system.
Touch
No water in the system.
Action
Open the water shut-off valve.
Fridge
BioFresh-Plus
Temperature Alarm
°C
5
°C
0
Touch
Power alarm
Power supply was interrupted.
Touch
If the interior tempera-
ture was too high
Touch
Touch
Action
Check the quality of the stored food.
The alarm display disappears as soon
as the set temperature is reached.
55
Touch

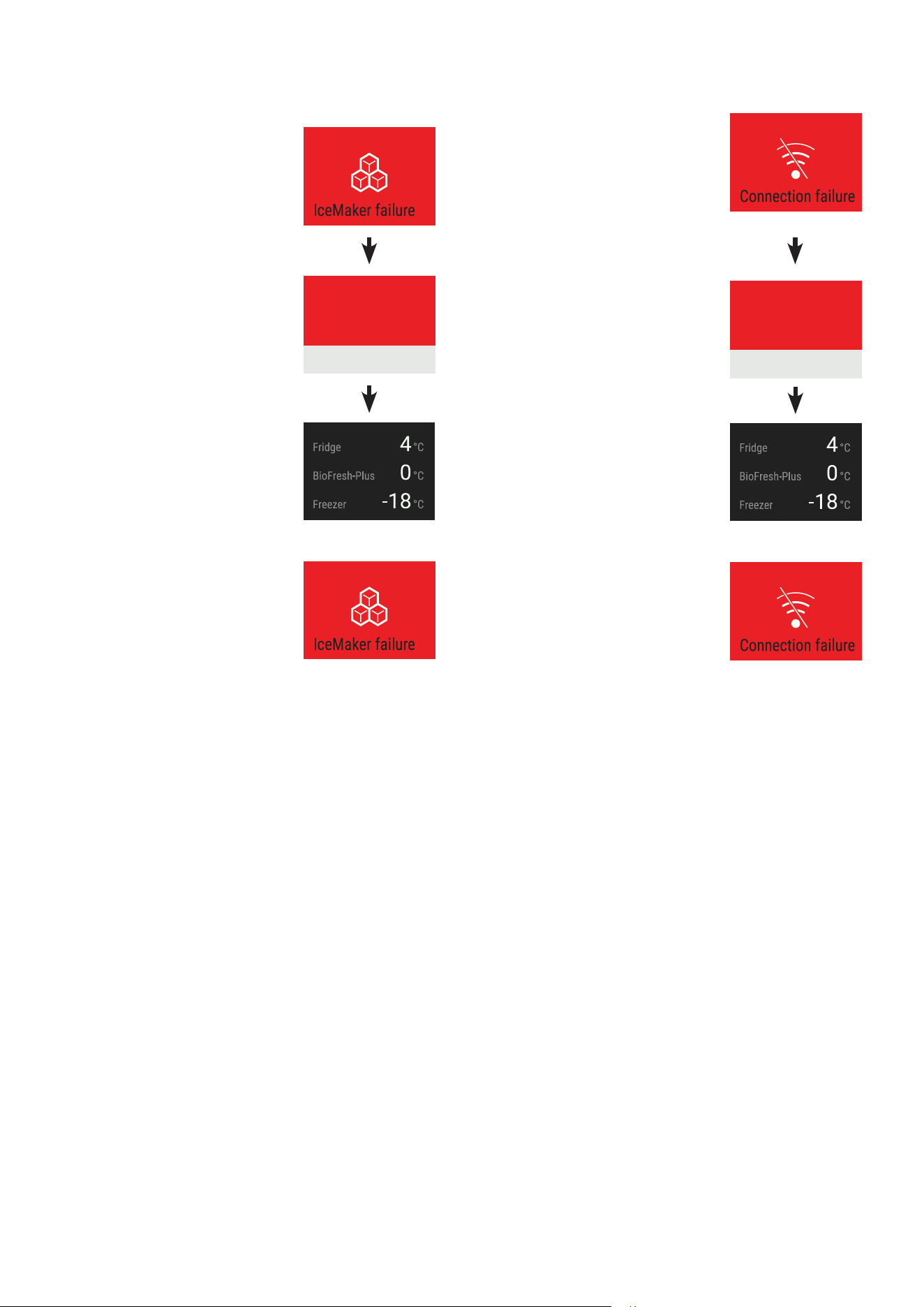

IceMaker alarm
IceMaker failure
Failure XX0000
Please contact service.
IceMaker is off
Action
Contact the customer service depart-
ment, stating the failure code displayed.
Touch
The IceMaker is disabled.
There is no need to move any items to
another appliance.
The menu will continue to show the
"IceMaker failure" error until it has been
rectified by the customer service team.
Connection failure
Touch
Action
Contact the customer service depart-
ment, stating the failure code displayed.
Touch
Connection failure
Failure XX0000
Please contact service.
The connection is disabled.
There is no need to move any items to
another appliance.
The menu will continue to show the
"Connection failure" error until it has
been rectified by the customer service
team.
56
EN

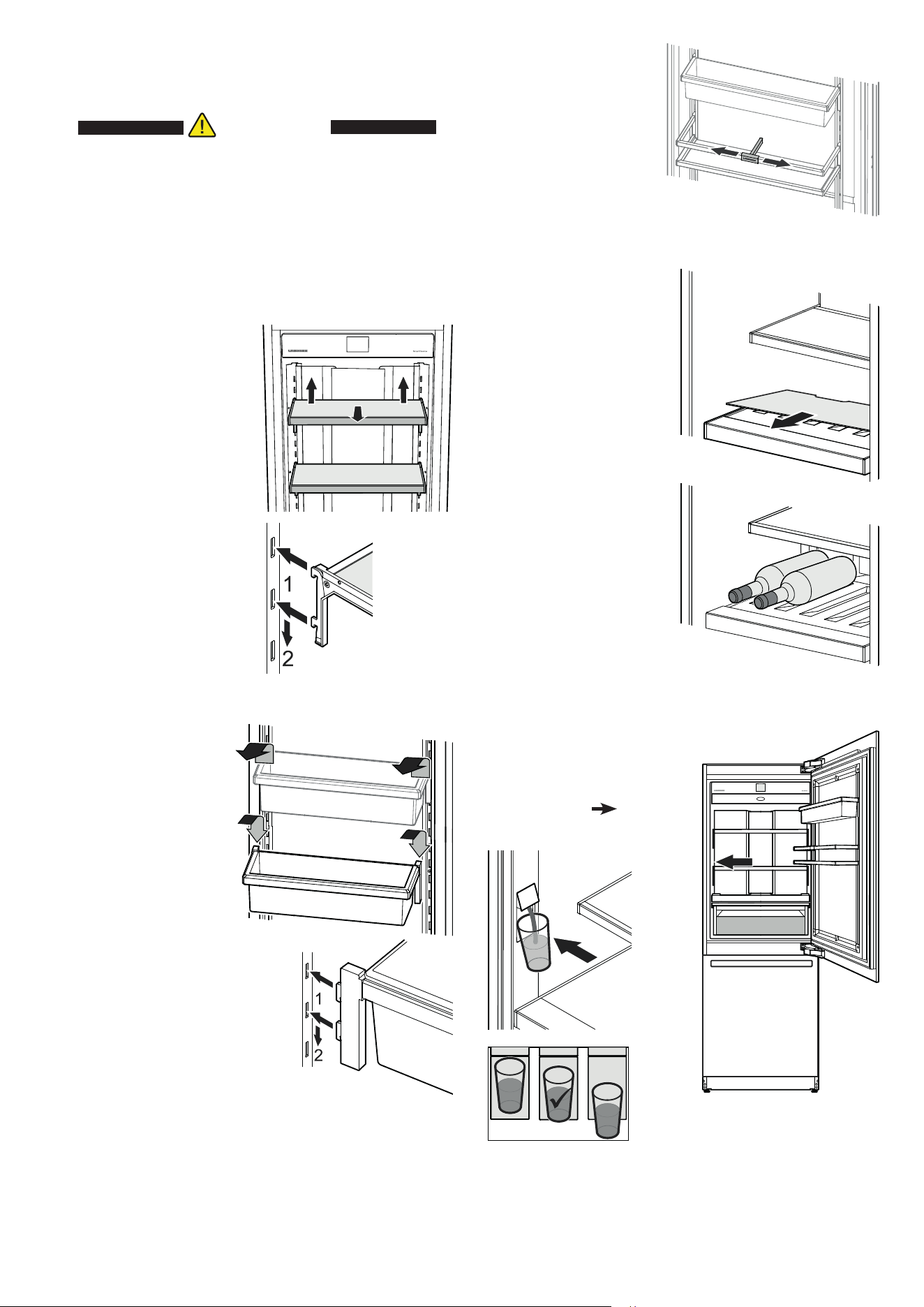

Repositioning the shelves
Removing
Lift the shelf up and remove.
Installing
Insert the hooks of the shelf
into the openings of the clip-in
strip at the desired height and
push down.
Equipment
You can position the shelves and door racks at different heights
as required.
CAUTION!CAUTION!
Risk of injury and damage.
Do not attempt to adjust a shelf or door
rack with food on it.
Only adjust an empty shelf or door rack.
Repositioning the door racks
Removing
Lift the rack up and remove.
Installing
Insert the hooks of the rack
into the openings of the clip-
in strip at the desired height
and push down.
Bottle holder
You can protect the bottles
from falling over when the
door is opened and closed.
Move the bottle holder to
the desired position. Al-
ways hold at the front when
moving.
Bottle tray
The tray above the BioFresh
drawers can be used for stor-
ing bottles horizontally.
Remove glass plate.
Note
When storing tall bottles
(higher than 230 mm),
the bottle rack must
be relocated to a
higher position to avoid
collision.
Water dispenser
Press a drinking glass against the
bottom part of the dispenser. The
top part moves out and the water
flows into the glass.
(max. time 2 min
waiting time
before reuse 4 min)
Note
The water temperature is determined by the appliance setting
and the water intake temperature.
57
Notes
• The humidity in the compartment depends on the moisture
content of the food and the frequency with which a drawer is
opened.
• The fresher the product and the higher its quality, the longer
the storage life.
• Unwrapped animal and vegetable foods should be stored
separately in the drawers. If there is not enough space for them
to be stored separately, make sure that they are wrapped. Do
not allow different types of meat to come into contact with one
another but keep them packaged separately so as to avoid
premature bacterial spoilage.
• The following products should not be stored in the BioFresh-Plus
compartment: hard cheese, potatoes, cold-sensitive vegetables
such as cucumber, aubergines, avocados, semi-ripe tomatoes,
courgettes and all cold-sensitive tropical fruits such as pineap-
ples, bananas, grapefruit, melons, mangos, papayas, etc.
BioFresh-Plus compartment
Set the temperature of the BioFresh-
Plus compartment in accordance
with the type of stored food. See
chapter „Setting the temperature
(BioFresh-Plus compartment)“
Set to 0°C
(factory setting)
for storing
fruit, vegetables, meat, cold meats
or dairy products.
Set to -2°C for storing
fish or sea-
food. Storage time is 3 days at
the most.
Cleaning
WARNING!WARNING!
• To prevent possible injury due to an electric
shock, be sure to disconnect the mains cable
or switch off the fuse before cleaning the
appliance.
• To avoid injury or damage, do not use steam
cleaning equipment to clean the appliance.
• To avoid short-circuits, ensure no cleaning
water penetrates into the electrical
components when cleaning the appliance. Do
not use a sponge or cloth that is overly wet.
• Take food out of the appliance and store it in a cool place.
• Rinse or flush the water system after 5 days if it has not been
used, refer to chapter „Maintenance menu“.
Remove the glass shelves and door racks. Refer to chapter
„Equipment“.
• Remove the drawers.
Pull the drawer straight out,
grip at the back and lift out.

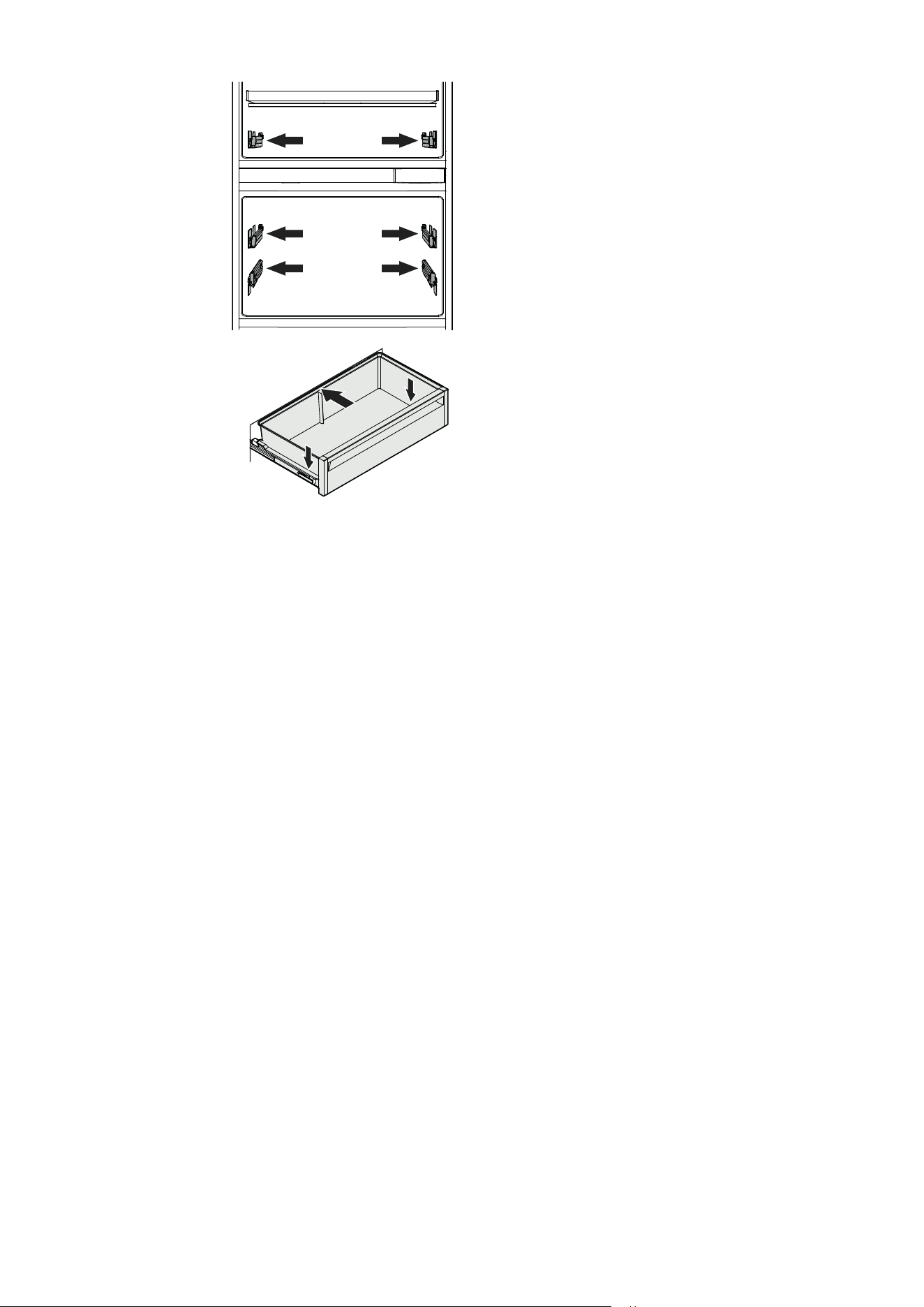

• Pull the freezer drawer upwards
by its right and left bottom cor-
ners (1). Push the container
backwards (2). Set the container
to an angle and remove it (3).
• The bottommost freezer drawer
must be removed to clean the
glass plate in the freezer com-
partment.
• Clean the inside of the appliance
and equipment parts with luke-
warm water and a little detergent.
Note
Do not use abrasive sponges or scourers, do not use
concentrated cleaning agents and never use cleaning
agents containing sand, chloride or acid or chemical
solvents.
58
EN
• Clean the pull-out rails
with a slightly dampened
cloth only.
Note
No cleaning water must
be allowed to get into
the pull-out rail guides.
• Dry all parts well with a
cloth.
• Do not damage or remove
the type plate on the
inside of the appliance.
It is very important for
servicing purposes.
• Install the drawers.
• Extend the pull-out rails as
far as they will go. Place the
drawer on the rails and slide
it right in.
• Install all equipment parts
and replace the food in the appliance. Refer to chapter „Equip-
ment“.
• Switch the appliance on.
59
Maintenance can be carried out
independently of the specified
regular intervals. The maintenace
menu includes the following steps.

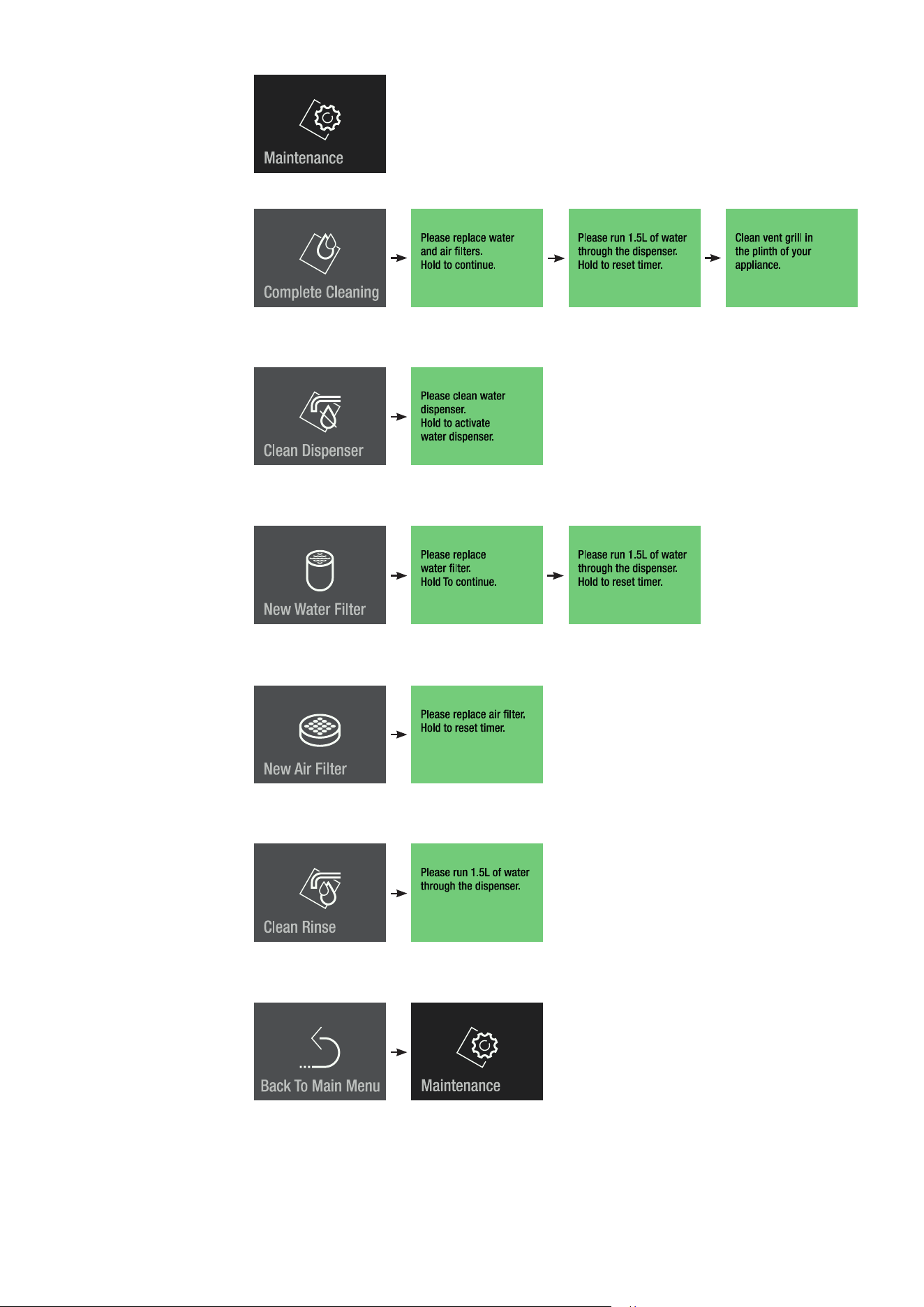

Maintenance menu
Complete cleaning
For complete maintenance of
the appliance.

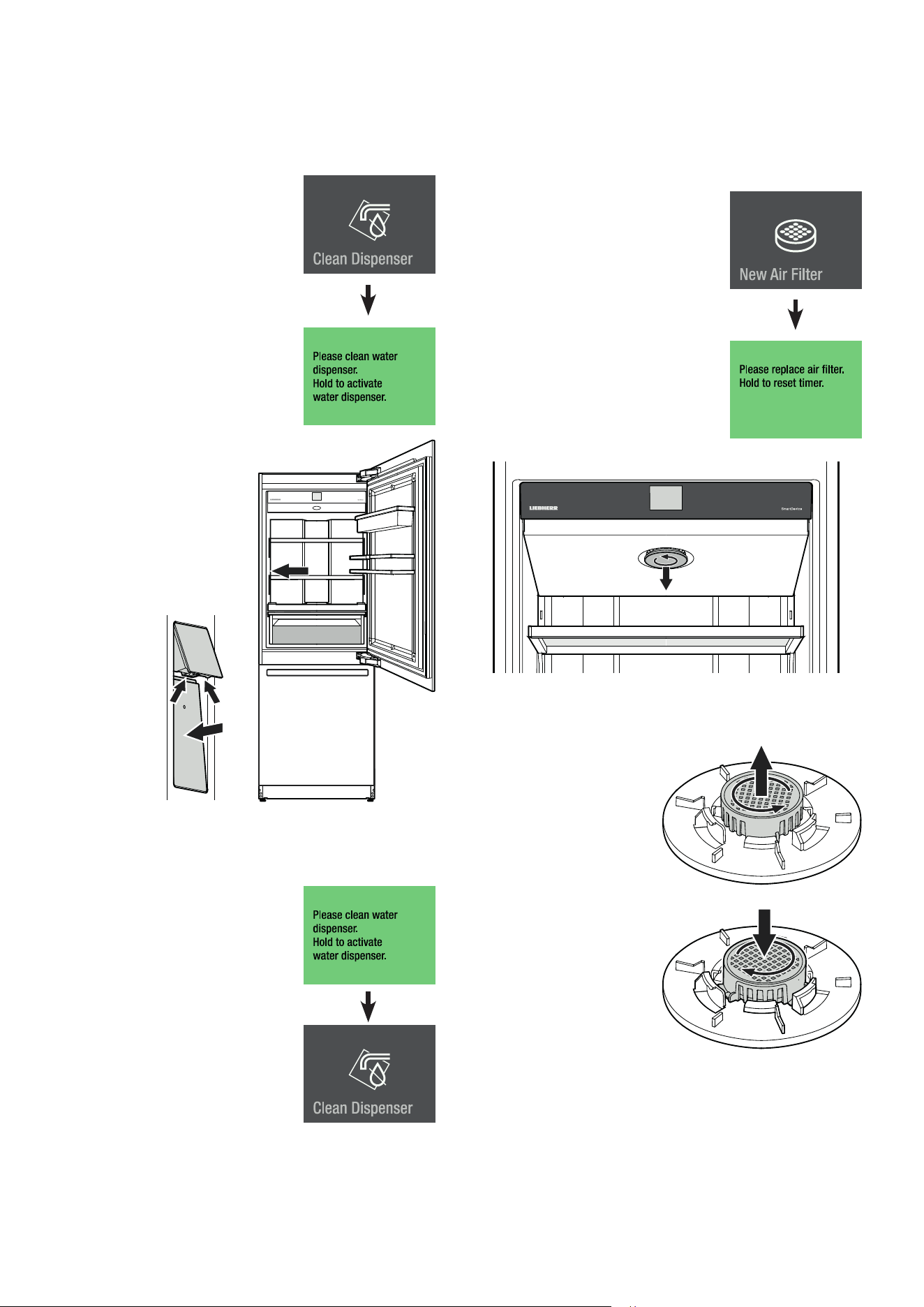

Clean dispenser
To interrupt the water supply for
cleaning the dispenser outlet.
New water filter
To flush and reset maintenance
timer.

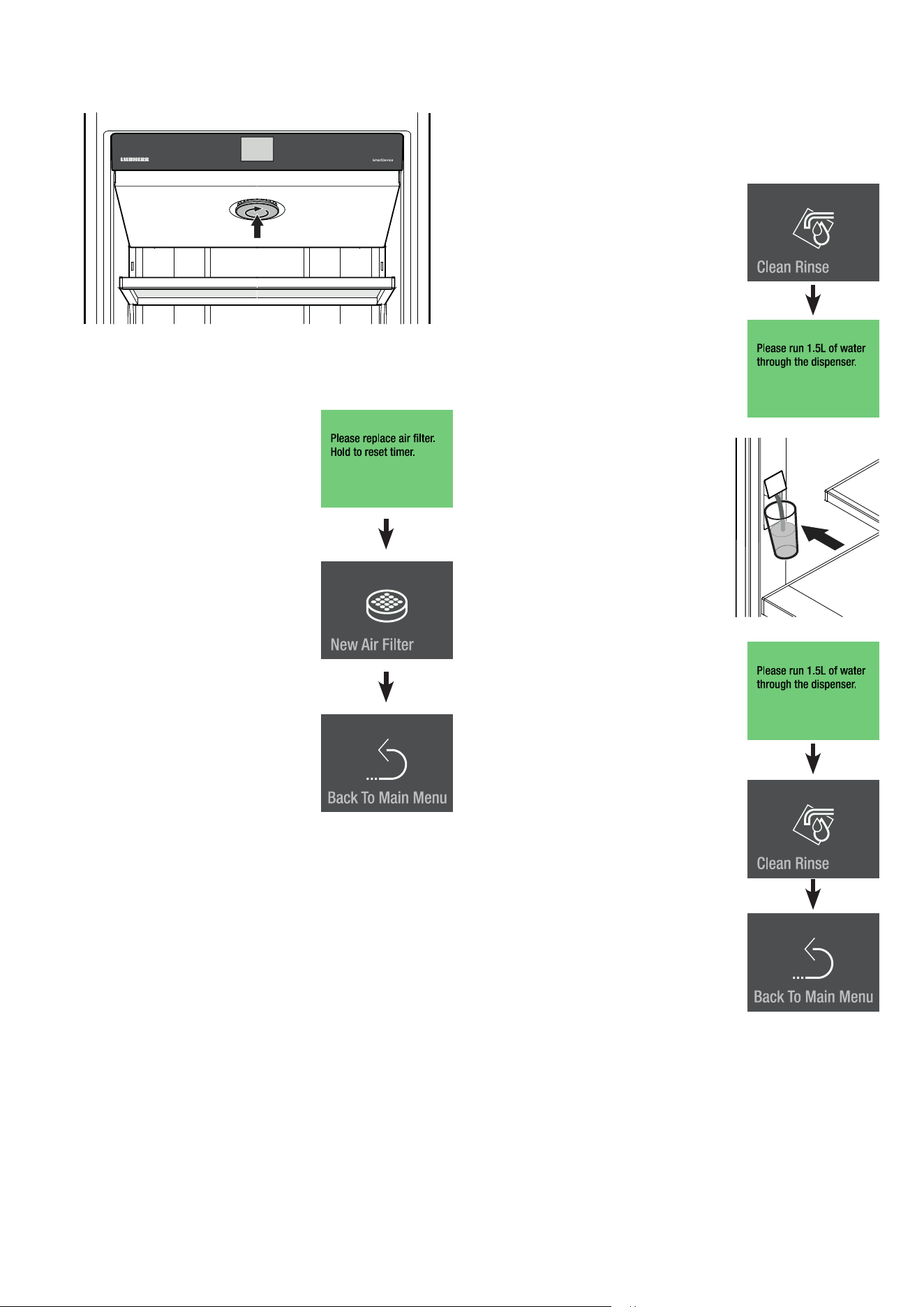

New air filter
To reset maintenance timer.
Clean rinse
To flush the water dispenser
when the dispenser has not
been used for a longer period
of time.
To return to the main menu.
60
EN

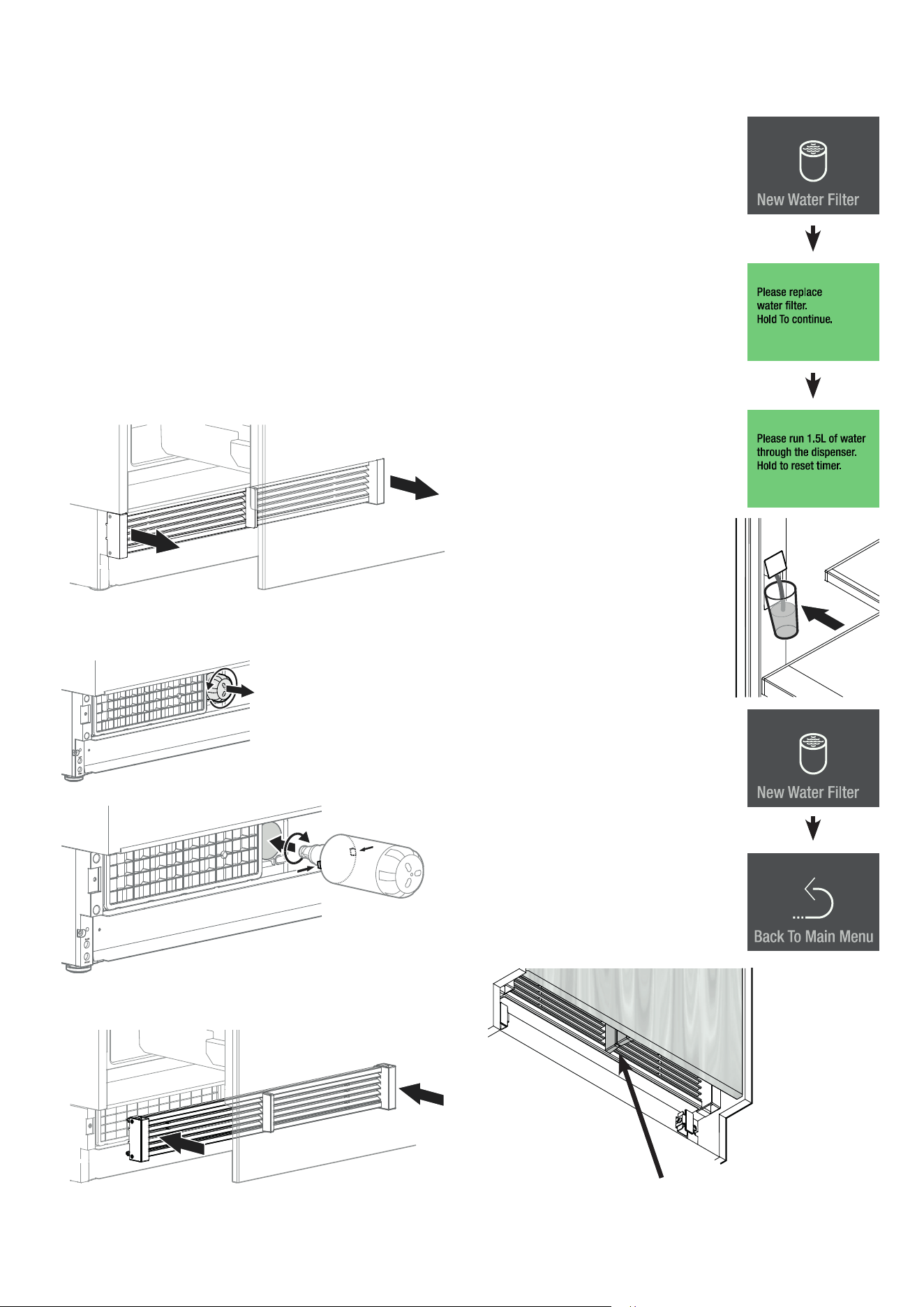

Maintenance
New water filter
The inserted water filter absorbs deposits in the water and reduces
the taste of chlorine.
Note
To avoid reduction of the water flow rate of the dispenser,
the water filter should be changed at least at the indicated
maintenance intervals.
If noticeable water flow reduction occurs, the water filter
should be changed sooner.
Note
It is not necessary to switch off the water supply when
removing or inserting the filter.
Remove the ventilation grille.
Turn the water filter anti-
clockwise and remove it.
Insert the water filter - with the knobs at the front
in a horizontal position - as far as it will go and turn
clockwise until it snaps in.
Mount the ventilation grille.
Touch
Press for approx. 2 sec.
Press for approx. 2 sec.
Flush approx. 1.5 l of water through the
dispenser and discard.
The timer for water filter change is reset.
Slide 3 times to the left.
Touch to exit the menu.
Check that there is no gap between the appliance air divider and
the door air divider.
Note
There will be a gap if the ventilation grille is fitted incorrectly.
61
Touch
Dispenser cleaning
The dispenser outlet and the surrounding area can be cleaned
without disconnecting the appliance from the electrical power
supply.
Message
The water supply is stopped now.
• Press in the bottom part of the
dispenser so that the top part
moves out.
• Clean the water outlet and the
surrounding area.
• Release the bottom part of the
dispenser.
Press for approx. 2 sec.
The water dispenser is ready for use
again.
If the water flow is no longer even, the aerator must be replaced
(see contact details on the back of this manual).
New air filter
The air filter absorbs odours from the appliance interior. It should
be changed at least at the indicated maintenance intervals.
Touch
Message
Turn the cover anticlockwise and remove it.
Turn the air filter anti-clock-
wise and remove it.
Insert the new air filter and
turn clockwise until it snaps
in.
62
EN
Insert the cover and turn clockwise until it snaps in.
Press for approx. 2 sec.
The maintenance timer for air filter change
is reset.
Slide twice to the left.
Touch to exit the menu.
Clean rinse
When the water dispenser has not been used for one week or
more, flush the pipeline.
Touch
Message
Flush approx. 1.5 l of water through the
dispenser and discard.
Press for approx. 2 sec.
Slide to the left.
Touch to exit the menu.
63

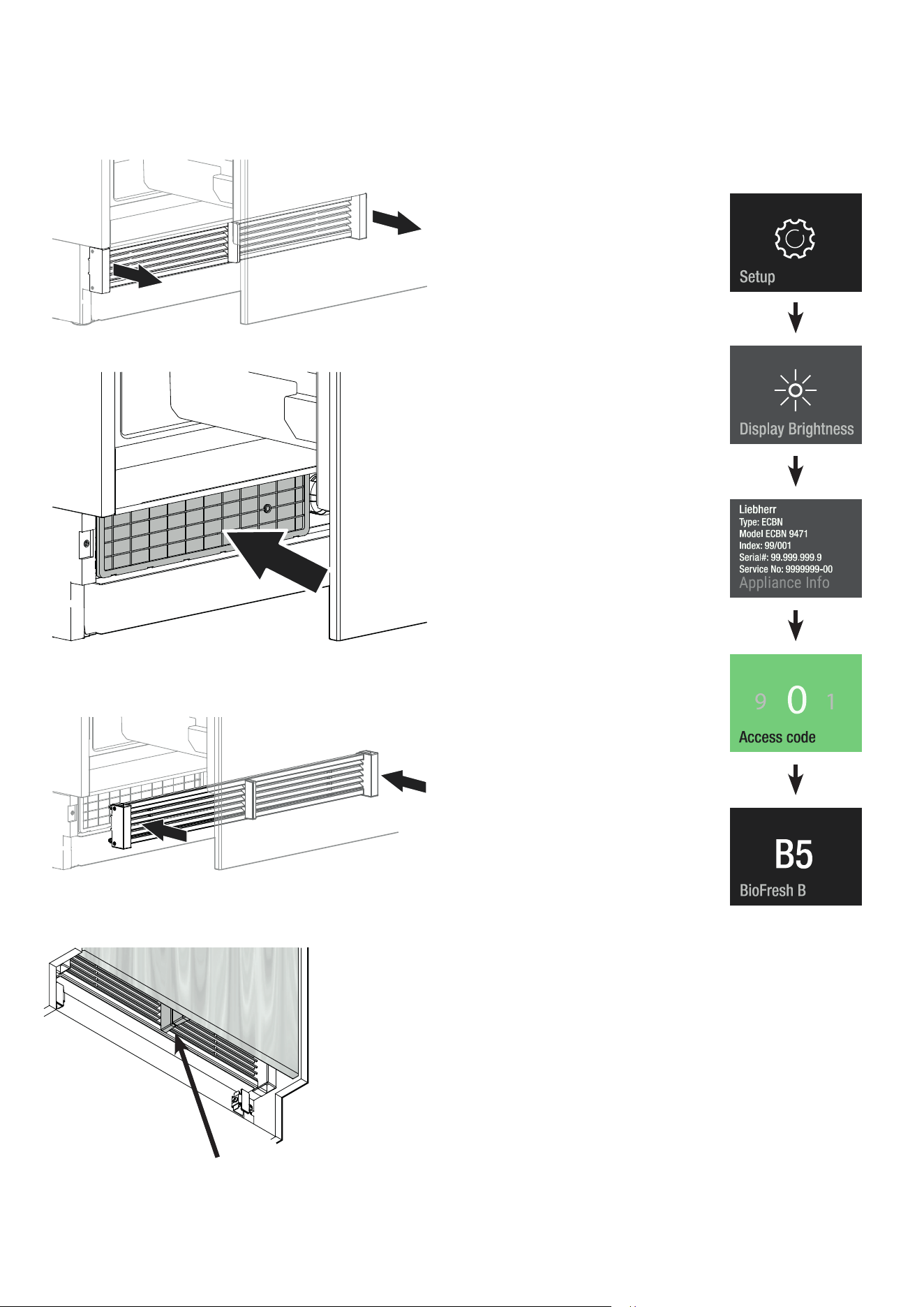

Cleaning the dust filter
Clean the dust filter in the plinth area at least at the indicated
maintenance intervals.
Remove the ventilation grille.
Clean the dust filter with a vacuum cleaner.
Mount the ventilation grille.
Check that there is no gap between the appliance air divider and
the door air divider.
Note
There will be a gap if the ventilation grille is fitted incorrectly.
Additional functions
Touch
Slide to the right.
Press for approx. 2 sec.
BioFresh temperature adjustment
BioFresh-Plus temperature adjustment
Water pressure adjustment
Heating control (ECBN 9673 only)
Activating the defrost function manually
Reset to factory settings
DemoMode
Slide to left or right.
Enter code 151.
If a wrong code is entered, the display
switches back to the appliance infor-
mation.
Navigate through the menu.
64
EN

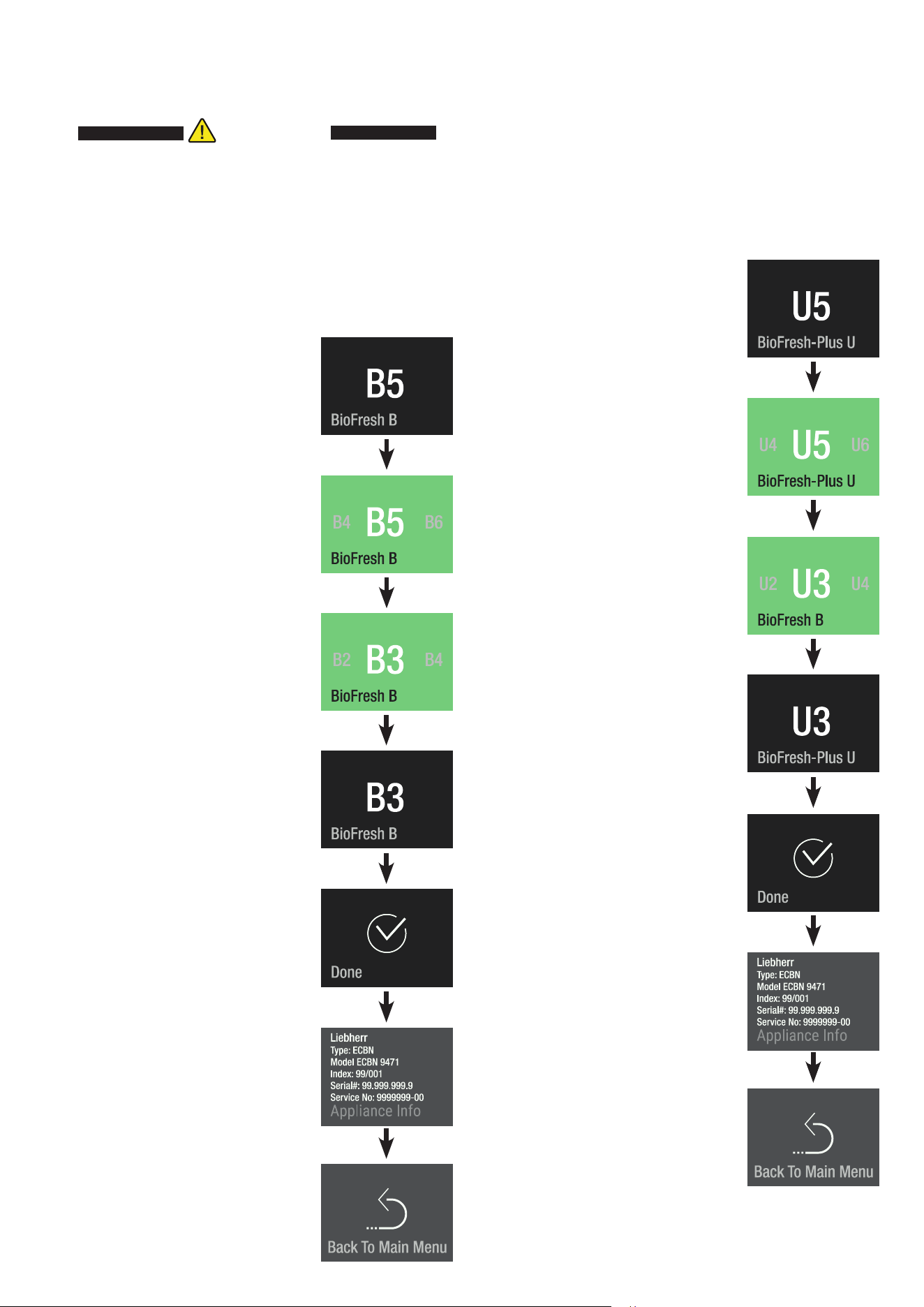

BioFresh temperature adjustment (right-hand side of the
drawer)
The temperature in the drawer is kept at a constant value of around
0°C. It can be adjusted to slightly warmer or colder.
Touch
Slide to the right to choose between
value B4 - B1 (colder).
Slide to the left to choose between value
B6 - B9 (warmer).
Touch the desired value.
Slide to the right
to
Touch
Slide to the right.
Touch to exit the menu.
BioFresh-Plus temperature adjustment (left-hand side of
the drawer)
The temperature in the drawer can be set to 0°C or -2°C. Both
fixed temperature settings can be adjusted respectively to slightly
warmer or colder.
Touch
Slide to the right to choose between
value U4 - U1 (colder).
Slide to the left to choose between value
U6 - U9 (warmer).
Touch the desired value.
Slide to the right
to
Touch
Slide to the right.
Touch to exit the menu.
CAUTION!CAUTION!
For values B4 - B1, the temperature in the
drawers can drop to below 0°C. Food may
freeze.
Note
Do not increase or reduce it by more than one step.
Check the temperature in the BioFresh-Plus compartment
during the next few days. If it is still not at the required
temperature, increase or reduce the value again by one
step.
Note
Do not increase or reduce it by more than one step.
Check the temperature in the BioFresh-Plus compartment
during the next few days. If it is still not at the required
temperature, increase or reduce the value again by one
step.
65
Touch the desired value.

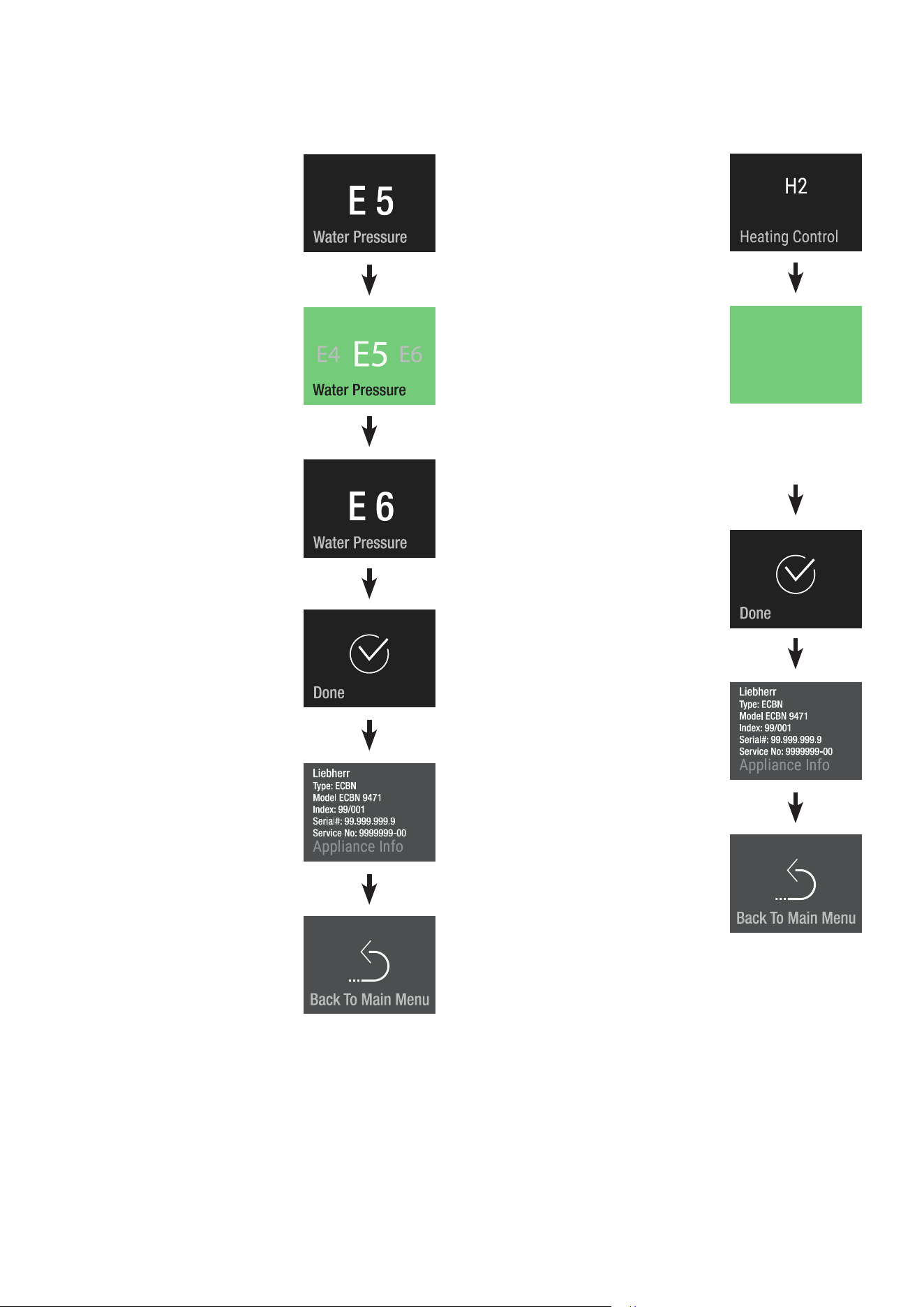

Water pressure
If the ice cubes produced by the IceMaker are too small (the first
few batches are always smaller), the inflowing water quantity
can be adjusted.
Heating control (ECBN 9673 only)
If condensation forms on the seal on the refrigerator doors, this
can be rectified by activating the seal heating system.
IMPORTANT
Do not increase for more than one step. If the adjusted
value is too high, the ice cube tray of the ice maker could
overflow.
Check the ice cube size within the next days. If the ice cubes are
still smaller than desired, increase the value for one step again.
Touch
Touch
Slide to the left or right
Touch E4 for smaller ice cubes
Touch E6 for larger ice cubes
Slide to the right.
Slide to the right.
Touch to exit the menu.
Touch to exit the menu.
Slide to the right
to
Touch
Slide to the right
to
Touch
Heating Control
H1
H2
H1 Heating off
H2 If the seal suffers slight condensation (factory setting)
66
EN
Refrigerator compartment
Freezer compartment

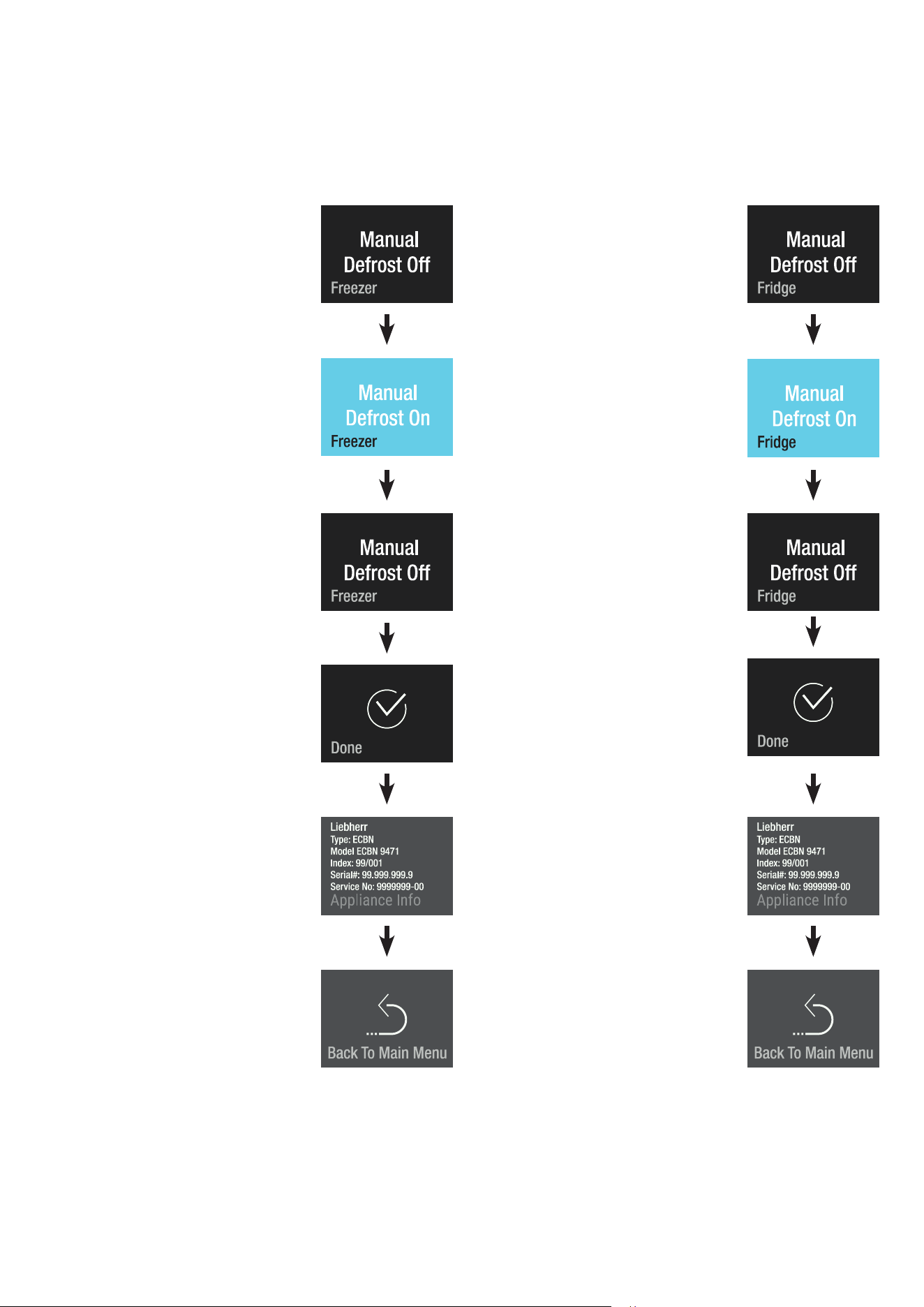

Manual defrost
The appliance defrosts automatically. The defrost function can
be activated manually for service applications.
Touch
Touch
The appliance switches back to nor-
mal operation when the evaporator is
defrosted.
The appliance switches back to nor-
mal operation when the evaporator is
defrosted.
Slide to the right
to
Touch
Slide to the right
to
Touch
Slide twice to the right.
Touch to exit the menu.
Slide twice to the right.
Touch to exit the menu.
67

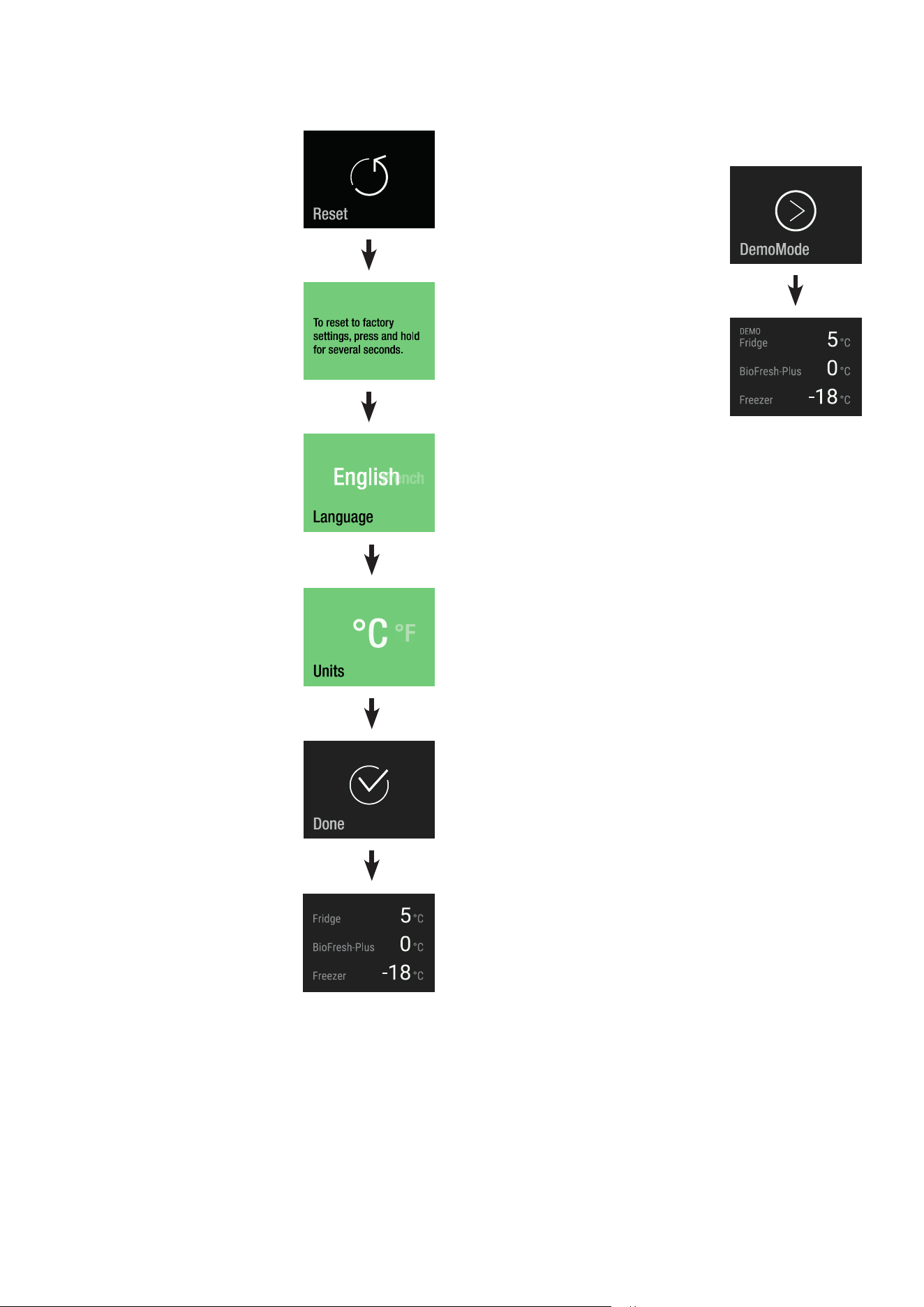

Reset
The electronic control system can be reset to factory settings
using this function.
Touch
Press for approx. 2 sec.
Slide to your language and touch
Slide to the desired temperature unit
and touch
Touch
The appliance is in normal operation.
DemoMode
DemoMode can be activated for presenting the appliance at ex-
hibitions or in salesrooms as if it were in normal operating mode.
Touch
Activating DemoMode
DemoMode is activated.
The cooling circuit is switched off!
68
EN
Deactivating DemoMode
Touch
Slide to the right.
Press for approx. 2 sec.
Slide to the left or right. Enter code 151.
Press for approx. 2 sec.
DemoMode is deactivated.
After 1 second, the display shows
Malfunctions
You may be able to rectify the following faults by checking
the possible causes yourself:
Appliance does not function:
– Is the appliance switched on?
– Is the plug correctly fitted in the mains socket?
– Is the fuse intact?
Loud running noise:
– Is the appliance set up firmly on the floor?
– Does the appliance cause nearby items of furniture or objects
to vibrate? Please note that noises caused by the refrigerant
circuit cannot be avoided.
The temperature is not cold enough:
– Is the temperature setting correct (see „Setting the tempera-
ture“)?
– Have excessive amounts of fresh food been placed in the ap-
pliance?
– Does the separately installed thermometer show the correct
reading?
– Is the ventilation system working properly?
– Is the appliance set up too close to a heat source?
If none of the above causes
apply and you cannot rectify
the fault yourself, contact the
nearest customer service de-
partment stating the type des-
ignation (1), service number (2)
and appliance number (3) as
indicated on the type plate.
The position of the type plate is shown in the section entitled
„Description of the appliance“.
Shutting your appliance down
If your appliance is to be shut down for any length of time.
Disable the IceMaker as described in "Switching the IceMaker off".
Switch it off and disconnect the plug or switch off or unscrew the
fuse. Clean the appliance and leave the door open in order to
prevent unpleasant smells.
The appliance complies with the relevant safety regulations
and EU Directives 2014/35/EU, 2014/30/EU, 2009/125/EG and
2011/65/EU.
Saving energy
- Always ensure good ventilation. Do not cover ventilation open-
ings or grille.
- Always keep fan slits clear.
- Do not place appliance in areas of direct sunlight or next to a
cooker, radiator or similar object.
- The energy consumption depends on the installation conditions,
e.g. the ambient temperature.
- Keep the time the appliance is open to a minimum.
- Store food logically.
- Ensure that all food is well packed and covered for storage. This
will prevent frost from forming.
- First cool warm food to room temperature before storing it.
- Defrost frozen food in the refrigerator.
- Empty and switch off the refrigerator compartment for longer
holiday periods.
69
Liebherr Hausgeräte Lienz GmbH
Dr.-Hans-Liebherr-Strasse 1
A-9900 Lienz
Österreich
www.liebherr.com
*708040600*
