Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
Installation Manual
Installation and Appliance Setup
CAUTION! Risk of Fire! DO NOT store instruction manuals inside replace cavity.
High temperatures could cause a re.
INSTALLER: Leave this manual with the appliance, not inside the appliance.
CONSUMER: Retain this manual for future reference. Do not store inside the appliance.
NOTICE: DO NOT discard this manual!
• DO NOT store or use gasoline or other am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier’s instructions.
- If you cannot reach your gas supplier, call
the re department.
• Installation and service must be performed
by a qualied installer, service agency, or the
gas supplier.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
Models:
QUARTZPLA36IN
QUARTZPLA36IL
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer’s
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certied kit is used.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and must be installed for
the protection of children and other at-risk
individuals.
Decorative barrier front must be ordered separately at
time of appliance purchase. See Section 3.B.
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
2
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
Note: The term “recommend” or “recommended” does not indicate a requirement. It is a best practice suggested by
Hearth & Home Technologies
®
.
Table of Contents
Installation Standard Work Checklist ....................3
1 Product Specic and Important Safety Information
A. Appliance Certication ............................4
B. Glass Specications ..............................4
C. BTU Specications ...............................4
D. High Altitude Installations .......................... 4
E. Non-Combustible Materials Specication. . . . . . . . . . . . . . 4
F. Combustible Materials Specication .................4
G. Electrical Codes .................................4
H. California ......................................4
I. Requirements for the Commonwealth of Massachusetts . . 5
2 Getting Started
A. Design and Installation Considerations ...............6
B. Good Faith Wall Surface/TV Guidelines ..............6
C. Tools and Supplies Needed ........................8
D. Inspect Appliance and Components ..................8
3 Framing and Clearances

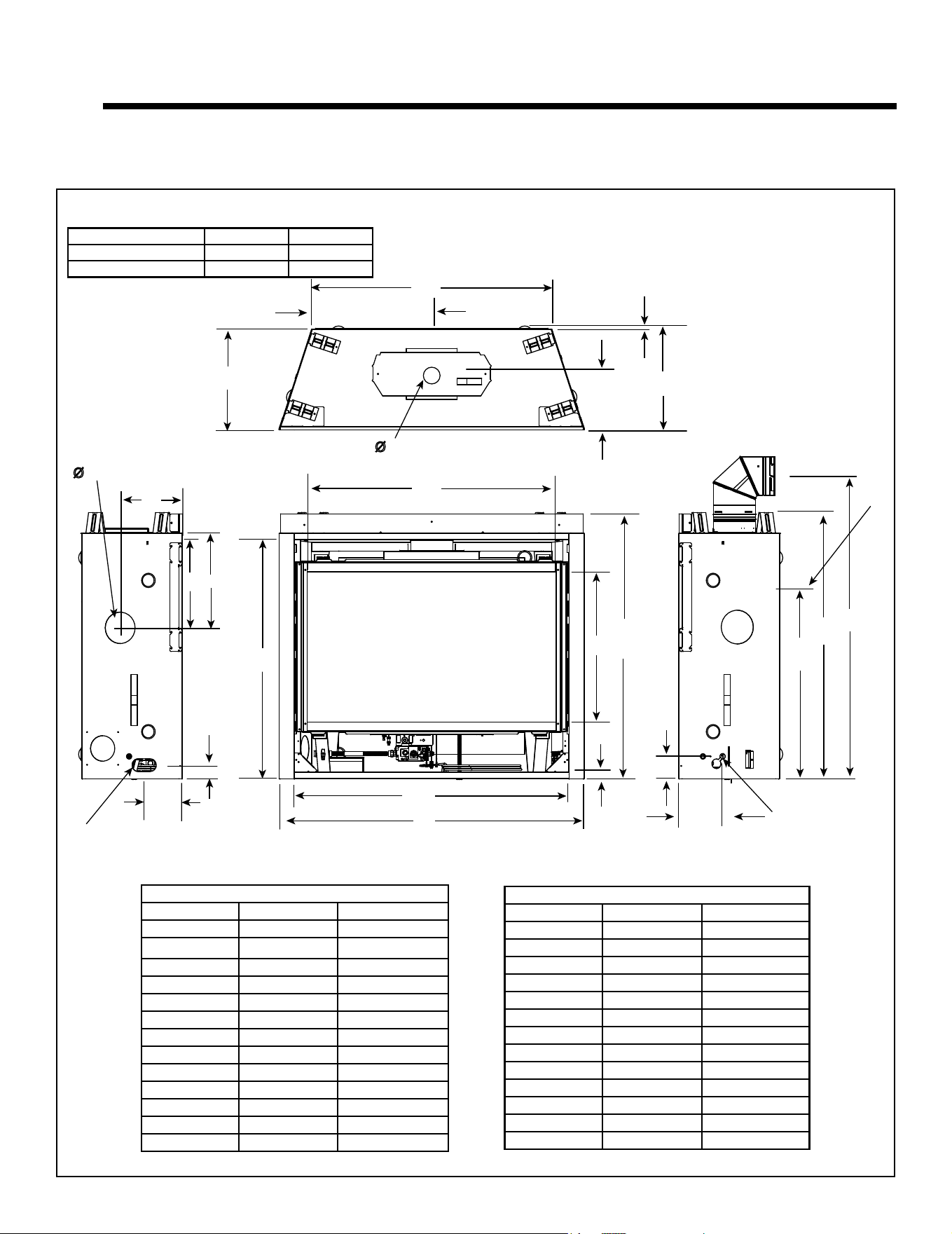

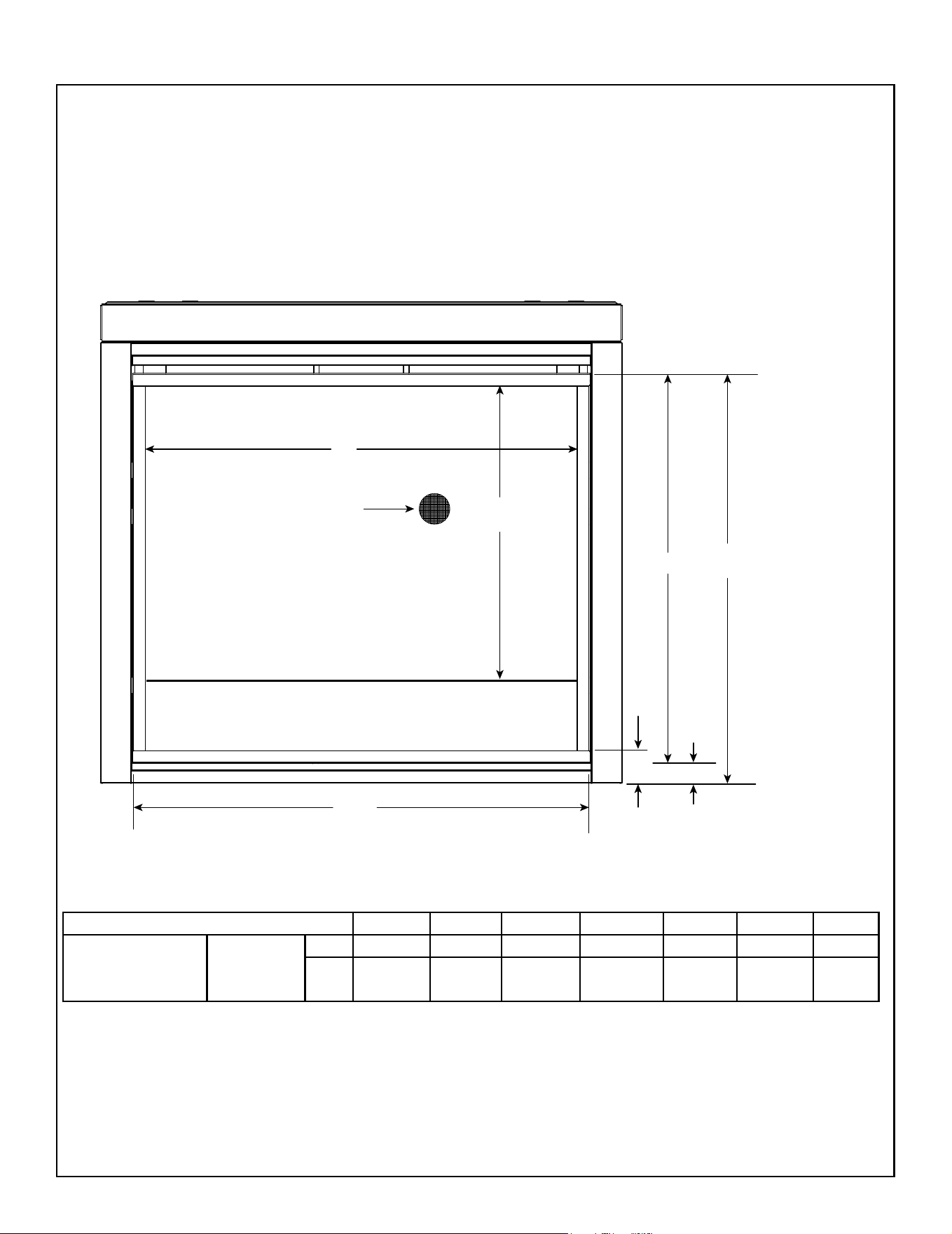

A. Appliance Weights and Dimensions ..................9

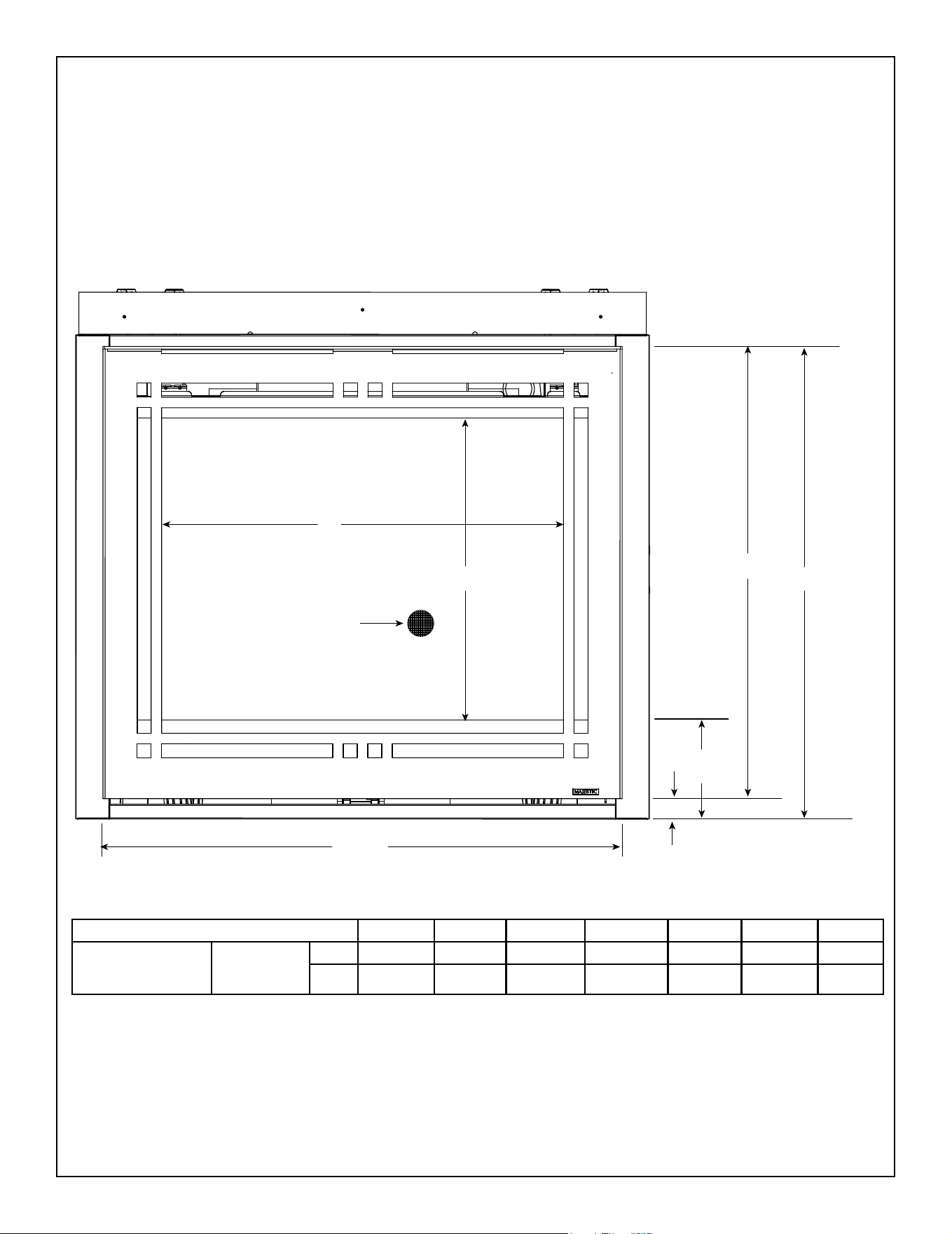

B. Decorative Barrier Front Dimensions ................10
C. Appliance Location and Clearances to Combustibles ... 12

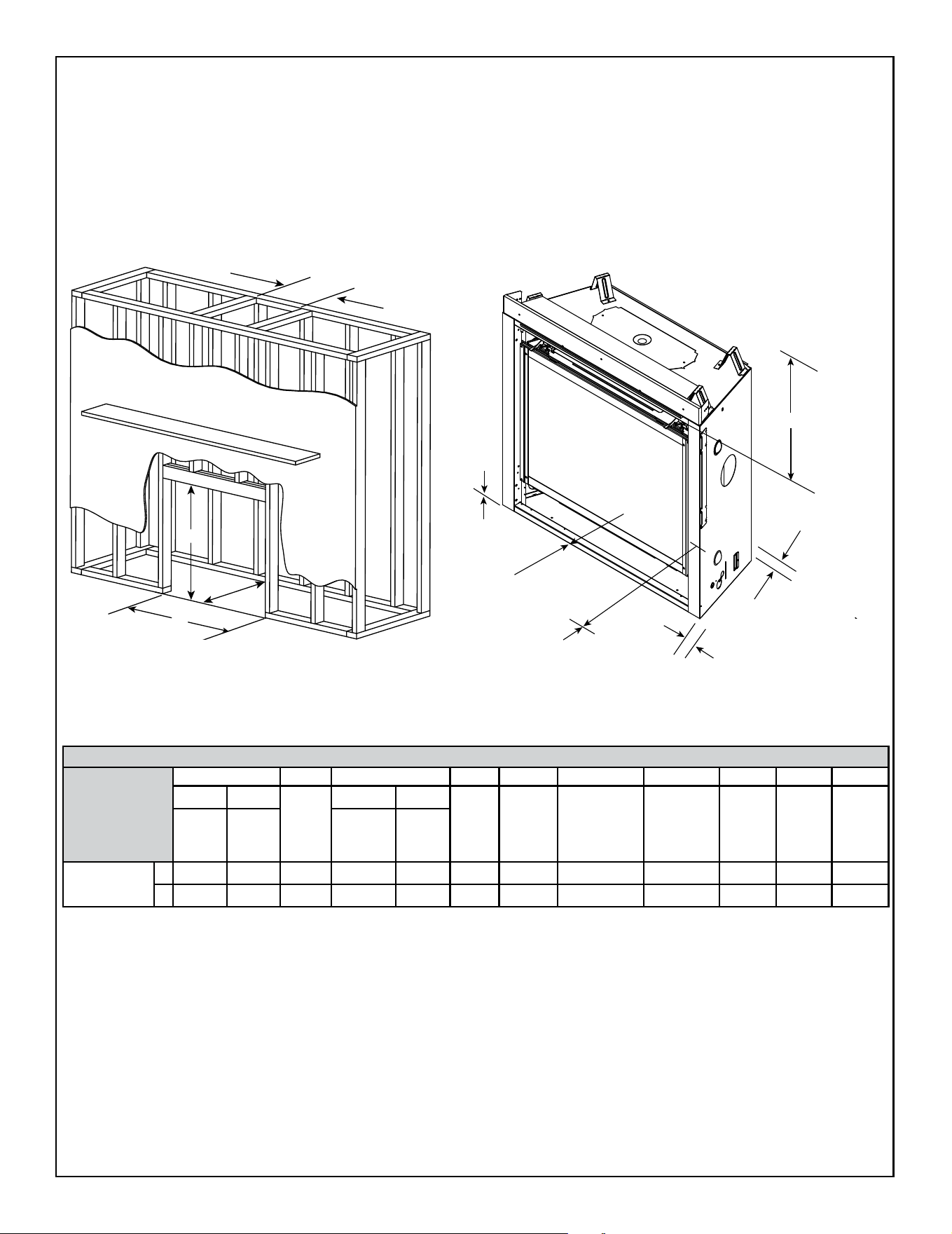

D. Constructing the Appliance Chase .................. 14
E. Vinyl Flooring ..................................15
4 Termination Location and Vent Information
A. Approved Pipe .................................16
B. Vent Termination Minimum Clearances .............. 16

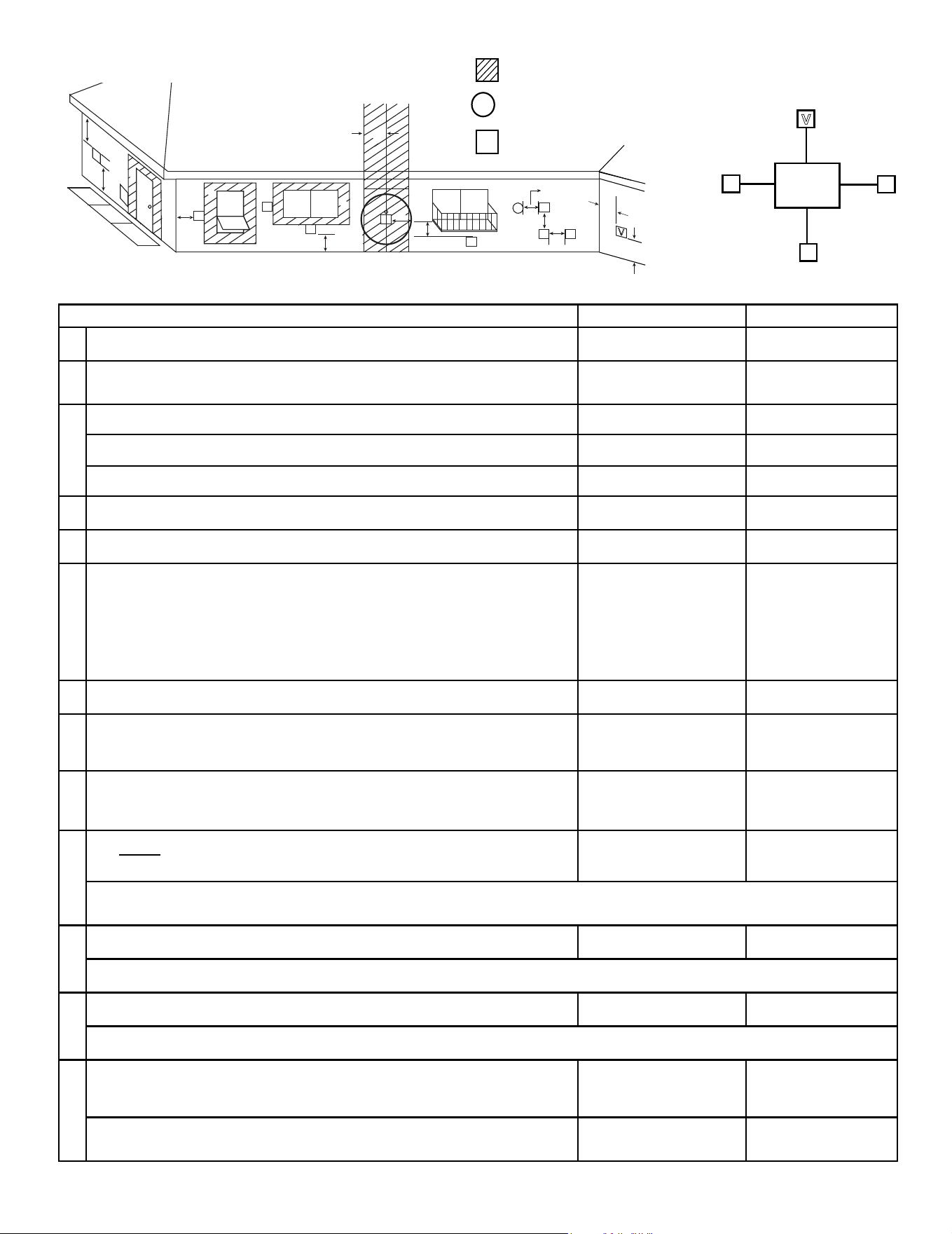

C. Vent Terminal Clearances ........................18

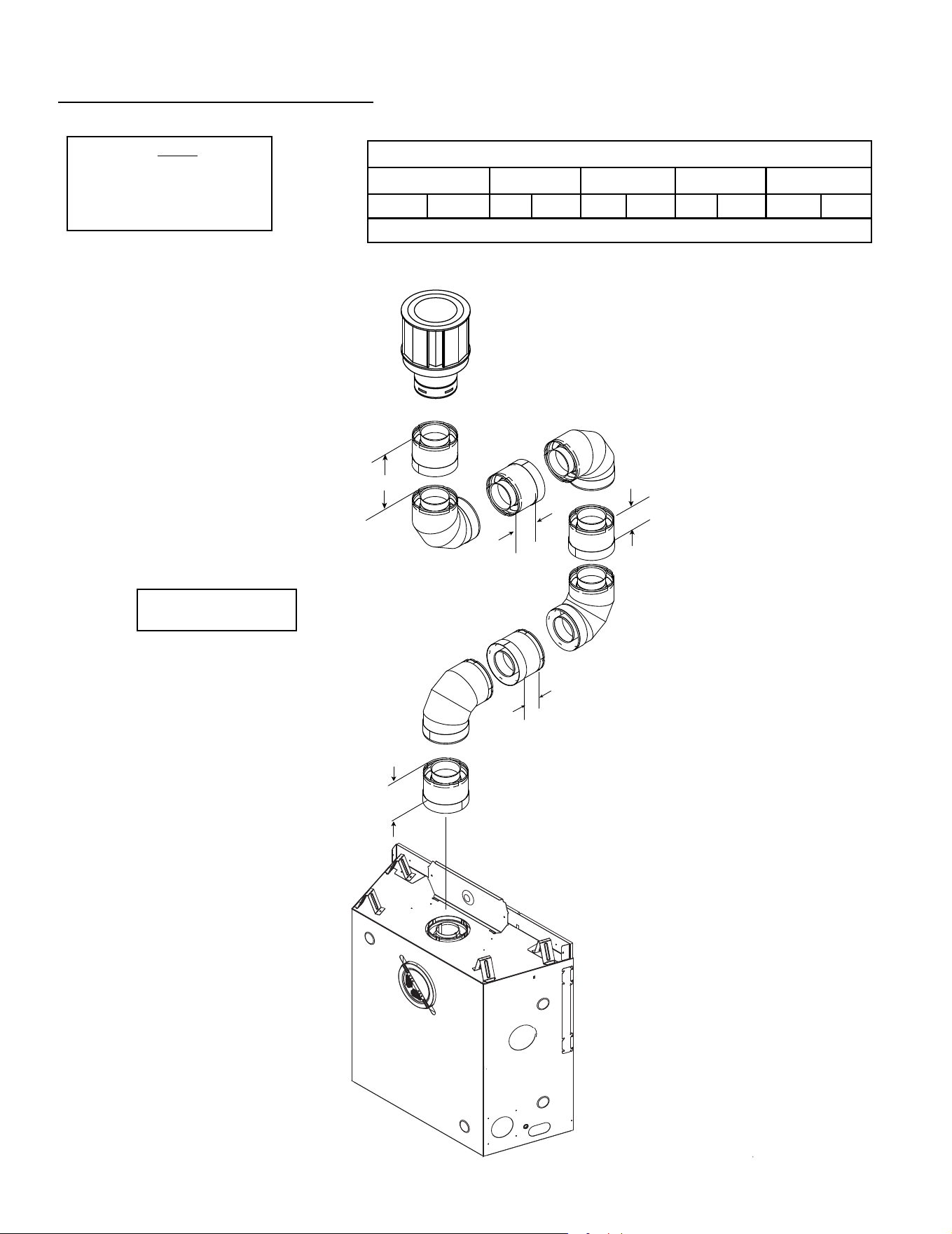

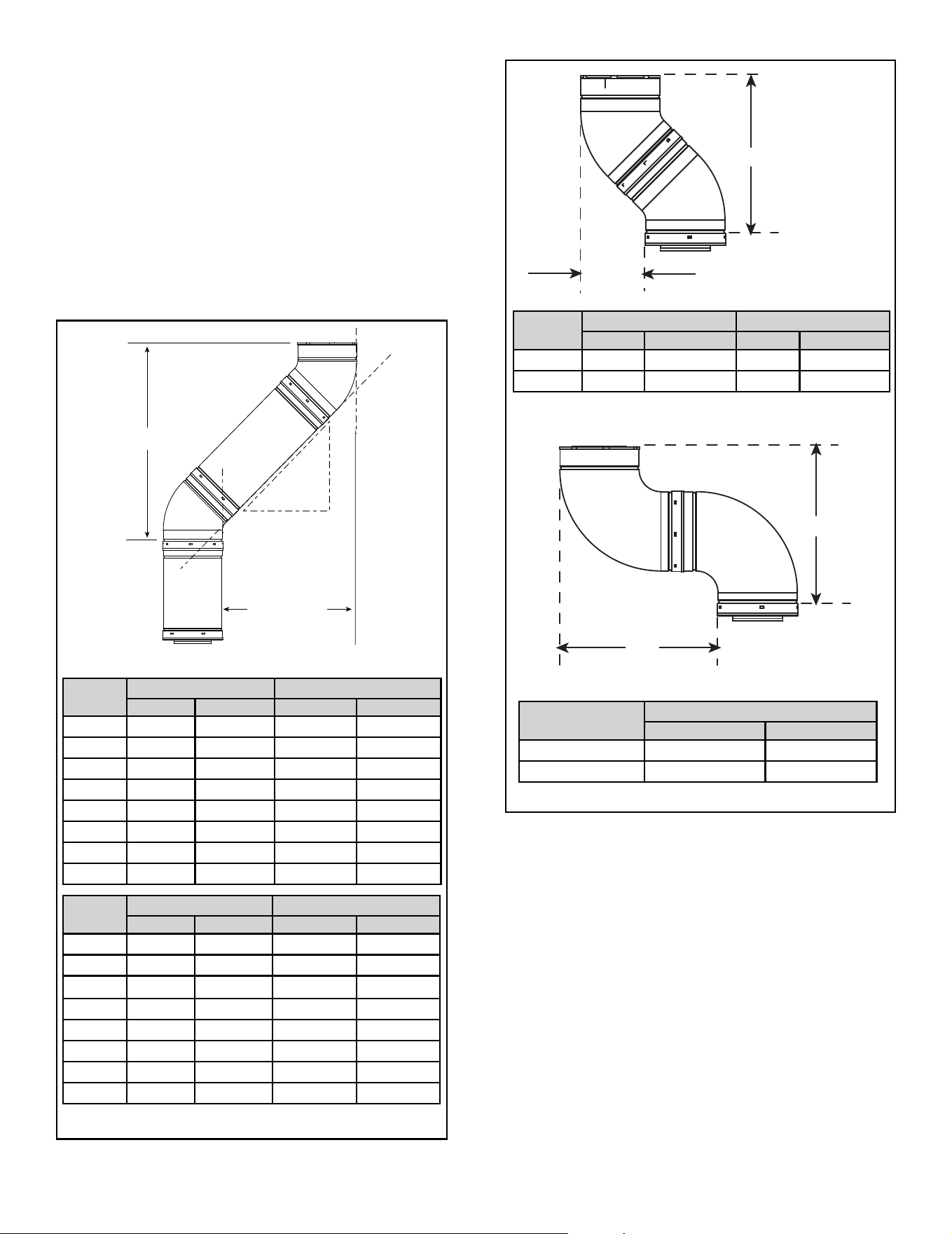

D. Use of Elbows .................................19
E. Use of Flex Vent (SLP-FLEX Series 6-5/8 Inch) .......20

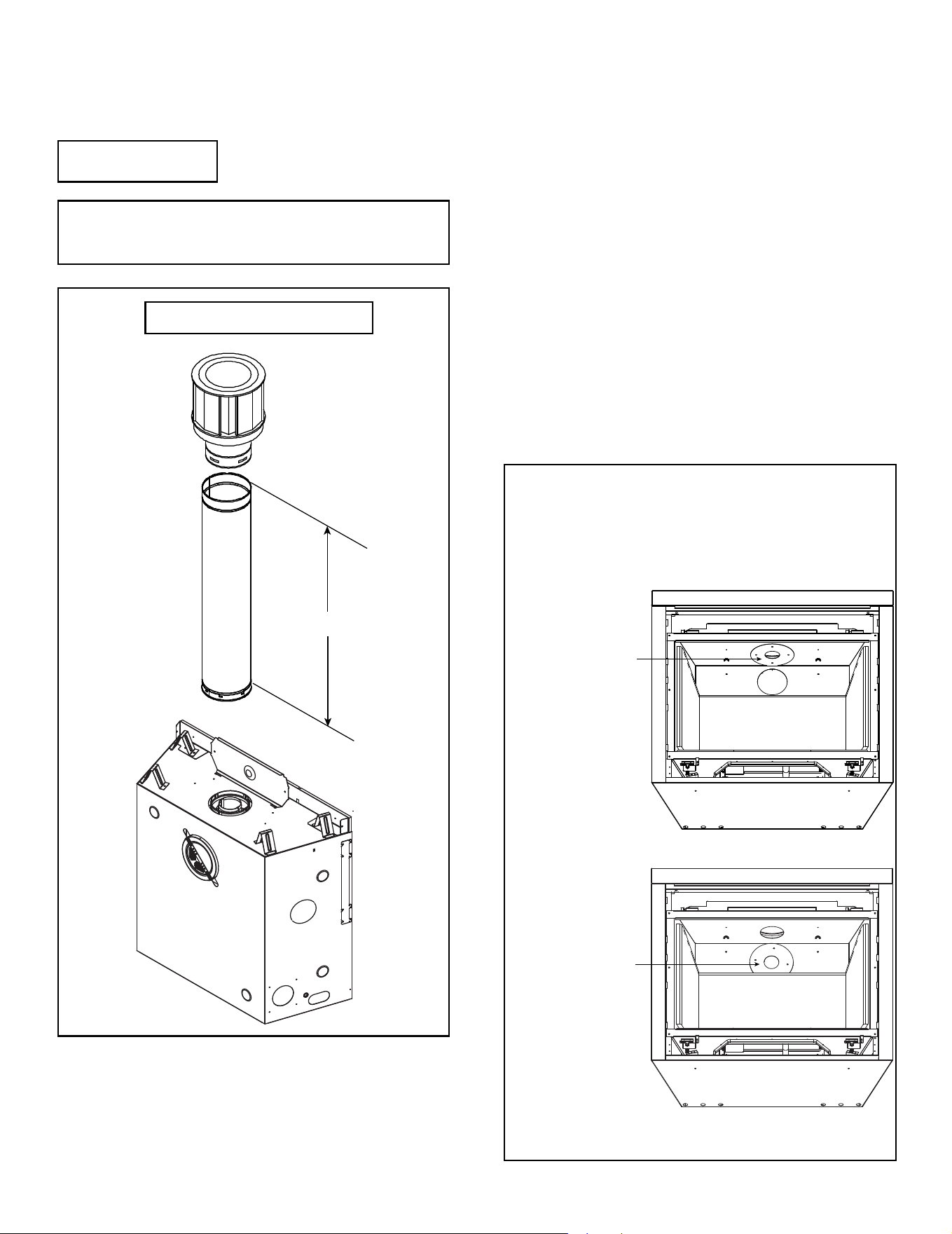

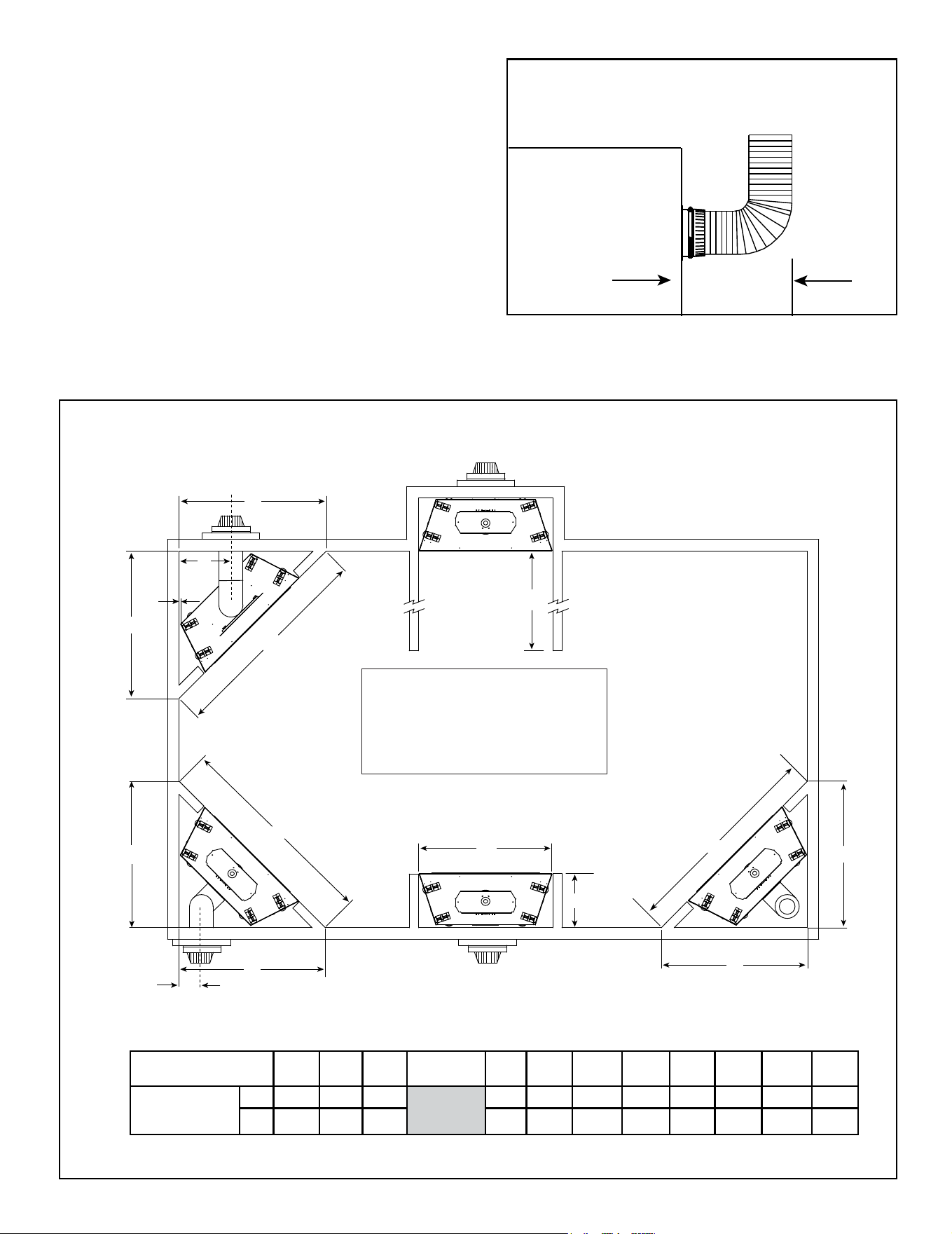

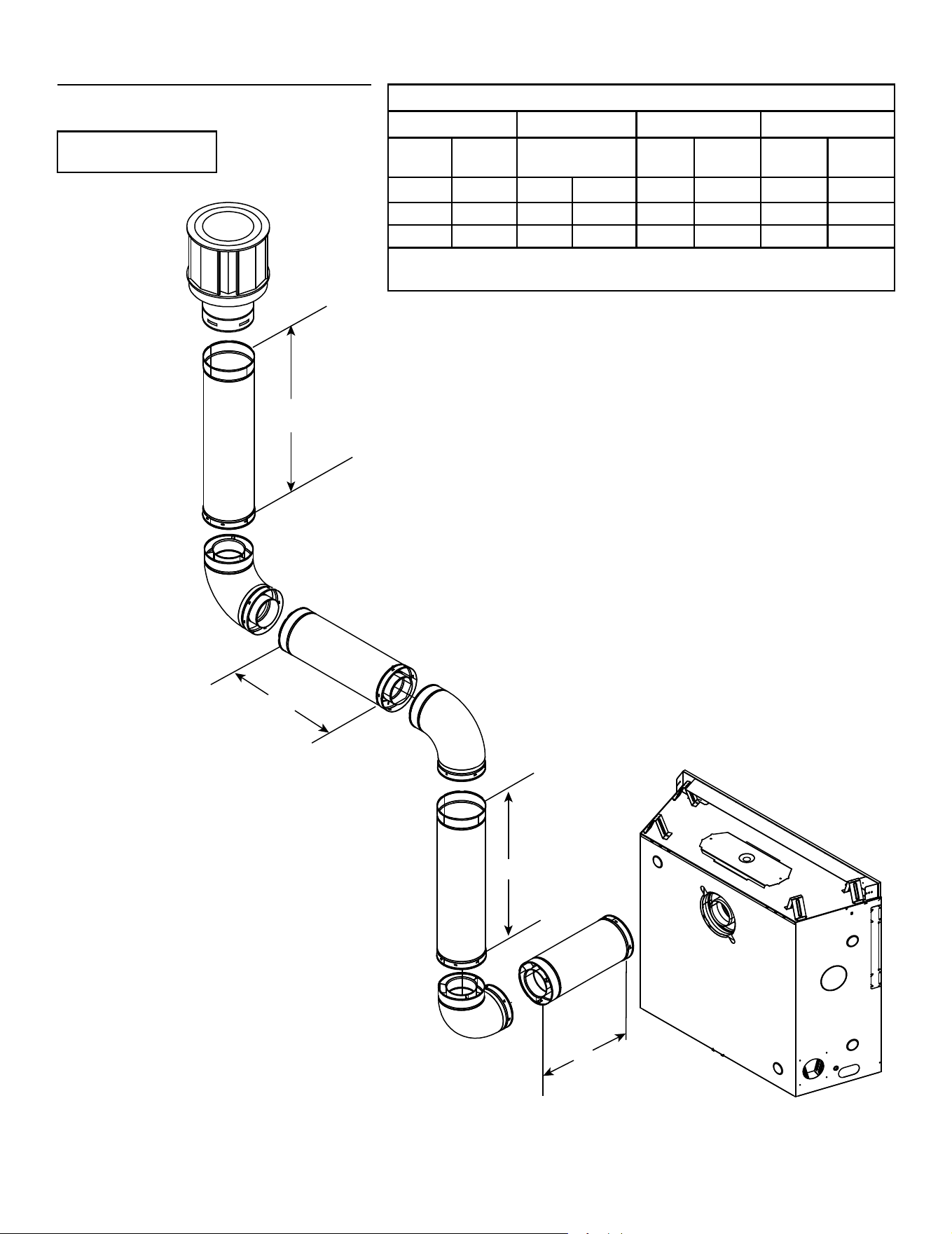

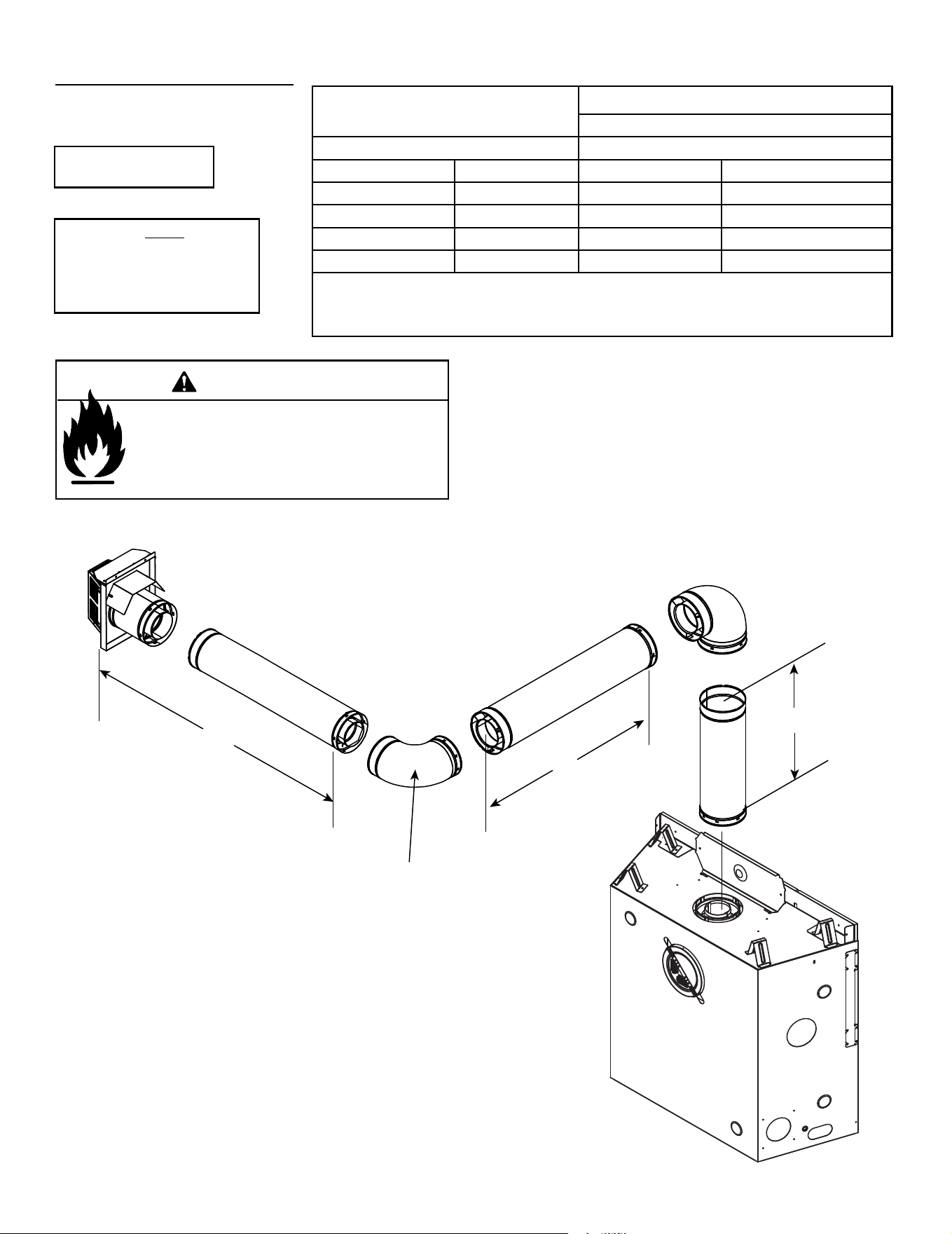

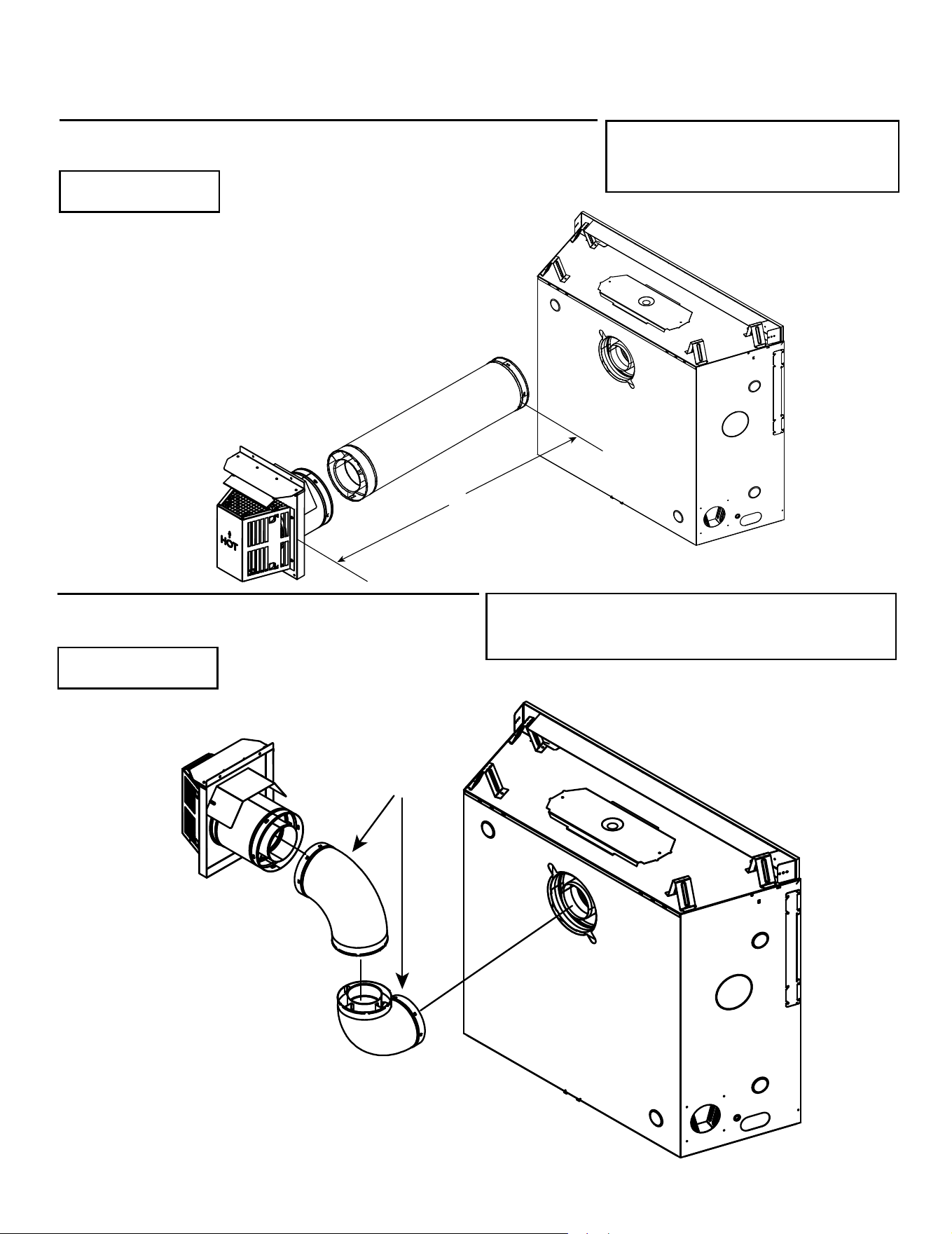

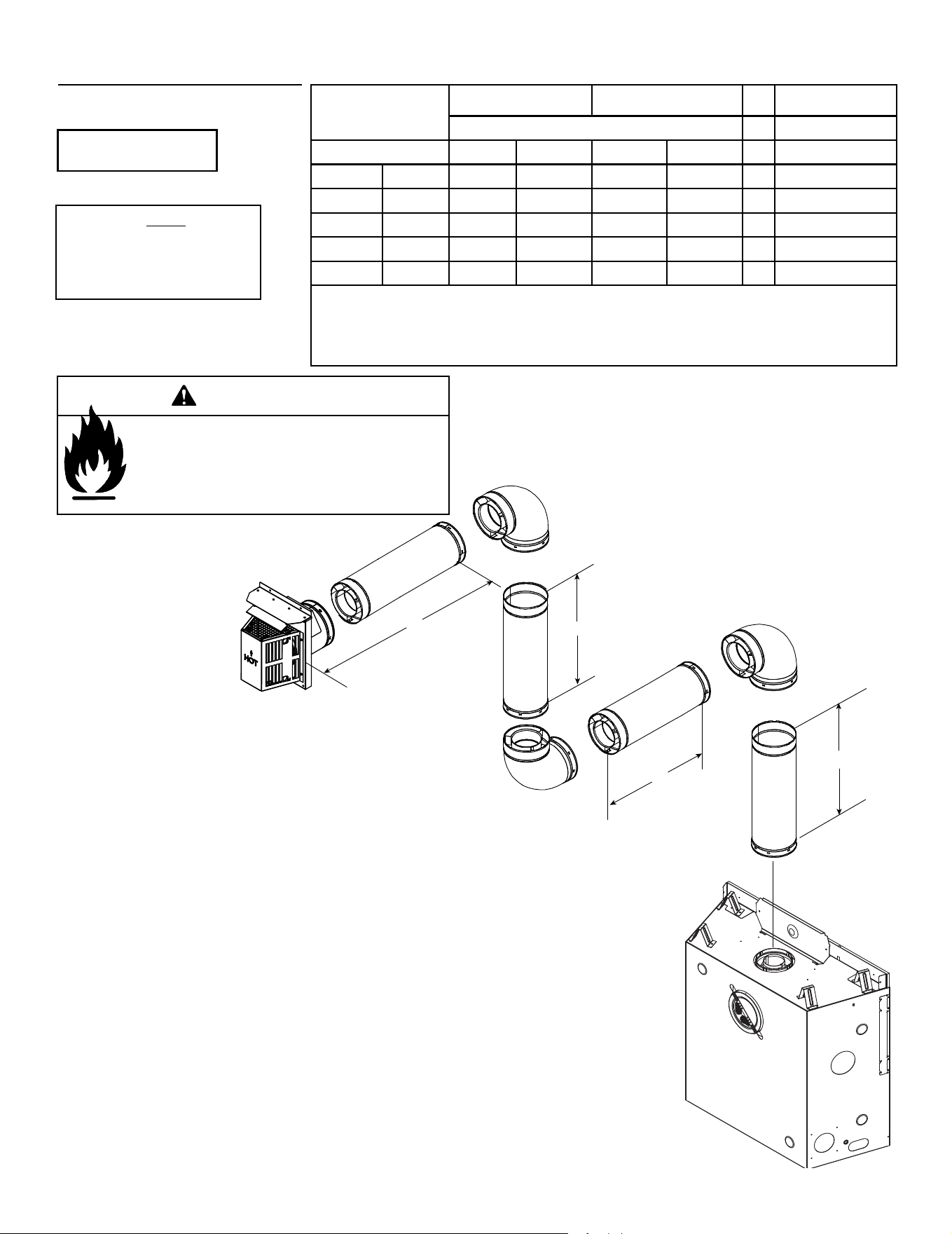

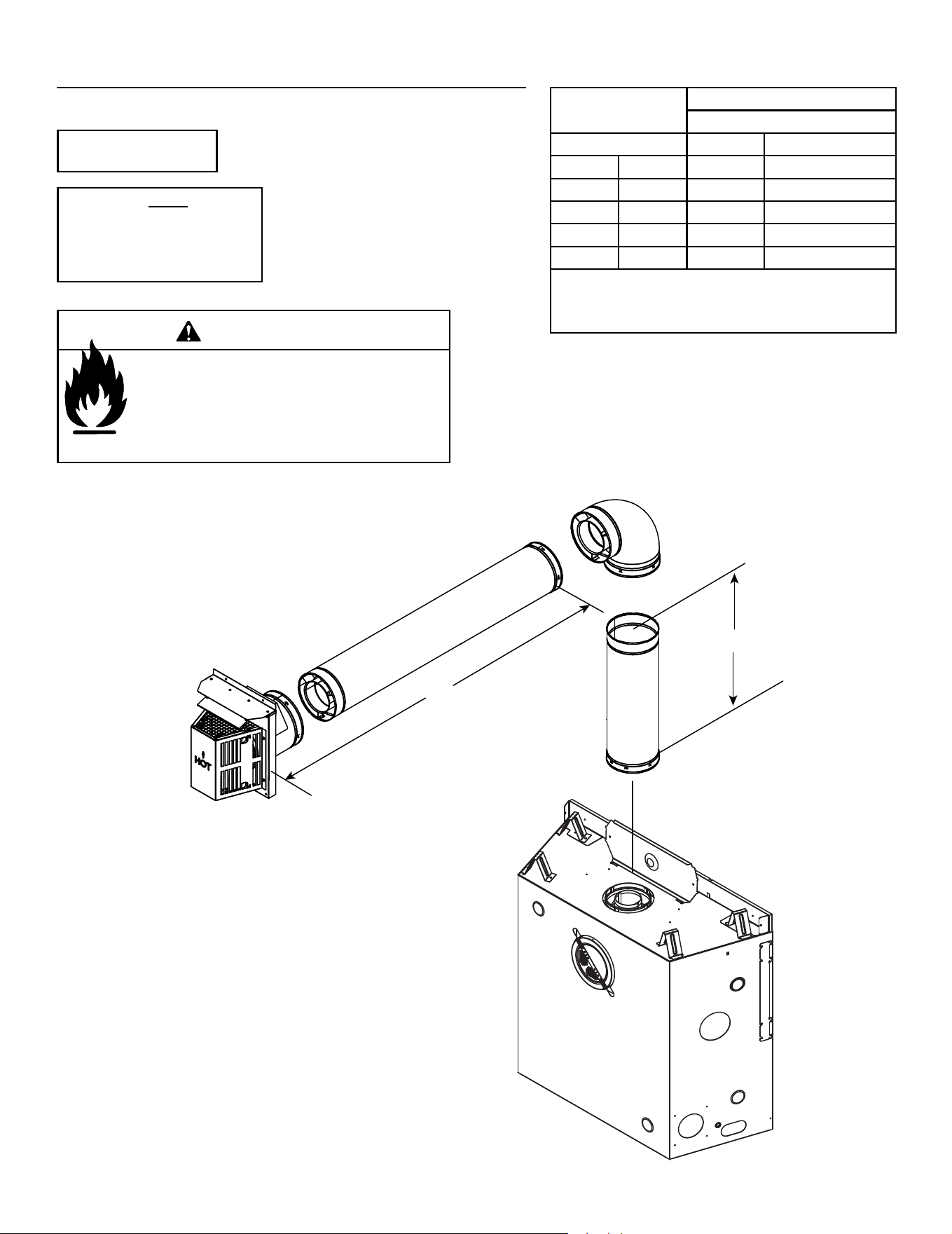

F. Vent Diagrams .................................21
5 Vent Clearances and Vent Framing
A. Vent Clearances to Combustibles .................. 35
B. Wall Penetration Framing/Firestops .................36
C. Ceiling Firestop/Floor Penetration Framing ...........37
D. Install Attic Insulation Shield .......................37
6 Appliance Preparation

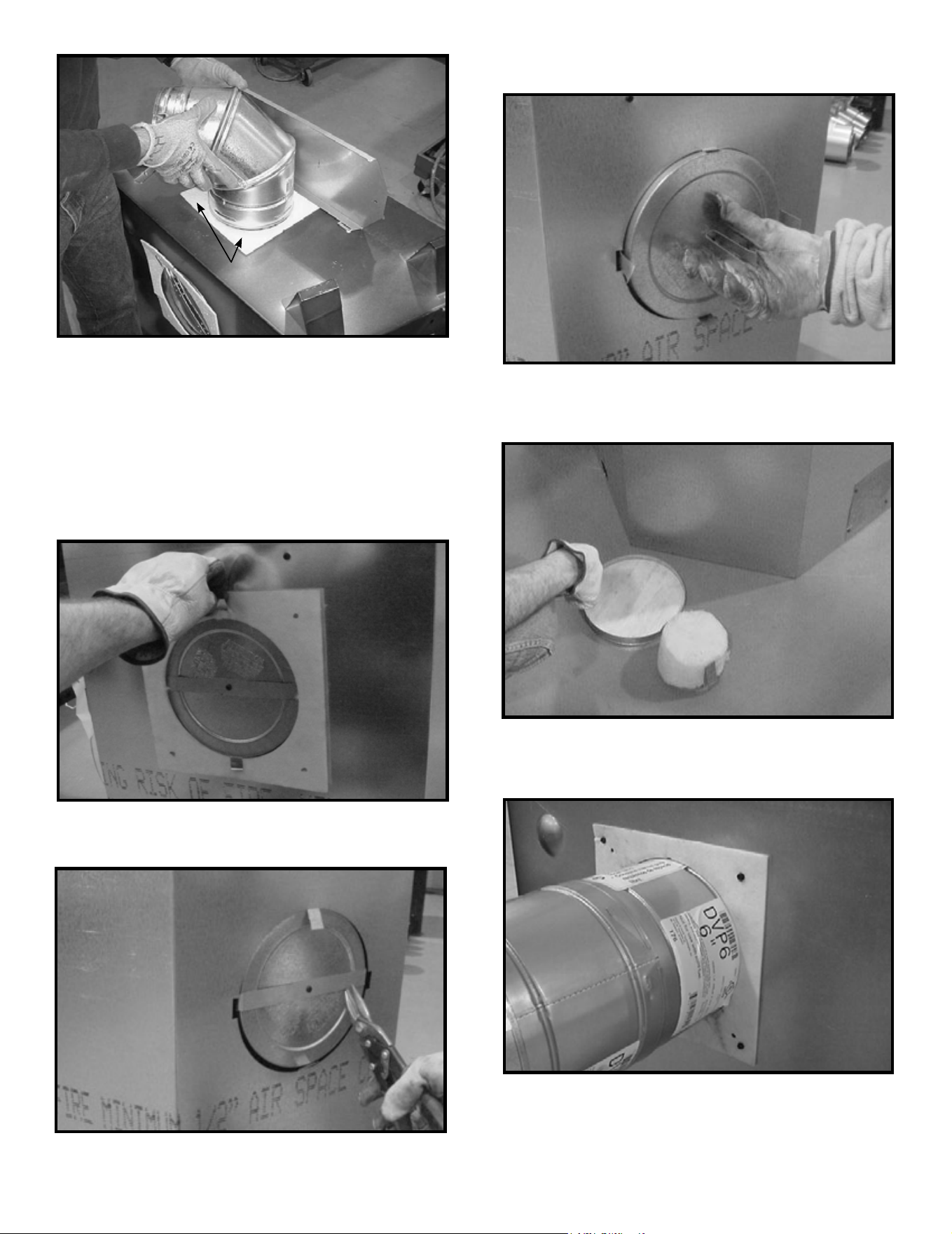

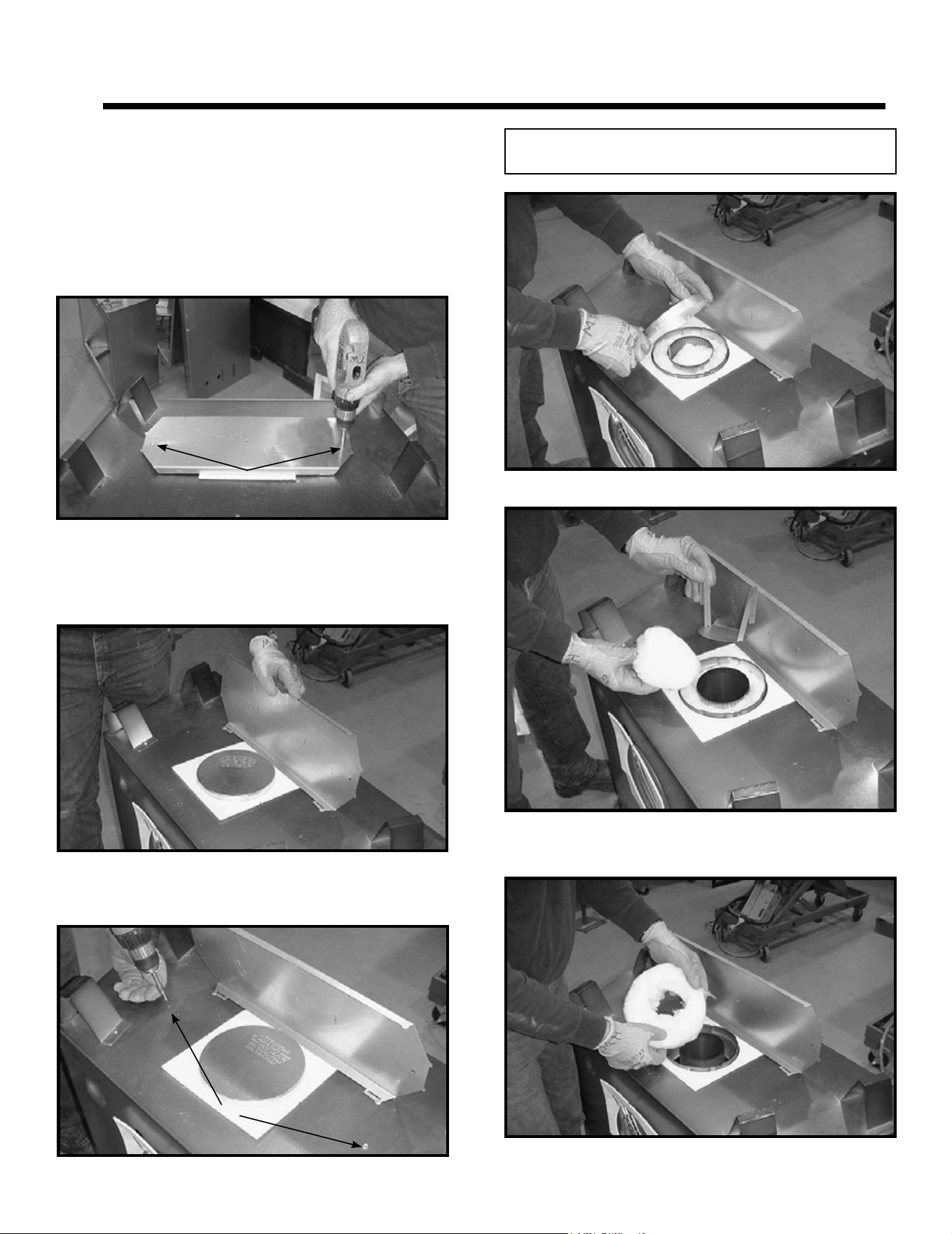

A. Vent Collar Preparation ..........................38
B. Prepare For Heat Management ....................40
C. Securing and Leveling the Appliance ................ 40
D. Non-Combustible Material (Factory-Installed) ......... 41
7 Venting
A. Assemble Vent Sections ......................... 42
B. Assemble Slip Sections ..........................45
C. Secure the Vent Sections .........................46
D. Disassemble Vent Sections .......................46

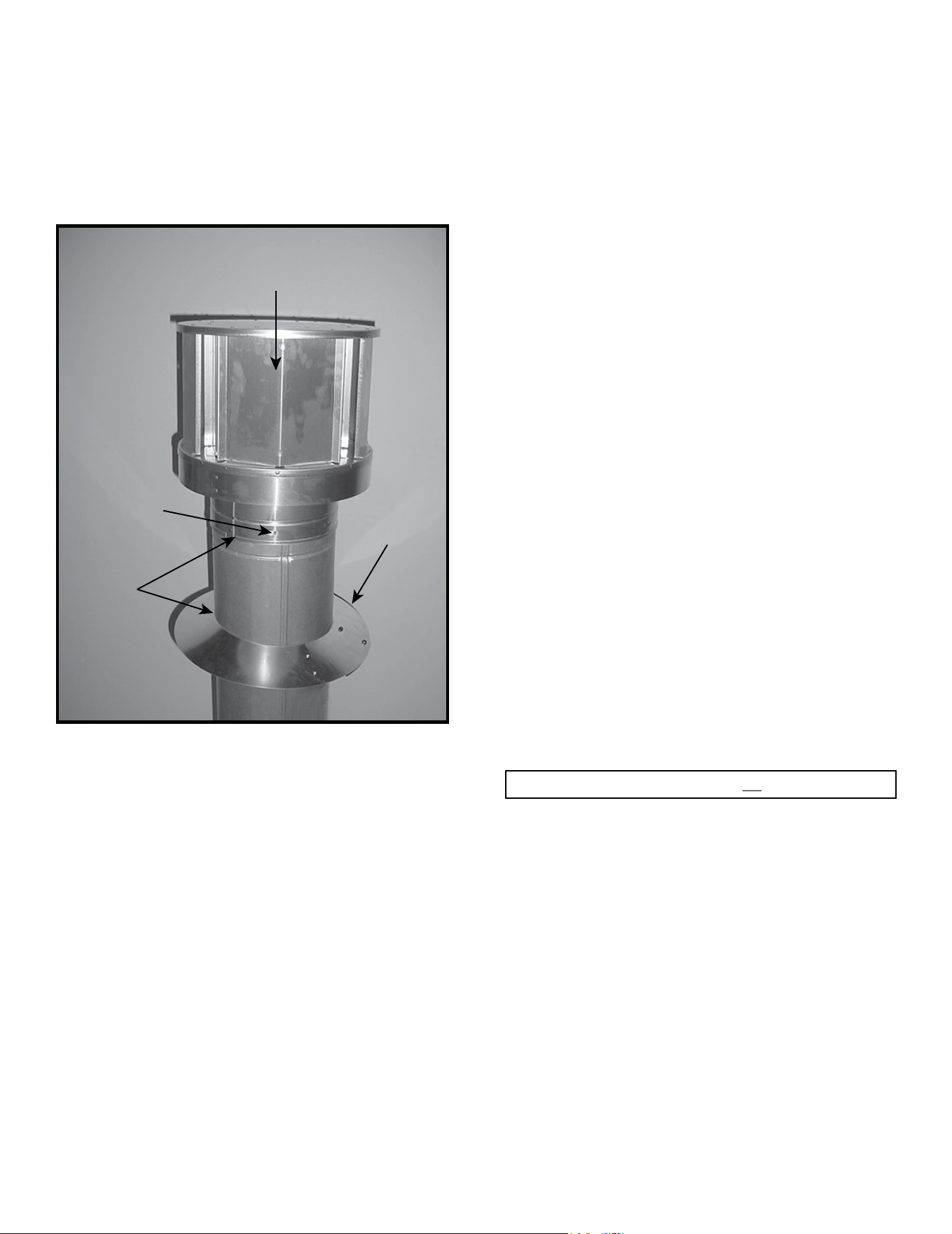

E. Vertical Termination Requirements ..................47
F. Horizontal Termination Requirements ...............48

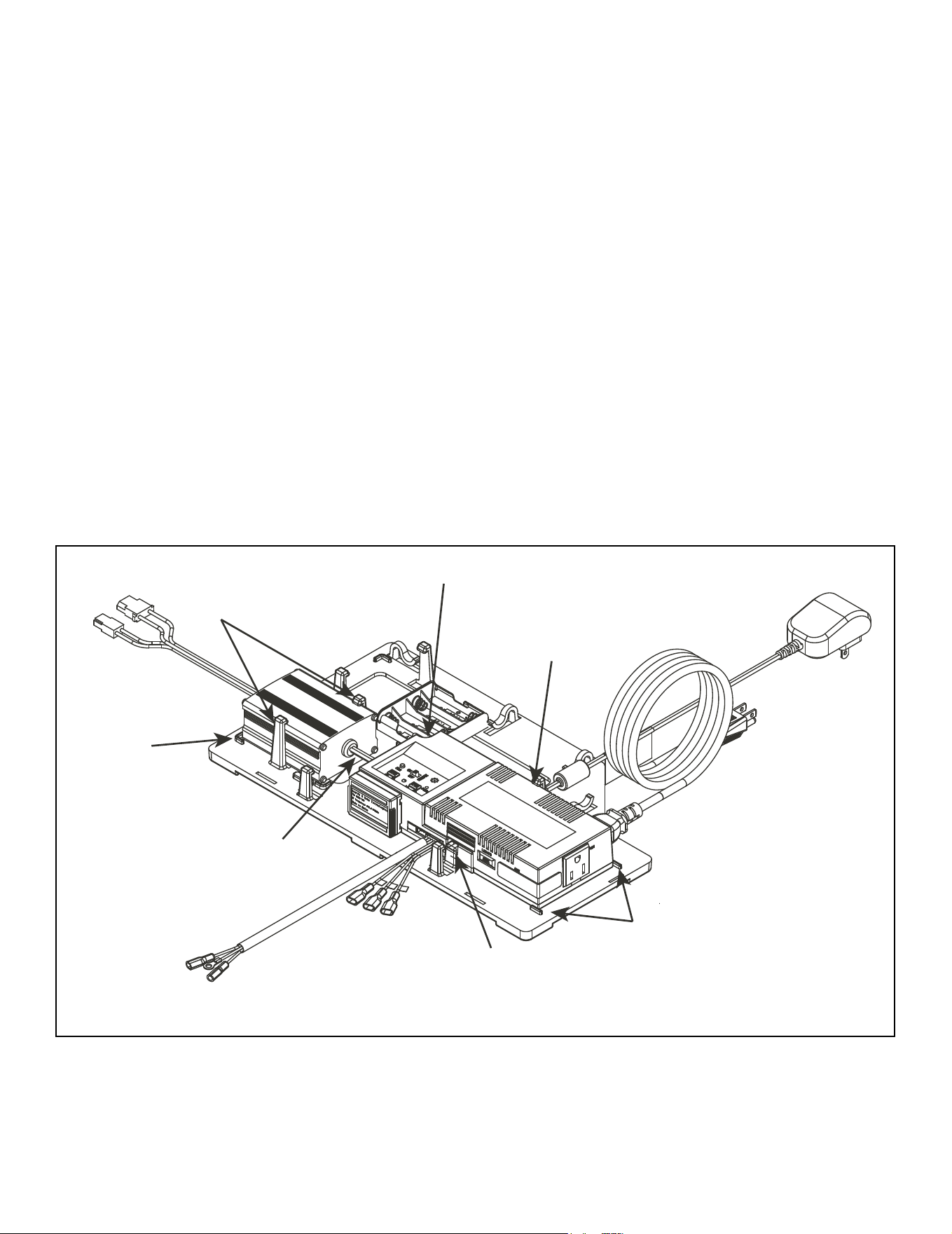

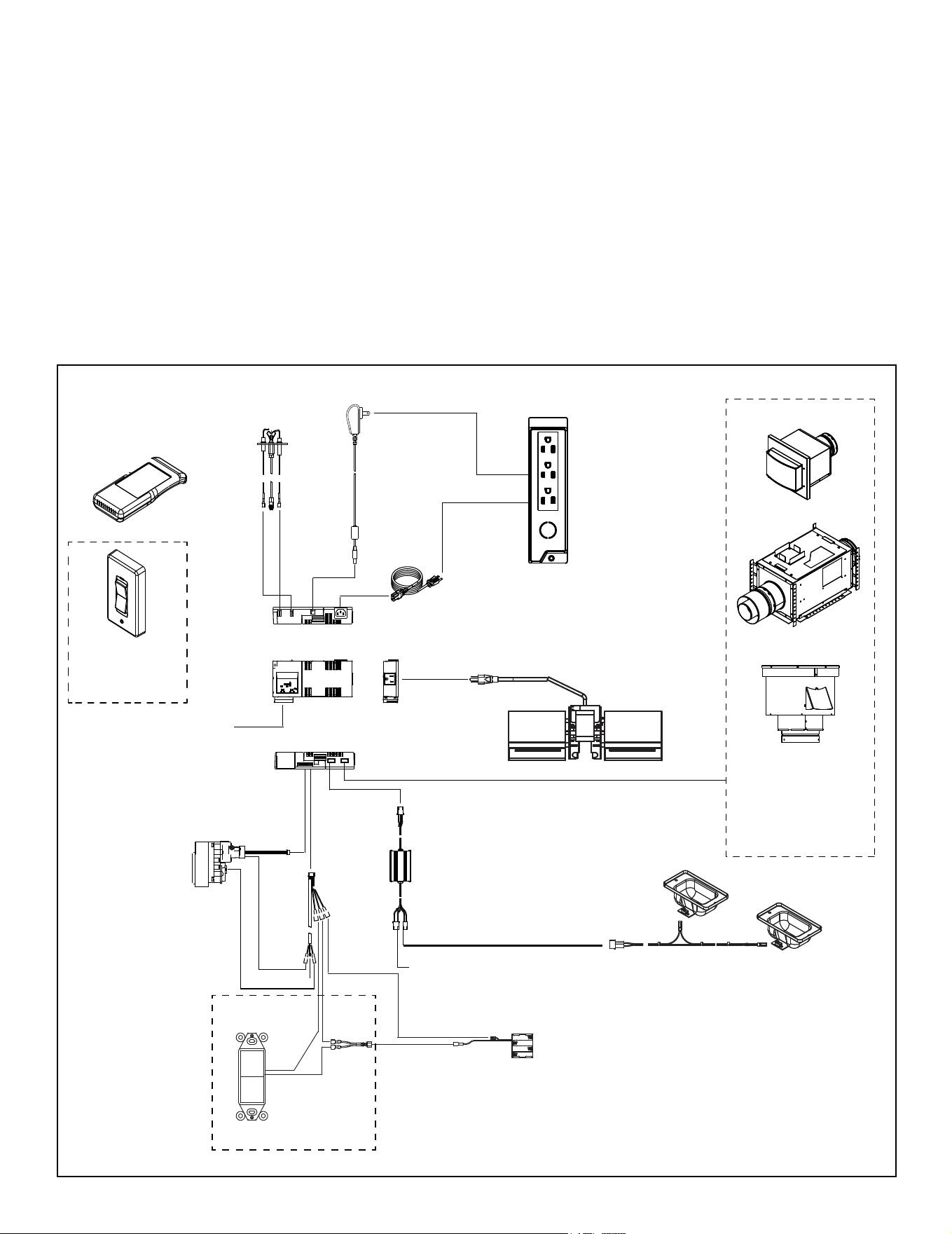

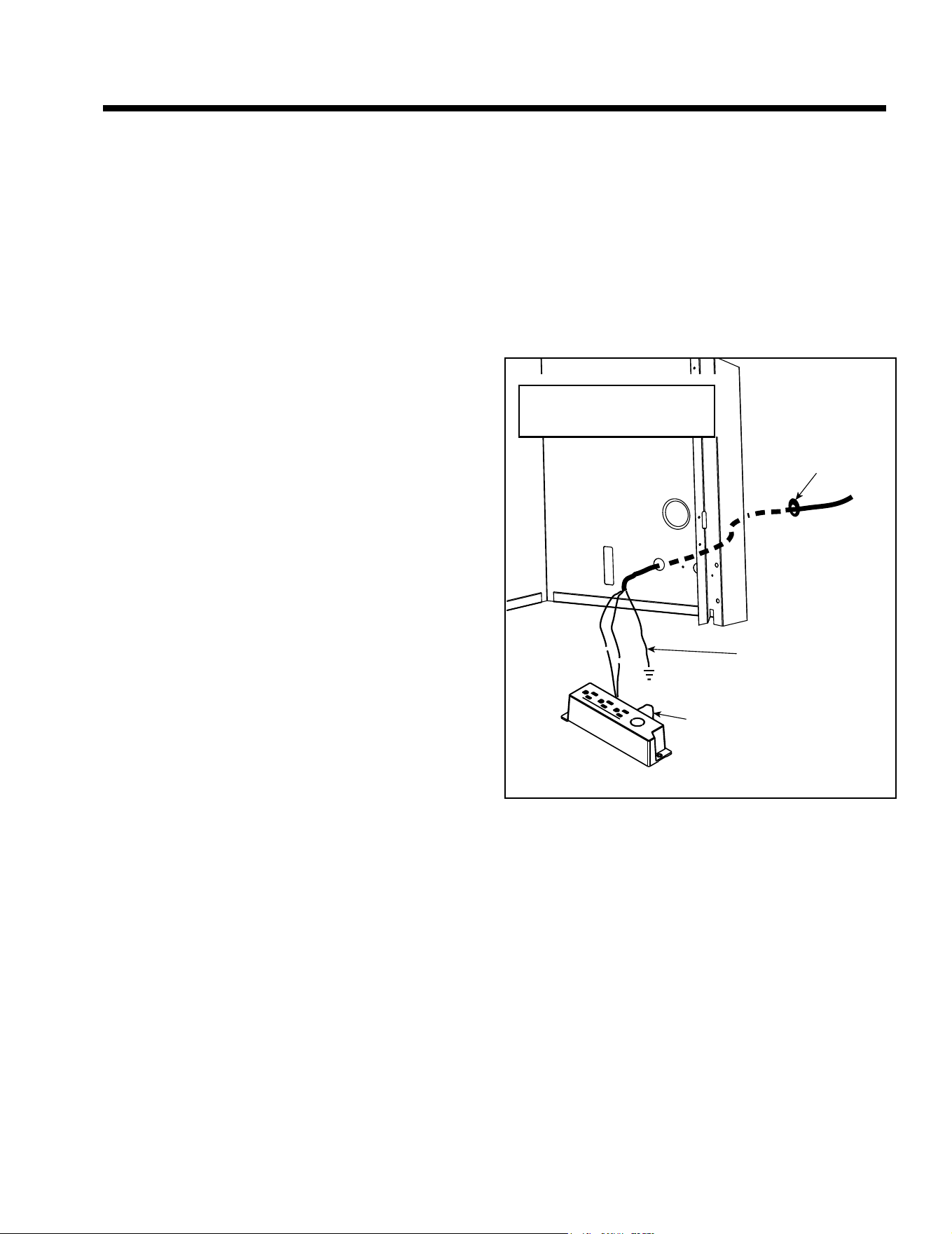

8 Electrical Information
A. General Information .............................50
B. Wiring Requirements ............................52
9 Gas Information
A. Fuel Conversion ................................53
B. Gas Pressure .................................. 53
C. Gas Connection ................................53
D. High Altitude Installations ......................... 53
E. Air Shutter Setting ..............................54
F. Burner Identication/Verication ....................55
10 Finishing
A. Facing Material .................................56
B. Installing a Television ............................57
C. Mantel and Wall Projections .......................57
D. Decorative Barrier Front Dimensions for Finishing. . . . . . 60
11 Appliance Setup
A. Remove the Shipping Materials .................... 61
B. Clean the Appliance .............................61
C. Install the Refractory Kit (Required) .................61
D. Install and Paint Teco-Sil .........................61

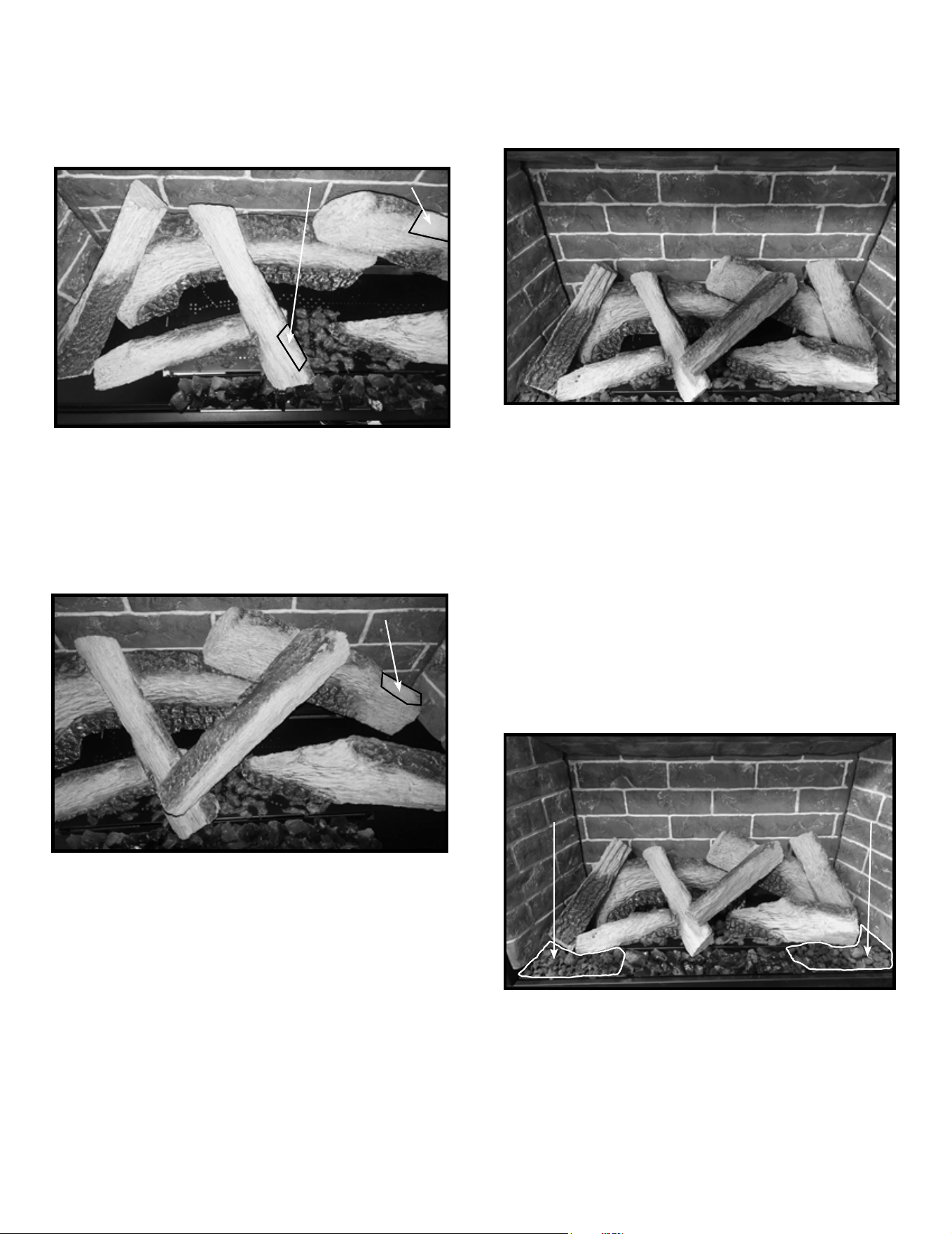

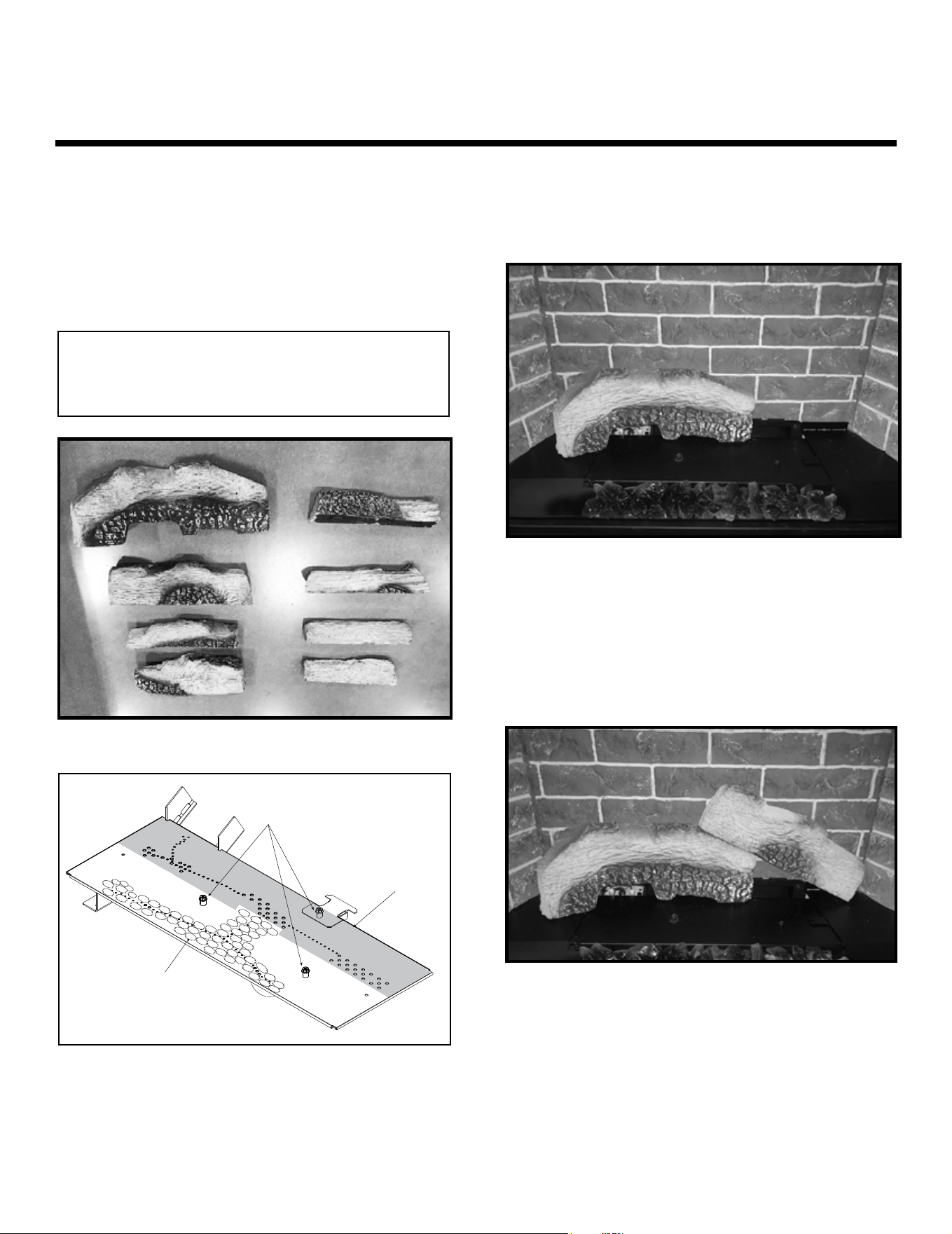

E. Install the Log Assembly (Including Glowing Embers and
Lava Rock) ....................................62
F. IntelliFire Touch
®
Control System Setup ..............65
G. Fixed Glass Assembly Removal and Replacement .....65
H. Install Decorative Barrier Front. . . . . . . . . . . . . . . . . . . . . 66
12 Reference Materials

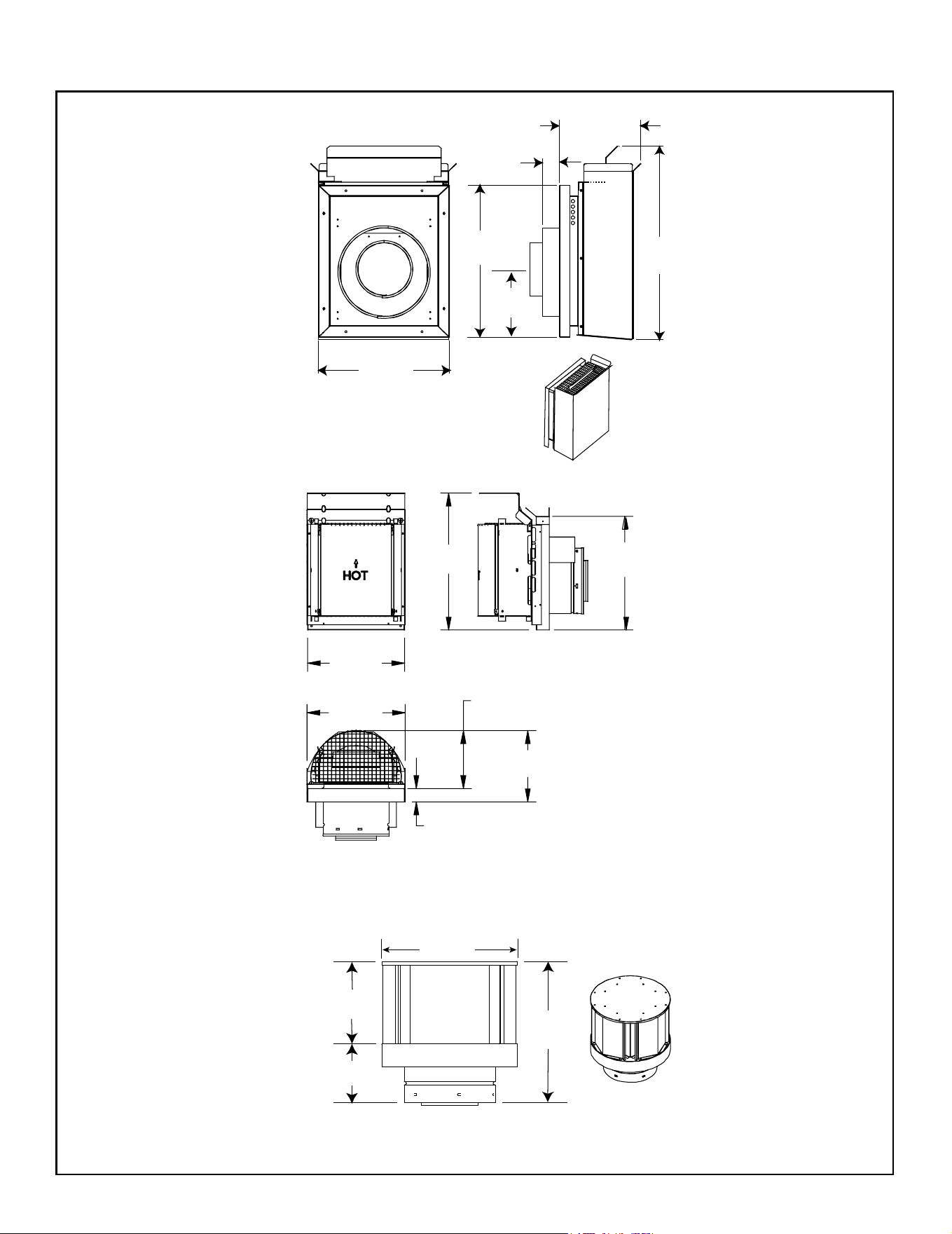

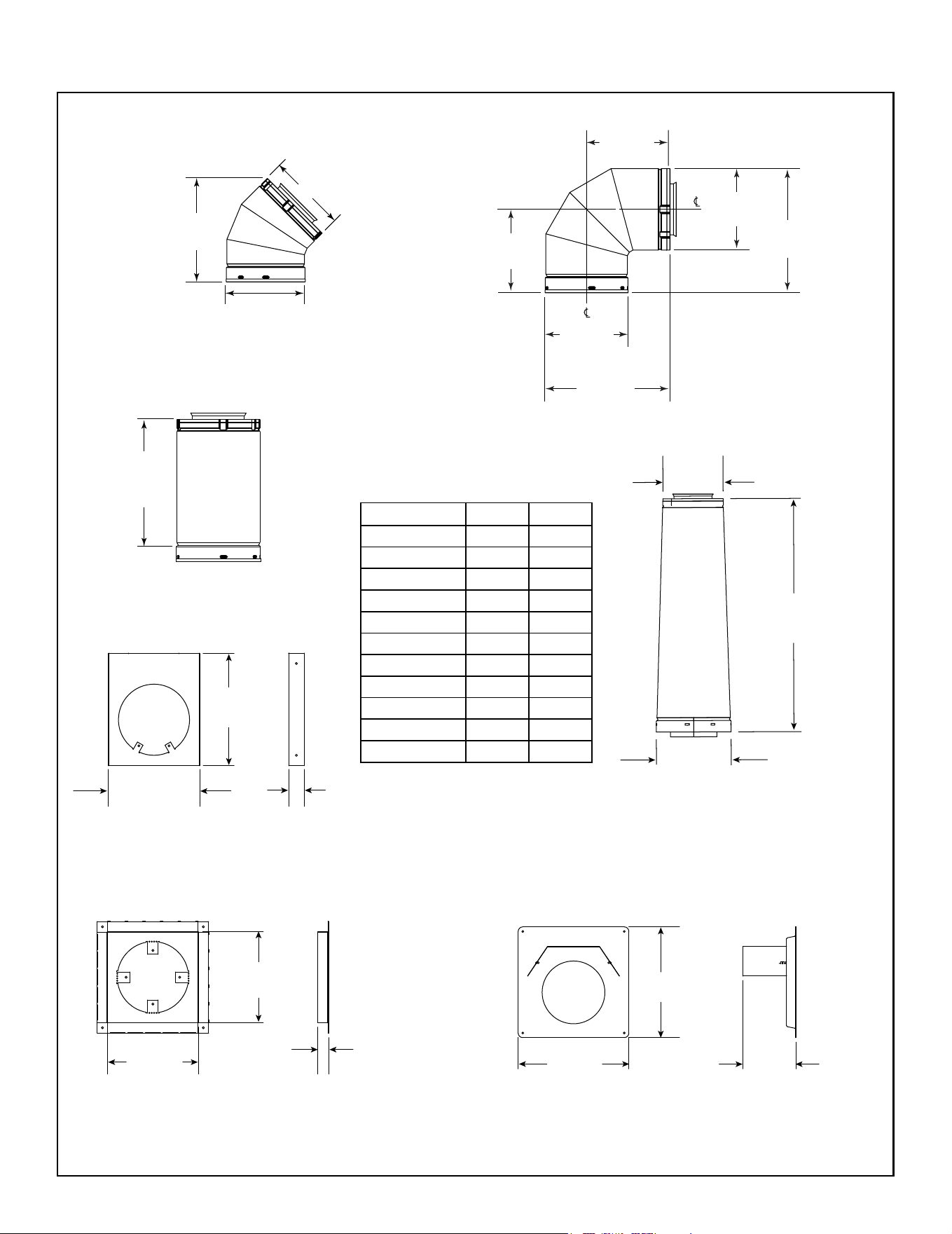

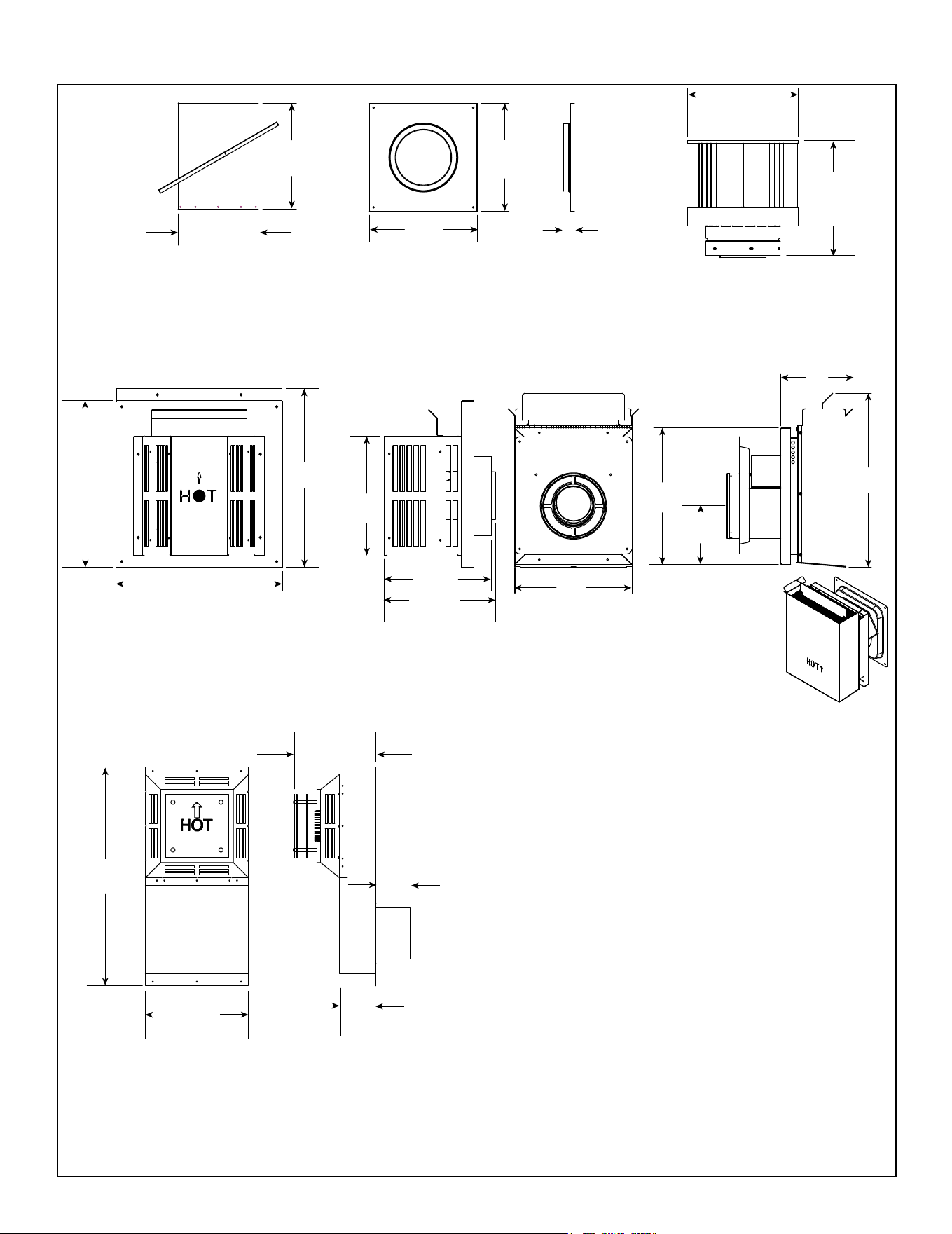

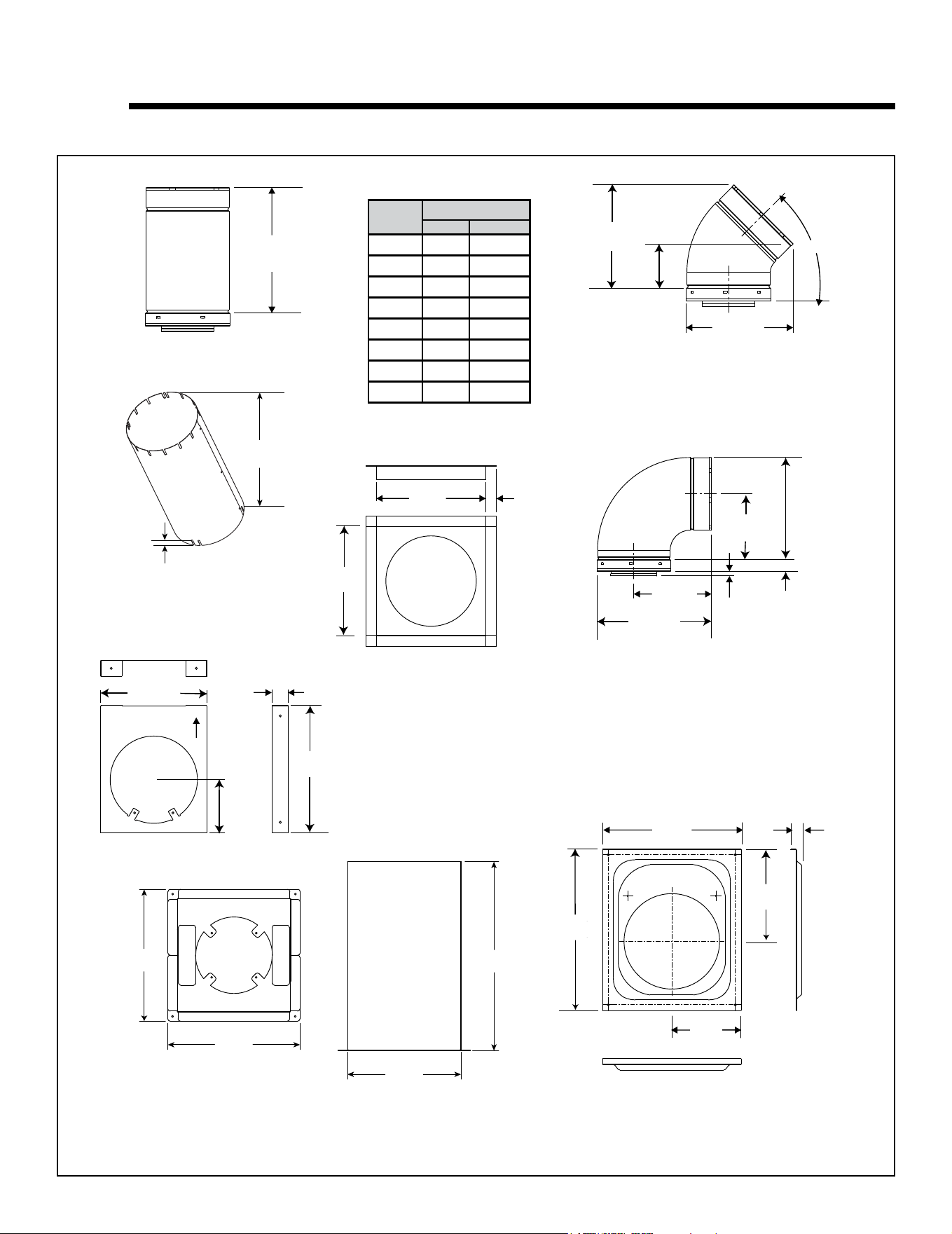

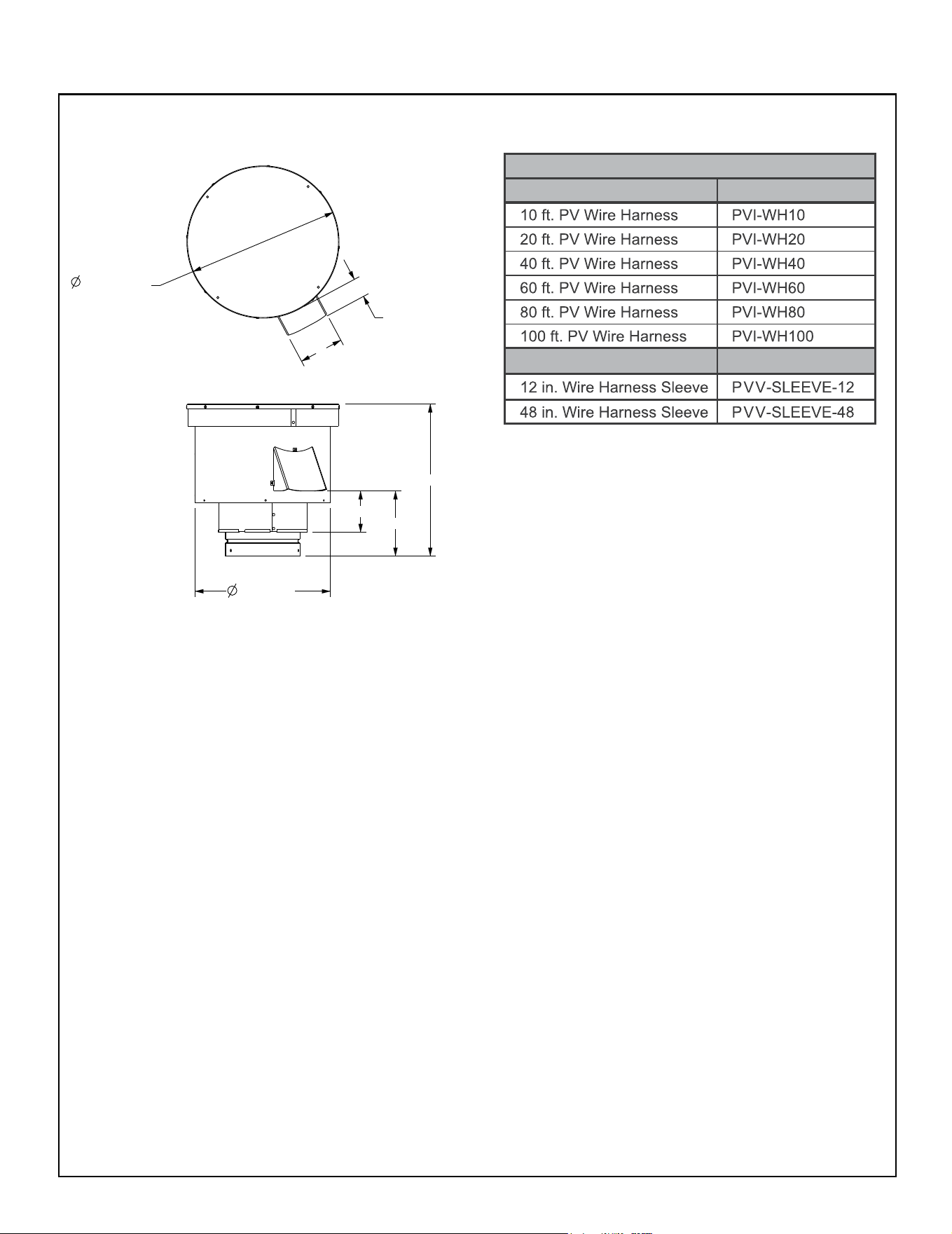

A. Vent Components Diagrams ......................67
B. Accessories ...................................79
= Contains updated information.
3
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
Installation Standard Work Checklist
Customer:
Lot/Address:
Model (circle one): QUARTZPLA36IN
QUARTZPLA36IL
Date Installed:
Location of Fireplace:
Installer:
Dealer/Distributor Phone #
Serial #:
Comments: Further description of the issues, who is responsible (Installer/ Builder/ Other Trades, etc) and corrective
action needed _____________________________________________________________________________________
_________________________________________________________________________________________________
Comments Communicated to party responsible ____________________ by ______________________on ___________
(Builder / Gen. Contractor/) (Installer) (Date)
Appliance Install YES IF NO, WHY?
Veri ed that the chase is insulated and sealed. (Pg. 14) ___________________________
Required non-combustible board is installed. (Pg.41) ___________________________
Veri ed clearances to combustibles. (Pg. 12-13) ___________________________
Fireplace is plum, leveled, square and secured. (Pg. 40) ___________________________
Venting/Chimney Section 7 (Pg 42-49)
Venting con guration complies to vent diagrams. ___________________________
Venting installed, locked and secured in place with proper clearance.
(May need to order separately.) ___________________________
Firestops installed. ___________________________
No insulation or foam materials in contact with venting or between
ceiling/wall shield restops. ___________________________
Attic insulation shield installed. ___________________________
Exterior wall/Roof ashing installed and sealed. ___________________________
Terminations installed and sealed. ___________________________
Electrical Section 8 (Pg 50-52)
Unswitched power (110-120 VAC) provided to the appliance. ___________________________
Switch wires properly installed. ___________________________
Gas Section 9 (Pg 53-55)
Proper appliance for fuel type. ___________________________
Was a conversion performed? ___________________________
Leak check performed and inlet pressure veri ed. ___________________________
Veri ed proper air shutter setting for installation type. ___________________________
Finishing Section 10 (Pg 56-60)
Combustible materials not installed in non-combustible areas. ___________________________
Veri ed all clearances meet installation manual requirements. ___________________________
Mantels and wall projections comply with installation manual requirements. ___________________________
Appliance Setup Section 11 (Pg 61-66)
All packaging and protective materials removed (inside & outside of appliance). ___________________________
Refractories, logs, media and embers installed correctly. ___________________________
Glass assembly installed and secured. ___________________________
Accessories installed properly. ___________________________
Mesh, decorative barrier front properly installed.
(May need to order separately.) __________________________
Manual bag and all of its contents are removed from inside/under
the appliance and given to party responsible for use and operation. ___________________________
Started appliance and veri ed no gas leaks exist. ___________________________
2643-982 4/22
= Contains updated information.
Hearth & Home Technologies recommends the following:
• Photographing the installation and copying this checklist for your le.
• That this checklist remain visible at all times on the appliance until the installation is complete.
This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this
installation manual.
ATTENTION INSTALLER:
Follow this Standard Work Checklist
WARNING! Risk of Fire or Explosion! Failure to install appliance according to these instructions could lead
to a re or explosion. Install ONLY components and accessories approved by Hearth & Home Technologies.
Unapproved components and accessories could cause replace to overheat.
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
4
This product is listed to ANSI standards for “Vented
Gas Fireplace Heaters” and applicable sections of “Gas
Burning Heating Appliances for Manufactured Homes
and Recreational Vehicles”, and “Gas Fired Appliances
for Use at High Altitudes”. Also Certied for Installation in
a Bedroom or a Bedsitting Room.
A. Appliance Certication
NOT INTENDED FOR USE AS A PRIMARY HEAT SOURCE.
This appliance is tested and approved as either supplemen-
tal room heat or as a decorative appliance. It should not be
factored as primary heat in residential heating calculations.
NOTICE: This installation must conform with local codes.
In the absence of local codes you must comply with the
National Fuel Gas Code, ANSI Z223.1-latest edition in
the U.S.A. and the CAN/CGA B149 Installation Codes in
Canada.
1 1
Product Specic and Important Safety Information
D. High Altitude Installations
NOTICE: If the heating value of the gas has been reduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
When installing above 2000 feet elevation:
• In the USA: Reduce input rate 4% for each 1000 feet
above 2000 feet.
• In CANADA: Input ratings are certied without a
reduction of input rate for elevations up to 4500 feet
(1370 m) above sea level. Please consult provincial and/
or local authorities having jurisdiction for installations at
elevations above 4500 feet (1370 m).
Check with your local gas utility to determine proper
orice size.
B. Glass Specications
This appliance is equipped with ceramic glass. Replace
glass only with ceramic glass. Please contact your dealer
for replacement glass.
C. BTU Specications
Models
(U.S. or Canada)
Maximum
Input
BTU/h
Minimum
Input BTU/h
Orice
Size
(DMS)
QUARTZPLA36IN
(NG)
(0-2000 ft)
30,500 15,000 #37
QUARTZPLA36IL
(Propane)
(0-2000 ft)
29,500 15,000 #52
E. Non-Combustible Materials Specication
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in
a Vertical Tube Furnace at 750 ºC shall be considered
non-combustible materials.
F. Combustible Materials Specication
Materials made of or surfaced with wood, compressed pa-
per, plant bers, plastics, or other material that can ignite
and burn, whether ame proofed or not, or plastered or
unplastered shall be considered combustible materials.
G. Electrical Codes
NOTICE: This appliance must be electrically wired
and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code
ANSI/NFPA 70-latest edition or the Canadian Electric
Code CSA C22.1.
• A 110-120 VAC circuit for this product must be pro-
tected with ground-fault circuit interrupter protection,
in compliance with the applicable electrical codes,
when it is installed in locations such as in bathrooms
or near sinks.
H. California
WARNING: This product and the fuels used to
operate this product (liquid propane or natural
gas), and the products of combustion of such fuels, can
expose you to chemicals including benzene, which is
known to the State of California to cause cancer and
reproductive harm. For more information go to: www.
P65Warnings.ca.gov.
MODELS: QUARTZPLA36IN / QUARTZPLA36IL
LABORATORY: Underwriters Laboratories, Inc. (UL)
TYPE: Direct Vent Heater
STANDARD: CSA / ANSI Z21.88-2019 • CSA 2.33-2019
5
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
I. Requirements for the Commonwealth of
Massachusetts
For all side wall horizontally vented gas fueled equipment
installed in every dwelling, building or structure used in
whole or in part for residential purposes, including those
owned or operated by the Commonwealth and where the
side wall exhaust vent termination is less than seven (7)
feet above nished grade in the area of the venting, in-
cluding but not limited to decks and porches, the following
requirements shall be satised:
Installation of Carbon Monoxide Detectors
At the time of installation of the side wall horizontal vented
gas fueled equipment, the installing plumber or gas tter
shall observe that a hard wired carbon monoxide detector
with an alarm and battery back-up is installed on the oor
level where the gas equipment is to be installed. In addi-
tion, the installing plumber or gas tter shall observe that
a battery operated or hard wired carbon monoxide detec-
tor with an alarm is installed on each additional level of
the dwelling, building or structure served by the side wall
horizontal vented gas fueled equipment. It shall be the
responsibility of the property owner to secure the services
of qualied licensed professionals for the installation of
hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fu-
eled equipment is installed in a crawl space or an attic,
the hard wired carbon monoxide detector with alarm and
battery back-up may be installed on the next adjacent
oor level.
In the event that the requirements of this subdivision can
not be met at the time of completion of installation, the
owner shall have a period of thirty (30) days to comply
with the above requirements; provided, however, that dur-
ing said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required in accor-
dance with the above provisions shall comply with NFPA
720 and be ANSI/UL 2034 listed and IAS certied.
Signage
A metal or plastic identication plate shall be permanent-
ly mounted to the exterior of the building at a minimum
height of eight (8) feet above grade directly in line with the
exhaust vent terminal for the horizontally vented gas fu-
eled heating appliance or equipment. The sign shall read,
in print size no less than one-half (1/2) in. in size, “GAS
VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OB-
STRUCTIONS”.
Inspection
The state or local gas inspector of the side wall horizon-
tally vented gas fueled equipment shall not approve the
installation unless, upon inspection, the inspector ob-
serves carbon monoxide detectors and signage installed
in accordance with the provisions of 248 CMR 5.08(2)(a)1
through 4.
Exemptions
The following equipment is exempt from 248 CMR 5.08(2)
(a)1 through 4:
• The equipment listed in Chapter 10 entitled “Equipment
Not Required To Be Vented” in the most current edition
of NFPA 54 as adopted by the Board; and
• Product Approved side wall horizontally vented gas fu-
eled equipment installed in a room or structure separate
from the dwelling, building or structure used in whole or
in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided
When the manufacturer of Product Approved side wall
horizontally vented gas equipment provides a venting
system design or venting system components with the
equipment, the instructions provided by the manufacturer
for installation of the equipment and the venting system
shall include:
• Detailed instructions for the installation of the venting
system design or the venting system components; and
• A complete parts list for the venting system design or
venting system.
Gas Equipment Venting System NOT Provided
When the manufacturer of a Product Approved side wall
horizontally vented gas fueled equipment does not pro-
vide the parts for venting the ue gases, but identies
“special venting systems”, the following requirements
shall be satised by the manufacturer:
• The referenced “special venting system” instructions
shall be included with the appliance or equipment in-
stallation instructions; and
• The “special venting systems” shall be Product Ap-
proved by the Board, and the instructions for that sys-
tem shall include a parts list and detailed installation
instructions.
A copy of all installation instructions for all Product Ap-
proved side wall horizontally vented gas fueled equip-
ment, all venting instructions, all parts lists for venting
instructions, and/or all venting design instructions shall
remain with the appliance or equipment at the completion
of the installation.
See Gas Connection section for additional Common-
wealth of Massachusetts requirements.
Note: The following requirements reference various
Massachusetts and national codes not contained in this
document.
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
6
2 2
Getting Started
A. Design and Installation Considerations
WARNING! Risk of Fire or Explosion! Read all instruc-
tions before starting the installation.
Direct vent gas appliances are designed to operate with
all combustion air siphoned from outside of the building
and all exhaust gases expelled to the outside. No addi-
tional outside air source is required.
Installation MUST comply with local, regional, state and
national codes and regulations. Consult insurance carrier,
local building inspector, re ocials or authorities having
jurisdiction over restrictions, installation inspection and
permits.
Before installing, determine the following:
• Where the appliance is to be installed.
• The vent system conguration to be used.
• Gas supply piping requirements.
• Provisions for optional heat management system.
• Electrical wiring requirements.
• Framing and nishing details.
• Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualied
service technician, service agency or your dealer.
Installation and service of this appliance should be performed by
qualied personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certied professionals.
B. Good Faith Wall Surface/TV Guidelines
NOTICE: Surface temperatures listed above are taken with
a temperature measuring probe as prescribed by the test
standard used for appliance certication. Temperatures
on walls or mantels taken with an infrared thermometer
may yield increased temperatures of up to 30 °F (17 °C) or
more depending on the thermometer settings and material
characteristics being measured. Use appropriate nishing
materials that are able to withstand these conditions. For
additional nishing guidelines, see Section 10.

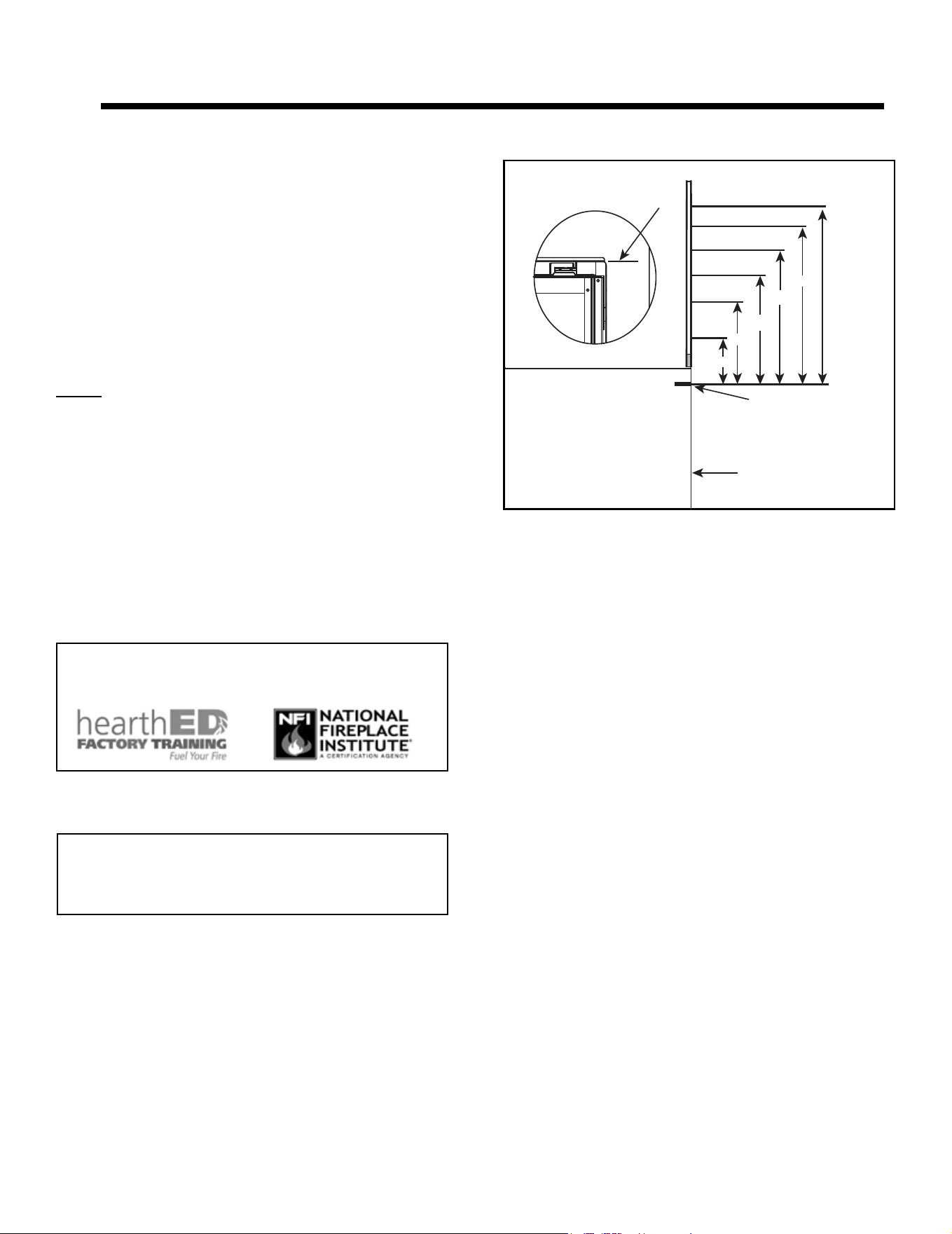

Figure 2.1 Good Faith Wall Surface Temperatures Above Appliance
MEASUREMENTS FROM
TOP EDGE OF THE OPENING
6 in.
18 in.
24 in.
30 in.
TO CEILING
12 in.
127°F
123°F
132°F
135°F
147°F
APPLIANCE FRONT
FIREPLACE
OPENING
7
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24

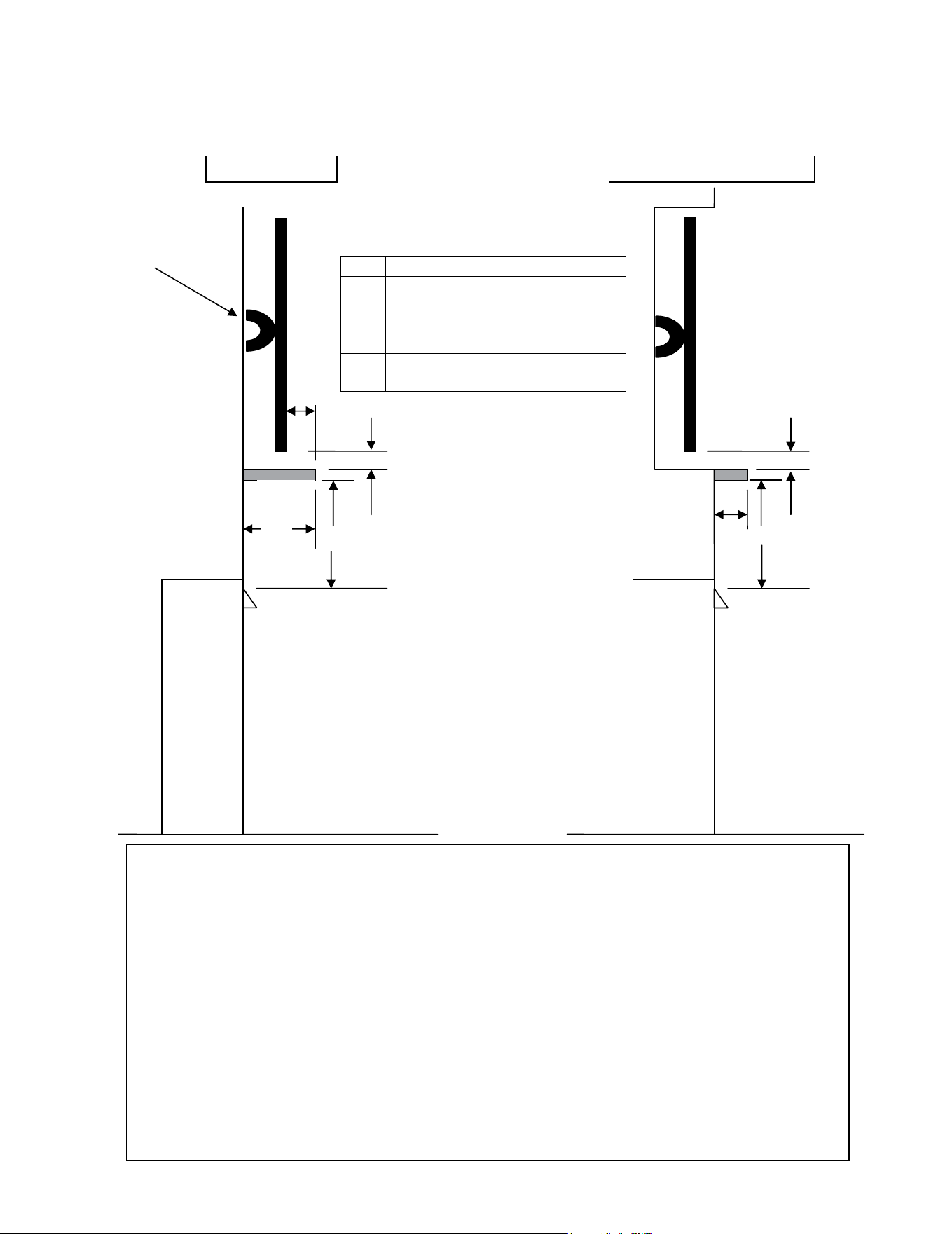

Figure 2.2 Good Faith TV Guidelines
Item Minimum Dimensions
A 2.5 inches
B
2 inches minimum to 3 inches
maximum
C 18 inches
D
Wall Brkt + TV Thickness + 2.5
inches
BB
A
Appliance
TV
Mantel
A
C
Notes:
1. These are good faith recommended clearances only and not a guarantee of compliance with all TV
manufacturers’ maximum allowable opera�ng temperatures.
2. Since every home has unique air flow characteris�cs and maximum allowable opera�ng temperatures
can vary from manufacturer to manufacturer and from model to model, actual TV temperatures should
be validated at the �me of each installa�on. TVs should not be used in situa�ons where the actual TV
temperature exceeds the manufacturers’ maximum allowable opera�ng temperatures iden�fied in the
TV’s technical specifica�ons. Contact the TV’s manufacturer directly if you cannot locate this
informa�on or have ques�ons regarding the informa�on.
3. Mantel height and depth must conform to mantel requirements specified in the appliance installa�on
manual.
4. “C” dimension taken from the top of the hood or appliance opening.
5.
Sugges�ons on how to further reduce TV temperatures:
a. Increase “A” dimension.
b. Increase “C” dimension, however, increasing “B” dimension beyond maximum recommended
typically results in higher temperatures.
TV Wall
Bracket
D
Appliance
C
TV on the wall
TV recessed into the wall
Good Faith Guidelines for TV Installations Above Appliance
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
8
D. Inspect Appliance and Components
WARNING! Risk of Fire or Explosion! Damaged parts
could impair safe operation. DO NOT install damaged, in-
complete or substitute components. Keep appliance dry.
WARNING! Risk of Fire, Explosion or Electric Shock!
DO NOT use this appliance if any part has been under
water. Call a qualied service technician to inspect the
appliance and to replace any part of the control system
and/or gas control which has been under water.
• Carefully remove the appliance and components from
the packaging.
• The vent system components, refractory liner kit and
decorative barrier fronts may be shipped in separate
packages.
• If packaged separately, the log set and appliance grate
must be installed.
• Report to your dealer any parts damaged in shipment.
• This product is factory-equipped with an IntelliFire Touch
®
remote control, which was paired to the appliance at the
factory. This specic remote control needs to remain with
the contents of the manual bag. Do not install batteries
in the remote control until performing the nal appliance
setup and checklist.
Hearth & Home Technologies disclaims any responsibility
for, and the warranty will be voided by, the following actions:
• Installation and use of any damaged appliance or vent
system component.
• Modication of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the logs/media (as applicable) or
the glass assembly.
• Installation and/or use of any component part not approved
by Hearth & Home Technologies.
C. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Hand Tools Tape measure
Level Framing material
Manometer Framing square
Voltmeter Electric drill and bits (1/4 in.)
Plumb line Safety glasses/Gloves
Wrenches Reciprocating saw
1/4 in. nut driver
Non-corrosive leak check solution
1/2 - 3/4 in. length, #6 or #8 Self-drilling screws
Caulking material (300 ºF minimum continuous exposure
rating)
9
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
3 3
Framing and Clearances
Appliance Dimensions Table
A. Appliance Weights and Dimensions
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 5.
Figure 3.1 Appliance Dimensions
Q
R
Ø
O
P
L
M
N
GAS LINE ACCESS
T
S
C
V
A
B
U
E
D
F
ELECTRICAL
ACCESS
G
H
J
I
K
Ø
W
Ø
HEAT MANAGEMENT
SYSTEMS ACCESS
XX
Y
(C )
L
Z
QUARTZPLA36IN / QUARTZ36PLA36IL
Location Inches Millimeters
A 41 1041
B 36-1/8 918
C 32-1/16 814
D 21-1/2 546
E 37-5/8 956
F 3-9/16 90
G 6-7/8 175
H 26-7/8 683
I 37-7/8 962
J 39-15/16 1014
K 8 203
L 8-13/16 224
M 16-5/16 414
QUARTZPLA36IN / QUARTZ36PLA36IL
Location Inches Millimeters
N 1/2 13
O 30-3/4 781
P 15-3/8 391
Q 15-7/8 403
R 6-5/8 168
S 2-3/16 56
T 6 152
U 1 25
V 33-9/16 853
W 5 127
X 14 356
Y 9-1/8 232
Z 13 330
Appliance Weight Table
Model Pounds Kilograms
QUARTZPLA36IN 145 66
QUARTZPLA36IL 145 66
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
10
Figure 3.2 Decorative Barrier Front Dimensions - DBM36 Decorative Barrier Front
Note: See Section 10 for hearth, mantel and nishing requirements.
IMPORTANT! This replace requires an installed decorative barrier front to prevent direct contact with the
hot viewing glass. DO NOT operate the replace with the barrier removed.
If decorative barrier front is not present, contact dealer.
A
B
F
G
E
D
C
Barrier Mesh: Integral to
Decorative Barrier Front
A B C D E F G
QUARTZPLA36IN
QUARTZPLA36IL
DBM36
in. 33-7/8 24-1/4 35-15/16 1-5/8 2-5/8 30-5/8 32-1/4
mm 860 616 913 41 67 778 819
DBM36 DECORATIVE BARRIER FRONT
B. Decorative Barrier Front Dimensions
11
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
CRD36 DECORATIVE BARRIER FRONT
Figure 3.3 Decorative Barrier Front Dimensions - CRD36 Decorative Barrier Front
IMPORTANT! This replace requires an installed decorative barrier front to prevent direct contact with the
hot viewing glass. DO NOT operate the replace with the barrier removed.
Decorative barrier front must be ordered at time of replace purchase. If decorative barrier front is not
present, contact dealer.
Note: See Section 10 for hearth, mantel and nishing requirements.
A B C D E F G
QUARTZPLA36IN
QUARTZPLA36IL
CRD36
in. 28-5/8 23-3/16 37-1/16 1-1/4 6 32-1/4 33-5/8
mm 727 589 941 32 153 819 854
A
B
C
G
D
E
F
Barrier Mesh: Integral to
Decorative Barrier Front
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
12
C. Appliance Location and Clearances to
Combustibles
When selecting a location for the appliance it is important
to consider the required clearances to walls and allow suf-
cient clearance for heat management systems venting.
See Figure 3.4 and Figure 3.5.
WARNING! Risk of Fire or Burns! Provide adequate
clearance around air openings and for service access.
Due to high temperatures, the appliance should be lo-
cated out of trac and away from furniture and draperies.
NOTICE: Illustrations reect typical installations and are
FOR DESIGN PURPOSES ONLY. Illustrations/diagrams
are not drawn to scale. Actual installation may vary due to
individual design preference.
Figure 3.4 Appliance Locations
NOTICE: Allow 13 inches minimum clearance
on side(s) of appliance for venting of heat
management system.
13 IN. MIN.
Figure 3.5 Clearance for Heat Management System
J
C
A
K
H
B
F
D
I
I
F
A
E
G
L
Refer to Section 10 for mantel and wall
projection information.
Consider the mantel or cabinet system to be
installed and comply with the necessary
requirements for elevated hearth. Refer to
instructions included with cabinet system.
Models A B C D
E
Min.
F G H I J K L
QUARTZPLA36IN
QUARTZPLA36IL
in. 45-1/2 42 64-3/8 See Section
10 for Mantel
Projections
1/2 45-1/2 64-3/8 16-1/4 48-1/2 68-3/4 16-5/8 7-1/2
mm 1156 1067 1635 13 1156 1635 413 1232 1746 422 191
NOTICE: Additional clearances are required for heat management
systems installations. Provisions must be made in advance to ensure
t within the framing.
13
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
E
H
I
F
G
J
MEASURE FROM TOP OF
UNIT OPENING OR FROM
TOP OF HOOD
Figure 3.6 Clearances to Combustibles
C
B
D
A
* MINIMUM FRAMING DIMENSIONS
Models
A B C D E F G H I J
DVP Pipe SLP Pipe
Rough
Opening
(Height)
**DVP Pipe SLP Pipe
Rough
Opening
(Width)
Clearance
to Room
Ceiling
***Combustible
Floor
****Minimum
Hearth
Required
Behind
Appliance
Sides of
Appliance
Front of
Appliance
Rough
Opening
(Width)
Rough
Opening
(Width)
Rough
Opening
(Depth)
Rough
Opening
(Depth)
QUARTZPLA36IN
QUARTZPLA36IL
in.
10 8-5/8 38-1/4 16-1/4 16-1/4 42 32 0 0 1/2 1/2 36
mm
254 219 972 413 413 1067 813 0 0 13 13 914
* Adjust framing dimensions for interior chase sheathing (such as sheetrock).
** Add 12 inches when rear venting with one 90º elbow.
*** When using combustible ooring materials, such as carpeting and padding, the combustible ooring material must not extend
higher than one inch from the base of the appliance when the appliance is mounted at oor level.
**** For installations with vinyl ooring see section 3.E.
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
14
A chase is a vertical box-like structure built to enclose the
gas appliance and/or its vent system. In cooler climates
the vent should be enclosed inside the chase.
NOTICE: Treatment of ceiling restops and wall shield
restops and construction of the chase may vary with the
type of building. These instructions are not substitutes
for the requirements of local building codes. Therefore,
you MUST check local building codes to determine the
requirements to these steps.
NOTICE: Where required by code, install only sprinkler
heads with a sprinkler activation temperature classied
as Extra High.
• Sprinklers inside of chase: Keep sprinkler head away
from vent and chimney.
• Heat Management applications: Maintain 36 inches of
clearance to openings from which heat is discharged
such as convection slots, passive heat registers, heat
zone registers, etc. Refer to Section 6.B for Heat
Management options allowed for this appliance.
Chases should be constructed and insulated in the same
manner as the thermal envelope of the home based on
the code requirements for that climate zone to prevent air
leakage and draft problems. The chase is an extension of
the building thermal envelope.
To further prevent drafts and air leakage, the wall shield
and ceiling restops should be sealed with caulk with
a minimum of 300 ºF continuous exposure rating to
seal gaps. Gas line holes and other openings should
be sealed with caulk with a minimum of 300 ºF continu-
ous exposure rating or stued with unfaced insulation. If the
appliance is being installed on a cement surface, a layer of
plywood may be placed underneath to prevent conducting
cold up into the room.
Minimum height requirements for an exterior chase on a top-
vented appliance are shown in Figure 3.7. Reference Figure
4.5 for additional clearances.
NOTICE: Install appliance on hard metal or wood surfaces
extending full width and depth. DO NOT install directly on
carpeting, vinyl, or any combustible material other than
wood.
WARNING! Risk of Fire! Maintain specied air space
clearances to appliance and vent pipe:
• Insulation and other materials must be secured to prevent
accidental contact.
• The chase must be properly blocked to prevent blown
insulation or other combustibles from entering and
making contact with replace or chimney.
• Failure to maintain airspace may cause overheating and
a re.
D. Constructing the Appliance Chase

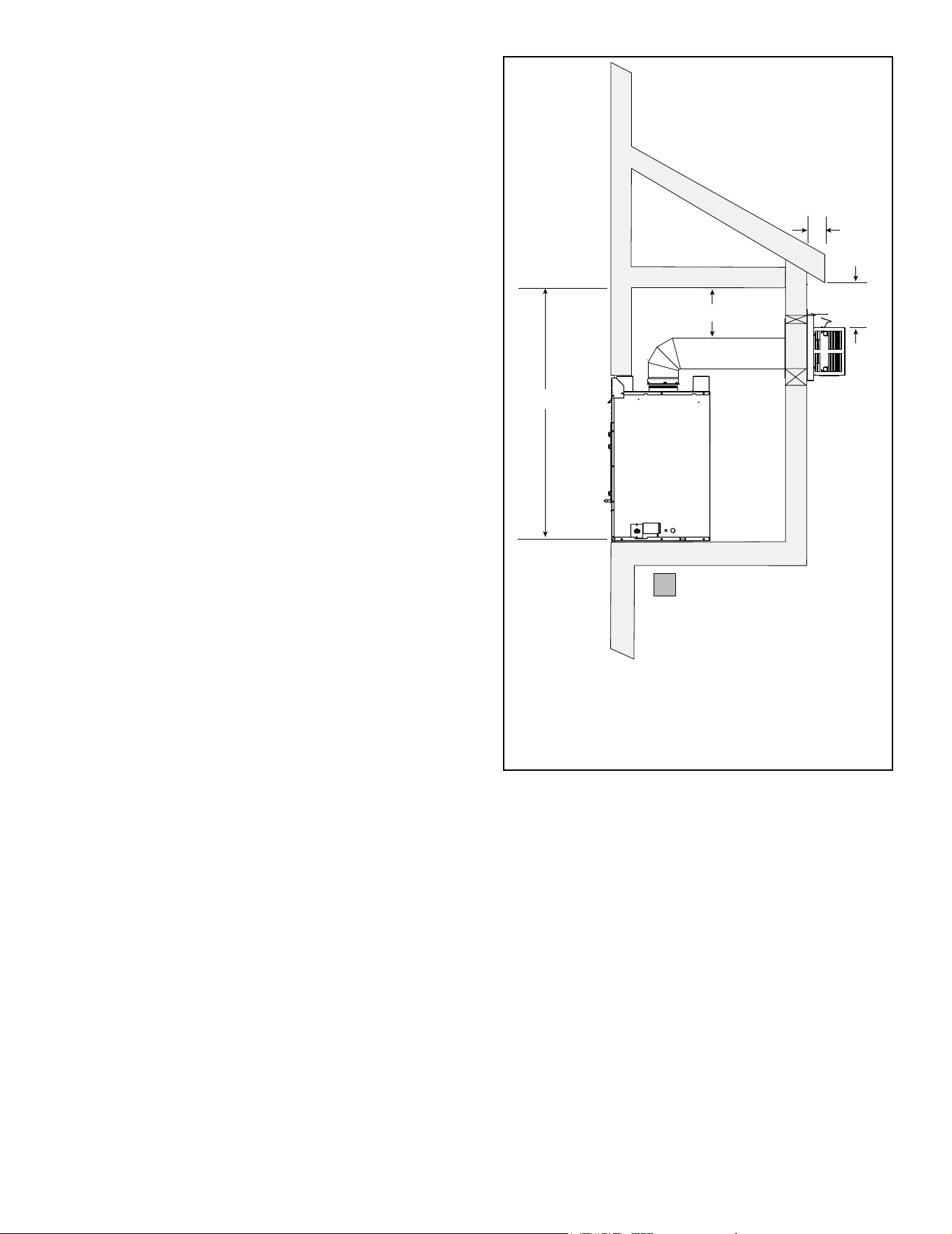

Figure 3.7 Exterior Chase - Minimum Height Requirements
C = 46-1/4 IN.
A
= REQUIRED MINIMUM OFF TOP = 0 IN.
D =3 IN. MIN.
B*
* NOTE: If overhang “A” is less than 2
inches, clearance from top of termination
cap to bottom of overhang “B” MUST be a
minimum of 4 inches. If A is two inches
or greater, see Figure 4.4.
A - Measured from back of vent cap to end of overhang
B - Measured from bottom of overhang to top of termination cap
C - Measured from bottom of appliance to combustible surface
D - Measured from top of vent pipe to combustible surface
15
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
E. Vinyl Flooring
12 IN. MIN.
APPLIANCE WIDTH MIN.
12 IN. MIN.
VINYL

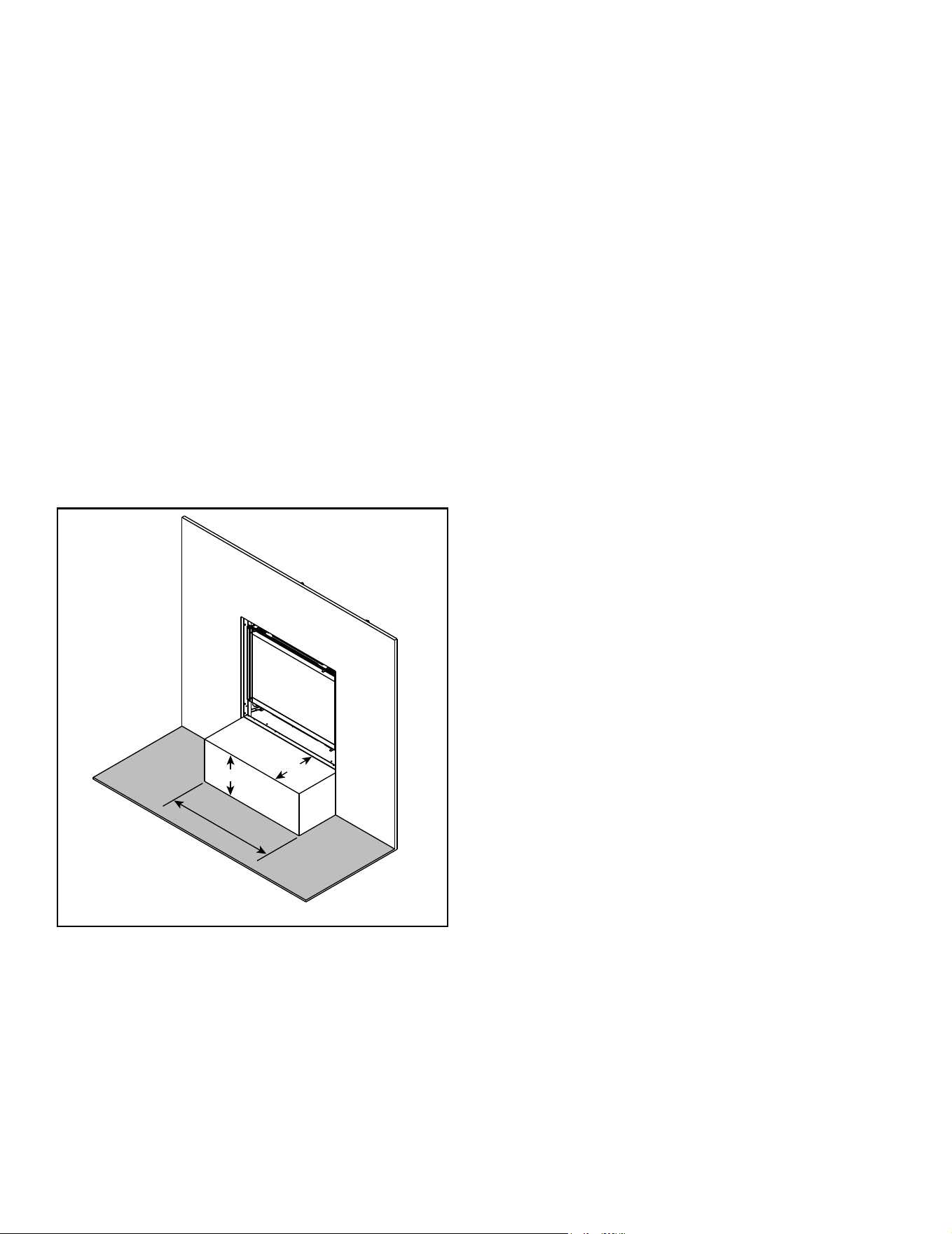

Figure 3.8 Vinyl Flooring Requirements
Vinyl ooring is sensitive to heat. To avoid damage to
the vinyl ooring, a 12 inch minimum x 12 inch minimum
hearth is recommended when using vinyl ooring up
to the wall. See Figure 3.8. If no hearth is used, it is
recommended to provide a minimum of 18 inches of
clearance in front of the appliance to the vinyl ooring OR
the bottom of the appliance should be raised a minimum
of 24 inches o of the oor to allow the vinyl ooring to be
installed up to the wall.
Hearth and Home Technologies does not recommend
adhesive based vinyl ooring products due to thermal
expansion during operation. Floating style ooring can be
used, but will reach temperatures up to 110 °F (based on
ambient temperature of 70 °F).
Consult the manufacturer’s
ooring specications to ensure compatibility.
NOTICE: Clearances that do not meet the minimum
guidelines could result in damage or buckling to the vinyl
ooring and is done at the installer’s risk.
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
16
B. Vent Termination Minimum Clearances
Roof Pitch H (Min.) Ft
Flat to 6/12...........................................................1.0*
Over 6/12 to 7/12 .................................................1.25*
Over 7/12 to 8/12 .................................................1.5*
Over 8/12 to 9/12 .................................................2.0*
Over 9/12 to 10/12 ...............................................2.5*
Over 10/12 to 11/12 .............................................3.25
Over 11/12 to 12/12 .............................................4.0
Over 12/12 to 14/12 .............................................5.0
Over 14/12 to 16/12 .............................................6.0
Over 16/12 to 18/12 .............................................7.0
Over 18/12 to 20/12 .............................................7.5
Over 20/12 to 21/12 .............................................8.0

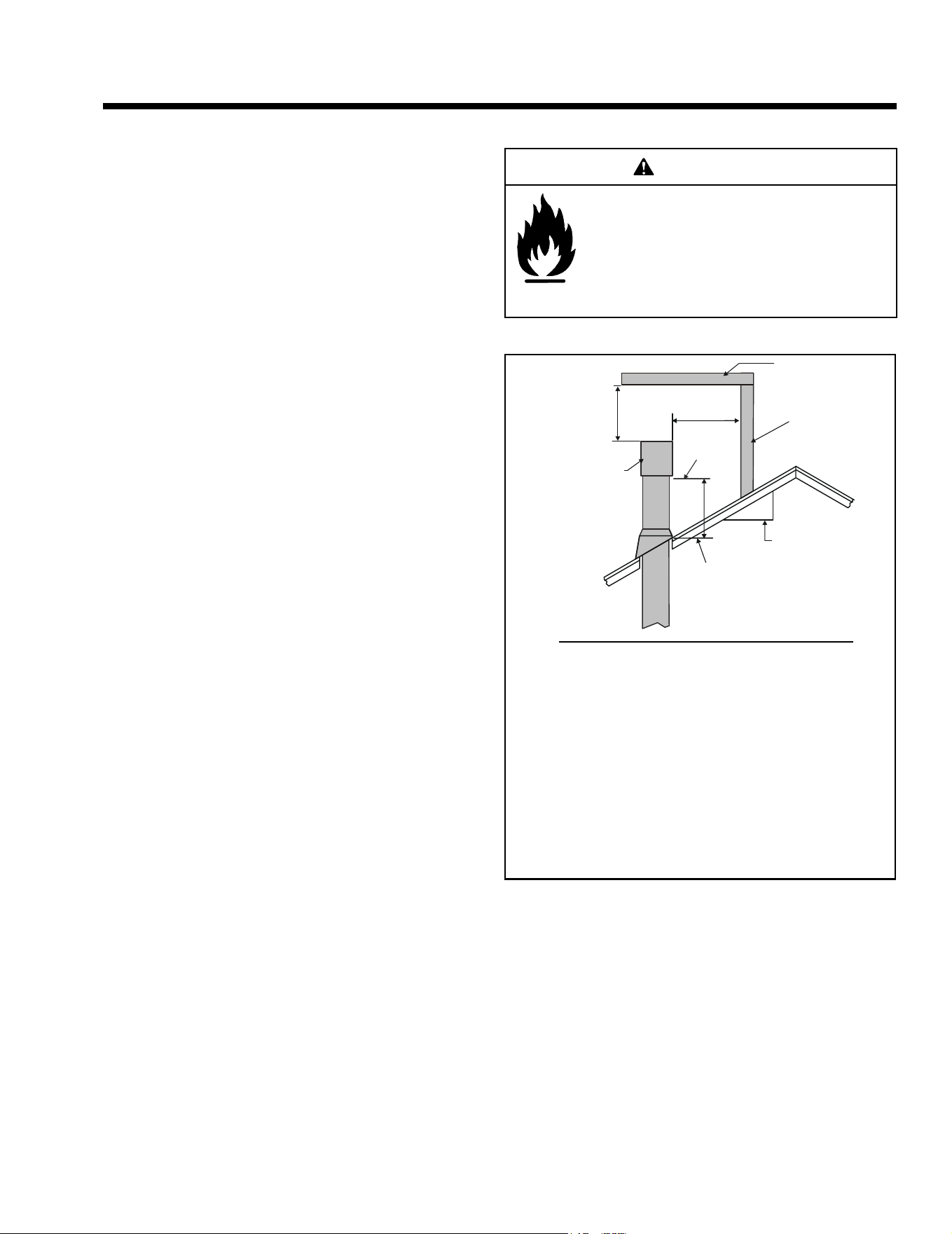

Figure 4.1 Minimum Height From Roof to Lowest Discharge
Opening
HORIZONTAL
OVERHANG
VERTICAL
WALL
GAS DIRECT VENT
TERMINATION CAP
12
X
ROOF PITCH
IS X/ 12
LOWEST
DISCHARGE
OPENING
2 FT.
MIN.
20 INCHES MIN.
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
4 4
Termination Location and Vent Information
Fire Risk.
Maintain vent clearance to combustibles as
specied.
• DO NOT pack air space with insulation or other
materials.
Failure to keep insulation or other materials away
from vent pipe could cause overheating and re.
WARNING
* H minimum may vary depending on regional snowfall.
Refer to local codes.
A. Approved Pipe
Approved Pipe - Rigid
WARNING! Risk of Fire, Delayed Ignition or Asphyxi-
ation. This appliance requires a separate vent. DO NOT
vent to a pipe serving any other appliance.
This appliance is approved for use with Hearth & Home
Technologies DVP or SLP venting systems. Refer to Sec-
tion 12.A for vent component information and dimensions.
Only use listed decorative termination caps/shrouds with
Hearth & Home Technologies approved venting systems.
DO NOT mix pipe, ttings or joining methods from dier-
ent manufacturers.
The pipe is tested to be run inside an enclosed wall.
There is no requirement for inspection openings at each
joint within the wall.
Approved Pipe - Flex
WARNING! Risk of Fire, Delayed Ignition or Asphyxi-
ation. This appliance requires a separate vent. DO NOT
vent to a pipe serving any other appliance.
This appliance is approved for use with Hearth & Home
Technologies SLP-FLEX (6-5/8 in.) and SLP-FLEX7 (7
inch) venting systems.
DO NOT mix pipe, ttings or joining methods from dier-
ent manufacturers. SLP-FLEX and SLP-FLEX7
venting cannot be interchanged.
SLP-FLEX (6-5/8 Inch): venting may be used in any
venting conguration shown in the venting tables provid-
ed that the horizontal vent length is reduce by 25%.
SLP-FLEX7 (7 Inch-Canada Only): venting requires
adapter collars to transition from the 6-5/8 in. appliance
starting collar and to the 6-5/8” termination cap. Refer to
installation instructions included with the SLP-FLEX7 col-
lar adapter (SLP-FLEX7-A). SLP-FLEX7 Series venting
is approved for use in Canada only.
The pipe is tested to be run inside an enclosed wall.
There is no requirement for inspection openings at each
joint within the wall.
17
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24

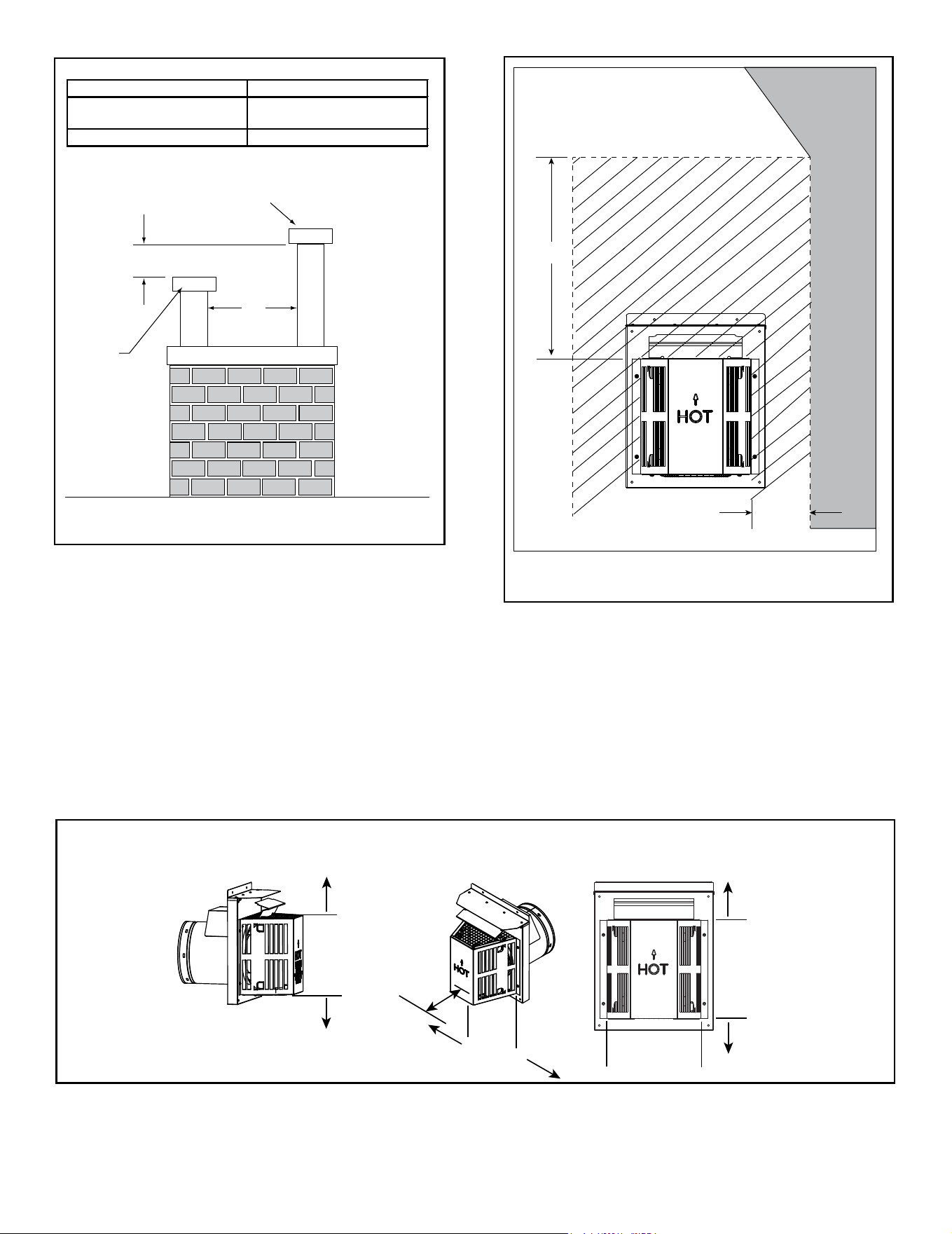

Figure 4.2 Staggered Termination Caps
CAUTION! Risk of Burns! Termination caps are HOT,
consider proximity to doors, trac areas or where people
may pass or gather (sidewalk, deck, patio, etc.). Listed
cap shields available. Contact your dealer.
• Local codes or regulations may require different
clearances.
• Hearth & Home Technologies assumes no responsibility
for the improper performance of the appliance when the
venting system does not meet these requirements.
• Vinyl protection kits are suggested for use with vinyl siding.
• Measure horizontal and vertical termination cap clearances
as noted in Figure 4.3 and Figure 4.4.
Figure 4.3
Figure 4.4 Measure Horizontal and Vertical Termination
Clearance to Trapezoid Portion of Cap
C and E dimensions are dened in Figure 4.5.
Wood or Fuel Oil
Termination Cap
B
*Gas
Termination
Cap
A
A B
6 in. (minimum) up to 20 in.
152 mm/508 mm
18 in. minimum
457 mm
20 in. and over 0 in. minimum
* If two gas terminations are present, they may be level (B = 0 inches)
provided A is a minimum of 6 inches.
OVERHANG
C
E
WALL
H=Measure Horizontal Distances from H
V=Measure Vertical Distances from V
V
V
CLEARANCE
= 6 IN.
H
H
V
V
H
H
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
18
C
J
B
D
B
F
B
A
E
V
V
V
V
V
V
M
H or i
V
G
X
V
H
A
V
V
H
Figure 4.5 Minimum Clearances for Termination
X
= AIR SUPPLY INLET
V
= VENT TERMINAL
= AREA WHERE TERMINAL IS NOT PERMITTED
Electrical
Service
V
K
V
K
V
L
C
V
C. Vent Terminal Clearances
U.S.A. Installations: In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code.
Canadian Installations: In accordance with the current CSA B149.1, Natural Gas and Propane Installation Code.
U.S.A. CANADA
A Clearance above grade,veranda, porch, deck, balcony or roof. 12 in. (305 mm) 12 in. (305 mm)
B
Clearance to window or door that may be opened, or to permanently closed
window
9 in. (229 mm) 12 in. (305 mm)
C
clearance below unventilated sot 18 in. (457 mm) 18 in. (457 mm)
clearance below ventilated sot 18 in. (457 mm) 18 in. (457 mm)
clearance below any vinyl sots and electrical service 30 in. (762 mm) 30 in. (762 mm)
D clearance to outside corner 6 in. (152 mm) 6 in. (152 mm)
E clearance to inside corner 6 in. (152 mm) 6 in. (152 mm)
F
clearance to each side of center line extended above gas meter/regulator
assembly
Clearance in accordance
with local installation codes
and the requirements of the
gas supplier.
3 ft (914 mm) within
a height 15 ft (4.5
m) above the meter/
regulator assembly
G clearance to gas service regulator vent outlet 3 ft (914 mm) 3 ft (914 mm)
H
clearance to non-mechanical air supply inlet to building or the combustion air
inlet to any other appliance termination (mechanical or non-mechanical)
9 in. (229 mm) 12 in. (305 mm)
I
clearance to a mechanical (powered) air supply inlet
***(All mechanical air intakes within 10 feet of a horizontal termination cap
must be a minimum of 3 feet below termination.)
3 ft (914 mm)*** 6 ft (1.8m)
J
On public property: clearance above paved sidewalk or a paved driveway.
7 ft (2.1 m) 7 ft (2.1 m)**
**(A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and
serves both dwellings.)
K
clearance from sides of electrical service 6 in. (152 mm) 6 in. (152 mm)
Location of the vent termination must not interfere with access to the electrical service.
L
clearance above electrical service 12 in. (305 mm) 12 in. (305 mm)
Location of the vent termination must not interfere with access to the electrical service.
M
clearance under veranda, porch, deck, balcony or overhang
*(Permitted only if veranda, porch, deck, or balcony is fully open on a mini-
mum of two sides beneath the oor.)
18 in. (457 mm) 12 in. (305 mm)*
vinyl or composite overhang 42 in. (1067 mm) 42 in. (1067 mm)
19
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
D. Use of Elbows
Diagonal runs have both vertical and horizontal vent
aspects when calculating the eects. Use the rise for the
vertical aspect and the run for the horizontal aspect. See
Figure 4.6.
Two 45º elbows may be used in place of one 90º elbow.
On 45º runs, one foot of diagonal is equal to 8-1/2 inch
(216 mm) horizontal run and 8-1/2 inch (216 mm) vertical
run. A length of straight pipe is allowed between two 45º
elbows. See Figure 4.6.
Figure 4.7 shows the vertical and horizontal osets for
DVP or SLP elbows.
Figure 4.6
HORIZONTAL
VERTICAL
RUN
RISE
EFFECTIVE
LENGTH
Y
X
X
X
DVP
Pipe
Eective Length Rise/Run
Inches Millimeters Inches Millimeters
DVP4 4 102 2-3/4 70
DVP6 6 152 4-1/4 108
DVP12 12 305 8-1/2 216
DVP24 24 610 17 432
DVP36 36 914 25-1/2 648
DVP48 48 1219 34 864
DVP6A 3 to 6 76 to 152
2-1/8-4-1/4 54-108
DVP12A 3 to 12 76 to 305
2-1/8-8-1/2 54-216
Vent Type
X
Inches Millimeters
DVP 16-1/4 413
SLP 11-1/4 286
Figure 4.7 Vertical and Horizontal Oset for DVP and SLP Elbows
Vent
Type
X Y
Inches Millimeters Inches Millimeters
DVP 6-5/8 168 16-1/2 419
SLP 5-1/4 133 11-3/8 289
SLP
Pipe
Eective Length Rise/Run
Inches Millimeters Inches Millimeters
SLP4 4 102 2-3/4 70
SLP6 6 152 4-1/4 108
SLP12 12 305 8-1/2 216
SLP24 24 610 17 432
SLP36 36 914 25-1/2 648
SLP48 48 1219 34 864
SLP6A 3 to 6 76 to 152
2-1/8-4-1/4 54-108
SLP12A 3 to 12 76 to 305
2-1/8-8-1/2 54-216
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
20

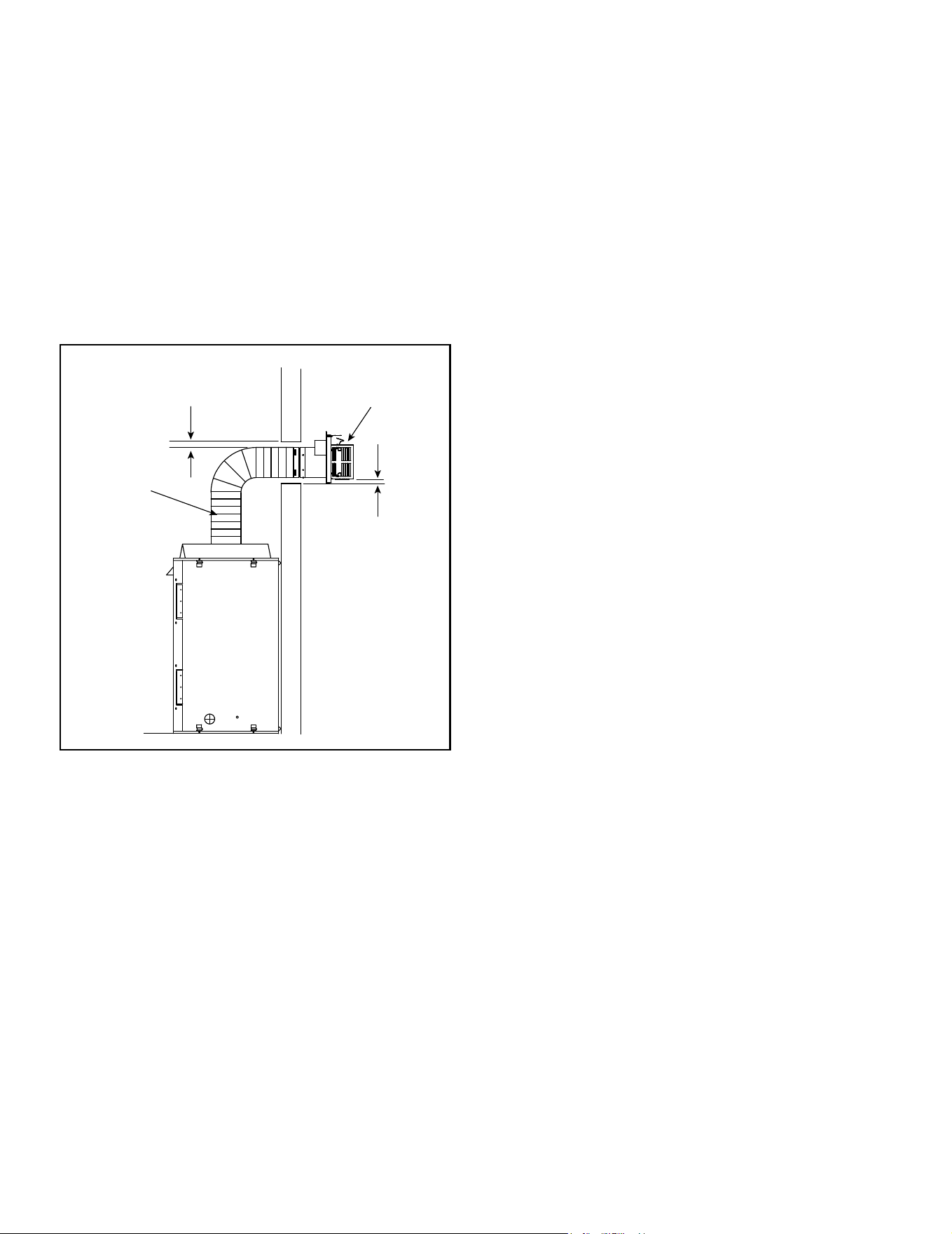

Figure 4.8 Flex Vent Pipe - Generic Fireplace Shown
E. Use of Flex Vent (SLP-FLEX Series 6-5/8
Inch)
The ex vent must be supported with the spacing between
support intervals not exceeding 4 feet, with no more than
1/2 inch sag between supports.
A support is required at each change in venting direction,
and in any location where it is necessary to maintain the
necessary clearance to combustibles. A simple “up and
out” installation (Figure 4.8) requires only enough support
to maintain the necessary clearance to combustibles.
However, the vent attachment point and the restop loca-
tion are considered to be supports.
3 in. CLEARANCE
TERMINATION
CAP
FLEX-VENT
1 in.
CLEARANCE
21
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
Measuring Standards:
Vertical and horizontal measurements listed in the vent
diagrams and clearances for termination were made
using the following standards:
• Pipe measurements are shown using the eective length
of pipe. See Section 12.A (Figure 12.1 for DVP, Figure
12.9 for SLP) for information on eective length of pipe
components.
• Horizontal terminations are measured to the outside
mounting surface (flange of termination cap). See
Figure 4.10.
• Vertical terminations are measured to top of last section
of pipe. See Figure 4.11.
• Horizontal pipe installed level with no rise.

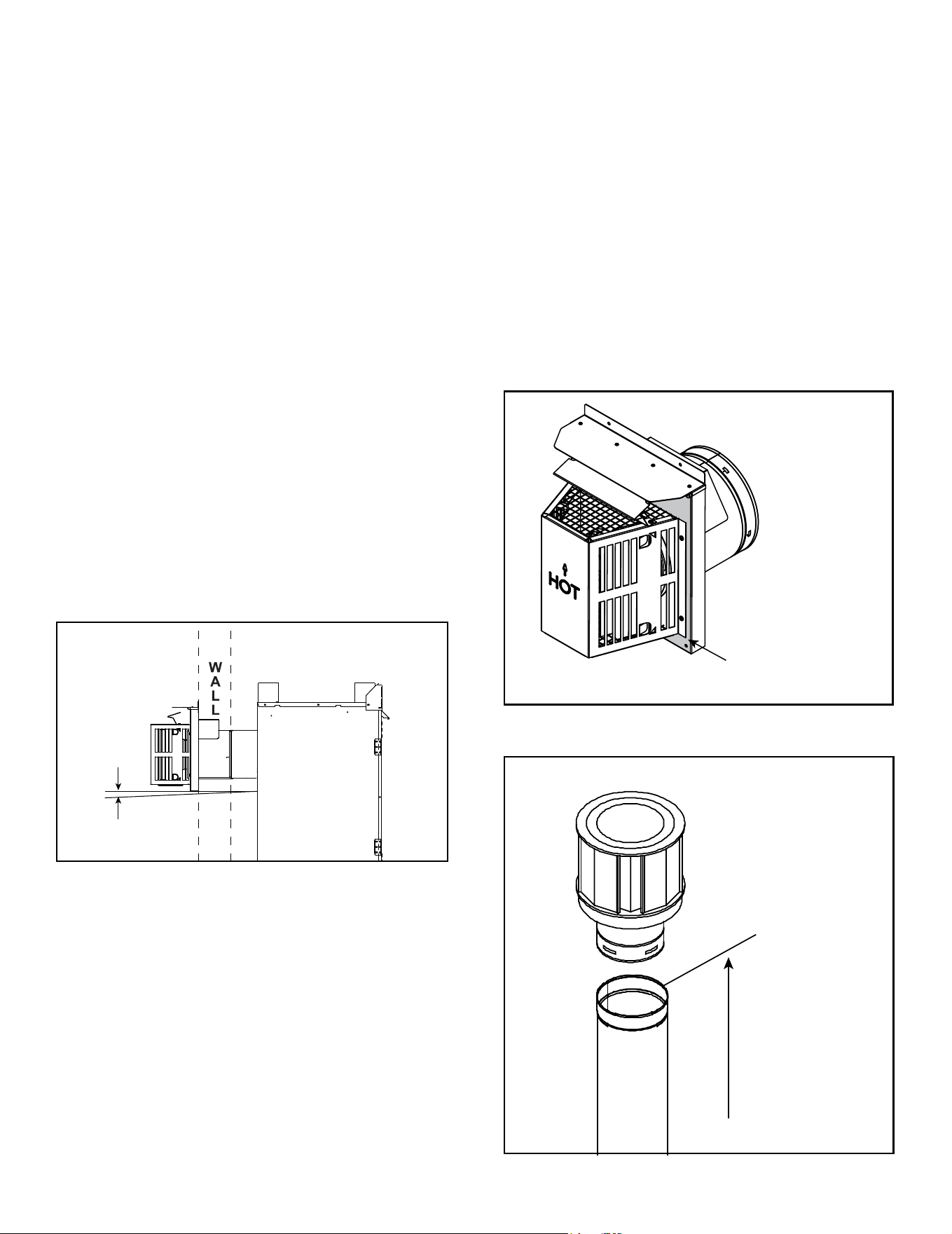

Figure 4.10 Measure to Outside Mounting Surface
Figure 4.11 Measure to Top of Last Section of Pipe
F. Vent Diagrams
Figure 4.9
General Rules:
• When penetrating a combustible wall, a wall shield
restop must be installed.
• When penetrating a combustible ceiling, a ceiling restop
must be installed.
• Horizontal runs of vent do not require vertical rise;
horizontal runs may be level.
• It is recommended that the horizontal termination cap
have a 1/4 inch downward slant to allow any moisture
in cap to be released. See Figure 4.9.
If venting conguration diers from the vent diagrams on
the following pages (Figure 4.12-4.26), these rules also
apply:
• SUBTRACT 3 ft from the total H measurement for
each 90º elbow installed horizontally.
• SUBTRACT 1-1/2 ft from the total H measurement
for each 45º elbow installed horizontally.
• A maximum of three 90º elbows (or six 45º elbows)
may be used in any vent conguration. Some elbows
may be installed horizontally. See Figure 4.13.
• Elbows may be placed back to back anywhere in
the system.
• Any 90º elbow may be replaced with two back to
back 45º elbows.
1/4 in. max.
(6 mm)
MEASURE TO SHADED SURFACE
(OUTSIDE MOUNTING SURFACE)
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
22
Figure 4.12
One Elbow
Top Vent - Horizontal Termination
V Minimum
H Maximum
All Models
90º Elbow* 1 ft. 305 mm
1/2 ft.* 152 mm 2 ft. 610 mm
1-1/2 ft.* 457 mm 3 ft. 914 mm
2-1/2 ft.* 762 mm 5 ft. 1-1/2 m
3-1/2 ft. 1.1 m 7 ft. 2.1 m
4-1/2 ft. 1.4 m 15 ft. 4.6 m
H
1
Maximum= 15 ft. (4.6 m)
V
1
+ H
1
Maximum= 40 ft. (12.2 m)
* See warning below
Note: Use SLP Series
components only.
Note: There MUST be a 25%
reduction in total H when
using ex vent except when
using the simple up and out
installation. See Figure 4.8.
H
1
V
1
Fire Risk.
• When using SLP-HRC-SS termination cap
on top vented replaces, a one foot minimum
vertical vent section is required before installing
rst elbow.
WARNING *
23
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
Figure 4.13
Two Elbows
Top Vent - Horizontal Termination - (continued)
V Minimum
H Maximum
All Models
90º Elbow* NOT ALLOWED
1/2 ft.* 152 mm 1 ft. 305 mm
1-1/2 ft.* 457 mm 2 ft. 610 mm
2-1/2 ft.* 762 mm 4 ft. 1.2 m
3-1/2 ft. 1.1 m 6 ft 1.8 m
4-1/2 ft. 1.4 m 14 ft. 4.3 m
H
1
+ H
2
Maximum= 14 ft. (4.3 m)
V
1
+ H
1
+ H
2
Maximum= 40 ft. (12.2 m)
* See warning below
Note: Use SLP Series
components only.
Note: There MUST be a 25%
reduction in total H when
using ex vent except when
using the simple up and out
installation. See Figure 4.8.
INSTALLED
HORIZONTALLY
H
1
H
2
V
1
Fire Risk.
• When using SLP-HRC-SS termination cap
on top vented replaces, a one foot minimum
vertical vent section is required before installing
rst elbow.
WARNING *
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
24
Figure 4.14
Three Elbows
Top Vent - Horizontal Termination - (continued)
V
1
Minimum
H
1
Maximum H
1
+ H
2
Maximum V
2
V
1
+ V
2
Minimum
All Models * *
Elbow only** 1 ft. 305 mm 2 ft. 610 mm * *
1/2 ft.** 152 mm 2 ft. 610 mm 4 ft. 1.2 m * *
1-1/2 ft.** 457 mm 3 ft. 914 mm 6 ft. 1.8 m * *
2-1/2 ft.** 762 mm 5 ft. 1.5 m 10 ft. 3.0 m * *
3-1/2 ft. 1.1 m 7 ft. 2.1 m 14 ft. 4.3 m * *
4-1/2 ft. 1.4 m 14 ft. 4.3 m 14 ft. 4.3 m * *
V
1
+ H
1
+ V
2
+ H
2
Maximum = 40 ft. (12.2 m)
*No specic restrictions on this value EXCEPT V
1
+ V
2
+ H
1
+ H
2
CANNOT exceed 40 ft.
(12.2 m)
** See warning below
Note: Use SLP Series
components only.
Note: There MUST be a 25%
reduction in total H when
using ex vent except when
using the simple up and out
installation. See Figure 4.8.
Fire Risk.
• When using SLP-HRC-SS termination cap
on top vented replaces, a one foot minimum
vertical vent section is required before installing
rst elbow.
H
2
H
1
V
2
V
1
WARNING **
25
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
Top Vent - Vertical Termination
Figure 4.15
No Elbow
Figure 4.16 Exhaust Restrictor Installation
(Top Refractory Panel Removed to Aid in Visual Clarity)
V
1
= 60 ft. Max. (18.3 m)
Note: Use SLP Series
components only.
Note: Be sure to reinstall the top refractory piece
after exhaust restrictor installation.
Exhaust Restrictor Instructions
Exhaust restrictors are recommended for these verti-
cally terminated products which have excessive draft.
Exhaust restrictors will compensate for high draft, and
restore visual ame height. If the vent conguration has
a total vertical of 15-60 feet, an exhaust restrictor may
be needed. The exhaust restrictor is located in the appli-
ance manual bag.
Note: Remove top refractory piece, if installed.
Refer to instructions supplied with the refractory
liner kit.
1. Install the exhaust restrictor over the center of the
exhaust outlet in the rebox. See Figure 4.16.
2. Center the exhaust restrictor in the open end of the
exhaust outlet and secure through the slots on the ex-
haust restrictor with the two 1/4 in. self tapping screws
provided in the appliance manual bag.
3. Reinstall top refractory.
Note: If installing a vertical vent/termination o the top of
the appliance, the optional vertical termination bae may
be needed.
TOP VENT APPLICATION
REAR VENT APPLICATION
EXHAUST RESTRICTOR
EXHAUST RESTRICTOR
V
1
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
26

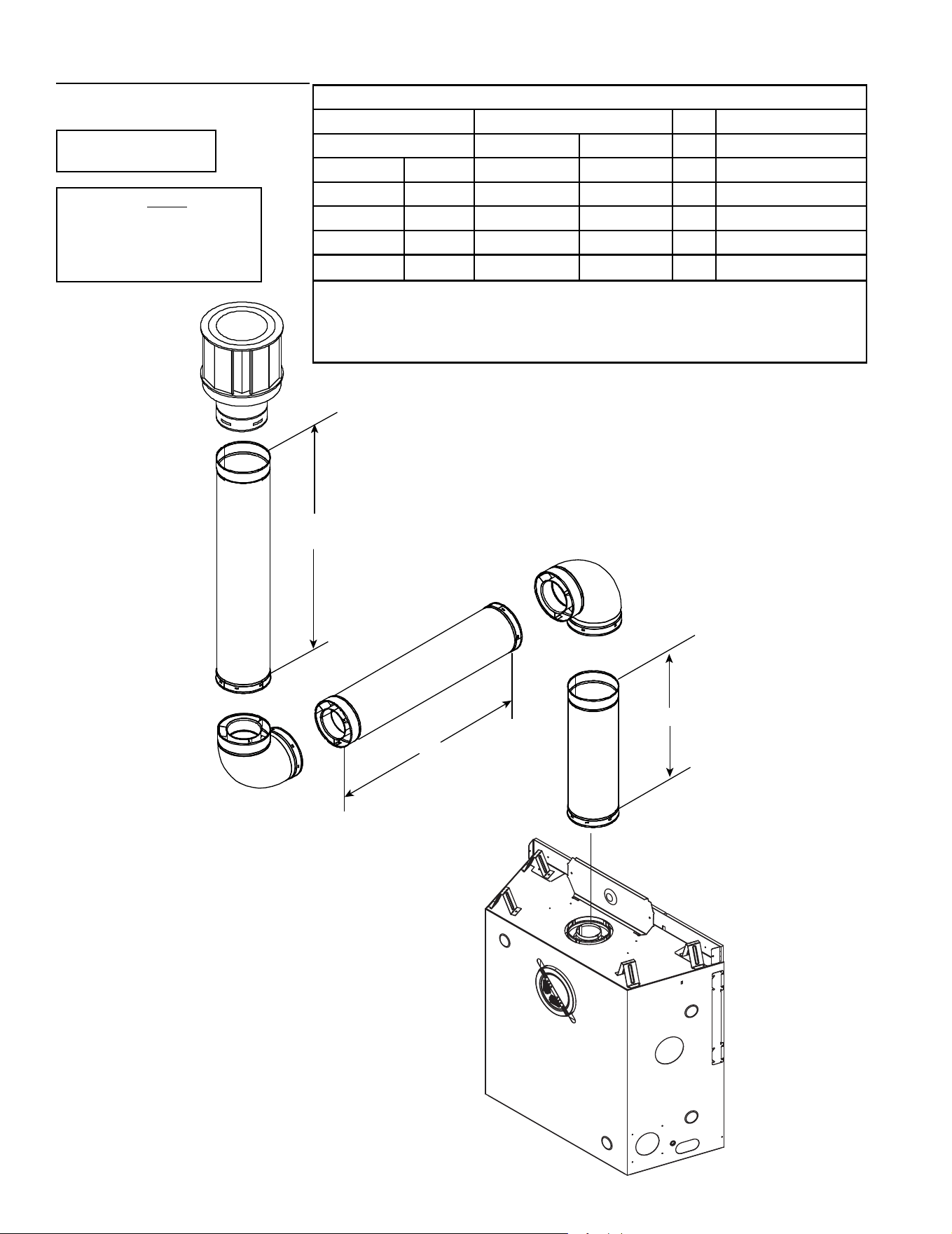

Figure 4.17
Top Vent - Vertical Termination - (continued)
Two Elbows
ALL MODELS
V
1
Minimum H
1
Maximum V
2
V
1
+ V
2
Minimum
90º Elbow 1 ft. 305 mm * *
1/2 ft. 152 mm 2 ft. 610 mm * *
1-1/2 ft. 457 mm 3 ft. 914 mm * *
2-1/2 ft. 762 mm 5 ft. 1.5 m * *
3-1/2 ft. 1.1 m 7 ft. 2.1 m * *
4-1/2 ft. 1.4 m 15 ft. 4.6 m * *
H
1
Maximum= 15 ft. (4.6 m)
V
1
+ V
2
+ H
1
Maximum = 40 ft. (12.2 m)
*No specic restrictions on this value EXCEPT V
1
+ V
2
+ H
1
CANNOT exceed 40 ft.
(12.2 m)
Note: Use SLP Series
components only.
Note: There MUST be a 25%
reduction in total H when
using ex vent except when
using the simple up and out
installation. See Figure 4.8.
H
1
V
1
V
2
27
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24

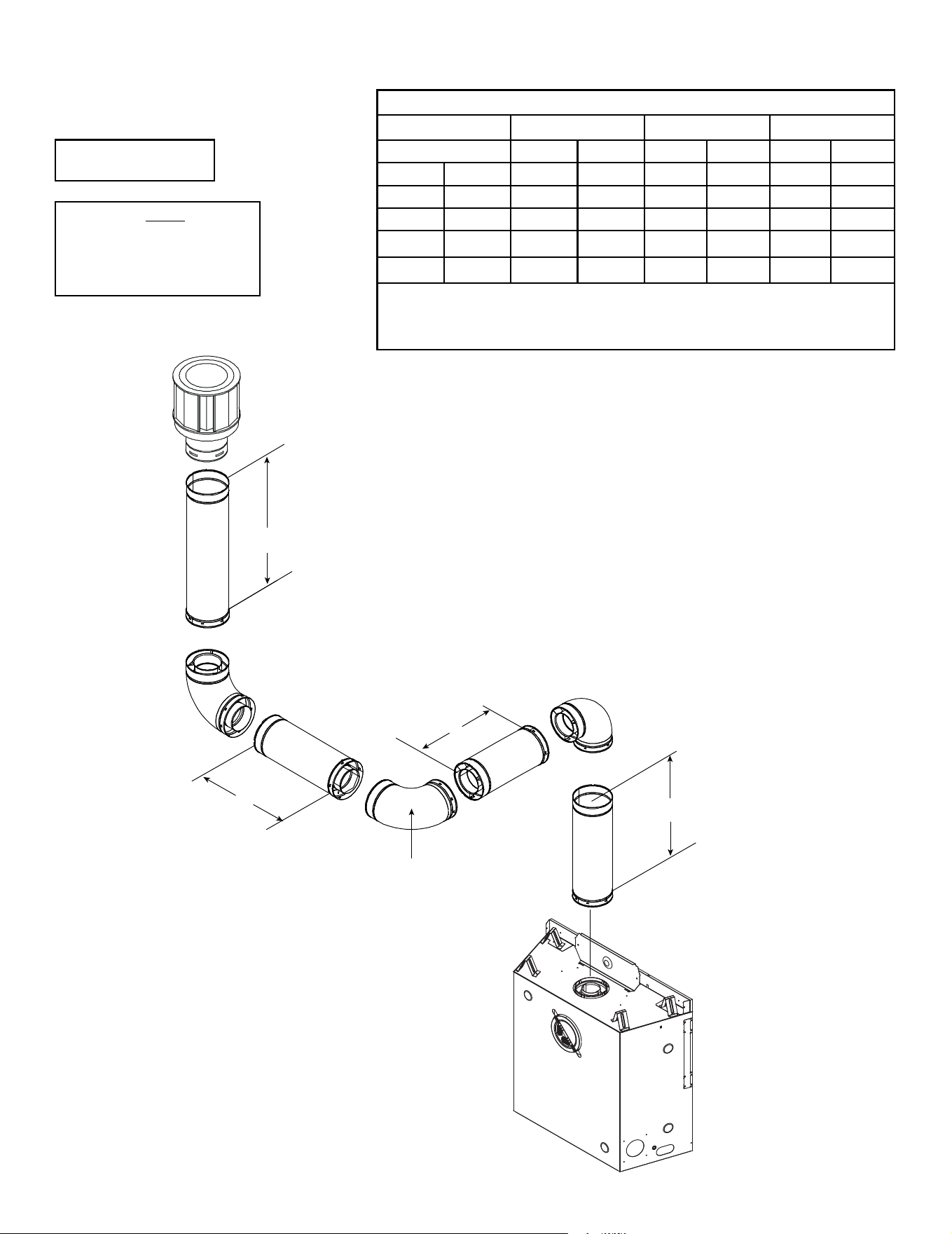

Figure 4.18
Top Vent - Vertical Termination - (continued)
Three Elbows
ALL MODELS
V
1
H
1
+ H
2
Maximum V
2
V
1
+ V
2
Minimum
90º Elbow 0 0 1-1/2 ft. 457 mm 1-1/2 ft. 457 mm
1/2 ft.. 152 mm 1 ft. 305 mm * * * *
1-1/2 ft. 457 mm 2 ft. 610 mm * * * *
2-1/2 ft. 762 mm 4 ft. 1.2 m * * * *
3-1/2 ft. 1.1 m 6 ft. 1.8 m * * * *
4-1/2 ft. 1.4 m 14 ft. 4.3 m * * * *
H
1
Maximum = 14 ft. (4.3 m)
*No specic restrictions on this value EXCEPT V
1
+ V
2
+ H
1
+ H
2
CANNOT exceed 40 ft. (12.2 m).
Note: Use SLP Series
components only.
Note: There MUST be a 25%
reduction in total H when
using ex vent except when
using the simple up and out
installation. See Figure 4.8.
INSTALLED
HORIZONTALLY
H
1
H
2
V
1
V
2
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
28
Four 90º Elbows
ALL MODELS
V
1
Min. H
1
Max. V
2
Min. H
2
Max. V
3
Min.
1-1/2 ft. 457 mm 4 ft. 1.2 m 4 ft. 1.2 m 4 ft. 1.2 m 3-1/2 ft. 1.0 m
V
1
+ V
2
+ V
3
+
H
1
+ H
2
Maximum= 40 ft. (12.2 m)
Note: Use SLP Series
components only.
Note: There MUST be a 25%
reduction in total H when
using ex vent except when
using the simple up and out
installation. See Figure 4.8.
Figure 4.19
Top Vent - Vertical Termination - (continued)
V
1
H
1
V
2
V
3
H
2
29
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
Rear Vent - Horizontal Termination
Figure 4.20
Figure 4.21
No Elbow
Two 90º Elbows
ALL MODELS
H
1
= 24 in. (610 mm) Maximum
Note: Use DVP Series
components only.
90-DEGREE
ELBOWS
Must use two 90º elbows for corner installations. The use of
two 90º elbows in a corner installation will aect space require-
ments. See Section 3.C.
Use of 45º elbow not allowed.
Note: Use DVP Series
components only.
H
1
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
30

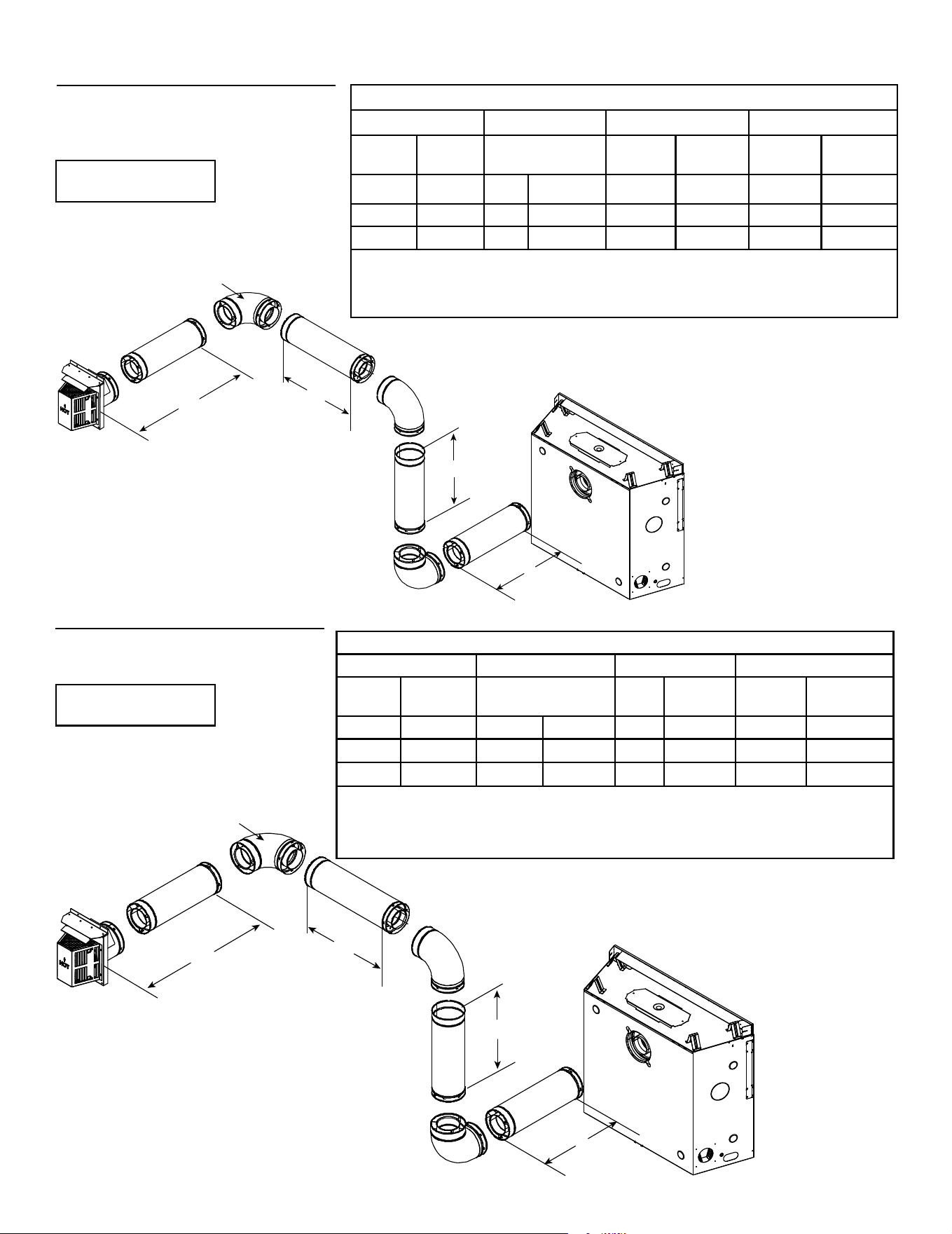

Rear Vent - Horizontal Termination - (continued)
Two Elbows
Figure 4.22
Figure 4.23
Three Elbows
ALL MODELS
H
1
Maximum V
1
Minimum H
2
H
1
+ H
2
Maximum
1-1/2 ft. 457 mm
Back to Back
Elbows
1 ft. 305 mm 2-1/2 ft. 762 mm
3-1/2 ft. 1.1 m 1 ft. 305 mm 3 ft. 914 mm 6-1/2 ft. 2.0 m
5-1/2 ft. 1.7 m 2 ft. 610 mm 5 ft. 1.5 m 10-1/2 ft. 3.2 m
7-1/2 ft. 2.3 m 3 ft. 914 mm 6-1/2 ft. 2.1 m 14 ft. 4.3 m
H
1
Maximum = 7-1/2 ft. (2.3 m)
H
1
+ H
2
Maximum = 14 ft. (4.3 m)
V
1
+ H
1
+ H
2
= 40 ft. (12.2 m)
Note: Use DVP Series
components only.
INSTALLED
HORIZONTALLY
H
3
H
1
H
2
V
1
ALL MODELS
H
1
Maximum V
1
Minimum H
2
+ H
3
H
1
+ H
2
+ H
3
Maximum
1-1/2 ft. 457 mm
Back to Back
Elbows
1 ft. 305 mm 2-1/2 ft. 762 mm
3-1/2 ft. 1.1 m 1 ft. 305 mm 2 ft. 610 mm 5-1/2 ft. 1.7 m
5-1/2 ft. 1.7 m 2 ft. 610 mm 4 ft. 1.2 m 9-1/2 ft. 2.9 m
7-1/2 ft. 2.3 m 3 ft. 914 mm 6 ft. 1.8 m 13-1/2 ft. 4.1 m
H
1
Maximum = 7-1/2 ft. (2.3 m)
H
1
+ H
2
+ H
3
Maximum =13-1/2 ft. (4.1 m)
V
1
+ H
1
+ H
3
= 40 ft. (12.2 m)
Note: Use DVP Series
components only.
INSTALLED
HORIZONTALLY
H
3
H
1
H
2
V
1
31
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24

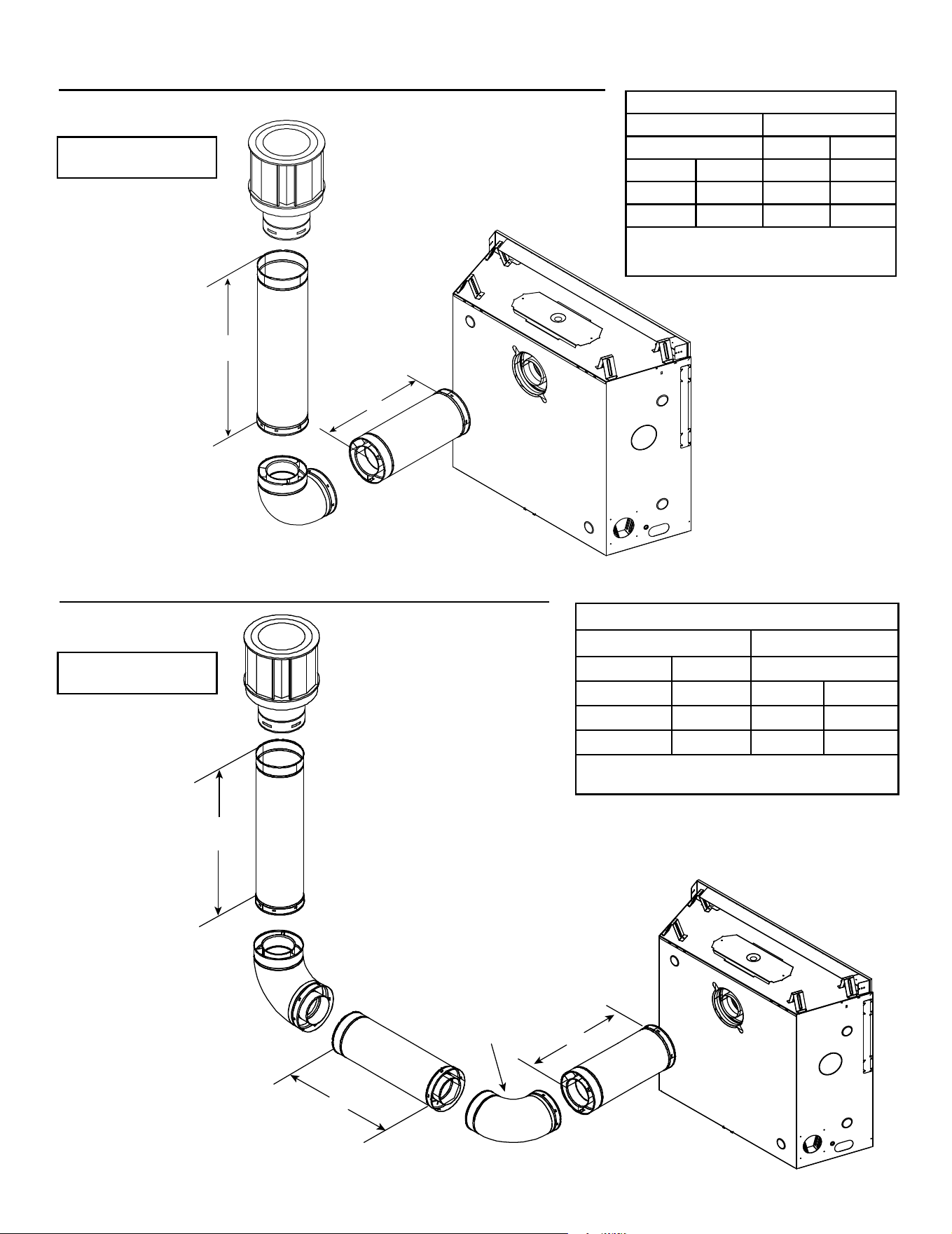

Rear Vent - Vertical Termination
Figure 4.24
Two Elbows
Figure 4.25
One Elbow
H
1
V
1
INSTALLED
HORIZONTALLY
H
1
H
2
V
2
ALL MODELS
V
1
Minimum H
1
Maximum
Elbow Only 1-1/2 ft. 457 mm
1 ft. 305 mm 3-1/2 ft. 1.1 m
2 ft. 610 mm 5-1/2 ft. 1.7 m
3 ft. 914 mm 7-1/2 ft. 2.3 m
H
1
Maximum = 7-1/2 ft. (2.3 m)
V
1
+ H
1
Maximum = 40 ft. (12.2 m)
ALL MODELS
H
1
+ H
2
Maximum V
1
Minimum
1/2 ft. 152 mm Back to Back Elbows
2-1/2 ft. 762 mm 1 ft. 305 mm
4-1/2 ft. 1.4 m 2 ft. 610 mm
6-1/2 ft. 2.0 m 3 ft. 914 mm
H Maximum = 6-1/2 ft. (2 m)
V
1
+ H
1
+ H
2
Maximum = 40 ft. (12.2 m)
Note: Use DVP Series
components only.
Note: Use DVP Series
components only.
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
32
Rear Vent - Vertical Termination - (continued)
Three Elbows
Figure 4.26
V
2
V
1
H
2
H
1
ALL MODELS
H
1
Maximum V
1
Minimum H
2
H
1
+ H
2
Maximum
1-1/2 ft. 457 mm
Back to Back
Elbows
1 ft. 305 mm 2-1/2 ft. 762 mm
3-1/2 ft. 1.1 m 1 ft. 305 mm 3 ft. 914 mm 6-1/2 ft. 2.0 m
5-1/2 ft. 1.2 m 2 ft. 610 mm 5 ft. 1.5 m 10-1/2 ft. 3.2 m
7-1/2 ft. 2.3 m 3 ft. 914 mm 7 ft. 2.1 m 14-1/2 ft. 4.4 m
H
1
Maximum = 7-1/2 ft. (2.3 m)
V
1
+ V
2
+ H
1
+ H
2
Maximum = 40 ft. (12.2 m)
Note: Use DVP Series
components only.
33
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24

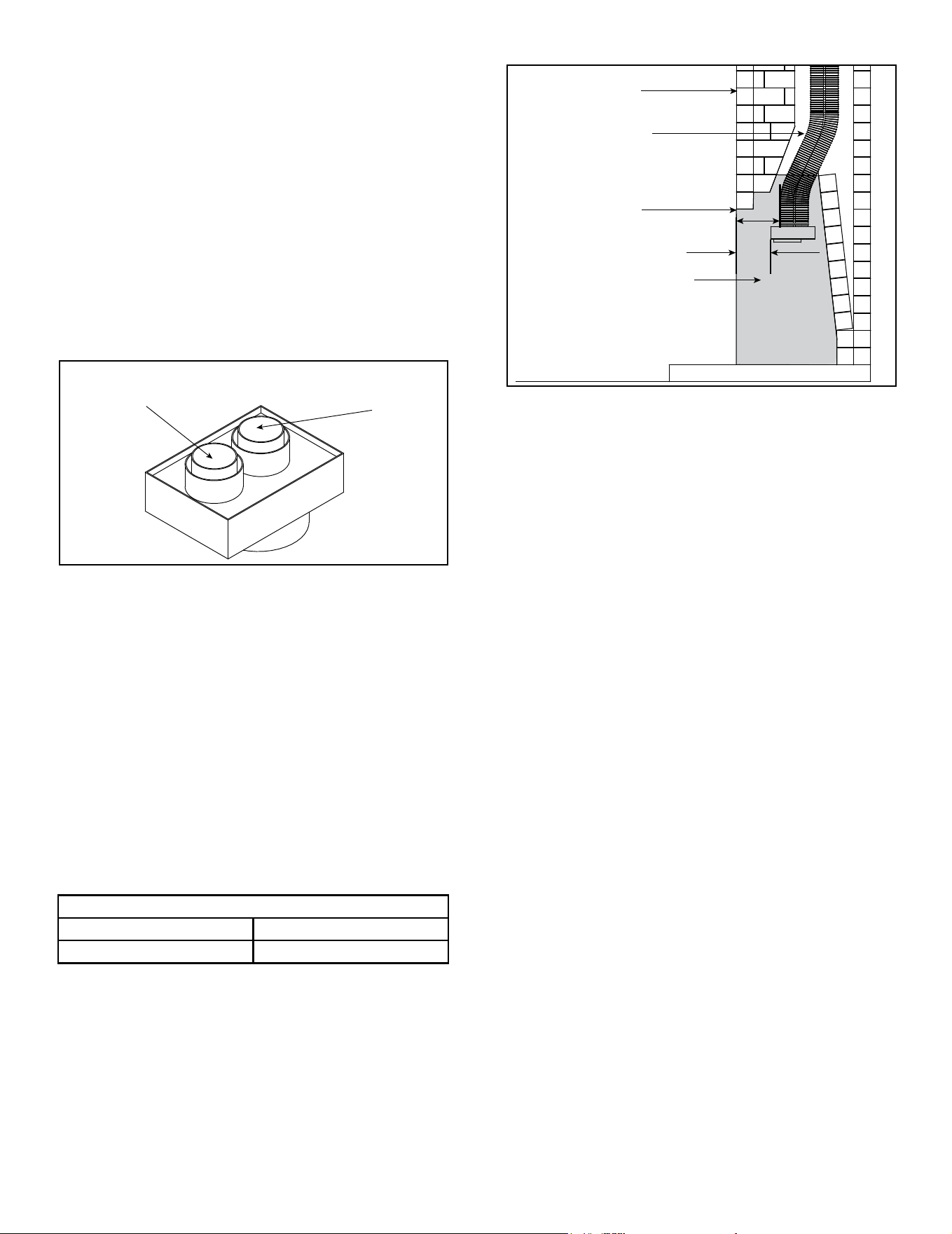

EXHAUST VENT PIPE
INLET AIR VENT PIPE
Figure 4.27 Coaxial/Colinear Appliance Connector
OUTSIDE FACE OF
FIREPLACE
TOP OF FIREPLACE
OPENING
SHADED AREA DEFINED AS
“INSIDE EXISTING MASONRY
FIREPLACE”
3 IN. MIN.
5 IN. MIN.
EXHAUST VENT PIPE
Figure 4.28 Existing Fireplace DV-46DVA-GCL
Clearance Requirements
Clearances to Combustibles:
Refer to Section 3 and Section 10 for clearances to the
appliance, mantel, mantel legs and wall projection.
Refer to Section 5 for pipe clearances to combustibles.
Termination Cap
For installation of termination cap see minimum vent
heights for various pitched roofs. See Section 4.A.
Flue Damper
Fully lock the solid fuel replace’s ue damper in the open
position, OR completely remove it.
Venting Components
The LINK-DV30B is approved for use with the coaxial/co-
linear venting application. The LINK-DV30B kit includes:
• Two 30 foot sections of exible vent pipe (3 inches Ø).
One section is used to draw combustion air and the other
section is used to expel exhaust gases.
• One vertical termination cap.
Prior to installing the gas appliance:
• Have the chimney and adjacent structure inspected
and cleaned by qualied professionals. Hearth & Home
Technologies recommends that NFI or CSIA certied
professionals, or technicians under the direction of certi-
ed professionals, conduct a minimum of a NFPA 211
Level 2 inspection of the chimney.
• Replace component parts of the chimney and replace
as specied by the professionals.
• Ensure all joints are properly engaged and the chimney
is properly secured.
Coaxial to Colinear Venting
WARNING! Risk of Fire! Coaxial to colinear venting con-
guration may only be used in existing non-combustible
chimney. Installation in any other venting application
could cause re.
The coaxial to colinear adapter (DV-46DVA-GCL) is ap-
proved for installations into solid fuel masonry or factory
built replaces that have been installed in accordance with
the National, Provincial, State and local building codes.
The coaxial to colinear vent components are shown in
Section 12.A. The DV-46DVA-GCL must be recessed
into existing masonry replace. See Table 1 and Figure
4.28.
Table 1
CLEARANCE TO COMBUSTIBLES REQUIREMENTS
DV-46DVA-GCL 3 IN.
Exhaust Vent Pipe 5 IN.
CAUTION! DO NOT use any ue restrictor when vent-
ing with the DV-46DVA-GCL adapter and LINK-DV30B
kit. This could result in poor ame appearance, sooting,
pilot malfunction, or overheating.
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
34
Top Vent
• Remove top seal cap and insulation if equipped.
See Section 6, “Appliance Preparation.” Attach the
DV-46DVA-GCL adapter to the appliance starting collar
with 3-1/2 in. self-tapping screws. See Figure 4.29.
Rear Vent
• Remove the rear seal cap and insulation if equipped.
Connect the DVP-2SL adapter to the vertically positioned
elbow. Follow installation instructions included with DVP-
2SL kit. Secure DV-46DVA-GCL adapter to DVP-2SL
with 3-1/2 in. self-tapping screws. See Figure 4.29.
Connecting the LINK-DV30B to the DV-46DVA-GCL
Adapter
WARNING! Risk of Fire, Explosion or Asphyxiation!
Do NOT connect this gas appliance to a chimney ue
serving a separate solid fuel or gas burning appliance.
• Could impair safe operation of this appliance or other
appliances connected to the ue.
• Vent this appliance directly outside.
• Use separate vent system for this appliance.
• Insert the two sections of exible vent pipe down the
existing chimney.
• Attach one 3 ft section of stainless steel ex pipe to the
exhaust collar on top of the DV-46DVA-GCL adapter with
three screws.
• Attach one section of exible vent pipe to the 3 ft stainless
steel ex pipe with three self-tapping screws.
• Attach one section of exible vent pipe to the inlet collar
on top of the DV-46DVA-GCL adapter with three self-
tapping screws.
• To minimize cold air drafts, seal around the ex vents
at the damper inside the chimney with non-combustible
unfaced berglass or rock wool insulation.
The DV-46DVA-GCL adapter must be recessed into existing
masonry replace. This measurement is taken from the top
of the replace opening. See Table 1 and Figure 4.28.

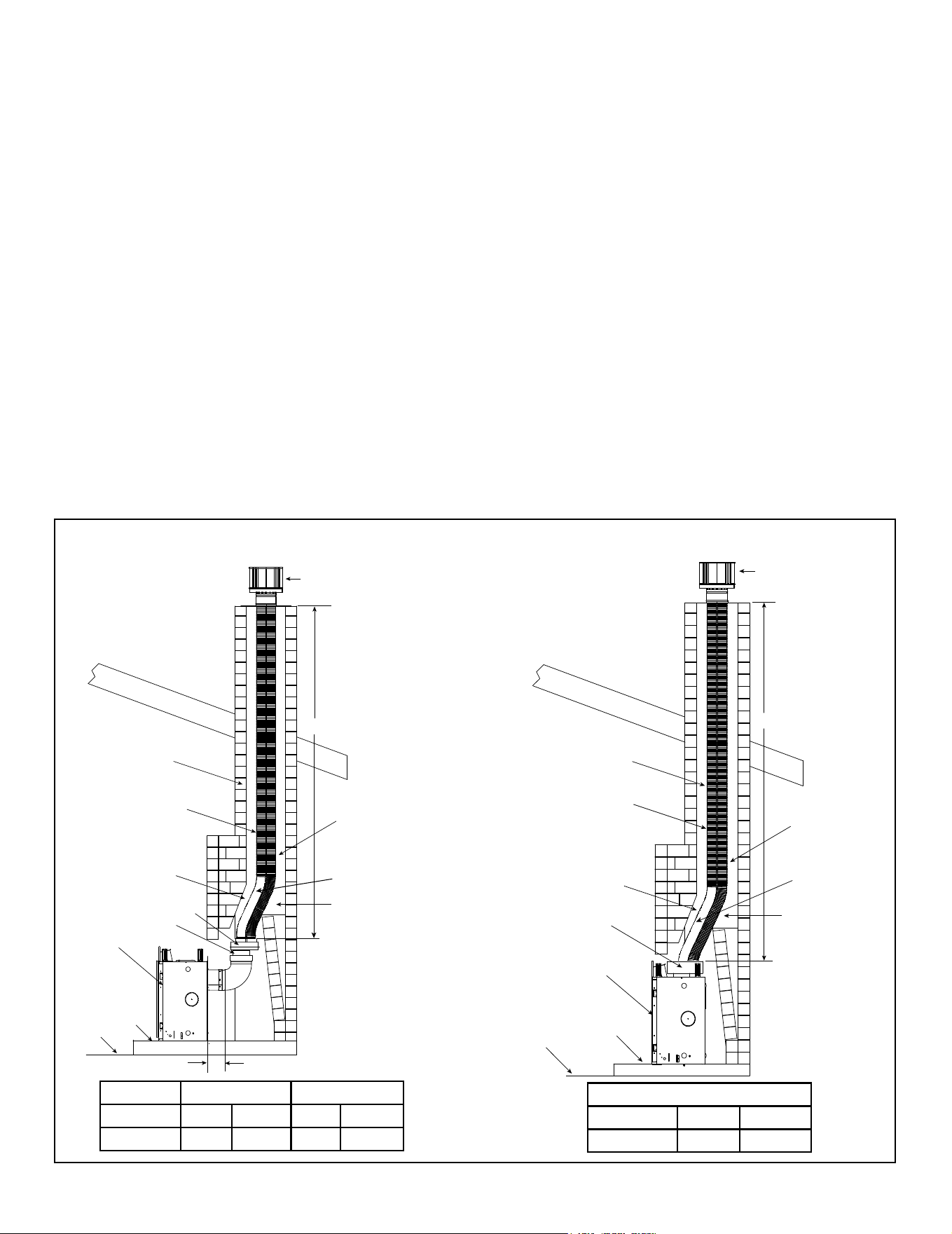

Figure 4.29
EXISTING CHIMNEY
HEARTH
FLOOR
EXISTING CHIMNEY
EXHAUST AIR
VENT PIPE
INLET AIR
VENT PIPE
To minimize cold air
drafts, seal with
non-combustible
insulation.
TERMINATION CAP
DIRECT VENT FIREPLACE
V
COAXIAL/COLINEAR
APPLIANCE CONNECTOR
The first 3 feet of
exhaust flue must
be stainless flex
pipe (768-380A).
TERMINATION CAP
EXISTING CHIMNEY
EXISTING CHIMNEY
EXHAUST AIR
VENT PIPE
V
FLOOR
HEARTH
H
To minimize cold air
drafts, seal with
non-combustible
insulation.
DIRECT VENT FIREPLACE
DVP-2SL
COAXIAL/COLINEAR
APPLIANCE CONNECTOR
INLET AIR VENT PIPE
The first 3 feet of
exhaust flue must be
stainless flex pipe
(768-380A).
TOP VENTREAR VENT
V
Minimum 10 ft 3.05 m
Maximum 40 ft 12.2 m
V H
Minimum 10 ft 3.05 m 0 ft 0 mm
Maximum 40 ft 12.2 m 2 ft 610 mm
NOTICE: To achieve optimum perfor-
mance of appliance, minimize or avoid
bends in exhaust vent pipe.
CAUTION! DO NOT use any ue restric-
tor when venting with the DV-46DVA-GCL
adapter and LINK-DV30B kit. This could
result in poor ame appearance, sooting,
pilot malfunction, or overheating.
Connecting the DV-46DVA-GCL Adapter to Appliance
35
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
A. Vent Clearances to Combustibles
WARNING! Risk of Fire! Maintain air space clearance
to vent. DO NOT pack insulation or other combustibles:
• Between ceiling restops
• Between wall shield restops
• Around vent system
Failure to keep insulation or other material away from
vent pipe could cause overheating and re.
5 5
Vent Clearances and Vent Framing

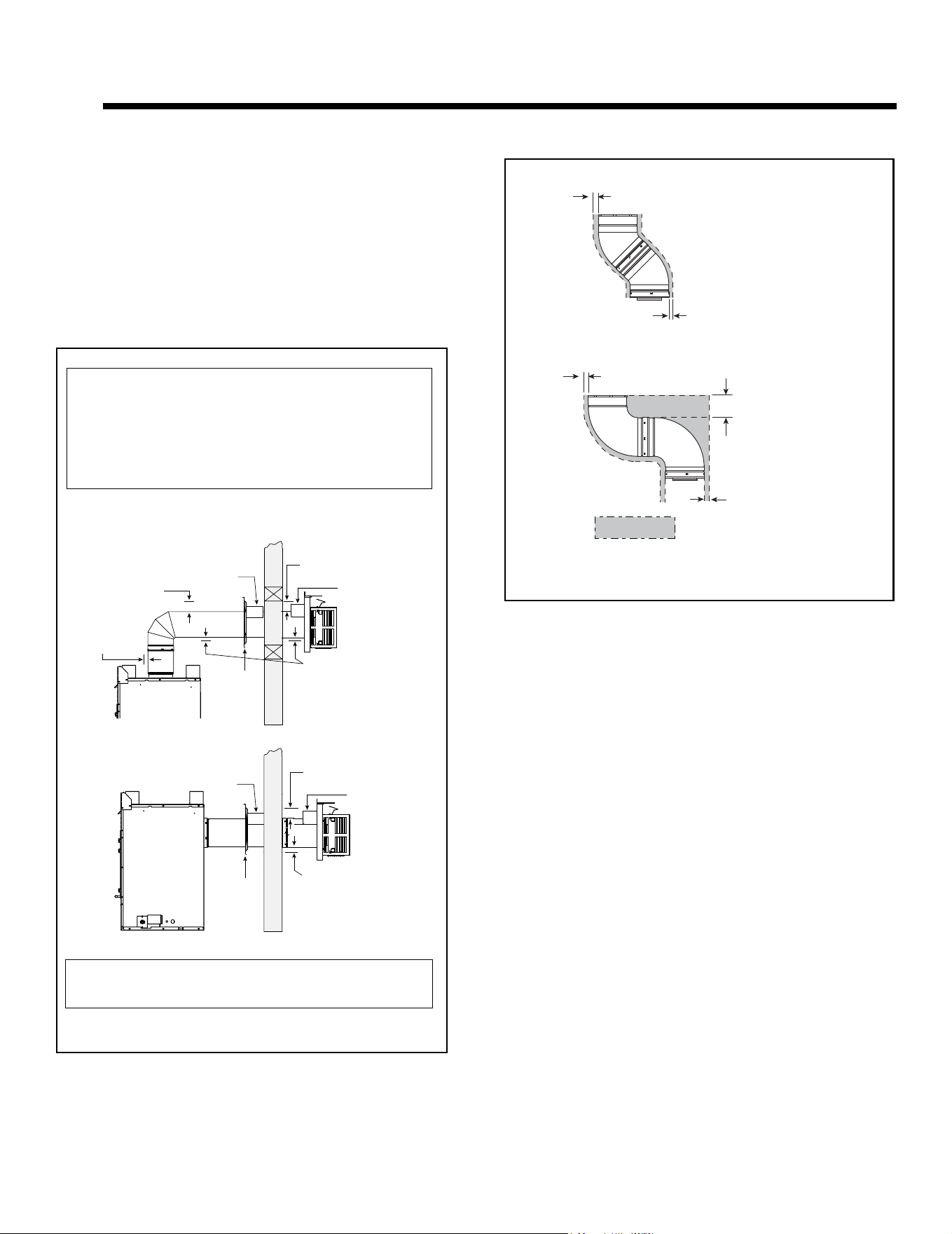

Figure 5.1 Horizontal Venting Clearances To Combustible
Materials
Elbow and Oset Clearances to Combustibles
Figure 5.2 Clearances from Vent to Combustible Framing
Materials
3 IN. VERTICAL CLEARANCE
HORIZONTAL PIPE SECTIONS
1 IN. MIN.
ALL SIDES
1 IN. MIN. HORIZONTAL
CLEARANCE
VERTICAL PIPE SECTIONS
= NO COMBUSTIBLES ALLOWED
IN SHADED AREA
1 IN. MIN.
ALL SIDES
1 IN. MIN.
ALL SIDES
* When using SLP pipe, minimum clearances from the vent pipe to combustible materi-
als at inside wall firestops are: Top: 2-1/2 in. (64 mm)
Bottom: 1/2 in. (13 mm)
Sides: 1 in. (25 mm)
Note: Heat shields MUST overlap by a minimum of 1-1/2 in. (38 mm).
• DVP heat shield - designed to be used on a wall 4 in. to 7-1/4 in. (102 mm to 184
mm) thick.
• If wall thickness is less than 4 in. the existing heat shields must be field trimmed. If
wall thickness is greater than 7-1/4 in. a DVP-HSM-B will be required.
• SLP heat shield - designed to be used on a wall 4-3/8 in. to 7-5/8 in. (111 mm to
194 mm thick).
• If wall thickness is less than 4-3/8 the existing heat shields must be field trimmed.
If wall thickness is greater than 7-5/8 in. a DVP-HSM-B will be required.
(DVP-SLP Pipe Shown)
3 in. (76 mm)
top clearance *
1 in. (25 mm)
clearance
bottom & sides
Heat
Shield
Wall
Shield
Firestop
Heat
Shield
WALL
3 in. (76 mm)
top clearance *
1 in. (25 mm)
clearance
bottom & sides
Heat
Shield
Wall
Shield
Firestop
Heat
Shield
WALL
3 in. (76 mm)
top clearance
1 in. (25 mm)
clearance around
vertical sections
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
36
B. Wall Penetration Framing/Firestops
Combustible Wall Penetration
Whenever a combustible wall is penetrated, you must
frame a hole for the wall shield restop(s). The wall shield
restop maintains minimum clearances and prevents cold
air inltration.
These clearances are maintained by using an SLP-WS
(SLP pipe) or DVP-WS (DVP pipe). See Figure 5.3 for
framing instructions.
• For external walls: The wall shield restop is included
with the termination cap assembly.
• For internal walls: A wall shield restop must be pur-
chased and installed.
• The opening must be framed on all four sides using
the same size framing materials as those used in the
wall construction.
• SLP pipe - A wall shield restop must be placed on
each side of an interior wall. A minimum 1-1/2 in. (38
mm) overlap of attached heat shields must be main-
tained.
• DVP pipe - A wall shield restop is required on one
side only on interior walls. If your local inspector re-
quires a wall shield restop on both sides, then both
wall shield restops must have a heat shield (refer to
Section 12.A) attached to them.
• See Section 7.F for information for regarding the in-
stallation of a horizontal termination cap.
Non-Combustible Wall Penetration
If the hole being penetrated is surrounded by non-com-
bustible materials such as concrete, a hole with diameter
one inch greater than the pipe is acceptable.
Whenever a non-combustible wall is penetrated, the wall
shield restop is only required on one side and no heat
shield is necessary.
Note: Center of the horizontal vent pipe to the vertical measuring surface of
a trap cap is 5 inches (127 mm).
* Shows center of vent framing hole for top or rear venting. The center
of the hole is 1 inch (25 mm) above the center of the horizontal vent
pipe.
C
D
A*
B*
10 in.
10 in.
10 in.
12 in.

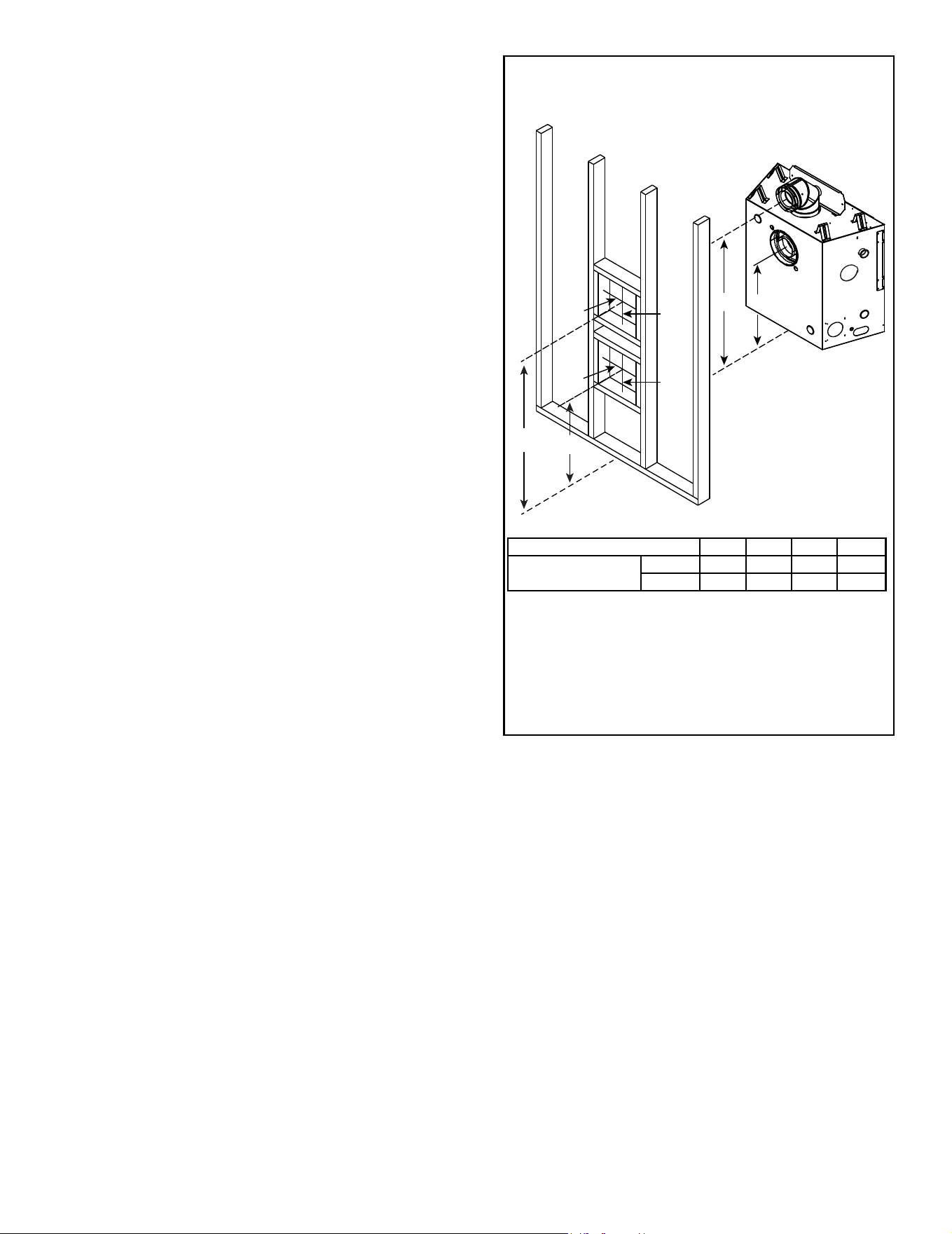

Figure 5.3 Wall Penetration
A* B* C D
QUARTZPLA36IN
QUARTZPLA36IL
Inches
41 27-7/8 40 26-7/8
Millimeters
1041 708 1016 683
DO NOT PACK VENT FRAMING HOLE WITH INSULATION
OR OTHER MATERIAL.
37
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24

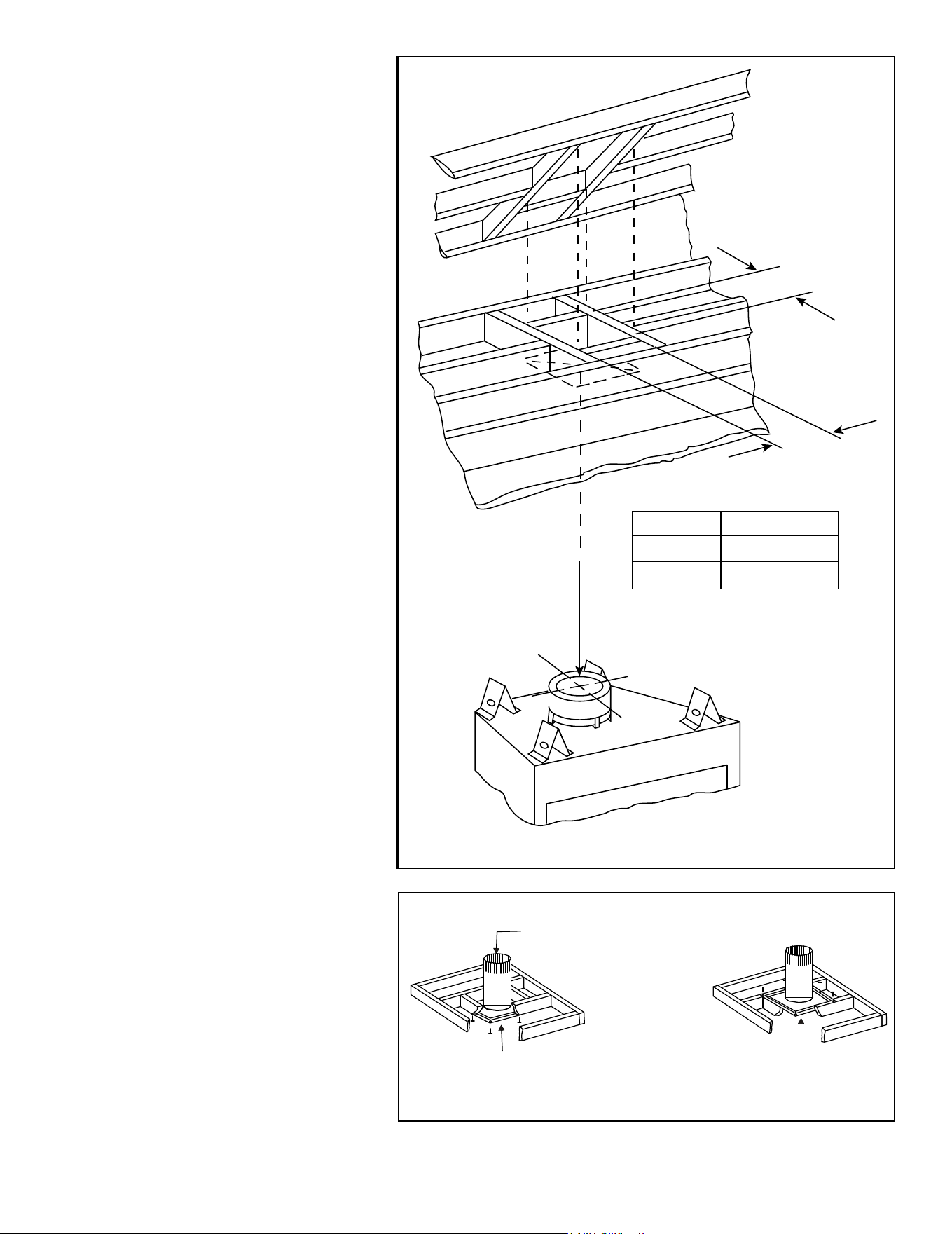

D. Install Attic Insulation Shield
WARNING! Fire Risk. The use of an attic
shield is required to prevent loose materials
or insulation from contacting the vent causing
overheating and a re.
The International Fuel Gas Code requires an
attic shield constructed of 26 gauge minimum
steel that extends at least 2 in. (51 mm) above
insulation.
• Attic insulation shields must meet specied
clearances to combustible materials and be
secured in place.
• An attic insulation shield kit is available from
Hearth & Home Technologies. Contact your
dealer to order. Install attic insulation shield
according to instructions included with kit.
C. Ceiling Firestop/Floor Penetra-
tion Framing
WARNING! Risk of Fire! DO NOT pack insu-
lation around the vent. Maintain clearances to
vent to prevent overheating.
A ceiling restop MUST be used between
oors and attics.
• DVP pipe only - Frame an opening 10 in.
by 10 in. (254 mm by 254 mm) whenever
the vent penetrates a ceiling/oor (see
Figure 5.4).
• SLP pipe only - Frame opening 9 in. x 9
in. (229 mm x 229 mm) whenever the vent
penetrates a ceiling/oor (see Figure 5.4).
• Frame the area with the same sized lumber
as used in ceiling/oor joist.
• The ceiling restop may be installed above or
below the ceiling joists when installed with an
attic insulation shield. It must be under joists
between oors that are not insulated. Refer
to Figure 5.5.
• Secure in place with nails or screws.
Figure 5.4 Installing Ceiling Firestop
Figure 5.5 Installing the Attic Shield
INSTALL ATTIC INSULATION SHIELDS
BEFORE OR AFTER INSTALLATION OF VENT SYSTEM
CEILING FIRESTOP
INSTALLED BELOW CEILING
CEILING FIRESTOP
INSTALLED ABOVE CEILING
ATTIC ABOVE
A
PIPE
DVP
SLP
A
10 in. (254 mm)
9 in. (229 mm)
A
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
38
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
NOTICE: Once appliance is set up for top or rear venting,
it CANNOT be changed at a later time.
6 6
Appliance Preparation
A. Vent Collar Preparation
Top Vent
Figure 6.2 Rotate the top heat shield to the vertical
position as shown above. The heat shield must remain in
the vertical position.
Figure 6.1 For top vent, remove the two screws holding
the top heat shield in place. For rear vent, see next page.
2 SCREWS
2 SCREWS
Figure 6.3 Replace the two screws as shown.
WARNING! Risk of Fire! Do not remove heat shield. El-
evated header temperatures may cause a re.
Figure 6.4 Remove the seal cap.
Figure 6.5 Remove the insulation basket and white insula-
tion from the center vent pipe.
Note: Actual unit may look dierent than the replace shown
in this section.
Figure 6.6 Remove the insulation from the outer vent pipe.
39
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
Rear Vent
NOTICE: Once appliance is set up for top or rear venting,
it CANNOT be changed at a later time.
NOTICE: Once the seal cap has been removed it CANNOT
be reattached.
Figure 6.8 (Generic Fireplace Shown) Fold the tabs
toward the center of the re plug (90º) and remove the
insulation gasket.
Figure 6.9 (Generic Fireplace Shown) Cut the metal
retaining band and fold the sides out.
Figure 6.10 (Generic Fireplace Shown) Fold the center
parts of the retaining band out and use to remove the seal
cap.
Figure 6.11 (Generic Fireplace Shown) Discard the seal
cap, remove and discard the insulation basket. Note: Once
the seal cap has been removed it CANNOT be reattached.
Figure 6.12 (Generic Fireplace Shown) Attach the rst
vent section (it will snap into place). Slide the insulation
gasket onto the vent section, up against the appliance
and over the tabs. Use two self-tapping screws to secure
gasket to outer wrap.
Figure 6.7 To attach the rst section of vent pipe, make
sure to use the berglass gasket to seal between the rst
vent component and the outer replace wrap. Use 2 self
tapping screws to secure the gasket to the outer wrap.
Note: Once the seal cap has been removed, it cannot be
reattached.
2 SCREWS
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
40
C. Securing and Leveling the Appliance
The diagram shows how to properly position and secure
the appliance. See Figure 6.14. Nailing tabs are provided
to secure the appliance to the framing members.
• Bend out nailing tabs on each side.
• Place the appliance into position.
• Keep nailing tabs ush with the framing.
• Level the appliance from side to side and front to back.
• “Square” the unit by securing diagonal dimensions to
within 1/4 inch of each other. See Figure 6.15.
• Shim the appliance as necessary, keeping the bottom
supported, level and straight. It is acceptable to use
wood shims underneath the appliance.
• Place a level on top, sides and bottom as shown in Figure
6.14.
• Secure the appliance to the framing by using nails or
screws through the nailing tabs. Use a minimum of one
fastener per nailing tab.
• Optional: Secure the appliance to the oor by inserting
two screws through the pilot holes at the bottom of the
appliance.
B. Prepare For Heat Management
Risk of Fire!
Prevent contact with:
• Sagging or loose insulation
• Insulation backing or plastic
• Framing and other combustible
materials
WARNING
DO NOT remove standos or notch the framing
around the appliance standos.
Failure to maintain air space clearance could
cause overheating and re.
Block openings into the chase to prevent entry
of blown-in insulation. Make sure insulation and
other materials are secured.
NOTICE: Additional clearances are required for heat
management systems installations. Provisions must be
made in advance to ensure t within the framing.
• Heat management systems include Heat-Zone
®
Gas and
Heat-Out-Gas. Other systems may be available. Contact
your dealer for information.
• Locate the knockouts on the left and right sides of the
appliance. Either one or two heat management may be
installed. See Figure 6.13. Remove the knockout(s)
from the appliance with a tin snips.
• Center the duct collar around the exposed hole and
attach it to the appliance with 3 screws.
Note: Do this BEFORE nal positioning of the appliance.
• Determine the location for the air register/fan housing
assembly.
Reference the appropriate instructions included with the
kit for the remaining installation steps.

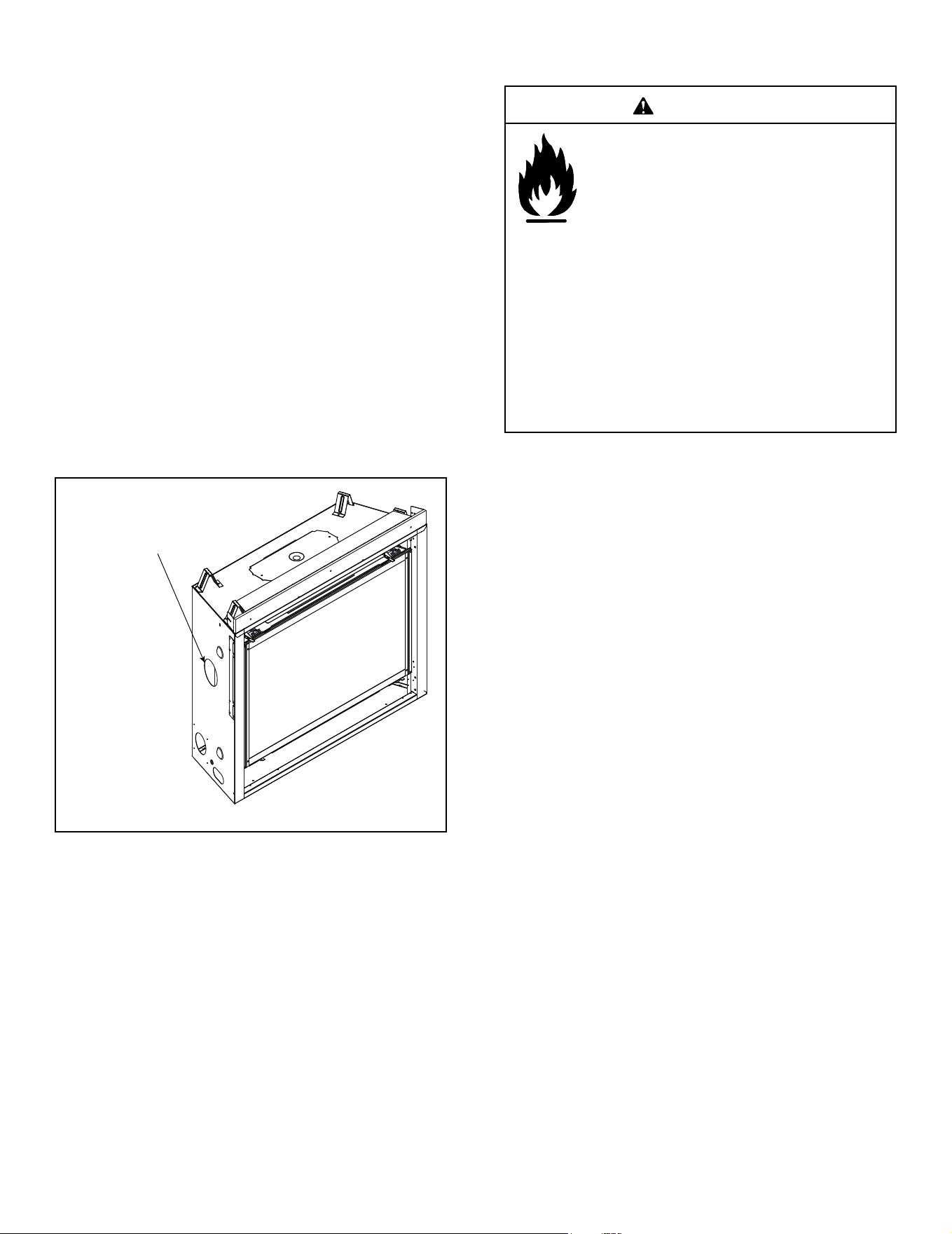

Figure 6.13 Heat Management Knockout
Locations
HEAT MANAGEMENT KNOCKOUT
LOCATIONS
LEFT AND RIGHT SIDES
41
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24

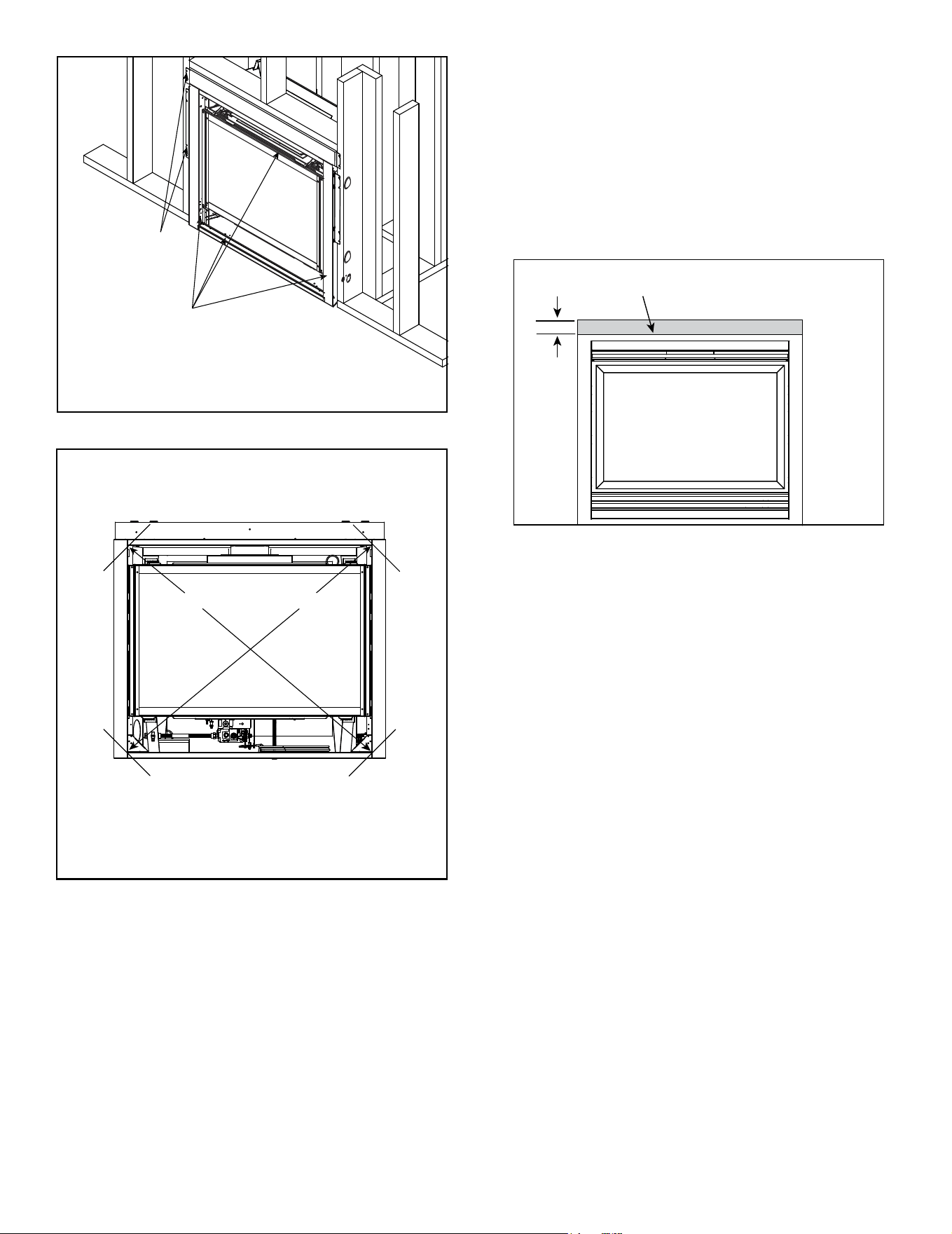

Figure 6.16 Facing Materials
FACTORY-INSTALLED NON-COMBUSTIBLE BOARD
DO NOT REMOVE
3 IN.
Figure 6.14 Proper Positioning and Securing of an Appliance
Figure 6.15 Positioning the Appliance Squarely
A
B
Note: Diagonal dimensions (A) and (B) must be within
1/4 inch of each other.
D. Non-Combustible Material (Factory-In-
stalled)
NAILING TABS
(BOTH SIDES)
PLACE LEVEL ON THESE SURFACES
WARNING! Risk of Fire! DO NOT remove factory-in-
stalled non-combustible material.
A non-combustible board is factory-installed above the
replace opening. Do not remove.
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
42
7 7
Venting
A. Assemble Vent Sections
(DVP Pipe Only)
Attach Vent to the Firebox Assembly
Note: The end of the pipe sections with the lanced tabs
will face toward the appliance.
Attach the rst pipe section to the starting collar:
• Lanced pipe end of the starting collar.
• Inner pipe over inner collar.
• Push the pipe section until all lanced tabs snap in place.
• Lightly tug on pipe to conrm it has locked.
Assemble Pipe Sections
Per Figure 7.2:
• Start the inner pipe on the lanced end of section A into
the ared end of section B.
• Start the outer pipe of section A over the outer pipe of
section B.
• Once both vents sections are started, push rmly until
all lanced tabs lock into place.
• Lightly tug on the pipe to conrm the tabs have locked.
It is acceptable to use screws no longer than 1/2 in. (13
mm) to hold outer pipe sections together. If predrilling holes,
DO NOT penetrate inner pipe.
For 90º and 45º elbows that are changing the vent direction
from horizontal to vertical, one screw minimum should be put
in the outer ue at the horizontal elbow joint to prevent the
elbow from rotating. Use screws no longer than 1/2 in. (13
mm). If predrilling screw holes, DO NOT penetrate inner pipe.
WARNING! Risk of Fire or Explosion! DO NOT break
silicone seals on slip sections. Use care when remov-
ing termination cap from slip pipe. If slip section seals
are broken during removal of the termination cap, vent
could leak.
WARNING! Risk of Fire or Explosion! Vent sections
MUST be installed correctly. Improperly installed vent
sections could leak or cause appliance to overheat.
Required: Commercial, Multi-family (Multi-level exceed-
ing two stories), or High-Rise Applications
Recommended: Vent Congurations with multiple pipe
joints/pipe connections
All outer pipe joints must be sealed using one of the meth-
ods below, including the slip section that connects directly
to the horizontal termination cap.
• Apply a bead of silicone sealant (300 ºF minimum con-
tinuous exposure rating) inside the female outer pipe
joint prior to joining sections. See Figure 7.1 OR
• Apply a bead of silicone sealant (300 ºF minimum con-
tinuous exposure rating) to the outside of connecting
joint after joining sections OR
Apply aluminum foil tape (300 ºF minimum continuous
exposure rating) to the outside of connecting joint after
joining sections. On horizontal pipe runs, it is recom-
mended that the tape seam is positioned on the bottom
side of the vent pipe.
• Only outer pipes need to be sealed. All unit collar, pipe,
slip section, elbow and cap outer ues shall be sealed
in this manner, unless otherwise stated.
43
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24

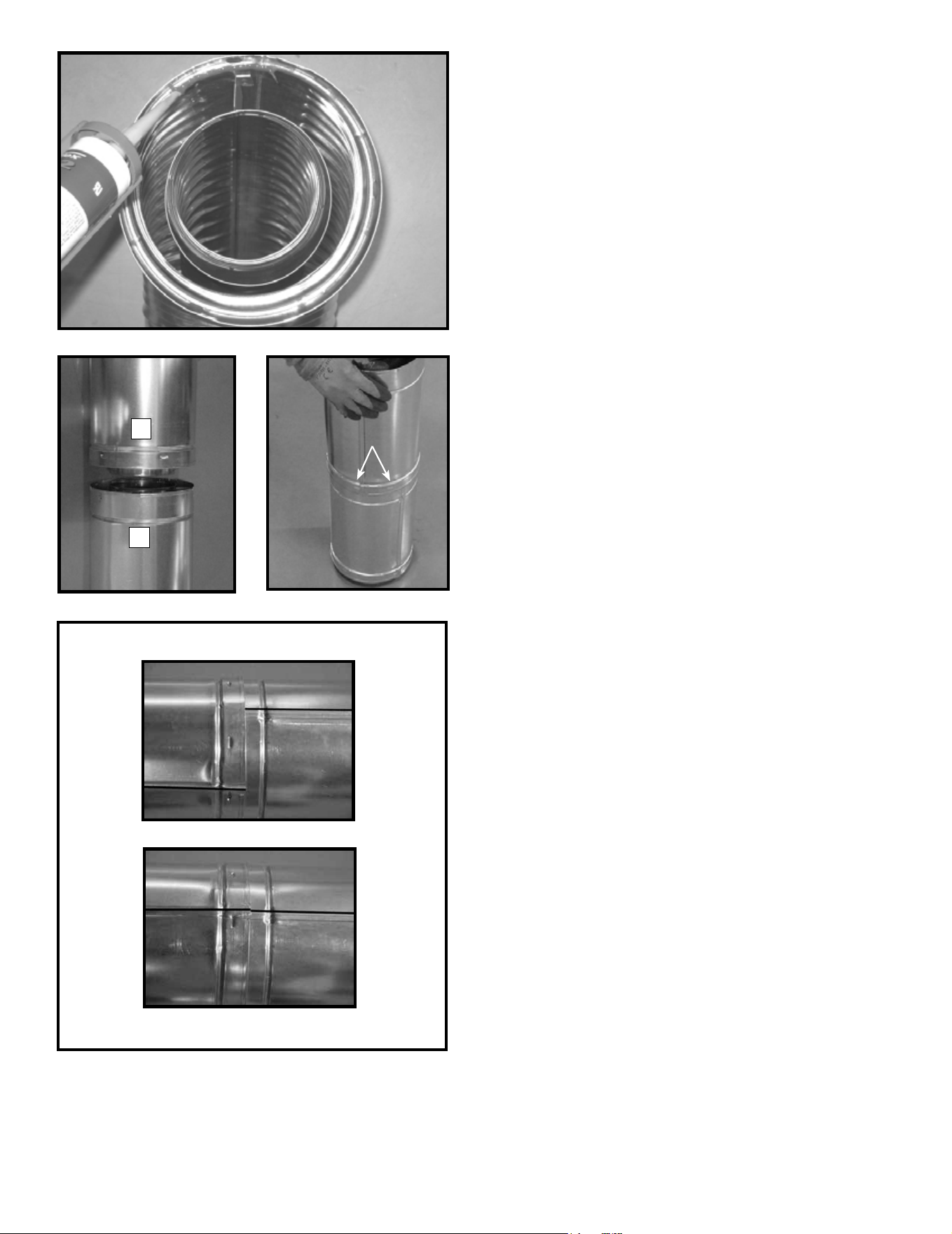

Figure 7.2
A
B
Figure 7.3
Figure 7.4 Seams
Note: Make sure that the seams are not aligned to prevent
unintentional disconnection.
INCORRECT
CORRECT
LancesLances
Figure 7.1 High Temperature Silicone Sealant
NOTICE: When installing a vent system with an HRC
termination cap, all pipe system joints shall be sealed
using a high temperature silicone sealant (300 ºF minimum
continuous exposure rating).
• Apply a bead of silicone sealant (300 ºF minimum
continuous exposure rating) inside the female outer pipe
joint prior to joining sections.
• Only outer pipes are sealed, sealing the inner ue is not
required.
• All unit collar, pipe, slip section, elbow and cap outer
ues shall be sealed.
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
44
To attach the rst vent component to the starting collars
of the appliance:
• Lock the vent components into place by sliding the pipe
section onto the collar.
• Align the seam of the pipe and seam of collar to allow
engagement. Rotate the vent component to lock into
place. Use this procedure for all vent components. See
Figure 7.5.
• Slide the gasket over the rst vent section and place it
ush to the appliance. This will prevent cold air inltration.
Caulk with a minimum of 300 ºF continuous exposure
rating may be used to hold the part in place.
• Continue adding vent components, locking each
succeeding component into place.
• Ensure that each succeeding vent component is securely
tted and locked into the preceding component.
It is acceptable to use screws no longer than 1/2 in. (13
mm) to hold outer pipe sections together. If predrilling holes,
DO NOT penetrate inner pipe.

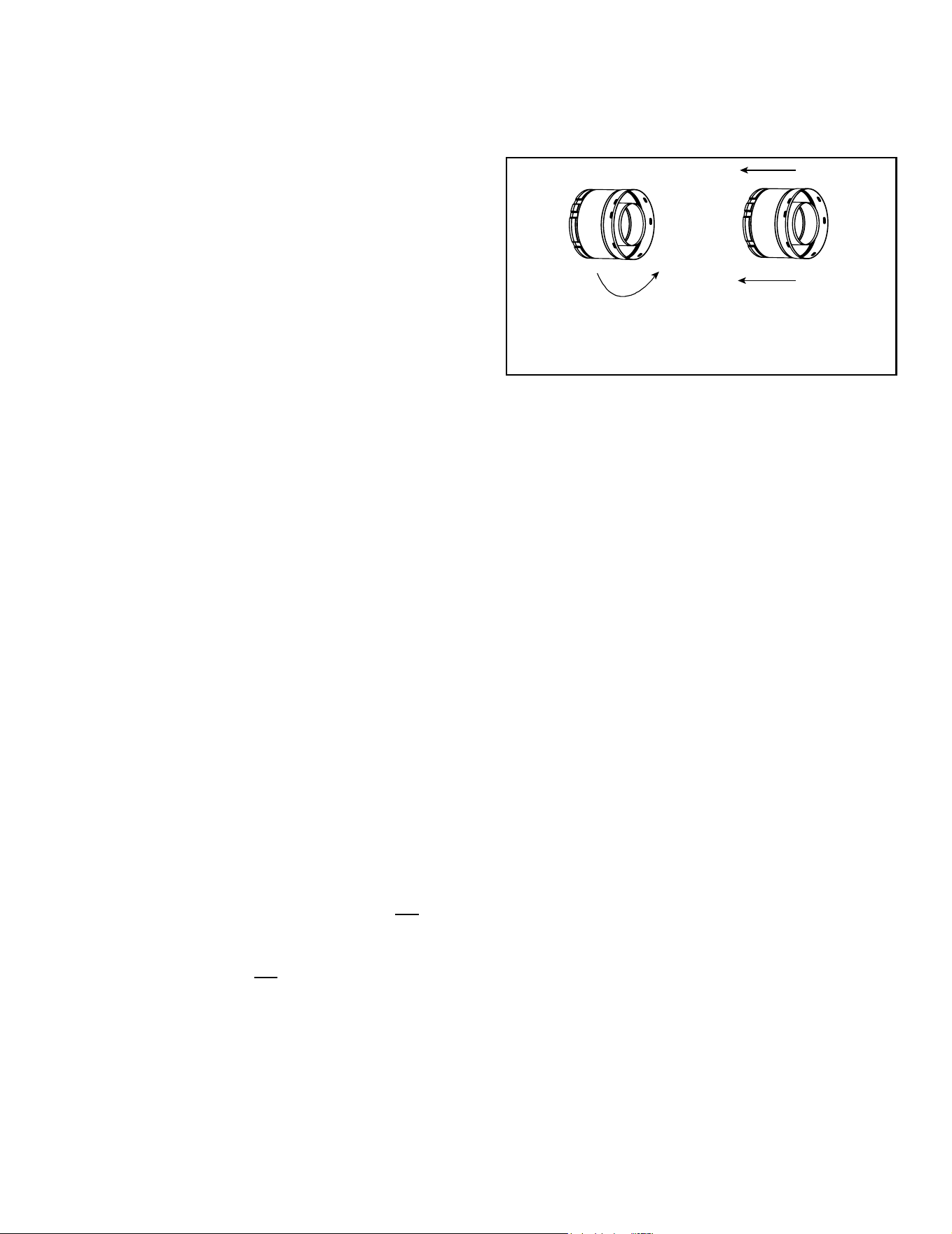

Figure 7.5 Adding Venting Components
WARNING! Risk of Fire or Explosion! DO NOT break
silicone seals on slip sections. Use care when remov-
ing termination cap from slip pipe. If slip section seals
are broken during removal of the termination cap, vent
could leak.
Note: Align seams to engage pipe,
then rotate counterclockwise to lock
NOTICE: When installing a vent system with an HRC
termination cap, all pipe system joints shall be sealed
using a high temperature silicone sealant (300 ºF minimum
continuous exposure rating).
• Apply a bead of silicone sealant (300 ºF minimum
continuous exposure rating) inside the female outer pipe
joint prior to joining sections.
• Only outer pipes are sealed, sealing the inner ue is not
required.
• All unit collar, pipe, slip section, elbow and cap outer
ues shall be sealed.
WARNING! Risk of Fire or Explosion! Vent sections
MUST be installed correctly. Improperly installed vent
sections could leak or cause appliance to overheat.
Assemble Vent Sections (SLP Pipe Only)
WARNING! Risk of Fire or Explosion! DO NOT break
silicone seals on slip sections. Use care when remov-
ing termination cap from slip pipe. If slip section seals
are broken during removal of the termination cap, vent
could leak.
Required: Commercial, Multi-family (Multi-level exceed-
ing two stories), or High-Rise Applications
Recommended: Vent Congurations with multiple pipe
joints/pipe connections
All outer pipe joints must be sealed using one of the meth-
ods below, including the slip section that connects directly
to the horizontal termination cap.
• Apply a bead of silicone sealant (300 ºF minimum con-
tinuous exposure rating) inside the female outer pipe
joint prior to joining sections. See Figure 7.1 OR
• Apply a bead of silicone sealant (300 ºF minimum con-
tinuous exposure rating) to the outside of connecting
joint after joining sections OR
Apply aluminum foil tape (300 ºF minimum continuous
exposure rating) to the outside of connecting joint after
joining sections. On horizontal pipe runs, it is recom-
mended that the tape seam is positioned on the bottom
side of the vent pipe.
• Only outer pipes need to be sealed. All unit collar, pipe,
slip section, elbow and cap outer ues shall be sealed
in this manner, unless otherwise stated.
45
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
B. Assemble Slip Sections
• Slide the inner ue of the slip section into the inner ue
of the pipe section and the outer ue of the slip section
over the outer ue of the pipe section. See Figure 7.6.
• Slide together to the desired length.

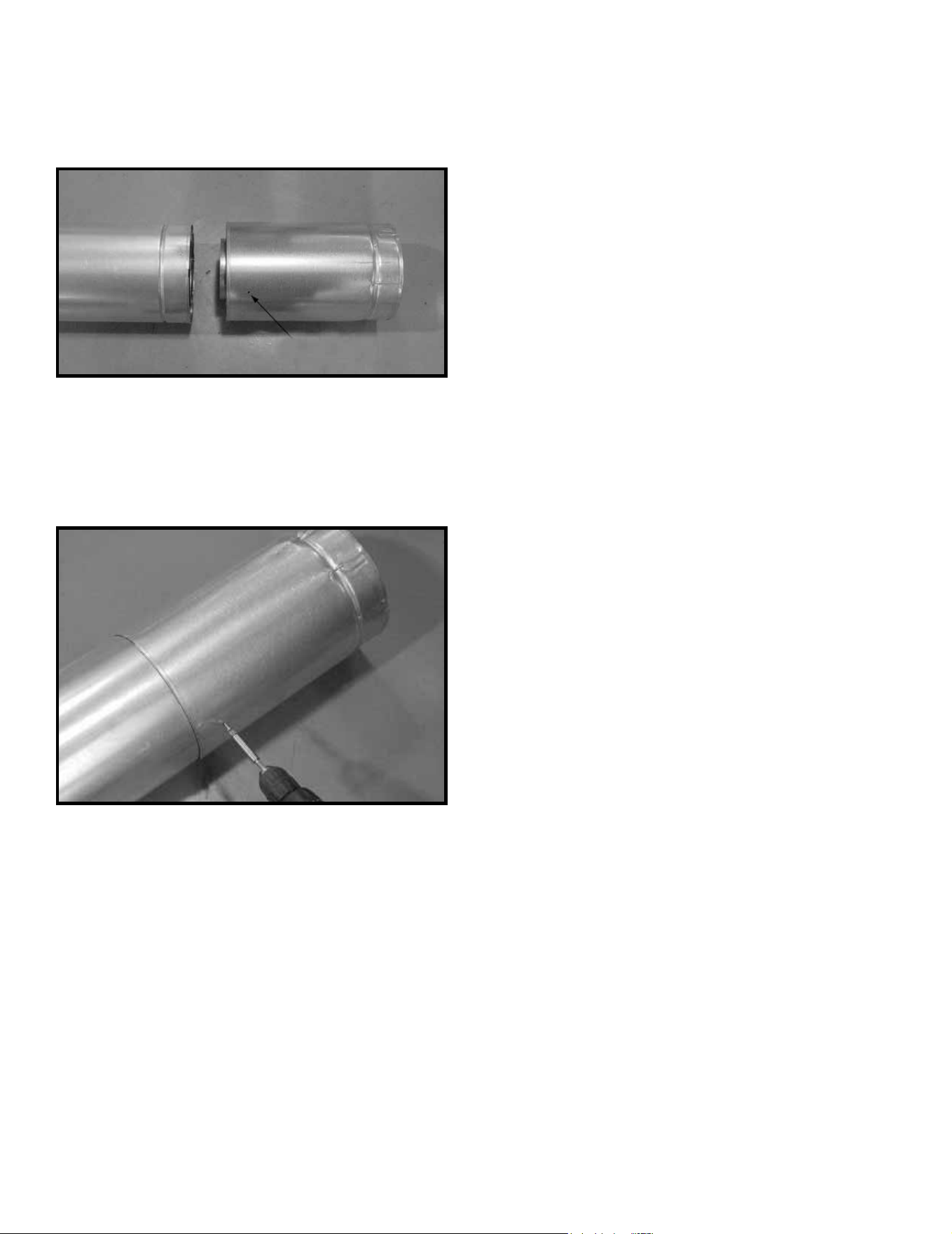

Figure 7.6 Slip Section Pilot Holes
Figure 7.7 Screws into Slip Section
Pilot holePilot hole
• Continue adding pipe as necessary following instructions
in “Assembling Pipe Sections.”
NOTICE: If slip section is too long, the inner and outer
ues of the slip section can be cut to the desired length.
• Maintain a 1-1/2 in. (38 mm) overlap between the slip
section and the pipe section.
• Secure the pipe and slip section with two screws no
longer than 1/2 in. (13 mm), using the pilot holes in the
slip section. See Figure 7.7.
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
46
120º

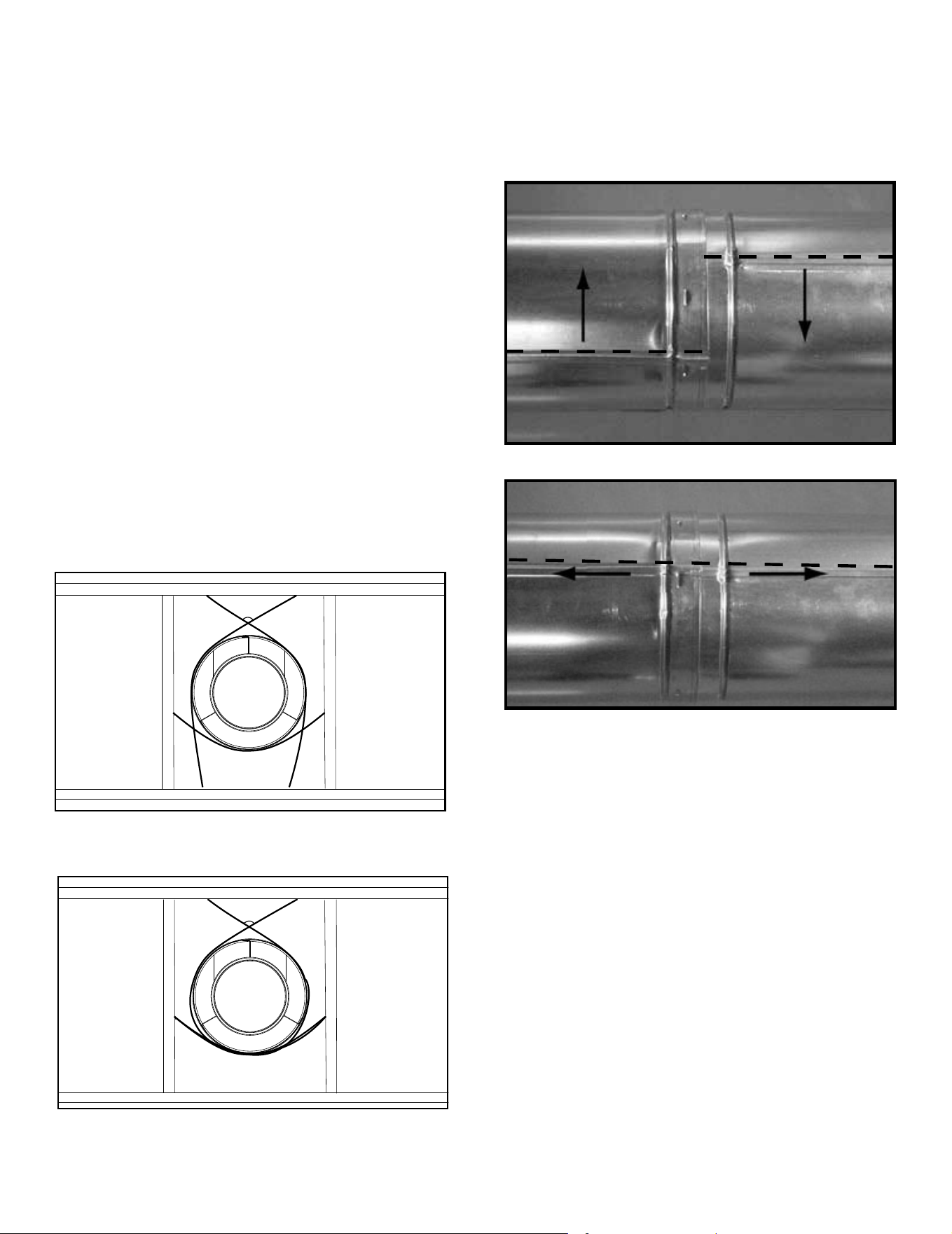

Figure 7.8 Securing Vertical Pipe Sections
120º
Figure 7.9 Securing Horizontal Pipe Sections
D. Disassemble Vent Sections
• Rotate either section (see Figure 7.10) so the seams on
both pipe sections are aligned as shown in Figure 7.11.
• Pull carefully to separate the pieces of pipe.
Figure 7.11 Align and Disassemble Vent Sections
Figure 7.10 Rotate Seams for Disassembly
C. Secure the Vent Sections
WARNING! Risk of Fire, Explosion or Asphyxiation!
Improper support could allow vent to sag and separate.
Use vent run supports and connect vent sections per in-
stallation instructions. DO NOT allow vent to sag below
connection point to appliance.
• Vertical runs originating o the top of the appliance, with
no osets, must be supported every 8 feet (2.44 m) after
the maximum allowed 25 feet (7.62 m) of unsupported
rise.
• Vertical runs originating o the rear of the appliance, or
after any elbow, must be supported every 8 feet (2.44
m).
• Horizontal runs must be supported every 5 feet (1.52 m).
• Vent supports or plumbers strap (spaced 120º apart)
may be used to support vent sections. See Figures 7.8
and 7.9.
Note: Figures 7.8 and 7.9 are to be used for reference
only. Method of strap installation could vary by
conguration of vent system.
• Wall shield restops may be used to provide horizontal
support to vent sections.
• SLP ceiling restops have tabs that may be used to
provide vertical support.
47
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
E. Vertical Termination Requirements

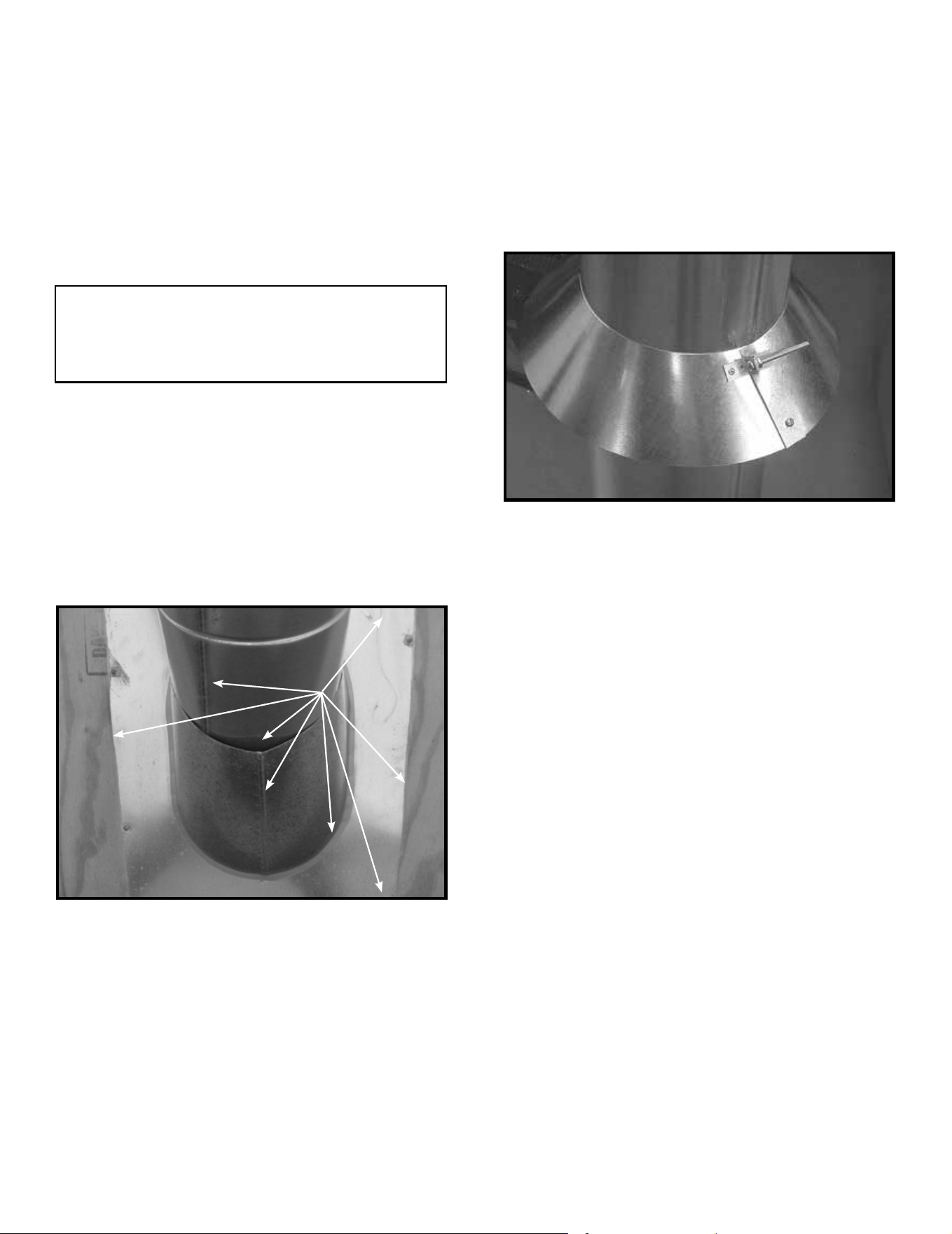

Install and Seal Metal Roof Flashing
• See minimum vent heights for various pitched roofs
(Section 4, Figure 4.1) to determine the length of pipe
to extend through the roof.
• Slide the roof ashing over the pipe sections extending
through the roof as shown in Figure 7.12.
• Use an elastomeric or silicone sealant with a minimum of
150 ºF temperature rating to seal the metal roof ashing.
Figure 7.13 Insert Bolt into BracketsFigure 7.13 Insert Bolt into Brackets
NOTICE: Failure to properly seal the roof ashing and pipe
seams could permit entry of water.
• Seal the gap between the roof ashing and the outside
diameter of the pipe.
• Seal the perimeter of the ashing where it contacts the
roof surface. See Figure 7.12.
• Seal the exposed pipe section seams that are located
above the roof.
SEAL
Figure 7.12Figure 7.12
Assemble and Install Storm Collar
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
• Slide the storm collar onto the exposed pipe section
and align brackets.
• Insert a bolt (provided) through the brackets and install
nut. Do not completely tighten. See Figure 7.13.
• Slide the assembled storm collar down the pipe section
until it rests on the roof ashing. See Figure 7.14.
• Tighten nut and make sure the collar is tight against the
pipe section.
• Seal around the top of the storm collar. See Figure 7.14.
Note: When installing a silicone or EPDM pipe ashing boot
on a metal roof, it is recommended to put a bead of 100%
silicone sealant where the boot contacts the vent pipe to
prevent the entry of water. Follow the manufacturer’s recom-
mendations when installing the boot.
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
48
TERMINATION CAP
(1 OF 3)
SCREWS
SEAL
STORM
COLLAR
Install Vertical Termination Cap
• Attach the vertical termination cap by sliding the inner
collar of the cap into the inner ue of the pipe section
while placing the outer collar of the cap over the outer
ue of the pipe section.
• Secure the cap by driving three self-tapping screws
(supplied) through the pilot holes in the outer collar of
the cap into the outer ue of the pipe. See Figure 7.14.
Important Notice: Heat shields may not be eld constructed.
F. Horizontal Termination Requirements
Heat Shield Requirements for Horizontal
Termination
WARNING! Risk of Fire! To prevent overheating and
re, heat shields must extend through the entire wall
thickness.
• DO NOT remove the heat shields attached to the
wall shield restop and the horizontal termination cap
(shown in Figure 7.15).
• Heat shields must overlap 1-1/2 in. (38 mm) mini-
mum.
There are two sections of the heat shield. One section
is factory-attached to the wall shield restop. The other
section is factory-attached to the cap. See Figure 7.15.
If the wall thickness does not allow the required 1-1/2 in.
(38 mm) heat shield overlap when installed, an extended
heat shield must be used.
• If the wall thickness is less than 4 in./102 mm (DVP)
or 4-3/8 in./ 111 mm (SLP), the heat shields on the cap
and wall shield restop must be trimmed. A minimum
1-1/2 in. (38 mm) overlap MUST be maintained.
• Use an extended heat shield if the nished wall
thickness is greater than 7-1/4 in. (184 mm).
• The extended heat shield may need to be cut to length
maintaining sucient length for a 1-1/2 in. (38 mm)
overlap between heat shields.
• Attach the extended heat shield to either of the existing
heat shields using the screws supplied with the extended
heat shield. Refer to vent components diagrams in the
back of this manual.
• Rest the small leg on the extended heat shield on top
of the pipe section to properly space it from the pipe
section.
Figure 7.14Figure 7.14
49
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24

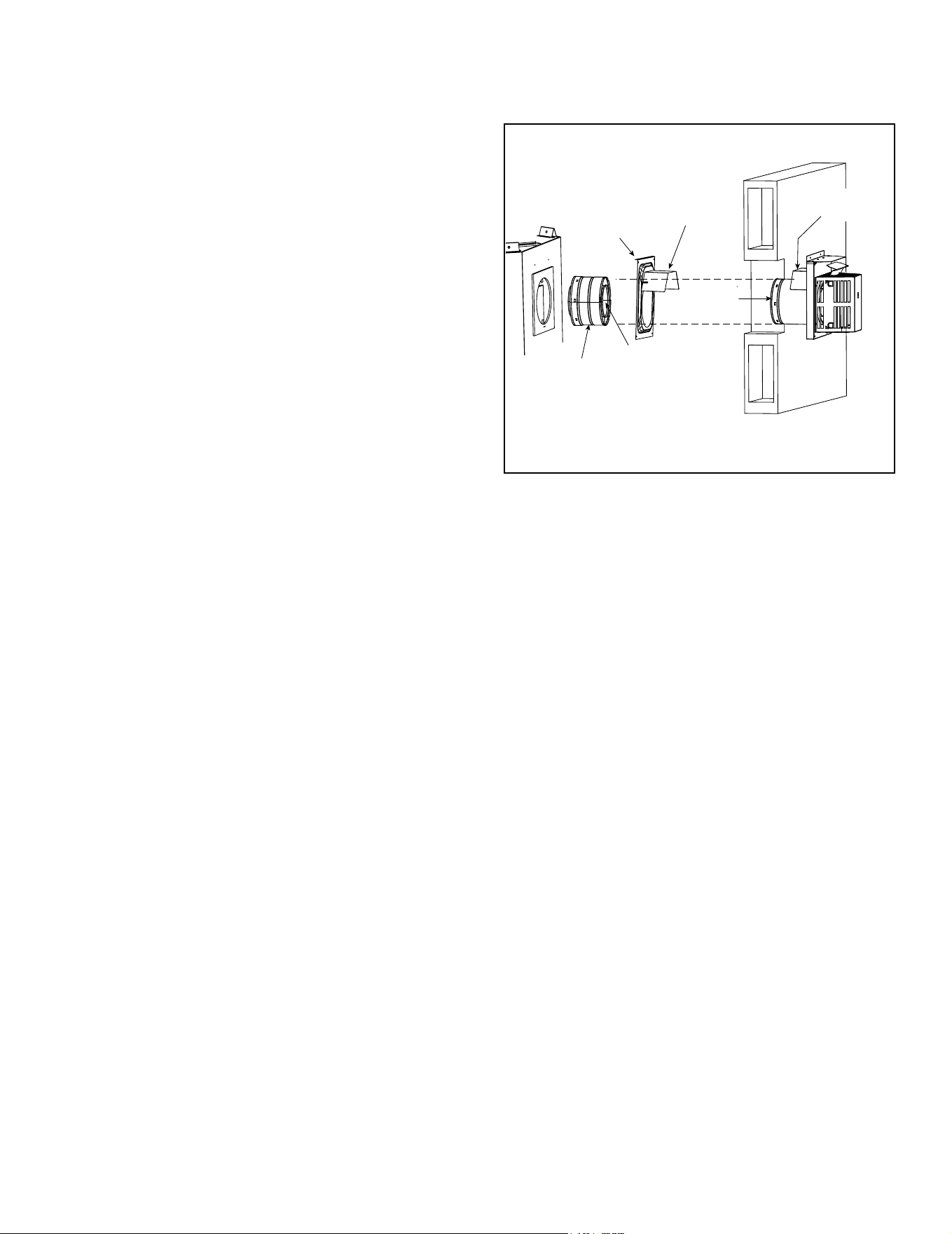

Figure 7.15 Venting Through the Wall
Note: When using termination caps with factory-supplied
heat shield attached, no additional wall shield restop is
required on the exterior side of a combustible wall.
Install Horizontal Termination Cap (DVP and
SLP Pipe)
WARNING! Risk of Fire! The telescoping ue section of
the termination cap MUST be used when connecting vent.
• 1-1/2 (38 mm) minimum overlap of ue telescoping
section is required.
Failure to maintain overlap could cause overheating and
re.
• Vent termination must not be recessed in the wall. Siding
may be brought to the edge of the cap base.
• Flash and seal as appropriate for siding material at
outside edges of cap.
• When installing a horizontal termination cap, follow
the cap location guidelines as prescribed by current
ANSI Z223.1 and CAN/CGA-B149 installation codes
and refer to Section 4 of this manual.
CAUTION! Risk of Burns! Local codes may require in-
stallation of a cap shield to prevent anything or anyone
from touching the hot cap.
NOTICE: For certain exposures which require superior
resistance to wind-driven rain penetration, a ashing kit
and HRC caps are available. When penetrating a brick
wall, a brick extension kit is available for framing the brick.
INTERIOR
HEAT SHIELD OR
EXTENDED
HEAT SHIELD
WALL SHIELD
FIRESTOP
HEAT SHIELD
1-1/2 IN. (38 MM) MIN.
OVERLAP
SHEATHING
SLIP SECTION
CAN BE EXTENDED
INNER VENT
OUTER VENT
EXTERIOR
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
50
GRN wire
inside box
Copper
ground attached
to GRN screw with
GRN wire
WHT
BLK
14-2 AWG
Romex
Connector
WHT
A. General Information
WARNING! Risk of Shock! DO NOT wire 110-120 VAC
to the ignition module or to the appliance wall switch. (IPI)
Incorrect wiring will damage controls.
NOTICE: This appliance must be electrically wired
and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code
ANSI/NFPA 70-latest edition or the Canadian Electric
Code CSA C22.1.
• Wire the appliance circuit using a minimum 14-2 AWG
with ground to unswitched 110-120 VAC. This is required
for proper operation of the appliance (IntelliFire
®
ignition).
• A 110-120 VAC circuit for this product must be protected
with ground-fault circuit interrupter protection, in
compliance with the applicable electrical codes, when
it is installed in locations such as in bathrooms or near
sinks.
• Low voltage and 110-120 VAC voltage cannot be shared
within the same wall box.
• In some instances, the spark ignition of the replace may
cause intermittent, non-damaging, interference during
the lighting sequence with a TV plugged into the same
circuit. It is recommended that the replace and TV use
dierent circuits to mitigate the interference potential.
If interference is occurring on the same circuit, the use
of surge protectors may help alleviate the interference.
Accessories Requirements
• This appliance may be used with a wall switch, wall
mounted thermostat and/or a remote control.
Wiring for optional Hearth & Home Technologies approved
accessories should be done now to avoid reconstruction.
Follow instructions that come with those accessories.
8 8
Electrical Information
Figure 8.1 Junction Box Detail
Junction Box Wiring
• Remove the screw attaching the junction box/receptacle
to the outer shell, rotate the junction box inward to dis-
engage it from the outer shell. See Figure 8.1.
• Pull the electrical wires from outside the appliance through
the opening into the valve compartment and secure wires
with a Romex connector. See Figure 8.1.
• Make all necessary wire connections to the junction box/
receptacle and reattach the junction box/receptacle to
the outer shell.
Electrical Service and Repair
WARNING! Risk of Shock! Label all wires prior to dis-
connection when servicing controls. Wiring errors could
cause improper and dangerous operation. Verify proper
operation after servicing.
WARNING! Risk of Shock! Replace damaged wire with
type 105º C rated wire. Wire must have high temperature
insulation.
NOTICE: DO NOT wire
110-120 VAC to wall switch.
51
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
Component Tray
The electrical components are installed on the component
tray. If it becomes necessary to remove the components,
use the information in Figure 8.2 to remove them and
reinstall them correctly on the component tray.
The IFT-ECM is held in position by two placement tabs
(front and rear) and one plastic pin on the component
tray. To remove the IFT-ECM, bend the rear placement
tab back slightly and tip the IFT-ECM to disengage it
from the pin and the shorter placement tab. To reinstall
the IFT-ECM on the component tray, engage the front
placement tab rst.
The LED controller is held in position by two placement
tabs and the four corner guides on the component tray. To
disengage the LED Controller, bend either placement tab
back slightly. Tip and lift the LED Controller out.
Note the orientation of the LED controller in Figure 8.2.
The LED controller must be positioned as shown with the
green, white and black wires toward the center of the tray.
The LED controller has a rounded prole on the top side
and a at prole on the bottom side. Ensure it is positioned
correctly on the component tray.
IFT-ECM FRONT
PLACEMENT TAB
LED CONTROLLER
PLACEMENT TABS
PIN
GREEN/WHITE/BLACK WIRES
IFT-ECM REAR
PLACEMENT TAB
GUIDES
GUIDE
Figure 8.2 Electrical Component Tray
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
52
Figure 8.3 IntelliFire Touch Wiring Diagram
NOTICE: Batteries should only be used as a power
source in the event of an emergency power outage.
Batteries should not be used as a primary long-term power
source. Batteries tend to corrode over time. When using
batteries as a power source, the 6 volt transformer must
be unplugged from the receptacle.
Do not store batteries in the battery pack when the
appliance is powered by the 6 volt transformer connected
to permanent electrical service.
LED’s
LED’s are factory installed. No additional set up or
maintenance is required.
B. Wiring Requirements
IntelliFire Touch
®
Ignition System Wiring
• Wire the appliance junction box to 110-120 VAC for
proper operation of the appliance.
WARNING! Risk of Shock or Explosion! DO NOT wire
IPI controlled appliance junction box to a switched circuit.
Incorrect wiring will override IPI safety lockout.
• Refer to Figure 8.3, IntelliFire Touch (IPI) Wiring Diagram.
• This appliance is equipped with an IntelliFire control valve
which operates on a 6 volt system.
• Plug the 6 volt transformer plug into the appliance junction
box to supply power to the unit OR install 4 AA cell
batteries (not included) into the battery pack before use.
FLAME
SENSE
IGNITER
LED
CONTROL
RF MODULE
VALVE
IFT-RC400
REMOTE
CONTROL
IFT-RC150
WIRELESS
WALL SWITCH
(OPTIONAL)
RED
6V DC
BATTERY PACK
BLK
RED
(OPTIONAL)
JUMPER
WIRE
APPLIANCE
ON/OFF
CONTROL
BRN
BLK
EMBER LIGHTING
NOT USED FOR QUARTZPLA36IN / QUARTZPLA36IL MODELS
MODELS.
FAN
ORANGE
(PILOT)
GREEN
(MAIN)
FLAME
MODULATION
BLK (GROUND)
TO JUNCTION
BOX (110-120 VAC)
ORANGE
WHITE
PVI-SLP-B
PVLP-SLP
WIRE HARNESS
PVI-WH10
PVI-WH20
PVI-WH40
PVI-WH60
PVI-WH80
PVI-WH100
(OPTIONAL POWER VENT)
ELECTRONIC CONTROL
MODULE (ECM)
AUXILIARY CONTROL
MODULE (ACM)
PVV-SLP
TO JUNCTION
BOX (110-120 VAC)
53
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
A. Fuel Conversion
• Make sure the appliance is compatible with available gas
types.
• Conversions must be made by a qualified service
technician using Hearth & Home Technologies specied
and approved parts.
B. Gas Pressure
C. Gas Connection
WARNING! Risk of Fire or Explosion! Support control
when attaching pipe to prevent bending gas line.
• Refer to Section 3 for location of gas line access in
appliance.
• Gas line may be run through knockout(s) provided.
• The gap between supply piping and gas access hole
may be sealed with caulk or aluminum foil tape with a
minimum of 300 ºF continuous exposure rating or stued
with non-combustible, unfaced insulation to prevent cold
air inltration.
• Ensure that gas line does not come in contact with outer
wrap of the appliance. Follow local codes.
• Pipe incoming gas line into valve compartment.
• Connect incoming gas line to the 1/2 in. (13 mm) NPT
connection on manual shuto valve.
WARNING! Risk of Fire or Explosion! Gas build-up
during line purge could ignite.
• A small amount of air will be in the gas supply lines.
• Ensure adequate ventilation.
• Ensure there are no ignition sources such as sparks or
open ames.
Light the appliance. It will take a short time for air to purge
from lines. When purging is complete the appliance will
light and operate normally.
WARNING! Risk of Fire, Explosion or Asphyxiation!
Check all ttings and connections with a non-corrosive
commercially available leak-check solution. DO NOT use
open ame. Fittings and connections could have loos-
ened during shipping and handling.
• Verify inlet pressures. Verify minimum pressures when
other household gas appliances are operating.
• Install regulator upstream of valve if line pressure is
greater than 1/2 psig.
9 9
Gas Information
Gas Pressure Natural Gas Propane
Minimum inlet pressure 5.0 in. w.c. 11.0 in. w.c.
Maximum inlet pressure 10.0 in. w.c. 13.0 in. w.c.
Manifold pressure 3.5 in. w.c. 10.0 in. w.c.
Note: Have the gas supply line installed in accordance with
local codes, if any. If not, follow ANSI Z223.1. Installation
should be done by a qualied installer approved and/or
licensed as required by the locality. (In the Commonwealth
of Massachusetts installation must be performed by a
licensed plumber or gas tter).
Note: A listed (and Commonwealth of Massachusetts ap-
proved) 1/2 in. (13 mm) T-handle manual shut-o valve
and exible gas connector are connected to the 1/2 in. (13
mm) control valve inlet.
• If substituting for these components, please consult
local codes for compliance.
Fire Risk.
Risk of Fire! Risk of Explosion!
High pressure will damage valve.
• Isolate gas supply piping BEFORE pressure
testing gas line.
• Close the manual shuto valve BEFORE
pressure testing gas line.
WARNING
D. High Altitude Installations
NOTICE: If the heating value of the gas has been reduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
When installing above 2000 feet elevation:
• In the USA: Reduce input rate 4% for each 1000 feet
above 2000 feet.
• In CANADA: Input ratings are certied without a
reduction of input rate for elevations up to 4500 feet
(1370 m)above sea level. Please consult provincial and/
or local authorities having jurisdiction for installations at
elevations above 4500 feet (1370 m).
Check with your local gas utility to determine proper
orice size.
• Optimum appliance performance requires proper input
pressures.
• Gas line sizing requirements will be determined in ANSI
Z223.1 National Fuel Gas Code in the USA and CAN/
CGA B149 in Canada.
• Pressure requirements when in operation are:
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
54

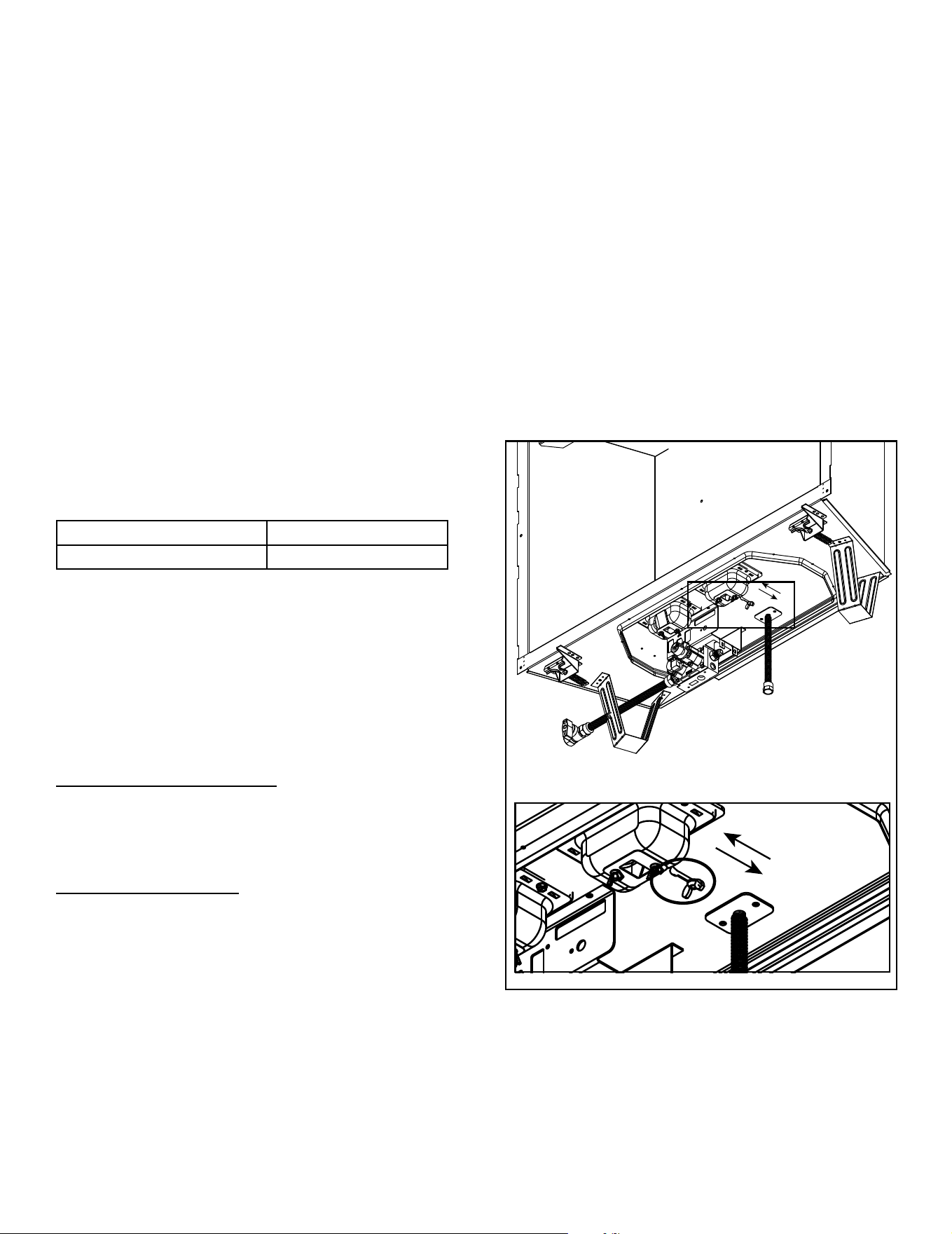

E. Air Shutter Setting
WARNING! Risk of Explosion or Delayed Ignition!
Improperly adjusted air shutter could cause soot buildup.
NOTICE: If sooting occurs, provide more air by opening
the air shutter.
Air shutter settings should be adjusted by a qualied ser-
vice technician at the time of installation. The air shut-
ter is set at the factory for a typical horizontal termination
through a 2 X 6 wall:
Top Vent: 90 degree elbow o top with 12 inches horizontal.
Rear Vent: 12 inches horizontal.
Adjust air shutter for dierent vent runs. See Figure 9.1.
• Loosen the wing nut.
• Push the air handle in to close the air shutter.
• Pull the air handle out to open the air shutter.
• Tighten the wing nut.
Figure 9.1 Air Shutter Adjustment
QUARTZPLA36IN (NG) 3/16 IN.
QUARTZPLA36IL (PROPANE) Full Open
The air shutter settings listed above were set based on an
appliance that was vented o the top with one 90 degree
elbow and the maximum horizontal vent run permitted; this
vent conguration is considered to be a more restrictive
vent conguration. For less restrictive venting, such as
short horizontally terminating or a vertically terminating
appliance, the shutter may be adjusted to a more “closed”
position.
Natural Gas (NG) installations:
As a general rule, it is acceptable to reduce the shutter
opening to adjust for short horizontally terminating or
vertically terminating vent congurations prior to the initial
re up.
Propane (P) installations
• It is recommended that the air shutter on propane
appliances remain at the setting preset at the factory.
Air Shutter Adjustment
The air shutter may be adjusted by locating and loosening
the wing nut shown in Figure 9.1. Push/Slide the wing
nut toward the back of the appliance to close the shutter.
Pull/Slide the wing nut toward the front of the appliance to
open the air shutter.
NOTICE: Flames should not appear orange or stretch to
the top refractory. If ames are dark orange with dark,
smoky tips, provide more primary air to the burner by
opening the air shutter accordingly.
CLOSED
OPEN
CLOSED
OPEN
SEE
DETAIL A
DETAIL A
Note: Visually, a propane ame may dier from a
natural gas ame. This is due to the dierent chemical
compositions that make up both fuel types. In general,
the propane (P) ames may be a little shorter and much
brighter than a natural gas (NG) ame.
Shutter Setting Verication / Flame Appearance
• After 15 minutes, the ames will be a yellow/blue mix.
The front ames may be blue at this time.
• After 30 minutes, the ames should be yellow with
some blue ames near the burner ports.
• After 1 hour, the ame will be at is maximum maturity.
Air Shutter Settings
55
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24

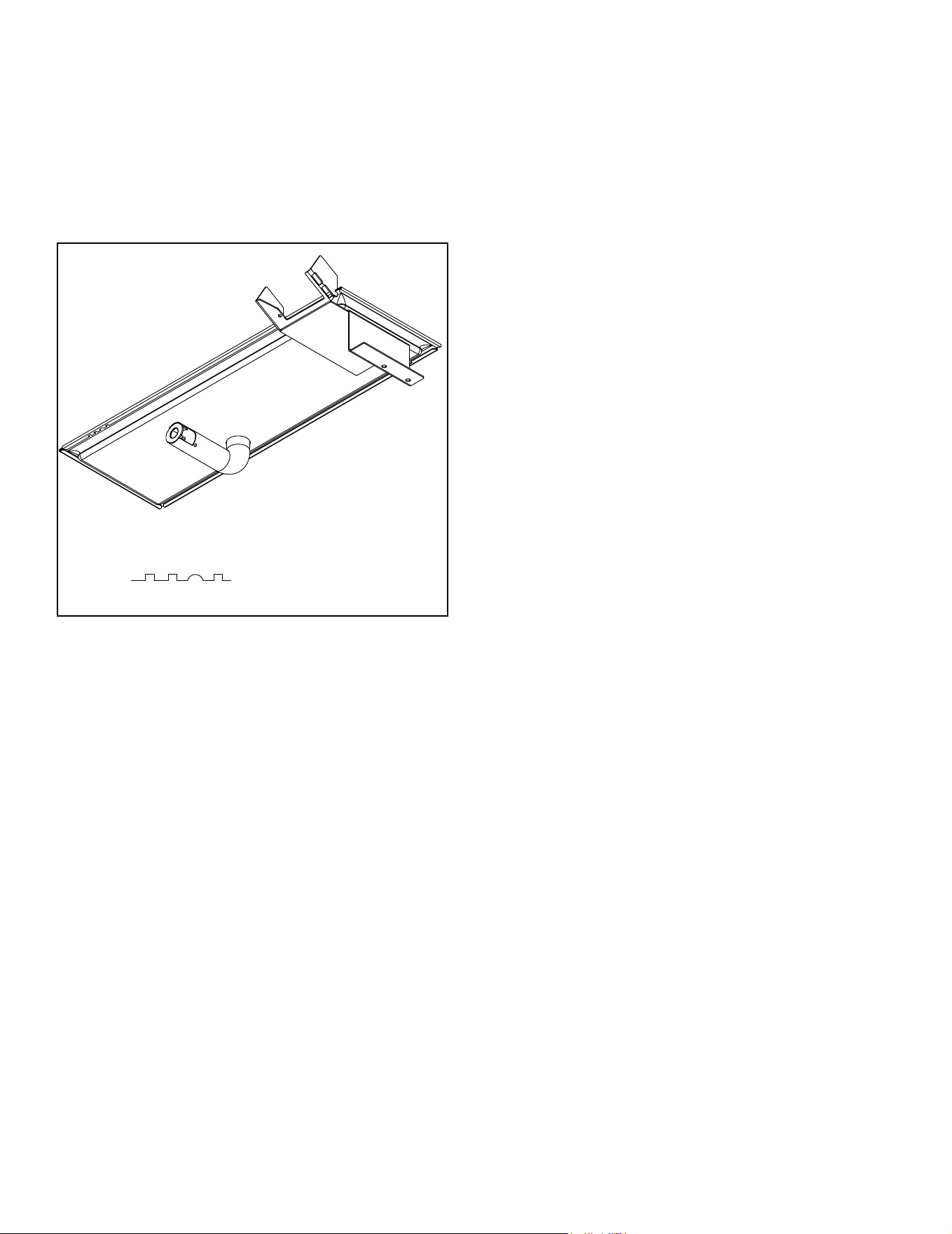

F. Burner Identication/Verication
The burner may be accessed for identication and veri-
cation purposes. This task should be performed by a
qualied service technician. The logs and burner must be
removed to see these identication marks. Disconnect
the pilot from the burner before removal. See Figure 9.2
for burner identication chart. Notch patterns are located
on bottom side of burner.
QUARTZPLA36IN / QUARTZPLA36IL
Figure 9.2 Burner Identication
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
56

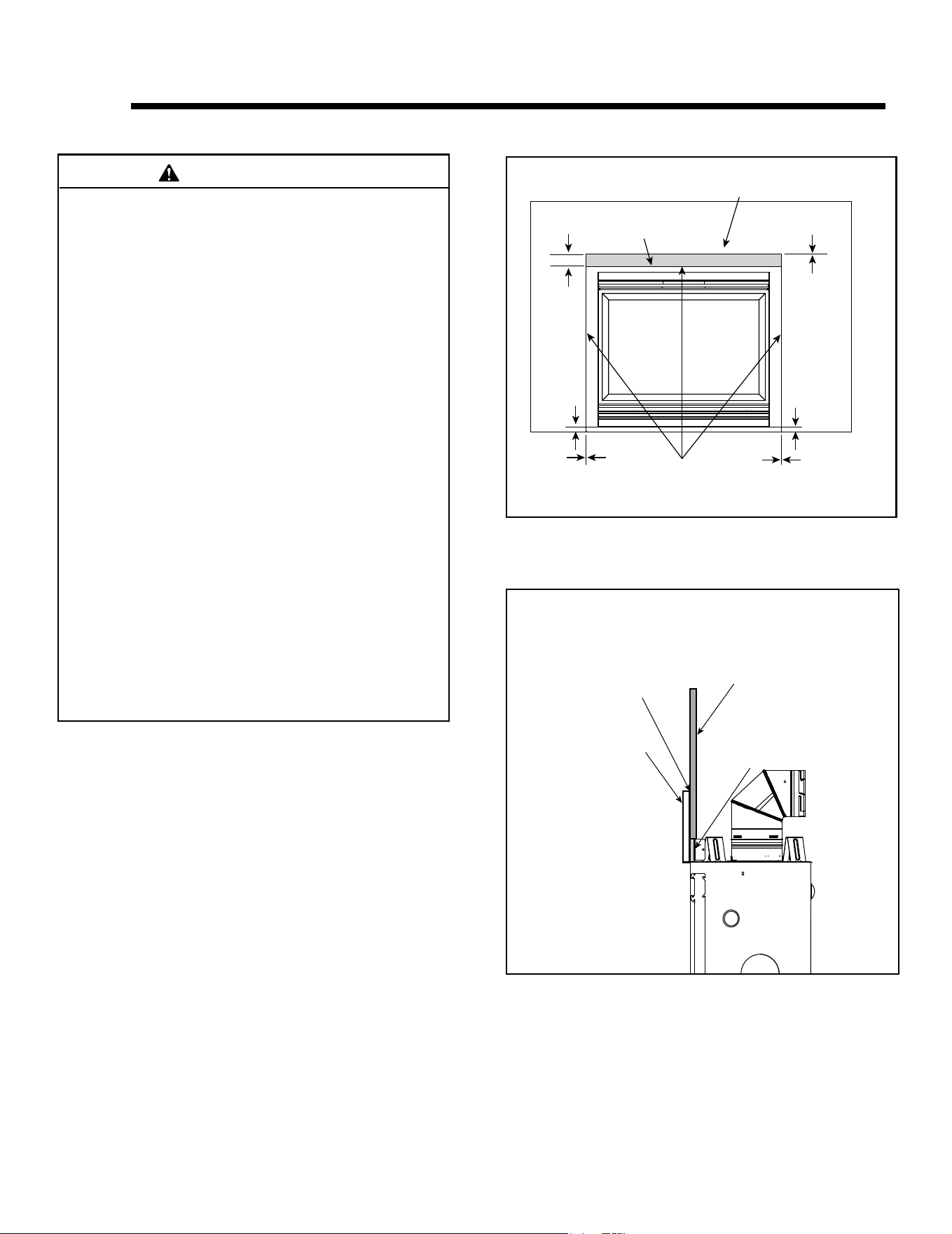

10 10
Finishing
A. Facing Material
NOTICE: Surface temperatures around the appliance
will become warm while the appliance is in operation.
Ensure nishing materials used for all surfaces (oor, walls,
mantels, etc.) will withstand temperatures up to 190°F.
Risk of Fire!
DO NOT apply combustible materials beyond the min-
imum clearances. Comply with all minimum clearanc-
es to combustibles as specied in this manual. Ma-
terials overlapping into non-combustible zones could
ignite and will interfere with air ow through decorative
barrier fronts.
• Metal front of appliance may be covered with non-
combustible materials only.
• Facing and/or nishing materials must not interfere
with air ow through decorative barrier fronts, removal
of decorative barrier fronts or access for service.
• Facing and/or finishing materials must never
overhang into the glass opening.
• Observe all clearances when applying combustible
materials.
• Conrm that appliance is plum, square and level.
See Section 6.
• Seal gaps between the nished wall and appliance
top and sides using a 300 ºF minimum sealant. Refer
to Figure 10.1 and Figure 10.2.
• Finishing materials must be installed with no gaps
in order to prevent the escape of heat between the
nishing material and the wall. See Figure 10.2.
WARNING
Figure 10.1 Non-combustible Facing Diagram
0 IN.
0 IN.
0 IN.
NON-COMBUSTIBLE
BOARD (INCLUDED)
HIGH TEMPERATURE (300º F / 149º C MIN.)
TOP & SIDE SEAL JOINT
3 IN.
FACING MATERIAL UP TO 1/2 IN. THICK
MAY BE COMBUSTIBLE - TOP AND SIDES
1 IN.
1 IN.
When using combustible ooring materials, such as car-
peting and padding, the combustible ooring material
must not extend higher than one inch from the base of the
appliance when the appliance is mounted at oor level.
WARNING! Risk of Overheating! DO NOT allow gap
between nishing materials and front of appliance.
Figure 10.2 Finishing Material Installed
NO GAP ALLOWED
FACTORY-INSTALLED
NON-COMBUSTIBLE BOARD
DRYWALL OR
WALL SHEATHING
MATERIAL
NON-COMBUSTIBLE
FINISHING MATERIAL
57
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
Note: All
measurements
in inches.
C. Mantel and Wall Projections
WARNING! Risk of Fire! Comply with all minimum clear-
ances as specied. Mantel MUST be fastened to wall
with no gaps.
• Framing closer than the minimums listed must be
constructed entirely of non-combustible materials (i.e.,
steel studs, concrete board, etc.).
• No gaps allowed between the wall and the bottom of the
mantel.
• Combustible mantel legs and wall projections may be
applied over the non-combustible board supplied with
the appliance. Follow guidelines as shown in the gures
below for mantels, mantel legs and wall projections.
Note: Measurement is taken from top/side of the
opening, NOT the top/side of the replace.
Note: All
measurements
in inches.
If installing a television (TV) above the appliance, see
Section 2.B.
B. Installing a Television
TOP OF HOOD OR FIREPLACE OPENING
See Dimension V on Appliance
Dimension Diagram (Figure 3.1).
3
4
5
12
11
10
9
8
7
6
32
CEILING
1
5
6
7
8
9
10
4
12
11
13
3
13
16
14
15
14
15
16
17

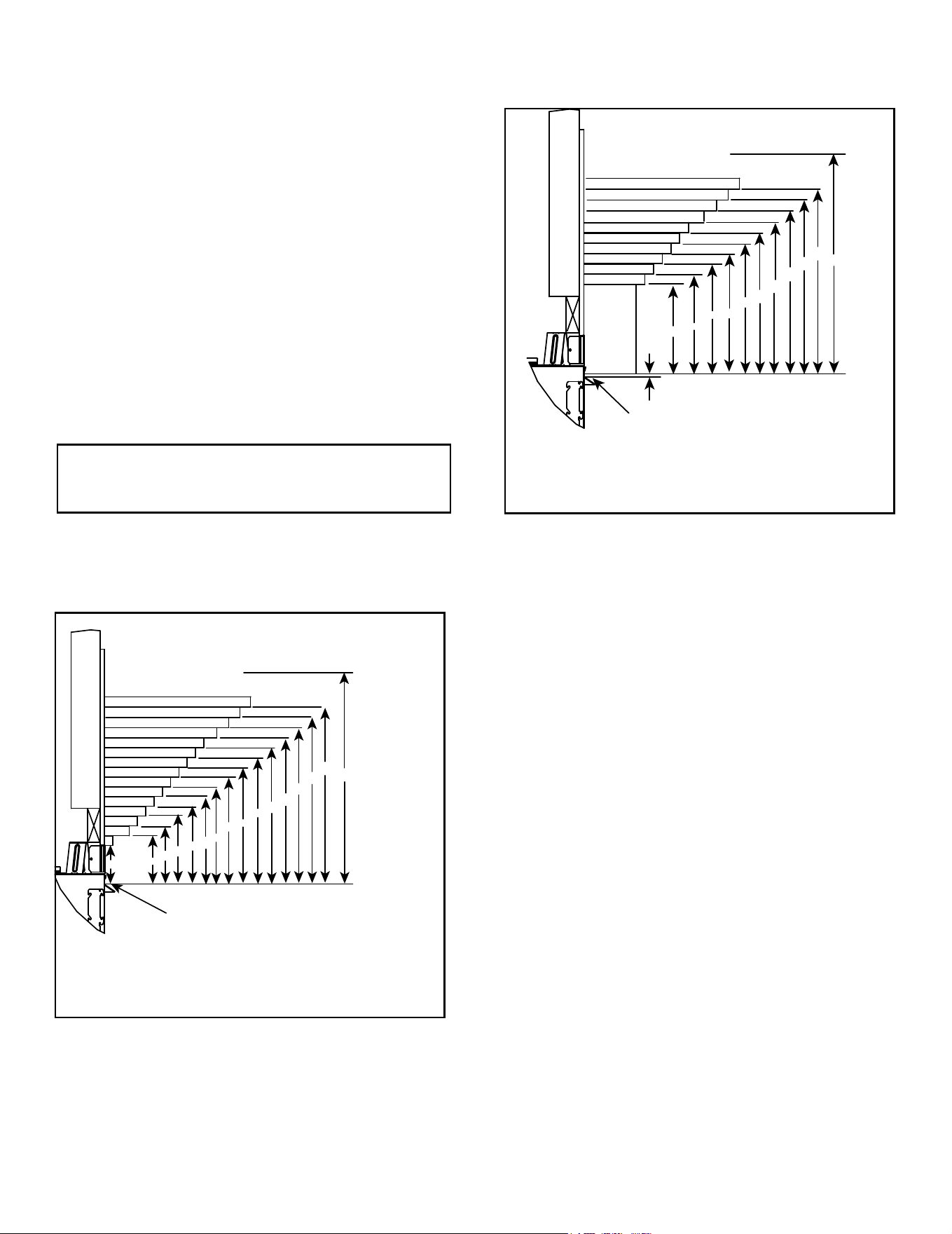

Combustible Mantels
Figure 10.3 Minimum Vertical and Maximum Horizontal
Dimensions of Combustibles
Non-Combustible Mantels
Figure 10.4 Minimum Vertical and Maximum Horizontal
Dimensions of Non-Combustibles
TOP OF HOOD OR FIREPLACE OPENING
See Dimension V on Appliance
Dimension Diagram (Figure 3.1).
6
12
11
10
9
8
7
32
CEILING
8
9
10
3/8
12
11
13
13
16
14
15
14
15
16
17
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
58

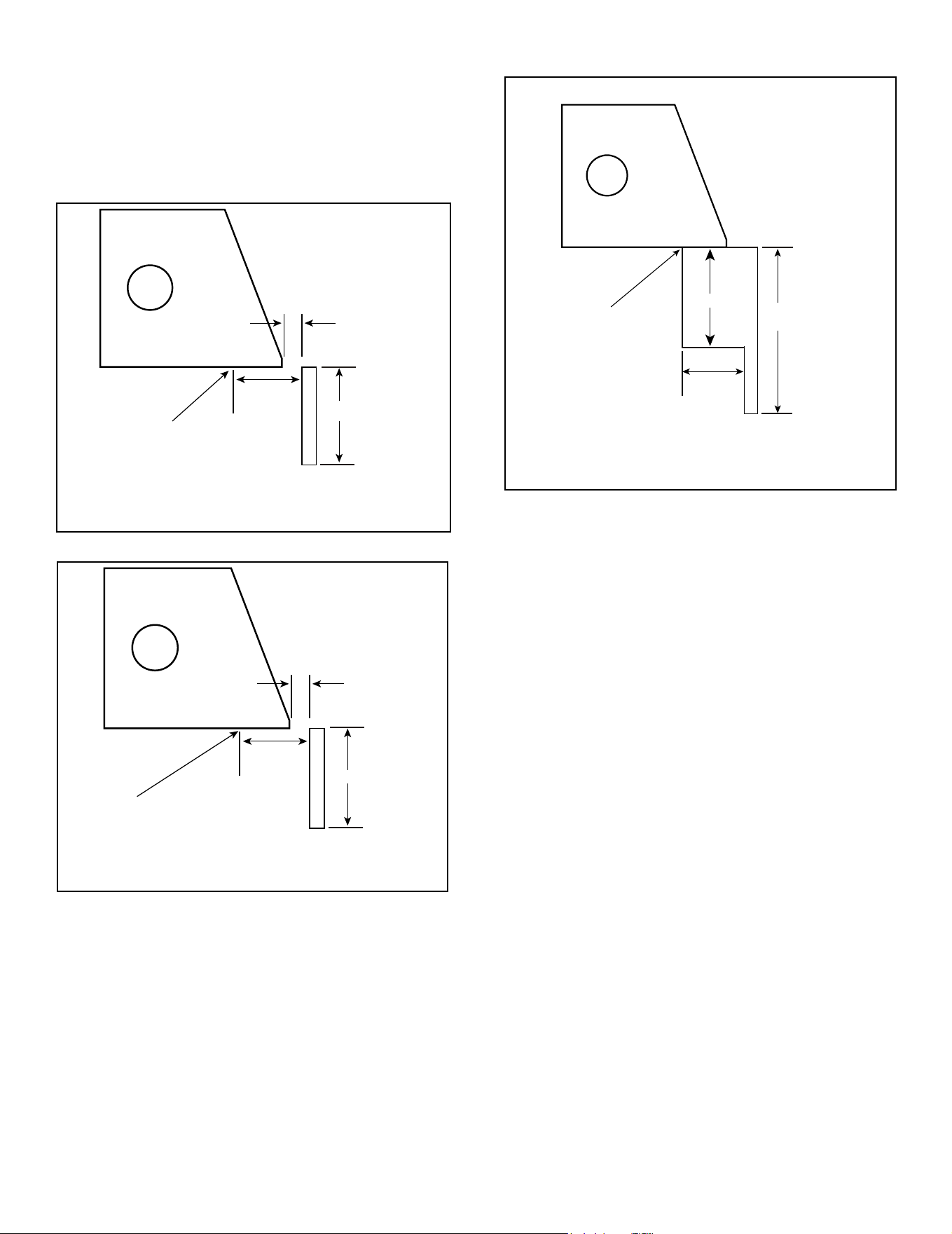

Combustible Mantel Legs or Wall Projections
Combustible mantel and wall projections may be applied
over the non-combustible board supplied with the re-
place when following the combustible projection gures
below.
Non-Combustible Mantel Legs or Wall Projections
UNLIMITED
TOP VIEW
5-7/8 IN.
MINIMUM
3 IN.
MINIMUM
FIREPLACE OPENING
See Dimension B on Appliance
Dimension Diagram (Figure 3.1).
Figure 10.5 Combustible Mantel Legs or Wall Projections
(Acceptable on one side of opening)
Note: Clearance from opening
to perpendicular wall.
Figure 10.6 Non-Combustible Mantel Legs or Wall Projections
(Acceptable on both sides of opening)
UNLIMITED
TOP VIEW
FIREPLACE OPENING
See Dimension B on Appliance
Dimension Diagram (Figure 3.1).
3 IN. MIN.
6 IN MAX.
Note: Clearance from opening
to perpendicular wall.
Combustible Mantel Legs or Wall Projections
3 FT. MAXIMUM
TOP VIEW
2-7/8 IN.
MINIMUM
1/2 IN.
MINIMUM
FIREPLACE OPENING
See Dimension B on Appliance
Dimension Diagram (Figure 3.1).
Note: Clearance from opening
to perpendicular wall.
Figure 10.4 Combustible Mantel Leg or Wall Projection
(Acceptable on both sides of opening)
59
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24

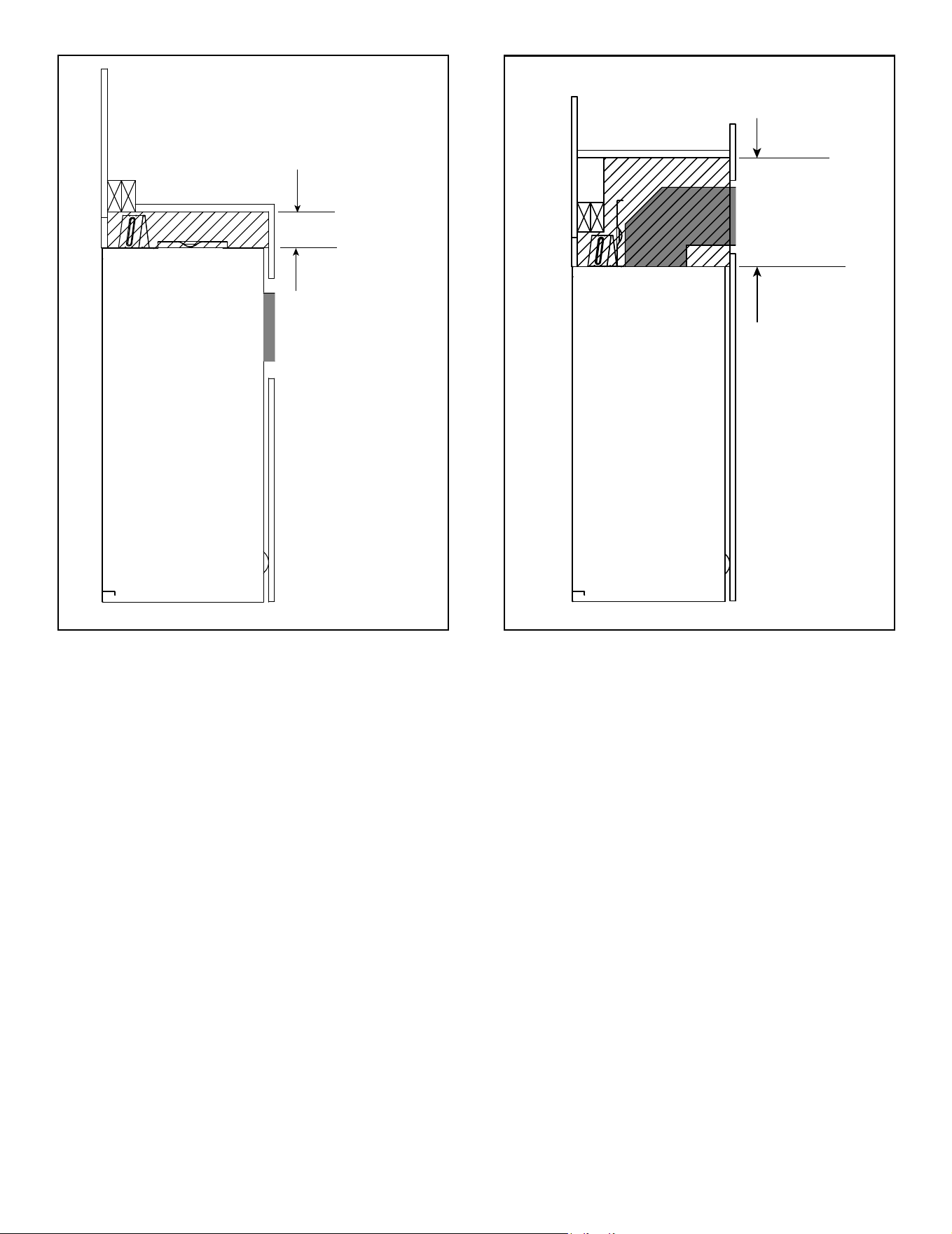

Figure 10.7 Rear Vent Non-Combustible Zone Above Appliance
Figure 10.8 Top Vent Non-Combustible Zone Above Appliance
3-1/2 IN. MIN.
12 IN. MIN.
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
60

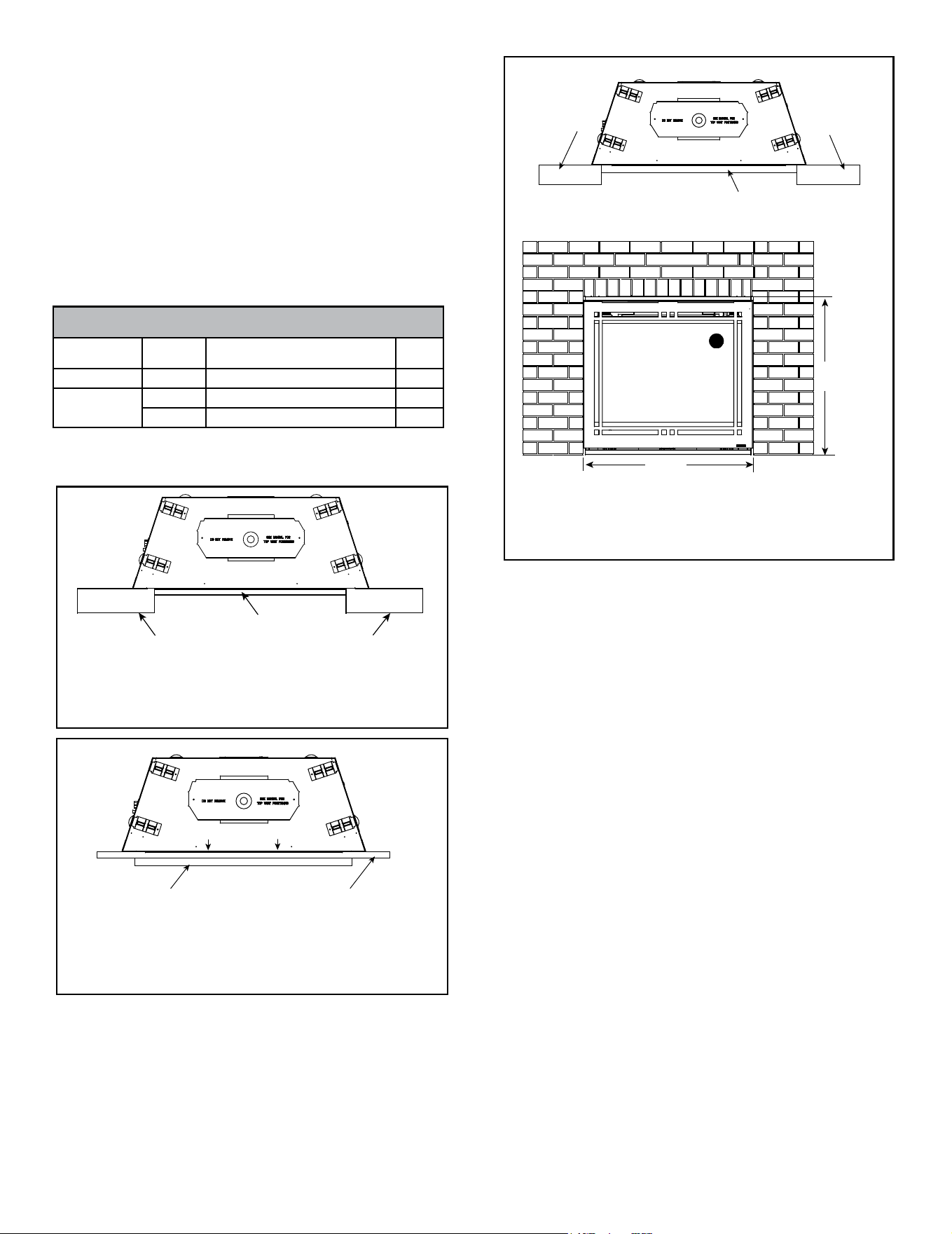

Stop non-combustible nishing material ush with appliance
surround opening.
Only decorative barrier fronts certied for use with this
appliance model may be used. Contact your dealer for
a list of decorative barrier fronts that may be used. Once
you have determined what kind of decorative barrier front
and nishing material is going to be used on the replace,
you may use the table below which shows the decorative
barrier front models and the nishing material thickness
allowed.
NON-COMBUSTIBLE
FINISHING MATERIAL
6 IN. MAXIMUM THICKNESS
DECORATIVE BARRIER FRONT
NON-COMBUSTIBLE
FINISHING MATERIAL
6 IN. MAXIMUM THICKNESS
1 in. MAX
NON-COMBUSTIBLE
FINISHING MATERIAL
(TOP EDGE)
DECORATIVE BARRIER FRONT
FRONT FACE OF FIREPLACE
Figure 10.9 Overlap Fit Decorative Barrier Front (DBM36)
Figure 10.11 Inside Fit Decorative Barrier Front (CRD36)
Non-combustible nishing material between 1 and 6 in. thick.
Figure 10.10 Overlap Fit Door (CRD36)
Non-combustible nishing materials 1 in. maximum thick.
Stop non-combustible nishing material ush with opening.
Table 1. Finishing Clearances for CRD36 and DBM36 Fronts
D. Decorative Barrier Front Dimensions for
Finishing
DECORATIVE BARRIER FRONT
NON-COMBUSTIBLE
FINISHING MATERIAL
6 IN. MAXIMUM
THICKNESS
NON-COMBUSTIBLE
FINISHING MATERIAL
6 IN. MAXIMUM
THICKNESS
MODEL and TEMPLATE PART #
FRONT FIT FINISH MATERIAL THICKNESS
SEE
FIGURE
DBM36 Inside 6 inch max. 10.9
CRD36
Overlap 1 inch max. 10.10
Inside 1-6 inch max. 10.11
37-3/8
949 mm
(Includes 1/8 in. opening each side of decorative barrier front)
34-7/16
951 mm
61
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
11 11
Appliance Setup
A. Remove the Shipping Materials
WARNING! Risk of Fire! Close the ball valve before in-
stalling the splatter guard to prevent accidental lighting.
Remove the splatter guard before lighting the appliance.
Remove shipping materials from inside or underneath the
rebox.
• The splatter guard is a piece of corrugated material
used to protect the appliance during the installation
process before nishing work on the whole hearth is
complete. Splatter guards may be factory installed
or accompany the decorative barrier front of the ap-
pliance, depending on the replace model. Splatter
guards must be removed before appliance is red.
B. Clean the Appliance
Clean/vacuum any sawdust that may have accumulated
inside the rebox or underneath in the control cavity.
C. Install the Refractory Kit (Required)
A refractory kit is required for use with this appliance. A
reective black glass or brick refractory kit is available and
must be ordered separately at time of appliance purchase.
Install the refractory kit per the included instructions.

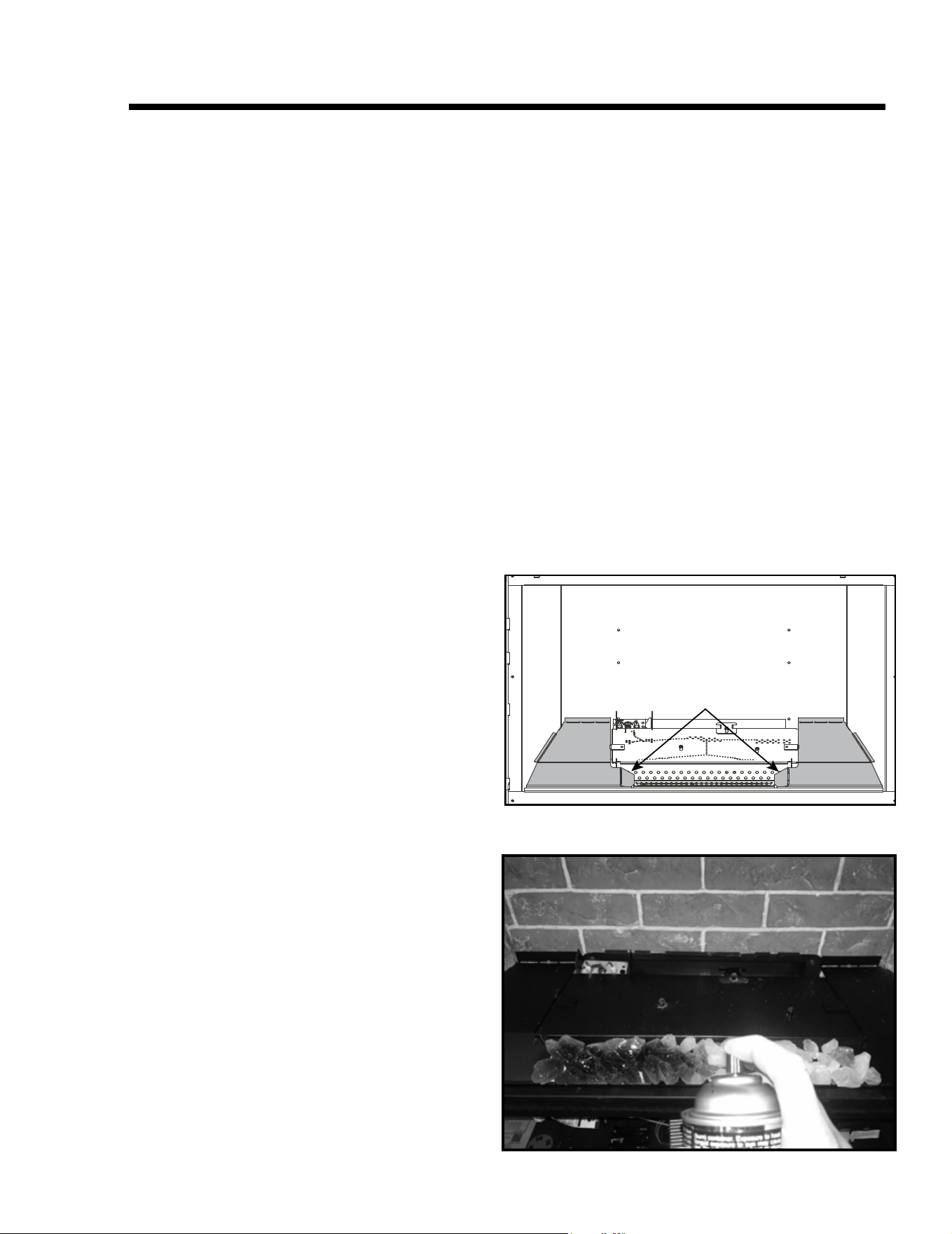

D. Install and Paint Teco-Sil
1. Remove Teco-Sil rock from its shipping location.
2. Bend the tabs on the left and right base pans slightly
down toward the ember tray. See gure 11.1
3. Install theTeco-Sil into the ember tray.
4. Fog the Teco-Sil to the desired look, using high
temperature black paint (Hearth & Home Technologies
part number TUP-GBK-12). See below for fogging
tips. Prior to painting, take precautions to prevent any
overspray from reaching the pilot assembly. Paint is
not included with the appliance. See Fig 11.2.
Fogging Tips
• Apply paint with the ember lights turned on. This will
help avoid over fogging or under fogging.
• Reduce the lighting in the room while applying the
paint.
• Fog the Teco-Sil to create a realistic coal bed appear-
ance.
• Allow the paint to dry/cure a minimum of 15 minutes.
• DO NOT allow paint or paint overspray on the pilot.
Figure 11.2 Paint Teco-Sil
BEND TABS TOWARD EMBER TRAY
Figure 11.1 Bend Basepan Tabs
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
62
E. Install the Log Assembly (Including Glowing Embers and Lava Rock)
Log Set Assembly: LOGS-QPLA36
Models: QUARTZPLA36IN, QUARTZPLA36IL
LOG PLACEMENT
INSTRUCTIONS
CAUTION: Logs are fragile, handle with care.
1
Reference Figure 1 for identication of logs. It is important
to lay the logs out in order as shown in Figure 1. Some
logs are similar to others in shape or size so it is imperative
to correctly identify each log.
Log Identication:
Figure 3 Install Log #1
1. LOG #1: Locate and install the Log #1 by installing the
right end of the log over the rear log pin. See Figure 2
for log pin locations. Then rotate the left end of the log
until it contacts the rear refractory panel. See Figure 3.
Figure 1 Log Identication
5
1
2
3
4
6
7
8
Note: The log placement is identical whether the glass liner
refractory or the brick refractory is installed. Refractory is
required for these models and must be ordered separately
from appliance at time of appliance purchase.
Figure 2 Log Pin and Glowing Ember Locations
EMBERS
LOG PINS
EMBERS NOT ALLOWED
IN SHADED AREA
2. LOG #2: Locate and install Log #2 by positioning
the left side of the log on the at spot of Log #1. The
burned out area of Log #2 should align with the right
edge of Log #1. When installed correctly, the front face
of Log #2 should be ush with the front face of Log #1.
See Figure 4.
Figure 4 Install Log #2
1
2
63
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24

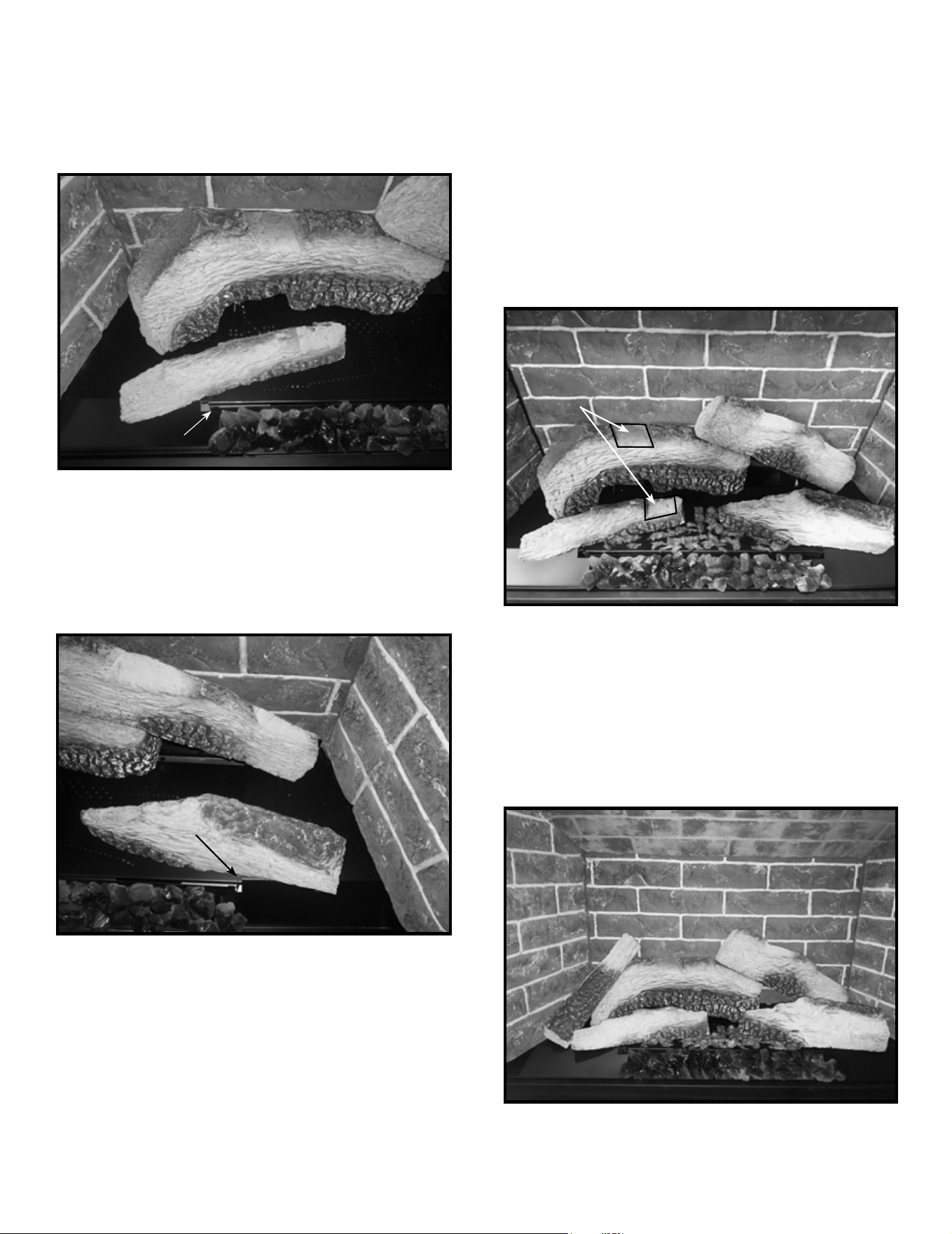

4. LOG #4: Locate and install the Log #4 by installing the
“left” end of the log over the right log pin and pressing
“down” to engage the log pin. See Figure 2 for log pin
locations. The face of the log should contact the right
ember tray tab. See Figure 6.
Figure 6 Install Log #4
WARNING! Risk of Explosion! Follow ember placement
instructions. Replace ember material annually. Improperly
placed embers interfere with proper burner operation.
Figure 7 Embers Installed
Figure 8 Install Log #5
6. LOG #5: Locate and install Log #5. This log does not
have any “burn out” features painted on the log. The
“left” end of this log will rest on the base pan and the
“right” end will rest on the “left” end of Log #1. See
Figure 8.
EMBER TRAY TABEMBER TRAY TAB
1
2
1
2
2
3
3
4
4
5
4
3. LOG #3: Locate and install Log #3 by installing the
“right” end of the log over the left burner pin and
pressing “down” to engage log pin. See Figure 2 for
log pin locations. Rotate Log #3 counterclockwise
until it contacts the ember tray tab as shown in Figure
5.
Figure 5 Install Log #3
EMBER TRAY TABEMBER TRAY TAB
1
2
3
VOIDS FOR LOG #6VOIDS FOR LOG #6
5. Locate the glowing embers and install them as shown
in Figure 2. Do not install any glowing embers on the
back row of burner ports. Glowing Embers can be
placed directly over burner ports. However, for optimal
front ame height place embers around burner ports.
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
64
2643-935 Rev. B
Figure 9 Install Log #6
7. LOG #6: Log #6 will rest on the voids of Log #1 and
Log #3 and the ember tray as shown in Figure 7.
Install log by placing it on top of the log voids. The tip
of the log may contact the Teco-Sil rock in the ember
tray. See Figure 9.
Figure 11 Install Log #8
8. LOG #7: Log #7 will rest on the two voids of Log #2
and Log #6 as shown in Figure 9, install log by placing
it on top of these voids. Place the log so that the bark
detail faces the back wall of the rebox. See Figure
10.
10. This product is shipped with a bag of Lava Rock. Ap-
proximately one third of the bag will be used for initial
setup, the remainder should be placed in the manual
bag assembly and left with the homeowner. Do not
store beneath the appliance. Install Lava Rock by
placing it (by hand) in the locations denoted by arrows
in Figure 12. Care should be taken to avoid placing
lava rock on the burner.
NOTICE: DO NOT place lava rock on burner. Flame
appearance could be aected.
4
Figure 12 Lava Rock Locations
1
1
1
1
2
2
2
2
3
3
3
3
4
4
5
4
6
6
7
8
8
76
5
5
6
7
Figure 10 Install Log #7
VOIDS FOR LOG #7VOIDS FOR LOG #7
LAVA ROCKLAVA ROCK LAVA ROCKLAVA ROCK
VOID FOR LOG #8VOID FOR LOG #8
9. LOG #8: Log #8 will rest on the void of Log #2 as
shown in Figure 10 in the back right corner of the re-
box. The right end of Log #8 will rest on the base pan.
See Figure 11.
65
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24

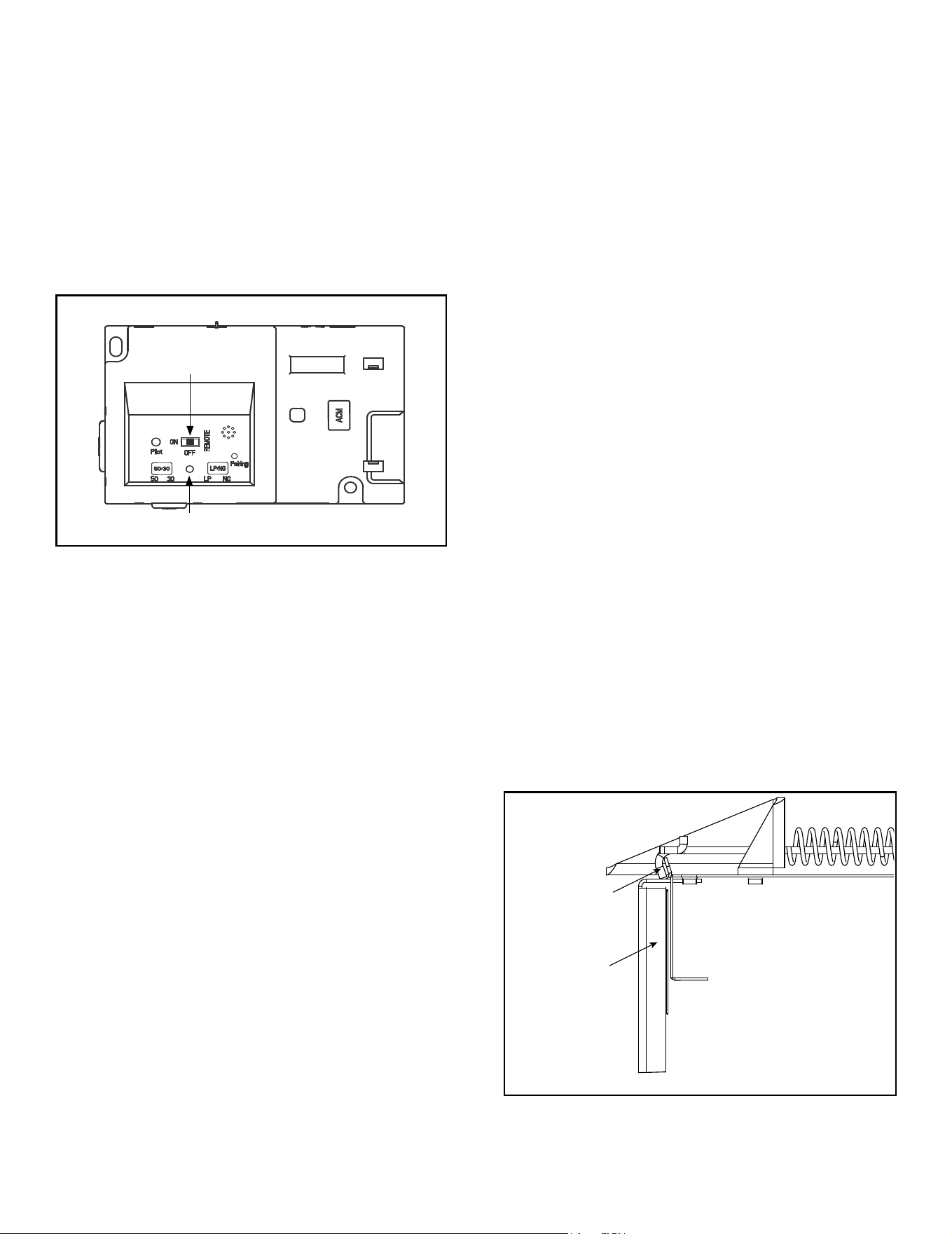

F. IntelliFire Touch
®
Control System Setup
• Detailed instructions for electrical wiring and connec-
tions are provided in Section 8.
• Determine if this appliance is equipped with a Module
Reset Switch. See Section 8. Verify this switch is in
the ON position.
• Verify that the 3-Position switch on the IFT-ECM is
switched to the REMOTE position. Detailed Operating
Instructions for the IFT-ECM are provided in Section
3.K of the Owner’s Manual.
Figure 11.3 IFT-ECM
This appliance is factory-equipped with an IntelliFire-
Touch remote control. The remote was paired to the re-
place and tested at the factory. It does not need to be
paired again, unless an accessory kit will be added at
the time of installation. If no additional accessory will be
added, simply follow steps one through seven below.
1. If installed, remove batteries from remote.
2. Verify that the new appliance has power and secure
electrical connections.
3. Adjust the ECM selector switch to ‘REMOTE’ mode.
4. Switch the master reset switch to ‘ON’ (if equipped).
5. Wait to verify LED indicator on the ECM stops ash-
ing.
6. Install batteries in the RC400 remote.
7. The RC400 remote will automatically pair to the appli-
ance as pre-set at the factory.
3 POSITION SWITCH
TOP VIEW
LED INDICATOR
G. Fixed Glass Assembly Removal and Re-
placement
WARNING! Risk of Asphyxiation! Handle xed glass
assembly with care. Inspect the gasket to ensure it is
undamaged and inspect the glass for cracks, chips or
scratches.
• DO NOT strike, slam or scratch glass.
• DO NOT operate replace with glass removed, cracked,
broken or scratched.
• Replace as a complete assembly.
Figure 11.4 Fixed Glass Assembly
GLASS
ASSEMBLY
LATCHES
(BOTH BOTTOM
AND TOP)
Removing Fixed Glass Assembly
• Remove decorative barrier front from replace and set
aside on work area.
• Pull the four glass assembly latches out of the groove
on the glass frame. Remove glass assembly from the
appliance. See Figure 11.4.
Replacing Fixed Glass Assembly
• Replace the glass assembly on the appliance. Pull out
and latch the four glass assembly latches into the groove
on the glass frame.
• Clean glass with a non-abrasive, non-ammonia based,
commercially available gas replace glass cleaner.
- Light deposits: Use a soft cloth with soap and water
- Heavy deposits: Use commercial fireplace glass
cleaner (consult with your dealer)
• Carefully set xed glass assembly in place on replace.
Hold glass in place with one hand and secure glass
latches with the other hand.
• Inspect and operate all glass latches to ensure they
move freely and no obstructions are present.
• Reinstall decorative barrier front.
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
66
H. Install Decorative Barrier Front
WARNING! Risk of Fire! Install ONLY decorative barrier
fronts approved by Hearth & Home Technologies. Unap-
proved decorative barrier fronts could cause replace to
overheat.
IMPORTANT! This fireplace requires an installed
decorative barrier front to prevent direct contact with
the hot viewing glass. DO NOT operate the replace
with the barrier removed.
Contact your dealer or Hearth & Home Technologies if
the barrier is not present or help is needed to properly
install one.
For more information refer to the instructions supplied with
your decorative barrier front.
67
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
12 12
Reference Materials
A. Vent Components Diagrams
Figure 12.1 DVP Vent Components
Pipe
Eective Length
Inches Millimeters
DVP4 4 102
DVP6 6 152
DVP12 12 305
DVP24 24 610
DVP36 36 914
DVP48 48 1219
DVP6A 3 to 6 76 to 152
DVP12A 3 to 12 76 to 305
10-1/2 in.
(267 mm)
10-7/8 in.
(276 mm)
45
°
7-3/8 in.
(187 mm)
11-3/8 in.
(289 mm)
1-1/4 in. (32 mm)
9-1/4 in.
(235 mm)
13-1/4 in.
(337 mm)
1/2 in.
TYP
DVP90ST (90° Elbow)
10 in.
(254 mm)
10 in.
(254 mm)
1 in.
(25 mm)
DVP-FS (Ceiling Firestop)
DVP45 (45º Elbow)
DVP Pipe (see chart)
Effective
Height/Length
4-7/8 in.
(124 mm)
(13 mm)
10 in.
(254 mm)
1- 1/2 in.
(38 mm)
5 in.
(127 mm)
12 in.
(305 mm)
UP
DVP-HVS (Vent Support)
12 in.
(305 mm)
14 in.
(356 mm)
1 in.
(25 mm)
8 in.
(203 mm)
6 in.
(152 mm)
DVP-WS (Wall Shield Firestop)
Finished Height: 19-3/4 in./502 mm
UNIV-AS2 (Attic Insulation Shield)
Tab=1 in.
(25.4 mm)
20-3/4 in.
(527 mm)
14 IN.
(356 MM)
14 IN.
(356 MM)
20 IN.
(508 MM)
12 IN.
(305 MM)
DVP-RDS
ROOF DECK INSULATION SHIELD
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
68

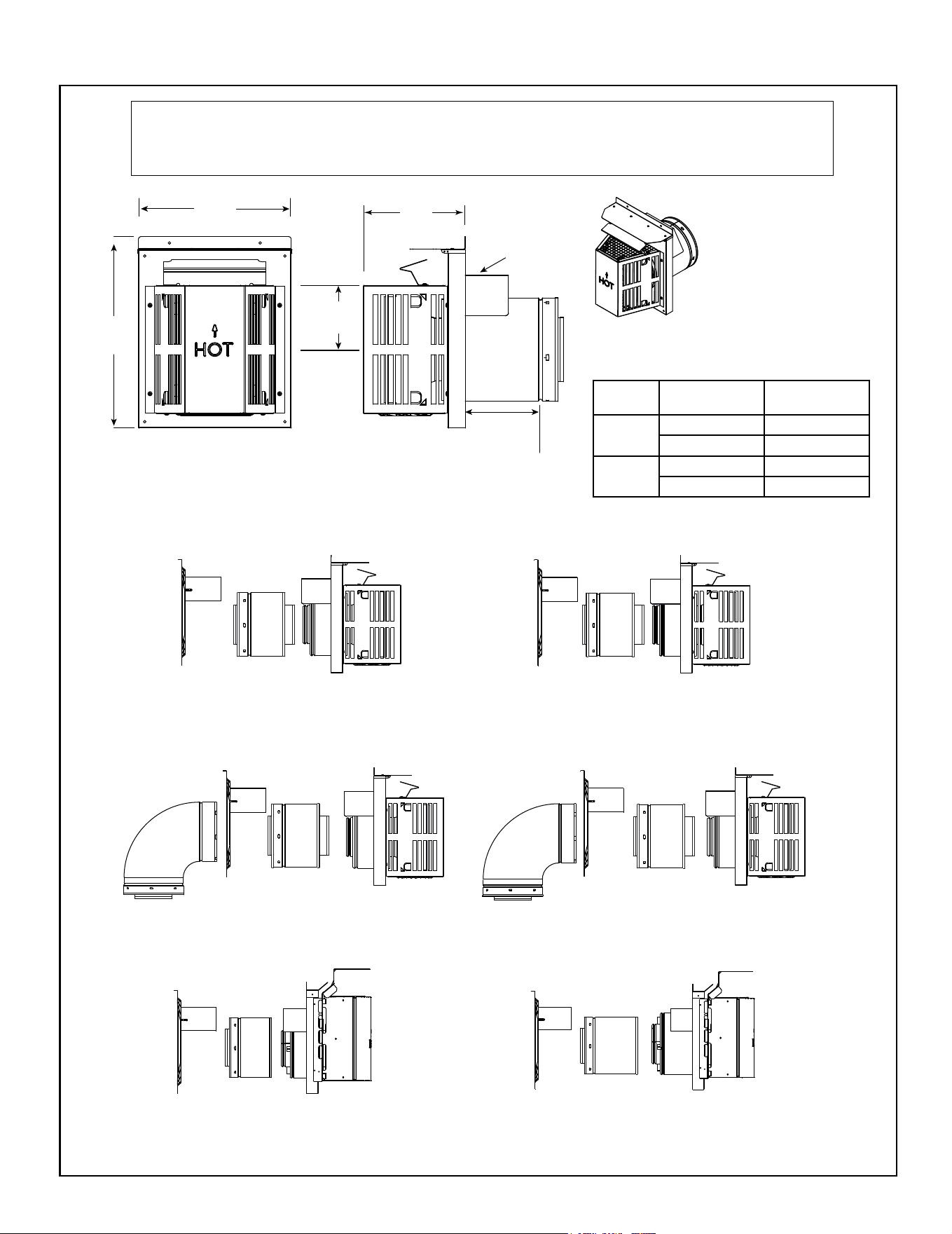

A. Vent Components Diagrams (continued)
Figure 12.2 DVP Vent Components
DVP-HPC1
Can adjust 2-1/8 in. (4-1/4 to 6-3/8)
DVP-TRAP1
DVP-TRAP2
DVP-TRAPK2
DVP-TRAPK1
DVP-TRAP
Horizontal Termination Cap
Note: Heat shields MUST overlap by a minimum of 1-1/2 in. (38 mm). The heat shield is designed to be
used on a wall 4 in. to 7-1/4 in. (102 mm to 184 mm) thick. If wall thickness is less than 4 in. (102 mm) the
existing heat shields must be field trimmed. If wall thickness is greater than 7-1/4 in. (184 mm) a DVP-HSM-B
will be required.
* Center of the horizontal vent pipe to
the vertical measuring surface.
DVP-HPC2
Can adjust 4-1/8 in. (6-3/8 to 10-1/2)
Term Cap
Minimum
Effective Length
Maximum
Effective Length
Trap1
3-1/8 in. 4-5/8 in.
79 mm 117 mm
Trap2
5-3/8 in. 9-3/8 in.
137 mm 238 mm
15-1/8 in.
(384 mm)
12 in.
(305 mm)
Heat
Shield
Max
Effective
Length
*5 in.
(127 mm)
8 in.
(203 mm)
69
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24

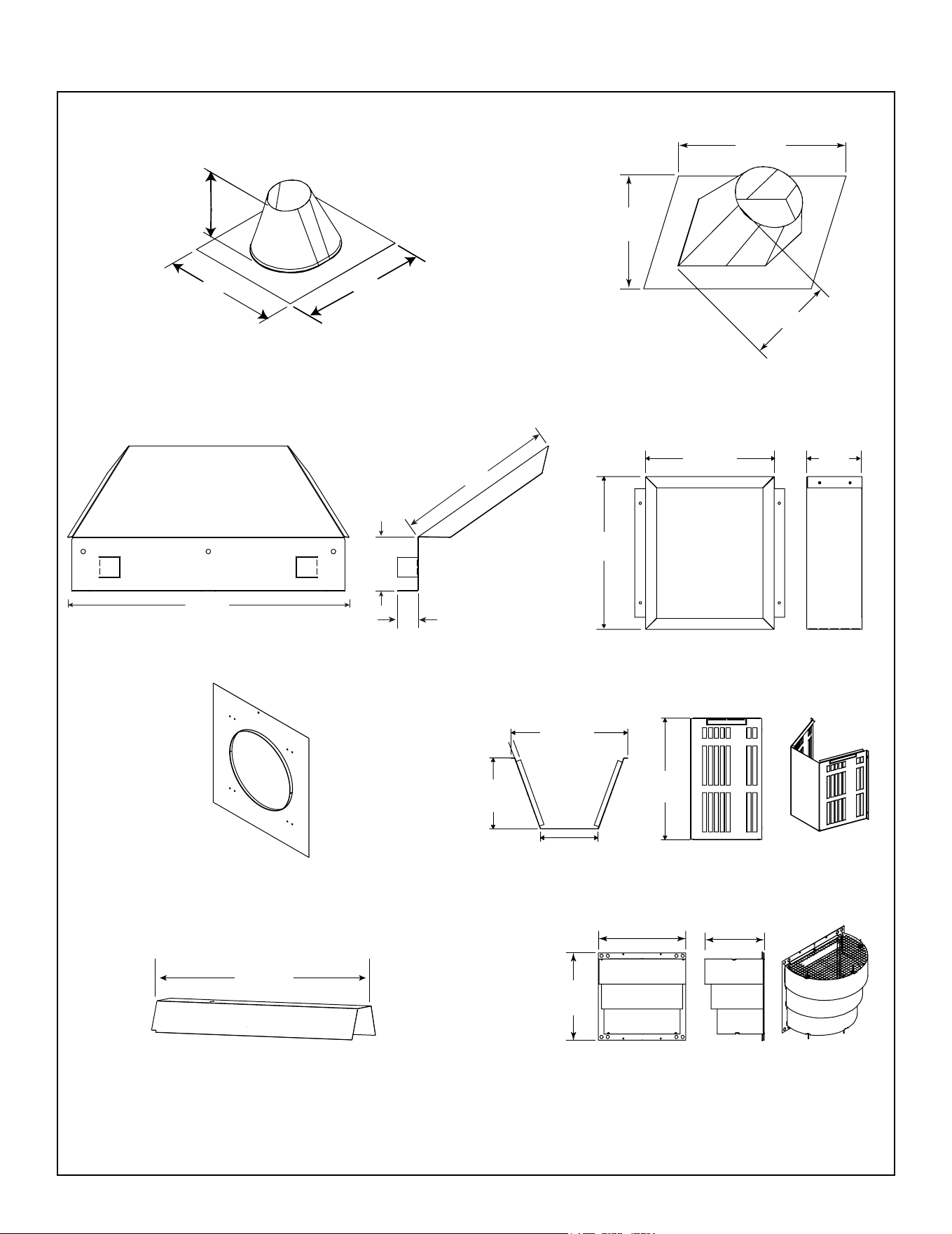

A. Vent Components Diagrams (continued)
Figure 12.3 DVP Vent Components
13-1/4 in.
(337 mm)
24-5/8 in.
(625 mm)
27-1/2 in.
(699 mm)
RF6
Roof Flashing
31 in.
(787 mm)
24-5/8 in.
(625 mm)
13-1/4 in.
(337 mm)
RF12
Roof Flashing
Cap Shield
DRC-RADIUS
13-7/8 in.
(352 mm)
9-1/2 in.
(241 mm)
14 in.
(356 mm)
COOL-ADDM
Cap Shield
11-5/8 in.
(295 mm)
5-3/4 in.
(146 mm)
7-1/8 in.
(181 mm)
12-1/8 in.
(308 mm)
DVP-BEK2
DVP-HPC Cap Brick Extension
13-7/8 in.
(352 mm)
5 in.
(127 mm)
11-7/8 in.
(302 mm)
DVP-TRAPFL
Flashing
26 in.
660 mm
DVP-HSM-B
Extended Heat Shield
TRAP-VSS
Vinyl Siding Shield
12 IN.
(305 mm)
2-3/8 IN.
(60 mm)
7 IN.
(178 mm)
15/16 IN.
(24 mm)
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
70
A. Vent Components Diagrams (continued)
Figure 12.4 DVP Vent Components
DVP-TB1
Basement Vent Cap
12 in.
(305 mm)
1-1/2 in.
(38 mm)
7-3/8 in.
(187 mm)
14 in.
(356 mm)
17-3/4 in.
(451 mm)
7-1/4 in.
12 in.
305 mm
(184 mm)
5-1/4 in.
(133 mm)
12-1/2 in.
(318 mm)
DVP-TVHW
VerticalTermination Cap (Highwind)
14 in.
(356 mm)
12 in.
(305 mm)
12-1/8 in.
(314 mm)
7-1/8 in.
(181 mm)
8-3/4 in.
(222 mm)
1-5/8 in.
(41 mm)
16-7/8 in.
(429 mm)
DVP-HPC
High Performance Cap
6 in.
152 mm
71
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24

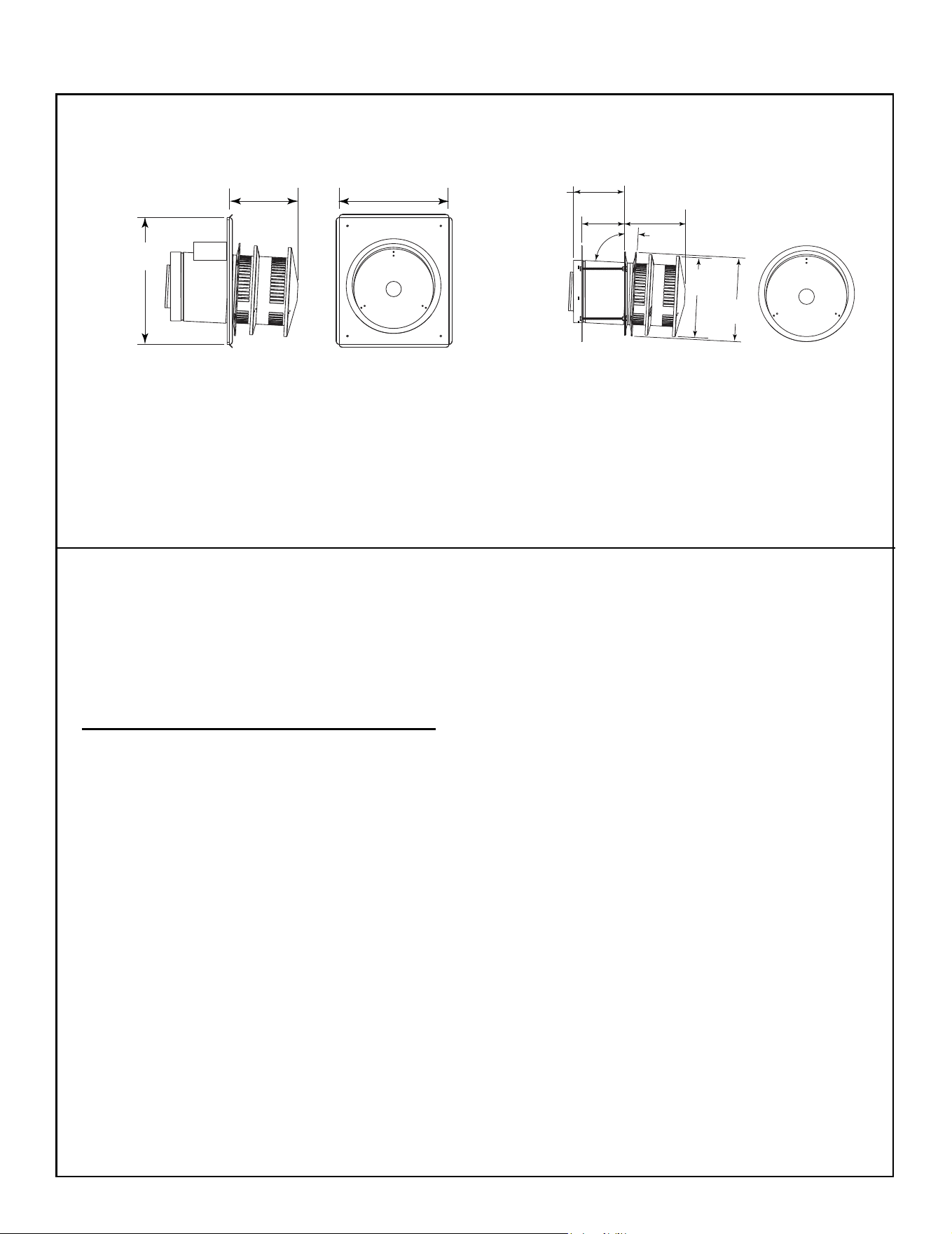

A. Vent Components Diagrams (continued)
13 in.
(330 mm)
15 in.
(381 mm)
8-1/8 in.
(206 mm)
DVP-HRC-SS
10-7/8 in.
276 mm
10-1/2 in.
267 mm
3°
87°
Effective Length
5-3/4 to 8-3/8 in.
146 to 213 mm
5-1/2 in.
140 mm
8-3/8 in.
213 mm
DVP-HRC-ZC-SS
Figure 12.5 DVP Vent Components
DECORATIVE TERMINATIONS/SHROUDS
Only use listed decorative termination caps/shrouds with Hearth & Home Technologies approved venting
systems.
This applies to both DVP and SLP venting systems.
Decorative Terminations Caps/Shrouds
DTO134
DTO146
DTS134
DTS146
LDS33
LDS46
LDS-BV
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
72
Figure 12.6 PVV-SLP Vent Components
13-5/8 IN.
13-11/16 IN.
1-3/4 IN.
4 IN.
5-7/8 IN.
3-11/16 IN.
12-1/8 IN.
TOP VIEW
SIDE VIEW
Required Wire Harness and PVV-SLEEVE
Lengths Available Part Number
Description Part Number
A. Vent Components Diagrams (continued)
PVV-SLP
Vertical Power Vent
Note: A wire harness is required to power the PVV-SLP and connect it to the appliance. It is ordered separately from
the PVV-SLP. Contact your dealer to order.
Note: The PVV-SLEEVE-12 and/or PVV-SLEEVE-48 is required to be installed with the PVV-SLP. It is ordered
separately from the PVV-SLP. Contact your dealer to order.
Note: The PVV-SLP requires one of the following options to be installed on this appliance.
Option A: IFT-RC400 and/or IFT-WFM, IFT-ACM and IntelliFire App that can be downloaded from the app store.
OR
Option B: IFT-RC150, IFT-ACM, IFT-WFM and an IntelliFire App that can be downloaded from the app store. These
accessories are purchased separately from the PVV-SLP. Contact your dealer to order.
73
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24

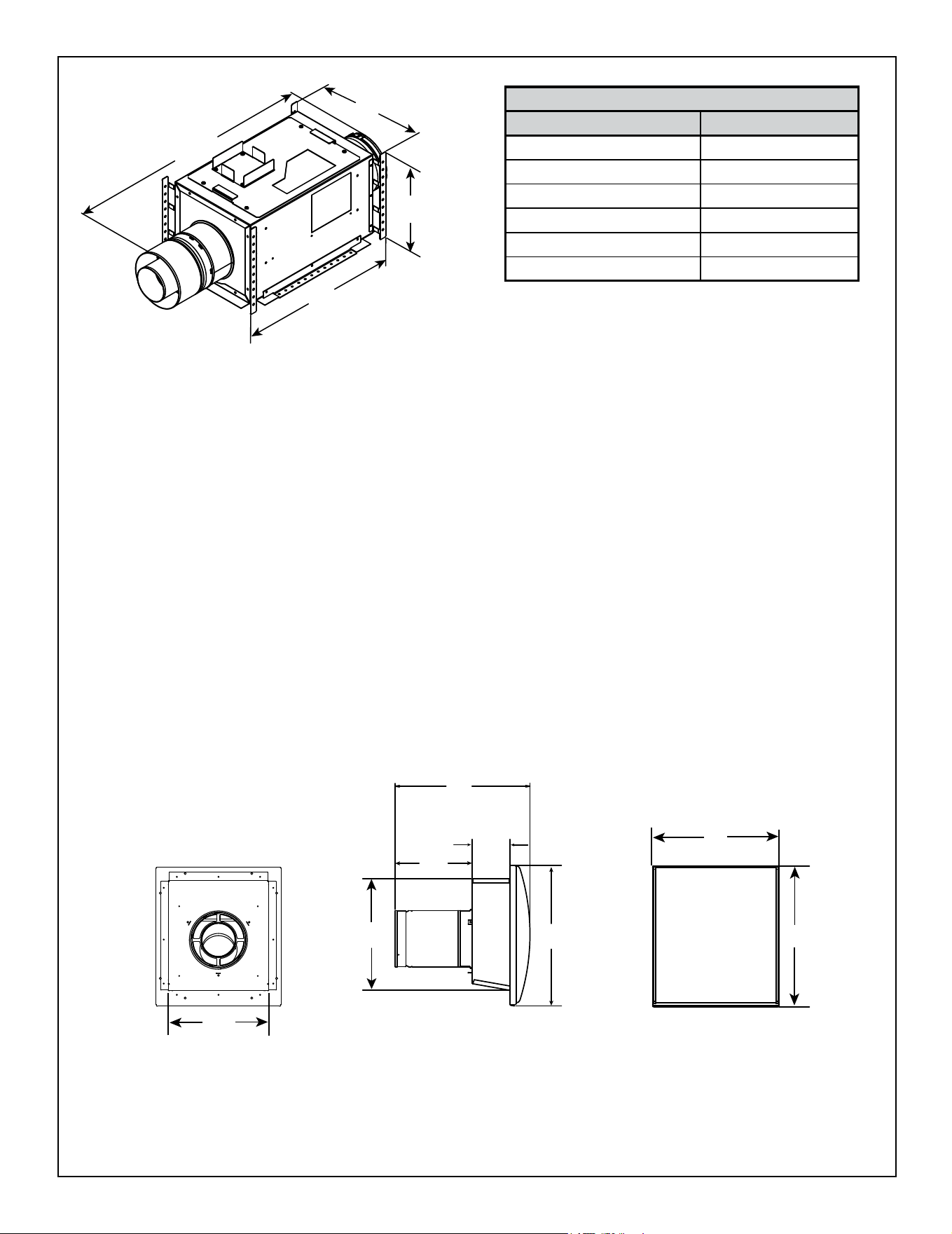

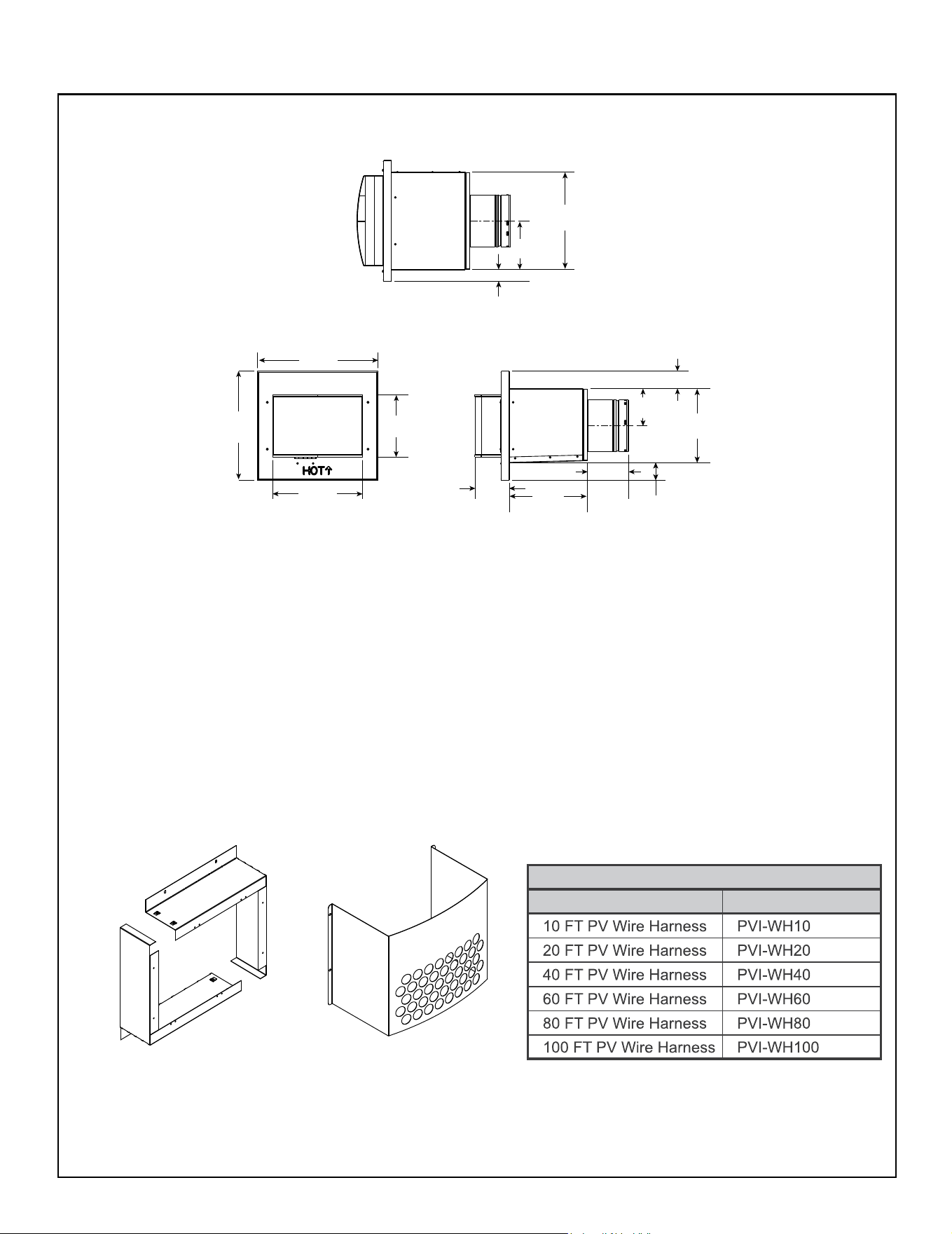

Figure 12.7 PVI-SLP-B Vent Components
Optional Wire Harness
DESCRIPTION PART NUMBER
10 FT PV Wire Harness PVI-WH10
20 FT PV Wire Harness PVI-WH20
40 FT PV Wire Harness PVI-WH40
60 FT PV Wire Harness PVI-WH60
80 FT PV Wire Harness PVI-WH80
100 FT PV Wire Harness PVI-WH100
PVI-SLP-B
Power Vent Inline
SLP-LPC
SLP Low Prole Cap
(Approved for use with PVI-SLP-B only)
Note: Wire harnesses required to power the PVI-SLP-B connect to the appliance and are ordered separately from
PVI-SLP-B. Contact your dealer to order.
16 IN.
406 mm
15 IN.
(381 mm)
16-11/16 IN.
(424 mm)
9-3/16 IN.
(233 mm)
4-1/2 IN.
114 mm
16-11/16 IN.
424 mm
13-5/8 IN.
(346 mm)
12-1/2 IN.
(318 mm)
12-1/2 IN.
318 mm
20-3/4 IN.
527 mm
13-5/8 IN.
346 mm
EFFECTIVE LENGTH
32 IN. (813 mm) MIN.
35 IN. (889 mm) MAX.
Note: The PVI-SLP-B requires one of the following options to be installed on this appliance.
Option A: IFT-RC400 and/or IFT-WFM, IFT-ACM and IntelliFire App that can be downloaded from the app store.
OR
Option B: IFT-RC150, IFT-ACM, IFT-WFM and an IntelliFire App that can be downloaded from the app store. These
accessories are purchased separately from the PVI-SLP-B. Contact your dealer to order.
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
74
A. Vent Components Diagrams (continued)
Required Wire Harness
DESCRIPTION PART NUMBER
Note: Wire harnesses required to power the PVLP-SLP connect to the appliance and are ordered separately from
PVLP-SLP. Contact your dealer to order.
Figure 12.8 PVLP-SLP Vent Components
PVLP-HS
Heat Shield
14 IN.
356 mm
15-1/2 IN.
394 mm
11-1/2 IN.
292 mm
8 IN.
203 mm
4-3/8 IN.
112 mm
10 IN.
254 mm
5-1/4 IN.
135 mm
2-1/4 IN.
57 mm
9-1/2 IN.
241 mm
4-3/4 IN.
121 mm
2-1/4 IN.
57 mm
1-1/2 IN.
38 mm
6-1/4 IN.
159 mm
Front View
Top View
Side View
Note: A PVLP-HS heat shield is available and sold separately. Use if the PVLP-SLP is installed in a high trac area.
PVLP-BEK
Brick Kit
PVLP-SLP
Power Vent Low Prole
Note: The PVLP-SLP requires one of the following options to be installed on this appliance.
Option A: IFT-RC400 and/or IFT-WFM, IFT-ACM and IntelliFire App that can be downloaded from the app store.
OR
Option B: IFT-RC150, IFT-ACM, IFT-WFM and an IntelliFire App that can be downloaded from the app store. These
accessories are purchased separately from the PVLP-SLP. Contact your dealer to order.
75
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
A. Vent Components Diagrams (continued)
Figure 12.9 SLP Series Vent Components
8-3/4 in.
222 mm
6-1/2 in.
165 mm
6-5/8 in.
168 mm
6 in.
152 mm
6-1/2 in.
165 mm
6-5/8 in.
168 mm
9-7/8 in.
251 mm
6-1/2 in.
165 mm
9-1/4 in.
235 mm
SLP45
45° Elbow
SLP90
90° Elbow
Effective
Height/
Length
SLP PIPE
SLP-HVS
Horizontal Pipe
Support
SLP-FS
Ceiling Firestop
SLP-WS
Wall Shield Firestop
DVP-SLP24
Adapter
6-1/2 in.
165 mm
25-3/16 in.
640 mm
8-1/16 in.
205 mm
10-7/8 in.
276 mm
8-7/8 in.
225 mm
1-1/2 in.
38 mm
8-11/16 in.
220 mm
8-11/16 in.
220 mm
1-1/2 in.
38 mm
12 in.
305 mm
12 in.
305 mm
5-1/2 in.
146 mm
Eective Height/Length
Pipe
inches mm
SLP4 4 102
SLP6 6 152
SLP12 12 305
SLP24 24 610
SLP36 36 914
SLP48 48 1219
SLP6A 2 - 6 51 - 152
SLP12A 2 - 12 51 - 305
SLP-FLEX-3 36 914
SLP-FLEX-5 60 1524
SLP-FLEX-10 120 3048
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
76

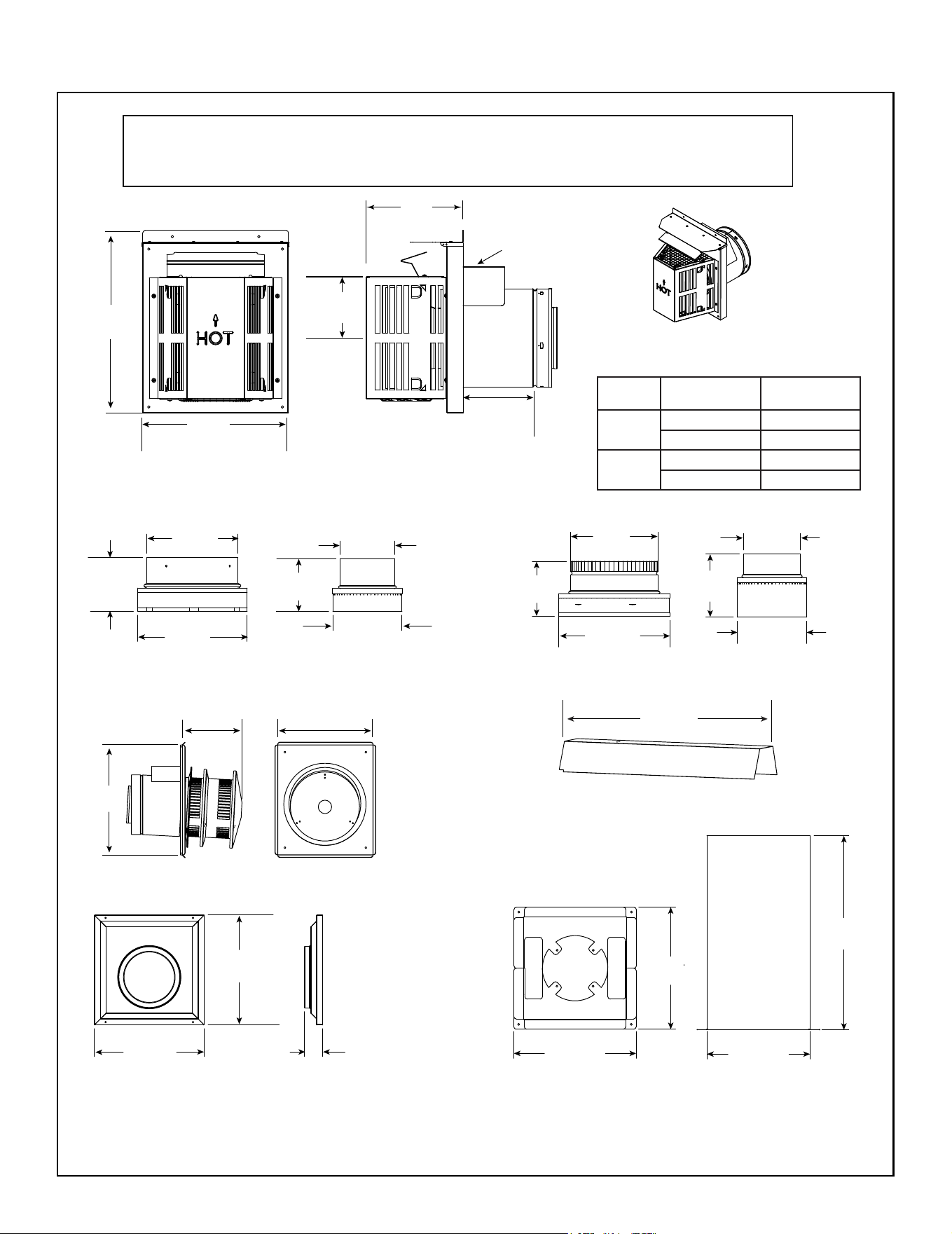

A. Vent Components Diagrams (continued)
Figure 12.10 SLP Series Vent Components
SLP-WT-BK
Wall Thimble-Black
SL-2DVP
Adapter
26 in.
660 mm
DVP-HSM-B
Extended Heat Shield
SLP-TRAP
Horizontal Termination Cap
15-1/8 in.
(384 mm)
Note: Heat shields MUST overlap by a minimum of 1-1/2 in. (38 mm). The heat shield is designed to be
used on a wall 4 in. to 7-1/4 in. (102 mm to 184 mm) thick. If wall thickness is less than 4 in. (102 mm)
the existing heat shields must be field trimmed. If wall thickness is greater than 7-1/4 in. (184 mm) a
DVP-HSM-B will be required.
Term Cap
Minimum
Effective Length
Maximum
Effective Length
Trap1
3-1/8 in. 4-3/4 in.
79 mm 121 mm
Trap2
5-1/4 in. 9-1/4 in.
133 mm 235 mm
12 in.
(305 mm)
14-7/16 in.
367 mm
14-7/16 in.
367 mm
2-5/16 in.
59 mm
3-15/16 in.
(101 mm)
6-11/16 in.
(169 mm)
8 in.
(203 mm)
3-15/16 in.
(101 mm)
3-13/16 in.
(97 mm)
5-1/16 in.
(128 mm)
6-3/8 in.
163 mm
4-3/16 in.
106 mm
4-5/8 in.
117 mm
5-1/16 in.
128 mm
8-1/8 in.
206 mm
DVP-2SL
Adapter
4 in.
102 mm
13 in.
(330 mm)
15 in.
(381 mm)
8-1/8 in.
(206 mm)
SLP-HRC-SS
Horizontal Termination Cap
12-5/8 IN.
(321 mm)
12-5/8 IN.
(321 mm)
20 IN.
(508 mm)
10-5/8 IN.
(270 mm)
SLP-RDS
ROOF DECK INSULATION SHIELD
* Center of the horizontal vent pipe to
the vertical measuring surface.
Heat
Shield
Max
Effective
Length
*5 in.
(127 mm)
8 in.
(203 mm)
77
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
13 in.
330 mm
13 in.
330 mm
1-5/16 in.
34 mm
10-9/16 in.
269 mm
14 in.
356 mm
12-1/2 in.
318 mm
12 in.
305 mm
SLP-CCS-BK
Cathedral Ceiling
Support Box-Black
SLP-DCF-BK
Ceiling Firestop
Black
SLK-SNKD
Snorkel
Termination Cap
SLP-TVHW
Vertical
Termination Cap
13-1/2 in.
343 mm
28-1/2 in.
724 mm
10-11/16 in.
271mm
17-7/8 IN.
454 mm
7-3/8 IN.
187 mm
14 IN.
356 mm
12 IN.
305 mm
SLP-TB1
Basement Vent Cap
4-3/4 in.
121 mm
4-1/8 in.
105 mm
6 IN.
152 mm
SLP-FLEX-TRAP
Horizontal
Termination Kit
14-1/16 IN.
357 mm
15-1/16 IN.
383 mm
10-1/16 IN.
256 mm
9 IN.
229 mm
9-7/16 IN.
240 mm
14-1/16 IN.
357 mm
A. Vent Components Diagrams (continued)
Figure 12.11 SLP Series Vent Components
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
78

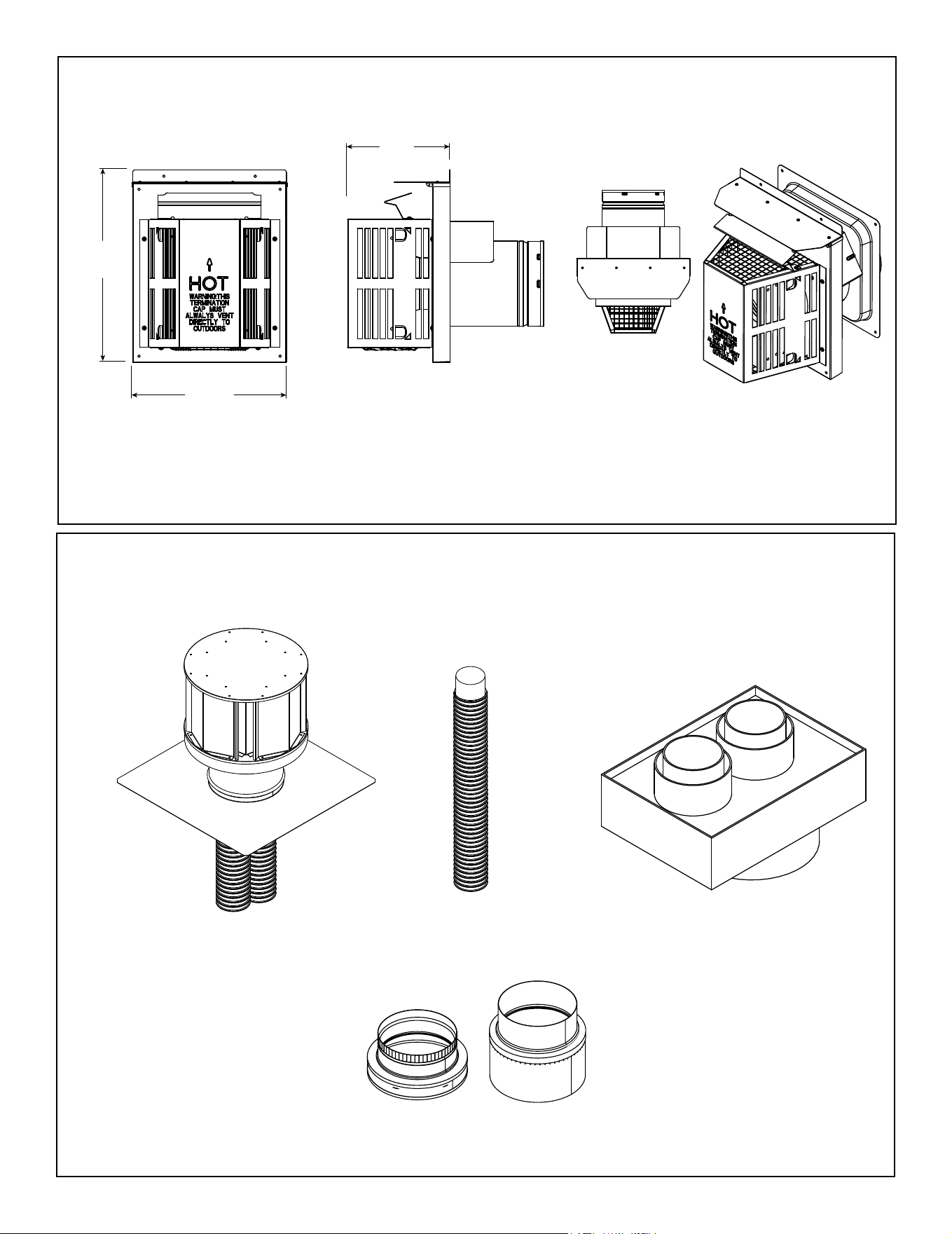

LINK-DV30B
Flex Liner Kit
DV-46DVA-GCL
Coaxial/Colinear Appliance Connector
768-380A
Required Stainless Steel Flex Pipe
DVP-2SL
Adapter
COAXIAL to COLINEAR VENTING
Figure 12.13 Coaxial to Colinear Vent Components
Figure 12.12 SLP series Vent Components
SLP-HHW2
Horizontal High Wind Termination Cap
15-1/8 in.
(384 mm)
12 in.
(305 mm)
8 in.
(203 mm)
79
Majestic • QUARTZPLA36IN / QUARTZPLA36IL Installation Manual • 2643-980 Rev. D • 5/24
B. Accessories
WARNING! Risk of Fire and Electric Shock! Use ONLY Hearth & Home Technologies-approved optional accessories with
this appliance. Using non-listed accessories could result in a safety hazard and will void the warranty.
Contact your dealer for more information and details, such as color options, on individual accessories. A qualied service
technician must install the approved accessories. Operate installed accessories according to the included instructions.
Note: Some optional accessories must be installed at the time of appliance installation. See Section 2.A.
Printed in U.S.A. - Copyright 2024
Options:
Remote Controls, Wall Controls and Wall Switches
IFT-RC150-HNG IntelliFire Touch wireless wall switch
IntelliFire Wi-Fi module with IntelliFire App
IFT-WFM IntelliFire Wi-Fi module for app
Refractory Kits (Quantity 1 Required)
BRICK36TBPLA Brick Refractory Kit, Tavern Brown
GLQUARTZ36PLA Reective Black Glass Refractory Kit
Heat Management Systems Kits
HEAT-OUT-GAS Heat-Out-Gas Kit
HEAT-ZONE-GAS Heat-Zone-Gas Kit
Majestic, a brand of Hearth & Home Technologies
7571 215
th
Street West, Lakeville, MN 55044
www.majesticproducts.com
Please contact your Majestic dealer with any questions or concerns.
For the location of your nearest Majestic dealer,
please visit www.majesticproducts.com.
