PAGE 1 OF 15
WIFI+BT Module
Model Number:DT3HR1601
1. General Description
This document is to specify the product requirements for 802.11a/b/g/n USB Module. This Card is
based on Realtek RTL8733BU-CG chipset which features a low power 1x1 11a/b/g/n dual-band Wi-Fi
subsystem and a Bluetooth subsystem. It combines a WLAN MAC
，
a 1T1R capable WLAN baseband, BT
protocol Stack(LM,LL and LE) ,BT Baseband, modem, and WLAN/BT RF in a combo chip. It provides a
complete solution for a high-performance integrated wireless LAN and Bluetooth controller.
2. Features
Compatible with IEEE 802.11a standard to provide wireless 54Mbps data rate
Compatible with IEEE 802.11b standard to provide wireless 11Mbps data rate
Compatible with IEEE 802.11g standard to provide wireless 54Mbps data rate
Compatible with IEEE 802.11n standard to provide wireless 150Mbps data rate
Support 20MHz, 40MHz bandwidth in 2.4G band and 5G band
802.11i(WPA,WPA2).Open, shared key, and pair-wise key authentication services
Operation at 2.4~2.5GHz and 5.15~5.825GHz frequency band to meet worldwide regulations
Bluetooth specification 2.1+EDR
Bluetooth 4.2 Low Energy (LE)
Bluetooth 5.2
Complies with USB2.0 for WLAN and BT controller
HSF compliant
PAGE 2 OF 15

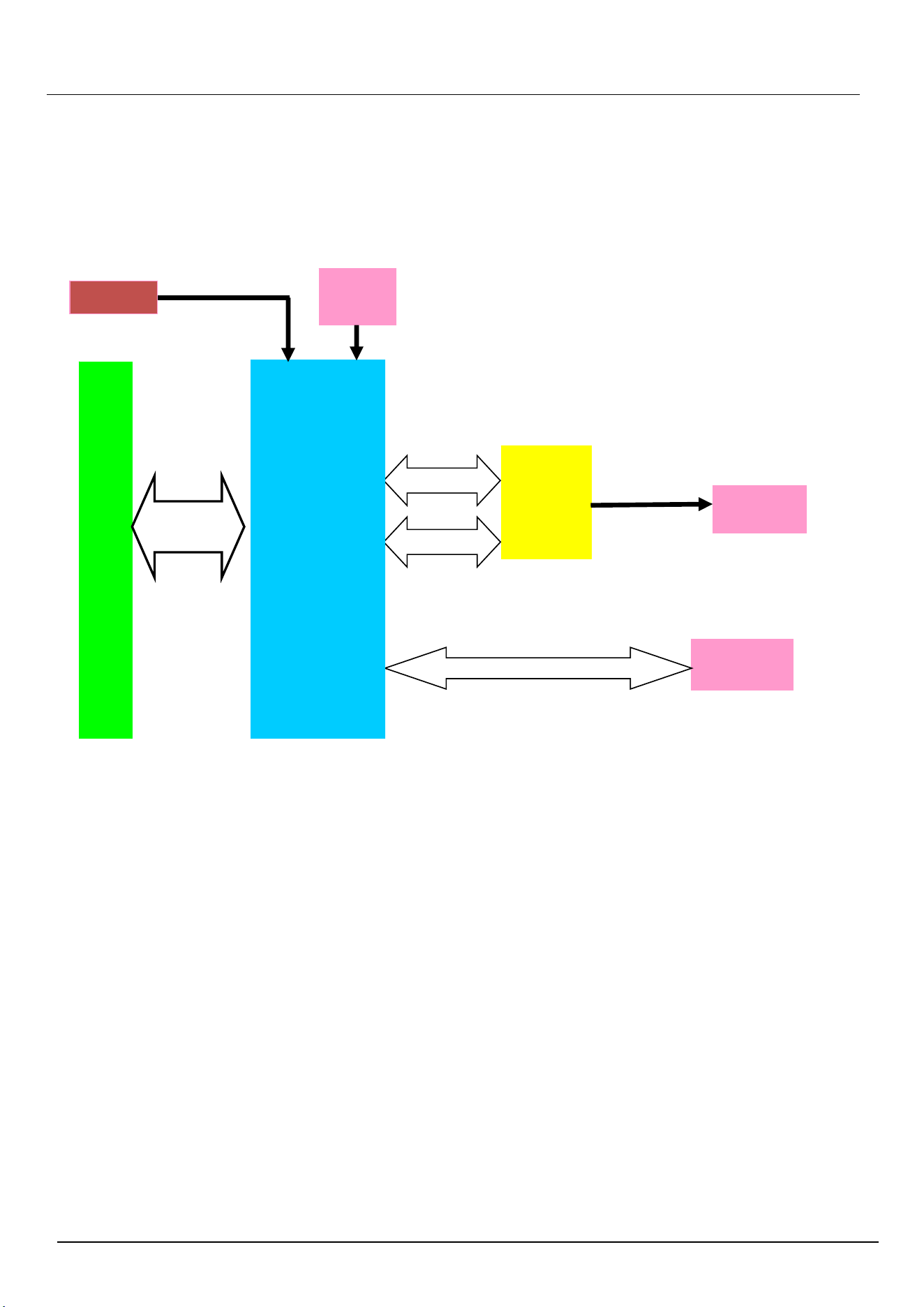

3. Functional Block Diagrams
ANT
（BT）
BT TX/RX
Diplexer
CON1
（
WIFI
）
2.4G TX / RX
5G TX / RX
USB2.0_Interface
RTL8733
BU
Crystal
40MHz
Interface
Signals
3.3V
PAGE 3 OF 15
4. RF Characteristics
4.1 Part of 2.4GHz
4.1.1 IEEE 802.11b Section
Feature
Detailed Description
4.1.1.1 Standard ● IEEE 802.11b
4.1.1.2 Modulation Type ● DQPSK,DBPSK and CCK with DSSS
4.1.1.3
Operating
Frequency
● 2400 ~ 2483.5 MHz ISM band
4.1.1.4 Channel Numbers ● 13 channels for worldwide
4.1.1.5 Data Rate ● at most 11Mbps
4.1.1.6
Transmitter Output
Power at Antenna
Connector
Typical RF Output Power at each RF chain@25℃
● 17±2dBm at 11Mbps
4.1.1.7 EVM
● 1Mbps: ≤-10dB
● 11Mbps: ≤-10dB
4.1.1.8
Receiver
Sensitivity
at Antenna
Connector
PER≤8% @25℃
● 1Mbps: ≤-83dBm
● 11Mbps: ≤-76dBm
4.1.1.9 Frequency Error ● ±20ppm
4.1.2 IEEE 802.11g Section
Feature
Detailed Description
4.1.2.1 Standard ● IEEE 802.11g
4.1.2.2 Modulation Type ● BPSK,QPSK,16QAM,64QAM with OFDM
4.1.2.3
Operating
Frequency
● 2400 ~ 2483.5MHz ISM band
4.1.2.4 Channel Numbers ● 13 channels for worldwide
4.1.2.5 Data Rate ● at most 54Mbps
4.1.2.6
Transmitter Output
Power at Antenna
Connector
Typical RF Output Power at each RF chain@25℃
● 15±2dBm at 54Mbps
4.1.2.7 EVM
● 6Mbps:≤-5dB
● 54Mbps:≤-25dB
4.1.2.8
Receiver
Sensitivity
at Antenna
Connector
PER≤10% @ 25℃
● 6Mbps: ≤-85dB
● 54Mbps:≤-65dB
4.1.2.9 Frequency Error ● ±20ppm
PAGE 4 OF 15
4.1.3 IEEE 802.11n HT20 Section
Feature
Detailed Description
4.1.3.1 Standard ● IEEE 802.11n
4.1.3.2 Modulation Type ● BPSK,QPSK,16QAM,64QAM with OFDM
4.1.3.3
Operating
Frequency
● 2400 ~ 2483.5MHz ISM band
4.1.3.4 Data Rate ● at most 72Mbps
4.1.3.5
Transmitter Output
Power at Antenna
Connector
Typical RF Output Power at each RF chain@25℃
● 14±2dBm at MCS7
4.1.3.6 EVM
● MCS0:≤-5dB
● MCS7:≤-28dB
4.1.3.7
Receiver
Sensitivity
at Antenna
Connector
PER≤10% @ 25℃
● MCS0:≤-82dBm
● MCS7:≤-64dBm
4.1.3.8 Frequency Error ● ±20ppm
4.1.4 IEEE 802.11n HT40 Section
Feature
Detailed Description
4.1.4.1 Standard ● IEEE 802.11n
4.1.4.2 Modulation Type ● BPSK,QPSK,16QAM,64QAM with OFDM
4.1.4.3
Operating
Frequency
● 2400 ~ 2483.5MHz ISM band
4.1.4.4 Data Rate ● at most 150Mbps
4.1.4.5
Transmitter Output
Power at Antenna
Connector
Typical RF Output Power at each RF chain@25℃
● 14±2dBm at MCS7
4.1.4.6 EVM
● MCS0:≤-5dB
● MCS7:≤-28dB
4.1.4.7
Receiver
Sensitivity
at Antenna
Connector
PER≤10% @ 25℃
● MCS0:≤-79dBm
● MCS7:≤-61dBm
4.1.4.8 Frequency Error ● ±20ppm
PAGE 5 OF 15
4.2 Part of 5GHz
4.2.1 IEEE 802.11a Section
Feature
Detailed Description
4.2.1.1 Standard ● IEEE 802.11a
4.2.1.2 Modulation Type ● BPSK,QPSK,16QAM,64QAM with OFDM
4.2.1.3
Operating
Frequency
● 5.15~5.25GHz
● 5.25~5.35GHz
● 5.47~5.725GHz
● 5.725~5.85GHz
4.2.1.4 Data Rate ● at most 54Mbps
4.2.1.5
Transmitter Output
Power at Antenna
Connector
Typical RF Output Power at each RF chain@25℃
● 15±2dBm at 54Mbps
4.2.1.6 EVM
● 6Mbps: ≤-5dB
● 54Mbps:≤-25dB
4.2.1.7
Receiver
Sensitivity
at Antenna
Connector
PER≤10% @ 25℃
● 6Mbps: ≤-85dB
● 54Mbps:≤-65dB
4.2.1.8 Frequency Error ● ±20ppm
4.2.2 IEEE 802.11n HT20 Section
Feature
Detailed Description
4.2.2.1 Standard ● IEEE 802.11n
4.2.2.2 Modulation Type ● BPSK,QPSK,16QAM,64QAM with OFDM
4.2.2.3
Operating
Frequency
● 5.15~5.25GHz
● 5.25~5.35GHz
● 5.47~5.725GHz
● 5.725~5.85GHz
4.2.2.4 Data Rate ● at most 72Mbps
4.2.2.5
Transmitter Output
Power at Antenna
Connector
Typical RF Output Power at each RF chain@25℃
● 14±2dBm at MCS7
4.2.2.6 EVM
● MCS0:≤-5dB
● MCS7:≤-28dB
4.2.2.7
Receiver
Sensitivity
at Antenna
Connector
PER≤10% @ 25℃
● MCS0:≤-82dBm
● MCS7:≤-64dBm
4.2.2.8 Frequency Error ● ±20ppm
PAGE 6 OF 15
4.2.3 IEEE 802.11n HT40 Section
Feature
Detailed Description
4.2.3.1
Standard
● IEEE 802.11n
4.2.3.2
Modulation Type
● BPSK,QPSK,16QAM,64QAM with OFDM
4.2.3.3
Operating
Frequency
● 5.15~5.25GHz
● 5.25~5.35GHz
● 5.47~5.725GHz
● 5.725~5.85GHz
4.2.3.4
Data Rate ● at most 150Mbps
4.2.3.5
Transmitter Output
Power at Antenna
Connector
Typical RF Output Power at each RF chain@25℃
● 14±2dBm at MCS7
4.2.3.6
EVM
● MCS0:≤-5dB
● MCS7:≤-28dB
4.2.3.7
Receiver
Sensitivity
at Antenna
Connector
PER≤10% @ 25℃
● MCS0:≤-79dBm
● MCS7:≤-61dBm
4.2.3.8
Frequency Error ● ±20ppm
PAGE 7 OF 15
4.3 Part of BT
4.3.1 Bluetooth Section
Feature
Detailed Description
4.3.1.1
Bluetooth standard ● Bluetooth V2.1+EDR,4.2 and 5.2
4.3.1.2
Modulation ● GFSK,π/4-DQPSK and 8DPSK
4.3.1.3
Operating
Frequency
● 2402MHz-2480MHz
4.3.1.4
Channel Numbers
● 79 channels
for BDR+EDR
●
40 channels for BLE
4.3.1.5
Symbol Rate ●
1,2 and 3Mbps
Min（dBm） Typical（dBm） Max（dBm）
4.3.1.6
BDR Output Power
3
6
9
BLE Output Power
3
6
9
4.3.1.7
Sensitivity
@BER=0.1% FOR
GFSK(1Mbps)
-96 -86 -70
Sensitivity
@BER=0.01% FOR
π/4-DQPSK(2Mbps)
-96 -86 -70
Sensitivity
@BER=0.01% FOR
8DPSK(3Mbps)
-96 -80 -70
Sensitivity
@PER=30.10% FOR
BLE
-90
4.3.1.8
Maximum input level
● GFSK(1Mbps): -20dBm
● π/4-DQPSK(2Mbps): -20dBm
● 8DQPSK(3Mbps): -20dBm
PAGE 8 OF 15
5. Thermal and Electrical Characteristics
5.1 General Characteristics
5.2 Temperature Limit Ratings
Parameter
Minimum
Maximum
Units
Storage
Temperature
-40
+80
℃
Ambient
Operating
Temperature
0
+70
℃
Junction
Temperature
0
+125
℃
5.3 DC Characteristics
Feature Detailed Description
Operating Voltage ● 3.3V±10%
Current
Consumption
● ＜1000mA@TX
● ＜300mA @RX
Form Factor and
Interface
● USB2.0 interface for WIFI&
BT
Symbol Parameter Min TYPE Max Unit
V
IL
Input Low Voltage
-- 0 0.5
V
V
IH
Input High Voltage
2.0 3.3 3.6
V
V
OL
Output Low Voltage
0 -- 0.33
V
V
0H
Output High Voltage
2.97 3.3 3.6
V
PAGE 9 OF 15
6. Mechanical Characteristics
6.1 General Characteristics
Feature Detailed Description
6.1.1 Length ● 30mm
6.1.2 Width ● 25mm
6.1.3 Height
● 1.0mm(PCB)
● 2.5mm（module）
6.1.4 Weight ● TBD

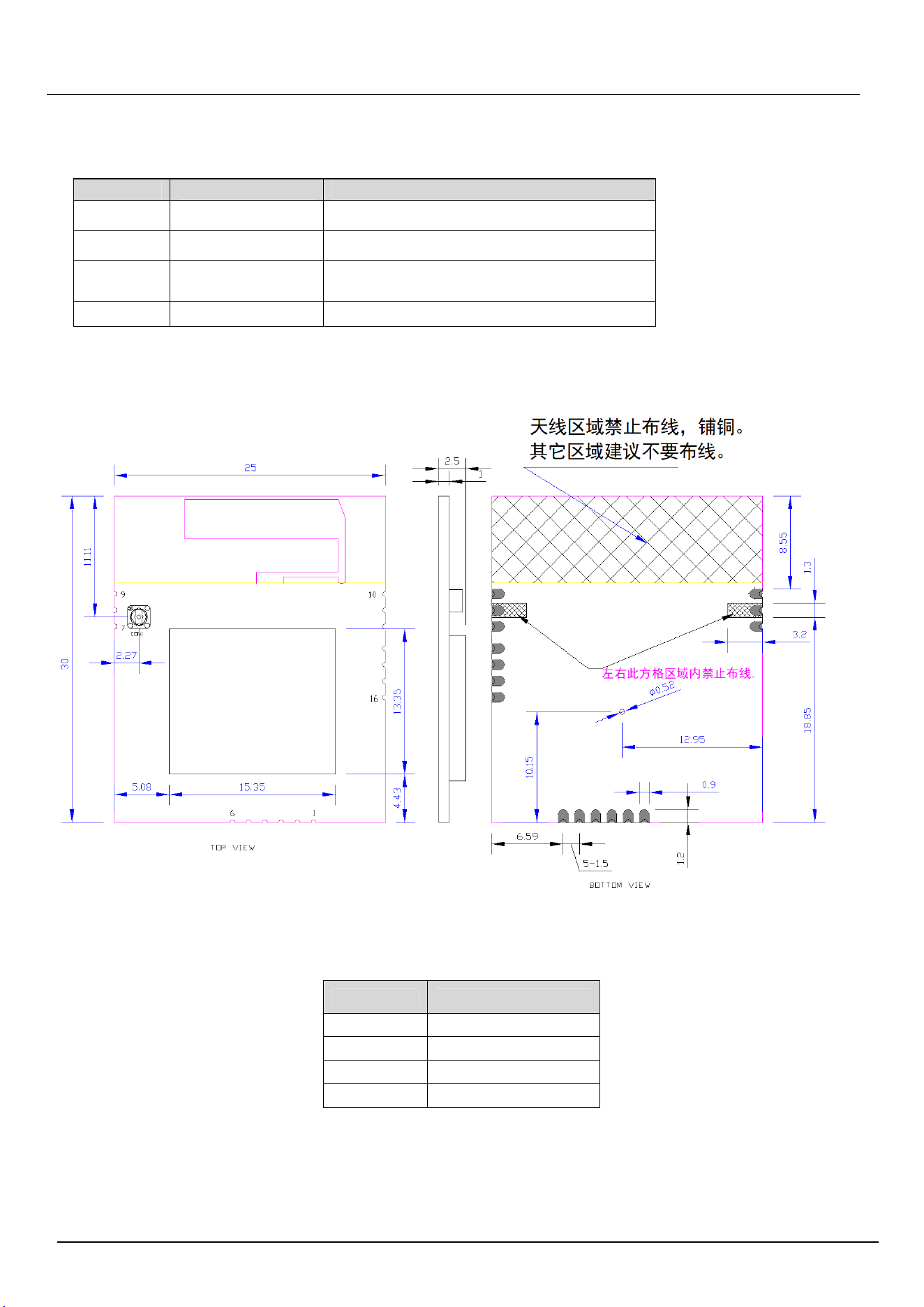

6.2 Mechanical Dimensions
CON1: TX/RX（WIFI）
尺寸误差范围：（PCBA≤0.15mm）
DIM(MM) Tolerance(MM)
0-5 ±0.15
5-10 ±0.20
10-50 ±0.30
>50 ±0.40
PAGE 10 OF 15
6.3 Pin Description

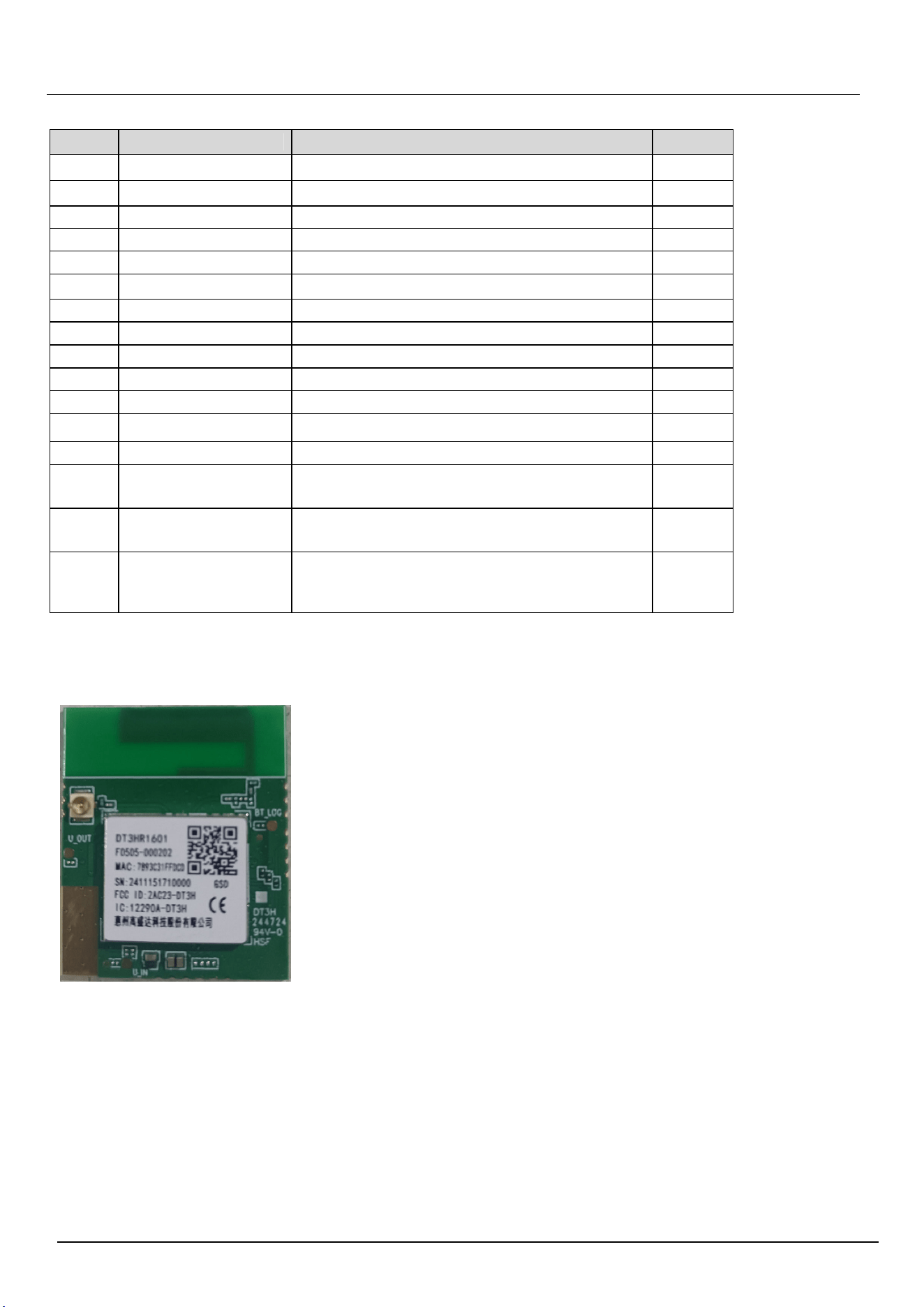

6.4 Product picture
Pin Symbol Remark I/O
1
GND Ground -
2 D-
USB D- IO
3 D+ USB D+ IO
4 GND G
r
ound -
5 VDD3.3
Power supply P
6
VDD3.3 Power supply P
7
GND Ground -
8
NC NC -
9 GND
Ground -
10 GND Ground -
11 NC NC （RF Reserve for BT） -
12 GND Ground -
13 GND Ground -
14
BT_HOSTWAKE BT wake host
（Internal 10k resistor
p
ull u
p
3.3V）
O
15 WL_HOST_WAKE
WiFi wake host
（Internal 10k resistor
p
ull u
p
3.3V）
O
16 RESERT
Reset controlled by main SOC
（Internal 100k resistor pull up 3.3V and 0.1uF
ca
p
acitor to
g
round）
I
PAGE 11 OF 15
7. Label list &Package
7.1 Module Label
（
TBD
）

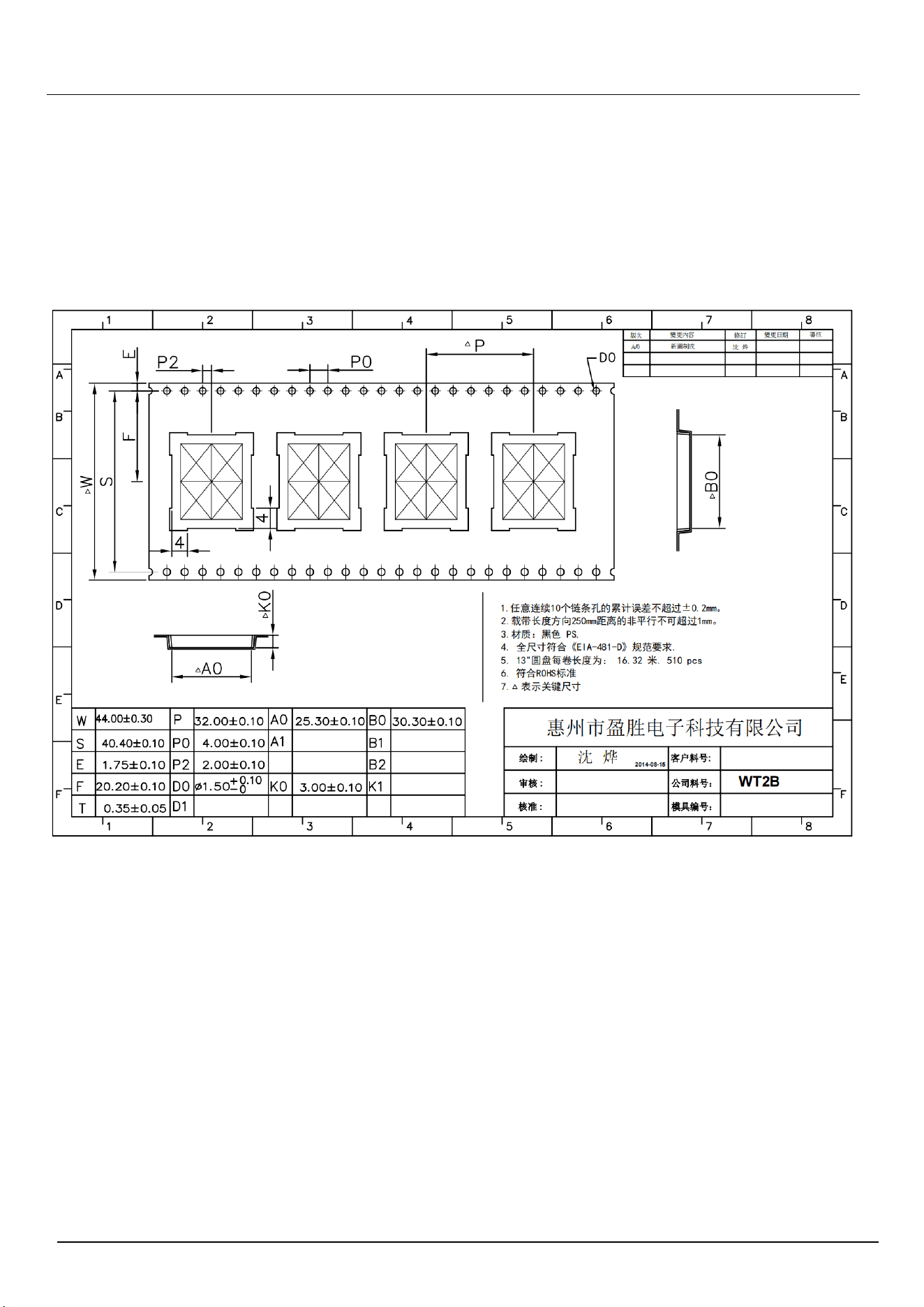

7.2 Package
（
TBD
）
PAGE 12 OF 15
8. Power on sequence timing & Reset

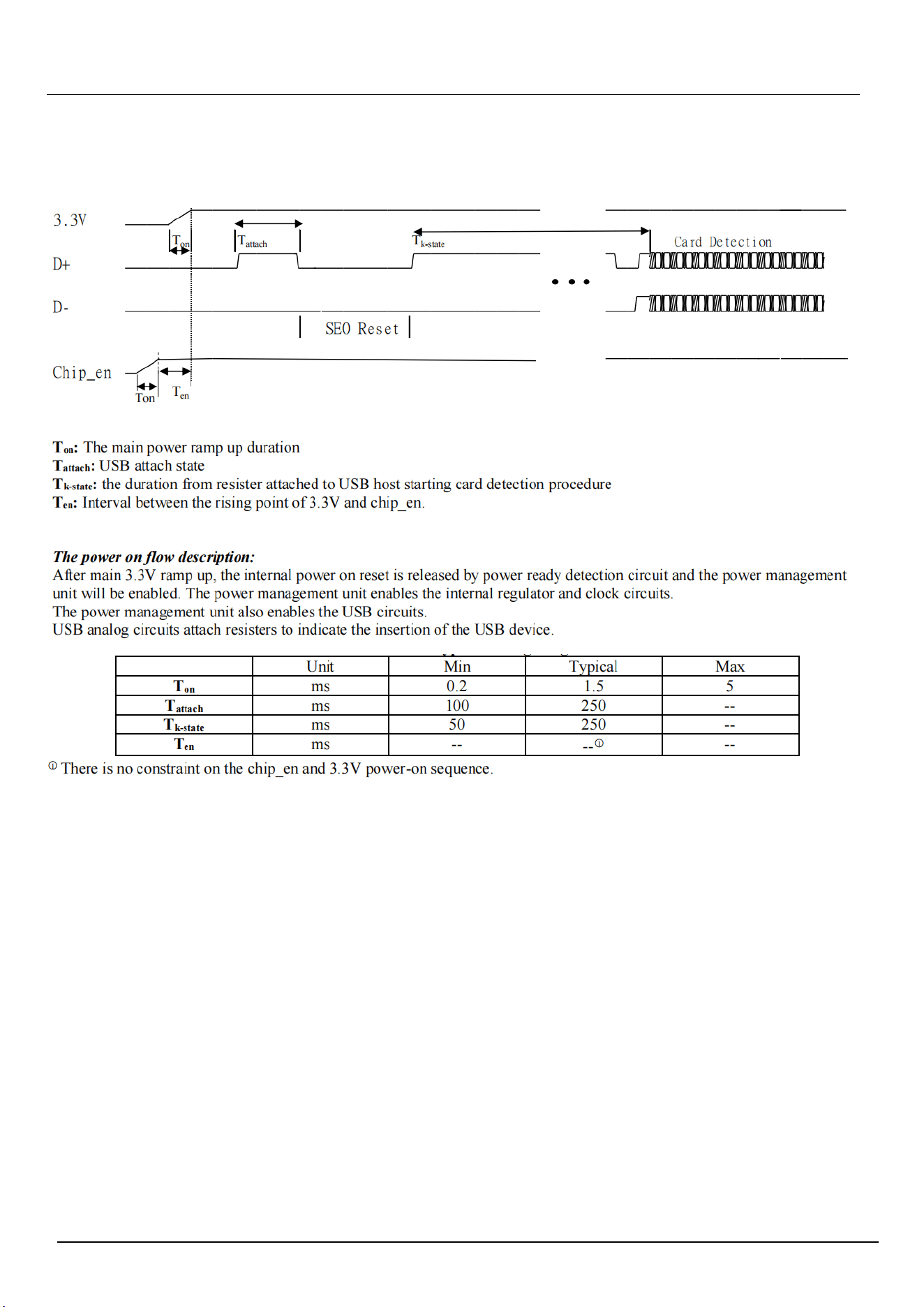

Power on Sequence
PAGE 13 OF 15

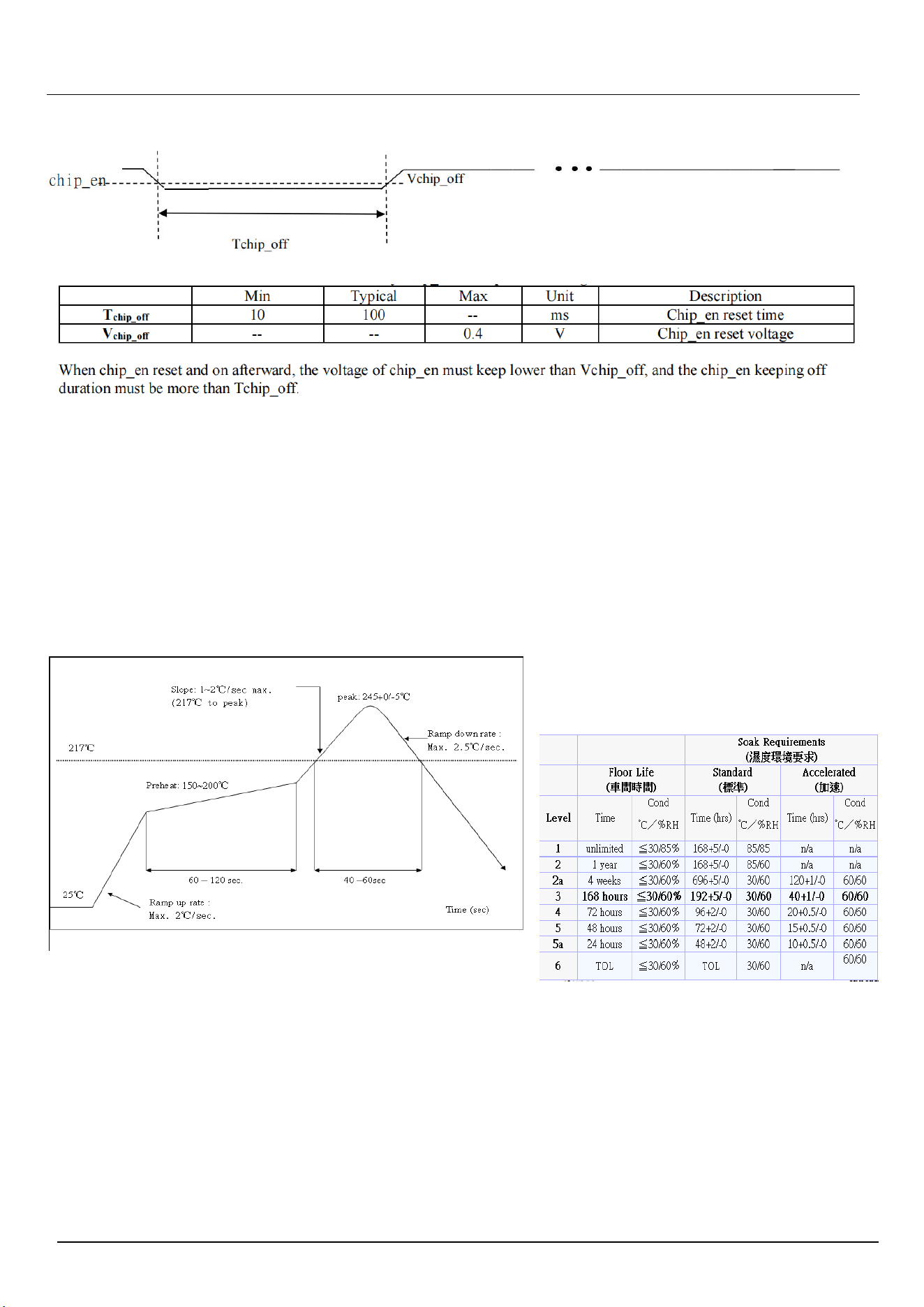

Pin 16 RESERT (Chip_en RESET Power Sequence)
9. BOM(Part List)
关键器件清单
TBD
10. MSL
Moisture Sensitivity Level（MSL）: JEDEC
L3
11. Recommended Reflow Profile
Referred to IPC/JEDEC standard. Peak Temperature : <250°C Number of Times : ≤2 time
PAGE 14 OF 15
12. Wireless module before the SMT note:
1.When the customer makes the steel mesh, ensure that the hole is larger than the size of the wifi module
pad,please press 1 to 1 and 0.7 mm is widened to open outward, the thickness of 0.12 mm.
2.Can't get the wifi module bare hands when needs,must we wear the gloves and static ring.
3.The furnace temperature according to the size of the customer the mainboard ,generally like to stick on a
tablet standard temperature of 245±5℃
4.Storage and use wifi module control should pay attention to the following matters:
Module of the storage life of vacuum packaging:
4.1.1.Storage life:12 months.Storage conditions:<40℃.Relative humidity:<90%R.H.
4-2.After this bag is opened,devices that will be subjected to infrared reflow,vapor-phase reflow,or
equivalent processing must be:
4-3.Check the humidity card :
stored at≦20%RH.If :30%~40%(pink)or greater than 40%(red),module has moisture absorption.
① Mounthed within 168 hours at factory
conditions of:t≦30%℃,≦60%RH.
② Once opened,the workshop the preservation of life for 168 hours.
4-4.If baking is required,devices may be baked for:
① Modules must be to remove module moisture problem.
② Baking temperature:50℃,72hours.
③ After baking,put proper amount of desiccant to seal packages.
4-5.The actual number of module vacuum packing which is based on the actual number of packages to the
customer requirements.
5.Module reel packaging items as follows.
5-1.Storage life:12 months.Storage conditions:<40℃.Relative humidity:<90%R.H.
5-2.Module apart packing after 168 hours,to launch patch need to bake,to remove the module hygroscopic.
Baking temperature conditions:50℃,72 hours.
5-3. The actual number of module reel packing which is based on the actual number of packages to the
customer requirements.
FCC Statement
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Please notice that if the FCC identification number is not visible when the module is installed inside
another device, then the outside of the device into which the module is installed must also display a
label referring to the enclosed module. This exterior label can use wording such as the following:
“Contains FCC ID:2AC23- DT2H” any similar wording that expresses the same meaning may be
used.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator & your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
PAGE 15 OF 15
The module is limited to OEM installation ONLY.
The OEM integrator is responsible for ensuring that the end-user has no manual instruction to
remove or install module.
The module is limited to installation in mobile application.
A separate approval is required for all other operating configurations, including portable
configurations with respect to Part 2.1093 and difference antenna configurations.
There is requirement that the grantee provide guidance to the host manufacturer for compliance
with Part 15B requirements.
The module complies with FCC Part 15.247 / Part 15.407 and apply for Single module approval.
Trace antenna designs: Not applicable.
The end user manual shall include all required regulatory information/warning as shown in this
manual, include:
This product must be installed and operated with a minimum distance of 20 cm between the
radiator and user body.
Antennas:
2.4G Wi-Fi GAIN 5G Wi-Fi GAIN
Metal antenna & 1.72 dBi Metal antenna & 2.57 dBi
BT Antenna:
BRADE TYPE GAIN
GSD PCB antenna 1.08 dBi
The antenna is permanently attached, can’t be replaced.
