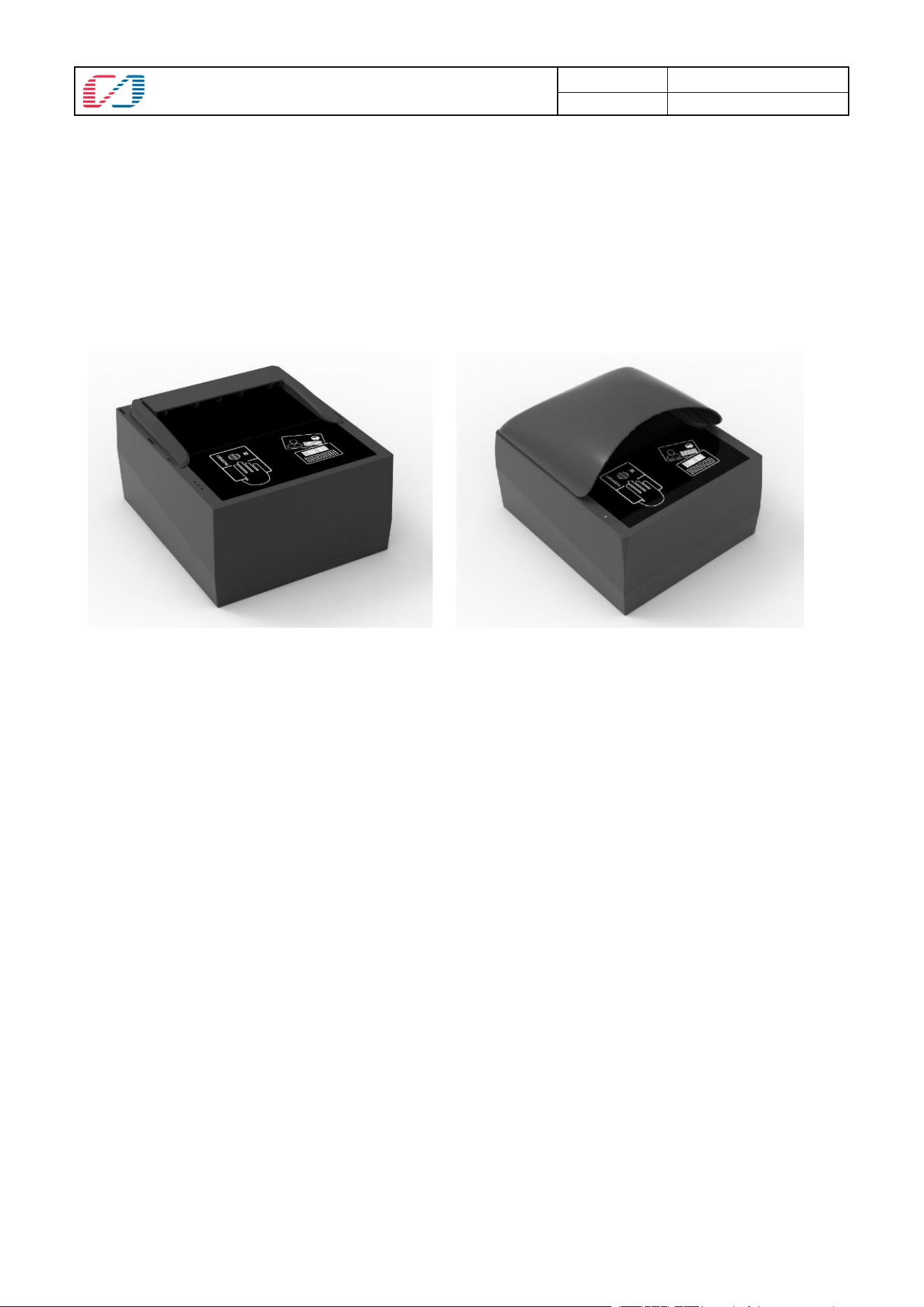

Creator Product Specification
Model No.
CRT-603-900X-Nxxx-S
Ver.
1.2
1
CRT-603-9001 series
CRT-603-9002 series
Passport reader
Product manual
(CRT-603-900X-N001) (CRT-603-900X-N002)
Proposed by: Ku Wenmin
Reviewed by: Li Tianming
Standardization: Hu Jing
Approved by: Feng Bin
Creator (China) Tech Co ., Ltd.
Address:8/F, Block T3, Hualian City Business Center, No.1001 Nanshan Road, Nanshan Distri
ct, Shenzhen,Guangdong,China.
Tel: +86-755-26710992
Fax: +86-755-26710105
Http://www.china-creator.com
Creator Product Specification
Model No.
CRT-603-900x-Nxxx-S
Ver.
1.2
2
Version Profile
Version
Completed
Descriptions
1.2
2024.08.28
Unified model merging into one specification manual
1.1
2024.06.08
Supplementary 2D drawing of models 9001/9002-N002 with light shield
1.0
2024.06.05
Standardization of the first version format
Creator Product Specification
Model No.
CRT-603-900x-Nxxx-S
Ver.
1.2
3
Catalogue
1 Product Composition .................................................................................................................................................4
2 Product model ............................................................................................................................................................6
3 Main features of the product ..................................................................................................................................... 6
3.1 CRT-603-9001 product specification ............................................................................................................. 8
3.2 CRT-603-9002 product specification ........................................................................................................... 10
4 Overall specifications ..............................................................................................................................................12
4.1 Product appearance (see 2D diagram for details) ........................................................................................ 12
4.2 Product weight ..............................................................................................................................................12
4.3 Power supply specifications .........................................................................................................................12
4.4 Communication mode .................................................................................................................................. 12
5 Product adaptability .................................................................................................................................................13
5.1 Working temperature and humidity ..............................................................................................................13
5.2 Storage temperature and humidity ............................................................................................................... 13
6 Reliability ................................................................................................................................................................ 13
6.1 Contactless card reading error rate ...............................................................................................................13
6.2 MTBF ........................................................................................................................................................... 13
6.3 Maintenance requirements ........................................................................................................................... 13
7 Product structure dimension diagram ......................................................................................................................14
Creator Product Specification
Model No.
CRT-603-900x-Nxxx-S
Ver.
1.2
4

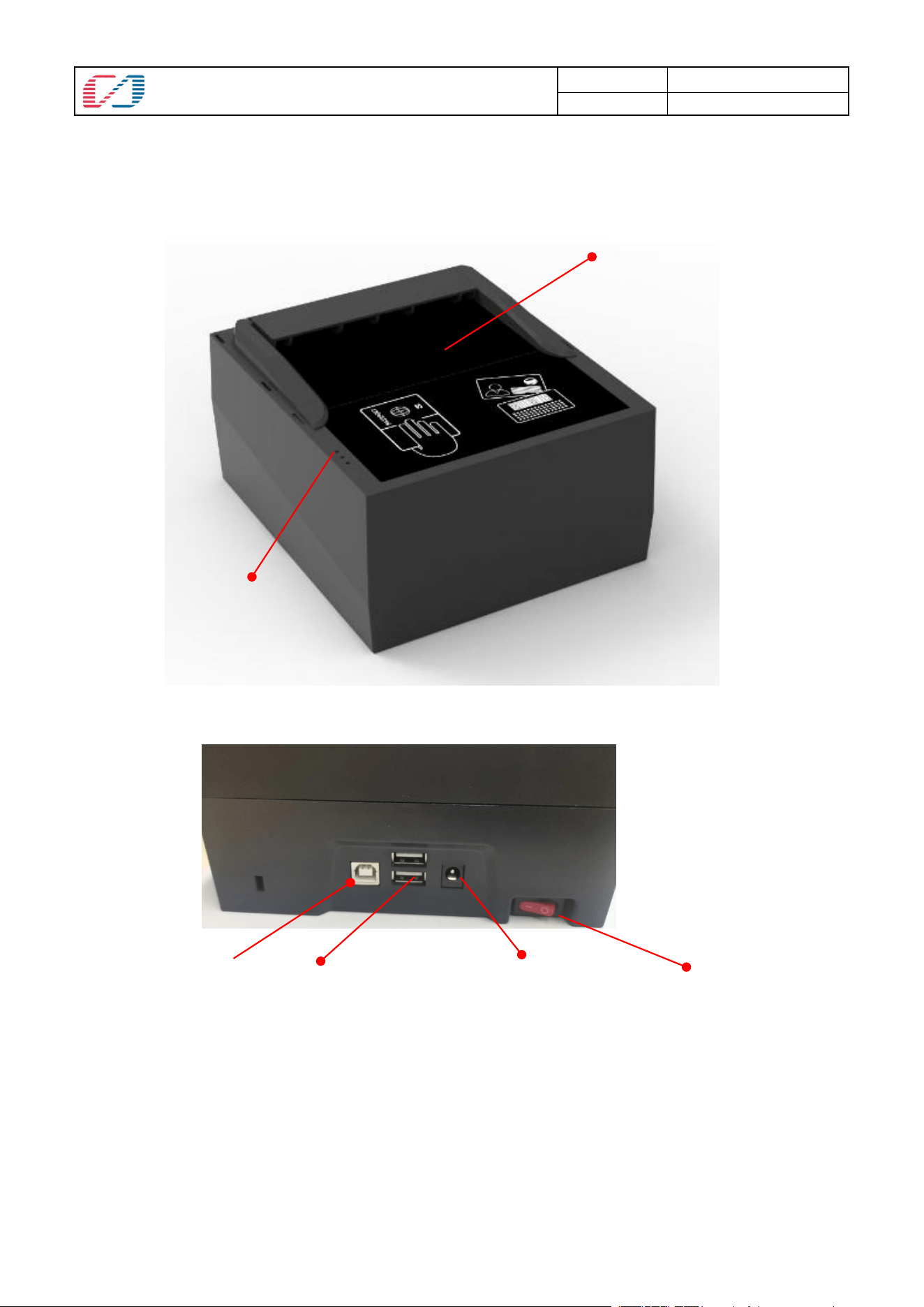

1 Product Composition
Composition of CRT-603-900X-N001 Passport Reader:
1- Passport and document reading area
2- Indicator light
3- USB to host communication interface
4- DC12V power supply interface
5- Power supply switch
6- Expand USB slave interface
1
2
3
4
6
5
Creator Product Specification
Model No.
CRT-603-900x-Nxxx-S
Ver.
1.2
5

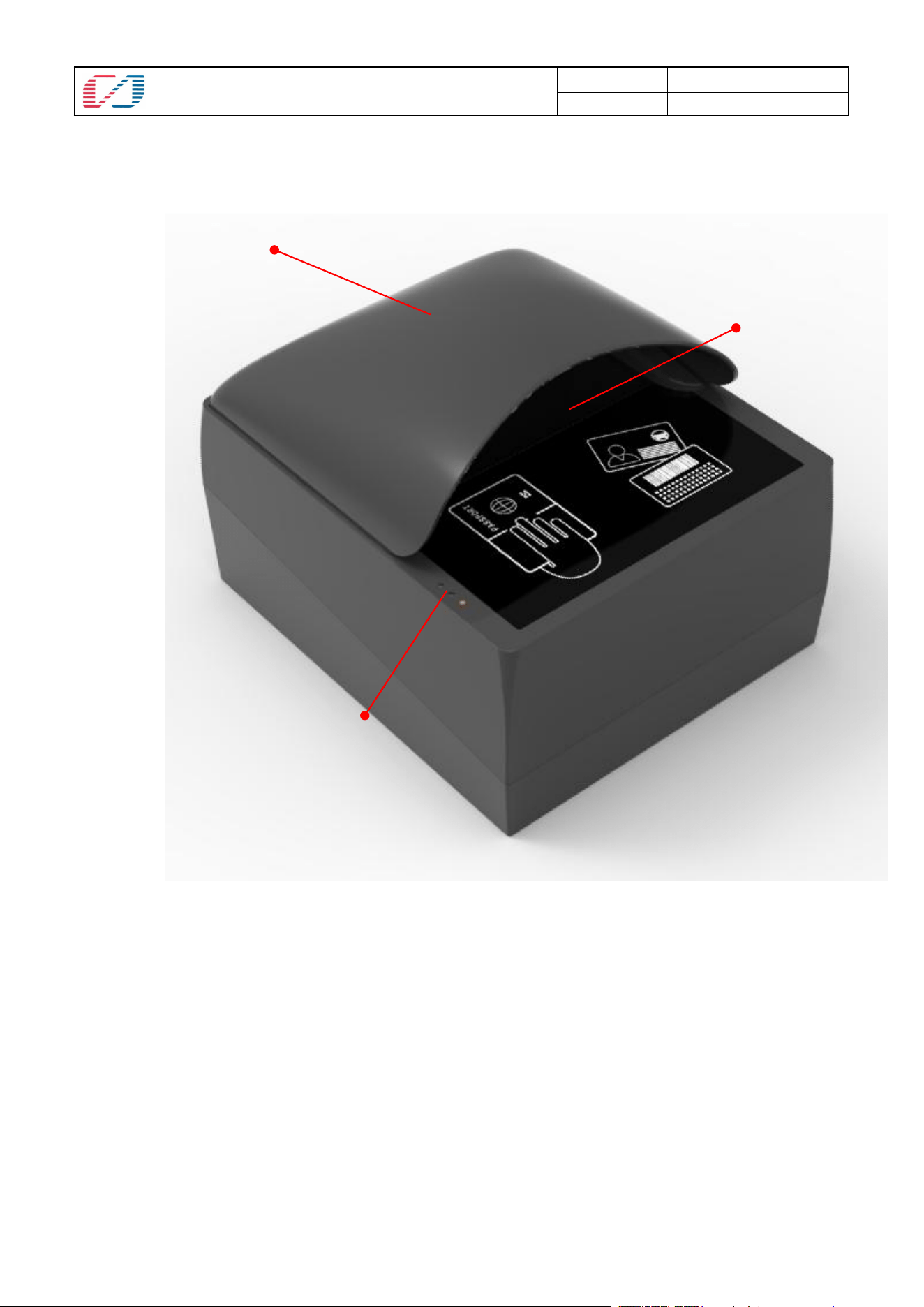

Composition of CRT-603-900X-N002 Passport Reader:
1 - Passport and Document Reading Area
2 - Indicator light
3 - Light shield
Attention: Do not use DC voltage above 16V to avoid damaging the equipment
1
2
3
Creator Product Specification
Model No.
CRT-603-900x-Nxxx-S
Ver.
1.2
6
2 Product model
1
CRT-603-9001-N001
The light source supports two types of light sources: visible light
and infrared light
2
CRT-603-9002-N001
The light source supports three types of light sources: visible
light, infrared light, and ultraviolet light
3
CRT-603-9001-N002
Equipped with a light shield, the light source supports two types
of light sources: visible light and infrared light
4
CRT-603-9002-N002
Equipped with a light shield, the light source supports three
types of light sources: visible light, infrared light, and ultraviolet
light
3 Main features of the product
CRT-603-900x has a compact and beautiful appearance, equipped with a high-definition imaging system,
and uses unique OCR technology to support detection of various travel documents both domestically and
internationally, easily achieve instant recognition upon shooting; It can read electronic passports, visas, driver's
licenses, ID cards and other travel documents that comply with the International Civil Aviation Organization
(ICAO) 9303 standard. It supports automatic sensing and triggering of documents, and easy to operate. It is very
suitable for application in border checkpoints, customs, airports, immigration management bureaus and other
places.
1) Electronic passport chip recognition, capable of reading travel documents such as passports, visas, etc. that
comply with the International Civil Aviation Organization ICAO 9303 electronic passport international standard;
2) Multiple document recognition (OCR), recognizing MRZ codes that comply with ICAO 9303 document
standards;
3) 5-megapixel high-definition imaging with a physical resolution of 400dpi, meeting users' image archiving
needs;
4) The electronic passport reader supports multiple light sources, including visible light image acquisition,
infrared light recognition, and UV light;
Creator Product Specification
Model No.
CRT-603-900x-Nxxx-S
Ver.
1.2
7
5) The product supports SDK for secondary development,
6) Automatic triggering, convenient for user operation, suitable for automatic and self-service fields,
7) Compact body, can be used as an internal module embedded in terminal devices,
8) Optional models with light shields
Creator Product Specification
Model No.
CRT-603-900x-Nxxx-S
Ver.
1.2
8
3.1 CRT-603-9001 product specification
Items
Description
Image acquisition
Data acquisition area 130 * 100 mm
Sensor CMOS 5-megapixel (2048 * 1536), resolution 400 DPI
light source
2 types of light sources: visible light, infrared 850nm
Electronic
passport / card
reading
Supports ISO 14443 Type A/B cards
Supports ICAO9303 standard electronic passport/card reading, communication speed
support, 424/848kbit/s
Support Basic Access Control (BAC) for electronic passports
Support passive authentication of electronic passports to verify the authenticity of
document information
Support active authentication of electronic passports to verify the authenticity of the
document chip
Reading time ≤ 3 seconds (depending on ID type, Host)
Support ID types
Support ICAO 9303 standard electronic ID documents
Reading time ≤ 3 seconds (depending on ID type, Host)
Automatic
triggering
Support automatic sensing of identification documents to trigger document recognition
Operating system
support
Support Windows 7/Windows 8/Windows 10 /Windows 11
Support Linux
SDK
SDK secondary development package support
Communication
interface
USB 2.0 HS, USB cable length ≤ 3m
Built in USB-HUB expanding 2 interfaces, allowing for the connection of other USB
devices
Body size/weight
(1) 194mm×170mm×93 mm, weighing approximately 800g
(2) 194mm×170mm×143 mm (equipped with a light shield), weight approximately
900g
Power supply
Use external standard power adapter, power adapter specifications:
Creator Product Specification
Model No.
CRT-603-900x-Nxxx-S
Ver.
1.2
9
Input AC 100~240V 50-60Hz 0.8A
Output DC 12V 3A
Operation
environment
Humidity: 20% to 95% (no condensation at relative humidity)
Temperature: -10 º to 50 º C for operation, storage from -20 º C to 50 º C
Creator Product Specification
Model No.
CRT-603-900x-Nxxx-S
Ver.
1.2
10
3.2 CRT-603-9002 product specification
Items
Description
Image acquisition
Data acquisition area 130 * 100 mm
Sensor CMOS 5-megapixel (2048 * 1536), resolution 400 DPI
light source
Multi band light source: visible light, infrared 850nm, ultraviolet UV 365nm
Electronic
passport / card
reading
Supports ISO 14443 Type A/B cards
Supports ICAO9303 standard electronic passport/card reading, communication speed
support, 424/848kbit/s
Support Basic Access Control (BAC) for electronic passports
Support passive authentication of electronic passports to verify the authenticity of
document information
Support active authentication of electronic passports to verify the authenticity of the
document chip
Reading time ≤ 3 seconds (depending on ID type, Host)
Support types of
travel documents
Support ICAO 9303 standard electronic ID documents
Reading time ≤ 3 seconds (depending on ID type, Host)
Automatic
triggering
Support automatic sensing of identification documents to trigger document recognition
Operating system
support
Support Windows 7/Windows 8/Windows 10 /Windows 11
Support Linux
SDK
SDK secondary development package support
Communication
interface
USB 2.0 HS, USB cable length ≤ 3m
Built in USB-HUB expanding 2 interfaces, allowing for the connection of other USB
devices
Body size/weight
(1) 194mm×170mm×92~103mm, weighing approximately 800g
(2) 194mm×170mm×106.5mm (equipped with a light shield), weight approximately
900g
Power supply
Use external standard power adapter, power adapter specifications:
Creator Product Specification
Model No.
CRT-603-900x-Nxxx-S
Ver.
1.2
11
Input AC 100~240V 50-60Hz 0.8A
Output DC 12V 3A
Operation
environment
Humidity: 20% to 95% (no condensation at relative humidity)
Temperature: -10 º to 50 º C for operation, storage from -20 º C to 50 º C
Creator Product Specification
Model No.
CRT-603-900x-Nxxx-S
Ver.
1.2
12
4 Overall specifications
4.1 Product appearance (see 2D diagram for details)
Product dimensions: 194mm×170mm×92~103mm (Length * Width * Height)
194mm×170mm×143mm (N002 model equipped with light shield)
4.2 Product weight
N001 : Net weight 800g (excluding accessories and packaging)
N002 : (model equipped with light shield), weight approximately 900g
4.3 Power supply specifications
1) Working voltage: DC12V ±5%
2) Power ripple: < 200mV
3) Working current: Idle current : < 150mA
Working current : <1500mA
4.4 Communication mode
USB 2.0 HS
USB B-type socket
Creator Product Specification
Model No.
CRT-603-900x-Nxxx-S
Ver.
1.2
13
5 Product adaptability
5.1 Working temperature and humidity
5～45℃, 20% ~ 80%RH
5.2 Storage temperature and humidity
-20°~ +60°, 5% ~ 95%RH In storage state, the reader does not work
-20° Storage time <24 hours
60° Storage time <96 hours
6 Reliability
6.1 Contactless card reading error rate
Error rate: <1/1000
Test conditions: Suitable for normal temperature (15～25℃,35～60%RH)
Testing method: 1 work cycle /10s
6.2 MTBF
>100,000 hours
6.3 Maintenance requirements
1) Clean the glass surface during the card reading operation
2) Clean appearance
Creator Product Specification
Model No.
CRT-603-900x-Nxxx-S
Ver.
1.2
14

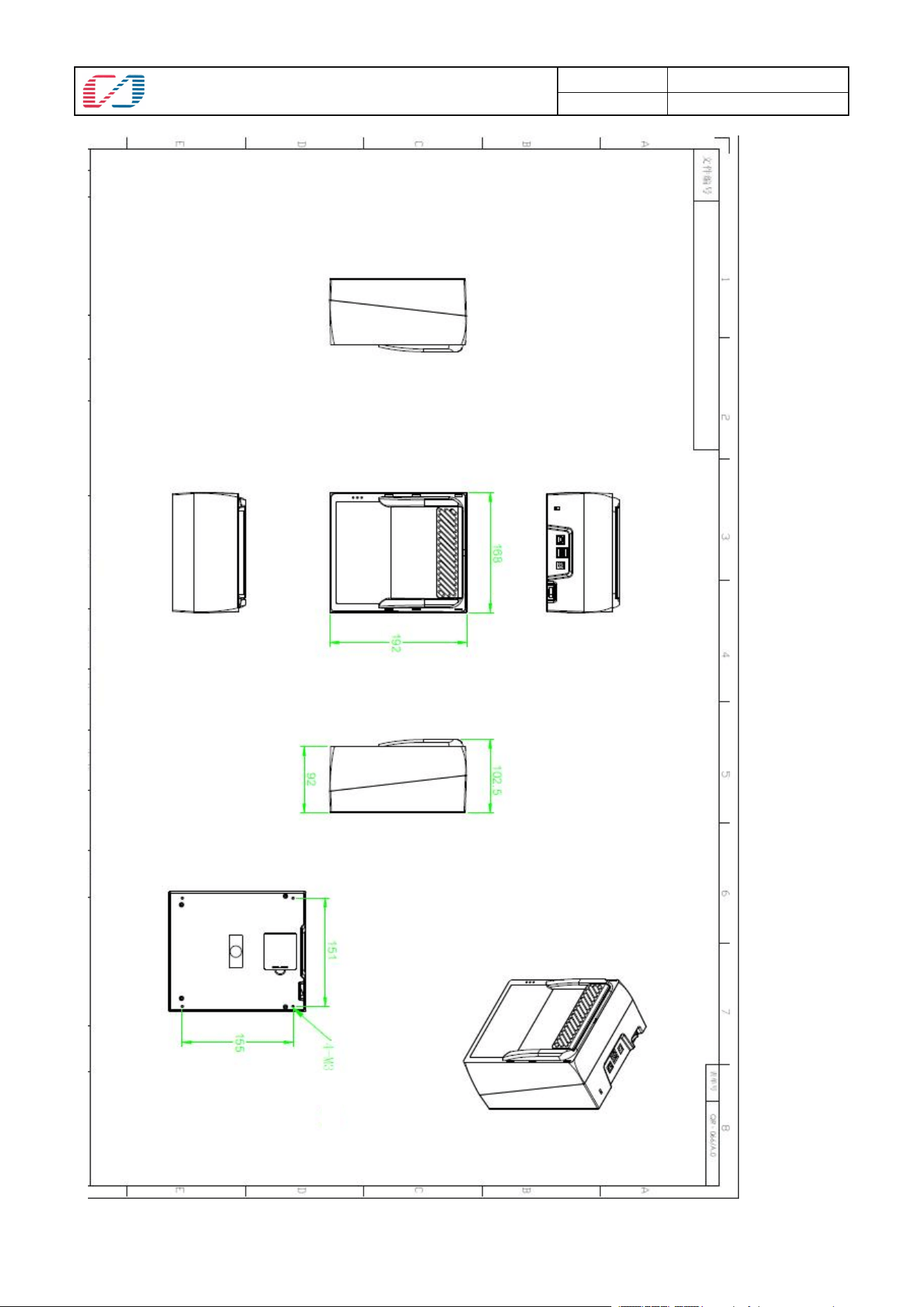

7 Product structure dimension diagram
CRT-603-900X-N001
Creator Product Specification
Model No.
CRT-603-900x-Nxxx-S
Ver.
1.2
15
Hot melt nut
Creator Product Specification
Model No.
CRT-603-900x-Nxxx-S
Ver.
1.2
16

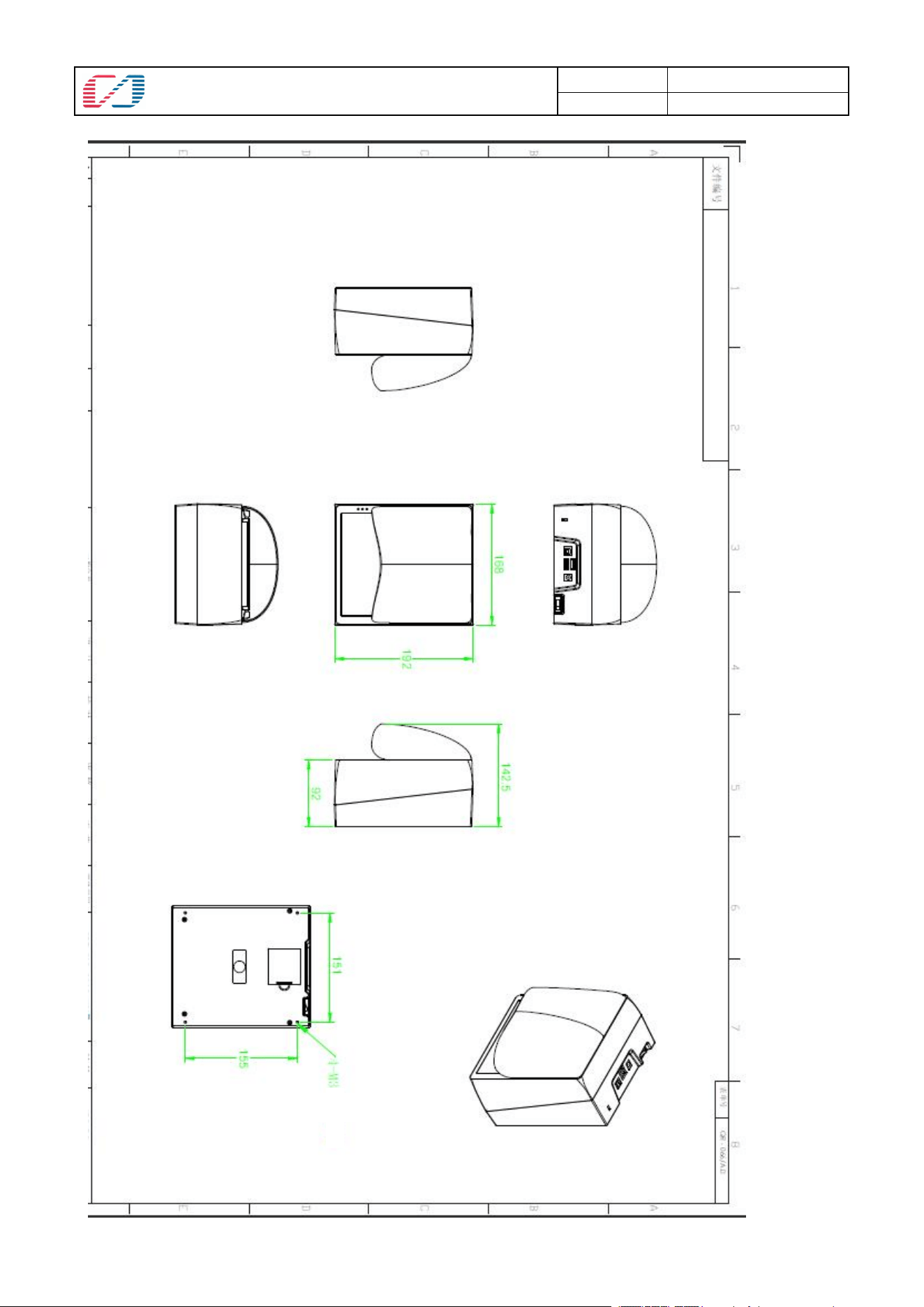

CRT-603-900X-N002
Creator Product Specification
Model No.
CRT-603-900x-Nxxx-S
Ver.
1.2
17
Hot melt nut
1
Warning
1) The product shall only be connected to a USB interface of version USB2.0
2) Please use common USB Cable or original charger, Otherwise, It may result to danger. When you
use a charger for charging, adapter shall be installed near the equipment and shall be easily accessible.
3) This device was tested for typical body-worn operations. To comply with RF exposure requirements,
a minimum separation distance of 20cm must be maintained between the user’s body and the handset,
including the antenna.
4) This product can be used across EU member states.
1) NFC frequency range: 13.56MHz, Maximum H-field: 25.28dBuA/m
for 10m
RED 2014/53/EU
Declaration Of Conformity
This product can be used across EU member states .
Hereby, CREATOR (CHINA) Tech co.,ltd declares that this Passport Reader is in compliance with the essential requireme
nts and other relevant provisions of directive 2014/53/EU.
FCC Warning
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any inte rference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interferenceto radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body.
