EU Tbox & NG-eCall
User Manual
Product Name: Vehicle Terminal
Product Model: YLB04
Document Name
Version Release Date
Tbox & NG-eCall User Manual V1.0
BEIQI FOTON MOTOR CO.,LTD.
Confidential
North of Laoniuwan Village, Shayang Road, Shahe Town, Changping District, Beijing City, China
2 / 10
Document Revision History
Vers
ion
Date Author
Secti
on
Revision Description
V1.0 2025/9/25 Zhang Junhao Initial Release
Document Name
Version Release Date
Tbox & NG-eCall User Manual V1.0
BEIQI FOTON MOTOR CO.,LTD.
Confidential
North of Laoniuwan Village, Shayang Road, Shahe Town, Changping District, Beijing City, China
3 / 10
1 Overview
The YLB04 is a general-purpose overseas T-Box (telematics box) with an integrated in-vehicle emergency call
terminal, planned by Foton Zhike and independently developed by Yaxon (Yaxun). It complies with the regulatory
requirements of the EU, the Middle East and other regions. The NG-eCall function of this product is mainly used, in
emergency situations, to establish a hands-free call with the emergency call system service platform manually or
automatically and to transmit vehicle information, including vehicle characteristics, vehicle position, time, etc. This
product is applicable to M1 and N1 category vehicles.
In addition, this product can also implement Foton's overseas connected-vehicle functions (data collection,
remote OTA, remote diagnostics). This document focuses on the NG-eCall function and does not describe the T-
Box connected-vehicle functions in detail.
1.1
Reference Standards
Table 1 Reference Documents
No. Source Title
1 EU 2015/758 Type-approval requirements for the deployment of the eCall in-vehicle system
2 EU 2017/78 Administrative provisions of the European Commission on type approval
3
EU
2017/7
9
Technical
requirements
for
the
deployment
of
the
eCall
in-vehicle
system
4
E
N
16454:2015
eCall
end-to-end
conformance
testing
5
E
N
15722:2020
eCall
minimum
set
of
data
(MSD)
6 EN 301511
Essential requirements for mobile stations of the digital cellular telecommunications
system
operating
in
the
GSM900/GSM1800
frequency
bands
7 EN 301908-1
Electromagnetic compatibility and Radio spectrum Matters (ERM); Base Stations
(BS), Repeaters and User Equipment (UE) for IMT-2000 third-generation cellular
networks; Part 1: Harmonised EN for IMT-2000, introduction and common
requirements, covering the essential requirements of Article 3.2 of the R&TTE
Directive
8 EN 301908-2
Electromagnetic compatibility and Radio spectrum Matters (ERM); Base Stations
(BS), Repeaters and User Equipment (UE) for IMT-2000 third-generation cellular
networks; Part 2: Harmonised EN for IMT-2000 and CDMA Direct Spread (UTRA
FDD) User Equipment (UE), covering the essential requirements of Article 3.2 of
the
R&TTE
Directive
9 EN 301908-13
Electromagnetic compatibility and Radio spectrum Matters (ERM); Base Stations
(BS), Repeaters and User Equipment (UE) for IMT-2000 third-generation cellular
networks; Part 13: Harmonised EN for IMT-2000 and Evolved Universal Terrestrial
Radio Access (E-UTRA) User Equipment (UE), covering the essential requirements
of
Article
3.2
of
the
R&TTE
Directive
10 EN 303413-2017
Satellite Earth Stations and Systems (SES); Global Navigation Satellite System
(GNSS) receivers; Radio equipment operating in the 1 164 MHz to 1 300 MHz and
1 559 MHz to 1 610 MHz frequency bands; Harmonised Standard covering the
essential
requirements
of
Article
3.2
of
Directive
2014/53/EU
11 EN 62368
Safety requirements for audio/video, information and communication technology
equipment
12 EN 301489-1
Electromagnetic compatibility (EMC) standard for radio equipment and services;
Part 1: Harmonised Standard for common technical requirements of electromagnetic
compatibility
13 EN 301489-17
Electromagnetic compatibility (EMC) standard for radio equipment and services;
Part 17: Specific conditions for Broadband Data Transmission Systems; Harmonised
Standard covering the essential requirements of Article 3.1(b) of Directive
2014/53/EU
14
EN
301489-19
Electromagnetic
compatibility
(EMC)
standard
for
radio
equipment
and
services;
Document Name
Version Release Date
Tbox & NG-eCall User Manual V1.0
BEIQI FOTON MOTOR CO.,LTD.
Confidential
North of Laoniuwan Village, Shayang Road, Shahe Town, Changping District, Beijing City, China
4 / 10
Part 19: Specific conditions for mobile Earth stations providing data
communications in the 1.5 GHz band and GNSS receivers providing positioning,
navigation and timing data in the RNSS band; Harmonised Standard covering the
essential
requirements
of
Article
3.1(b)
of
Directive
2014/53/EU
15 EN 301489-52
Electromagnetic compatibility (EMC) standard for radio equipment and services;
Part 52: Specific conditions for cellular communication user equipment (UE),
handheld and ancillary equipment; Harmonised Standard covering the essential
requirements
of
Article
3.1(b)
of
Directive
2014/53/EU
16 CISPR25-2016
Vehicles, boats and internal combustion engines
—
Radio disturbance
characteristics
—
Limits and methods of measurement for the protection of on-
board
receivers
17 ISO 7637-2
Road vehicles
—
Electrical disturbances from conduction and coupling
—
Part 2:
Electrical
transient
conduction
along
supply
lines
only
18 ISO 7637-3
Road vehicles
—
Electrical disturbances from conduction and coupling
—
Part 3:
Electrical transient transmission by capacitive and inductive coupling via lines other
than
supply
lines
19 ISO 11452-2
Road vehicles
—
Component test methods for electrical disturbances from
narrowband radiated electromagnetic energy
—
Part 2: Absorber-lined shielded
enclosure
20 ISO 11452-4
Road vehicles
—
Component test methods for electrical disturbances from
narrowband radiated electromagnetic energy
—
Part 4: Bulk current injection
(BCI)
21 ISO 10605
Road vehicles
—
Test methods for electrical disturbances from electrostatic
discharge
22 VW80000
Electrical and electronic components in motor vehicles up to 3.5 t
—
Test items,
test
conditions
and
test
requirements
23 ISO 16750-2
Road vehicles
—
Environmental conditions and testing for electrical and electronic
equipment
—
Part 2: Electrical loads
24 ISO 16750-3
Road vehicles
—
Environmental conditions and testing for electrical and electronic
equipment
—
Part 3: Mechanical loads
25 ISO 16750-4
Road vehicles
—
Environmental conditions and testing for electrical and electronic
equipment
—
Part 4: Climatic loads
26
IEC
62321
Standard
for
banned
and
restricted
substances
27 IEC 60695-11-10
Fire hazard testing
—
Part 11-10: Test flames: 50 W horizontal and vertical flame
test
methods
28 ISO 20653
Road vehicles
—
Degrees of protection (IP code)
—
Protection of electrical
equipment
against
foreign
objects,
water
and
access
29 SASO-2944
The Saudi Standards, Metrology and Quality Organization (SASO) has updated the
Saudi standard based on the relevant ADMO, international and national "eCall"
requirements
30
ETSI TS 103 683
V1.1.1
(2020-02)
Next Generation eCall Advanced Application Protocol (HLAP) interoperability
testing
31 UAE.S 5019_2024
UAE Standard/Technical Regulation technical committee. Through the Vehicle
Standards Technical Committee, the Ministry has developed UAE.S 5019:2024
—
Vehicles
—
Technical requirements for emergency call ("eCall").
32
EN2024-1180
Amended
(EU)
2015/758,
in
particular
Articles
5(9)
and
6(12)
thereof,
33
GSO-Technical-
Regulations-MV-
2026-MY-D2
The Gulf States have issued a list of regulations updating the UAE eCall regulation
version: UAE.S 5019:2018 updated to UAE.S 5019:2024;
34
PD CEN TS 17240-
2018
Intelligent transport systems
—
E safety
—
eCall end-to-end conformance testing
for
IMS
packet-switched-based
systems
35 EN 18031-1:2024
Common security requirements for radio equipment - Part 1: Internet connected
radio equipment
Document Name
Version Release Date
Tbox & NG-eCall User Manual V1.0
BEIQI FOTON MOTOR CO.,LTD.
Confidential
North of Laoniuwan Village, Shayang Road, Shahe Town, Changping District, Beijing City, China
5 / 10
1.2
Abbreviations
Table 2 Abbreviations
Abbreviation Description
IGN Ignition signal of the vehicle
CAN Controller Area Network (vehicle CAN bus)
MCU
Microcontroller
Unit
MPU Microprocessor Unit
VIN Vehicle Identification Number
PS
A
P
Public
Safety
Answering
Point
MSD Minimum Set of Data
2 Product Functions
2.1
Basic Functions
Table 3 Basic Functions
No. Function
Function Sub-
item
Description
1
Self-test Self-test
After the vehicle is started (ignition on), the system shall
perform a self-test and indicate the self-test status through an
indicator light. The self-test covers the terminal operating
normally (file system mounted correctly, internal components
communicating normally), the communication network, the
positioning module, the crash control unit, the power supply, the
backup
battery,
the
loudspeaker
and
the
microphone.
2
Mute Control
Hard-wire
control
CAN-line
control
When an emergency call is triggered, the head unit is muted
via a normal hard-wire control, active-low
When an emergency call is triggered, the head unit is muted
via
the
CAN
line
3
ECALL
Triggering
SOS button
detection
Airbag
triggering
Rollover
triggering
Supports manual triggering of the ECALL service via the
SOS button
Supports triggering of the ECALL service via the airbag
crash hard-wire signal or the crash CAN message
Supports triggering of the ECALL service when the sensor
detects
vehicle
rollover
4
Positioning
Multi-mode
positioning
Built-in positioning antenna; supports GPS and Galileo for
standalone
or
combined
positioning,
etc.
5
Communication
Network
Communication
Network
Built-in wireless network antenna; supports transmission of the
MSD (minimum set of data)
Supports NG-eCall
Meets the CEN/TS 17240-2018 end-to-end conformance
requirements
6
MSD Framing MSD Framing
Frames the data in accordance with EN 15722:2015 "ECALL
minimum
set
of
data"
and
reports
it
to
the
PSAP
7
Hands-free Call Hands-free Call
Combines the external microphone and external loudspeaker to
enable two-way calls between the driver/passengers and the
PSAP operator; call quality meets the test requirements of EU
2017/79
8
Power
Backup battery Combining IGN, the backup battery internal resistance and
Document Name
Version Release Date
Tbox & NG-eCall User Manual V1.0
BEIQI FOTON MOTOR CO.,LTD.
Confidential
North of Laoniuwan Village, Shayang Road, Shahe Town, Changping District, Beijing City, China
6 / 10
Management management
Low-power
management
Main/backup
power
switching
temperature, and the main power status, implements backup
battery management, low-power management, and main/backup
power switching management
9
Upgrade
Management
OBD upgrade
USB upgrade
Bootloader
Supports a variety of different upgrade methods.
10
Production and
End-of-Line
Testing
End-of-line
(EOL) testing
After-sales
testing
Six-axis
calibration
operation guide
Performs end-of-line production and after-sales management via
the UDS diagnostic tester
3 Appearance and Structure
3.1

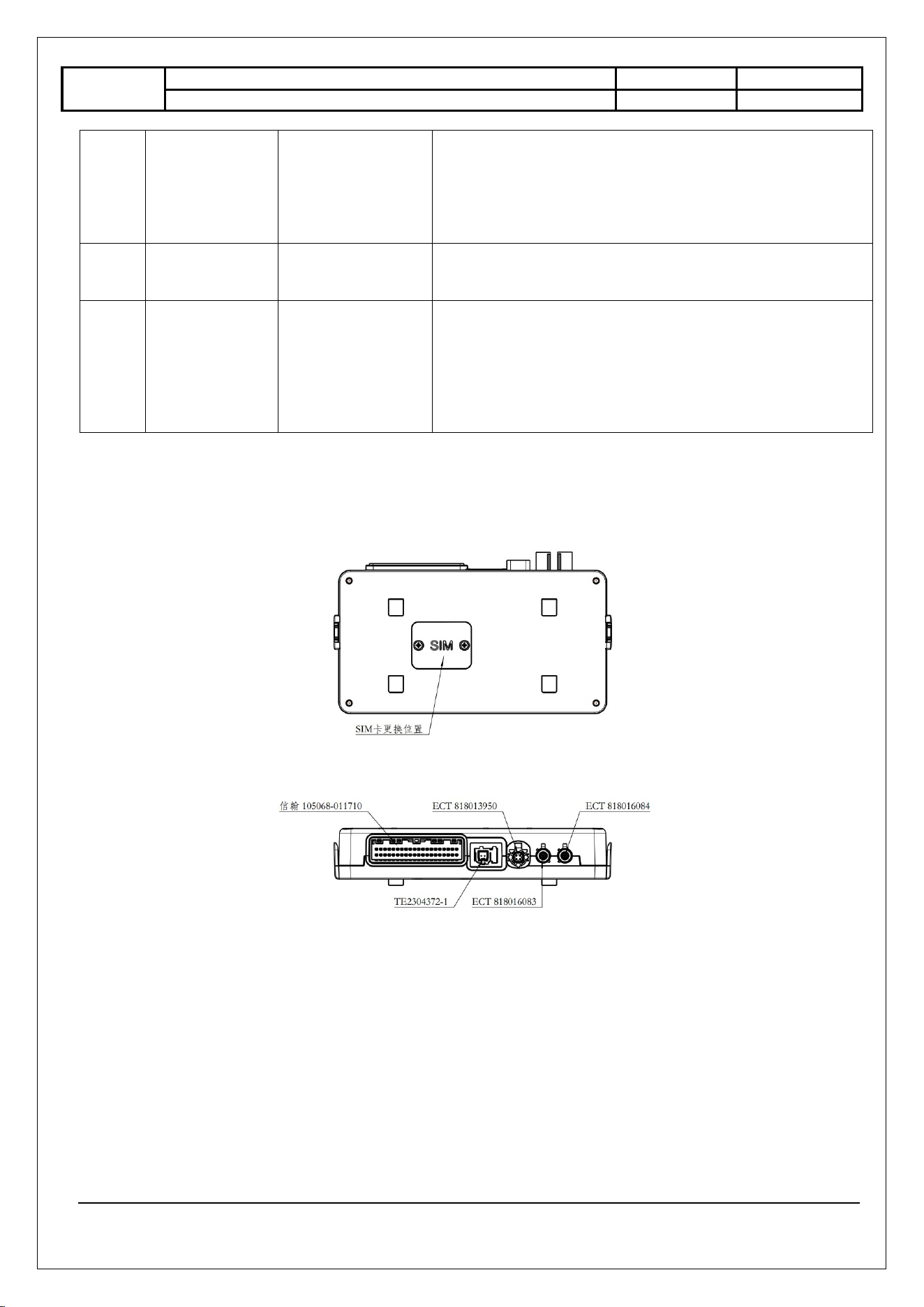

Product Appearance
3.2
Structural Features
Host dimensions: 145 mm
×
75 mm
×
32 mm;
Material: PC+ABS;
3.3
Structural Dimensions
Document Name
Version Release Date
Tbox & NG-eCall User Manual V1.0
BEIQI FOTON MOTOR CO.,LTD.
Confidential
North of Laoniuwan Village, Shayang Road, Shahe Town, Changping District, Beijing City, China
7 / 10

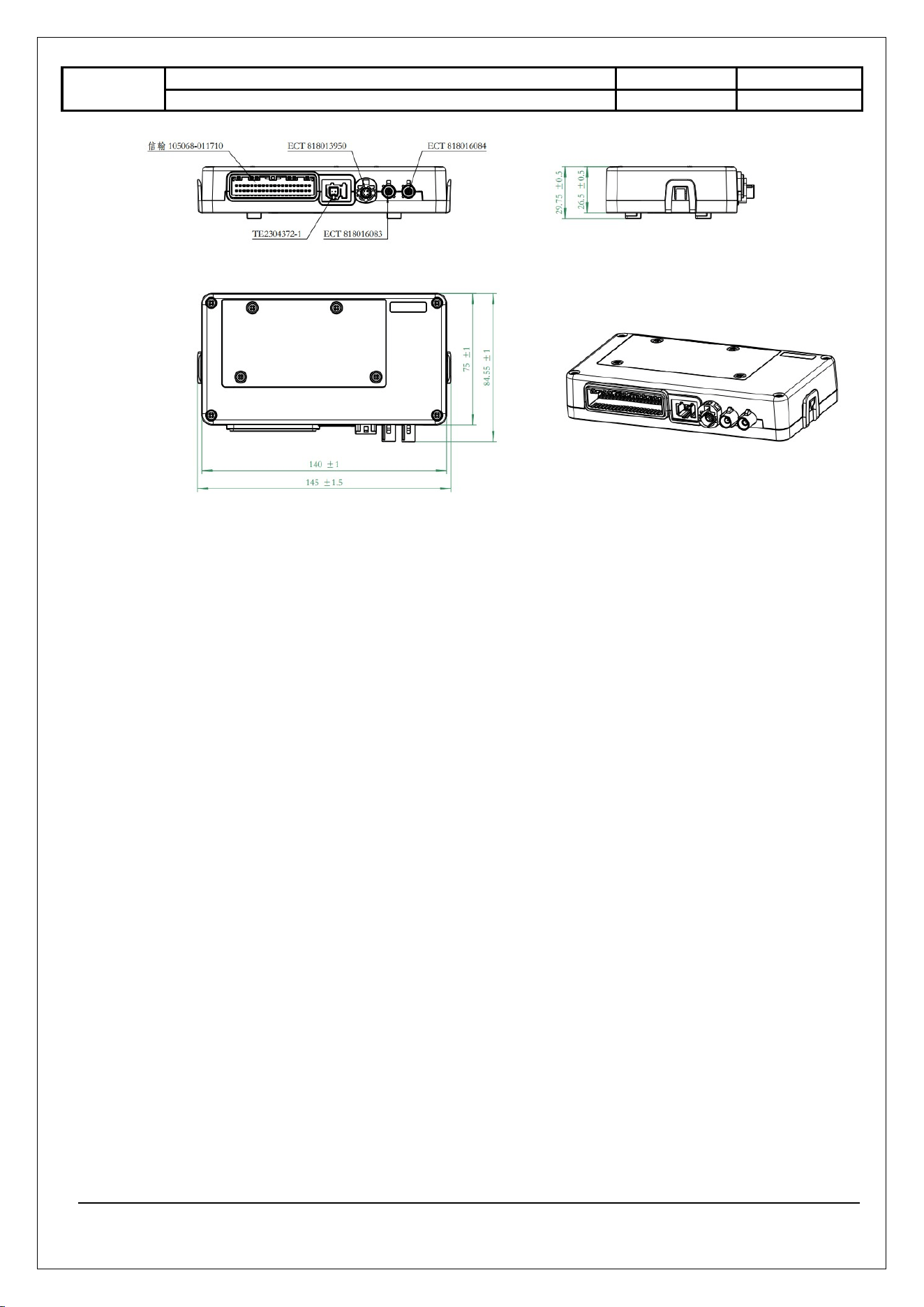

Figure 3 TCU host interface dimensions
Document Name
Version Release Date
Tbox & NG-eCall User Manual V1.0
BEIQI FOTON MOTOR CO.,LTD.
Confidential
North of Laoniuwan Village, Shayang Road, Shahe Town, Changping District, Beijing City, China
8 / 10
4 Hardware Specifications
4.1

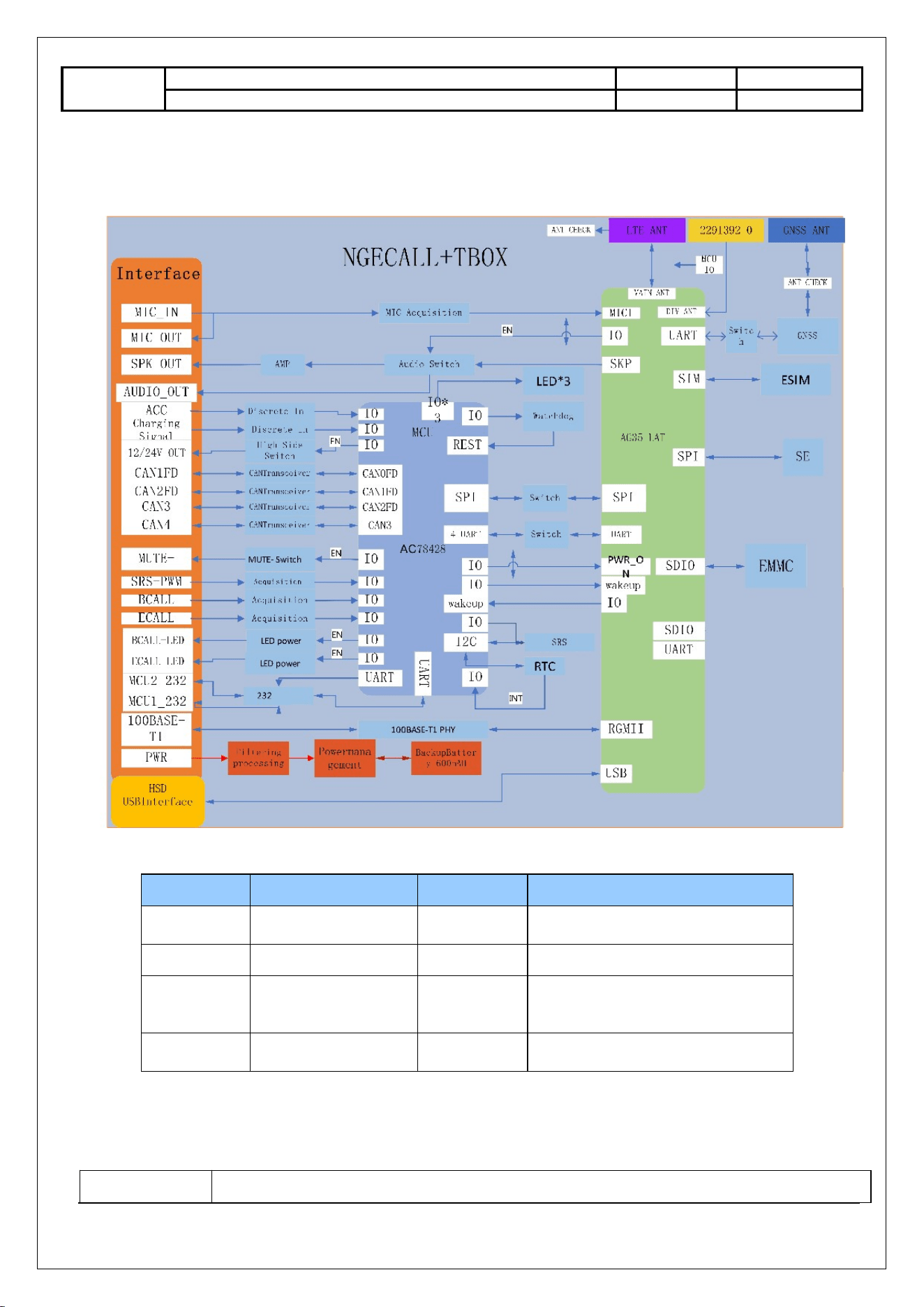

Hardware Design Block Diagram
Name Model Brand Remark
4G module
/MPU
AG35-LAT Quectel
MCU AC78428 AutoChips
Positioning
module
ATGM332U
Zhongke
Microelectro
nics
CAN
transceiver
TPT1042VQ 3PEAK
4.2
TCU Hardware Specification List
Table 6 Hardware Specification List
Parameter Performance Specification
Document Name
Version Release Date
Tbox & NG-eCall User Manual V1.0
BEIQI FOTON MOTOR CO.,LTD.
Confidential
North of Laoniuwan Village, Shayang Road, Shahe Town, Changping District, Beijing City, China
9 / 10
Operating
voltage
9 V
–
32 V; rated voltage: 12 V or 24 V
Operating
temperature
-40
°
C to +75
°
C (excluding backup battery)
Storage
temperature
-40
°
C to +75
°
C
Sleep (quiescent)
current
≤
3mA@12V
Average
operating current
≤
500mA@12V
max power 6w
Net weight <200g
Backup battery
Rated voltage 3.7V
Nominal capacity 600mA
Operating
temperature
-20
°
C to +75
°
C
Cut-off discharge
voltage
3.2V
Positioning
Frequency band(s)
GPS-L1
（
1575.42
±
1.023MHz
）
GALILEO-E1
（
1575.42
±
2.046MHzMHz
）
GLONASS
-
L1
(1597.5~1605.8
MHz)
Positioning mode
Supports standalone or combined positioning with GPS, GALILEO and
GLONASS
Positioning
accuracy
Horizontal positioning accuracy
≤
15 m; vertical positioning accuracy
≤
15 m; speed accuracy
≤
0.1 m/s
Start-up time
Hot start
≤
10 s
Cold start
≤
60 s
Update rate
≥
1Hz
Mobile
Communication
Communication
modes
LTE-FDD/WCDMA/GSM
Communication
frequency band
LTE-FDD
：
B1/2/3/4/5/7/8/28
WCDMA
：
B1/2/3/5/8
GSM/EDGE
：
850/900/1800/1900 MHZ
4.3
Navigation Antenna Specification (If Required)
Table 7 Navigation Antenna Specification Parameters
Item Parameter Specification
Operating voltage 3.0-3.6V
Operating current 10-30mA@3.3V
LNA gain
30
±
3dB
Polarization RHCP
Operating temperature
-40 to +75
°
C
Storage temperature
-40 to +75
°
C
Document Name
Version Release Date
Tbox & NG-eCall User Manual V1.0
BEIQI FOTON MOTOR CO.,LTD.
Confidential
North of Laoniuwan Village, Shayang Road, Shahe Town, Changping District, Beijing City, China
10 / 10
5. warning :
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
6.
Statement
Simplified EU Declaration of Conformity
The simplified EU declaration of conformity referred to in Article 10(9) shall be provided
as follows:
Hereby, [BEIQI FOTON MOTOR CO.,LTD. ]
declares that the radio equipment type [designation of type of radio equipment] is in compliance with Directive 201
4/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://w
ww.foton.com.cn/
