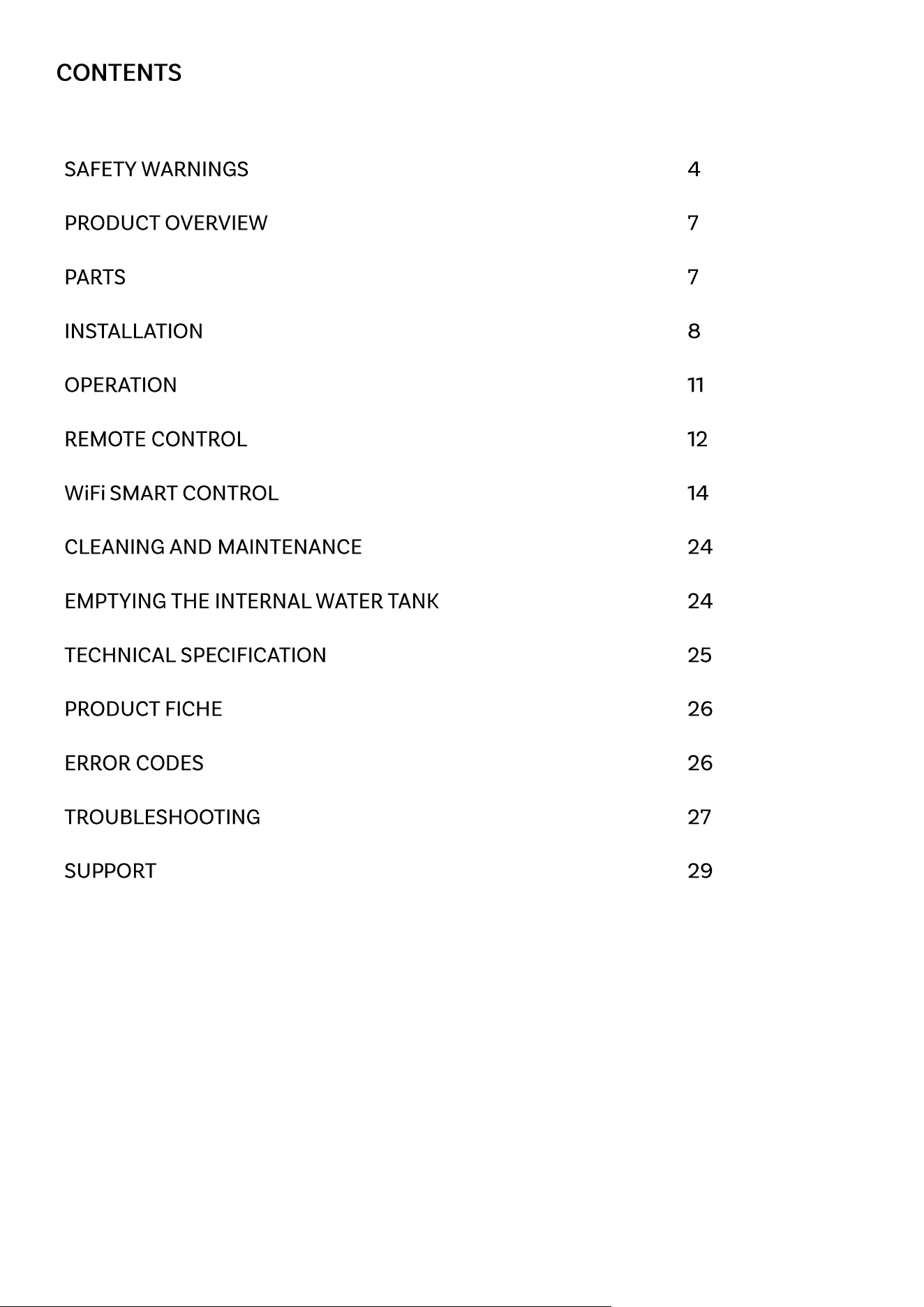

CONTENTS
SAFETY WARNINGS
4
PRODUCT OVERVIEW
7
PARTS
7
INSTALLATION
8
OPERATION
11
REMOTE CONTROL
12
WiFi SMART CONTROL
14
CLEANING AND MAINTENANCE
24
EMPTYING THE INTERNAL WATER TANK
24
TECHNICAL SPECIFICATION
25
PRODUCT FICHE
26
ERROR CODES
26
TROUBLESHOOTING
27
SUP PORT
29
4

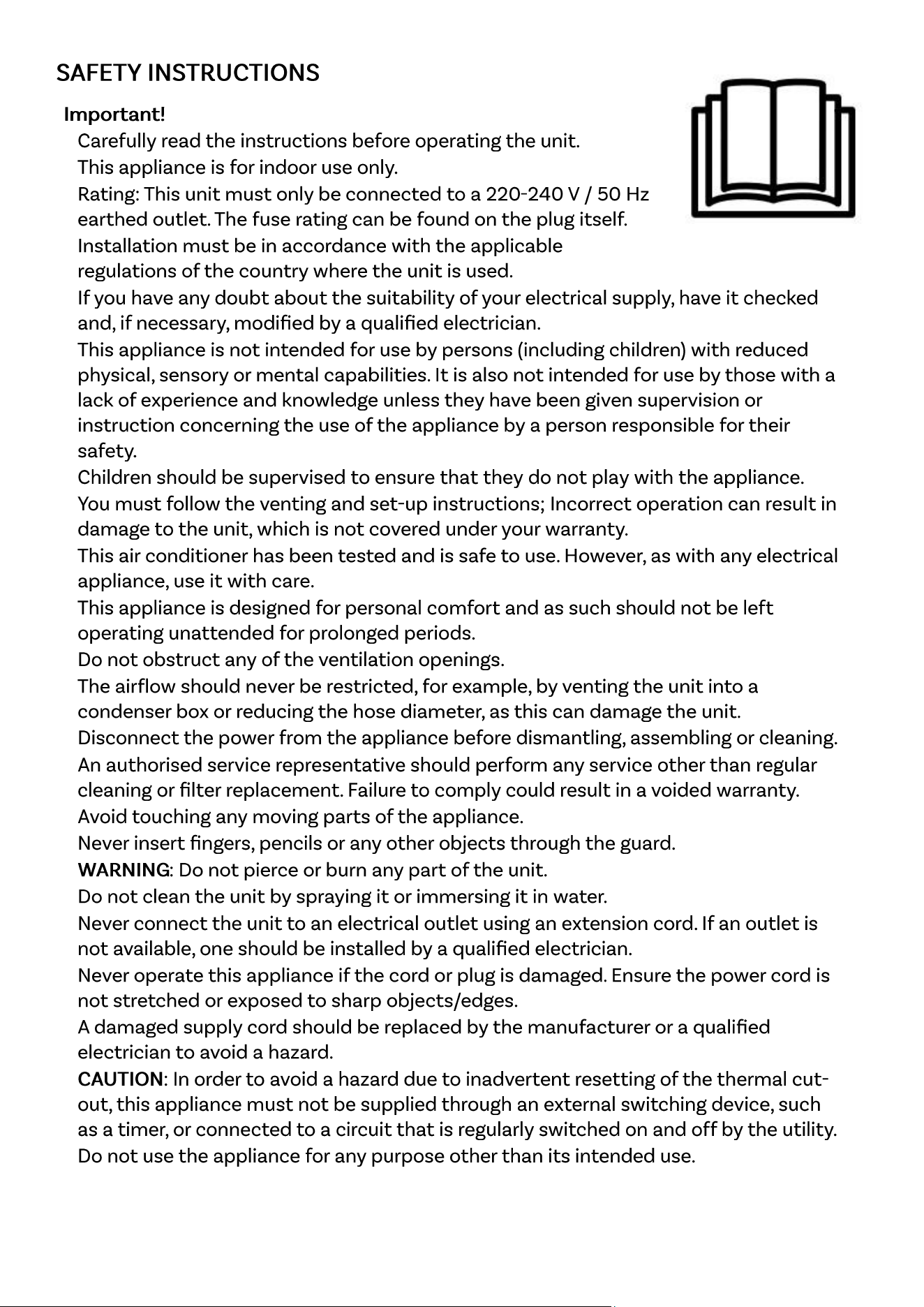

SAFETY INSTRUCTIONS
Important!
• Carefully read the instructions before operating the unit.
• This appliance is for indoor use only.
• Rating: This unit must only be connected to a 220 -240 V / 50 Hz
earthed outlet. The fuse rating can be found on the plug itself.
• Installation must be in accordance with the applicable
regulations of the country where the unit is used.
• If you have any doubt about the suitability of your electrical supply, have it checked
and, if necessary, modified by a qualified electrician.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities. It is also not intended for use by those with a
lack of experience and knowledge unless they have been given supervision or
instru ction concerning the use of the appliance by a person responsible for their
safety .
• Children should be supervised to ensure that they do not play with the appliance.
• You must follow the venting and set -up instructions; Incorrect operation can result in
damage to the unit, which is not covered under your warranty.
• This air conditioner has been tested and is safe to use. However, as with any electrical
appliance, use it with care.
• This appliance is designed for personal comfort and as such should not be left
operating unattended for prolonged periods.
• Do not obstruct any of the ventilation openings.
• The airflow should never be restricted, for example, by venting the unit into a
condenser box or reducing the hose diameter, as this can damage the unit.
• Disconnect the power from the appliance before dismantling, assembling or cleaning.
• An authorised service representative should perform any service other than regular
cleaning or filter replacement. Failure to comply could result in a voided warranty.
• Avoid touching any moving parts of the appliance.
• Never insert fingers, pencils or any other objects through the guard.
• WARNING : Do not pierce or burn any part of the unit.
• Do not clean the unit by spraying it or immersing it in water.
• Never connect the unit to an electrical outlet using an extension cord. If an outlet is
not available, one should be installed by a qualified electrician.
• Never operate this appliance if the cord or plug is damaged. Ensure the power cord is
not stretched or exposed to sharp objects/edges.
• A damaged supply cord should be replaced by the manufacturer or a qualified
electrician to avoid a hazard.
• CAUTION : In order to avoid a hazard due to inadvertent resetting of the thermal cut -
out, this appliance must not be supplied through an external switching device, such
as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• Do not use the appliance for any purpose other than its intended use.
5

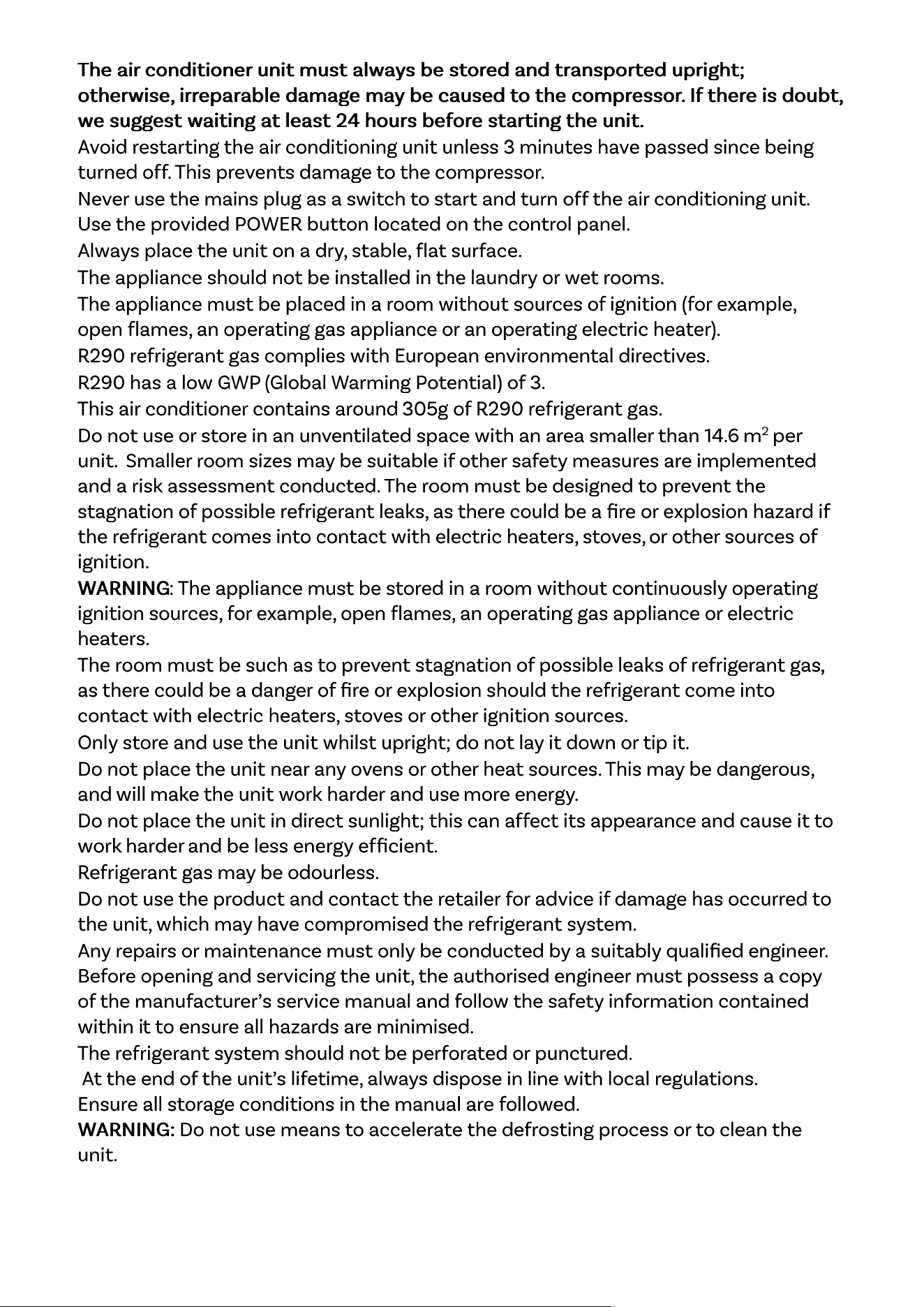

• The air conditioner unit must always be stored and transported upright;
otherwise, irreparable damage may be caused to the compressor. If there is doubt,
we suggest waiting at least 24 hours before starting the unit.
• Avoid restarting the air conditioning unit unless 3 minutes have passed since being
turned off. This prevents damage to the compressor.
• Never use the mains plug as a switch to start and turn off the air conditioning unit.
Use the provided POWER button located on the control panel.
• Always place the unit on a dry, stable, flat surface.
• The appliance should not be installed in the laundry or wet rooms.
• The appliance must be placed in a room without sources of ignition (for example,
open flames, an operating gas appliance or an operating electric heater).
• R290 refrigerant gas complies with European environmental directives.
• R290 has a low GWP (Global Warming Potential) of 3.
• This air conditioner contains around 305 g of R290 refrigerant gas.
• Do not use or store in an unventilated space with an area smaller than 14.6 m
2
per
unit. Smaller room sizes may be suitable if other safety measures are implemented
and a risk assessment conducted. The room must be designed to prevent the
stagnation of possible refrigerant leaks, as there could be a fire or explosion hazard if
the refrigerant comes into contact with electric heaters, stoves, or other sources of
ignition.
• WARNING : The appliance must be stored in a room without continuously operating
ignition sources, for example, open flames, an operating gas appliance or electric
heaters.
• The room must be such as to prevent stagnation of possible leaks of refrigerant gas ,
as there could be a danger of fire or explosion should the refrigerant come into
contact with electric heaters, stoves or other ignition sources.
• Only store and use the unit whilst upright; do not lay it down or tip it.
• Do not place the unit near any ovens or other heat sources. This may be dangerous ,
and will make the unit work harder and use more energy.
• Do not place the unit in direct sunlight; this can affect its appearance and cause it to
work harder and be less energy efficient.
• Refrigerant gas may be odourless.
• Do not use the product and contact the retailer for advice if damage has occurred to
the unit, which may have compromised the refrigerant system.
• Any repairs or maintenance must only be conducted by a suitably qualified engineer.
Before opening and servicing the unit, the authorised engineer must possess a copy
of the manufacturer’s service manual and follow the safety information contained
within i t to ensure all hazards are minimised.
• The refrigerant system should not be perforated or punctured.
• At the end of the unit’s lifetime, always dispose in line with local regulations.
• Ensure all storage conditions in the manual are followed.
• WARNING: Do not use means to accelerate the defrosting process or to clean the
unit.
6

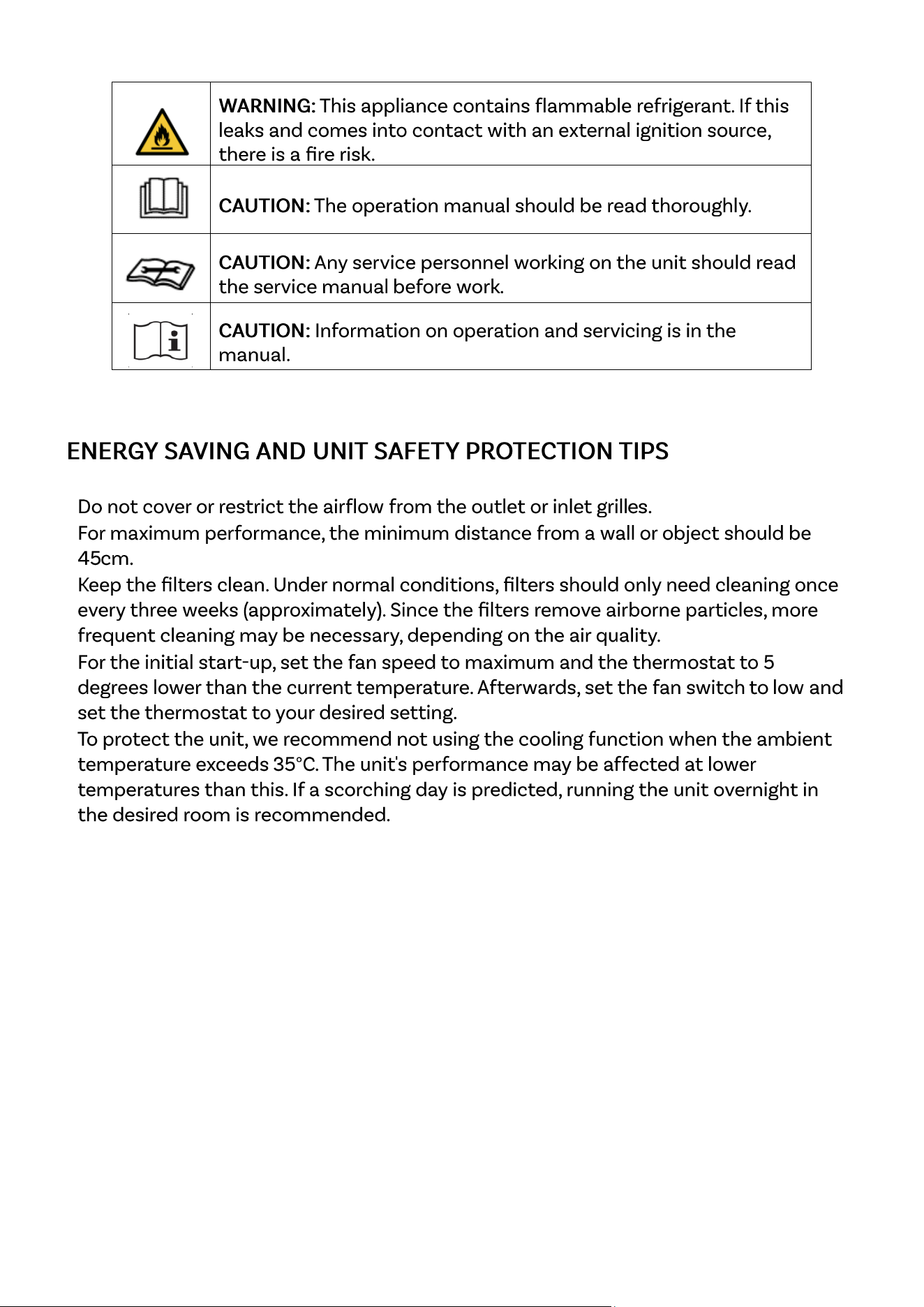

WARNING: This appliance contains flammable refrigerant. If this
leaks and comes into contact with an external ignition source,
there is a fire risk.
CAUTION: The operation manual should be read thoroughly.
CAUTION: Any service personnel working on the unit should read
the service manual before work .
CAUTION: Information on operation and servicing is in the
manual.
ENERGY SAVING AND UNIT SAFETY PROTECTION TIPS
• Do not cover or restrict the airflow from the outlet or inlet grill es.
• For maximum performance, the minimum distance from a wall or object should be
45cm.
• Keep the filters clean. Under normal conditions, filters should only need cleaning once
every three weeks (approximately). Since the filters remove airborne particles, more
frequent cleaning may be necessary, depending on the air quality.
• For the initial start -up, set the fan speed to maximum and the thermostat to 5
degrees lower than the current temperature. Afterwards, set the fan switch to low and
set the thermostat to your desired setting.
• To protect the unit, we recommend not using the cooling function when the ambient
temperature exceeds 35°C . The unit's performance may be affected at lower
temperatures than this. If a scorching day is predicted, running the unit overnight in
the desired room is recommended.
7

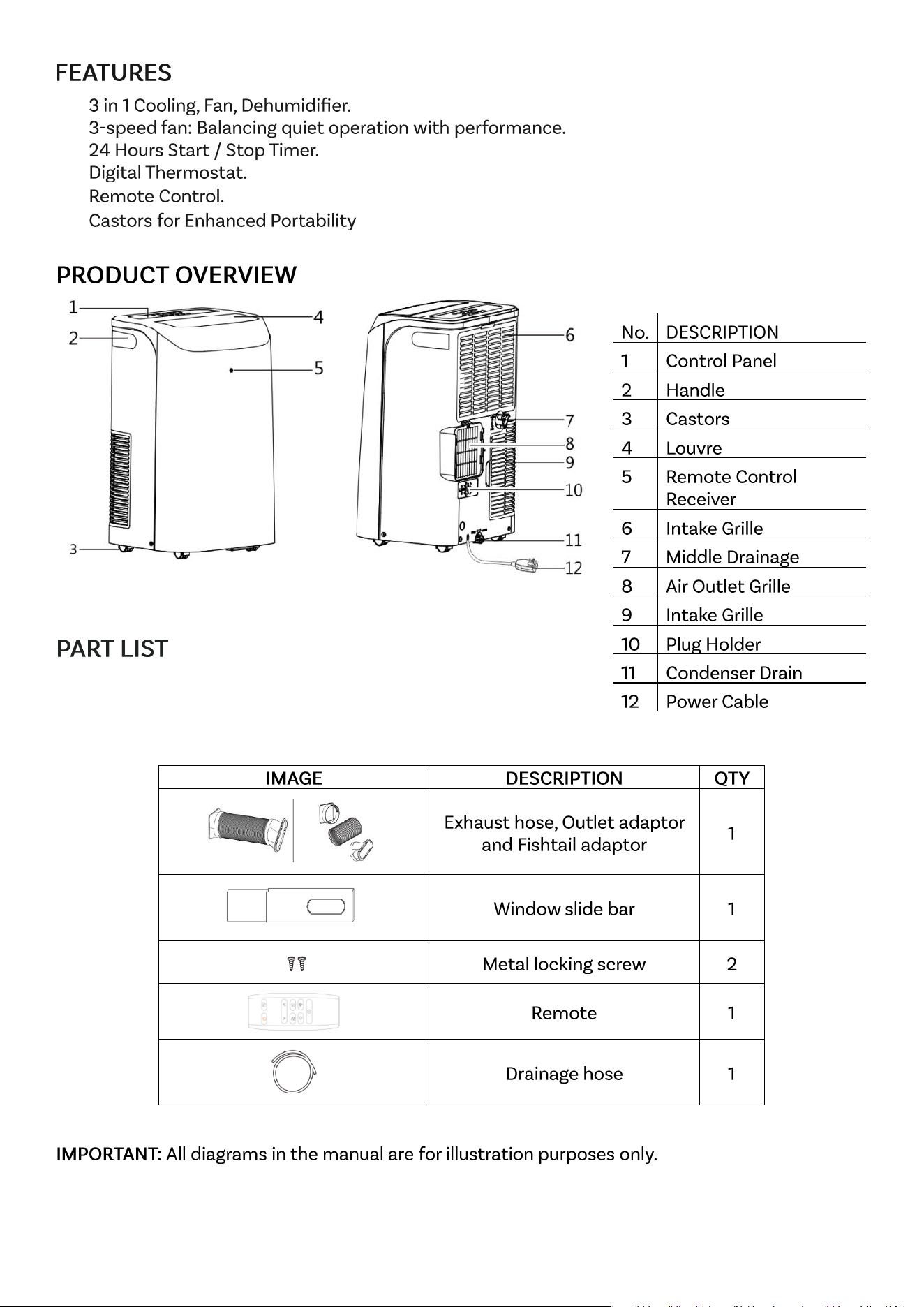

FEATURES
• 3 in 1 Cooling, Fan, Dehumidifier.
• 3-speed fan: Balancing quiet operation with performance.
• 24 Hours Start / Stop Timer.
• Digital Thermostat.
• Remote Control.
• Castors for Enhanced Portability
PRODUCT OVERVIEW
PART LIST
DESCRIPTION
QTY
Exhaust hose, Outlet adaptor
and Fishtail adaptor
1
Window slide bar
1
Metal locking screw
2
Remote
1
Drainage hose
1
IMPORTANT : All diagrams in the manual are for illustration purposes only.
No.
DESCRIPTION
1
Control Panel
2
Handle
3
Castors
4
Louvre
5
Remote Control
Receiver
6
Intake Grille
7
Middle Drainage
8
Air Outlet Grille
9
Intake Grille
10
Plug Holder
11
Condenser Drain
12
Power Cable
8

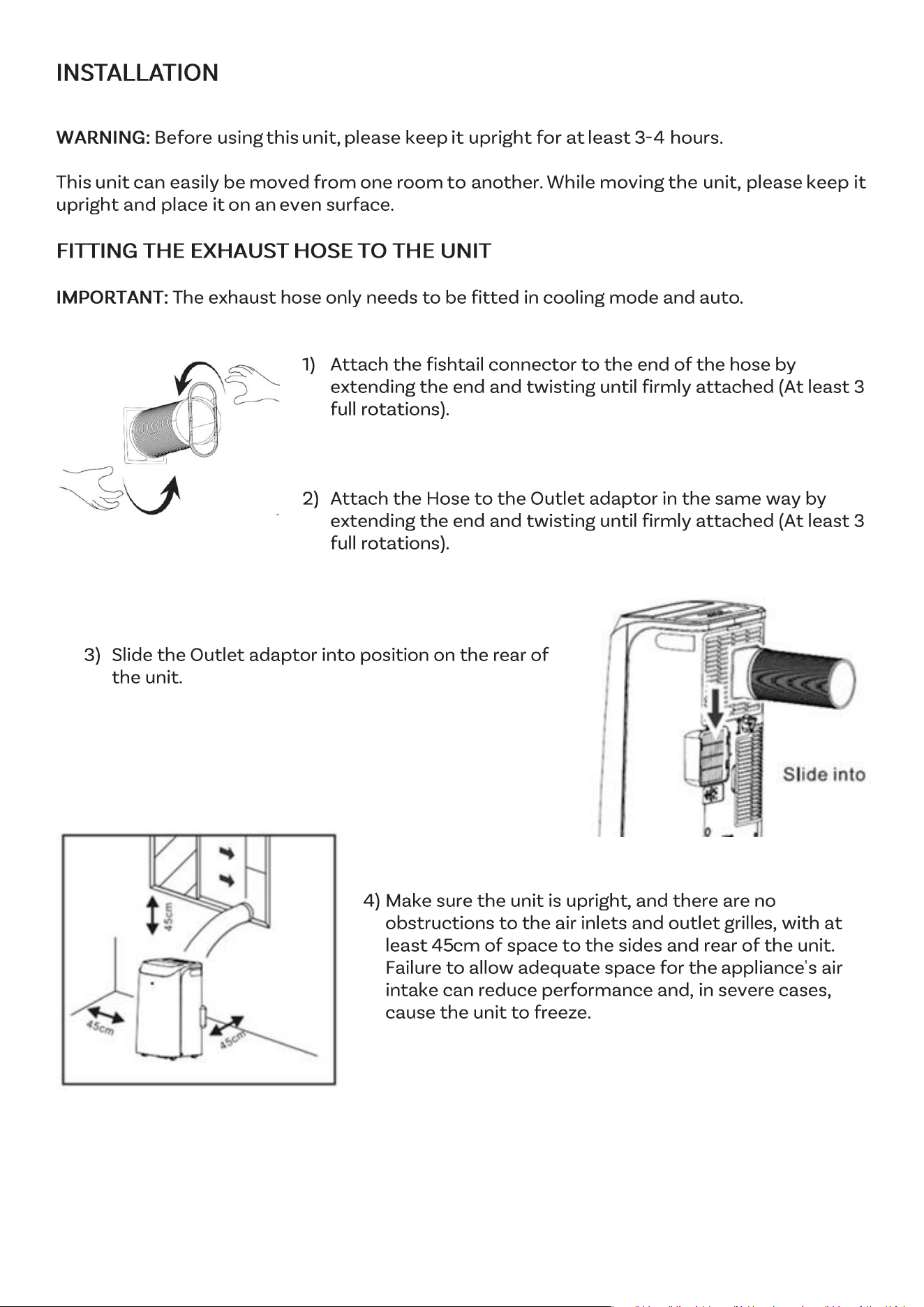

INSTALLATION
WARNING:
Before using this unit, please keep it upright for at least 3-4 hours.
This unit can easily be moved from one room to another. While moving the unit, please keep it
upright and place it on an even surface.
FITTING THE EXHAUST HOSE TO THE UNIT
IMPORTANT:
The exhaust hose only needs to be fitted in cooling mode and auto .
1)
Attach the fishtail connector to the end of the hose by
extending the end and twisting until firmly attached (At least 3
full rotations).
2)
Attach the Hose to the Outlet adaptor in the same way by
extending the end and twisting until firmly attached (At least 3
full rotations).
3)
Slide the Outlet adaptor into position on the rear of
the unit.
4)
Make sure the unit is upright , and there are no
obstructions to the air inlets and outlet grill es, with at
least 45cm of space to the sides and rear of the unit.
Failure to allow adequate space for the appliance's air
intake can reduce performance and, in severe cases,
cause the unit to freeze.
9

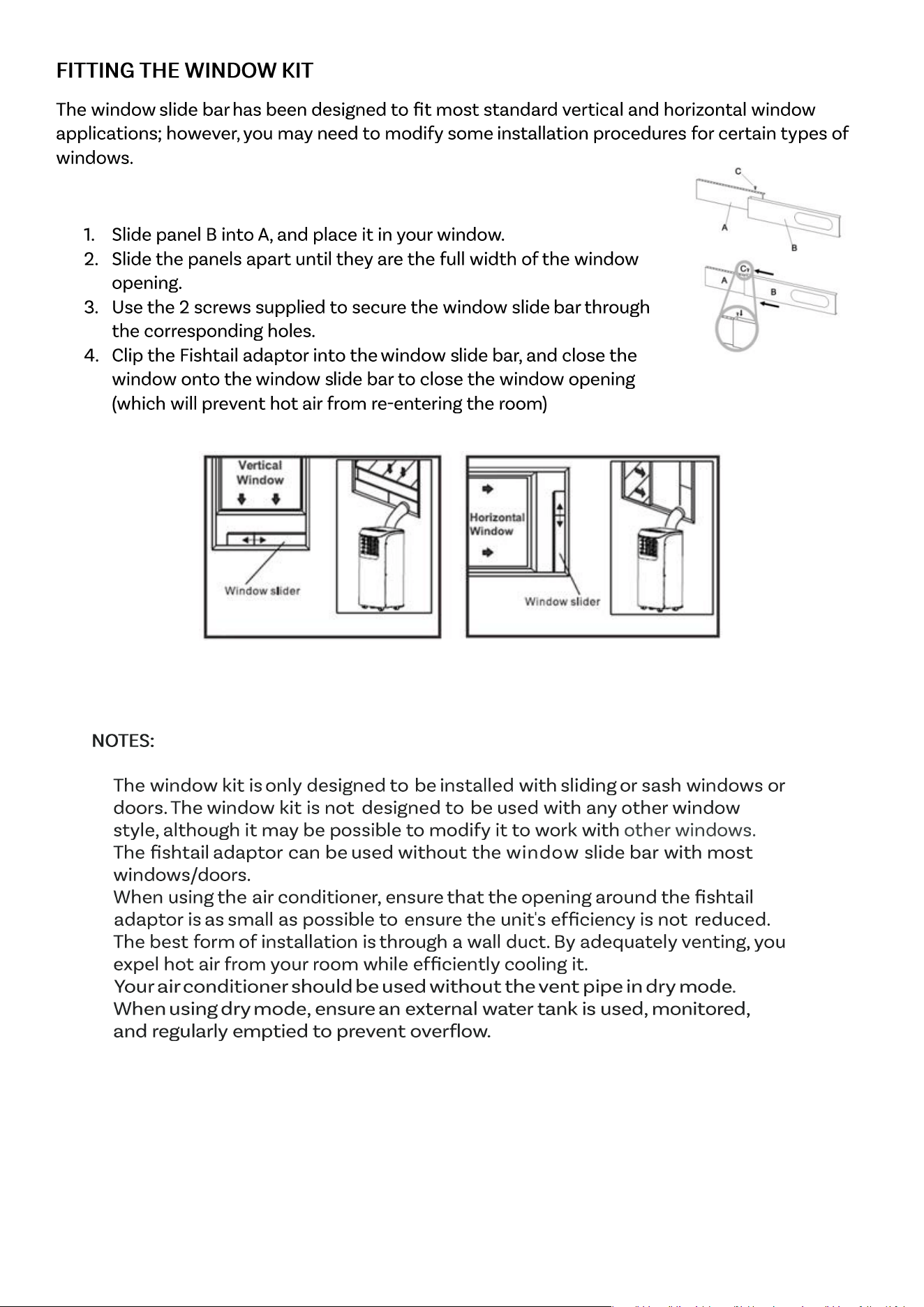

FITTING THE WINDOW KIT
The window slide bar has been designed to fit most standard vertical and horizontal window
applications ; however, you may need to modify some installation procedures for certain types of
windows.
1. Slide panel B into A, and place it in your window.
2. Slide the panels apart until they are the full width of the window
opening.
3. Use the 2 screws supplied to secure the window slide bar through
the corresponding holes.
4. Clip the Fishtail adaptor into the window s lide bar, and close the
window onto the window s lide bar to close the window opening
(which will prevent hot air from re -entering the room)
NOTES:
•
The window kit is only designed to be installed with sliding or sash windows or
doors. The window kit is not designed to be used with any other window
style, although it may be possible to modify it to work with other windows.
•
The fishtail adaptor can be used without the window slide bar with most
windows/ doors.
•
When using the air conditioner, ensure that the opening around the fishtail
adaptor is as small as possible to ensure the unit's efficiency is not reduced.
•
The best form of installation is through a wall duct. By adequately venting, you
expel hot air from your room while efficiently cooling it.
•
Your air conditioner should be used without the vent pipe in dry mode .
When using dry mode, ensure an external water tank is used, monitored,
and regularly emptied to prevent overflow .
10

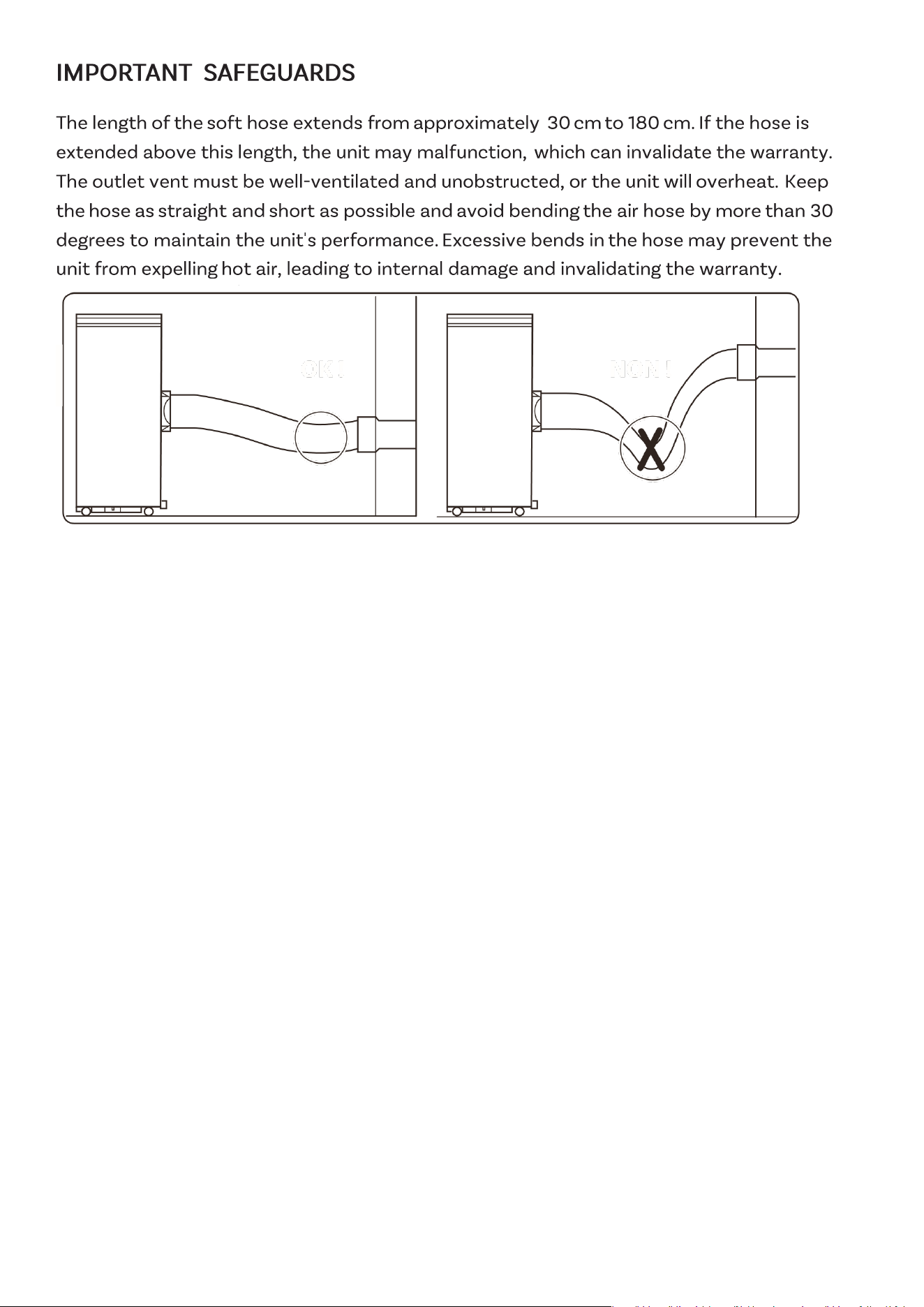

IMPORTANT SAFEGUARDS
The length of the soft hose extends from approximately 30 cm to 180 cm. If the hose is
extended above this length, the unit may malfunction, which can invalidate the warranty.
The outlet vent must be well -ventilated and unobstructed, or the unit will overheat. Keep
the hose as straight and short as possible and avoid bending the air hose by more than 30
degrees to maintain the unit's performance. Excessive bends in the hose may prevent the
unit from expelling hot air, leading to internal damage and invalidating the warranty.
11

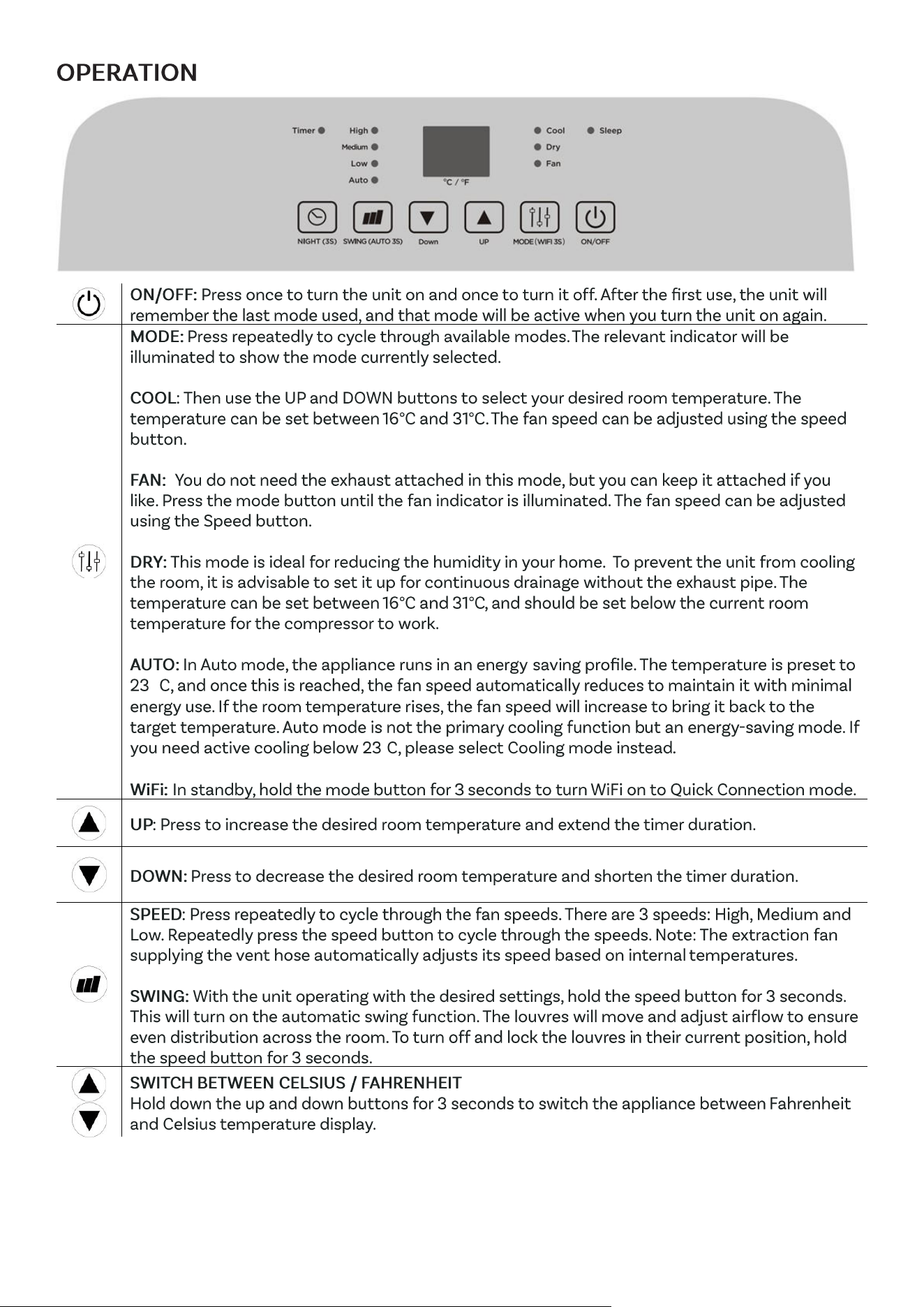

OPERATION
ON/OFF : Press once to turn the unit on and once to turn it off. After the first use, the unit will
remember the last mode used, and that mode will be active when you turn the unit on again.
MODE: Press repeatedly to cycle through available modes. The relevant indicator will be
illuminated to show the mode currently selected.
COOL : Then use the UP and DOWN buttons to select your desired room temperature. The
temperature can be set between 16°C and 31°C. The fan speed can be adjusted using the speed
button.
FAN: You do not need the exhaust attached in this mode, but you can keep it attached if you
like. Press the mode button until the fan indicator is illuminated. The fan speed can be adjusted
using the Speed button.
DRY: This mode is ideal for reducing the humidity in your home. To prevent the unit from cooling
the room, it is advisable to set it up for continuous drainage without the exhaust pipe. The
temperature can be set between 16°C and 31°C, and should be set below the current room
temperature for the compressor to work.
AUTO: In Auto mode, the appliance runs in an energy ‑saving profile. The temperature is preset to
23° C, and once this is reached, the fan speed automatically reduces to maintain it with minimal
energy use. If the room temperature rises, the fan speed will increase to bring it back to the
target temperature. Auto mode is not the primary cooling function b ut an energy -saving mode. If
you need active cooling below 23 °C, please select Cooling mode instead .
WiFi: In standby, hold the mode button for 3 seconds to turn WiFi on to Quick Connection mode.
UP: Press to increase the desired room temperature and extend the timer duration.
DOWN: Press to decrease the desired room temperature and shorten the timer duration.
SPEED : Press repeatedly to cycle through the fan speeds. There are 3 speeds: High, Medium and
Low. Repeatedly press the speed button to cycle through the speeds. Note: The extraction fan
supplying the vent hose automatically adjusts its speed based on internal temperatures.
SWING: With the unit operating with the desired settings, hold the speed button for 3 seconds.
This will turn on the automatic swing function. The louvres will move and adjust airflow to ensure
even distribution across the room. To turn off and lock the louvres i n their current position, hold
the speed button for 3 seconds.
SWITCH BETWEEN CELSIUS / FAHRENHEIT
Hold down the up and down buttons for 3 seconds to switch the appliance between Fahrenheit
and Celsius temperature display.
12
LOU VRES ADJUSTMENT
You can manually adjust the louvres to change the airflow direction. Carefully adjust using your
hand to your desired position.

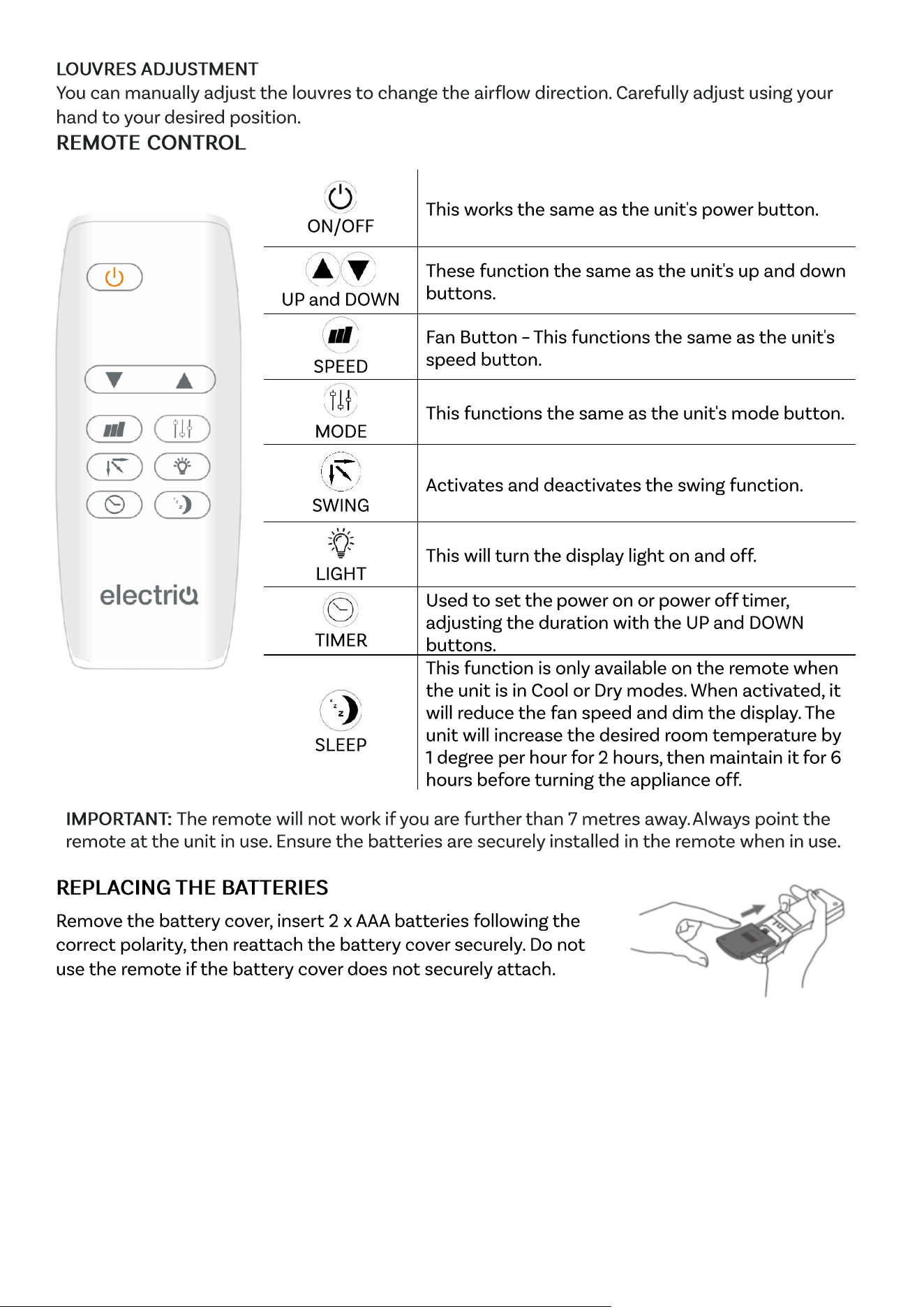

REMOTE CONTROL
IMPORTANT : The remote will not work if you are further than 7 metres away. Always point the
remote at the unit in use. Ensure the batteries are securely installed in the remote when in use .
REPLACING THE BATTERIES
Remove the battery cover, insert 2 x AAA batteries following the
correct polarity, then reattach the battery cover securely. Do not
use the remote if the battery cover does not securely attach.
ON/OFF
This works the same as the unit's power button.
UP and DOWN
These function the same as the unit's up and down
buttons.
SPEED
Fan Button – This functions the same as the unit's
speed button.
MODE
This functions the same as the unit's mode button.
SWING
Activates and deactivates the swing function.
LIGHT
This will turn the display light on and off.
TIMER
Used to set the power on or power off timer,
adjusting the duration with the UP and DOWN
buttons.
SLEEP
This function is only available on the remote when
the unit is in Cool or Dry modes. When activated, it
will reduce the fan speed and dim the display. The
unit will increase the desired room temperature by
1 degree per hour for 2 hours , then maintain it for 6
hours before turning the appliance off.
13

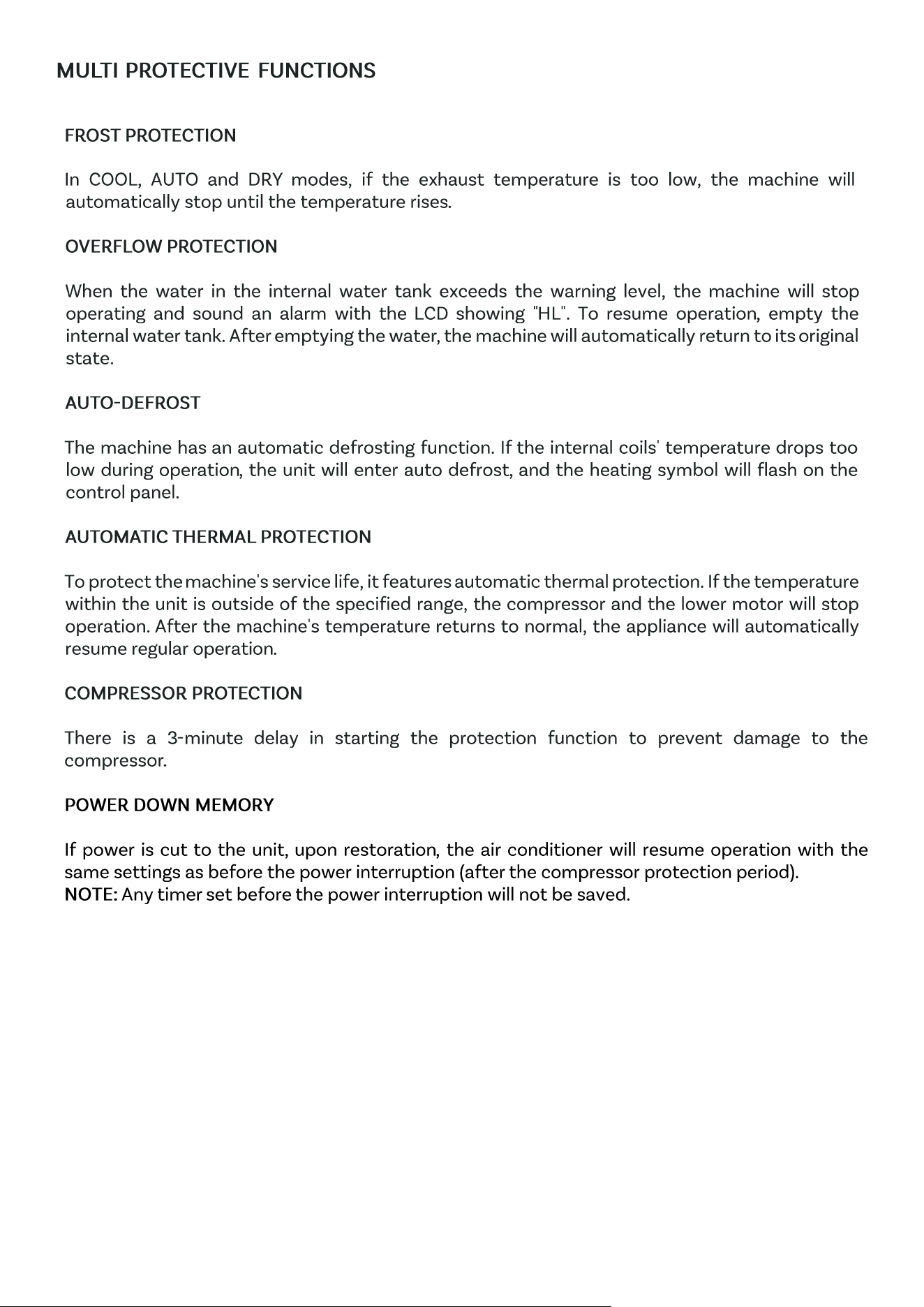

MULTI PROTECTIVE FUNCTIONS
FROST PROTECTION
In COOL, AUTO and DRY modes, if the exhaust temperature is too low, the machine will
automatically stop until the temperature rises .
OVERFLOW PROTECTION
When the water in the internal water tank exceeds the warning level, the machine will stop
operating and sound an alarm with the LCD showing " HL ". To resume operation , empty the
internal water tank. After emptying the water , the machine will automatically return to its original
state.
AUTO -DEFROST
The machine has an automatic defrosting function. If the internal coils' temperature drops too
low during operation , the unit will enter auto defrost , and the heating symbol will flash on the
control panel.
AUTOMATIC THERMAL PROTECTION
To protect the machine's service life, it features automatic thermal protection. If the temperature
within the unit is outside of the specified range, the compressor and the lower motor will stop
operation. After the machine's temperature returns to normal, the appliance will automatically
resume regular operation .
COMPRESSOR PROTECTION
There is a 3 -minute delay in starting the protection function to prevent damage to the
compressor .
POWER DOWN MEMORY
If power is cut to the unit, upon restoration , the air conditioner will resume operation with the
same settings as before the power interruption (after the compressor protection period).
NOTE: Any timer set before the power interruption will not be saved.
14

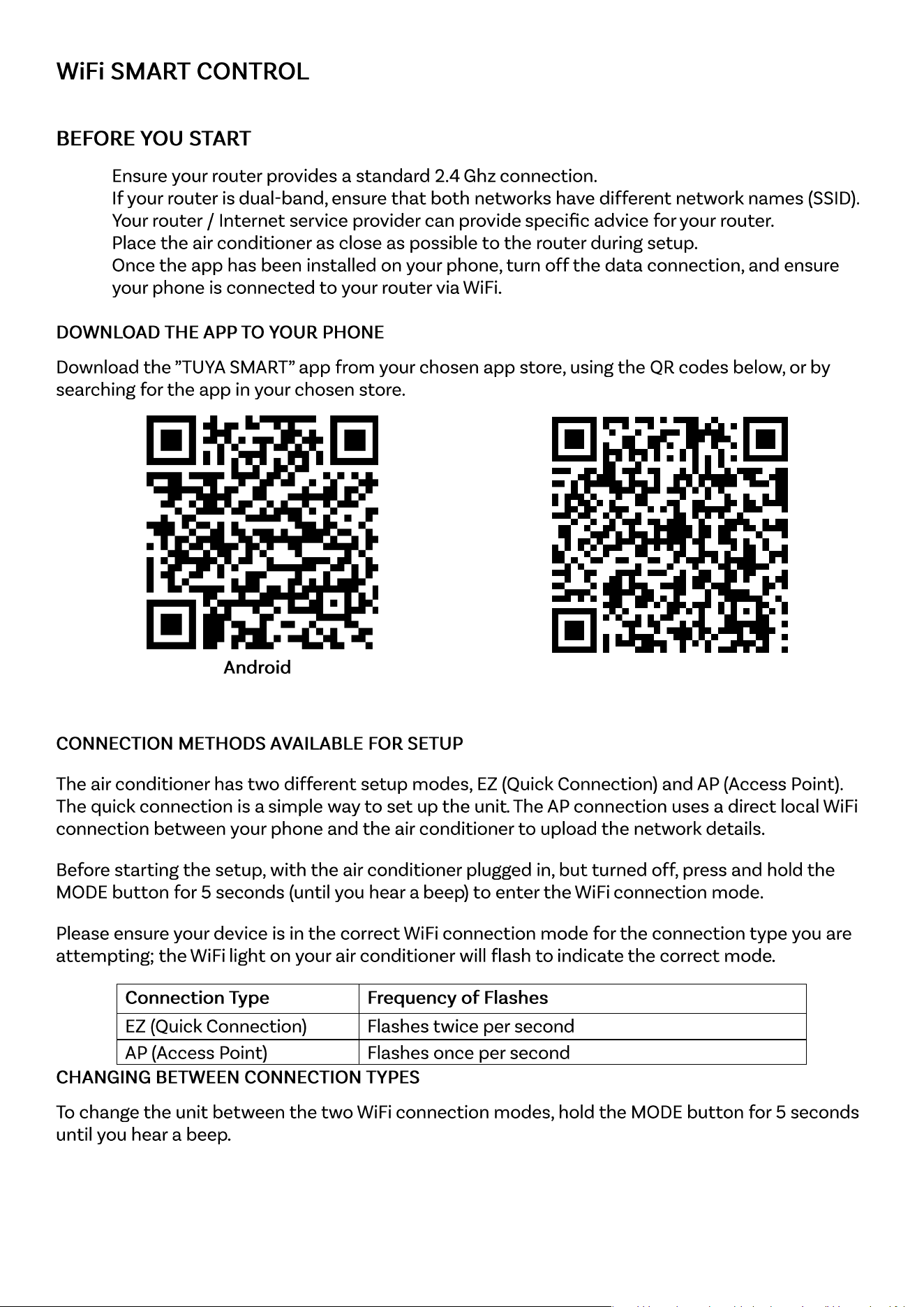

WiFi SMART CONTROL
BEFORE YOU START
• Ensure your router provides a standard 2.4 Ghz connection.
• If your router is dual-band, ensure that both networks have different network names (SSID).
Your router / Internet service provider can provide specific advice for your router.
• Place the air conditioner as close as possible to the router during setup.
• Once the app has been installed on your phone, turn off the data connection, and ensure
your phone is connected to your router via WiFi.
DOWNLOAD THE APP TO YOUR PHONE
Download the ”TUYA SMART” app from your chosen app store, using the QR codes below, or by
searching for the app in your chosen store.
Android
CONNECTION METHODS AVAILABLE FOR SETUP
The air conditioner has two different setup modes, EZ (Quick Connection) and AP (Access Point).
The quick connection is a simple way to set up the unit . The AP connection uses a direct local WiFi
connection between your phone and the air conditioner to upload the network details.
Before starting the setup, with the air conditioner plugged in, but turned off, press and hold the
MODE button for 5 seconds (until you hear a beep) to enter the WiFi connection mode.
Please ensure your device is in the correct WiFi connection mode for the connection type you are
attempting ; the WiFi light on your air conditioner will flash to indicate the correct mode .
Connection Type
Frequency of Flashes
EZ (Quick Connection)
Flashes twice per second
AP (Access Point)
Flashes once per second
CHANGING BETWEEN CONNECTION TYPES
To change the unit between the two WiFi connection modes, hold the MODE button for 5 seconds
until you hear a beep .
IOS
15

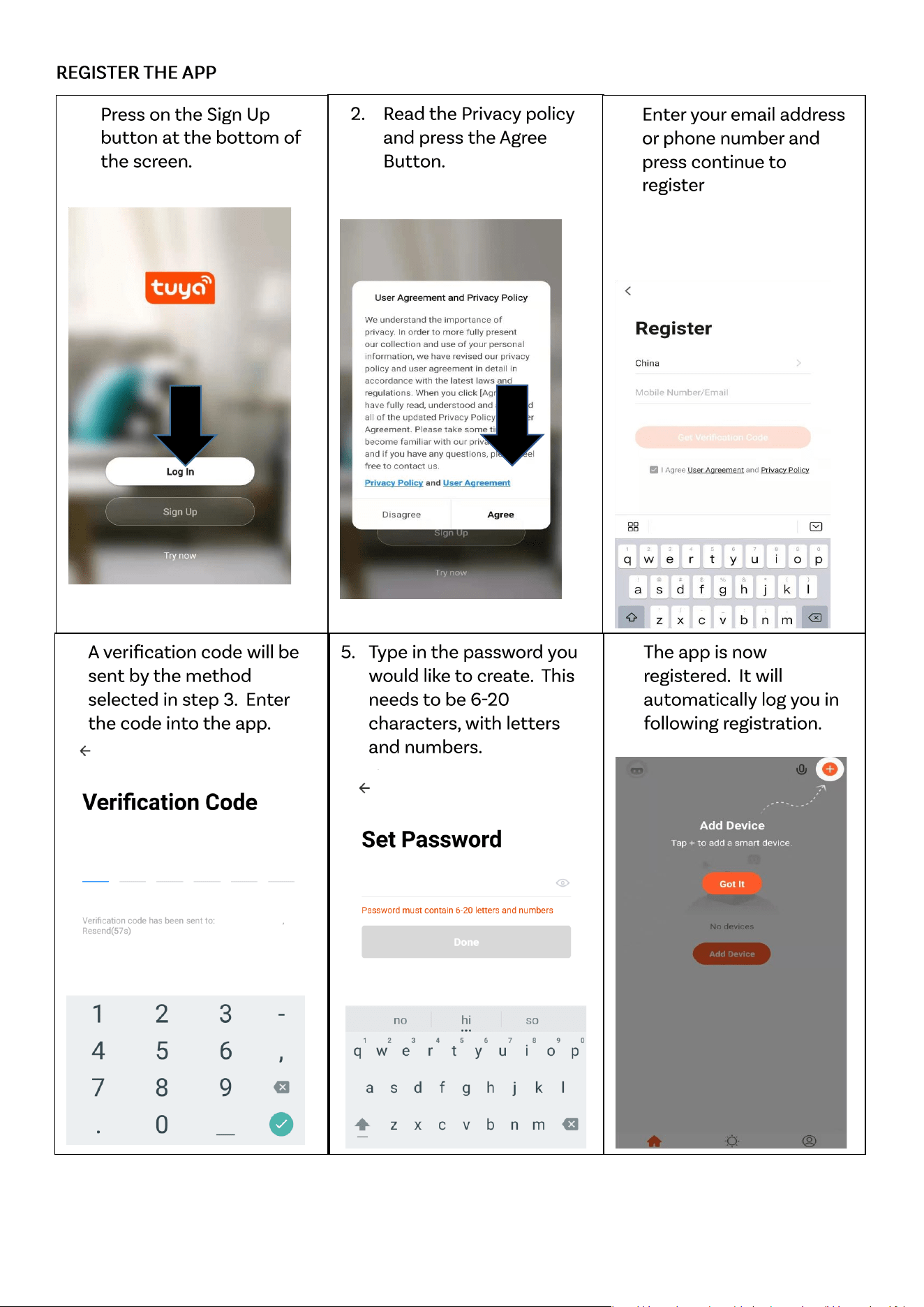

REGISTER THE APP
1. Press on the Sign Up
button at the bottom of
the screen .
2. Read the Privacy policy
and press the Agree
Button.
3. Enter your email address
or phone number and
press continue to
register .
4. A verification code will be
sent by the method
selected in step 3. Enter
the code into the app.
6. The app is now
registered. It will
automatically log you in
following registration.
5. Type in the password you
would like to create. This
needs to be 6 -20
characters, with letters
and numbers.
16

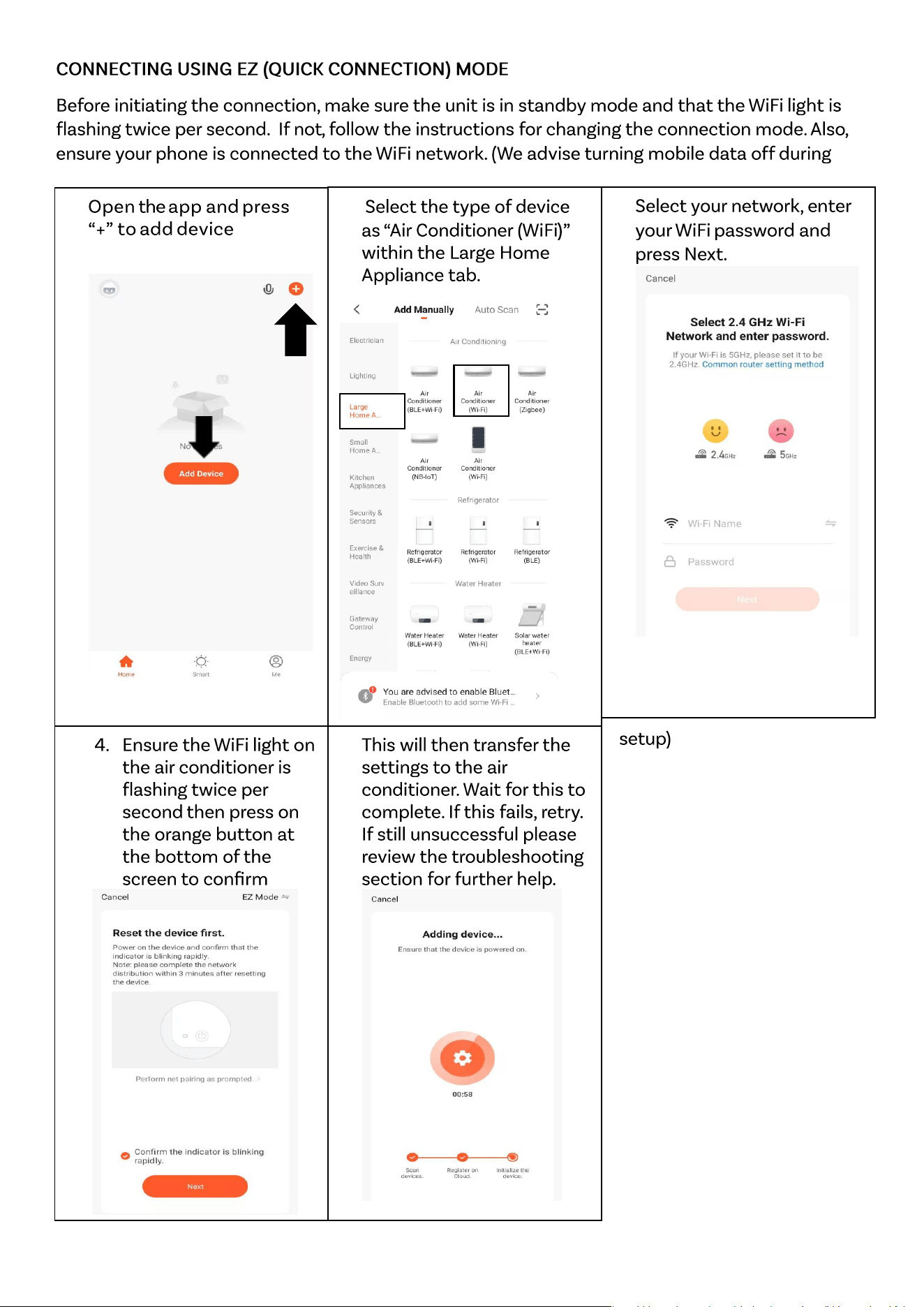

CONNECTING USING EZ (QUICK CONNECTION) MODE
Before initiating the connection, make sure the unit is in standby mode and that the WiFi light is
flashing twice per second. If not , follow the instructions for changing the connection mode. Also ,
ensure your phone is connected to the WiFi network. (We advise turning mobile data off during
setup)
1. Open the app and press
“+” to add device
2. Select the type of device
as “Air Conditioner ( WiFi)”
within the Large Home
Appliance tab.
3. Select your network, enter
your WiFi password and
press Next.
4. Ensure the WiFi light on
the air conditioner is
flashing twice per
second then press on
the orange button at
the bottom of the
screen to confirm
5. This will then transfer the
settings to the air
conditioner. Wait for this to
complete. If this fails, retry.
If still unsuccessful please
review the troubleshooting
section for further help.
17

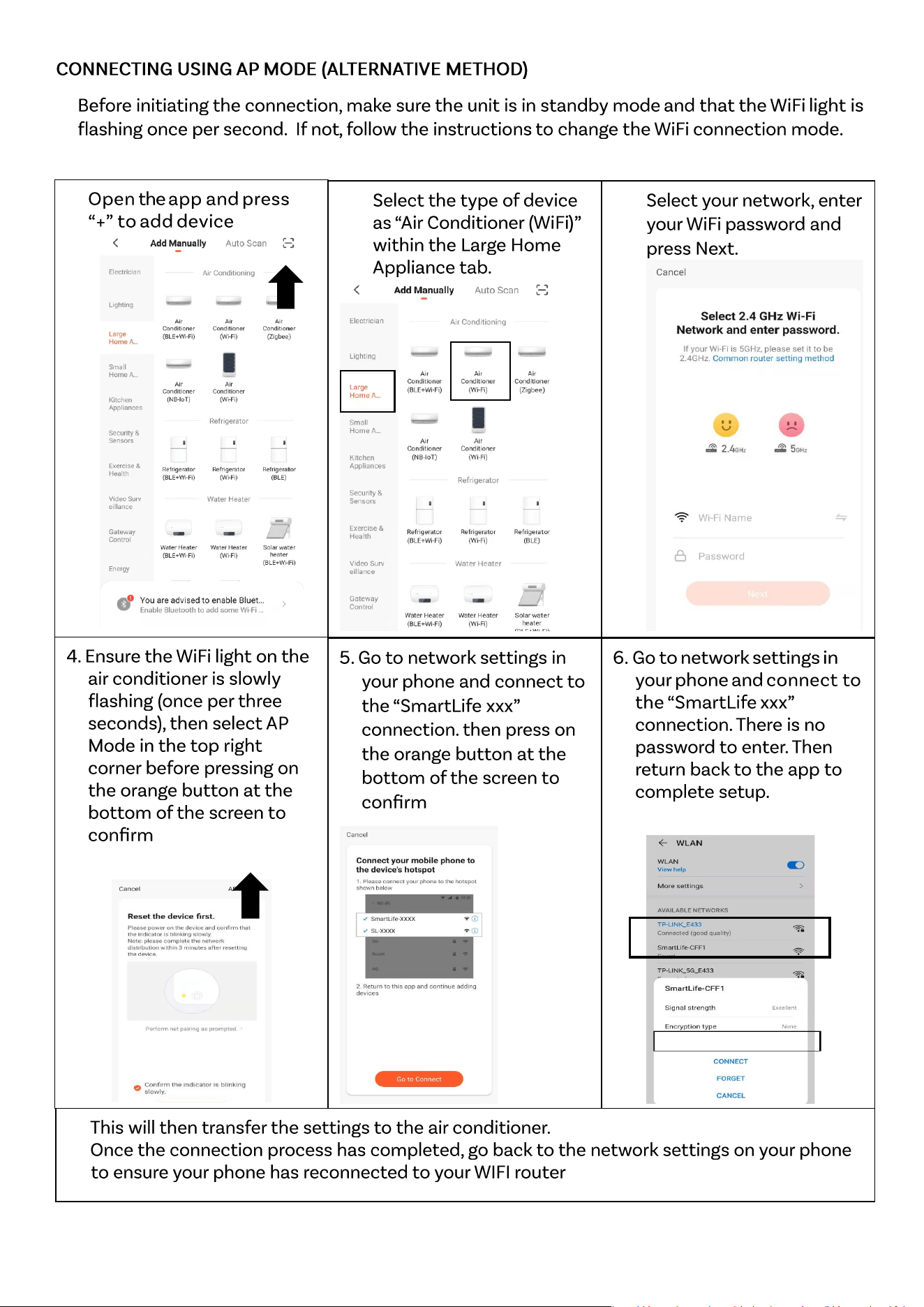

CONNECTING USING AP MODE (ALTERNATIVE METHOD)
Before initiating the connection, make sure the unit is in standby mode and that the WiFi light is
flashing once per second. If not , follow the instructions to change the WiFi connection mode.
1. Open the app and press
“+” to add device
2. Select the type of device
as “Air Conditioner ( WiFi)”
within the Large Home
Appliance tab.
3. Select your network, enter
your WiFi password and
press Next.
4. Ensure the WiFi light on the
air conditioner is slowly
flashing (once per three
seconds), then select AP
Mode in the top right
corner before pressing on
the orange button at the
bottom of the screen to
confirm
5. Go to network settings in
your phone and connect to
the “SmartLife xxx”
connection. then press on
the orange button at the
bottom of the screen to
confirm
6. Go to network setting s in
your phone and connect to
the “SmartLife xxx”
connection. There is no
password to enter. Then
return back to the app to
complete setup.
This will then transfer the settings to the air conditioner.
Once the connection process has completed, go back to the network settings on your phone
to ensure your phone has reconnected to your WIFI router .
18
Ensure your phone is connected to the WiFi network. (We advise turning mobile data off during
setup)
CONTROLLING YOUR DEVICE THROUGH THE APP

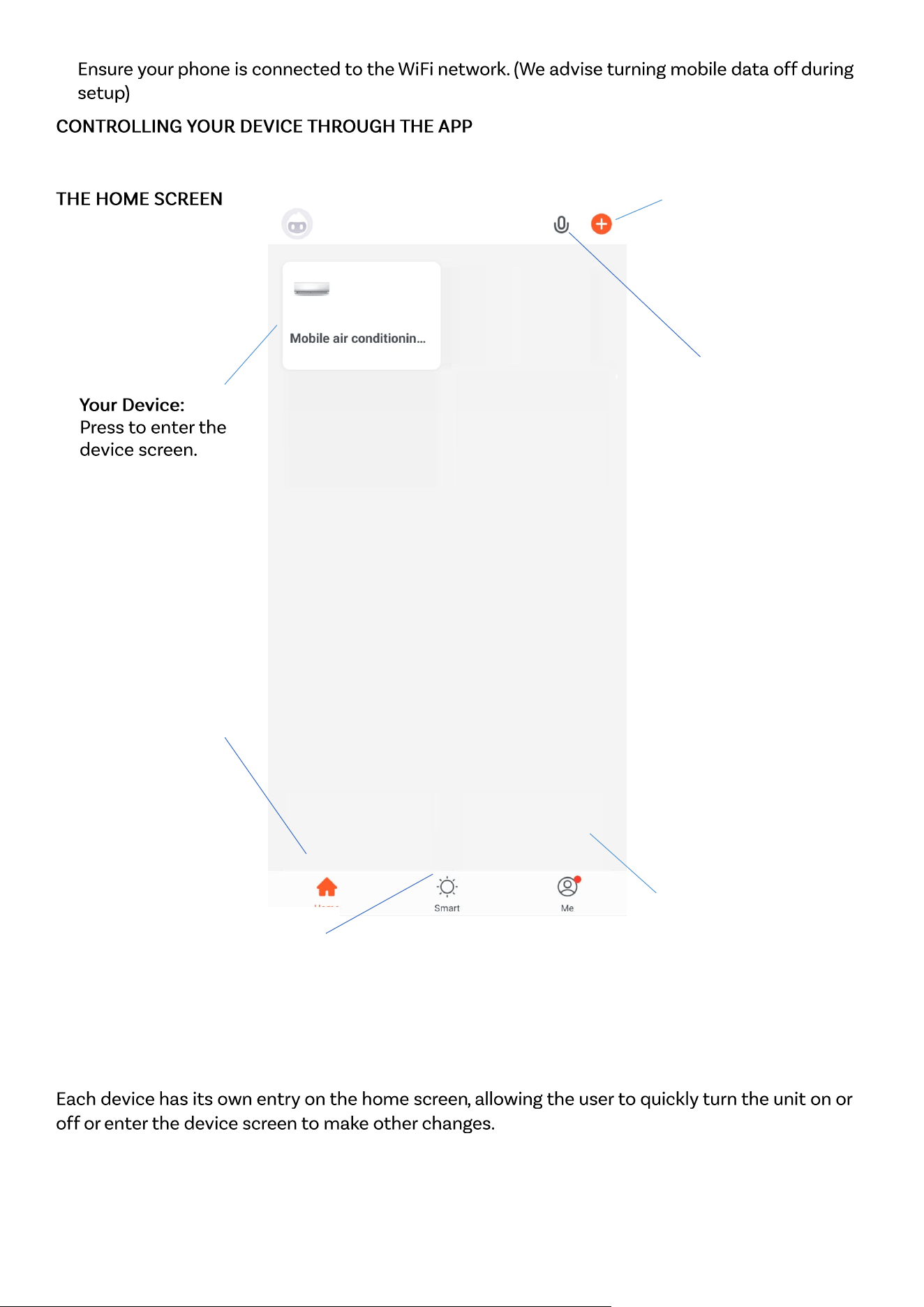

THE HOME SCREEN
Each device has its own entry on the home screen , allowing the user to quickly turn the unit on or
off or enter the device screen to make other changes.
Smart Scene: Allows you to
program intelligent behaviour
based on the internal and
external environment
Add Device: Add a device
to the app, and go
through the setup
process.
Prole: Provides the
option for changing
settings, and adding
devices using a QR code
provided by a friend.
Your Device:
Press to enter the
device screen.
Voice Control: Use to
give verbal instructions to
the app.
Home: Return to
this screen when
within the Smart or
prole tabs.
19

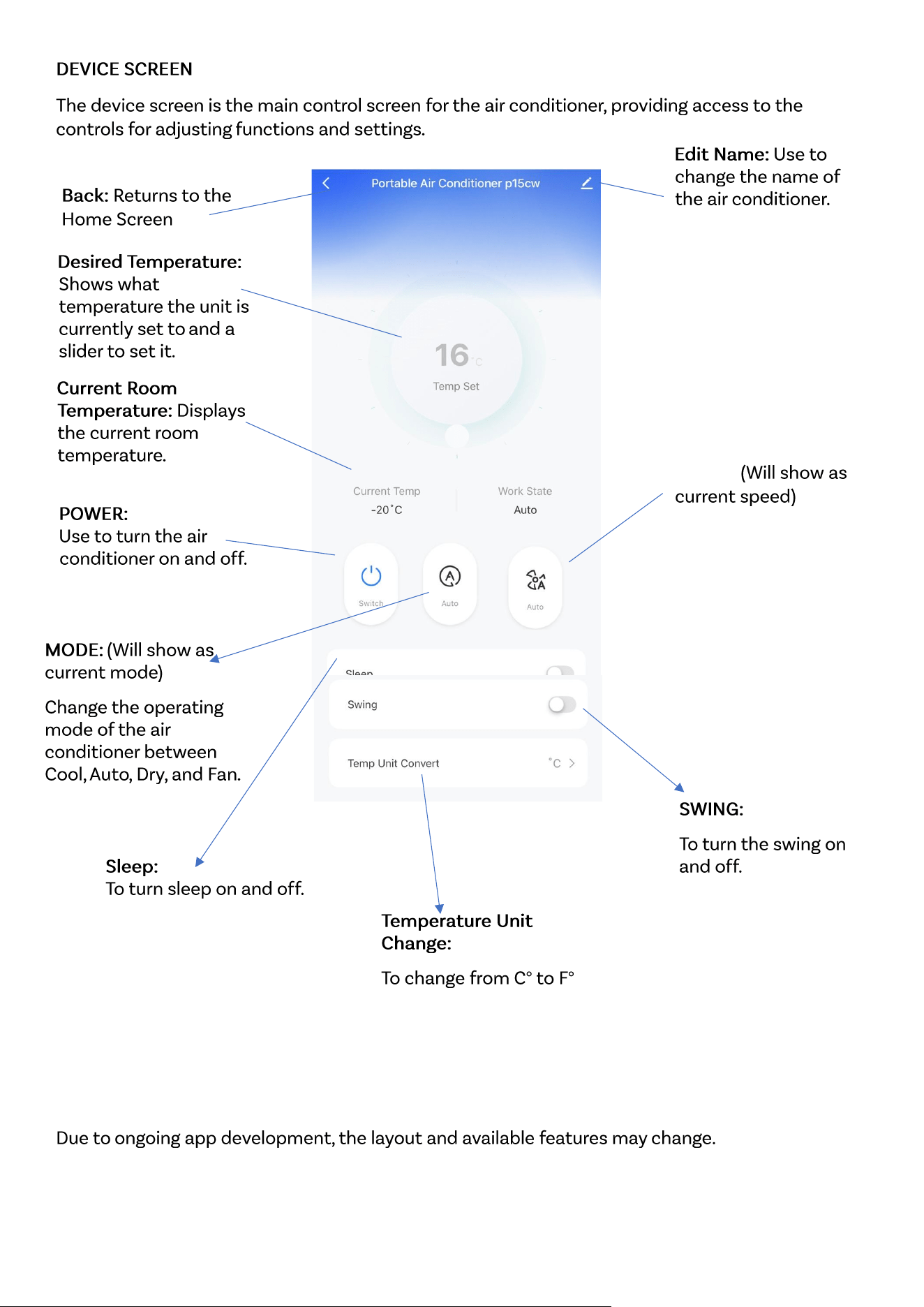

DEVICE SCREEN
The device screen is the main control screen for the air conditioner, providing access to the
controls for adjusting functions and settings .
Due to ongoing app development, the layout and available features may change.
Edit Name: Use to
change the name of
the air conditioner.
SPEED: (Will show as
current speed)
Use to change the Fan
speed between F1(Low)
and F5 (High)
Current Room
Temperature: Displays
the current room
temperature .
Back: Returns to the
Home Screen
Desired Temperature:
Shows what
temperature the unit is
currently set to and a
slider to set it.
MODE: (Will show as
current mode)
Change the operating
mode of the air
conditioner between
Cool, Auto , Dry, and Fan .
Sleep:
To turn sleep on and off.
SWING:
To turn the swing on
and off.
POWER:
Use to turn the air
conditioner on and off.
Temperature Unit
Change:
To change from C° to F°
20

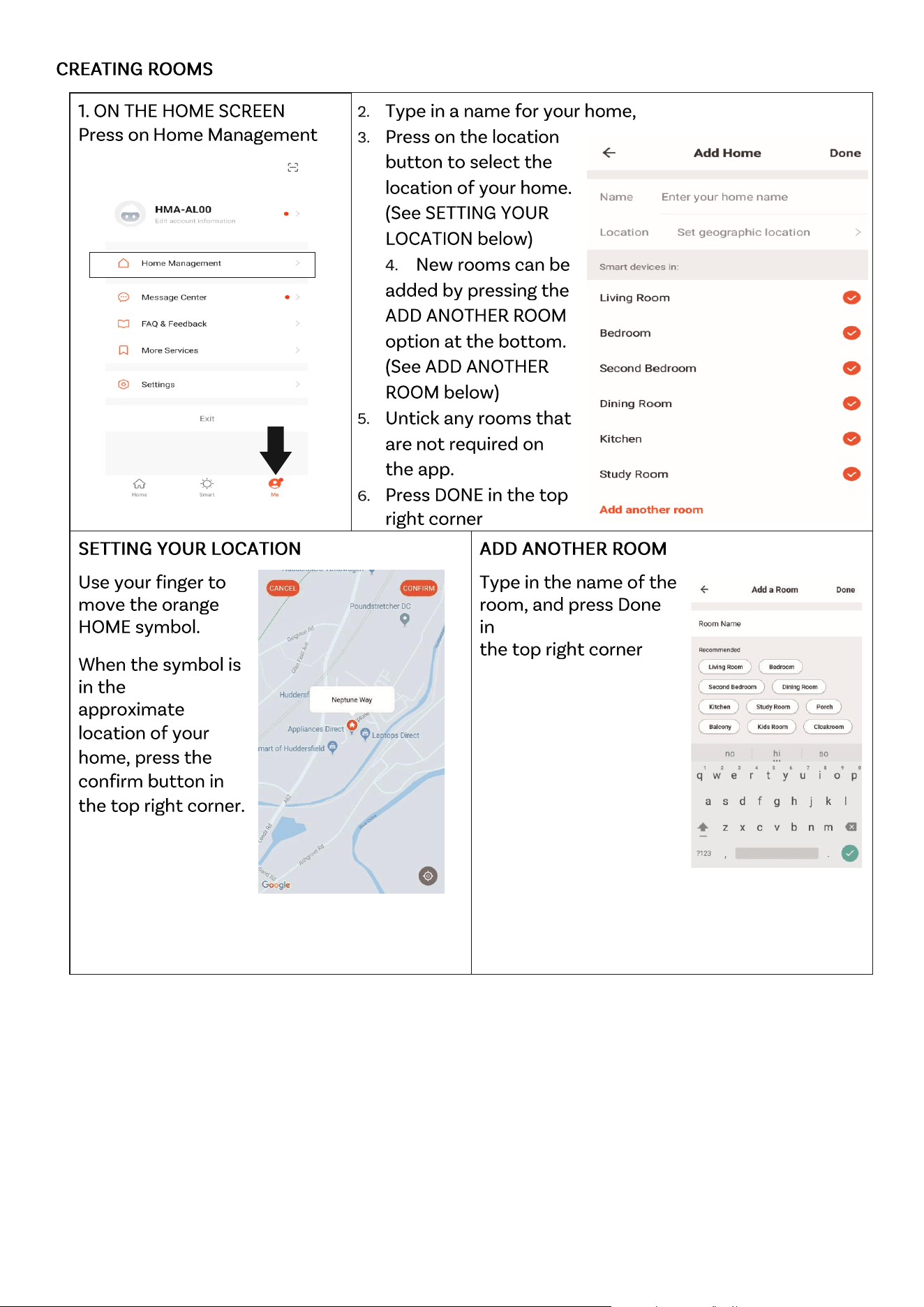

CREATING ROOMS
1. ON THE HOME SCREEN
Press on Home Management
2. Type in a name for your home,
3. Press on the location
button to select the
location of your home.
(See SETTING YOUR
LOCATION below)
4. New rooms can be
added by pressing the
ADD ANOTHER ROOM
option at the bottom.
(See ADD ANOTHER
ROOM below)
5. Untick any rooms that
are not required on
the app.
6. Press DONE in the top
right corner
SETTING YOUR LOCATION
ADD ANOTHER ROOM
Use your finger to
move the orange
HOME symbol.
When the symbol is
in the
approximate
location of your
home, press the
confirm button in
the top right corner.
Type in the name of the
room, and press Done
in
the top right corner
buon
21

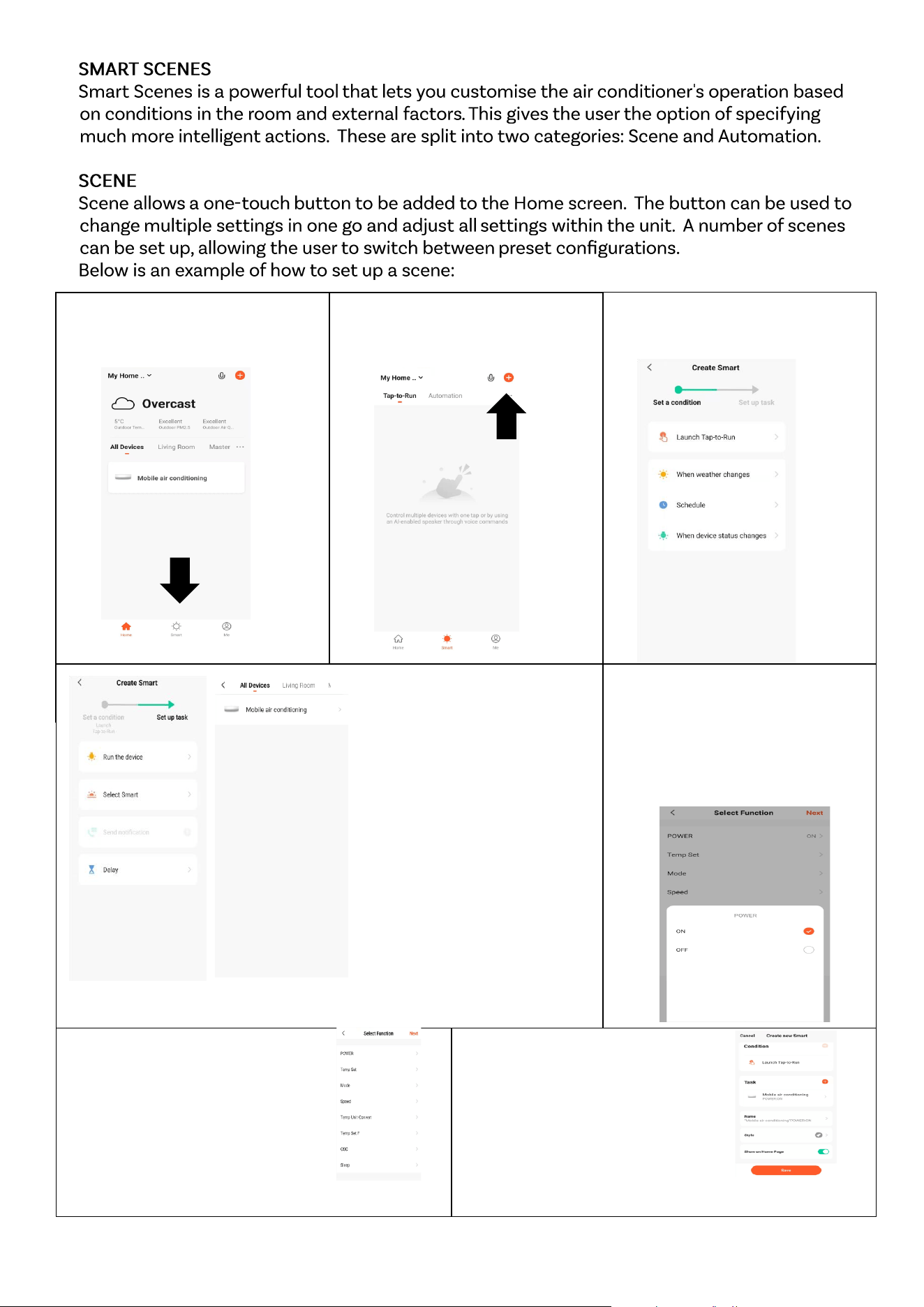

SMART SCENES
Smart Scenes is a powerful tool that lets you customise the air conditioner's operation based
on conditions in the room and external factors . This gives the user the option of specifying
much more intelligent actions. These are split into two categories : Scene and Automation.
SCENE
Scene allows a one -touch button to be added to the Home screen. The button can be used to
change multiple settings in one go and adjust all settings within the unit. A number of scenes
can be set up, allowing the user to switch between preset configurations.
Below is an example of how to set up a scene:
1. Press on the Smart Scene
tab at the bottom of the
Home screen
3. Select the type of Scene to
create.
2. Press on the Plus in the top
right corner to add a smart
scene.
4. Select Tap To Run,
followed by the device
you want to control.
5. Choose the function, set the
value for the function, and
then press the back button
in the top right corner, to
return to the previous
screen.
6. Once all the functions
required have been added,
press the Next button in the
top right corner to nalise
and save your new Scene
7. Once you have named your
scene, save it, and the button
will be available to activate the
scene with one touch within the
app.
22

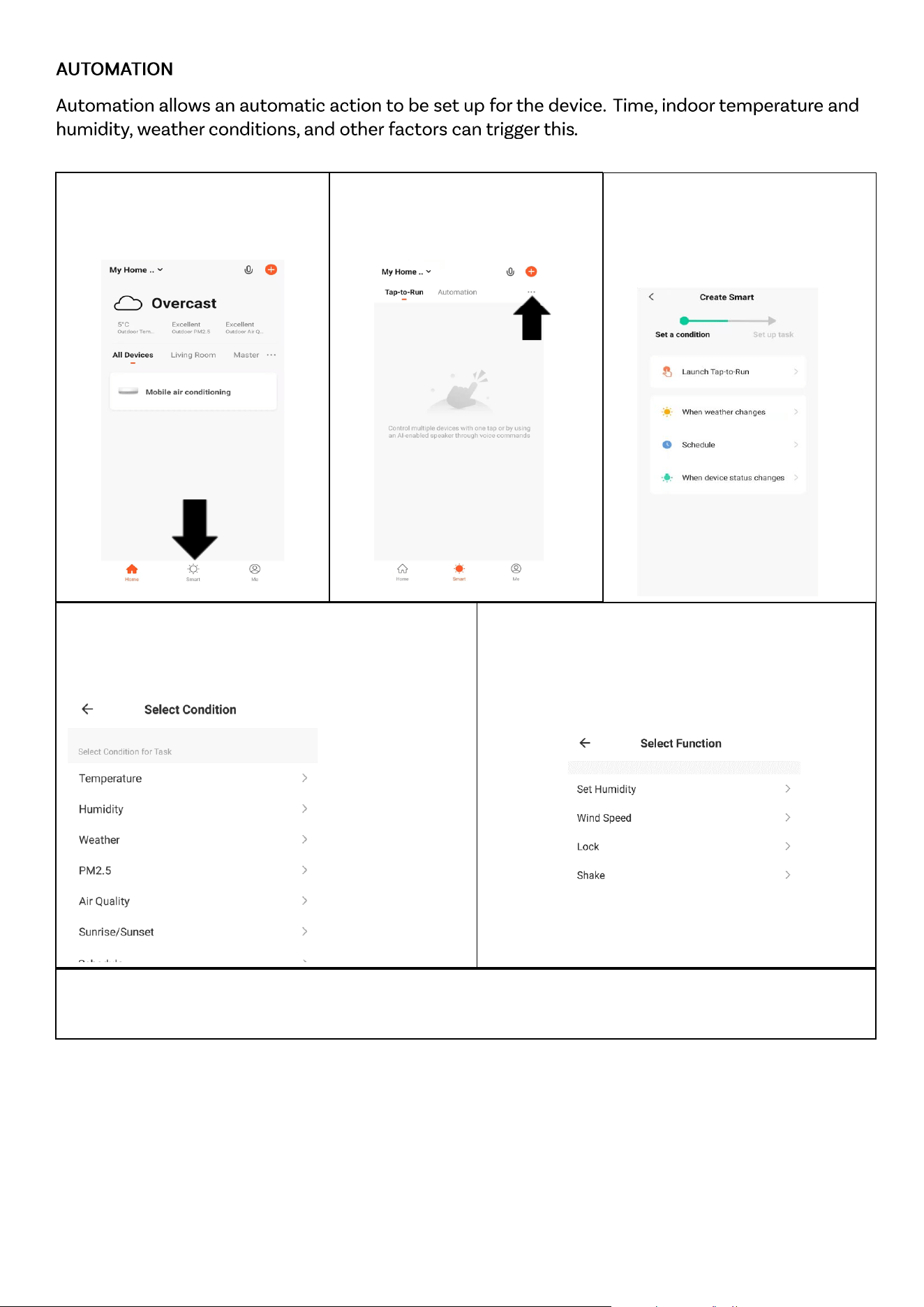

AUTOMATION
Automation allows an automatic action to be set up for the device. Time, indoor temperature and
humidity, weather conditions, and other factors can trigger this .
1. Press on the Smart Scene
tab at the bottom of the
Home screen
2. Press on the Plus in the top
right corner to add a smart
scene.
3. Select the type of
automation required, such
as on schedule for setting
up a timed operation.
5. Chose the function, set the value for the
function, and then press the back button in the
top right corner, to return to the previous
screen.
4. Select the condition when the automation
should start. A number of triggers can be
combined.
6. Once all the functions required have been added, press the Save button to nalise and save your
automated action. The automation can be turned on and o as required.
23

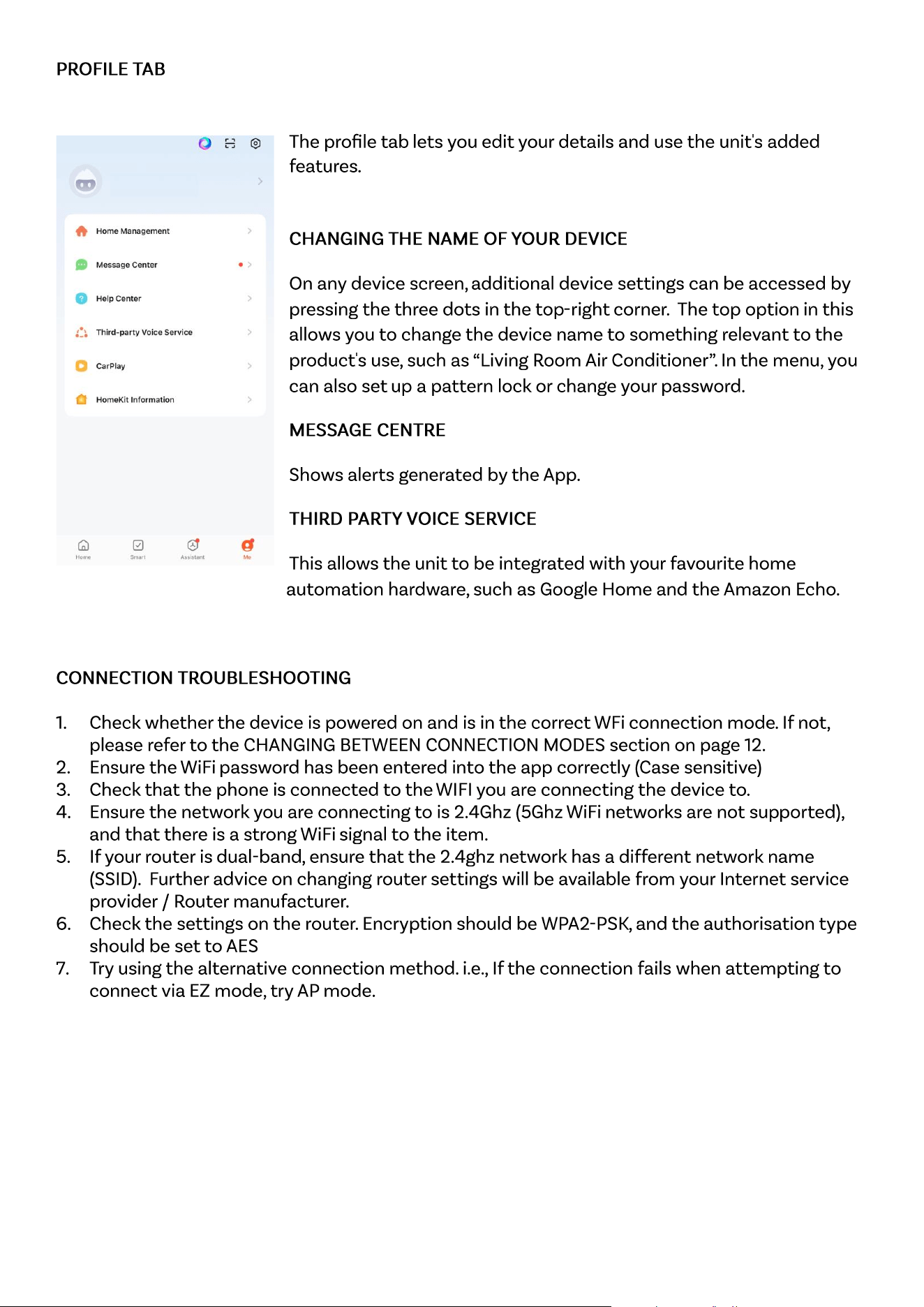

PROFILE TAB
The profile tab lets you edit your details and use the unit's added
features .
CHANGING THE NAME OF YOUR DEVICE
On any device screen, additional device settings can be accessed by
pressing the three dots in the top -right corner. The top option in this
allows you to change the device name to something relevant to the
product's use , such as “Living Room Air Conditioner”. In the menu, you
can also set up a pattern lock or change your password.
MESSAGE CENTRE
Shows alerts generated by the App.
THIRD PARTY VOICE SERVICE
This allows the unit to be integrated with your favourite home
automation hardware , such as Google Home and the Amazon Echo.
CONNECTION TROUBLESHOOTING
1. Check whether the device is powered on and is in the correct WFi connection mode . If not,
please refer to the CHANGING BETWEEN CONNECTION MODES section on page 12.
2. Ensure the WiFi password has been entered into the app correctly (Case sensitive)
3. Check that the phone is connected to the WIFI you are connecting the device to.
4. Ensure the network you are connecting to is 2.4Ghz (5Ghz WiFi networks are not sup ported ),
and that there is a strong WiFi signal to the item.
5. If your router is dual -band , ensure that the 2.4ghz network has a different network name
(SSID). Further advice on changing router settings will be available from your Internet service
provider / Router manufacturer.
6. Check the settings on the router. Encryption should be WPA2 -PSK , and the authorisation type
should be set to AES
7. Try using the alternative connection method. i.e. , If the connection fails when attempting to
connect via EZ mode, try AP mode.
24

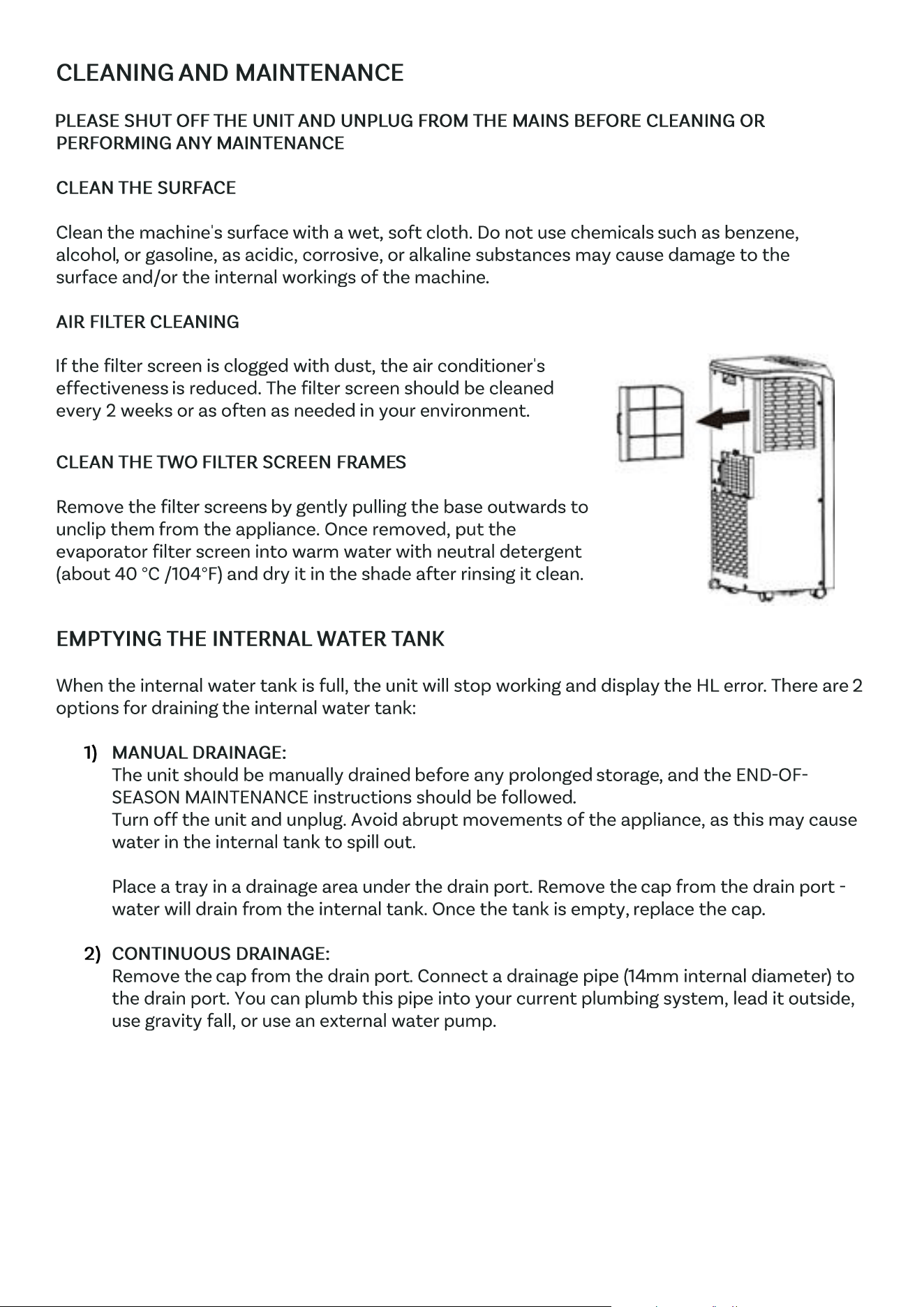

CLEANING AND MAINTENANCE
PLEASE SHUT OFF THE UNIT AND UNPLUG FROM THE MAINS BEFORE CLEANING OR
PERFORMING ANY MAINTENANCE
CLEAN THE SURFACE
Clean the machine's surface with a wet , soft cloth. Do not use chemicals such as benzene,
alcohol , or gasoline, as acidic, corrosive, or alkaline substances may cause damage to the
surface and/ or the internal workings of the machine .
AIR FILTER CLEANING
If the filter screen is clogged with dust, the air conditioner's
effectiveness is reduced. The filter screen should be cleaned
every 2 weeks or as often as needed in your environment.
CLEAN THE TWO FILTER SCREEN FRAME S
Remove the filter screen s by gently pulling the base outwards to
unclip them from the appliance. Once removed, put the
evaporator filter screen into warm water with neutral detergent
(about 40 °C /104°F) and dry it in the shade after rinsing it clean.
EMPTYING THE INTERNAL WATER TANK
When the internal water tank is full, the unit will stop working and display the HL error . There are 2
options for draining the internal water tank:
1) MANUAL DRAINAGE:
The unit should be manually drained before any prolonged storage , and the END -OF-
SEASON MAINTENANCE instructions should be followed .
Turn off the unit and unplug. Avoid abrupt movements of the appliance, as this may cause
water in the internal tank to spill out.
Place a tray in a drainage area under the drain port. Remove the cap from the drain port -
water will drain from the internal tank. Once the tank is empty, replace the cap .
2) CONTINUOUS DRAINAGE:
Remove the cap from the drain port . Connect a drainage pipe ( 14mm internal diameter ) to
the drain port. You can plumb this pipe into your current plumbing system, lead it outside,
use gravity fall, or use an external water pump.
25

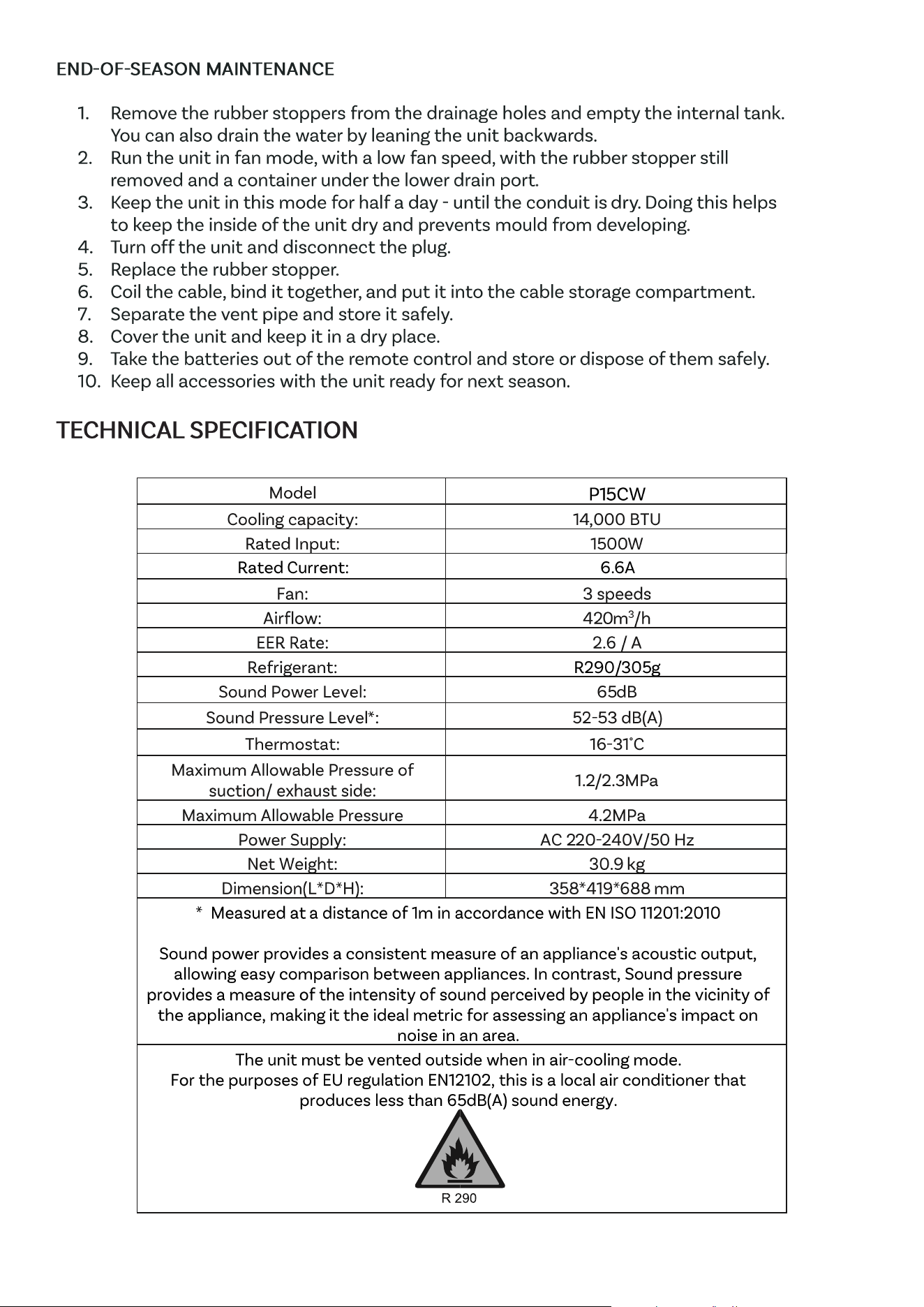

END -OF-SEASON MAINTENANCE
1.
Remove the rubber stoppers from the drainage holes and empty the internal tank.
You can also drain the water by leaning the unit backwards.
2.
Run the unit in fan mode, with a low fan speed, with the rubber stopper still
removed and a container under the lower drain port .
3.
Keep the unit in this mode for half a day - until the conduit is dry. Doing this helps
to keep the inside of the unit dry and prevents mould from developing .
4.
Turn off the unit and disconnect the plug.
5.
Replace the rubber stopper .
6.
Coil the cable, bind it together, and put it into the cable storage compartment.
7.
Separate the vent pipe and store it safely.
8.
Cover the unit and keep it in a dry place.
9.
Take the batteries out of the remote control and store or dispose of them safely.
10.
Keep all accessories with the unit ready for next season.
TECHNICAL SPECIFICATION
Model
P15CW
Cooling capacity:
14,000 BTU
Rated Input:
1500 W
Rated Current:
6.6A
Fan:
3 speeds
Airflow:
420m
3
/h
EER Rate:
2.6 / A
Refrigerant:
R290/ 305 g
Sound Power Level:
65dB
Sound Pressure Level *:
52-53 dB(A)
Thermostat:
16-31˚C
Maximum Allowable Pressure of
suction/ exhaust side:
1.2/2.3MPa
Maximum Allowable Pressure
4.2MPa
Power Supply:
AC 2 20-240 V/50 Hz
Net Weight:
30.9 kg
Dimension(L*D*H):
358*419*688 mm
* Measured at a distance of 1m in accordance with EN ISO 11201:2010
Sound power provides a consistent measure of an appliance's acoustic output,
allowing easy comparison between appliances. In contrast, Sound pressure
provides a measure of the intensity of sound perceived by people in the vicinity of
the appliance, making it the ideal metric for assessing an appliance's impact on
noise in an area.
The unit must be vented outside when in air -cooling mode.
For the purposes of EU regulation EN12102, this is a local air conditioner that
produces less than 65dB(A) sound energy.
26

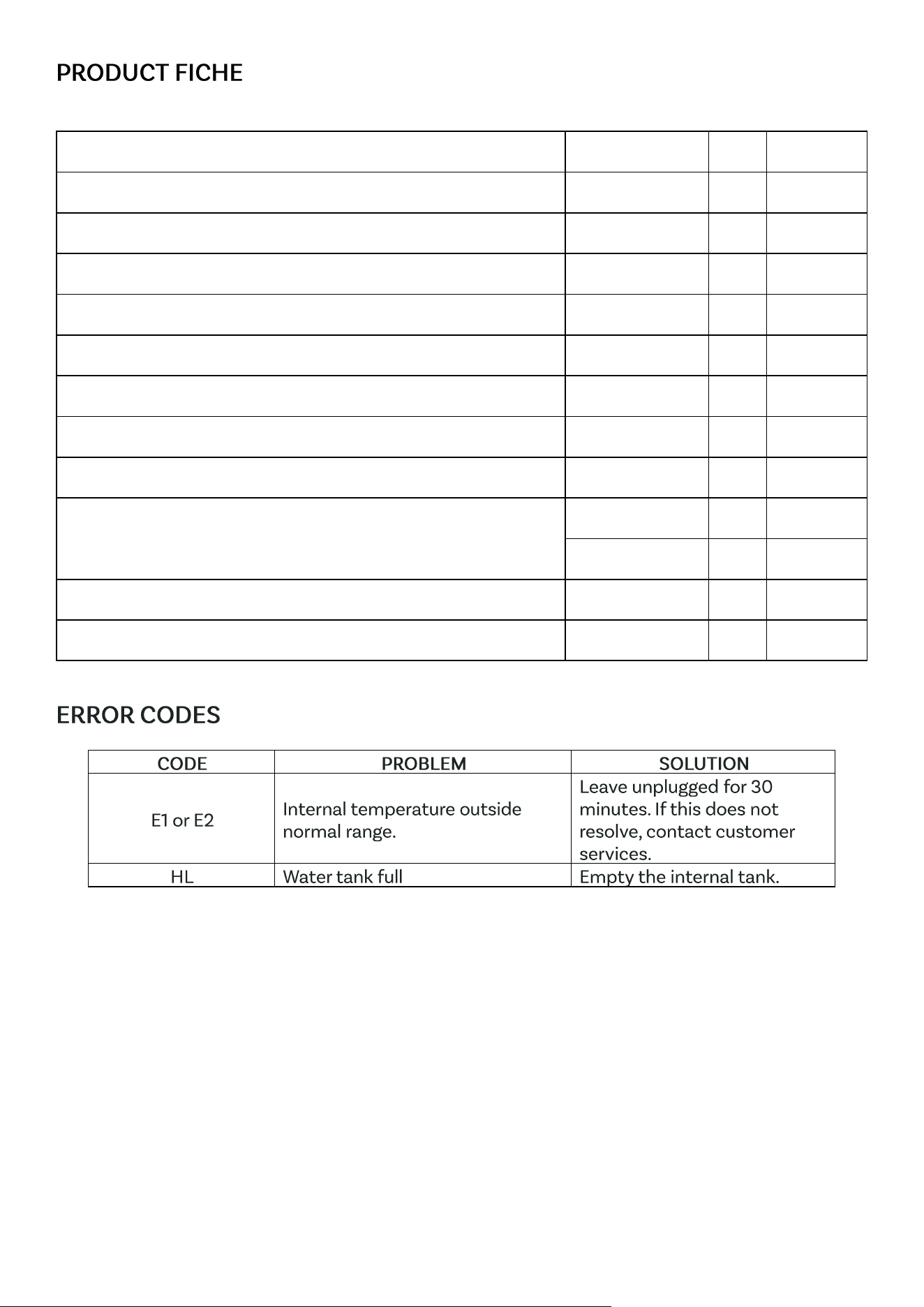

PRODUCT FICHE
Description
Symbol
Value
Unit
Rated capacity for cooling
P
rated
for cooling
4.0
kW
Rated capacity for heating
P
rated
for heating
-
kW
Rated power input for cooling
P
EER
1.57
kW
Rated power input for heating
P
COP
-
kW
Rated Energy eiciency ratio
EERd
2.6
—
Rated Coeicient of performance
COPd
-
—
Power consumption in thermostat-o mode
P
TO
120
W
Power consumption in standby mode
P
SB
1.4
W
Electricity consumption of single/double duct appliances
(indicate for cooling and heating separately)
DD: Q
DD
-
DD: kWh/a
SD: Q
SD
1.1
SD: kWh/h
Sound power level
L
WA
65
dB(A)
Global warming potential
GWP
3
kgCO
2
eq.
ERROR CODES
CODE
PROBLEM
SOLUTION
E1 or E2
Internal temperature outside
normal range.
Leave unplugged for 30
minutes. If this does not
resolve, contact customer
services.
HL
Water tank full
Empty the internal tank.
27

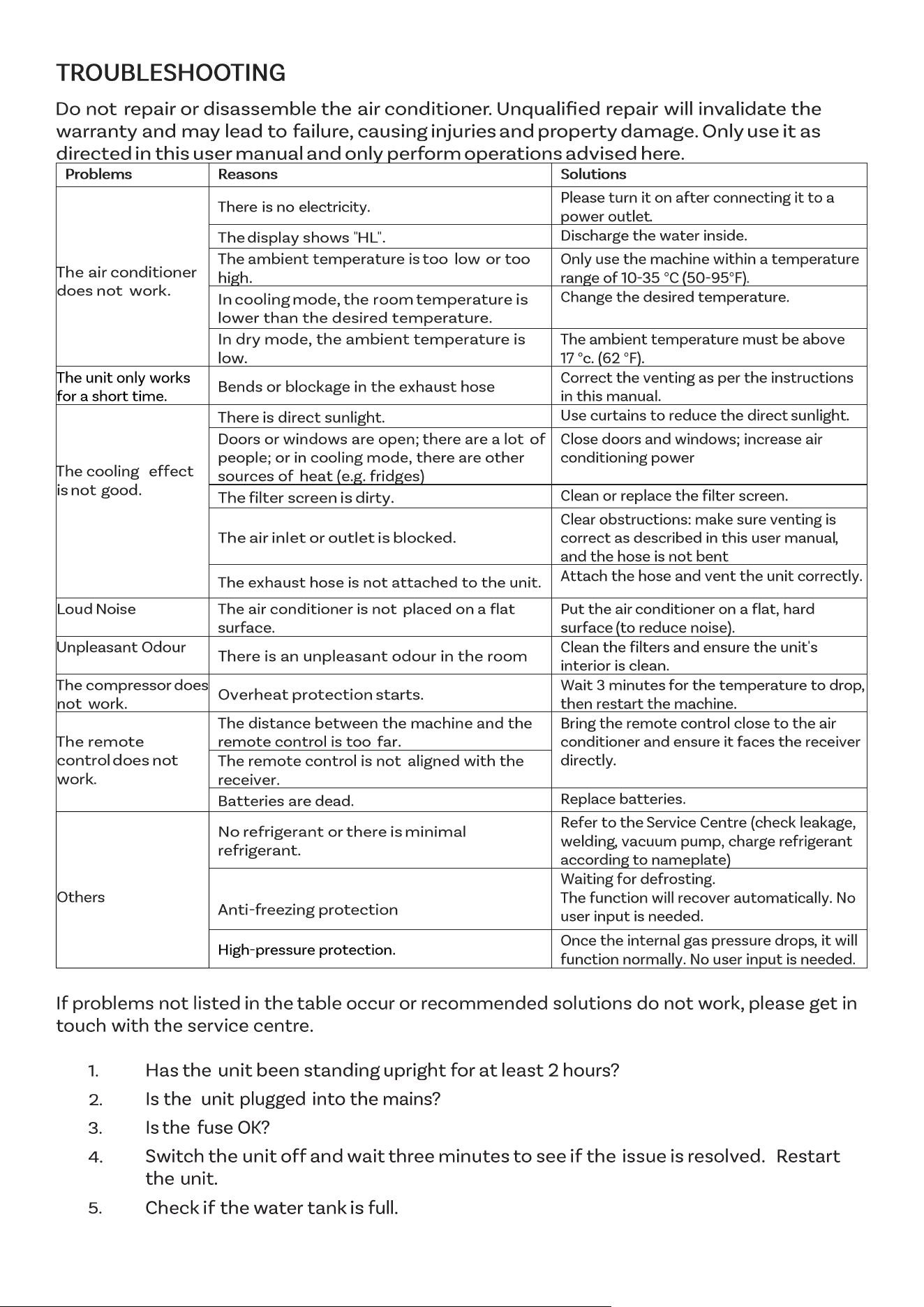

TROUBLESHOOTING
Do not repair or disassemble the air condition er. Unqualified repair will invalidate the
warranty and may lead to failure, causing injuries and property damage. Only use it as
directed in this user manual and only perform operations advised here.
Problems
Reasons
Solutions
The air conditioner
does not work.
There is no electricity.
Please turn it on after connecting it to a
power outlet .
The display shows "HL ".
Discharge the water inside.
The ambient temperature is too low or too
high.
Only use the machine within a temperature
range of 10-35 °C (50 -95°F) .
In cooling mode, the room temperature is
lower than the desired temperature.
Change the desired temperature.
In dry mode, the ambient temperature is
low.
The ambient temperature must be above
17 °c. (62 °F).
The unit only works
for a short time.
Bends or blockage in the exhaust hose
Correct the venting as per the instructions
in this manual.
The cooling effect
is not good.
There is direct sunlight.
Use curtains to reduce the direct sunlight .
Doors or windows are open; there are a lot of
people; or in cooling mode, there are other
sources of heat (e.g. fridges)
Close doors and windows; increase air
conditioning power
The filter screen is dirty.
Clean or replace the filter screen.
The air inlet or outlet is blocked.
Clear obstructions: make sure venting is
correct as described in this user manual ,
and the hose is not bent
The exhaust hose is not attached to the unit.
Attach the hose and vent the unit correctly.
Loud Noise
The air condition er is not placed on a flat
surface.
Put the air conditioner on a flat, hard
surface (to reduce noise).
Unpleasant Odour
There is an unpleasant odour in the room
Clean the filters and ensure the unit's
interior is clean.
The compressor does
not work.
Overheat protection starts.
Wait 3 minutes for the temperature to drop ,
then restart the machine.
The remote
control does not
work.
The distance between the machine and the
remote control is too far.
Bring the remote control close to the air
conditioner and ensure it faces the receiver
directly .
The remote control is not aligned with the
receiver.
Batteries are dead.
Replace batteries.
Others
No refrigerant or there is minimal
refrigerant.
Refer to the Service Centre (check leakage,
welding , vacuum pump, charge refrigerant
according to nameplate)
Anti-freezing protection
Waiting for defrosting.
The function will recover automatically. No
user input is needed.
High -pressure protection.
Once the internal gas pressure drops , it will
function normally. No user input is needed.
If problems not listed in the table occur or recommended solutions do not work, please get in
touch with the service centre.
1.
Has the unit been standing upright for at least 2 hours?
2.
Is the unit plugged into the mains?
3.
Is the fuse OK?
4.
Switch the unit off and wait three minutes to see if the issue is resolved.
Restart
the unit.
5.
Check if the water tank is full.
28

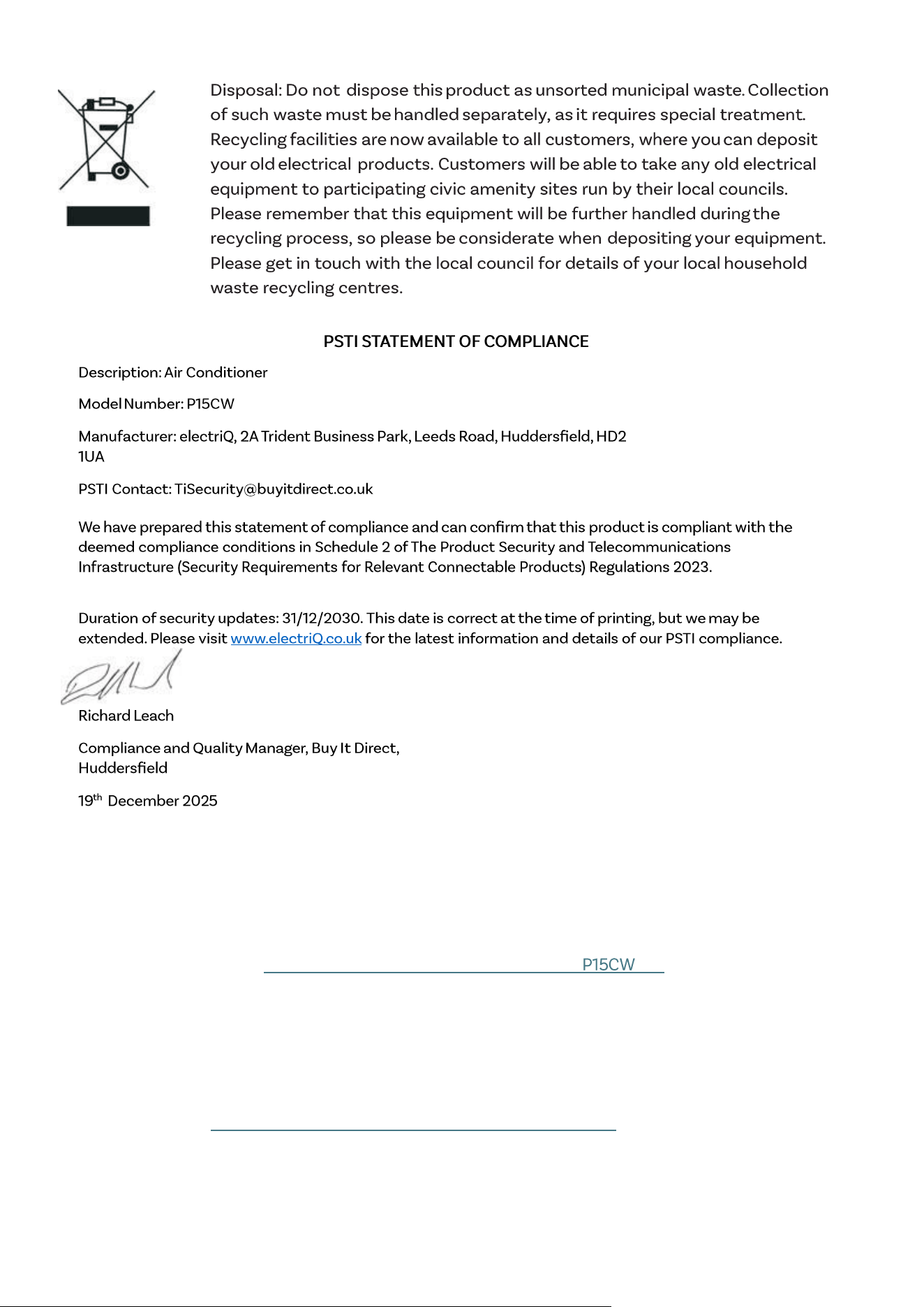

Disposal: Do not dispose this product as unsorted municipal waste . Collection
of such waste must be handled separately , as it requires special treatment .
Recycling facilities are now available to all customers, where you can deposit
your old electrical products. Customers will be able to take any old electrical
equipment to participating civic amenity sites run by their local councils.
Please remember that this equipment will be further handled during the
recycling process, so please be considerate when depositing your equipment.
Please get in touch with the local council for details of your local household
waste recycling centres.
PSTI STATEMENT OF COMPLIANCE
Description: Air Conditioner
Model Number: P15CW
Manufacturer: electriQ, 2A Trident Business Park, Leeds Road, Huddersfield, HD2
1UA
We have prepared this statement of compliance and can confirm that this product is compliant with the
deemed compliance conditions in Schedule 2 of The Product Security and Telecommunications
Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023.
Duration of security updates: 31/12/2030. This date is correct at the time of printing, but we may be
extended. Please visit www.electriQ.co.uk for the latest information and details of our PSTI compliance.
Richard Leach
Compliance and Quality Manager, Buy It Direct,
Huddersfield
19
th
December 202 5
EU DECLARATION OF CONFORMITY
Hereby, electriQ declares that these air condioners are in compliance with Direcve 2014/53/EU. The full
text of the EU declaraon of conformity is available at the following internet addresses:
hps://www.electriq.co.uk/les/DOC/EU/P15CW.pdf
UK DECLARATION OF CONFORMITY
Hereby, electriQ declares that these air condioners are in compliance with Radio Equipment Regulaons
2017. The full text of the UK declaraon of conformity is available at the following internet addresses:
https://www.electriq.co.uk/files/DOC/UK/P15CW.pdf
29
electriQ UK SUPPORT
www.electriQ.co.uk/support
Please consult the troubleshooting section before calling the service line. Call the number
below if the unit fails to operate or complete the online form.
0330 390 3061
Office hours : 9 AM - 5 PM, Monday to Friday
www.electriQ.co.uk
Unit 2A, Trident Business Park,
Neptune Way, Leeds Road, Huddersfield, HD2 1UA.
V202 60317RLJ
