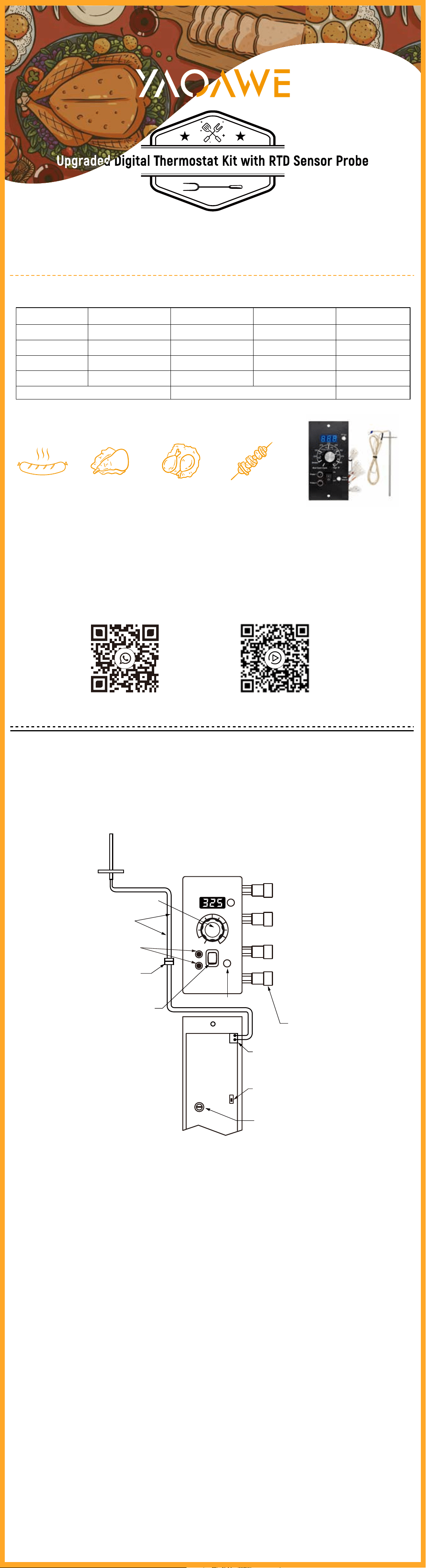

WIRING DIAGRAM
Reference installation video
COMPATIBE WITH TRAEGER GRILLS MODELS：
EASY TO INSTALL
Century 22
Eastwood 22
Texas Pro
Pro 20
Longhorn Steer
Texas Limited Edition
Century 34
Eastwood 34
Lil' Pig
Pro Series 22
Select Elite
Century
Executive
Lonestar 20
Pro Series 34
Select Pro
Lil Tex Limited Edition
Deluxe Elite 300
Heartland
Lonestar
Renegade Pro
Silverton
Double Commercial
Junior Elite 20
Tailgater 20
Renegade Elite 20
Texas Elite 34
XL
Plug and play wiring, took only about 10 minutes to replace. If you're uncertain how to replace the rod,
look it up on YouTube
WIRING AND MOUNTING THE DIGITAL CONTROL:
1 Locate the Green Terminal Block on the back of the Digital Control in the upper right corner.
Using a small screwdriver, loosen the two screws to open the clamping jaws enough to insert the
RTD Wire ends.
F & Q:
ErH, Indicates high temperature. Turn off the hot rod Igniter and motor, The fan is delayed for
10 minutes and then turned off.
Er1, Indicates RTD-Probe failure, Turn off the hot rod Igniter and motor, The fan is delayed for 10
minutes and then turned off.
ErL, Indicates prolonged operation of the Hot Rod Igniter for more than 30 minutes, Turn off the
hot rod Igniter and motor, The fan is delayed for 10 minutes and then turned off.
ErP, Indicates that the knob is not in the OFF position after power is applied, prevents the system
from restarting itself after an accidental power failure
2 Insert a bare wire end on one of the RTD Wires into the clamping jaws on one post of the Termi-
nal Block .ighten the screw to securely attach the wire. Do not overtighten. Repeat this process on
the remaining RTD Wires may be connected to the Terminal Block in any combination.
3 Along with the RTD Wires, feed the wiring from the Digital Control into the opening in the
Pellet Hopper.
4 Carefully insert the Digital Control into the opening in the Pellet Hopper. Again, you may need to
adjust the angle of the Digital Control to allow the circuit board to pass through the opening
5 Using the two screws that mounted the Smoker Control, attach the Digital Control to the Pellet
Hopper. Do not over tighten the screws.
The Upgrad Digital Thermostat has - [Advanced Mode] & [Player Mode], If you like to study the grills,
then this will definitely surprise you
Please do not hesitate to contact us, if there are any usage or installation problems, we will replace
and refund of charge during the warranty.
"P" set
BLACK/WHITE WIRES
POWER CORD
RED/WHITE WIRES
AUGER DRIVE MOTOR
SMALL FAN BLADE
ORANGE/WHITE WIRES
DRAFT INDUCER FAN
LARGE FAN BLADE
PURPLE/WHITE WIRES
HOT ROD
FIBERGLASS INSULATION
MOLEX CONNECTORS
TYPICAL
GREEN TERMINAL BLOCK
FOR RTD WIRES
TEMPERATURE UNIT SWITCH
FUSE HOLDER
BACK OF CONTROL
F
C
PROBE SELECTOR SWITCH
SWITCH
RTD CONNECTOR
PROBE
RECEPTACLES
RTD WIRES
FIBERGLASS
INSULATION
TEMPERATURE DIAL
RTD SENSOR
Temperature dial
High °F
OFF
ON
Probe 2
Probe
Selector
Probe 1
°C
Shut Down Cycle
Smoke
225
250
275
300
325
350
375
400
105
135
150
165
175
190
205
120
F
Compatible with Traeger
Wood Pellet Grills
