Faber SOPR308SSV Solano Pro 18 30 inch Smart Under Cabinet User Manual

SOPR308SSV

SOPR368SSV

SOPR48SS1200

Installation Instructions

Use and Care Information

Instructions d'installation

Utilisez et d'entretien

Instrucciones de instalación

Información de uso y cuidado

SOLANO PRO 18

CONTENTS

Section Page

Important safety instructions

Range hood dimensions

Installation height requirements

Tools needed

Parts

Venting method

Mount the top position

Mount the back ducting position

Recirculation instructions

Mounting on the wall

Installation for Mounting Under the Cabinet

Connecting house power

Operating the controls

CFM adjustment < 295CFM

CFM adjustment < 395CFM

Faber cloud app

Remote control

Cleaning stainless steel

Caring for filters

Replacing the activated charcoal filter

Replacing bulbs

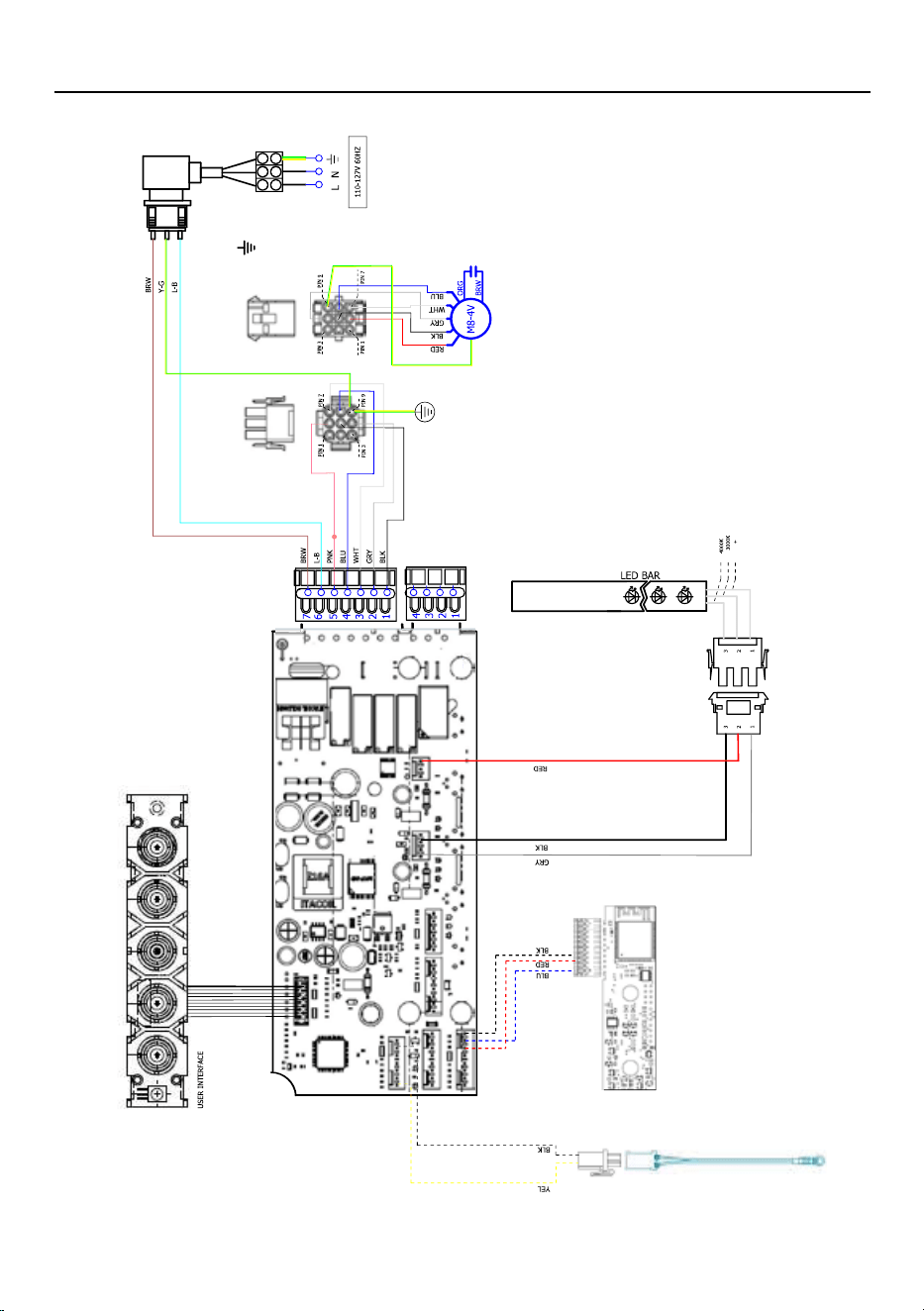

Wiring diagram

Warranty

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS BEFORE YOU START

INSTALLING THIS Range Hood

WARNING: - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers cause smoking and

greasy spillovers that may ignite. Heat oils slowly on low or medium setting.

b) Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes

Suzette, Cherries Jubilee, Peppercorn Beef Flambé) (in USA only).

c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan

or filter.

d) Use proper pan size. Always use cookware appropriate for the size of the surface

element.

WARNING: - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE

TOP GREASE FIRE, OBSERVE THE FOLLOWING*:

a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the

burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately

EVACUATE AND CALL THE FIRE DEPARTMENT.

b) NEVER PICK UP A FLAMING PAN - You may be burned.

c) DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion

will result.

d) Use an extinguisher ONLY if:

1. You know you have a Class ABC extinguisher, and you already know how to operate

it.

2. The fire is small and contained in the area where it started.

3. The fire department is being called.

4. You can fight the fire with your back to an exit.

* Based on "Kitchen Firesafety Tips" published by NFPA

WARNING - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, do not use this fan

with any solid-state speed control device.

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PER-

SONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have any que-

stions, contact the manufacturer.

2. Before servicing or cleaning unit, switch power off at service panel and lock the

service disconnecting means to prevent power from being switched on accidentally.

When the service disconnecting means cannot be locked, securely fasten a prominent

warning device, such as a tag, to the service panel.

CAUTION: For General Ventilating Use Only. Do Not Use To Exhaust Hazardous or

Explosive Materials and Vapors.

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PER-

SONS, OBSERVE THE FOLLOWING:

1. Installation Work And Electrical Wiring Must Be Done By Qualified Person(s) In Accor-

dance With All Applicable Codes And Standards, Including Fire-Rated Construction.

2. Sufficient air is needed for proper combustion and exhausting of gases through the

flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating

equipment manufacturer's guideline and safety standards such as those published

by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code

authorities.

3. When cutting or drilling into wall or ceiling, do not damage electrical wiring and

other hidden utilities.

4. Ducted fans used to exhaust contaminants must always be vented to the outdoors.

ALL WALL AND FLOOR OPENINGS WHERE THE Range Hood IS INSTALLED

MUST BE SEALED.

This Range Hood requires at least 24" of clearance between the bottom of the Range

Hood and the cooking surface or countertop. This hood has been approved by UL at this

distance from the cooktop.

This minimum clearance may be higher depending on local building codes. For gas cooktops

and combination ranges, a minimum of 30" is recommended and may be required.

Overhead cabinets on both sides of this unit must be a minimum of 18" above the cooking

surface or countertop. Consult the cooktop or range installation instructions given by the

manufacturer before making any cutouts.

MOBILE HOME INSTALLATION The installation of this Range Hood must conform to the

Manufactured Home Construction and Safety Standards, Title 24 CFR, Part 3280 (formerly

Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280). See

Electrical Requirements".

VENTING REQUIREMENTS

Determine which venting method is best for your application. Ductwork can extend either

through the wall or the roof.

The length of the ductwork and the number of elbows should be kept to a minimum to

provide efficient performance. The size of the ductwork should be uniform. Do not install

two elbows together. Use duct tape to seal all joints in the ductwork system. Use caulking

to seal exterior wall or floor opening around the cap.

Flexible ductwork is not recommended. Flexible ductwork creates back pressure and air

turbulence that greatly reduces performance.

Make sure there is proper clearance within the wall or floor for exhaust duct before making

cutouts. Do not cut a joist or stud unless absolutely necessary. If a joist or stud must be cut,

then a supporting frame must be constructed.

WARNING - To Reduce The Risk Of Fire, Use Only Metal Ductwork.

CAUTION - To reduce risk of fire and to properly exhaust air, be sure to duct air outside

– Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces,

or garages.

WARNING: To Reduce The Risk Of Fire, Electric Shock Or Injury To Persons, Do Not Use

Replacement Parts That Have Not Been Recommended By The Manufacturer (e.g. Parts

Made At Home Using A 3D Printer).

• Venting system MUST terminate outside the home.

• DO NOT terminate the ductwork in an attic or other enclosed space.

• DO NOT use 4" laundry-type wall caps.

• Flexible-type ductwork is not recommended.

• DO NOT obstruct the flow of combustion and ventilation air.

• Failure to follow venting requirements may result in a fire.

WARNING

ELECTRICAL REQUIREMENTS

A 120 volt, 60 Hz AC-only electrical supply is required on a separate 15 amp fused circuit. A

time-delay fuse or circuit breaker is recommended. The fuse must be sized per local codes

in accordance with the electrical rating of this unit as specified on the serial/rating plate

located inside the unit near the field wiring compartment.

• Electrical ground is required on this Range Hood.

• If cold water pipe is interrupted by plastic, nonmetallic gaskets or other

materials, DO NOT use for grounding.

• DO NOT ground to a gas pipe.

• DO NOT have a fuse in the neutral or grounding circuit. A fuse in the neutral

or grounding circuit could result in electrical shock.

• Check with a qualified electrician if you are in doubt as to whether the Range

Hood is properly grounded.

• Failure to follow electrical requirements may result in a fire.

WARNING

Cold Weather installations

An additional back draft damper should be installed to minimize backward cold air flow

and a nonmetallic thermal break should be installed to minimize conduction of outside

temperatures as part of the vent system. The damper should be on the cold air side of the

thermal break. The break should be as close as possible to where the vent system enters

the heated portion of the house.

CAUTION: Accessible parts may become hot when used with cooking appliances.

• This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• There shall be adequate ventilation of the room when the range hood is used

at the same time as appliances burning gas or other fuels (not applicable to

appliances that only discharge the air back into the room);

• Donotamefoodundertherangehood(inCanadaonly).

• Theairmustnotbedischargedintoauethatisusedforexhaustingfumes

from appliances burning gas or other fuels (not applicable to appliances that

only discharge the air back into the room);

• Thereisareriskifcleaningisnotcarriedoutinaccordancewiththeinstructions;

• Regulationsconcerningthedischargeofairhavetobefullled.

• Meansfordisconnectionmustbeincorporatedinthexedwiringinaccordance

with the wiring rules.

• Thedisconnectionmaybeachievedbyincorporatingaswitchinthexed

wiring in accordance with the wiring rules.

• The disconnection may be achieved by having the plug accessible or by

incorporatingaswitchinthexedwiringinaccordancewiththewiringrules.

• This appliance must be grounded. In the event of an electrical short circuit,

grounding reduces the risk of electric shock by providing an escape wire for

the electric current. This appliance is equipped with a cord having a grounding

wire with a grounding plg. The plug must be plugged into an outlet that is

properly installed and grounded.

WARNING – Improper grounding can result in a risk of electric shock.

• Consultaqualiedelectricianifthegroundinginstructionsarenotcompletely

understood, or if doubt exists as to whether the appliance is properly grounded.

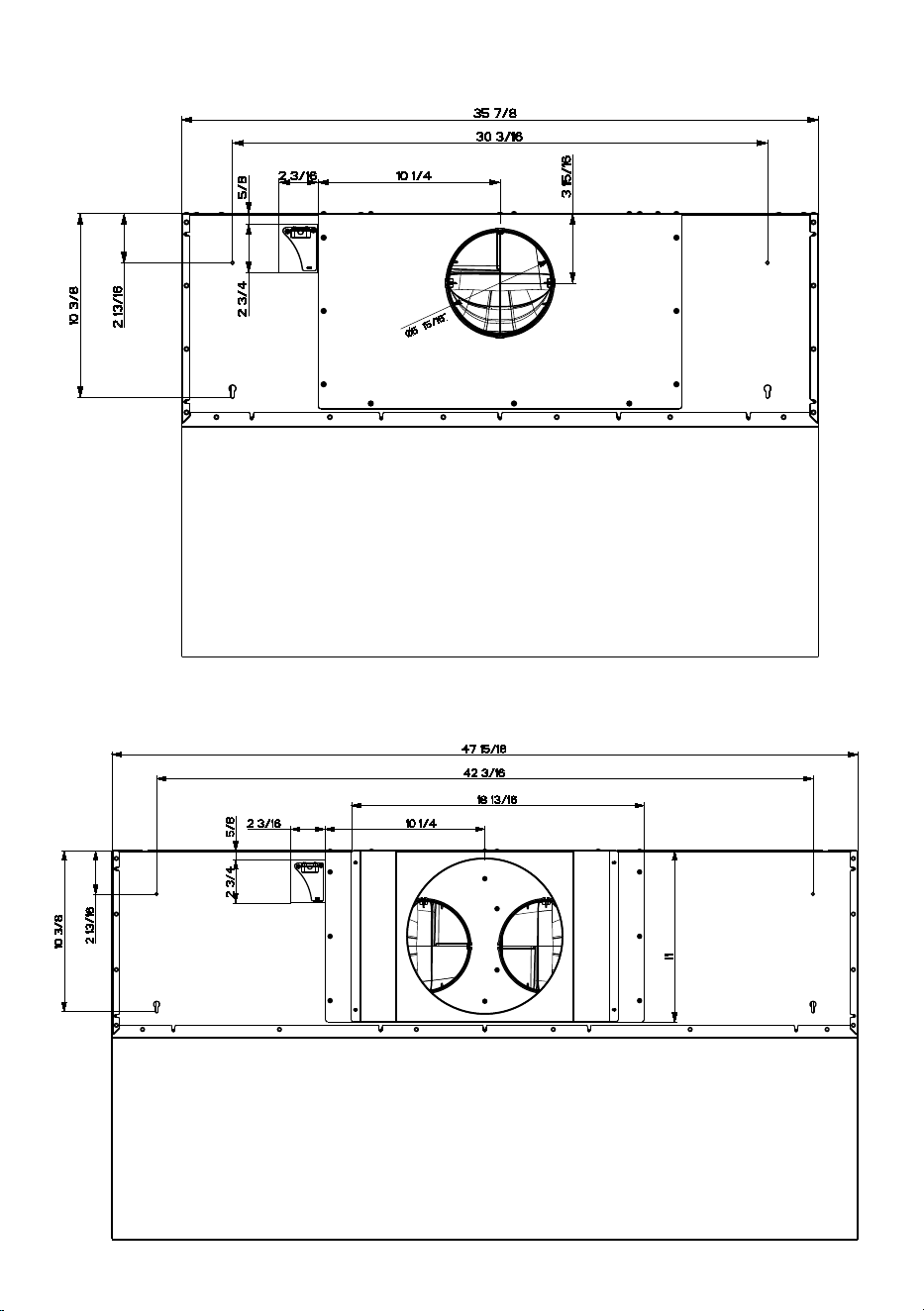

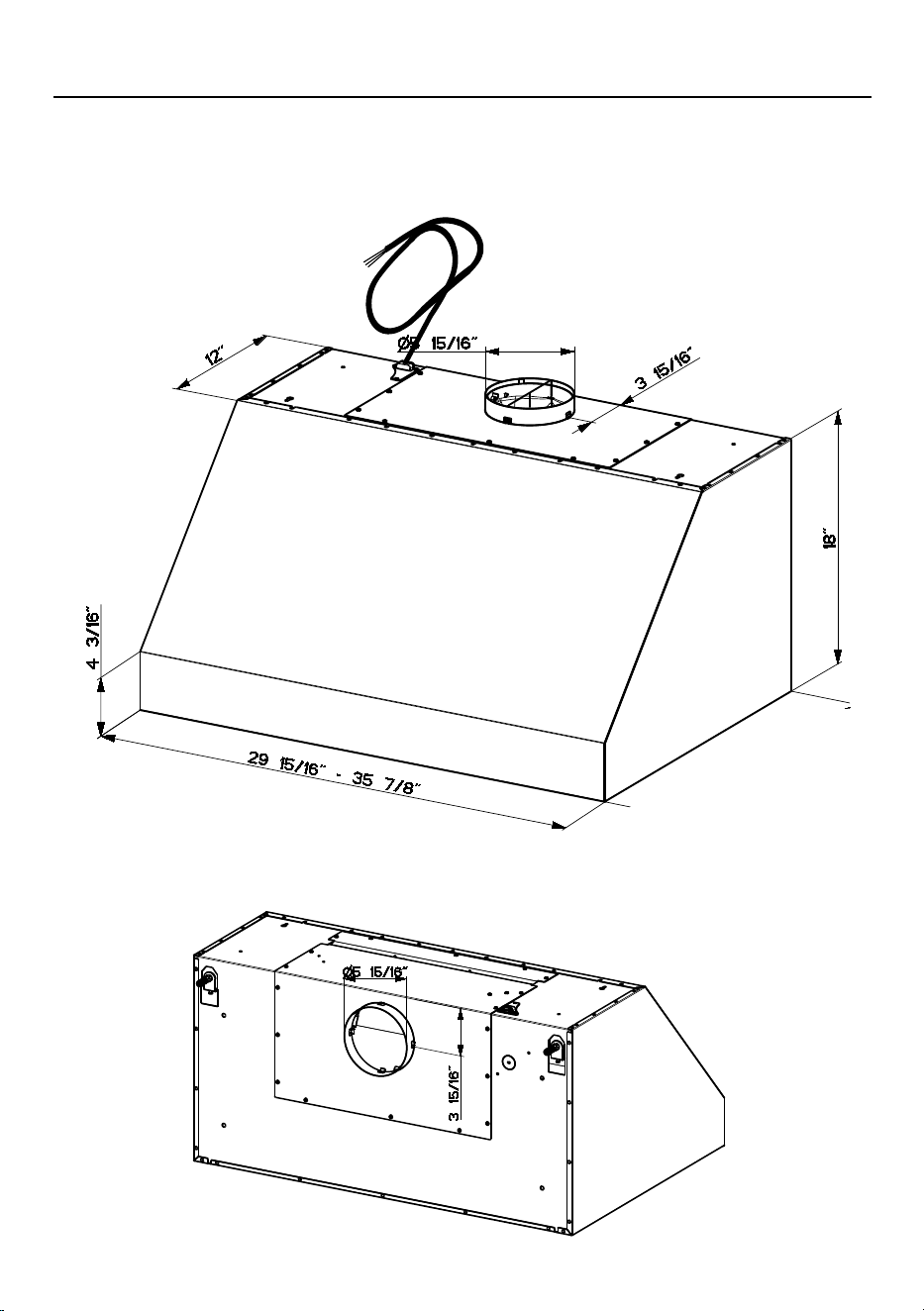

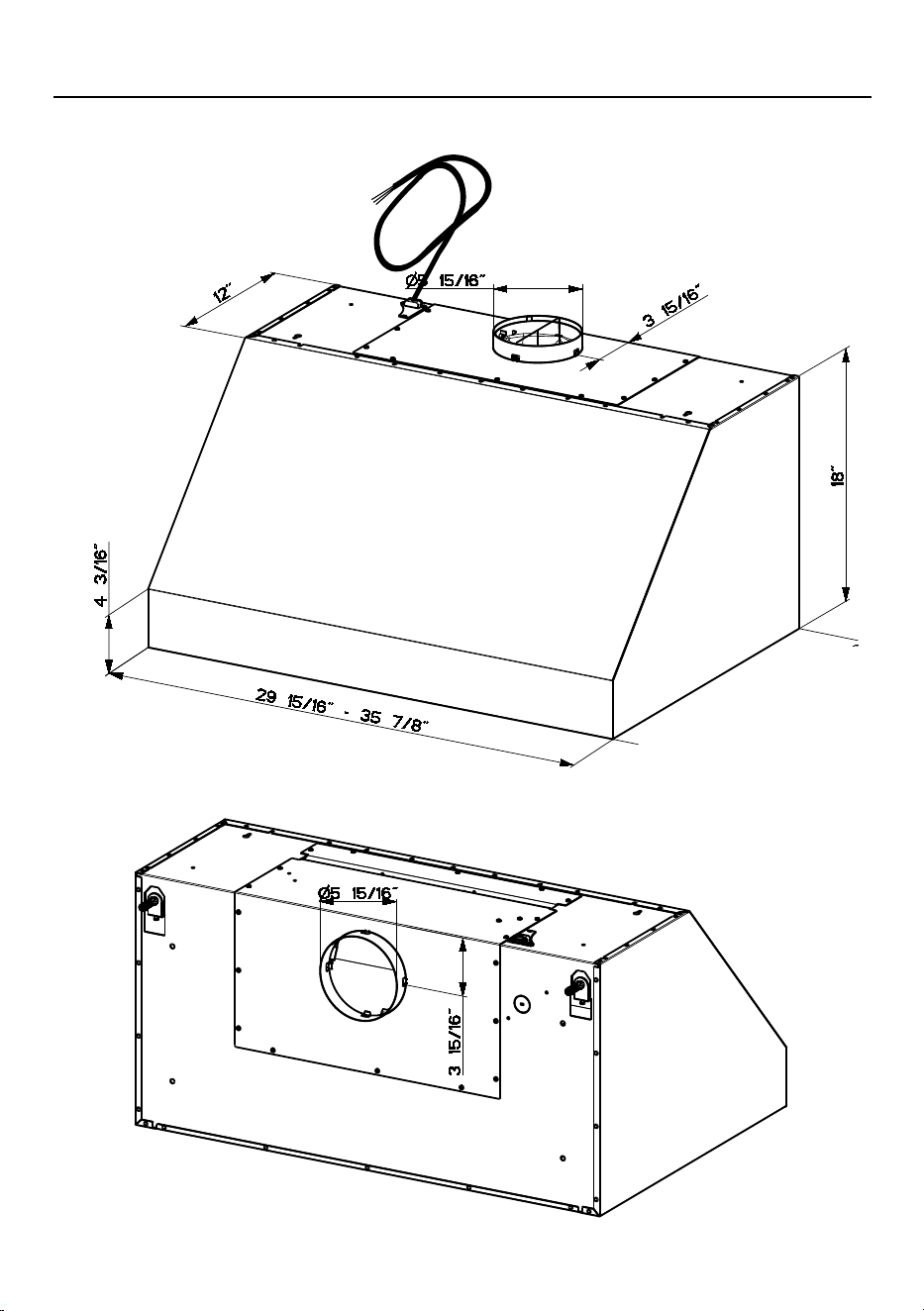

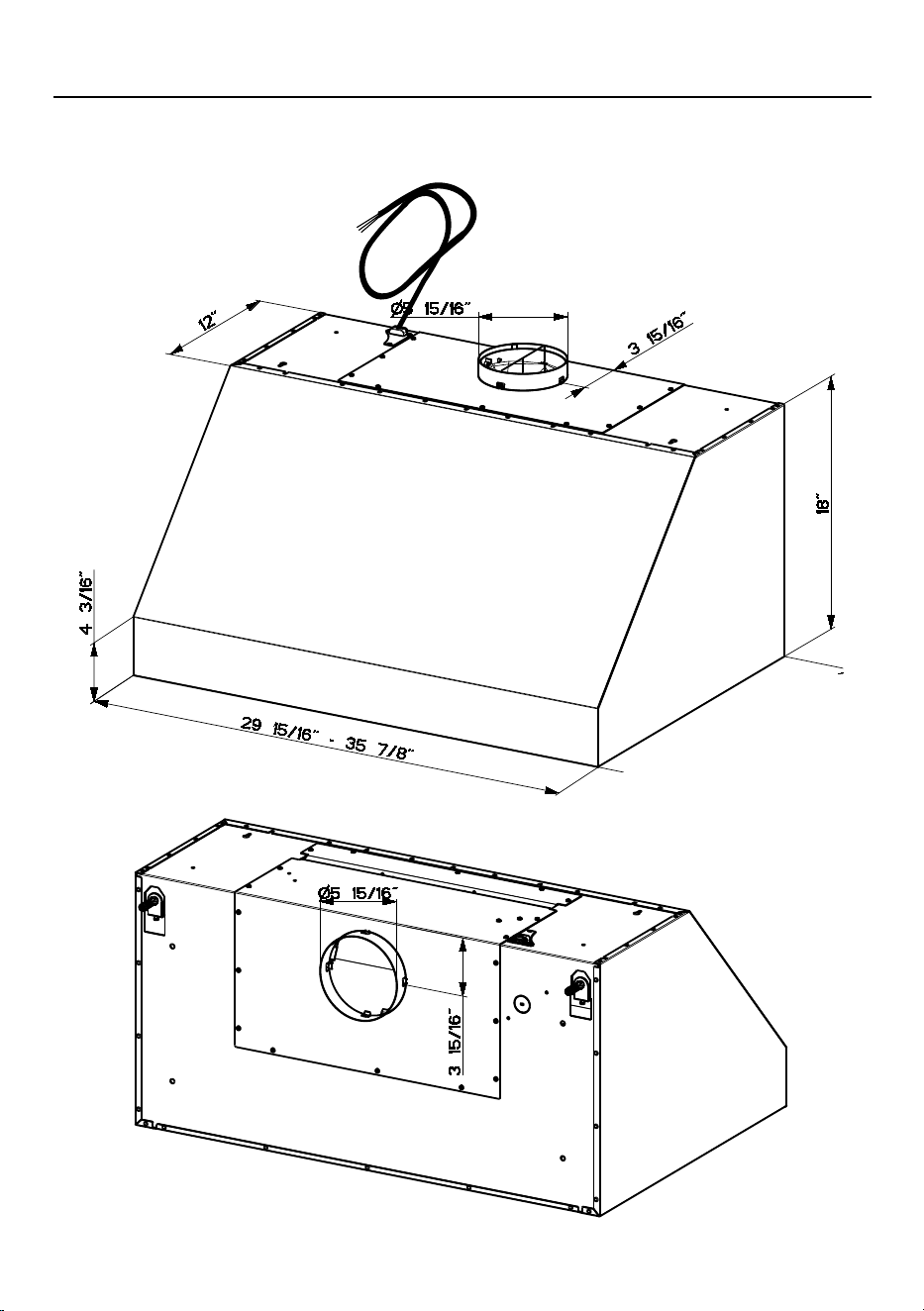

RANGE HOOD DIMENSIONS

SOPR308SSV - SOPR368SSV

DRAFT 01-AGU-2025 12:35

30"

36"

DRAFT 01-AGU-2025 12:35

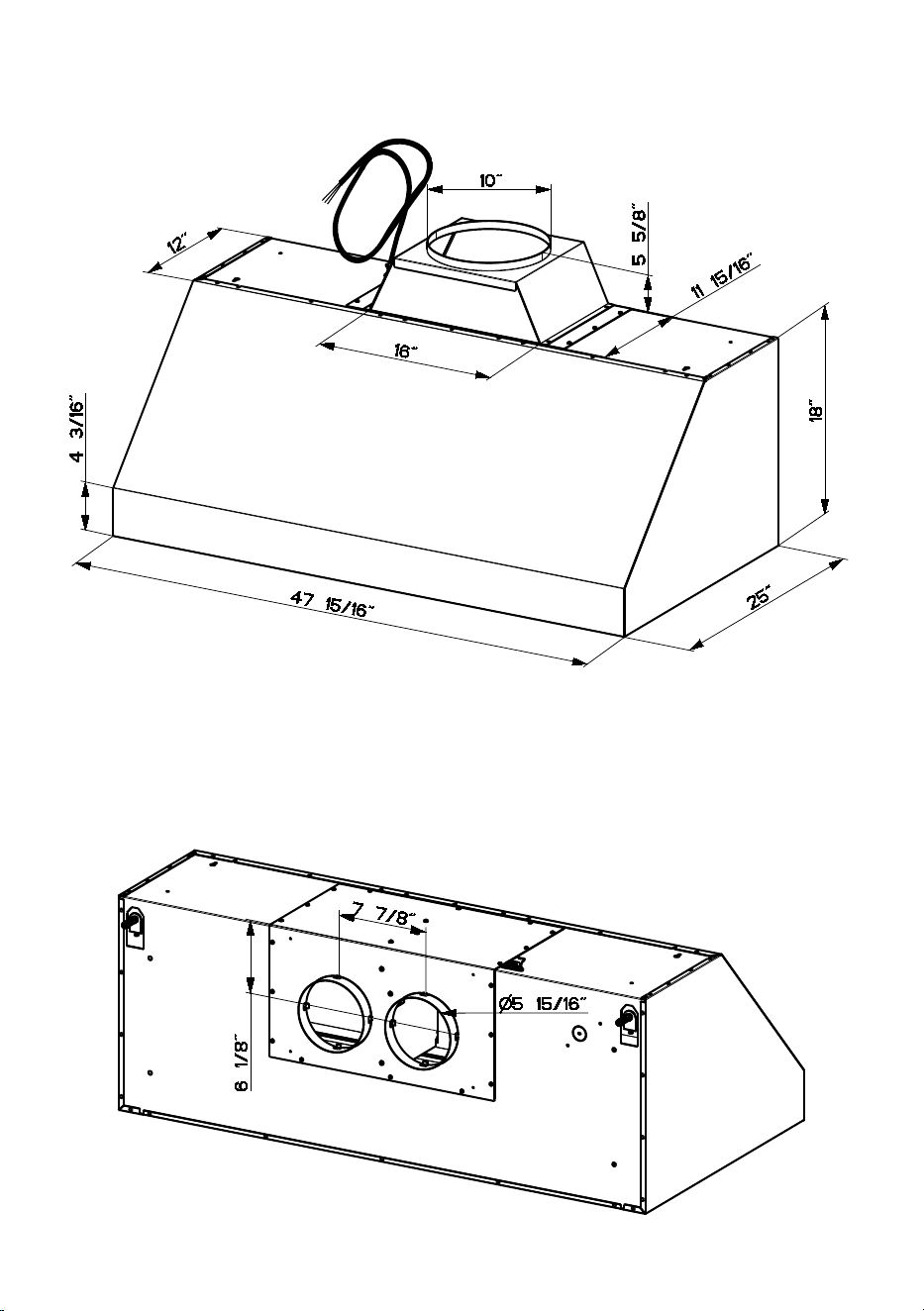

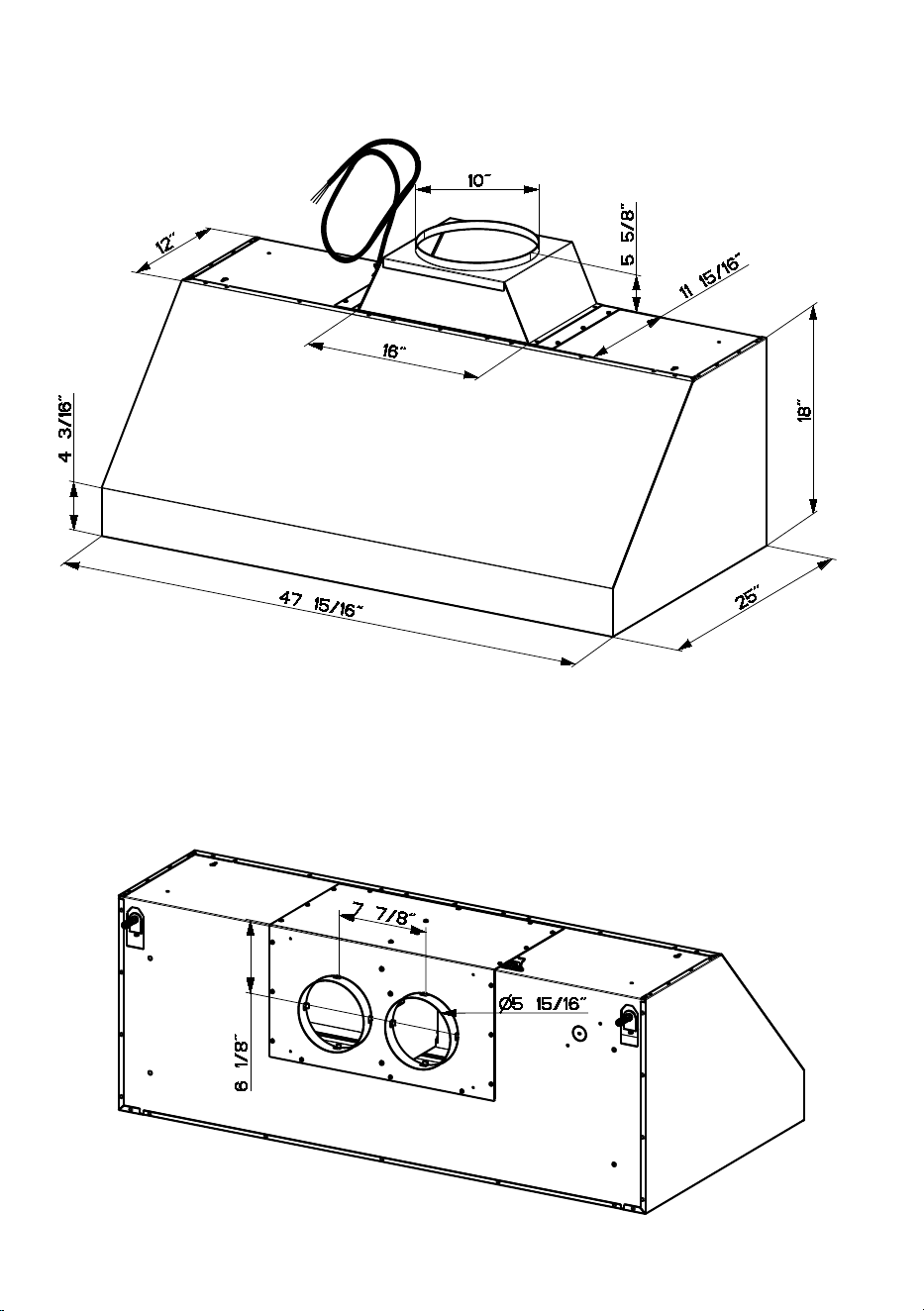

SOPR48SS1200

48"

DRAFT 01-AGU-2025 12:38

INSTALLATION HEIGHT REQUIREMENTS

MIN. 24" OVER ELECTRIC / MIN. 30" OVER GAS

Min.24" Min.30"

TOOLS NEEDED

TOOL

Tape Measure

Pencil

Electric Drill with 5/16" Drill Bit

Phillips Screwdriver

Metal sheers

Work gloves

REF. PART

QTY

Hood body 1

Grease filters 2

Damper Flap 2

Damper Ring 1

REF

PART

Pozi Screws (Screws 3/16" x 1 3/4")

Wall bracket

PARTS INCLUDED

PARTS

PARTS NEEDED

PART

6" Round metal ductwork

Foil tape

SOPR308SSV

ACCESSORIES AVAILABLE

ACCESSORY SKU#

FIXED WIRING BOX WIREBOX

REMOTE CONTROL REMORIG

CHARCOAL FILTER FILTER1

CHARCOAL FILTER LONG LASTING FILTER1LL2

DUCTLESS KIT 30 DUCTGRT304SP

TELESCOPIC BACKSPLASH 30 BACKSP30

TELESCOPIC CHIMNEY 30 TELEPRO30-2

PARTS

REF. PART

QTY

Hood body 1

Grease filters 3

Damper Flap 2

Damper Ring 1

REF

PART

Pozi Screws (Screws 3/16" x 1 3/4")

Wall bracket

PARTS NEEDED

PART

6" Round metal ductwork; 10" Round for two blowers

Foil tape

PARTS INCLUDED

SOPR368SSV

ACCESSORIES AVAILABLE

ACCESSORY SKU#

FIXED WIRING BOX WIREBOX

REMOTE CONTROL REMORIG

CHARCOAL FILTER FILTER1

CHARCOAL FILTER LONG LASTING FILTER1LL2

SECOND BLOWER KIT + 10'' TRANSITION

IB1200SP

DUCTLESS KIT 36 DUCTGRT364SP

TELESCOPIC BACKSPLASH 36 BACKSP36

TELESCOPIC CHIMNEY 36 TELEPRO36-2

PARTS

PARTS INCLUDED

REF. PART

QTY

Hood body 1

Duct transition 1

Grease filters 4

Damper Flap 4

REF

PART

Pozi Screws (Screws 3/16" x 1 3/4")

Wall bracket

PARTS NEEDED

PART

10" Round Metal Ductwork

Foil tape

SOPR48SS1200

ACCESSORIES AVAILABLE

ACCESSORY SKU#

FIXED WIRING BOX WIREBOX

REMOTE CONTROL REMORIG

TELESCOPIC BACKSPLASH 48 BACKSP48

TELESCOPIC CHIMNEY 48 TELEPRO48-2

VENTING METHOD

REAR OR TOP VENTED

Horizontal

Vertical

Rear

Go to Pg.17

Go to Pg.19

SOLANO PRO18 30"

SOLANO PRO18 36"

SOLANO PRO18 48"

6" 10"

MOUNT THE TOP POSITION

Install the Dumper Ring

Install the Dumper Flaps

SOLANO PRO 30 - SOLANO PRO 36

Install the Dumper Flaps

Install the 10" duct transition.

SOLANO PRO 48

Disconnect the Electrical Connector by depressing the tabs with your hand and also

using light force on one tab with a flat head screwdriver.

For a rear ducting installation the motor needs to be unsecured by first removing the

12 screws as shown.

MOUNT THE BACK DUCTING POSITION

SOLANO PRO 30 - SOLANO PRO 36





The Electrical Connector must be re-

moved first before converting the hood

to Rear Ducting mode.

Once the screws are removed, extract the blower from the body of the Hood and

position it so the transition opening is facing to the rear wall (from the back remove

and rotate 180 degrees to the left, and then flip it back 90 degrees as shown in the

diagram).





Once the blower is in place re-install the 12 screws to fasten the motor to the

Hood body.

Reconnect the Connector to the blower.





Disconnect the 2 Electrical Connector, one from the left motor goup and one from the

right motor Grpoup, by depressing the tabs with your hand and also using light force

on one tab with a flat head screwdriver.

For a rear ducting installation the motor needs to be unsecured by first removing the

16 screws as shown.

SOLANO PRO 48

The Electrical Connector must be removed first before converting the

hood to Rear Ducting mode.

The Electrical Connector is always on the left of left Motor Group.





Once the screws are removed, extract the blower from the body of the Hood and

position it so the transition opening is facing to the rear wall (from the back remove

and rotate 180 degrees to the left, and then flip it back 90 degrees as shown in the

diagram).





Once the blower is in place re-install the 16 screws to fasten the motor to the

Hood body.

Reconnect the Connector to the blower.

Attention: The longhest cable with connector is always for Left motor Group, and

the shortest cable with connector is always for Right motor Group.





Reconnect the Electrical Connector on the left of left Motor Group.

RECIRCULATION INSTRUCTIONS -

ONLY FOR SOLANO PRO18 30" AND 36"

For recirculating installations, Charcoal Filters are necessary. Remove all grease

filters and set aside. Attach one charcoal filter to each end of the Motor. Each

charcoal filter attaches to the grid on the side of the Motor. Rotate the filter

clockwise to install and counterclockwise to remove (FIGURE 3C). Replace all

grease filters.

There are 2 ways to recirculate the hood:

1) Use the Ductless Recirculating Kit (sold separately), refer to installation in-

structions inside the Recirculating Kit which includes charcoal filters.

DUCTGRT304SP or # DUCTGRT364SP

2) Duct work must be installed to exhaust the rangehood back into the kitchen,

either at the top of the cabinet (FIGURE 3A) or at the face or side of the soffit

(FIGURE 3B). Install at least 15" of metal duct (fig.3A and 3B) at the air exit. Run

the duct vertically and secure it at the opening cut out at the top or side of the

cabinet or soffit. Installation of metal grill is recommended. This duct work must

not terminate into a dead air space. #

FILTER1 or FILTER1LL must be purchased to

complete this type of installation.

This page needs to be inserted

after Page 9 and before Page 10

Add the new

kit

:DUCTGRT42

–(42“)

This page needs to be inserted

after Page 9 and before Page 10

Add the new

kit

:DUCTGRT42

–(42“)

Note: It is recommended that

professional style cooking always

be vented to the outside; for

recirculating Installations, some

duct work is required to exhaust

the unit out of the cabinet.

Draw a vertical line on the supporting wall as high as practical, at the center of the area

in which the hood will be installed.

Draw a horizontal line at where the bottom edge of the hood will be located as indicated

in the figure that is a minimum of 24"- 30" above cooking surface

Mark the wall where indicated at 16 1/4" above the horizontal line at the bottom of

the hood. Measure and mark the distance L from the left and right of the vertical line

as indicated.

Min.24" Min.30"

MOUNTING ON THE WALL

´

[

´

´

´

SOLANO PRO18 30" SOLANO PRO18 36" SOLANO PRO18 48"

13 8/16" 16 8/16" 22 8/16"

16 1/4"

E

Hang the hood body onto the wall brackets

Use a level to insure the hood is even on the wall, use a screwdriver to adjust

the brackets as shown. Fully tighten the bracket once level.

´

[

Mark the wall where indicated.

Drill directly into ø 5/16" holes at all the center points

marked.

Insert the purchased Wall brackets in the holes.

Using the remaining screws to anchor the hood in

the holes.

Attach 4 safety screws

to the back of hood into the wall. Follow the steps

indicated below to finish.

Attach the grease filters

by inserting the front of the filter into the hood

and pushing forward. Insert the back of the filter into the grease rails.

INSTALLATION FOR MOUNTING UNDER THE CABINET

SKIP THIS STEP IF USING WALL MOUNTING METHOD

IMPORTANT: Soffit or cabinet framing must be capable of supporting 100 lbs.

for 30" and 36" models and 150 lbs. for 48" models.

When necessary the hood may be installed so that it is supported by the sof-

fit or cabinet.

• The soffit should be constructed with 2"x4"’s.

• Use a level to draw the cooktop or range center line.

• Continue the centerline forward on the bottom of the soffit.

• Install horizontal wood supports between the 2”x4”.

TOP DIMENSION SOLANO PRO18 30"

“

TOP DIMENSION SOLANO PRO18 36"

TOP DIMENSION SOLANO PRO18 48"

“

“ “

“

DRAFT 01-AGU-2025 12:35

Attach the Hood Body with 4 screws

from the bottom.

Lift the hood to the cabinet.

´

[

Mark the wall where indicated.

Drill directly into ø 5/16" holes at all the center points

marked.

Insert the purchased Wall brackets in the holes.

Using the four screws to anchor the hood in the

holes.

Secure the hood with 4 safety screws on the back wall.

Direct Connect Wiring Box

Accessory sku # WIREBOX

(purchased separately)

Created by

Denomination

Lang EN

Sheet

Modif.by

Approved by

Approval date

Doc. status

Drawing N.

NEW_DRAWING_BOX

Rev

The power cord shall be accessible for inspection after installation.

ELECTRICAL INSTALLATION WITH OPTIONAL WIRING BOX

For permanent wiring, use only the Direct Connect Wiring Box accessory sku

WIREBOX, manufactured by Faber.

ELECTRICAL INSTALLATION WITH CONNECTION CABLE

GROUNDING INSTRUCTIONS This appliance must be grounded. In the event

of an electrical short circuit, grounding reduces the risk of electric shock by

providing an escape wire for the electric current. This appliance is equipped

with a cord having a grounding wire with a grounding plug. The plug must be

plugged into an outlet that is properly installed and grounded.

WARNING - Improper grounding can result in a risk of electric shock.

Consult a qualified electrician if the grounding instructions are not completely

understood, or if doubt exists as to whether the appliance is properly grounded.

Do not use an extension cord. If the power supply cord is too short, have a

qualified electrician install an outlet near the appliance.

CONNECTING HOUSE POWER

Max. 33 7/16”

OPERATING THE CONTROLS

FOR BEST RESULTS

Start the Range Hood several minutes before cooking to develop proper

airflow. Allow the Range Hood to operate for several minutes after cooking

is complete to clear all smoke and odors from the kitchen.

A - LIGHTS

B - POWER

C - SPEED 2

D - SPEED 3

E - INTENSIVE

F - LED

A - LIGHTS - The lights have 3 levels - high,

medium, low, off - press the light button to

change the levels.

With a 3 second press and lights is On, the

lights alternate between 5 shades of color.

BUTTON FUNCTION INDICATOR

B - POWER - A quick press turns the

motor on/off at speed one

C - SPEED 2 - A quick press turns the motor

on at speed two

All LED’s flash twice

(alarm activated). All

LED’s lit for 1 second

(alarm deactivated)

D - SPEED 3 - A quick press turns the

motor on at speed three

Reset Grease Filter and / or Charcoal

Filter Alarm - A long press with the motor

and lights off to reset the filter wash

alarms

All LED’s flash 3 times

Activate / Deactivate charcoal filter alarm -

A long press with the lights on and motor off

will activate or deactivate the charcoal alarm.

INTENSIVE LEVEL 1 - A quick press will

operate intensive speed level 1 for 6 minutes.

At the end of the 6 minutes the hood returns

to the speed that was set before. If intensive

is set with the motor turned off, the hood will

turn off after 6 minutes.

BUTTON FUNCTION INDICATOR

Grease Filter Alarm - If the speed two and

intensive buttons are lit, this means the

Grease Filter saturation alarm is activated

and the grease filters should be washed. The

alarm turns on after 100 hours of operation.

Charcoal Filter Alarm - if the alarm is

activated, the speed two and intensive lights

will blink. This means the Charcoal filters

should be replaced AND the grease filters

should be washed. The charcoal filter alarm

turns on after 200 hours of operation.

Heat Sensor Information - The hood is equipped with a

temperature sensor which, if the motor is off and the temperature

below the stove is high, activates the motor at maximum speed.

The condition is indicated by the blinking of Speed 1 and 2 LED’s

, Speed 3 LED is lit. This condition persists until the temperature

returns below the threshold. It is possible to exit this mode by

selecting one of the speeds.

WI-FI INFORMATION

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired Operation.

Note: This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used according to the instructions,

can cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation.

If this equipment causes harmful interference to radio or television reception, which

can be determined by turning the equipment off and on again, the user is invited to

try to correct the interference by taking one or more of the following measures:

• Reorient or reposition the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment to an outlet on a circuit other than the one to which the

receiver is connected.

• Consult your dealer or an experienced radio/TV technician for assistance.

Modifications to this product not authorized by Faber may invalidate

electromagnetic compatibility (EMC) and wireless compliance and deny permission

to use the product.

This product demonstrated EMC compliance under conditions that included the use

of compliant peripheral devices and shielded cables between system components.

It is important to use compliant peripherals and shielded cables between system

components to reduce the possibility of causing interference to radios, televisions,

and other electronic devices.

Exposure to radio frequency energy. The radiated output power of this device

meets the limits of FCC & IC radio frequency exposure limits. This device should

be used with a minimum separation distance of 20 cm (8 inches) between the

equipment and a person's body.

Connected Appliance Information

Contains FCC ID:2AC7Z-ESPWROOM32D

Contains IC:21098-ESPWROOM32D

Model: ESP32-WROOM-32D

CAN ICES-003(B)/NMB-003(B)

BUTTON FUNCTION INDICATOR

WI-FI CONNECTIONS

Activate / Deactivate the Wi-Fi Connection

function.

A long Press of the speed 2 button with motor

and lights Off to activate / deactivate the WI-FI.

Note: the Wi-Fi function is automatically

activated when the user requests the Wi-Fi

configuration procedure.

Connection to

home wireless

router in

progress.

Wi-Fi connection

activated.

Starting the Wi-fi setup

A long press with the motor and lights Off

to Enter or End the Wi-Fi set-up procedure.

Before starting the procedure use the Faber

Cloud App to register with the IOT Faber

system. Then follow the instructions to add a

new device and register your home wireless

router.

If the procedure is not successfully completed

within a few minutes, stop the set up process

by holding the intensive button for 3 seconds.

Hold the button again for 3 seconds to start

the process. The hood will stop the Wi-fi set up

process if not successfully completed within 15

minutes.

Set Up is in

progress

F - LED

When setup is

finished LED’s

stay lit for 2

seconds.

CFM ADJUSTMENT < 295CFM

(ONLY FOR SOLANO PRO18 30" AND 36" WITHOUT IB1200SP)

To start the process make sure the hood lights are On and motor is Off.



    

1) Press and hold T1 for 7 seconds until all LED's flash.

2) After flashing has stopped, press T1.

3) T1 button will flash once, then press T1 button again to confirm your

choice (pressed within 10 seconds)

4) The four LED's will flash again to confirm you have finished the CFM

adjustment to less than 295 CFM.

5) Apply the under 295 CFM label inside the hood (behind the grease

filters) near the rating label for inspection and on the front of your

installation/user manual.

6) To confirm your setting for inspection, T1 and T2 buttons will always

operate the hood at the same speed. The highest speed(T3) and the

intensive speed (T4), will also no longer operate.

Note: T3 and T4 buttons will now operate at the same level and the

Intensive Speed will be deactivated.

Attention: When the under 295 CFM adjustment is completed, it is no

longer possible to change this setting to the original CFM level.

ATTENTION: For a correct functioning of the FABER CLOUD APP, when

this procedure is completed disconnect the plug from the power supply

and reconnect it again.

CFM ADJUSTMENT < 395CFM

(ONLY FOR SOLANO PRO18 30" AND 36" WITHOUT IB1200SP)

To start the process make sure the hood lights are On and motor is Off.



    

1) Press and hold T1 for 7 seconds until all LED's flash.

2) After flashing has stopped, press T2

3) T2 button will flash once, then press T2 button again to confirm your

choice (pressed within 10 seconds)

4) The four LED's will flash again to confirm you have finished the CFM

adjustment to less than 395 CFM.

5) Apply the under 395 CFM label inside the hood (behind the grease

filters) near the rating label for inspection and on the front of your

installation/user manual.

6) To confirm your setting for inspection, the intensive speed function, will

no longer operate.

Note: T4 buttons will now operate at the same level and the Intensive

Speed will be deactivated.

Attention: When the under 395 CFM adjustment is completed, it is no

longer possible to change this setting to the original CFM level.

ATTENTION: For a correct functioning of the FABER CLOUD APP, when

this procedure is completed disconnect the plug from the power supply

and reconnect it again.

FABER CLOUD APP

Faber Cloud App

Your range hood is compatible with the Faber Cloud app. All you need is a

Internet connected Wi-Fi network that is within range of the range hood.

You can control all the functions of your range hood from anywhere using

a mobile device or your Amazon Alexa or Apple Siri or Google Home smart

speaker. When connected to your smart speaker, you can control your hood

with your voice.

The Faber Cloud app is available on iOS devices using iOS 11.0 or later or

Android devices using Android version 8 or later. Visit the Apple App Store

or Google Play Store for more information. Your range hood will have full

functionality if you are not using the Wi-fi or the Faber CLoud App features,

neither are required.

Please review the included Quick Connect Start Guide for more information.

Icon Function

5. FABER CLOUD APP

The Faber Cloud App is available for

iOS and Android smartphones and al-

lows remote access to all hood func-

tions.

Icon Function

Home page

Add new device

User profile management

Connected to Faber Wi-Fi network

Hood on/off

Lighting system management

Motor speed management

Intensive Function

24h Function

Delay Function

Automatic Function

App settings management

6. REMOTE CONTROL

• This appliance can be controlled us-

ing a remote control.

• ATTENTION: before proceeding, ac-

tivate K-Link Mode on the remote

control (see the device manual for

further details).

7. LIGHTING

• Please contact the Service Depart-

ment to change it ("Please contact

the service department to purchase

it").

Home page

5. FABER CLOUD APP

The Faber Cloud App is available for

iOS and Android smartphones and al-

lows remote access to all hood func-

tions.

Icon Function

Home page

Add new device

User profile management

Connected to Faber Wi-Fi network

Hood on/off

Lighting system management

Motor speed management

Intensive Function

24h Function

Delay Function

Automatic Function

App settings management

6. REMOTE CONTROL

• This appliance can be controlled us-

ing a remote control.

• ATTENTION: before proceeding, ac-

tivate K-Link Mode on the remote

control (see the device manual for

further details).

7. LIGHTING

• Please contact the Service Depart-

ment to change it ("Please contact

the service department to purchase

it").

Add new device

5. FABER CLOUD APP

The Faber Cloud App is available for

iOS and Android smartphones and al-

lows remote access to all hood func-

tions.

Icon Function

Home page

Add new device

User profile management

Connected to Faber Wi-Fi network

Hood on/off

Lighting system management

Motor speed management

Intensive Function

24h Function

Delay Function

Automatic Function

App settings management

6. REMOTE CONTROL

• This appliance can be controlled us-

ing a remote control.

• ATTENTION: before proceeding, ac-

tivate K-Link Mode on the remote

control (see the device manual for

further details).

7. LIGHTING

• Please contact the Service Depart-

ment to change it ("Please contact

the service department to purchase

it").

User profile management

5. FABER CLOUD APP

The Faber Cloud App is available for

iOS and Android smartphones and al-

lows remote access to all hood func-

tions.

Icon Function

Home page

Add new device

User profile management

Connected to Faber Wi-Fi network

Hood on/off

Lighting system management

Motor speed management

Intensive Function

24h Function

Delay Function

Automatic Function

App settings management

6. REMOTE CONTROL

• This appliance can be controlled us-

ing a remote control.

• ATTENTION: before proceeding, ac-

tivate K-Link Mode on the remote

control (see the device manual for

further details).

7. LIGHTING

• Please contact the Service Depart-

ment to change it ("Please contact

the service department to purchase

it").

Connected to Faber Wi-Fi network

5. FABER CLOUD APP

The Faber Cloud App is available for

iOS and Android smartphones and al-

lows remote access to all hood func-

tions.

Icon Function

Home page

Add new device

User profile management

Connected to Faber Wi-Fi network

Hood on/off

Lighting system management

Motor speed management

Intensive Function

24h Function

Delay Function

Automatic Function

App settings management

6. REMOTE CONTROL

• This appliance can be controlled us-

ing a remote control.

• ATTENTION: before proceeding, ac-

tivate K-Link Mode on the remote

control (see the device manual for

further details).

7. LIGHTING

• Please contact the Service Depart-

ment to change it ("Please contact

the service department to purchase

it").

Hood on/off

5. FABER CLOUD APP

The Faber Cloud App is available for

iOS and Android smartphones and al-

lows remote access to all hood func-

tions.

Icon Function

Home page

Add new device

User profile management

Connected to Faber Wi-Fi network

Hood on/off

Lighting system management

Motor speed management

Intensive Function

24h Function

Delay Function

Automatic Function

App settings management

6. REMOTE CONTROL

• This appliance can be controlled us-

ing a remote control.

• ATTENTION: before proceeding, ac-

tivate K-Link Mode on the remote

control (see the device manual for

further details).

7. LIGHTING

• Please contact the Service Depart-

ment to change it ("Please contact

the service department to purchase

it").

Lighting system management

5. FABER CLOUD APP

The Faber Cloud App is available for

iOS and Android smartphones and al-

lows remote access to all hood func-

tions.

Icon Function

Home page

Add new device

User profile management

Connected to Faber Wi-Fi network

Hood on/off

Lighting system management

Motor speed management

Intensive Function

24h Function

Delay Function

Automatic Function

App settings management

6. REMOTE CONTROL

• This appliance can be controlled us-

ing a remote control.

• ATTENTION: before proceeding, ac-

tivate K-Link Mode on the remote

control (see the device manual for

further details).

7. LIGHTING

• Please contact the Service Depart-

ment to change it ("Please contact

the service department to purchase

it").

Motor speed management

5. FABER CLOUD APP

The Faber Cloud App is available for

iOS and Android smartphones and al-

lows remote access to all hood func-

tions.

Icon Function

Home page

Add new device

User profile management

Connected to Faber Wi-Fi network

Hood on/off

Lighting system management

Motor speed management

Intensive Function

24h Function

Delay Function

Automatic Function

App settings management

6. REMOTE CONTROL

• This appliance can be controlled us-

ing a remote control.

• ATTENTION: before proceeding, ac-

tivate K-Link Mode on the remote

control (see the device manual for

further details).

7. LIGHTING

• Please contact the Service Depart-

ment to change it ("Please contact

the service department to purchase

it").

Intensive Function

5. FABER CLOUD APP

The Faber Cloud App is available for

iOS and Android smartphones and al-

lows remote access to all hood func-

tions.

Icon Function

Home page

Add new device

User profile management

Connected to Faber Wi-Fi network

Hood on/off

Lighting system management

Motor speed management

Intensive Function

24h Function

Delay Function

Automatic Function

App settings management

6. REMOTE CONTROL

• This appliance can be controlled us-

ing a remote control.

• ATTENTION: before proceeding, ac-

tivate K-Link Mode on the remote

control (see the device manual for

further details).

7. LIGHTING

• Please contact the Service Depart-

ment to change it ("Please contact

the service department to purchase

it").

Delay Function

5. FABER CLOUD APP

The Faber Cloud App is available for

iOS and Android smartphones and al-

lows remote access to all hood func-

tions.

Icon Function

Home page

Add new device

User profile management

Connected to Faber Wi-Fi network

Hood on/off

Lighting system management

Motor speed management

Intensive Function

24h Function

Delay Function

Automatic Function

App settings management

6. REMOTE CONTROL

• This appliance can be controlled us-

ing a remote control.

• ATTENTION: before proceeding, ac-

tivate K-Link Mode on the remote

control (see the device manual for

further details).

7. LIGHTING

• Please contact the Service Depart-

ment to change it ("Please contact

the service department to purchase

it").

24H function

5. FABER CLOUD APP

The Faber Cloud App is available for

iOS and Android smartphones and al-

lows remote access to all hood func-

tions.

Icon Function

Home page

Add new device

User profile management

Connected to Faber Wi-Fi network

Hood on/off

Lighting system management

Motor speed management

Intensive Function

24h Function

Delay Function

Automatic Function

App settings management

6. REMOTE CONTROL

• This appliance can be controlled us-

ing a remote control.

• ATTENTION: before proceeding, ac-

tivate K-Link Mode on the remote

control (see the device manual for

further details).

7. LIGHTING

• Please contact the Service Depart-

ment to change it ("Please contact

the service department to purchase

it").

App settings management

5. FABER CLOUD APP

The Faber Cloud App is available for

iOS and Android smartphones and al-

lows remote access to all hood func-

tions.

Icon Function

Home page

Add new device

User profile management

Connected to Faber Wi-Fi network

Hood on/off

Lighting system management

Motor speed management

Intensive Function

24h Function

Delay Function

Automatic Function

App settings management

6. REMOTE CONTROL

• This appliance can be controlled us-

ing a remote control.

• ATTENTION: before proceeding, ac-

tivate K-Link Mode on the remote

control (see the device manual for

further details).

7. LIGHTING

• Please contact the Service Depart-

ment to change it ("Please contact

the service department to purchase

it").

Cleaning Exterior surfaces:

Please note, abrasives and scouring agents can scratch range hood

finishes and should not be used to clean finished surfaces.

Stainless Steel finish cleaning instructions:

Clean exterior surfaces with a commercially available stainless steel

cleaner.

CLEANING STAINLESS STEEL

REMOTE CONTROL (Optional)

The appliance can be controlled using a remote control # REMORIG powered

by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-AAA type

(not included).

• Used batteries must be disposed of in the proper manner.

Caution:

• Do not place the remote control

near heat sources.

• Do not discard the batteries with

normal waste, they must be put

into the specic containers.

CARING FOR FILTERS

CLEANING METAL GREASE FILTERS

The metal grease filters can be cleaned in hot detergent solution or washed

in the dishwasher. They should be cleaned every 2 months use, or more fre-

quently if use is particularly heavy.

1. Remove the filter by pushing towards the back of the unit and at

the same time pulling downward.

2. Wash the filter without bending it, leave it to dry thoroughly before

replacing (if the surface of the filter changes color over time, this

will have absolutely no effect on its efficiency).

3. Replace, taking care to ensure that the handle faces forward.

4. Cleaning in dishwasher may dull the finish of the metal grease filter.

5. Completely dry the filters before installing back into the hood. No

water should be trapped in the filter before reinstalling.

The Activated Charcoal Filters (# FILTER1) are not washable and cannot be

regenerated, and must be replaced approximately every 4 months of operation,

or more frequently with heavy usage.

1. Remove the Filter, pushing it towards the back of the unit and at the

same time pulling downward.

2. Remove the saturated Activated Charcoal Filters, as indicated (A).

3. Fit the new Filters, as indicated (B).

4. Replace, taking care to ensure that the handle faces forwards.

CAUTION: When used in recirculation mode, to Reduce the Risk of Fire

and Shock use only conversion kit Model # FILTER1.





REPLACING THE ACTIVATED CHARCOAL FILTER -

ONLY FOR SOLANO PRO18 30" AND 36"

REPLACING BULBS

LED lights must be replaced by Faber factory authorized service.

WIRING DIAGRAM

WARRANTY

Franke Home Solutions Warranty for Franke and Faber Branded Product

Effective March 1, 2022

In the United States, Canada and Latin America, Franke warrants the Faber branded products from manufacturing defects

in material and workmanship when purchased from a Franke or Faber Authorized Retailer pursuant to product-specific

warranties detailed herein (each, a “Warranty” and collectively, the “Warranties”). The products must be properly installed,

per Franke’s installation instructions, in their original installation, and used in normal indoor residential kitchen

applications. Any products or components which have been modified or altered from their original intended condition will

void the Warranty. The Franke Warranties for Faber branded products are limited to the original purchaser and are non-

transferrable. These Warranties do not include products purchased from non-Authorized Retailers, products that are

obsolete or discontinued, or products that were previous display models. All issues with installed products are considered

warranty claims and not subject to the Return Policy. Franke reserves the right to inspect any Franke / Faber product

reported to be defective pursuant to a Warranty claim and the original installation prior to providing a replacement product

and/or component. All decisions are final. In no situation shall the liability of Franke exceed the amount of the original

purchase price.

The Warranties do not cover, and Franke shall not be liable for, any damage to products or components resulting from

misuse or abuse, accidental damages, normal wear such as scuffs, scratches or finish reduction/fading, improper

installation, abnormal usage, negligence, damage caused by improper maintenance or cleaning. Damage caused by

impurities, corrosive chemicals or acts beyond Franke’s control are not covered by any Warranty. Service calls to correct

the installation of a range hood, instructions on how to operate a range hood, to replace or repair house fuses or to correct

house wiring or plumbing are not covered by any Warranty. Service calls to repair or replace range hood light bulbs, fuses

or filters and these consumable part costs are also excluded from Warranty coverage. Installation not in accordance with

electrical or plumbing codes or Franke / Faber documentation are not covered by any Warranty. Replacement parts or

repair labor costs for units operated outside the United States, Canada or Latin America, including any non-UL or C-UL or

non-NOM approved Franke / Faber range hoods are excluded from Warranty coverage. Expenses for travel and

transportation for service in remote locations and pickup and delivery charges are not covered by any Warranty. Franke /

Faber range hoods should always be serviced in the home in their original installation.

Franke / Faber product replacements do not include liability for project delays. Product replacements are not guaranteed

to be exact replacements. If the original product is not available at the time of the warranty claim, at Franke’s option, the

product replacements will be of similar size, material, and value. Any products or components which have been modified

or altered, from its original intended condition will void the warranty.

The Warranties do not allow recovery of incidental or consequential damages such as loss of use, delay, property

damage or other consequential damage, and Franke accepts no liability for such damages. Each Warranty is limited to

the conditions set forth herein and to the applicable warranty period specified herein and is exclusive. EXCEPT FOR THE

WARRANTIES SET FORTH HEREIN, FRANKE MAKES NO WARRANTY WHATSOEVER WITH RESPECT TO THE

PRODUCTS, INCLUDING, BUT NOT LIMITED TO, (1) ANY WARRANTY OF MERCHANTABILITY, (2) WARRANTY OF

FITNESS FOR A PARTICULAR PURPOSE, (3) WARRANTY OF TITLE, OR (4) WARRANTY AGAINST INFRINGEMENT

OF INTELLECTUAL PROPERTY RIGHTS OF A THIRD PARTY, WHETHER EXPRESS OR IMPLIED BY LAW, COURSE

OF DEALING, COURSE OF PERFORMANCE, USAGE OF TRADE OR OTHERWISE. LEGAL DISCLAIMER PLEASE

READ CAREFULLY. Franke Kitchen Systems LLC provides the above information to you as a public service to our

customers. By accessing and using this information, you agree to the following and to comply with all applicable laws. If

you do not agree with these terms and conditions, do not use this information. While we try to keep the information

current, changes may have occurred since its creation. Contact your Regional Manager or Customer Service to verify

information regarding Franke Kitchen Systems LLC programs and their use by you.

Franke / Faber Range Hood Limited Warranty:

Franke / Faber range hoods are warranted against any defect in materials or workmanship for the original purchaser for a

period of two (2) years from the date of original purchase when used in standard residential indoor applications. This

warranty covers labor and replacement parts. Franke, at its option, may repair or replace the product or components

necessary to restore the product to good working condition.

Franke Home Solutions Warranty for Franke and Faber Branded Product Effective March 1, 2022

In the United States, Canada and Latin America, Franke warrants the Faber branded products from manufacturing defects

in material and workmanship when purchased from a Franke or Faber Authorized Retailer pursuant to product-specific

warranties detailed herein (each, a “Warranty” and collectively, the “Warranties”). The products must be properly installed, per

Franke’s installation instructions, in their original installation, and used in normal indoor residential kitchen applications. Any

products or components which have been modified or altered from their original intended condition will void the Warranty.

The Franke Warranties for Faber branded products are limited to the original purchaser and are non- transferrable. These

Warranties do not include products purchased from non-Authorized Retailers, products that are obsolete or discontinued, or

products that were previous display models. All issues with installed products are considered warranty claims and not subject

to the Return Policy. Franke reserves the right to inspect any Franke / Faber product reported to be defective pursuant to a

Warranty claim and the original installation prior to providing a replacement product and/or component. All decisions are final.

In no situation shall the liability of Franke exceed the amount of the original purchase price.

The Warranties do not cover, and Franke shall not be liable for, any damage to products or components resulting from misuse

or abuse, accidental damages, normal wear such as scuffs, scratches or finish reduction/fading, improper installation, abnormal

usage, negligence, damage caused by improper maintenance or cleaning. Damage caused by impurities, corrosive chemicals

or acts beyond Franke’s control are not covered by any Warranty. Service calls to correct the installation of a range hood,

instructions on how to operate a range hood, to replace or repair house fuses or to correct house wiring or plumbing are not

covered by any Warranty. Service calls to repair or replace range hood light bulbs, fuses or filters and these consumable part

costs are also excluded from Warranty coverage. Installation not in accordance with electrical or plumbing codes or Franke

/ Faber documentation are not covered by any Warranty. Replacement parts or repair labor costs for units operated outside

the United States, Canada or Latin America, including any non-UL or C-UL or non-NOM approved Franke / Faber range hoods

are excluded from Warranty coverage. Expenses for travel and transportation for service in remote locations and pickup and

delivery charges are not covered by any Warranty. Franke / Faber range hoods should always be serviced in the home in their

original installation.

Franke / Faber product replacements do not include liability for project delays. Product replacements are not guaranteed to

be exact replacements. If the original product is not available at the time of the warranty claim, at Franke’s option, the product

replacements will be of similar size, material, and value. Any products or components which have been modified or altered,

from its original intended condition will void the warranty.

The Warranties do not allow recovery of incidental or consequential damages such as loss of use, delay, property damage or

other consequential damage, and Franke accepts no liability for such damages. Each Warranty is limited to the conditions set

forth herein and to the applicable warranty period specified herein and is exclusive. EXCEPT FOR THE WARRANTIES SET

FORTH HEREIN, FRANKE MAKES NO WARRANTY WHATSOEVER WITH RESPECT TO THE PRODUCTS, INCLUDING, BUT

NOT LIMITED TO, (1) ANY WARRANTY OF MERCHANTABILITY, (2) WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE,

(3) WARRANTY OF TITLE, OR (4) WARRANTY AGAINST INFRINGEMENT OF INTELLECTUAL PROPERTY RIGHTS OF A

THIRD PARTY, WHETHER EXPRESS OR IMPLIED BY LAW, COURSE OF DEALING, COURSE OF PERFORMANCE, USAGE OF

TRADE OR OTHERWISE. LEGAL DISCLAIMER PLEASE

READ CAREFULLY. Franke Kitchen Systems LLC provides the above information to you as a public service to our customers.

By accessing and using this information, you agree to the following and to comply with all applicable laws. If you do not agree

with these terms and conditions, do not use this information. While we try to keep the information current, changes may have

occurred since its creation. Contact your Regional Manager or Customer Service to verify information regarding Franke Kitchen

Systems LLC programs and their use by you.

Franke / Faber Range Hood Limited Warranty:

Franke / Faber range hoods are warranted against any defect in materials or workmanship for the original purchaser for a

period of two (2) years from the date of original purchase when used in standard residential indoor applications. This warranty

covers labor and replacement parts. Franke, at its option, may repair or replace the product or components necessary to

restore the product to good working condition.
