Parts List
Number: 71461
Issued: 9-15-2025
Revised: 5-4-2026
hoshizakiamerica.com
Steelheart Series
Refrigerated Kitchen Equipment
Models
PR67B-Z
2
CONTENTS
Auxiliary Codes ...................................................................................................................... 3
Note About Ordering Parts .................................................................................................... 3
A. Main Assembly .................................................................................................................. 4
B. Refrigeration Circuit ........................................................................................................... 6
C. Door-Right Hinged ............................................................................................................. 8
D. Door-Left Hinged ............................................................................................................... 9
E. Accessories & Labels ...................................................................................................... 10
3
Auxiliary Codes
PR67B-Z
Q-5 January 2025
R-6 April 2026
Auxiliary Code Breakdown
The auxiliary code is the rst two characters in the serial number. The rst character
indicates the year. Years progress or regress in alphabetical order. The series runs from
"A" through "V" and the letters "I" and "O" are skipped. The second character indicates
signicant part changes within a year. Base is "5" and this number advances for each
change. In cases where there is a letter in parentheses, this designates the month. This is
the last character in the serial number. The series runs from "(A)" through "(M)" and the
letter "(I)" is skipped. This designation is only included when identifying a parts change
within an auxiliary code.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally
must be ordered separately.
4
A. Main Assembly
PR67B-Z
Q-5 to R-6
4
5
12
8
7
15
14
16
11
3
2
13
20
1
17 18
6
9
9b9a
10
10a 10b
19
21
24
23
22
25
26
26
For doors, see sections "C" and "D"
14a 14b
5

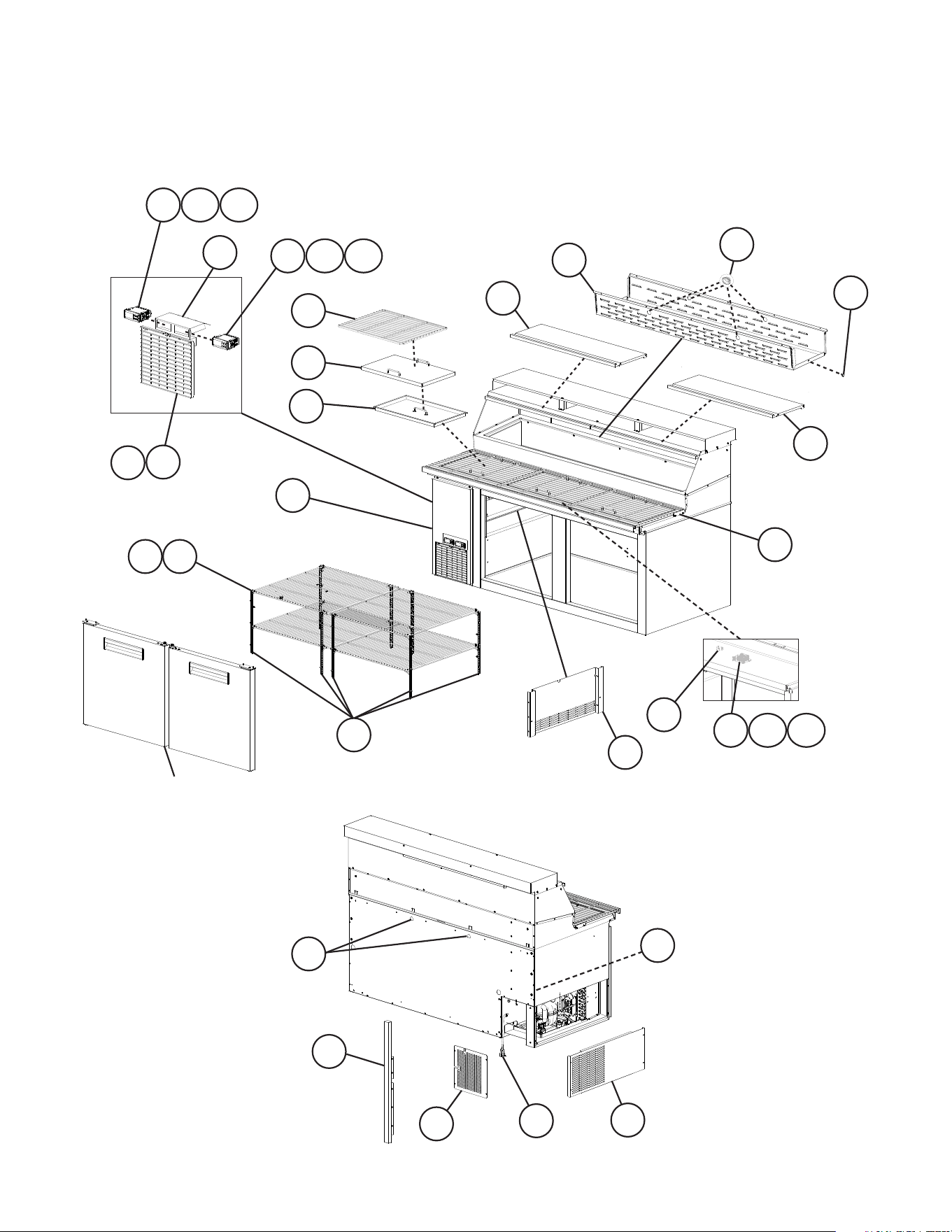

Title: A. Main Assembly Models: PR67B-Z
Index
No. Description
Material or Model
Number Part Number
Required Number
Q-5
to
R-6
1 Front Panel
(Includes 2 and 3)
3B2328G01 1
2 Louver 103344-07 1
3 Air Filter 208840G03 1
4 Left Side Panel 2A9985-01 1
5 Rear Louver Panel 3B0980-01 1
6 Rear Cover 3B2262-01 1
7 Bumper 3A6696-01 2
8 Wire Harness
(includes power supply cord)
2B1633-01 1
9 Rail/Refrigeration Control
Module
(includes items 9a and 9b)
4A7852G01 1
9a Retainer Clip 4A7085-01 2
9b Control Module Gasket 4A7127-01 1
10 Cabinet Fan Motor Control
Module
(includes items 10a and 10b)
4A7999-01 1
10a Retainer Clip 4A7085-01 2
10b Control Module Gasket 4A7127-01 1
11 Deector 3B2330-01 1
12 Cabinet Thermistor 4A7084-01 1
13 Cabinet Fan Relay 4A7047-01 1
14 Cabinet Fan 4A6192-01 1
14a Cabinet Fan Cover 3B2616-01 1
14b Wire Cover
(not shown)
3B2618-01 1
15 Evaporator Shroud 1A6423-02 1
16 Pilaster 4A5583-01 8
17 Shelf 3A2830-12 4
18 Shelf Clip 4A5418-01 16
19 Rail Duct 1A8248-01 1
20 Rail Duct Bushing 420470-12 4
21 Thumbscrew 415949G08 2
22 Speed Grate 2B1131-01 3
23 Catch Tray Cover 2B1471A01 3
24 Catch Tray 2B1473A01 3
25 Speed Grate Bracket 3B2050-01 2
26 Rail Cover 1A8247A01 2
6
B. Refrigeration Circuit
PR67B-Z
Q-5 to R-6
For compressor or condenser replacement, order item 1.
1
2
3
6
8
7
10
12
15
13
14
9
11
4
5
7

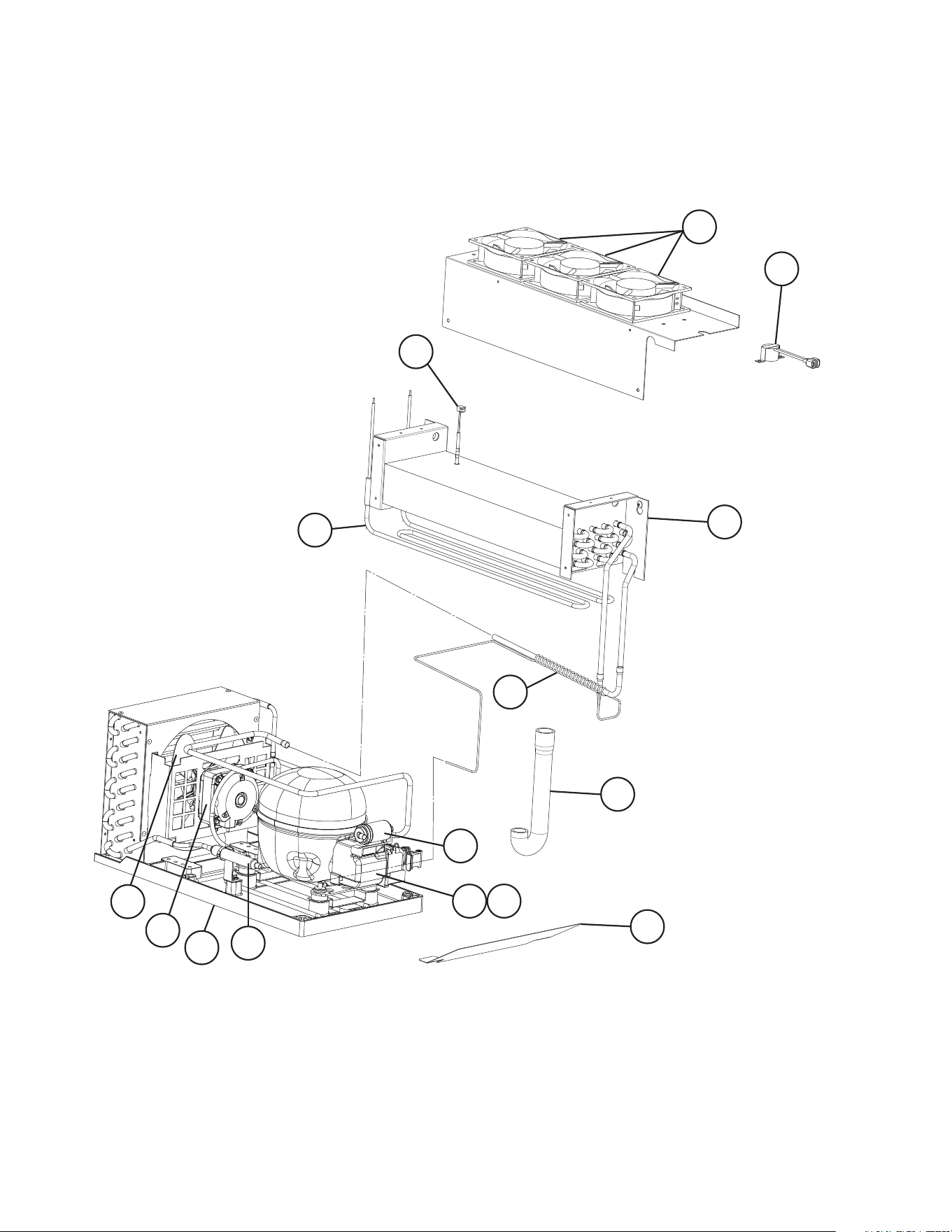

Title: B. Refrigeration Circuit Models: PR67B-Z
Index
No. Description
Material or Model
Number Part Number
Required Number
Q-5
to
R-6
1 Condensing Unit
(includes compressor,
condenser, and items 2 through
7; compressor and condenser
are not sold individually)
3B0992-01 1
2 Condenser Fan Motor 4A7104-01 1
3 Condenser Fan Blade 3A6799-01 1
4 Compressor External Protector 3B0897-01 1
5 Start Relay 3A9476-01 1
6 Run Capacitor 3B0898-01 1
7 Drier 4A5576-01 1
8 Evaporator 2B0101-01 1
9 Evaporator Fan Motor 4A6192-01 3
10 Defrost Thermistor 4A7083-01 1
11 Defrost Heater 3B0457-01 1
12 Defrost Safety Thermostat 4A6194-01 1
13 Heat Exchanger 3B1039G01 1
14 Drain Hose 3B0477-01 1
15 Drip Ramp 3B0835-01 1
8
C. Door-Right Hinged
PR67B-Z
Q-5 to R-6

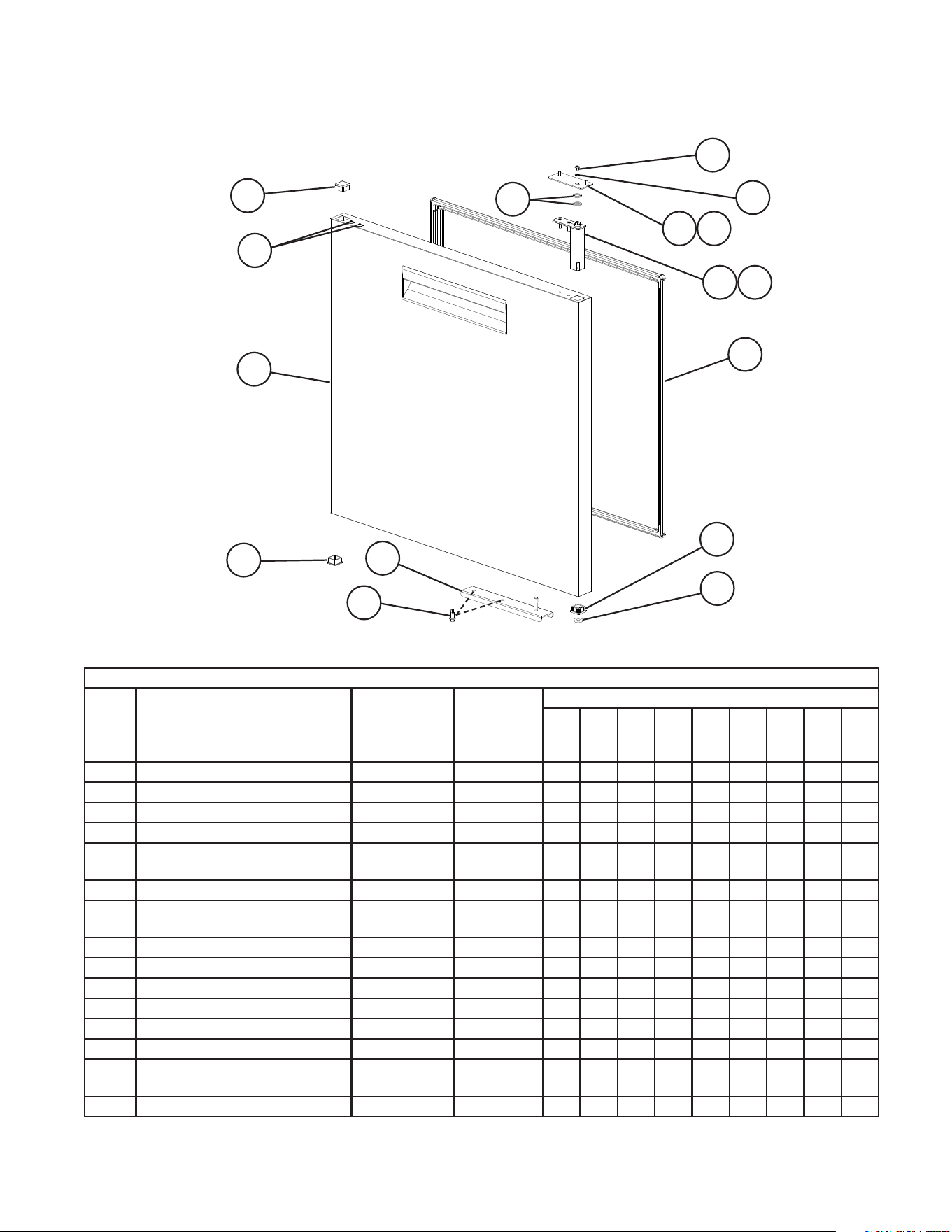

Title: C. Door-Right Hinged Models: PR67B-Z
Index
No. Description
Material or
Model Number Part Number
Required Number Per Section
Q-5
to
R-6
1 Lower Hinge Bracket 3A6681G01 1
1a Hex Head Tapping Bolt 4A5213-01 2
2 Upper Hinge Bracket 3A6810-01 1
2a Truss Head Screw 7C32-0512 2
3 Door Assembly
(includes items 4 through 12)
2A9409G01 1
4 Gasket 2A6996-10 1
5 Hinge Spring Cartridge
(includes items 6 through 10)
3A9206-01 1
5a Countersunk Screw 7C42-0520 2
6 Thrust Washer 4A5234-01 1
7 Screw 4A5230-01 1
8 Lock Washer 4A5231-01 1
9 Thrust Washer 4A5233-01 2
10 Bearing 4A5232-01 1
11 Truss Head Screw
(ller screws)
7C32-0510 2
12 End Cap 4A5432-01 2
2a2
3
5 5a
10
11
4
12
12
9
1a
1
6
8
7
9
D. Door-Left Hinged
PR67B-Z
Q-5 to R-6

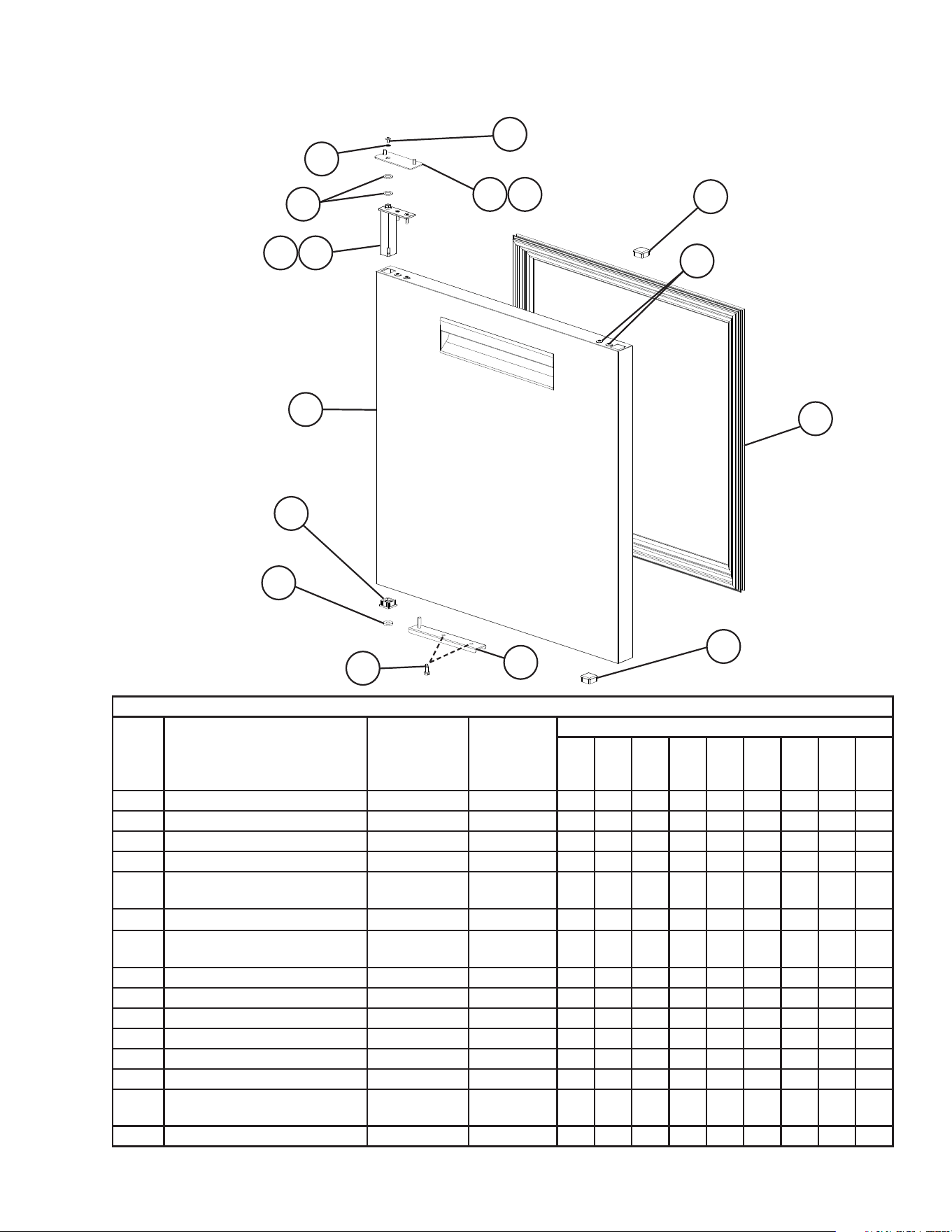

Title: D. Door-Left Hinged Models: PR67B-Z
Index
No. Description
Material or
Model Number Part Number
Required Number Per Section
Q-5
to
R-6
1 Lower Hinge Bracket 3A6681G01 1
1a Hex Head Tapping Bolt 4A5213-01 2
2 Upper Hinge Bracket 3A6810-01 1
2a Truss Head Screw 7C32-0512 2
3 Door Assembly
(includes items 4 through 12)
2A9411G05 1
4 Gasket 2A6996-10 1
5 Hinge Spring Cartridge
(includes items 6 through 10)
3A9206-01 1
5a Countersunk Screw 7C42-0520 2
6 Thrust Washer 4A5234-01 1
7 Screw 4A5230-01 1
8 Lock Washer 4A5231-01 1
9 Thrust Washer 4A5233-01 2
10 Bearing 4A5232-01 1
11 Truss Head Screw
(ller screws)
7C32-0510 2
12 End Cap 4A5432-01 2
2a
2
3
5
5a
6
8
10
11
4
12
12
9
1a
1
7
10
E. Accessories & Labels
PR67B-Z
Q-5 to R-6

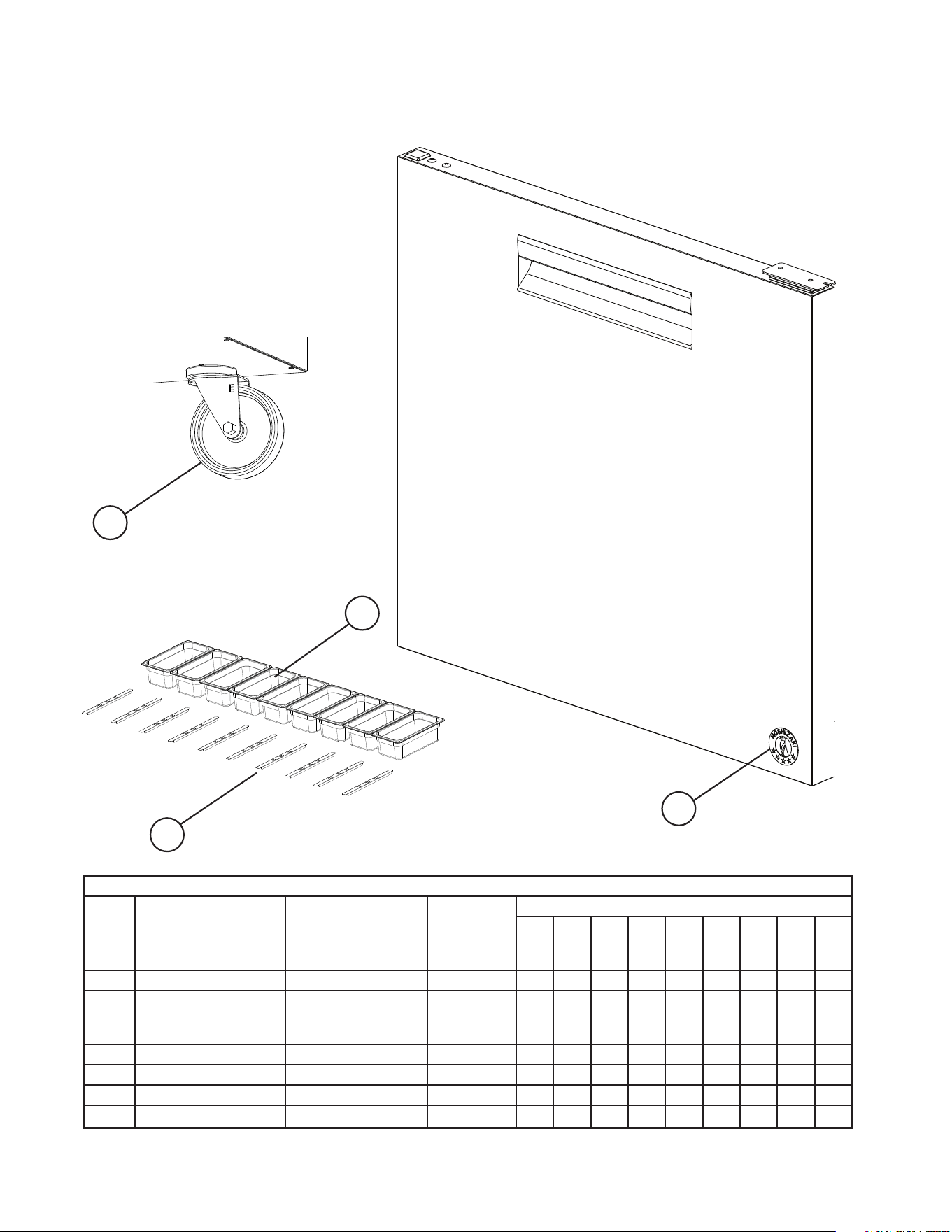

Title: E. Accessories & Labels Models: PR67B-Z
Index
No. Description
Material or Model
Number Part Number
Required Number
Q-5
to
R-6
1 Penguin Label 475552L01 1
2 6" Caster Kit
(includes 2 of items
3 and 4)
4A5435A01 1
3 6" Non-Locking Caster 4A5428-01 2
4 6" Locking Caster 4A5428-02 2
5 1/3 Size Pan, 4" Depth 1000000351 9
6 Pan Divider 3A4934-03 10
1
5
6
2
