Wireless DMX transmitter/receiver
Parameter：
Input voltage: 5V 1A
Operating Instructions
Power input: 5VDC,±5%
Power consumption: 5W
Communication distance: 600 m
working band: 2.400-2.4835GHz
Battery capacity: 750 mA
Charging time: 3 hou rs
Use time: 20 hou rs
Receiving sensitivit y: -94dBm
DMX signal interface: RS485
Reliability: Auto restart timer : Built-in WDT
System information: CPU: 32-bit ARM core
Operating temperature: -40 ~ 85 ° C, 5 ~ 9 5% RH humidity
storage temperature: -65 ~ 150 ° C, 5 ~ 95% RH humidity
Control mode: controlled by DMX512 console. The transm itter is plugged into
the dmx console, the receiver is plugged into the fixture
Service life: 10 years
：

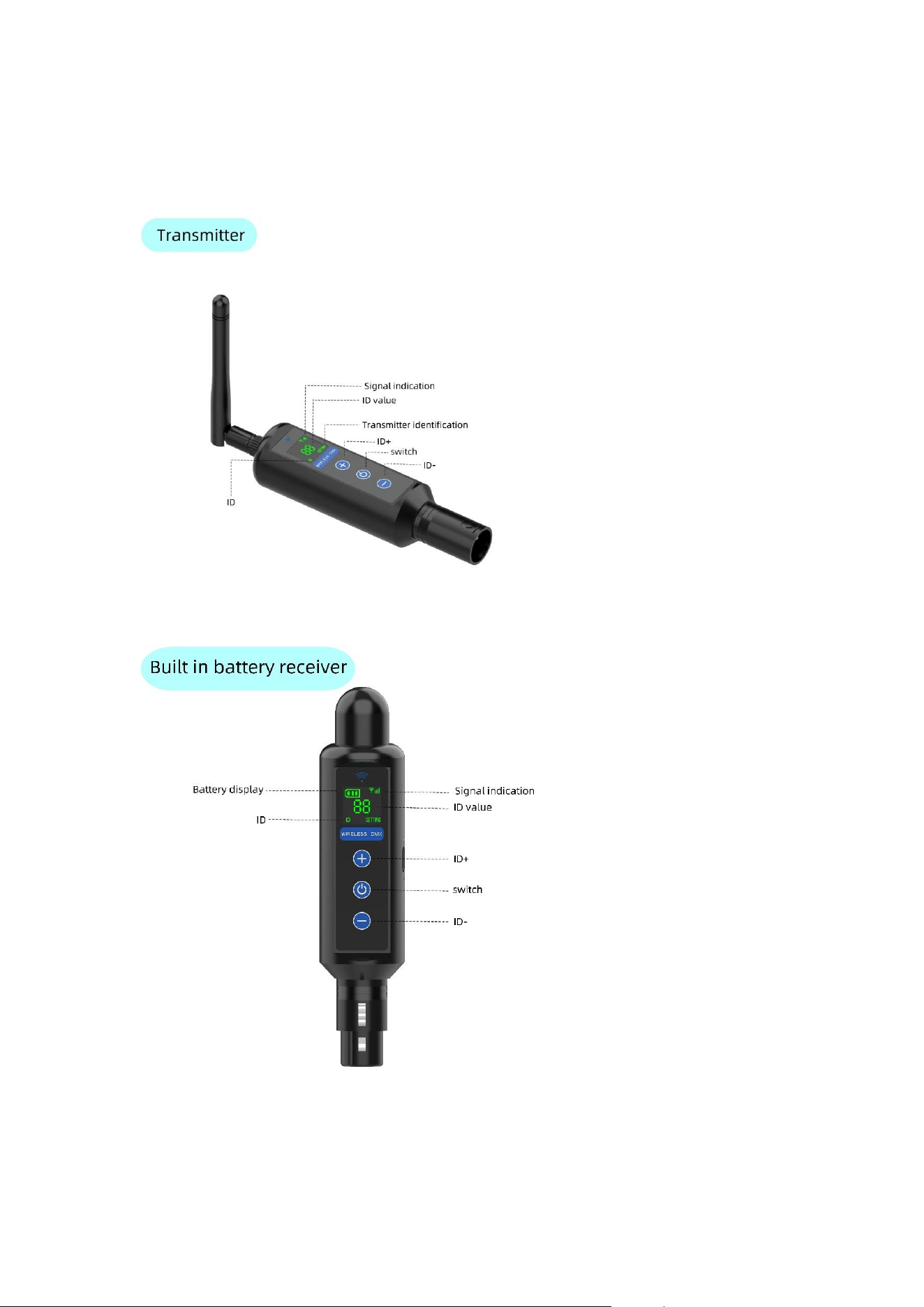

1. Receiver: Press and hold the touch switch, wait for it to turn on, then press
and hold the touch switch again to turn off.
Transmitter: It will automatically turn on after being powered on. Touch switches
can be used for power on and off.
2. The device can be divided into 20 groups of IDs, with the same number set for
each group of transmitters and receivers. 20 transmitters can be used
simultaneously.
3.When the transmitter and receiver are connected to the signal, the signal
indication will flash. (If there is no flashing, the transmitter and receiver are not
connected successfully)
4. Battery powered receiver: Charge for 3 hours. The usage time is 20 hours.
Scope of application:
stage lighting, large-scale cultural performances, stadium lighting, temporary
stage performances, city lighting system, television
TV stations, conference centers, professional theaters, theme parks, dance halls,
bars and small cultural performances, etc.
FCC Warning
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any inte rference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interferenceto radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body.
