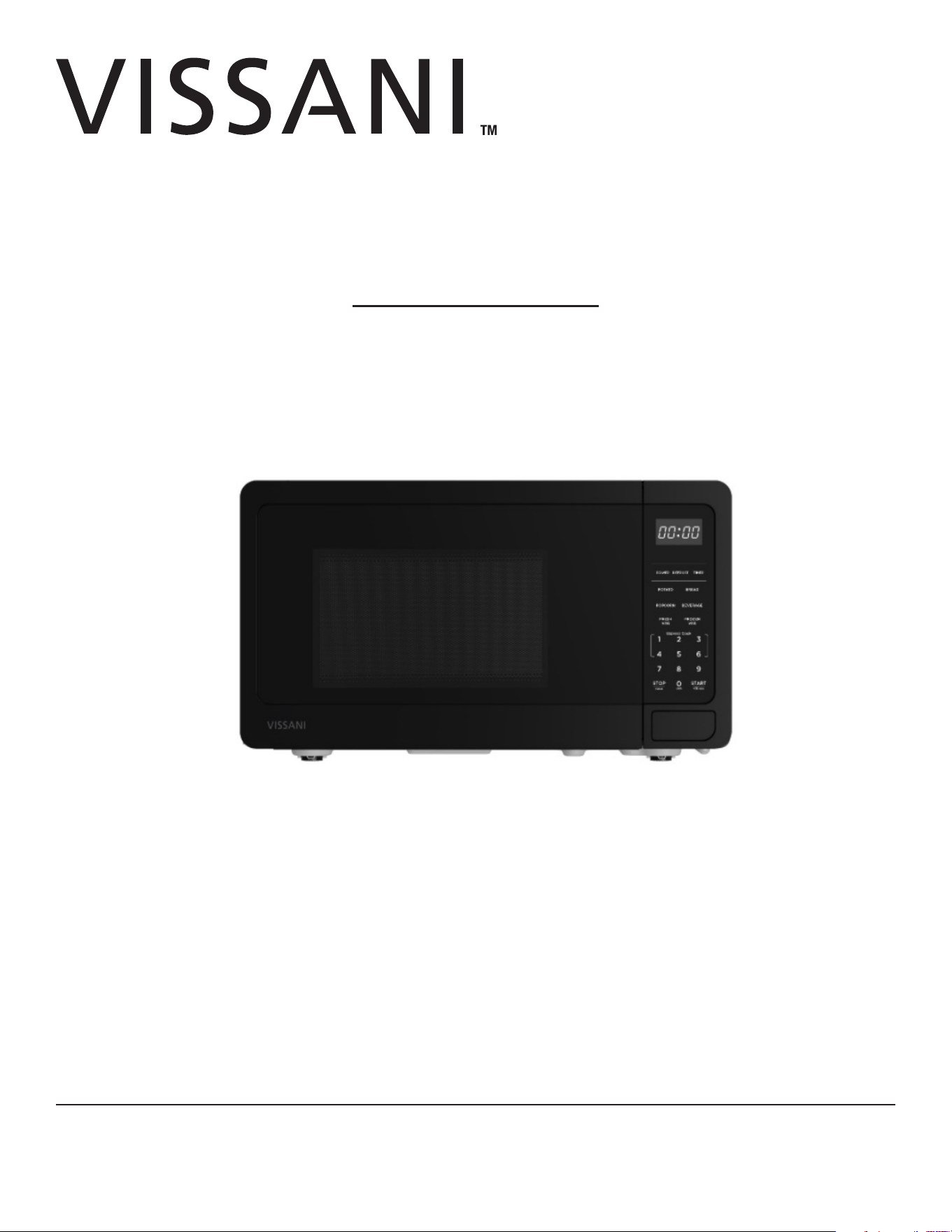

USE AND CARE GUIDE
MICROWAVE OVEN
Questions, problems, missing parts?
Before returning to the store, call Vissani Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-VISSANI (1-855-847-7264)
HOMEDEPOT.COM
Item #1000 000 000
Model #B20PX78
THANK YOU
We appreciate the trust and condence you have placed in Vissani through the purchase of this microwave oven. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement
needs. Thank you for choosing Vissani!
2
Table of Contents
Safety Information ....................................2
Pre-Installation .......................................5
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Maintenance ........................................10
Care and Cleaning ...................................11
Safety Information
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS
When using electrical appliances basic safety precautions should be
followed, including the following:
WARNING:
1.Read all instructions before using the appliance.
2.Read and follow the specific "PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY" found on page 4.
3.This appliance must be grounded. Connect only
to properly grounded outlet. See "GROUNDING
INSTRUCTIONS" found on page 5.
4.Install or locate this appliance only in accordance
with the provided installation instructions.
5.Some products such as whole eggs and sealed
containers – for example, closed glass jars – are able
to explode and should not be heated in this oven.
6.Use this appliance only for its intended use as
described in the manual. Do not use corrosive
chemicals or vapors in this appliance. This type of oven
is specifically designed to heat, cook, or dry food. It is
not designed for industrial or laboratory use.
7.HOT CONTENTS CAN CAUSE SEVERE BURNS. DO
NOT ALLOW CHILDREN TO USE THE MICROWAVE. Use
caution when removing hot items.
8.Do not operate this appliance if it has a damaged
cord or plug, if it is not working properly, or if it has
been damaged or dropped.
9.This appliance should be serviced only by qualified
service personnel. Contact nearest authorized service
facility for examination, repair, or adjustment.
10.Do not cover or block any openings on the
appliance.
11.Do not store this appliance outdoors. Do not use this
product near water – for example, near a kitchen sink,
in a wet basement, near a swimming pool, or similar
locations.
12.Do not immerse cord or plug in water.
13.Keep cord away from heated surfaces.
14.Do not let cord hang over edge of table or counter.
WARNING:
15.When cleaning surfaces of door and oven that
comes together on closing the door, use only mild,
nonabrasive soaps, or detergents applied with a
sponge or soft cloth.
16.To reduce the risk of fire in the oven cavity:
a.Do not overcook food. Carefully attend appliance
when paper, plastic, or other combustible materials are
placed inside the oven to facilitate cooking.
b.Remove wire twist-ties from paper or plastic bags
before placing bag in oven.
c.If materials inside the oven ignite, keep oven door
closed, turn oven off, and disconnect the power cord, or
shut off power at the fuse or circuit breaker panel.
d.Do not use the cavity for storage purposes. Do not
leave paper products, cooking utensils, or food in the
cavity when not in use.
17.Liquids, such as water, coffee, or tea are able
to be overheated beyond the boiling point without
appearing to be boiling. Visible bubbling or boiling
when the container is removed from the microwave
oven is not always present. THIS COULD RESULT IN
VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE
CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED
INTO THE LIQUID.
18.Notice for extension cord:
a.A short power-supply cord is provided to reduce the
risks resulting from becoming entangled in or tripping
over a longer cord.
b.Longer cord sets or extension cords are available and
may be used if care is exercised in their use.
c.If a long cord or extension cord is used:
1)The marked electrical rating of the cord set or
extension cord should be at least as great as the
electrical rating of the appliance;
2)The extension cord must be a grounding-type
3-wire cord;
3)The longer cord should be arranged so that it will
not drape over the counter top or tabletop where
it can be pulled on by children or tripped over
unintentionally.
3 HOMEDEPOT.COM
Please contact 1-855-VISSANI (1-855-847-7264) for further assistance.
Safety Information (continued)
The following basic precautions should always be followed when using electrical appliance:
1. Read all instructions before using.
2. Make sure the voltage in your living area corresponding to the
one shown on the rating label of the appliance. And the wall
socket is properly grounded.
3. TO reduce the risk of fire in the oven cavity:
a.DO not overcook the food.
b.Remove wire twist -ties from paper or plastic bags before
placing bags in the oven.
c.Do not heat oil or fat for deep drying as the temperature of oil
cannot be controlled.
d.After use wipe the waveguide cover with a damp cloth,
followed by dry cloth to remove any food splashes and grease.
Built -up grease may overheat and begin to cause smoke or
catch fire.
e.If materials inside the oven should smoke or ignite, keep oven
door closed, turn oven off and disconnect the power supply.
f.Close supervision is necessary when using disposable
containers made from plastic, paper or other combustible
material.
4. TO reduce the risk of explosion and sudden boiling:
a.Do not place sealed containers in the oven. Baby bottles fitted
with a screw cap or teat are considered to be sealed containers.
b.When boiling liquid in the oven, use the wide -mouthed
container and stand about 20 seconds at the end of cooking to
avoid delayed eruptive boiling of liquids.
c.Potatoes, sausage and chestnut should be peeled or pierced
before cooking. Eggs in their shell, whole hard -boiled eggs
should not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
d.The cooked liquid should not be removed out immediately.
Several moments should be waited before removing. In order
to avoid possible hazards caused by delayed eruptive boiling of
1iquids.
e.The contents of feeding bottles and baby food jars are to be
stirred or shaken and the temperature is to be checked before
consumption, in order to avoid burns.
5. Never operate the oven further if the door or door seals is
damaged or the oven is malfunctioned or supply cord is
damaged. Return the appliance to the nearest authorised
service center for repair and maintenance. Never try to adjust
or repair the oven yourself.
6. If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a qualified technician in
order to avoid a shock hazard.
7. After cooking, the container is very hot. Using gloves to take out
the food and avoid steam burns by directing steam away from
the face and hands.
8. Slowly lift the furthest edge of dishes cover and microwave
plastic wrap and carefully open popcorn and oven cooking bags
away from the face.
9. TO prevent the turntable from breaking:
a.Let the turntable cool down before cleaning.
b.Do not place hot foods or utensils on the cold turntable.
c.Do not place frozen foods or utensils on the hot turntable.
10. Make sure the utensils do not touch the interior walls during
cooking.
11. Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life
of the appliance and possibly result in a hazardous situation.
12. Only use utensils that are suitable for use in microwave ovens.
13. Do not store food or any other things inside the oven.
14. Do not operate the oven without any liquid or food inside the
oven. This would do damage the oven.
15. This appliance is not intended for using by young children or
infirm persons without supervision.
16. When the appliance is operated in the combination mode,
children should only use the oven under adult supervision due
to the temperatures generated.
17. Any accessories not recommended by the manufacturer may
cause injuries to persons.
18. Do not use outdoors.
19. Save these instructions.
WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a competent person.
WARNING: It is hazardous for anyone other than
a competent person to carry out any service or
repair operation that involves the removal of a
cover which gives protection against exposure to
microwave energy.
WARNING: Liquids and other foods must not be
heated sealed container since they are liable to
explode.
WARNING: Only allow children to use the oven
without supervision when adequate instructions
have been given so that the child is able to use the
oven in a safe way and understands the hazards of
improper use.
20. Only use utensils that are suitable for use in microwave ovens.
21. When heating food in plastic or paper containers, keep an eye
on the oven due to the possibility of ignition.
22. If smoke is observed, switch off or unplug the appliance and
keep the door closed in order to stifle any flames.
4
Safety Information (continued)
23. Microwave heating of beverages can result in delayed eruptive
boiling, therefore care must be taken when handling the
container.
24. The contents of feeding bottles and baby food jars shall
be stirred or shaken and the temperature checked before
consumption, in order to avoid burns.
25. Eggs in their shell and whole hard -boiled eggs should not be
heated in microwave ovens since they may explode, even after
microwave heating has ended.
26. The oven should be cleaned regularly and any food deposits
removed.
27. Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life
of the appliance and possibly result in a hazardous situation.
28. During use the appliance becomes hot. Care should be taken to
avoid touching heating elements inside the oven.
WARNING: Accessible parts may become hot during
use. Young children should be kept away.
29. Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
30. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
31. Children should be supervised to ensure that they do not play
with the appliance.
32. The appliances are not intended to be operated by means of an
external timer or separate remote -control system.
The temperature of accessible surfaces may be high when the
appliance is operating.
CAUTION: HOT SURFACE.
33. This device complies with Part 18 of the FCC Rules.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since
open-door operation can result in harmful exposure to microwave
energy. It is important not to defeat or tamper with the safety
interlocks.
(b) Do not place any object between the oven front face and the door
or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly
important that the oven door close properly and that there is no
damage to the: (1) door (bent), (2) hinges and latches (broken or
loosened), (3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except
properly qualified service personnel.
(1) As with any appliance, close supervision is necessary when used
by children.
(2) If materials inside the oven should ignite, keep oven door closed,
turn oven off, and disconnect the power cord, or shut off power at
the fuse or circuit breaker panel.
(3) Information as to where qualified service may be obtained.
PRECAUTIONS TO BE OBSERVED BEFORE
AND DURING SERVICING TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
(a) Do not operate or allow the oven to be operated with the door
open.
(b) Make the following safety checks on all ovens to be serviced
before activating the magnetron or other microwave source, and
make repairs as necessary: (1) interlock operation, (2) proper door
closing, (3) seal and sealing surfaces (arcing, wear, and other
damage), (4) damage to or loosening of hinges and latches, (5)
evidence of dropping or abuse.
(c) Before turning on microwave power for any service test or
inspection within the microwave generating compartments, check
the magnetron, wave guide or transmission line, and cavity for
proper alignment, integrity, and connection.
(d) Any defective or misadjusted components in the interlock,
monitor, door seal, and microwave generation and transmission
systems shall be repaired, replaced, or adjusted by procedures
described in this manual before the oven is released to the owner.
(e) A microwave leakage check to verify compliance with the Federal
Performance Standard should be performed on each oven prior to
release to the owner.
Switch and Fuse replacement Marking
WARNING: For continued protection against excessive
radiation emission, replace only with
1) Primary Switch : Type Nos. V-J
2) Secondary Switch : Type Nos. V-J
3) Monitor Switch : Type Nos. V-J
4) Fuses : UL listed or recognized type fuse rated (N) A. 15A
5 HOMEDEPOT.COM
Please contact 1-855-VISSANI (1-855-847-7264) for further assistance.
Safety Information (continued)
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short
circuit, grounding reduces the risk of electric shock by providing
an escape wire for the electric current. This appliance is equipped
with a cord having a grounding wire with a grounding plug. The
plug must be plugged into an outlet that is properly installed and
grounded.
WARNING – Improper use of the grounding can result in a risk of
electric shock. Consult a qualified electrician or serviceman if the
grounding instructions are not completely understood, or if doubt
exists as to whether the appliance is properly grounded, and either:
1) If it is necessary to use an extension cord, use only a 3-wire
extension cord that has a 3-blade grounding plug, and a 3-slot
receptacle that will accept the plug on the appliance. The marked
rating of the extension cord shall be equal to or greater than the
electrical rating of the appliance, or
2) Do not use an extension cord. If the power supply cord is too
short, have a qualified electrician or serviceman install an outlet
near the appliance.
For a permanently connected appliances:
GROUNDING INSTRUCTIONS
This appliance must be connected to a grounded, metallic,
permanent wiring,system, or an equipment grounding conductor
should be run with the circuit conductors and connected to the
equipment grounding terminal or lead on the appliance.
Pre-Installation
PACKAGE CONTENTS
A B
C D
E
F
G
PRODUCT INSTRUCTION
A.Door lock
Microwave oven door must be properly closed in order for it to operate
B.Viewing window
Allow user to see the cooking status
C.Rotating ring
The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating
6
Pre-Installation (continued)
D.Rotating axis
The glass turntable sits on the axis; the motor underneath it drives the turntable to rotate
E.Turntable
The food sits on the turntable, its rotation during operation helps to cook food evenly
CAUTION:
□ Place the rotating ring first
□ Fit the turntable onto the rotating axis and make sure that it is geared in properly
F.Control panel
See below in details (the control panel is subject to change without prior notice)
G.Waveguide cover
It is inside the microwave oven, next to the wall of control panel.
WARNING: Never remove the waveguide cover.
Installation
1. Take out all the packing. If there is a safe film over the oven, tear it off before Use. Check carefully for damage. If any, immediately
notify dealer or send to the manufacturer’s service center.
2. Microwave ovens must be placed under dry and non-corrosiveness environments, kept away from heat and humidity, such as gas
burner or water tank.
3. To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10cm, the side to the wall should
be at least 5cm, the free distance above the top surface at least 20cm. The distance of the microwave to the ground should be at least
916mm.
4. The position of the oven shall be such that it is far from the TV, Radio or antenna as picture disturbance, or noise may occur.
5. The appliance must be positioned so that the plug is accessible, and must ensure a good grounding in case leakage, ground loop can
be formed to avoid electric shock.
6. The microwave oven must be operated with the door closed.
7. The microwave oven shall not be placed in a cabinet.
8. The back of the oven must be placed against a wall.
9. As there is manufacturing residue or oil remained on the oven cavity or heat element, it usually would smell the odor, even a slight
smoke, It is normal case and would not occur after several times use, keep the door or window open to ensure good ventilation. So it is
strongly recommended to place a cup of water in the turntable, setting at high power and operate for several times.
7 HOMEDEPOT.COM
Please contact 1-855-VISSANI (1-855-847-7264) for further assistance.
Operation
1. BEFORE COOKING
The display lights up when plugged in power supply, then enter the standby state and display shows 1:00.
2. MICROWAVE FUNCTION
There are ten microwave power levels, 100P, 90P, 80P, 70P, 60P, 50P, 40P, 30P, 20P and 10P, respectively. Press the “POWER” button
continuously and select the desired microwave power. Press 0~9 number buttons to input the cooking time, the maximum time that can
be input is 99:99. After entering the cooking time, press “START/+30s” button to start work. An buzzing sound to notify completion of the
operation.
HIGH 100% and 90% power output (Applicable for quick and thorough cooking)
M.High 80% and 70% power output (Applicable for medium express cooking)
Med 60% and 50% power output (Applicable for steaming food)
M.Low 40% and 30% power output (Applicable for defrosting food)
LOW 20% and 10% power output (Applicable for keeping warm)
CAUTION:
□ The max time which can be set is 99 minutes and 99 seconds.
□ Never use the grill rack during microwave cooking.
□ Never operate the oven empty.
□ At the maximum microwave power, the oven will automatically lower the power after a certain time of cooking to lengthen the service life.
□ If you turn the food during operation, press the Start/+30s button once and the preset cooking procedure will continue.
□ If you intend to remove the food before the preset time, you must press Stop button once to clear the preset procedure to avoid unintended
operation of next time use.
8
Operation (continued)
3.DEFROST
There are two defrost mode, dEF1 and dEF2, respectively. dEF1 for defrost by weight and dEF2 for defrost by time. Press “Defrost” button to
select defrosting by weight or by time, the display screen displays "dEF1" or "dEF2". Press 0~9 number buttons to input the food weight or
defrosting time. The weight range of dEF1 is from 4 to 50oz and the maximum time that dEF2 can input is 99:99. After entering, press the
“START/+30s” button start to work. An buzzing sound to notify completion of the operation. The dEF1 defrost mode by weight will have a
beeping sound to prompt the food to be turned over during defrosting.
Below is some food defrosting time advice:
dEF1 For defrosting, the weight range from 4 to 50oz.
dEF2 For defrosting, the maximum time is 99:99.
CAUTION:
□ It is necessary to turn over the food during operation to obtain uniform effect.
□ Usually defrosting will need longer time than that of cooking the food.
□ If the food can be cut by knife, the defrosting process can be considered completed.
□ Microwave penetrates around 4cm into most food
□ Defrosted food should be consumed as soon as possible, it is not advised to put back to
fridge and freeze again.
4.AUTO COOKING
There are six automatic menus A.1~A.6, potato, bread, popcorn, beverage, fresh vegetable and frozen vegetable respectively. Select the
desired auto menu and press the corresponding menu button which to be selected continuously to select the desired food portion size, and
the display shows the corresponding portion size. After selecting the cooking portion size, press “START/+30s” button to start work. An
buzzing sound to notify completion of the operation.
Display Kind Method
A.1 Potato The optional weights are 9oz, 18oz and 27oz.
A.2 Bread The optional weights are 3.5oz, 7oz, 10.5oz, 14oz and 17.5oz.
A.3 Popcorn The optional weight is 3.5oz.
A.4 Beverage The optional portion sizes---1 cup, 2 cups or 3 cups, each one about 9oz.
A.5 Fresh vegetable The optional weights are 7oz, 14oz and 21oz.
A.6 Frozen vegetable The optional weights are 7oz, 14oz and 21oz.
CAUTION:
□ The temperature of food before cooking would be 20-25
°C. Higher or lower temperature of the food before
cooking would require increase or decrease of cooking time.
□ The temperature, weight and shape of food will largely influence the cooking effect. If any deviation has
been found to the factor noted on above menu, you can adjust the cooking time for best result.
5. TIMER
In standby mode, press this button to enter the setting interface, and the countdown function icon and "0:00" will be displayed on the
display screen. Press the 0 ~ 9 number buttons to input the time. The maximum time that can be input is 99:99. After setting the time, press
the "START/+30s" button to begins the countdown. An buzzing sound to notify completion of the countdown.
6. EXPRESS COOK
6.1 In standby mode, you can directly press the 1~6 number buttons, and the working time is 1~6 minutes, that is, press 1 to work for
1 minute, press 2 to work for 2 minutes, and so on. After select the time, press “START/+30s” button to start the microwave and start
working, an buzzing sound to notify completion of the operation.
6.2 In standby mode, after putting food in and closing the door, press the “START/+30s” button to start the microwave quickly. The default
working time is 30 seconds. In the working process, press the “START/+30s” button once for 30 seconds. An buzzing sound to notify
completion of the operation.
9 HOMEDEPOT.COM
Please contact 1-855-VISSANI (1-855-847-7264) for further assistance.
Operation (continued)
7. 0/CLOCK
The clock function and "0" button are combined in one button. The clock is 12-hour system. The operation of the clock function is as
follows:
In standby mode, press and hold down the “0/Clock” button for more than 3 seconds to enter the clock setting interface, press the 0 ~ 9
number buttons to input the clock time directly and press the “START/+30s” button to confirm the specified time and exit the clock setting
mode.
8. STOP
In the process of cooking settings, can press “STOP” button to cancel the settings and return to standby state. In the process of microwave
oven working, can press “STOP” button to pause. In the paused state, can press “STOP” button again to cancel the function and return to
standby state.
9. START/+30S
After setting the cooking time or food weight, press “START/+30s” button to start microwave oven immediately. In working state, can press
“START/+30s” button to increase time, press one time to increase 30 seconds, but the menu mode and weight defrosting mode cannot
adjust time. In paused state, can press “START/+30s” button to continue the microwave oven before cooking mode.
10. CHILD LOCK FUNCTION
Use this feature to lock the control panel when you are cleaning or so that children cannot use the oven unsupervised. All the buttons are
rendered inoperable in this mode.
1) Set lock: In standby mode, press and hold down the "STOP" button for more than 3 seconds, the child lock function is activated, and all
buttons of the microwave oven cannot be operated.
2) Cancel lock: In the child lock state, press and hold down the "STOP" button for more than 3 seconds to cancel the child lock function.
11. THE OPERATION METHOD AND SETTING OF THE TWO-STEP DOOR OPENING FUNCTION
11.1 The operation method of two-step door opening
In the operating state or after the operation is completed, the first step is to press the STOP button to pause or return to standby mode of
the microwave oven. The second step is to open the oven door.
When not in operating condition or after 30 minutes of work, the oven door can be opened directly.
11.2 Setting of two-step door opening function
In the standby mode of the microwave oven, press and hold down the STOP+START+POWER buttons in order without releasing them to
turn on/off this function, and the corresponding display will be "ON" or "OFF".
CAUTION:
□ To enable this function, it is not possible to directly open the oven door during operation,
and a two-step door opening operation is required.
□ Turn off this function, and you can directly open the oven door in any state.
□ After the product is powered on, it defaults to the two-step door opening function.
10
Operation (continued)
COOKING TIPS
The following factors may affect the cooking result:
Food arrangement
Place thicker areas towards outside of dish, the thinner part towards
the centre and spread it evenly. Do not overlap if possible.
Cooking time length
Start cooking with a short time setting, evaluate it after it times out
and extend it according to the actual need. Over cooking may result
in smoke and burns.
Cooking food evenly
Food such as chicken, hamburger or steak should be turned once
during cooking.
Depending on the type of food, if applicable, stir it from outside to
centre of dish once or twice during cooking.
Allow standing time
After cooking times out, leave the food in the oven for an adequate
length of time, this allows it to complete its cooking cycle and
cooling it down in a gradual manner.
Whether the food is done
Color and hardness of food help to determine if it is done, these
include:
□ Steam coming out from all parts of food, not just the edge.
□ Joints of poultry can be moved easily.
□ Pork or poultry shows no signs of blood.
□ Fish is opaque and can be sliced easily with a fork.
Browning dish
When using a browning dish or self-heating container, always place
a heat-resistant insulator such as a porcelain plate under it to
prevent damage to the turntable and rotating ring.
Microwave safe plastic wrap
When cooking food with high fat content, do not allow the plastic
wrap come into contact with food as it may melt.
Microwave safe plastic cookware
Some microwave safe plastic cookware might not be suitable for
cooking foods with high fat and sugar content. Also, the preheating
time specified in the dish instruction manual must not be exceeded.
MAINTENANCE
SERVICING
Please check the following before calling for services.
1.Place one cup of water (approx.150ml) in a glass measure in the
oven and close the door securely. Oven lamp should go off if the
door is closed properly. Let the oven work for 1 min.
2.Does the oven lamp light?
3.Does the cooling fan work?
(Put your hand over the rear ventilation openings.)
4.Does the turntable rotate?
(The turntable can rotate clockwise or counter clockwise. This is
quite normal.)
5.Is the water inside the oven hot?
If “NO” is the answer to any of the above questions, please check
your wall socket and the fuse in your meter box.
If both the wall socket and the fuse are functioning properly,
CONTACT YOUR NEAREST SERVICE CENTER APPROVED.
SERVICING SAFEGUARDS
WARNING: MICROWAVE RADIATION!
WARNING: It is hazardous for anyone, other than a
qualified service technician, to carry out any service for
repairing operation which involves removal of any cover
which gives protection against exposure to microwave
energy.
WARNING: The temperature of accessible surfaces may be
high when the appliance is operating.
WARNING: The high voltage capacitor remains charge after
disconnection; short the negative terminal of H. V capacitor
to the oven chassis (use a screwdriver) to discharge before
touching.
WARNING: During servicing below listed parts are liable to be
removed and give access to potentials above 250V to earth.
1. Magnetron
2. High voltage transformer
3. High voltage capacitor
4. High voltage diode
5. High voltage fuse
The actual conguration in order to prevail in kind.
11 HOMEDEPOT.COM
Please contact 1-855-VISSANI (1-855-847-7264) for further assistance.
MAINTENANCE (continued)
WARNING: The following conditions may cause undue
microwave exposure during servicing.
Improper fitting of magnetron;
Improper matching of door interlock, door hinge and door;
Improper fitting of switch support;
Door, door seal or enclosure has been damaged.
1. If LED displays Err0 during working, it indicates that sensor
has been short circuit and you need replace it at the nearest
repaired department.
2. If LED displays Err1 during working, it indicates that sensor
has been open circuit and you need replace it at the nearest
repaired department.
WARNING: If the door or door seals are damaged, the oven
must not be operated until it has been repaired by a competent
person.
It is hazardous for anyone, other than a qualified service
technician, to carry out any service for repairing operation
which involves removal of any cover which gives protection
against exposure to microwave energy.
Liquids or other foods must not be heated in sealed containers
since they are liable to explode.
Only allow children to use the oven without supervision when
adequate instructions have been given so that the child is able
to use the oven in a safe way and understands the hazards of
improper use.
Correct Disposal of this product
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent
possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact
the retailer where the product was purchased. They can take this product for environmental safe recycling.
Care and Cleaning
MICROWAVE OVEN CARE
The oven should be cleaned regularly and any food deposits removed.
WARNING:
1.It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal
of a cover which gives protection against exposure to microwave energy.
2.Remove the power cord from the wall outlet before cleaning.
3.Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of
the appliance and possibly result in a hazardous situation.
4.The oven should be cleaned regularly and any food deposits removed.
5.Details for cleaning door seals, cavities and adjacent parts.
6.Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance.
7.Do not remove the waveguide cover.
8.When the microwave oven has been used for a long time, there may be some strange odors exist in oven, following 3 methods
can get rid of them:
a)Place several lemon slices in a cup, then heat with high power for 2-3 min.
b)Place a cup of red tea in oven, then heat with high power.
c)Put some orange peel into oven, and then heat them with high power for 1 minute.
TIPS FOR CLEANING
Exterior: Wipe the enclosure with a dampened soft cloth.
Door: Using a dampened soft cloth, wipe clean the door and window.
Wipe the door seals and adjacent parts to remove any spill or spatter.
Wipe the control panel with a slightly dampened soft cloth.
Interior walls: Wipe clean the interior surfaces with a dampened soft cloth.
Wipe clean the waveguide cover to remove any food splashed.
Turntable / Rotation ring / Rotation axis:
Wash with mild soap water.
Rinse with clean water and allow drying thoroughly.
Questions, problems, missing parts?
Before returning to the store, call Vissani Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-VISSANI (1-855-847-7264)
HOMEDEPOT.COM
Retain this manual for future use.
