INSTRUCTION SHEET
#A221618
EG10068 Revised 12/22
Modular Desks/Workstations
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE. SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.

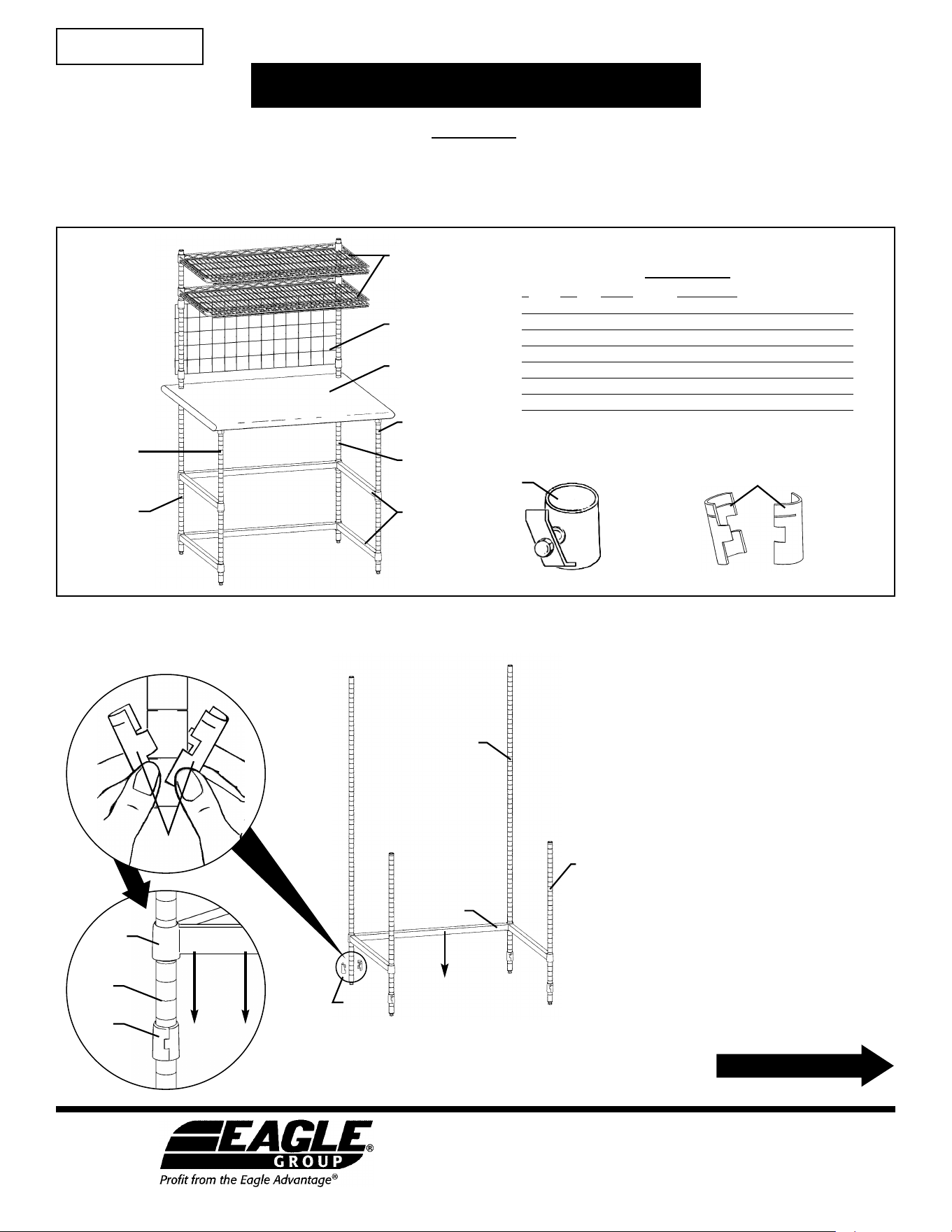

ASSEMBLY INSTRUCTIONS
Step 1 - Attach bottom channel frame to posts.
Snap split sleeve onto each post at the #3 groove
(the wider part of the taper goes toward the bottom).
Step 2 - Attach top channel frame
to posts.
Repeat Step 1, attaching split sleeve onto
each post at the desired groove.
Parts List
* Width and length vary per order.
# qty part # description
#1 2 C201371 12˝ x 48˝ cantilevered shelves
#2 1 * grid panel
#3 1 * tabletop
#4 4 P33-C 33˝ posts
#5 4 P74-C 74˝ posts
#6 2 * three-sided channel frame
#7 4 A210098 grid panel clamps
#8 5 A200816 split sleeves (four per bag)
(continued on Page 2)
split
sleeves
channel
frame
split
sleeve
split
sleeve
post
4
3
bottom
channel frame
rear post
front
post
#1
#2
#4
#5
#4
#5 #6
#3
#7
#8
rear post
front
post
tabletop
tabletop
gusset
rear
post
grid panel clamp
(for top of grid panel)
split
sleeve
grid panel clamp
(for bottom of grid panel)
split
sleeve
2
Modular Desks/Workstations
ASSEMBLY INSTRUCTIONS

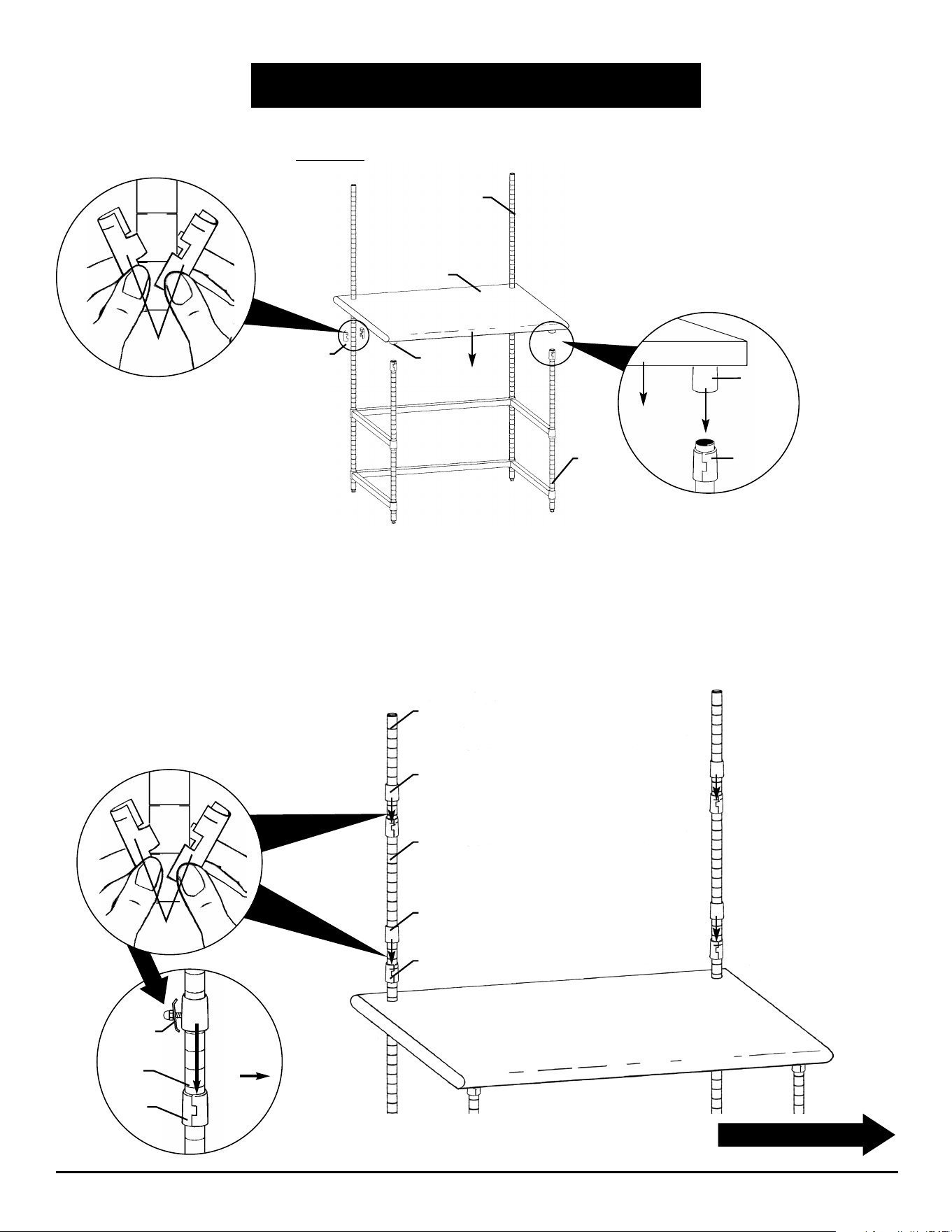

Step 3 - Attach tabletop.
Snap split sleeve onto each post at the #33 groove.
Step 4 - Attach grid panel clamps.
• Snap split sleeves onto desired groove on rear posts.
• Lower grid panel clamps onto split sleeves,
making sure clamps are facing toward rear.
• Count 15 grooves up and place split sleeve for the
top of the grid panel.
• Lower grid panel clamps onto split sleeves,
making sure clamps are facing toward rear.
split
sleeves
split
sleeve
34
33
split
sleeve
tabletop
gusset
(continued on Page 3)
split
sleeves
grid panel
clamp
front
of unit
split
sleeve
rear post
cantilevered
shelf
split
sleeve
3
Modular Desks/Workstations
ASSEMBLY INSTRUCTIONS

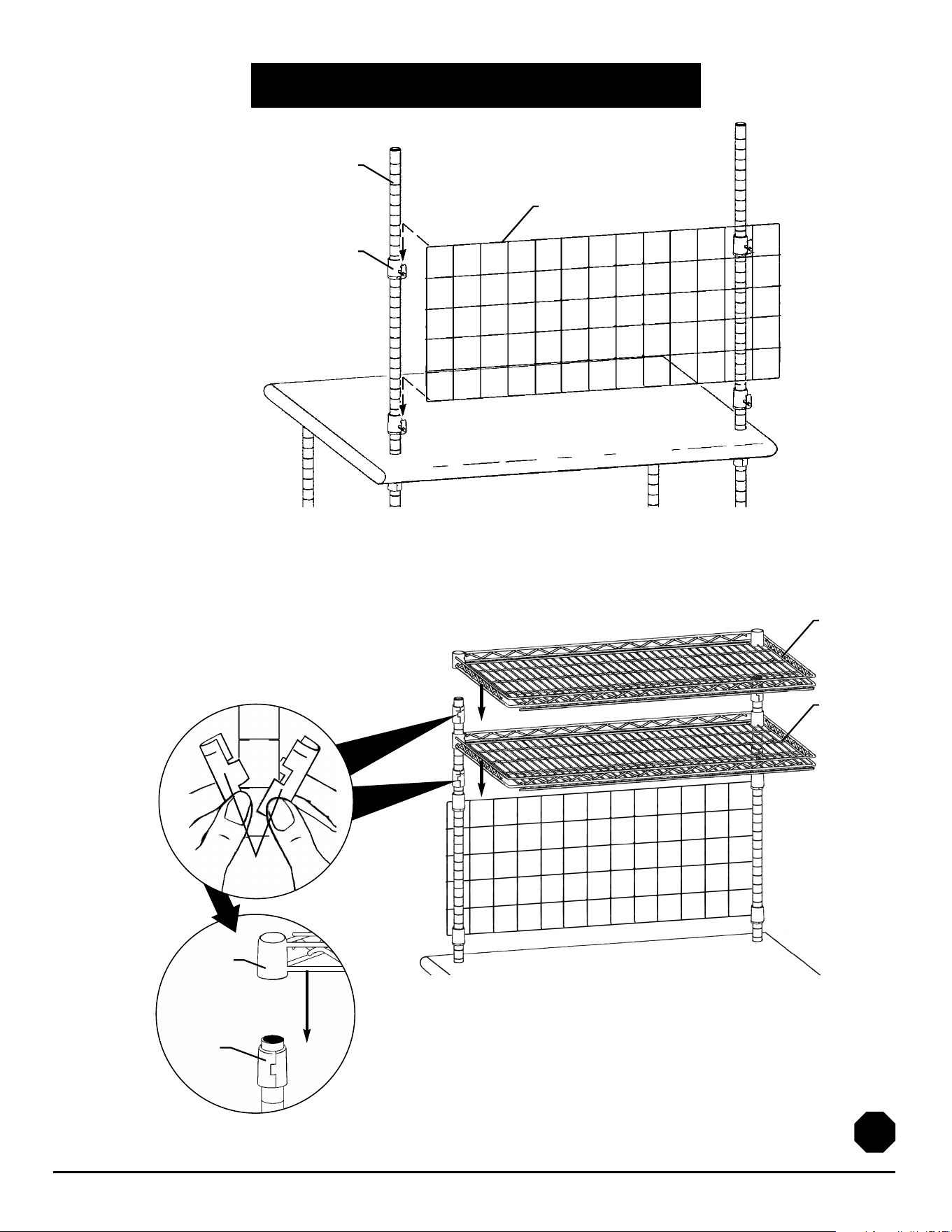

Step 5 - Attach grid panel.
grid panel
top
cantilevered shelf
bottom
cantilevered shelf
grid panel
clamp
(rear view)
rear
post
split
sleeves
Step 6 - Attach cantilevered shelves.
• Snap split sleeves onto desired groove on rear posts.
• Lower bottom cantilevered shelf onto split sleeves.
• Snap split sleeves onto top groove on rear posts.
• Lower top cantilevered shelf onto split sleeves.
Assembly is complete.
(End)
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2022 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglegrpnews.com • www.eaglemhc.com
Eagle Shelving Warranty
Eagle warrants that the goods supplied hereunder manufactured by Eagle will be free from defects in material and workmanship for
1 year from shipment from our factory. In addition, our shelving also carries a warranty against corrosion and rust formation for the
timeframes outlined below(chart). Upon factory review, we guarantee to replace any part, provided it has been properly installed and
maintained. If a shelf proves to be defective, or not in conformity with the specification, customers are entitled only to replacement of
such unit. Under no circumstances will Eagle be liable for labor or subsequent damage.
Eagle wire shelving must be cleaned with soft cloths and mild detergent. Using harsh detergents, abrasive materials, scrapers or stiff
brushes will void this warranty. In addition, any physical damage, rupturing the coating, or sustained exposure to corrosive substances
and vapors is not covered. Warranty applies only when shelves have been continuously used within a temperature range from -20˚F to
+120˚F, with intermittent exposure up to +200˚F for Valu-Gard , Valu-Master or EAGLEgard epoxy finishes, and up to +175˚F for
chrome or EAGLEbrite zinc finishes. The customer agrees to use only cleaners that are recommended for use on epoxy-coated steel.
Eagle plated shelving finishes are not intended for use in an automated cart wash system and such use will invalidate the warranty. In
the event of a warranty claim, an Eagle representative will review the claim and provide disposition. A shelf may need to be returned for
inspection and testing to determine if a claim can be paid. Returns, including disassembly and subsequent reassembly, become the
responsibility of the initial owner. If it is found after outside testing that the issue came from misuse, neglect, or failure to follow cleaning
guidelines the cost of testing may be charged back to the customer.
• Replacements are covered only for the balance of the original order’s warranty timeframe.
• Replacement quantities cannot exceed quantities originally purchased over the duration of the warranty period.
• Eagle may request evidence of disposal for original items replaced under warranty claims.
CLICK HERE to review
full warranty information
Modular Desks/Workstations
WARRANTY
* Replacement cost of prorated amounts will be determined based on original order value and will be applied as a credit for warranty
replacement orders.
Finish Warranty Storage Conditions Proration
Chrome 1-YEAR WARRANTY Dry Storage *90 days at no cost, 5% for each 30 days
thereafter, 1+ yr 100%
EAGLEbrite
®
3-YEAR WARRANTY Dry Storage *1 year no cost, 20% for year 2 and 5% for
each completed year thereafter, 3+ yr 100%
VALU-MASTER
®
5-YEAR LIMITED WARRANTY* Wet & Dry Storage *1-2 yr no cost, 20% for year 3 and 5% for
each completed year thereafter, 5+ yr 100%
Valu-Gard
®
5-YEAR LIMITED WARRANTY* Wet & Dry Storage *1-2 yr no cost, 20% for year 3 and 5% for
each completed year thereafter, 5+ yr 100%
EAGLEgard
®
(with MICROGARD
®
) 12-YEAR LIMITED WARRANTY* Wet & Dry Storage *1-5 yr no cost, 20% for year 6 plus 5%
for each completed year thereafter, 12+ yr
100%
Stainless Steel 15-YEAR LIMITED WARRANTY* Wet & Dry Storage *1-5 yr no cost, 20% for year 6 plus 5%
for each completed year thereafter, 15+ yr
100%
QuadPLUS
®
* Wet & Dry Storage None
*Polymer shelf mats have a lifetime warranty against rust and corrosion.
*Wire truss frames, based on finish, share warranty duration as outlined above.
*Note frame defaults to finish warranty above.
*Frame finish prorates by above chart, based on finish.
Solid Shelving - Stainless 1-YEAR WARRANTY Wet & Dry Storage None
Solid Shelving - Galvanized 1-YEAR WARRANTY Dry Storage *90 days at no cost, 5% for each 30 days
thereafter, 1+ yr 100%
