Smart Thermostat
LITE
User manual
MTR03-1
SmartHome
Smart Compatible
Download the App
& Activate Product
NOTE
Before using this product, please read this manual carefully and
keep it for future reference.
The design and specifications are subject to change without prior
notice for product improvement.
Consult with your dealer or manufacturer for details.

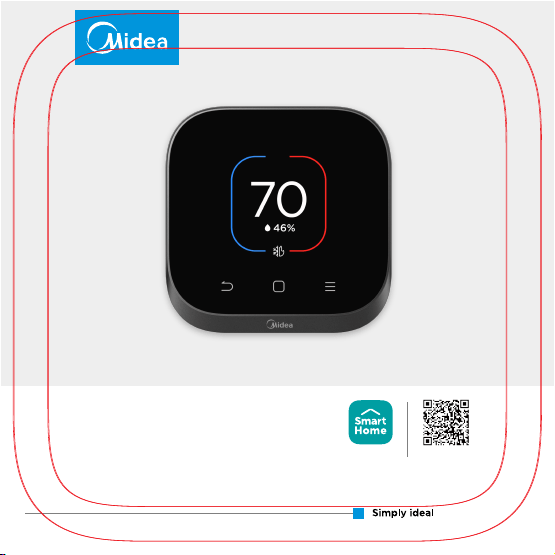

The diagram above is just for reference. Please take the appearance
of the actual product as the standard.
Using Your Smart Thermostat
With SamrtHome App
User Guide Installation Guide
Safety Precautions
WARNING
REMINDERS
Please trust the distributor or a professional installer to install
the device.
Installation by non-professionals may result in improper
installation, electric shock, or fire.
Adhere to this installation manual.
Improper installation may lead to electric shock or fire.
Reinstallation or changes must be performed by professionals.
Do not uninstall or make changes to the device randomly.
Random changes may lead to abnormal operation, heating, or
fire of the HAVC system, and cause damage to the smart
thermostat.
Do not install the device in a place vulnerable to leakage of
flammable gases. Once flammable gases are leaked and left
around the smart thermostat, fire may occur.
Do not operate the device with wet hands. The presence of
liquids may cause electric shock or damage the device.
The wiring should be rated for the thermostat current and
ensure that the power supply for the smart thermostat is
securely isolated.
Ensure the connected cables meet CL2 requirements and meet
National and local electrical standards. Otherwise, electric
leakage or heating may occur.
Do not alter the terminals of this device.
Before drilling through the wall, ensure that there are no
electrical wires, water pipes, or gas pipes inside the wall.
Please install the power supply unit according to the
instructions in this manual. Do not alter the power supply unit
or use non-specified power supply products.
During installation and use of the thermostat, please prevent
liquid (water, alcohol, etc.) from entering the device.
Always disconnect the device from the power source before
installation or maintenance to avoid equipment damage or
potential electrical shock.
Included In The Box:
Smart Thermostat
Owner’s Manual
M-base
2 Screws & 2 Anchors
Quick Guide
Click to change
the mode & setpoint
Indoor Temperature
Indoor Humidity
Current Mode
Back Home Menu
Scroll down
to see more information
Model: MTR03-1
FCC ID: 2ADQOMDNA28
IC: 12575A-MDNA28
Product Information
Software Class : Class A: Control functions which are not intended to be relied
upon for the safety of the equipment.
Overvoltage Category: I
Pollution Degree: 2
Protection against electric shock class - Class III
Environment: Enclosed Indoor use only, IP00
Operating ambient operating temperature: 32-95 °F (0-35 °C)
Shipping and Storage temperature: -40-140 °F (-40-60 °C)
Compatibility
This unit works with specific communication systems by HA & HB.
HA & HB: communication non-polarity
R & C: 24Volts Power.
Inputs:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
Smart Thermostat LITE
Connection Type Rating Terminals
1
2
Supply Power
Supply Power
(non-polarity)
24Vac, 50/60Hz, Class 2
Max 24 Vdc, Class 2
AC24+:C, AC24-:R
HA, HB
Caution: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20 cm
between the radiator & your body.
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
IC Warning
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) This device may not cause
interference, and (2) This device must accept any interference, including
interference that may cause undesired operation of the device.
Smart Thermostat
LITE
Mode d'emploi
MTR03-1
SmartHome
Smart Compatible
Download the App
& Activate Product
REMARQUE
Avant d'utiliser ce produit, veuillez lire attentivement ce manuel et
le conserver pour toute référence ultérieure.
La conception et les spécifications sont susceptibles d'être
modifiées sans préavis à des fins d'amélioration du produit.
Consultez votre revendeur ou le fabricant pour plus de détails.
Le schéma ci-dessus est fourni à titre de référence uniquement.
Veuillez vous référer à l'aspect réel du produit comme standard.
Utilisation de votre thermostat
intelligent avec l'application
SmartHome
Caution: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
IC Warning
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) This device may not cause
interference, and (2) This device must accept any interference, including
interference that may cause undesired operation of the device.
Guide d'utilisation Guide d'installation
Consignes de sécurité
AVERTISSEMENT
RAPPELS
Faites installer l’appareil par le distributeur ou un installateur
professionnel.
Une installation non professionnelle peut entraîner une mauvaise
installation, un choc électrique ou un incendie.
Suivez ce manuel d’installation.
Une installation incorrecte peut causer un choc électrique ou un
incendie.
Toute réinstallation ou modification doit être effectuée par un
professionnel.
Ne démontez pas l’appareil et n’y apportez pas de modifications au
hasard. De telles actions peuvent provoquer un fonctionnement
anormal, une surchauffe ou un incendie du système CVC, ainsi que
des dommages au thermostat intelligent.endommager le thermostat
intelligent.
N’installez pas l’appareil dans un endroit susceptible de présenter
des fuites de gaz inflammables. La présence de gaz inflammables
autour du thermostat intelligent peut provoquer un incendie.
N’utilisez pas l’appareil avec les mains mouillées. La présence de
liquides peut causer un choc électrique ou endommager
l’appareil.
Le câblage doit être dimensionné pour le courant du thermostat
et garantir que l'alimentation électrique du thermostat intelligent
est correctement isolée.
Assurez-vous que les câbles utilisés répondent aux exigences
CL2 et respectent les normes électriques nationales et locales.
Dans le cas contraire, des fuites électriques ou une surchauffe
peuvent survenir.
N’altérez pas les bornes de cet appareil.
Avant de percer un mur, assurez-vous qu’il n’y a pas de fils
électriques, de conduites d’eau ou de gaz à l’intérieur.
nstallez l’unité d’alimentation conformément aux instructions de
ce manuel. N’altérez pas l’unité d’alimentation et n’utilisez pas de
produits non spécifiés.
Pendant l’installation et l’utilisation du thermostat, évitez tout
contact avec des liquides (eau, alcool, etc.).
Débranchez toujours l’appareil de la source d’alimentation avant
toute installation ou maintenance afin d’éviter des dommages ou
un risque de choc électrique.
Contenu de la boîte:
Thermostat intelligent
Manuel du propriétaire
Base M
2 vis et 2 ancrages
Guide Rapide
Cliquez pour mode et
consigne
Température
intérieure
Humidité intérieure
Mode actuel
Back Home Menu
Faites défiler pour
plus d’infos
Modèle: MTR03-1
FCC ID: 2ADQOMDNA28
IC: 12575A-MDNA28
Informations produit
Classe logicielle: Classe A: Fonctions de contrôle non destinées à garantir la
sécurité de l’équipement.
Catégorie de surtension: I
Degré de pollution: 2
Classe de protection contre les chocs électriques: Classe III
Environnement: Usage intérieur uniquement, en espace clos, IP00
Température ambiante de fonctionnement: 0 - 35°C (32 - 95°F)
Température de transport et de stockage: -40 - 60°C (-40 - 140°F)
Compatibilité
Cet appareil est compatible avec les systèmes de communication HA et HB.
HA & HB: Communication non polarisée
R & C: Alimentation 24V.
IC Warning：
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et(2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d'en compromettre le fonctionnement.
Smart Thermostat LITE
