Duo Portable Air Conditioner
MPT1412HVRU
USER MANUAL
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
Download the app
& activate product
2
THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read this manual
thoroughly to ensure that you know how to operate the features and functions that your new portable
air conditioner offers in a safe way.
CONTENTS
THANK YOU LETTER ...............................................................................................................2
SAFETY PRECAUTIONS ........................................................................................................3
PRODUCT INSTALLATION ...................................................................................................12
OPERATION INSTRUCTIONS .............................................................................................20
REMOTE CONTROL AND APP INSTRUCTIONS .........................................................24
CLEANING AND MAINTENANCE......................................................................................38
TROUBLESHOOTING TIPS ..................................................................................................39
WARRANTY ................................................................................................................................40
SAFETY PRECAUTIONS
Read Safety Precautions Before Operation and Installation
To prevent death or injury to the user or other people and property damage, the following
instructions must be followed. Incorrect operation due to ignoring of instructions may
cause death, harm or damage.
Installation must be performed according to the installation instructions. Improper
installation can cause water leakage, electrical shock, or fire.
Use only the included accessories and parts, and specified tools for the installation.
Using nonstandard parts can cause water leakage, electrical shock, fire, and injury or
property damage.
Make sure that the outlet you are using is grounded and has the appropriate voltage.
The power cord is equipped with a three-prong grounding plug to protect against shock.
Voltage information can be found on the nameplate of the unit.
Your unit must be used in a properly grounded wall receptacle. If the wall receptacle you
intend to use is not adequately grounded or protected by a time delay fuse or circuit
breake (the fuse or circuit breaker needed is determined by the maximum current of the
unit. The maximum current is indicated on the nameplate located on unit), have a qualified
electrician install the proper receptacle.
Install the unit on a flat, sturdy surface. Failure to do so could result in damage or excessive
noise and vibration.
The unit must be kept free from obstruction to ensure proper function and to mitigate
safety hazards.
Do not modify the length of the power cord or use an extension cord to power the unit.
Do not share a single outlet with other electrical appliances. Improper power supply can
cause fire or electrical shock.
Do not install your air conditioner in a wet room such as a bathroom or laundry room.
Too much exposure to water can cause electrical components to short circuit.
Do not install the unit in a location that may be exposed to combustible gas, as this could
cause fire.
The unit has wheels to facilitate moving. Make sure not to use the wheels on thick carpet
or to roll over objects, as these could cause tipping.
Do not operate a unit that it has been dropped or damaged.
The appliance with electric heater shall have at least 1 meter space to the combustible
materials.
Do not touch the unit with wet or damp hands or when barefoot.
If the air conditioner is knocked over during use, turn off the unit and unplug it from the
main power supply immediately. Visually inspect the unit to ensure there is no damage.
If you suspect the unit has been damaged, contact a technician or customer service for
assistance.
WARNING
WARNING CAUTION
This symbol indicates the possibility of
property damage or serious consequences.
This symbol indicates the possibility
of personnel injury or loss of life.
3
In a thunderstorm, the power must be cut off to avoid damage to the machine due to
lightning.
All wiring must be performed strictly in accordance with the wiring diagram located inside
of the unit.
The unit's circuit board (PCB) is designed with a fuse to provide overcurrent protection.
The specifications of the fuse are printed on the circuit board, such as: T 3.15A/250V, etc.
When the water drainage function is not in use, keep the upper and the lower drain plug
firmly to the unit to get rid of choking. When the drain plug is not in use, keep it carefully
to prevent children from choking.
If the supply cord is damaged, it must be replaced by the manufacturer,its service agent or
similarly qualified persons in order to avoid a hazard.
Prior to cleaning or other maintenance, the appliance must be disconnected from the
supply mains.
Do not remove any fixed covers. Never use this appliance if it is not working properly, or if
it has been dropped or damaged.
Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic
area and where it will not be tripped over.
Do not operate unit with a damaged cord, plug, power fuse or circuit breaker. Discard unit
or return to an authorized service facility for examination and/or repair.
To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed
control device.
The appliance shall be installed in accordance with national wiring regulations.
Contact the authorised service technician for repair or maintenance of this unit.
Contact the authorised installer for installation of this unit.
Do not cover or obstruct the inlet or outlet grilles.
Do not use this product for functions other than those described in this instruction manual.
Before cleaning, turn off the power and unplug the unit.
Disconnect the power if strange sounds, smell, or smoke comes from it.
Do not press the buttons on the control panel with anything other than your fingers.
Do not remove any fixed covers. Never use this appliance if it is not working properly, or if
it has been dropped or damaged.
Do not operate or stop the unit by inserting or pulling out the power cord plug.
Your air conditioner should be used in such a way that it is protected from moisture. e.g.
condensation, splashed water, etc. Do not place or store your air conditioner where it can
fall or be pulled into water or any other liquid. Unplug immediately if it occurs.
This appliance is not intended for use by persons (including childern) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the appliance.
Children must be supervised around the unit at all times. (be applicable for other countries
except the European Countries)
CAUTION
4
Main Control
Compressor
Fan Motor
Display
Power
Supply
L/AC L/L1/L-IN
N/AC N/L2/N-IN
Other
Electronic Type
Do not use hazardous chemicals to clean or come into contact with the unit. Do not use
the unit in the presence of inflammable substances or vapour such as alcohol, insecticides,
petrol,etc.
Always transport your air conditioner in a vertical position and stand on a stable, level
surface during use.
Always contact a qualified person to carry out repairs. If the damaged power supply cord
must be replaced with a new power supply cord obtained from the product manufacturer
and not repaired.
Hold the plug by the head of the power plug when taking it out.
Turn off the product when not in use.
Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
The appliance shall be stored in a room without continuously operating ignition sources
(for example: open flames, an operating gas appliance or an operating electric heater).
Do not pierce or burn.
Be aware that the refrigerants may not contain an odour.
No open fire or device like switch which may generate spark/arcing shall be around
appliance to avoid causing ignition of the flammable refrigerant used. Please follow the
instructions carefully when storing or maintaining the appliance to prevent mechanical
damage from occurring.
Appliance shall be installed, operated and stored in a room with a floor area larger than 4 m
2
.
Appliance shall not be installed in an unvertilated space, if that space is smaller than 4 m
2
.
Appliance should be installed, operated and stored in a room with a floor area according
to the amount of refrigerant to be charged. For specific information on the type of gas and
the amount, please refer to the relevant label on the unit itself. When there are differences
between the lable and the manual on the Min. room area description, the description on
label shall prevail.
5
WARNING for Using R32 Refrigerant
Electronic Work
WARNING:
BEFORE PERFORMING ANY ELECTRICAL OR WIRING WORK, TURN OFF THE
MAIN POWER TO THE SYSTEM.
Please strictly follow the wiring
label attached to the machine
for all wiring connections.
The wiring diagram may vary
for different unit. Please refer
to the wiring diagram on the
machine you have purchased.
The above wiring diagram is a
simplified version for preliminary
illustration purposes only.
WARNING
- Servicing shall only be performed as recommended by the equipment manufacturer.
Maintenance and repair requiring the assistance of other skilled personnel shall be carried
out under the supervision of the person competent in the use of flammable refrigerants.
- DO NOT modify the length of the power cord or use an extension cord to power the unit.
- DO NOT share a single outlet with other electrical appliances. Improper power supply can
cause fire or electrical shock.
- Please follow the instruction carefully to handle, install, clear, service the appliance to avoid
any damage or hazard.
- When maintaining or disposing the appliance, the refrigerant shall be recovered properly,
shall not discharge to air directly.
- Compliance with national gas regulations shall be observed.
- Keep ventilation openings clear of obstruction.
- The appliance shall be stored so as to prevent mechanical damage from occurring.
- A warning that the appliance shall be stored in a well-ventilated area where the room size
corresponds to the room area as specified for operation.
- Any person who is involved with working on or breaking into a refrigerant circuit should
hold a current valid certificate from an industry-accredited assessment authority, which
authorises their competence to handle refrigerants safely in accordance with an industry
recognised assessment specification. All training shall follow the ANNEX HH requirements
of UL 60335-2-40 4th Edition.
Examples for such working procedures are:
• breaking into the refrigerating circuit;
• opening of sealed components;
• opening of ventilated enclosures.
6
CAUTION:
Risk of fire
flammable materials
Explanation of symbols displayed on the unit
CAUTION
This symbol shows that the operation manual should be
read carefully.
CAUTION
This symbol shows that a service personnel should be handling
this equipment with reference to the installation manual.
CAUTION
This symbol shows that information is available such as the
operating manual or installation manual.
See transport regulations.
1. Transport of equipment containing flammable refrigerants
See local regulations.
2. Marking of equipment using signs
See national regulations.
3. Disposal of equipment using flammable refrigerants
The storage of the appliance should be in accordance with the applicable regulations
or instructions, whichever is more stringent.
4. Storage of equipment/appliances
Storage package protection should be constructed such that mechanical damage to
the equipment inside the package will not cause a leak of the refrigerant charge. The
maximum number of pieces of equipment permitted to be stored together will be
determined by local regulations.
5. Storage of packed (unsold) equipment
6. Information on servicing
7
Prior to beginning work on systems containing flammable refrigerants, safety checks are
necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating
system, the following precautions shall be complied with prior to conducting work on the
system.
1) Checks to the area
Work shall be undertaken under a controlled procedure so as to minimise the risk of a
flammable gas or vapour being present while the work is being performed.
2) Work procedure
All maintenance staff and others working in the local area shall be instructed on the nature
of work being carried out. Work in confined spaces shall be avoided. The area around the
workspace shall be sectioned off. Ensure that the conditions within the area have been
made safe by control of flammable material.
3) General work area
The area shall be checked with an appropriate refrigerating detector prior to and during
work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that
the leak detection equipment being used is suitable for use with flammable refrigerants, i.e.
non-sparking, adequately sealed or intrinsically safe.
4) Checking for presence of refrigerant
If any hot work is to be conducted on the refrigeration equipment or any associated parts,
appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or
CO
2
fire extinguisher adjacent to the charging area.
5) Presence of fire extinguisher
No person carrying out work in relation to a refrigerating system which involves exposing
any pipe work that contains or has contained flammable refrigerant shall use any sources
of ignition in such a manner that it may lead to the risk of fire or explosion. All possible
ignition sources, including cigarette smoking, should be kept sufficiently far away from the
site of installation, repairing, removing and disposal, during which flammable refrigerant
can possibly be released to the surrounding space. Prior to work taking place, the area
around the equipment is to be surveyed to make sure that there are no flammable hazards
or ignition risks. No Smoking signs shall be displayed.
6) No ignition sources
Ensure that the area is in the open or that it is adequately ventilated before breaking into
the system or conducting any hot work. A degree of ventilation shall continue during the
period that the work is carried out. The ventilation should safely disperse any released
refrigerant and preferably expel it externally into the atmosphere.
7) ventilated area
7. Sealed electrical components shall be replaced.
8. Intrinsically safe components must be replaced.
9. Cabling
Where electrical components are being changed, they shall be fit for the purpose and to
the correct specifications. At all times the manufacturer's maintenance and service
guidelines shall be followed. If in doubt consult the manufacturer's technical department
for assistance. The following checks shall be applied to installations using flammable
refrigerants: the actual refrigerant charge is in accordance with the room size within which
the refrigerant containing parts are installed; the ventilation machinery and outlets are
operating adequately and are not obstructed; if an indirect refrigerating circuit is being
used, the secondary circuit shall be checked for the presence of refrigerant; marking to the
equipment continues to be visible and legible.
Markings and signs that are illegible shall be corrected; and refrigerating pipe or
components are installed in a position where they are unlikely to be exposed to any
substance which may corrode refrigerant containing components, unless the components
are constructed of materials which are inherently resistant to being corroded or are
suitably protected against being so corroded.
8) Checks to the refrigerating equipment
Repair and maintenance to electrical components shall include initial safety checks and
component inspection procedures. If a fault exists that could compromise safety, then no
electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the
fault cannot be corrected immediately but it is necessary to continue operation, an
adequate temporary solution shall be used.
This shall be reported to the owner of the equipment so all parties are advised. Initial
safety checks shall include: That capacitors are discharged: this shall be done in a safe
manner to avoid possibility of sparking; that there no live electrical components and
wiring are exposed while charging, recovering or purging the system; that there is
continuity of earth bonding.
9) Checks to electrical devices
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration,
sharp edges or any other adverse environmental effects. The check shall also take into
account the effects of aging or continual vibration from sources such as compressors or
fans.
10. Detection of flammable refrigerants
Under no circumstances shall potential sources of ignition be used in the searching for or
detection of refrigerant leaks. A halide torch (or any other detector using a naked flame)
shall not be used.
The following leak detection methods are deemed acceptable for systems containing
flammable refrigerants. Electronic leak detectors shall be used to detect flammable
refrigerants, but the sensitivity may not be adequate, or may need re-calibration.
(Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the
detector is not a potential source of ignition and is suitable for the refrigerant used. Leak
detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be
calibrated to the refrigerant employed and the appropriate percentage of gas (25%
maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants
but the use of detergents containing chlorine shall be avoided as the chlorine may react
with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked
flames shall be removed/ extinguished. If a leakage of refrigerant is found which requires
brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of
shut off valves) in a part of the system remote from the leak. Removal of refrigerant shall
be according to Removal and evacuation.
8
When breaking into the refrigerant circuit to make repairs—or for any other purpose -
conventional procedures shall be used. However, for flammable refrigerants it is important
that best practice be followed, since flammability is a consideration. The following
procedure shall be adhered to:
-Safely remove refrigerant following local and national regulations;
-Evacuate;
-Purge the circuit with inert gas (optional for A2L);
-Evacuate (optional for A2L);
-continuously flush or purge with inert gas when using flame to
open circuit; and
-open the circuit.
The refrigerant charge shall be recovered into the correct recovery cylinders if venting is
not allowed by local and national codes. For appliances containing flammable refrigerants,
the system shall be purged with oxygen-free nitrogen to render the appliance safe for
flammable refrigerants. This process might need to be repeated several times. compressed
air or oxygen shall not be used for purging refrigerant systems.
For appliances containing flammable refrigerants, refrigerants purging shall be achieved
by breaking the vacuum in the system with oxygen-free nitrogen and continuing to fill
until the working pressure is achieved, then venting to atmosphere, and finally pulling
down to a vacuum (optional for A2L).
This process shall be repeated until no refrigerant is within the system (optional for A2L).
When the final oxygen-free nitrogen charge is used. the system shall be vented down to
atmospheric pressure to enable work to take place. The outlet for the vacuum pump shall
not be close to any potential ignition sources, and ventilation shall be available.
11. Removal and evacuation
In addition to conventional charging procedures, the following requirements shall be
followed.
Ensure that contamination of different refrigerants does not occur when using charging
equipment.
Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained
in them.
Cylinders shall be kept in an appropriate position according to the instructions. Ensure that
the refrigeration system is earthed prior to charging the system with refrigerant. Label the
system when charging is complete (if not already). Extreme care shall be taken not to
overfill the refrigeration system. Prior to recharging the system it shall be pressure tested
with OFN. The system shall be leak tested on completion of charging but prior to
commissioning. A follow up leak test shall be carried out prior to leaving the site.
12. Charging procedures
Before carrying out this procedure, it is essential that the technician is completely familiar
with the equipment and all its detail. It is recommended good practice that all refrigerants
are recovered safely.
Prior to the task being carried out, an oil and refrigerant sample shall be taken in case
analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical
power is available before the task is commenced.
a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure that: Mechanical handling equipment is
available, if required, for handling refrigerant cylinders;all personal protective equipment
is available and being used correctly; the recovery process is supervised at all times by a
competent person; recovery equipment and cylinders conform to the appropriate
standards.
d) Pump down refrigerant system, if possible.
13. Decommissioning
9
e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from
various parts of the system.
f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with manufacturer's instructions.
h) Do not overfill cylinders. (No more than 80 % volume liquid charge).
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make sure
that the cylinders and the equipment are removed from site promptly and all isolation
valves on the equipment are closed off.
k) Recovered refrigerant shall not be charged into another refrigeration system unless it
has been cleaned and checked.
Equipment shall be labelled stating that it has been de-commissioned and emptied of
refrigerant. The label shall be dated and signed. Ensure that there are labels on the
equipment stating the equipment contains flammable refrigerant.
14. Labelling
When removing refrigerant from a system, either for servicing or decommissioning, it is
recommended good practice that all refrigerants are removed safely. When transferring
refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are
employed. Ensure that the correct number of cylinders for holding the total system
charge is available. All cylinders to be used are designated for the recovered refrigerant
and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant).
Cylinders shall be complete with pressure relief valve and associated shut-off valves in
good working order. Empty recovery cylinders are evacuated and, if possible, cooled
before recovery occurs. The recovery equipment shall be in good working order with a
set of instructions concerning the equipment that is at hand and shall be suitable for the
recovery of the flammable refrigerant. If in doubt, the manufacturer should be consulted.
In addition, a set of calibrated weighing scales shall be available and in good working
order. Hoses shall be complete with leak-free disconnect couplings and in good condition.
The recovered refrigerant shall be processed according to local legislation in the correct
recovery cylinder, and the relevant waste transfer note arranged. Do not mix refrigerants
in recovery units and especially not in cylinders. If compressors or compressor oils are to
be removed, ensure that they have been evacuated to an acceptable level to make certain
that flammable refrigerant does not remain within the lubricant. The compressor body
shall not be heated by an open flame or other ignition sources to accelerate this process.
When oil is drained from a system, it shall be carried out safely.
15. Recovery
10
11
PRODUCT INSTALLATION
Recommended Installation
All the illustrations in the manual are for explanation purpose only. Your
machine may be slightly different.
NOTE

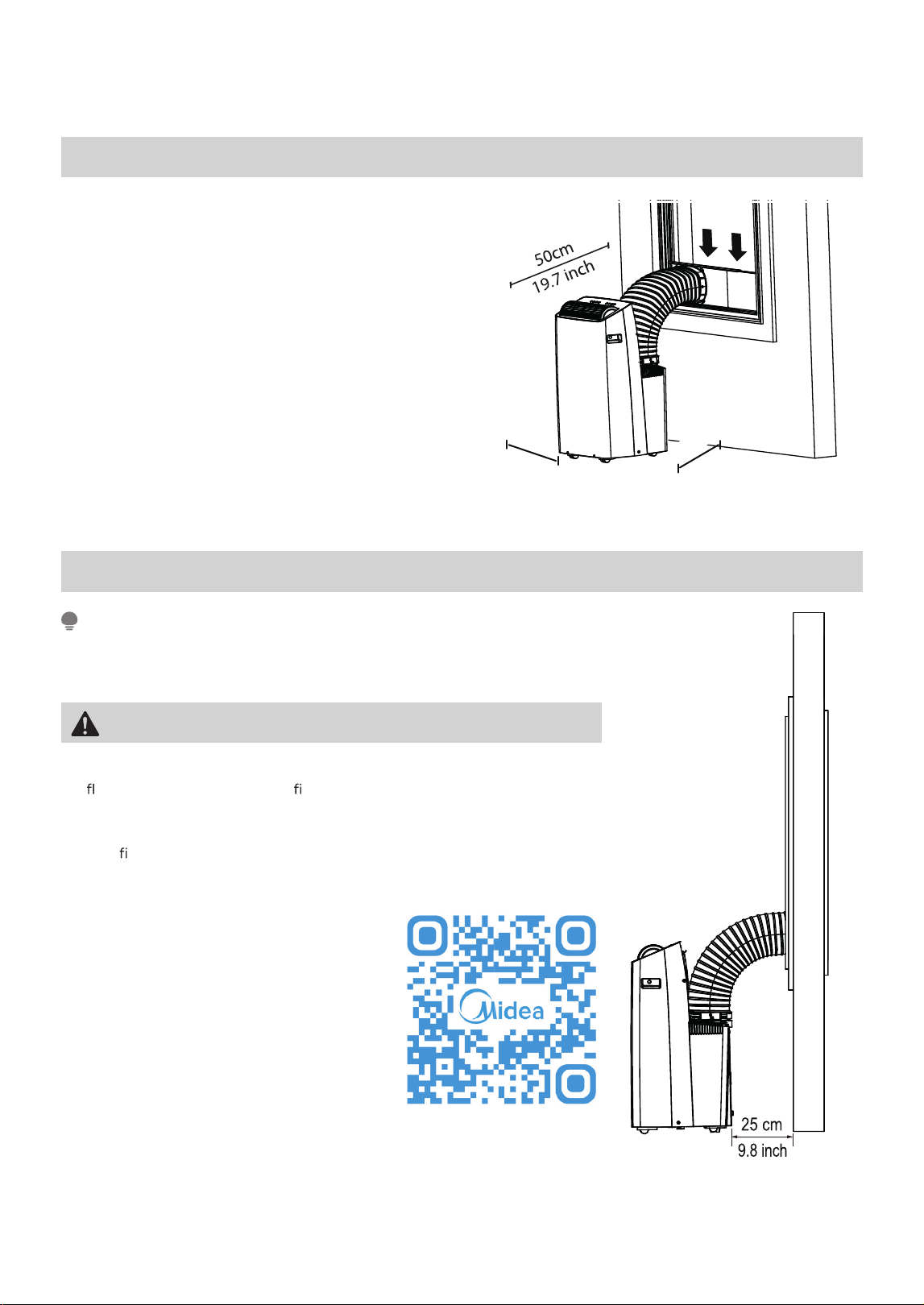

Choosing the Right Location
Your installation location should meet the following
requirements:
• Make sure that you install your unit on an even
surface to minimize noise and vibration.
• The unit must be installed near a grounded plug, and
the Collection Tray Drain (found on the back of the
unit) must be accessible.
• The unit should be located at least 9.8” (25cm) from
the nearest wall to ensure proper air conditioning.
• DO NOT cover the Intakes, Outlets or Remote Signal
Receptor of the unit, as this could cause damage to
the unit.
WARNING
• This air-conditioning unit is a hermetically sealed unit that contains
uorinated gasses. For speci c information on the type of gas and the
amount, please refer to the relevant label on the unit itself.
• Service, maintenance or repair of this unit must be performed by a
certi ed technician.
• Product recycling must be done according to local regulations.
Scan this QR code to watch an installation
video for your Midea Duo Portable Air
Conditioner:
Fig. 2
25 cm
9.8 inch
9.8 inch
25 cm
50 cm
19.7 inch
Fig. 1
12

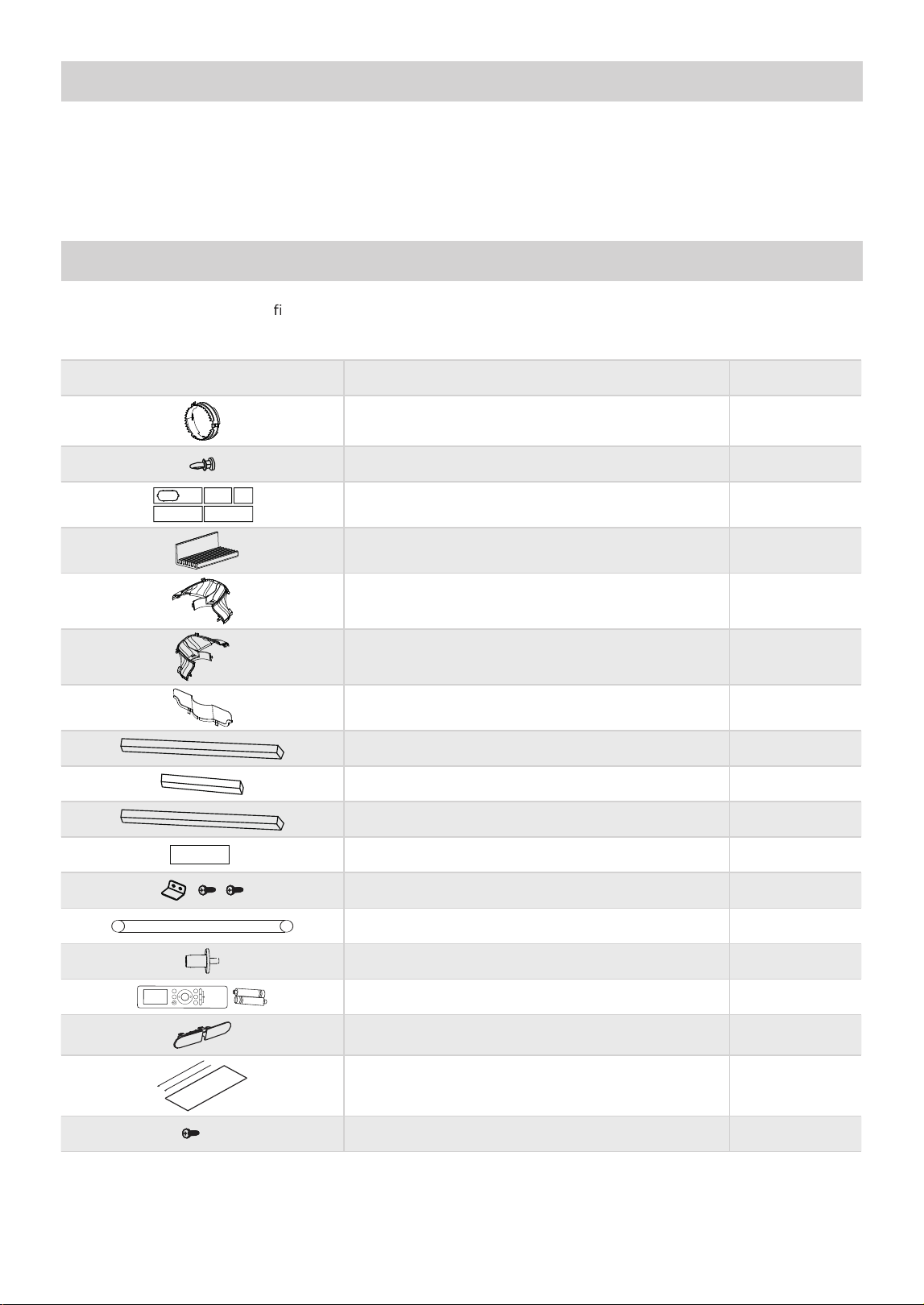

Tools You Will Need
Accessories
Part Description Quantity
Air exhaust adapter 1 pc
Bolt 8 pc
Window Sliders 5 pc
Window Kit Brace 1 pc
Sliding Window Adapter – Front 1 pc
Sliding Window Adapter – Rear 1 pc
Sliding Window Adapter – Air Divider 1 pc
Foam seal A (adhesive) 4 pc
Foam seal B (adhesive) 2 pc
Foam seal C (Non-adhesive) 2 pc
Window Slider Foam (adhesive) 2 pc
Security bracket and 2 screws 1 set
Drain hose 1 pc
Drain hose adaptor (For heat pump mode only) 1 pc
Remote controller and battery 1 set
Power Cord Buckle (For cooling only model) 1 pc
1 Screw (on Exhaust adaptor) 1 pc
• Phillips screwdriver
• Tape measure or ruler
• Knife or scissors
• Saw (optional, to shorten window adaptor for narrow windows).
Your Window Installation Kit
ts windows 19.1’’ - 63.8’’ (48.4-162 cm). Please doublecheck all packaging
materials to make sure accessories do not get accidentally thrown away.
Heat pump hose insulation foam (For heat pump
models only)
1 set
13
Window Installation Kit
Preparing the adjustable window slider
1. Depending on the size of your window, adjust the
size of the window slider. Use the combination of
panels that best ts your window opening.
2. If the length of the window requires two or more
window sliders, use the bolt to fasten the window
sliders once they are adjusted to the proper length.
a
c
e
b
d
Three window sliders
with side holes

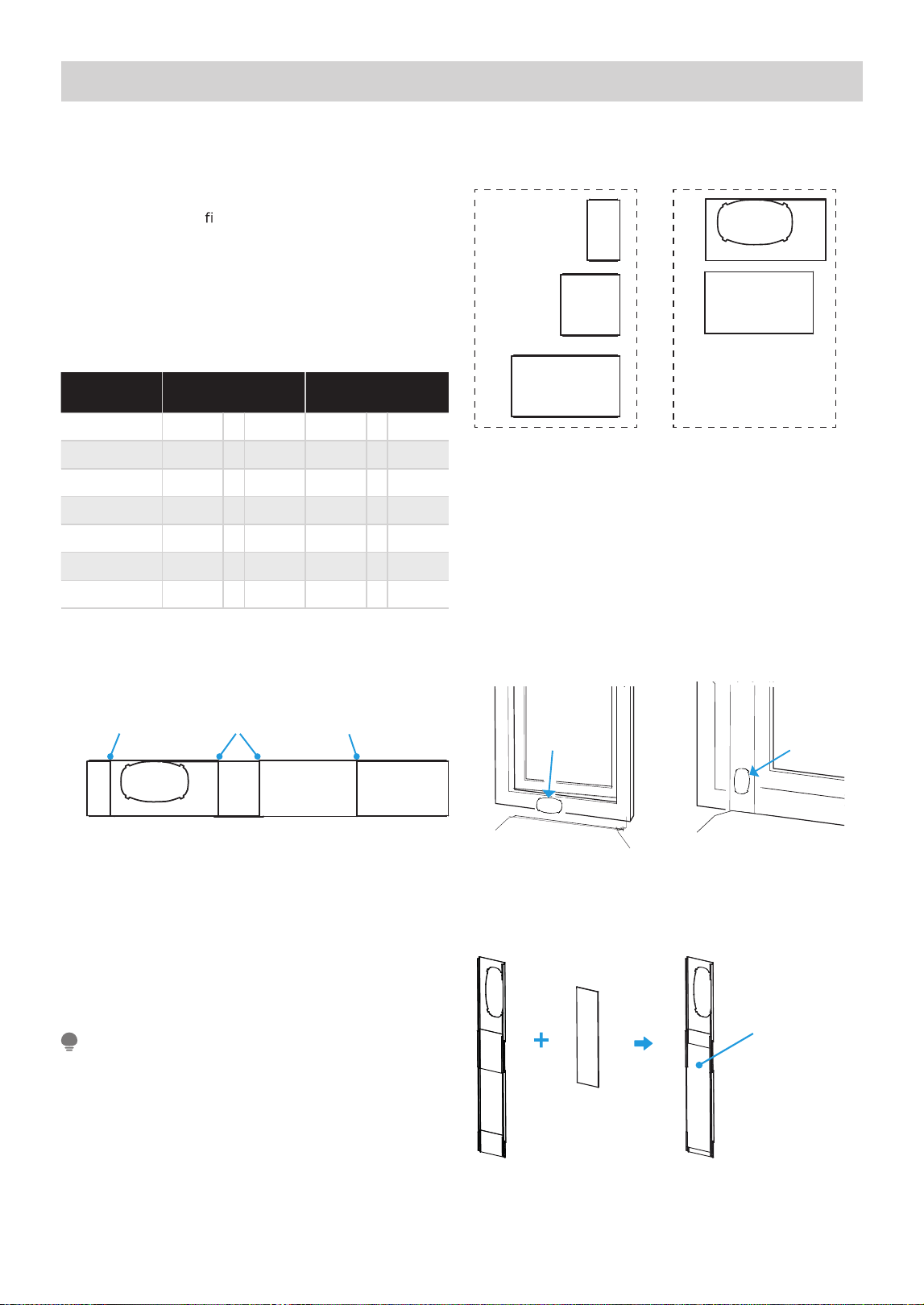

Use the table below to determine what combination
of window sliders is correct for your window:
Two window sliders
without side hole
window
slider
window
dimension (mm)
window
dimension (inch)
a+b 484
~
592 19.1
~
23.3
b+c 592
~
696 23.3
~
27.4
a+b+c 696
~
802 27.4
~
31.6
b+e 802
~
896 31.6
~
35.3
a+b+e 896
~
998 35.3
~
39.3
a+b+c+d 998
~
1210 39.3
~
47.6
a+b+c+d+e 1210
~
1620 47.6
~
63.8
3. If installing in a sliding window, bolts should be
installed on both sides of the window sliders.
bolt
a b c d e
bolt bolt
Fig.
Windows Type
Window
slider
Window
slider
Hung Window Sliding Window
3: Applying insulation to the window slider
After assembling the window slider to your proper
dimension, cut and apply the foam insulation sheets
to the exterior side of the window slider.
Window
Slider Foam
Window
Slider Foam
Once the Exhaust Hose assembly and Adjustable
Window Slider are prepared, choose from one of
the following two installation methods.
NOTE
14
3
Fig. 4
Fig. 5
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
15
Fig. 8
Window
slider A
Window
slider B
(if required)
Fig. 9
Foam seal C
(Non-adhesive type)
Foam seal B
(Adhesive type-shorter)
Foam
seal A
(Adhesive
type)
Fig. 7

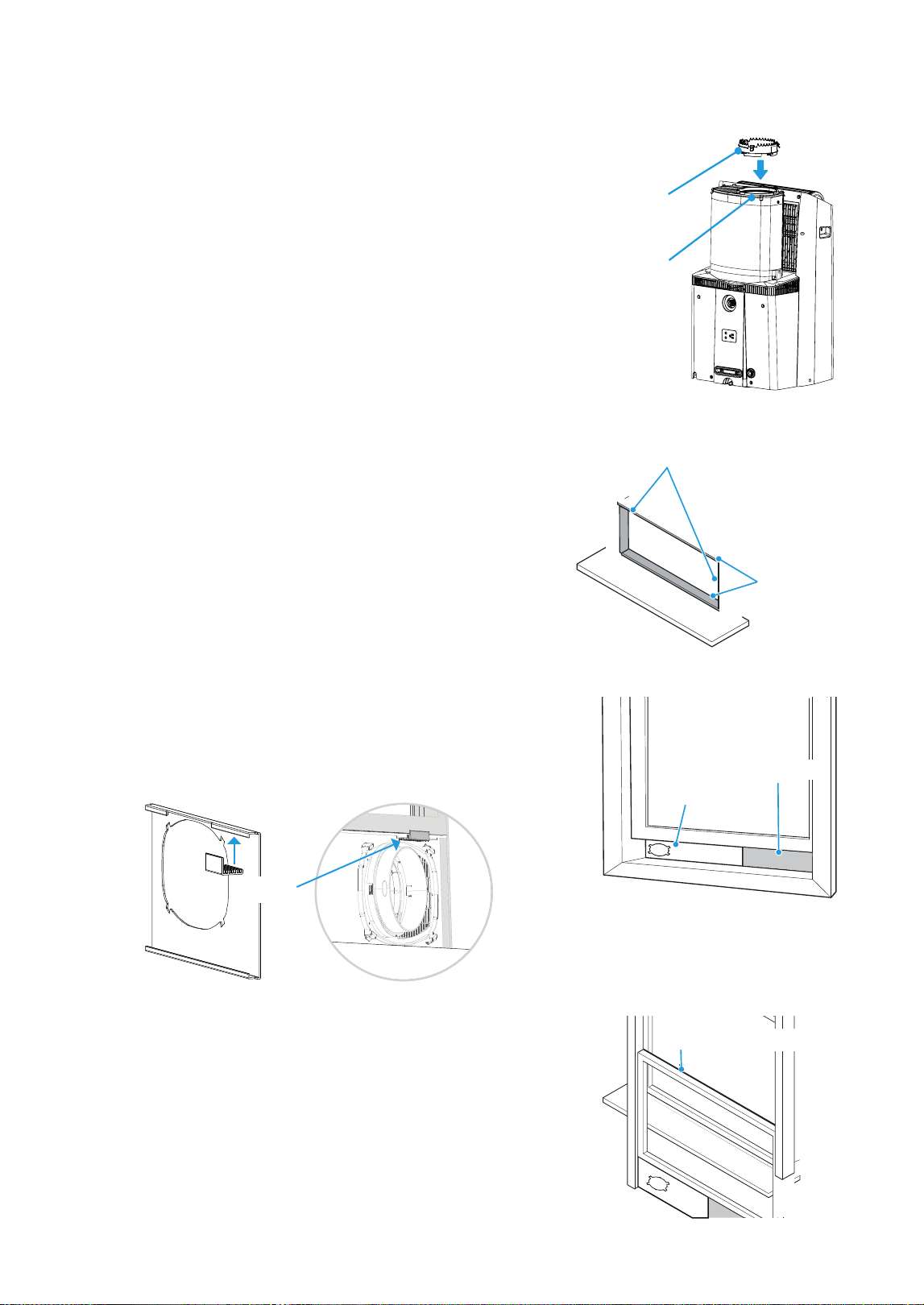

Type 1: Hung window installation
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.

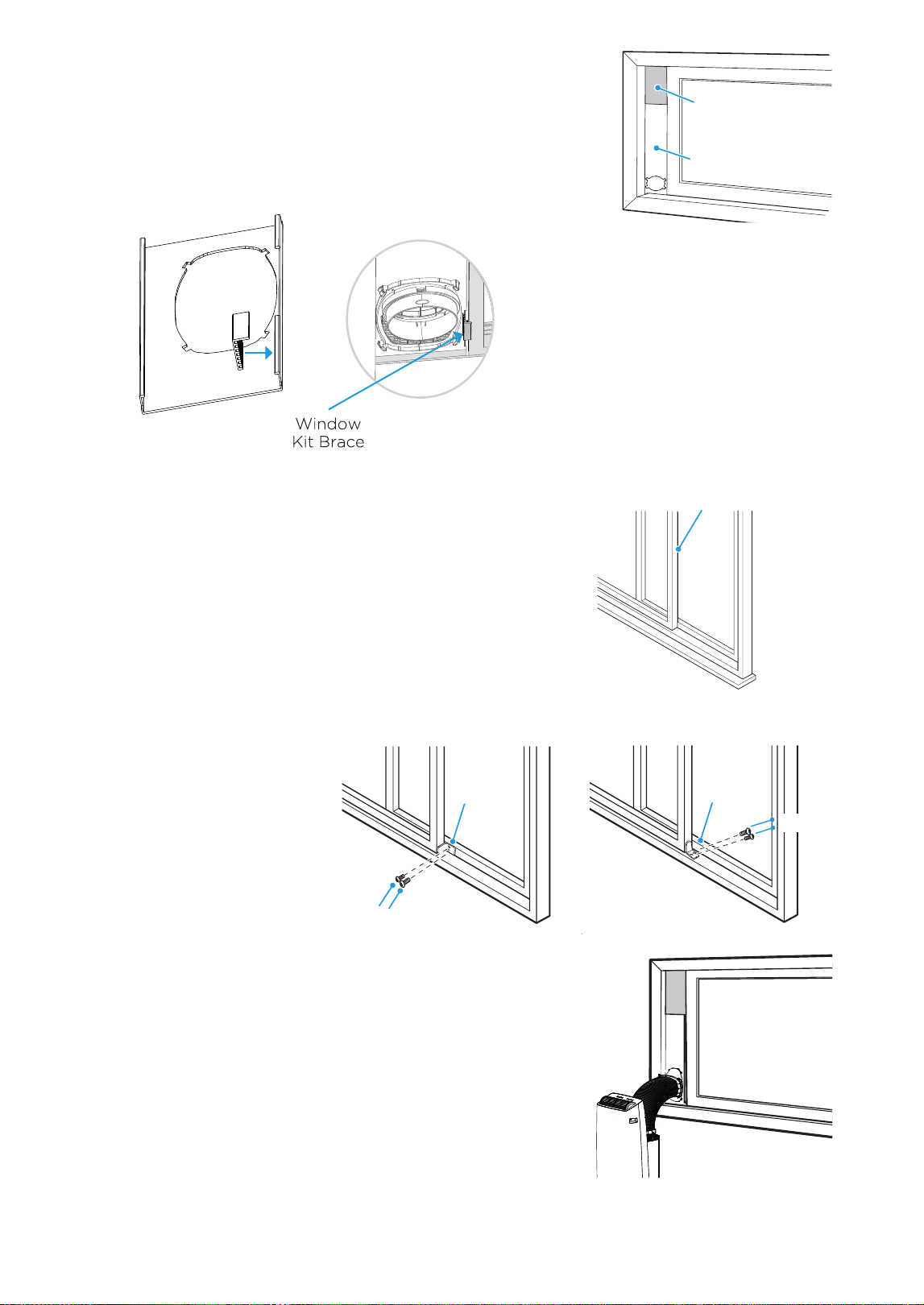

Insert the window slider assembly into the window track. If the hose
opening is covered by the lip of the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window Kit
Brace to the back of the hose panel to brace against the window so
the window slider panels do not lean inward.
Cut the non-adhesive foam seal C strip to match the width of the
window. Insert the seal between the glass and the window frame to
prevent air and insects from getting into the room.
Window
Kit Brace
2.
3.
4.
1: For Hung Window types only

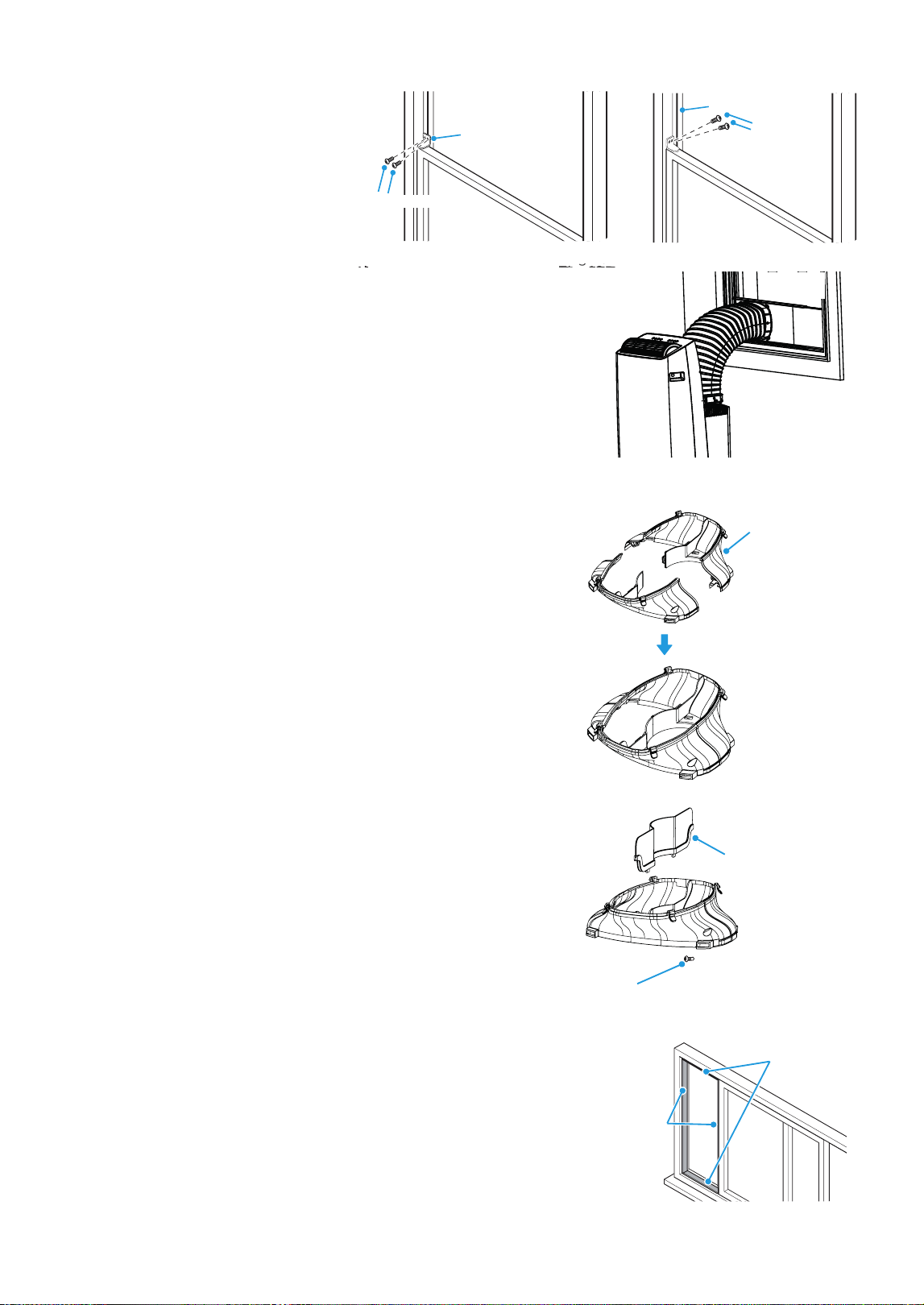

Insert the Air Exhaust Adapter into the exhaust of the hose (the
circular opening) for optimal performance. Rotate the adapter
clockwise until the locking tabs click and it no longer rotates.
Skip this step if installing into a horizontal sliding window.
The Air Exhaust adapter may interfere with some window screens,
and can be removed if desired (Please note this may slightly
decrease performance).
Air Exhaust
Adapter
Exhaust
Hose
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
11
2 Screws
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
Foam seal A
(Adhesive
type)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
(Front + Rear)
1 screw
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
11
2 Screws
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
Foam seal A
(Adhesive
type)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
(Front + Rear)
1 screw
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
11
2 Screws
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
Foam seal A
(Adhesive
type)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
(Front + Rear)
1 screw
11
2 Screws
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
Foam seal A
(Adhesive
type)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
(Front + Rear)
1 screw
Fig. 10
Security Bracket
2 Screws
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Type 2: Sliding window Installation (Optional)
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
A
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
11
2 Screws
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
Foam seal A
(Adhesive
type)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
(Front + Rear)
1 screw
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
11
2 Screws
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
Foam seal A
(Adhesive
type)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
(Front + Rear)
1 screw
11
2 Screws
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
Foam seal A
(Adhesive
type)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
(Front + Rear)
1 screw
Fig. 10
Security Bracket
2 Screws
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Type 2: Sliding window Installation (Optional)
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
A
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
11
2 Screws
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
Foam seal A
(Adhesive
type)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
(Front + Rear)
1 screw
11
2 Screws
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
Foam seal A
(Adhesive
type)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
(Front + Rear)
1 screw
Fig. 10
Security Bracket
2 Screws
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Type 2: Sliding window Installation (Optional)
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
A
11
2 Screws
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
Foam seal A
(Adhesive
type)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
(Front + Rear)
1 screw
Fig. 10
Security Bracket
2 Screws
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Type 2: Sliding window Installation (Optional)
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
A
Fig. 10
Security Bracket
2 Screws
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Type 2: Sliding window Installation (Optional)
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
Fig. 10
Security Bracket
2 Screws
Fig. 10
Security Bracket
2 Screws
the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Type 2: Sliding window Installation (Optional)
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
A
B
3. Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
4. Be sure bolts are installed in both sides of the window slider for
improved rigidity.
5. Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
6. If desired, install the security bracket with 2 screws as shown.
7.
Insert the window slide
A
Fig. 6
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
the hose to the window slider panel by inserting the end of
If desired, install the security bracket with 2 screws as shown.
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
the hose to the window slider panel by inserting the end of
If desired, install the security bracket with 2 screws as shown.
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
the hose to the window slider panel by inserting the end of
If desired, install the security bracket with 2 screws as shown.
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
the hose to the window slider panel by inserting the end of
If desired, install the security bracket with 2 screws as shown.
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
the hose to the window slider panel by inserting the end of
If desired, install the security bracket with 2 screws as shown.
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
the hose to the window slider panel by inserting the end of
If desired, install the security bracket with 2 screws as shown.
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
the hose to the window slider panel by inserting the end of
If desired, install the security bracket with 2 screws as shown.
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
the hose to the window slider panel by inserting the end of
If desired, install the security bracket with 2 screws as shown.
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
the hose to the window slider panel by inserting the end of
If desired, install the security bracket with 2 screws as shown.
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
the hose to the window slider panel by inserting the end of
If desired, install the security bracket with 2 screws as shown.
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
3. Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
4. Be sure bolts are installed in both sides of the window slider for
5. Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
6. If desired, install the security bracket with 2 screws as shown.
Insert the
the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
the hose to the window slider panel by inserting the end of
the adhesive foam seal A and B strips to the proper lengths,
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
the hose to the window slider panel by inserting the end of
the adhesive foam seal A and B strips to the proper lengths,
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
the hose to the window slider panel by inserting the end of
the adhesive foam seal A and B strips to the proper lengths,
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
the hose to the window slider panel by inserting the end of
the adhesive foam seal A and B strips to the proper lengths,
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
the hose to the window slider panel by inserting the end of
the adhesive foam seal A and B strips to the proper lengths,
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
the hose to the window slider panel by inserting the end of
the adhesive foam seal A and B strips to the proper lengths,
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Type 2: Sliding window Installation (Optional)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
the hose to the window slider panel by inserting the end of
the adhesive foam seal A and B strips to the proper lengths,
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
the hose to the window slider panel by inserting the end of
the adhesive foam seal A and B strips to the proper lengths,
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
the hose to the window slider panel by inserting the end of
the adhesive foam seal A and B strips to the proper lengths,
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
the hose to the window slider panel by inserting the end of
the adhesive foam seal A and B strips to the proper lengths,
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
Be sure bolts are installed in both sides of the window slider for
Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
If desired, install the security bracket with 2 screws as shown.
pter
16
Fig. 10
Security Bracket
2 Screws
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Type 2: Sliding window Installation (Optional)
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
Fig. 10
Security Bracket
2 Screws
11
Fig. 10
Security Bracket
2 Screws
the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Type 2: Sliding window Installation (Optional)
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
A
B
3. Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
4. Be sure bolts are installed in both sides of the window slider for
improved rigidity.
5. Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
6. If desired, install the security bracket with 2 screws as shown.
7.
Insert the window slide
Fig. 10
Security Bracket
2 Screws
11
Fig. 10
Security Bracket
2 Screws
the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Type 2: Sliding window Installation (Optional)
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
Fig. 10
Security Bracket
2 Screws
11
Fig. 10
Security Bracket
2 Screws
the hose to the window slider panel by inserting the end of
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
A
B
12
3. Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
4. Be sure bolts are installed in both sides of the window slider for
improved rigidity.
5. Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
6. If desired, install the security bracket with 2 screws as shown.
7.
into the hole of the
Insert the window slider adapter
A
B
Fig. 10
Security Bracket
2 Screws
11
Fig. 10
Security Bracket
2 Screws
the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Type 2: Sliding window Installation (Optional)
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
Fig. 10
Security Bracket
2 Screws
11
Fig. 10
Security Bracket
2 Screws
the hose to the window slider panel by inserting the end of
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
A
B
12
3. Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
4. Be sure bolts are installed in both sides of the window slider for
improved rigidity.
5. Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
6. If desired, install the security bracket with 2 screws as shown.
7.
into the hole of the
Insert the window slider adapter
Fig. 10
Security Bracket
2 Screws
11
Fig. 10
Security Bracket
2 Screws
the hose to the window slider panel by inserting the end of
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
Fig. 10
Security Bracket
2 Screws
Fig. 10
Security Bracket
Fig. 11
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
Fig. 13
A
B
12
Foam seal
(Non-adhesive t
Window slider A
Window slider B
(if required)
3. Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
4. Be sure bolts are installed in both sides of the window slider for
improved rigidity.
5. Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
2 Screws
6. If desired, install the security bracket with 2 screws as shown.
7.
into the hole of the window slider.
Insert the window slider adapter
A
B
A
B
Fig. 10
Security Bracket
2 Screws
11
Fig. 10
Security Bracket
2 Screws
the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Type 2: Sliding window Installation (Optional)
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
Fig. 10
Security Bracket
2 Screws
11
Fig. 10
Security Bracket
2 Screws
the hose to the window slider panel by inserting the end of
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
A
B
12
3. Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
4. Be sure bolts are installed in both sides of the window slider for
improved rigidity.
5. Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
6. If desired, install the security bracket with 2 screws as shown.
7.
into the hole of the
Insert the window slider adapter
Fig. 10
Security Bracket
2 Screws
11
Fig. 10
Security Bracket
2 Screws
the hose to the window slider panel by inserting the end of
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
Fig. 10
Security Bracket
2 Screws
Fig. 10
Security Bracket
Fig. 11
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
Fig. 13
A
B
12
Foam seal
(Non-adhesive t
Window slider A
Window slider B
(if required)
3. Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
4. Be sure bolts are installed in both sides of the window slider for
improved rigidity.
5. Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
2 Screws
6. If desired, install the security bracket with 2 screws as shown.
7.
into the hole of the window slider.
Insert the window slider adapter
A
B
Fig. 10
Security Bracket
2 Screws
11
Fig. 10
Security Bracket
2 Screws
the hose to the window slider panel by inserting the end of
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
Fig. 10
Security Bracket
2 Screws
Fig. 10
Security Bracket
Fig. 11
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
Fig. 13
A
B
12
Foam seal
(Non-adhesive t
Window slider A
Window slider B
(if required)
3. Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
4. Be sure bolts are installed in both sides of the window slider for
improved rigidity.
5. Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
2 Screws
6. If desired, install the security bracket with 2 screws as shown.
7.
into the hole of the window slider.
Insert the window slider adapter
Fig. 10
Security Bracket
2 Screws
Fig. 10
Security Bracket
Fig. 11
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
Fig. 13
Fig. 10
Security Bracket
2 Screws
B
Fig. 15
Foam seal C
(Non-adhesive type)
Fig. 14
Window slider A
Window slider B
(if required)
3. Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
4. Be sure bolts are installed in both sides of the window slider for
improved rigidity.
5. Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
Fig. 16
2 Screws
Security
Bracket
6. If desired, install the security bracket with 2 screws as shown.
7.
into the hole of the window slider.
Fig. 17
Insert the window slider adapter
A
B
A
B
A
B
Fig. 10
Security Bracket
2 Screws
11
Fig. 10
Security Bracket
2 Screws
the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Type 2: Sliding window Installation (Optional)
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
(attach the adapter to the hose ).
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
Fig. 10
Security Bracket
2 Screws
11
Fig. 10
Security Bracket
2 Screws
the hose to the window slider panel by inserting the end of
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
A
B
12
3. Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
4. Be sure bolts are installed in both sides of the window slider for
improved rigidity.
5. Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
6. If desired, install the security bracket with 2 screws as shown.
7.
into the hole of the
Insert the window slider adapter
Fig. 10
Security Bracket
2 Screws
11
Fig. 10
Security Bracket
2 Screws
the hose to the window slider panel by inserting the end of
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
Fig. 10
Security Bracket
2 Screws
Fig. 10
Security Bracket
Fig. 11
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
Fig. 13
A
B
12
Foam seal
(Non-adhesive t
Window slider A
Window slider B
(if required)
3. Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
4. Be sure bolts are installed in both sides of the window slider for
improved rigidity.
5. Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
2 Screws
6. If desired, install the security bracket with 2 screws as shown.
7.
into the hole of the window slider.
Insert the window slider adapter
A
B
Fig. 10
Security Bracket
2 Screws
11
Fig. 10
Security Bracket
2 Screws
the hose to the window slider panel by inserting the end of
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
Fig. 10
Security Bracket
2 Screws
Fig. 10
Security Bracket
Fig. 11
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
Fig. 13
A
B
12
Foam seal
(Non-adhesive t
Window slider A
Window slider B
(if required)
3. Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
4. Be sure bolts are installed in both sides of the window slider for
improved rigidity.
5. Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
2 Screws
6. If desired, install the security bracket with 2 screws as shown.
7.
into the hole of the window slider.
Insert the window slider adapter
Fig. 10
Security Bracket
2 Screws
Fig. 10
Security Bracket
Fig. 11
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
Fig. 13
Fig. 10
Security Bracket
2 Screws
B
Fig. 15
Foam seal C
(Non-adhesive type)
Fig. 14
Window slider A
Window slider B
(if required)
3. Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
4. Be sure bolts are installed in both sides of the window slider for
improved rigidity.
5. Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
Fig. 16
2 Screws
Security
Bracket
6. If desired, install the security bracket with 2 screws as shown.
7.
into the hole of the window slider.
Fig. 17
Insert the window slider adapter
A
B
A
B
Fig. 10
Security Bracket
2 Screws
11
Fig. 10
Security Bracket
2 Screws
the hose to the window slider panel by inserting the end of
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the left.
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
Fig. 10
Security Bracket
2 Screws
Fig. 10
Security Bracket
Fig. 11
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
Fig. 13
A
B
12
Foam seal
(Non-adhesive t
Window slider A
Window slider B
(if required)
3. Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
4. Be sure bolts are installed in both sides of the window slider for
improved rigidity.
5. Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
2 Screws
6. If desired, install the security bracket with 2 screws as shown.
7.
into the hole of the window slider.
Insert the window slider adapter
Fig. 10
Security Bracket
2 Screws
Fig. 10
Security Bracket
Fig. 11
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
Fig. 13
Fig. 10
Security Bracket
2 Screws
B
Fig. 15
Foam seal C
(Non-adhesive type)
Fig. 14
Window slider A
Window slider B
(if required)
3. Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
4. Be sure bolts are installed in both sides of the window slider for
improved rigidity.
5. Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
Fig. 16
2 Screws
Security
Bracket
6. If desired, install the security bracket with 2 screws as shown.
7.
into the hole of the window slider.
Fig. 17
Insert the window slider adapter
A
B
Fig. 10
Security Bracket
2 Screws
Fig. 10
Security Bracket
Fig. 11
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
Fig. 13
Fig. 10
Security Bracket
2 Screws
B
Fig. 15
Foam seal C
(Non-adhesive type)
Fig. 14
Window slider A
Window slider B
(if required)
3. Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
4. Be sure bolts are installed in both sides of the window slider for
improved rigidity.
5. Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
Fig. 16
2 Screws
Security
Bracket
6. If desired, install the security bracket with 2 screws as shown.
7.
into the hole of the window slider.
Fig. 17
Insert the window slider adapter
Fig. 10
Security Bracket
2 Screws
Fig. 15
Foam seal C
(Non-adhesive type)
Fig. 14
Window slider A
Window slider B
(if required)
Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
Be sure bolts are installed in both sides of the window slider for
Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
Fig. 16
2 Screws
Security
Bracket
If desired, install the security bracket with 2 screws as shown.
into the hole of the window slider.
Fig. 17
window slider adapter
B
A
B
A
B
A
B
A
B
A
or
B
Fig. 10
Security Bracket
2 Screws
Fig. 10
Security Bracket
2 Screws
A
or
B
Fig. 10
Security Bracket
2 Screws
or
Fig. 10
Security Bracket
2 Screws
3. Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
4. Be sure bolts are installed in both sides of the window slider for
improved rigidity.
5. Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
6. If desired, install the security bracket with 2 screws as shown.
7.
Insert the window slider adapter
Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
Be sure bolts are installed in both sides of the window slider for
Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
If desired, install the security bracket with 2 screws as shown.
r
Cut the non-adhesive foam seal C strip to match the window height.
er.
Cut the non-adhesive foam seal C strip to match the window height.
er.
Window slider A
Window slider B
Cut the non-adhesive foam seal C strip to match the window height.
er.
Window slider A
Window slider B
Window slider A
Window slider B
Cut the non-adhesive foam seal C strip to match the window height.
er.
Window slider A
Window slider B
Window slider A
Window slider B
Window slider A
Window slider B
17
Fig. 15
Foam seal C
(Non-adhesive type)
Fig. 14
Window slider A
Window slider B
(if required)
3. Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
4. Be sure bolts are installed in both sides of the window slider for
improved rigidity.
5. Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
Fig. 16
2 Screws
Security
Bracket
6. If desired, install the security bracket with 2 screws as shown.
7.
into the hole of the window slider.
Fig. 17
Insert the window slider adapter
12
Fig. 15
Foam seal C
(Non-adhesive type)
Fig. 14
Window slider A
Window slider B
(if required)
3. Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
4. Be sure bolts are installed in both sides of the window slider for
5. Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
Fig. 16
2 Screws
Security
Bracket
6. If desired, install the security bracket with 2 screws as shown.
into the hole of the window slider.
Fig. 17
Insert the window slider adapter
Fig. 16
Security
Bracket
A
B
2 Screws
Fig. 16
Security
Bracket
2 Screws
Fig. 16A
2 Screws
Security
Bracket
Fig. 16
Security
Bracket
2 Screws
Fig. 16A
2 Screws
Security
Bracket
Security
Bracket
2 Screws
Fig. 16A
2 Screws
Security
Bracket
Fig. 16B
Security
Bracket
2 Screws
Fig. 16A
or
2 Screws
Security
Bracket
Fig. 16B
Security
Bracket
2 Screws
Fig. 16A
or
2 Screws
Security
Bracket
Fig. 16B
Security
Bracket
2 Screws
Fig. 16A
or
2 Screws
Security
Bracket
Fig. 16B
Security
Bracket
2 Screws
Fig. 16A
or
2 Screws
Security
Bracket
Fig. 16B

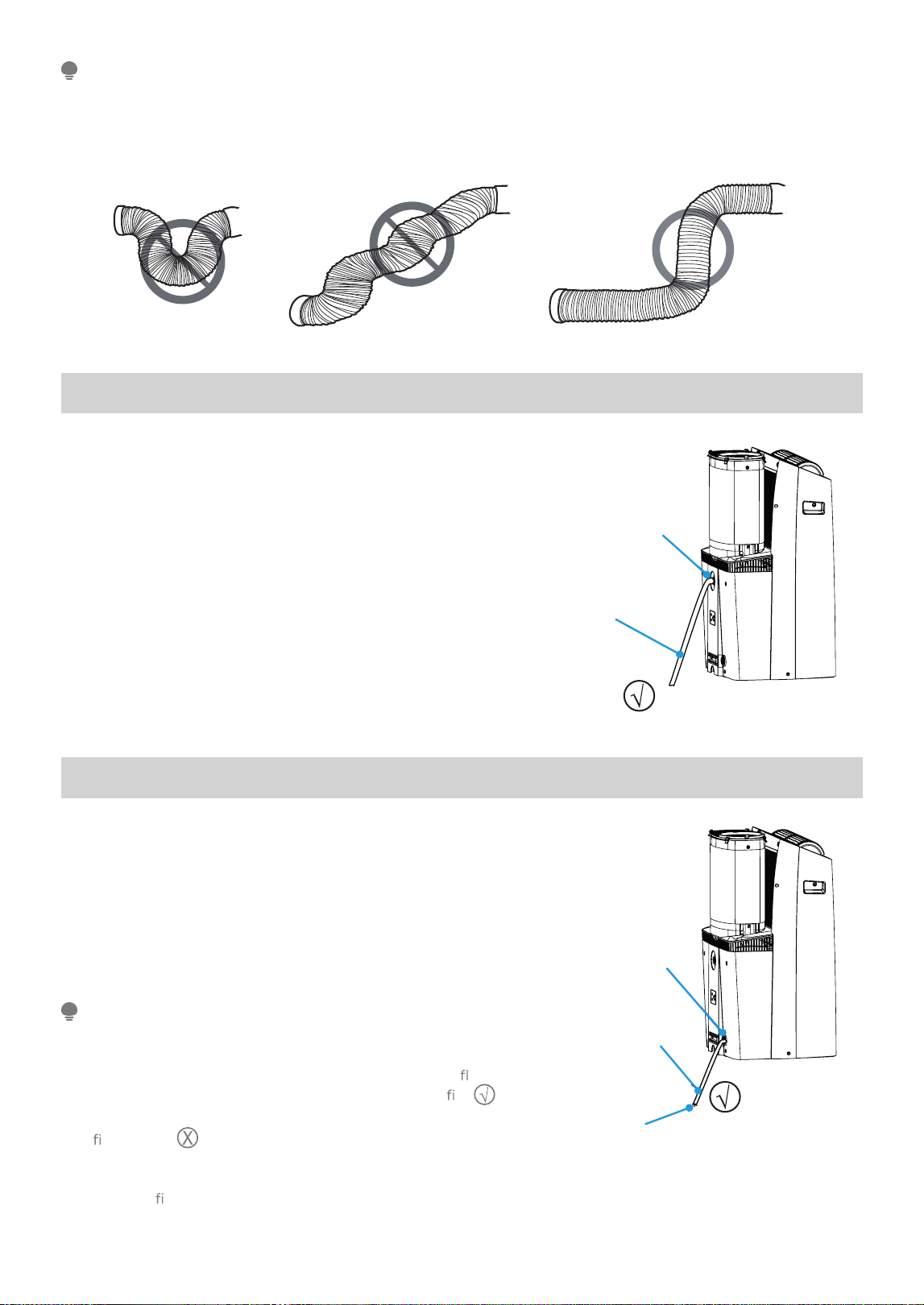

To ensure proper function, DO NOT overextend or bend the hose. Make sure that there are no objects
within 20in (~500mm) of the inlet and outlet hose.
All illustrations in this manual are for explanation purposes only, your air conditioner may be slightly
different than shown.
NOTE
Water Drainage
• During Dry modes, remove the upper drain plug from the
back of the unit and install the drain hose.
For models without drain connector, just attach the drain
hose to the hole. Place the end of the hose directly in the
drain area you’re using.
Remove the
upper drain plug
Continuous
drain hose
Fig. 19
Fig. 18

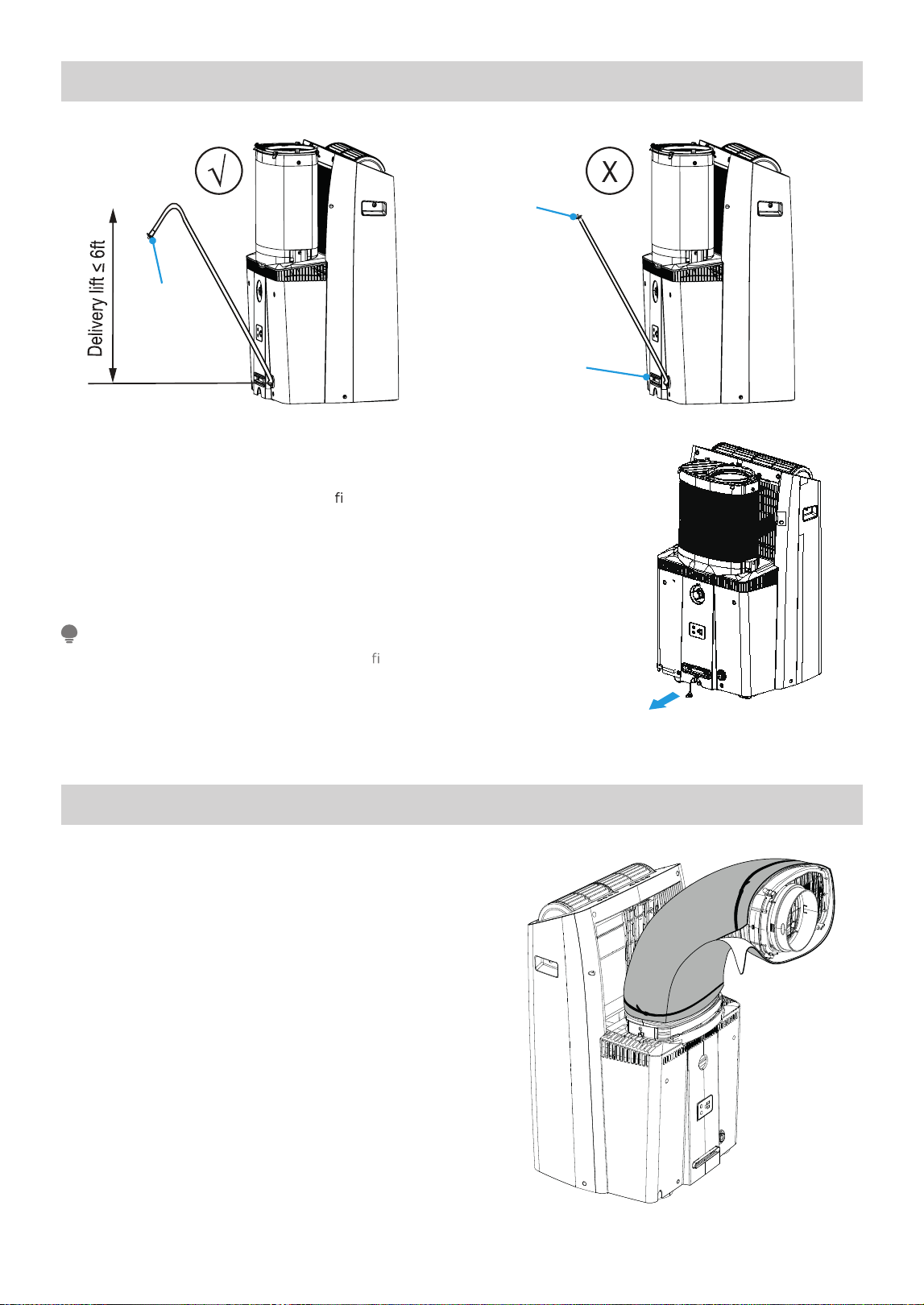

Because this unit contains a condensate pump, the drain hose can
be elevated up to 6 ft. (1.8 m). Direct the hose toward the drain,
making sure there are no kinks that will restrict water
ow. Make
sure the end of the hose is directed downward (see g.
with
check mark symbol).
The
gure with
symbol is not recommended as the end of the
hose is not directed downward. When the continuous drain hose
is not used, ensure that the corresponding drain plug and knob
are installed rmly to prevent leaks.
NOTE
Water Drainage (For Heating Mode)
• While operating in heat pump mode, the unit will produce
condensate that must be drained. You must install the drain hose
when operating in heat mode. To install the drain hose, remove
the plug from the drain port and attach the included hose.
The universal drain adaptor can be attached to the end of the
included hose. A 3/4” hose (not included) can be attached to the
adaptor if a longer hose length is required. Place the end of the
hose in the drain area you are using.
Remove
the middle
drain plug
Continuous
drain hose
Drain hose
adaptor
Fig. 20
18
19
Be sure to reinstall the bottom drain plug
rmly to prevent leakage
before using the unit.
NOTE
• When the water level of the bottom tray reaches a predetermined
level, the unit beeps 8 times. The digital display shows “P1.” At this
time the air conditioning/dehumidi cation process will immediately
stop. However, the fan motor will continue to operate (this is
normal). Carefully move the unit to a drain location, remove the
bottom drain plug and let the water drain away. Reinstall the bottom
drain plug and restart the machine until the “P1” symbol disappears.
If the error repeats, call for service.
Drain
hose
adaptor
Drain hose
adaptor
Press the power
cord buckle into
the rear cover
Fig. 21
Fig. 22
Heat Pump Hose Insulation Foam
If you are experiencing condensation on the outer section of
the hose during heating operation, apply the included heat
pump insulation foam to the outside of the hose. Use the
included zip ties to secure the foam around the hose.
Fig. 23
Water Drainage (For Heating Mode) cont.
Remove the bottom drain plug to drain the water away.

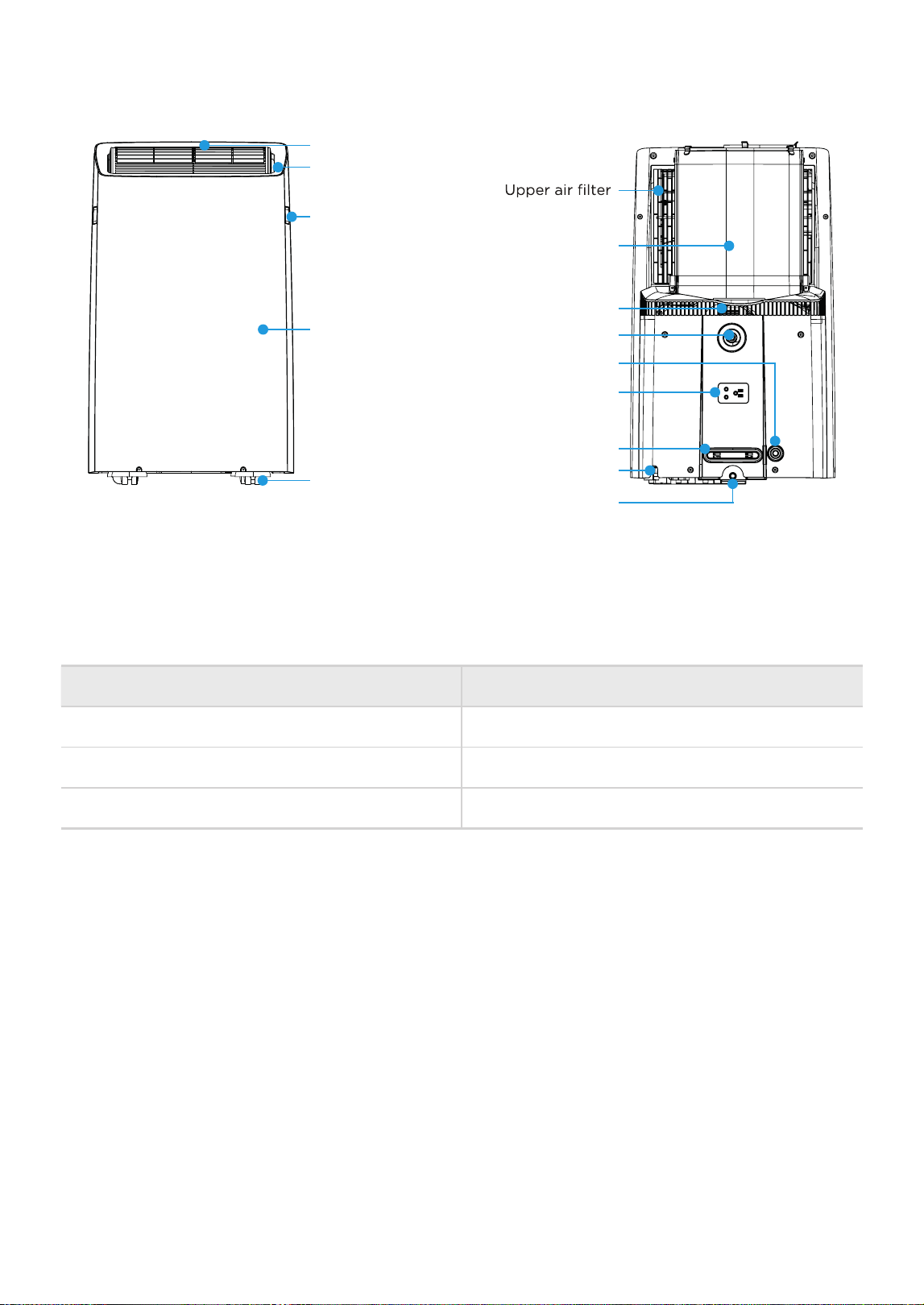

OPERATION INSTRUCTIONS
Mode Temperature Range
Cool 60°F ~ 95°F (16°C ~ 35°C)
Dry 55°F ~ 95°F (13°C ~ 35°C)
Heat Pump 41°F ~ 86°F (5°C ~ 30°C)
Unit Operating Temperature Range:
Handle
(both sides)
Power plug storage
Power cord storage
(behind the grille)
Inlet and outlet
air hose
Air inlet
Drain Outlet (dry mode)
Drain Outlet (heating mode)
Power cord outlet
Outlet louver
(automatic swing)
Caster
Front Rear
Control panel
Panel
Drain Outlet
(excess condensate)
(outdoor)
20

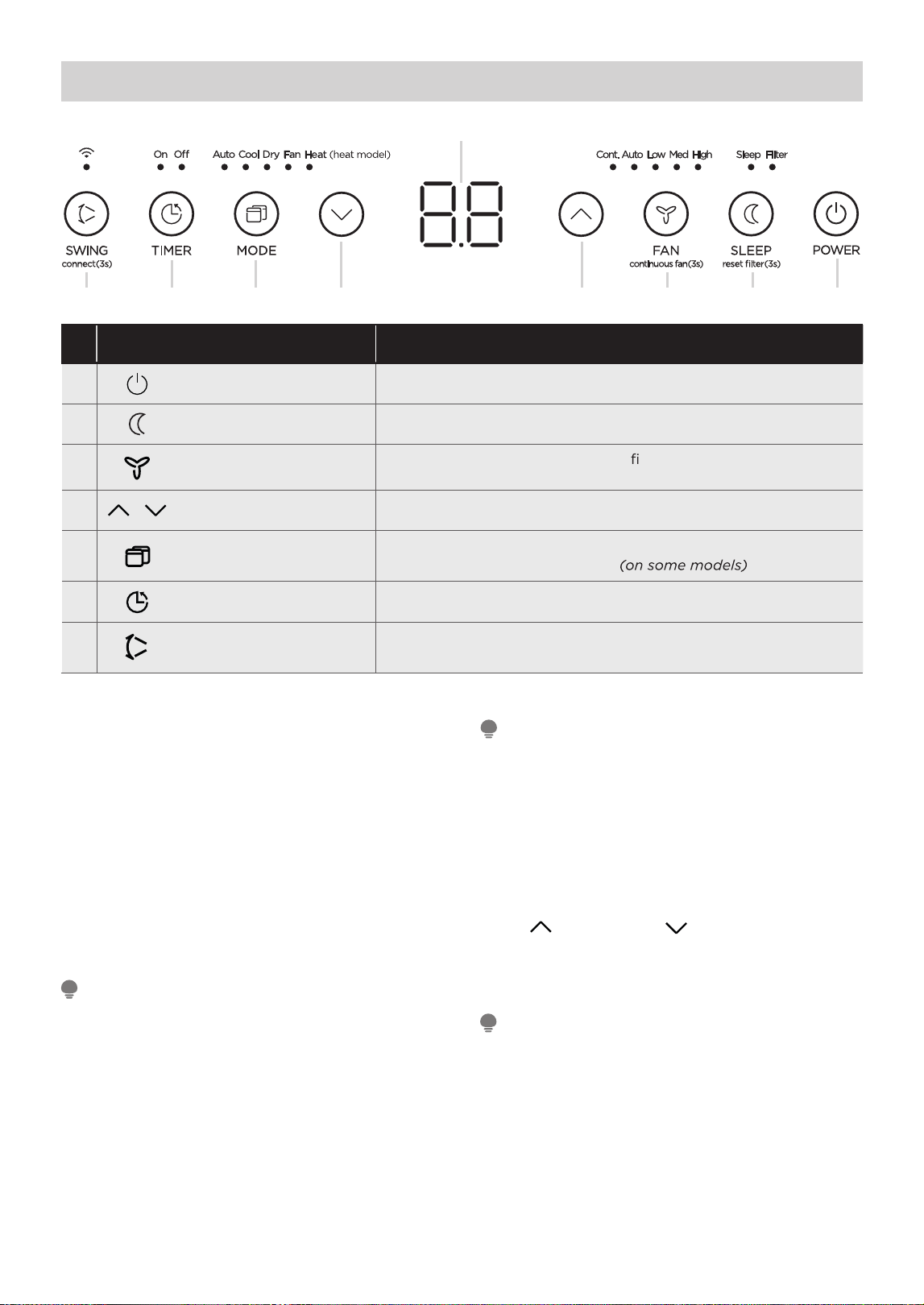

Control Panel Features
156 237 44
LED Display
Description
1 ON / OFF • Press to turn unit on or off.
2
Sleep Function • Press to initiate the sleep mode.
3
Fan Speed
• Press to select the Fan Speed in
ve steps - Cont., Auto, Low,
Med or High.
4
UP / DOWN
Button • Press to change temperature setting.
5
Mode Fuctions
• Press to choose operating mode in a sequence that goes from
Auto, Cool, Dry, Fan and Heat
.
6
Timer Feature • Press to turn unit Auto Start/Stop.
7
Swing / Connect Feature
• Press to initiate the auto swing feature.
• Press for 3 sec to initiate smart connection mode.
1. POWER BUTTON (ON/OFF):
Press Power button to turn unit on or off.
2. SLEEP BUTTON:
Pressing this button will increase (during cooling
operation) or decrease (during heating operation,
applicable models) 2°F/1°C after 30 minutes. The
temperature will again increase (cooling) or decrease
(heating) by another 2°F/1°C after an additional 30
minutes. This new temperature will be maintained for
7 hours before returning to the originally selected
temperature. This ends the Sleep mode and the unit
will continue to operate as originally programmed.
The SLEEP operation feature is unavailable in FAN or
DRY mode.
NOTE
3. FAN BUTTONS:
Controls the fan speed. Press to control the fan
speed in four steps - LOW, MID, HIGH and AUTO.
The selected fan speed light (except AUTO) will
illuminate.
Applicable to models with the Constant Fan feature.
In COOL or DRY mode, press the Fan button for 3
seconds to turn on or off the constant fan function.
When the function is turned on, the constant fan light
will illuminate, indicating the fan will run constantly.
When the function is turned off, the constant fan light
will go out, indicating that the fan will stop when the
compressor stops.
NOTE
To change between °F or °C, simultaneously press
and hold the Up and Down buttons for 3 seconds.
NOTE
4. UP ( ) AND DOWN ( ) BUTTONS:
Used to increase/decrease temperature settings in 1°
increments in a range of 60°F/16°C to 86°F/30°C or
the TIMER setting in a range of 0 ~ 24hrs.
21
The wireless connection process must be completed
within 8 minutes after powering the air conditioner on.
NOTE
5. MODE BUTTON:
Selects the desired operating mode. Each time you
press the button, a mode is selected in a sequence
that goes from AUTO, COOL, DRY, FAN and HEAT
(Heat models only). The mode light illuminates and
indicates the selected mode.
6. TIMER BUTTON:
Used to initiate the AUTO ON start time and AUTO
OFF stop time program. The timer on or off light
will illuminate depending on the selected setting.
7. SWING BUTTON:
Used to initiate the Auto Swing feature. When the
operation is ON, pressing the SWING button can
stop the louver at the desired angle.
The swing button is also used to initiate the wireless
connection mode.To initiate the wireless connection
mode, power on the air conditioner then press the
SWING button for 3 seconds. The LED DISPLAY
will show ‘AP’ to indicate the unit is in wireless
connection mode. Refer to the app connection
instr
e connection process. If the
connection is successful, the unit will exit wireless
connection mode and illuminate the wireless LED.
If the connection fails, the unit will exit wireless
connection mode automatically after 8 minutes and
the wireless LED does not illuminate.
Operating Instructions
COOL Operation
• Press the “MODE” button until the “COOL”
indicator light comes on.
• Press the ADJUST buttons Up or Down to
select your desired room temperature. The
temperature can be set within a range of
60°F~86°F/16°C~30°C.
• Press the “FAN SPEED” button to choose the fan
speed.
HEAT Operation (on some models)
• Press the “MODE” button until the “Heat”
indicator light comes on.
• Press the ADJUST buttons Up or Down to
select your desired room temperature. The
temperature can be set within a range of
60°F~86°F/16°C~30°C.
• Press the “FAN SPEED” button to choose the
fan speed.
• When entering heat mode, the fan may start
slower than expected. For some models, the fan
speed cannot be adjusted while in HEAT mode.
DRY Operation
• Press the “MODE” button until the “DRY”
indicator light comes on.
• While in this mode, you cannot select a fan
speed. The fan motor operates at AUTO speed.
• Keep windows and doors closed for the be
st
dehumidifying effect.
AUTO Operation
• When you set the air conditioner to AUTO mode,
it will automatically select cooling, heating (Heat
models only) or fan only operation depending
on what temperature you have selected and the
current room temperature.
• The air conditioner will control room
temperature automatically according to the
temperature point set by you.
• Under AUTO mode, you cannot select the fan
speed.
FAN Operation
• Press the “MODE” button until the ”FAN“
indicator light comes on.
• Press the “FAN SPEED” button to choose the
fan speed. The temperature cannot be adjusted.
• Do not connect the duct to a window.
TIMER: Auto Start/Stop Operation
• When the unit is on, pressing the Timer button
will initiate the Auto stop program. The TIMER
OFF indicator light illuminates.
Press the Up (
) or Down ( ) button to select the
desired time. Press the TIMER button again within
5 seconds. The Auto start program is initiated and
the TIMER ON indicator light illuminates. Press the
Up ( ) or Down ( ) button to select the desired
Auto start time.
• When the unit is off, press the Timer button to
initiate the Auto start program. Pressing it again
within ve seconds will initiate the Auto stop
program.
• Press or hold the Up (
) or Down ( ) button to
change the Auto time by 0.5 hour increments,
up to 10 hours, then at 1 hour increments up to
24 hours. The control will count down the time
remaining until start.
• The system will automatically revert back to
display the previous temperature setting if there
is no operation within 5 seconds.
• Turning the unit ON or OFF at any time or
adjusting the timer setting to 0.0 will cancel the
Auto Start/Stop timer program.
• Should a malfunction occur, the Auto Start/Stop
timed program will also be cancelled.
22
This feature is unavailabe under FAN or DRY mode.
NOTE
Other Features
COMFORT SENSE FEATURE
This feature can ONLY be activated from the remote
control. The remote control serves as a remote
thermostat allowing for the precise temperature
control at its location, which must be within 26 feet
of the air conditioner. To activate the Comfort Sense
feature, point the remote control towards the unit and
press the SET button to select. The remote’s display
will show the actual temperature at its location (as
long as it is within the 26 feet of the air conditioner).
The remote control will send this signal to the air
conditioner every 3 minutes until the C-Sense button
is select again. If the unit does not receive the
Comfort Sense signal during any 7 minutes interval,
the unit will exit the Comfort Sense mode.
AUTO-RESTART
If the unit shuts off unexpectedly due to a power
outage, it will restart with the previously set function
automatically when the power resumes.
WAIT 3 MINUTES BEFORE RESUMING OPERATION
After the unit has stopped, it cannot be restarted until
3 minutes time has elapsed. This is to protect the unit.
Operation will automatically resume after 3 minutes.
When one of these error codes occurs, turn off the
unit and check for any obstructions. Restart the
Unit. If the malfunction persists, turn off the unit and
unplug the power cord and contact customer service
at 1-866-646-4332.
NOTE
LED Display
Shows the set temperature in °F (Degrees Fahrenheit)
or °C (Degrees Celsius) and the Auto-timer settings.
While on DRY and FAN modes, it shows the room
temperature.
Error code appears and begins with the letters as
the following in the window display of indoor unit:
EH(xx), EL(xx), EC(xx), PH(xx), PL(xx), PC(xx)
P1 - Bottom tray is full--Connect the drain hose and
drain the collected water away. If protection repeats,
call for service
23
For optimum product performance:
• Do not mix old and new batteries, or batteries of different types.
• Do not leave batteries in the remote control if you don’t plan on using the device for more than 2 months.
BATTERY NOTES

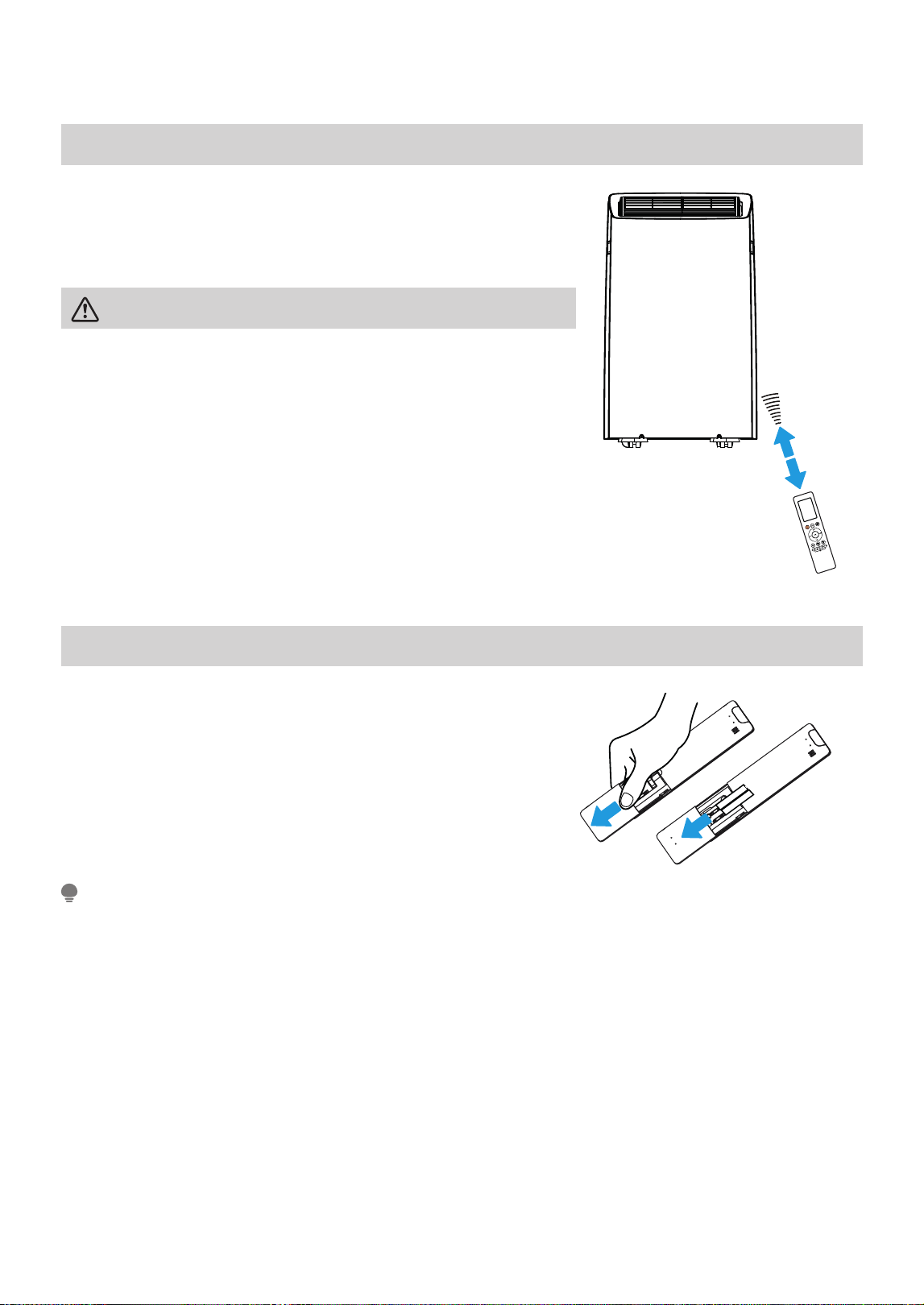

REMOTE CONTROL AND APP INSTRUCTIONS
Handling the Remote Control
Inserting and Replacing Batteries
LOCATION OF THE REMOTE CONTROL
Use the remote control within a distance of 26 ft. (8m) from the air
conditioner, pointing it towards the unit. The unit will beep when it
receives a signal.
BATTERY DISPOSAL
Ensure used batteries are disposed of properly.
TIPS FOR USING REMOTE CONTROL
In order to properly transmit a command, the ON/OFF indicator must be illuminated on the remote’s
display. (See the Remote LED Screen Indicators section for more information.)
Your air conditioning unit may come with two batteries AAA
(some units). Put the batteries in the remote control before use.
1. Slide the back cover from the remote control downward,
exposing the battery compartment.
2. Insert the batteries, paying attention to match up the (+) and
(-) ends of the batteries with the symbols inside the battery
compartment.
3. Slide the battery cover back into place.
CAUTION
• The air conditioner will not operate if curtains, doors or other
materials block the signals from the remote control to the unit.
• Prevent any liquid from spilling onto the remote control. Do not
expose the remote control to direct sunlight or heat.
• If the infrared signal receiver on the indoor unit is exposed to direct
sunlight, the air conditioner may not function properly. Use curtains
to prevent the sunlight from falling on the receiver.
• If other electrical appliances react to the remote control, either
move these appliances or consult your local dealer.
26 ft
(8 meters)
24
25

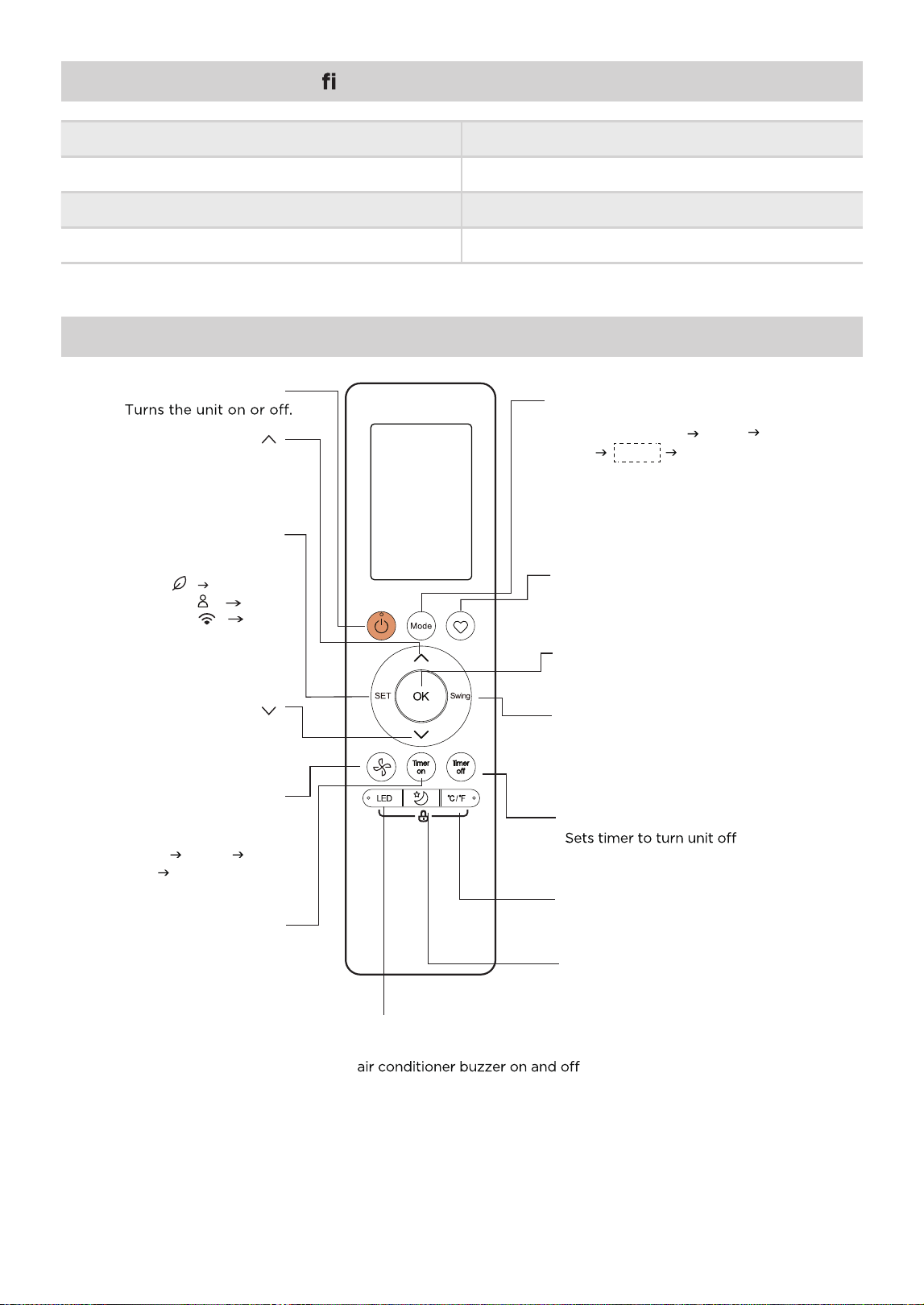

Function Buttons
Remote Control Speci cations
Model
Rated Voltage 3.0V ( Dry batteries R03/LR03x2)
Signal Receiving Range 26 ft (8 m)
Environment -5°C ~ 60°C (23°F ~ 140°F)
Fresh( )
I SENSE ( )
AP mode( ) Fresh...
Model:
Increases temperate in
1°F (1°C) increments.
Max. temperature is
86°F (30°C).
Decreases temperature
in 1°F(1°C) increments.
Min. temperature is
60°F(16°C).
Scrolls through operation
functions as follows:
The selected symbol will
flash on the display area,
press the OK button to
confirm.
AUTO LOW
MED HIGH
Selects fan speeds in
the following order:
Turns indoor unit’s LED display and
(model dependent), which create a
comfortable and quiet environment.
LED
°C/°F
The temperature display
between the °C & °F.
SLEEP
Saves energy during sleeping
hours.
ON/OFF
SET
MODE
OK
Scrolls through operation modes
as follows:
AUTO
COOL
DRY
HEAT
FAN
TIMER ON
TIMER OFF
TEMP
TEMP
functions
Used to confirm the selected
(see How to Use Basic
Functions for instructions).
Sets timer to turn unit
on (see How to Use Basic
Functions for instructions).
SHORTCUT
Used to restore the current
settings or resume previous
settings.
SWING
FAN SPEED
Starts and stops the horizontal
louver movement. Hold down
for 2 seconds to initiate vertical
louver auto swing feature.
NOTE: Please do not select
HEAT mode if the machine you
purchased is cooling only type.
Heat mode is not supported by
the cooling only appliance.
RG10F2(B2)/BGEFU1, RG10F3(B2)/BGCEFU1
RG10F2(B2)/BGEFU1
RG10F3(B2)/BGCEFU1
26

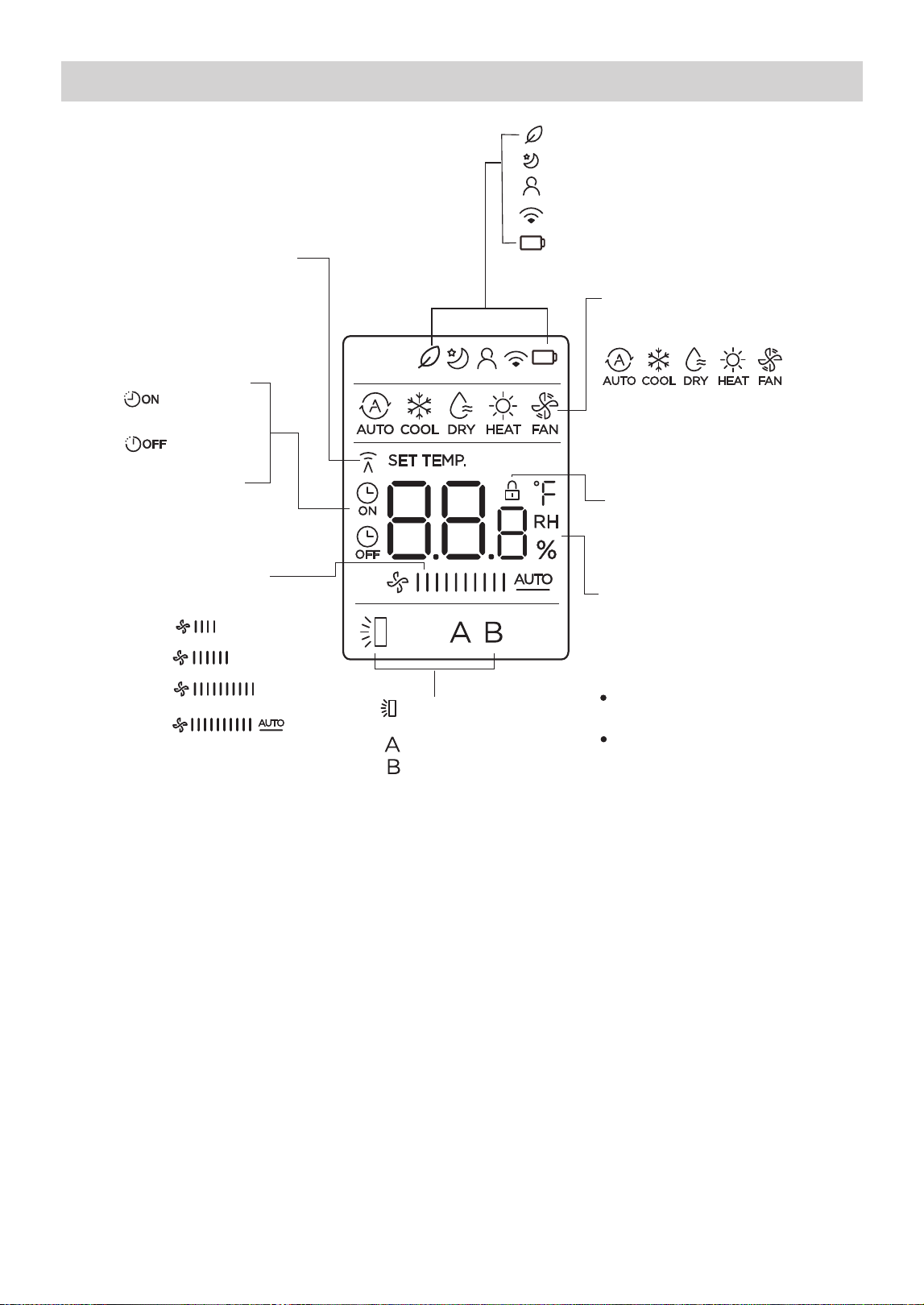

Remote Screen Indicators
Transmission Indicator
MODE
display
TIMER ON
display
FAN SPEED
display
TIMER OFF
display
LOCK
display
Not available for
this unit
Temperature/Timer/Fan speed
display
Fresh feature display
Sleep mode display
I Sence feature display
Wireless control feature display
Low battery detection display
(If flashes)
Note:
All indicators shown in the figure are for the purpose of clear presentation. But during the actaul
operation, only the relative function signs are shown on the display window.
Displays when LOCK feature
is activated.
Lights up when remote
sends signal to indoor
unit
Displays the current mode,
including:
(on heat model)
Displays the set temperature
by default, or fan speed or
timer setting when using
TIMER ON/OFF functions.
Temperature range:
16-30°C/60-86°F
Timer setting range:
0-24 hours
This display is blank when
operating in FAN mode.
Horizontal louver
auto
swing display
LOW
MED
HIGH
AUTO
Displays selected fan speed:
This fan speed can not be
adjusted in AUTO or DRY
mode.
27

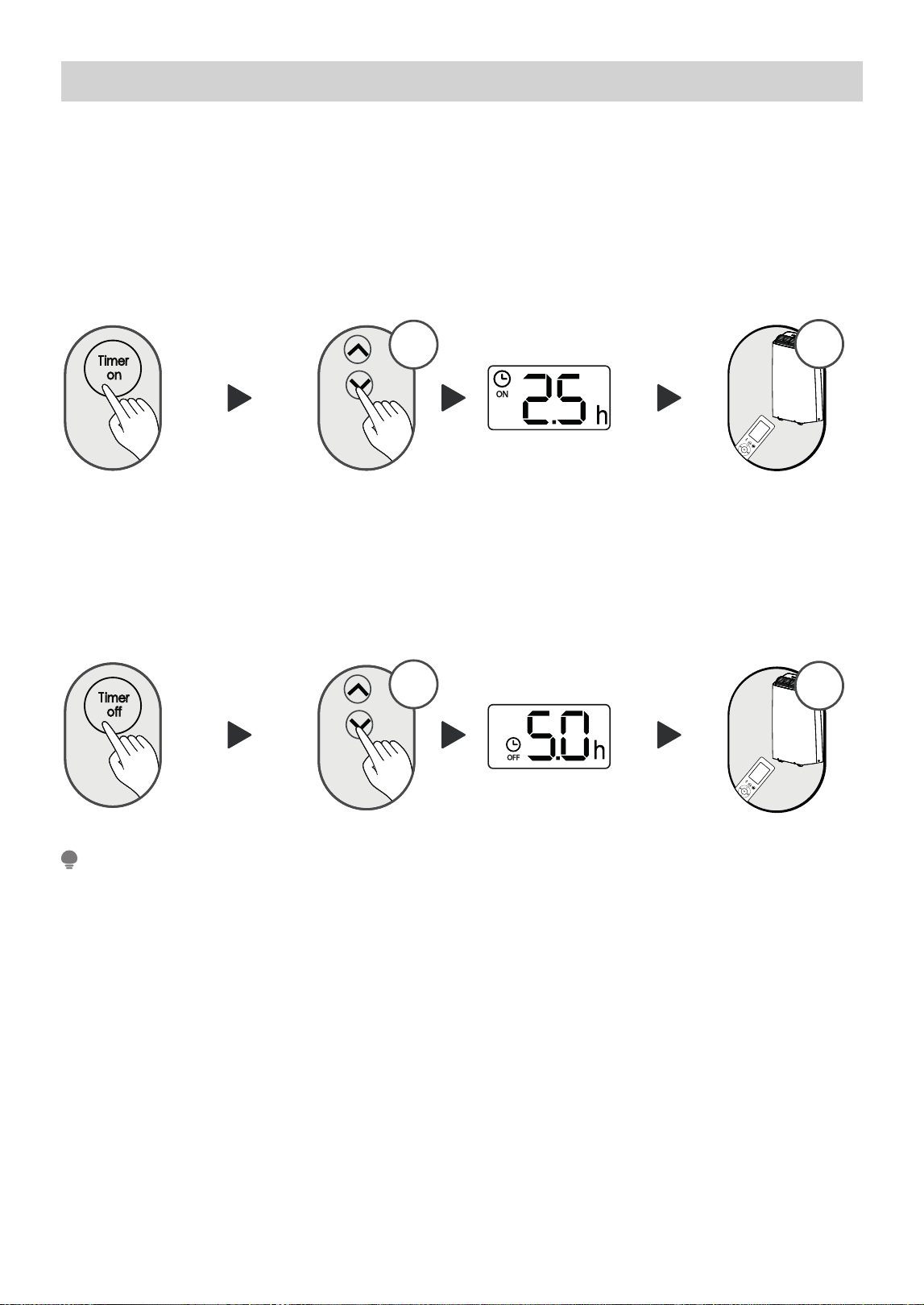

Setting the TIMER
TIMER ON/OFF
TIMER ON SETTING
TIMER OFF SETTING
Set the amount of time after which the unit will automatically turn on/off.
Press TIMER ON button to
initiate the ON time
sequence.
Press TIMER OFF button to
initiate the OFF time
sequence.
Press up or down button for
multiple times to set the desired
time to turn on the unit.
Press up or down button for
multiple times to set the desired
time to turn off the unit.
Point remote to unit and wait
1sec, the TIMER ON will be
activated.
Point remote to unit and wait
1sec, the TIMER OFF will be
activated.
1secx5
1secx10
1. When setting the TIMER ON or TIMER OFF, the time will increase by 30 minutes increments with each press,
up to 10 hours. After 10 hours and up to 24, it will increase in 1 hour increments. (For example, press 5 times
to get 2.5h, and press 10 times to get 5h,). The timer will revert to 0.0 after 24.
2. Cancel either function by setting its timer to 0.0h.
NOTE
28
Declaration of Conformity

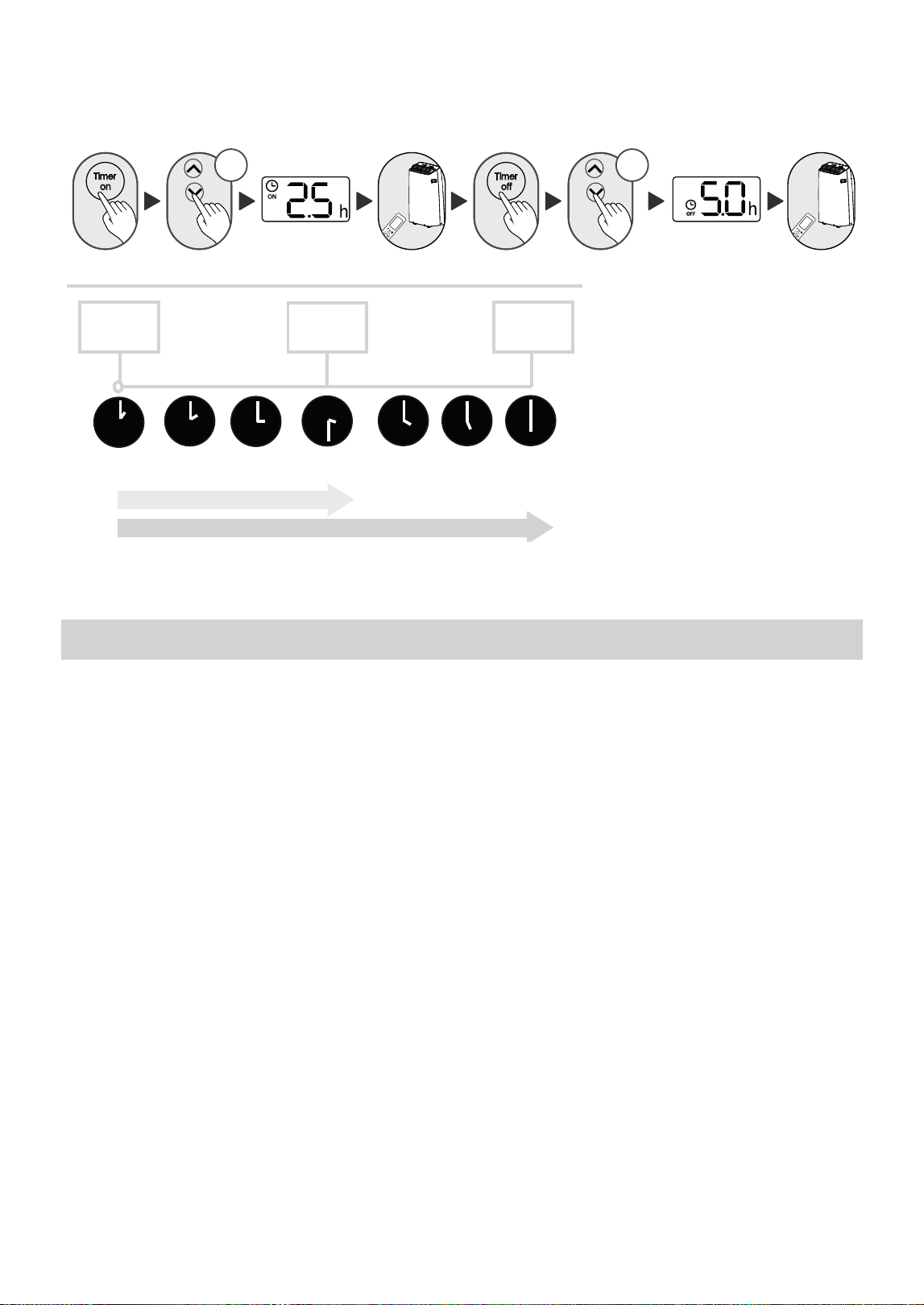

TIMER ON & OFF SETTING (example)
Keep in mind that the time periods you set for both functions refer to hours after the current time.
xn
Timer
starts
2.5 hours later
5 hours later
Current
time 1PM
2:00PM 3:00PM 3:30PM 4PM 5PM 6PM
Unit turns
ON
Unit turns
OFF
xn
This device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU,
in order to avoid the possibility of exceeding the radio frequency exposure limits, human proximity to the antenna
shall not be less than 20cm during normal operation. (European Union products only)
Unit model: MPT1412HVRU
Wireless Module Model: US-SK109
Antenna Type: Printed PCB Antenna
Wireless: 2400 - 2483.5MHz, TX Power: < 20dBm
Operation Temperature: 0°C~45°C/32°F~113°F
Operation Humidity: 10%~85%
Power Input: DC 5V/500mA
BLE: 2402 - 2480MHz, TX Power: < 10dBm
Example: If current time is 1:00PM,
to set the timer as above steps,
the unit will turn on 2.5h later
(3:30PM) and turn off at 6:00PM.
29
1

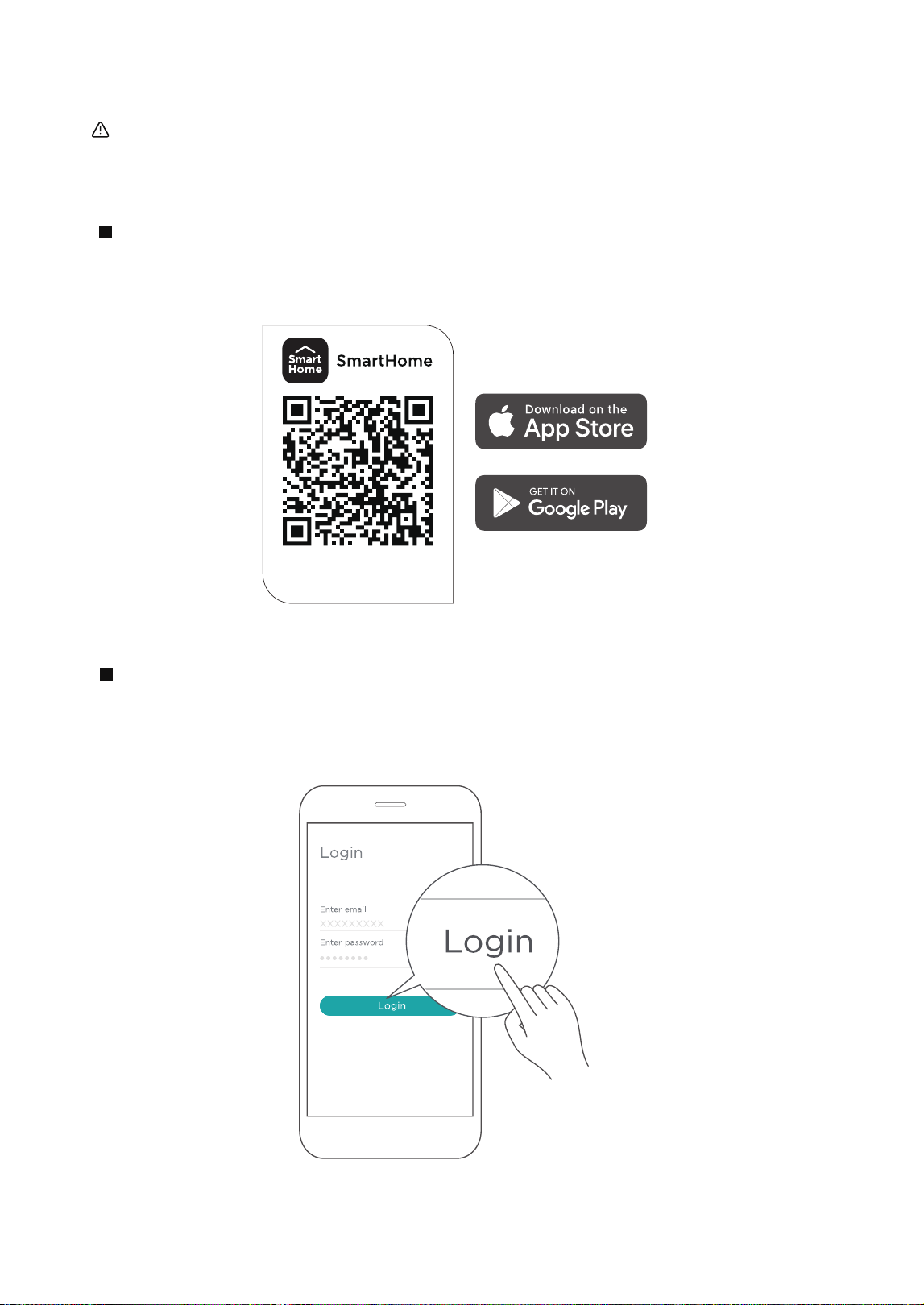

How to use SmartHome App
Ensure that your mobile phone is connected to the wireless network. Bluetooth must be turned on.
The device must also be powered up.
Scan the QR code below to download the SmartHome app from app store or search for it directly
on the Google Play Store or Apple's App Store.
Step 1: Download the SmartHome app
Open the SmartHome app. Log in directly if you have an existing SmartHome account or create a
new account. Alternatively, you can also use a 3rd party login platform.
Step 2: Log in
Download the app
& activate product

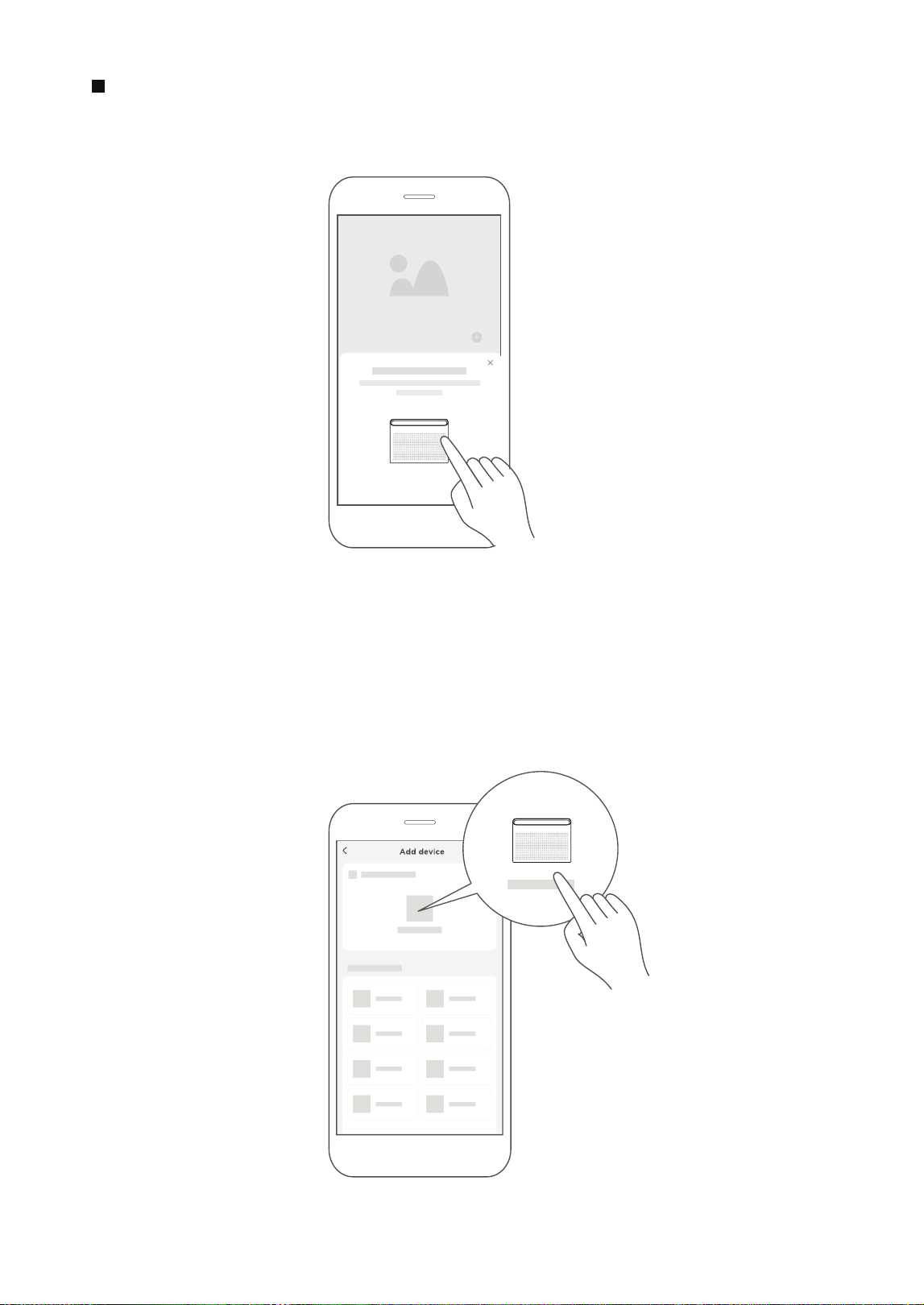

1) When you log in, you may see the message "Smart devices discovered nearby".
Tap to add your device.
2) If no such message appears, proceed as follows: Tap on "+" and select your device in the list of
nearby available devices.
If your device is not listed, please add your device manually, first selecting the device category e.g.
Window AC.
Step 3: Connecting the device
30
31

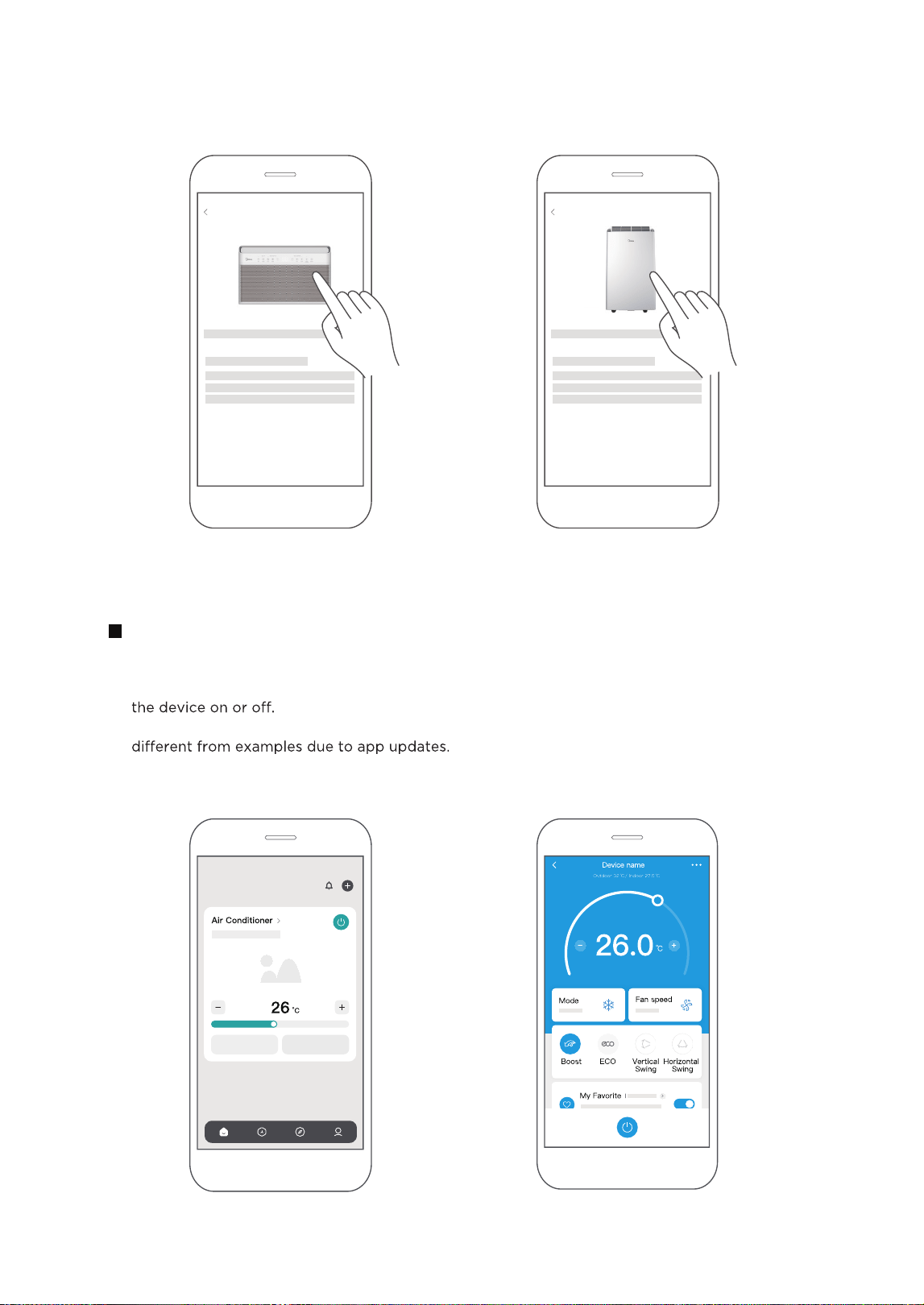

After pairing successfully, a card will be created for the device in the SmartHome app.
Shortcuts for basic functions will appear on the card such as changing the temperature or switching
Tapping on the card, will reveal additional features and settings. The actual UI design may look
Step 4: Controlling the device
SmartHome
3) Follow the steps in the app to connect your device to the wireless network. If your device fails to
connect, follow the additional instructions in the app.
Add device
For Window AC For Portable
AC
Add device
2

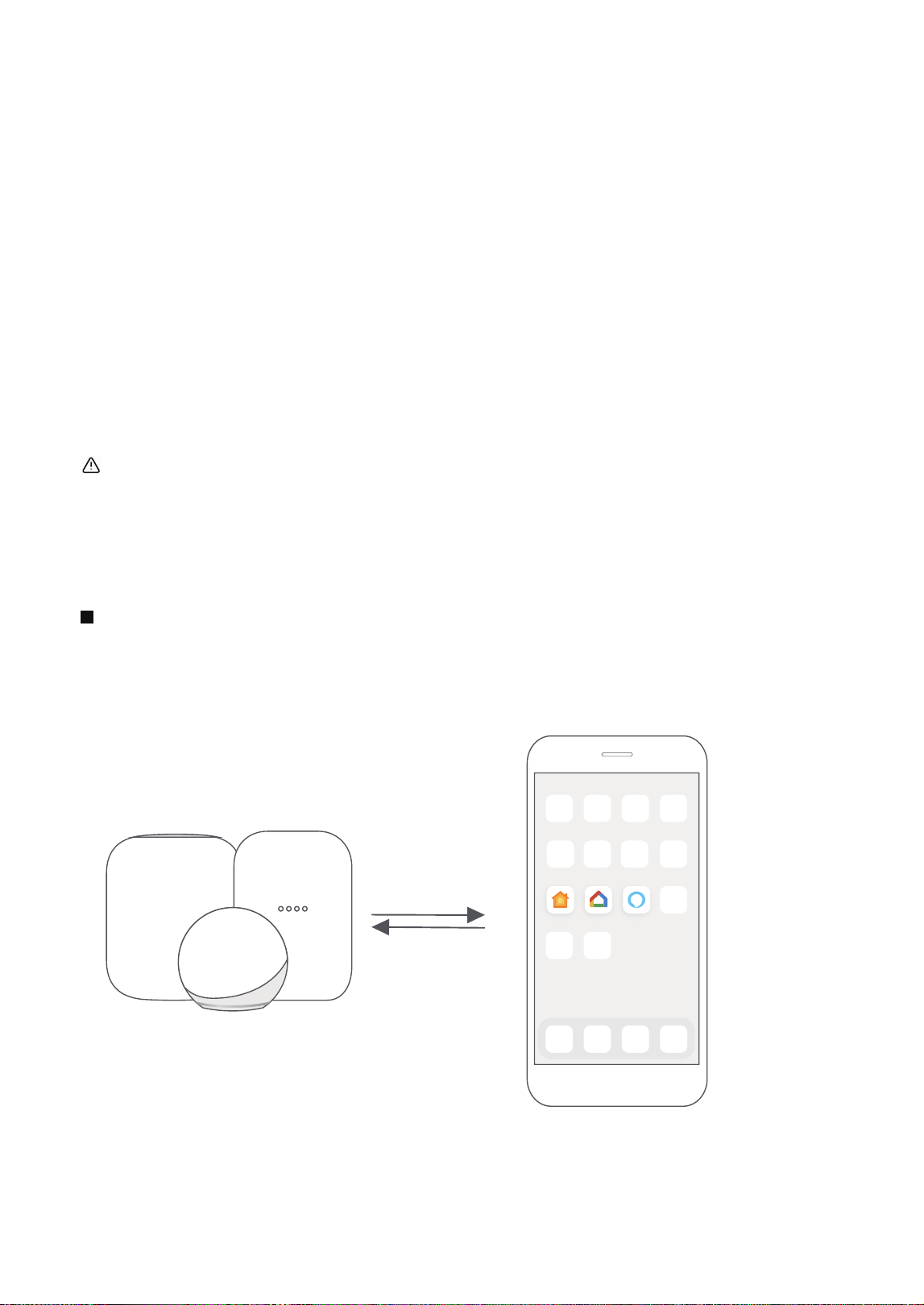

How to use Matter
Connect YourAir Conditioner through Matter
Make sure your mobile device is connected to your wireless router.
Wireless router should support and turn on IPv6. Please make sure your smartphone connect to 2.4G
but not 5G network.
Matter is a connectivity technology that unifies the smart home by allowing devices and ecosystems
(such as Alexa, Google Home and Apple Home) to speak the same language thus creating exciting new
features and use cases.
To use Matter, you will need at least one Matter enabled smart speaker from Amazon, Google or Apple,
and it's respective app.
-- If you have a Matter enabled smart speaker, please proceed to the "How to use
Matter" instructions on the following pages.
-- If you don't have a Matter enabled smart speaker, you won't be able to use
Matter right now. However, you can still achieve full functionality of the product by
using our SmartHome app. To do this, proceed to the "How to use SmartHome app" section back on
page 1.
Step 1: Connect to smart speaker
Select your preferred ecosystem (Alexa, Google Home or Apple Home) and make sure you’ve got one
of their Matter enabled products (such as their smart speakers) connected to your wireless router.
Apple Home Google Home Alexa
32
For best Matter compatibility, connect the AC to the Alexa, Google Home or Apple Home ecosystems along
with at least one of their respective Matter enabled smart speakers.

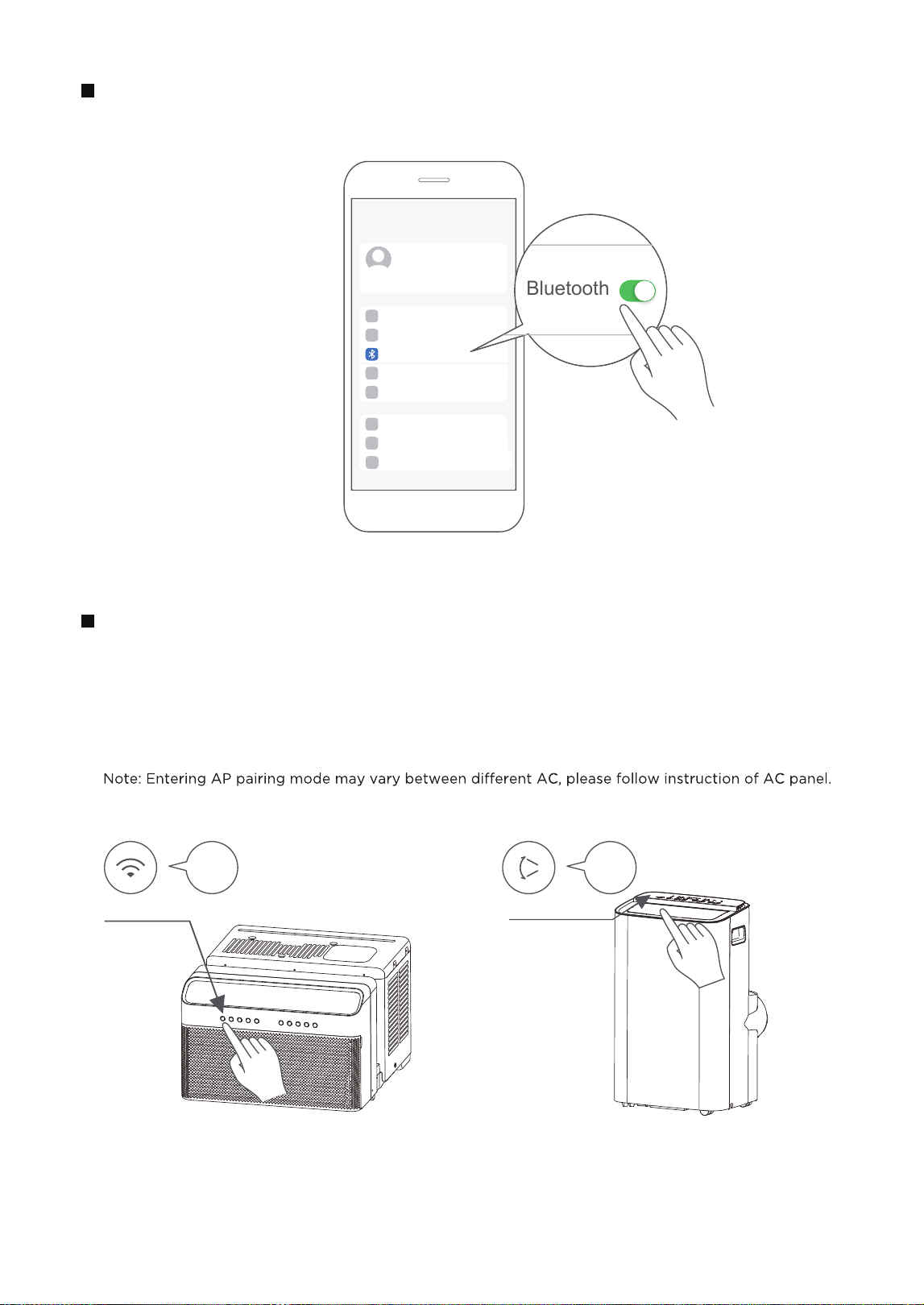

Turn on Bluetooth on your mobile device.
Step 2: Turn on Bluetooth
Settings
Bluetooth
Bluetooth
Window AC: Hold down the CONNECT / Power button for 3 seconds to begin the pairing process
(“AP” will appear on the AC’s display).
Portable AC: Hold down the SWING / Power button for 3 seconds to begin the pairing process (“AP”
will appear on the AC’s display).
Step 3: Enter AP mode
AP
CONNECT
AP
SWING
Window AC Portable AC
33

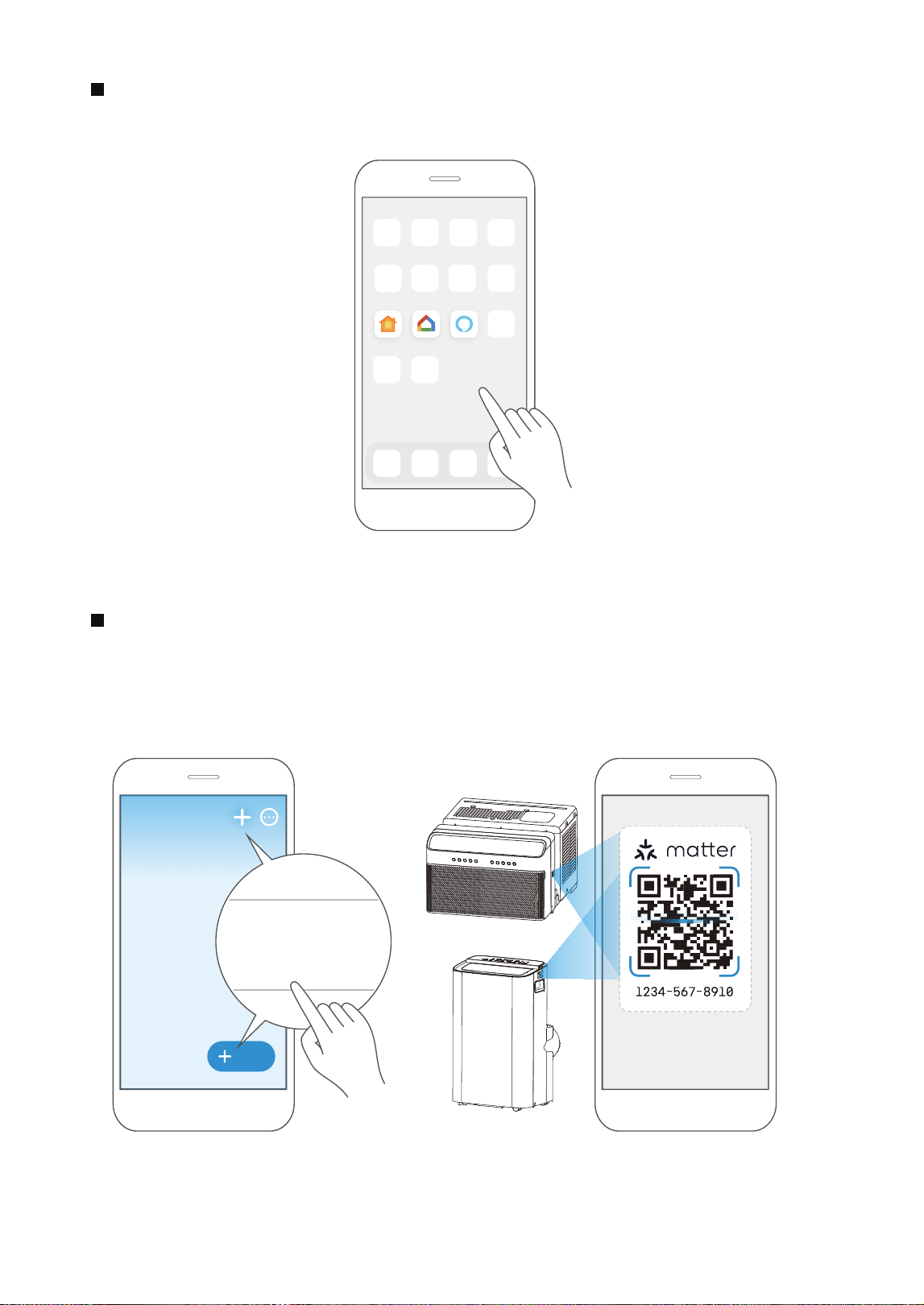

Open the Alexa, Google Home, Apple Home app on your mobile device.
Step 4: Open app
Apple Home Google Home Alexa
Tap the “+” and “Add Device/Accessory” or tap "+Add" in your app and then select Matter device
and scan the Matter QR code found on the side of the AC device. Follow the respective instructions
in the Alexa, Google Home or Apple Home app to complete the pairing process.
Step 5: Scan matter QR code
Add
Add Device/Accessory
scan
Matter QR code
34
35

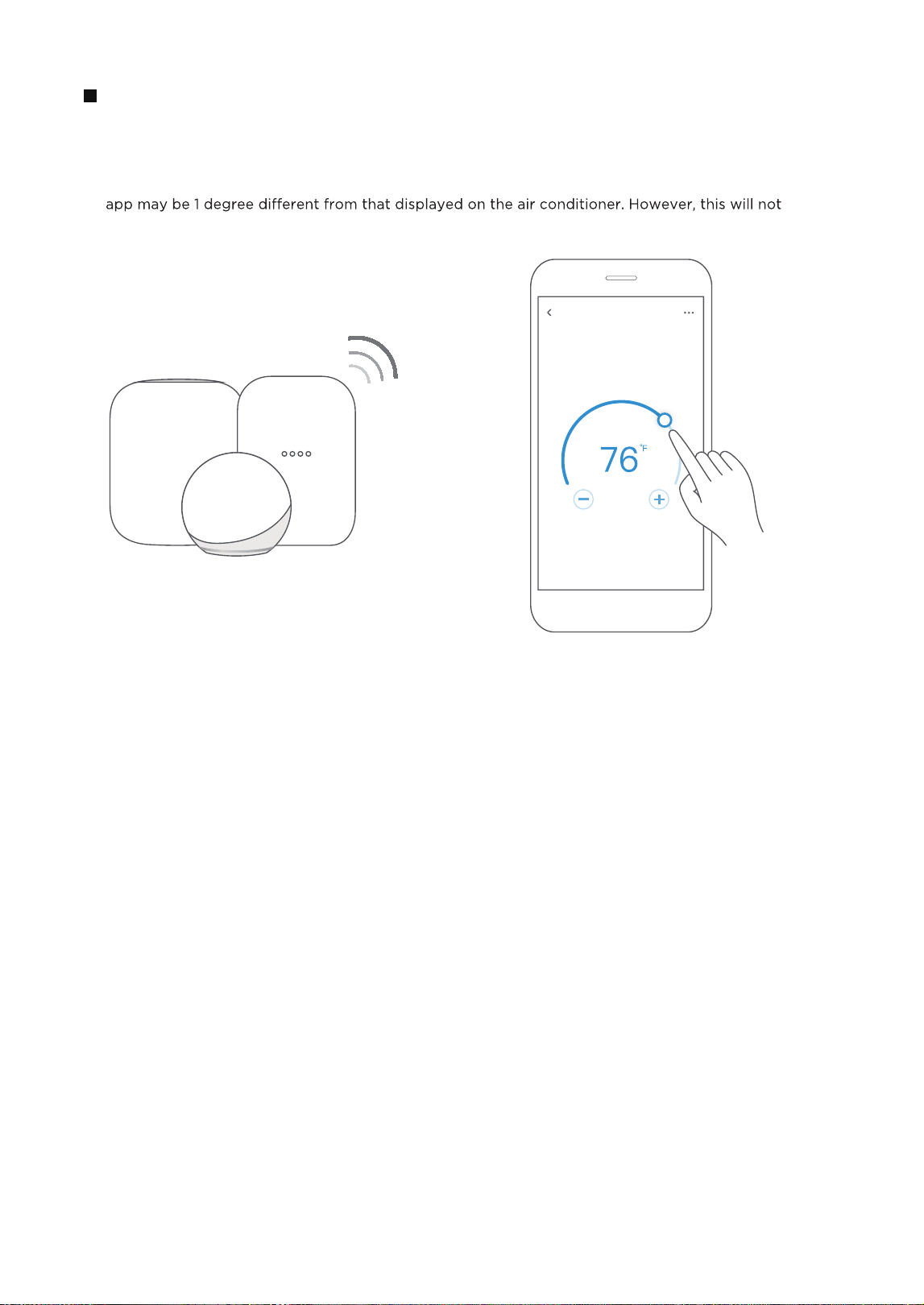

After pairing is successful, you can control your AC’s temperature and mode settings, etc. through
the respective ecosystem app and smart speaker.
Due to a compatibility issue, the temperature value shown in the Alexa, Google Home or Apple Home
impact the device's ability to cool the room.
Step 6: Control device
Air conditioner
36
NOTE:
The functions shown in the Alexa, Google Home or Apple Home apps may change with updates to
their products or apps.
Setup processes and features may vary between ecosystems.
Make sure the Matter enabled app is up to date to ensure the best experience.
Periodically, we will update the device’s software to improve the experience.
Device software updates can be accomplished through the SmartHome app.
is developed by the Connectivity Standards Alliance TM. This
brand, related logos,
and marks are trademarks of the Alliance, all rights reserved.
App & Smart Speakers can support Matter only when using these
versions or above.
9094439556
Google Play services min version: 22.36.15
Google Home app (GHA) min version: 2.58.24.1-dogfood
Google Hub firmware min version: 1.56.324896
(appears on hub as Chromecast firmware version)
2.2.536317
16.5
Device Version
iOS 16.5iPhone
Apple Home
Pod
Alexa Echo
Device
Android
Google
Home Hub
Alexa App
Use of the Works with Apple badge means that an accessory has been designed to work specifically
with the technology identified in the badge and has been certified by the developer to meet Apple’s
performance standards.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory
standards.
37
This device complies with Part 15 of the FCC Rules and Industry Canada’s licenceexempt
RSSs.
Operation is subject to the following two conditions:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Hereby, we declare that this AC is in compliance with the essential requirements and
other relevant provisions of RE Directive 2014/53/EU. A copy of the full DoC is attached
(European Union products only).
Only operate the device in accordance with the instructions supplied. Changes or
could void the user's authority to operate the equipment.This device complies with FCC
radiation exposure limits set forth for an uncontrolled environment. In order to avoid the
possibility of exceeding the FCC radio frequency exposure limits, human proximity to the
antenna shall not be less than 20cm (8 inches) during normal operation.
(1) This device may not cause interference;and
(2) This device must acceptany interference,including interference that may cause
undesired operation of the device.
Declaration of conformity
FCC ID: 2ADQOMDNA23
IC: 12575A-MDNA23
NOTE:

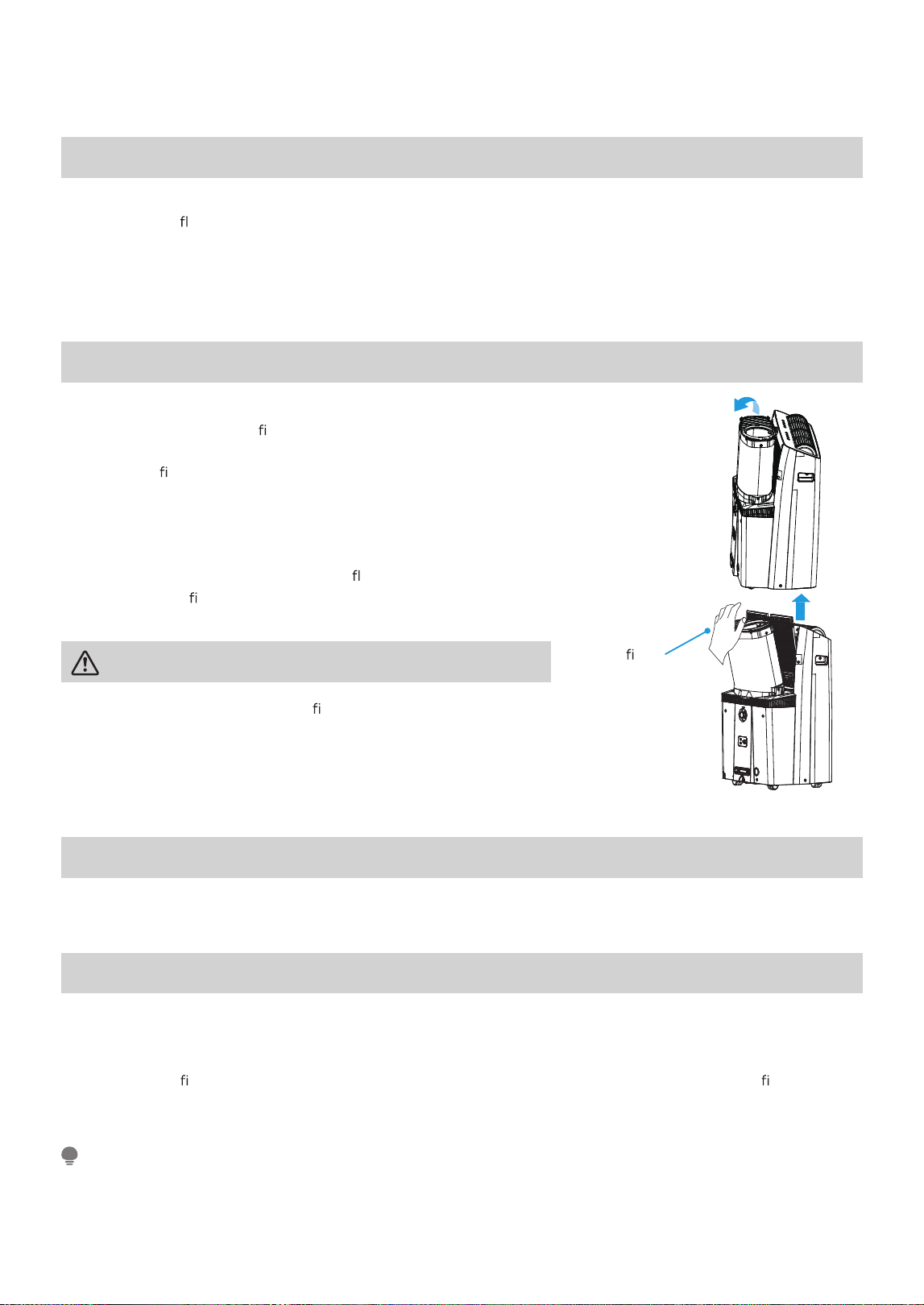

CLEANING AND MAINTENANCE
Safety Precautions
Air Filter Cleaning
Unit Cleaning
Store the Unit When Not in Use
• Always unplug the unit before cleaning or servicing.
• DO NOT use
ammable liquids or chemicals to clean the unit.
• DO NOT wash the unit under running water. Doing so causes electrical danger.
• DO NOT operate the machine if the power supply was damaged during cleaning. A damaged power cord
must be replaced with a new cord from the manufacturer.
• Drain the unit’s water collection tray according to the instructions in the following section.
• Run the unit on FAN mode for 12 hours in a warm room to dry it and prevent mold.
• Turn off the unit and unplug it.
• Clean the air
lter according to the instructions in the previous section. Reinstall the clean, dry lter before
storing.
• Remove the batteries from the remote control.
Clean with a soft cloth only. Do not use strong detergents that contain wax or thinners as it may damage the product
CAUTION
DO NOT operate the unit without lter because dirt and lint will
clog it and reduce performance.
• Be sure to store the unit in a cool, dark place. Exposure to direct sunlight or extreme heat can shorten the
lifespan of the unit.
NOTE
Maintenance Tips:
• Be sure to clean the air lter every 2 weeks for optimal
performance.
• Clean the lter using water and ensure it is dry before
reinstalling.
• The water collection tray should be drained immediately after
P1 error occurs, and before storage to prevent mold.
• In households with animals, you will have to periodically wipe
down the grill to prevent blocked air
ow due to animal hair.
• Notice the air lter is integrated with the removable grille
cover.
Upper lter
(take out)
38
TROUBLESHOOTING TIPS
Problem Solution
Unit does not turn on when
pressing ON/OFF button.
Displays P1 Error Code and means the water collection tray is full. Turn off the
unit, drain the water from the water collection tray, and restart the unit.
If room temperature is lower than the set temperature in COOL mode, reset
the temperature.
Unit does not cool well.
The air
lter is blocked with dust or animal hair. Turn off the unit and clean the
lter according to the instructions.
Exhaust hose is not connected or is blocked. Turn off the unit, disconnect the
hose, check for blockage and reconnect the hose.
Temperature setting is too high; decrease the set temperature.
Make sure all windows and doors are closed.
Check the room for possible heat sources and remove them if possible.
The unit is noisy and/or
vibrates too much
The
oor is not level. Place the unit on a at, level surface.
The air
lter is blocked with dust or animal hair. Turn off the unit and clean the
lter according to the instructions.
The unit makes a gurgling
sound.
This sound is caused by the refrigerant
ow inside the unit and is normal.
Unit will not connect to
Wireless or App does not
work (some models).
For additional support and troubleshooting tips, visit the “Help” tab within the
The top of the window kit
leans forward out of the
window track.
Ensure the Window Kit brace is installed properly.
In heating mode, the
fan speed is lower than
expected.
It is normal for the fan speed to start low in heating mode. The fan speed
should reach your desired setting after a few minutes of operation.
Condensation collects on the
outer section of the hose in
heat mode.
Apply the included hose insulation foam as shown on the next page.
Before calling for service, review this list. It may save you time and expense. This list includes common
occurrences that are not the result of defective workmanship or materials in this appliance.
Do not add extension to the exhaust hose(s)!
NOTE
The room area could be too large; double-check the cooling area.
SmartHome app.
39
WARRANTY
Air Conditioner Limited Warranty
Your product is protected by this Limited Warranty:
Warranty service must be obtained from Midea Consumer Services or an authorized Midea servicer.
Warranty
•
•
Three Year Full warranty from the date of delivery or the purchase date, whichever is later.
The date of delivery establishes the warranty period, should service be required.
Midea, through its authorized servicers will:
• Pay all costs for reparing or replacing parts of this appliance which prove to be defective in materials
or workmanship.
Consumer will be responsible for:
• Diagnostics, removal, transportation and reinstallation cost required because of service.
• Costs of serv
ice calls that are a result of items listed under NORMAL RESPONS
ABILITIES OF THE CONSUMER**
Midea replacement parts shall be used and will be warranted only for the original warranty.
NORMAL RESPONSABILITIES OF THE CONSUMER**
This warranty applies only to products in ordinary household use, and the consumer is responsible for
the items listed below:
1. Proper use of the appliance in acor
dance with instructions provided with the product.
2. Routine maintenance and cleaning necessary to keep the good working con
dition.
3. Proper installation by an authorized service professional in accordance with instructions provided with the
appliance and in accordance with all local plumbing, electrical and/or gas codes.
4. Proper connection to a grouded power supply of sufficient voltage, replacement of blown fuses, repair of
loosen connections or defects in house wiring.
5. Expenses for making the appliance accessible fo
r servicing.
6. Damages to finish after installation.
EXCLUSIONS
This warranty does not cover the following:
1) Failure caused by damage to the unit while in your possesion (other than damage caused by
defect or malfunction), by its
improper installation, or by unreasonable use of the unit, including
without limitation, failure to provide reasonable and necessary maintenance or to follow the written
installation and Operating Instructions.
2) Damages caused by services performed by persons other than those authorized by Midea customer
service; or external causes such as abuse, misuse
, inadequate power supply or acts of God.
3) If the unit is put to commercial, business, rental, or other use or application other than for consumer
use, we make no warranties, express or implied, including but not limited to, any implied warranty of
merchantability or fitness for use or purpose.
4) Products without original serial numbers or products that have serial numbers which have been altered
or cannot be readily determined.
NOTICE: Some states do not allow the exclusions or limitation of incidental or consequential damages.
So this limitation or exclusion may not apply to you.
IF YOU NEED SERVICE
Keep your bill of sale, delivery slip, or some other appropriate payment Record.
The date on the bill establishes the warranty period, should service be required.
If service is performed, its your best interest to obtain and keep all receipts.
This written warranty gives you specific legal rights. You may also have other rights that v
ary
from state to state.
Service under this warranty must be obtained by following these steps, in order:
1) Contact Midea Consumer Services or an authorized Midea services at 1 866 646 4332.
2) If there is a question as to where to obtain service, contact our consumer relations Departament.
40
Important Safety Instructions of Power Supply Cord
WARNING
!
NOTE
!
To reduce the risk of the fire, electric shock, or injury to persons,
read the Important Safety Instructions of Power Supply Cord
before operating this appliance.

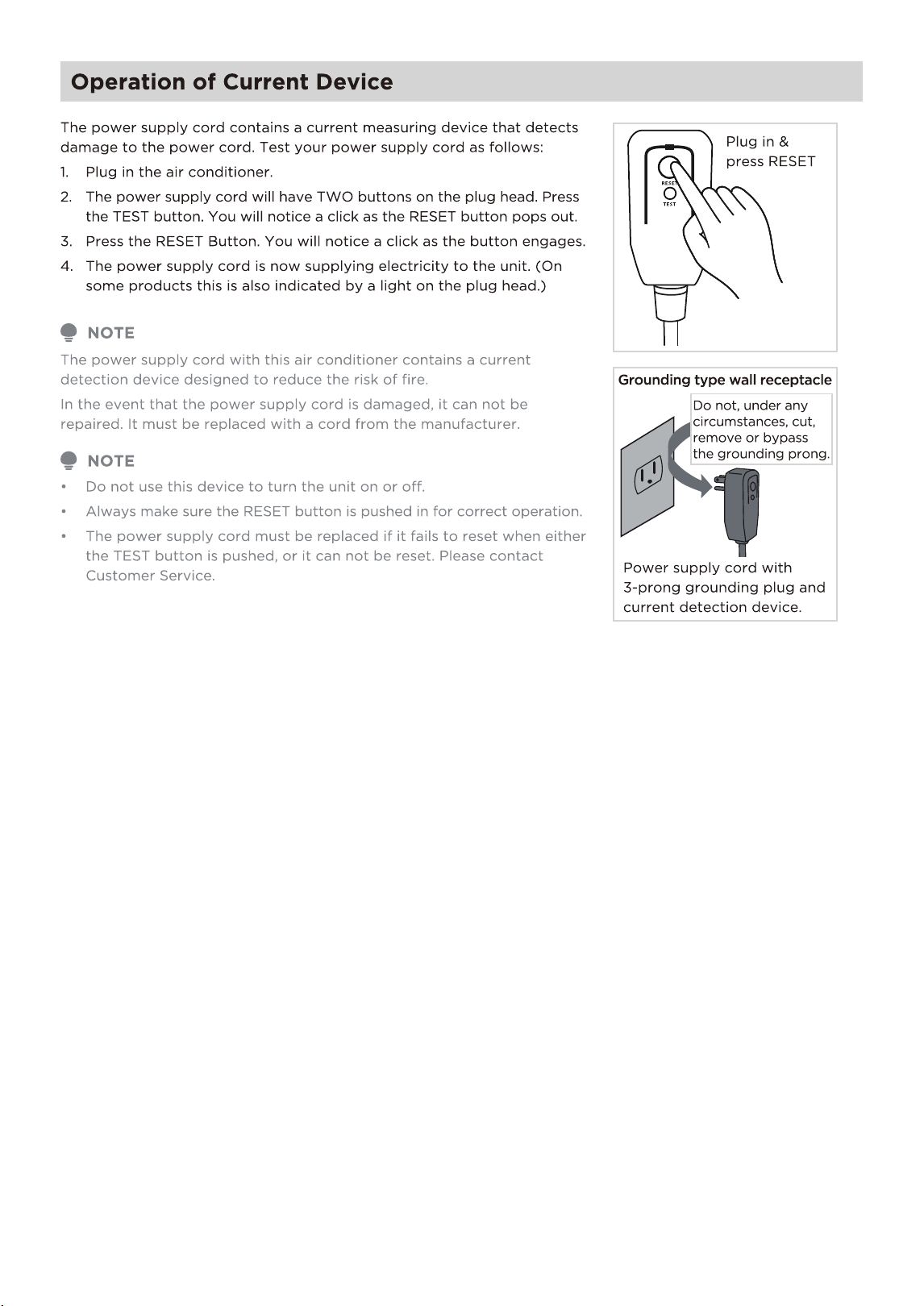

Operation of Current Device
The power supply cord with this air conditioner contains a current
detection device designed to reduce the risk of fire. Please refer to
the following section “Operation of Current Device” for details.
The power supply cord contains a current device that senses damage to
the power cord. To test your power supply cord do the following:
1. Plug in the Air Conditioner.
2. The power supply cord will have TWO buttons on the plug head. Press
the TEST button. You will notice a click as the RESET button pops out.
3. Press the RESET button. Again you will notice a click as the button
engages.
4. The p
ower supply cord is now supplying electricity to the unit. (On
some products this is also indicated by a light on the head).
NOTES:
Always make sure the RESET button is pushed in for correct operation.
Press the RESET button when the Plug Current Device tripped and the
air conditioner does not operate.
The power supply cord must be replaced if it fails to reset when either
the TEST button is pushed, or it cannot be reset. A new one can be
obtained from the product manufacturer.
If power supply cord is damaged, it CANNOT be repaired. It MUST be
replaced by one obtained from the product manufacturer.
WARNING
!
Avoid fire hazard or electric shock. Do not use an extension
cord or an adaptor plug. Do not remove any prong from the
power cord.
41
NOTES
• Button design is based on a typical model and may slightly vary from the actual one
you purchased.
• This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
• This equipment has been tested and found to comply with the limits for a Class
B digital device, purs
uant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may caus
e
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in
a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
- Changes or modifications not approved by the party responsible for compliance
could void users authority to operate the equipment.
Battery Warning:
Do not mix old and new batteries and Do not mix alkaline, standard (carbon-zinc)
or rechargeable (ni-cad, ni-mh, etc.) batteries
Supplier's Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Unique Identifier: Midea RG10F2(B2)/BGEFU1, RG10F3(B2)/BGCEFU1
Responsible Party U.S. Contact Information
Midea America Corporation
300 Kimball Dr
Parsippany NJ
07054
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Telephone number or internet contact information: Midea.com/us
FCC Compliance Statement ( products subject to Part 15)
42
2024
CP001UI-PT
16122000A82425
