HL700 Digital Readout
Receiver
User Guide
Working Radius: 1 m - 460 m (3 ft - 1500 ft)
(Laser dependent):
Laser Detection Height: 127.0 mm (5“)
Numeric Readout Height: 102.0 mm (4“)
Accuracy (Dead band):
Ultra Fine 0.5 mm 0.02 in 1/32 in
Super Fine 1.0 mm 0.05 in 1/16 in
Fine 2.0 mm 0.10 in 1/8 in
Medium 5.0 mm 0.20 in 1/4 in
Coarse 10.0 mm 0.50 in 1/2 in
Reception Angle: ± 45° minimum
Detectable Spectrum: 610 nm ... 780 nm
Beeper Volumes: Loud = 110 dBA
Medium = 95 dBA
Low = 65 dBA
LED Grade Indicators: Front, Green on-grade,
Red Hi, Blue Low
Power Supply: 2 x 1.5 Volt “AA” batteries
Battery Life: 60+ hours; 16 continuous backlight
Automatic Shut Off: 30 minutes
Environmental: Waterproof, Dustproof to IP67
Weight without clamp: 371 g (13.1 oz.)
Dimensions without
clamp: 168.0 x 76.0 x 36.0 mm
(6.6” x 3.0” x 1.4”)
Operating Temperature: -20°C...+60°C (-4°F... +140°F)
Storage Temperature: -40°C...+70°C (-40°F...+158°F)
*Specifications subject to change without notice.

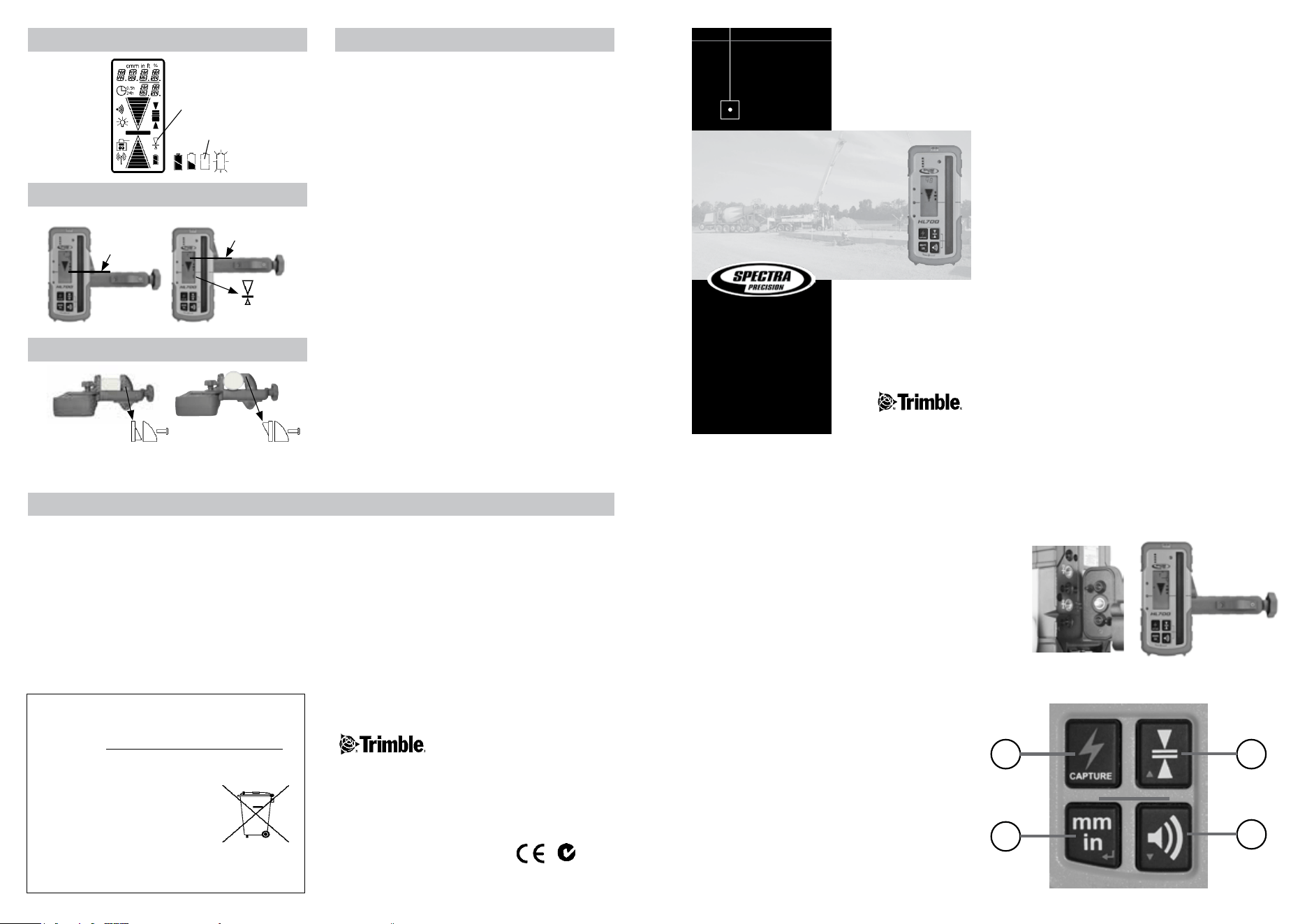

Status Symbols
Rod Clamp - Grade Rod Adjustment
Offset Clamp Position Engaged
Specications
HL700 Quick Start
1
2
3
4
Attach clamp to receiver
Insert and tighten clamp screw into lower thread on rear of
receiver
Top of clamp should be aligned with center lines of receiver
1. Press the Power switch to turn ON
Do not power up in a laser beam
Ready after “CAL” disappears
2. Select Units of Measure
mm, cm, in, frac, ft
3. Select Accuracy
Five levels Ultra Fine to Coarse
Value displayed based on units of measure selected
4. Select Volume
Four levels - Loud, Medium, Low, Off
Mount to rod or staff and position
to receive laser beam.
Notice to Our European Union Customers
For product recycling instructions and more information,
please go to: www.trimble.com/environment/summary.html
Recycling in Europe
To recycle Trimble WEEE,
call: +31 497 53 2430, and
ask for the “WEEE associate,” or
Mail a request for recycling instructions to:
Trimble Europe BV c/o Menlo Worldwide Logistics
Meerheide 45 5521 DZ Eersel, NL
OffsetNormal - Center
On-Grade
On-Grade
Offset clamp engaged
Trimble - Precision Tools
5475 Kellenburger Road
Dayton, Ohio 45424-1099
U.S.A.
+1-937-245-5600 Phone
Toll Free USA 1-888-527-3771
www.spectralasers.com
© 2018, Trimble Inc., All rights reserved.
Reorder PN 1277-3990 Rev D (EN) (11/18)
N324
Trimble warrants the HL700 to be free of defects in material and workmanship for a period of three years. Trimble or its authorized service center will
repair or replace, at its option, any defective part, or the entire product, for which notice has been given during the warranty period. If required, travel
and per diem expenses to and from the place where repairs are made will be charged to the customer at the prevailing rates. Customers should send
the product to Trimble or the nearest authorized service center for warranty repairs or exchange, freight prepaid. Any evidence of negligent, abnormal
use, accident, or any attempt to repair the product by other than factory-authorized personnel using Trimble certied or recommended parts, automati-
cally voids the warranty. The foregoing states the entire liability of Trimble regarding the purchase and use of its equipment. Trimble will not be held
responsible for any consequential loss or damage of any kind. This warranty is in lieu of all other warranties, except as set forth above, including any
implied warranty merchantability of tness for a particular purpose, are hereby disclaimed. This warranty is in lieu of all other
warranties, expressed or implied.
Warranty
EMC Declaration of Conformity
This receiver has been tested and found to comply with the limits for a
Class B digital device for radio noise for digital apparatus set out in the
Radio Interference Regulations of the Canadian Department of Com-
munication, and is pursuant to part 15 of the Federal Communication
Commission (FCC) rules. These limits are designed to provide reason-
able protection against harmful interference in a residential installation.
This receiver generates radio frequency. If it’s not used in accordance
with the instructions, it may cause harmful interference to radio or televi-
sion reception. Such interference can be determined by turning the re-
ceiver off and on. You are encouraged to try eliminating the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the laser and the receiver.
For more information, consult your dealer or an experience
radio/television technician.
CAUTION: Changes or modications to the receiver that are not ex-
pressly approved by Trimble could void authority to use the equipment.
Declaration of Conformity
Application of Council Directive(s): 89/336/EEC
Manufacturer’s Name: Trimble Inc.
Manufacturer’s Address: 5475 Kellenburger Road
Dayton, Ohio 45424-1099 U.S.A.
European Representative Address: Trimble GmbH Am Prime Parc 11
65479 Raunheim, Germany
Model Number: HL700
Conformance to Directive(s): EC Directive 89/336/EEC using
EN55022 and EN50082-1
Equipment Type/Environment: ITE/residential, commercial
& light industrial
Product Standards: Product meets the limit B and
methods of EN55022
Product meets the levels and
methods of IEC 801-2, 8 kV air,
4 kV contact IEC 801-3, 3 V/m
26 to 1000 MHz 80%, @ 1 kHz
30 minutes
Square rod
Round rod

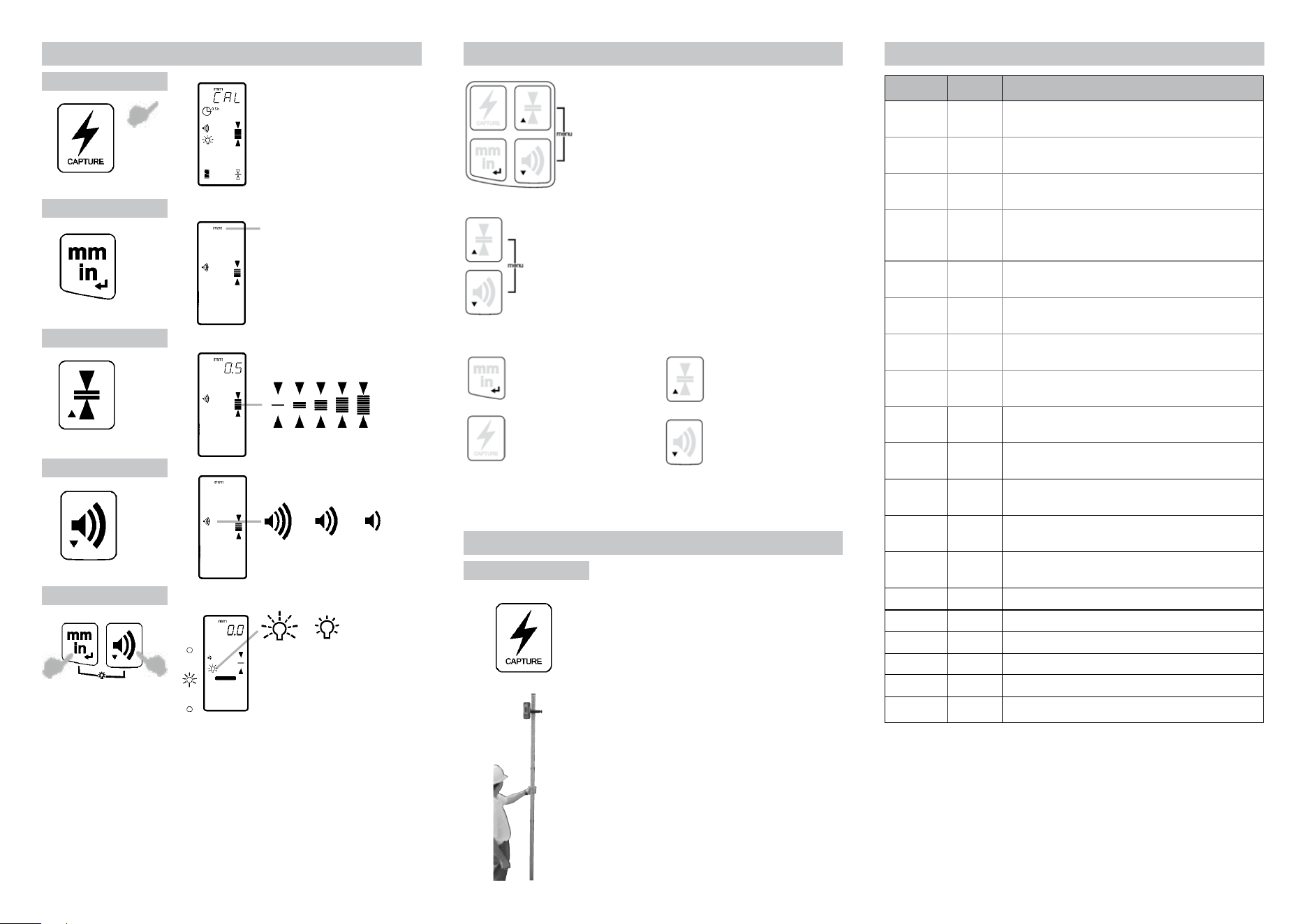

Keypad Functions
mm - cm - in - frac - ft
LEDs
Bright
LEDs
Dim
LEDs
OFF
(No symbol)
Beeper
Loud
Beeper
Medium
Beeper
Low
Power ON/OFF
Press both buttons repeatedly
to change LED brightness
LED Brightness
Accuracy in mm:
0.5 1.0 2.0 5.0 10.0
Accuracy
Beeper Volume
Units of Measure
ON - 1 sec
OFF - 2 sec
Do not power up in a
laser beam
Unit is ready after
“CAL” disappears
Menu Functions
To activate the menu,
press both switches at
the same time
▲ Scroll up
▼ Scroll down
Enter selection
Navigate “back”,
To exit
Menu Function Flow
Function Description
LGHT
OF
Backlight ON-OFF
▼
LGHT
OF
Backlight Off. Enter
LGHT
ON
Backlight On. Enter.
SENS
MD
Sensitivity Medium-High-Low
Increased sensitity increases distance
Lower sensitivity improves strobe light rejection
▼
SENS
MD
Select Med sensitivity (recommended; default)
SENS
LO
Select Low sensitivity (to improve strobe light rejection)
SENS
HI
Select High sensitivity to improve distance
FRC.R
ON
Fractional reduction ON-OFF
▼
FRC.R
ON
Turn on fraction reduction. Example reduce 4/8" to
1/2"
FRC.R
OF
Turn off fractional reduction. Fraction denomimator
stays the same. Useful to check ne surface atness.
DRFT
OF
Vertical mode drift alarm. Alerts you that laser has
moved
▼
DRFT
OF
Vertical drift alarm OFF
DRFT
ON
Vertical drift alarm ON
INFO
Information about receiver
▼ RPS Displays current rotation speed of laser
VER +
Displays software version
MODL Displays model number code
S/N +
Displays unit serial number
EXIT
Backlight
• Ativate Menu
• Scroll to LGHT. Enter.
• Scroll to ON or OF. Enter
Sensitivity
• Activate menu.
• Scroll to SENS. Enter.
• Scroll to desired sensitivity. Enter.
Fractional Inches Reduction
• Activate menu
• Scroll to FRC.R. Enter
• Scroll to ON or OF. Enter.
Drift Alarm (Laser in Vertical)
• Activate menu.
• Scroll to DRFT. Enter.
• Scroll to ON or OF. Enter.
Keypad Functions
Capture
To save current reading:
Press CAPTURE
Flashing display conrms saved reading
To CAPTURE and hold reading when receiver is too
distant to read directly:
Press CAPTURE
Place receiver in laser beam for 5 seconds
Loud chirp sound indicates reading is captured
Flashing display conrms saved reading
To Exit: Press any switch
Selected settings are retained after power off
1/32 1/16 1/8 1/4 1/2
Accuracy in frac. inch
