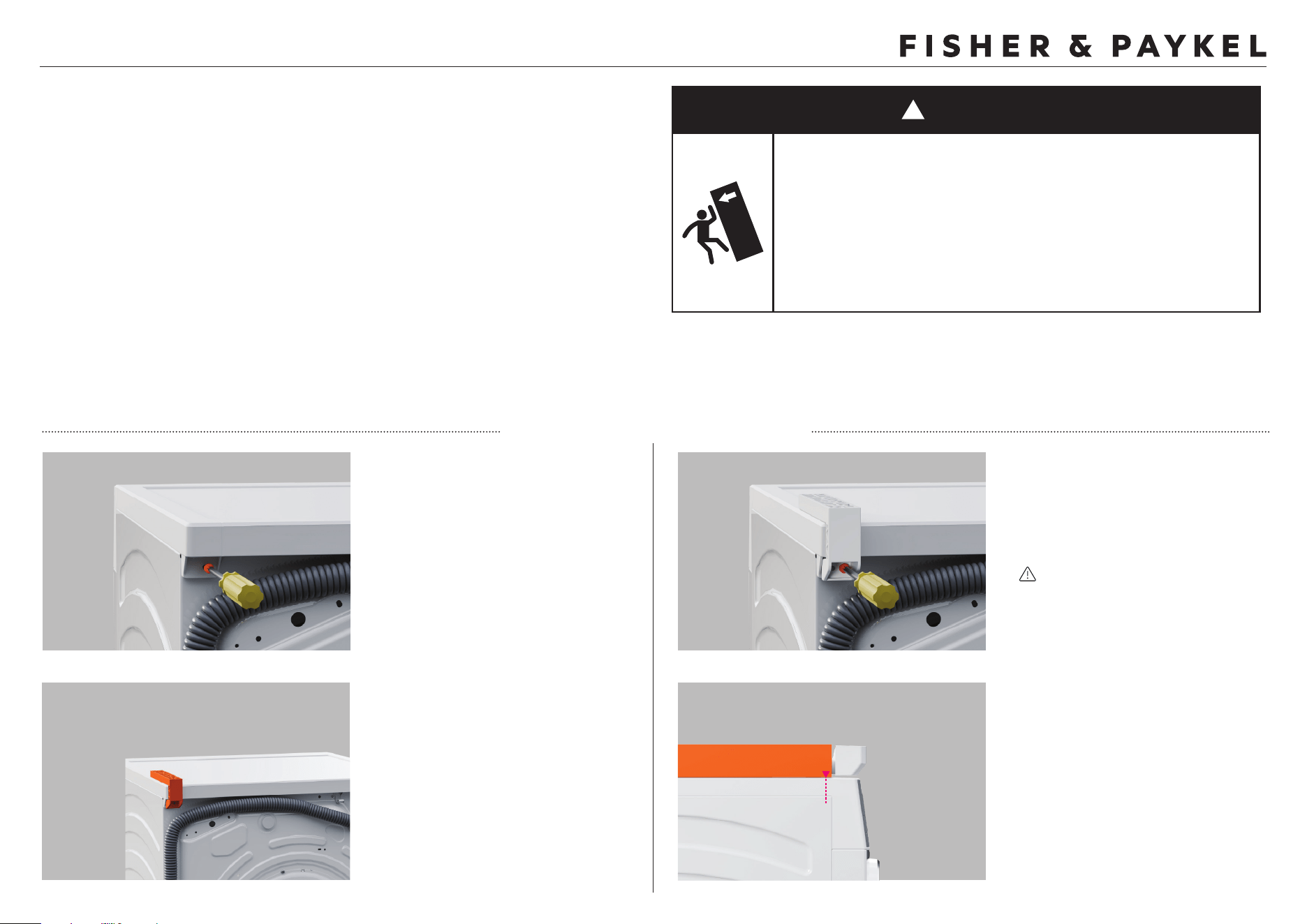

INSTALL STACKING KIT TO WASHER
STACKING KIT
z
This stacking kit can only be installed with compatible Fisher & Paykel appliances.
z
To ensure stability, the stacking kit must be fitted correctly with the appliance.
z
For further installation instructions and compatible appliance models, go to fisherpaykel.com/specify and search by product name or model.
1. Remove screws from washer using
a screw driver or drill on the lowest
torque setting.
3. Screw the brackets into place using
a screw driver or drill on the lowest
torque setting.
WARNING: Failure to tighten screws
could create a tipping hazard.
2. Fit Brackets onto the rear of the
washer.
4. Place the stacking kit over the
brackets. To ensure correct alignment,
the FRONT arrow on the stacking kit
should line up between the console
and the top panel.
STACKING KIT INSTALL GUIDE | ASKS60W5, ASKS60G5, ASKS60ZB5
!
WARNING!
Tip Hazard
• This product may tip. Keep children away and
take care. Failure to follow this advice may
result in injury.
• This appliance is top-heavy and must
be secured to prevent the possibility of
tippingforward.
READ AND SAVE THIS GUIDE
WARNING!
Read Safety Guide. Failure to follow all guides and rules could cause personal
injury or property damage. When using this appliance, always exercise basic safety
precautions including the following:
z
To avoid hazard due to instability of the appliance, it must be fixed in accordance
with installation instructions.
z
Ensure the installer has completed the final checklist in the installation guide.
z
This appliance must be installed in accordance with the installation instructions
before use.
z
Stacking kit is only designed for house hold applications.
z
Children should be supervised to ensure they do not play with the stacking kit.
z
Do not swing on the stacking kits shelf.
z
Appliances are heavy, we recommend 2 persons to move and install the appliance.

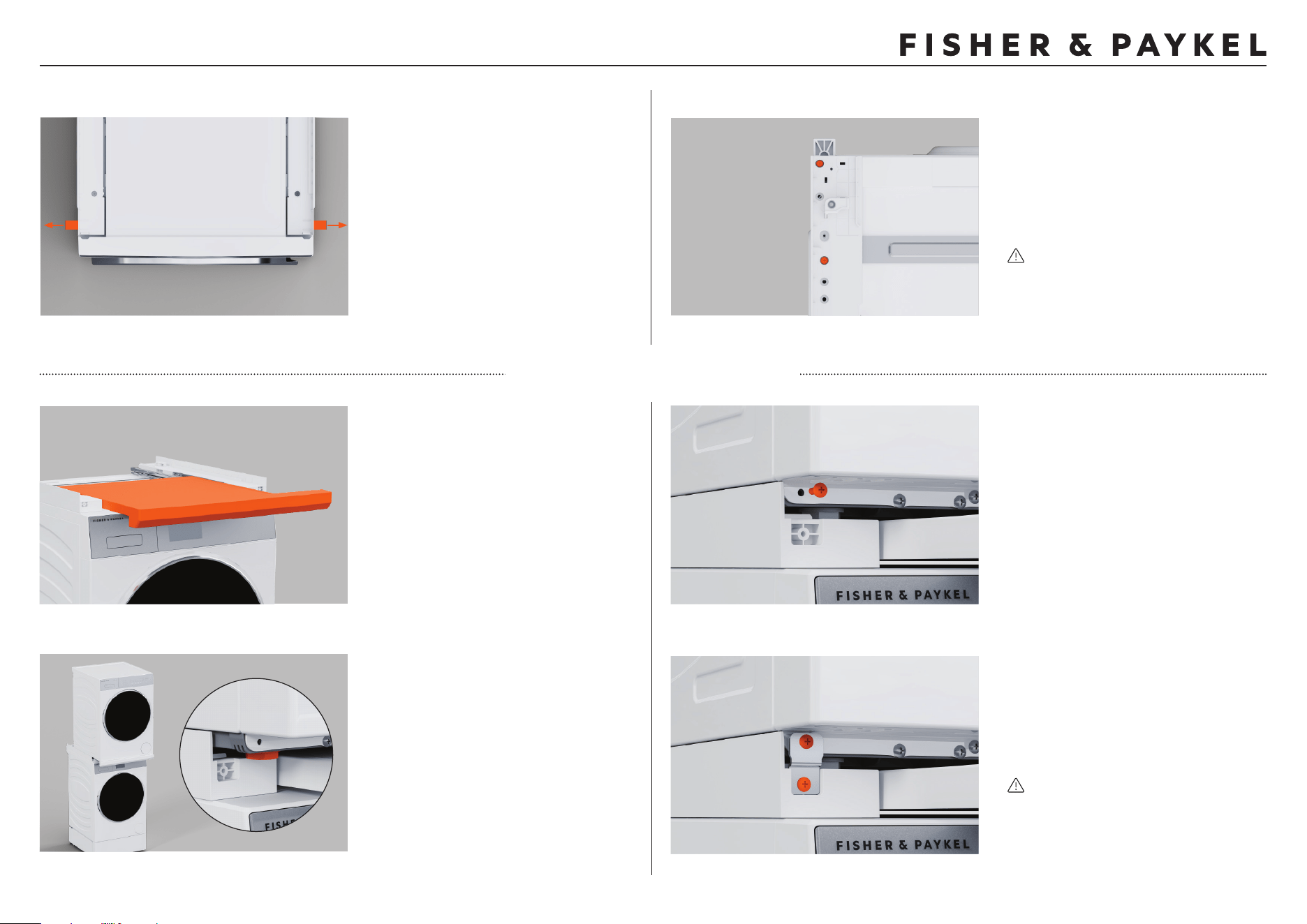

INSTALL DRYER TO STACKING KIT
1. Push the front of stacking kit so
stacking kit tray is partially open.
3. Remove the screw from the front of
the dryer then fit front brackets.
4. Re-fit screw to the dryer, and use
supplied screw to secure brackets
to stacking kit. Push the front of the
stacking kit to close the tray.
WARNING: Failure to tighten screws
could create a tipping hazard.
2. Lift the dryer over the stacking kit
and slide the dryer back until it stops.
Ensure the front dryer feet do not
catch on the front edge of the
stacking kit and the dryer remains
centred on the stacking kit.
433144B 11.25
STACKING KIT INSTALL GUIDE | ASKS60W5, ASKS60G5, ASKS60ZB5
6. Fit two screws between the
stacking kit and the brackets to secure
the back of the stacking kit in place.
Screw positions differ depending on
the washer/ dryer variant.
WARNING: Failure to tighten screws
could create a tipping hazard.
5. Ensure the stacking kit is centred to
the washer. Peel off the VHB backing
tabs and press down to secure the
front of the stacking kit in place.
