01 General Power Tool Safety
WARNING! Read all safety warnings, instructions, illustrations
and specifications provided with this power tool. Failure to follow
all instructions listed below may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operat-
ed (corded) power tool or battery–operated (cordless) power tool.
Work area safety
• Keep work area clean and well lit. Cluttered or dark areas invite
accidents.
• Do not operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gases or dust. Power
tools create sparks which may ignite thedust or fumes.
• Keep children and bystanders away while operating a
powertool. Distractions can cause you to lose control.
Electrical safety
• Power tool plugs must match the outlet. Never modi
fy the plug
in any way. Do not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such
as pipes, radiators, ranges and refrigerators. There is an
increased risk of electric shock if your body is earthed or
grounded.
• Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
01
Personal safety
• Stay alert, watch what you are doing and use common sense
when operating a power tool. Do not use a power tool while
you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention while operating power
tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye
protection. Protective equipment such as a dust mask, non-skid
safety shoes, hard hat or hearing protection used for appropriate
conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the
off–position before connecting to power source and/or battery
pack, picking up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools that have the
switch on invites accidents.
• Remove any adjusting key or wrench before turning the power
tool on. A wrench or a key left attached to a rotating part of the
power tool ma
y result in personal injury.
02
• Do not abuse the cord. Never use the cord for carrying, pulling
or unplugging the power tool. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use
a residual current device (RCD) protected supply. Use of an
RCD reduces the risk of electric shock.
• Instructions for class IIl appliances state that it must only be
supplied at SELV
03
• Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected
situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep
your hair and clothing away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction
and collection facilities, ensure these are connected and
properly used. Use of dust collection can reduce dust-related
hazards.
• Do not let familiarity gained from frequent use of tools allow
you to become complacent and ignore tool safety principles. A
careless action can cause severe injury within a fraction of a
second.
• This product is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the product
by a person responsible for their safety
.

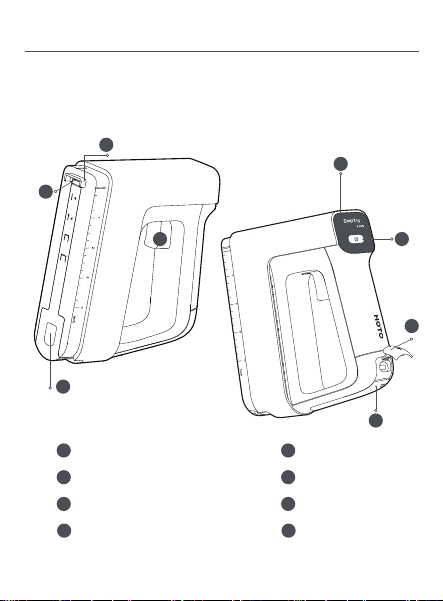

1
Display
2
On/Off Button
3
Workpiece Contact Bracket
4
Releasing Point
5
Trigger
6
Charging Port
7
Nail Puller
8
Magazine Latch
8
5
3
1
2
6
7
4
02 Product Information
This tool is for stapling objects, such as cloth, leather, cardboard,
thin film, insulation and etc, on soft workpiece like wood by using
heavy duty staples and brad nails. Please do not use this tool
against wall.
04
05

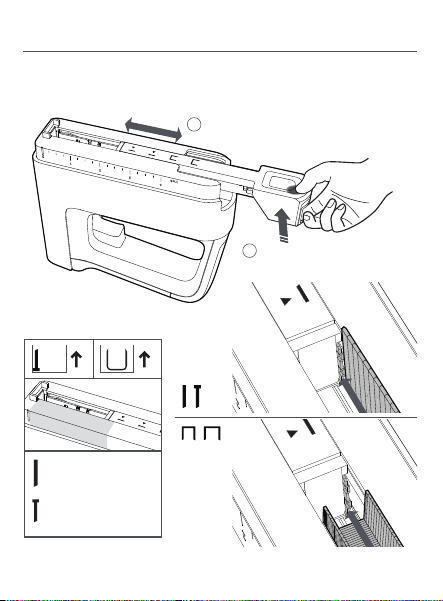

• Press the latch and pull out the magazine.
• Insert the staples into the magazine channel. Press the latch and
close the magazine.
03 How to Use
1
Press
2
Pull out/back
When loading these
two types of nails,
place them against
the left side of the
magazine.
the left side
Nail Loading Direction

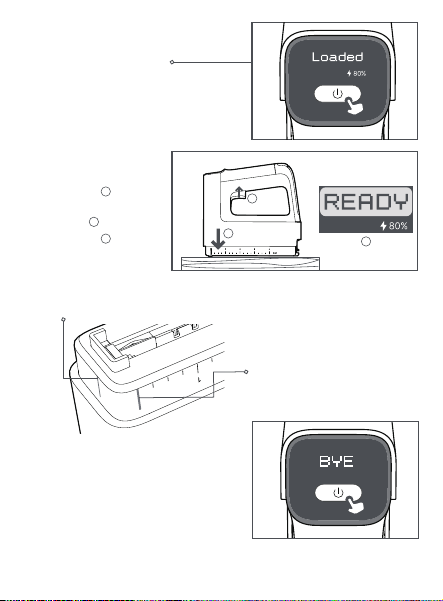

06
• Press and hold the
On/Off button.
The screen will light
up and display
“Loaded”.
• Press the contact
bracket against the
workpiece , when
the screen displays
“READY” then pull
the trigger .
A
B
C
·Side yellow reference line:
to assist in determining
the firing point of all
compatible fasteners.
• Short yellow reference line: to assist in determining the firing
point of short nails and long nails.
• Point the contact bracket at
the workpiece.
C
A
B
• After finishing work, press
and hold the on/off button
until the screen displays
“BYE” to shut down.
07

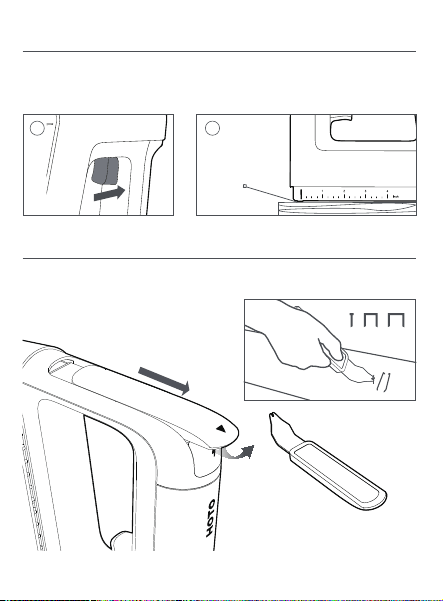

• Keep the trigger depressed.
• The tool fires when the contact bracket is pressed against the
workpiece.
1
fires
each
time
2
04 Continuous Firing Mode
05 Staple/Nail Puller Operation
• A detachable nail puller is located at the bottom of the tool. Use
it to remove staples.
Pull out
08
06 Loading & Countdown Function
• When the tool is powered on without staples or nails, the screen
displays “Empty.”
• When staples or nails are properly loaded, the screen displays
“Loaded.”
Compatible Fasteners
LEG LENGTH
TYPE WIRE CROWN
1.2 mm (0.047 in)
1.2 mm (0.047 in)
10.6–11.3 mm
(0.417–0.445 in)
8–14 mm
(0.31–0.55 in)
0.7 mm (0.028 in)
10.6–11.3 mm
(0.417–0.445 in)
8–14 mm
(0.31–0.55 in)
2.0 mm (0.079 in) 15 mm (0.59 in)
1.2 mm (0.047 in) 1.0 mm (0.039 in) 15 mm (0.59 in)
09
• When the remaining staples or nails count reaches 10, the
screen begins counting down.
Note:
• If the initial staple or nail load is insufficient(≤20), or if the
magazine is opened during the countdown, the countdown
function will fail.
• If mixed staple or nail types are loaded, the countdown function
will fail. This may also cause jams and damage the device.
Warning:
• While loading staples or nails, ensure the device is turned off or
it could result in injury.
• The staple legs should point outwards away from tool body, or it
could result in injury.
• Do not use damaged or bent staples.
• Do not load a single staple, it may cause jam.
• Do not over-load staple, please load staples properly.
• Please remove all staples after use.
10
07 Battery Charging
• When the battery is low, a warning appears on the screen.
• When the battery level becomes critically low, the screen
displays a warning icon and the tool powers off.
• The screen shows the charging progress during charging.
• After charging is complete, the screen displays 100%.
·A yellow reference line is given at the front of the tool to help
users determine the firing point of the nail before nailing. As
different nail types, material hardness, and operating angles
may affect the actual firing point, testing on scrap material
before work is recommended.
Power tool use and care
• Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and
safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and
off. Any power tool that cannot be controlled with the switch is
dangerous and must be repaired.
• Disconnect the plug from the power source and/or remove the
battery pack, if detachable, from the power tool before making
any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the
power tool accidentally.
• Store idle power tools out of the reach of children and do not
allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
• Maintain power tools and accessories. Check for misalignment
or binding of moving parts, breakage of parts and any other
condition that may affect the power
tool's operation. If
damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
08 Maintenance
• Do not disassemble the tool.
• Repairs and maintenance should be performed by qualified
technicians or an authorized service center.
• Use a dry, clean, lint-free cloth to remove dust from the exterior
of the tool.
• Clean the tool carefully to ensure it remains in good working
condition.
• Do not use corrosive chemicals or cleaners. Do not use abrasive
cleaners, alcohol, gasoline, or other liquid cleaners.
11
Battery tool use and care
• Recharge only with the charger specified by the manufacturer.
A charger that is suitable for one type of battery pack may
create a risk of fire when used with another battery pack.
• Use power tools only with specifically designated battery
packs. Use of any other battery packs may create a risk of injury
and fire.
• When battery pack is not in use, keep it away from other metal
objects, like paper clips, coins, keys, nails, screws or other
small metal objects, that can make a connection from one
terminal to another. Shorting the battery terminals together may
cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the
battery; avoid contact. If contact accidentally occurs, flush with
water. If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the bat
tery may cause irritation or burns.
• Do not use a battery pack or tool that is damaged or modified.
Damaged or modified batteries may exhibit unpredictable
behavior resulting in fire, explosion or risk of injury.
12
• Use the power tool, accessories and tool bits etc. in accor-
dance with these instructions, taking into account the working
conditions and the work to be performed. Use of the power tool
for operations different from those intended could result in a
hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from
oil and grease. Slippery handles and grasping surfaces do not
allow for safe handling and control of the tool in unexpected
situations.
13
• Do not expose a battery pack or tool to fire or excessive
temperature. Exposure to fire or temperature above 130°C may
cause explosion.
• Follow all charging instructions and do not charge the battery
pack or tool outside the temperature range specified in the
instructions. Charging improperly or at temperatures outside
the specified range may damage the battery and increase the
risk of fire.
Service
• Have your power tool serviced by a qualified repair person
using only identical replacement parts. This will ensure that the
safety of the power tool is maintained.
• Never service damaged battery packs. Service of battery packs
should only be performed by the manufacturer or authorized
service providers.
Safety instructions when using long drill bits
• Never operate at higher speed than the maximum speed rating
of the drill bit. At higher speeds, the bit is likely to bend if
allowed to rotate freely without contacting the workpiece,
resulting in personal injury.
• Always start drilling at low speed and with the bit tip in contact
with the workpiece. At higher speeds, the bit is likely to bend if
al
lowed to rotate freely without contacting the workpiece,
resulting in personal injury.
• Apply pressure only in direct line with the bit and do not apply
excessive pressure. Bits can bend causing breakage or loss of
control, resulting in personal injury.
14
Safety warning of Rotary Tool Kit
Hold the tool by the insulated gripping surface if the cutting and
drillingaccessories could contact hidden wires duringoperation.
Were cuttingand drilling accessories to contact live wires, exposed
metal parts mayconduct the electricity and cause electric shock to
the operator.
Safety Instructions for Drill/Driver
Hold the power tool by insulated gripping surfaces, when
performing an operation where the cutting accessory or
fasteners may contact hidden wiring. Cutting accessory
contacting a "live" wire may make exposed metal parts of the
power tool "live" and could give the operator an electric shock.
Additional safety information
• Secure the workpiece. A workpiece clamped with clamping
devices or in a vice is held more secure than by hand.
• Always wait until the power tool has come to a complete stop
before placing it down. The application tool can jam and cause
you to lose control of the power tool.
• Switch the power tool off immediately if the application tool
becomes blocked. Be prepared for hi
gh torque reactions which
cause kickback. The application tool becomes blocked when it
becomes jammed in the workpiece or when the power tool
becomes overloaded.
• Use suitable detectors to determine if there are hidden supply
lines or contact the local utility company for assistance.
Contact with electric cables can cause fire and electrical shock.
Damaging gas lines can lead to explosion. Breaking water pipes
causes property damage.
15
• Hold the power tool securely. When tightening and loosening
screws be prepared for temporarily high torque reactions.
• In case of damage and improper use of the battery, vapours
may be emitted. The battery can set alight or explode. Ensure
the area is well ventilated and seek medical attention should you
experience any adverse effects. The vapours may irritate the
respiratory system.
• Do not open the battery. There is a risk of short-circuiting.
• The battery can be damaged by pointed objects such as nails
or screwdrivers or by force applied externally. An internal short
circuit may occur, causing the battery to burn, smoke, explode
or overheat.
• Only use the battery with products from the manufacturer. This
is the only way in which you can protect the battery against
dangerous overload.
• Protect the battery against heat, e.g. against continuous
intense sunlight, fire, dirt, water and moisture. There is a risk of
explosion and short-circuiting. This product has a built-in battery.
Please store, use, and charge this product within the
recommended temperature range. Operating temperature:
0°C~45°C; Charging temperature: 0°C~45°C; Storage
temperature: -20°C~25°C."
16
Information: The declared vibration total value(s) and the declared
noise emission value(s) have been measured in accordance with a
standard test method and may be used for comparing one tool
with another; The declared vibration total value(s) and the declared
noise emission value(s) may also be used in a preliminary
assessment of exposure.
The vibration and noise emissions during actual use of the power
tool can differ from the declared values depending on the ways in
which the tool is used especially what kind of workpiece is
processed; and It is necessary to identify safety measures to
protect the operator that are based on an estimation of exposure
in the actual conditions of use (taking account of all parts of the
operating cycle such as the times when the tool is switched off
and when it is running idle in addition to the trigger time).
Declaration of the noise emission values according to EN 62841
(considered uncertainty 5 dB (A))
Sound pressure level:
6/dB (A)
Sound power level: 78 dB (A)
Declaration of the vibration emission according to EN 62841
(considered uncertainty 1.5 m/s3): 1.3 m/s
The packaging materials are recyclable. Please dispose
of packaging in an environmentally friendly manner.
Notes for packaging
We Shanghai HOTO Technology Co., Ltd., hereby,
declares that this equipment is in compliance with the
applicable Directives and European Norms, and
amendments.
All products bearing this symbol are waste electrical and
electronic equipment (WEEE as in directive 2012/19/EU)
which should not be mixed with unsorted household waste.
Instead, you should protect human health and the
environment by handing over your waste equipment to a
designated collection point for the recycling of waste electrical and
electronic equipment, appointed by the government or local
authorities. Correct disposal and recycling will help prevent
potential negative consequences to the environment and human
health. Please contact the installer or local authorities for more
information about the location as well as terms and conditions of
such collection points.
17
Trouble
Jam
◦ Staple size is correct or not
◦ Power on or not
◦ Operating properly or not
Staples do not
fully penetrate
into workpiece
◦ Work-piece is too hard
◦ Contact bracket is not firmly against
workpiece
Staples are bended
after driving
◦ Work-piece is too hard
◦ Contact bracket is not firmly against
workpiece
Please replace adpater and charging
cable to charge
Troubleshooting
Troubleshooting
Unable to charge
Contact manufacturer or authorized
service agent to repair
Battery damaged
Charge the tool
Tool does not work
18
EC
REP
Apex CE Specialists GmbH
Grafenberger Allee 277,
40237 Düsseldorf DE
E-Mail: Info@apex-ce.de
09 Specification
Name: HOTO Pulse 4-in-1 Cordless Stapler
Model: QWJXA003
Item Dimensions: Approx. 6.69 × 1.89 × 6.54 in (170 × 48 × 166 mm)
Product Net Weight: Approx. 2.27lb (1033 g)
Color: Silver and Black
Rated Input: 5 V 2 A
Rated Voltage: 3.7 V
Battery Type: Lithium-ion battery
Rated Capacity: 1950 mAh
Operating Temperature: -10°C~40°C
Charging Temperature: 5°C~40°C
Storage Temperature: -10°C~45°C
Operating Noise: Around 85 dB (A)
Rated Power: 44.4 W
Charging Port: USB Type-C
Charging Time: Approx. 1.5hours
Federal Communications Commission
Supplier's Declaration of Conformity
This supplier's declaration of conformity is hereby for
We declare that the above mentioned device has been tested and
found in compliance with CFR 47 Part 15 Regulation.
Product: HOTO Pulse 4-in-1 Cordless Stapler
Product model: QWJXA003
Brand/Trade: HOTO
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may
cause undesired operation.
Caution: Any changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the
user's authority to operate the equipment.
Manufacturer: Shanghai HOTO Technology Co., Ltd.
Address: Building 45, No. 50, Moganshan Road, Shanghai, China
Representative of Responsible Party for SDoC
Company: HOTO (US) TECHNOLOGY CO LTD
Address: 919 North Market Street, Suite 950,
Wilmington DE 19801
Country: U.S.A.
Customer Service(US): +1 855-577-2659
service@hototools.com
Mon-Fri 9:00am-5:00pm(CST)
19
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not
occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and rece
iver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
20
21
EU Declaration of Conformity
We
Shanghai HOTO Technology Co., Ltd.
Declare that the product:
HOTO Pulse 4-in-1 Cordless Stapler/QWJXA003
Complies with the essential health and safety requirements of the
following directives:
2014/30/EU Electromagnetic Compatibility directive References to
the following harmonized standard were made:
EN IEC 55014-1:2021
EN IEC 55014-2:2021
EN IEC 61000-3-2:2019+A1:2021+A2:2024
EN 61000-3-3:2013+A2:2021+AC:2022-01
2011/65/EU+ (EU) 2015/863 Restrictions of the Use of Certain
Hazardous Substances in Electrical and Electronic Equipment
Authorised signatory and technical file holder:
Shanghai HOTO Technology Co., Ltd.
Building 45, No.50 Moganshan Road, Shanghai, China
DECLARATION OF CONFORMITY
