Did you know...
Lightning-related incidents account for more than $1 billion in
insurance claims annually? Protect your home from lightning (and
utility) related surges with Siemens' complete line of surge
protection products. Whether you are building a new home, or
want to protect your current home, Siemens offers at-the-source
protection for all of your valuable appliances and electronics.
usa.siemens.com/surge
Selection and Application Guide
Residential Surge Products
Protect your home from costly power surges
3
Table of Contents
What is surge?
3
Product Introduction
4
FirstSurge™
5-6
FSPHONE & FSPHONE4X
7-8

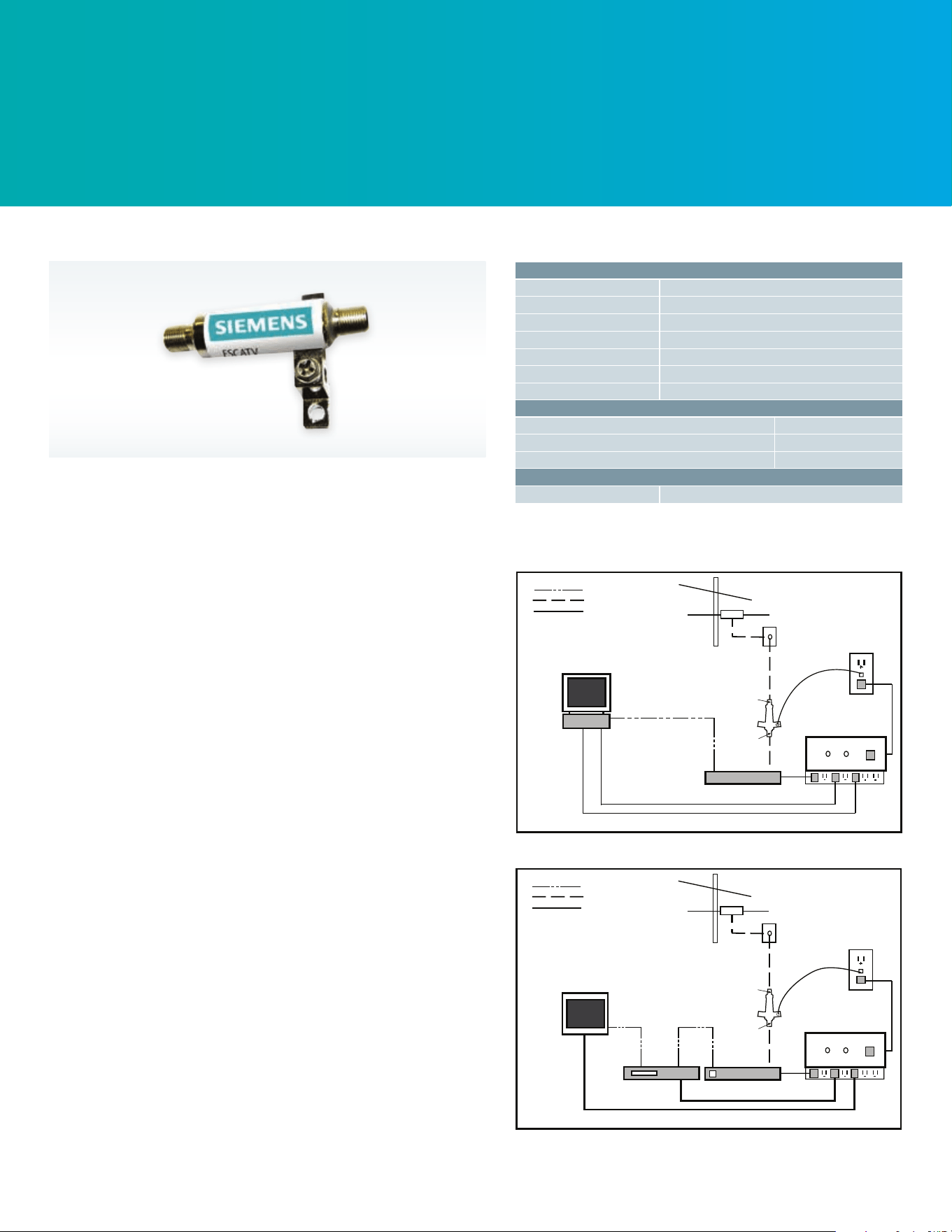

FSCATV
9

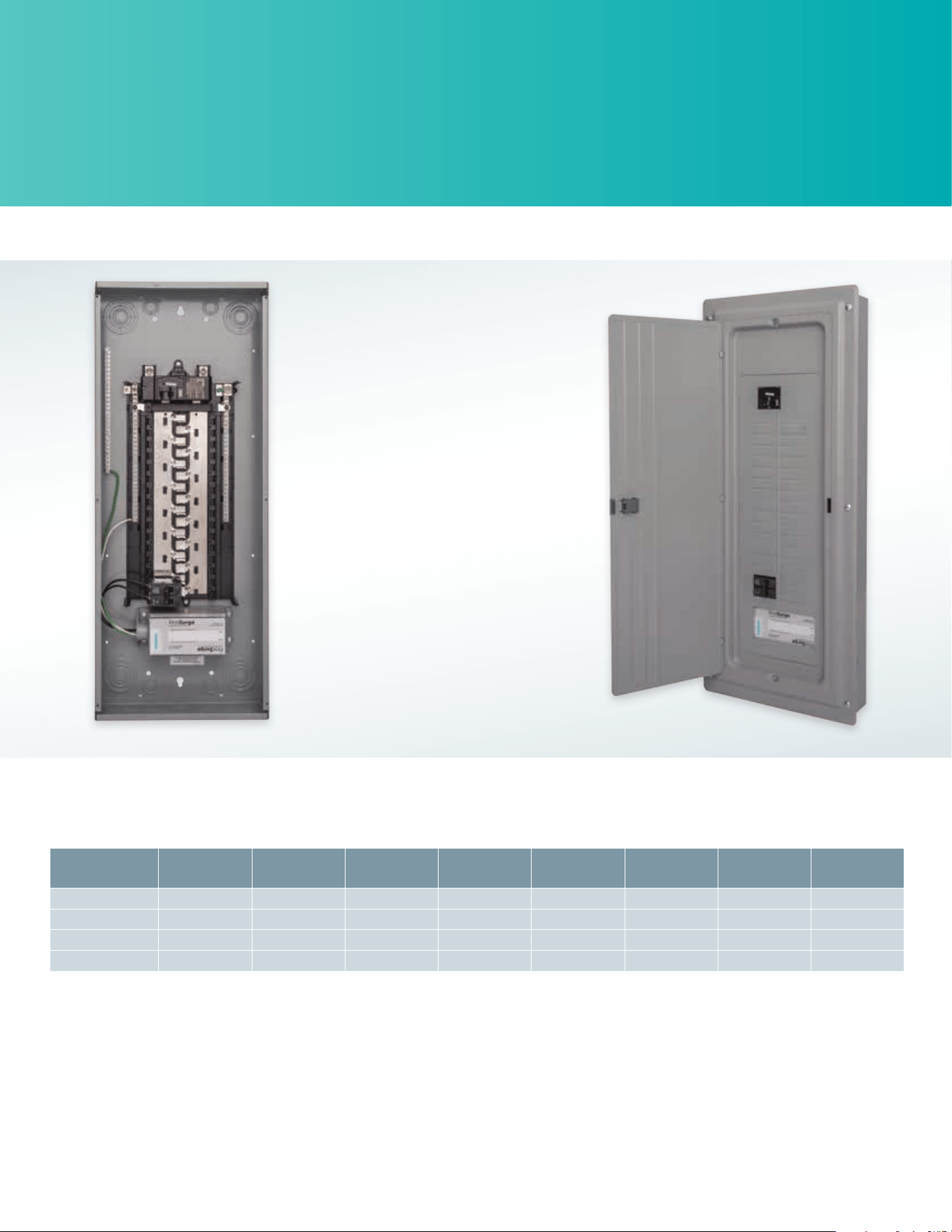

Surge Load Centers
10

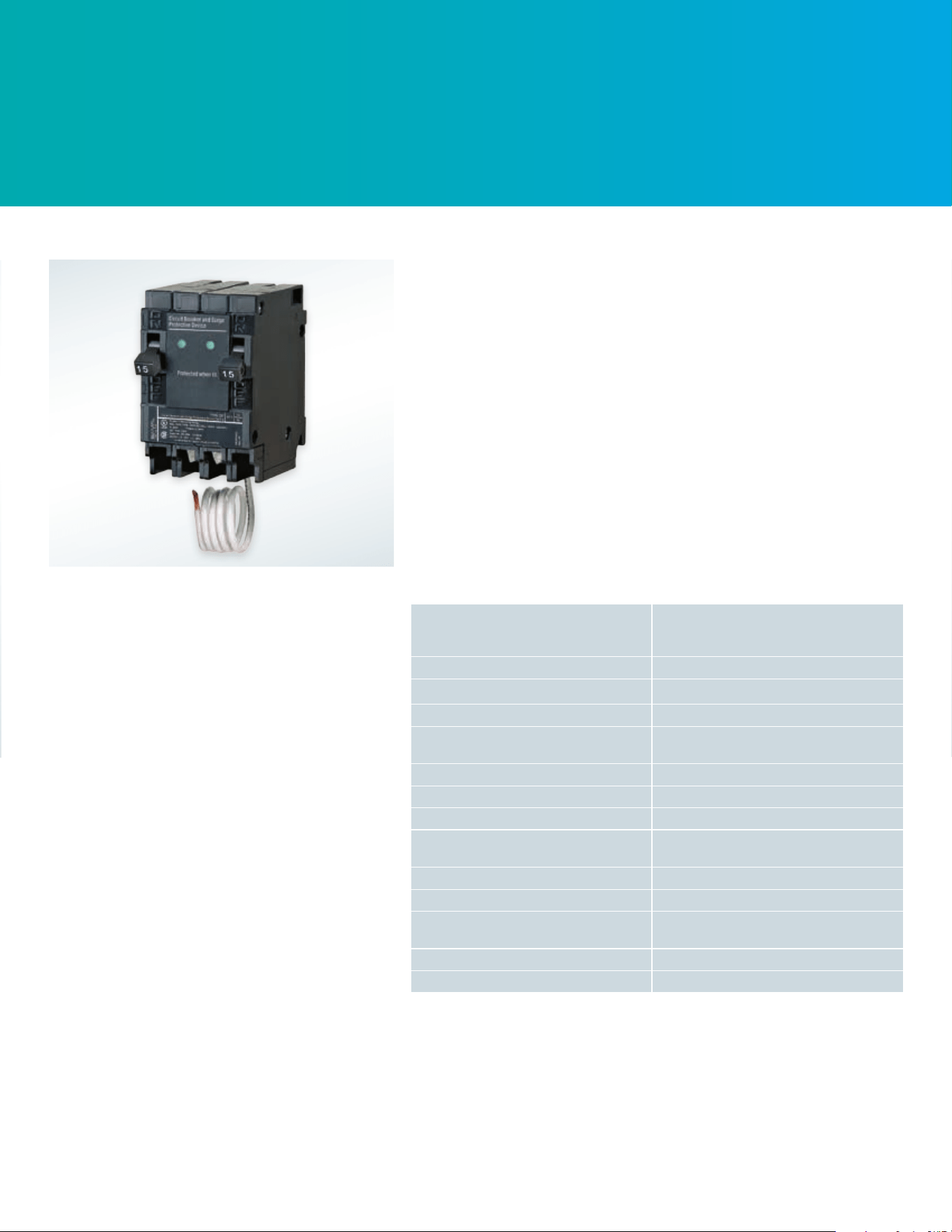

Circuit Breaker and Surge Protective Device (SPD)
11
3

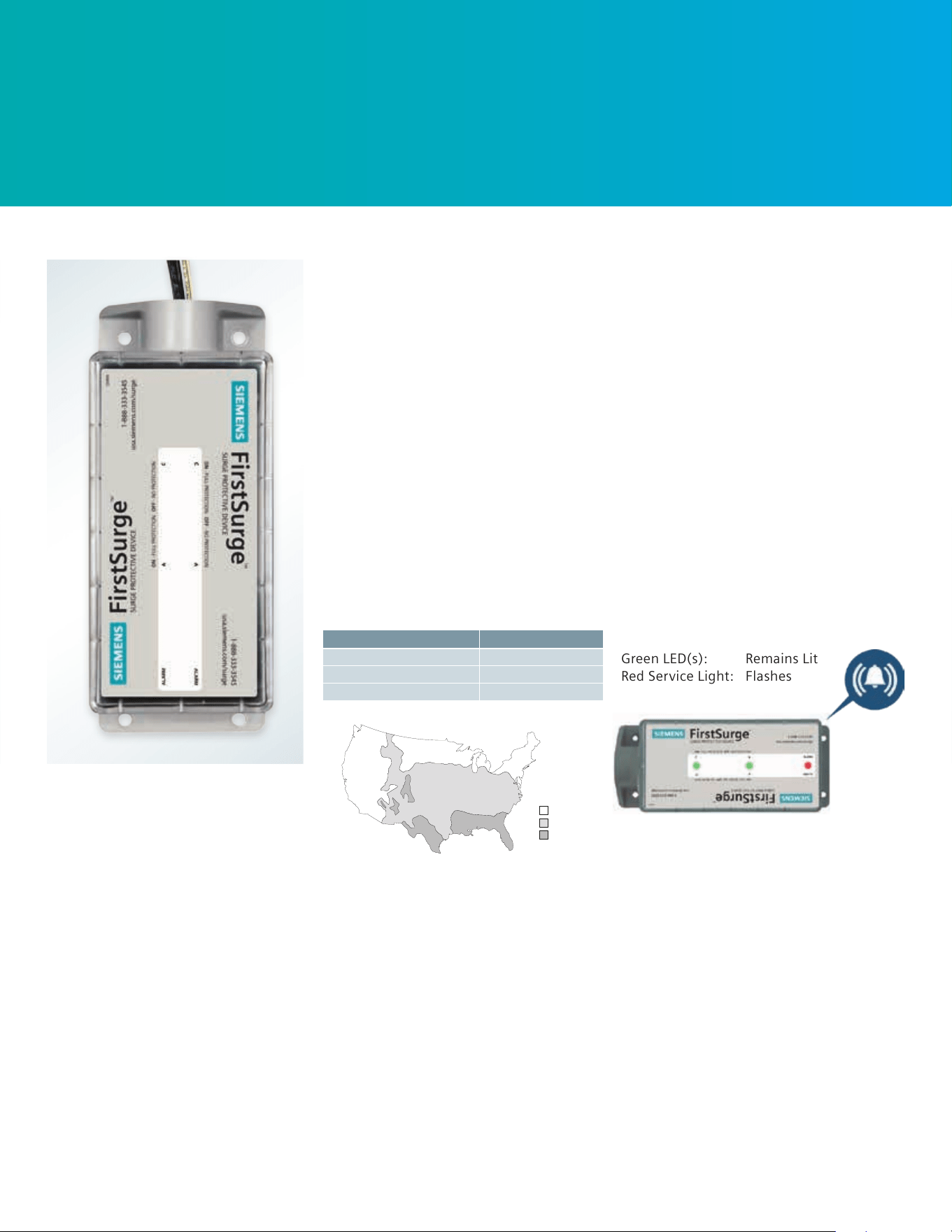

FirstSurge™
Total Home Surge Protection
• Electrical surges are sudden and
unexpected spikes in voltage that travel
throughout your home/office electrical
systems.
• Some surges come from within your
own home/office, such as turning on a
vacuum cleaner or sending a document
to your printer. Other surges come from
outside your home, as in electric utility
switching, downed power poles, cut
power lines, and lightning strikes. Surge
can even enter through cable televisions
and telephone wiring.
Why do you need surge protection?
• A five-year survey of power quality in
North America indicates that per house
hold there are 35 disruptive or
destructive power disturbances per year.
• Deregulation of the electric utility
industry is expected to decrease the
quality of utility power in the near
future.
• Annually, 30% of power outages are
lightning related.
• Five percent of all insurance claims are
lightning related, amounting to over $1
billion per year.
• These electrical disturbances can ruin or
severely damage motor driven appliances,
electronics, disrupt satellite signals, degrade
the performance of sensitive audio/ video
components, and wreak havoc with
telecommunication systems.
It’s far less expensive to invest in protection
than it is to replace costly appliances.
How to protect your home?
The first line of defense is the point of entry
where electricity enters a home through the
main electrical service panel, where surges
and voltage spikes from lightning strikes enter
the electrical system.
Point of entry protection devices, or surge
arresters, drive surges to ground before they
can enter the premises providing
whole house protection!
In addition to the vital point of entry
protection, point of use devices provide
enhanced protection for electronic devices by
having a much lower limiting voltage.
Tiered protection plan:
• Protecting with the surge arresters
at the point of entry
• Enhanced protection on electronic
equipment at the point of use
What is surge?

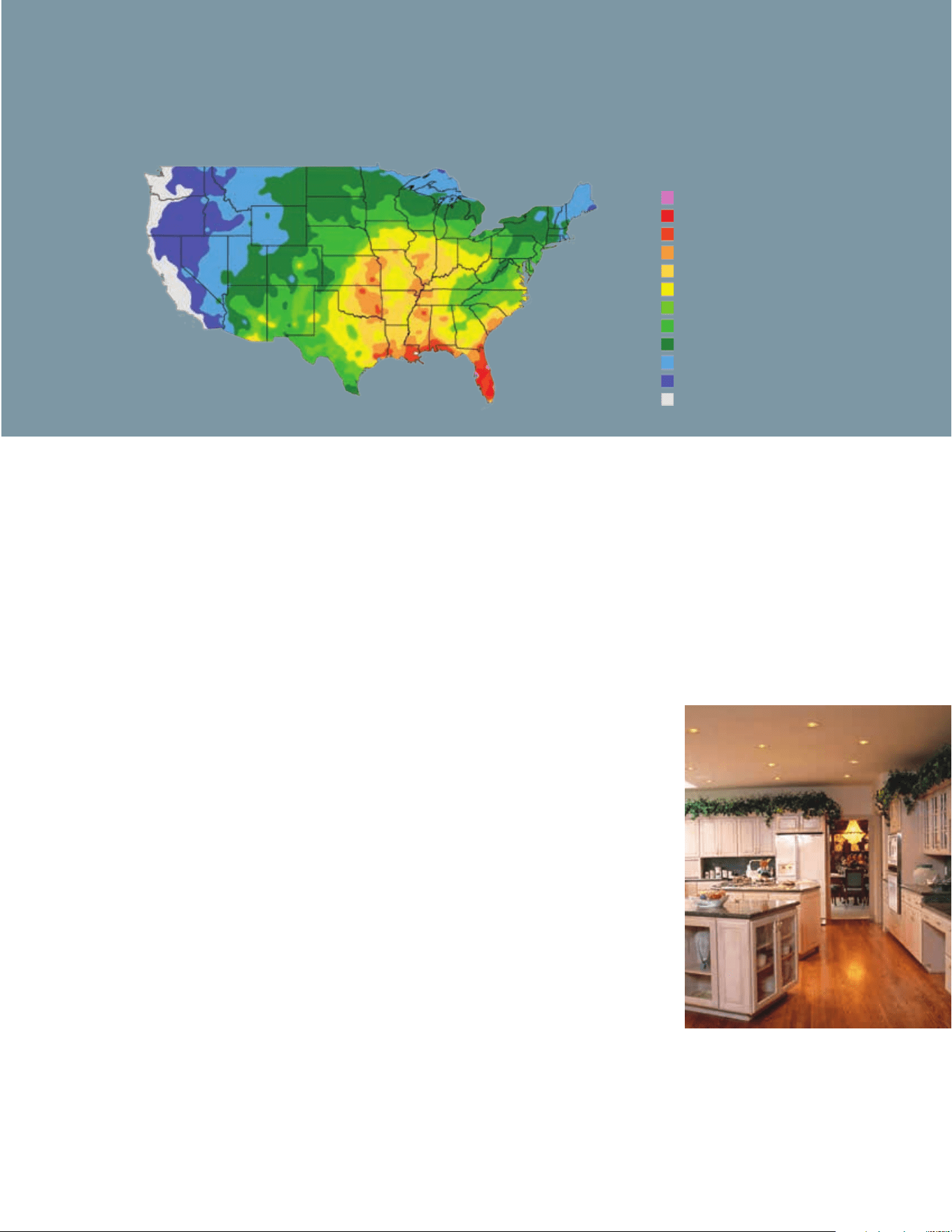

Vaisala National Lightning Detection Network® (NLDN®)
Cloud-to-Ground Lightning Incidence in the Continental U.S. (1997-2011)
33 +
27 to 33
21 to 27
18 to 21
15 to 18
12 to 15
9 to 12
6 to 9
3 to 6
1 to 3
0.25 to 1
0+ to 0.25
Average Flash Density
fl/sq mi/yr
4

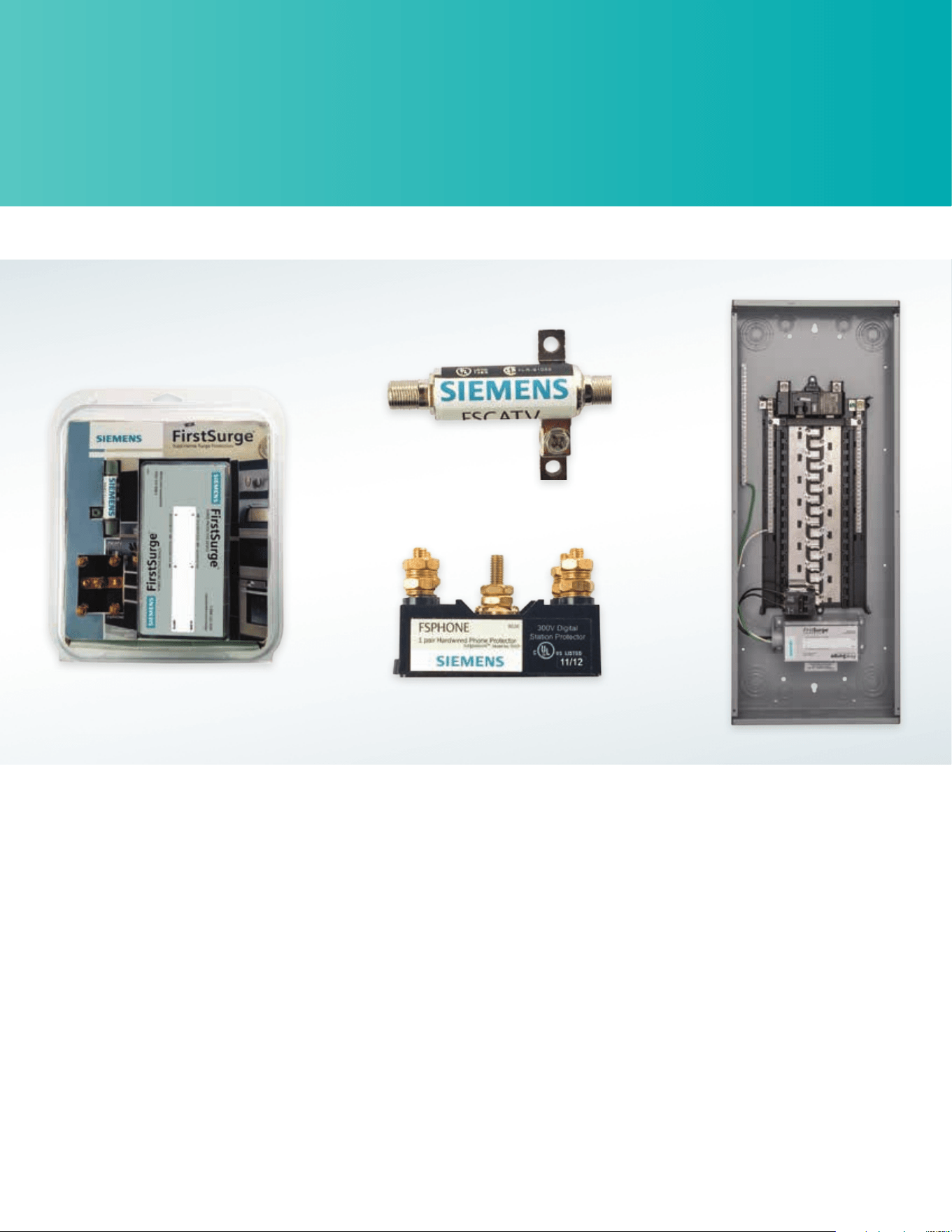

Product Introduction
Siemens' FirstSurge - a whole line of 120/240V single phase hard-wired surge products designed to protect the entire electrical
system of a home. FirstSurge offers protection levels at 60kA (FirstSurge Power), 100kA (First Surge Plus), and 140kA (FirstSurge Pro).
These three devices replace part # SPD4HOME, rated only at 40kA. In addition FirstSurge offers fully-equipped load center options
(P3054B1200S140, P4060B1200S140, S3054B1200S060, S4060B1200S060), as well as the more localized solutions of phone and
cable television surge protection. Collectively, the FirstSurge family offers a wider range of options and higher ratings than other
available solutions today. The devices can be purchased in retail (clamshell) packaging or in traditional wholesale packaging. Technical
specifications can be found within.
5
FirstSurge™
Total Home Surge Protection
Total Home Protection
Siemens believes today’s residential surge
protectors come up short when protecting
today’s modern home filled with smart
appliances and electronics.
This is why we developed our FirstSurge™
commercial class total home surge protectors.
These electrical system surge protectors are sized
for where you live. They will let you know when
there is something wrong or when they are worn
out.
Based upon thunderstorm frequency,
geographic location, and home size, we
developed a surge exposure map correlating
with FirstSurge™ current capacities known
to provide years of protective service for
each shaded area.
Sized For Where You Live
Model Surge Capacity
FirstSurge™ Power (FS060) 60,000 A
FirstSurge™ Plus (FS100) 100,000 A
FirstSurge™ Pro (FS140) 140,000 A
Know You’re Protected:
3 Stage Commerical Grade
Notification
When there is a problem, Siemens
FirstSurge™ takes the guesswork out of
knowing when it is time to be replaced.
What will you see and hear when this
occurs?
Audible Alarm: Beeps
Green LED(s): Extinguish
Red Service Light: Flashes
Ground Reference Monitoring
(GRM)
FirstSurge™ is GRM-equipped notifying you
a rare safety hazard exists due to a
compromised electrical system neutral to
ground bond. What will you see and hear
when this occurs?
Audible Alarm: Beeps
Green LED(s): Remains Lit
Red Service Light: Flashes
Power
Plus
Pro
6
FirstSurge™
Total Home Surge Protection
Installation Instructions:
FirstSurge™ is a Type 2 SPD. It is suitable for use downstream
of the service disconnect.
Pre-plan your installation. You need to accomplish the
following:
• Meet all National and Local codes (NEC
®
Article 285 and
UL1449 address SPDs).
• Confirm System voltage to SPD voltage (120V SPD will
fail instantly on 240V, 277V, etc.).
• Mount SPD as close to panel or equipment as possible to
keep leads short. (long leads hurt performance).
• Ensure leads are as short and straight as possible, including
neutral and ground. Use a breaker position that is close to
the SPD and the panel’s neutral and ground.
• Recommended breaker size is 20A.
• Make sure system is grounded per NEC
®
and clear of faults
before energizing SPD. (inadvertent system problem may fail
SPD).
• Never Hi-Pot test Any SPD. (will prematurely fail SPD).
1. Use voltmeter to check voltages and ensure correct SPD.
See Data Sheet for specs and wire-outs.
2. Determine Mounting location – weather resistant
equipment may be required.
3. If SPD has optional Flush Mount Kit, pre-plan its installation.
See Figure 3. (If flush mounting, be careful to not drop SPD
into wall).
4. Remove power from panel/source. Confirm panel/source is
deenergized.
5. Identify breaker location and SPD location. Position SPD
such that LEDs are best visible.
If Flush Mount Kit was ordered, follow Flush Mount
instructions and then proceed at #6.
6. Mount SPD – weather resistant applications require
additional sealing, etc. (not included)
- Remove an appropriately sized knockout from panel.
- Connect conductors as appropriate – short and straight
as possible.
7. Label or mark conductors as appropriate (neutral: white,
ground: green, energized: black).
8. Make sure system is bonded per NEC
®
and is clear of
hazards or faults before energizing (N-G bonding not per
NEC
®
will fail SPDs: #1 cause of SPD failures).
9. Energize and confirm proper operation of green LED
indicators. If any connected phase LED does not illuminate,
remove power, check all connections and test again. If
any connected phase LED still does not illuminate, contact
Siemens Technical Support at: 1-888-333-3545.
10. The SPD is equipped with an audible alarm which will
sound in the event of an alarm condition. This indicates a
problem with the SPD which requires further evaluation.
There is no test or silence switch. De-energizing the SPD
will silence the alarm.
Features & Benefits
• UL 1449 Listed, Type 2, Surge Protective Device (SPD)
• Rated for 120/240 split phase panels up to 400A
• Surge Current Capacities:
- 60,000 A
- 100,000 A
- 140,000 A
• 3-stage Commercial Grade Notification
• Ground Reference Monitoring (GRM)
• Installs onto any brand load center
• Type 4 rated outdoor enclosure
• 10 year product and connected equipment warranty*
*
See warranty for details
Technical Specifications
Surge Spike Capacity FirstSurge™ Power (FS060) 60,000 A
FirstSurge™ Plus (FS100) 100,000 A
FirstSurge™ Pro (FS140) 140,000 A
Line Voltage 120/240 Split Phase, 50/60 Hz
UL 1449 3rd Ed VPR L-N: 600 V
L-G: 600 V
N-G: 600 V
L-L: 900 V
Rated Voltage (MCOV) 150V – L-N, L-G, and N-G; 300V – L-L
SCCR 100kA
Response Time <1 nanosecond
Enclosure NEMA 4X Indoor and Outdoor Rated
Selection Information
FirstSurge™ Power FS060
FirstSurge™ Plus FS100
FirstSurge™ Pro FS140
FirstSurge™ Flush Mount Kit XMFMKIT
A
C
GN
BREAKER
s
1-888-333-3545
usa.siemens.com/surge
s
1-888-333-3545
usa.siemens.com/surge
• Use closest breaker to SPD
• Locate SPD close to intended breaker
• Keep Leads Short as Possible
• Avoid Sharp Bends
• Outdoor installation requires
appropriate weather sealing at
nipple (gasket, sealing conduit, etc.)
• Rotate FirstSurge™ such that
LED indicator is most visible
To Protected Loads
7

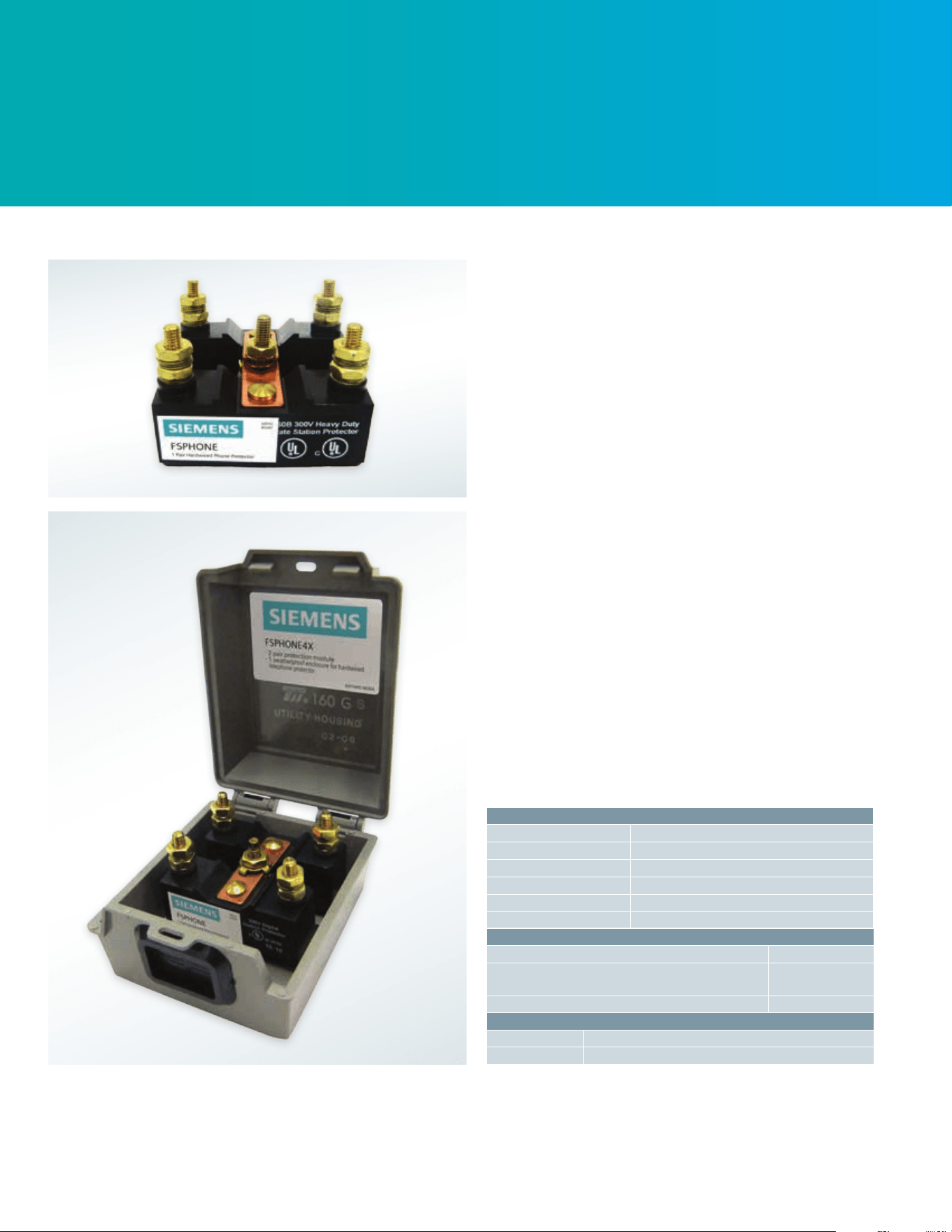

FSPHONE & FSPHONE4X
Phone Surge Protection
Siemens FSPHONE is a 2-pair, hardwired surge protector for telephone,
DSL or modem connected electronics in residential and light commercial
applications. The FSPHONE protects against electrical power surges that
can enter through the main telephone connection and is equipped with
a failshort device to permanently ground the telephone line in the event
of a power cross. The FSPHONE is designed for indoor applications or
can be mounted inside another weatherproof enclosure for outdoor
mounting applications.
The FSPHONE4X consists of the FSPHONE plus a weatherproof enclosure
to facilitate indoor or outdoor applications. The enclosure is molded of
temperature and humidity resistant thermoplastic to resist cracking and
discoloration. The cover can be secured with a tie wrap or similar locking
device.
For total home protection please use FirstSurge
TM
to protect your
incoming AC Power lines and FSPHONE to protect your coaxial
connections.
Features & Benefits
• UL listed
• Hardwired Modem/Fax/DSL protection
• Easy to install
• Exceptionally fast response time
• Low insertion loss
• Available with or without enclosure
• 5-Year product warranty*
* See website for warranty terms and conditions.
UL Model No. - SATH2
Technical Specifications
Catastrophic Surge Circuit Yes
Spike Capacity 200 Amps
Let Through Voltage <270 V
Overcurrent Protection Yes
Response Time <1 nanosecond
Environmentally Sealed Yes
Agency Approvals & Warranty
UL/cUL Listings 497C
Meets Telcordia (formally Bellcore) GR-974-CORE
Requirements for Telecommunications Line Protectors
Yes
Product Warranty 5 Years
Catalog Number
FSPHONE 2 pair protection module
FSPHONE4X 2 pair protection module & 1 Weatherproof Enclosure
8

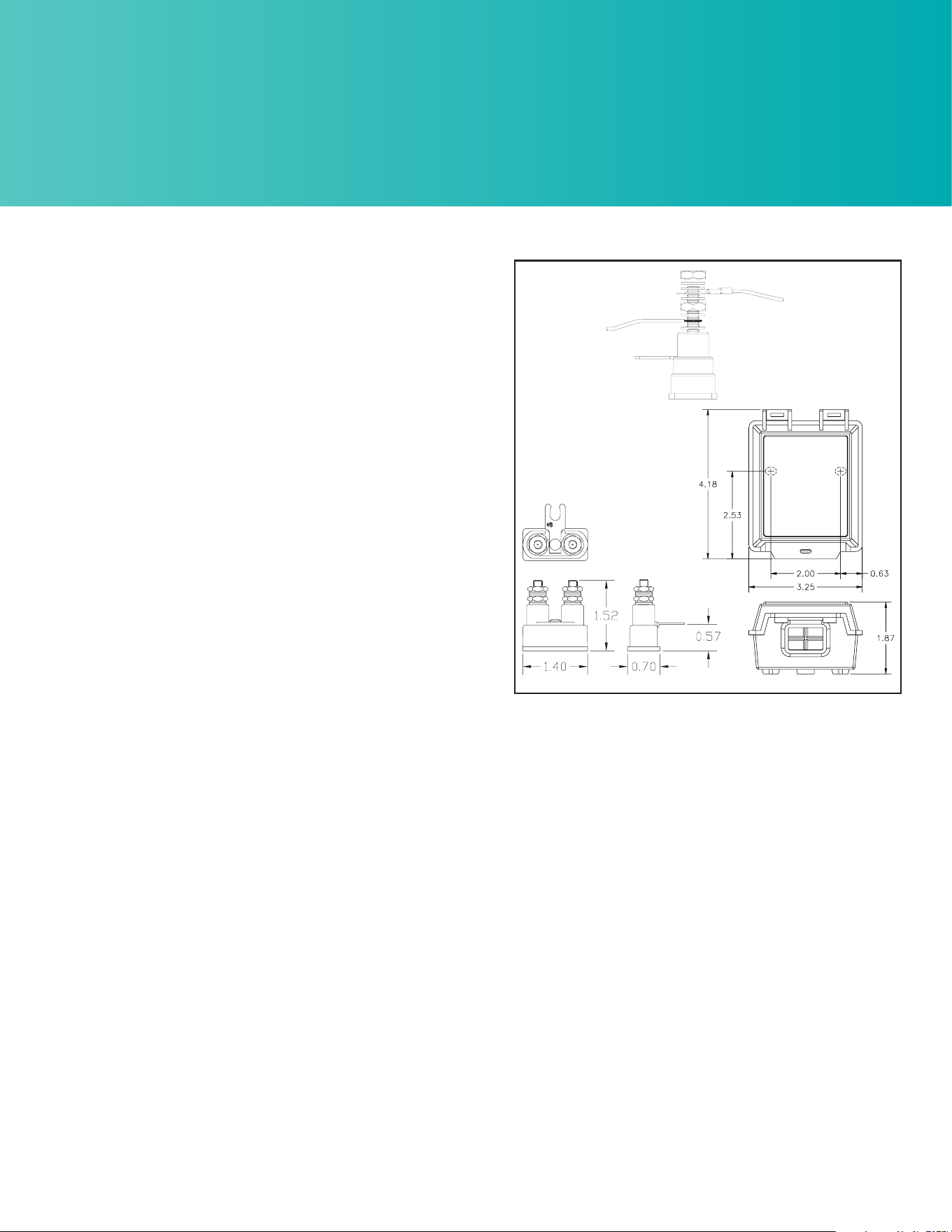

Telco Side Cable
Terminate Between
Washers
Ground Clip
Customer Side
Cable
Terminate Between
washers
Installation Instructions:
Do not install during active storm conditions.
This device can be used indoor (FSPHONE), or outdoor when
installed in weatherproof housing (FSPHONE4X). Failure to
follow installation instructions can result in personal injury and/
or equipment damage not covered by warranty.
FSPHONE – For indoor use:
1. FSPHONE protects 2 pairs (1 pair per protector module) and
is intended for indoor use only, without additional housing.
2. Attach securely to mounting surface.
3. Install ground wire, and if applicable, service shield, under
top center nut of mounting bracket and tighten nut securely.
4. Connect one pair (tip and ring) under the bottom nut on each
protector module, tip on one post, ring on the other.
5. Connect the customer wiring, tip and ring, under the top nut
on the same protector module (protector is wired in parallel)
6. Check all wiring for loose connections and shorting or broken
wires.
FSPHONE4X – For outdoor use:
1. Mount weatherproof housing securely to flat surface.
2. Conductors will enter and exit from the flexible gromet
located at bottom of enclosure.
3. Follow instruction above for FSPHONE connections.
4. Secure enclosure with tie wrap or similar locking device.
5. The FSPHONE4X is a Parallel Device.
FSPHONE & FSPHONE4X
9
FSCATV
Direct Protection For Coaxial Connected Electronics
Cable TV Surge Protection
Siemens FSCATV shields coaxial connected electronics in residential and light
commercial applications against electrical transient damage, including
lightning, from entering through the main cable connection.
FSCATV includes a section of coaxial cable with female to female splice for
line side application. The Siemens warranty covers product defects for 5
years. To have complete protection for your equipment, home, or business, it
is important to protect AC power lines and all data lines the equipment is
connected through.
Features & Benefits
• UL Listed
• Rated for CATV, DSS, TV, VCR, and Cable Modem
• Easy to install
• Standard Female to Female F connector
• Low insertion loss
• Automatic recovery
• 5 Year product warranty*
* See website for warranty terms and conditions.
Installation Instructions:
Do Not Install During Active Storm Conditions.
The FSCATV is intended to provide surge protection for customer
premises and head end equipment. Proper grounding per CEC code
is required. Failure to follow these instructions can result in personal
injury and/or equipment damage.
DC Voltage Breakdown Rating (100V/s): 150 - 300VDC
1. Properly ground the unit by connecting grounding wire to ground
screw on the surge protector and the ground point nearest to the
incoming coax cable line.
2. Use the supplied coax cable extension line (if necessary) to connect
the incoming cable service to side A of the FSCATV and connect
side B to the equipment being protected.
(See Figure 1 or 2)
UL Model No. - Surgeassure
TM
SAVFFF
Figure 1. Typical Cable Modem Installation
A
B
Service Side
Customer Side
Service Side
Customer Side
A
B
Figure 2. Typical Cable TV Installation
Technical Specifications
Frequency Range DC thru 1.5 GHz
Catastrophic Surge Circuit Yes
Spike Capacity 5000 Amps, 8/20 µSec
Impedance 75 Ohms
Overcurrent Protection Yes
Return Loss 30dB @ 1 GHz
Insertion Loss <0.1dB
Agency Approvals & Warranty
UL/cUL Listings 497C
Meets IEEE C62.41.1 Requirements Yes
Product Warranty 5 Years
Catalog Number
FSCATV F-Type Inline Coax Protector
10
Surge Load Centers
Siemens Surge Load Centers offer a First-Surge device pre-installed on (4) select load center models. A simple solution for
added value in new construction.
Available in:
• 1 phase, 3 wire, 120/240V
• 100KAIC max rated
• Flush or surface mount
- NEMA 1 indoor enclosure
- Peak surge rating of either
60kA or 140kA
• 54 or 60 circuits
• PL or ES Series (warranty
information found on DLC)
*No special installation steps required
Catalog Number Main Breaker Amp Rating No. of Spaces No. of Circuits
Bus Bar
Material
Surge
Protection % Neutrals % Ground
P3054B1200S140 200 225 30 54 Copper 140kA 140% 100%
P4060B1200S140 200 225 40 60 Copper 140kA 140% 100%
S3054B1200S060 200 225 30 54 Aluminum 60kA 100% 50%
S4060B1200S060 200 225 40 60 Aluminum 60kA 100% 50%
11
Circuit Breaker and Surge Protective Device (SPD)
The Siemens Circuit Breaker and Surge Protective Device (SPD)
is comprised of a highly effective TVSS integrated with (2) 1-pole circuit
breakers. This device incorporates the robust features of a secondary circuit
breaker surge arrester with a lower clamping voltage ratings.
Two green LED indicator lights are provided to show that surge protection is
provided for all circuits connected to the panelboard. As a Siemens exclusive
feature, the device notifies the owner of loss of surge protection by tripping
one or both of the circuit breakers.
The circuit breaker and SPD utilize Siemens-built 150V AC, 40mm, metal oxide
varistors (MOVs). The maximum impulse rating for the SPD module is 40kA.
The standard interrupting rating for the circuit breakers is 10k AIC. The circuit
breakers are SWD and HACR rated.
All Type QP circuit breakers and SPD are plug-on style, with load terminals
provided. The devices are rated for 120/240V AC and are calibrated for 40
degrees C maximum ambient applications.
Features
15 Amp
20 Amp
Catalog Number
QSA1515SPD
QSA2020SPD
Amperage
15 or 20 Amp
Number of poles
(2) 1-Pole circuit breakers
Initial clamping level
240 Volts
Transient energy rating
360 Joules, line-to-neutral
720 Joules, line-to-line
Transient suppression
500 Volts peak, line-to-neutral
Voltage rating
1000 Volts peak, line-to-line
Peak current rating (impulse)
40,000 amperes
Discharge voltage characteristic
@ 1,500A, 600 Volts, line-to-neutral
@ 5,000A, 800 Volts, line-to-neutral
Discharge current withstand rating
10,000 amperes, line-to-neutral
Circuit breaker interrupting rating
10,000A, 120/240V AC
House wiring system warranty
amount
$20,000
Warranty period
24 months
Listings/certifications
UL, CSA, Meets UL 1449 3rd edition
Siemens Industry, Inc.
5400 Triangle Parkway
Norcross, GA 30092
1-800-241-4453
Order No. RPSA-FSTSG-0217
Printed in USA
All rights reserved
© 2017, Siemens Industry, Inc.
usa.siemens.com/surge
Subject to changes and errors. The information given in
this document only contains general descriptions and/or
performance features which may not always specifically
reflect those described, or which may undergo
modification in the course of further development of
the products. The requested performance features are
binding only when they are expressly agreed upon in
the concluded contract.
