1. Confirm the correct input connector 2. Connect the 120° Y connector 3. Connect the 120° V connector
Installation Direction Notice
Notes:
For proper operation, install the light tube in the correct orientation:
1. Locate the “INPUT” and “OUTPUT” markings on the tube.
2. Align and install the tube from INPUT to OUTPUT as indicated.
3. Warning: If installed in the wrong direction, the light tube will not turn on.
1. DIY layouts are not supported. Install according to the arrow direction shown.
2. Connect the light tubes in series as shown. Each red circle requires its own power source.
3. Do not connect the light tubes to AC power. Please connect the light tubes to RGB control power supply.
4. Installation must be carried out by a qualified electrician only. Do not turn on the power until installation is fully completed.
5. Test First: Before installation, plan your desired layout and conduct a test to ensure everything is working as expected.
6. Handle with Care: Ensure a secure connection when attachi
ng the light bars to the connectors. Avoid damaging the
copper pins for optimal performance.
HOW TO INSTALL IT ON THE CEILING
1. Screw Mounting - Use screws
through the holes in the connector
to fasten the tube to the ceiling.
2. Metal Clip Mounting -
metal clip to the ceiling with screws,
then attach the tube to the metal clip.
3. Cable Tie Mounting - Secure the
tube using the cable ties.
1 2
3
· Before operating this product, ensure all parts are present. Compare the included parts with the Package Contents List
and Diagram on this page.
· Please contact Customer Service for replacement parts.
· Review these instructions and diagrams thoroughly before starting.
PREPARATION
WARNING: READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USE
·
This unit is not waterproof. Do not immerse in water.
·
Use only as intended. Do not use this unit for purposes other than its designated use.
·
Indoor use only.
·
Do not place or store the unit where it could fall into a tub, sink, or any other water-filled area.
·
Do not clean the product using a water spray gun or similar high-pressure methods.
·
Supervise closely when this product is used near children.
·
Use only accessories recommended or sold by the manufacturer.
·
Do not operate the unit if it has been dropped, hit sharply, or otherwise damaged in any way.
SAFETY INFORMATION
INCLUDED PARTS
FEATURES & SPECIFICATIONS
TROUBLESHOOTING
INSTALLATION INSTRUCTIONS
INPUT: 100-240VAC 50/60Hz
RGB
RF Remote Control
Suspension or Surface Mount
> 30,000 hours
5 HEX-RGB 150W
Physical & Listing
Power
PROBLEM
Tube emits cool white only,
no RGB function
Tube not light up
Poor connection
Installed with wrong orientation Change the orientation
Tighten the connection between the tube
and connector
POSSIBLE CAUSE SOLUTION
Products:
RMHXG07201DR / RMHXG07201HR
DO NOT RETURN THIS PRODUCT TO THE STORE
If you have questions or need assistance, please call
customer service at 1-888-445-8974.

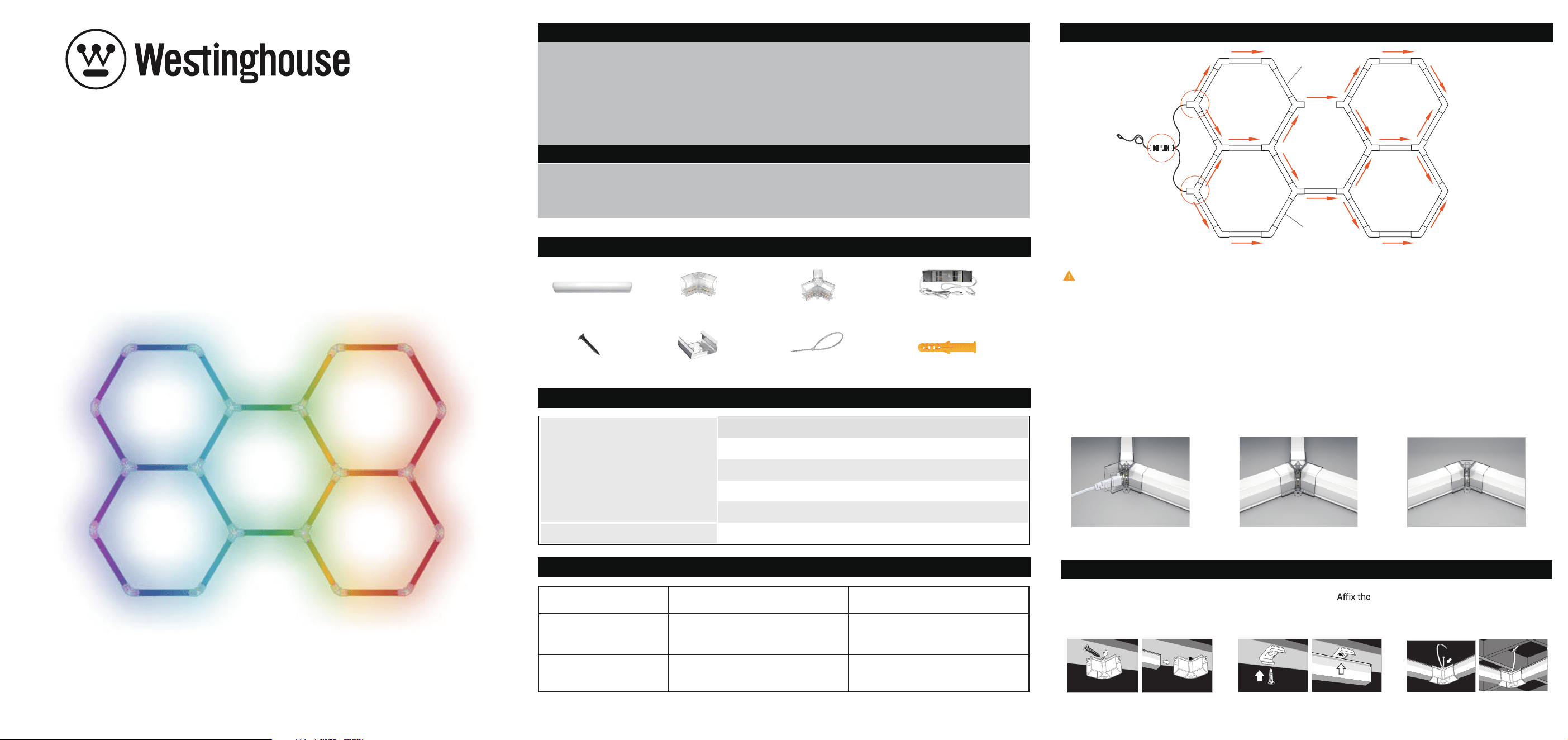

Installation & Operation
Instructions
This tube can be installed in
either direction.
Dimensions (Inches)
87.2” X 60.8”
DC24V
Signal Control
either direction.
This tube can be installed in
16.14 inch | 25 pcs 120° V Connector | 11 pcs 120° Y Connector | 11 pcs
RGB Control Power Supply | 1 pc
Screws | 25 pcs Metal Clip | 25 pcs Nylon Z ip Ties | 30 pcs
Drywall Anchors | 25 pcs
FCC WARNING
LIMITED WARRANTY
This product is covered by one (1) year warranty against defects in materials or workmanship from the date of purchase.
This warranty is non-transferable and applies only to the original purchaser. Proof of purchase is required for any repair or
replacement under this warranty. This warranty does not cover normal wear and tear or damage caused by misuse,
including but not limited to:
· Using cleaners that contain chemicals, solvents, or harsh abrasives.
· Operating the product in extreme weather conditions.
· Opening, tampering with, modifying, or altering the product in any way.
Warranty Notice
To ensure full warranty coverage, this product must be purchased from an authorized retailer. Purchases made through
unauthorized third-party sellers will void all warranty protections. This includes eligibility for product replacements, repairs,
or customer support. Please retain your proof of purchase from
an authorized source.
and Westinghouse are trademarks of Westinghouse Electric Corporation. Used under license by Rayman Lights, Inc.
All Rights Reserved.

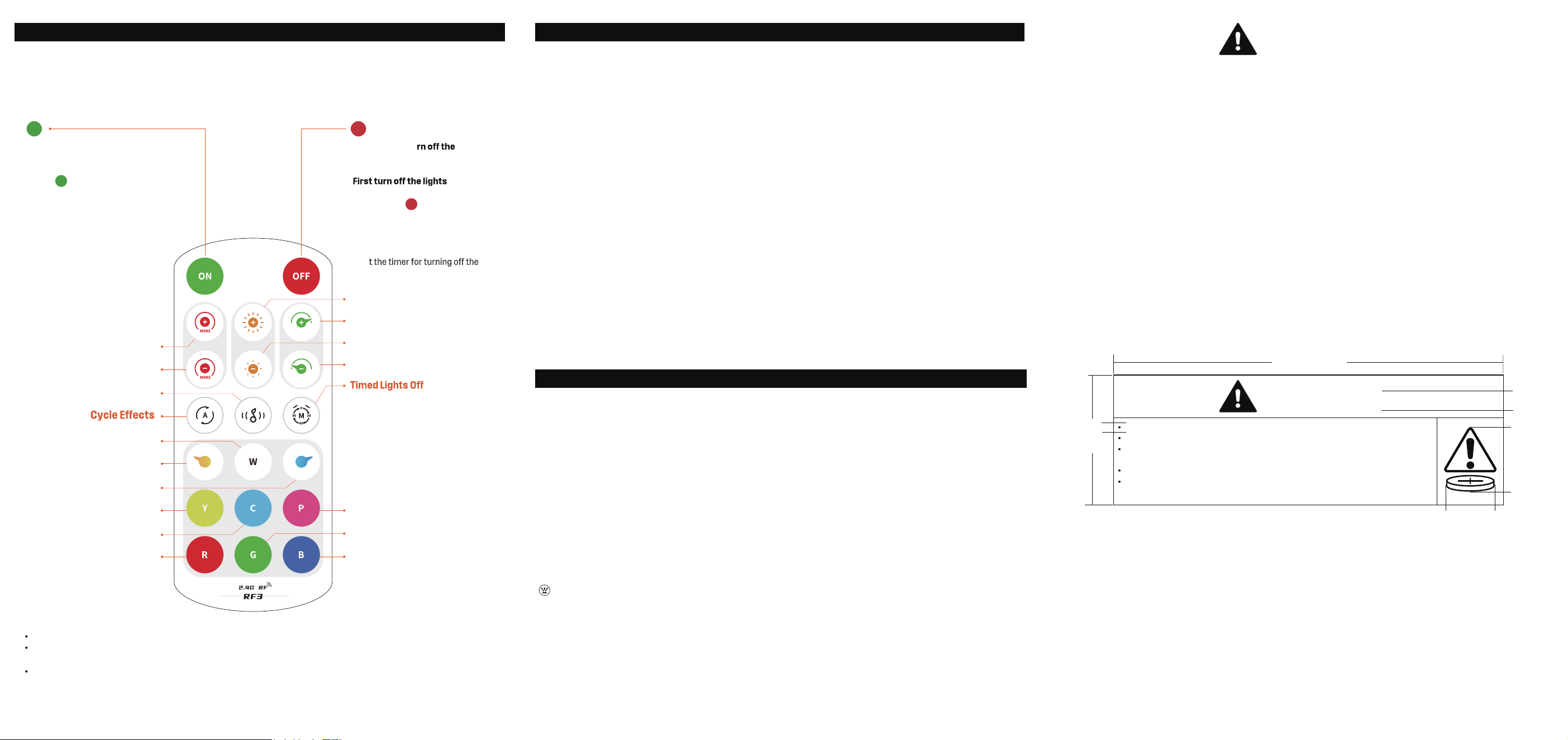

REMOTE CONTROL
4 5
6
Remove and immediately recycle or dispose of used batteries according to local regulations and keep away from
children. Do NOT dispose of batteries in household trash or incinerate.
Even used batteries may cause severe injury or death.
Call a local poison control center for treatment information.
Please use compatible battery for replacement: CR2025,3V.
Non-rechargeable batteries are not to be recharged.
Ensure the batteries are installed correctly according to polarity (+ and -).
Remove and immediately recycle or dispose of batteries from equipment not used for an extended period of time
according to local regulations.
Always completely secure the battery compartment. If the battery compartment does not close securely, stop using
the product, remove the batteries and keep them away from children.
Do not force discharge, recharge, disassemble, heat above 75°C or incinerate. Do so may result in injury due to
venting, leakage or e
xplosion resulting in chemical burns.
WARNING:
INGESTION HAZARD: This product contains a button cell or coin battery.
DEATH or serious injury can occur if ingested.
A swallowed button cell or coin battery can cause internal Chemical
Burns in as little as 2 hours.
KEEP new and used batteries OUT OF REACH Of CHILDREN
Seek immediate medical attention if a battery is suspected to be
swallowed or inserted inside any part of the body.
WARNING
6mm
19.7mm
120mm
16.2mm
40mm
2.8mm
Short press: Turn on the light
Long press: Within 20s after the
controller is powered on, long
press to bind / unbind the
remote control.
•
•
• If the number of bound remotes
exceeds the maximum number
(5), the binding is unsuccessful
and the light will not respond.
Short press: Tu light
Long press: Within 20s after
the controller is powered on,
completely, then long press
and hold the button to clear
all paired remote controls.
• Unbind all remote controls, and
the white light will pulse once.
• Cycle through short presses to
se
lights.
• Timing 30 minutes, white light
flashing 1 time.
• Timer 60 minutes, white light
flashing 2 times.
• Timer 90 minutes, white light
flashing 3 times.
• Close the timer, white light
breathes 1 time.
ON
OFF
WORKS WITH 2.4G REMOTE CONTROL:
The 2.4G remote control model (RF3) is compatible with Hexagon:
•
•
Mode +
Mode -
Music Mode
White
Color -
Color +
Yellow
Cyan
Red
Brightness +
Brightness -
Speed +
Speed -
Pink
Blue
Green
ON OFF
One remote control can control multiple controllers.
Each controller can be paired with up to 5 remote controls.
When pairing is successful, the white
light pulses 3 times.
When unpairing is successful,
the white light pulses once.
Do not mix old and new batteries, dierent brands or types of batteries, such as alkaline, carbon-zinc or rechargeable
batteries.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could
void the user authority to operate the equipment.
NOTES: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Company Name: Rayman Lights Inc.
Company Address: 702 Interchange BLVD, Newark, DE 19711, USA
Telephone Number: 1-888-445-8974
Ensure the batteries are installed correctly according to polarity (+ and -).
Remove and immediately recycle or dispose of batteries from equipment notused for an extended period of
time according to local regulations.
Always completely secure the battery compartment. If the battery compartment does not close securely,
stop using the product, remove the batteries, and keep them away from children.
Warning:
