Smartcast Buddy QSG
TX1H&RX1

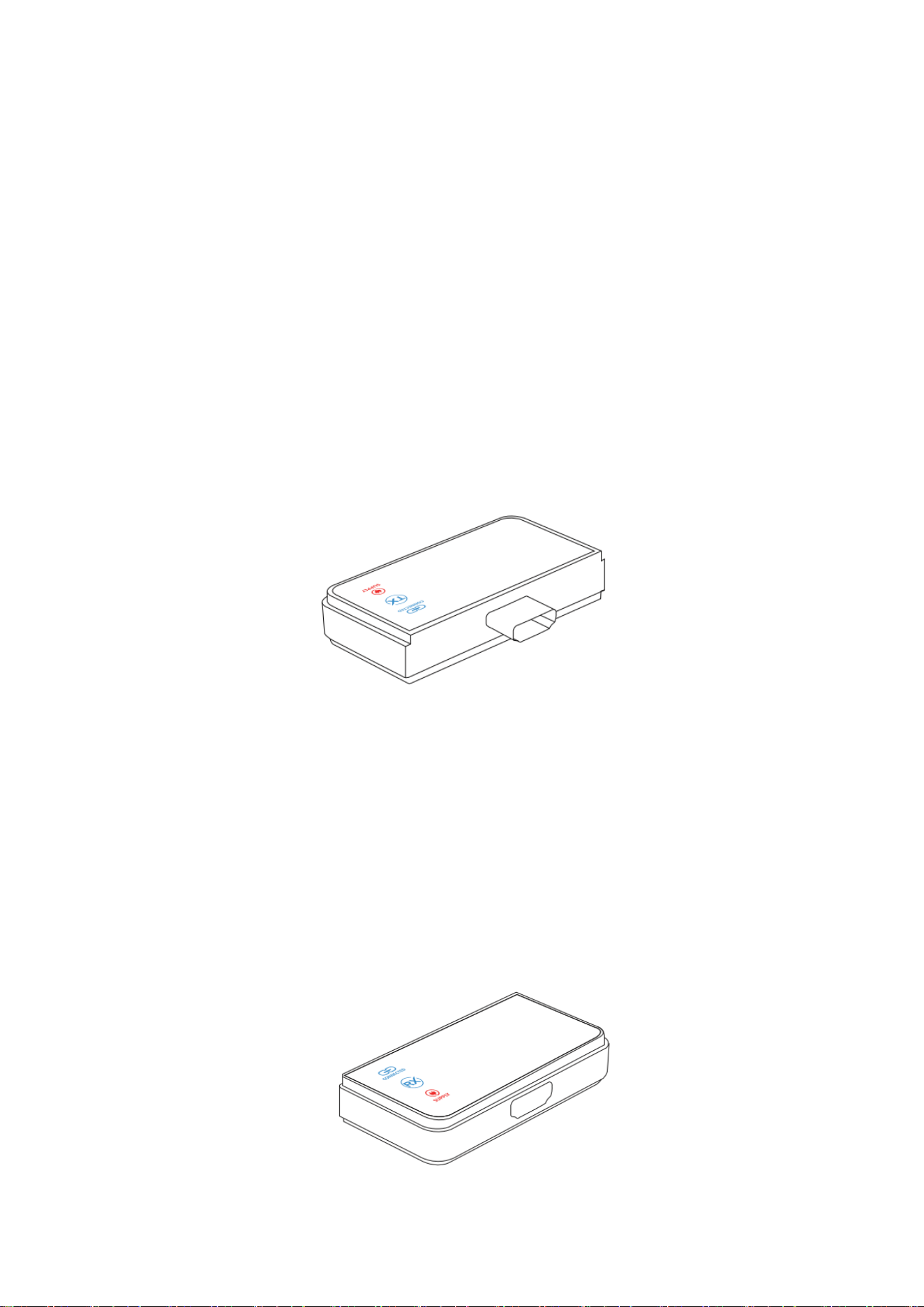

About Smartcast Buddy
Transmitter(TX1H)
1，Power the transmitter TX1H,the“SUPPLY”shows red light.
2，Plug the transmitter TX1H to HDMI port of Laptop,the"TX”
shows blue light.
3，Pair the transmitter TX1H with the receiver RX1,the
“CONNECTED” turns from flashing white light to steady white
light.flashing and then shows white light.
Receiver(RX1)
1，Power the receiver RX1,the“SUPPLY”shows red light.
2，Plug the receiver RX1 to the HDMI port of TV/Digital
Whiteboard/Monitor/Projector，the“RX”shows blue light.
1，Pair the receiver RX1 with the transmitter TX1H/TX1C,the
“CONNECTED” turns from flashing white light to white light.

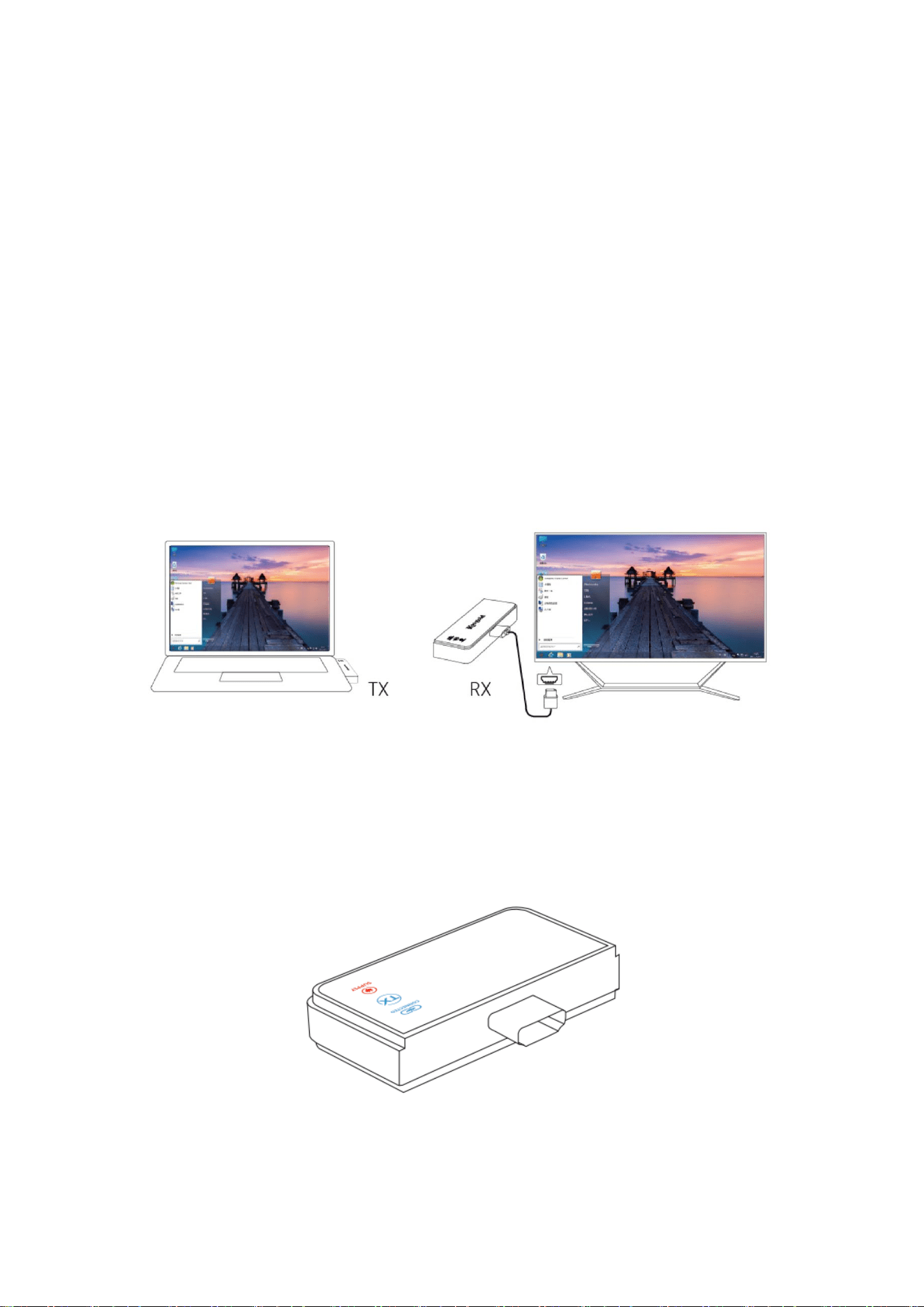

How to mirror
1，Plug the receiver RX1 to the HDMI port of TV/Digital
Whiteboard/Monitor/Projector，then power it with 5V/2A USB
power adapter.
2，Plug the transmitter TX1H to HDMI port of Laptop, then power
it with USB Port of Laptop or 5V/2A USB power adapter.
3，Waiting few seconds till the “CONNECTED”turns from flashing
white light to white light.it will start to mirror.
4，Stop and Restart mirroring
Press the button of transmitter TX1H to stop or restart
mirroring.

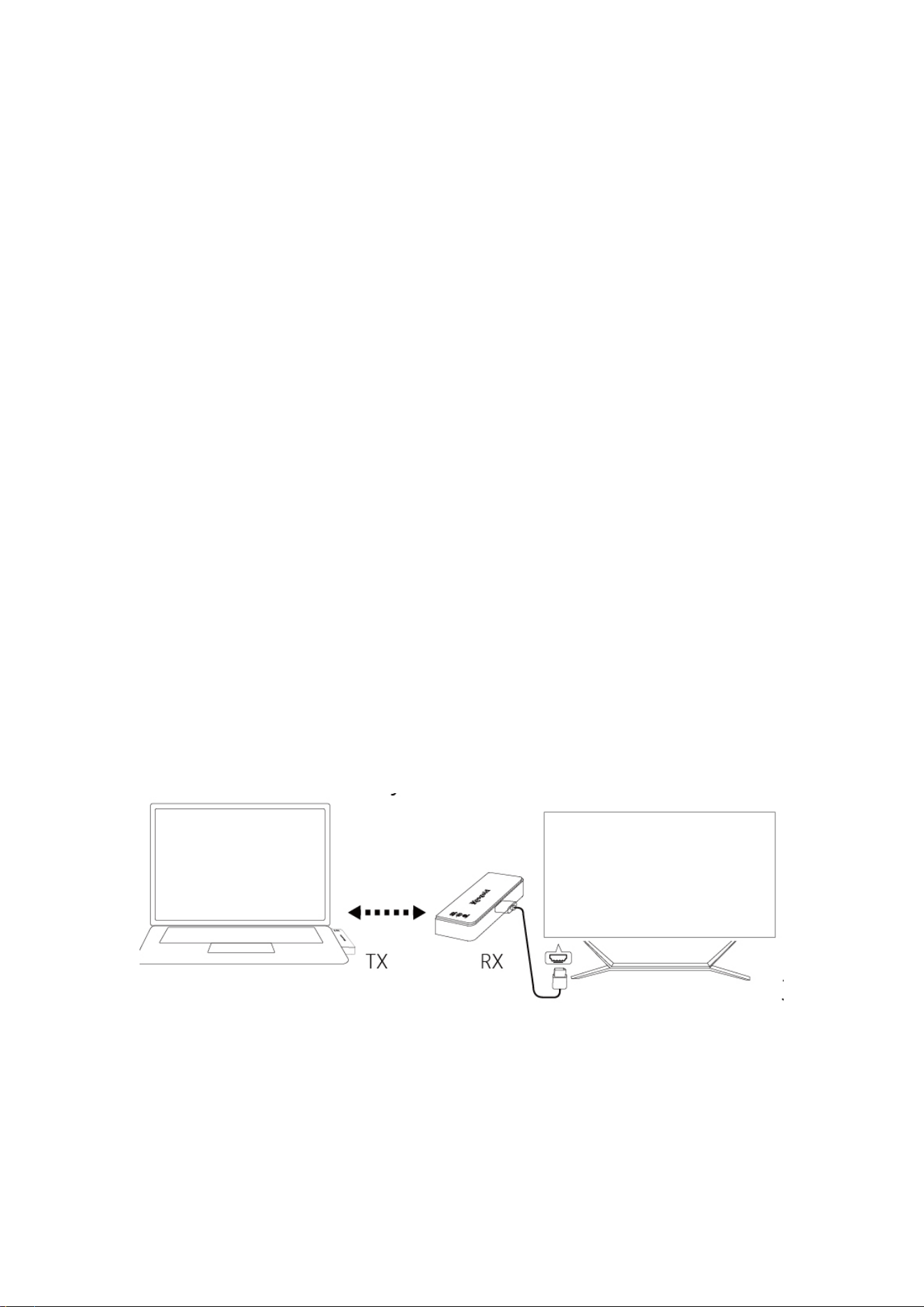

How to pair the transmitter with receiver
1，Plug the receiver RX1 to the HDMI port of TV/Digital
Whiteboard/Monitor/Projector，then power it with 5V/2A USB
power adapter.the “CONNECTED” white light is flashing.
2，Plug the transmitter TX1H to HDMI port of Laptop, then power
it with Laptop USB Port or 5V/2A USB power adapter.the
“CONNECTED” white light is flashing.
3，Long press the button of receiver RX1 for 6 seconds,release
it when the screen shows “Ready to pair”.
4，Long press the button of receiver TX1H for 6 seconds and
release it,the “CONNECTED”flashing white light turns from slow
to fast.When paired done,the flashing white light turns to
white light,and it will start to mirror automatically.
FCC Statement
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This
equipment generates uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and
receiver.
-- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV
technician for help
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions
(1)this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
