Liquid Propane Gas Grill
Note to Consumer
Leave the Owner’s Manual in a convenient place
for future reference.
Customer Service Helpline: Warranty & Parts
1-888-980-4933
Monday – Friday 9am – 6pm CST
MFG No.: 41847NG
UPC No.:856597007386
Make sure the cylinder valve connection device fits
properly and safely with the connection device
attached to the inlet of the pressure regulator.
WARNING:
Read this Owner’s manual carefully to ensure
your gas grill is properly assembled, installed
and maintained. Failure to follow these
instructions could result in serious injury and/or
property damage. This gas grill is intended for
OUTDOOR use only and is not intended to be
installed in or on recreational vehicles or boats.
Note to Installer
Leave this Owner’s Manual with the customer
after delivery and/or installation.
• Parts
• Assembly
• Safety Rules
• Use and Care
• Troubleshooting
ASSEMBLY & OPERATING INSTRUCTIONS
C043481-A0
WARNING
Your grill will get very hot. Never lean over the
cooking area while using your grill. Do not touch
cooking surfaces, grill housing, lid or any other
grill parts while the grill is in operation, or until the
gas grill has cooled down after use.
Failure to comply with these instructions may
result in serious bodily injury.
WARNING
Combustion by products produced when using
this product contain chemicals known to the
State of California to cause cancer, birth defects,
or other reproductive harm.
WARNING
Failure to comply with these instructions could
result in a fire or explosion that could cause
serious bodily injury, death, or property damage.
WARNING
1. Do not store or use gasoline or
other flammable liquids or
vapors in the vicinity of this or
any other appliance.
2. An LP cylinder not connected for
use shall not be stored in the
vicinity of this or any other
appliance.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away
from the appliance and
immediately call your gas
supplier or your fire department.
Grill Installation Codes
The installation must conform with local codes or, in
the absence of local codes, with either the national fuel
gas code, ANSI Z 223.1/NFPA S4, Natural gas and
propane installation code, CSA B149.1, or propane
storage and handling code, B149.2, or the standard for
Recreational vehicles, ANSI A 119.2, and CSA Z240
RV series recreational vehicle code, as applicable.
LP gas grill models are designed for use with a
standard 20 lb. Liquid Propane Gas tank, not included
with grill. Never connect your gas grill to an LP gas
tank that exceeds this capacity.
!
2
Grill Warranty
Safety PrecautionsTable of Contents
Warranty …………………………………………. 2
Safety Precautions ...………………………… 2-4
Hardware List ………………………………....... 5
Parts Diagram …………………………………... 6
Parts List ………………………………………… 7
Assembly Instructions …………………….. 8-17
Lighting Instructions ………………………17-19
Cleaning and Maintenance ……………… 20-21
Troubleshooting ……………………………….21
Cooking Instructions ………………………… 22
Cooking Chart ………………………………… 23
Natural Conversion …………………...….. 24-28
One-Year Full Warranty on Grill
If this grill fails due to defective material or workmanship
within one year from the date of purchase, call 1-888-980-
4933 to arrange for a free repair (or replacement if repair
proves impossible).
8-Year Limited Warranty on Stainless Steel Burners
For eight years from the date of purchase, any stainless-
steel burner that rusts through will be replaced free of
charge. After the first year from the date of purchase, you
pay for labor if you wish to have it installed.
All warranty coverage excludes ignitor batteries and grill
part paint loss, discoloration or rusting, which are either
expendable parts that can wear out from normal use
within the warranty period, or are conditions that can be
the result or normal use, accident or improper
maintenance,
All warranty coverage is void if this grill is ever used for
commercial or rental purposes.
All warranty coverage applies only if this grill is used in the
North America.
This warranty gives you specific legal rights, and you may
have other right which vary from state to state.
The warranty is only valid for original purchasers with
proof of purchase from authorized retailers. Any product
bought second hand or through an unauthorized retailer,
will not be covered by warranty. It is the duty of the
purchaser to verify that a retailer is authorized. A
purchase on Amazon or other marketplace internet retailer
from any entity other than Monument Grills is not an
original purchase and will not qualify for a warranty
• Have your LP gas tank filled by a reputable
propane gas dealer and visually inspected and re-
qualified at each filling.
• Do not store a spare LP gas tank under or
• Never fill the tank beyond 80 percent full . If this
information is not followed exactly a fire causing
death or serious injury may occur.
• Always keep LP gas tanks in an upright position.
• Do not store (or) or use gasoline or other
flammable vapors and liquids in the vicinity of this
gas grill.
• Do not subject the LP gas tank to excessive heat.
• Never store an LP gas tank indoors. If you store
your gas grill in the garage or other indoor
location, always disconnect the LP gas tank first
and store it safely outside.
• Place dust cap on cylinder valve outlet whenever
the cylinder is not in use. Only install the type of
dust cap on the cylinder valve outlet that is
provided with the cylinder valve. Other types of
caps or plugs may result in leakage of propane.
• LP gas tanks must be stored outdoors in a well-
ventilated area and out of reach of children.
Disconnected LP gas tanks must not be stored in
a building, garage or any other enclosed area.
• When your gas grill is not in use the gas must be
turned off at the LP gas tank.
• The pressure regulator and hose assembly must
be inspected before each use of the grill. If there
is excessive abrasion or wear or if the hose is cut,
it must be replaced prior to the grill being used
again.
• Keep the gas regulator hose away from hot grill
surfaces and dripping grease. Avoid unnecessary
twisting of hose. Visually inspect the hose prior to
each use for cuts, cracks, excessive wear or
other damage. If the hose appears damaged do
not use the gas grill. Call 1-888-980-4933 for
assistance.
• Never light your gas grill with the lid closed or
before checking to ensure the burner tubes are
fully seated over the gas valve orifices.
• Never allow children to operate your grill.

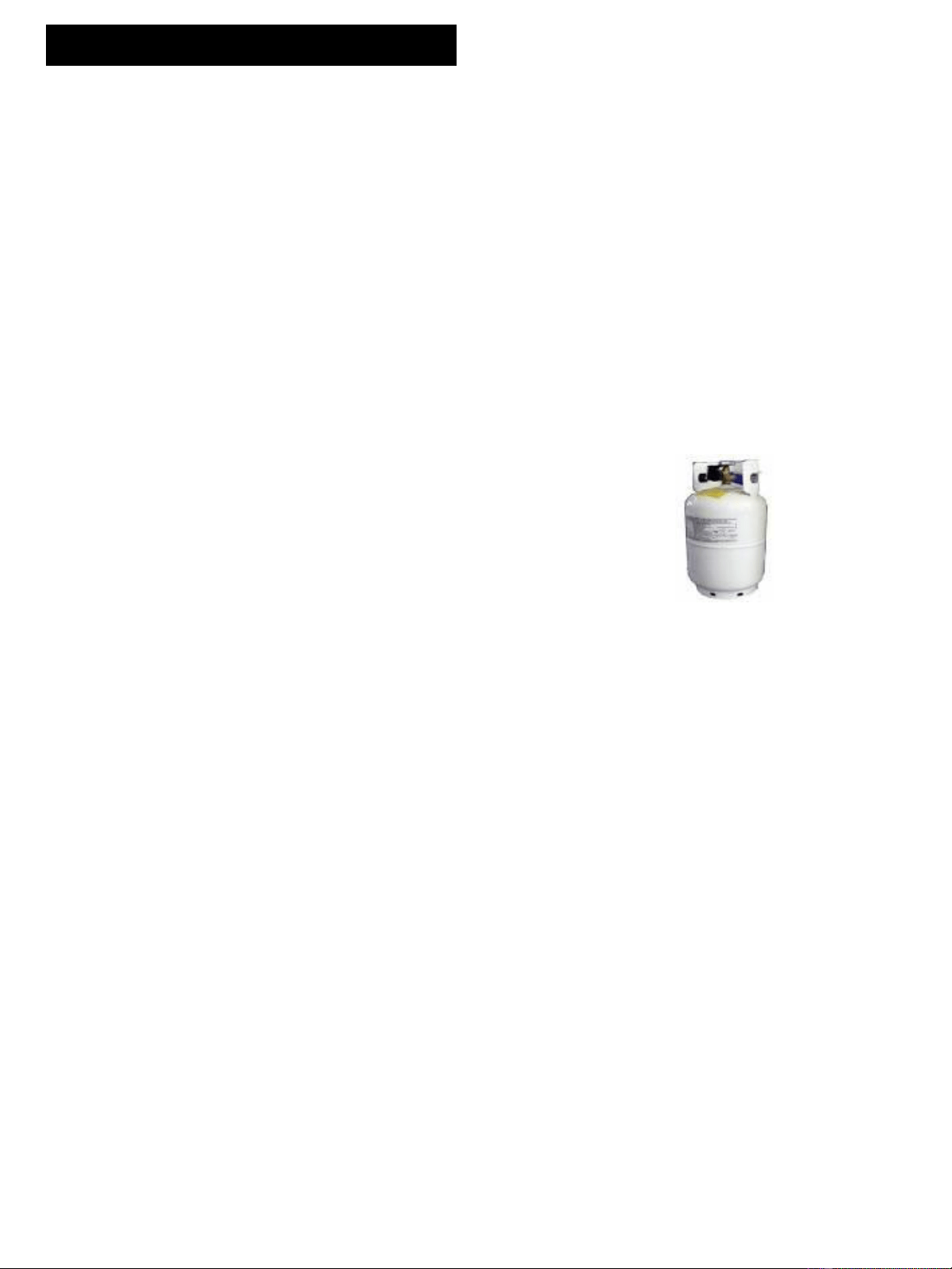

A tank of approximately 12 inches in diameter by
18-1/2 inches high is the maximum size LP gas
tank to use. You must use an OPD gas tank
which offers an Overfill Prevention Device.
This safety feature prevents the tank from being
overfilled which can cause malfunction of the LP
gas tank, regulator and/or grill.
The LP gas tank must be constructed and marked
in accordance with specifications of the U.S. Dept.
of Transportation (DOT). In Canada, the LP gas
tank must meet the National Standard of
Canada ,Can CSA –B339 , Cylinders , spheres and
Tubes for Transportation of Dangerous Goods and
Commission .
1. The LP gas tank must have a shutoff valve,
terminating in an LP gas supply tank valve
outlet, that is compatible with a Type 1 tank
connection device. The LP gas tank must also
have a safety relief device that has a direct
connection with the vapor space of the tank.
2. Always keep LP gas tanks in an upright position.
The tank supply system must be arranged for
vapor withdraw.
3. The LP gas tank used must have a collar to
protect the tank valve.
Proper Placement and Clearance of Grill
Never use your gas grill in a garage, porch, shed,
breezeway or any other enclosed area. Your gas
grill is to be used outdoors only, at least 24 inches
from the back and side of any combustible surface.
Your gas grill should not be used under overhead
combustible construction . Do not obstruct the flow
of ventilation air around the gas grill housing.
• Do not install this outdoor gas grill in or on
recreational vehicles or boats
• Keep outdoor gas grill area clear and free from
combustible materials, gasoline and other
flammable vapors and liquids
• Do not obstruct the flow of combustion and
ventilation air. Check for this each time prior to
using grill.
• Never connect an unregulated LP gas tank to your
gas grill. The gas regulator assembly supplied with
your gas grill is adjusted to have an outlet pressure
of 11” water column (W.C.) for connection to an LP
gas tank.
• Only use the regulator and the hose assembly
supplied with your gas grill. Replacement regulators
and hose assemblies must be those specified in this
manual.
3
Safety Precautions
WARNING
A strong gas smell or hissing sound of gas
indicates a serious problem with your gas grill or
the LP gas tank. Failure to immediately follow the
steps listed below could result in a fire or
explosion that could cause serious bodily injury,
death, or property damage.
• Shut off gas supply to the gas grill.
• Turn the control knobs to OFF position.
• Put out any flame with a proper fire extinguisher.
• Open Grill Lid.
• Get away from the LP gas tank.
• Do not try to fix the problem yourself.
• If odor continues or you have a fire you can not
extinguish, call your fire department. Do not call
near the LP gas tank because your telephone is
a form of electrical device and could create a
spark resulting in fire and/or explosion.
CAUTION: Spiders and small insects occasionally
spin webs or make nests in the grill burner tubes
during transit and warehousing. These webs can lead
to gas flow obstruction which could result in a fire in
and around burner tubes. This type of fire is known as
“FLASH-BACK” and can cause serious damage to your
grill and create an unsafe operating condition for the
user.
Although an obstructed burner tube is not the only
cause of “FLASH-BACK”, it is the most common cause.
To reduce the chance of “FLASH-BACK”, you must
clean the burner tubes before assembling your grill,
and at least once a month in late summer or early fall
when spiders are most active. Also perform this burner
tube cleaning procedure if your grill has not been used
for an extended period-of-time.
See Cleaning Burner Tubes and Burner Ports on page
20 of manual.
NOTE: The normal flow of gas through the
regulator and hose assembly can create a
humming noise. A low volume of noise is perfectly
normal and will not interfere with operation of the
grill. If humming noise is loud and excessive you
may need to purge air from the gas line or reset
the regulator excess gas flow device. This purging
procedure should be done every time a new LP
gas tank is connected to your grill. For help with
this procedure refer to page 19, Item 4 of “If Grill
Still Fails To Light” or call the Customer Service
Helpline 9 AM to 6 PM CST at: 1-888-980-4933.

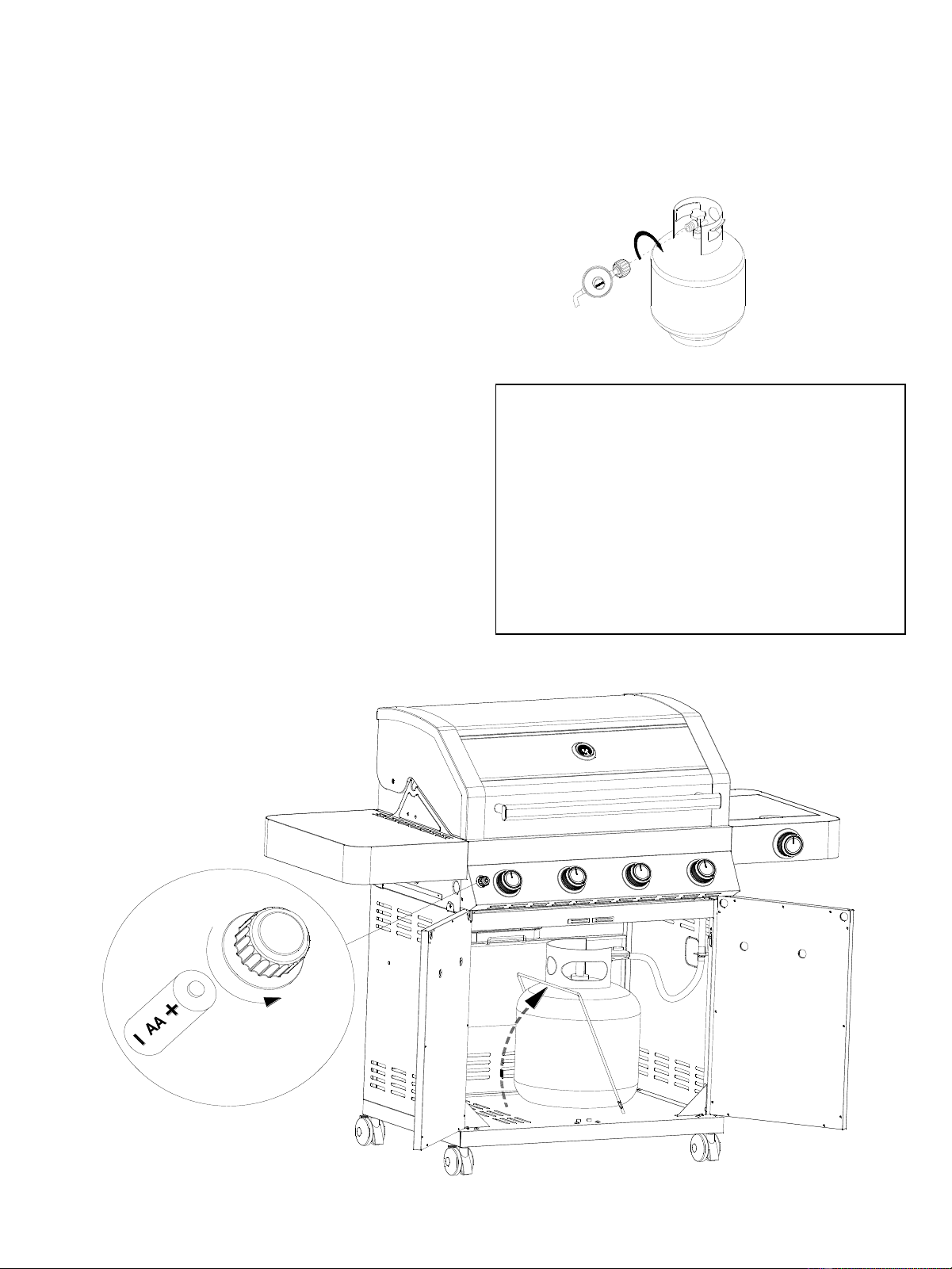

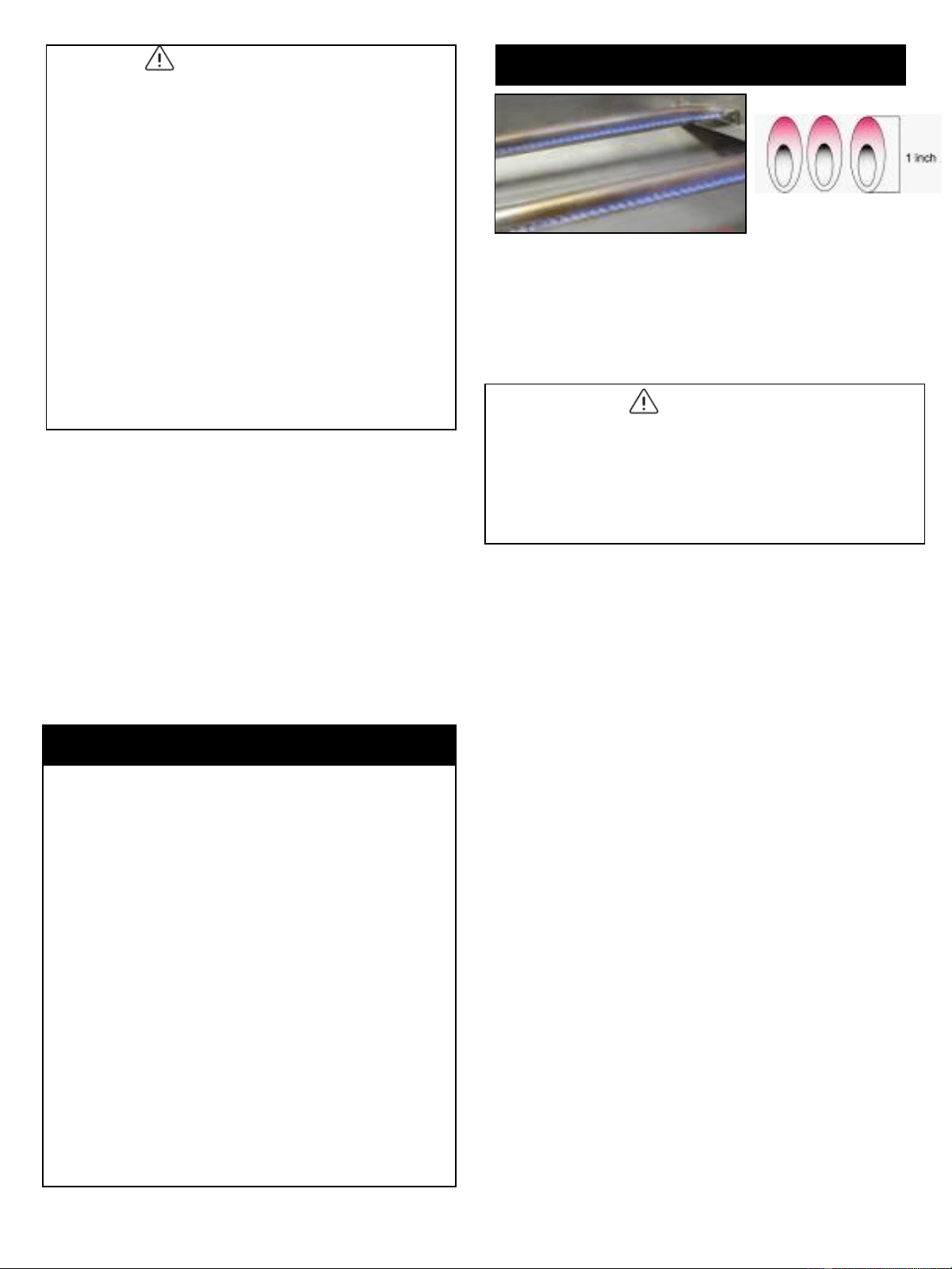

Visually check the burner flames prior to each use. The
flames should look like picture, if they do not, refer to the
Cleaning Burner Tubes and Burner Ports (refer to page 20
of manual).
4
CAUTION: Beware of Flash-Back

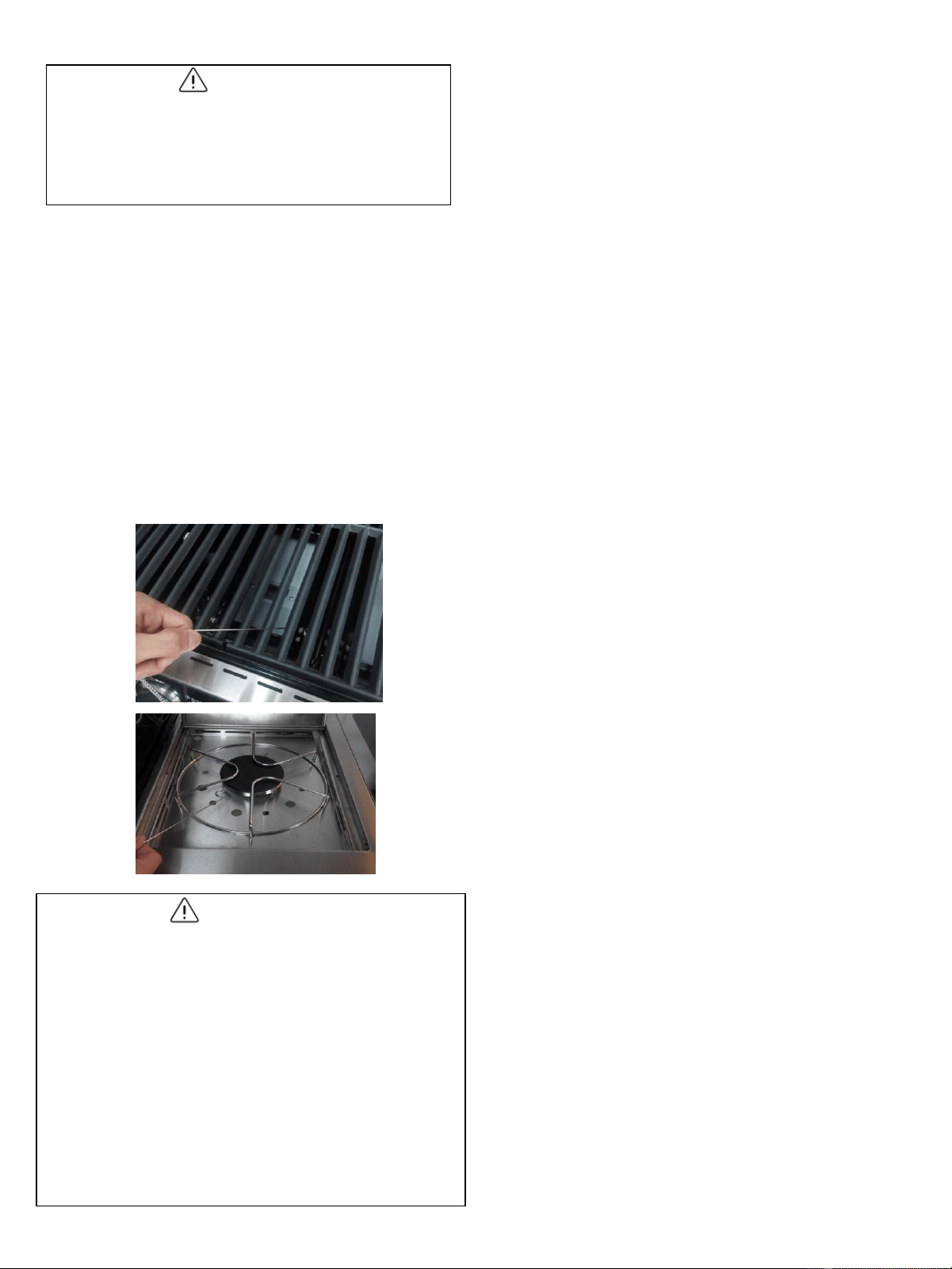

Burner Flame Check
WARNING
Clean the flame tamer/cooking grid/grease pan/tray
after each use. Failure to comply this could result in a
fire or explosion that could cause serious bodily
injury, death, or property damage.
The following table illustrates a breakdown of the hardware pack. It highlights what components are used in
the various stages of assembly.
5

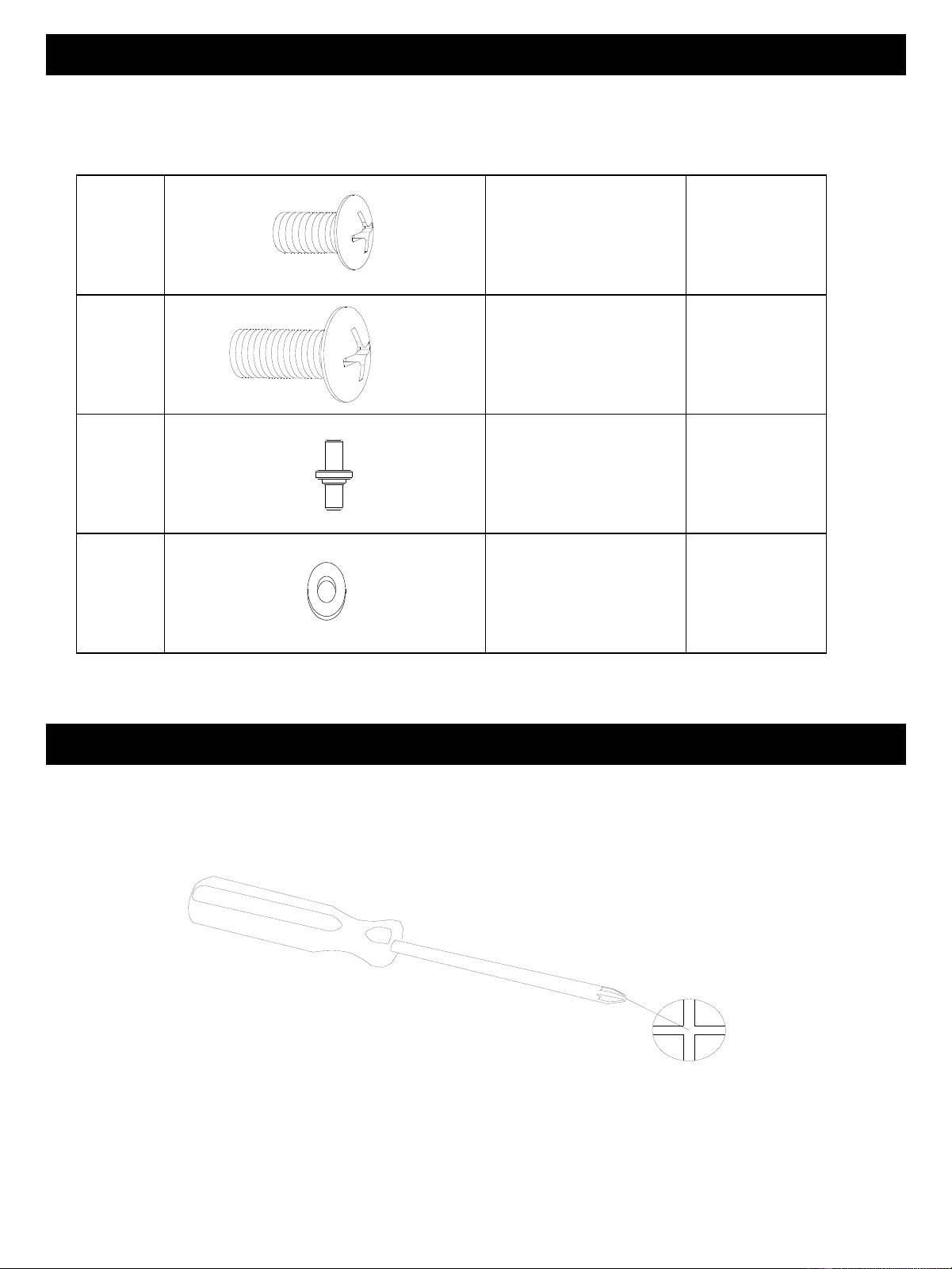

Contents for Hardware Pack
Tools required for assembly
Philips Head Screwdriver
Philips Head Screwdriver (not included).
Note: The left and right sides of the grill are on your left and right as you face the front of the grill.
A
5/32"x12mm 11 pcs
B
1/4"x15mm 13 pcs
C
2 pcs
D
1/4'' 4 pcs
6

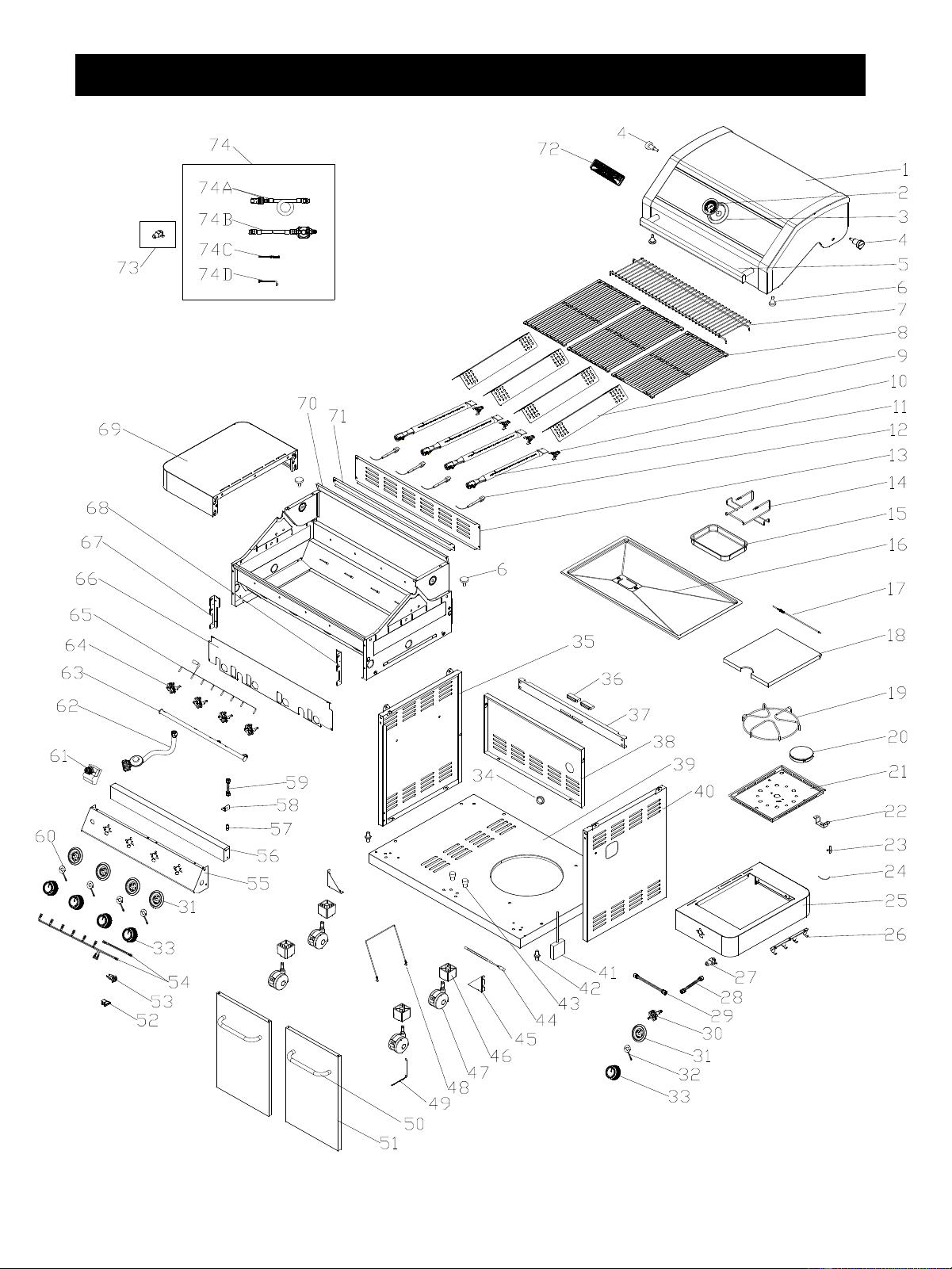

Model 41847NG Parts Diagram
PSIG GLOBAL Q
C
LOW
For assembly questions, call:
1-888-980-4933
To make sure you obtain the correct replacement
parts for your gas grill, refer to the part numbers
on this page.
Important: Use only parts listed above. When ordering
parts, providing the following information:
1. Model #
2. Part Number (see PART# in chart)
3. Part Description
4. Quantity of parts needed
5. Grill serial number
7
Model 41847NG Parts List
Important: Keep this Owner’s Manual for
convenient reference and for part replacement.
seq.
NO.
appellation qty Material code
seq.
NO.
appellation qty
Material
code
1 Main Lid 1 D010012906 41 Battery Box 1 A0212663
2 Temperature Gauge 1 A0212824 42 Spindle Below Door Panel 2 A0212557
3 Temperature Gauge Seat 1 A0212967 43 Spacing Screw Below Door Panel 2 A02120079
4 Main Lid Screw 2 A0407131 44
Cart Bottom Panel Front
Cummerbund Strip
1 D010012063
5 Main Lid Handle 1 D010010251 45 Triangle Bracket, Left 2 D010012745
6 Hood Buffer 4 A0212666 46 Swivel Caster Fixing Plug 4 A0212805
7 Warming Rack 1 A02120877 47 Swivel Caster 4 A0211004
8 Cooking Grid With Hole 3 A0212804 48 Gas-jar Fixing Line 1 A0212837
9 Flame Tamer 4 D010012307 49 Lighting Rod 1 A0212835
10 Clamp Spring 4 A0212873 50 Door Handle 2 D010012747
11 Main Burner 4 A0212926 51 Front Door 2 D010012094
12 Main Burner Igniter Wire 4 D010012900 52 LED Lamp Seat-USB2.0 1 A02120032
13 Back Panel, Top 1 D010012737 53 LED Lamp Switch 1 A0212627
14 Grease Box Bracket 1 A0212838 54 LED Lamp Circuit 1 D010013690
15 Grease Box 1 D010012705 55 Main Control Panel 1 D010014390
16 Grease Tray 1 D010012072 56 Main Control Panel Frame 1 D010012108
17 Side Burner Lid Hinge Rod 1 A0212534 57 Gas Connector 1 A0212830
18 Side Burner Lid 1 D010007598 58 Gas Connector Fixing Panel 1 D010012298
19 Side Burner Cooking Grid, Right 1 A0212248 59 Main Burner Flex Gas Line 1 A0212829
20 Side Burner, Right 1 A0212533 60 LED Lamp Panel-B 4 A02120213
21 Side Burner Tray 1 D011006420 61 Pulse Igniter Module 1 A02120838
22 Side Burner Orifice Bracket 1 D019706920 62 Regulator, LP 1 A0212831
23 Side Burner Igniter, Right 1 A0212436 63 Main Manifold 1 A02120087
24 Side Burner Igniter Wire, Right 1 A0212869 64 Main Gas Valve 4 A02120914
25 Side Shelf, Right 1 D010014389 65 Gas Valve Circuit 1 A02120842
26 Hook 1 D010018023 66 Front Baffle 1 D010012052
27 Side Burner Orifice 1 A0212828 67 Control Panel Fixing Panel, Left 1 D010012050
28 Side Burner Flex Gas Line, 250 1 A020021 68 Control Panel Fixing Panel, Right 1 D010012051
29 Side Burner Flex Gas Line, 480 1 A02120090 69 Side Shelf, Left 1 D010012770
30 Side Burner Gas Vavle, Right 1 A02120832 70 Firebox 1 D010012655
31 Control Knob Base 5 D010012905 71 Back Panel, A 1 D010015501
32 LED Lamp Panel-A 1 A02120804 72 Logo 1 A0212808
33 Control Knob 5 A02120817
73
NG Side Burner Orifice 1 A02120889
34 RUBBER GROMMET 1 A020064
74
NG Assembly D010020645
35 Side Panel,Left 1 D010012742
74A
NG Hose A02120849
36 Door Magnet 2 A0201249
74B
NG Regulator A02120848
37 Cart Frame, Front 1 D010012721
74C
Slot Screwdriver A02120843
38 Back Panel, Bottom 1 D010023163
74D
Orifice Sockets A02120844
39 Bottom Panel 1 D010012098 Manual 1 C043481
40 Side Panel, Right 1 D010012903 Hardware Pack 1 D010012753
Figure 2
8
Assembly Instructions
Figure 1

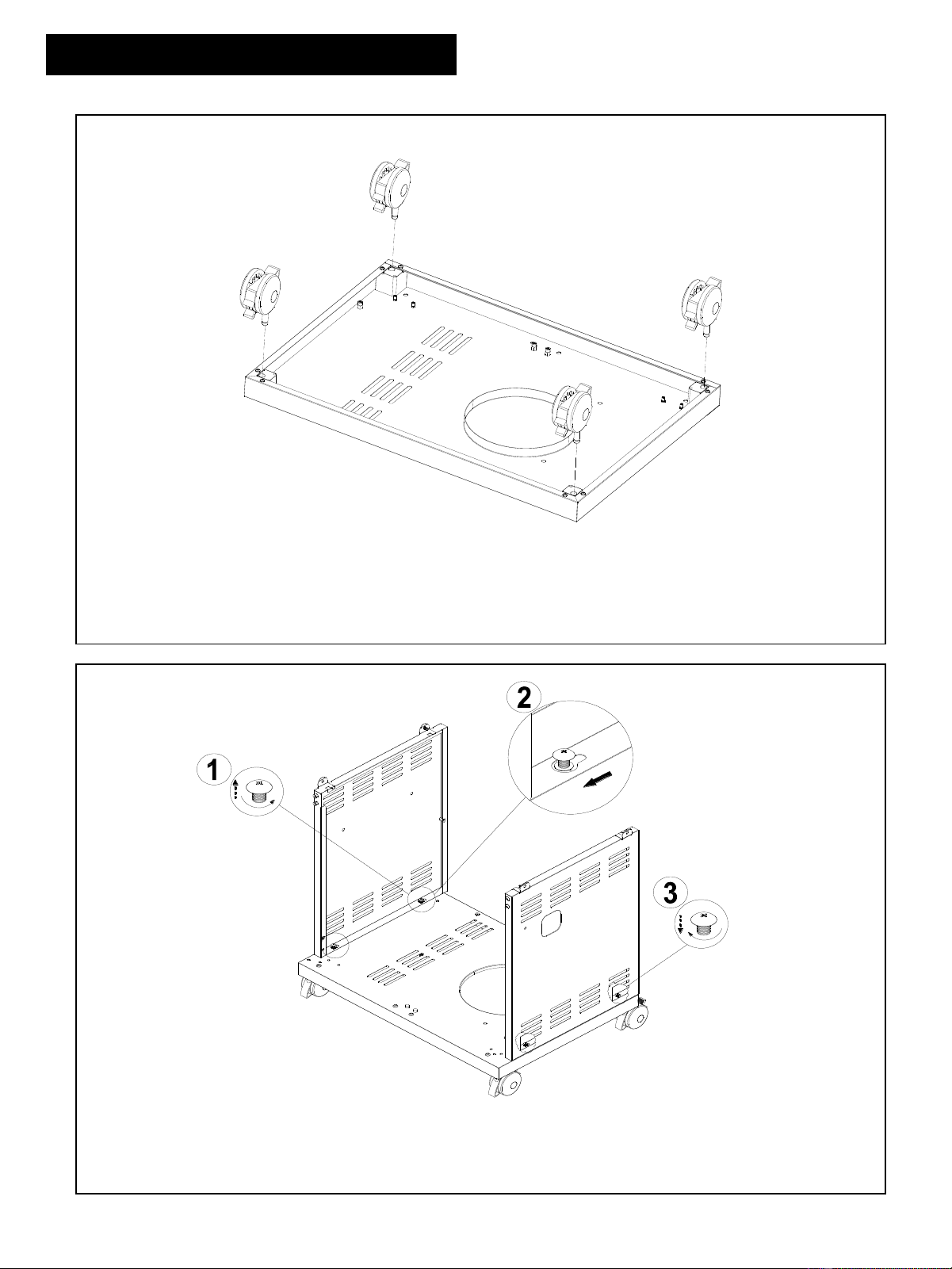

Insert Part No.47 into the bottom plate.
Half screw out the screws in the
bottom plate, attach Part No.35 and
Part No.40 onto the relevant screw
holes and screw tightly.
Figure 4
Figure 3
9
4 x
B

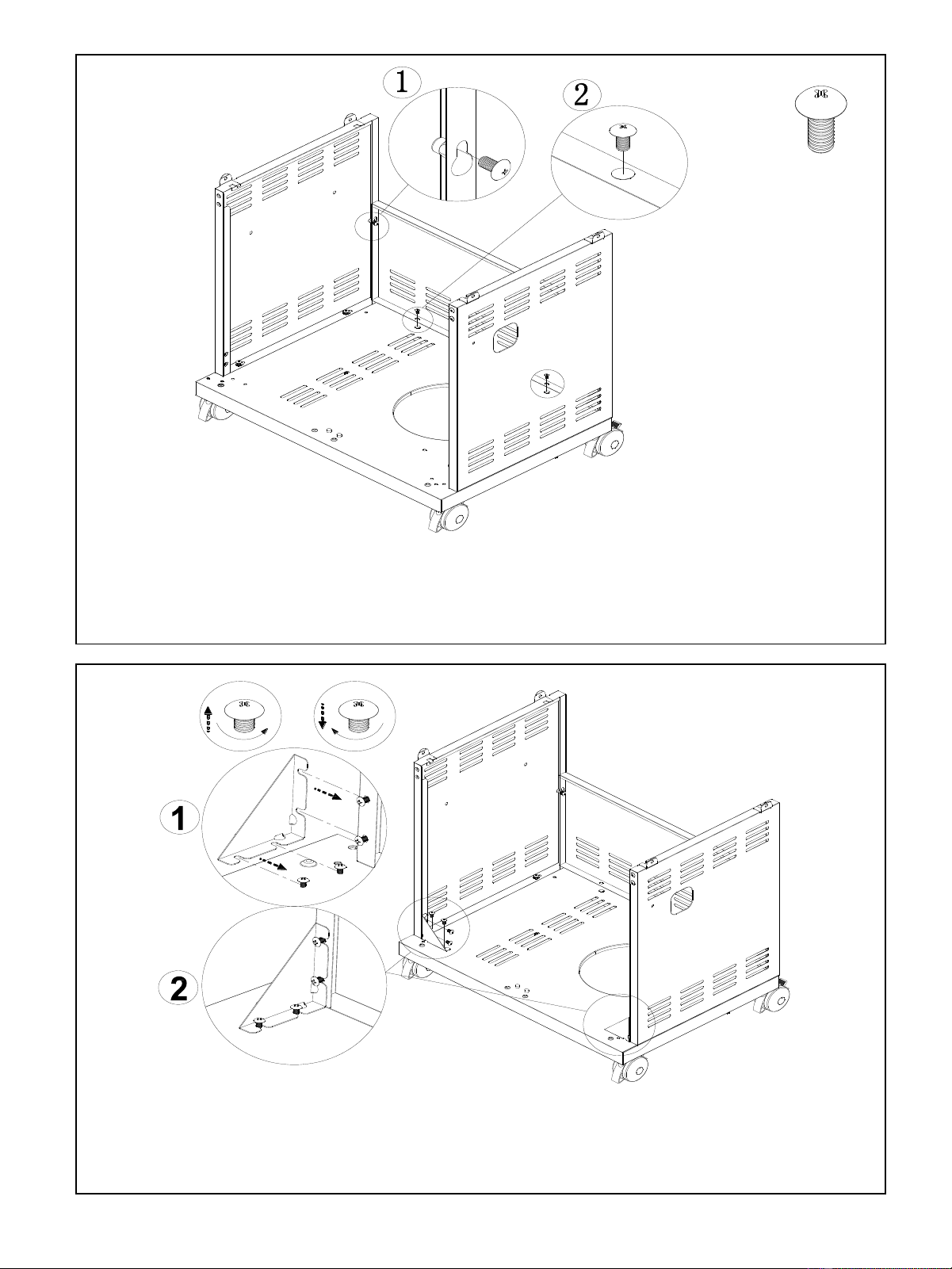

Install Part No.38 onto the relevant place
with four B screws.
Half screw out the screws in the bottom
and side plates, attach Part No.45 onto the relevant
screw holes and screw tightly.
10

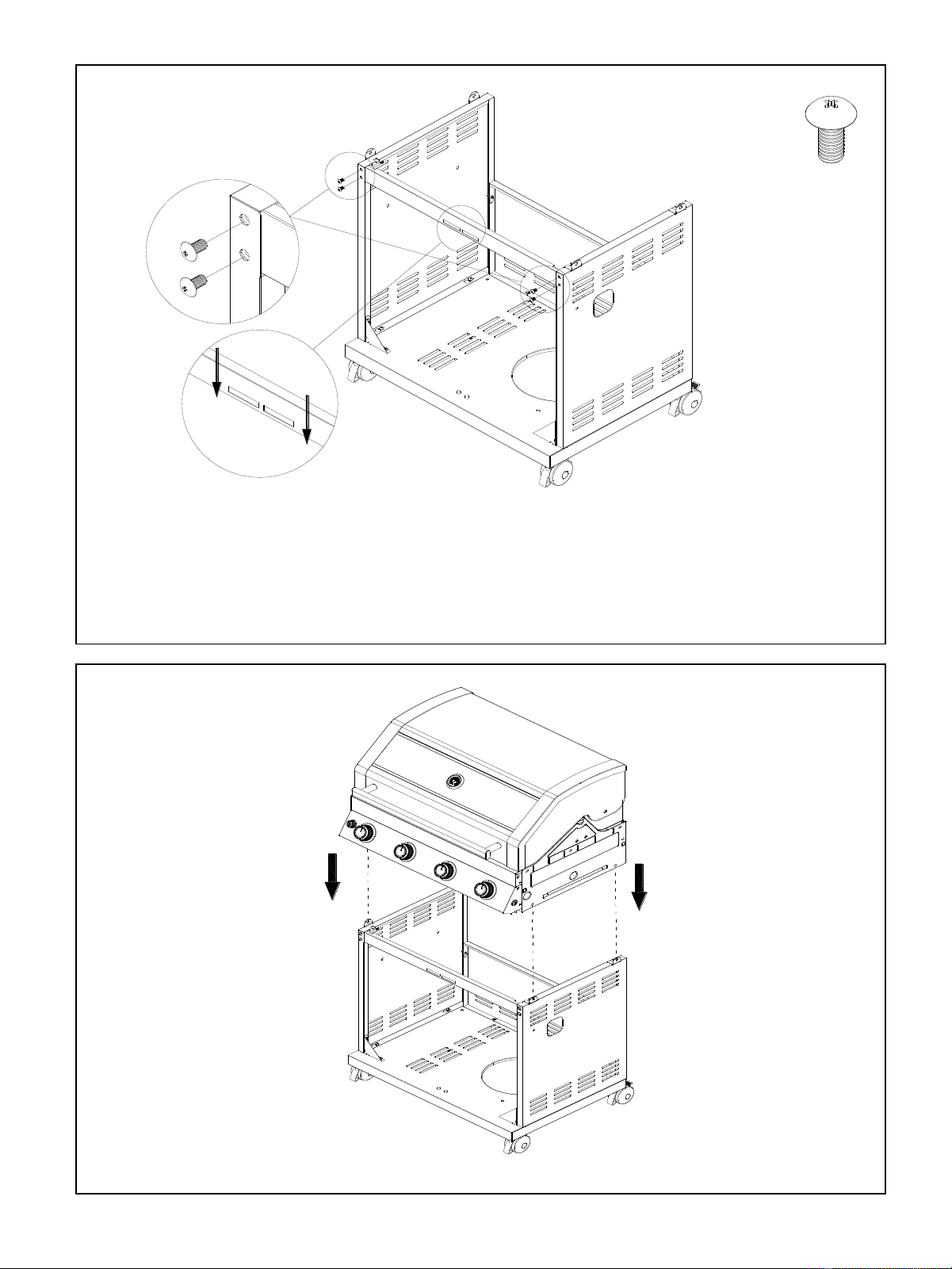

Figure 5
Figure 6
4 x
A
Install Part No.37 onto the relevant place with
four A screws shown in Figure 5.
Attention: magnet downward.
Figure 7.1
11
Figure 8.1 Figure 8.2
Figure 7.2
4 x
B
2 x B
2 x D

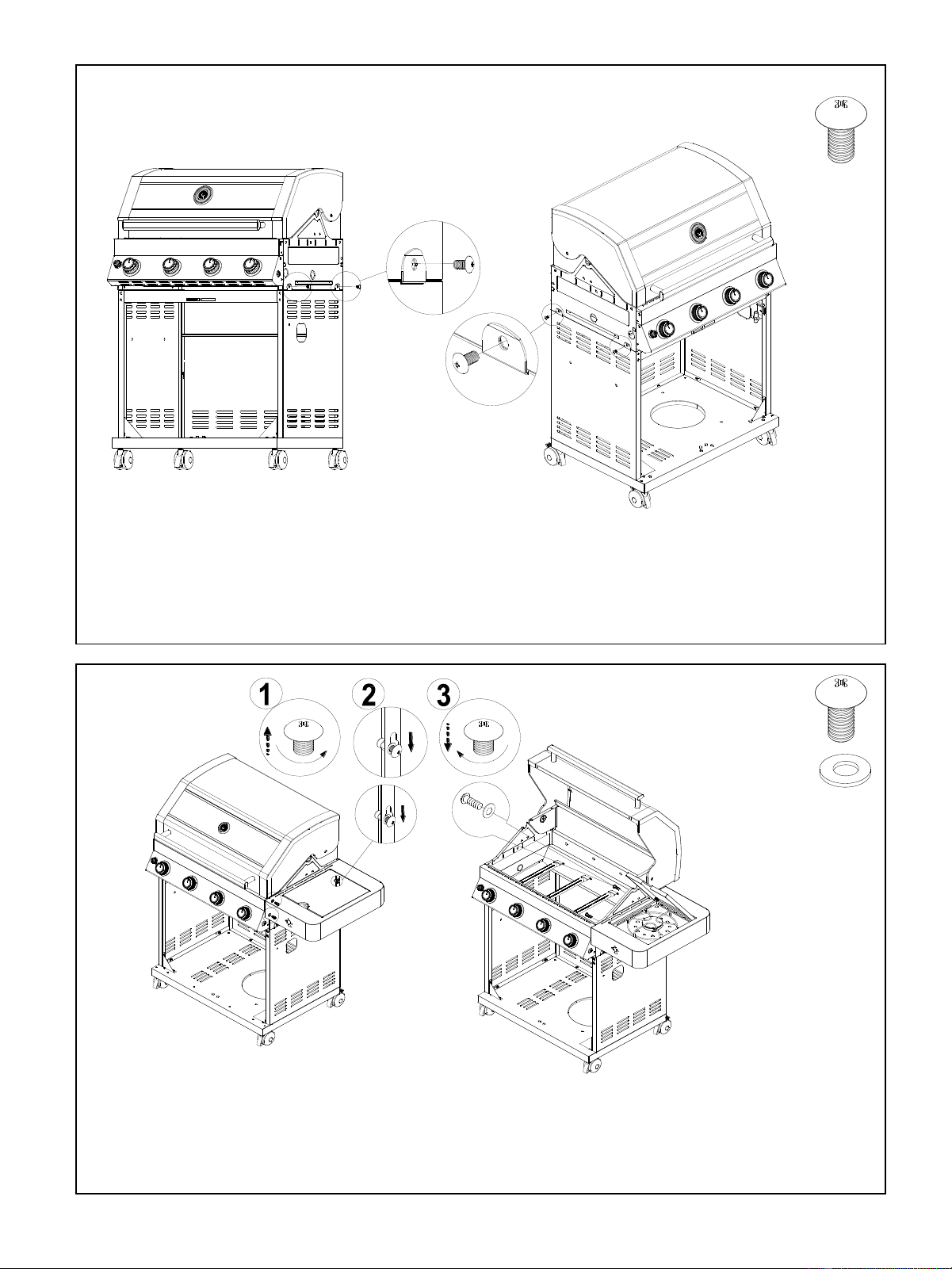

Screw the grill body and the
cart tightly with four B screws. (Figure 7.1)
1.Half screw out the three big screws outside the grill body,
attach Part No.25 onto the relevant screw holes and screw tightly.
2.Screw Part No.25 tightly with B screw and D spacer inside the grill body.
Figure 9
12
Figure 10

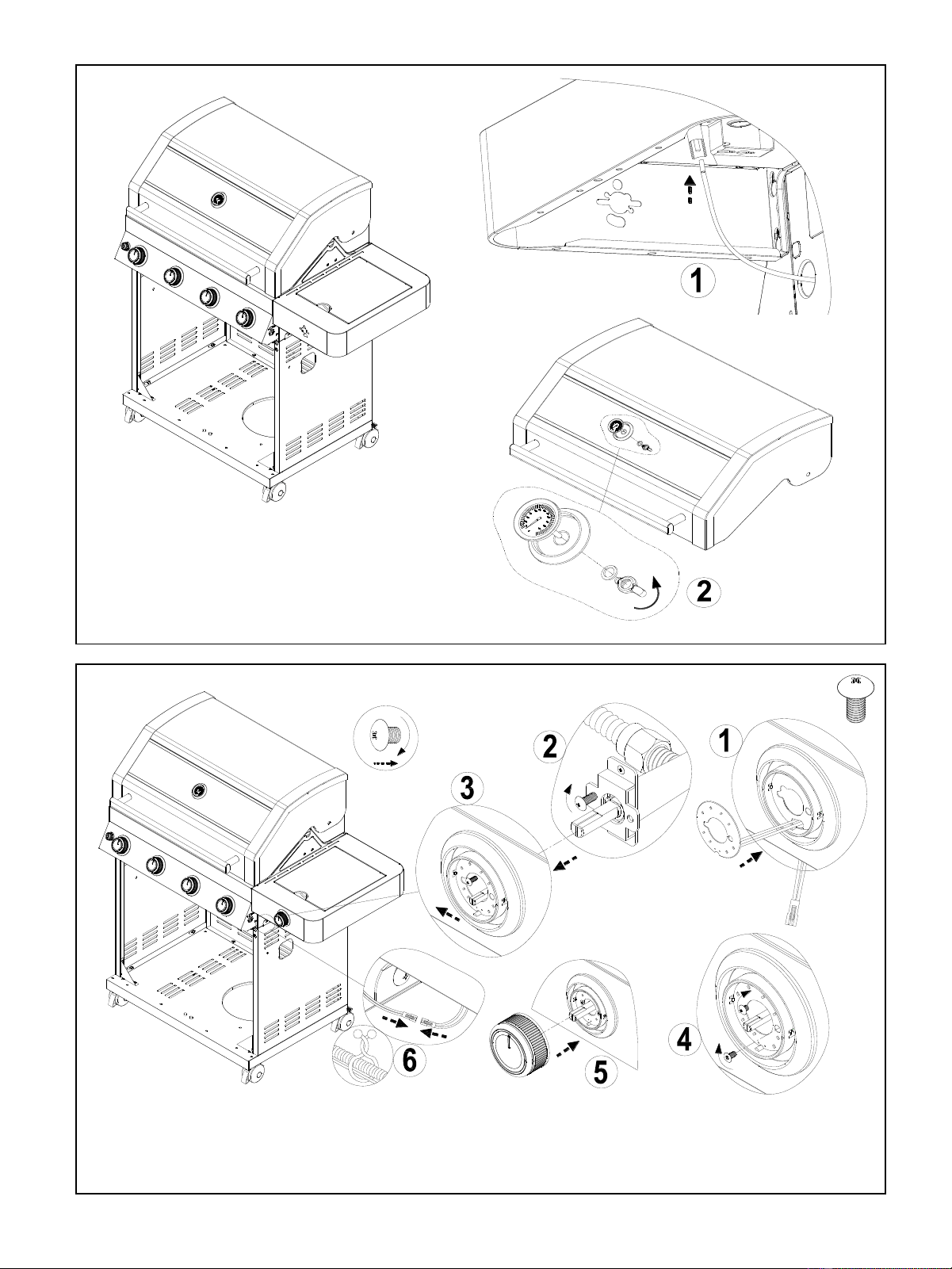

1. Insert the wire of Part No.23.
2. Put Part No.2, Part No.3 onto the Main Lid.
1. Insert Part No.30, Part No.32 and Part No.33 as the figure shows.
2. Insert the wire as the figure shows.
2 x

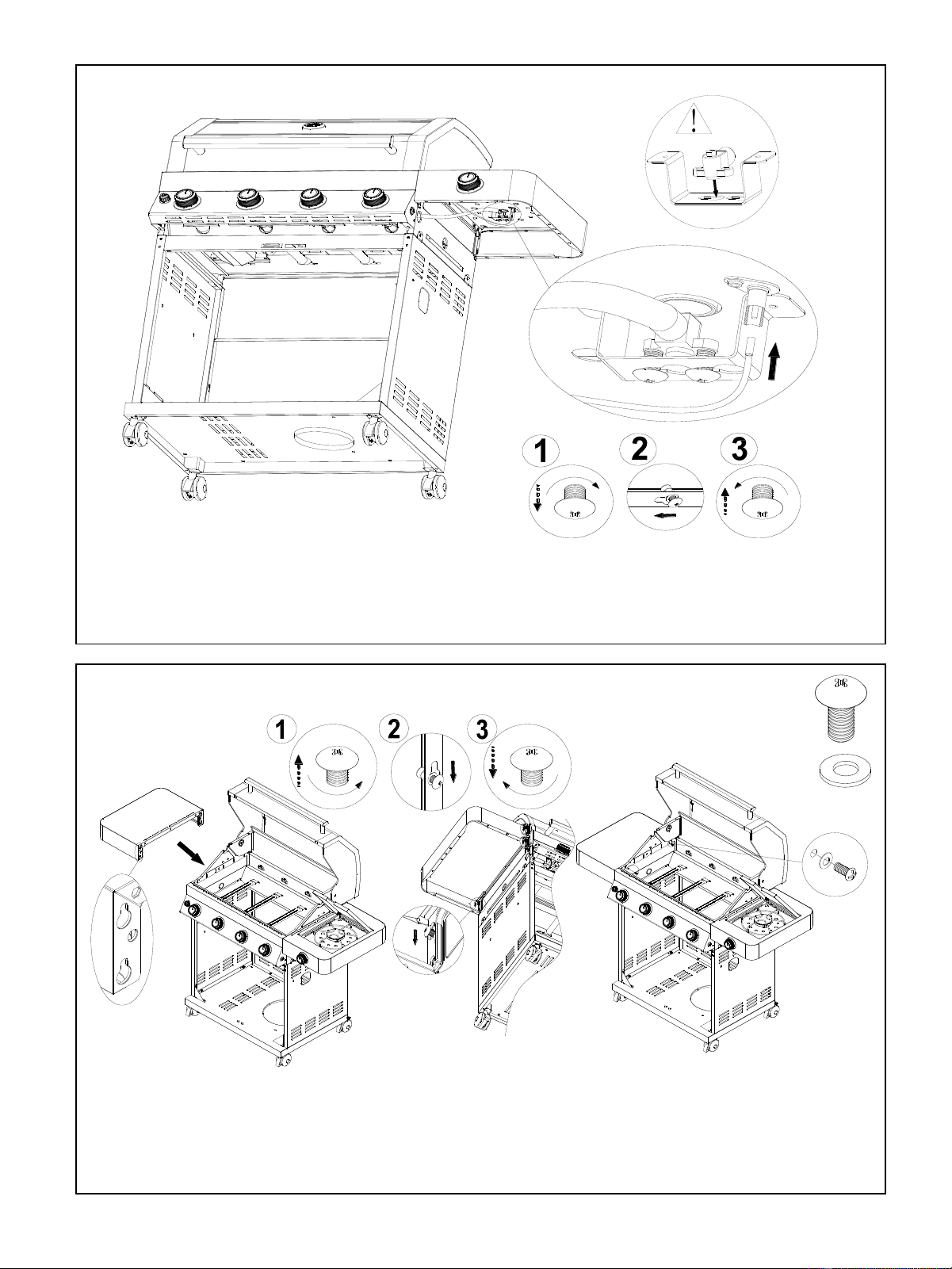

Figure 11
Figure 12.1 Figure 12.2
Figure 12.3
13
2 x B
2 x D
1.Half screw out the screw in Part No.27,
insert into the hole of Part No.22
and screw tightly.
1.Half screw out the three big screws on the grill body,
attach Part No.69 onto the relevant screw holes and screw tightly.
2.Screw Part No.69 tightly with B screw and D spacer inside the grill body.

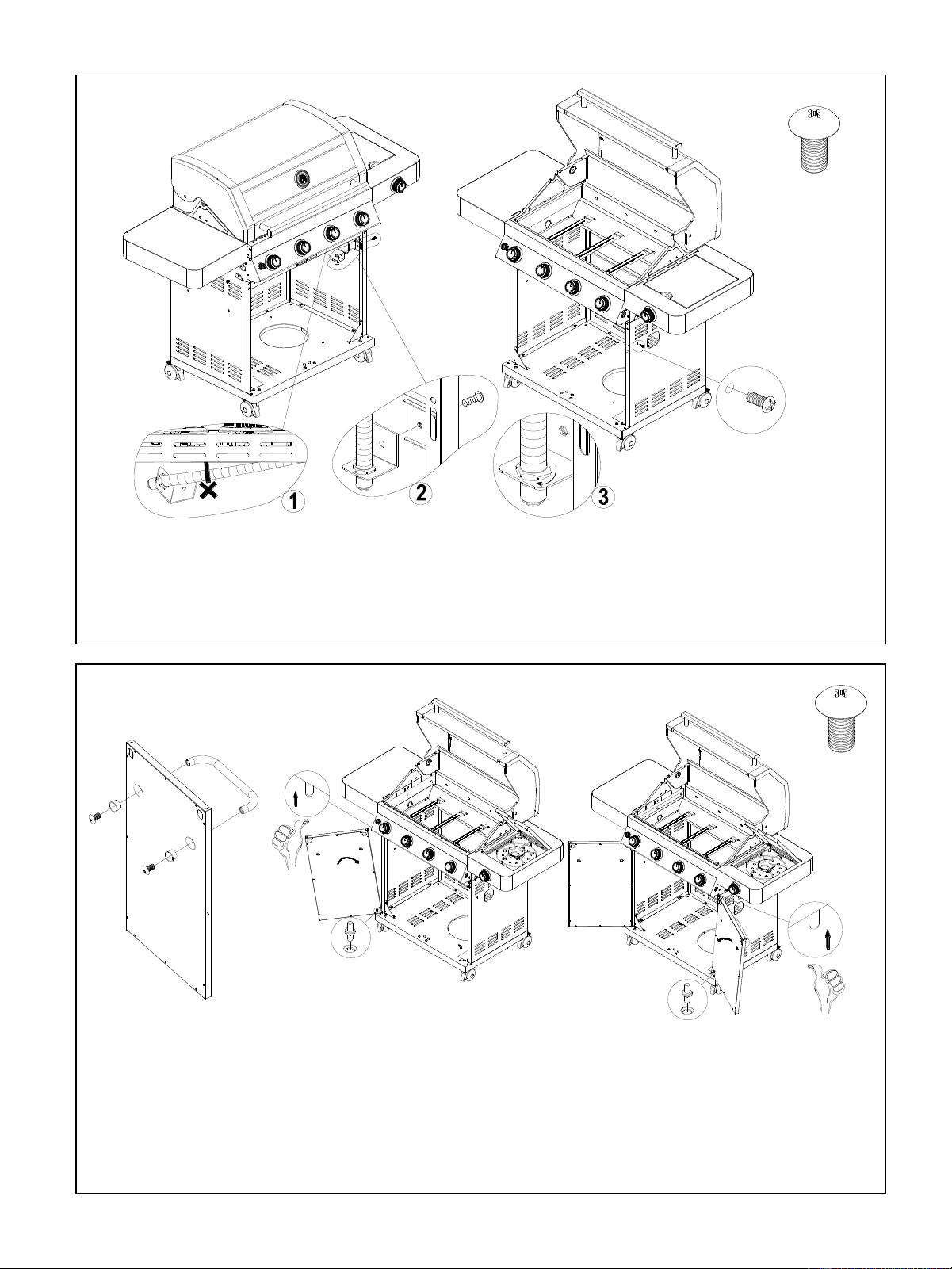

Figure 13.1 Figure 13.2
Figure 14.1
Figure 14.2 Figure 14.3
1 x
A
4 x
C
14
C
A
Fixed Part No.58 onto the right plate with one A screw.
1. Install Part No. 50 onto Part No.51 with A screws. (Figure 14.1)
2. Put the C part into the relevant hole in the bottom plate. (Figure 14.2)
3. Put Part No.51 into the C part. (Figure 14.2)
4. Attach the doors by pressing the flexible axis upward.
Figure 15.1 Figure 15.2
15
Figure 16
2 x
A
1. Install Part No.14 onto Part No.16 with two A screws. (Figure15.1)
2. Put Part No.15 into Part No.14. (Figure15.1)
3. Put the grease tray into the grill body. (Figure15.2)

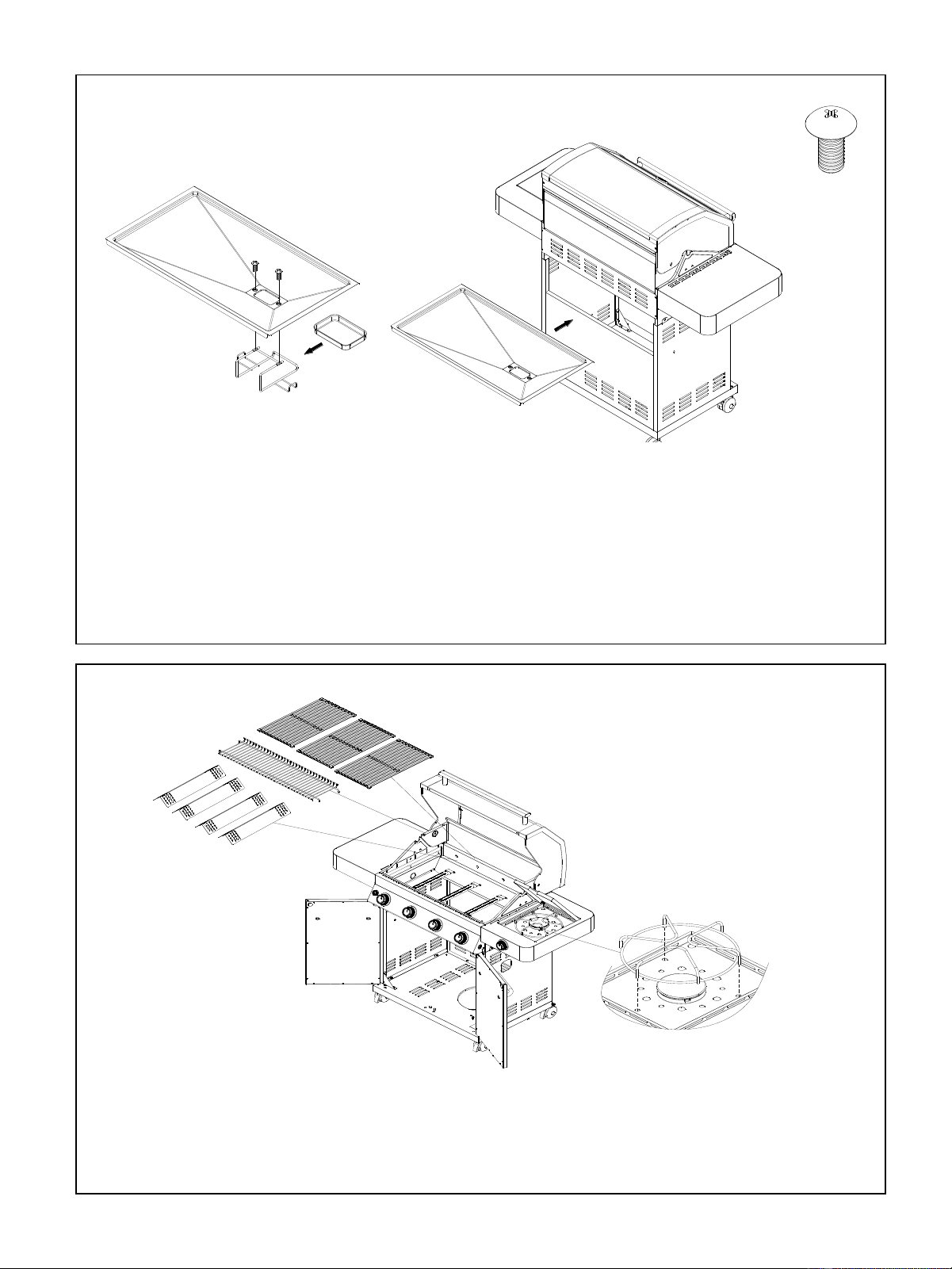

Put Part No. 7, Part No. 8 , Part No. 9 into the relevant place.
Figure 17
16
1 2
3

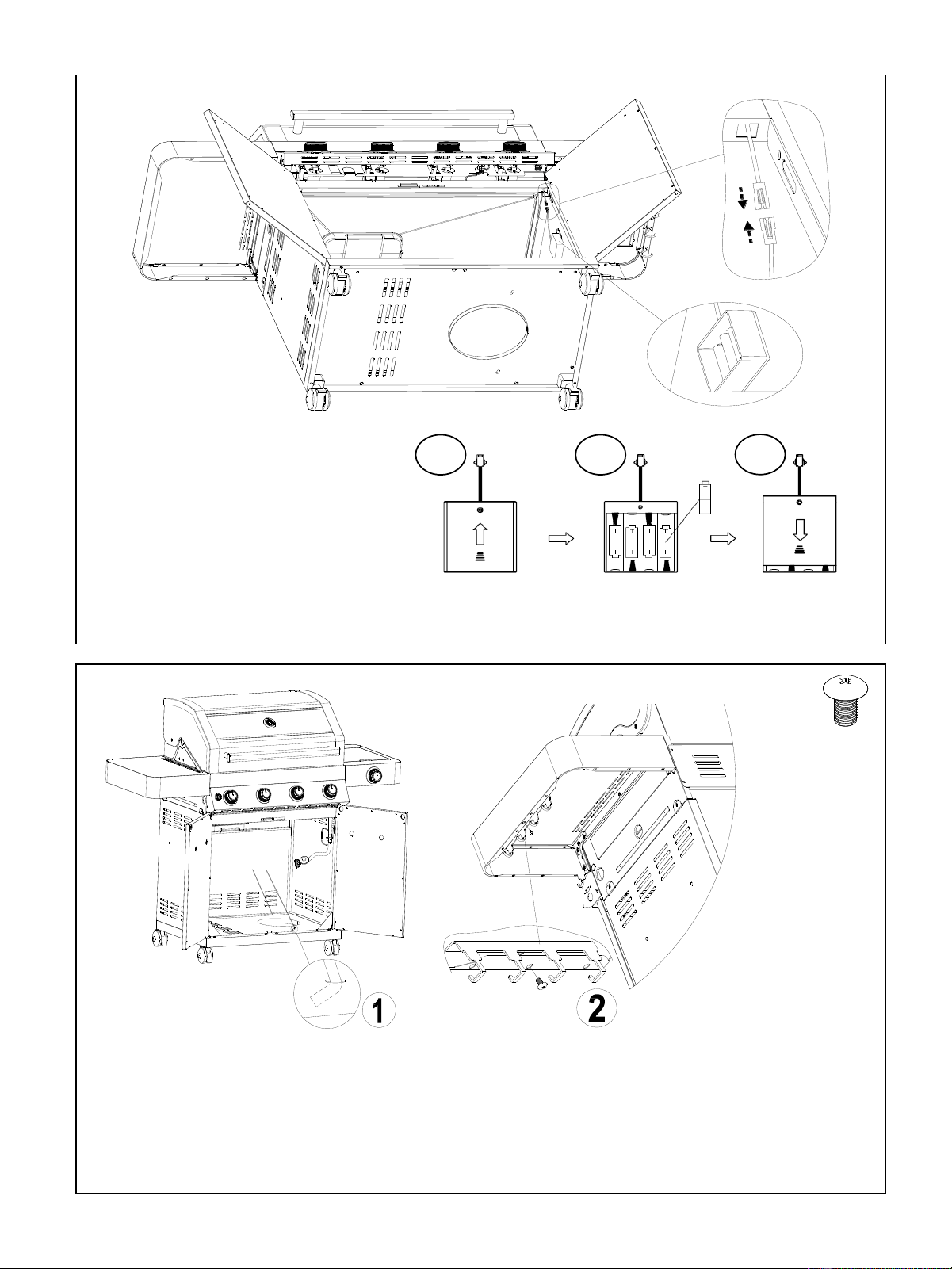

Connect Part No.54 to Part No.41.
Figure 18
1.Install Part No. 48 onto the bottom plate.
2.Install Part No. 26 onto the side plate.
1 x
B
1 x
B

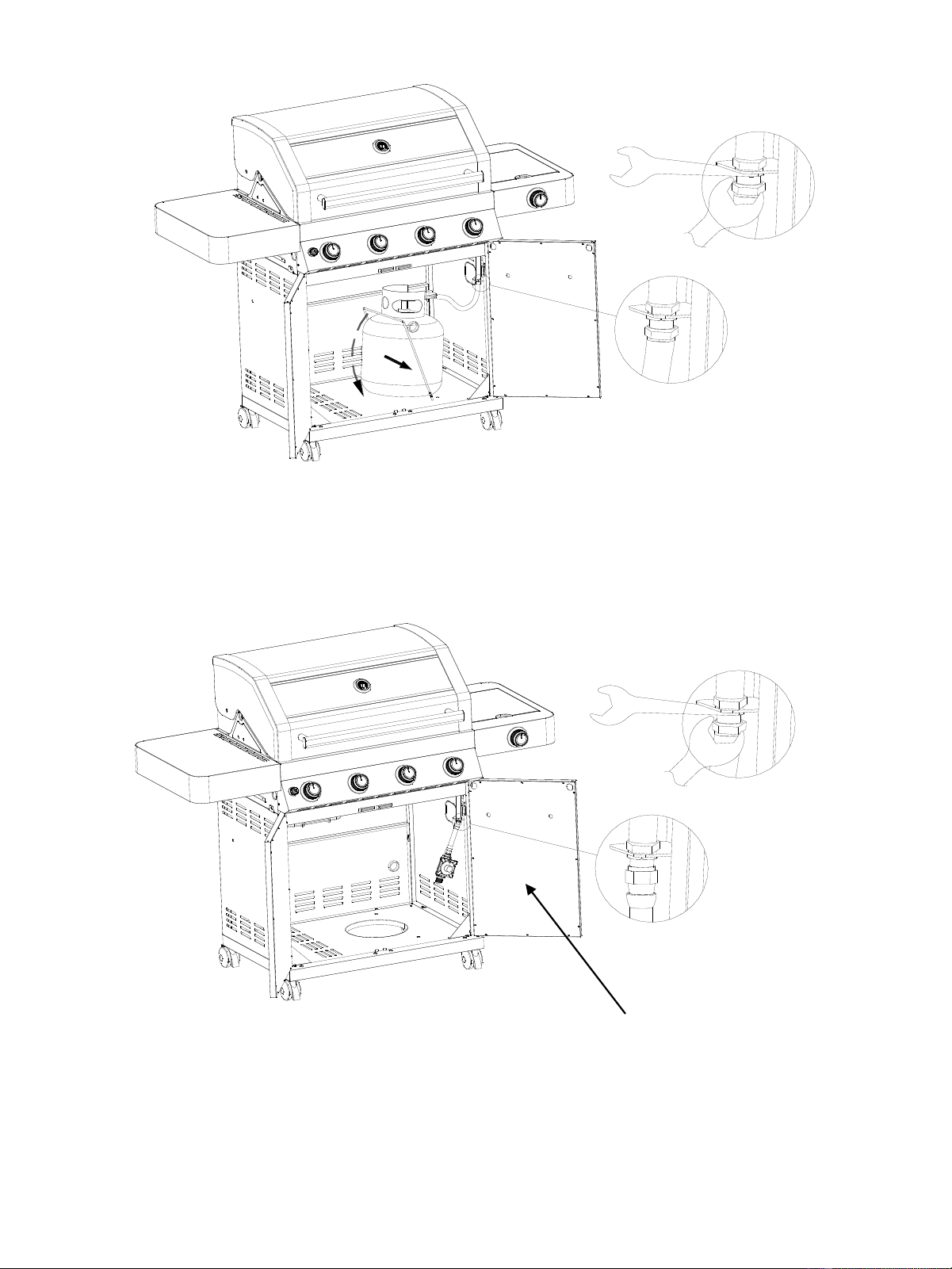

Connecting LP Gas Tank to LP Grill
1. Place foot ring of 20 lb. tank into the hole in bottom
panel. Make sure the tank valve is in OFF
position.(Fig.20).
2. Check the tank valve to ensure it has proper
external mating threads to fit the hose and regulator
assembly provided.
3. Make sure all burner valves are in OFF position.
4. Inspect the valve connection port and regulator
assembly. Look for damage or debris. Remove any
debris. Inspect hose for damage. Never use
damaged or plugged equipment.
5. When connecting regulator and hose assembly to
tank valve, hand tighten quick coupling nut clockwise
to a full stop (Fig.19) Do not use a wrench to tighten
because it could damage the quick coupling nut and
result in a hazardous condition.
6. Open tank valve fully (counterclockwise). Use a
soapy water solution to check all connections for
leaks before attempting to light your grill. If a leak is
found, turn tank valve off and do not use your grill
until the leak is repaired.
CAUTION: When the appliance is not in use, gas
must be turned off at the supply tank.
17
Figure 20
Regulator Connection
Figure 19
Congratulations
Your gas grill is now ready for use. Before the
first use and at the beginning of each season
(and whenever the LP gas tank has been
changed):
1. Read all safety, lighting and operating
instructions.
2. Check gas valve orifices, burner tubes and
burner ports for any obstructions.
3. Perform gas leak check according to
instructions found on next page of the manual.
LIGHTING INSTRUCTIONS FOR SIDE BURNER
1. Open side burner lid fully.
2. Push and turn side burner knob to IGNITE/HI
position. At the same time, press and hold
electronic ignition button for 3 to 5 seconds to
light burner.
3. If the side burner does not light after 5 seconds,
turn knob to OFF. Turn gas OFF at LP tank and
wait 5 minutes for gas to clear. Turn the gas ON
at tank and repeat step 2.
4. If burner still does not light, see Match Lighting
section and If Grill Still Fails to Light section on
following page.
Grill Lighting Instructions for Main Burners
1. Do not smoke while lighting grill or checking gas
supply connections.
2. Be sure that LP gas tank is sufficiently full.
3. Be sure all gas connections are securely tightened.
4. Turn on gas supply
5. Open the grill main lid and side burner lid.
6. Push and turn any main burner knob to IGNITE/HI
position, at the same time, press and hold
electronic ignition button for 3 to 5 seconds to light burner.
7. To light burners, push and turn burner knob(s)
to IGNITE/HI. At the same time, press and hold
electronic ignition button for 3 to 5 seconds to light
burner. Adjust knob(s) to desired setting.
8. If the burner does not light after 5 seconds, turn
knob to OFF. Turn gas OFF at LP tank and wait 5
minutes for gas to clear. Turn the gas ON at tank
and repeat step 6.
9. If burner still does not light, see Match Lighting
section and If Grill Still Fails to Light section on
following page.

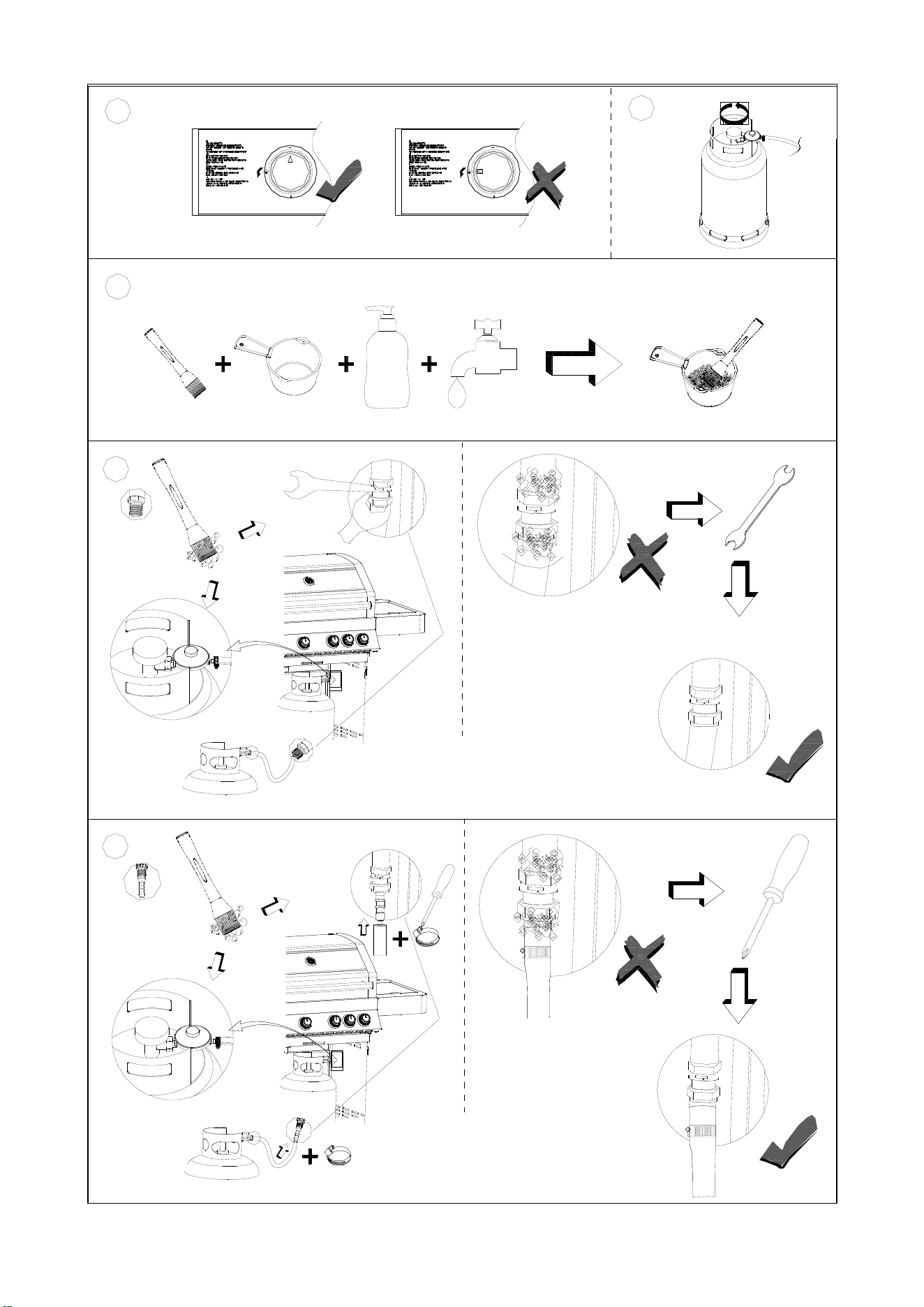

1. Make a 50/50 (soap/water) mild soap solution.
2. Turn the control knobs to full OFF position; turn
gas ON at supply tank.
3. Apply the soap solution with a clean brush to all
gas connections. See below. If growing bubbles
appear in the solution the connections are not
properly sealed. Check each fitting and tighten or
repair as necessary.
4. If you have a gas connection leak you cannot
repair, turn gas OFF at supply tank, disconnect
fuel line from your grill and call 1-888-980-4933 or
your gas supplier for repair assistance.
5. Also apply soapy solution to the tank seams. See
below. If growing bubbles appear, shut tank OFF
and do not use or move it! Contact an LP gas
supplier or your fire department for assistance.
WARNING
Failure to open grill lid during the lighting
procedure could result in a fire or explosion
that could cause serious bodily injury, death,
or property damage.
18
USING THE SIDE BURNER
Inspect the gas supply hose prior to turning the gas
“ON”. If there is evidence of cuts, wear or abrasion,
it must be replaced prior to use. Do not use the
side burner if the odor of gas is present.
WARNING: Always keep your face and body as
far away from the burner as possible when
lighting.

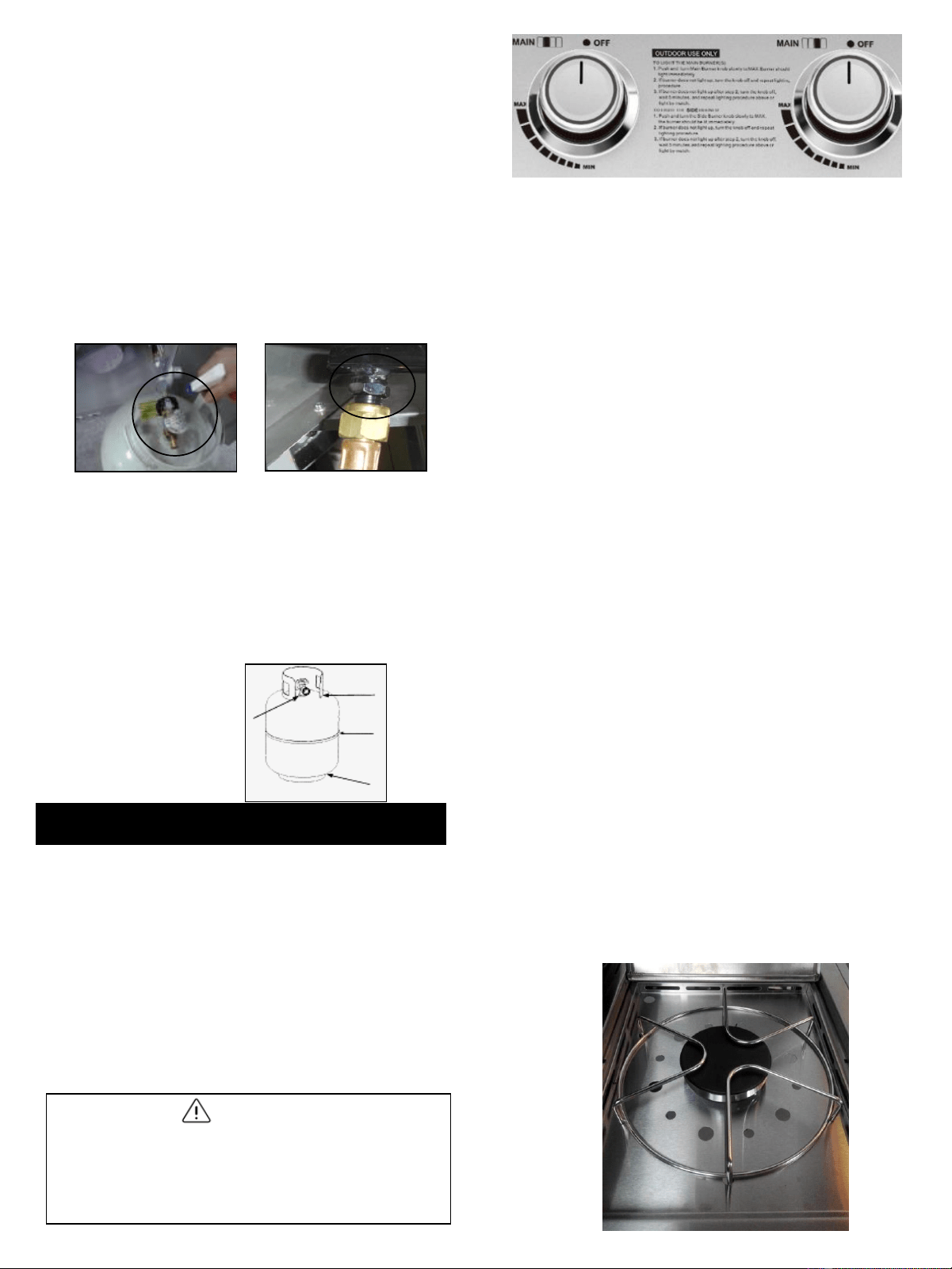

Gas Connection Leak Check
Gas Tank Leak Check
Checking for LP gas leaks
Never test for leaks with a flame. Prior to first use, at
the beginning of each season, or every time your LP
gas tank is changed, you must check for gas leaks.
Grill Lighting Instruction
WARNING
Never lean over the grill cooking area while
lighting your gas grill. Keep your face and body a
safe distance (at least 18 inches) from the
cooking grid surface when lighting your grill by
match.
If Grill Still Fails To Light
1. Check gas supply and connections for leaks. Check
that all wire connections are secure.
2. Repeat basic lighting procedure. If your grill still fails
to operate, turn the gas off at source, turn the control
knobs to OFF, check the following:
• Misalignment of burner tubes over orifices
Correction: Reposition burner tubes over orifices.
•Obstruction in gas line
Correction: Remove fuel line from grill. Do not smoke!
Open gas supply for 1 second to clear any obstruction
from fuel line. Close off gas supply at source and
reconnect fuel line to grill.
• Plugged orifice
Correction: Remove burners from grill, carefully lift
each burner up and away from gas valve orifice.
Remove the orifice from gas valve and gently clear any
obstruction with a fine wire. Reinstall all orifices, burners,
and cooking components.
3. If an obstruction is suspected in gas valves, call for
repair service at 1-888-980-4933.
4. If the grill still does not light you may need to purge air
from the gas line or reset the regulator excess gas flow
device. Note: This procedure should be done every time
a new LP gas tank is connected to your grill.
To purge air from your gas line and/or reset the
regulator excess gas flow device:
• Turn the control knob to OFF position.
• Turn off the gas at the tank valve.
• Disconnect regulator from LP gas tank.
• Let unit stand for 5 minutes.
• Reconnect regulator to the LP gas tank.
• Turn the tank valve on slowly until ¼ to ½ open.
• Open the grill lid.
• Set control knobs to OFF. Push and turn any control
knob to HIGH.
• Turn control knobs to HIGH until all the burners are lit
• You may start to use the grill
5. If all checks or corrections have been made and you
still have questions about operating your gas grill, call
the Customer Service Helpline 8 AM – 5 PM CST,
Monday through Friday at 1-888-980-4933
WARNING
Should a “FLASH-BACK” fire occur in/or
around the burner tubes, follow the instructions
below. Failure to comply with these instructions
could result in a fire or explosion that could
cause serious bodily injury, death, or property
damage.
• Shut off gas supply to the gas grill.
• Turn the control knobs to OFF position.
• Put out any flame with a proper fire extinguisher.
• Open grill lid.
• Once the grill has cooled down, clean the burner
tubes and burners according to the cleaning
instructions found on page 20.
19
Manually Lighting Your Grill by Match
1. Take the manual lighting stick
2. Insert a match into the lighting stick.
3. Follow steps 1 through 5 of the Basic Lighting
Procedure.
4. Light the match and extend the lighting stick to
cooking grid surface.
5. Turn the desired control knob to the HI/position
setting to release gas. The burner should light
immediately.
To ensure a proper working unit the following proper
care and maintenance is suggested.
Cleaning Cooking Grids
We suggest you wash your cooking grids in a mild soap
and warm water solution. You can use a washcloth or
soft brush to clean your cooking grids.
Cleaning Heat diffusers
Periodically you should wash the heat diffusers in a
soap and warm water solution. Use a soft brush to
remove stubborn burnt-on cooking residue. The heat
diffusers should be dry before you reinstall them.
Cleaning Grease Tray
The grease tray should be emptied and wiped
down periodically and washed in a mild
detergent and warm water solution. A small
amount of sand or cat litter may be placed in
bottom of grease tray to absorb the grease.
Check the grease tray frequently, don’t allow
excess grease to accumulate and overflow out of the
grease tray.
Annual Cleaning of Grill Interior
Burning-off the grill after every use will keep it ready for
your next use. However, once a year you should give
the entire grill a thorough cleaning to keep it in top
operating condition. Follow these steps.
1. Turn all burner valves to full OFF position.
2. Turn LP gas tank valve to full OFF position.
3. Detach LP gas hose and regulator assembly from
your gas grill. Inspect for any damage and replace as
necessary with manufacturer replacement part number
found on parts list.
4. Remove and clean heat diffusers, cooking grids and
grill burners.
5. Cover each gas valve orifice with aluminum foil.
6. Brush inside and bottom of grill with a nylon brush,
and wash with a mild soap and warm water solution.
Rinse thoroughly and let dry.
7. Remove the aluminum foil, reinstall heat diffusers,
and cooking grids.
8. Reconnect gas source and observe burner flame for
correct operation.
Cleaning Exterior Surface
•We suggest you wash your grill using a mild soap and
warm water solution. You can use a washcloth or
sponge for this process. Do not use abrasives or a
brush that might remove finish during the cleaning
process.
Cleaning Exterior Stainless Steel Surfaces
Weathering and extreme heat can cause exterior
stainless-steel surfaces to turn tan in color. Machine
oils used in manufacturing process of stainless steel
can also cause this tanning color. Use a stainless-
steel cleaner to polish stainless steel surfaces of
your grill. Never use abrasive cleaners or scrubbers
because they will scratch and damage your grill.
20
Cleaning Burner Tubes and Burner Ports
To reduce the chance of “FLASH-BACK” the procedure
below should be followed at least once a month in late
summer or early fall when spiders are most active or
when your grill has not been used for a period of time.
1. Turn all burner valves and gas tank valve to off
position.
2. Detach the LP gas regulator assembly from your gas
grill.
3. Remove cooking grids, heat diffusers, and grease
tray from the grill.
4. Remove the screws from the underside of each
burner and lift the burners up and away from the gas
valve orifice.
5. Using a bent stiff wire in the shape of a hook , air
hose or a bottle brush, run it through the burner tube
and inside several times to remove any debris.
6. Replace burners, see illustration below.
WARNING
The location of the burner tube with respect to the
orifice is vital for safe operation. Check to ensure the
orifice is inside the burner tube before using the gas
grill. If the burner tube does not fit over the valve
orifice, lighting the burner may cause explosion
and/or fire.
Cleaning and Maintenance

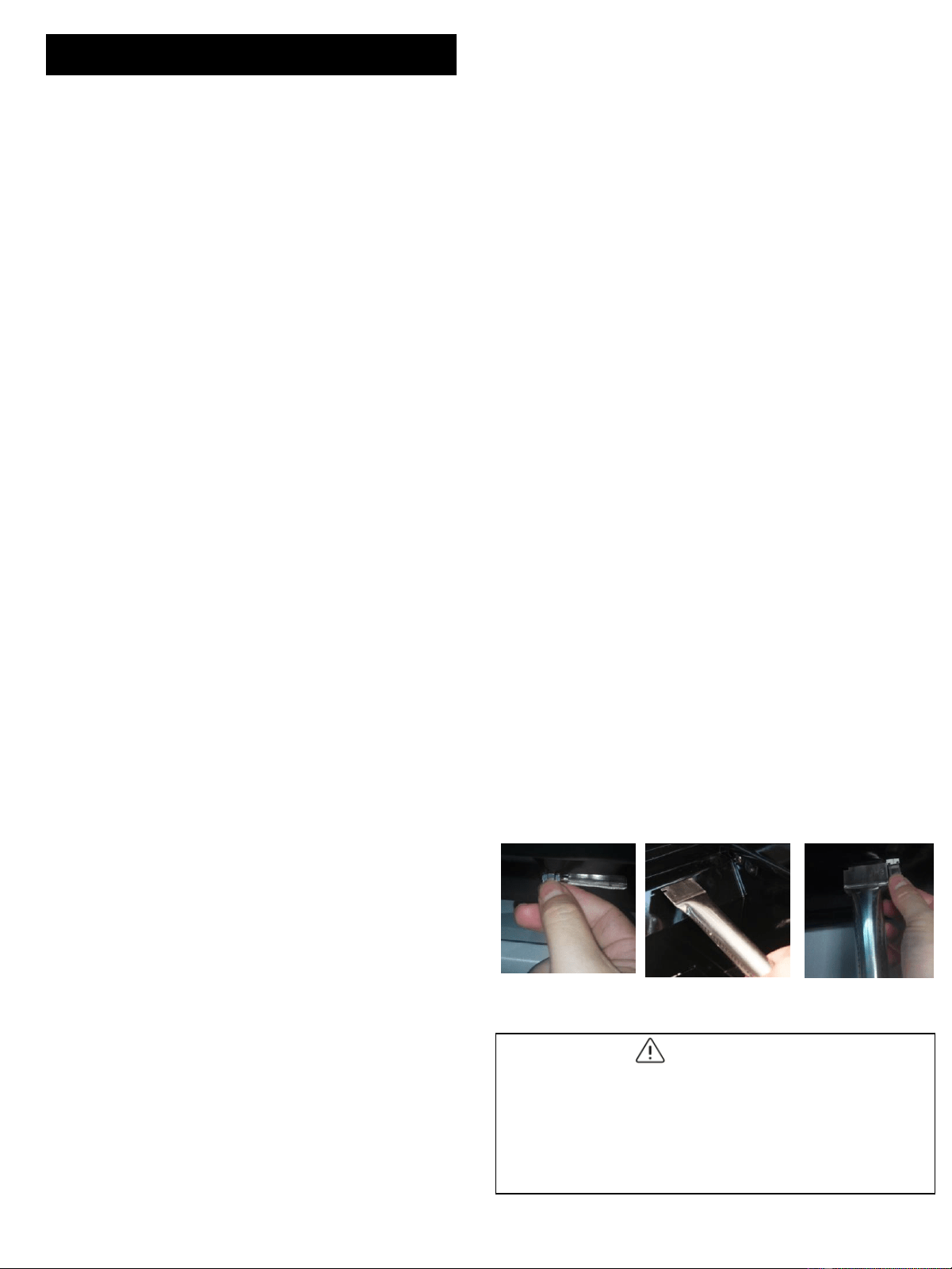

Step 1 Step 2 Step 3
BEFORE CALLING FOR SERVICE
If the grill does not function properly, use the following check list before calling for service.
You should inspect the burners at least once a year or immediately after any of the following
conditions occur:
PROBLEMS WHAT TO DO
Check to see if LP tank is empty.
Clean wires and/or electrode by rubbing
with alcohol and clean swab.
Wipe with dry cloth.
Make sure the wire is connected to
electrode assembly.
Do other burners on the unit operate?
Check to see if other burners operate. If
so, check the gas orifice on the
malfunctioning burner for an obstruction.
Burner flame is yellow or orange, in
combination with the odor of gas.
Refer to Clean Burner Tubes and Burner
Ports on page 20. If problem still exists,
please call 1-888-980-4933.
Low heat with knob in “HI” position. Is the fuel hose bent or kinked?
Is the grill in a dusty area?
Is there adequate gas supply available?
If it is only one burner that appears low,
does the orifice or burner need cleaning?
Is the gas supply or gas pressure low?
Grill won’t light when the control knob is
rotated.
21
Regardless of which burner cleaning procedure you
use, we recommend you also complete the following
steps to help prolong burner life.
1. Use a fiber pad or nylon brush to clean the entire
outer surface of each burner until free of food residue
and dirt.
2. Clean any clogged ports with a stiff wire, such as
an open paper clip.
WARNING
Spiders and insects can nest inside the burners of
the grill and disrupt gas flow. This very dangerous
condition could cause a fire behind the valve panel,
thereby damaging the grill and making it unsafe for
operation. Inspect the grill at least twice a year.
3. Inspect each burner for damage (cracks or holes)
and if such damage is found, order and install a new
burner. After installation check to ensure that gas
valve orifices are correctly placed inside the ends of
the burner tubes.
Troubleshooting
WARNING
Do not leave the grill unattended.
Your grill will get very hot. Never lean over
the cooking area while using your grill. Do not
touch cooking surfaces, grill housing. Grill Lid
or any other grill parts while the grill is in
operation, or until the grill has cooled down
after use. Failure to comply with these
instructions may result in serious bodily injury.
Cooking Instructions
Burn-off
Before cooking on your gas grill for the first time,
you will want to “burn off” the grill to eliminate any
odor or foreign matter. Just ignite the burners,
lower the Lid, and operate grill on the HIGH
setting for 3 to 5 minutes.
Cooking Temperatures
High setting: Only use this setting for fast
warm-up, searing steaks or chops and for burning
food residue off the grill after cooking is complete.
Never use the HIGH setting for extended cooking.
Medium to Low Settings: Most recipes specify
medium to low settings, including all smoking
and for cooking lean cuts such as fish.
NOTE: Temperature settings will vary with the
temperature and the amount of wind outside your
home.
Direct Cooking
The direct cooking method can be used with the
supplied cooking grids and food placed directly
over the lit grill Burners. Direct cooking requires
the grill lid to be up. The method is ideal for
searing and whenever you want meat, poultry or
fish to have and open-flame barbecued taste.
Deep frying and smoking are also best cooked in
this manner because they require direct heat.
Indirect Cooking
To cook indirectly, the food should be placed on
the left or right side of your grill with the burner lit
on the opposite side. Indirect cooking must be
done with the Lid down.
Flare-ups
The fats and juices dripping from grilled food can
cause flare-ups. Since flare-ups impart a favorably,
distinctive taste and color to food cooked cover an
open flame, they should be accepted up to a point.
Nevertheless, uncontrolled flaring can result in a
ruined meal.
WARNING
Do not line the bottom of the grill housing with
aluminum foil, sand or any substance that will
restrict the flow of grease into the grease tray.
Failure to comply with these instructions could
result in a fire or explosion which could cause
serious bodily injury, death, or property
damage.
22

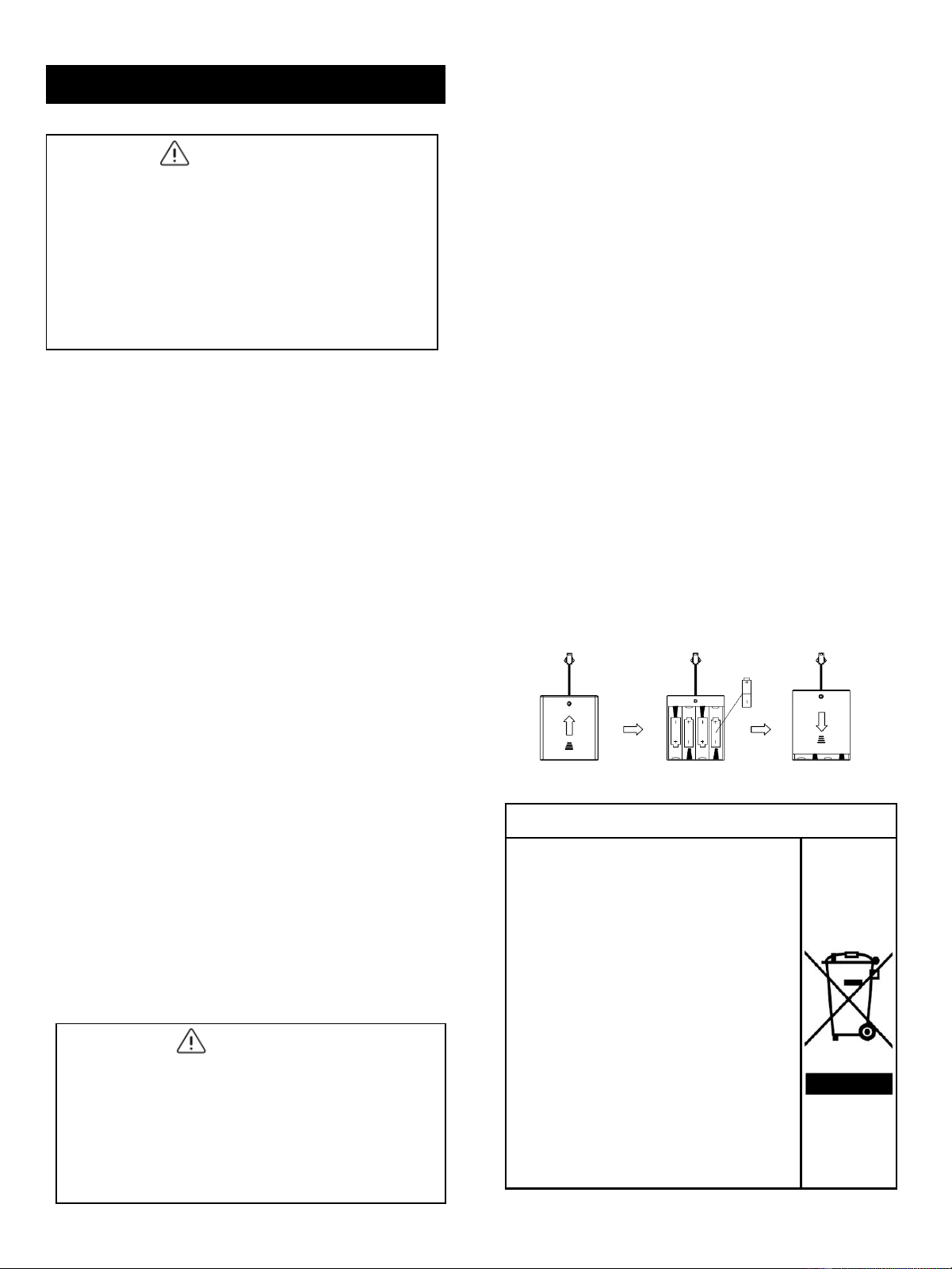

Replacing the Battery
If the LED do not light, the battery should be replaced.
Change the led battery
1.Find the battery box，open the lid.
2. Put 4pcs “AA” size battery, the positive and
negative pole of the battery should keep the same as
the pole in box.
3.Close the lid.
Correct Disposal of this product
This marking indicates that this
product should not be disposed
with other household wastes
throughout the EU. To prevent
possible harm to the environment
or human health from uncontrolled
waste disposal, recycle it
responsibly to promote the
sustainable reuse of material
resources. To return your used
device, use the return and
collection systems or contact the
retailer where the product was
purchased. They can take this
product for environmental safe
recycling.

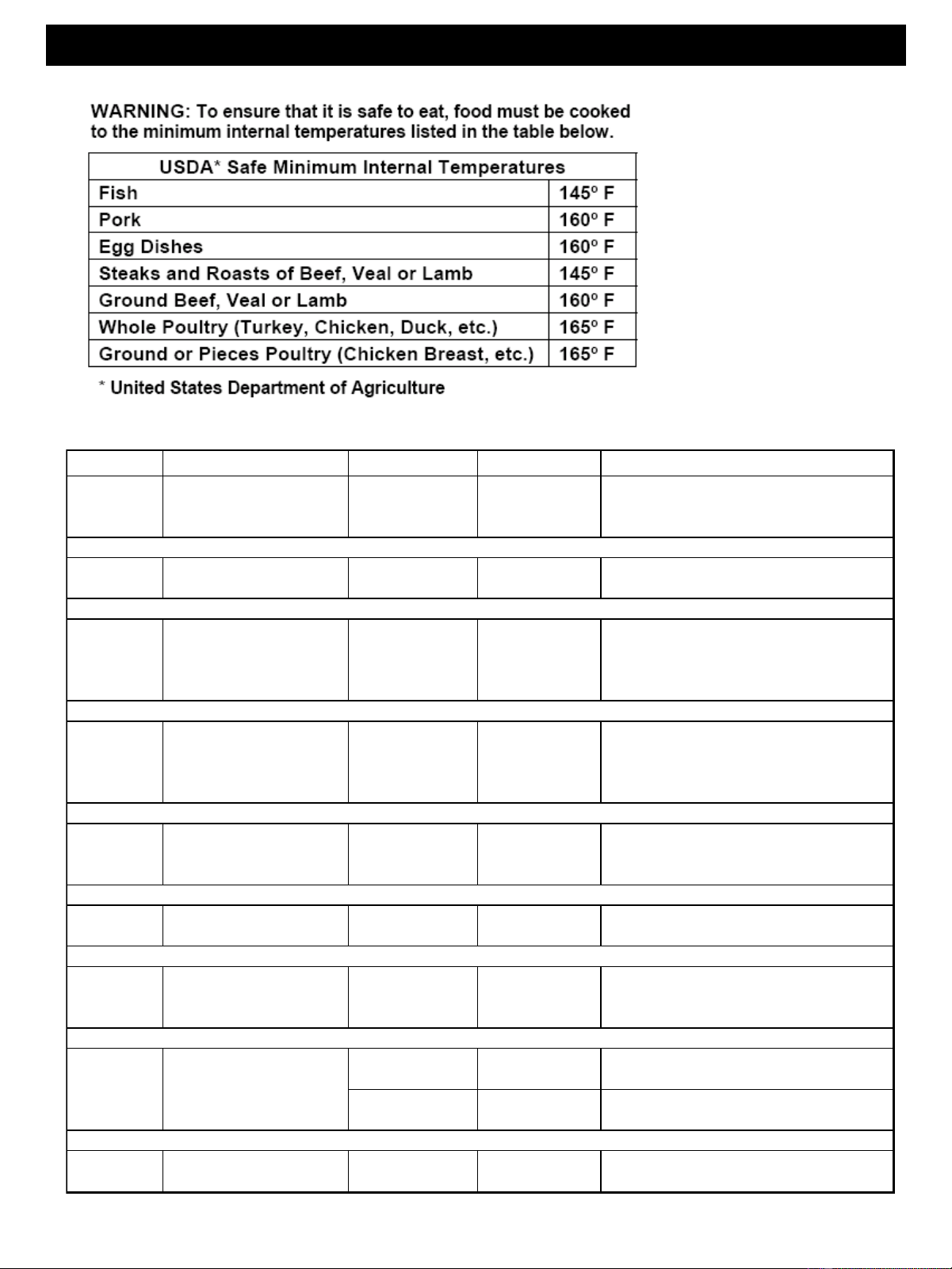

FOOD Weight or thickness Temperature Time Special instructions and tips
Vegetables NA Medium 8 to 20 minutes
Slice or chop vegetables and dot with butter or
margarine. Wrap tightly in heavy duty foil. Grill
turning occassionally.
Potatoes Whole Medium 40 to 60 minutes
Wrap individually in heavy duty foil. Cook
rotating occassionally.
Meat/Steaks 1/2 to 3/4 inches High-Medium 4 to 15 minutes
Pre heat grill for 15-20 minutes then sear
steaks on each side for two minutes. Next
grill 3 to 5 minutes on each side or until
desired doneness.
Ground Meats 1/2 to 3/4 inches Medium 8 to 15 minutes
Grill turning once when juices rise to the
surface or until desired amount of doneness.
Do not leave hamburgers unattended since a
flare-up could occur quickly.
Ribs 1/2 or full rack Medium 20 to 40 minutes
Grill turning occassionally. During last few
minutes brush with barbecue sauce, turn
several times.
Hot dogs NA Medium 5 to 10 minutes
Grill turning four times. 2-4 minutes on each of
four sides.
Poultry-Cut 1/4 to 1/2 pounds Low or Medium 20 to 40 minutes
Grill turning occassionally. During last few
minutes brush with barbecue sauce if desired,
turn several times.
Low or 1 to 1-1/2 hours
Use poultry stand and brush frequently as
desired
Medium 40 to 60 minutes
Use poultry stand and brush frequently as
desired
Fish 3/4 to 1 inch Medium 8 to 15 minutes
Grill turning once to desired doneness. Brush
with melted butter, margarine or oil.
Poultry Whole
2 to 3 pounds
23
Grill Cooking Chart
6mm
Components Orifice Size BTU Orifice Size BTU
Main Burner 1.02mm 12000 1.53mm 12000
Side Burner 1.02mm 12000 1.65mm 12000
Liquid propane(LP)
Natural Gas(NG)
Model NO.41847NG Orifice Size
Tools will be needed for gas conversion
Natural Gas Conversion
WARNING!
FAILURE TO HEED THESE WARNINGS COULD RESULT IN A FIRE OR EXPLOSION
THAT COULD CAUSE SERIOUS BODILY INJURY, DEATH OR PROPERTY DAMAGE.
Natural Gas Conversion must be performed by a QUALIFIED GAS TECHNICIAN ONLY. The
QUALIFIED GAS
TECHNICIAN should ensure compliance of local codes, including but not limited to,
requirements and installation
of grill regulator. DO NOT ATTEMPT TO CONVERT YOURSELF. Improper conversion could
result in a gas leak
which could cause a fire or explosion and cause serious bodily injury, death or property
damage. Leaks due to
improper conversion could occur immediately or slowly over time. If you hear any unusual
noises or leaks, smell
gas or unusual odors, or notice anything unusual with the operation of your gas appliance
after the installation,
immediately shut off the gas supply and discontinue use until the appliance is repaired by a
QUALIFIED GAS
TECHNICIAN.

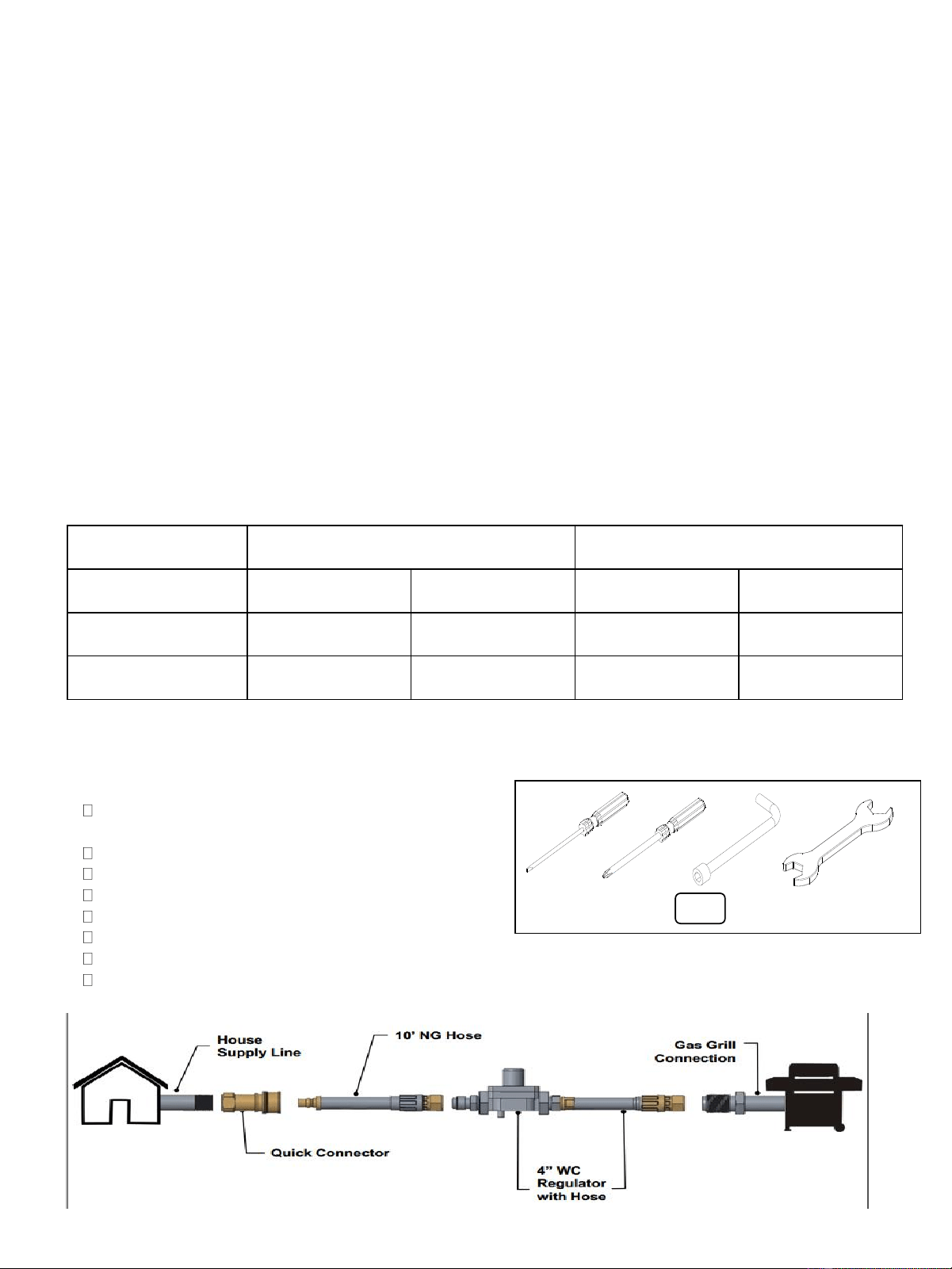

Below parts are needed for natural gas conversion:
INCLUDED
Natural gas orifices
NOT INCLUDED
Quick Connector
10 ft. Natural Gas Hose
4” Water Column Regulator with Hose
Tools
6 mm Nut Driver
6 mm Wrench
Hex Key
24

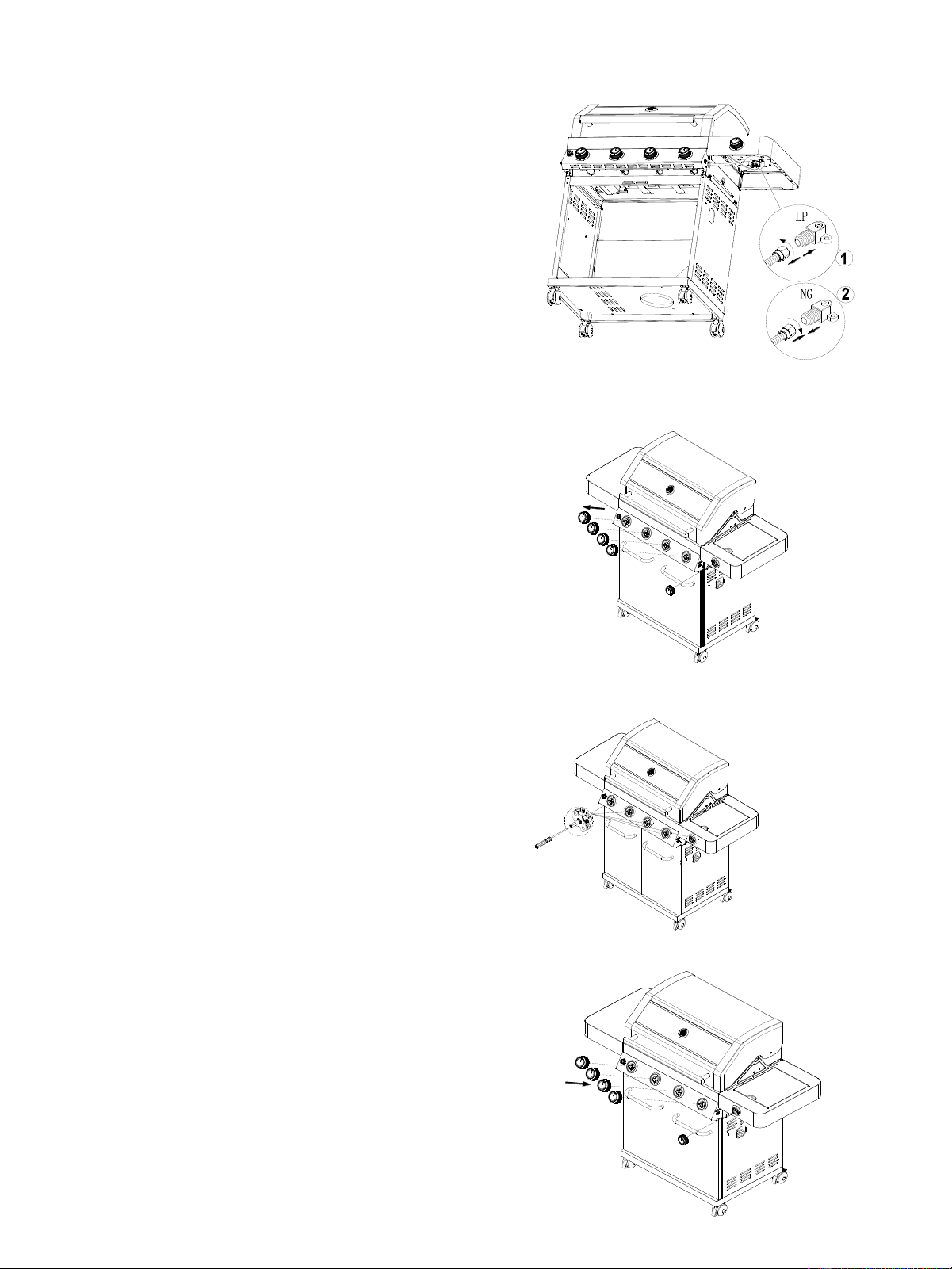

1. Turn off the main gas supply valve.
2. Disconnect LP gas fuel tank (if present).
3. Turn off all burner control valves.
4. Remove the LP gas fuel tank (if present) from the grill cart.
5. Use an adjustable wrench to remove the LP regulator from the manifold.
6.Use an adjustable wrench to install the Natural gas
regulator hose to the manifold and secure. Attach the
Natural gas regulator to the side panel inside the grill
cart with the two screws that are preassembled on the
regulator.
GAS CONVERSIONS
25
Label position
7.After LP is converted to NG, you need to put a label on
the location shown above.
PSIG GLOBAL Q
C
LOW
PSIG GLOBAL Q
C
LOW

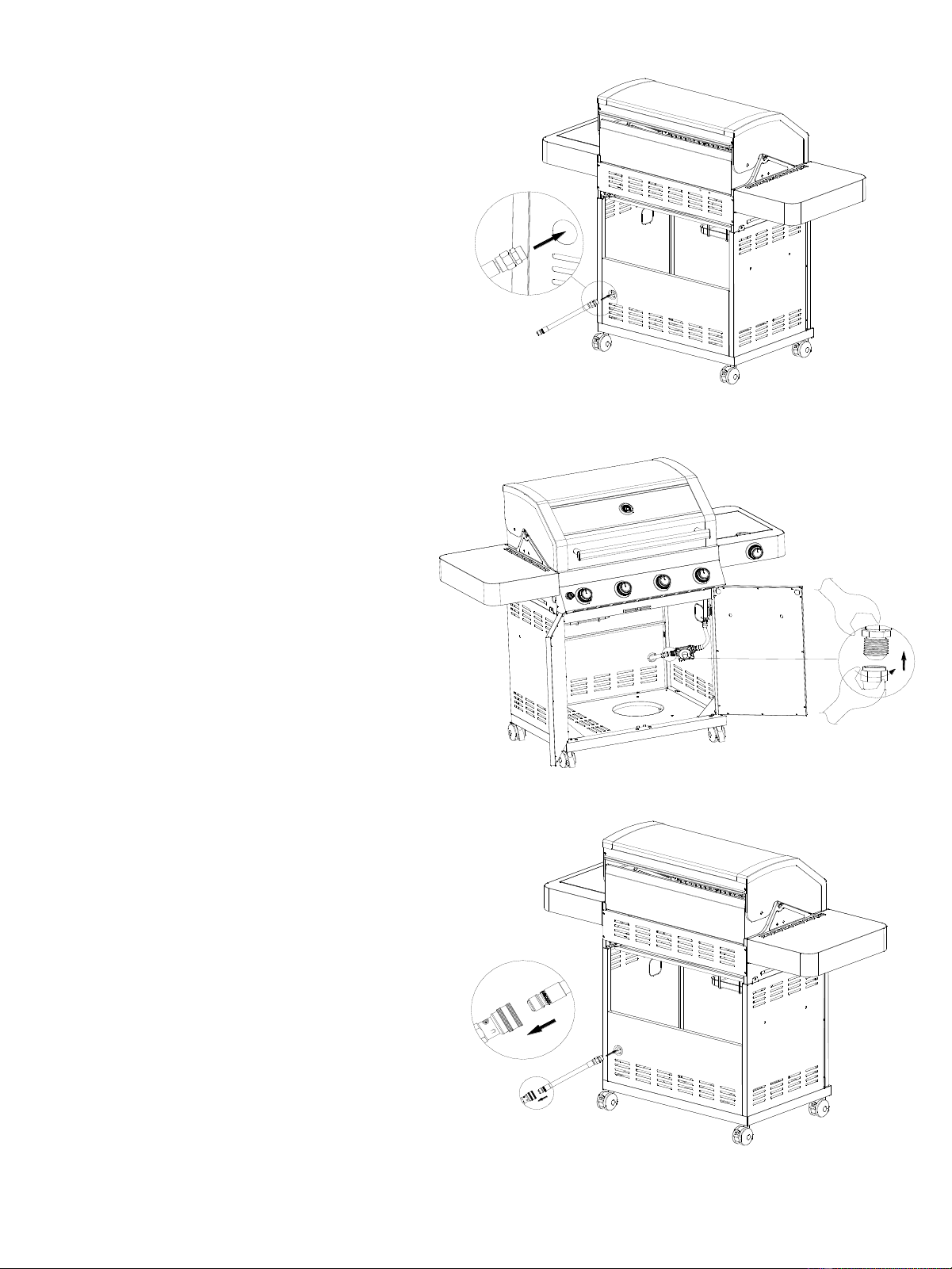

1.Pass the NG hose to grill cart through the back panel
2.Connect the brass connector on one end of
the 10 ft (3.0m) PVC flexible gas supply hose to
the Natural gas pressure regulator
3.Connect the quick connector on the other end of
the 10 ft. PVC flexible gas supply hose to the rigid
natural gas supply pipe.
4.Remember to do leak test after conversion
Make Gas Connection
26

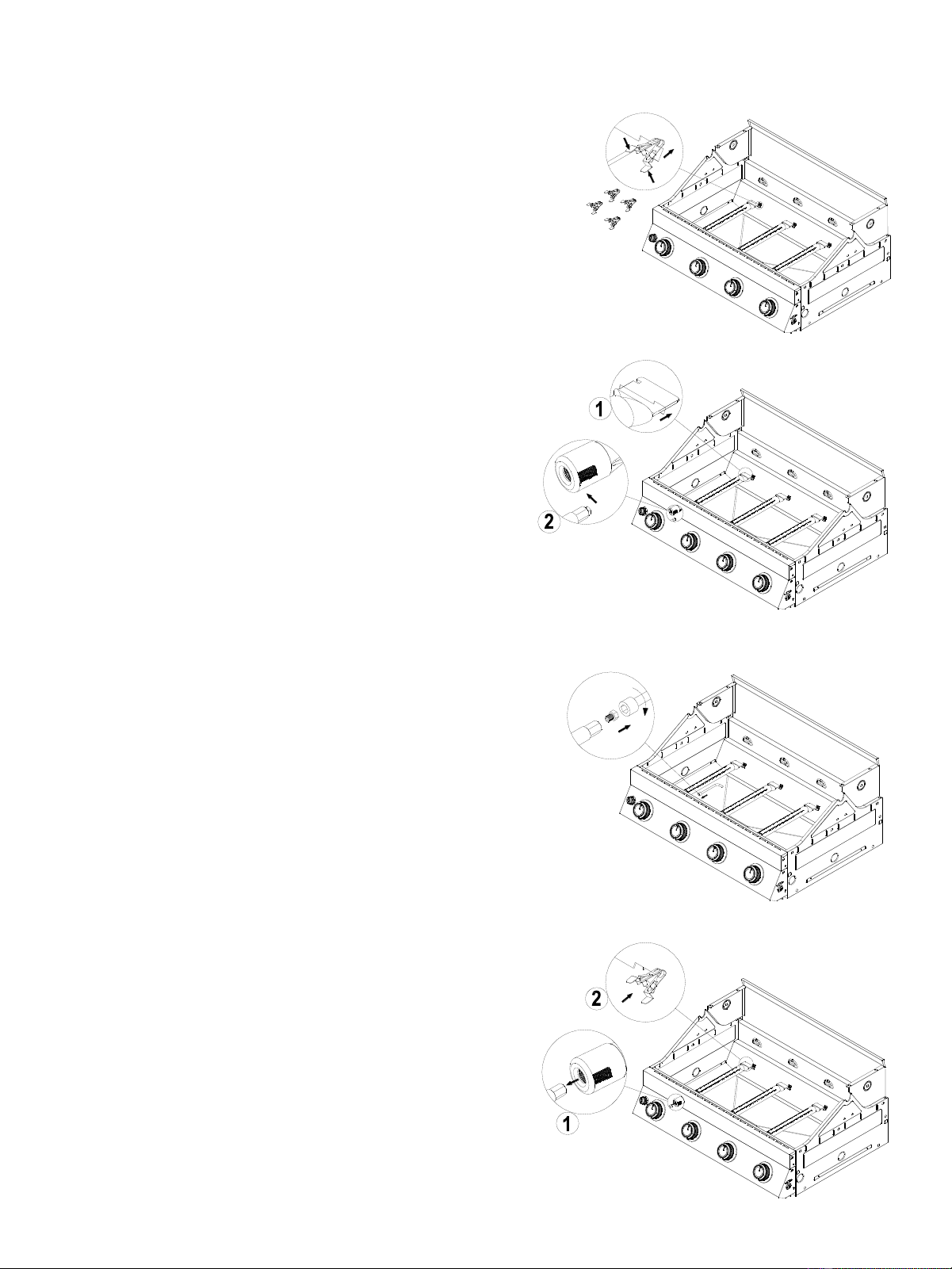

Change Grill Main Burner Valve Orifices
6.Reinsert the burner and reattach using the Clamp
Spring previously removed. Repeat the procedure for
each main burner
5.Replace with the Natural gas orifice.
4:Use a 6 mm socket and wrench or 6 mm nut driver to
remove the brass orifice from the end of gas valve.
1. Remove the grates and flame tamers.
2. Push back the Clamp Spring which hold the burner in
place,the clamp spring will drop off to grease tray or grill
cart
3.Remove the burner from the grill by lifting the burner out
27
1:Remove all the control knobs
Adjust High/Low Flame Setting Screw
2:Use a flat-blade screwdriver to turn the high flame
setscrew clockwise approximate 90º
4:Replace the control knob and turn off the burner
3:Check that burner operates at the new high flame
setting. It may be necessary to adjust the screw setting
slightly more to get the ideal burner flame
height
28
1:Remove the LP Side Burner Orifice,and install
the NG Side Burner Orifice
Change the Side Burner Orifice
1
2
3
50 % 50 %
4
A
4
B
soap
29
WWW.MONUMENTGRILLS.COM
ProductRegistrationCard
Itissimple!CompleteandmailyourProductRegistrationCard
withtheCopyoftheReceipttoday!
Lastname:______________FirstName:_______________
Address: _________________ City: _________State: __________
Zip:____________Phone:__________
Email:______________Placeofpurchase:_______________
ModelNumber:______________SerialNumber:_____
DateofPurchase:______________
Please return your Product Registration Card today to validate the
warrantyservice
30
WWW.MONUMENTGRILLS.COM
Carted’enregistrementduproduit
C’estfacite!Remplissezetpostezcarted’enregistrementdu
prodduitdesaujourd’huiavecunecopieduticketdecaisse!
Nomdefamille:_______________Prenom:_______________
Adresse:___________Ville:______________ Province: ______________
Codepostal:_____________Telephoner:_____________
Adressecourriel:______________Lieud’achat:______________
Numerodemodele:___________Numerodeserie:____________
Dated’achat:______________
Por favor,devuelva su tarjeta de registro de product hoy para
validarelserviciodegarantia
31
WWW.MONUMENTGRILLS.COM
Tarjetaderegistrodelproduct
Essimple!Liene yenviesuTarjetadeinscripcion delprodctohoy
conlacopiadelcomprobantederecibot
Apellido:______________Primernombre:______________
Dereccion: _________Ciudad: ___________Estado: _____________
Codigopostal:______________Liame(Opcinal):______________
Lugardecompra:______________
Numerodelmodelo:___________Numerodeserie:
LafechadeCompra:______________
Enviesutarjetadeinscripcion delproducthoymismopourvalider
lagarantie
32
