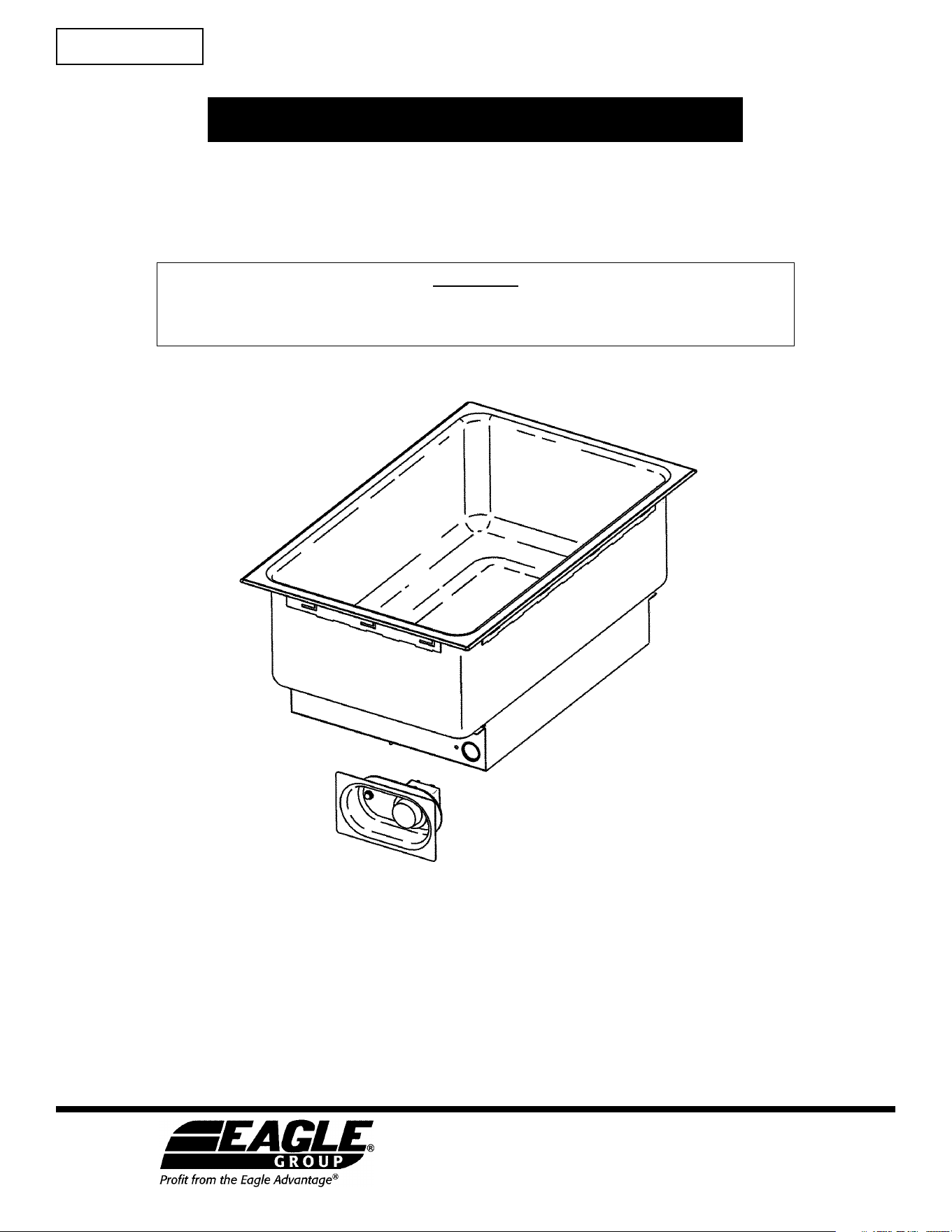

INSTALLATION / OPERATING INSTRUCTIONS
Top Mount Food Warmers
(after August 2011)
Models #TM1220FW-120 / -120T / -120-D / -120T-D
This food warmer will work most efficiently when used with water in the pan liner. The hot water will give a better distribution of heat
and help keep food from drying out. It is not designed for cooking foods but merely to keep hot foods at desired temperatures for
serving.
During initial operation, a little smoke or odor may be detected. This will occur when the coating on the heating element
burns off. This should stop after 1/2 hour of operation.
This warmer is equipped with a variable control for different heat selections.
Suffix “-120” may be replaced with suffix “-208” for 208-volt models or suffix “-240” for 240-volt models.
Suffix “T” indicates thermostatic control.
Suffix “-D” indicates unit with drain.
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE. SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2023 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglegrpnews.com • www.eaglemhc.com
INSTRUCTION SHEET
#376419
INSTALLATION INSTRUCTIONS
2
(For wiring instructions, see page 3.)

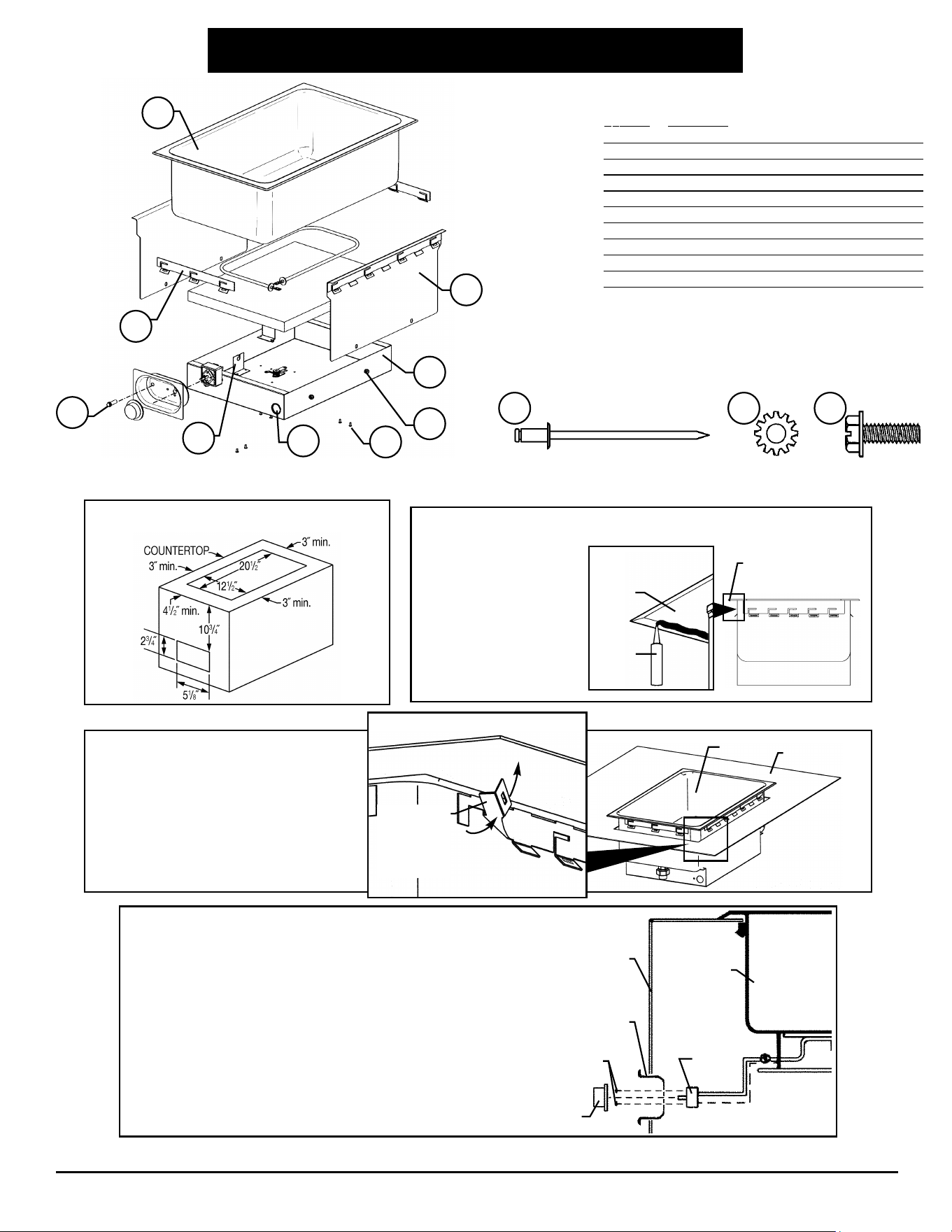

Parts List
Replacement parts may be purchased through our
local Authorized Parts & Service Center.
(actual size of hardware)
# qty description
#1 6 pop rivet
#2 2 short locking strip
#3 1 brass eyelet
#4 3 heat element support bracket
#5 1 spillage pan
#6 1 grounding screw, #10-32
#7 5 insert, #10-32 open
#8 4 star washer
#9 4 slotted screw, #10-32 x 1/2˝
#10 2 side support
#11 1 heater cover
Step 2 - Apply silicone rubber to full perimeter.
Note: Silicone can be
purchased at a
local hardware store.
Step 3 - Install warmer.
• Insert flat screwdriver into slot of each
locking strip tab and twist clockwise.
Push upward while twisting to secure
warmer to countertop.
• Wipe off excess silicone with clean
cloth before it cures.
Step 1 - Cut out holes.
(underside view
of flange)
silicone
sealant
silicone area where
flange meets top
flange
knob
screws
recessed
control panel
enclosure
warmer
controls
warmer
locking
strip tab
(securing
warmer to
countertop)
(underside view)
countertop
Step 4 - Attach controls.
• Separate controls from recessed control panel by removing
knob and two screws. Set aside recess control panel.
• Bring controls (from inside enclosure) to cutout.
• Reattach controls to recessed control panel via two screws
and knob.
• Insert recessed control panel assembly into cutout and mount
to enclosure using screws or rivets (not supplied). Note: Holes
must be drilled into each corner of recessed control panel.
#2
#4
#3
#5
#10
#11
#1
#6
#7
#1 #8 #9
WIRING INSTRUCTIONS
CONDITION OF ACCEPTANCY
1) This equipment must be installed in an all-metal fixture of steel or stainless steel construction, 0.050˝ minimum
thickness for the top and supporting frame. Side enclosures to be at least 22 gauge minimum thickness.
2) A removable bottom enclosure must be provided under each drop-in unit, and must be of all-metal construction
of at least 22 gauge minimum. If ventilating openings are provided, they must not allow the entrance of a 3/4˝-
diameter rod; must not be located directly below uninsulated live terminals, wiring, or electrical components;
and must be located at least 1˝ away from any insulated live terminals.
3) Minimum spacing between drop-ins or edges shown in Step 1 (page 2).
4) Controls shall be mounted on the front vertical surface of the fixture.
5) Cabinet supply wires shall have minimum temperature rating of 220˚F (105˚C).
CAUTION:
Temperature in control area must not exceed 220˚F (105˚C).
3

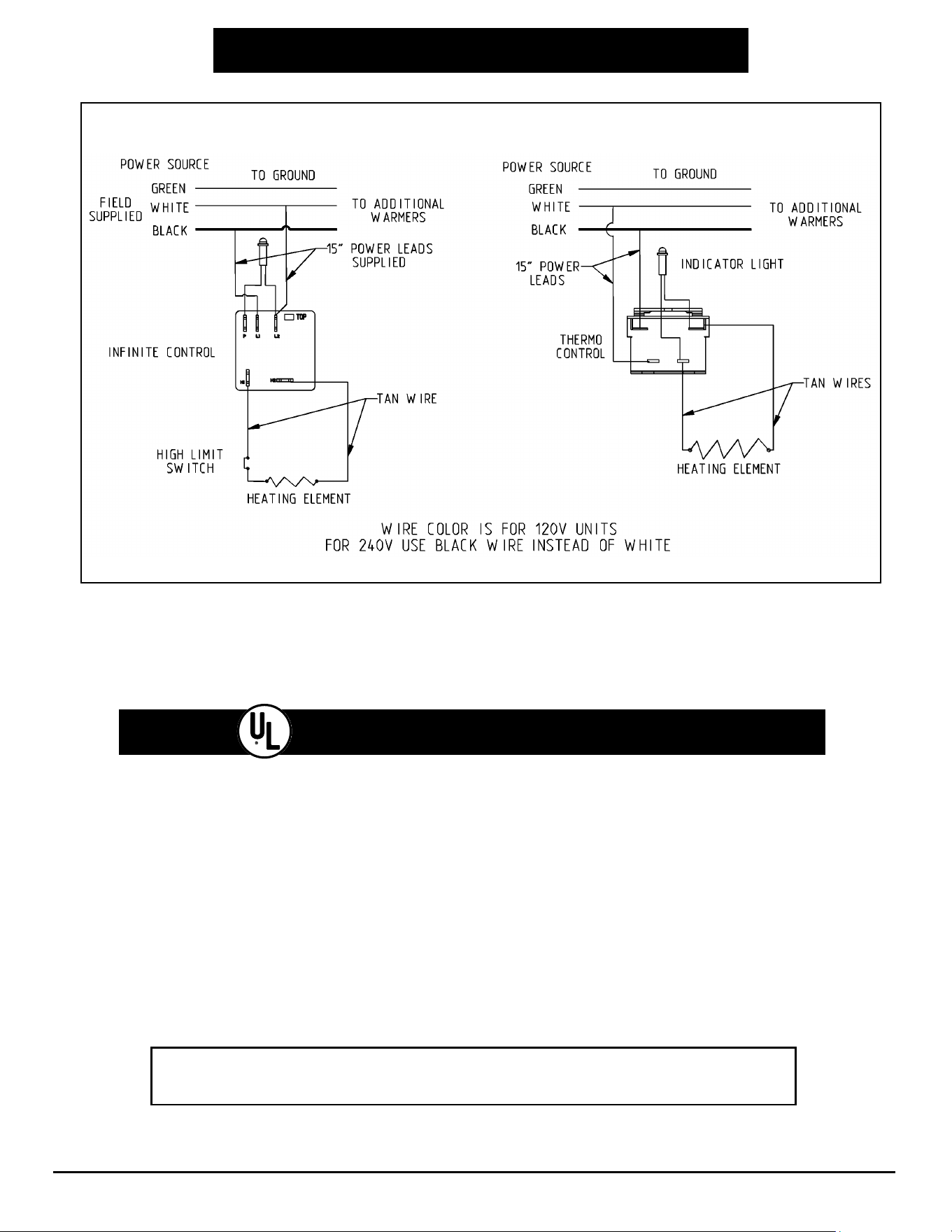

Wiring diagram - Infinite control Wiring diagram - Thermostatic control
Please note:
• Connect power supply to 15˝ power leads.
• Be sure to connect ground to green wire.
** Units must be installed by a qualified electrician. **
OPERATING INSTRUCTIONS
WET OPERATION WITH COVER
1) Fill bottom well with minimum of 190°F hot water so that water touches the bottom of the food pan.
2) Set dial to highest position for 45 minutes with well covered. Note: the indicator light is the set point for the control knob.
To preheat unit, place precooked food (minimum 160°F) in food pans and place in well. Cover food pans with lids.
3) Adjust to desired setting for proper food temperature. This will vary with the type of food, type of pans and individual serving
temperature. NSF requires a minimum temperature of 150°F in food product.
4) To increase temperature, turn knob toward highest setting. To decrease, turn knob toward lowest setting. In some cases it will be
necessary to position the knob between the lowest setting and off to achieve a lower temperature.
5) Change water, clean liner and wipe dry after every 24 hours of operation. Water may have to be added to pan during operation,
depending on operating time and temperature setting.
6) When food is not being served, food pans should be covered to maintain temperature and to prevent food from drying out.
The above instructions are starting suggestions only and may be changed to suit your individual needs. With so many different
applications for this item, it is impossible to have standard settings to suit all.
NOTE: If unit is used dry, the bottom of receptacle will take on a brown colored appearance where heater is located.
This discoloration is permanent and cannot be removed. This in no way will affect the operation of the unit.
CAUTION:
(1) Do not immerse the food warmer in water.
(2) All repairs should be done by an authorized service agency.
(3) Unit should be turned off when not in use. It is recommended that unit be disconnected from power supply
by removing plug from receptacle or shutting off power disconnect switch.
(4) Unit should be operated with feet provided to prevent overheating and damage to countertop or cord. Check
feet every 30 days to assure they are tight.
(5) Check cord and plug appearance for damage, cracking or deterioration. If visible, have both replaced by an
authorized service agency.
