1 2
SECTION A
Important Safety Instructions
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Do not operate this, or any other appliance with a damaged
cord. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent, or a similarly qualified person
in order to avoid a hazard.
This ice-maker must be positioned so that the plug is
accessible.
Connect to properly grounded outlets only. No other appli-
ance should be plugged into the same outlet. Be sure that the
plug is fully inserted into the receptacle.
Do not run the power cord over carpeting or other heat insula-
tors. Do not cover the cord. Keep cords away from traffic areas,
and do not submerge in water.
We do not recommend the use of an extension cord, as it may
overheat and become a risk of fire. If you must use an exten-
sion cord, use No. 14AWG minimum size and rated at no less
than 1875 watts.
Unplug the ice maker before cleaning or making any repairs or
servicing.
Exercise caution and use reasonable supervision when appli-
ance is used near children.
Do not use your ice-maker outdoors. Place the ice-maker away
from direct sunlight and make sure that there is at least 6
inches of space between the back of your unit and the wall.
Keep a minimum distance of 6 inches on each side of your
unit free.
Do not use any other liquid to make the ice-cube other than water.
Do not clean your ice maker with flammable fluids. The fumes
can create a fire hazard or explosion.
Do not tip over.
If the ice maker is brought in from outside in wintertime, give it
a few hours to warm up to room temperature before plugging
it in.
WARNING: This appliance must be earthed.
Your safety and the safety of others are very important.
We have provided many important safety messages in the
manual for your appliance.
Always read and obey all safety messages.
This is the safety alert symbol:
AlI safety messages will follow the safety alert symbol and the
word "DANGER" or "WARNING".
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
All safety messages will tell you what the potential hazard is, tell
you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY TIPS
WARNINGDANGER
SECTION B
Preparing Your Ice Maker For Use
When using electrical appliances, basic safety precautions should
be followed to reduce the risk of fire, electric shock, and injury to
persons or property. Read all instructions before using any appli-
ance.
1 2
SECTION A
Important Safety Instructions
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Do not operate this, or any other appliance with a damaged
cord. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent, or a similarly qualified person
in order to avoid a hazard.
This ice-maker must be positioned so that the plug is
accessible.
Connect to properly grounded outlets only. No other appli-
ance should be plugged into the same outlet. Be sure that the
plug is fully inserted into the receptacle.
Do not run the power cord over carpeting or other heat insula-
tors. Do not cover the cord. Keep cords away from traffic areas,
and do not submerge in water.
We do not recommend the use of an extension cord, as it may
overheat and become a risk of fire. If you must use an exten-
sion cord, use No. 14AWG minimum size and rated at no less
than 1875 watts.
Unplug the ice maker before cleaning or making any repairs or
servicing.
Exercise caution and use reasonable supervision when appli-
ance is used near children.
Do not use your ice-maker outdoors. Place the ice-maker away
from direct sunlight and make sure that there is at least 6
inches of space between the back of your unit and the wall.
Keep a minimum distance of 6 inches on each side of your
unit free.
Do not use any other liquid to make the ice-cube other than water.
Do not clean your ice maker with flammable fluids. The fumes
can create a fire hazard or explosion.
Do not tip over.
If the ice maker is brought in from outside in wintertime, give it
a few hours to warm up to room temperature before plugging
it in.
WARNING: This appliance must be earthed.
Your safety and the safety of others are very important.
We have provided many important safety messages in the
manual for your appliance.
Always read and obey all safety messages.
This is the safety alert symbol:
AlI safety messages will follow the safety alert symbol and the
word "DANGER" or "WARNING".
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
All safety messages will tell you what the potential hazard is, tell
you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY TIPS
WARNINGDANGER
SECTION B
Preparing Your Ice Maker For Use
When using electrical appliances, basic safety precautions should
be followed to reduce the risk of fire, electric shock, and injury to
persons or property. Read all instructions before using any appli-
ance.
3 4
11.
12.
13.
14.
15.
16.
17.
DANGER - Risk Of Fire or Explosion. Flammable Refrigerant Is
Used. Do Not Use Mechanical Devices To Defrost Ice Maker. Do
Not Puncture Refrigerant Tubing.
DANGER -Risk Of Fire Or Explosion. Flammable Refrigerant Is
Used. To Be Repaired Only By Trained Service Personnel. Do
Not Puncture Refrigerant Tubing.
CAUTION-Risk Of Fire Or Explosion. Flammable Refrigerant Is
Used. Consult Repair Manual/Owner's Guide Before Attempt-
ing To Install or Service This Product. All Safety Precautions
Must be Followed.
CAUTION-Risk Of Fire Or Explosion. Dispose Of Property In
Accordance With Federal Or Local Regulations. Flammable Is
Refrigerant Used.
CAUTION - Risk Of Fire Or Explosion Due To Puncture Of Re-
frigerant Tubing;Follow Handling Instructions Carefully. Flam-
mable Refrigerant Is Used.
The ice maker should be installed in accordance with the
safety standard for Refrigeration Systems, ASHRAE15. The ice
maker shall not be installed in corridors or hallways of public
buildings.
If the unit has problems and needs to be maintained, replace-
ment with like components and servicing shall be done by
factory-authorized service personnel so as to minimize the risk
of possible ignition due to incorrect parts or improper service.
IMPORTANT:
The wires in this mains lead are colored in accordance with the
following code:
Green or Green with a strip yellow: Grounding
White: Neutral
Black: Live
To avoid a hazard due to instability of the appliance, it must be
placed at a even or flat surface.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.

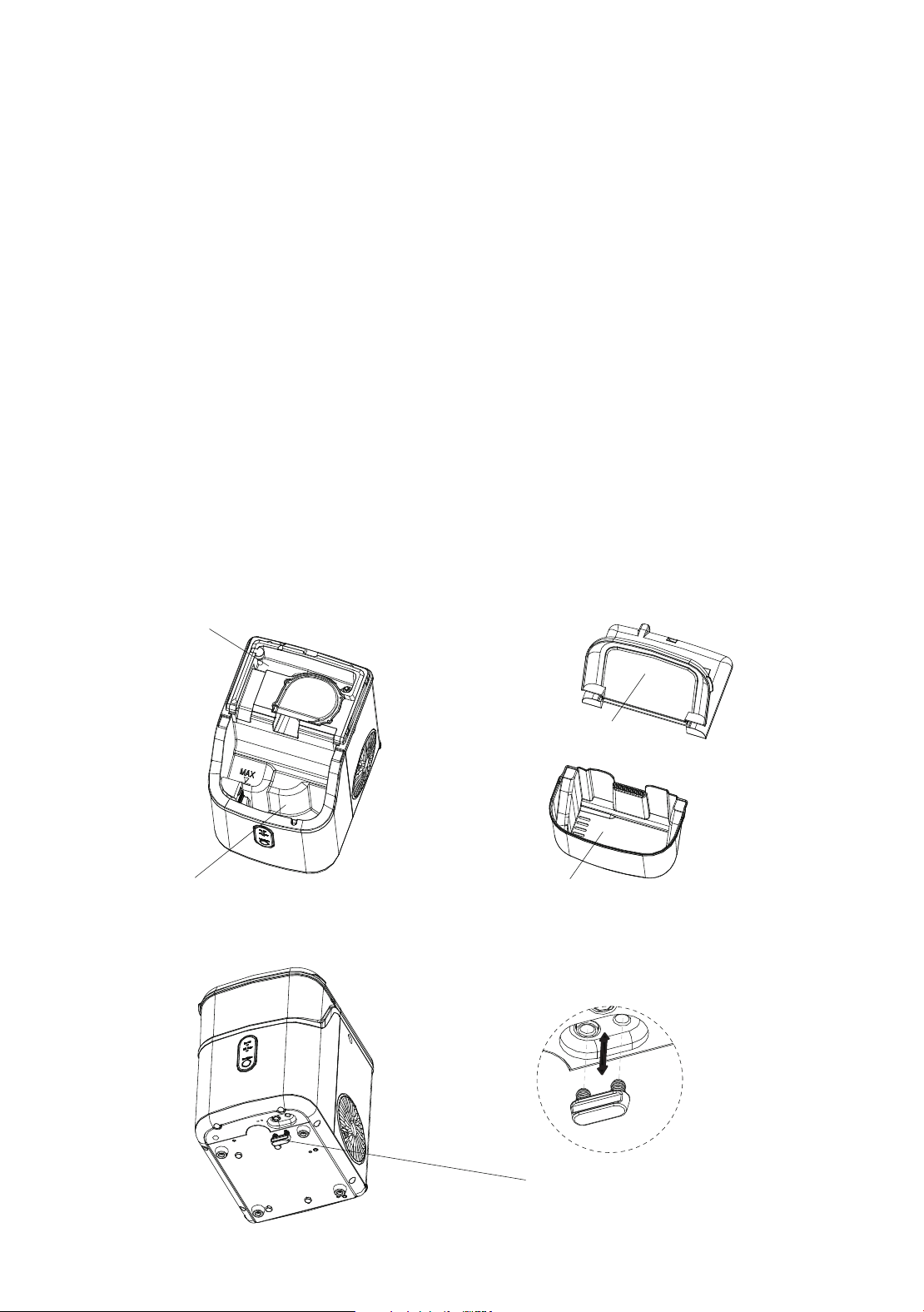

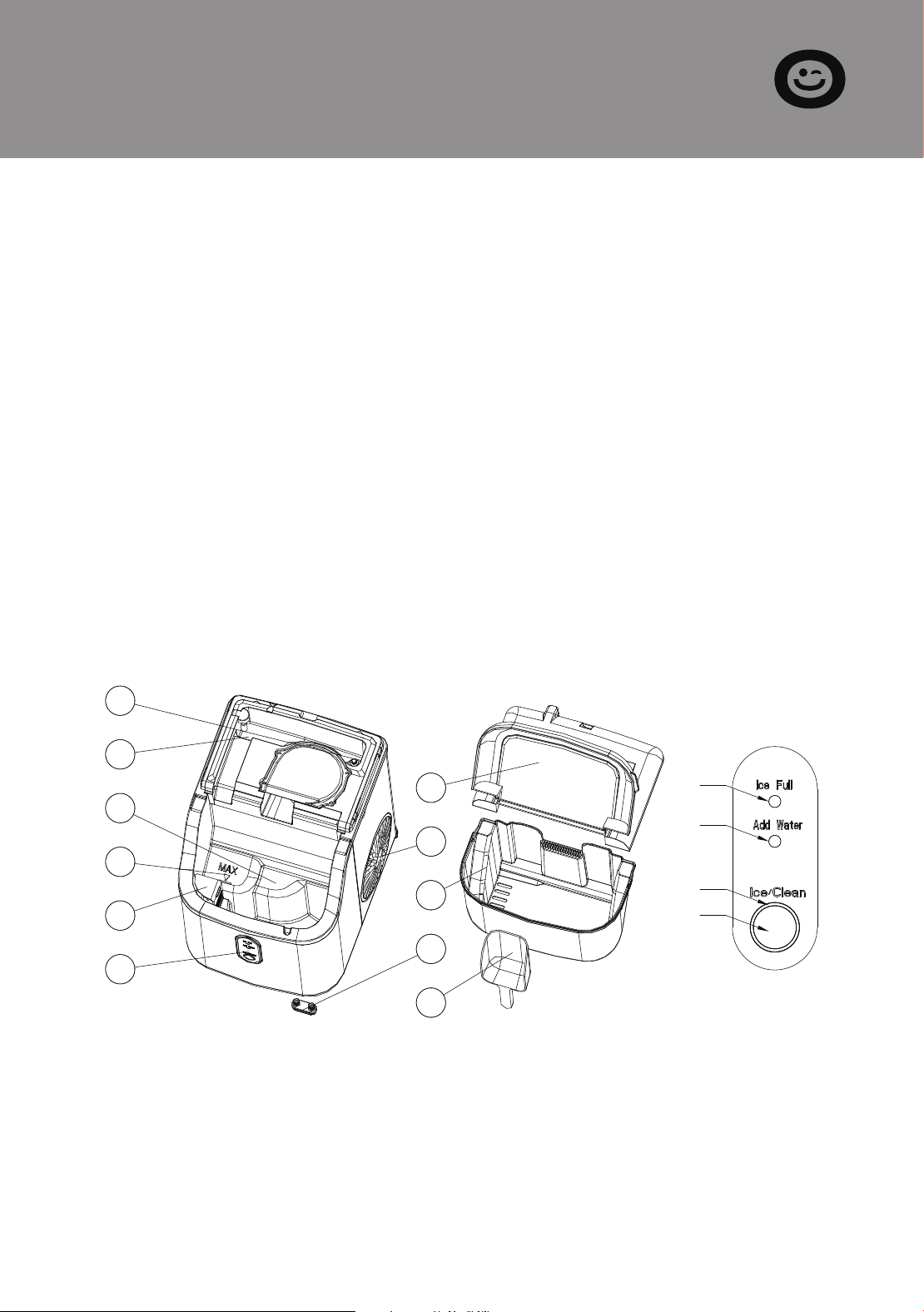

Float switch; .
Secondary water reservoir: It connects directly with the evapo-
rator;
Water reservoir;
Maximum water level;
Filter;
Control Panel:
A. Ice making and cleaning buttons;
B. Ring indicator light;
C. Water lack indicator light;
D. Ice full indicator light;
Top cover, removable from the top;
Hot Air outlet;
Ice basket;
Water drain cap: at front btom side of the unit;
lce scoop;
SECTION C
Getting To Know Your Unit
1
7
8
9
10
11
A
B
C
D
2
3
4
5
6
3 4
11.
12.
13.
14.
15.
16.
17.
DANGER - Risk Of Fire or Explosion. Flammable Refrigerant Is
Used. Do Not Use Mechanical Devices To Defrost Ice Maker. Do
Not Puncture Refrigerant Tubing.
DANGER -Risk Of Fire Or Explosion. Flammable Refrigerant Is
Used. To Be Repaired Only By Trained Service Personnel. Do
Not Puncture Refrigerant Tubing.
CAUTION-Risk Of Fire Or Explosion. Flammable Refrigerant Is
Used. Consult Repair Manual/Owner's Guide Before Attempt-
ing To Install or Service This Product. All Safety Precautions
Must be Followed.
CAUTION-Risk Of Fire Or Explosion. Dispose Of Property In
Accordance With Federal Or Local Regulations. Flammable Is
Refrigerant Used.
CAUTION - Risk Of Fire Or Explosion Due To Puncture Of Re-
frigerant Tubing;Follow Handling Instructions Carefully. Flam-
mable Refrigerant Is Used.
The ice maker should be installed in accordance with the
safety standard for Refrigeration Systems, ASHRAE15. The ice
maker shall not be installed in corridors or hallways of public
buildings.
If the unit has problems and needs to be maintained, replace-
ment with like components and servicing shall be done by
factory-authorized service personnel so as to minimize the risk
of possible ignition due to incorrect parts or improper service.
IMPORTANT:
The wires in this mains lead are colored in accordance with the
following code:
Green or Green with a strip yellow: Grounding
White: Neutral
Black: Live
To avoid a hazard due to instability of the appliance, it must be
placed at a even or flat surface.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Float switch; .
Secondary water reservoir: It connects directly with the evapo-
rator;
Water reservoir;
Maximum water level;
Filter;
Control Panel:
A. Ice making and cleaning buttons;
B. Ring indicator light;
C. Water lack indicator light;
D. Ice full indicator light;
Top cover, removable from the top;
Hot Air outlet;
Ice basket;
Water drain cap: at front btom side of the unit;
lce scoop;
SECTION C
Getting To Know Your Unit
1
7
8
9
10
11
A
B
C
D
2
3
4
5
6
5 6
WARNING: fill with potable water only. Only use drinking water.
*lmproper use of the grounded plug can result in the risk of elec-
trical shock. If the power cord is damaged, please call our cus-
tomer service.
1.
2.
3.
4.
5.
6.
Remove the exterior and interior packaging, and then check
that all the accessories are included. If any parts are missing,
please contact our customer service.
Remove all the tapes on the unit; take out the accessory parts
inside.
Clean the interior with lukewarm water and a soft cloth.
Locating your ice maker on a level counter table far from
direct sunlight and other sources of heat (i.e., stove, furnace,
and radiator). Make sure that there is at least 6 inches between
the back and sides of your ice maker and the wall.
Allow one hour for the refrigerant fluid to settle down before
plugging your ice maker in.
The power plug must be accessible directly.
1.
2.
3.
This unit should be properly grounded for your safety. The
power cord of this appliance is equipped with a grounding
plug that mates with standard grounding wall outlets to mini-
mize the possibility of electric shock.
Plug your appliance into an exclusive, properly installed,
grounding wall outlet. Do not under any circumstances,
damage the grounding means of the plug. Any questions con-
cerning power and/or grounding should be directed toward a
certified electrician.
This appliance requires a standard 110-120Volt, 60Hz electrical
outlet with good grounding means.
SECTION D
Operating Procedures &
Maintenance
DANGER
Before using your ice maker, it is strongly recommended to clean
it thoroughly.
Unplug the unit before cleaning or making any maintenance.
1.
2.
3.
4.
5.
6.
Take out the ice basket.
Clean the interior with diluted detergent, warm water and a
soft cloth.
Then use the water to rinse the inside parts, and drain out the
water by unplugging the drain cap on the front bottom side.
The outside of the ice maker should be cleaned regularly with
a mild detergent solution and warm water.
Dry the interior and exterior with a clean soft cloth.
When the machine is not to be used for a long time, drain the
water completely & dry the interior.
1.
2.
3.
Remove the top back cover, take out the power cord, and then
put back the top cover.
Take out the ice basket, pour potable water into the reservoir,
0.3-gallon water at most at one time.
Put back the ice basket.
4.
Plug in and the ring indicator will red light on. If you press the
"ice/clean" button, the machine will start making ice; If long
press the "Ice/Clean" button, it will do automatic cleaning.
SECTION E
Using Your Ice Maker
How to start the unit
Pour water
5 6
WARNING: fill with potable water only. Only use drinking water.
*lmproper use of the grounded plug can result in the risk of elec-
trical shock. If the power cord is damaged, please call our cus-
tomer service.
1.
2.
3.
4.
5.
6.
Remove the exterior and interior packaging, and then check
that all the accessories are included. If any parts are missing,
please contact our customer service.
Remove all the tapes on the unit; take out the accessory parts
inside.
Clean the interior with lukewarm water and a soft cloth.
Locating your ice maker on a level counter table far from
direct sunlight and other sources of heat (i.e., stove, furnace,
and radiator). Make sure that there is at least 6 inches between
the back and sides of your ice maker and the wall.
Allow one hour for the refrigerant fluid to settle down before
plugging your ice maker in.
The power plug must be accessible directly.
1.
2.
3.
This unit should be properly grounded for your safety. The
power cord of this appliance is equipped with a grounding
plug that mates with standard grounding wall outlets to mini-
mize the possibility of electric shock.
Plug your appliance into an exclusive, properly installed,
grounding wall outlet. Do not under any circumstances,
damage the grounding means of the plug. Any questions con-
cerning power and/or grounding should be directed toward a
certified electrician.
This appliance requires a standard 110-120Volt, 60Hz electrical
outlet with good grounding means.
SECTION D
Operating Procedures &
Maintenance
DANGER
Before using your ice maker, it is strongly recommended to clean
it thoroughly.
Unplug the unit before cleaning or making any maintenance.
1.
2.
3.
4.
5.
6.
Take out the ice basket.
Clean the interior with diluted detergent, warm water and a
soft cloth.
Then use the water to rinse the inside parts, and drain out the
water by unplugging the drain cap on the front bottom side.
The outside of the ice maker should be cleaned regularly with
a mild detergent solution and warm water.
Dry the interior and exterior with a clean soft cloth.
When the machine is not to be used for a long time, drain the
water completely & dry the interior.
1.
2.
3.
Remove the top back cover, take out the power cord, and then
put back the top cover.
Take out the ice basket, pour potable water into the reservoir,
0.3-gallon water at most at one time.
Put back the ice basket.
4.
Plug in and the ring indicator will red light on. If you press the
"ice/clean" button, the machine will start making ice; If long
press the "Ice/Clean" button, it will do automatic cleaning.
SECTION E
Using Your Ice Maker
How to start the unit
Pour water
7 8
For the first time, or if the clean procedure has not been running
for a long time, it is highly recommended to run this procedure first.
Change the water in the water reservoir every 24 hours to ensure
a reasonable hygiene level. If the unit isn't to be used, drain all
water & dry the water reservoir.
1.
2.
3.
Before the clean procedure, please make sure the water drain
cap has been inserted into the appliance; otherwise it will not
work properly.
2. Press the "ICE/CLEAN" button for 5 seconds; the ring indica-
tor light flashes white; it will run the cleaning procedure for 15
minutes; and automatically exit. If you press this button again
during the cleaning procedure, it will exit immediately.
After the cleaning procedure, remove the top cover and the
ice basket, rinse the main water reservoir and the secondary
water reservoir, then move the appliance to the edge of the
desktop, make sure that the appliance is placed steady, place
a water container under the appliance, remove the drain cap
from the bottom, dirty water will drain into the water contain-
er, then reinsert the drain cap.
Clean
Secondary
water reserVoir
Water reservoir
Top cover
Ice baslet
Water drain cap

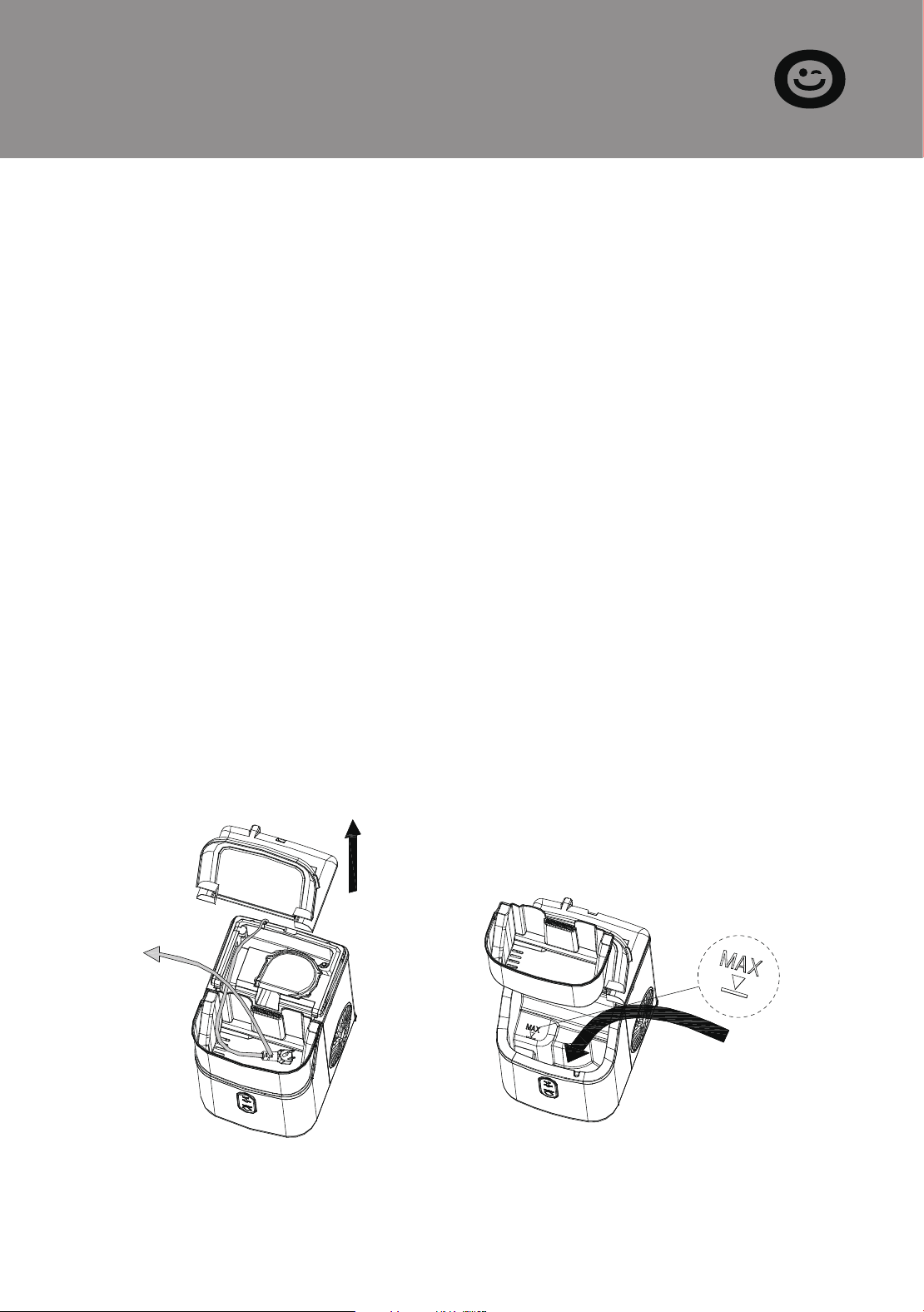

Tips: remove the top back cover by
pulling up the front clear cover gently.

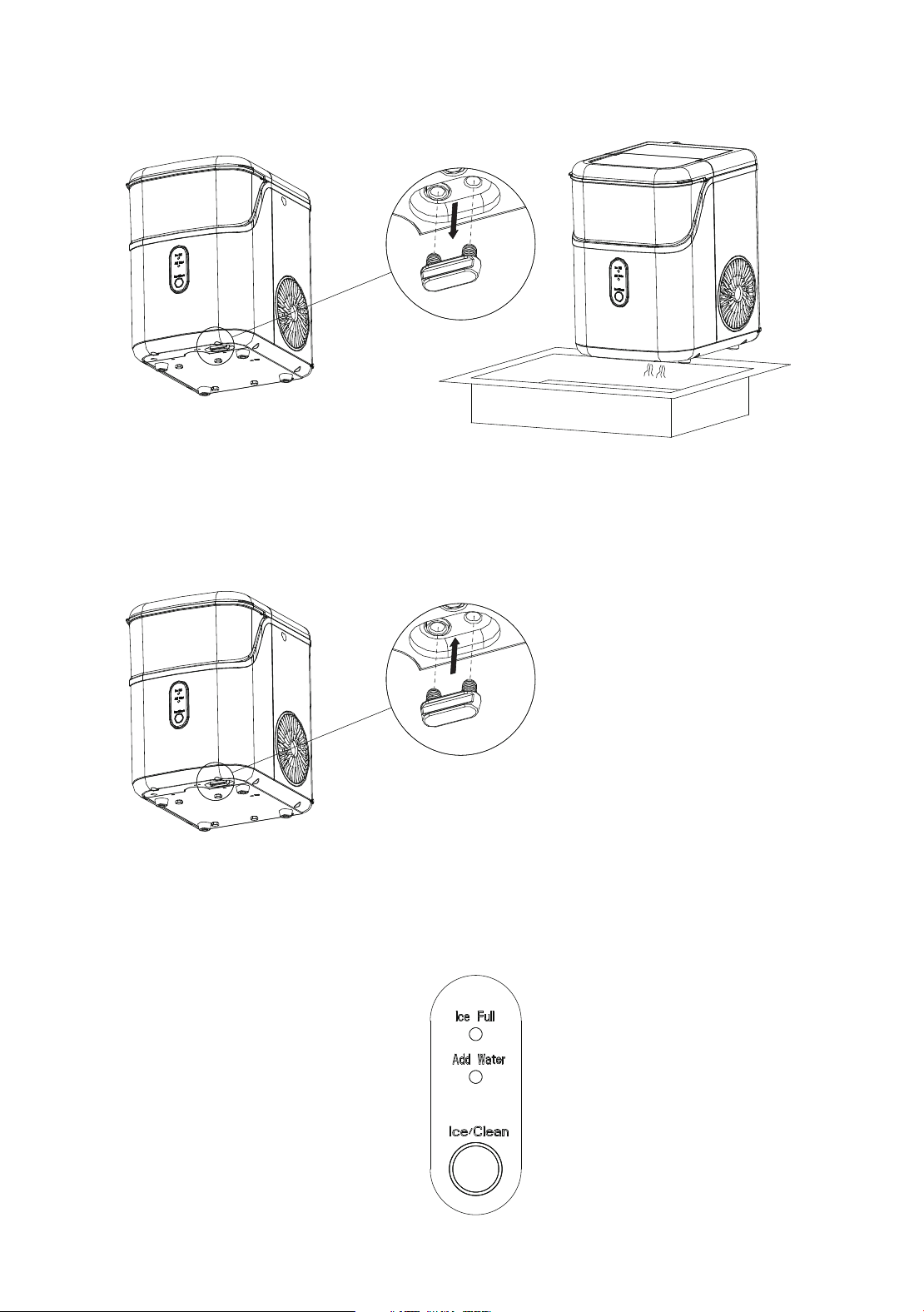

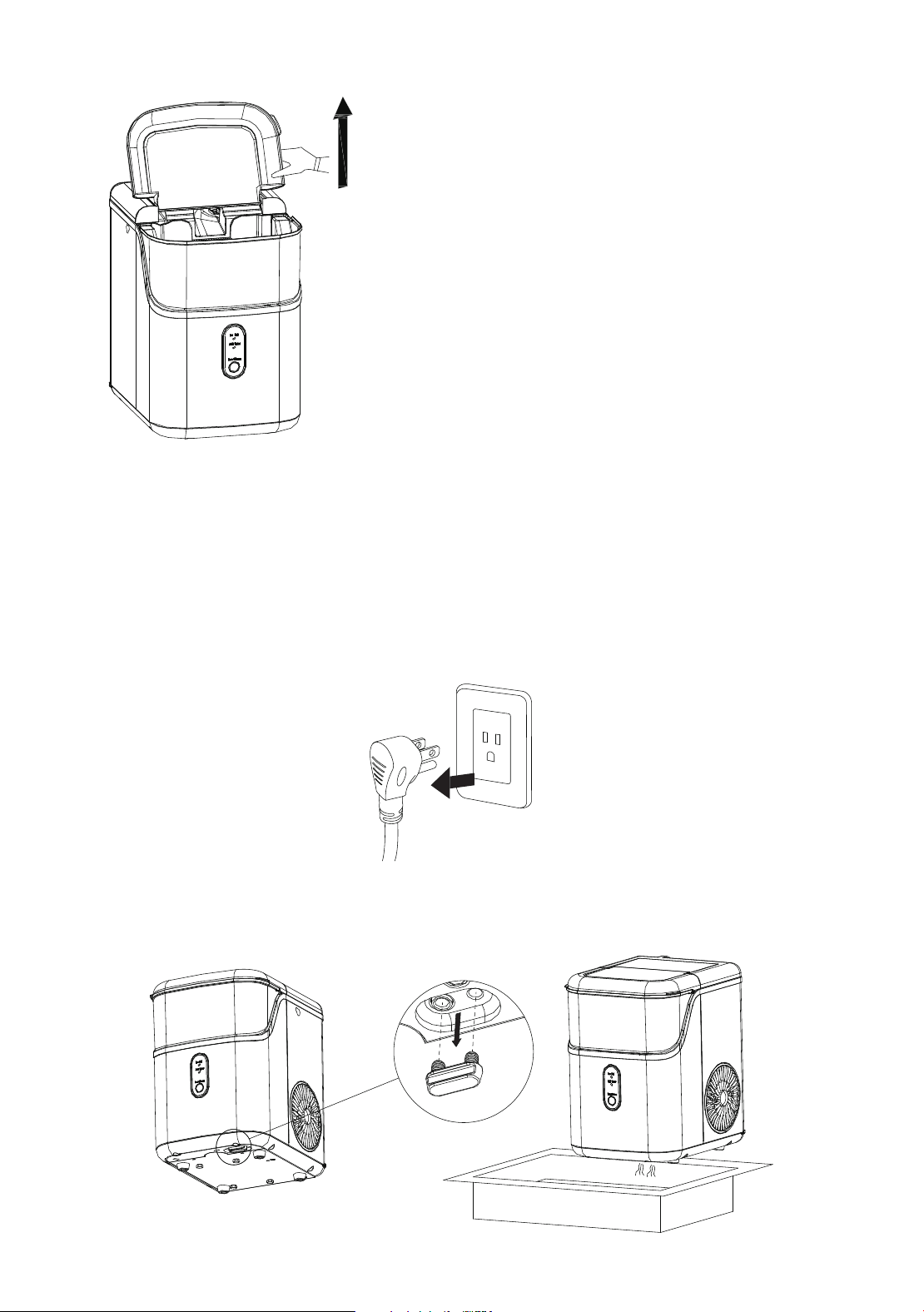

1. Unplug the nugget ice maker.
2. Take off the bottom drain cap and drain out the water to a
sink. See the figure below.
System Cleaning/Sanitizing Procedure
7 8
For the first time, or if the clean procedure has not been running
for a long time, it is highly recommended to run this procedure first.
Change the water in the water reservoir every 24 hours to ensure
a reasonable hygiene level. If the unit isn't to be used, drain all
water & dry the water reservoir.
1.
2.
3.
Before the clean procedure, please make sure the water drain
cap has been inserted into the appliance; otherwise it will not
work properly.
2. Press the "ICE/CLEAN" button for 5 seconds; the ring indica-
tor light flashes white; it will run the cleaning procedure for 15
minutes; and automatically exit. If you press this button again
during the cleaning procedure, it will exit immediately.
After the cleaning procedure, remove the top cover and the
ice basket, rinse the main water reservoir and the secondary
water reservoir, then move the appliance to the edge of the
desktop, make sure that the appliance is placed steady, place
a water container under the appliance, remove the drain cap
from the bottom, dirty water will drain into the water contain-
er, then reinsert the drain cap.
Clean
Secondary
water reserVoir
Water reservoir
Top cover
Ice baslet
Water drain cap
Tips: remove the top back cover by
pulling up the front clear cover gently.
1. Unplug the nugget ice maker.
2. Take off the bottom drain cap and drain out the water to a
sink. See the figure below.
System Cleaning/Sanitizing Procedure
9 10
For monthly cleaning to remove mineral deposits, please use
white vinega (and then plug in to turn on the "cleaning func-
tion" for about 5 minutes. After that, unplug it again to leave
the white vinegar in the unit for more than 12hours).
4.
3.

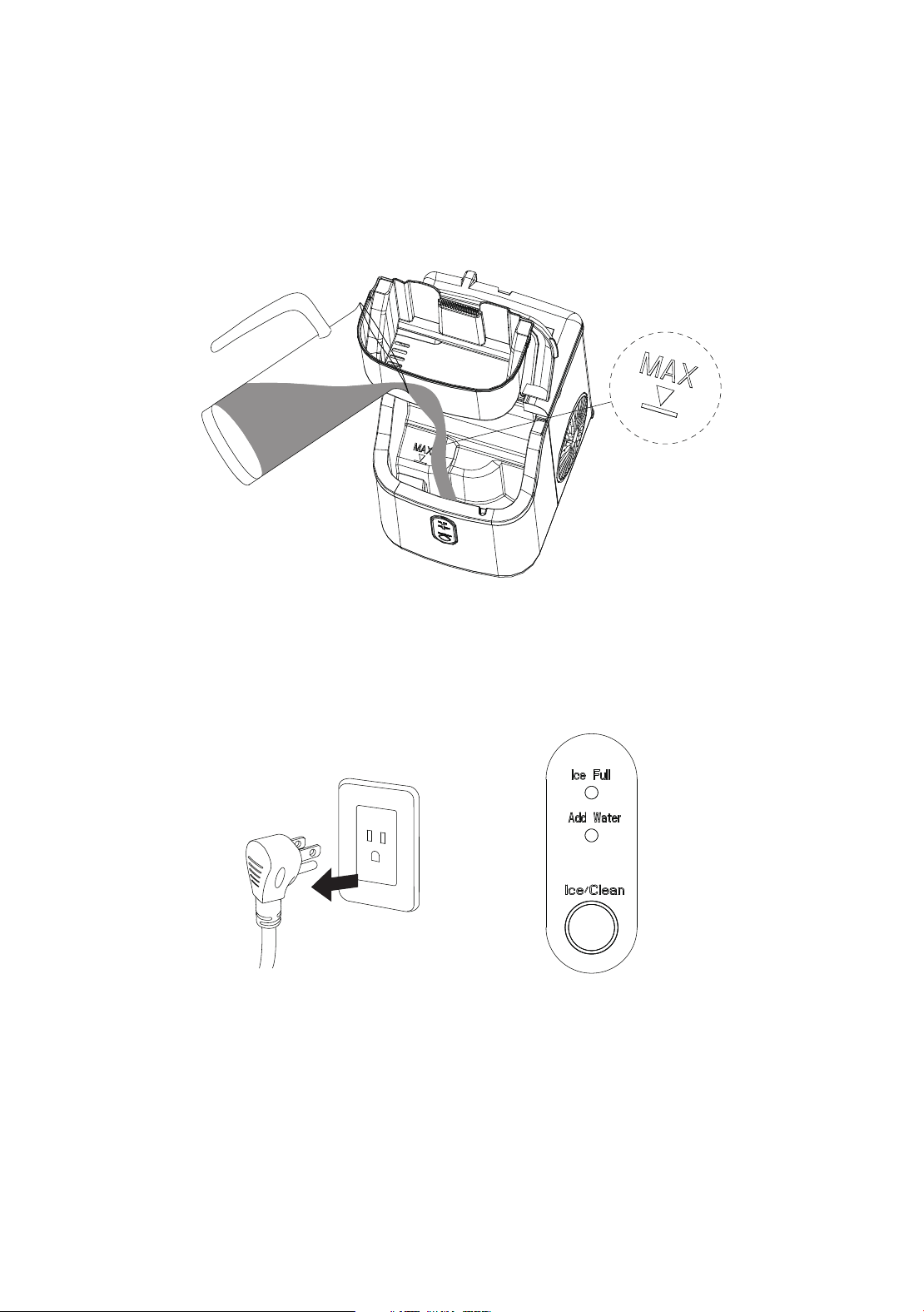

Pour the solution into the water reservoir, up to the "MAX"
water level. See the figure below.
5. Plug in the Nugget ice maker, press and hold the "Ice/Clean"
button for 5 seconds to initiate the cleaning process
(15 minutes) See the figure below.
6. When the "Ice/Clean" indicator lights off, take off the drain cap
and drain the water to a sink.
7.
8.
Repeat the step 4 to 6 with fresh water for two more cycles to
rinse the inside.
Replace the drain cap on the bottom. See the figure below.
9. When completed, fill the unit with fresh water and press the
"Ice/Clean" button to start ice making process. See the figure
below.
9 10
For monthly cleaning to remove mineral deposits, please use
white vinega (and then plug in to turn on the "cleaning func-
tion" for about 5 minutes. After that, unplug it again to leave
the white vinegar in the unit for more than 12hours).
4.
3.
Pour the solution into the water reservoir, up to the "MAX"
water level. See the figure below.
5. Plug in the Nugget ice maker, press and hold the "Ice/Clean"
button for 5 seconds to initiate the cleaning process
(15 minutes) See the figure below.
6. When the "Ice/Clean" indicator lights off, take off the drain cap
and drain the water to a sink.
7.
8.
Repeat the step 4 to 6 with fresh water for two more cycles to
rinse the inside.
Replace the drain cap on the bottom. See the figure below.
9. When completed, fill the unit with fresh water and press the
"Ice/Clean" button to start ice making process. See the figure
below.
11 12
1.
2.
3.
4.
5.
Before we start making ice, please make sure the water drain
cap has been inserted into the appliance; otherwise, it will not
work properly.
Press the "ICE/CLEAN" button. When the ring indicator light
flashes white, it will begin to work. Press this button again, and
it will stop making ice.
For the first time, or if the appliance has not been used for a
long time, it is recommended to clean this appliance before
you start to make ice.
In the process of making ice, if the "Add water" indicator light is
on, and the machine stops working, it needs to add water.
After adding water, please restart the machine; otherwise, it
needs to wait for a long time and then automatically start
making ice again. When the ice making machine is restarted,
the compressor will have a waiting time of 3 minutes.
When the machine is full of ice, it will automatically stop work-
ing. The "ice full" indicator light will be on, and the ring indica-
tor light will be white. After the ice is removed, the machine
starts working automatically.
How to obtain the ice-cube

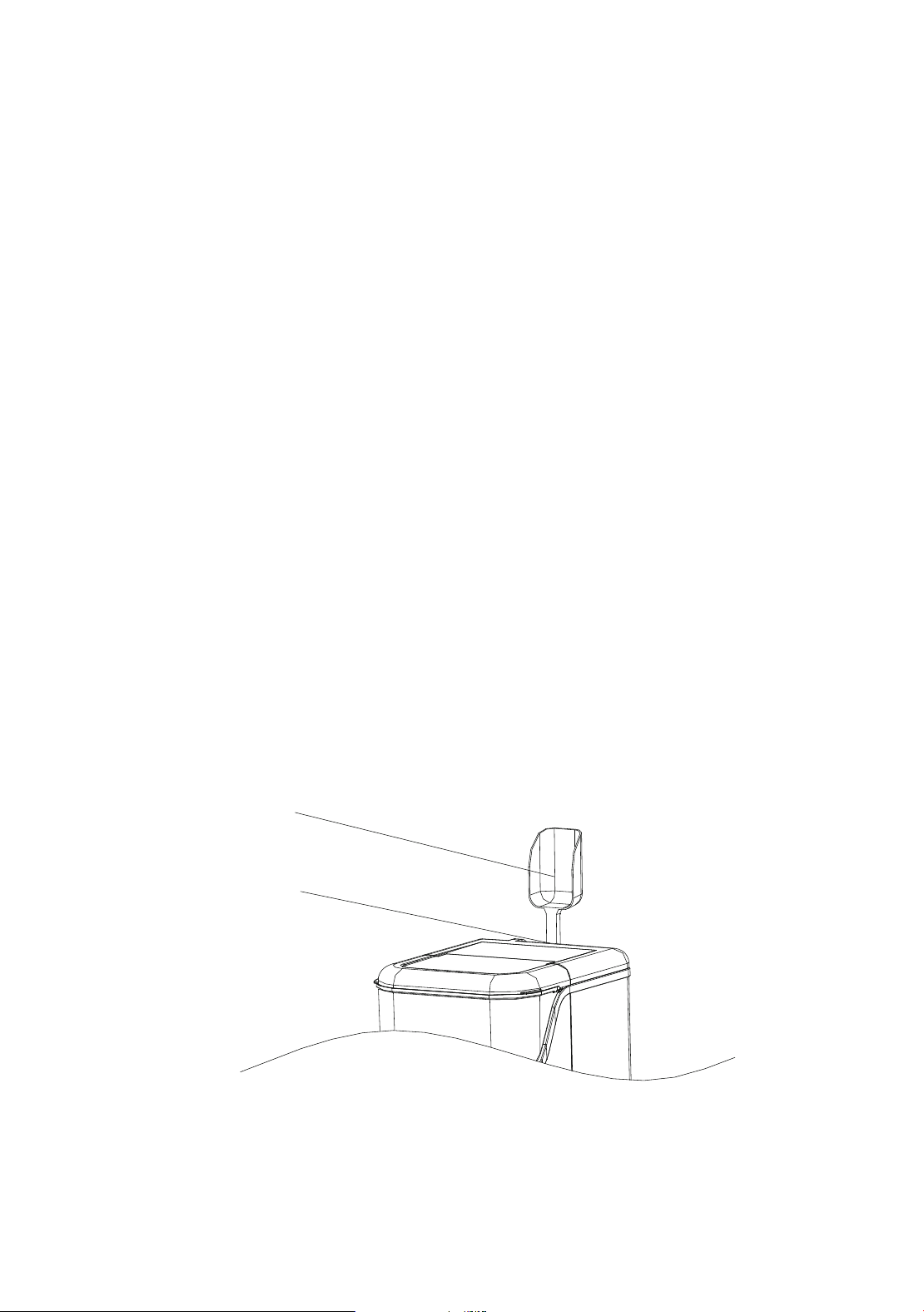

Put the scoop on the top back cover.
Ice scoop position
Ice scoop
Ice scoop holder
SECTION F
Troubleshooting
Problem Possible Cause Solution
"Add Water"
indicator turns on
Lack of Water. Stop the ice maker, fill water,
and press "ICE/CLEAN" button
again to restart the unit.
"ICE FULL"
indicator turns on
There is too much ice. Suggest you to obtain the
ice-cube.
Ring indicator light
flashes red
Ambient temperature
or water temperature in
inner tank is too high.
Please run the ice maker
below 90 Fahrenheit degree
ambient and pour colder
water into tank.
Making lce too
slowly
Hot Air outlet has been
blocked by something.
Water temperature in
inner tank is too high.
Refrigeration system
malfunctions.
Hot Air outlet must be guar-
anteed to have more than
15cm of ventilation distance.
Water leakage Drain plug not in place Put the drain plug in place.
Pipe Joint in the appli-
ance may Loose
Verify by a qualified
technician.
The seal has reached
service life
Verify by a qualified
technician.
Water temperature require-
ment between 7°C-32°C.
Verify by a qualified
technician.
Refrigerant liquid leakage.
Cover motor is broken
Pipe in the cooling
system is blocked.
Press the ICE button twice,
restart ice making program, if
this problem show up again,
verify by a qualified techni-
cian.
No ice cube inside. Remove the probable obsta-
cle inside or clean the inside
wall of the ice storage
11 12
1.
2.
3.
4.
5.
Before we start making ice, please make sure the water drain
cap has been inserted into the appliance; otherwise, it will not
work properly.
Press the "ICE/CLEAN" button. When the ring indicator light
flashes white, it will begin to work. Press this button again, and
it will stop making ice.
For the first time, or if the appliance has not been used for a
long time, it is recommended to clean this appliance before
you start to make ice.
In the process of making ice, if the "Add water" indicator light is
on, and the machine stops working, it needs to add water.
After adding water, please restart the machine; otherwise, it
needs to wait for a long time and then automatically start
making ice again. When the ice making machine is restarted,
the compressor will have a waiting time of 3 minutes.
When the machine is full of ice, it will automatically stop work-
ing. The "ice full" indicator light will be on, and the ring indica-
tor light will be white. After the ice is removed, the machine
starts working automatically.
How to obtain the ice-cube
Put the scoop on the top back cover.
Ice scoop position
Ice scoop
Ice scoop holder
SECTION F
Troubleshooting
Problem Possible Cause Solution
"Add Water"
indicator turns on
Lack of Water. Stop the ice maker, fill water,
and press "ICE/CLEAN" button
again to restart the unit.
"ICE FULL"
indicator turns on
There is too much ice. Suggest you to obtain the
ice-cube.
Ring indicator light
flashes red
Ambient temperature
or water temperature in
inner tank is too high.
Please run the ice maker
below 90 Fahrenheit degree
ambient and pour colder
water into tank.
Making lce too
slowly
Hot Air outlet has been
blocked by something.
Water temperature in
inner tank is too high.
Refrigeration system
malfunctions.
Hot Air outlet must be guar-
anteed to have more than
15cm of ventilation distance.
Water leakage Drain plug not in place Put the drain plug in place.
Pipe Joint in the appli-
ance may Loose
Verify by a qualified
technician.
The seal has reached
service life
Verify by a qualified
technician.
Water temperature require-
ment between 7°C-32°C.
Verify by a qualified
technician.
Refrigerant liquid leakage.
Cover motor is broken
Pipe in the cooling
system is blocked.
Press the ICE button twice,
restart ice making program, if
this problem show up again,
verify by a qualified techni-
cian.
No ice cube inside. Remove the probable obsta-
cle inside or clean the inside
wall of the ice storage
13 14
SECTION I
Warranty
The VIVOHOME warranty program is our commitment to you.
We are committed to providing you with a high-quality product
that meets your needs and expectations. To demonstrate our
confidence in the durability and performance of our products,
we offer the following warranty.
This warranty program applies to any orders, purchases, receipts,
or use of any products sold by VIVOHOME and is valid for a
period of 1 year from the date of purchase. However, please note
that this warranty period is only valid for the original order. If
you receive a replacement order during the warranty period, it
will not include a separate warranty period.
WARRANTY COVERAGE
This warranty does not cover damage resulting from misuse,
accident, unauthorized modification, or any other circumstances
not directly related to the manufacturing and design of the
product, including but not limited to:
Parts lost during use.
Normal wear and tear of products or parts.
Incorrect installation (such as using the wrong voltage) or
assembly.
Exceeding the bearing capacity of the product.
Use under extremely harsh conditions.
WARRANTY EXCLUSIONS
●
●
●
●
●
SECTION G
Technical Parameters
SECTION H
Circuit Diagram
SKU VH1577
Protection Type I
Power 115V/60Hz
Ice Making Current 2.7A
Refrigerant R600a.0.57Oz / 16g
Vesicant C
5
H
10
Dimension 287x220x322mm
-
-
+
+
GHG
CN2
COMP
PUMP
T1
FAN
KEY
L-N
Cover Motor
+R-TPA+
J2
CN3
AW
MW

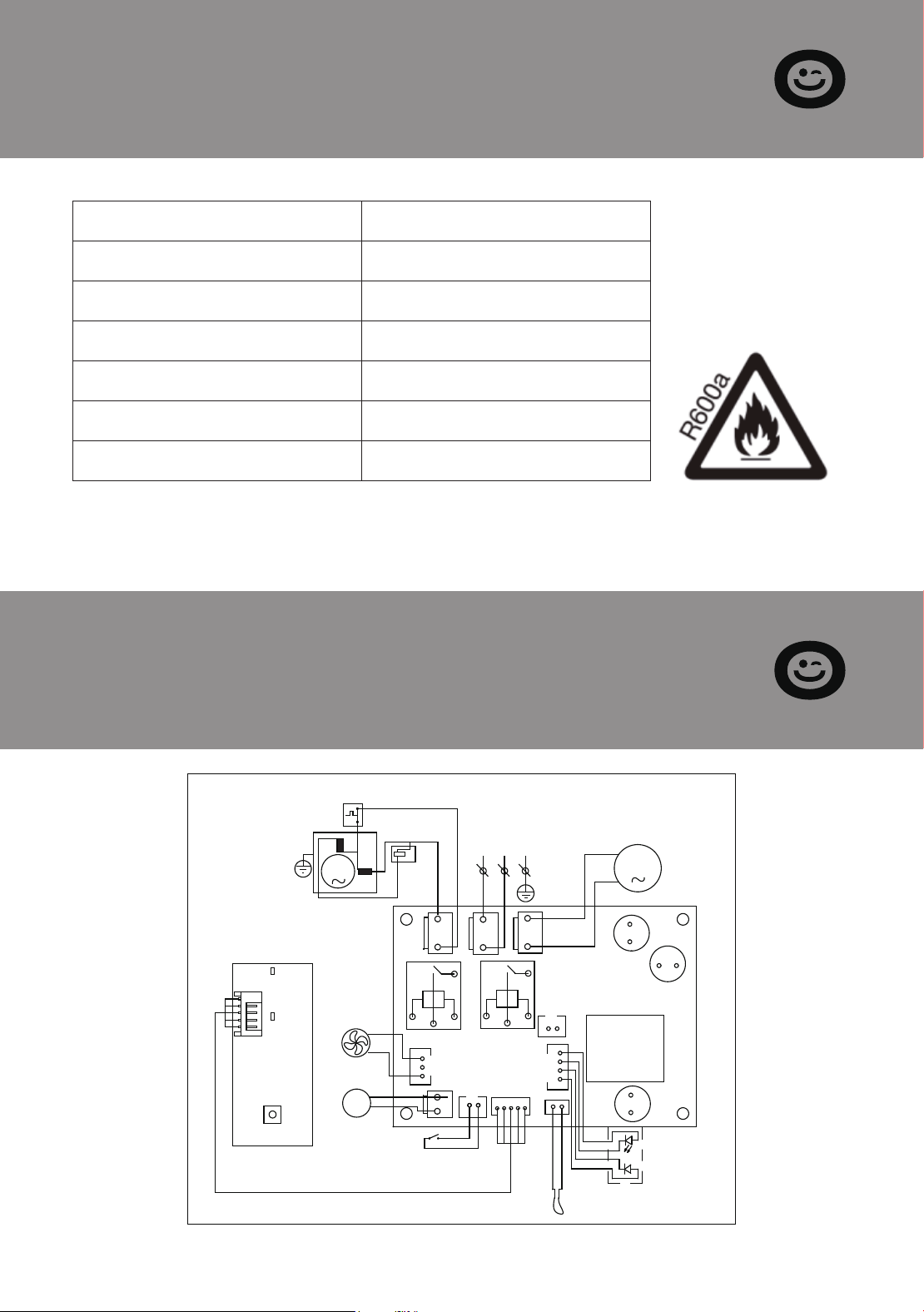

ELECTRICAL DIAGRAM
Overload
Protector
Start Relay
COMPRESSOR
POWER
N L G
CPM
M
Pump For
Water
DC Fan
Motor
WATER LEVEL
DETECTING SWITCH
Ice-Full Detector
SENSOR FOR AMBIENT TEMP
13 14
SECTION I
Warranty
The VIVOHOME warranty program is our commitment to you.
We are committed to providing you with a high-quality product
that meets your needs and expectations. To demonstrate our
confidence in the durability and performance of our products,
we offer the following warranty.
This warranty program applies to any orders, purchases, receipts,
or use of any products sold by VIVOHOME and is valid for a
period of 1 year from the date of purchase. However, please note
that this warranty period is only valid for the original order. If
you receive a replacement order during the warranty period, it
will not include a separate warranty period.
WARRANTY COVERAGE
This warranty does not cover damage resulting from misuse,
accident, unauthorized modification, or any other circumstances
not directly related to the manufacturing and design of the
product, including but not limited to:
Parts lost during use.
Normal wear and tear of products or parts.
Incorrect installation (such as using the wrong voltage) or
assembly.
Exceeding the bearing capacity of the product.
Use under extremely harsh conditions.
WARRANTY EXCLUSIONS
●
●
●
●
●
SECTION G
Technical Parameters
SECTION H
Circuit Diagram
SKU VH1577
Protection Type I
Power 115V/60Hz
Ice Making Current 2.7A
Refrigerant R600a.0.57Oz / 16g
Vesicant C
5
H
10
Dimension 287x220x322mm
-
-
+
+
GHG
CN2
COMP
PUMP
T1
FAN
KEY
L-N
Cover Motor
+R-TPA+
J2
CN3
AW
MW
ELECTRICAL DIAGRAM
Overload
Protector
Start Relay
COMPRESSOR
POWER
N L G
CPM
M
Pump For
Water
DC Fan
Motor
WATER LEVEL
DETECTING SWITCH
Ice-Full Detector
SENSOR FOR AMBIENT TEMP
15
SECTION I
Warranty
VIVOHOME will provide technical support, replacement, refund,
or other solutions based on the nature of the issue. If you wish
to return the original package for any reason, please contact us
for confirmation before proceeding. You can expect to receive a
response within 48 hours.
Thank you for choosing VIVOHOME. We are committed to en-
suring the quality and satisfaction of your purchase. If you have
any questions or need assistance, please do not hesitate to con-
tact our customer service team.
If you find any defects that affect the use of the product or if the
product stops working and cannot be repaired during the war-
ranty period, please contact our customer service team at our
email or via Amazon & app’ s direct messaging service as soon as
possible. Provide the following information to expedite the
process:
HOW TO MAKE A WARRANTY CLAIM
Order number
Images and/or videos illustrating the issue
A detailed description of the problem
●
●
●
Improper cleaning or maintenance.
Damage caused by any reason other than the intended use
of the product.
Indirect loss or damage caused by the product.
●
●
●
Countertop Nugget Ice Maker 33lbs
USER MANUAL
THANK
YOU!
Thank You for Purchasing from
Made in China
NOTE:
To continuously improve its products, reserves the right to
modify this information without prior notification.
For any questions regarding assembly, please watch the video on the
product page or contact our customer service. Our customer service will
Thank you for using products in your home!
