INSTALLATION GUIDE
Fulham
Models: KBF450C
KBF450MB
KBF450SS
Karran USA Tel: 866.452.7726 www.karran.com [email protected]
COMPONENT LIST QTY
1 - Faucet Body 1
2 - Handle 1
3 - Rubber Washer 2
4 - Metal Washer 2
5 - Mounng Hardware 2
6 - Screw 6
1
7 - Mounng Hardware 1
8 - Metal Washer 1
9 - Rubber Washer 1
10 - Handle 1
3
2

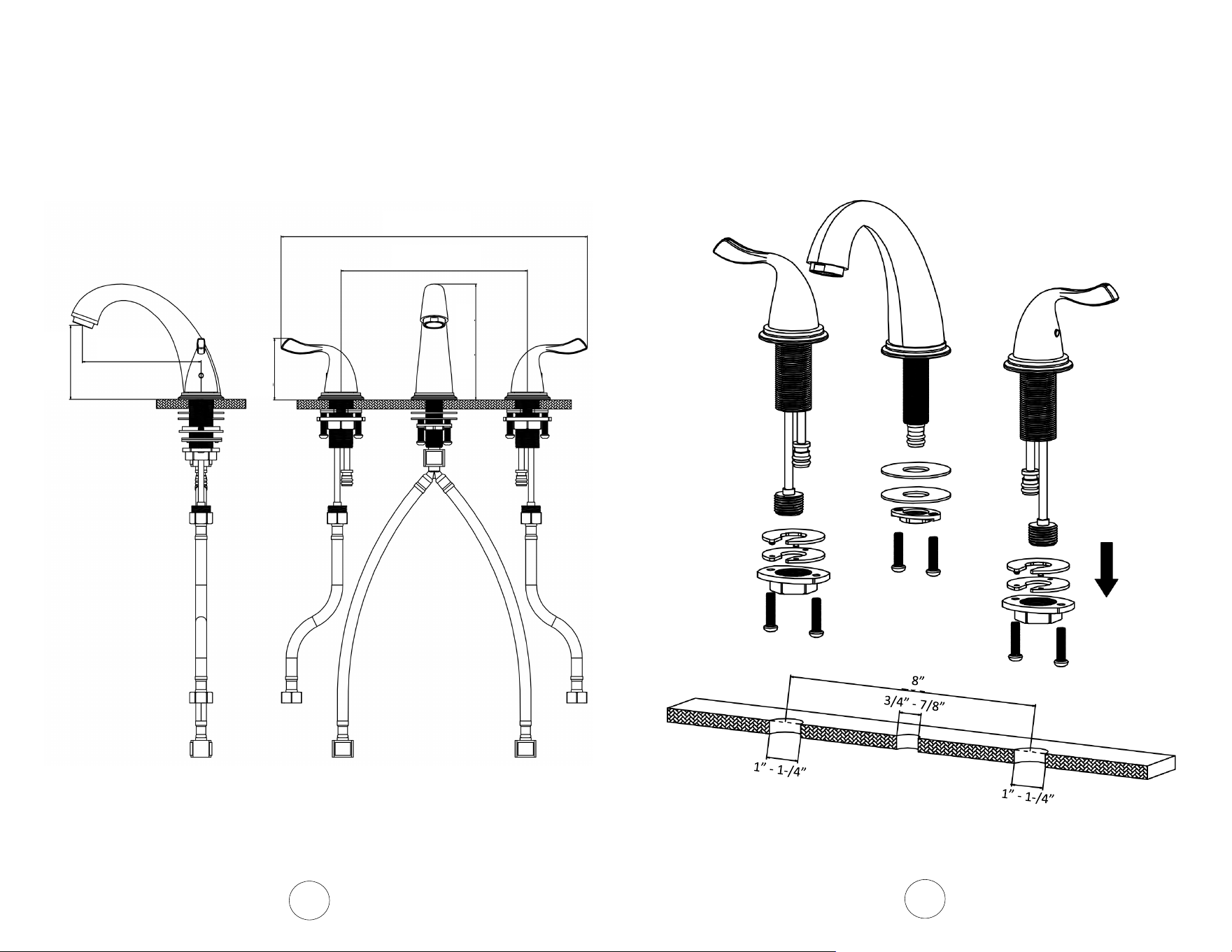

13-3/16”
5-1/8”
3-3/16”
2-5/8”
5”
8-1/16”
5
4
7
6
9 - Base
10 - Gasket
11 - Gasket
12 - Cartridge Base
13 - O-Ring
14 - Washer
15 - Washer
16 - Mounng Hardware
17 - Screw
18 - Water Lines
19 - Quick Hoses
20 - Mounng Hardware
21 - Metal Washer
22 - Rubber Washer
23 - O-Ring
24 - Base
1 - Faucet Body
2 - Gasket
3 - Aerator
4 - Aerator Cover
5 - Handle
6 - Screw
7 - Color Buon
8 - Nut
25 - O-Ring
26 - Cartridge
