User Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals

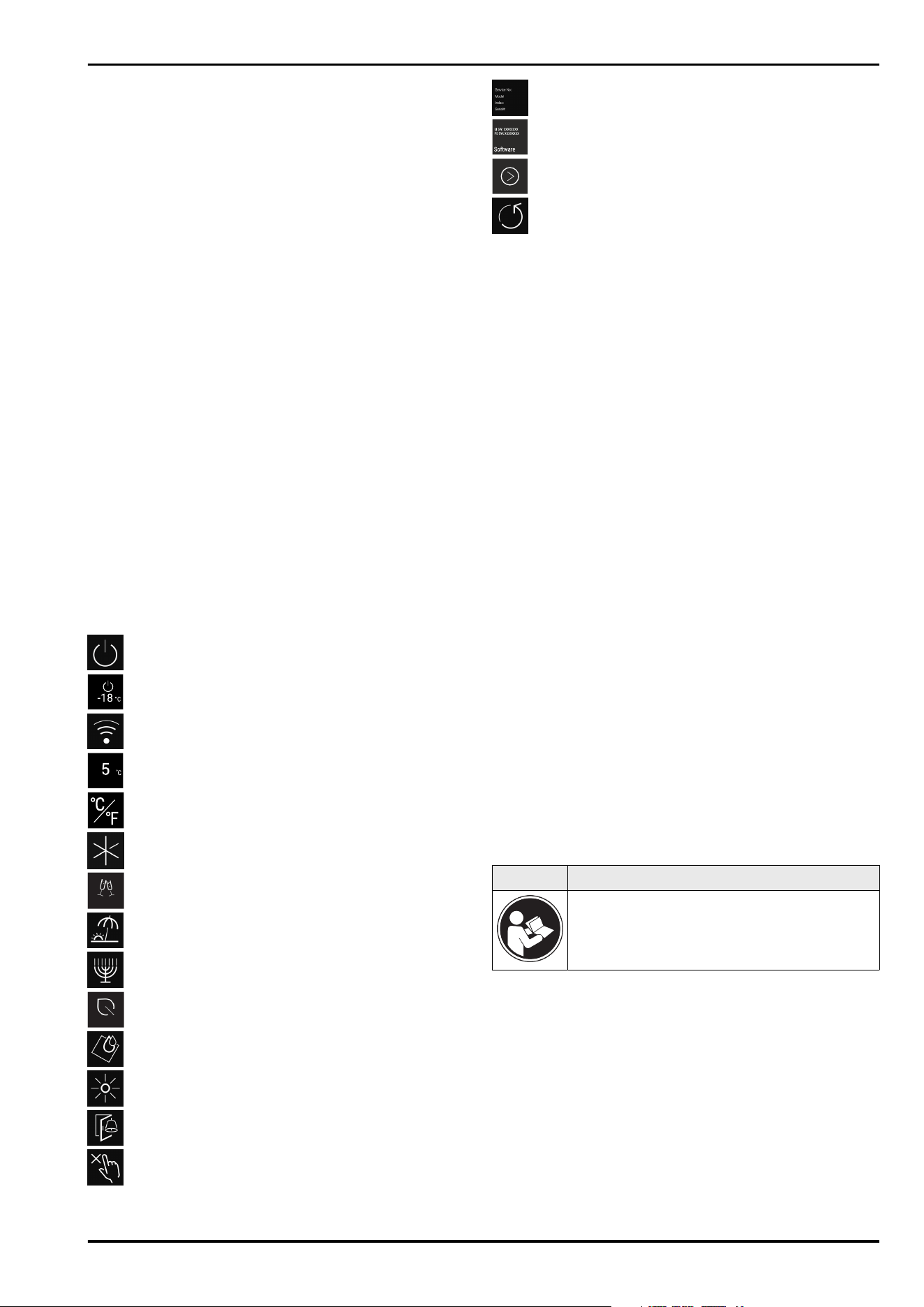

Contents
1 General safety instructions.................................. 3
2 Appliance at a glance............................................ 4
2.1 Scope of delivery.......................................................... 4
2.2 Overview of the appliance and equipment.............. 4
2.3 SmartDevice.................................................................. 4
2.4 Appliance range of use............................................... 5
2.5 Conformity..................................................................... 5
2.6 SVHC substances according to REACH regulation. 5
2.7 EPREL database........................................................... 5
2.8 Spare parts.................................................................... 5
3 Functionality of the Touch display....................... 5
3.1 Navigation and symbol explanation......................... 5
3.2 Menus............................................................................. 6
3.3 Sleep mode................................................................... 6
4 Putting into operation........................................... 7
4.1 Switching on appliance (first use)............................ 7
5 Storage.................................................................. 7
5.1 Information regarding storage................................... 7
5.2 Fridge compartment.................................................... 7
5.3 EasyFresh..................................................................... 7
5.4 Cellar compartment..................................................... 7
5.5 ****-freezer compartment.......................................... 8
5.6 Storage times............................................................... 8
6 Saving energy........................................................ 8
7 Controls................................................................. 9
7.1 Controls and displays.................................................. 9
7.1.1 Status display..............................................................9
7.1.2 Display symbols.......................................................... 9
7.2 Appliance functions..................................................... 9
7.2.1 Notes on the appliance functions............................9
Switching the appliance off and on........................9
Switching temperature zone off and on................ 9
WiFi............................................................................ 10
Temperature.............................................................. 11
Temperature unit...................................................... 11
SuperCool.................................................................. 11
PartyMode ................................................................ 12
HolidayMode............................................................. 12
SabbathMode............................................................13
E-Saver ......................................................................13
CleaningMode...........................................................14
Display brightness................................................... 14
Door alarm.................................................................15
Input lock...................................................................15
Device information...................................................15
Software.................................................................... 16
Demo mode............................................................... 16
Resetting to factory settings.................................16
7.3 Messages...................................................................... 17
7.3.1 Overview of warnings............................................... 17
7.3.2 Ending warnings........................................................17
7.3.3 Overview of reminders..............................................17
8 Features................................................................. 17
8.1 4-star freezer compartment....................................... 17
8.2 Door rack....................................................................... 18
8.3 Shelves.......................................................................... 18
8.4 Dividing shelf................................................................ 19
8.5 VarioSafe ...................................................................... 19
8.6 Space for baking tray.................................................. 22
8.7 Drawers.......................................................................... 22
8.8 Compartment lid for EasyFresh Safe........................ 22
8.9 Pull-out unit.................................................................. 23
8.10 Bottle holder................................................................. 24
8.11 FlexCube........................................................................ 24
9 Maintenance.......................................................... 24
9.1 Disassembling / assembling pull-out systems...... 24
9.2 Compartment lid for EasyFresh Safe........................ 25
9.3 Defrosting the appliance............................................ 25
9.4 Cleaning the appliance............................................... 26
10 Customer help....................................................... 26
10.1 Technical specifications............................................. 26
10.2 Operating noises.......................................................... 26
10.3 Technical fault.............................................................. 27
10.4 Customer Service......................................................... 28
10.5 Model plate................................................................... 28
11 Shutting down....................................................... 28
12 Disposal................................................................. 28
12.1 Preparing appliance for disposal.............................. 28
12.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 29
The manufacturer is continually working on the further
development of all types and models. Please be aware that
we reserve the right to make changes to the shape, equip‐
ment and technology.

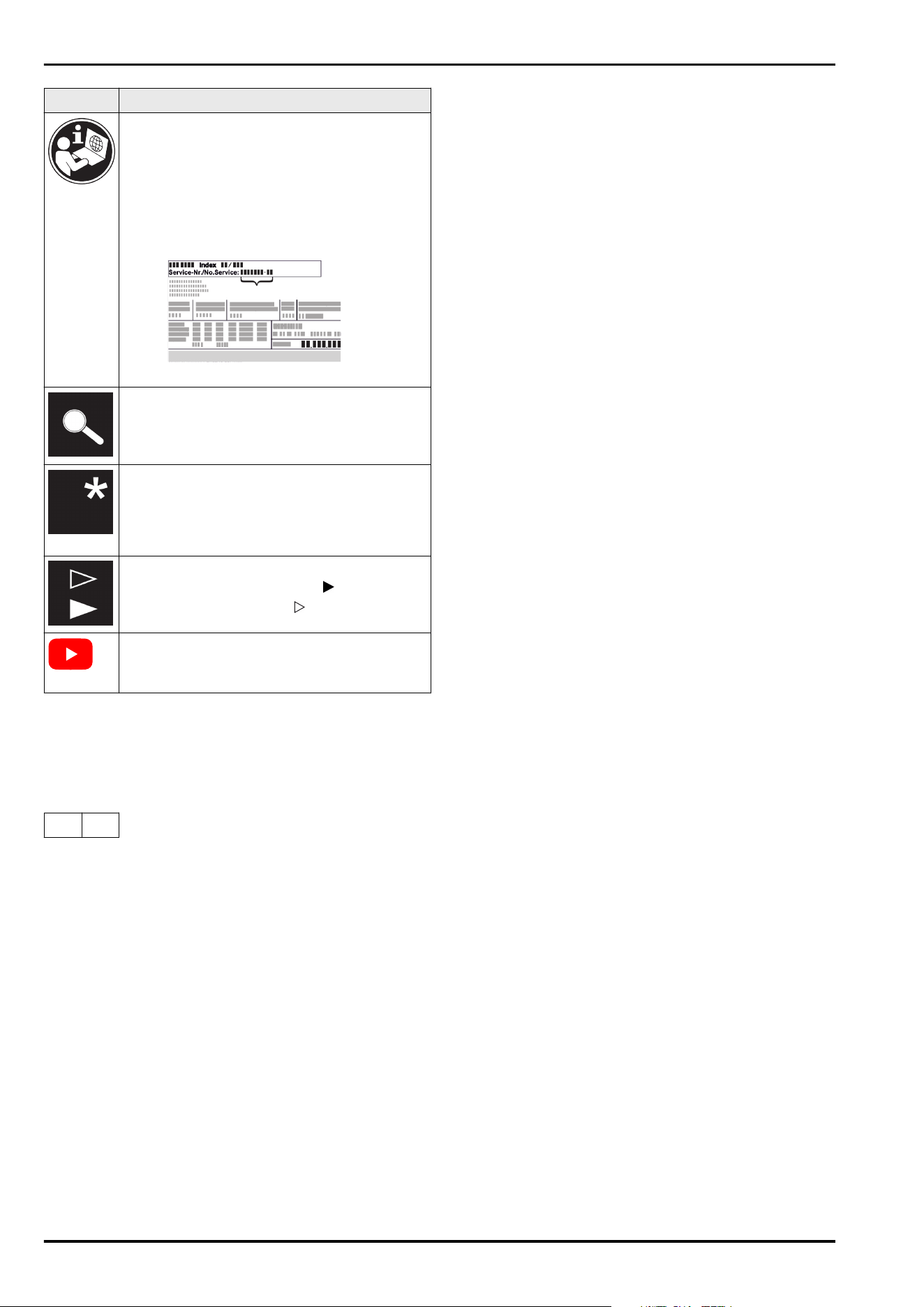

Symbol
Explanation
Read instructions
Please read the information in these instruc‐
tions carefully to understand all of the benefits
of your new appliance.
2 * Depending on model and options
Symbol Explanation
Additional information on the Internet
The digital manual with additional informa‐
tion and in other languages can be found
via the QR code on the front of the
manual or by entering the service number at
home.liebherr.com/fridge-manuals.
The service number can be found on the serial
tag:
Fig.Example illustration
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of models,
so differences are possible. Sections that
apply to certain models only are marked with
an asterisk (*).
Instructions and results
Instructions are marked with a .
Results are marked with a .
Videos
Videos about the appliances are available on
the YouTube channels of Liebherr-Hausgeräte.
Open source licences:
The appliance contains software components that use
open source licences. Information on the open source
licences used can be found here: home.liebherr.com/
open-source-licences
These operating instructions apply to:
IRC..
5121
1 General safety instructions
Please keep these operating instructions in a safe place so
you can refer back to them at any time.
If you pass the appliance on, please hand these operating
instructions to the next user.
Read these operating instructions carefully before use to
ensure safe and correct use of the appliance. Follow the
instructions, safety instructions and warning messages
included at all times. They are important for ensuring you
can operate and install the appliance safely and without any
problems.
Danger for the user:
-
This device can be used by children and people with
impaired physical, sensory or mental abilities or with a
lack of experience and knowledge provided that they are
supervised or have received instruction in the safe use of
this device, and about the resulting hazards.
Children must not play with this appliance. Cleaning and
user maintenance work must not be carried out by chil‐
dren without adult supervision. Children aged between
3 and 8 are allowed to load and unload the appliance.
Children below the age of 3 must be kept away from the
appliance unless they are under continuous adult super‐
vision.
-
The socket must be easily accessible so that the appli‐
ance can be disconnected quickly from the electricity in
an emergency. It must not be located in the area behind
the appliance.
-
When disconnecting the appliance from the supply,
always take hold of the plug. Do not pull the cable.
-
In the event of a fault pull out the mains plug or deacti‐
vate the fuse.
-
Do not damage the mains power cable. Do not operate
the appliance with a defective mains power cable.
-
Only customer service or other specially trained staff
may repair or perform other operations on the appliance.
-
Only install, connect and dispose of the appliance
according to the instructions.
-
Only use the appliance when is installed.
Fire hazard:
-
The coolant used (information on the model plate) is
ecofriendly but also flammable. Any leaking coolant may
ignite.
•
Do not damage the refrigerant circuit pipes.
•
Do not handle ignition sources inside the appliance.
•
Do not use electrical appliances inside the appliance
(e.g. steam cleaners, heaters, ice cream makers, etc.).
•
If the refrigerant leaks: remove any naked flames or
ignition sources from the vicinity of the leakage point.
Properly air the room. Inform customer services.
-
Do not store explosives or sprays using combustible
propellants such as butane, propane, pentane, etc. in the
appliance. To identify these spray cans, look for the list of
contents printed on the can, or a flame symbol. Gases
possibly escaping may ignite due to electrical compo‐
nents.
-
Keep burning candles, lamps and other items with naked
flames away from the appliance so that they do not set
the appliance on fire.
-
Please be sure to store alcoholic drinks or other pack‐
aging containing alcohol in tightly closed containers.
Any alcohol that leaks out may be ignited by electrical
components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors etc. as a step or
for support. This applies particularly to children.
Danger of food poisoning:
-
Do not consume food which has been stored too long.
Danger of frostbite, numbness and pain:
-
Avoid prolonged skin contact with cold surfaces or refri‐
gerated/frozen goods or take protective measures, e.g
wear gloves.
Danger of injury and damage:
-
Hot steam can lead to injury. Do not use electrical
heating or steam cleaning equipment, open flames or
defrosting sprays to defrost.
-
Do not use sharp implements to remove the ice.
Risk of crushing:
-
Do not hold the hinge when opening and closing the door.
Fingers may get caught.
Symbols on the appliance:
General safety instructions
* Depending on model and options 3
This symbol may be located on the
compressor. It relates to the oil in the
compressor and makes reference to the
risk that: Swallowing or inhaling can be
fatal. This advice is only relevant to recy‐
cling. There is no danger in normal opera‐
tion.
This symbol is located on the compressor
and indicates the danger of flammable
materials. Do not remove the sticker.
This or a similar sticker may be located
on the rear of the appliance. This sticker
indicates that there are vacuum insulation
panels (VIP) or perlite panels in the door
and/or housing. This advice is only relevant
to recycling. Do not remove the sticker.
Please note the warning messages and other specific
advice in the other chapters:
DANGER
indicates an immediately
hazardous situation which will
lead to death or serious injuries if
it is not avoided.
WARNING indicates a hazardous situation
which may lead to death or serious
injuries if it is not avoided.
CAUTION indicates a hazardous situation
which may lead to minor or
moderate injuries if it is not
avoided.
NOTICE indicates a hazardous situation
which may lead to damage to
property if it is not avoided.
Note indicates useful instructions and
tips.
2 Appliance at a glance
2.1 Scope of delivery
Check all parts for transport damage. Contact your
dealer or customer service in the event of complaints.
(see 10.4 Customer Service)
Your new appliance comes with the following parts:
-
Built-in appliance
-
Features (depending on the model)
-
Installation materials (depending on the model)
-
“Quick Start Guide”
-
“Installation Guide”
-
Service Brochure

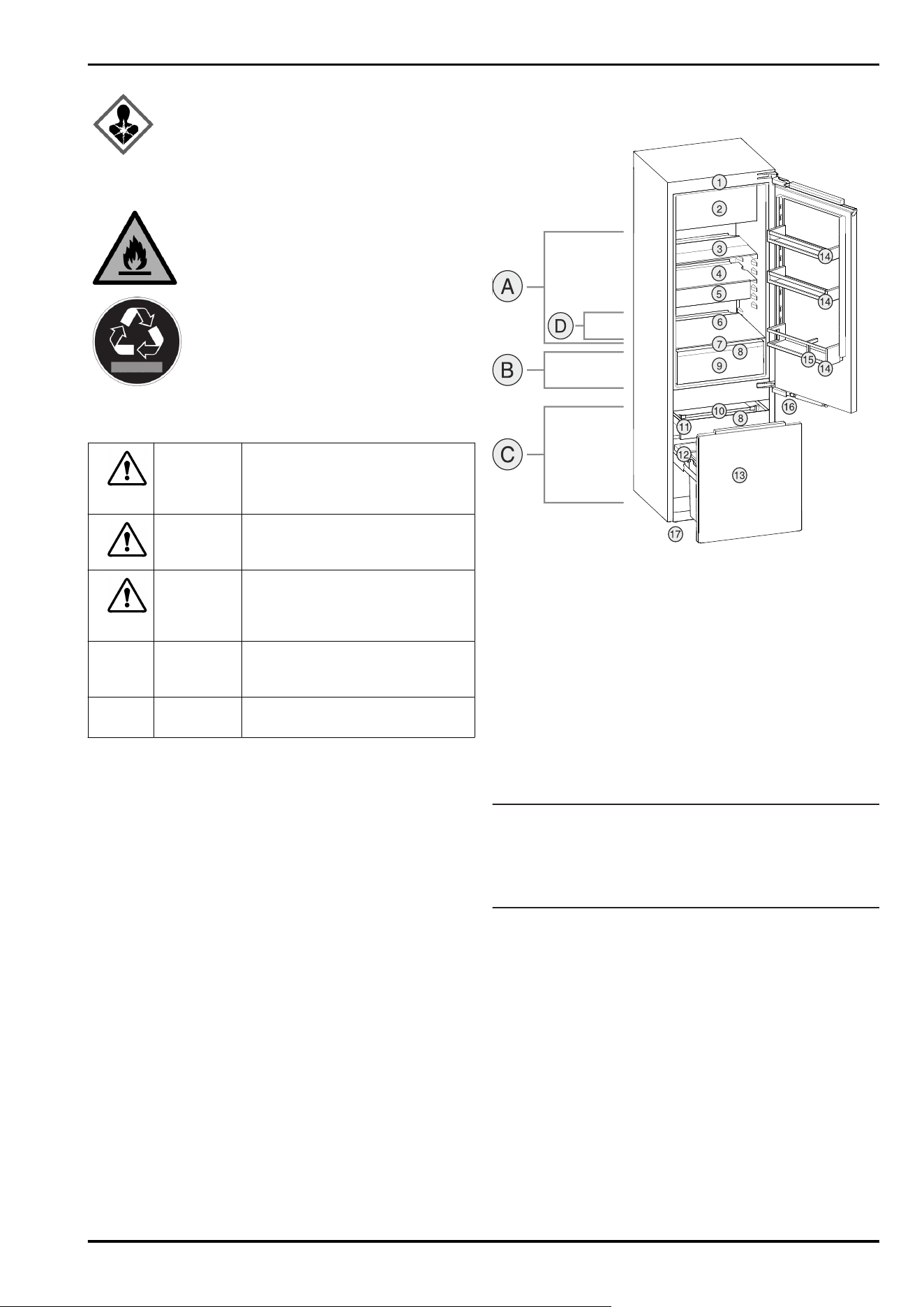

2.2 Overview of the appliance and
equipment
Fig. 1 Example illustration
Temperature range
(A)
Fridge section (C) Cellar compartment
(B) EasyFresh (D) Coldest area
Equipment
(1)
Controls (10) Drawer holder
(2) 4-star freezer compart‐
ment
(11) Telescopic drawer
(3) Divisible shelf (12) Type plate
(4) Shelf (13) Telescopic unit
(5) VarioSafe (14) Door racks
(6) Space for baking tray (15) Bottle holder
(7) Lid for EasyFresh-Safe (16) Closing damper
(8) Drain opening (17) Adjustable feet
(9) EasyFresh-Safe
Note
► Shelves, drawers and baskets are arranged for optimum
energy efficiency when the appliance is delivered.
Changing how the shelves, for example, are inserted in
the fridge compartment does not have any impact on
energy consumption.
2.3 SmartDevice
SmartDevice is the networking solution for yourfridge-cellar
compartment combination.
If your appliance SmartDevice-enabled or compatible, you
can quickly and easily connect your appliance to your
WiFi. With the SmartDevice app, you can operate your appli‐
ance from a mobile device. Additional functions and setting
options are available in the SmartDevice SmartDevice app.
SmartDevice-
compatible appli‐
ance:
Your appliance is compatible for use
with the SmartDeviceBox. You must
first purchase and install the Smart‐
DeviceBox. In order to connect your
appliance to the WiFi, you need to
download the SmartDevice app.
Appliance at a glance
4 * Depending on model and options

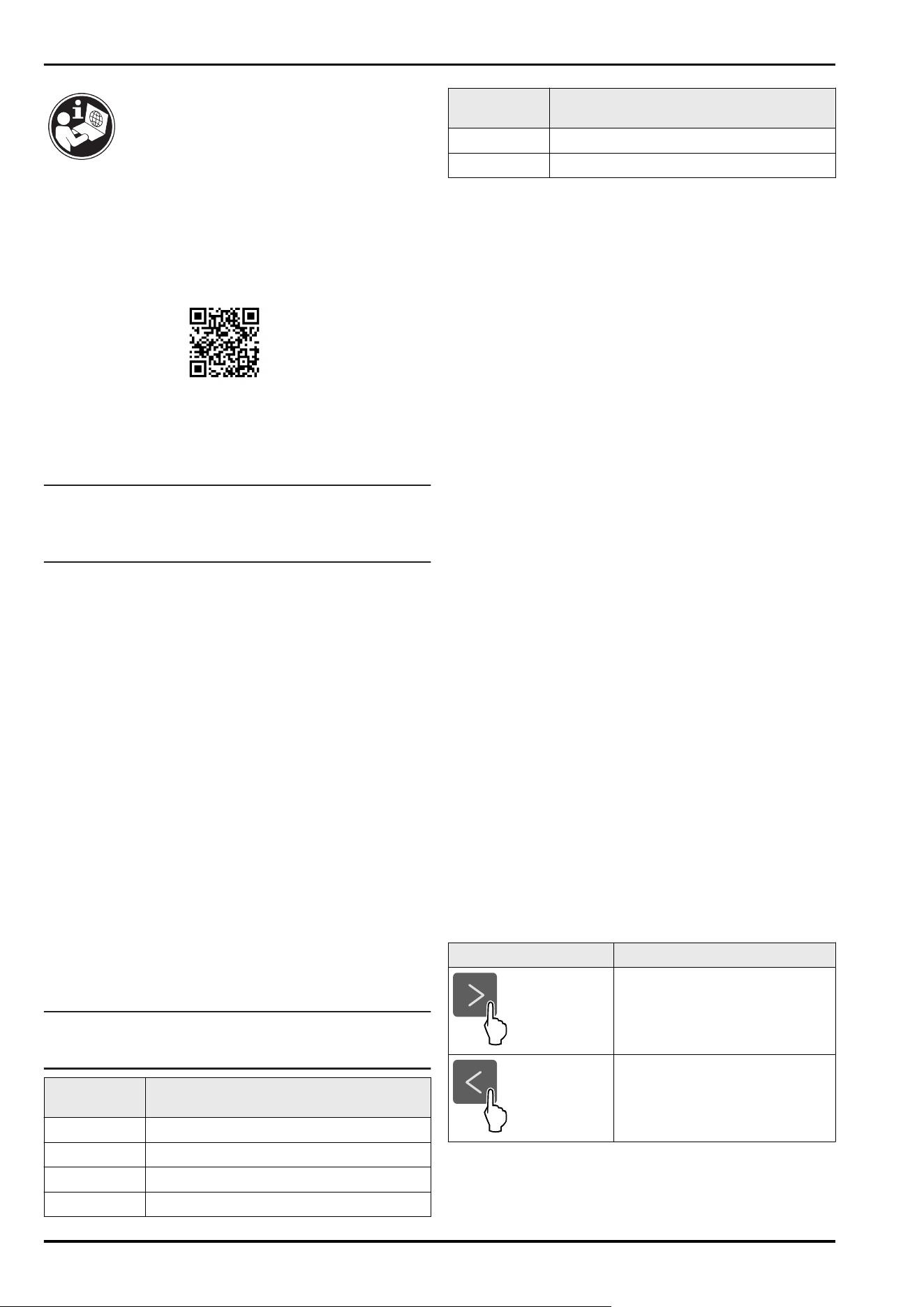

More information
about SmartDe‐
vice:
smartdevice.liebherr.com
Purchasing the
SmartDeviceBox
in the Liebherr-
Hausgeräte store:
home.liebherr.com/shop/de/deu/
smartdevicebox.html
Downloading the
SmartDevice app:
After installing and configuring
the SmartDevice app, you can
connect your appliance to your Wi-Fi
(see WiFi) using the SmartDevice app
and the appliance's Wi-Fi function.
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.
2.4 Appliance range of use
Intended use
The appliance is only suitable for cooling food products in
a domestic or household-like environment. This includes, for
example, use:
-
in staff kitchens, bed and breakfast establishments,
-
by guests in country houses, hotels, motels and other
accommodation,
-
for catering and similar services in the wholesale trade.
All other types of use are not permitted.
Foreseeable misuse
The following applications are expressly forbidden:
-
Storing and refrigerating medicines, blood plasma, labo‐
ratory preparations or similar substances and products
based on the Medical Device Directive 2007/47/EC
-
Use in areas at risk of explosions
Misusing the appliance may lead to damage to the goods
stored or they may spoil.
Climate classifications
Depending on the climate classification the appliance is
designed to operate in restricted ambient temperatures. The
climate classification applying to your appliance is printed
on the rating plate.
Note
► Keep to the specified ambient temperatures in order to
guarantee that the appliance works properly.
Climate clas‐
sification
for ambient temperatures of
SN 10°C to 32°C
N 16°C to 32°C
ST 16°C to 38°C
T 16°C to 43°C
Climate clas‐
sification
for ambient temperatures of
SN-ST 10°C to 38°C
SN-T 10°C to 43°C
2.5 Conformity
The refrigerant circuit has been tested for leaks. When
installed, the appliance complies with the applicable safety
regulations and with the corresponding directives.
The full text of the EU Declaration of Conformity is available
on the following website: www.Liebherr.com
2.6 SVHC substances according to
REACH regulation
You can check whether your appliance contains SVHC
substances according to REACH regulation at the following
link: home.liebherr.com/de/deu/de/liebherr-erleben/nach‐
haltigkeit/umwelt/scip/scip.html
2.7 EPREL database
Details about energy labelling and ecodesign requirements
will be available on the European product database (EPREL)
from 1st March 2021. You can access the product database
at the following link: https://eprel.ec.europa.eu/ You will be
asked to enter the model ID. You can find the model ID on
the nameplate.
2.8 Spare parts
The spare parts availability for functional parts and stock‐
able parts of the equipment is 15 years.
3 Functionality of the Touch
display
You operate your appliance using the Touch display. You
select appliance functions in the Touch display (hereafter
referred to as display) by tapping them. If you do not
perform any action on the display for 10 seconds, the
display either jumps back to the higher-level menu or
directly to the status display.
3.1 Navigation and symbol explanation
In the illustrations, different symbols are used to navigate
the display. The following table describes these symbols.
Symbol
Description
Press the Next navigation
arrow:
Navigates to the next option in
the menu.
Press the Back navigation
arrow:
Jumps back one option in the
menu.
Functionality of the Touch display
* Depending on model and options 5
Symbol Description
Press the navigation arrow
several times in succession:
Navigates in the menu to the
desired function.
Press the Confirm symbol:
Activates/deactivates function.
Opens submenu.
Press the Confirm symbol
together with the back icon:
Jumps back one menu level.
Arrow with clock:
It takes more than 10 seconds
for the following message to
appear in the display.
Arrow with a time indication:
It takes the specified amount of
time until the following message
appears in the display.
“Open Settings menu” symbol:
Navigates to the Settings menu
and opens the settings menu.
If necessary: Navigate to the
desired function in the Settings
menu.
(see 3.2.1 Opening the Settings
menu)
“Open Advanced menu” symbol:
Navigates to the Advanced menu
and opens the advanced menu.
If necessary: Navigate to the
desired function in the Advanced
menu.
(see 3.2.2 Opening the Advanced
menu)
No action for
10seconds
If you do not perform any action
on the display for 10 seconds,
the display either jumps back to
the higher-level menu or directly
to the status display.
Opening door and
closing it again
If you open the door and immedi‐
ately close it again, the display
jumps directly back to the status
display.
Note: Illustrations of the display are shown in the English
version.
3.2 Menus
The appliance functions can be found in various menus.
Menu
Description
Main menu When you switch the appliance on, you are
automatically in the main menu.
From here you can navigate to the most
important appliance functions, to the
Settings menu and to the Advanced menu.
Menu Description
Settings
menu
The Settings menu contains additional
appliance functions for setting up your
appliance.
(see 3.2.1 Opening the Settings menu)
Advanced
menu
The advanced menu contains special appli‐
ance functions for setting up your appli‐
ance. Access to the Advanced menu is
protected by the numerical code 151.
(see 3.2.2 Opening the Advanced menu)

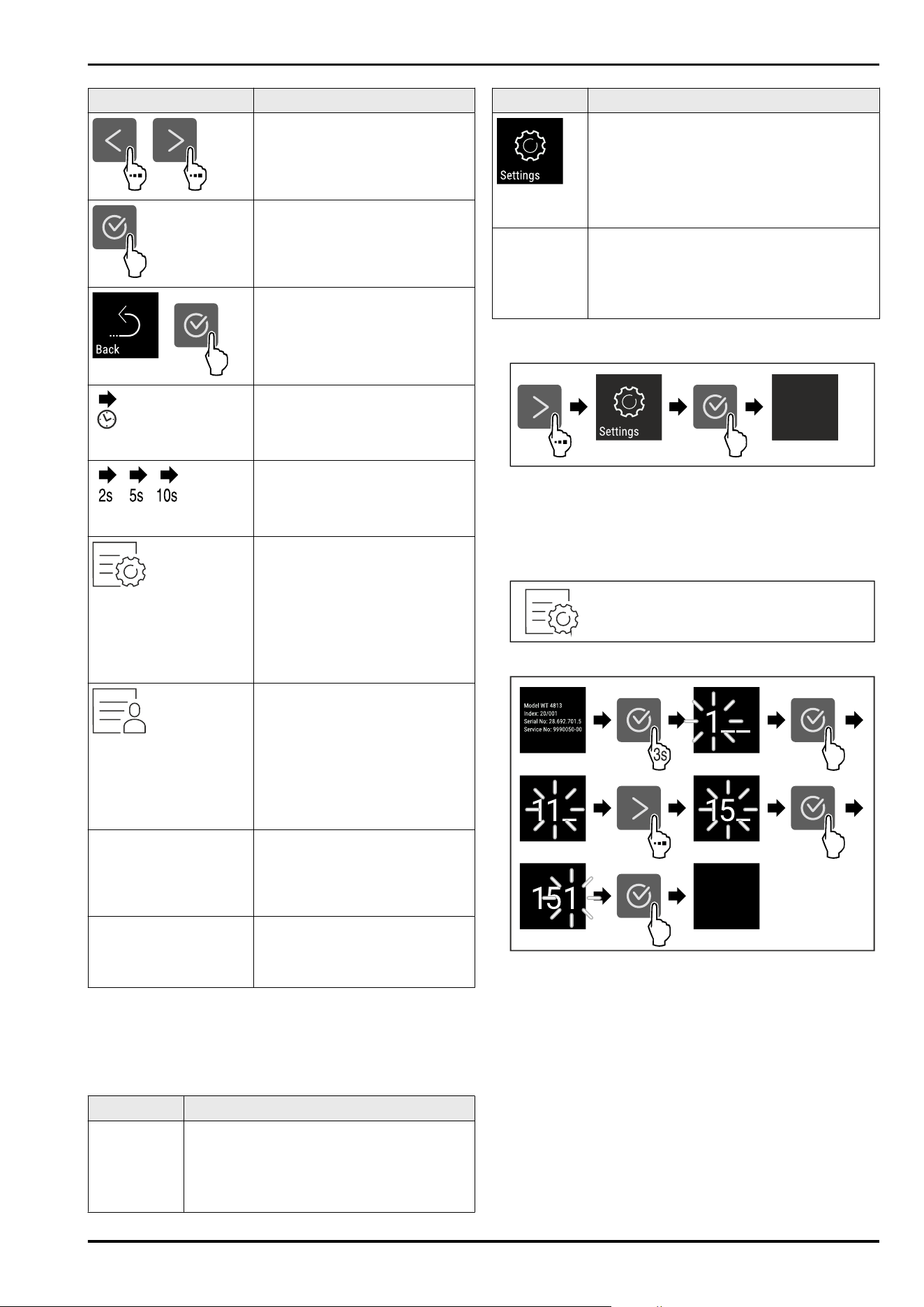

3.2.1 Opening the Settings menu
Fig. 2 Example illustration
► Carry out action steps according to the illustration.
▷ Settings menu is open.
► If necessary: Navigate to the desired function.
3.2.2 Opening the Advanced menu
Fig.3
Fig. 4 Example illustration, access with numerical code 151
► Carry out action steps according to the illustration.
▷ The expanded menu is open.
► If necessary: Navigate to the desired function.
3.3 Sleep mode
If you do not touch the display for 1 minute, the display
switches to sleep mode. In sleep mode, the display bright‐
ness is dimmed.
3.3.1 Ending sleep mode
► Press any navigation key.
▷ Sleep mode is ended.
Functionality of the Touch display
6 * Depending on model and options
4 Putting into operation
4.1 Switching on appliance (first use)
Make sure that the following requirements are fulfilled:
❑
The appliance is properly installed and connected
according to the installation instructions.
❑
All adhesive strips, adhesive and protective films and
transport locks are removed from inside and on the appli‐
ance.
❑
All marketing leaflets are removed from the drawers.
❑
You are familiar with the functionality of the Touch
display. (see3 Functionality of the Touch display)
Switch on the appliance using the Touch display:
► If the display is in sleep mode: Press the confirmation
symbol.
► Carry out action steps according to the illustration.
Fig. 5 Example illustration
▷ Status display appears.
▷ The appliance cools to the temperature set at the factory.
▷ The appliance starts in demo mode (status display with
DEMO appears): If the appliance starts in demo mode,
you can deactivate demo mode within the next 5 minutes.
(seeDemo mode)
More information:
-
Start the SmartDevice for the first time. (see 2.3 Smart‐
Device) and (seeWiFi)
Note
The manufacturer recommends:
► Stock with food: Wait for around 6 hours until the set
temperature is reached.
► Store frozen foods at -18°C or colder.
► Observe the notes on storing food. (see 5.1 Information
regarding storage)
Note
Accessories can be purchased from the Liebherr-
Hausgeräte store at home.liebherr.com/shop/de/deu/
zubehor.html.
5 Storage
5.1 Information regarding storage
WARNING
Fire hazard from electrical appliances!
If you use electrical appliances in the food area of your
appliance, they can cause a fire.
► Do not use electrical appliances in the food area of the
appliance unless recommended by the manufacturer.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
► Always keep air slots clear.
Observe the following specifications for storage:
-
In the freezer compartment: Package food properly.
-
Package or cover foods that readily take on or give off
odours or taste in closed containers.
-
Package raw meat or fish in clean, closed containers.
This will prevent meat or fish from touching or dripping
onto other food.
-
Keep liquids in closed containers.
-
Leave space between goods to ensure good air circula‐
tion.
-
Store food according to the instructions on the pack‐
aging.
-
Always observe the best-before date indicated on the
packaging.
Note
Failure to follow these guidelines can lead to foodstuffs
spoiling.
5.2 Fridge compartment
The air circulation in the appliance creates different temper‐
ature zones. You will find the different temperature zones in
the appliance and equipment overview. (see 2.2 Overview of
the appliance and equipment)
5.2.1 Arranging your food properly
► Upper area and door: Store butter, cheese, tinned food
and tubes.
► Coldest temperature zone: Store perishable foods such
as pre-cooked meals, meat and lunch meats.
► Bottom shelf: Store raw meat or fish.
5.3 EasyFresh
EasyFresh is great for non-packaged foods, such as fruit
and vegetables.
The humidity inside the drawer depends on the humidity
content of the food inside it, and the frequency at which it
is opened. The humidity can be regulated. (see8.8 Compart‐
ment lid for EasyFresh Safe)
5.3.1 Arranging your food properly
► Store unpackaged fruit and vegetables.
If the humidity is too high:
► Regulate the humidity.
5.4 Cellar compartment
The cellar compartment is suitable for storing foods that are
sensitive to the cold, such as potatoes, onions or tropical
fruits, and for storing foods or beverages that should not be
too cold when consumed. The cellar compartment is there‐
fore an optimal replacement for a cellar or pantry.
Putting into operation
* Depending on model and options 7

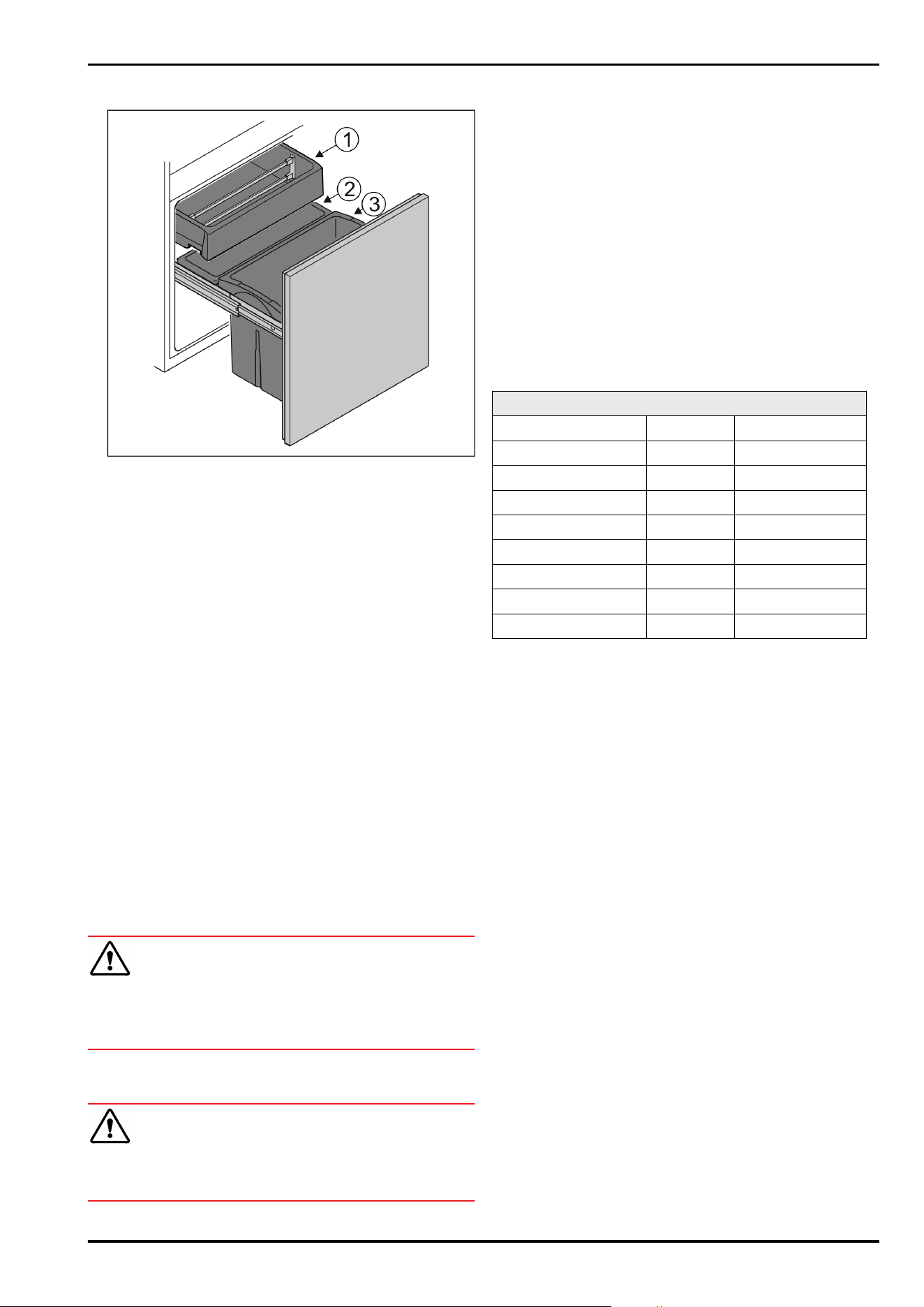

5.4.1 Arranging your food properly
Fig.6
► Container Fig. 6 (1): Store unpackaged vegetables and
tropical fruits.
► Container Fig. 6 (2): Store small unpackaged fruits and
vegetables.
► Container Fig.6(3): Store individual bottles.
5.5 ****-freezer compartment
Here, a dry, frosty storage climate is created at -18 °C. The
frosty storage climate is suitable for storing frozen food for
several months, for making ice cubes or freezing fresh food.
The air temperature in the freezer compartment, measured
with a thermometer or other measuring device, may fluc‐
tuate. Temperature fluctuations are greater in a half-full
or empty freezer and it is possible to attain temperatures
warmer than -18°C.
5.5.1 Freezing food
The maximum amount of fresh food that you can
freeze within 24 hours is specified on the type plate
(see 10.5 Model plate) under “Freezing capacity ... kg/24h”.
To ensure that food quickly freezes through, adhere to the
following quantities per package:
-
Fruit and vegetables up to 1 kg
-
Meat up to 2.5 kg
Arranging your food properly
CAUTION
Risk of injury due to broken glass!
Bottles and cans containing drinks may burst when being
frozen. This applies particularly to sparkling drinks.
► Do not freeze bottles and cans containing drinks!
► Place packaged food in the freezer compartment.
Defrosting food
WARNING
Risk of food poisoning!
► Do not re-freeze thawed food.
► Use defrosted foodstuff as soon as possible.
You can defrost food in several ways:
-
In the fridge compartment
-
In the microwave
-
In the oven/fan-assisted oven
-
At room temperature
► Take out only as much food as necessary.
5.6 Storage times
Refer to the specified storage times as a guide.
In the case of foods with a minimum shelf life, the date
indicated on the packaging still applies.
5.6.1 Fridge section
Always follow the best-before date stated on the packaging.
5.6.2 Freezer compartment
Recommended shelf-lives for various types of food
Ice cream at -18°C 2 to 6 months
Cold cuts, ham at -18°C 2 to 3 months
Bread, baked goods at -18°C 2 to 6 months
Game, pork at -18°C 6 to 9 months
Fatty fish at -18°C 2 to 6 months
Lean fish at -18°C 6 to 8 months
Cheese at -18°C 2 to 6 months
Poultry, beef at -18°C 6 to 12 months
Vegetables, fruit at -18°C 6 to 12 months
6 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Do not install the appliance in direct sunlight or near
radiators or similar sources of heat.
-
If the appliance is installed directly next to an oven,
the energy consumption may increase slightly. This is
dependent on the service life and usage intensity of the
oven.
-
Energy consumption depends on the installation condi‐
tions, e.g. the ambient temperature (see 2.4 Appliance
range of use) . A warmer ambient temperature can
increase the energy consumption.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
-
Inserting warm food: allow to cool down to room temper‐
ature first.
-
For longer periods of absence, use HolidayMode
(seeHolidayMode) .
Saving energy
8 * Depending on model and options

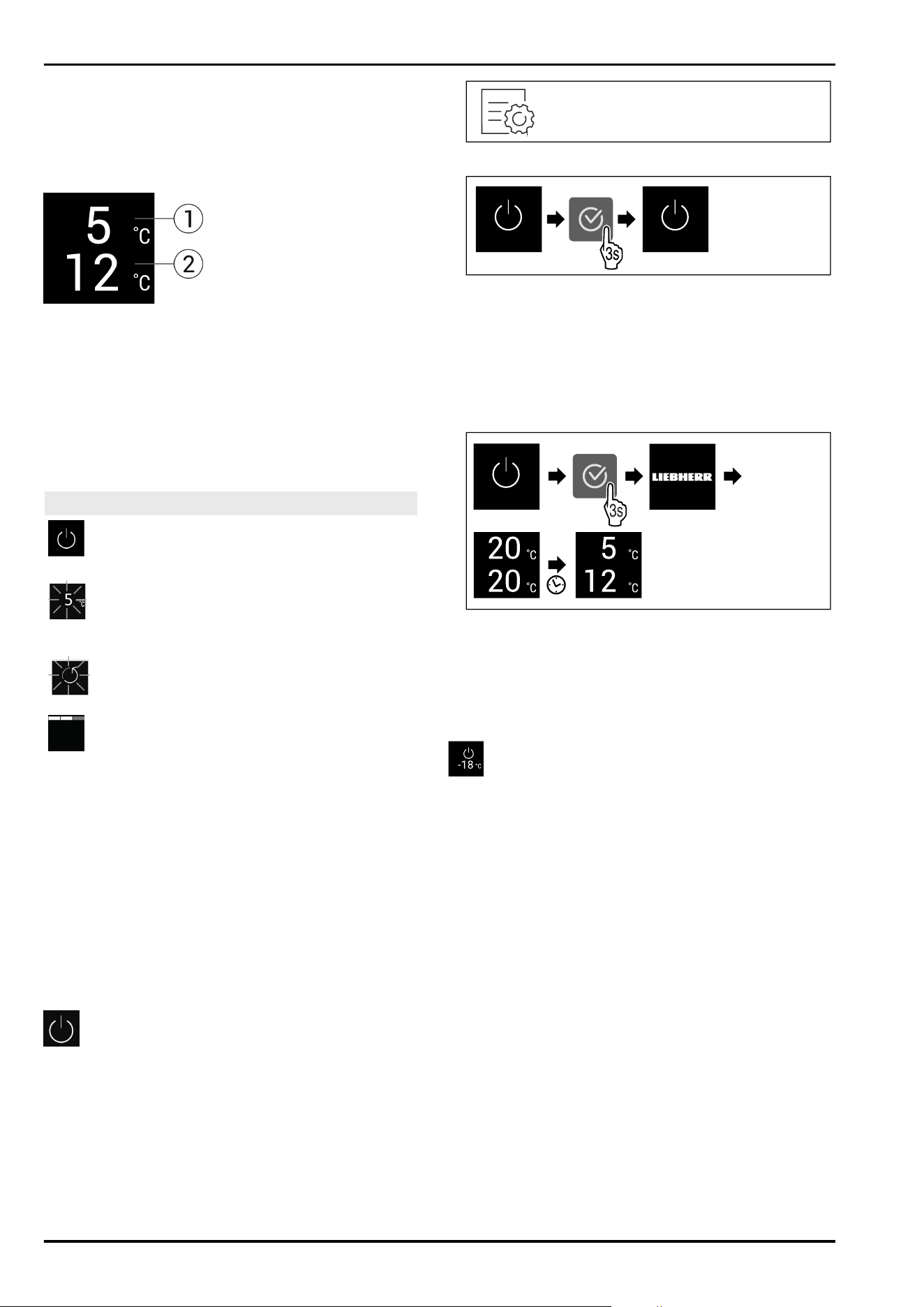

7 Controls
7.1 Controls and displays
7.1.1 Status display
Fig.7
(1)
Temperature display of
the fridge section
(2) Temperature display of
the larder compartment
The Status display shows the set temperature and is the
home display. From there, you can navigate to the options
and settings.
7.1.2 Display symbols
Display symbols provide information on the current appli‐
ance status:
Symbol
Appliance status
Standby
The appliance or temperature zone
is switched off.
Flashing number
Appliance is working. Temperature
flashes until the set value is
reached.
Flashing symbol
Appliance is working. Setting is
made.
Bar grows steadily
Function is activated.
7.2 Appliance functions
7.2.1 Notes on the appliance functions
The appliance functions are set at the factory so that your
appliance is fully functional.
Before you alter, activate or deactivate the device functions,
make sure that the following requirements are met:
❑
You have read and understood the descriptions of how
the display works. (see 3 Functionality of the Touch
display)
❑
You have familiarised yourself with the operating and
display elements of your appliance.
Switching the appliance off and on
Use this function to switch the entire appliance off and on.
Switching off the appliance
When you switch the appliance off, then the previously
saved settings are saved.
Make sure that the following requirements are fulfilled:
❑
Handling instructions (see 11 Shutting down) are carried
out.
Fig.8
Fig.9
► Carry out action steps according to the illustration.
▷ Appliance is switched off.
▷ The standby symbol appears in the display.
▷ Display turns black.
Switching on the appliance
If the display is in sleep mode:
► Press any navigation key.
Fig. 10 Example illustration
► Carry out action steps according to the illustration.
When the appliance starts in demo mode:
► Deactivating demo mode. (see Deactivating demo mode)
▷ The appliance is switched on.
▷ Previous settings are restored.
▷ The appliance cools to the target temperature set.
Switching temperature zone off and on
You can switch temperature zones of the appliance off inde‐
pendently.
Application:
-
Cleaning
-
Defrosting
Switching the fridge compartment off
Make sure that the following requirements are fulfilled:
❑
Refrigerator compartment has been emptied.
Controls
* Depending on model and options 9

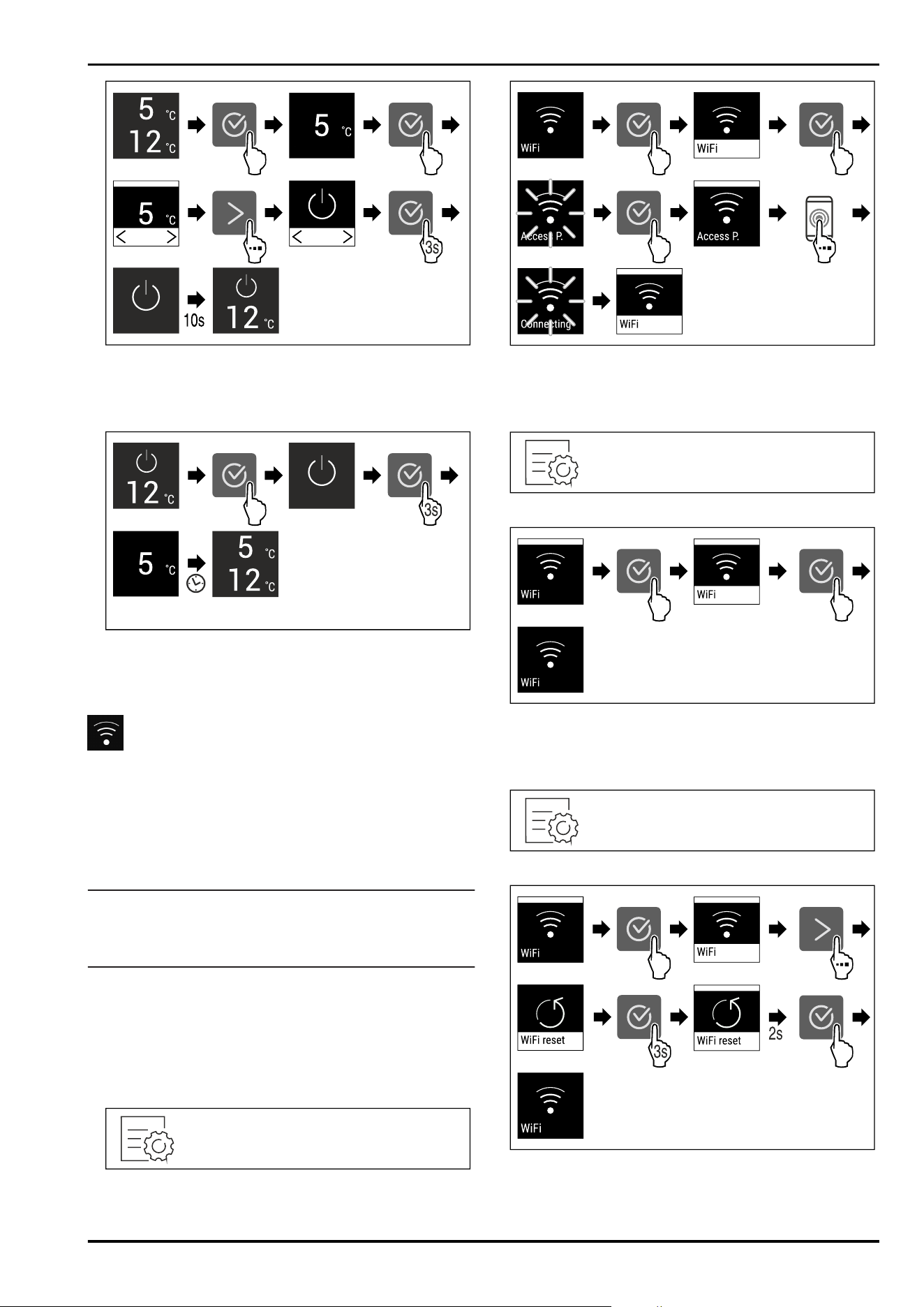

Fig. 11 Example illustration
► Carry out action steps according to the illustration.
▷ Refrigerator compartment is switched off.
Switching the fridge compartment on
Fig. 12 Example illustration
► Carry out action steps according to the illustration.
▷ Refrigerator compartment is switched on.
▷ The appliance cools to the last set temperature.
WiFi
Use this function to connect your appliance to WiFi. You can
then operate it via the SmartDevice app on a mobile device.
You can also use this function to disconnect or reset the
WiFi connection.
To connect your device to WiFi, you need the SmartDevi‐
ceBox.
More information on the SmartDevice: (see 2.3 SmartDevice)
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.
Establishing the WiFi connection for the first time
Make sure that the following requirements are fulfilled:
❑
You have purchased and inserted a SmartDeviceBox.
(see 2.3 SmartDevice)
❑
You have installed the SmartDevice app (see
apps.home.liebherr.com).
❑
Registration in the SmartDevice app is completed.
Fig.13
Fig. 14
► Carry out action steps according to the illustration.
▷ Connection is established.
Disconnecting from the WiFi
Fig. 15
Fig. 16
► Carry out action steps according to the illustration.
▷ There is no connection.
Resetting the WiFi connection
Fig.17
Fig. 18
► Carry out action steps according to the illustration.
▷ WiFi connection and other WiFi settings are reset to
factory settings.
Controls
10 * Depending on model and options

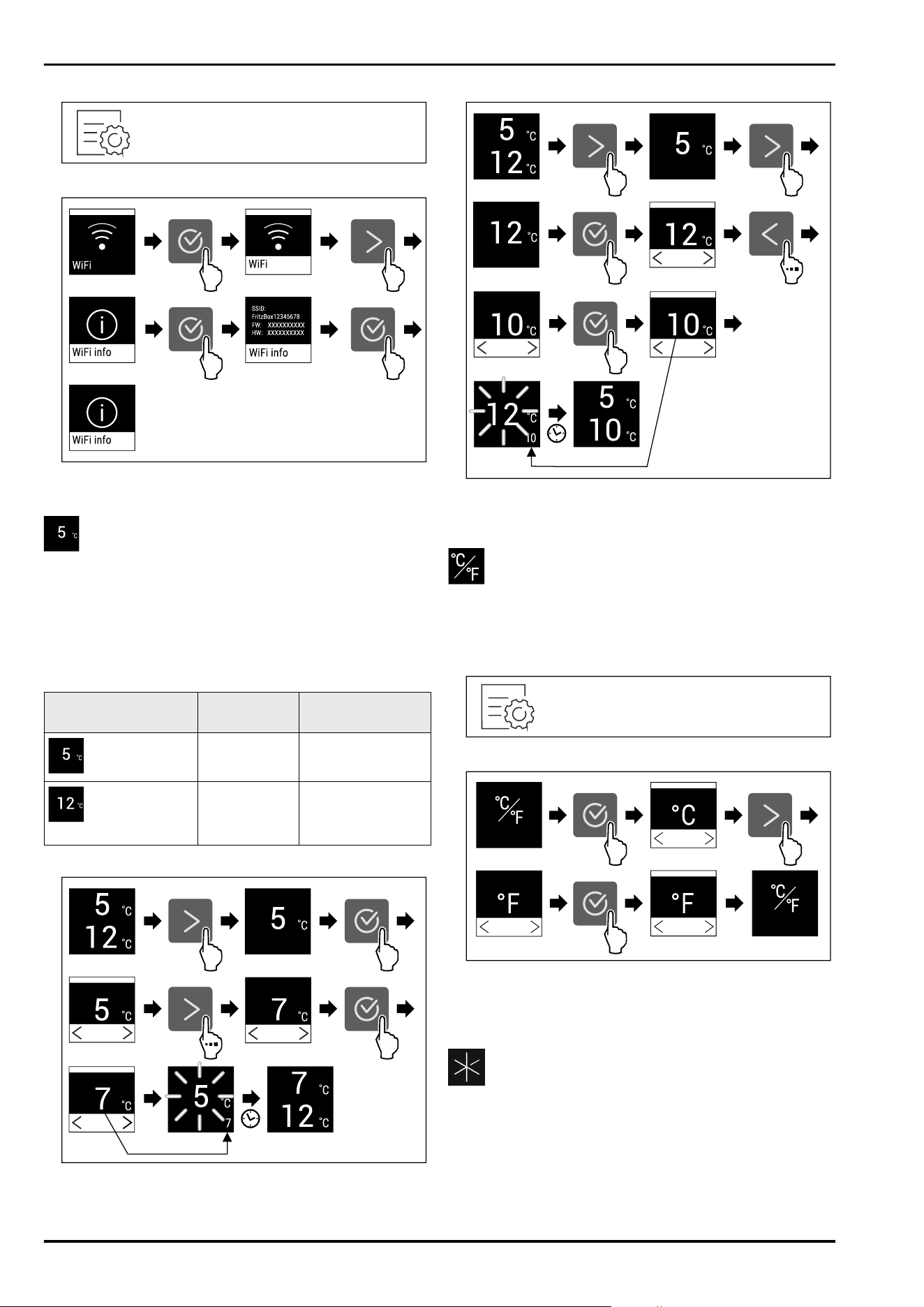

Showing information about the WiFi connection
Fig. 19
Fig.20
► Carry out action steps according to the illustration.
Temperature
Use this function to set the temperature.
The temperature depends on the following factors:
-
Frequency of door opening
-
Duration of door opening
-
Room temperature of the installation site
-
Type, temperature and quantity of food
Temperature zone
Factory-set
temperature
Recommended
setting
Fridge section
5°C 4°C
Cellar compart‐
ment
12°C 12°C
Setting the temperature in the fridge section
Fig. 21 Example illustration
► Carry out action steps according to the illustration.
▷ Temperature is set.
Setting the temperature in the cellar compartment
Fig. 22 Example illustration
► Carry out action steps according to the illustration.
▷ Temperature is set.
Temperature unit
Use this function to set the temperature unit. You can set
degrees Celsius or degrees Fahrenheit as the temperature
unit.
Setting the temperature unit
Fig.23
Fig. 24 Example illustration: Switch from degreesCelsius
to degrees Fahrenheit.
► Carry out action steps according to the illustration.
▷ The temperature unit is set.
SuperCool
You can use this function to activate or deactivate Super‐
Cool. If SuperCool is activated, then the appliance increases
the cooling capacity. It allows you to achieve lower cooling
temperatures. You can activate SuperCool when you would
like to cool a large quantity of food quickly.
Controls
* Depending on model and options 11
If SuperCool is activated, then lower temperatures are
reached in the **** freezer compartment. You can activate
SuperCool when you would like to freeze food in the ****
freezer compartment.
If the function is active, the appliance operates at higher
power. As a result, the appliance's operating noise may be
temporarily louder and energy consumption will increase.

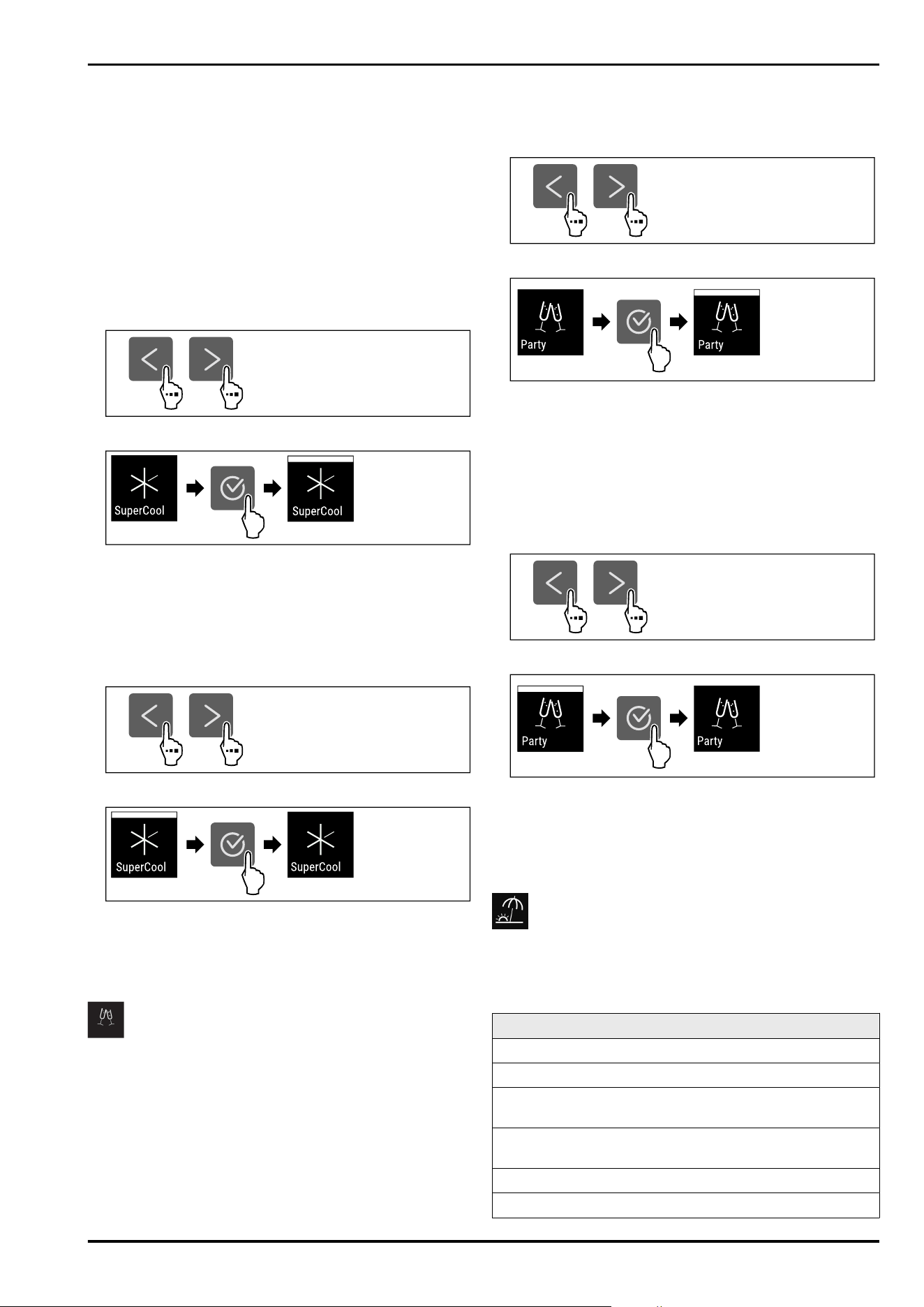

Activating SuperCool
Time for activation of the function:
-
When you would like to store fresh food in the fridge
section: Activate the function when inserting food.
-
When you would like to store fresh food in the
**** freezer compartment: Activate the function when
inserting food.
Fig.25
Fig. 26
► Carry out action steps according to the illustration.
▷ SuperCool is activated.
Deactivating SuperCool
SuperCool is deactivated automatically after 18 hours.
However, you can also deactivate SuperCool manually at
any time:
Fig.27
Fig.28
► Carry out action steps according to the illustration.
▷ SuperCool is deactivated.
▷ The appliance continues to run in normal mode.
▷ The appliance cools to the temperature set previously.
PartyMode
You can use this function to activate or deactivate Party‐
Mode. PartyMode activates various functions that are useful
for a party.
PartyMode activates the following functions:
-
SuperCool (seeSuperCool)
You can adjust all listed functions individually and flexibly.
When you deactivate PartyMode, all changes are discarded.
If the function is active, the device operates at higher
power. As a result, the device's operating noise may be
temporarily louder and energy consumption will increase.
Activating PartyMode
Fig.29
Fig.30
► Carry out action steps according to the illustration.
▷ PartyMode and the associated functions are activated.
▷ The current temperature flashes until the target tempera‐
ture is reached.
Deactivating PartyMode
The PartyMode is automatically deactivated after
24 seconds. However, you can also deactivate PartyMode
manually at any time:
Fig.31
Fig.32
► Carry out action steps according to the illustration.
▷ PartyMode is deactivated.
▷ The appliance cools to the temperature set previously:
The current temperature flashes until the target tempera‐
ture is reached.

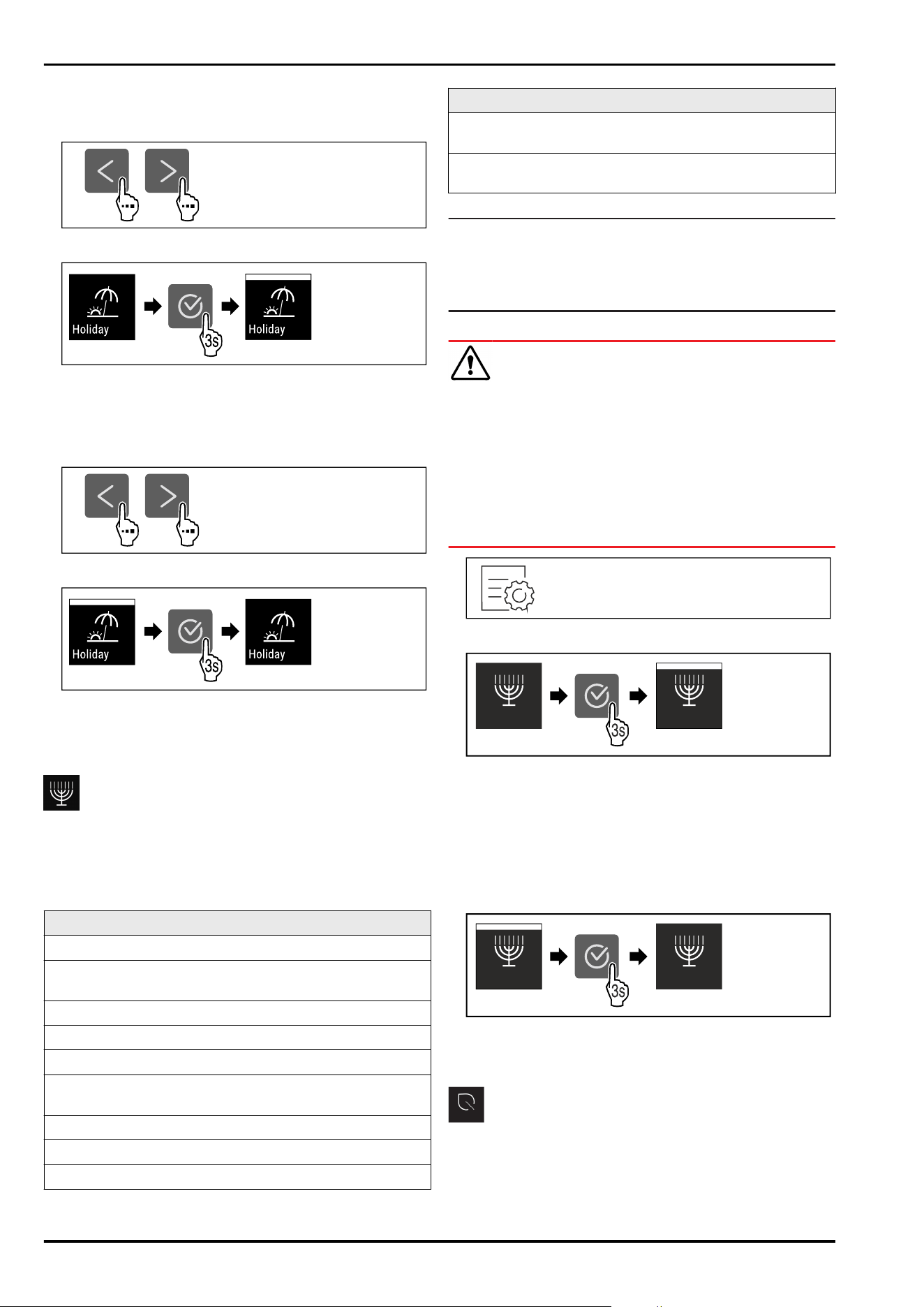

HolidayMode
You can use this function to activate or deactivate Holiday‐
Mode. If you activate HolidayMode, the fridge section is set
to 15 °C. This saves you energy during longer periods of
absence and prevents bad odours and growth of mould.
Appliance status when HolidayMode is active
Fridge section cools to 15°C.
EasyFresh cools to 15°C.
The set temperature is maintained in the **** freezer
compartment.
The set temperature is maintained in the cellar compart‐
ment.
PartyMode is deactivated.
SuperCool is deactivated.
Controls
12 * Depending on model and options
Activating HolidayMode
► Empty the fridge section completely.
► Empty EasyFresh completely.
Fig.33
Fig.34
► Carry out action steps according to the illustration.
▷ HolidayMode is activated.
▷ Temperature display shows HolidayMode symbol.
Deactivating HolidayMode
Fig.35
Fig.36
► Carry out action steps according to the illustration.
▷ HolidayMode is deactivated.
▷ The appliance cools to the temperature set previously.
SabbathMode
You can use this function to activate or deactivate
SabbathMode. If you activate this function, some electronic
functions are switched off. As a result, your device meets
the religious requirements for Jewish holidays such as
Sabbath and complies with STAR-K Kosher certification.
Device status when SabbathMode is active
The status display shows SabbathMode permanently.
All functions on the display are locked except for the
Deactivate SabbathMode function.
Active functions remain active.
The display remains bright when you close the door.
The interior lighting is deactivated.
Reminders are not implemented. The set time interval
stops.
Reminders and warnings are not displayed.
There is no door alarm.
There is no temperature alarm.
Device status when SabbathMode is active
The defrosting cycle operates only for the specified time,
without considering the appliance consumption.
After a power failure, the appliance returns to
SabbathMode.
Device status
Note
This appliance has certification from the “Institute for
Science and Halacha”. (www.machonhalacha.co.il)
You can find a list of STAR-K-certified appliances at
www.star-k.org/appliances.
Activating SabbathMode
WARNING
Danger of food poisoning from spoiled food!
If you have SabbathMode activated and a power failure
occurs, no message appears in the status display about the
power failure. Once the power is restored, the appliance
continues to operate in SabbathMode. The power failure
may mean that food spoils and the consumption of this food
could lead to food poisoning.
After a power failure:
► Do not consume food that was frozen and has thawed
out.
Fig.37
Fig.38
► Carry out action steps according to the illustration.
▷ SabbathMode is activated.
▷ The status display shows SabbathMode permanently.
Deactivating SabbathMode
The SabbathMode is automatically deactivated after
80 hours. However, you can also deactivate SabbathMode
manually at any time:
Fig. 39
► Carry out action steps according to the illustration.
▷ SabbathMode is deactivated.
E-Saver
You can use this function to activate or deactivate Energy
saving mode. If energy saving mode is activated, the energy
consumption decreases and the temperature in the device
increases. The food remains fresh, but the shelf life is short‐
ened.
Controls
* Depending on model and options 13

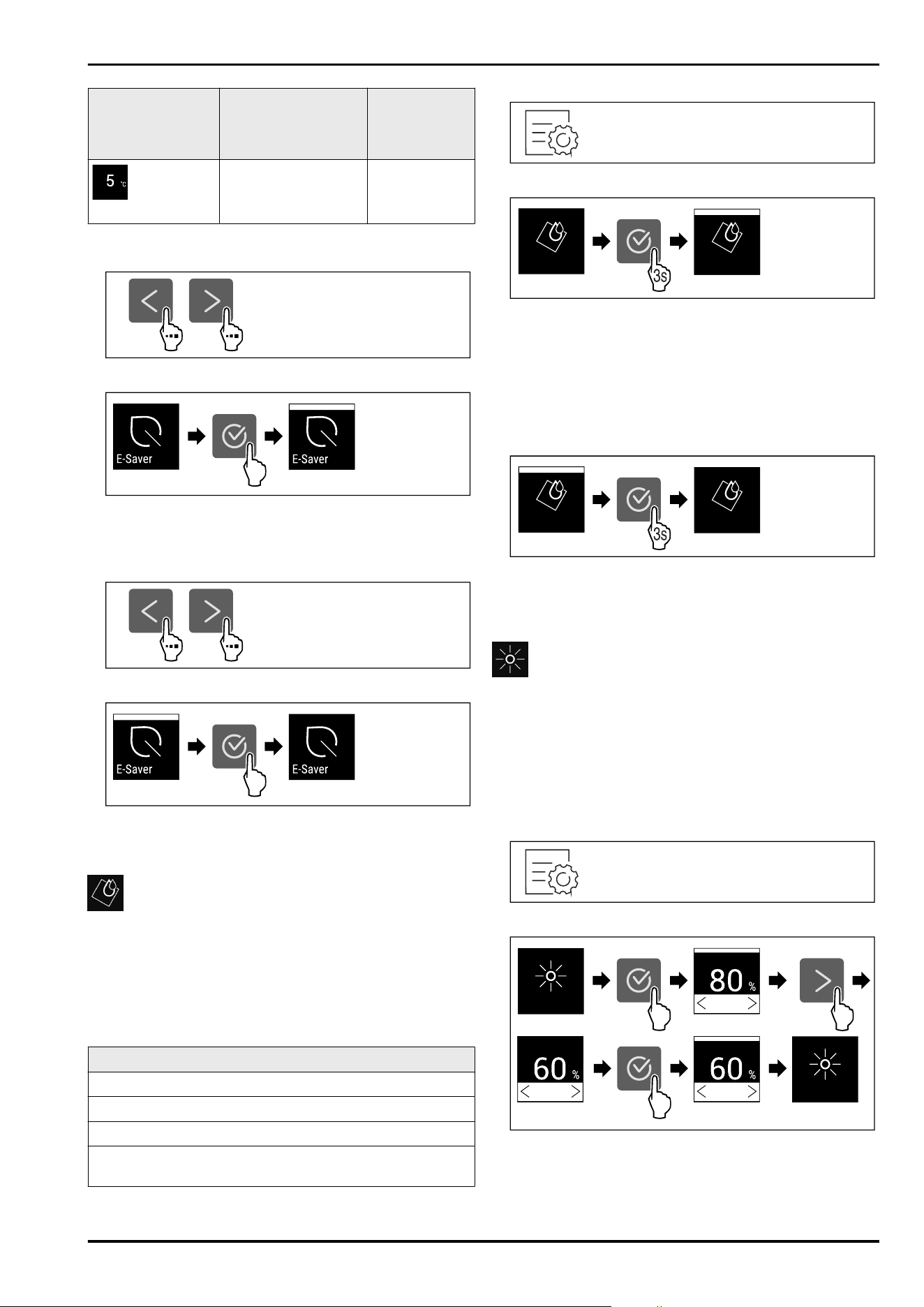

Temperature zone Recommended
setting (see Setting
the temperature in
the fridge section)
Temperature
with active E-
Saver
Fridge
section
4°C 7°C
Temperatures
Activating E-Saver
Fig.40
Fig. 41
► Carry out action steps according to the illustration.
▷ Energy saving mode is activated.
Deactivating E-Saver
Fig. 42
Fig.43
► Carry out action steps according to the illustration.
▷ Energy saving mode is deactivated.
CleaningMode
You can use this function to activate or deactivate Cleaning‐
Mode. CleaningMode enables the appliance to be cleaned
conveniently.
This setting applies to the fridge section.
Application:
-
Clean the fridge section. (see 9.4Cleaning the appliance)
Device status when CleaningMode is active
The status display shows CleaningMode permanently.
The fridge section is switched off.
Interior lighting is activated.
The reminders and warnings are not displayed. No signal
tone sounds.
Device status
Activating CleaningMode
Fig.44
Fig.45
► Carry out action steps according to the illustration.
▷ CleaningMode is activated.
▷ The status display shows CleaningMode permanently.
Deactivating CleaningMode
CleaningMode is deactivated automatically after
60 minutes. However, you can also deactivate Cleaning‐
Mode manually at any time:
Fig.46
► Carry out action steps according to the illustration.
▷ CleaningMode is deactivated.
▷ The appliance cools to the temperature set previously.
Display brightness
Use this function to set the display brightness in stages.
You can select the following brightness levels:
-
40%
-
60%
-
80%
-
100 % (pre-setting)
Setting the brightness
Fig. 47
Fig. 48 Example illustration: Switch from 80 % to 60%.
► Carry out action steps according to the illustration.
▷ The brightness is set.
Controls
14 * Depending on model and options

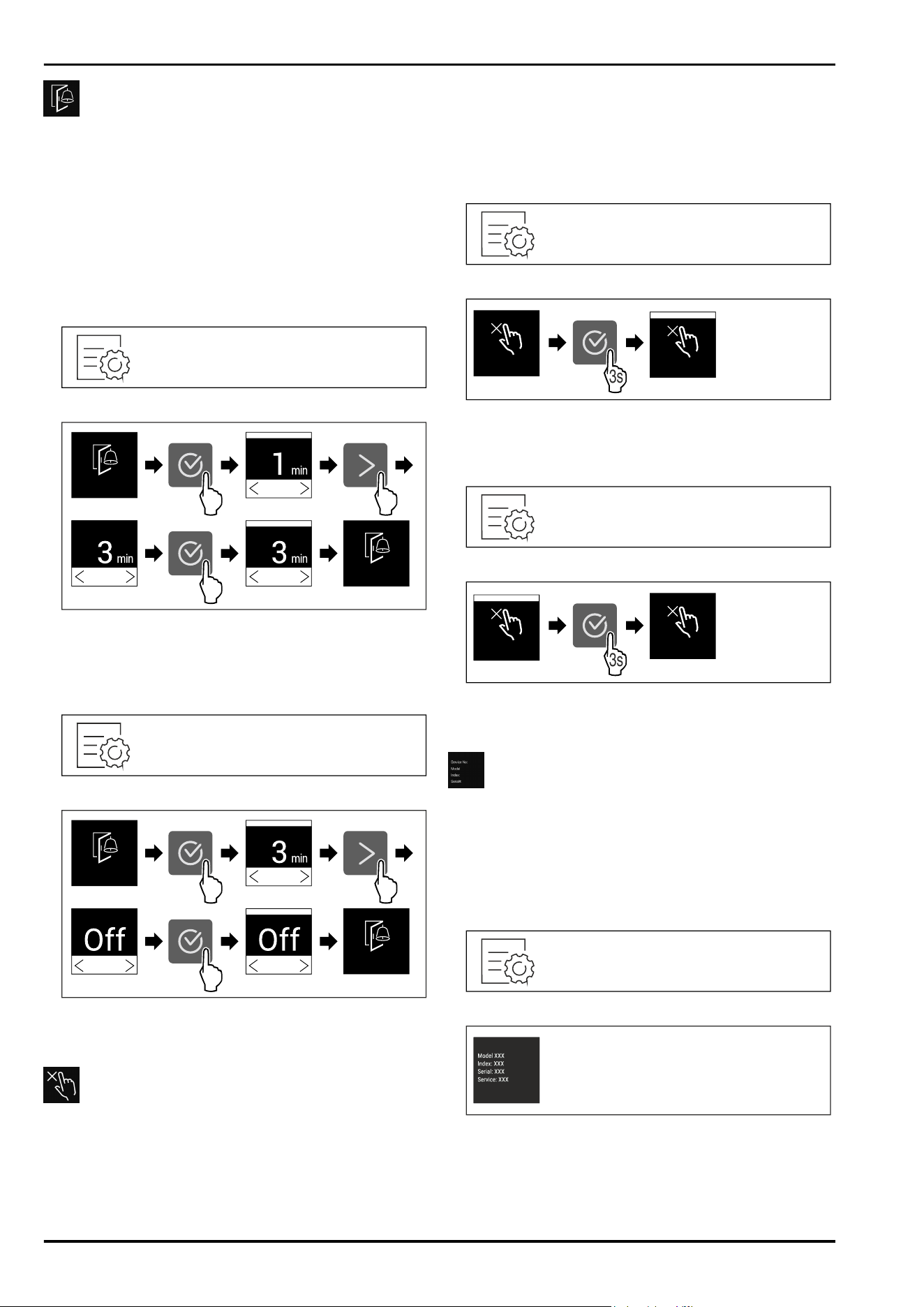

Door alarm
Use this function to activate or deactivate the door alarm.
The door alarm sounds if the door is open for too long. The
door alarm is activated on delivery. You can set how long
the door may be open before the door alarm sounds.
The following values can be set:
-
1 minute
-
2 minutes
-
3 minutes
-
Off
Setting the door alarm
Fig. 49
Fig. 50 Example illustration: Change door alarm from
1 minute to 3 minutes.
► Carry out action steps according to the illustration.
▷ The door alarm is set.
Deactivating the door alarm
Fig.52
Fig.53
► Carry out action steps according to the illustration.
▷ The door alarm is deactivated.
Input lock
You can use this function to activate or deactivate the input
lock. The input lock prevents the appliance being operated
accidentally, e.g. by children.
Application:
-
Avoid unintentional modification of functions.
-
Avoid unintentional switching off of the device.
-
Avoid unintentional temperature setting.
Activating the input lock
If you activate the input lock, you can continue to navigate
in the menus but you cannot select or change other func‐
tions.
Fig.54
3s
Displ. Lock
Displ. Lock
Fig.55
► Carry out action steps according to the illustration.
▷ Input lock is activated.
Deactivating the input lock
Fig.56
3s
Displ. Lock
Displ. Lock
Fig.57
► Carry out action steps according to the illustration.
▷ Input lock is deactivated.
Device information
Use this function to indicate the model name, index, serial
number and service number of your device. You will need
the device information when you contact customer service.
(see 10.4 Customer Service)
This function also opens the Advanced menu. (see 3 Func‐
tionality of the Touch display)
Indicating the device information
Fig.58
Fig. 59
► Carry out action steps according to the illustration.
▷ Display indicates device information.
Controls
* Depending on model and options 15
Software
Use this function to indicate the software version of your
device.
Indicating the software version
Fig.60
Fig.61
► Carry out action steps according to the illustration.
▷ Display indicates software version.

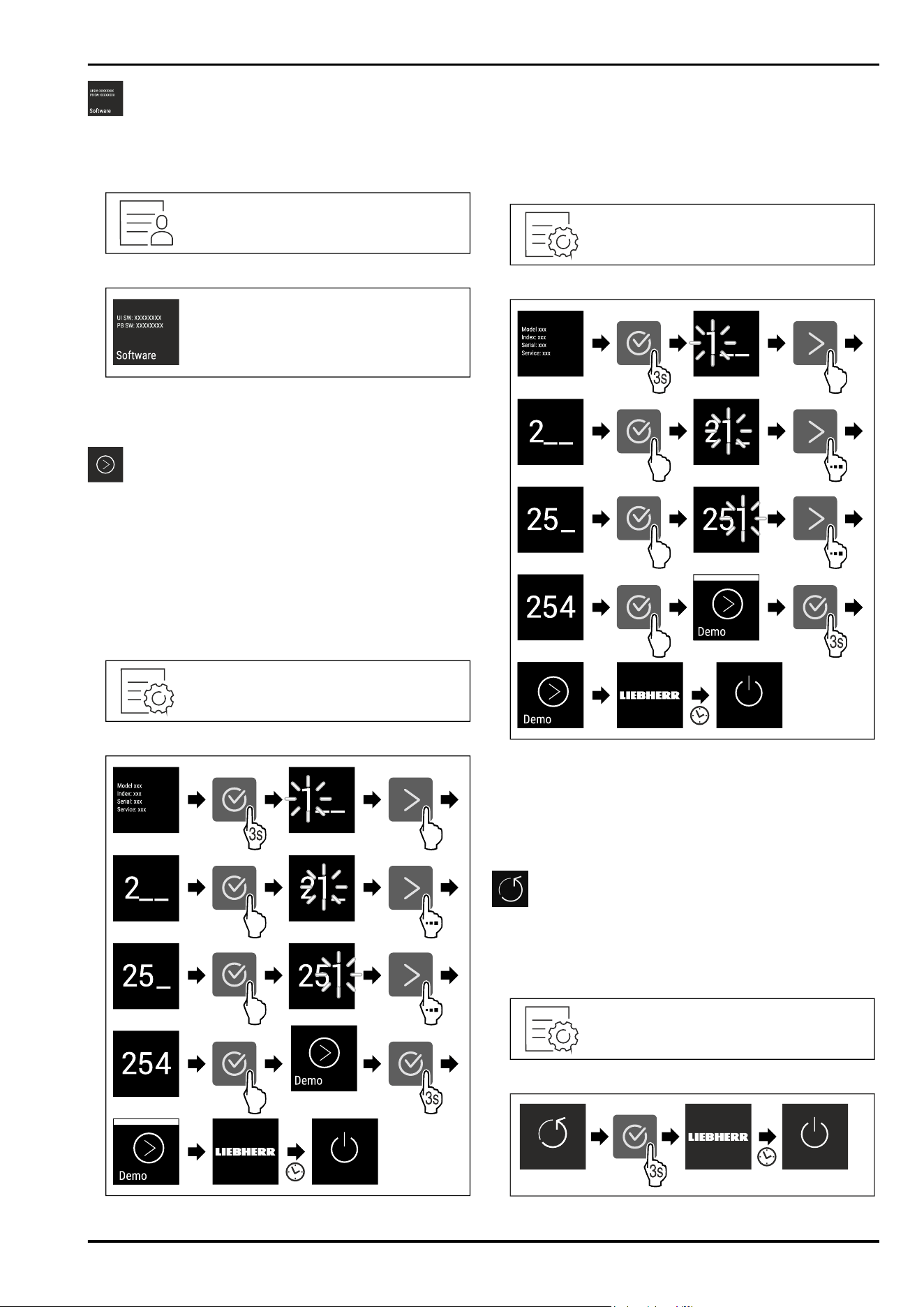

Demo mode
Demo mode is a special feature for dealers who want to
demonstrate appliance features. If you activate demo mode,
all refrigeration functions are deactivated.
If you switch on your appliance and “Demo” appears in the
status display, then demo mode is already activated.
If you activate and then deactivate demo mode, the appli‐
ance will be reset to factory defaults. (see Resetting to
factory settings)
Activating demo mode
Fig. 62
Fig.63
►
Carry out action steps according to the illustration.
▷ Demo mode is activated.
▷ Appliance is switched off.
► Switch on the appliance. (see 4.1 Switching on appliance
(first use))
▷ “DEMO” appears in the status display.
Deactivating demo mode
Fig.64
Fig.65
► Carry out action steps according to the illustration.
▷ Demo mode is deactivated.
▷ Appliance is switched off.
► Switch on the appliance. (see 4.1 Switching on appliance
(first use))
▷ Appliance is reset to factory settings.
Resetting to factory settings
Use this function to reset all settings to factory defaults.
All settings you have made so far are reset to their original
settings.
Performing a reset
Fig.66
Fig. 67
Controls
16 * Depending on model and options
► Carry out action steps according to the illustration.
▷ Device is reset.
▷ Device is switched off.
► Restart the device. (see 4.1 Switching on appliance (first
use))

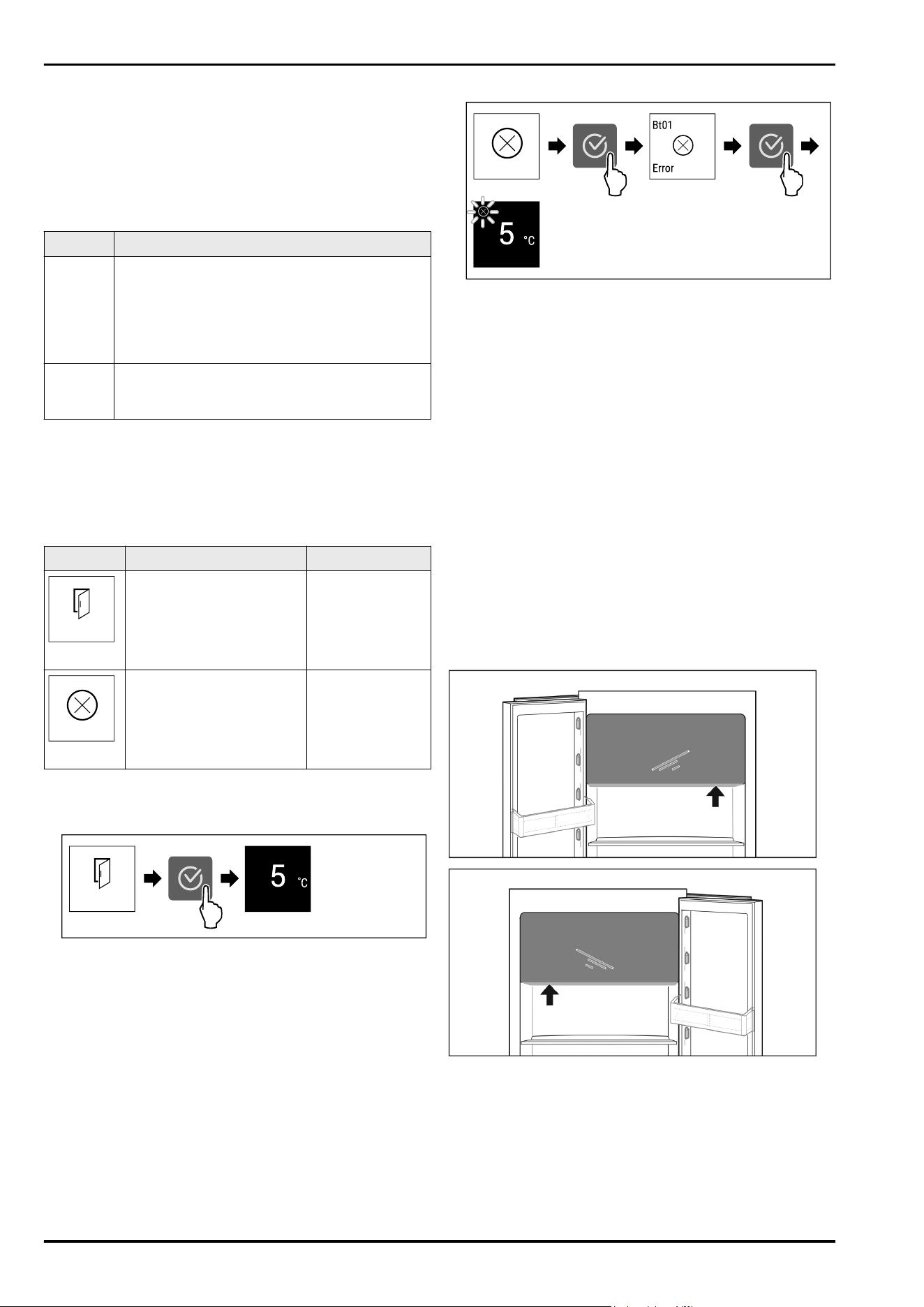

7.3 Messages
There are two categories of messages:
Category Importance
Warning Warnings appear in the event of a door alarm or
malfunction.
Simple warnings can be cancelled by yourself.
In the event of serious malfunctions, you must
contact customer service. (see 10.4 Customer
Service)
Reminder Reminders remind you of general processes.
You can carry out these operations to end the
message.
7.3.1 Overview of warnings
Behaviour of the appliance in the event of warnings:
-
Warning appears on the display.
-
The alarm tone sounds at an ever-increasing volume.
-
The interior lighting pulsates for some warnings.
Message
Cause Exit the message
Door alarm
The message appears if
the door is open for too
long.
Carry out action
steps (see Door
alarm) .
Error
The message appears if
there is an appliance error.
A component of the appli‐
ance has a fault.
Carry out action
steps (see Error) .
7.3.2 Ending warnings
Door alarm
Fig. 68 Example illustration
► Carry out action steps according to the illustration.
-or-
► Close the door.
▷ The display returns to the status indicator.
You can set how long the door may be open before the door
alarm sounds. (see Setting the door alarm)
Error
Fig. 69 Example illustration
► Press the confirmation symbol.
▷ Error code is displayed.
► Note the error code.
► Press the confirmation symbol.
▷ The display returns to the status indicator.
► Contact Customer Service. (see 10.4 Customer Service)
7.3.3 Overview of reminders
Behaviour of the appliance during reminders:
-
Reminder appears on the display.
-
Alarm tone sounds.
-
The interior lighting pulsates for some reminders.
The following reminders can be deactivated :
8 Features
8.1 4-star freezer compartment
8.1.1 Opening/closing the freezer compartment
Fig.70
Opening the freezer compartment:
► Reach into the handle area from below.
► Push the handle plate while pulling the door towards you.
Closing the freezer compartment:
► Close the door while pushing from the front.
▷ Door is engaged.
Features
* Depending on model and options 17
8.2 Door rack
Door racks are suitable for storing drinks and food. You can
move door racks for your own individual use and take them
apart for cleaning. However, Liebherr recommends using the
door racks in the position in the door as delivered from the
factory.

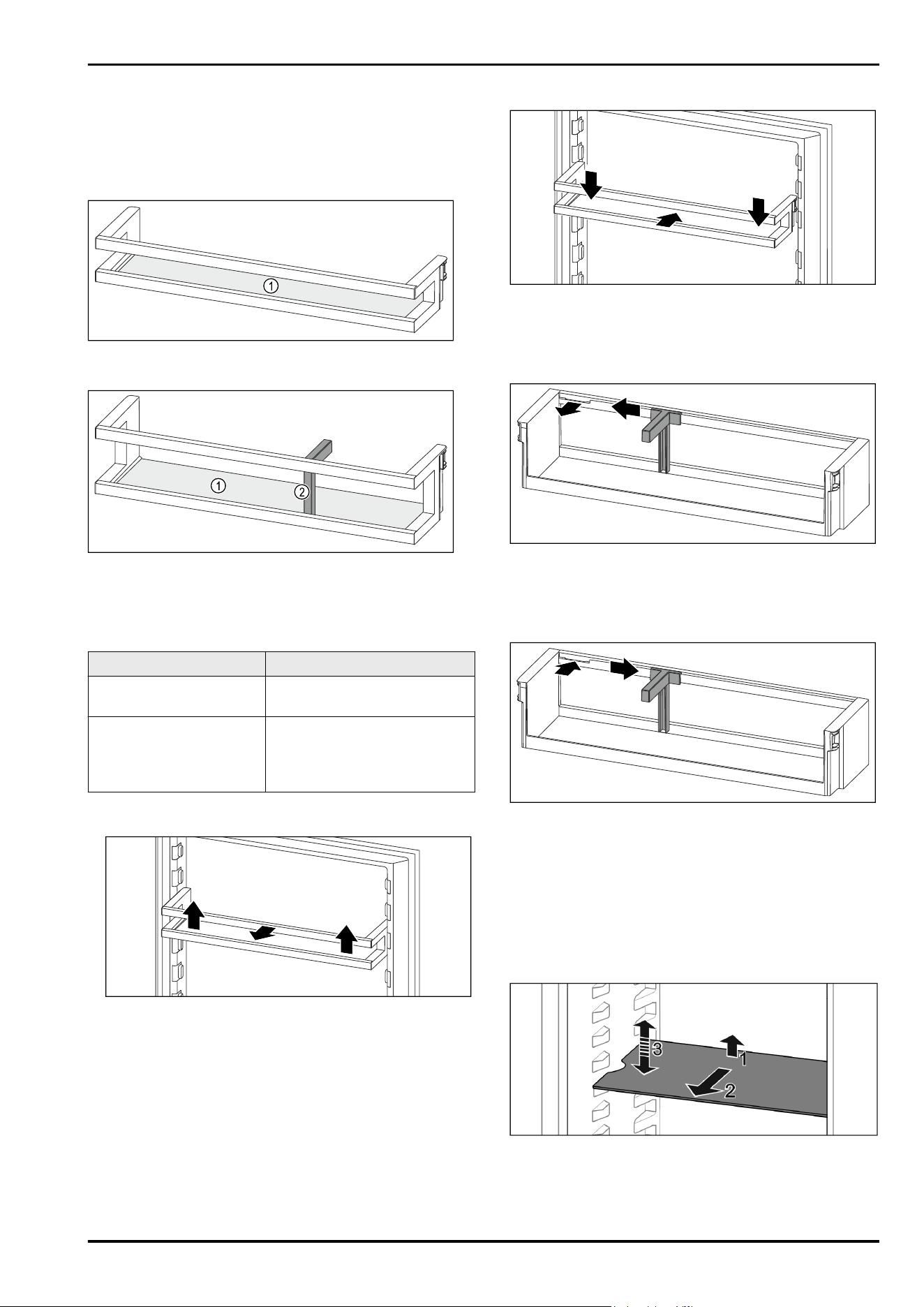

Fig. 71 Example illustration, Door rack
(1)
Shelf
Fig. 72 Example illustration, Door rack with bottle holder
(1)
Shelf (2) Bottle holder
The following table shows examples of what can be stored
in each door rack. Do not exceed the maximum loading
weight of the door.
Door rack
Food
Door rack (see Fig.71) Butter, cheese, tinned food,
tubes
Door rack with bottle
holder (see Fig.72)
Bottles
The sliding bottle holder
secures the bottles in the door
rack.
8.2.1 Removing the door rack
Fig. 73 Example illustration
► Push the door rack upwards.
► Pull the door rack forward.
8.2.2 Inserting the door rack
Fig. 74 Example illustration
► Slide in the door rack.
► Press the door rack down.
8.2.3 Removing the bottle holder
Fig.75
► Slide the bottle holder to the side as far as the recess.
► Remove the bottle holder forwards.
8.2.4 Inserting the bottle holder
Fig. 76
► Insert the bottle holder in the recess.
► Push the bottle holder to the desired position to the side.
8.3 Shelves
8.3.1 Adjusting/removing the shelves
The shelves are prevented from being pulled out acciden‐
tally by pull out stops.
Fig.77
► Lift the shelf and pull forward.
▷ Line up the side runner.
► Adjust the height of the shelf: Lift or lower it to the
desired height and slide it in.
Features
18 * Depending on model and options
-or-

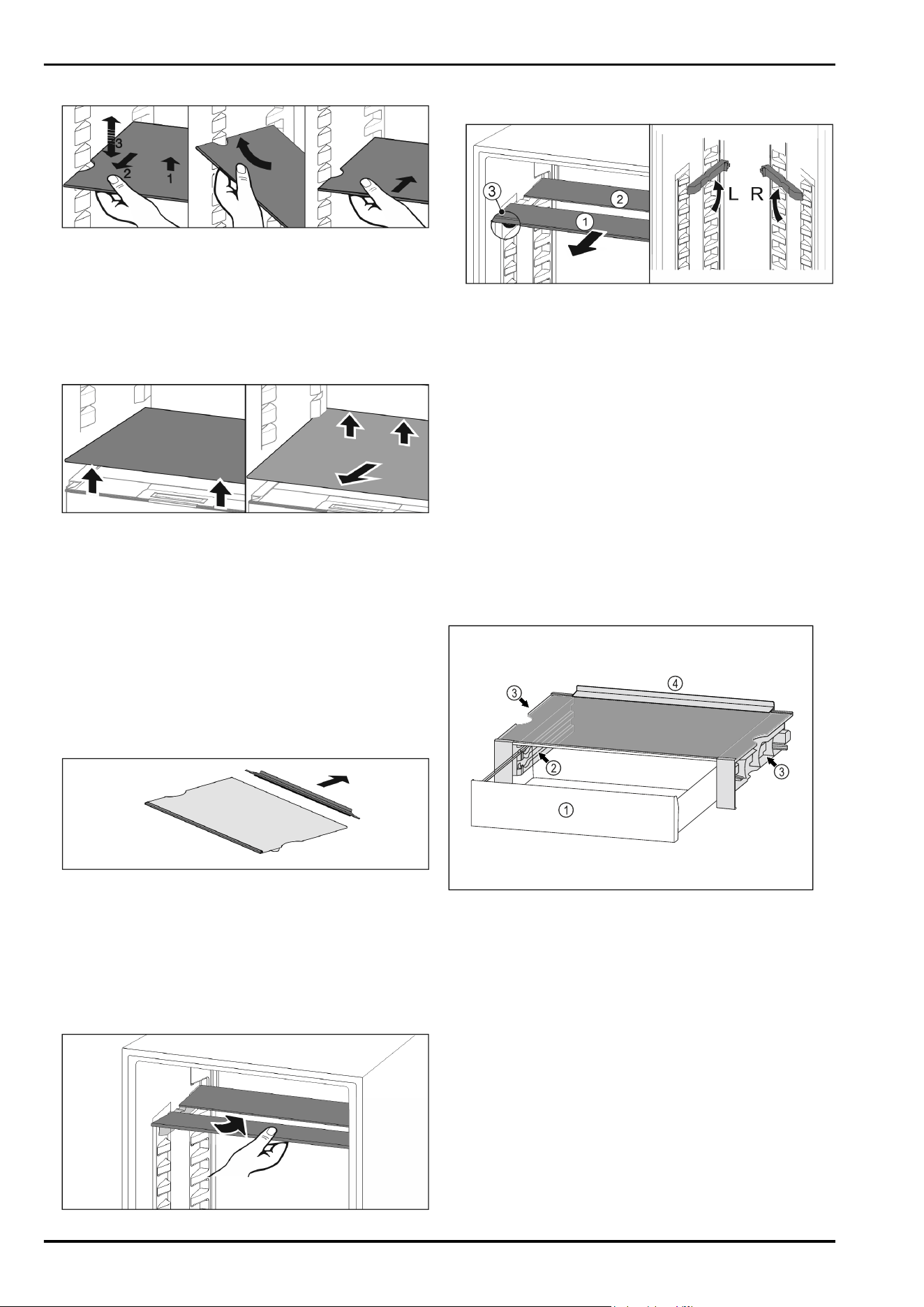

Fig.78
► Remove the shelf completely: Pull it out to the front.
► Easier removal: Set the shelf at an angle.
► Insert the shelf again: Slide it in all the way.
▷ The pull-out stoppers point downwards.
▷ The pull-out stoppers are behind the front support.
You can also remove the shelf above the EasyFresh
compartments.
Fig.79
Removing the shelf:
► Lift the shelf at the front and back.
► Pull it out towards you.
Do not store any goods on the compartment cover below!
Inserting the shelf:
► Place the shelf at an angle, sloping down towards the
back.
▷ The pull-out stoppers point downwards.
► Slide the shelf into place.
8.3.2 Dismantling the shelves
The shelves can be dismantled for cleaning.
Fig.80
► Dismantling the shelf.
8.4 Dividing shelf
8.4.1 Using the dividing shelf
The shelves are prevented from being pulled out acciden‐
tally by pull out stops.
Fig.81
► Push the dividing shelf underneath as shown.
Fig.82
Adjusting the height:
► Pull the glass panels out Fig. 82 (1) from the front, one at
a time.
► Release the support rails and click in at the height you
want.
► Slide in the glass panels one at a time.
▷ Flat pull-out stoppers at the front, right behind the
support rails.
▷ High pull-out stoppers at the back.
Using both shelves:
► Hold the glass panel with one hand and pull it to the
front.
▷ The glass panel Fig.82(1) and trim strip are at the front.
▷ The stops Fig.82(3) point down.
8.5 VarioSafe
The VarioSafe offers space in the refrigerator compartment
for small groceries, packages, tubes and jars, for example.
Fig.83
(1)
VarioSafe drawer (3) Recesses on the left and
right side panel
(2) Side panels with ribs
for VarioSafe drawer
(4) Stop edge
Features
* Depending on model and options 19

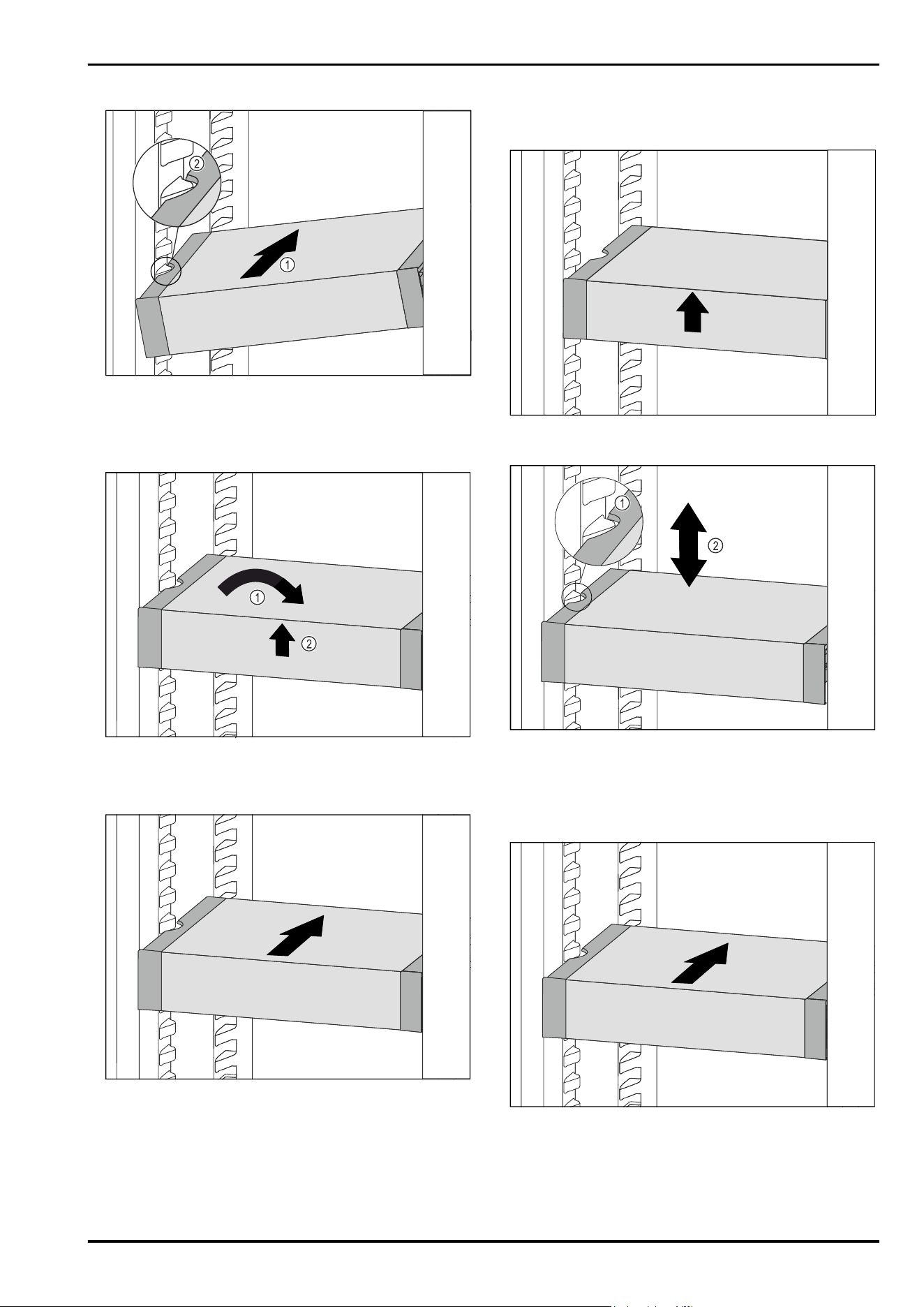

8.5.1 Inserting the VarioSafe
Fig.84
► Insert the VarioSafe into the fridge section at an angle
Fig. 84 (1) until the recesses in the side Fig. 84 (2) of the
VarioSafe are at the level of the support rib in the fridge
section.
Fig.85
► Set VarioSafe straight. Fig.85(1)
► Lift VarioSafe at the front. Fig.85(2)
Fig.86
► Lift VarioSafe up toward the front.
► Push VarioSafe in to the rear.
► Lower VarioSafe.
▷ VarioSafe audibly engages.
▷ VarioSafe is inserted.
8.5.2 Repositioning the VarioSafe
You can move the VarioSafe as a whole in the refrigerator
compartment.
Fig. 87
► Lift VarioSafe at the front.
Fig.88
► Pull VarioSafe forwards until the recesses in the side of
the VarioSafe are at the level of the support rib in the
refrigerator compartment. Fig.88(1)
► Move VarioSafe up or down in the refrigerator compart‐
ment until the desired height is reached. Fig.88(2)
Fig.89
► Lift VarioSafe at the front.
► Push VarioSafe in to the rear.
▷ VarioSafe audibly engages.
▷ VarioSafe is offset in height.
Features
20 * Depending on model and options
8.5.3 Moving the VarioSafe drawer
You can use the VarioSafe drawer at two different heights.
If you would like to store taller foodstuffs in the VarioSafe
drawer, slide the VarioSafe drawer in on the bottom rib. If
you would like to store smaller foodstuffs in the VarioSafe
drawer, slide the VarioSafe drawer in on the top rib.

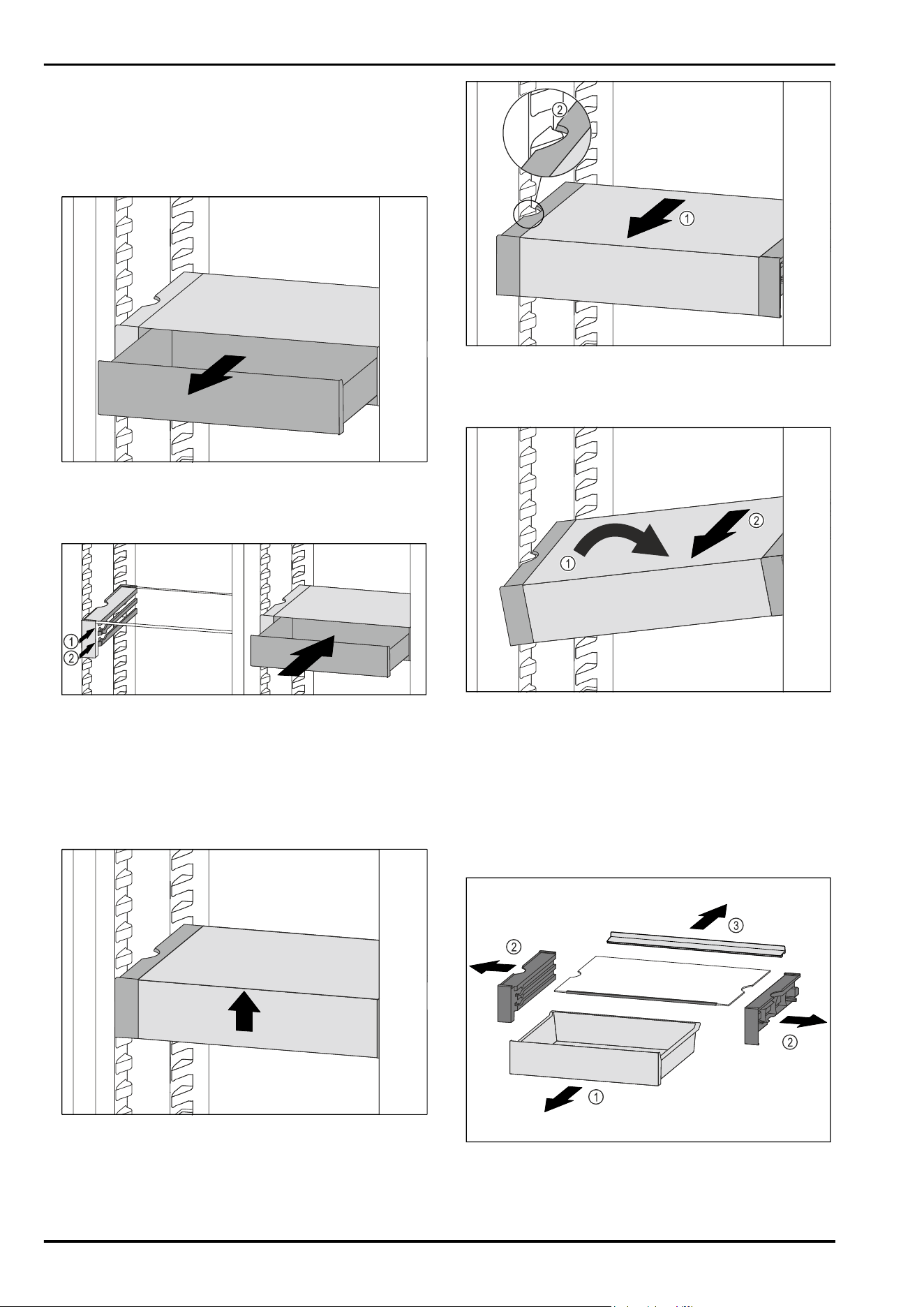

Fig.90
► Pull out the VarioSafe drawer as far as it will go.
► Lift the VarioSafe drawer up at the front.
► Remove the VarioSafe drawer to the front.
Fig. 91
► Lift the VarioSafe drawer up at the front.
► Place the VarioSafe drawer behind the stoppers on
desired rib Fig. 91(1) or Fig. 91(2).
▷ VarioSafe drawer is offset in height.
8.5.4 Removing the VarioSafe
You can remove the VarioSafe as a whole.
Fig.92
► Lift VarioSafe at the front.
Fig. 93
► Pull VarioSafe forwards Fig. 93 (1) until the recesses in
the side of the VarioSafe are at the level of the support
rib in the fridge section. Fig. 93(2)
Fig. 94
► Set VarioSafe in refrigerator compartment at an angle.
Fig. 94(1)
► Take VarioSafe out to the front. Fig. 94(2)
▷ VarioSafe is removed.
8.5.5 Disassembling the VarioSafe
You can disassemble the VarioSafe into its individual parts if
you want to clean the VarioSafe or if you need to install or
remove parts.
Fig.95
► Remove VarioSafe as a whole. (see 8.5.4 Removing the
VarioSafe )
► Disassemble VarioSafe according to the illustration.
Features
* Depending on model and options 21

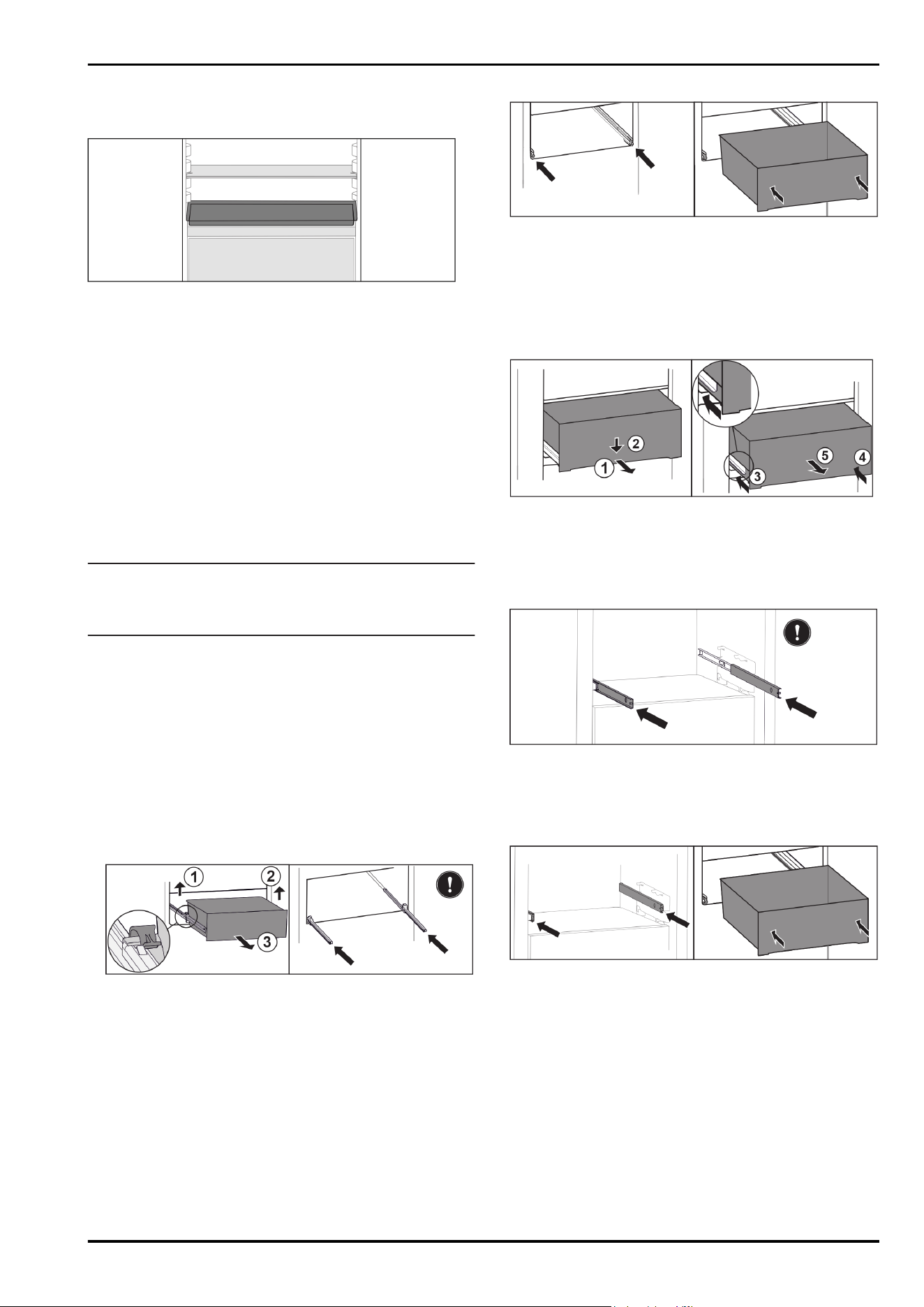

8.6 Space for baking tray
There is space for a baking tray Fig.1(6) above the drawers.
Fig.96
Ensure that the following conditions are met:
❑
Max. baking tray dimensions are adhered to
(see 10.1 Technical specifications) .
❑
Baking tray is cooled to room temperature.
❑
The lowest door rack is set at least one position higher.
With the door open to 90°:
► Slide the baking tray onto the lower side runners.
8.7 Drawers
You can remove the drawers for cleaning.
The way to remove/insert the drawers varies depending
on the pull-out system. Your appliance can contain various
pull-out systems.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
► Always leave the fan air vents clear on the back wall!
8.7.1 Drawer on telescopic rails
The drawer runs on extendible rails (telescopic rails). There
are fully extendible telescopic rails and telescopic rails with
partial pull-out. Drawers which are fully extendible can be
pulled out fully from the appliance. Drawers with partial
pull-out cannot be removed fully from the appliance. The
system in your appliance depends on the type of appliance.
Fully extendible*
If you have fully extendible rails, there is a clamp located at
the back on the left and right of the rail.
Removing drawer
Fig.97
► Pull out drawer as far as it will go.
► Lift left clamp and simultaneously pull drawer forwards
on the left. Fig.97(1)
► Lift right clamp and simultaneously pull drawer forwards
on the right. Fig.97(2)
► Remove drawer to the front. Fig.97(3)
► Slide rails in.
Inserting drawer
Fig.98
► Slide rails in.
► Place drawer on rails.
► Slide in drawer to the back.
▷ Drawer latches in audibly at the back.
Partial pull-out fridge compartment*
Removing drawer
Fig.99
► Pull out drawer half-way. Fig.99(1)
► Push the drawer down at the front. Fig.99(2)
► Push the left rail in by about 2cm. Fig.99(3)
► Push the right rail in by about 2cm. Fig.99(4)
► Remove drawer to the front. Fig.99(5)
Fig. 100
If the rails are not yet fully inserted after removing the
drawer:
► Push rails in completely.
Inserting drawer
Fig. 101
► Slide rails in.
► Place drawer on rails.
► Slide in drawer to the back.
8.8 Compartment lid for EasyFresh Safe
The compartment lid ensures constant levels of humidity.
The compartment lid is directly on the drawer and can be
covered by shelves or additional drawers.
Features
22 * Depending on model and options

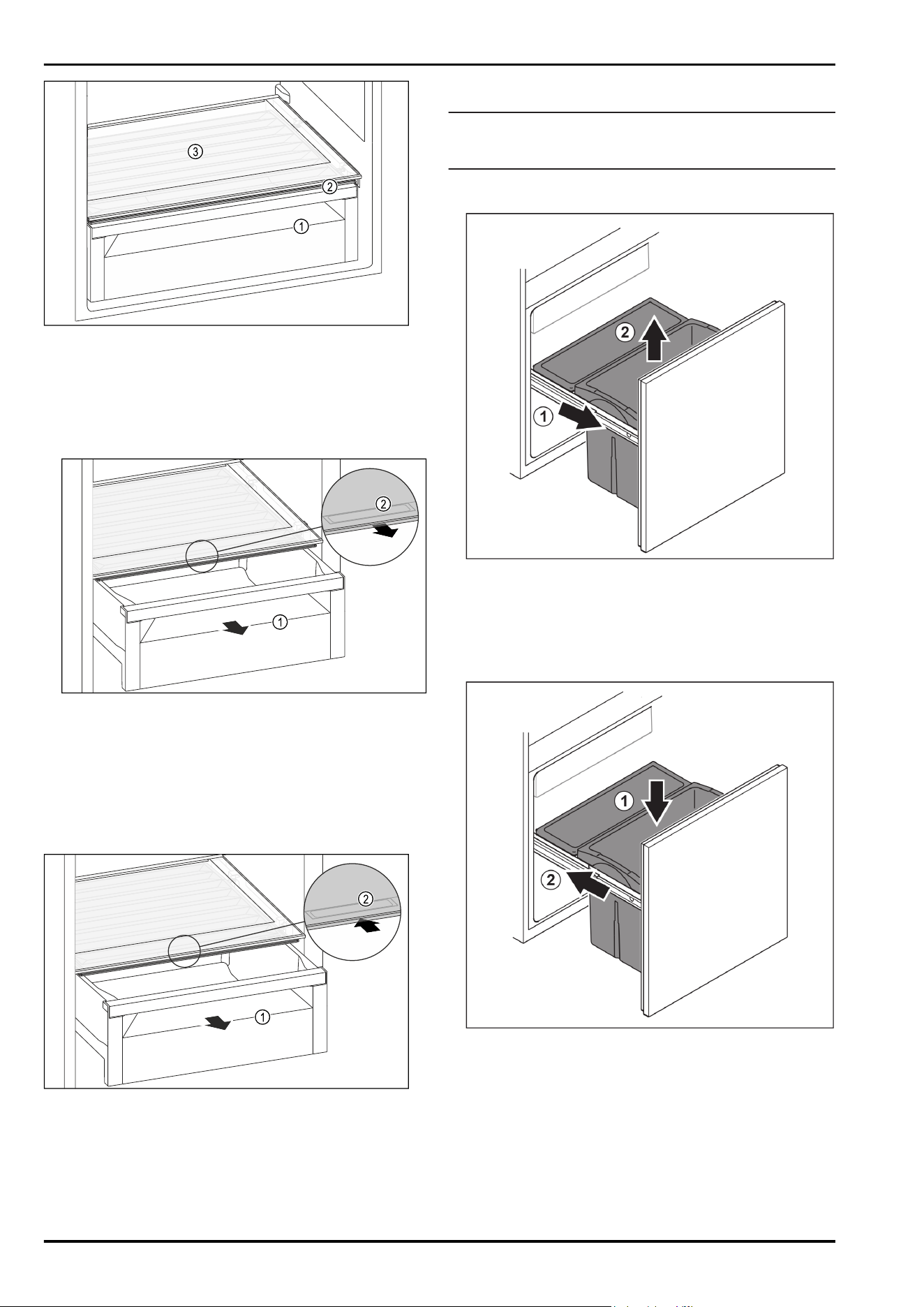

Fig. 102 Example illustration, compartment lid for EasyFresh
Safe
(1)
EasyFresh Safe (3) Shelf
(2) Compartment lid for
EasyFresh Safe
8.8.1 Reducing the air humidity in the drawer
Fig. 103
► Pull out the drawer Fig. 103(1).
► Grasp the recessed grip Fig. 103 (2) on the compartment
lid and pull the compartment lid forwards at the same
time.
▷ When the drawer is closed, there is a small gap between
the compartment lid and the drawer.
8.8.2 Increasing the air humidity in the drawer
Fig. 104
► Pull out the drawer Fig. 104(1).
► Grasp the recessed grip Fig. 104 (2) on the compartment
lid and push the compartment lid backwards at the same
time.
▷ When the drawer is closed, the compartment lid seals
with the drawer.
8.9 Pull-out unit
Note
The drawer above the pull-out unit is fully extendible.
(see Fully extendible*)
8.9.1 Removing drawer
Fig. 105
► Remove the pull-out unit as far as it will go. Fig. 105(1)
► Remove drawer upwards. Fig. 105(2)
8.9.2 Inserting drawer
► Remove the pull-out unit as far as it will go.
Fig. 106
► Insert drawer from above. Fig. 106(1)
► Slide in pull-out unit. Fig. 106(2)
Features
* Depending on model and options 23
8.10 Bottle holder
8.10.1 Using the bottle holder

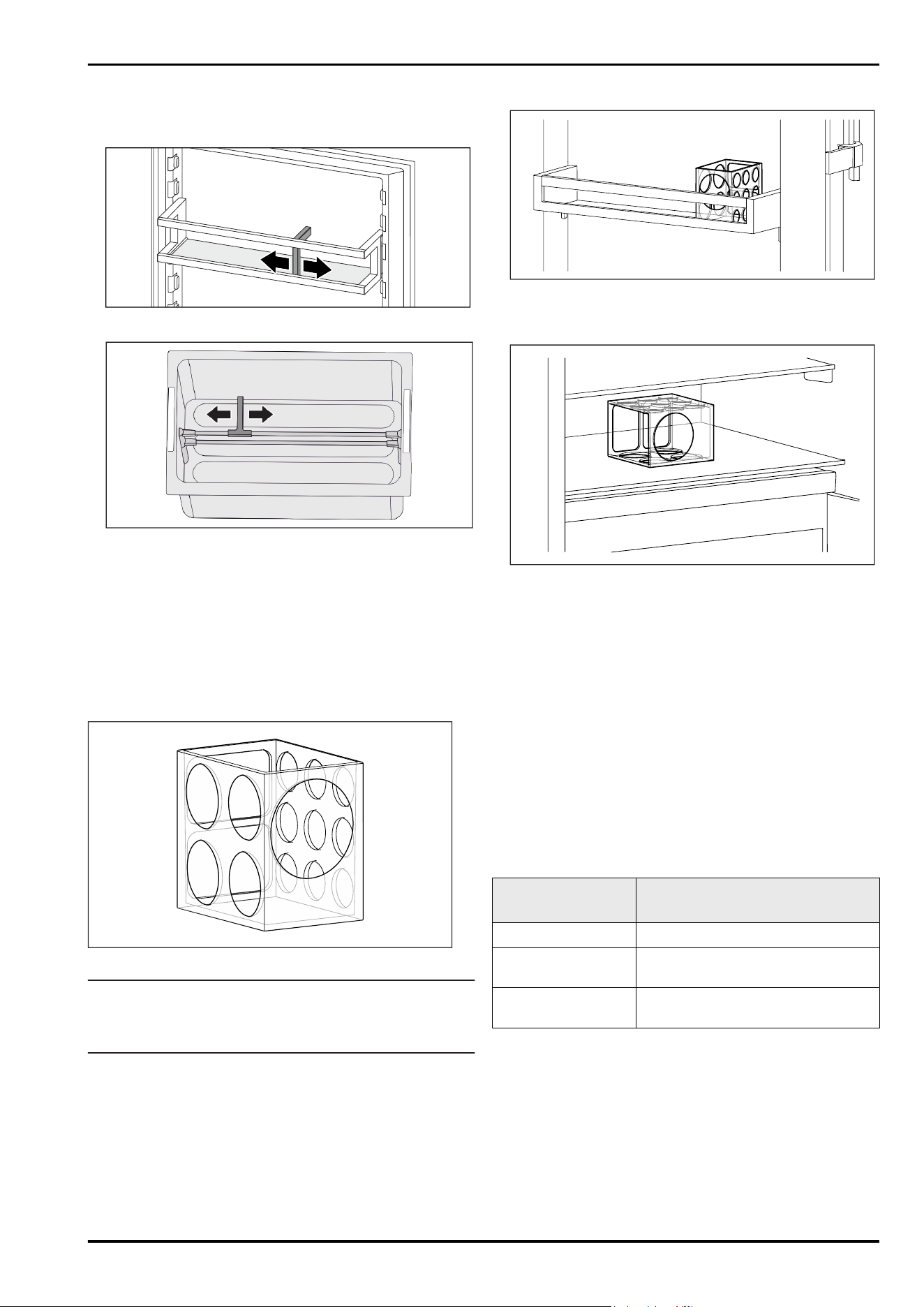

Fig. 107
Fig. 107
► Push the bottle holder onto the bottles.
▷ The bottles are prevented from falling over.
8.11 FlexCube
The FlexCube has different sized openings, so you can store
small items such as tubes, open yoghurt pots or quail
eggs in it. The FlexCube fits into all Liebherr door racks,
for example. If necessary, you can also set up several Flex‐
Cubes next to each other.
Fig. 108 Example illustration
Note
These accessories can be purchased from the Liebherr-
Hausgeräte shop at home.liebherr.com/shop/de/deu/
zubehor.html.
8.11.1 Using the FlexCube
Fig. 109 Example illustration
► Insert the FlexCube in the door rack.
-or-
Fig. 110 Example illustration
► Place FlexCube on shelf.
► Sort small parts into the FlexCube for storage.
9 Maintenance
9.1 Disassembling / assembling pull-
out systems
9.1.1 Notes on disassembly
You can disassemble some of the pull-out systems for
cleaning. Your appliance can contain a variety of pull-out
systems.
The following pull-out systems can be disassembled or
cannot be disassembled:
Pull-out system
can be disassembled/
cannot be disassembled
Fully extendible* cannot be disassembled*
Fridge section
partial pull-out*
cannot be disassembled*
Telescopic unit can be disassembled (see 9.1.2 Pull-
out unit)
9.1.2 Pull-out unit
Disassembling pull-out system
Make sure the following prerequisites are met:
❑
The drawer has been removed. (see 8.9 Pull-out unit)
Maintenance
24 * Depending on model and options

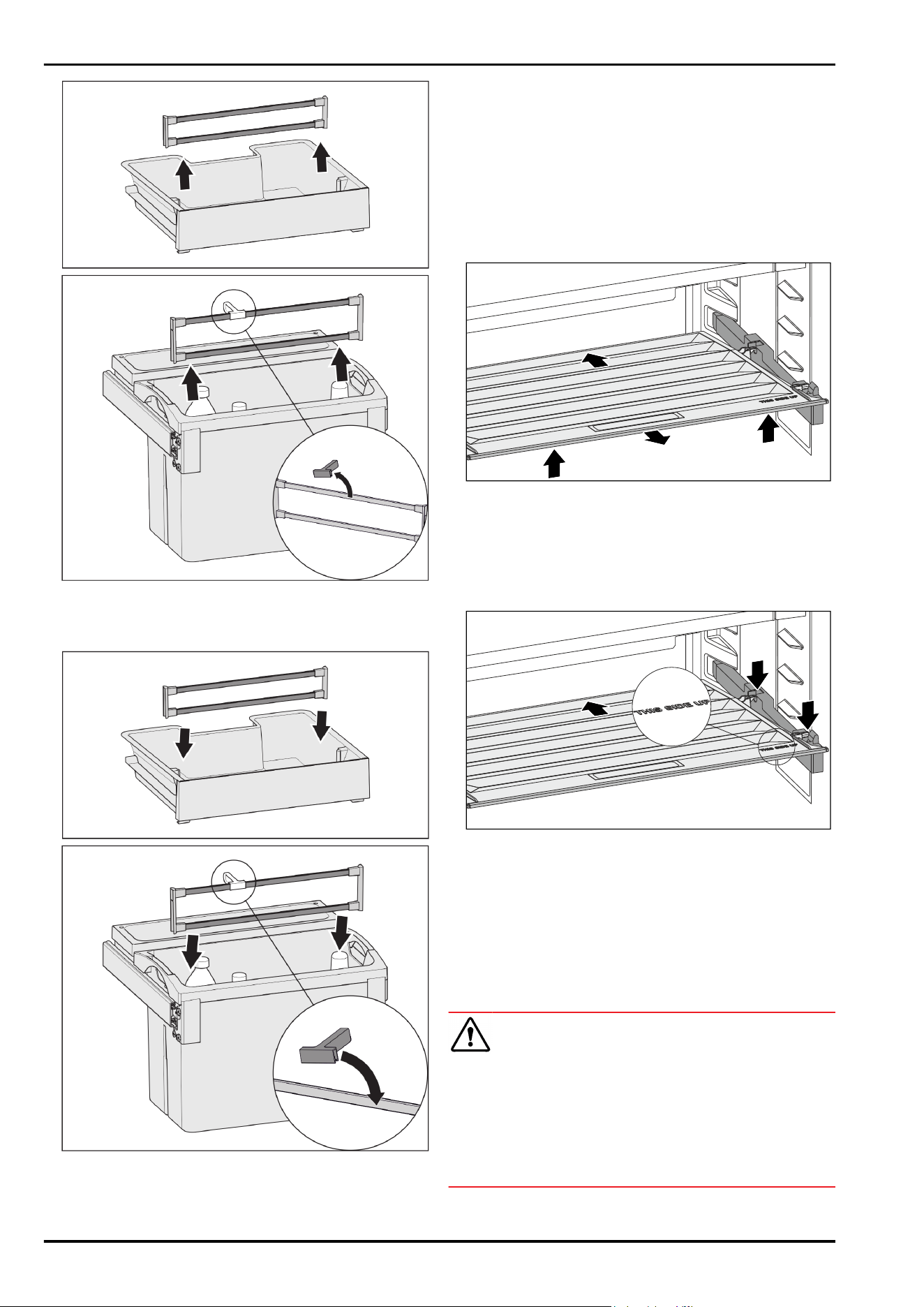

Fig.111
► Remove retaining parts as shown in the illustration.
Installing pull-out system
Fig.112
► Install retaining parts as shown in the illustration.
9.2 Compartment lid for EasyFresh Safe
You can remove the compartment lid for cleaning.
9.2.1 Removing the compartment lid
Ensure that the following requirements are met:
❑
The shelf directly above the drawer has been removed.
(see 8.3 Shelves)
❑
The drawer directly below the compartment lid has been
removed. (see 8.7 Drawers)
Fig.113
► Push the compartment lid backwards.
► Lift the compartment lid forwards.
► Remove the compartment lid forwards and upwards at an
angle.
9.2.2 Inserting the compartment lid
Fig. 114
If the THIS SIDE UP lettering is at the top:
► Insert the rear retaining parts into the relevant rear open‐
ings.
► Push the compartment lid backwards.
► Lower the compartment lid forwards and engage the
front retaining parts into the openings.
► Move the compartment lid into the required position.
9.3 Defrosting the appliance
WARNING
Improper defrosting of the appliance!
Injuries and damage.
► Do not use mechanical equipment or other methods to
speed up the defrosting process other than those recom‐
mended by the manufacturer.
► Do not use electrical heating or steam-cleaning appli‐
ances, naked flames or defroster sprays to defrost.
► Do not use sharp objects to remove ice.
Maintenance
* Depending on model and options 25
9.3.1 Defrosting the fridge compartment
Defrosting is performed automatically. The water from the
thawing process drains through the outlet and evaporates.
Water drops or a thin layer of frost or ice can form on the
back wall; this is a completely normal part of the applian‐
ce’s function. This must not be removed.
A layer of frost or ice can from briefly due to the energy-
optimised control of the device.
► Clean the drain opening at regular intervals.
(see 9.4Cleaning the appliance)
9.4 Cleaning the appliance
9.4.1 Ready
WARNING
Danger of electric shock!
► Remove the refrigerator connector or interrupt the power
supply.
WARNING
Risk of fire
► Do not damage the refrigeration circuit.
► Empty the appliance.
► Remove mains connector.
-or-
► Activate CleaningMode. (seeCleaningMode)
9.4.2 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
► Plastic surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
► Metal surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
► Drain hole: remove deposits using a thin item (for
example a cotton bud).
9.4.3 Clean the components
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Clean with a soft, clean cloth, lukewarm water and some
detergent:
- Door rack
- Shelf
- Dividing shelf
- VarioSafe
- Compartment lid for EasyFresh Safe
- Drawer
Clean with a damp cloth:
- Retractable rails
Please note: The grease in the tracks is used for lubrica‐
tion and must not be removed!
Wash in the dishwasher up to 60°C:
- Bottle rack
- Holder of the dividing shelf
- FlexCube
► To disassemble components: see the relevant section.
► Clean the components.
9.4.4 After cleaning
► Wipe the appliance and the components dry.
► Connect and switch on the appliance.
► Repeat cleaning regularly.
10 Customer help
10.1 Technical specifications
Temperature range
Cooling 2°C to 9°C
Larder
compart‐
ment
6°C to 14°C
Maximum ice cube quantity / 24 hours
Freezer compart‐
ment
see type plate under “Freezing
capacity …/ 24 h”
Maximum size baking tray
Width 466mm
Depth 386mm
Height 50mm
Lighting
Class
1
Light source
This product contains one or more energy
efficiency class G light sources.
LED
1
The appliance may contain light sources with different
energy efficiency classes. The lowest energy efficiency class
is indicated.
10.2 Operating noises
The appliance makes different noises when it is on.
-
At higher temperatures the appliance uses less energy
but works for longer. It is quieter.
-
At lower temperatures the food is cooled faster. It is
louder.
Examples:
•
Functions on (see 7.2Appliance functions)
•
Food recently added
•
High ambient temperature
•
Door open for a while
Noise
Possible cause Type of noise
Bubbling and
splashing
Coolant flowing
into the cooling
circuit.
Normal operating
noise
Customer help
26 * Depending on model and options
Noise Possible cause Type of noise
Hissing Coolant sprays
into the cooling
circuit.
Normal operating
noise
Humming The appliance
is cooling. The
volume depends
on the cooling
output.
Normal operating
noise
Suction noises Soft-closing door
is being opened
and closed.
Normal operating
noise
Clicking Components are
switched on and
off.
Normal switching
noise
Rattling or
humming
Valves or flaps are
working.
Normal switching
noise
Noise Possible
cause
Type of noise Lifting
Vibration Improper
installation
Defective
noise
Check the
installation.
Level the
appliance.
Noise Possible
cause
Type of noise Lifting
Rattling Components,
items inside
the appliance
Defective
noise
Secure
components.
Leave
enough
space
between the
items.
10.3 Technical fault
Your appliance is designed and built to ensure it works reli‐
ably and has a long service life. In the unlikely event that
a fault occurs during operation, please check whether it is
due to an operating error. If so, you will be charged for the
callout and repair costs even if it falls within the warranty
period.
You can fix the following faults yourself.
10.3.1 Appliance function
Defect
Cause Remedy
The appliance is
not working.
→ The appliance is not switched on. ► Switch the appliance on.
→ The power plug is not properly
plugged into the socket.
► Check the power plug.
→ There is something wrong with the
power outlet fuse.
► Check the fuse.
→ Power cut ► Keep the appliance closed.
► Safeguarding food: Place cold packs on top of food or
use another freezer if the power cut lasts longer.
► Do not refreeze defrosted food.
→ The IEC socket is not plugged into
the appliance correctly.
► Check the IEC socket.
Temperature is not
cold enough.
→ The appliance door is not closed
properly.
► Close the appliance door.
→ Not enough ventilation. ► Keep ventilation grille clear, and clean it.
→ The ambient temperature is too
high.
► Problem solution: (see2.4 Appliance range of use)
→ The appliance was opened too
many times or for too long.
► Wait to see if the required temperature corrects itself.
If not, contact Customer Service. (see 10.4 Customer
Service)
→ The temperature is set incorrectly. ► Turn down the temperature and check after 24 hours.
→ The appliance is too close to a heat
source (oven, radiator, etc).
► Move the appliance or the heat source.
→ The appliance was not correctly
installed in the recess.
► Check if the appliance was installed correctly and that
the door closes properly.
The door seal is
defective or needs
to be replaced for
another reason.
→ The door seal can be replaced. It
can be replaced without the need
for special tools.
► Contact Customer Service. (see 10.4 Customer Service)
Customer help
* Depending on model and options 27

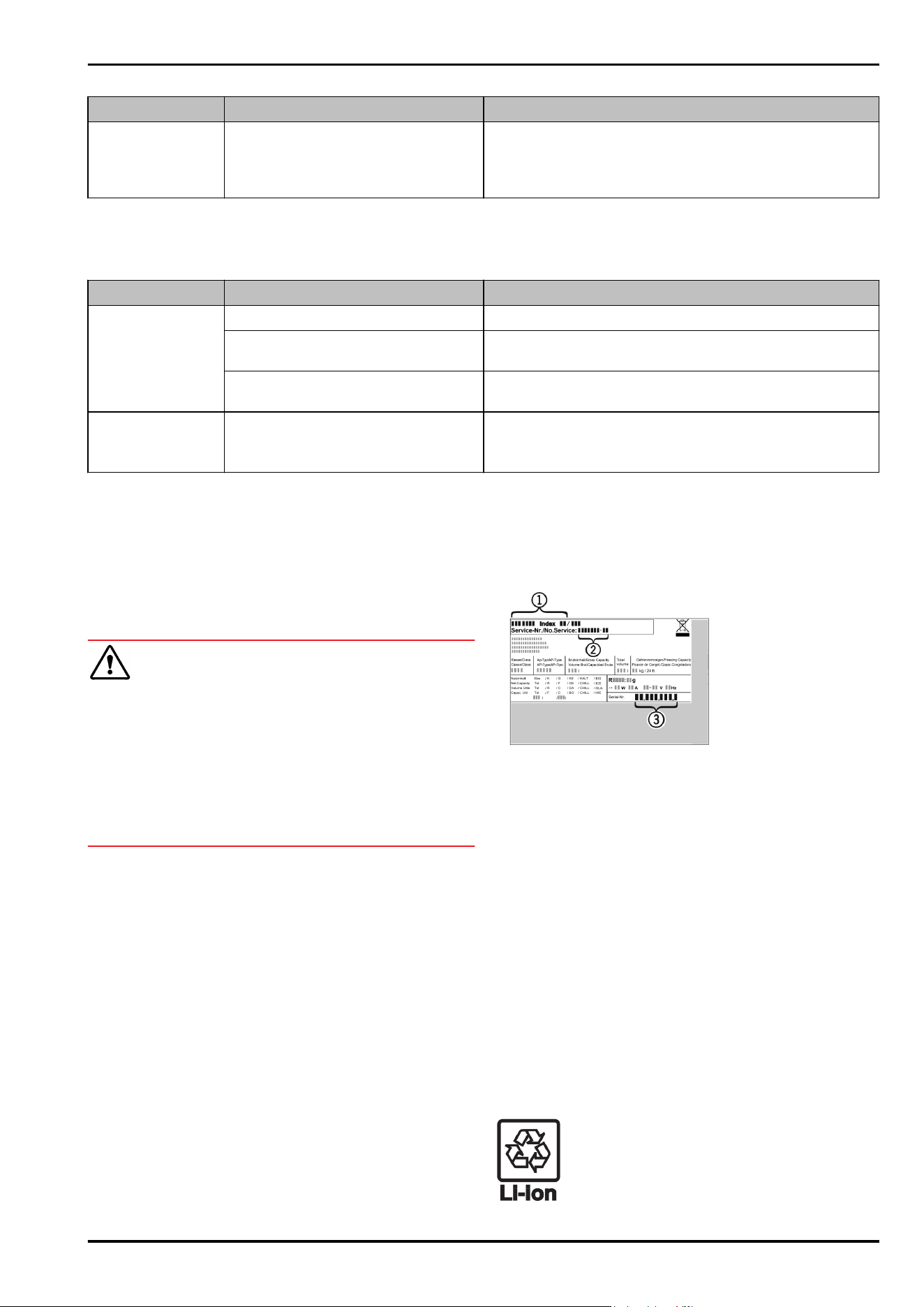

Defect Cause Remedy
The appliance
builds up too much
ice or condensa‐
tion.
→ The door seal may have slipped out
of its groove.
► Check that the door seal is well fitted in the groove.
10.3.2 Features
Defect Cause Remedy
The internal light
does not come on.
→ The appliance is not switched on. ► Switch the appliance on.
→ The door was open for longer than
15 minutes.
► Interior lighting switches off automatically after
about 15 minutes when the door is open.
→ The LED interior light is faulty or
the lid is damaged.
► Contact Customer Service. (see 10.4 Customer Service)
The freezer
compartment
cannot be closed.
→ The lock is on when the door is
open.
► Use the handle again.
10.4 Customer Service
First check whether you can rectify the fault yourself
(see 10 Customer help) . If you cannot rectify the problem,
contact Customer Service.
You can find the address in the enclosed brochure “Liebherr-
Service” or at home.liebherr.com/service.
WARNING
Unprofessional repair!
Injuries.
► Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see9 Maintenance)
► A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
► In the case of appliances with an IEC connector, the
change may be made by the customer.
10.4.1 Contacting Customer Service
Make sure that the following appliance information is avail‐
able:
❑
Appliance name (model and index)
❑
Service no. (Service)
❑
Serial no. (S no.)
► Call up the appliance information via the display.
(see Device information)
-or-
► Refer to the type plate for appliance information.
(see 10.5 Model plate)
► Note down the appliance information.
► Notify customer service: Report errors and the appliance
information.
▷ This will help us to provide you with a faster, more accu‐
rate service.
► Follow further instructions from Customer Service.
10.5 Model plate
The model plate is behind the drawers on the inside of the
appliance.
Fig. 115
(1)
Appliance description (3) Serial no.
(2) Service no.
► Note the data on the model plate.
11 Shutting down
► Empty the appliance.
► Switch off appliance. (see Switching the appliance off
and on)
► Pull the mains plug out of the socket.
► Remove the IEC socket if required: Pull the IEC socket out
of the appliance plug and move it to the left and right at
the same time.
► Clean appliance. (see 9.4Cleaning the appliance)
► Leave the door open, so that no unpleasant odours arise.
12 Disposal
12.1 Preparing appliance for disposal
Liebherr uses batteries in some of its appli‐
ances. In the EU, for environmental reasons,
legislation obliges the end user to remove
these batteries before disposing of old appli‐
ances. If your appliance contains batteries, a
corresponding notice is attached.
Shutting down
28 * Depending on model and options
Lamps If you can remove the lamps yourself without
destroying them, also remove these before
disposal.
► Take the appliance out of operation.
► If possible: remove lamps without destroying them.
12.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be disposed of separately from
unsorted municipal waste.
Dispose of batteries separately
from the old appliance. To do
this, you can return the batteries
free of charge to retailers as
well as recycling centres and
collection centres for recyclable
materials.
Lamps Dispose of removed lamps
via the respective collection
systems.
For Germany: You can dispose of the appli‐
ance free of charge via the
class 1 collection containers
at the local recycling and
recyclable material collection
centres. When purchasing a new
fridge/freezer, if the sales area
> 400 m
2
, retailers will also take
back the old appliance free of
charge.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
► Do not damage the pipelines of the coolant circuit and
the compressor.
► Observe the notes on transporting the appliance.
► Transport the appliance without damaging it.
► Dispose of batteries, lamps and the appliance according
to the above specifications.
Disposal
* Depending on model and options 29
home.liebherr.com/fridge-manuals
integrated fridge with pull-out drawer
Issue date:20250923
Part number index:7088446-00
Liebherr-Hausgeräte GmbH
Memminger Straße 77-79
88416Ochsenhausen
Deutschland
