User Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 Appliance at a glance............................................ 3
1.1 Scope of delivery.......................................................... 3
1.2 Overview of the appliance and equipment.............. 3
1.3 SmartDevice.................................................................. 3
1.4 Appliance range of use............................................... 4
1.5 Conformity..................................................................... 4
1.6 Spare parts.................................................................... 4
2 General safety instructions.................................. 4
3 Functionality of the Touch display....................... 6
3.1 Navigation and symbol explanation......................... 6
3.2 Menus............................................................................. 6
3.3 Sleep mode................................................................... 7
4 Putting into operation........................................... 7
4.1 Switching on appliance (first use)............................ 7
5 Storage.................................................................. 7
5.1 Information regarding storage................................... 7
5.2 Fridge compartment.................................................... 7
5.3 EasyFresh..................................................................... 8
5.4 Freezer compartment.................................................. 8
5.5 Storage times............................................................... 8
6 Saving energy........................................................ 8
7 Controls................................................................. 9
7.1 Controls and displays.................................................. 9
7.1.1 Status display..............................................................9
7.1.2 Display symbols.......................................................... 9
7.2 Appliance functions..................................................... 9
7.2.1 Notes on the appliance functions............................9
Switching the appliance off and on........................9
Switching temperature zone off and on................ 9
WiFi............................................................................ 10
Temperature.............................................................. 11
Temperature unit...................................................... 11
SuperCool.................................................................. 11
PowerCool ................................................................ 12
SuperFrost.................................................................12
Start defrosting cycle..............................................13
PartyMode ................................................................ 13
HolidayMode............................................................. 14
SabbathMode............................................................14
E-Saver ......................................................................15
CleaningMode...........................................................15
Display brightness................................................... 15
Door alarm.................................................................16
Input lock...................................................................16
Device information...................................................17
Software.....................................................................17
Reminder....................................................................17
Demo mode............................................................... 17
Resetting to factory settings.................................18
7.3 Messages...................................................................... 18
7.3.1 Overview of warnings...............................................18
7.3.2 Ending warnings........................................................19
7.3.3 Overview of reminders............................................. 19
7.3.4 Ending reminders..................................................... 20
8 Features................................................................. 20
8.1 Door rack....................................................................... 20
8.2 Shelves.......................................................................... 21
8.3 Space for baking tray.................................................. 21
8.4 Drawers.......................................................................... 21
8.5 Compartment lid for EasyFresh Safe........................ 22
8.6 Glass shelves................................................................ 23
8.7 VarioSpace.................................................................... 23
8.8 Bottle holder................................................................. 24
9 Maintenance.......................................................... 24
9.1 FreshAir carbon filter................................................... 24
9.2 Disassembling / assembling pull-out systems...... 24
9.3 Compartment lid for EasyFresh Safe........................ 24
9.4 Defrosting the appliance............................................ 25
9.5 Cleaning the appliance............................................... 25
10 Customer help....................................................... 25
10.1 Technical specifications............................................. 25
10.2 Operating noises.......................................................... 26
10.3 Technical fault.............................................................. 26
10.4 Customer Service......................................................... 27
10.5 Model plate................................................................... 28
11 Shutting down....................................................... 28
12 Disposal................................................................. 28
12.1 Preparing appliance for disposal.............................. 28
12.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 28
The manufacturer is continually working on the further
development of all types and models. Please be aware that
we reserve the right to make changes to the shape, equip‐
ment and technology.
Symbol
Explanation
Read instructions
Please read the information in these instruc‐
tions carefully to understand all of the benefits
of your new appliance.
2 * Depending on model and options
Symbol Explanation
Additional information on the Internet
The digital manual with additional informa‐
tion and in other languages can be found
via the QR code on the front of the
manual or by entering the service number at
home.liebherr.com/fridge-manuals.
The service number can be found on the serial
tag:
Fig.Example illustration
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of models,
so differences are possible. Sections that
apply to certain models only are marked with
an asterisk (*).
Instructions and results
Instructions are marked with a .
Results are marked with a .
Videos
Videos about the appliances are available on
the YouTube channels of Liebherr-Hausgeräte.
Open source licences:
The appliance contains software components that use
open source licences. Information on the open source
licences used can be found here: home.liebherr.com/
open-source-licences
These operating instructions apply to:
ICNS
5103
Note
If your appliance has an N in its appliance designation, it is
a NoFrost appliance.
1 Appliance at a glance
1.1 Scope of delivery
Check all parts for transport damage. Contact your
dealer or customer service in the event of complaints.
(see 10.4 Customer Service)
Your new appliance comes with the following parts:
-
Built-in appliance
-
Features (depending on the model)
-
Installation materials (depending on the model)
-
“Quick Start Guide”
-
“Installation Guide”

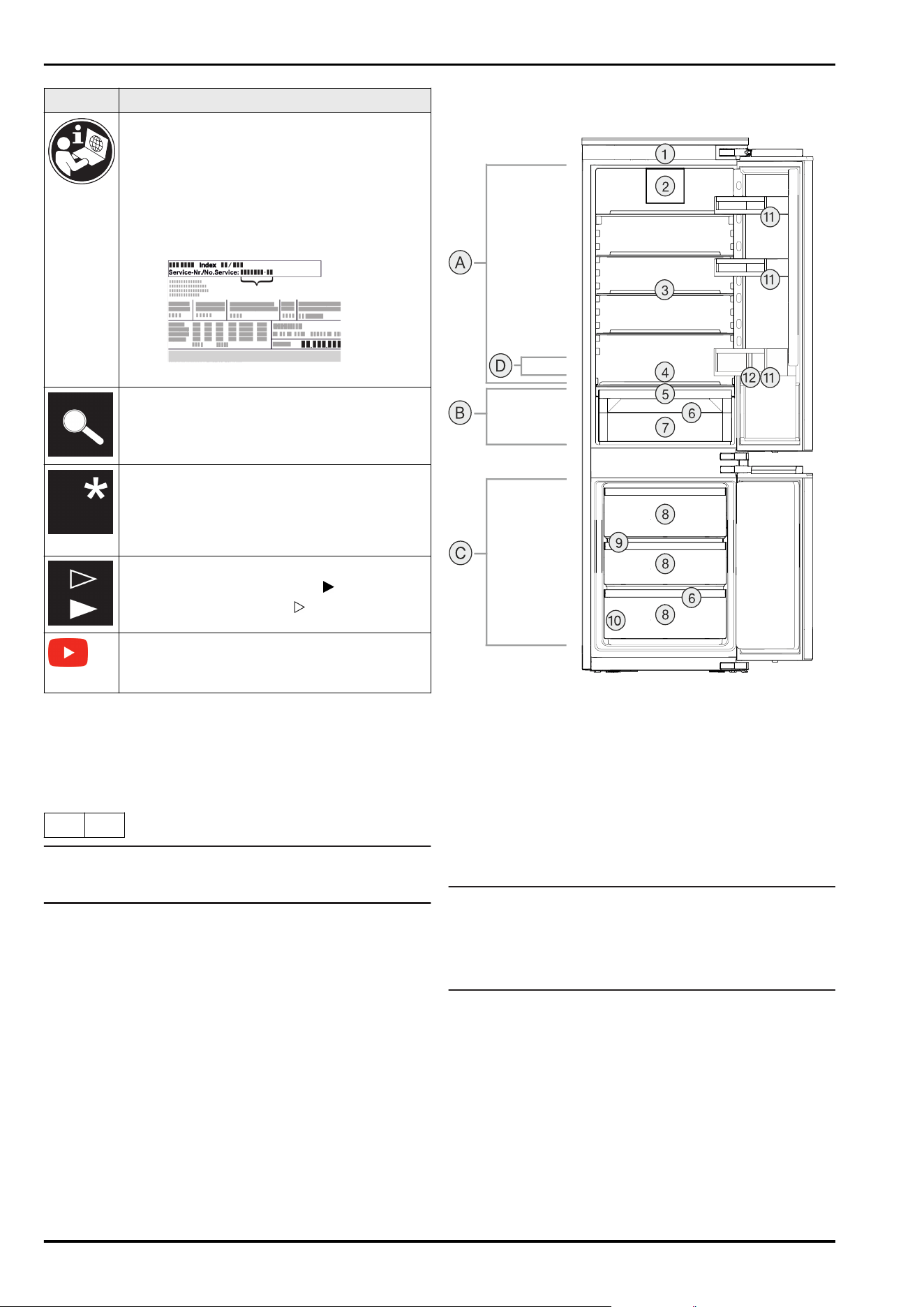

1.2 Overview of the appliance and
equipment
Fig. 1 Example illustration
Temperature range
(A)
Fridge section (C) Freezer section
(B) EasyFresh (D) Coldest area
Equipment
(1)
Controls (7) EasyFresh-Safe
(2) Fan with FreshAir acti‐
vated charcoal filter
(8) Freezer drawer
(3) Shelf (9) VarioSpace
(4) Space for baking tray (10) Type plate
(5) Lid for EasyFresh-Safe (11) Door racks
(6) Drain opening (12) Bottle holder
Note
u
Shelves, drawers and baskets are arranged for optimum
energy efficiency when the appliance is delivered.
Changing how the shelves, for example, are inserted in
the fridge compartment does not have any impact on
energy consumption.
1.3 SmartDevice
SmartDevice is the networking solution for your fridge-
freezer.
If your appliance SmartDevice-enabled or compatible, you
can quickly and easily connect your appliance to your
WiFi. With the SmartDevice app, you can operate your appli‐
ance from a mobile device. Additional functions and setting
options are available in the SmartDevice SmartDevice app.
Appliance at a glance
* Depending on model and options 3
SmartDevice-
compatible appli‐
ance:
Your appliance is compatible for use
with the SmartDeviceBox. You must
first purchase and install the Smart‐
DeviceBox. In order to connect your
appliance to the WiFi, you need to
download the SmartDevice app.
More information
about SmartDe‐
vice:
smartdevice.liebherr.com
Purchasing the
SmartDeviceBox
in the Liebherr-
Hausgeräte store:
home.liebherr.com/shop/de/deu/
smartdevicebox.html
Downloading the
SmartDevice app:
After installing and configuring the
SmartDevice, you can connect your
appliance to the WiFi using the
SmartDevice app and the WiFi appli‐
ance function (seeWiFi) .
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.
1.4 Appliance range of use
Intended use
The appliance is only suitable for cooling
food products in a domestic or household-like
environment. This includes, for example, use:
-
in staff kitchens, bed and breakfast estab‐
lishments,
-
by guests in country houses, hotels, motels
and other accommodation,
-
for catering and similar services in the
wholesale trade.
All other types of use are not permitted.
Foreseeable misuse
The following applications are expressly
forbidden:
-
Storing and refrigerating medicines, blood
plasma, laboratory preparations or similar
substances and products based on the
Medical Device Directive 2007/47/EC
-
Use in areas at risk of explosions
Misusing the appliance may lead to damage
to the goods stored or they may spoil.
Climate classifications
Depending on the climate classification the
appliance is designed to operate in restricted
ambient temperatures. The climate classifica‐
tion applying to your appliance is printed on
the rating plate.
Note
u
Keep to the specified ambient tempera‐
tures in order to guarantee that the appli‐
ance works properly.
Climate clas‐
sification
for ambient temperatures of
SN 10°C to 32°C
N 16°C to 32°C
ST 16°C to 38°C
T 16°C to 43°C
SN-ST 10°C to 38°C
SN-T 10°C to 43°C
1.5 Conformity
The refrigerant circuit has been tested for leaks. When
installed, the appliance complies with the applicable safety
regulations and with the corresponding directives.
The full text of the EU Declaration of Conformity is available
on the following website: www.Liebherr.com
1.6 Spare parts
The spare parts availability for functional parts and stock‐
able parts of the equipment is 15 years.
2 General safety instructions
Please keep these operating instructions in a
safe place so you can refer back to them at
any time.
If you pass the appliance on, please hand
these operating instructions to the next user.
Read these operating instructions carefully
before use to ensure safe and correct use of
the appliance. Follow the instructions, safety
instructions and warning messages included
at all times. They are important for ensuring
you can operate and install the appliance
safely and without any problems.
Danger for the user:
-
This device can be used by children and
people with impaired physical, sensory or
mental abilities or with a lack of experi‐
ence and knowledge provided that they are
supervised or have received instruction in
the safe use of this device, and about the
resulting hazards.
Children must not play with this appliance.
Cleaning and user maintenance work must
General safety instructions
4 * Depending on model and options
not be carried out by children without adult
supervision. Children aged between 3 and
8 are allowed to load and unload the appli‐
ance. Children below the age of 3 must be
kept away from the appliance unless they
are under continuous adult supervision.
-
The socket must be easily accessible so
that the appliance can be disconnected
quickly from the electricity in an emer‐
gency. It must not be located in the area
behind the appliance.
-
When disconnecting the appliance from the
supply, always take hold of the plug. Do not
pull the cable.
-
In the event of a fault pull out the mains
plug or deactivate the fuse.
-
Do not damage the mains power cable. Do
not operate the appliance with a defective
mains power cable.
-
Only customer service or other specially
trained staff may repair or perform other
operations on the appliance.
-
Only install, connect and dispose of the
appliance according to the instructions.
-
Only use the appliance when is installed.
Fire hazard:
-
The coolant used (information on the model
plate) is ecofriendly but also flammable.
Any leaking coolant may ignite.
•
Do not damage the refrigerant circuit
pipes.
•
Do not handle ignition sources inside the
appliance.
•
Do not use electrical appliances inside
the appliance (e.g. steam cleaners,
heaters, ice cream makers, etc.).
•
If the refrigerant leaks: remove any naked
flames or ignition sources from the
vicinity of the leakage point. Properly air
the room. Inform customer services.
-
Do not store explosives or sprays using
combustible propellants such as butane,
propane, pentane, etc. in the appliance. To
identify these spray cans, look for the list
of contents printed on the can, or a flame
symbol. Gases possibly escaping may ignite
due to electrical components.
-
Keep burning candles, lamps and other
items with naked flames away from the
appliance so that they do not set the appli‐
ance on fire.
-
Please be sure to store alcoholic drinks
or other packaging containing alcohol in
tightly closed containers. Any alcohol that
leaks out may be ignited by electrical
components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors
etc. as a step or for support. This applies
particularly to children.
Danger of food poisoning:
-
Do not consume food which has been
stored too long.
Danger of frostbite, numbness and pain:
-
Avoid prolonged skin contact with cold
surfaces or refrigerated/frozen goods or
take protective measures, e.g wear gloves.
Danger of injury and damage:
-
Hot steam can lead to injury. Do not use
electrical heating or steam cleaning equip‐
ment, open flames or defrosting sprays to
defrost.
-
Do not use sharp implements to remove the
ice.
Risk of crushing:
-
Do not hold the hinge when opening and
closing the door. Fingers may get caught.

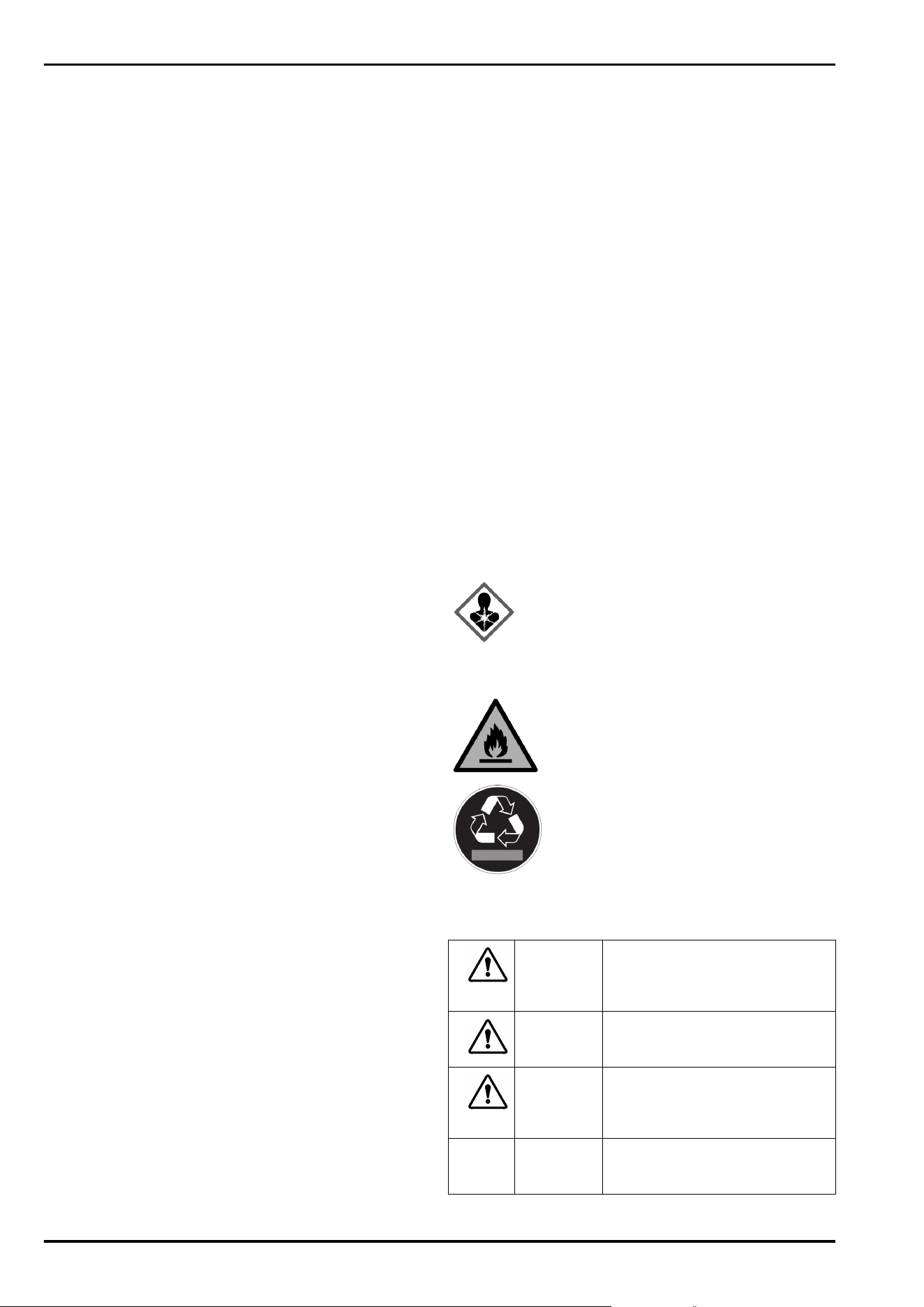

Symbols on the appliance:
This symbol may be located on the
compressor. It relates to the oil in the
compressor and makes reference to the
risk that: Swallowing or inhaling can be
fatal. This advice is only relevant to recy‐
cling. There is no danger in normal opera‐
tion.
This symbol is located on the compressor
and indicates the danger of flammable
materials. Do not remove the sticker.
This or a similar sticker may be located
on the rear of the appliance. This sticker
indicates that there are vacuum insulation
panels (VIP) or perlite panels in the door
and/or housing. This advice is only relevant
to recycling. Do not remove the sticker.
Please note the warning messages and other
specific advice in the other chapters:
DANGER
indicates an immediately
hazardous situation which will
lead to death or serious injuries if
it is not avoided.
WARNING indicates a hazardous situation
which may lead to death or serious
injuries if it is not avoided.
CAUTION indicates a hazardous situation
which may lead to minor or
moderate injuries if it is not
avoided.
NOTICE indicates a hazardous situation
which may lead to damage to
property if it is not avoided.
General safety instructions
* Depending on model and options 5
Note indicates useful instructions and
tips.
3 Functionality of the Touch
display
You operate your appliance using the Touch display. You
select appliance functions in the Touch display (hereafter
referred to as display) by tapping them. If you do not
perform any action on the display for 10 seconds, the
display either jumps back to the higher-level menu or
directly to the status display.

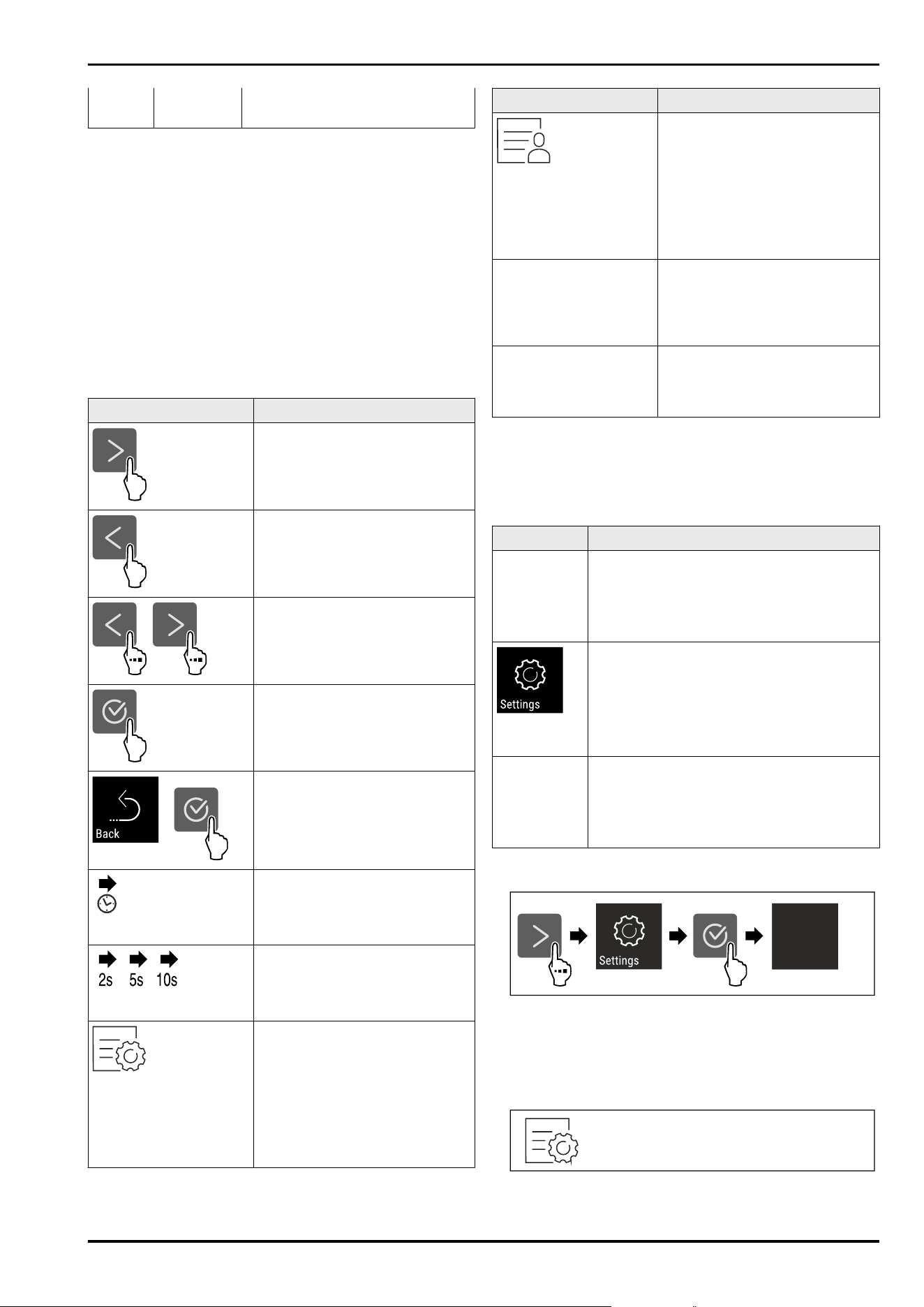

3.1 Navigation and symbol explanation
In the illustrations, different symbols are used to navigate
the display. The following table describes these symbols.
Symbol
Description
Press the Next navigation
arrow:
Navigates to the next option in
the menu.
Press the Back navigation
arrow:
Jumps back one option in the
menu.
Press the navigation arrow
several times in succession:
Navigates in the menu to the
desired function.
Press the Confirm symbol:
Activates/deactivates function.
Opens submenu.
Press the Confirm symbol
together with the back icon:
Jumps back one menu level.
Arrow with clock:
It takes more than 10 seconds
for the following message to
appear in the display.
Arrow with a time indication:
It takes the specified amount of
time until the following message
appears in the display.
“Open Settings menu” symbol:
Navigates to the Settings menu
and opens the settings menu.
If necessary: Navigate to the
desired function in the Settings
menu.
(see 3.2.1 Opening the Settings
menu)
Symbol Description
“Open Advanced menu” symbol:
Navigates to the Advanced menu
and opens the advanced menu.
If necessary: Navigate to the
desired function in the Advanced
menu.
(see 3.2.2 Opening the Advanced
menu)
No action for
10seconds
If you do not perform any action
on the display for 10 seconds,
the display either jumps back to
the higher-level menu or directly
to the status display.
Opening door and
closing it again
If you open the door and immedi‐
ately close it again, the display
jumps directly back to the status
display.
Note: Illustrations of the display are shown in the English
version.
3.2 Menus
The appliance functions can be found in various menus.
Menu
Description
Main menu When you switch the appliance on, you are
automatically in the main menu.
From here you can navigate to the most
important appliance functions, to the
Settings menu and to the Advanced menu.
Settings
menu
The Settings menu contains additional
appliance functions for setting up your
appliance.
(see 3.2.1 Opening the Settings menu)
Advanced
menu
The advanced menu contains special appli‐
ance functions for setting up your appli‐
ance. Access to the Advanced menu is
protected by the numerical code 151.
(see 3.2.2 Opening the Advanced menu)
3.2.1 Opening the Settings menu
Fig. 2 Example illustration
u

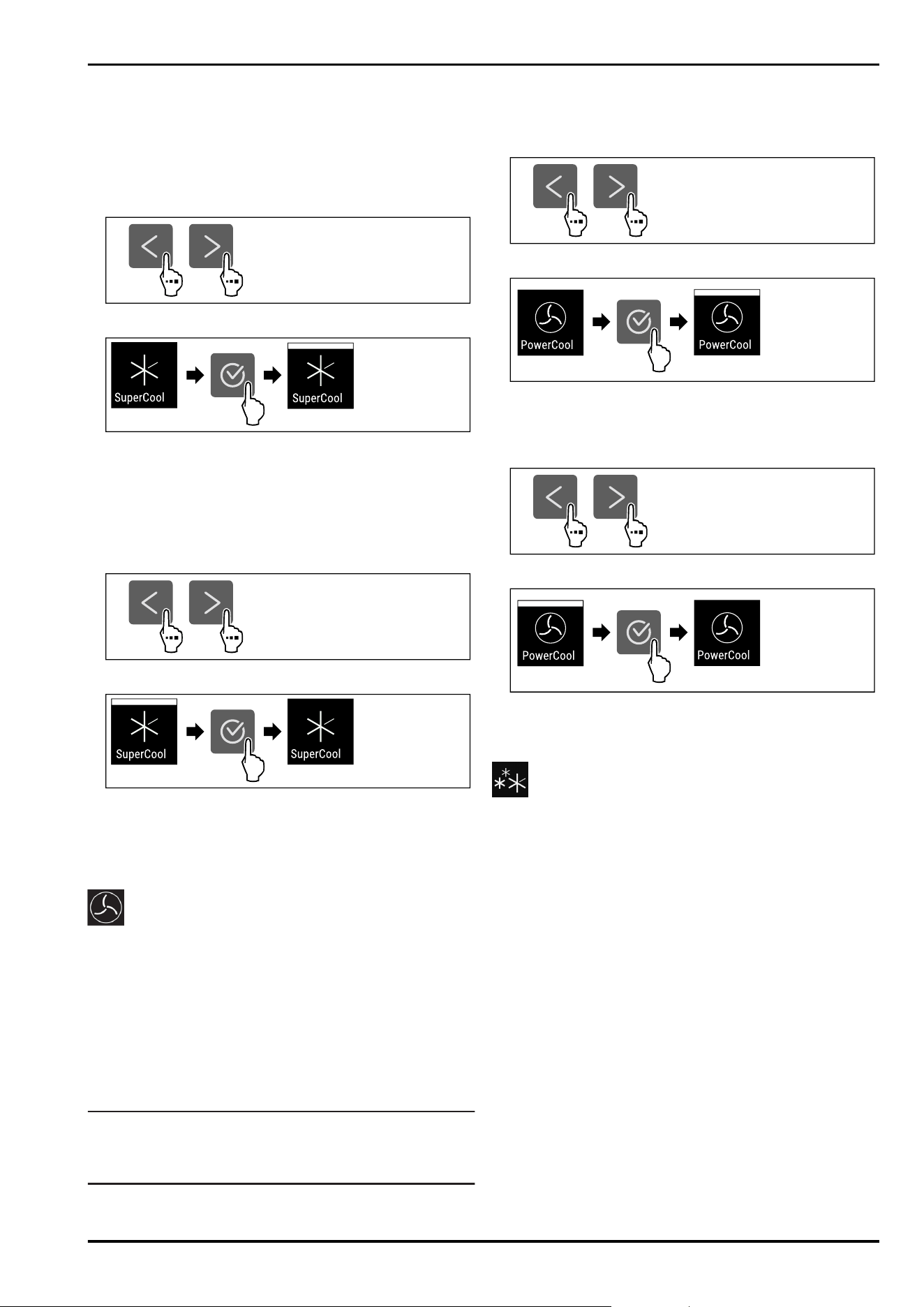

Carry out action steps according to the illustration.
w
Settings menu is open.
u
If necessary: Navigate to the desired function.
3.2.2 Opening the Advanced menu
Fig.3
Functionality of the Touch display
6 * Depending on model and options

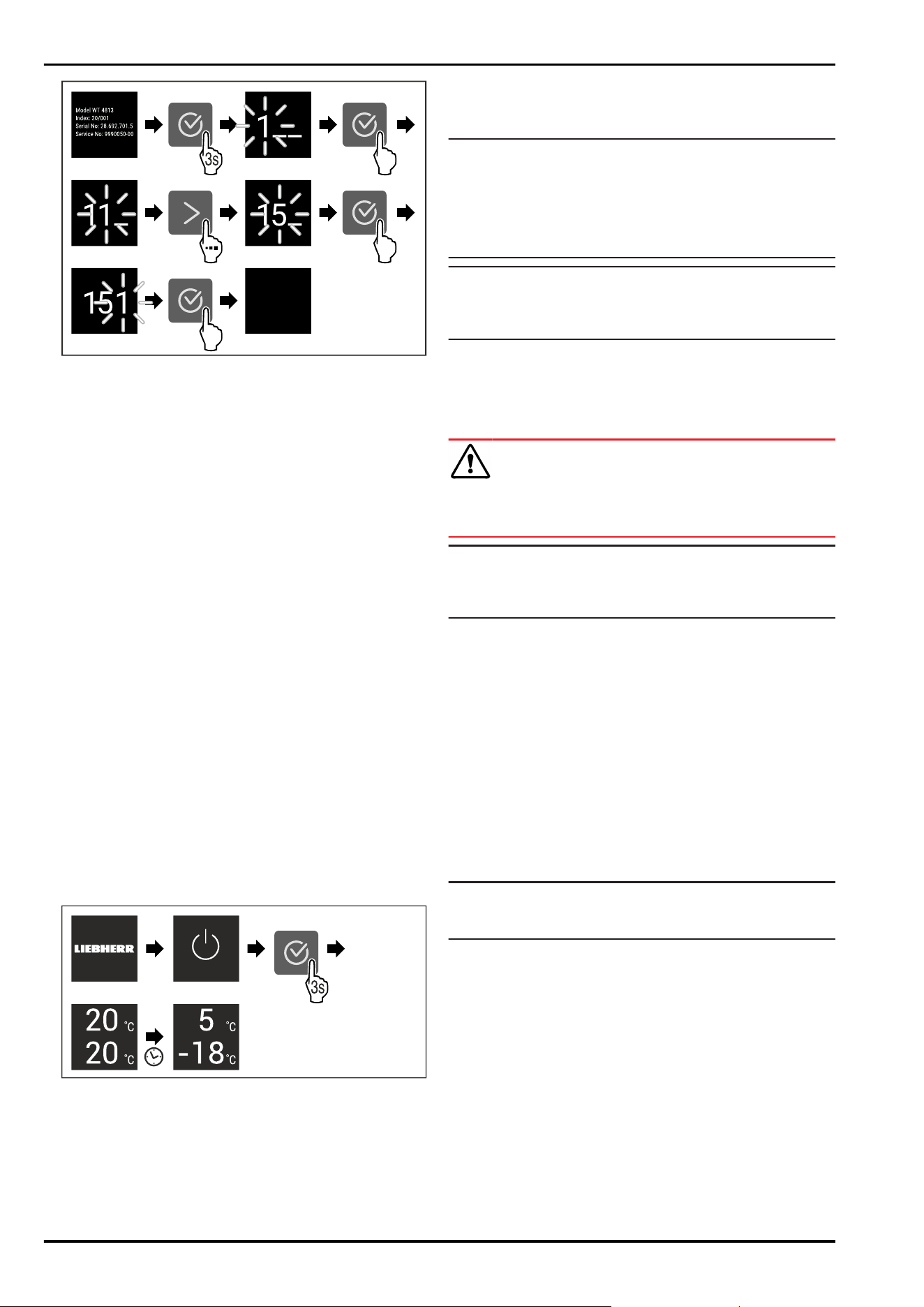

Fig. 4 Example illustration, access with numerical code 151
u
Carry out action steps according to the illustration.
w
The expanded menu is open.
u
If necessary: Navigate to the desired function.
3.3 Sleep mode
If you do not touch the display for 1 minute, the display
switches to sleep mode. In sleep mode, the display bright‐
ness is dimmed.
3.3.1 Ending sleep mode
u
Press any navigation key.
w
Sleep mode is ended.
4 Putting into operation
4.1 Switching on appliance (first use)
Make sure that the following requirements are fulfilled:
q
The appliance is properly installed and connected
according to the installation instructions.
q
All adhesive strips, adhesive and protective films and
transport locks are removed from inside and on the appli‐
ance.
q
All marketing leaflets are removed from the drawers.
q
You are familiar with the functionality of the Touch
display. (see3 Functionality of the Touch display)
Switch on the appliance using the Touch display:
u
If the display is in sleep mode: Briefly touch the display.
u
Carry out action steps according to the illustration.
Fig. 5 Example illustration
w
Status display appears.
w
The appliance cools to the temperature set at the factory.
w
The appliance starts in demo mode (status display with
DEMO appears): If the appliance starts in demo mode,
you can deactivate demo mode within the next 5 minutes.
(seeDemo mode)
More information:
-
Start the SmartDevice for the first time. (see 1.3 Smart‐
Device) and (seeWiFi)
Note
The manufacturer recommends:
u
Stock with food: Wait for around 6 hours until the set
temperature is reached.
u
Store frozen foods at -18°C or colder.
u
Observe the notes on storing food. (see 5.1 Information
regarding storage)
Note
Accessories can be purchased from the Liebherr-
Hausgeräte store at home.liebherr.com/shop/de/deu/
zubehor.html.
5 Storage
5.1 Information regarding storage
WARNING
Risk of fire
u
Do not use any electrical appliances in the food area of
the appliance unless recommended by the manufacturer.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
u
Always keep air slots clear.
Observe the following specifications for storage:
-
Keep the air vents on the fan free.*
-
In the freezer compartment: Package food properly.
-
Package or cover foods that readily take on or give off
odours or taste in closed containers.
-
Package raw meat or fish in clean, closed containers.
This will prevent meat or fish from touching or dripping
onto other food.
-
Keep liquids in closed containers.
-
Leave space between goods to ensure good air circula‐
tion.
-
Store food according to the instructions on the pack‐
aging.
-
Always observe the best-before date indicated on the
packaging.
Note
Failure to follow these guidelines can lead to foodstuffs
spoiling.
5.2 Fridge compartment
The air circulation in the appliance creates different temper‐
ature zones. You will find the different temperature zones in
the appliance and equipment overview. (see 1.2 Overview of
the appliance and equipment)
5.2.1 Arranging your food properly
u
Upper area and door: Store butter, cheese, tinned food
and tubes.
u
Coldest temperature zone: Store perishable foods such
as pre-cooked meals, meat and lunch meats.
u
Bottom shelf: Store raw meat or fish.
Putting into operation
* Depending on model and options 7
5.3 EasyFresh
EasyFresh is great for non-packaged foods, such as fruit
and vegetables.
The humidity in the compartment depends on the moisture
content of the chilled goods placed in it, and also depends
on how often the compartment is opened. You can regulate
the humidity level.
5.3.1 Arranging your food properly
u
Store unpackaged fruit and vegetables.
If the humidity is too high:
u
Regulate the humidity.
5.4 Freezer compartment
Here, a dry, frosty storage climate is created at -18 °C. The
frosty storage climate is suitable for storing frozen food for
several months, for making ice cubes or freezing fresh food.
5.4.1 Freezing food
Freezing quantity
The maximum amount of fresh food that you can
freeze within 24 hours is specified on the type plate
(see 10.5 Model plate) under “Freezing capacity ... kg/24h”.
To ensure that food quickly freezes through, adhere to the
following quantities per package:
-
Fruit and vegetables up to 1 kg
-
Meat up to 2.5 kg
Freezing food using SuperFrost
Depending on the quantity to be frozen, you can activate
SuperFrost before freezing in order to achieve lower freezing
temperatures. (see SuperFrost)
u
Activate SuperFrost if the amount of food you have to
freeze is more than approx. 2 kg.
The time at which you activate SuperFrost depends on the
amount of food you have to freeze:
Freezing quan‐
tity
Time at which you should activate
SuperFrost
Small amount of
food to freeze
Activate SuperFrost about 6 hours
before freezing.
You can place the food in the freezer
as soon as the appliance automatically
deactivates SuperFrost.
Maximum
amount of food
to freeze
Activate SuperFrost about 24 hours
before freezing.
You can place the food in the freezer
as soon as the appliance automatically
deactivates SuperFrost.
Arranging your food properly
CAUTION
Risk of injury from broken glass!
Bottles and cans with beverages can burst during freezing.
This applies in particular to carbonated beverages.
u
Only freeze bottles and cans with beverages if you have
activated the BottleTimer function in the SmartDevice
app.
Freezing quantity Arranging your food properly
Small amount of
food to freeze
Distribute packaged groceries
throughout all drawers.
If possible, place groceries at the back
of the drawer near the rear wall.
Maximum amount
of food to freeze
Distribute packaged groceries
throughout all drawers.
If possible, place groceries at the back
of the drawer near the rear wall.
5.4.2 Defrosting food
WARNING
Risk of food poisoning!
u
Do not re-freeze thawed food.
u
Use defrosted foodstuff as soon as possible.
You can defrost food in several ways:
-
In the fridge compartment
-
In the microwave
-
In the oven/fan-assisted oven
-
At room temperature
u
Take out only as much food as necessary.
5.5 Storage times
Refer to the specified storage times as a guide.
In the case of foods with a minimum shelf life, the date
indicated on the packaging still applies.
5.5.1 Fridge section
Always follow the best-before date stated on the packaging.
5.5.2 Freezer compartment
Recommended storage period for various types of food
Ice cream at -18°C 2 to 6 months
Sausages, ham at -18°C 2 to 3 months
Bread, baked goods at -18°C 2 to 6 months
Game, pork at -18°C 6 to 9 months
Fatty fish at -18°C 2 to 6 months
Lean fish at -18°C 6 to 8 months
Cheese at -18°C 2 to 6 months
Poultry, beef at -18°C 6 to 12 months
Vegetables, fruit at -18°C 6 to 12 months
6 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Always keep the fan air slits clear.
-
Do not install the appliance in direct sunlight or near
radiators or similar sources of heat.
-
If the appliance is installed directly next to an oven,
the energy consumption may increase slightly. This is
dependent on the service life and usage intensity of the
oven.
-
Energy consumption depends on the installation condi‐
tions, e.g. the ambient temperature (see 1.4 Appliance
Saving energy
8 * Depending on model and options
range of use) . A warmer ambient temperature can
increase the energy consumption.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
-
Sort your food: home.liebherr.com/food.
-
Keep all food properly packed and covered. This prevents
frost from forming.
-
Only take food out for as long as necessary so that it
doesn’t warm up too much.
-
Inserting warm food: allow to cool down to room temper‐
ature first.
-
Thaw frozen food in the refrigerator.
-
For longer periods of absence, use HolidayMode
(seeHolidayMode) .
7 Controls
7.1 Controls and displays
7.1.1 Status display

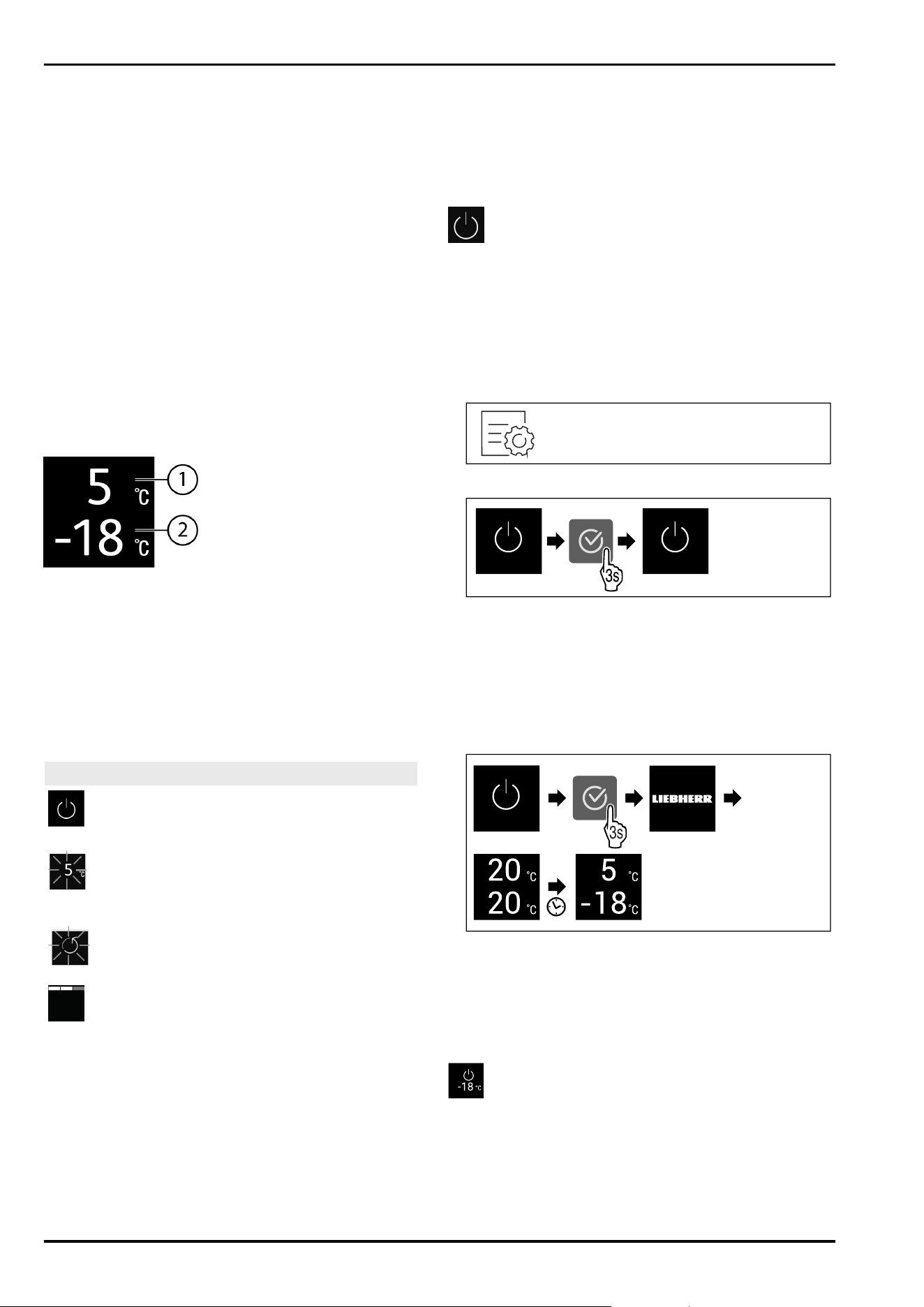

Fig.6
(1)
Temperature display of
the fridge section
(2) Freezer compartment
temperature display
The Status display shows the set temperature and is the
home display. From there, you can navigate to the options
and settings.
7.1.2 Display symbols
Display symbols provide information on the current appli‐
ance status:
Symbol
Appliance status
Standby
The appliance or temperature zone
is switched off.
Flashing number
Appliance is working. Temperature
flashes until the set value is
reached.
Flashing symbol
Appliance is working. Setting is
made.
Bar grows steadily
Function is activated.
7.2 Appliance functions
7.2.1 Notes on the appliance functions
The appliance functions are set at the factory so that your
appliance is fully functional.
Before you alter, activate or deactivate the device functions,
make sure that the following requirements are met:
q
You have read and understood the descriptions of how
the display works. (see 3 Functionality of the Touch
display)
q
You have familiarised yourself with the operating and
display elements of your appliance.
Switching the appliance off and on
Use this function to switch the entire appliance off and on.
Switching off the appliance
When you switch the appliance off, then the previously
saved settings are saved.
Make sure that the following requirements are fulfilled:
q
Handling instructions (see 11 Shutting down) are carried
out.
Fig.7
Fig.8
u
Carry out action steps according to the illustration.
w
Appliance is switched off.
w
The standby symbol appears in the display.
w
Display turns black.
Switching on the appliance
If the display is in sleep mode:
u
Press any navigation key.
Fig. 9 Example illustration
u
Carry out action steps according to the illustration.
When the appliance starts in demo mode:
u
Deactivating demo mode. (see Deactivating demo mode)
w
The appliance is switched on.
w
Previous settings are restored.
w
The appliance cools to the target temperature set.
Switching temperature zone off and on
You can switch temperature zones of the appliance off inde‐
pendently.
Application:
-
Cleaning
-
Defrosting
Controls
* Depending on model and options 9
Switching the fridge compartment off
Make sure that the following requirements are fulfilled:
q
Refrigerator compartment has been emptied.
Fig. 10 Example illustration
u
Carry out action steps according to the illustration.
w
Refrigerator compartment is switched off.
Switching the fridge compartment on
Fig. 11 Example illustration
u
Carry out action steps according to the illustration.
w
Refrigerator compartment is switched on.
w
The appliance cools to the last set temperature.
WiFi
Use this function to connect your appliance to WiFi. You can
then operate it via the SmartDevice app on a mobile device.
You can also use this function to disconnect or reset the
WiFi connection.
To connect your device to WiFi, you need the SmartDevi‐
ceBox.
More information on the SmartDevice: (see 1.3 SmartDevice)
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.
Establishing the WiFi connection for the first time
Make sure that the following requirements are fulfilled:
q
You have purchased and inserted a SmartDeviceBox.
(see 1.3 SmartDevice)
q
You have installed the SmartDevice app (see
apps.home.liebherr.com).
q
Registration in the SmartDevice app is completed.

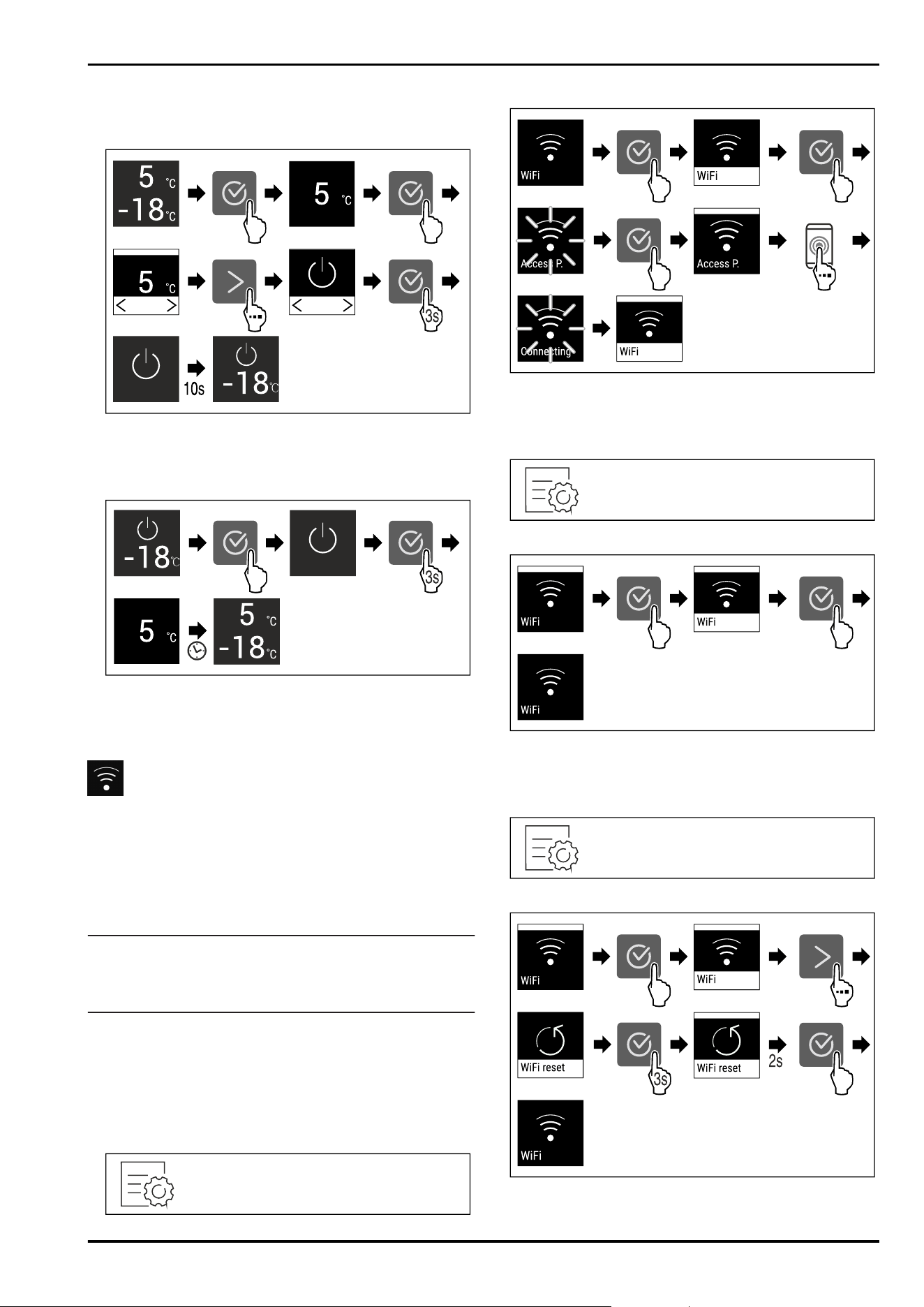

Fig.12
Fig.13
u
Carry out action steps according to the illustration.
w
Connection is established.
Disconnecting from the WiFi
Fig. 14
Fig. 15
u
Carry out action steps according to the illustration.
w
There is no connection.
Resetting the WiFi connection
Fig. 16
Fig.17
u
Carry out action steps according to the illustration.
Controls
10 * Depending on model and options
w
WiFi connection and other WiFi settings are reset to
factory settings.

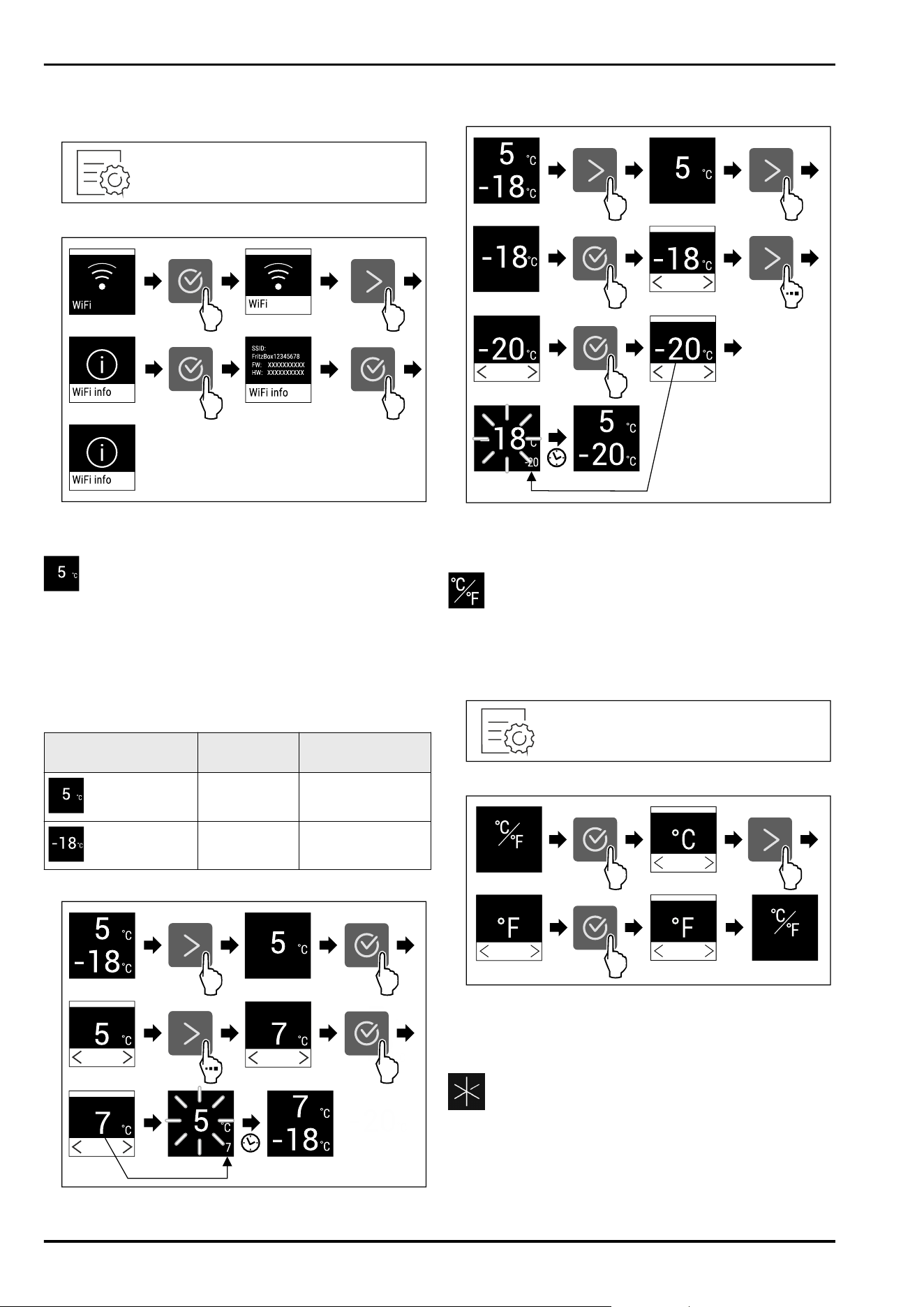

Showing information about the WiFi connection
Fig. 18
Fig. 19
u
Carry out action steps according to the illustration.
Temperature
Use this function to set the temperature.
The temperature depends on the following factors:
-
Frequency of door opening
-
Duration of door opening
-
Room temperature of the installation site
-
Type, temperature and quantity of food
Temperature zone
Factory-set
temperature
Recommended
setting
Fridge section
5°C 4°C
Freezer section
-18°C -18°C
Setting the temperature in the fridge section
Fig. 20 Example illustration
u
Carry out action steps according to the illustration.
w
Temperature is set.
Setting the temperature in the freezer section
Fig. 21 Example illustration
u
Carry out action steps according to the illustration.
w
Temperature is set.
Temperature unit
Use this function to set the temperature unit. You can set
degrees Celsius or degrees Fahrenheit as the temperature
unit.
Setting the temperature unit
Fig.22
Fig. 23 Example illustration: Switch from degreesCelsius
to degrees Fahrenheit.
u
Carry out action steps according to the illustration.
w
The temperature unit is set.
SuperCool
You can use this function to activate or deactivate Super‐
Cool. If SuperCool is activated, then the appliance increases
the cooling capacity. It allows you to achieve lower cooling
temperatures. You can activate SuperCool when you would
like to cool a large quantity of food quickly.
Controls
* Depending on model and options 11
If the function is active, the appliance operates at higher
power. As a result, the appliance's operating noise may be
temporarily louder and energy consumption will increase.
Activating SuperCool
Time for activation of the function:
-
When you would like to store fresh food in the fridge
section: Activate the function when inserting food.
Fig. 24
Fig.25
u
Carry out action steps according to the illustration.
w
SuperCool is activated.
Deactivating SuperCool
SuperCool is deactivated automatically after 18 hours.
However, you can also deactivate SuperCool manually at
any time:
Fig. 26
Fig.27
u
Carry out action steps according to the illustration.
w
SuperCool is deactivated.
w
The appliance continues to run in normal mode.
w
The appliance cools to the temperature set previously.
PowerCool
You can use this function to activate or deactivate Power‐
Cool. PowerCool ensures optimised temperature layers for
cooling your food.
The function applies to the fridge section.
Application:
-
At higher room temperatures (as of approx.35°C)
-
At high humidity, e.g. on summer days
-
When storing moist food, in order to prevent condensate
forming in the interior
Note
The fan may also run even if the function is deactivated.
It therefore ensures even temperature distribution in the
appliance.
If the function is active, the device operates at higher
power. As a result, the device's operating noise may be
temporarily louder and energy consumption will increase.
Activating PowerCool
Fig.28
Fig.29
u
Carry out action steps according to the illustration.
w
PowerCool is activated.
Deactivating PowerCool
Fig.30
Fig.31
u
Carry out action steps according to the illustration.
w
PowerCool is deactivated.

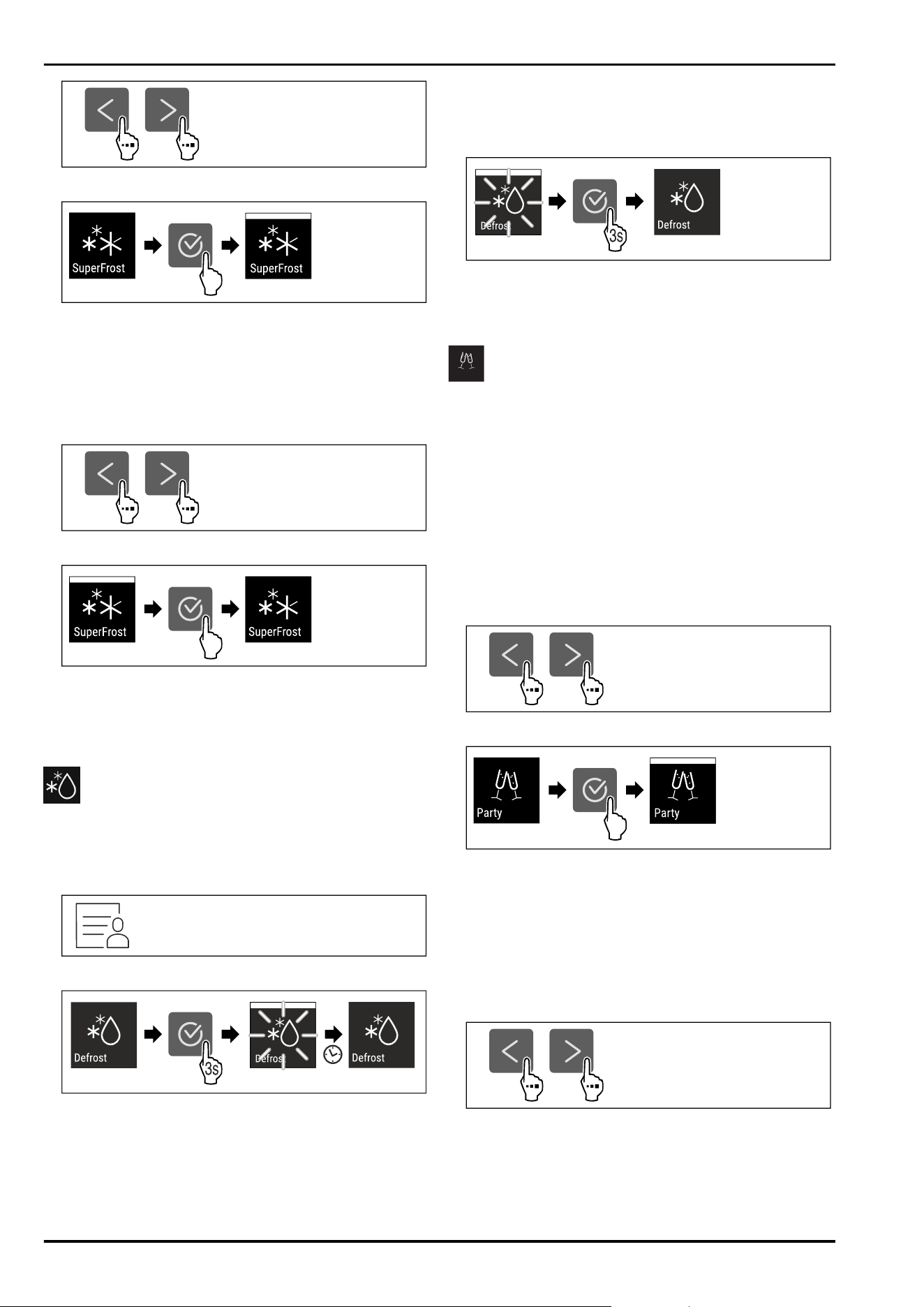

SuperFrost
You can use this function to activate or deactivate
SuperFrost. If SuperFrost is activated, then the appliance
increases the freezing capacity. It allows you to achieve
lower freezing temperatures.
Application:
-
Quickly freeze fresh food through to the core.
This ensures that the nutrition, appearance and taste of
frozen food is maintained.
-
Increase the cold reserve in stored frozen food before
defrosting the appliance.
If the function is active, the appliance operates at higher
power. As a result, the appliance's operating noise may be
temporarily louder and energy consumption will increase.
Activating SuperFrost
Make sure that the following requirements are fulfilled:
q
Freezing quantity and time for activation of SuperFrost
are taken into account. (see Freezing food using
SuperFrost)
Controls
12 * Depending on model and options
Fig.32
Fig.33
u
Carry out action steps according to the illustration.
w
SuperFrost is activated.
Deactivating SuperFrost
SuperFrost is automatically deactivated after 56 to 72 hours
depending on the quantity of the food inserted. However,
you can also deactivate SuperFrost manually at any time:
Fig.34
Fig.35
u
Carry out action steps according to the illustration.
w
SuperFrost is deactivated.
w
The appliance continues to run in normal mode.
w
The appliance cools to the temperature set previously.
Start defrosting cycle
Use this function to start the automatic defrosting cycle
manually if it does not start automatically in the event of a
fault.
Starting defrosting cycle
Fig.36
Fig.37
u
Carry out action steps according to the illustration.
w
Defrosting cycle has started: Icon flashes until defrosting
cycle is automatically completed.
w
When defrosting cycle is finished: The device continues
to run in normal mode.
Cancelling defrosting cycle
The defrosting cycle will be stopped automatically. However,
you can also cancel the defrosting cycle at any time during
the defrosting process:
Fig.38
u
Carry out action steps according to the illustration.
w
Defrosting cycle is cancelled.
w
The device continues to run in normal mode.
PartyMode
You can use this function to activate or deactivate Party‐
Mode. PartyMode activates various functions that are useful
for a party.
PartyMode activates the following functions:
-
SuperCool (seeSuperCool)
-
SuperFrost (see SuperFrost)
You can adjust all listed functions individually and flexibly.
When you deactivate PartyMode, all changes are discarded.
If the function is active, the device operates at higher
power. As a result, the device's operating noise may be
temporarily louder and energy consumption will increase.
Activating PartyMode
Fig. 39
Fig.40
u
Carry out action steps according to the illustration.
w
PartyMode and the associated functions are activated.
w
The current temperature flashes until the target tempera‐
ture is reached.
Deactivating PartyMode
The PartyMode is automatically deactivated after
24 seconds. However, you can also deactivate PartyMode
manually at any time:
Fig. 41
Controls
* Depending on model and options 13
Fig. 42
u
Carry out action steps according to the illustration.
w
PartyMode is deactivated.
w
The appliance cools to the temperature set previously:
The current temperature flashes until the target tempera‐
ture is reached.

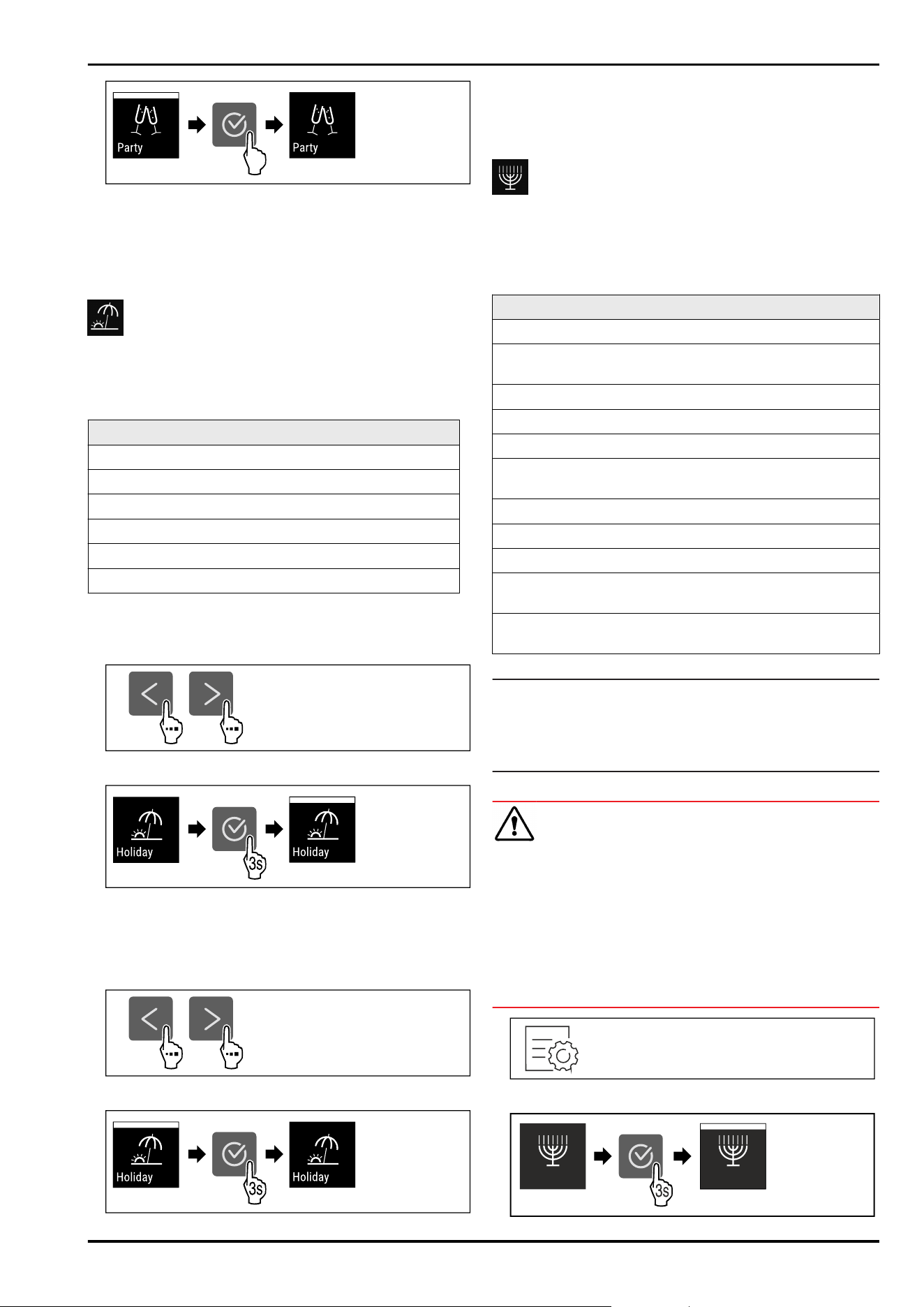

HolidayMode
You can use this function to activate or deactivate Holiday‐
Mode. If you activate HolidayMode, the fridge section is set
to 15 °C. This saves you energy during longer periods of
absence and prevents bad odours and growth of mould.
Appliance status when HolidayMode is active
Fridge section cools to 15°C.
EasyFresh cools to 15°C.
The set temperature is maintained in the freezer section.
PartyMode is deactivated.
SuperCool is deactivated.
PowerCool is deactivated.
Activating HolidayMode
u
Empty the fridge section completely.
u
Empty EasyFresh completely.
Fig.43
Fig.44
u
Carry out action steps according to the illustration.
w
HolidayMode is activated.
w
Temperature display shows HolidayMode symbol.
Deactivating HolidayMode
Fig.45
Fig.46
u
Carry out action steps according to the illustration.
w
HolidayMode is deactivated.
w
The appliance cools to the temperature set previously.
SabbathMode
You can use this function to activate or deactivate
SabbathMode. If you activate this function, some electronic
functions are switched off. As a result, your device meets
the religious requirements for Jewish holidays such as
Sabbath and complies with STAR-K Kosher certification.
Device status when SabbathMode is active
The status display shows SabbathMode permanently.
All functions on the display are locked except for the
Deactivate SabbathMode function.
Active functions remain active.
The display remains bright when you close the door.
The interior lighting is deactivated.
Reminders are not implemented. The set time interval
stops.
Reminders and warnings are not displayed.
There is no door alarm.
There is no temperature alarm.
The defrosting cycle operates only for the specified time,
without considering the appliance consumption.
After a power failure, the appliance returns to
SabbathMode.
Device status
Note
This appliance has certification from the “Institute for
Science and Halacha”. (www.machonhalacha.co.il)
You can find a list of STAR-K-certified appliances at
www.star-k.org/appliances.
Activating SabbathMode
WARNING
Danger of food poisoning from spoiled food!
If you have SabbathMode activated and a power failure
occurs, no message appears in the status display about the
power failure. Once the power is restored, the appliance
continues to operate in SabbathMode. The power failure
may mean that food spoils and the consumption of this food
could lead to food poisoning.
After a power failure:
u
Do not consume food that was frozen and has thawed
out.
Fig. 47
Controls
14 * Depending on model and options
Fig.48
u
Carry out action steps according to the illustration.
w
SabbathMode is activated.
w
The status display shows SabbathMode permanently.
Deactivating SabbathMode
The SabbathMode is automatically deactivated after
80 hours. However, you can also deactivate SabbathMode
manually at any time:
Fig. 49
u
Carry out action steps according to the illustration.
w
SabbathMode is deactivated.
E-Saver
You can use this function to activate or deactivate Energy
saving mode. If energy saving mode is activated, the energy
consumption decreases and the temperature in the device
increases. The food remains fresh, but the shelf life is short‐
ened.
Temperature zone
Recommended
setting (see Setting
the temperature in
the fridge section)
Temperature
with active E-
Saver
Fridge section
4°C 7°C
Freezer section
-18°C -16°C
Temperatures

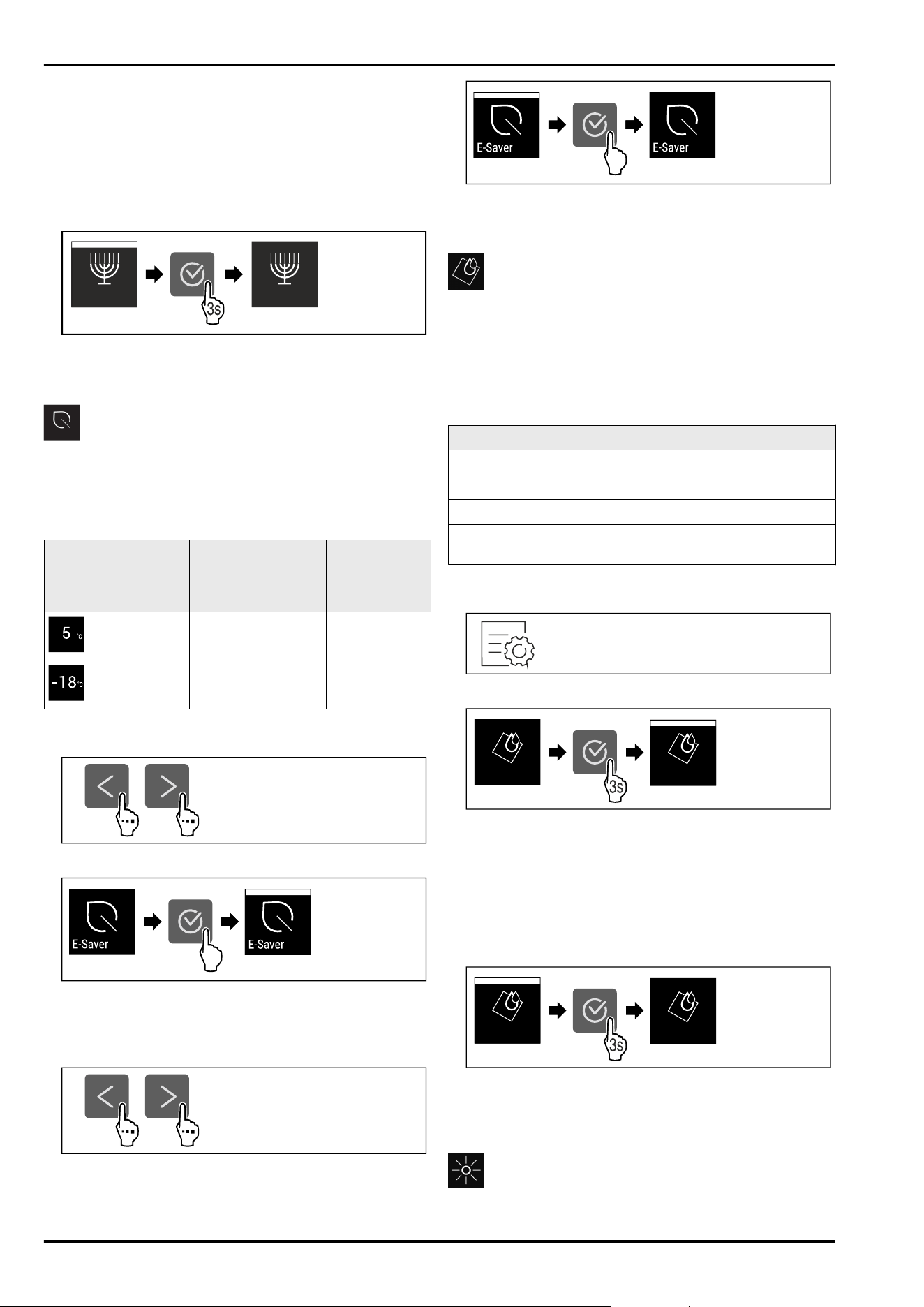

Activating E-Saver
Fig.50
Fig.51
u
Carry out action steps according to the illustration.
w
Energy saving mode is activated.
Deactivating E-Saver
Fig.52
Fig.53
u
Carry out action steps according to the illustration.
w
Energy saving mode is deactivated.
CleaningMode
You can use this function to activate or deactivate Cleaning‐
Mode. CleaningMode enables the appliance to be cleaned
conveniently.
This setting applies to the fridge section.
Application:
-
Clean the fridge section. (see 9.5Cleaning the appliance)
Device status when CleaningMode is active
The status display shows CleaningMode permanently.
The fridge section is switched off.
Interior lighting is activated.
The reminders and warnings are not displayed. No signal
tone sounds.
Device status
Activating CleaningMode
Fig.54
Fig.55
u
Carry out action steps according to the illustration.
w
CleaningMode is activated.
w
The status display shows CleaningMode permanently.
Deactivating CleaningMode
CleaningMode is deactivated automatically after
60 minutes. However, you can also deactivate Cleaning‐
Mode manually at any time:
Fig.56
u
Carry out action steps according to the illustration.
w
CleaningMode is deactivated.
w
The appliance cools to the temperature set previously.
Display brightness
Use this function to set the display brightness in stages.
Controls
* Depending on model and options 15
You can select the following brightness levels:
-
40%
-
60%
-
80%
-
100 % (pre-setting)
Setting the brightness

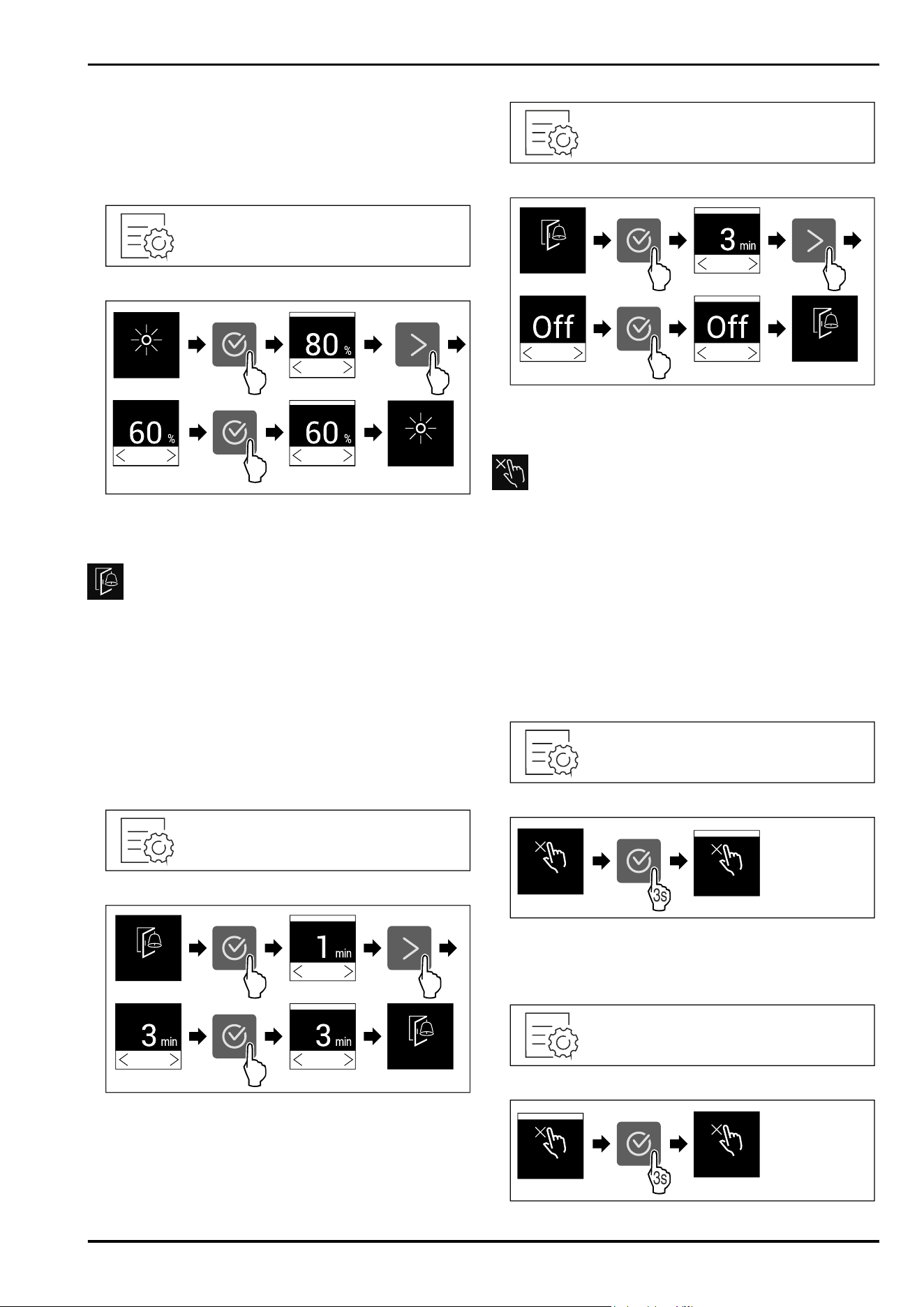

Fig.57
Fig. 58 Example illustration: Switch from 80 % to 60%.
u
Carry out action steps according to the illustration.
w
The brightness is set.
Door alarm
Use this function to activate or deactivate the door alarm.
The door alarm sounds if the door is open for too long. The
door alarm is activated on delivery. You can set how long
the door may be open before the door alarm sounds.
The following values can be set:
-
1 minute
-
2 minutes
-
3 minutes
-
Off
Setting the door alarm
Fig. 59
Fig. 60 Example illustration: Change door alarm from
1 minute to 3 minutes.
u
Carry out action steps according to the illustration.
w
The door alarm is set.
Deactivating the door alarm
Fig. 62
Fig.63
u
Carry out action steps according to the illustration.
w
The door alarm is deactivated.
Input lock
You can use this function to activate or deactivate the input
lock. The input lock prevents the appliance being operated
accidentally, e.g. by children.
Application:
-
Avoid unintentional modification of functions.
-
Avoid unintentional switching off of the device.
-
Avoid unintentional temperature setting.
Activating the input lock
If you activate the input lock, you can continue to navigate
in the menus but you cannot select or change other func‐
tions.
Fig.64
3s
Displ. Lock
Displ. Lock
Fig.65
u
Carry out action steps according to the illustration.
w
Input lock is activated.
Deactivating the input lock
Fig.66
3s
Displ. Lock
Displ. Lock
Fig. 67
Controls
16 * Depending on model and options

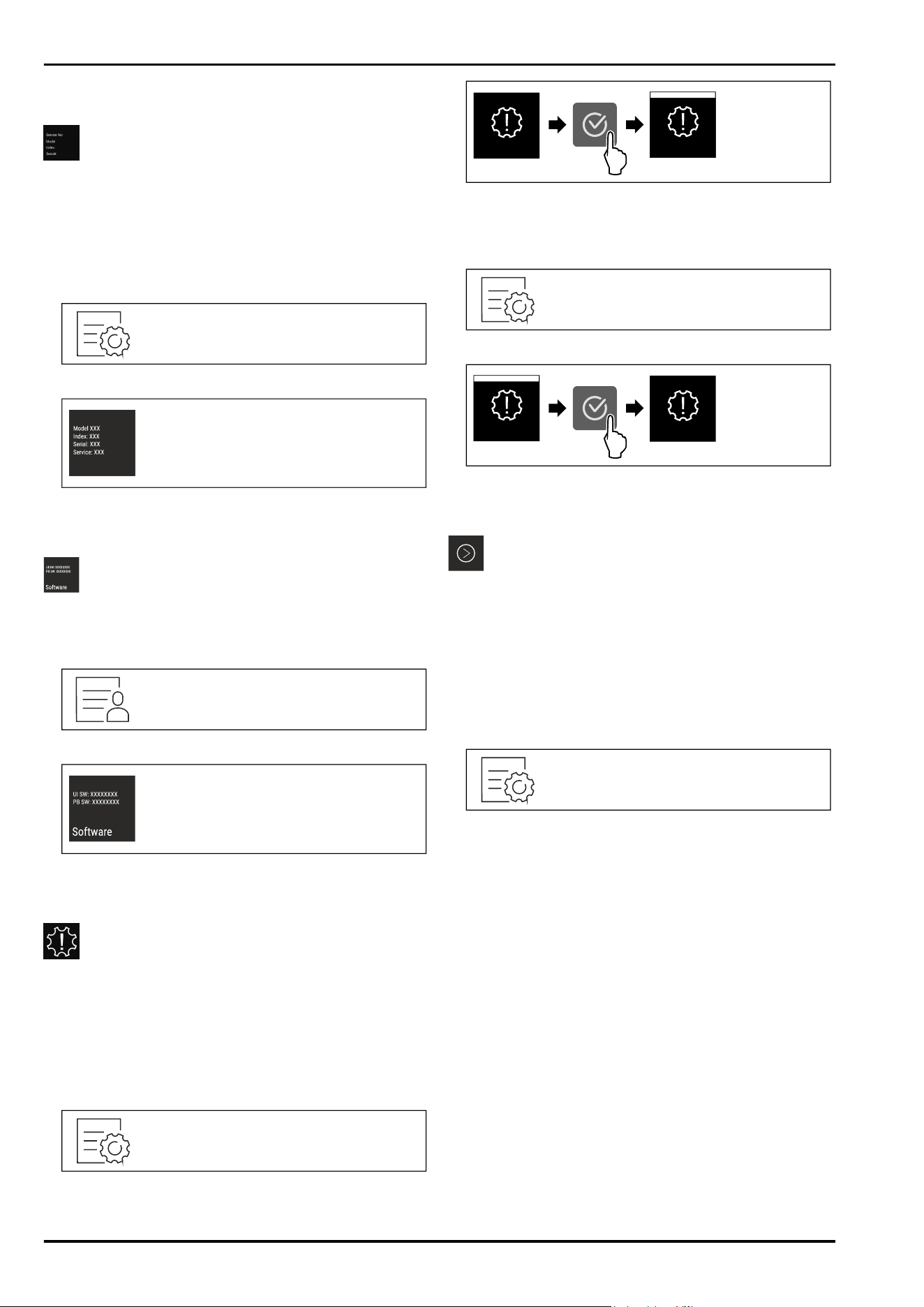

u
Carry out action steps according to the illustration.
w
Input lock is deactivated.
Device information
Use this function to indicate the model name, index, serial
number and service number of your device. You will need
the device information when you contact customer service.
(see 10.4 Customer Service)
This function also opens the Advanced menu. (see 3 Func‐
tionality of the Touch display)
Indicating the device information
Fig.68
Fig. 69
u
Carry out action steps according to the illustration.
w
Display indicates device information.
Software
Use this function to indicate the software version of your
device.
Indicating the software version
Fig.70
Fig.71
u
Carry out action steps according to the illustration.
w
Display indicates software version.
Reminder
Use this function to activate or deactivate the reminders.
The function is activated on delivery.
If the function is activated, the following reminders will
appear:
-
Replace the FreshAir activated carbon filter (see Replace
the FreshAir activated carbon filter)
Activating the reminder
Fig.72
Fig.73
u
Carry out action steps according to the illustration.
w
Reminder is activated.
Deactivating the reminder
Fig. 74
Fig.75
u
Carry out action steps according to the illustration.
w
Reminder is deactivated.
Demo mode
Demo mode is a special feature for dealers who want to
demonstrate appliance features. If you activate demo mode,
all refrigeration functions are deactivated.
If you switch on your appliance and “Demo” appears in the
status display, then demo mode is already activated.
If you activate and then deactivate demo mode, the appli‐
ance will be reset to factory defaults. (see Resetting to
factory settings)
Activating demo mode
Fig. 76
Controls
* Depending on model and options 17

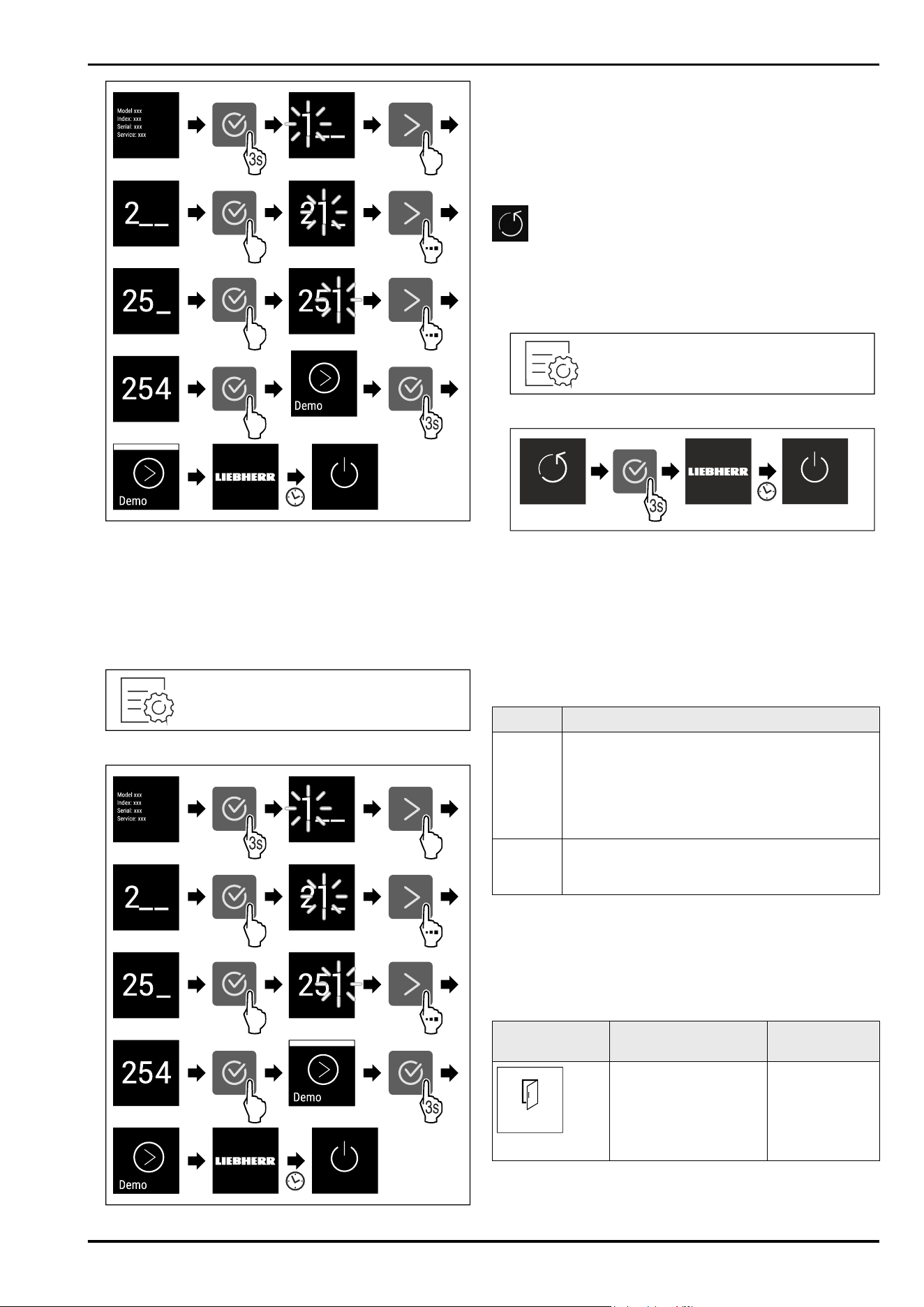

Fig.77
u
Carry out action steps according to the illustration.
w
Demo mode is activated.
w
Appliance is switched off.
u
Switch on the appliance. (see 4.1 Switching on appliance
(first use))
w
“DEMO” appears in the status display.
Deactivating demo mode
Fig.78
Fig.79
u
Carry out action steps according to the illustration.
w
Demo mode is deactivated.
w
Appliance is switched off.
u
Switch on the appliance. (see 4.1 Switching on appliance
(first use))
w
Appliance is reset to factory settings.
Resetting to factory settings
Use this function to reset all settings to factory defaults.
All settings you have made so far are reset to their original
settings.
Performing a reset
Fig.80
Fig.81
u
Carry out action steps according to the illustration.
w
Device is reset.
w
Device is switched off.
u
Restart the device. (see 4.1 Switching on appliance (first
use))
7.3 Messages
There are two categories of messages:
Category
Importance
Warning Warnings appear in the event of a door alarm or
malfunction.
Simple warnings can be cancelled by yourself.
In the event of serious malfunctions, you must
contact customer service. (see 10.4 Customer
Service)
Reminder Reminders remind you of general processes.
You can carry out these operations to end the
message.
7.3.1 Overview of warnings
Behaviour of the appliance in the event of warnings:
-
Warning appears on the display.
-
The alarm tone sounds at an ever-increasing volume.
-
The interior lighting pulsates for some warnings.
Message
Cause Exit the
message
Door alarm
The message appears
if the door is open for
too long.
Carry out action
steps (see Door
alarm) .
Controls
18 * Depending on model and options

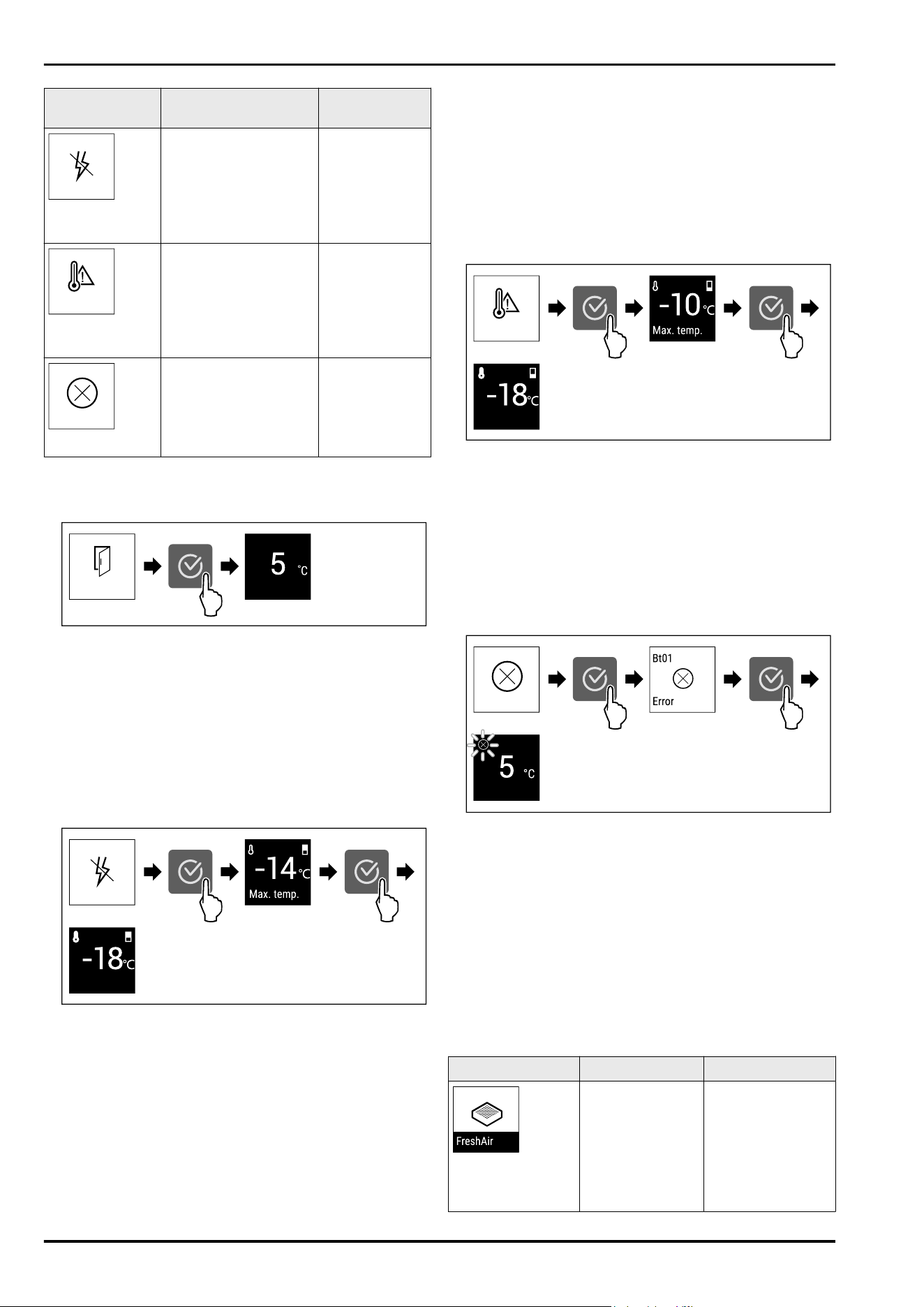

Message Cause Exit the
message
Power outage
alarm
The message appears
if the freezing temper‐
ature has risen due to
a power failure.
Carry out action
steps
(see Power
outage alarm) .
Temperature
alarm
The message appears
if the freezing temper‐
ature does not corre‐
spond to the set
temperature.
Carry out action
steps
(see Tempera‐
ture alarm) .
Error
The message appears
if there is an appliance
error. A component of
the appliance has a
fault.
Carry out action
steps
(see Error) .
7.3.2 Ending warnings
Door alarm
Fig. 82 Example illustration
u
Carry out action steps according to the illustration.
-or-
u
Close the door.
w
The display returns to the status indicator.
You can set how long the door may be open before the door
alarm sounds. (see Setting the door alarm)
Power outage alarm
When the power failure has ended, the appliance cools
down to the previously set target temperature.
Fig. 83 Example illustration
u
Press the confirmation symbol.
w
Warmest freezing temperature is displayed.
w
If the freezing temperature was below -9 °C: Food can
still be consumed.
If the freezing temperature has risen above -9°C:
u
Check the food.
u
Press the confirmation symbol.
w
The display returns to the status indicator: Current
temperature and target temperature are displayed.
Temperature alarm
Temperature differences can be caused by:
-
You have put in warm, fresh food.
-
Too much warm air has got in while you were sorting out
the freezer or removing items.
-
There has been a longer power failure.
-
The appliance is faulty.
u
Eliminate causes.
w
The appliance cools to the target temperature set previ‐
ously.
Fig. 84 Example illustration
u
Press the confirmation symbol.
w
Warmest freezing temperature is displayed.
w
If the freezing temperature was below -9 °C: Food can
still be consumed.
If the freezing temperature has risen above -9°C:
u
Check the food.
u
Press the confirmation symbol.
w
The display returns to the status indicator: Current
temperature and target temperature are displayed.
Error
Fig. 85 Example illustration
u
Press the confirmation symbol.
w
Error code is displayed.
u
Note the error code.
u
Press the confirmation symbol.
w
The display returns to the status indicator.
u
Contact Customer Service. (see 10.4 Customer Service)
7.3.3 Overview of reminders
Behaviour of the appliance during reminders:
-
Reminder appears on the display.
-
Alarm tone sounds.
-
The interior lighting pulsates for some reminders.
Message
Cause Exit the message
Replace the Fres‐
hAir activated
carbon filter
The message
appears when the
activated carbon
filter needs to be
replaced.
Carry out action
steps (see Replace
the FreshAir acti‐
vated carbon
filter) .
Controls
* Depending on model and options 19

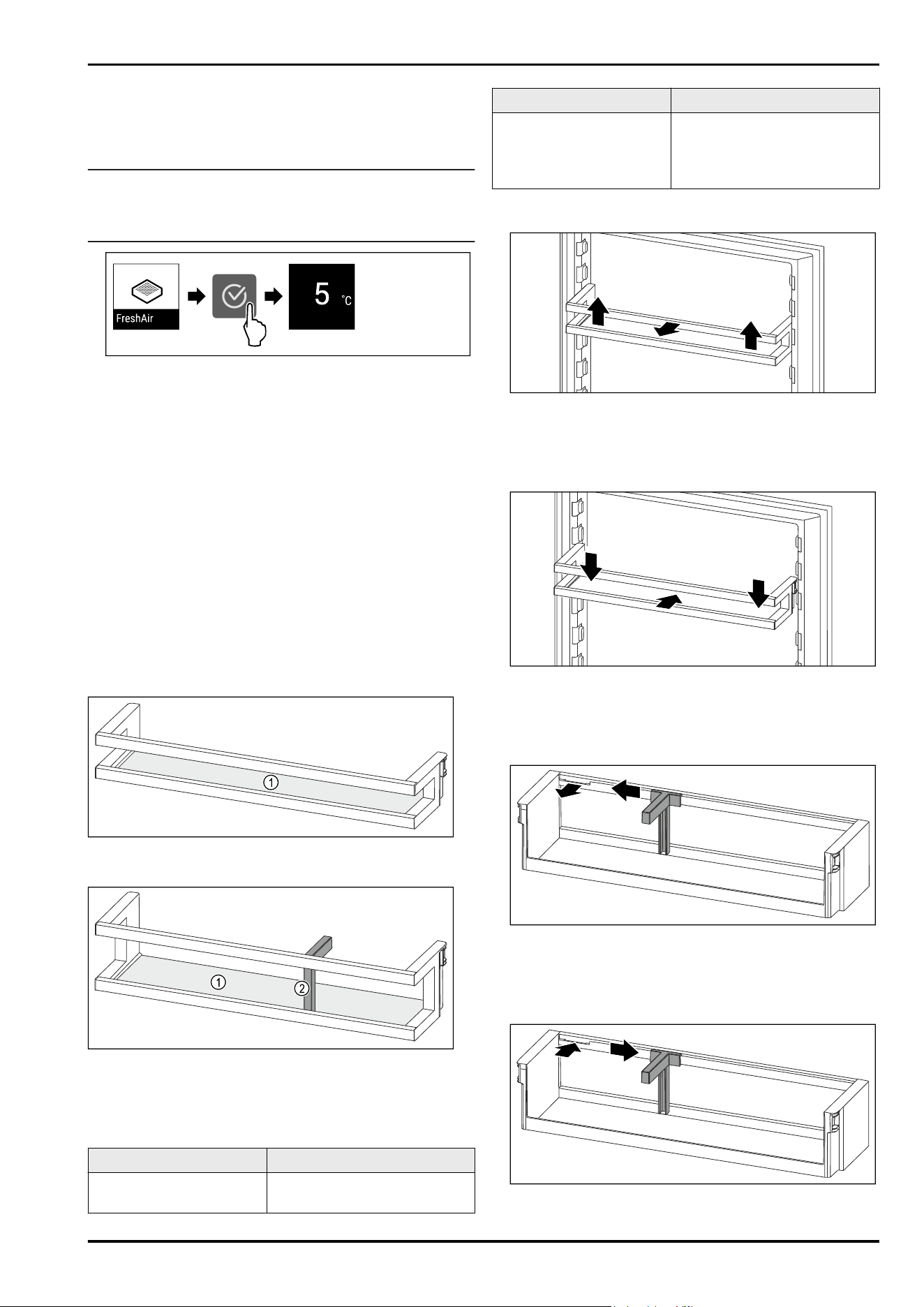

7.3.4 Ending reminders
Replace the FreshAir activated carbon filter
Liebherr recommends: Replace the FreshAir activated
carbon filter every 6 months.
Note
FreshAir activated charcoal filters can be purchased
from the Liebherr-Hausgeräte store at home.liebherr.com/
shop/de/deu/zubehor.html.
Fig. 86 Example illustration
u
Press the confirmation symbol.
u
Replace the activated carbon filter. (see 9.1 FreshAir
carbon filter)
w
Activated carbon filter ensures optimum air quality in the
cooling unit.
w
Reminder appears again after 6 months.
If you no longer wish to receive this reminder, you can deac‐
tivate it. (see Deactivating the reminder)
8 Features
8.1 Door rack
Door racks are suitable for storing drinks and food. You can
move door racks for your own individual use and take them
apart for cleaning. However, Liebherr recommends using the
door racks in the position in the door as delivered from the
factory.
Fig. 87 Example illustration, Door rack
(1)
Shelf
Fig. 88 Example illustration, Door rack with bottle holder
(1)
Shelf (2) Bottle holder
The following table shows examples of what can be stored
in each door rack. Do not exceed the maximum loading
weight of the door.
Door rack
Food
Door rack (see Fig. 87) Butter, cheese, tinned food,
tubes
Door rack Food
Door rack with bottle
holder (see Fig.88)
Bottles
The sliding bottle holder
secures the bottles in the door
rack.
8.1.1 Removing the door rack
Fig. 89 Example illustration
u
Push the door rack upwards.
u
Pull the door rack forward.
8.1.2 Inserting the door rack
Fig. 90 Example illustration
u
Slide in the door rack.
u
Press the door rack down.
8.1.3 Removing the bottle holder
Fig. 91
u
Slide the bottle holder to the side as far as the recess.
u
Remove the bottle holder forwards.
8.1.4 Inserting the bottle holder
Fig.92
u
Insert the bottle holder in the recess.
Features
20 * Depending on model and options

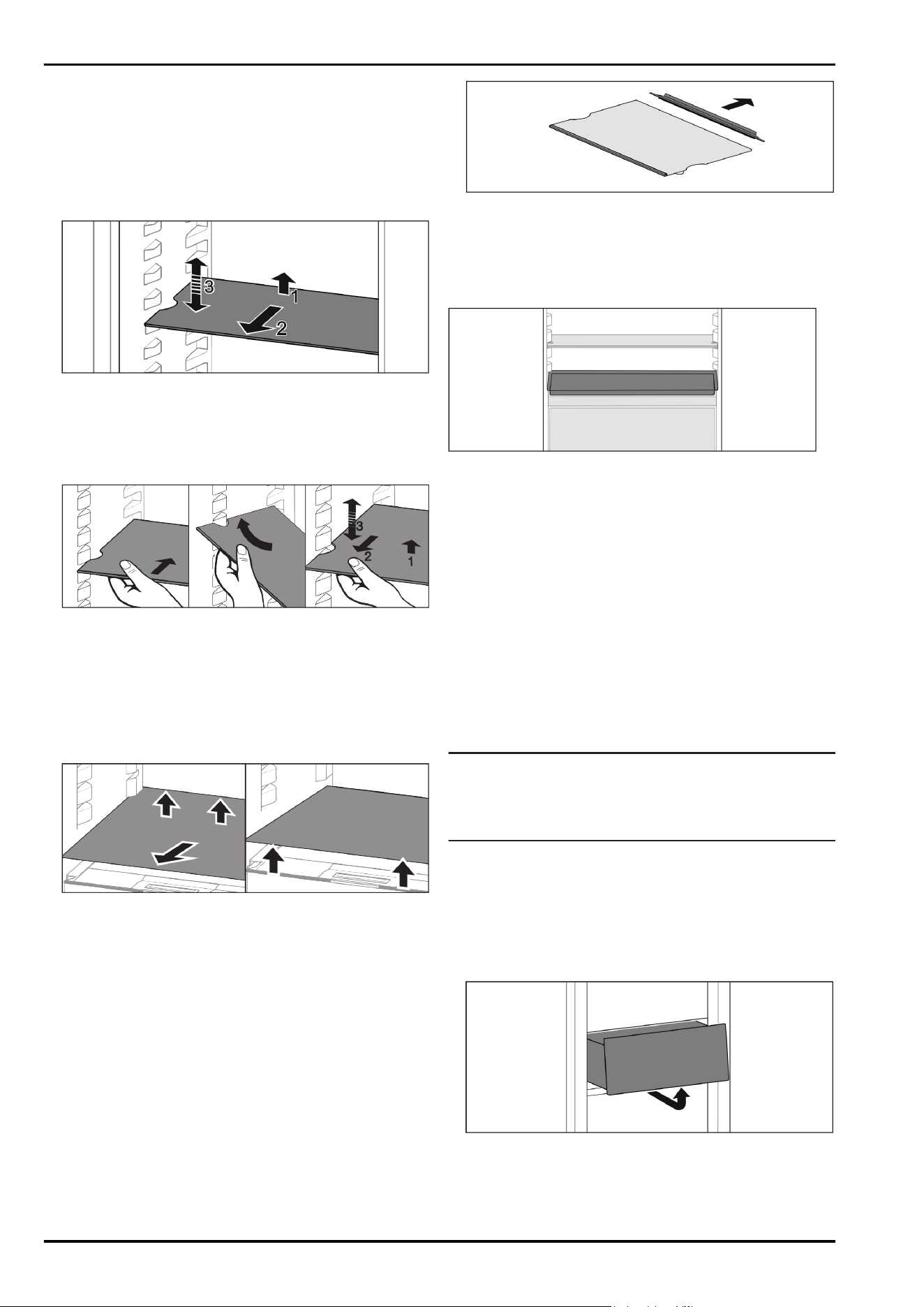

u
Push the bottle holder to the desired position to the side.
8.2 Shelves
8.2.1 Adjusting/removing the shelves
The shelves are prevented from being pulled out acciden‐
tally by pull out stops.
Fig. 93
u
Lift the shelf and pull forward.
w
Line up the side runner.
u
Adjust the height of the shelf: Lift or lower it to the
desired height and slide it in.
-or-
Fig. 94
u
Remove the shelf completely: Pull it out to the front.
u
Easier removal: Set the shelf at an angle.
u
Insert the shelf again: Slide it in all the way.
w
The pull-out stoppers point downwards.
w
The pull-out stoppers are behind the front support.
You can also remove the shelf above the EasyFresh
compartments.
Fig.95
Removing the shelf:
u
Lift the shelf at the front and back.
u
Pull it out towards you.
Do not store any goods on the compartment cover below!
Inserting the shelf:
u
Place the shelf at an angle, sloping down towards the
back.
w
The pull-out stoppers point downwards.
u
Slide the shelf into place.
8.2.2 Dismantling the shelves
The shelves can be dismantled for cleaning.
Fig.96
u
Dismantling the shelf.
8.3 Space for baking tray
There is space for a baking tray Fig.1(4) above the drawers.
Fig.97
Ensure that the following conditions are met:
q
Max. baking tray dimensions are adhered to
(see 10.1 Technical specifications) .
q
Baking tray is cooled to room temperature.
q
The lowest door rack is set at least one position higher.
With the door open to 90°:
u
Slide the baking tray onto the lower side runners.
8.4 Drawers
You can remove the drawers for cleaning.
You can remove the drawers to use VarioSpace.
The way to remove/insert the drawers varies depending
on the pull-out system. Your appliance can contain various
pull-out systems.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
u
Leave the bottom drawer in the appliance!
u
Always leave the fan air vents clear on the back wall!
8.4.1 Drawer on appliance base or glass shelf
The drawer runs directly on the appliance base or on a glass
shelf. There are no rails.
When you remove the drawers, you can use the glass
shelves below them as storage shelves.
Removing drawer
Fig.98
u
Remove drawer as shown in the illustration.
Features
* Depending on model and options 21

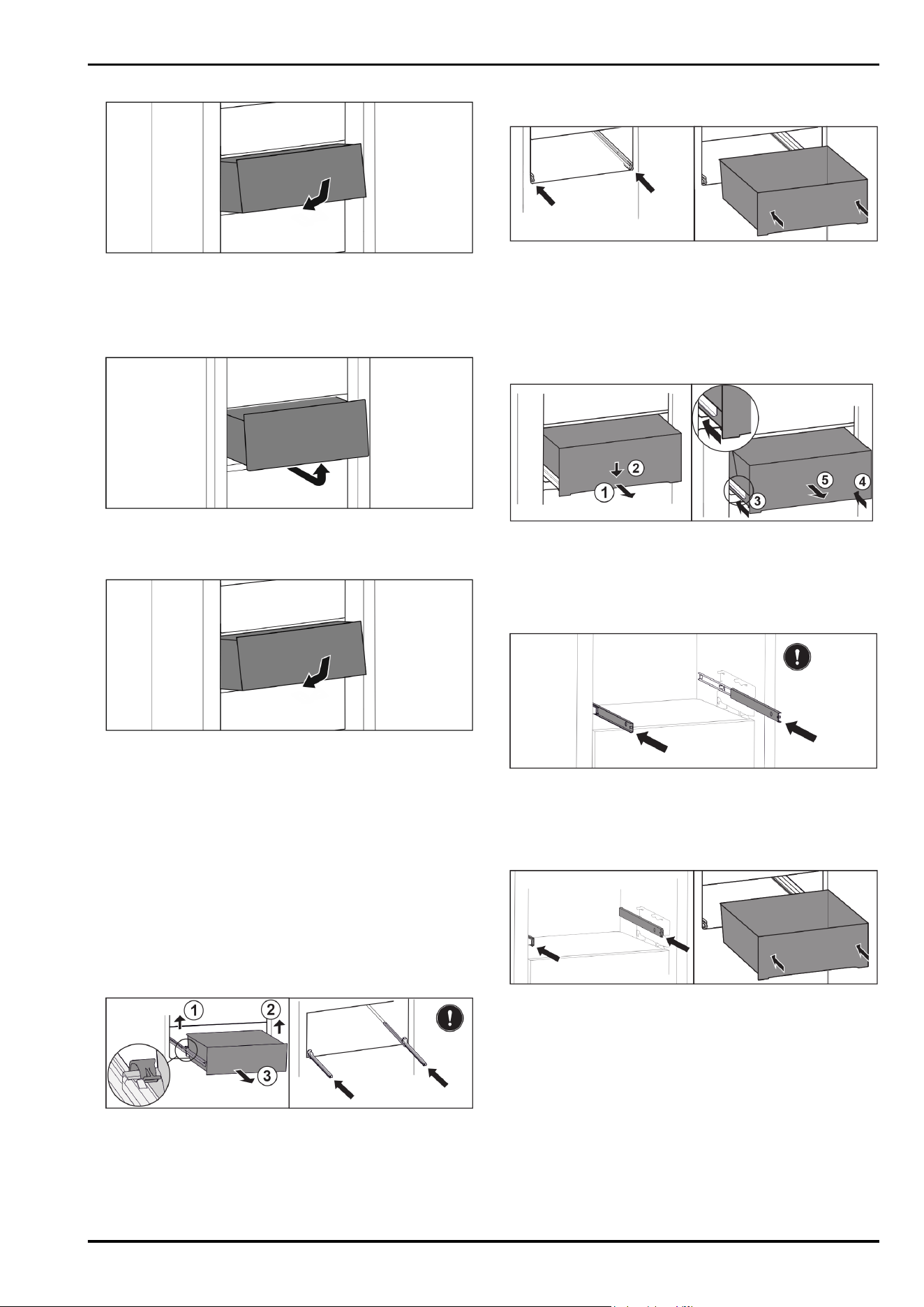

Inserting drawer
Fig.99
u
Insert drawer as shown in the illustration.
8.4.2 Drawer on rails
Removing drawer
Fig. 100
u
Remove drawer as shown in the illustration.
Inserting drawer
Fig. 101
u
Insert drawer as shown in the illustration.
8.4.3 Drawer on telescopic rails
The drawer runs on extendible rails (telescopic rails). There
are fully extendible telescopic rails and telescopic rails with
partial pull-out. Drawers which are fully extendible can be
pulled out fully from the appliance. Drawers with partial
pull-out cannot be removed fully from the appliance. The
system in your appliance depends on the type of appliance.
Fully extendible*
If you have fully extendible rails, there is a clamp located at
the back on the left and right of the rail.
Removing drawer
Fig. 102
u
Pull out drawer as far as it will go.
u
Lift left clamp and simultaneously pull drawer forwards
on the left. Fig. 102(1)
u
Lift right clamp and simultaneously pull drawer forwards
on the right. Fig. 102(2)
u
Remove drawer to the front. Fig. 102(3)
u
Slide rails in.
Inserting drawer
Fig. 103
u
Slide rails in.
u
Place drawer on rails.
u
Slide in drawer to the back.
w
Drawer latches in audibly at the back.
Partial pull-out fridge compartment*
Removing drawer
Fig. 104
u
Pull out drawer half-way. Fig. 104(1)
u
Push the drawer down at the front. Fig. 104(2)
u
Push the left rail in by about 2cm. Fig. 104(3)
u
Push the right rail in by about 2cm. Fig. 104(4)
u
Remove drawer to the front. Fig. 104(5)
Fig. 105
If the rails are not yet fully inserted after removing the
drawer:
u
Push rails in completely.
Inserting drawer
Fig. 106
u
Slide rails in.
u
Place drawer on rails.
u
Slide in drawer to the back.
8.5 Compartment lid for EasyFresh Safe
The compartment lid ensures constant levels of humidity.
The compartment lid is directly on the drawer and can be
covered by shelves or additional drawers.
Features
22 * Depending on model and options

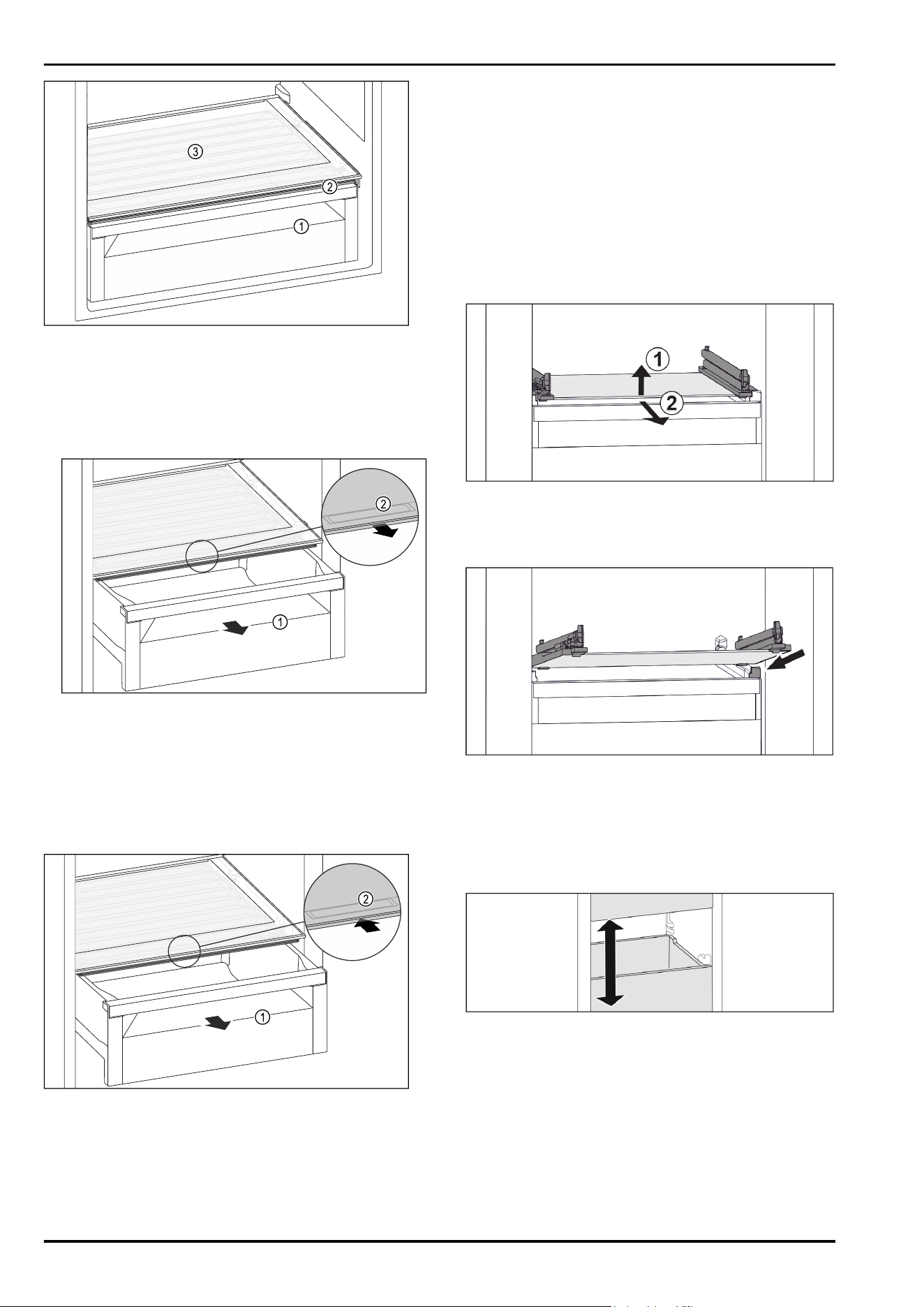

Fig. 107 Example illustration, compartment lid for EasyFresh
Safe
(1)
EasyFresh Safe (3) Shelf
(2) Compartment lid for
EasyFresh Safe
8.5.1 Reducing the air humidity in the drawer
Fig. 108
u
Pull out the drawer Fig. 108(1).
u
Grasp the recessed grip Fig. 108 (2) on the compartment
lid and pull the compartment lid forwards at the same
time.
w
When the drawer is closed, there is a small gap between
the compartment lid and the drawer.
8.5.2 Increasing the air humidity in the drawer
Fig. 109
u
Pull out the drawer Fig. 109(1).
u
Grasp the recessed grip Fig. 109 (2) on the compartment
lid and push the compartment lid backwards at the same
time.
w
When the drawer is closed, the compartment lid seals
with the drawer.
8.6 Glass shelves
You can remove the glass shelves under the drawers for
cleaning.
You can remove the glass shelves under the drawers to use
VarioSpace.
8.6.1 Removing / inserting the glass shelf
Make sure that the following requirements are fulfilled:
q
Glass shelf under the drawer: The drawer has been
removed. (see8.4 Drawers)
Removing glass shelf
Fig. 110 Example illustration of glass shelf
u
Lift glass shelf at the front. Fig. 110(1)
u
Take out glass shelf to the front. Fig. 110(2)
Inserting glass shelf
Fig. 111 Example illustration of glass shelf
u
Position glass shelf at an angle behind the stoppers. (see
Fig.111)
u
Lower glass shelf.
u
Slide in glass shelf to the back.
8.7 VarioSpace
Fig.112
You can remove drawers and glass panels from your appli‐
ance. This provides more room for large food items such as
poultry, joints of meat, large game, and tall baked products.
You can then freeze these items whole for later preparation.
u
Note the weight limits on the drawers and glass panels
(see 10.1 Technical specifications) .
Features
* Depending on model and options 23

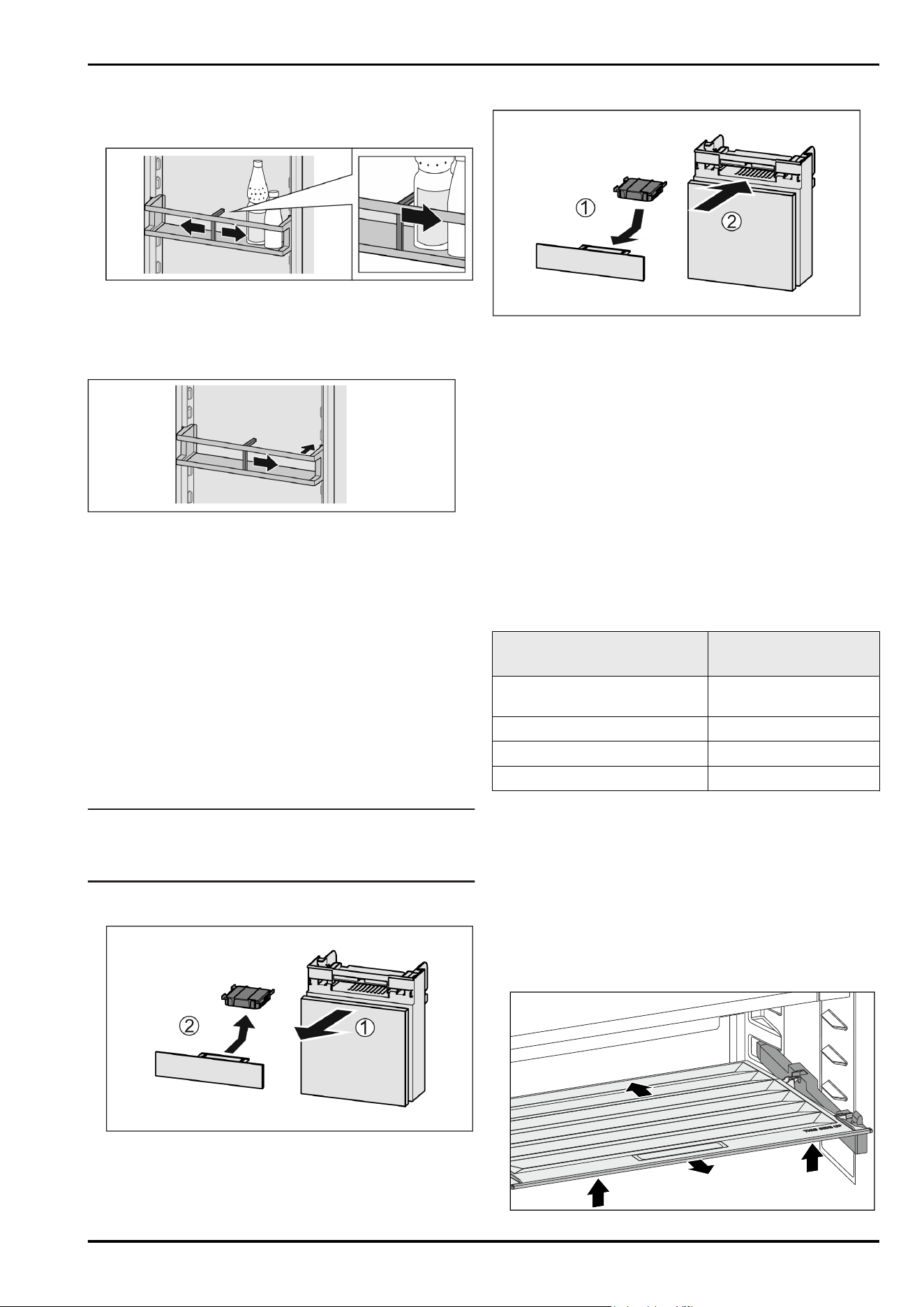

8.8 Bottle holder
8.8.1 Using the bottle holder
Fig.113
u
Push the bottle holder onto the bottles.
w
The bottles are prevented from falling over.
8.8.2 Removing the bottle holder
Fig. 114
u
Move the bottle holder all the way to the right.
u
Push the bottle holder to the back to remove.
9 Maintenance
9.1 FreshAir carbon filter
The FreshAir carbon filter is in the compartment above the
fan.
It guarantees the best air quality.
q
Replace the carbon filter every 6 months.
When the reminder is set, a message on the display
prompts you to change it.
q
The carbon filter can be disposed of with the regular
household waste.
Note
FreshAir activated charcoal filters can be purchased
from the Liebherr-Hausgeräte store at home.liebherr.com/
shop/de/deu/zubehor.html.
9.1.1 Removing the FreshAir carbon filter
Fig. 115
u
Pull out the compartment Fig. 115(1).
u
Remove the carbon filter Fig. 115(2).
9.1.2 Inserting the FreshAir carbon filter
Fig. 116
u
Insert the carbon filter as shown in the diagram
Fig. 116(1).
w
The carbon filter clicks into place.
If the carbon filter is pointing downwards:
u
Push the compartment in Fig. 116(2).
w
The carbon filter is now ready for use.
9.2 Disassembling / assembling pull-
out systems
9.2.1 Notes on disassembly
You can disassemble some of the pull-out systems for
cleaning. Your appliance can contain a variety of pull-out
systems.
The following pull-out systems can be disassembled or
cannot be disassembled:
Pull-out system
can be disassembled/
cannot be disassembled
Drawer on appliance base or
glass shelf
cannot be disassembled
Drawer on rails cannot be disassembled
Fully extendible* cannot be disassembled*
Fridge section partial pull-out* cannot be disassembled*
9.3 Compartment lid for EasyFresh Safe
You can remove the compartment lid for cleaning.
9.3.1 Removing the compartment lid
Ensure that the following requirements are met:
q
The shelf directly above the drawer has been removed.
(see8.2 Shelves)
q
The drawer directly below the compartment lid has been
removed. (see8.4 Drawers)
Maintenance
24 * Depending on model and options
Fig.117
u
Push the compartment lid backwards.
u
Lift the compartment lid forwards.
u
Remove the compartment lid forwards and upwards at an
angle.

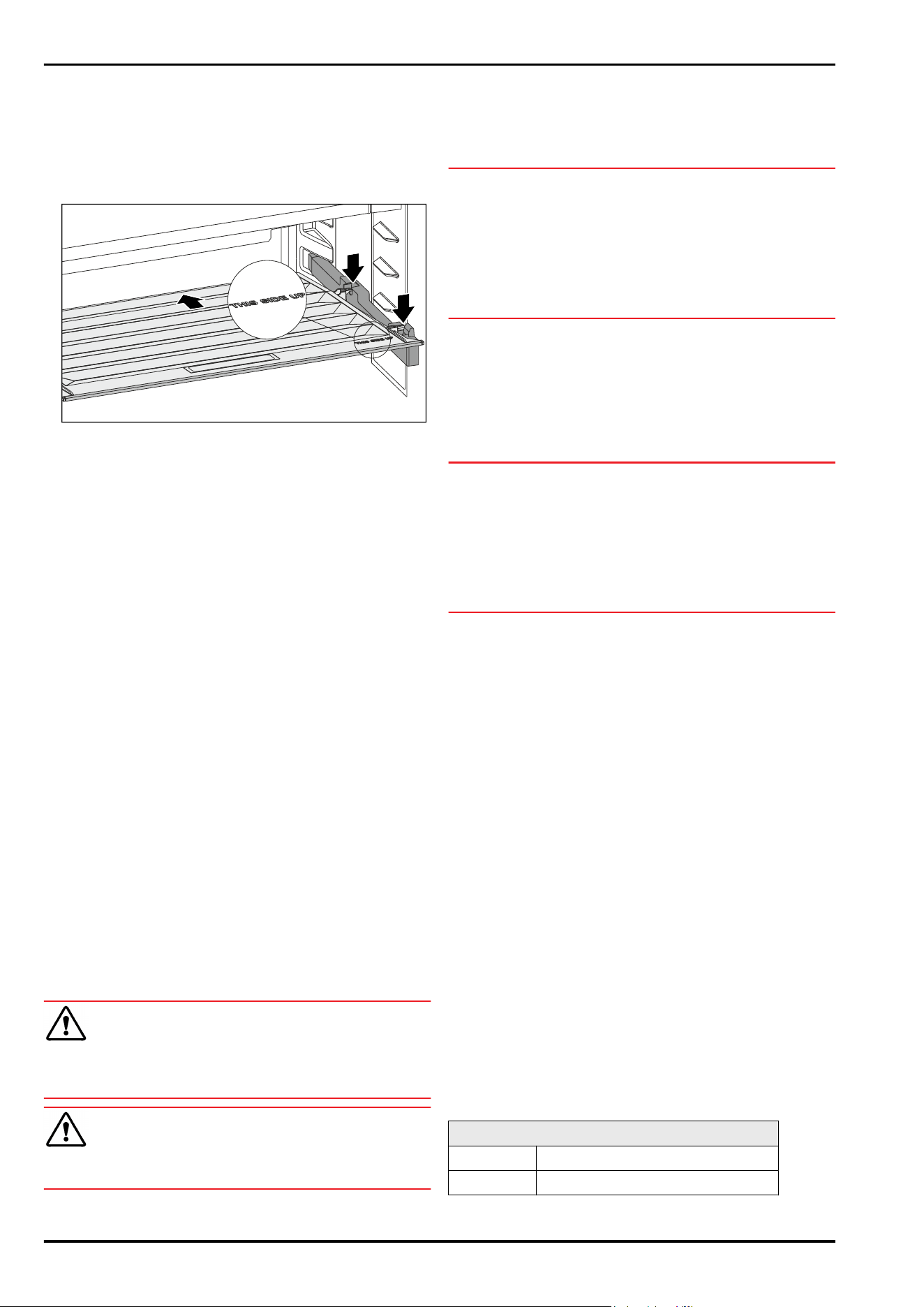

9.3.2 Inserting the compartment lid
Fig. 118
If the THIS SIDE UP lettering is at the top:
u
Insert the rear retaining parts into the relevant rear open‐
ings.
u
Push the compartment lid backwards.
u
Lower the compartment lid forwards and engage the
front retaining parts into the openings.
u
Move the compartment lid into the required position.
9.4 Defrosting the appliance
9.4.1 Defrosting the fridge compartment
Defrosting is performed automatically. The water from the
thawing process drains through the outlet and evaporates.
Water drops or a thin layer of frost or ice can form on the
back wall; this is a completely normal part of the applian‐
ce’s function. This must not be removed.
A layer of frost or ice can from briefly due to the energy-
optimised control of the device.
u
Clean the drain opening at regular intervals.
(see 9.5Cleaning the appliance)
9.4.2 Defrosting the freezer compartment with
NoFrost
Defrosting is performed automatically with the NoFrost
system. The moisture is deposited on the evaporator, is peri‐
odically defrosted and evaporates.
The appliance does not have to be defrosted.
9.5 Cleaning the appliance
9.5.1 Ready
WARNING
Danger of electric shock!
u
Remove the refrigerator connector or interrupt the power
supply.
WARNING
Risk of fire
u
Do not damage the refrigeration circuit.
u
Empty the appliance.
u
Remove mains connector.
-or-
u
Activate CleaningMode. (seeCleaningMode)
9.5.2 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
u
Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
u
Do not uses abrasive sponges or steel wool which may
cause scratches.
u
Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
u
Plastic surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
u
Metal surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
u
Drain hole: remove deposits using a thin item (for
example a cotton bud).
9.5.3 Clean the components
NOTICE
Improper cleaning!
Damage to the appliance.
u
Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
u
Do not uses abrasive sponges or steel wool which may
cause scratches.
u
Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Clean with a soft, clean cloth, lukewarm water and some
detergent:
- Door rack
- Shelf
- EasyFresh-Safe cover
- Drawer
Clean with a damp cloth:
- Retractable rails
Please note: The grease in the tracks is used for lubrica‐
tion and must not be removed!
Wash in the dishwasher up to 60°C:
- Bottle rack
- Holder of the dividing shelf*
u
To disassemble components: see the relevant section.
u
Clean the components.
9.5.4 After cleaning
u
Wipe the appliance and the components dry.
u
Connect and switch on the appliance.
u
Activate SuperFrost (see 7.2Appliance functions) .
The temperature is cold enough:
u
Place the food inside.
u
Repeat cleaning regularly.
10 Customer help
10.1 Technical specifications
Temperature range
Cooling 2°C to 9°C
Freeze -26°C to -15°C
Customer help
* Depending on model and options 25
Maximum ice cube quantity / 24 hours
Freezer compart‐
ment
see type plate under “Freezing
capacity …/ 24 h”
Maximum component capacity
Features Appliance
width
550 mm
(see instal‐
lation
instruc‐
tions,
appliance
dimen‐
sions)
Appliance
width
600 mm
(see
installa‐
tion
instruc‐
tions,
appliance
dimen‐
sions)
Appliance
width
700 mm
(see instal‐
lation
instruc‐
tions, appli‐
ance
dimen‐
sions)
Drawer on glass
shelf
(see 8.4.1 Drawer
on appliance base
or glass shelf)
12 kg 15 kg --
Maximum size baking tray
Width 466mm
Depth 386mm
Height 50mm
10.2 Operating noises
The appliance makes different noises when it is on.
-
At higher temperatures the appliance uses less energy
but works for longer. It is quieter.
-
At lower temperatures the food is cooled faster. It is
louder.
Examples:
•
Functions on (see 7.2Appliance functions)
•
Fan running
•
Food recently added
•
High ambient temperature
•
Door open for a while
Noise
Possible cause Type of noise
Bubbling and
splashing
Coolant flowing
into the cooling
circuit.
Normal operating
noise
Noise Possible cause Type of noise
Hissing Coolant sprays
into the cooling
circuit.
Normal operating
noise
Humming The appliance
is cooling. The
volume depends
on the cooling
output.
Normal operating
noise
Humming and
rustling
The fan is running. Normal operating
noise
Clicking Components are
switched on and
off.
Normal switching
noise
Rattling or
humming
Valves or flaps are
working.
Normal switching
noise
Noise Possible
cause
Type of noise Lifting
Vibration Improper
installation
Defective
noise
Check the
installation.
Level the
appliance.
Rattling Components,
items inside
the appliance
Defective
noise
Secure
components.
Leave
enough
space
between the
items.
10.3 Technical fault
Your appliance is designed and built to ensure it works reli‐
ably and has a long service life. In the unlikely event that
a fault occurs during operation, please check whether it is
due to an operating error. If so, you will be charged for the
callout and repair costs even if it falls within the warranty
period.
You can fix the following faults yourself.
10.3.1 Appliance function
Defect
Cause Remedy
The appliance is
not working.
→ The appliance is not switched on.
u
Switch the appliance on.
→ The power plug is not properly
plugged into the socket.
u
Check the power plug.
→ There is something wrong with the
power outlet fuse.
u
Check the fuse.
→ Power cut
u
Keep the appliance closed.
u
Safeguarding food: Place cold packs on top of food or
use another freezer if the power cut lasts longer.
u
Do not re-freeze defrosted food,
→ The IEC socket is not plugged into
the appliance correctly.
u
Check the IEC socket.
Customer help
26 * Depending on model and options
Defect Cause Remedy
Temperature is not
cold enough.
→ The appliance door is not closed
properly.
u
Close the appliance door.
→ Not enough ventilation.
u
Keep ventilation grille clear, and clean it.
→ The ambient temperature is too
high.
u
Problem solution: (see1.4 Appliance range of use)
→ The appliance was opened too
many times or for too long.
u
Wait to see if the required temperature corrects itself.
If not, contact Customer Service. (see 10.4 Customer
Service)
→ Too much fresh food was placed
inside without SuperFrost.
u
Solution: (see SuperFrost)
→ The temperature is set incorrectly.
u
Turn down the temperature and check after 24 hours.
→ The appliance is too close to a heat
source (oven, radiator, etc).
u
Move the appliance or the heat source.
→ The appliance was not correctly
installed in the recess.
u
Check if the appliance was installed correctly and that
the door closes properly.
The door seal is
defective or needs
to be replaced for
another reason.
→ The door seal can be replaced. It
can be replaced without the need
for special tools.
u
Contact Customer Service. (see 10.4 Customer Service)
The appliance
builds up too much
ice or condensa‐
tion.
→ The door seal may have slipped out
of its groove.
u
Check that the door seal is well fitted in the groove.
10.3.2 Features
Defect Cause Remedy
The internal light
does not come on.
→ The appliance is not switched on.
u
Switch the appliance on.
→ The door was open for longer than
15 minutes.
u
Interior lighting switches off automatically after
about 15 minutes when the door is open.
→ The LED interior light is faulty or
the lid is damaged.
u
Contact Customer Service. (see 10.4 Customer Service)
10.4 Customer Service
First check whether you can rectify the fault yourself
(see 10 Customer help) . If you cannot rectify the problem,
contact Customer Service.
You can find the address in the enclosed brochure “Liebherr-
Service” or at home.liebherr.com/service.
WARNING
Unprofessional repair!
Injuries.
u
Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see9 Maintenance)
u
A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
u
In the case of appliances with an IEC connector, the
change may be made by the customer.
10.4.1 Contacting Customer Service
Make sure that the following appliance information is avail‐
able:
q
Appliance name (model and index)
q
Service no. (Service)
q
Serial no. (S no.)
u
Call up the appliance information via the display.
(see Device information)
-or-
u
Refer to the type plate for appliance information.
(see 10.5 Model plate)
u
Note down the appliance information.
u
Notify customer service: Report errors and the appliance
information.
w
This will help us to provide you with a faster, more accu‐
rate service.
u
Follow further instructions from Customer Service.
Customer help
* Depending on model and options 27

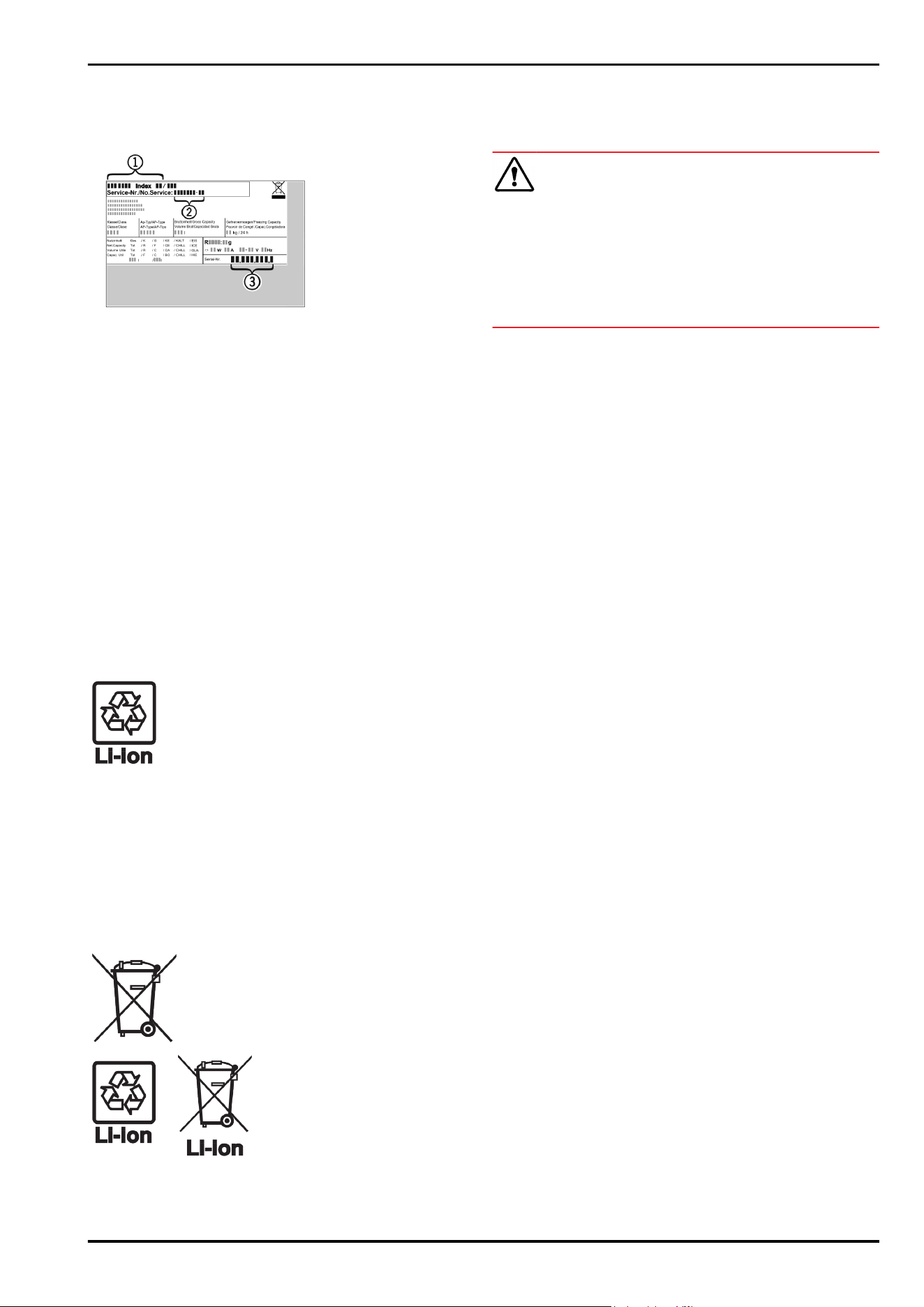

10.5 Model plate
The model plate is behind the drawers on the inside of the
appliance.
Fig. 119
(1)
Appliance description (3) Serial no.
(2) Service no.
u
Note the data on the model plate.
11 Shutting down
u
Empty the appliance.
u
Switch off appliance. (see Switching the appliance off
and on)
u
Pull the mains plug out of the socket.
u
Remove the IEC socket if required: Pull the IEC socket out
of the appliance plug and move it to the left and right at
the same time.
u
Clean appliance. (see 9.5Cleaning the appliance)
u
Leave the door open, so that no unpleasant odours arise.
12 Disposal
12.1 Preparing appliance for disposal
Liebherr uses batteries in some of its appli‐
ances. In the EU, for environmental reasons,
legislation obliges the end user to remove
these batteries before disposing of old appli‐
ances. If your appliance contains batteries, a
corresponding notice is attached.
Lamps If you can remove the lamps yourself without
destroying them, also remove these before
disposal.
u
Take the appliance out of operation.
u
If possible: remove lamps without destroying them.
12.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be disposed of separately from
unsorted municipal waste.
Dispose of batteries separately
from the old appliance. To do
this, you can return the batteries
free of charge to retailers as
well as recycling centres and
collection centres for recyclable
materials.
Lamps Dispose of removed lamps
via the respective collection
systems.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
u
Do not damage the pipelines of the coolant circuit and
the compressor.
u
Observe the notes on transporting the appliance.
u
Transport the appliance without damaging it.
u
Dispose of batteries, lamps and the appliance according
to the above specifications.
Shutting down
28 * Depending on model and options
Disposal
* Depending on model and options 29
home.liebherr.com/fridge-manuals
Integrated fridge/freezer
Issue date:20250206
Part number index:7088456-00
Liebherr-Hausgeräte GmbH
Memminger Straße 77-79
88416Ochsenhausen
Deutschland
