REVISED BULLETIN
SERVICE PARTS LIST
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 1
BULLETIN NO.
STARTING
SERIAL NO.
WIRING INSTRUCTION
DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
CATALOG NO.
54-06-2390
M18™ LED SEARCH LIGHT
2354-20
H60A
Jul. 2016
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
3
6
2
4
1
2 3
4
7
8
9
10
5
6 7 8
9 10
MILWAUKEE TOOL
www.milwaukeetool.com
13135 W. Lisbon Road, Brookfi eld, Wisc. 53005
Drwg. 2

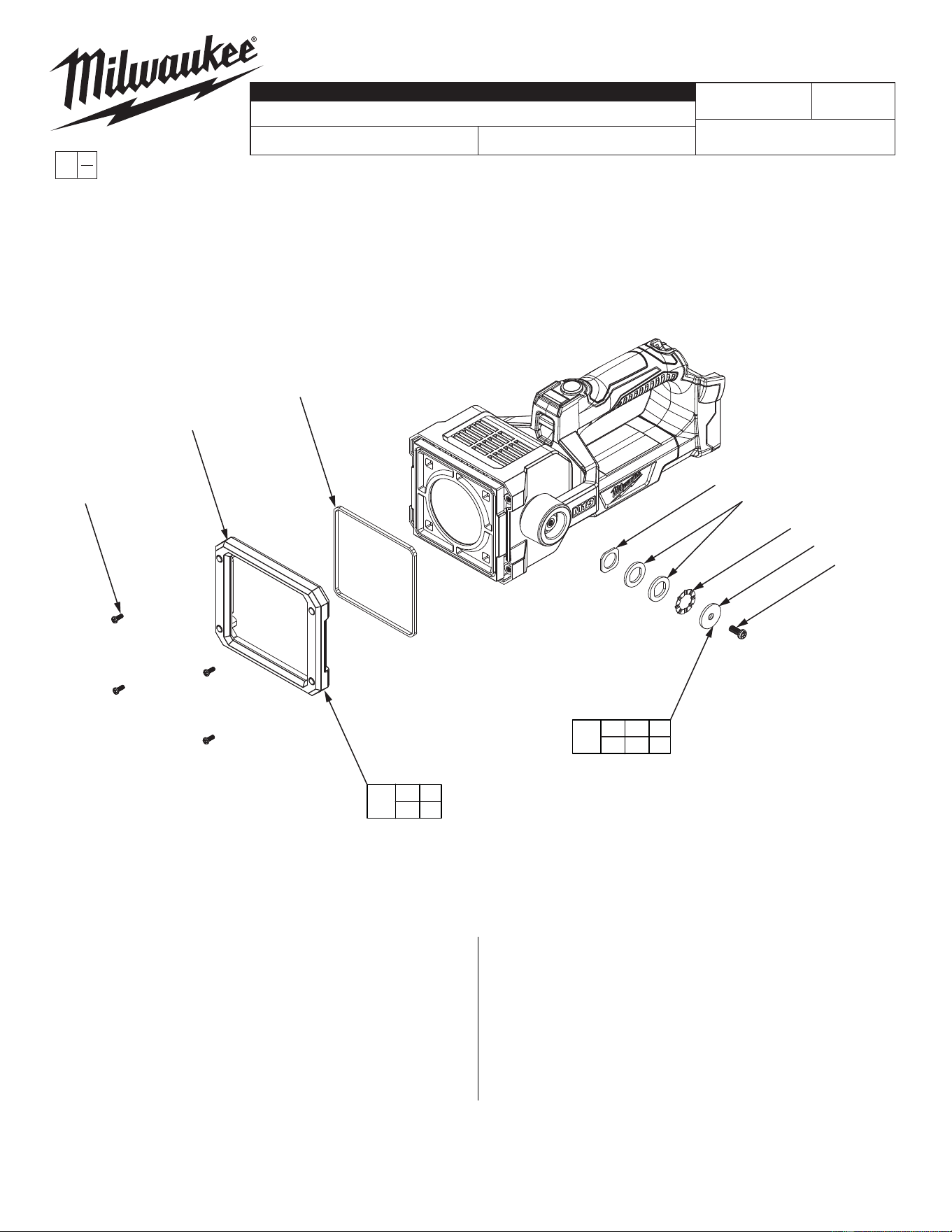

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 44-06-0125 Lens Kit (1)
2 --------------- M3 x 8 Screw (4)
3 --------------- Lens w/ Cover (1)
4 --------------- Gasket (1)
5 45-88-1605 Washer Kit (1)
6 --------------- Washer A (1)
7 --------------- Washer B (2)
8 --------------- Washer C (1)
9 --------------- Washer D (1)
10 --------------- M5 x 12 Screw (1)
11 45-56-0040 Strap (Not Shown) (1)
12 12-20-2354 Service Nameplate (Not Shown) (1)
FIG. NOTES
12 A clean, dry surface is essential for proper performance for any
adhesive system. The area intended for application of any
adhesive label or nameplate must be prepared by cleaning with
isopropyl alcohol. The solvent is to be applied with a clean, lint
free applicator and the surface allowed to dry before applying the
label or nameplate.
