REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
STARTING
SERIAL NO.
WIRING INSTRUCTION
See Pages 5-7
DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
CATALOG NO.
54-06-9010
M18™ LED Truck Mounted Light
2123-20
K73A
July 2022
0
00
EXAMPLE:
Component Parts
(Small #) Are
Included When
Ordering Assembly
(Large #)
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. Lisbon Road, Brookeld, Wisc. 53005
Drwg. 3
76
8
x4
7
8
x4
48
56
57
97
x6
1
57
97
91

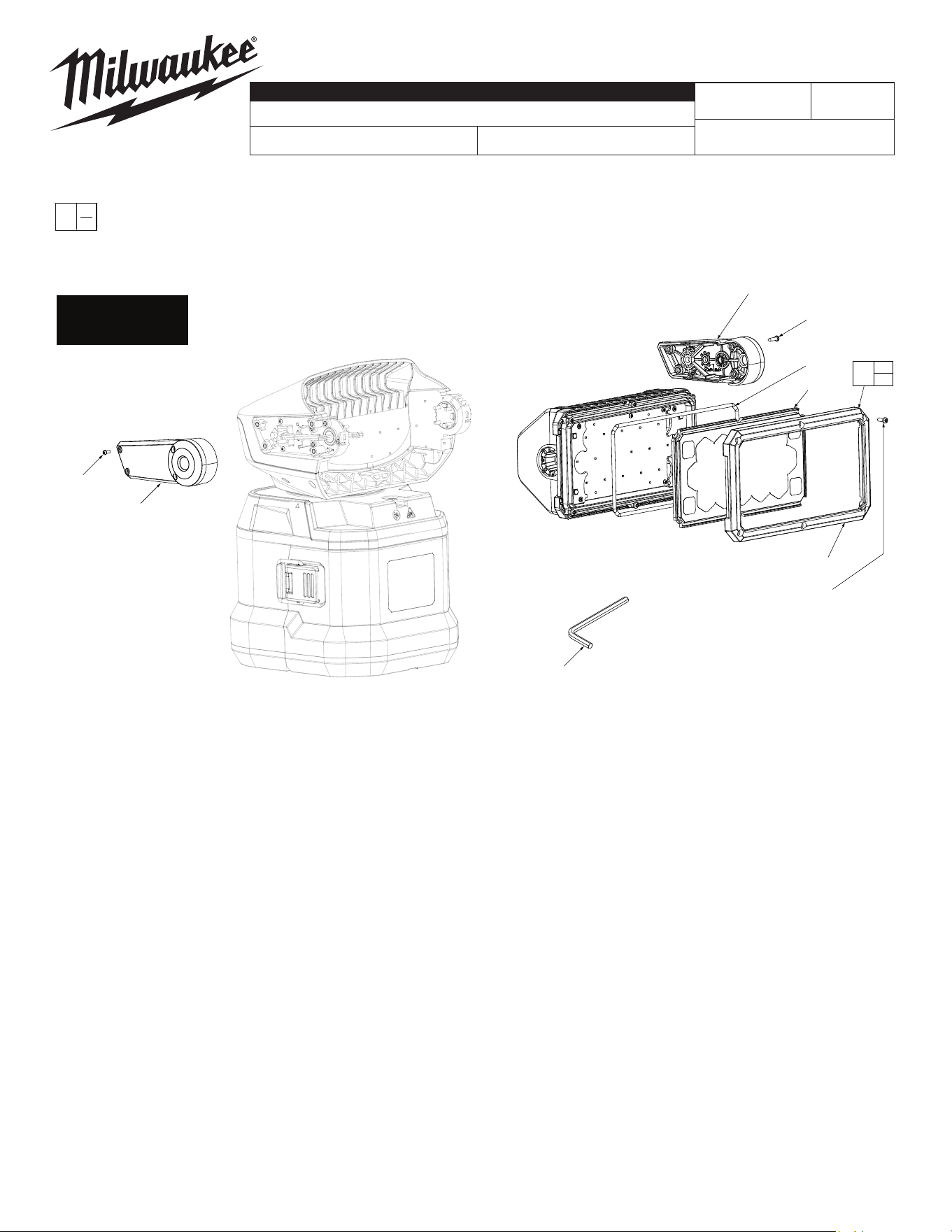

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 45-60-0905 Support Housing-Left (1)
7 45-60-0907 Support Cover-Right (1)
8 06-82-9704 PM2.5 x 8mm Pan Hd. Phillips Screw (8)
48 --------------- Lens Gasket (1)
56 --------------- TML Optic Lens (1)
57 --------------- Front Cover (1)
76 49-96-0013 Hex Wrench (1)
91 42-92-0136 Front Cover Assembly (1)
97 06-81-0023 M3 x 8mm Pan Hd. Screw (6)
SCREW TORQUE
SPECIFICATION
CHART ON PAGE 5
1
(4x)
2
12
3
4
(2x)
5
9
(2x)
6
11
7
(4x)
10
(4x)
8
(4x)
9
(11x)
1 7
8 10
93
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 06-14-0240 Hex Bolt (4)
2 42-92-3023 Permanent Base-Top Cover (1)
3 22-56-0161 Female Connector (1)
4 40-50-8934 Spring (2)
5 22-56-0162 Connector Bottom (1)
6 42-92-3024 Permanent Base-Bottom Cover (1)
7 44-52-1075 Permanent Base Foot Pad (4)
8 06-55-3798 Hex Nut (4)
9 06-82-9702 PB2.6 x 8mm Pan Hd. Torx Screw (13)
10 05-90-0067 Flat Washer (4)
11 43-44-8007 Permanent Base Cable Gasket (1)
12 22-56-0163 Female Connector Jacket (1)
93 14-46-0421 Permanent Base Service Kit (1)

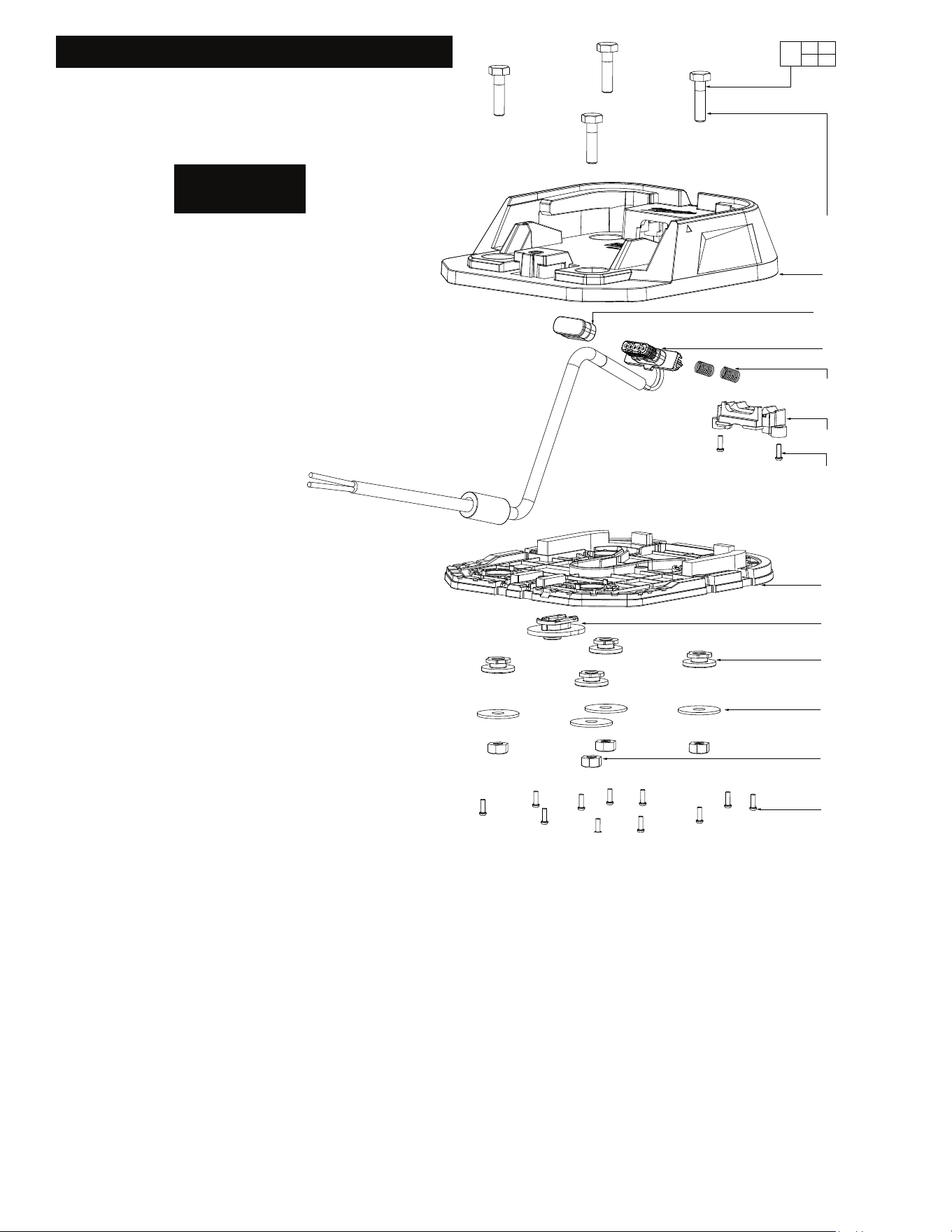

PERMANENT BASE ASSEMBLY
SCREW TORQUE
SPECIFICATION
CHART ON PAGE 5
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- Auxilary Base-Top Cover (1)
2 --------------- Base Car Battery Cover (1)
3 --------------- Base Car Battery Gasket (1)
4 --------------- Battery Fit Base-Right (1)
5 --------------- Main Body Base (1)
6 --------------- Latch Clamp (2)
7 --------------- Latch (2)
8 --------------- Latch Pin (2)
9 --------------- Auxilary Base-Battery Door (1)
10 --------------- Auxilary Base-Battery Base Front (1)
11 --------------- PB2.6 x 8mm Pan Hd. Torx Screw (33)
12 --------------- Pin (2)
13 --------------- Hinge Block (1)
14 --------------- Auxilary Base-Battery Base Rear (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
15 --------------- Magnet Holder (16)
16 --------------- Magnet (8)
17 --------------- Main Body Gasket (1)
18 --------------- PA2 x 8mm Pan Hd. Torx Screw (3)
19 --------------- Button Cover (1)
20 --------------- Button (1)
21 --------------- Button PCBA (1)
22 --------------- Battery Fit Base-Left (1)
23 --------------- Battery Connector Block (1)
24 --------------- Connect Bottom Holder (1)
25 --------------- Spring (2)
94 31-12-0067 Magnetite Base Assembly (1)
12-20-5405 Service Nameplate (Not Shown) (1)
11
(4x)
4
5
17
9
7
(2x)
6
(2x)
8
(2x)
10
11
(6x)
11
(9x)
1
25
(2x)
24
11
(2x)
11
(4x)
2
3
23
22
18
(3x)
19
21
20
16
(8)
15
(16x)
14
11
(8x)
13
12
(2x)
1 2 3 4 5 6 7
8 9 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25
94

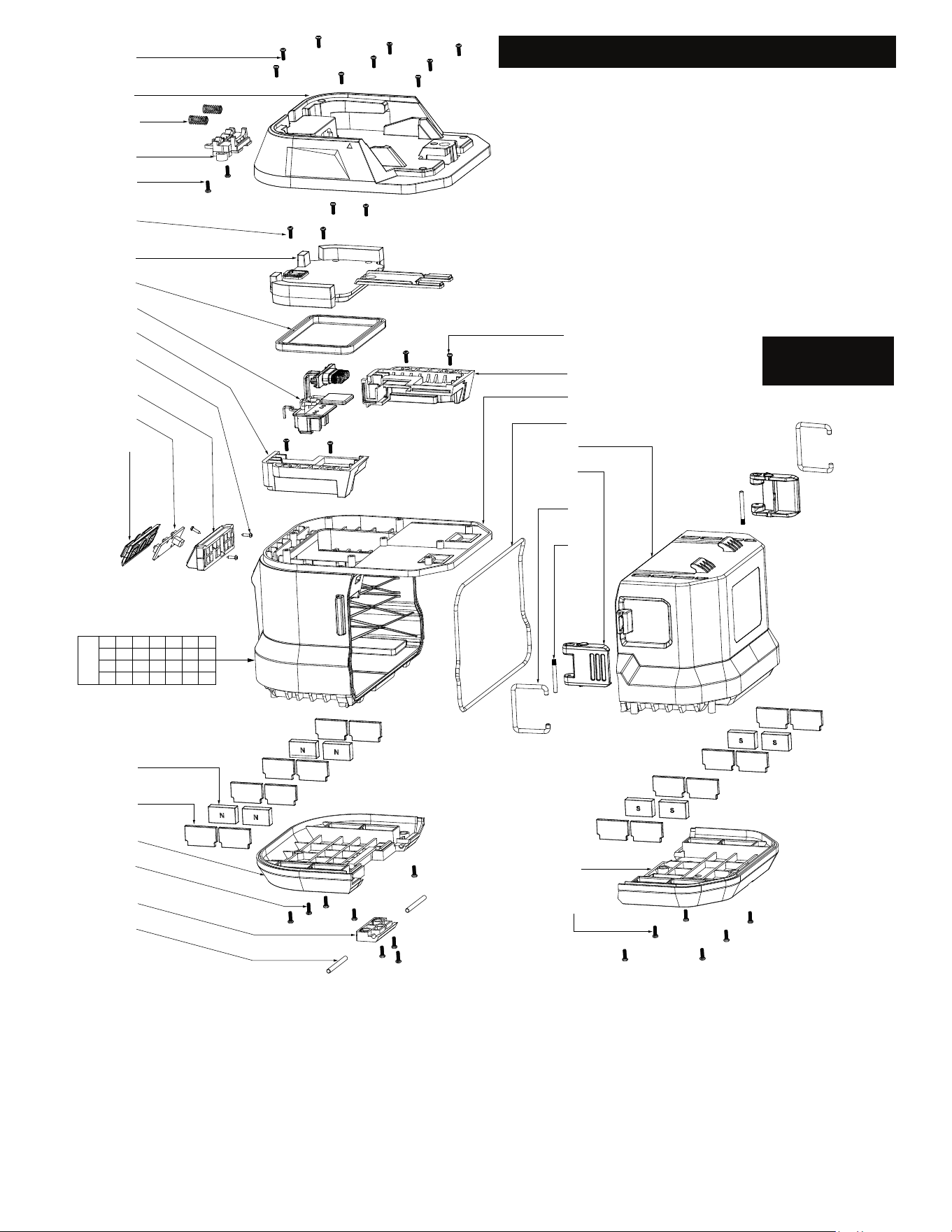

MAGNETIC BASE ASSEMBLY
SCREW TORQUE
SPECIFICATION
CHART ON PAGE 5
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- Top Cover (1)
2 --------------- Remote Button Cover (1)
3 --------------- Handle (1)
4 --------------- Remote Button Rubber (1)
5 --------------- Power Button Cover (1)
6 --------------- Top Cover Lens (1)
7 --------------- Handle stando (1)
8 --------------- Remote Button Support (1)
9 --------------- PCBA (1)
10 --------------- Rubber Switch Cover (1)
11 --------------- Switch Cover-01 (1)
12 --------------- Switch Cover-02 (1)
13 --------------- Leaf Spring (1)
14 --------------- Screw (12)
15 --------------- E-Washer (1)
16 --------------- Screw (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
17 --------------- Screw (6)
18 --------------- Remote Bracket Base (1)
19 --------------- Remote Base Adhesive Pad (1)
20 --------------- Battery Door (1)
21 --------------- AAA Battery (2)
22 --------------- Remote Back Cover (1)
23 --------------- Battery Spring (1)
24 --------------- Positive Connector (1)
25 --------------- Negative Connector (1)
26 --------------- Pad (1)
95 31-21-0238 Battery Door Service Assembly (1)
96 14-46-0426 Bracket Service Kit (1)
107 22-80-0019 Remote Control Assembly (1)
5 6
9
11
13
14
18
19
3
4
7
2
1
8
14
(11x)
26
24
25
23
12
10
22
17
(6x)
21
(2x)
15
20
16
1 2 3 4 5 6 7 8 9 10 11 12
13 14 17 21 22 23 24 25 26 95 96
18
19
96
15 16
20
95
107

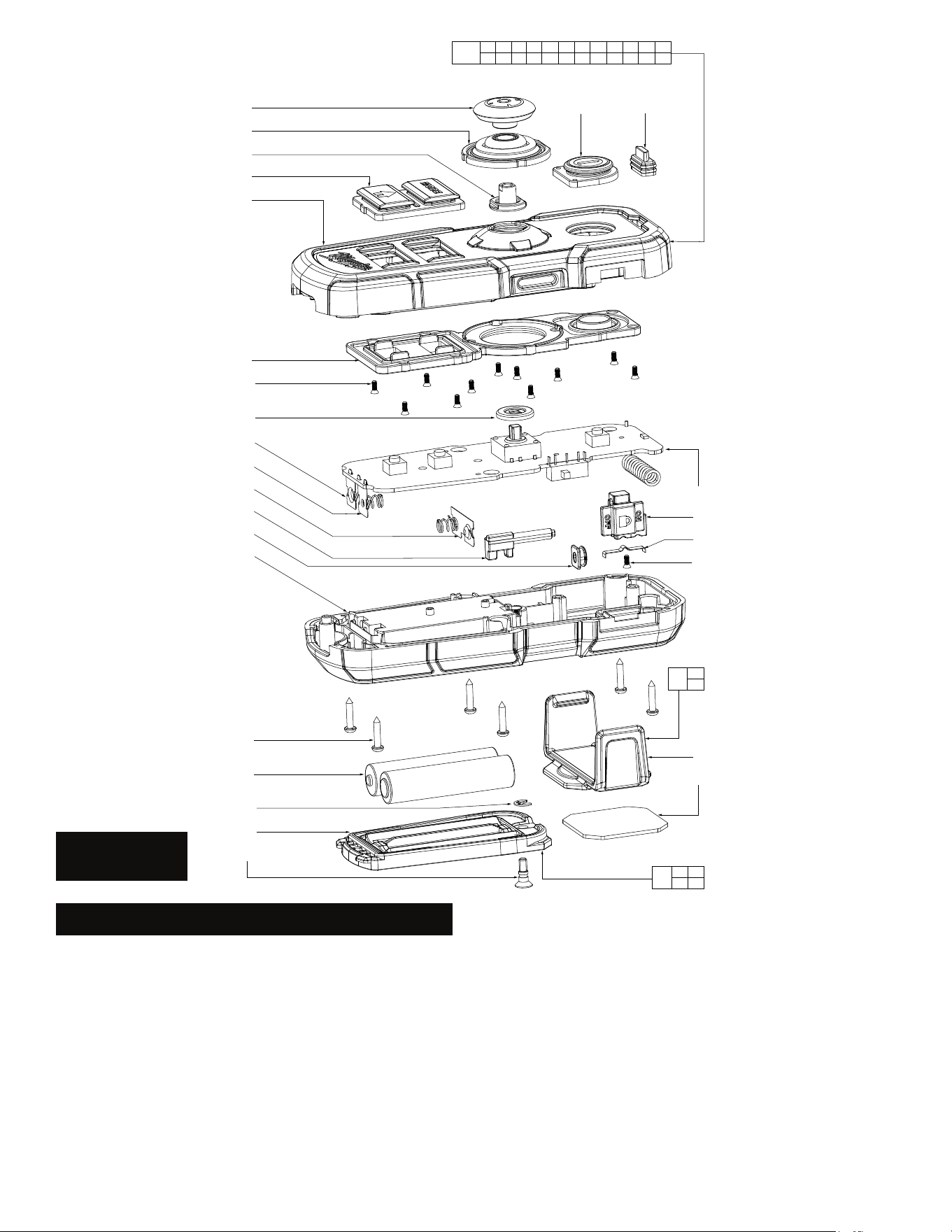

REMOTE AND BRACKET
SCREW TORQUE
SPECIFICATION
CHART ON PAGE 5
SCREW TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. DESCRIPTION OF FASTENER WHERE USED (KG/CM) (lbf.in)
PAGE 1
8 06-82-9704 PA2 x 8mm Pan Hd. Torx Screw Support cover-right 3.0-3.5 2.60-3.04
97 06-81-0023 M3 x 8mm Pan Hd. Screw Front cover & teather to heat sink, gear 5.5-6.0 4.77-5.21
PAGE 2
9 06-82-9702 PB2.6 x 8mm Pan Hd. Torx Screw Permanent base top and bottom cover 4.0-4.5 3.47-3.91
PAGE 3
11 06-82-9700 PB2.6 x 8mm Pan Hd. Torx Screw Top cover, battery cover, battery t bases,
battert rear base, battery front base 4.0-4.5 3.47-3.91
18 06-82-9701 PA2 x 8mm Pan Hd. Torx Screw Base car button PCBA, base car button cover 2.5-3.0 2.17-2.60
PAGE 4
16 --------------- KBM2.5 x 9mm Phillips Screw Battery cover 2.0-2.5 1.74-2.17

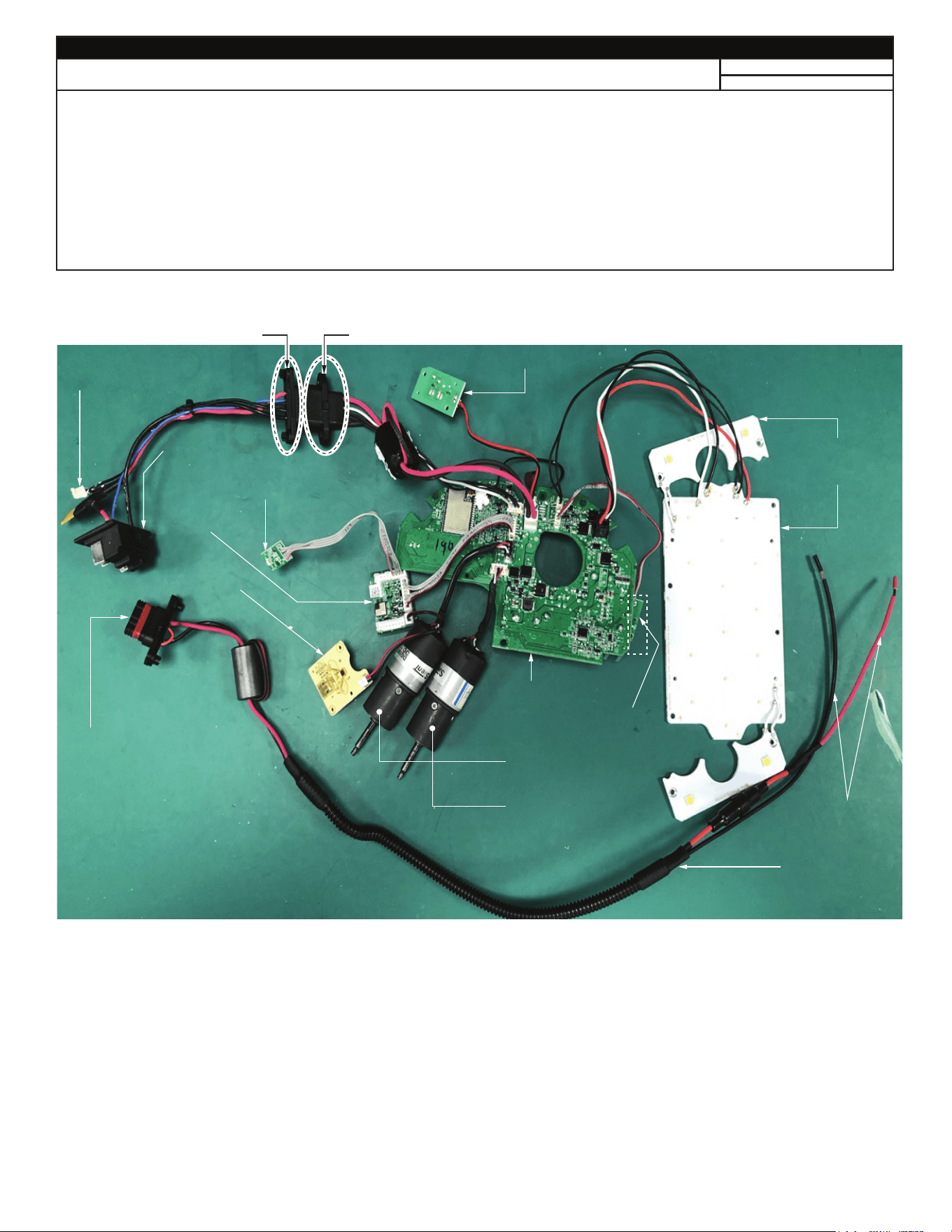

Flood Lamp PCBA
Spot Lamp PCBA
Vehical Base Cord
Main PCBA
Pairing Button PCBA
(partially hidden)
Horizontal Position
Motor
Vertical Position Motor
Battery Terminal
Connector Block
Bluetooth Indicator
Bluetooth
Module
Coin Cell
Battery PCBA
Home Position Sensing PCBA
This end of Vehicle Base Cord
connects to Light
Connects to Switches
on Magnetic Base
Connects to
External 12V
Connector from Magnetic Base Connector from Light

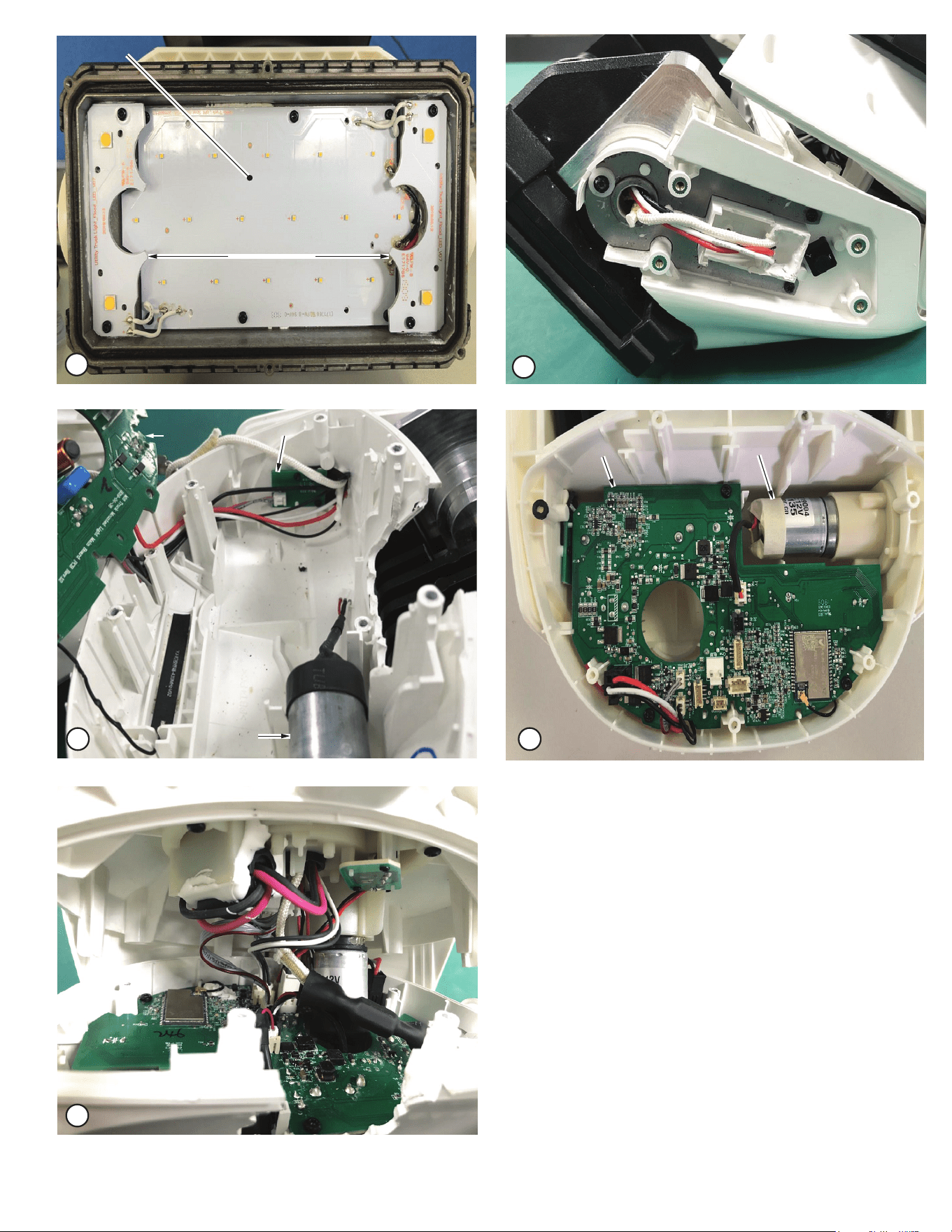

1
2
3
5
Spot PCBA
Flood PCBAs
4
Main PCBA Motor
Pairing Button PCBA
Main
PCBA
Motor
Vehical Base Cord
Coin Cell
Battery PCBA

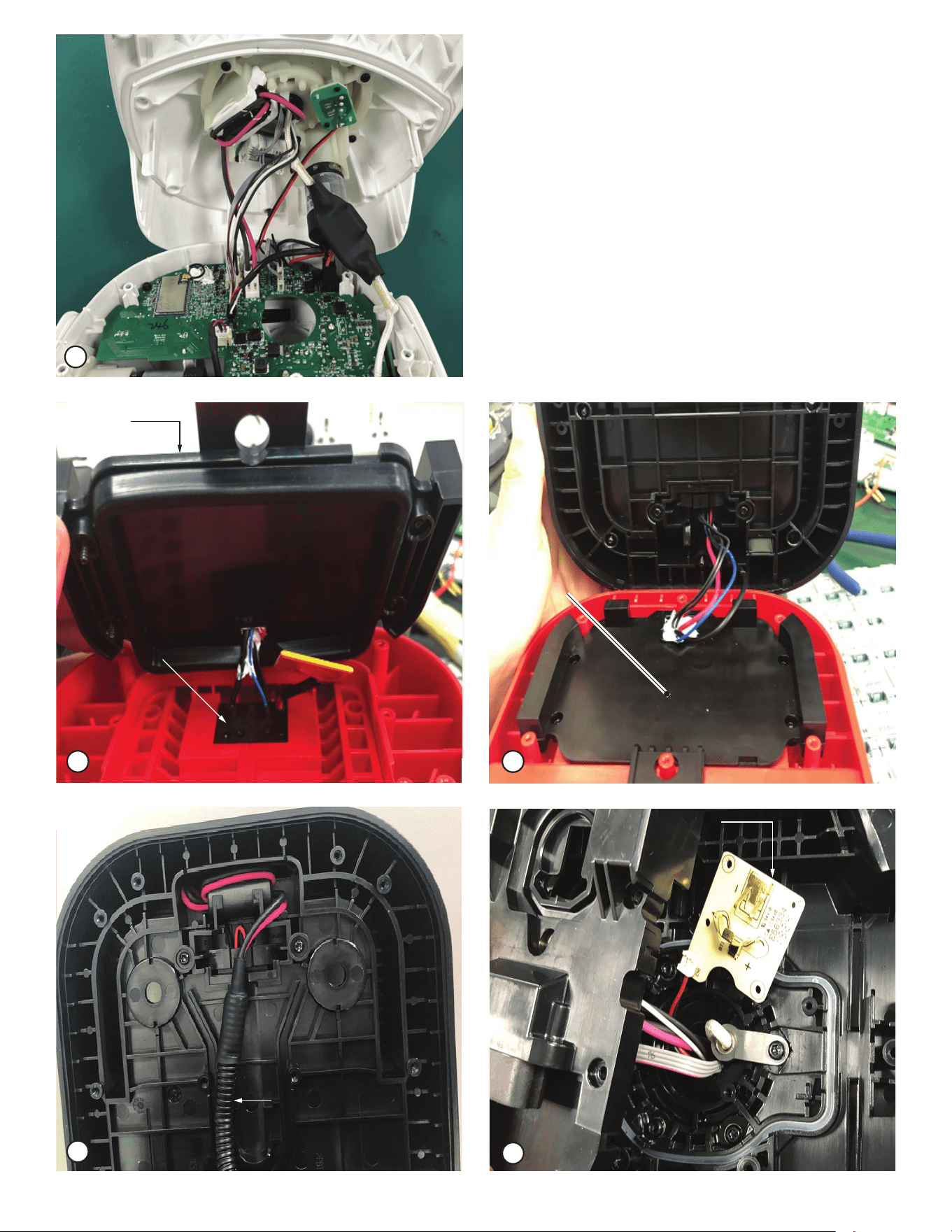

6
7
8
9
10
Battery Terminal
Connector Block
Base Car
Battery Cover
Base Car
Battery Cover
