IMPORTANT SAFETY INSTRUCTIONS
2
IMPORTANT SAFETY INSTRUCTIONS
SETUP
Initial Inspection:
• Carefully inspect the solar panel for any damage or imperfections upon receipt.
• This guide provides instructions for installing and using the product. If you have any
questions about the product, please contact XtremepowerUS.
Assembly Precaution:
• Securely hand-tighten the nut attaching the copper component to the solar panel to
ensure a stable connection.
ADDITIONAL NOTES
Packaging Preservation:
• Keep the original packaging and inserts for safe storage during periods when the
ionizer is not in use.
ATTENTION: This manual contains important information regarding the assembly, operation, and safe use of
this product. It is essential to provide this manual to the end user of the product. Failure to read and follow all
instructions could lead to severe injuries.
USE OF NON-XTREMEPOWERUS REPLACEMENT PARTS VOIDS WARRANTY
OVERVIEW (PRODUCT INFORMATION)
2
OVERVIEW (PRODUCT INFORMATION)
3
OVERVIEW (PRODUCT INFORMATION)
IONIZER INFORMATION
Solar Ionizer Overview:
• Function: Disintegrates matter at the atomic level, used for water purification.
• Historical Practice: Ionization used for thousands of years, especially with copper
and silver containers.
• Technology: Utilizes a small electrical charge to energize electrodes, enhancing the
ionization process.
Working Mechanism:
• Electrodes: Composed of copper/silver or silver/copper/zinc.
• Efficiency: Superior efficacy with chlorine at 0.2 to 0.4 PPM versus chlorine alone.
• Durability of Ions: Ions remain in the water for extended periods, don't evaporate
under extreme conditions.
Safety and Compliance:
• Mineral Safety: Safe and essential for human consumption.
• Fish Pools: Safe for use, effectively maintains pool hygiene in fish-inhabited waters.
Longevity and Maintenance:
• Lifespan: Engineered for durability to match the swimming pool's lifetime.
• Electrodes: Consumable, replaceable as needed over time.
Usage Guidelines:
• Continuous Operation: Unneeded and not recommended to minimize electrode
wear.
• Initial Activation: Daily deployment is necessary to reach the necessary ion levels.
• Routine Maintenance: Several days each week are adequate after the initial period.
• Adverse Conditions: Use more frequently in larger pools or during harsh weather.
• Safety During Use: It is completely safe to swim while the ionizer operates in the
water.
Pool Cover and Solar Ionizer Functionality:
• The solar ionizer requires direct sunlight to function correctly.
• If your pool is covered, ensure the unit can access sunlight by tethering it to a spot
where the cover is lifted or cutting a small hole in the cover for the unit.
OVERVIEW (PRODUCT INFORMATION)
OVERVIEW (PRODUCT INFORMATION)
2
OVERVIEW (PRODUCT INFORMATION)
4
Addressing Green Pool Water:
• Heavy rain or overcast days can imbalance water due to lack of sunlight for
ionization.
• To correct the issue, administer a pool shock treatment, operate the filter for an
extended period, and let the water regain its balance.
• Avoid excessive chemicals as they may worsen the situation.
Correct Number of Units for Pool Size:
• It is important to have the appropriate number of ionizer units based on the pool's
volume.
• A single unit is suitable for pools up to 22,000 gallons; pools exceeding this size will
need more units for effective performance.
Managing High pH Levels:
• The recommended pH range for the Chlorine-Free Sun Shock is now 7.2-7.8.
• The device operates efficiently even at higher pH levels; avoid unnecessary pH
adjustments if within this range.
• Focus on maintaining adequate ion levels and minimize chlorine use to keep water
clear.
• Allow the water to naturally find its balance without forcing conditions.
IONIZER INFORMATION (CONTINUED)
OVERVIEW (PRODUCT INFORMATION)
2
OVERVIEW (PRODUCT INFORMATION)
5
COPPER TEST STRIPS INFORMATION
Overview of Copper Test Strips:
• Copper test strips are optional and not essential for monitoring.
• High copper levels are not considered hazardous.
Accuracy of Copper Test Strips:
• Test strip readings may be inaccurate due to the presence of other minerals or
chemicals in the water.
• Natural minerals in the local water supply can affect readings—this is a normal
occurrence.
Interpreting Copper Test Strip Readings:
• Difficulty in obtaining accurate readings from copper test strips is common.
• If readings are low or zero, it might be due to interference from other substances in
the water.
• Reducing chlorine levels is advised if the pool remains clear despite these readings.
Action Steps for Clear Pool Water with No Copper Reading:
• The sensitivity of copper test strips may lead to incorrect readings for various
reasons, including remnants of previous chemicals or local water treatment
substances.
• Zero copper readings with clear pool water suggest the Solar Pool Ionizer is
successfully maintaining pool cleanliness.
• Clear water is a sign that the ionizer is functioning properly, and there's no need for
concern over the absence of copper readings.
OVERVIEW (PRODUCT INFORMATION)
2
OVERVIEW (PRODUCT INFORMATION)
6
SOLAR IONIZERS VS. CHLORINE
Safety and Environmental Impact:
Topic
Eye Irritation
Skin Irritation
Swimwear Damage
Cancer Risk
Trihalomethanes Production
Lung Harm
Skin Absorption
Benzene Formation
Strong Odor
Environmental Harm
Handling Hazard
Evaporation
Corrosion
Surface Damage
Stabilizer Need
Concern
Causes eye irritation?
Leads to skin irritation?
Damages or fades swimwear?
Associated with cancer risk?
Produces trihalomethanes?
Harmful to lungs?
Absorbed through skin?
Creates benzene in PVC?
Emits strong odor?
Environmentally harmful?
Storage/handling hazardous?
Evaporates easily?
Corrodes equipment/accessories?
Damages stucco or paint?
Requires cyanuric acid?
Chlorine
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Solar Ionizer
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
207.7 mm
8.18”
26.0 mm
1.02”
Ø 198.9 mm
Ø 7.83”
Ø 59.2 mm
Ø 2.33”
145.8 mm
5.74”
85.1 mm
3.35”
OVERVIEW (PRODUCT INFORMATION)
2
OVERVIEW (PRODUCT INFORMATION)
7

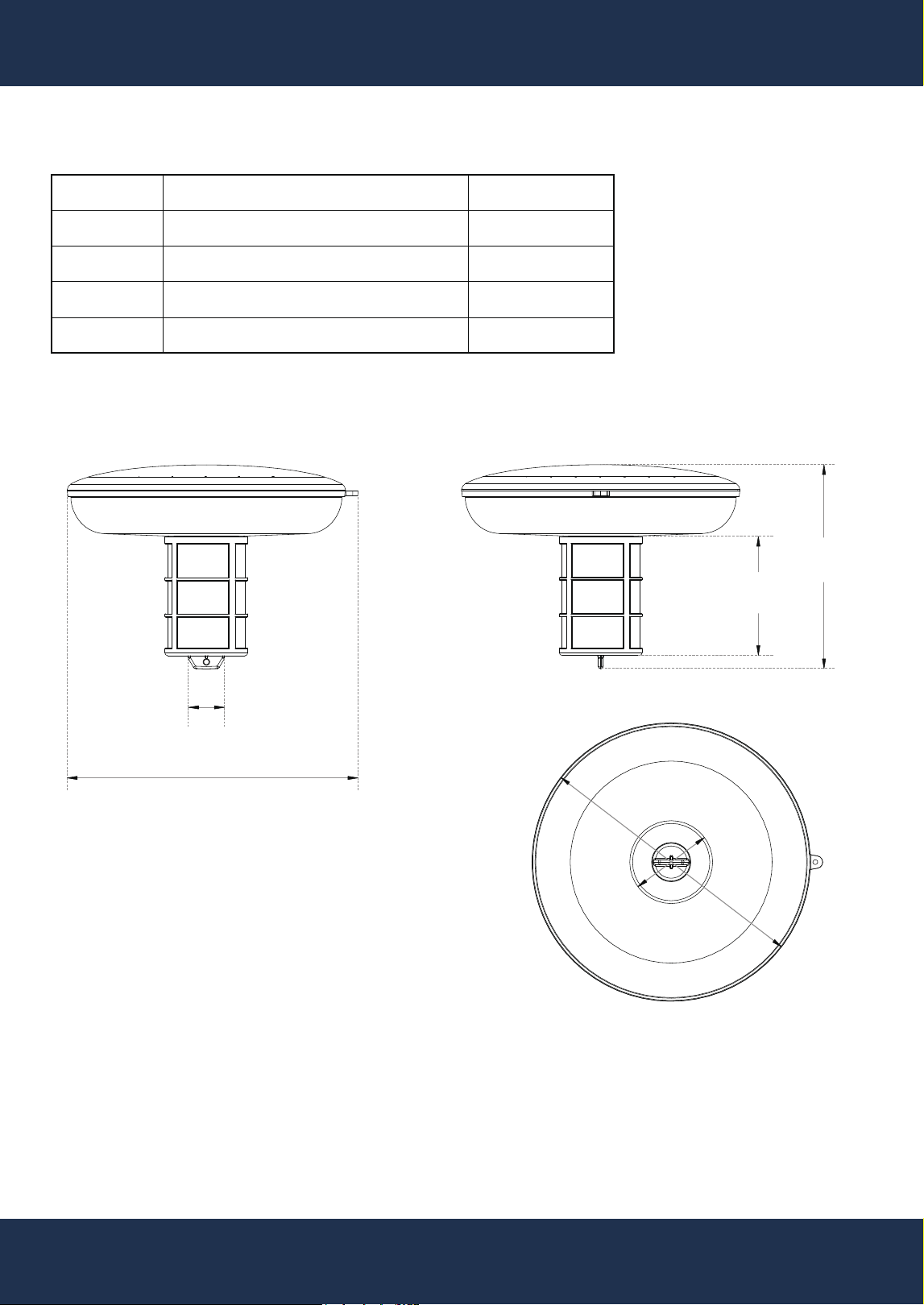

PRODUCT DIMENSIONS
PACKAGING CONTENTS
Qantity
1
1
1
1
Item
1
2
3
4
Description
Cleaning Brush
Copper Test Kit
Copper Assembly
Solar Panel
6
OVERVIEW (PRODUCT INFORMATION)
2
ASSEMBLY & OPERATION
8
ASSEMBLY INSTRUCTION
Electrode Assembly:
• Fit the silicone gasket and copper rods to the base of the solar panel. Secure the
copper rods firmly.
Spring Placement:
• Place the compression spring over the copper rods.
Filter Cover Installation:
• Position the filter cover over the compression spring.
Filter Cover Securing:
• Tighten the filter pressure ring to fix the filter cover in place.
Flotation Verification:
• Make sure the flotation device is correctly attached.
Safety Inspection:
• Double-check that all components are firmly in place.
OPERATION INSTRUCTION
ASSEMBLY & OPERATION
Check Pool Conditions:
• Ensure the pool is ready for the ionizer.
Deploy Ionizer:
• Place the solar ionizer into the pool.
Verify Position:
• Make sure the ionizer is floating properly.
Activate Pool Cleaning:
• After 12 hours, start the pool's cleaning system.
• After 24 hours, check that the ionizer is functioning as expected.
Maintenance:
• Electrode Care: Clean the electrode every 15 days with the supplied cleaning brush.
• Copper Monitoring: Weekly check of copper levels is recommended.
• Ionizer Adjustment:
◦ If copper levels rise above 0.9 PPM, remove the ionizer to maintain water clarity.
◦ Reinsert the ionizer when copper levels fall below 0.4 PPM.
1
2
3
4
5
6
Item Part. No
1
2
3
4
5
6
5245035000
5759054000
5434063000
647019571000
47019503933
47019103933
Copper Rod
Compression Spring
Filter Cover
Silicone Gasket
Copper Ion Components
Description QTY
1
1
1
1
1
1Filter Pressure Ring
6
29
OVERVIEW (PRODUCT INFORMATION)REPLACEMENT PARTS

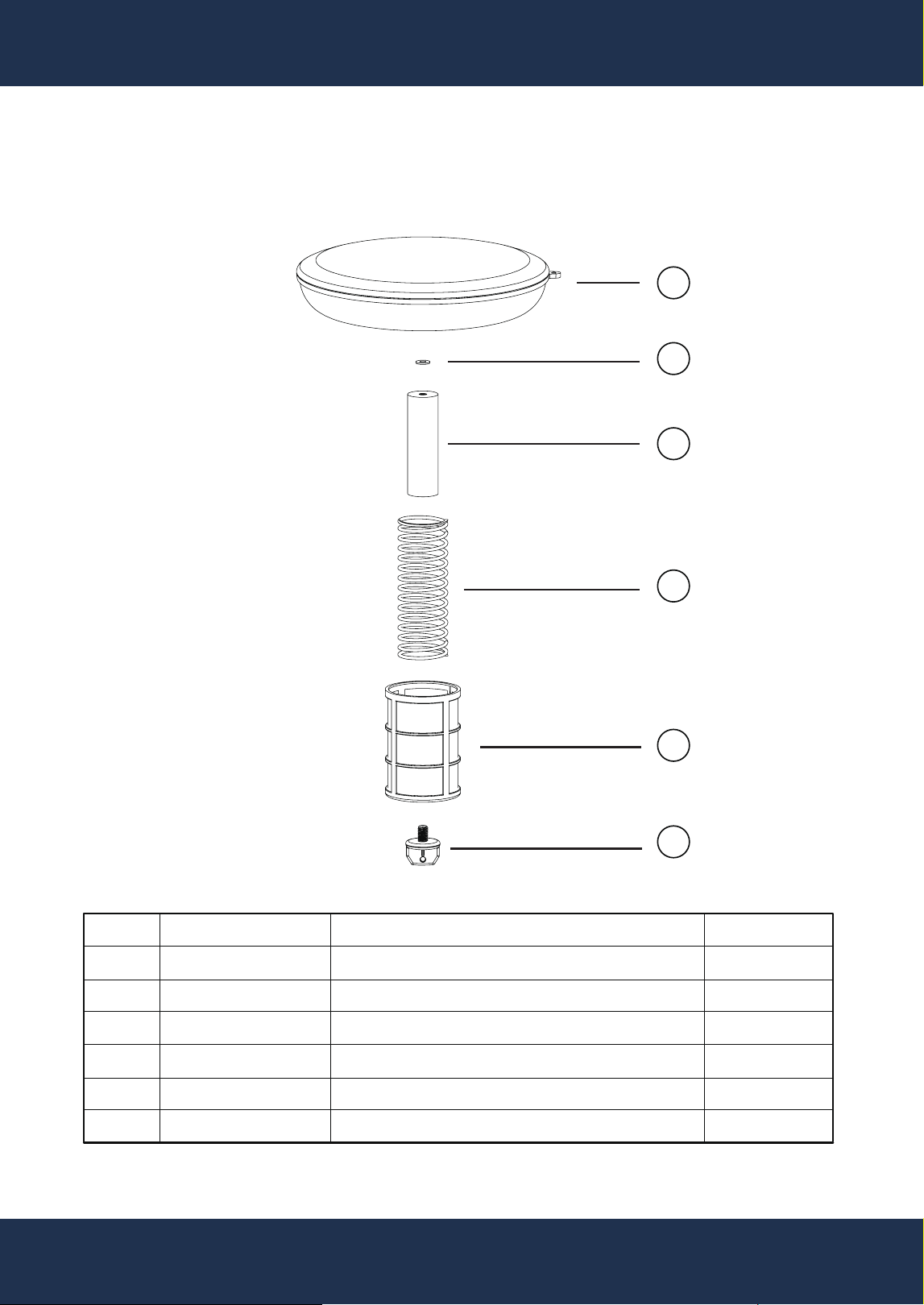

PARTS DIAGRAM
REPLACEMENT PARTS
DISCLAIMER
OVERVIEW (PRODUCT INFORMATION)DISCLAIMER
6
210
CUSTOMER SERVICE
If you have any questions about ordering our outdoor furnitures and replacement parts or other furniture
products, please feel free to contact us using the following contact information:
Customer Service and Technical Support
Phone: (909) 628-0880
Email: [email protected]
Hours of Operation: Monday – Friday, 9AM – 4PM (CST)
PLEASE READ THE FOLLOWING CAREFULLY
The manufacturer and/or distributor have provided the parts list and assembly diagram in this manual for
reference purposes only. They do not make any representation or warranty to the buyer that they are qualified
to make repairs to the product or replace any parts of the product. In fact, the manufacturer and/or distributor
expressly state that all repairs and parts replacements should be undertaken by certified and licensed
technicians, and not by the buyer.
The buyer assumes all risk and liability arising from their repairs to the original product or replacement parts
or arising from their installation of replacement parts. It is strongly advised that qualified professionals handle
any repairs or replacements to ensure safety and proper functioning of the product. Improper installation and
operation may result in injury, property damage, or voiding of warranty. The manufacturer and/or distributor
shall not be held responsible for any accidents, damages, or malfunctions resulting from the buyer's
installation and operation of the product. It is essential to follow all safety guidelines and recommendations
provided in this manual and to seek professional assistance if unsure about the installation or operation
procedures.
