©2025 TP-Link 1900000431 REV1.0.0
User Guide
Smart HomeBase
Contents
About This Guide ······························································································································· 1
Introduction ·········································································································································· 2
Install Hard Drive ································································································································ 6
Set Up Your HomeBase ·················································································································· 8
Use Your HomeBase ························································································································ 9
Check/Manage Connected Devices ··················································································· 10
Storage Settings ····························································································································· 17
AI Empowerment ···························································································································· 18
Camera Playback ···························································································································· 19
Screen Mirror ···································································································································· 20
USB Access ······································································································································· 22
Manage Device Settings ············································································································ 23
Reset Your HomeBase ················································································································· 28
Authentication ·································································································································· 31
1
About This Guide
This guide provides a brief introduction to the Smart HomeBase and the Tapo app, as well as regulatory information.
Please note that features available in Tapo may vary by model and software version. Tapo availability may also vary by region. All images, steps, and
descriptions in this guide are only examples and may not reect your actual Tapo Camera experience.
Conventions
In this guide, the following convention is used:
Convention Description
Blue
Key information appears in blue, including management page text such as menus, items, buttons and so on.
Underline
Hyperlinks are in blue and underlined. You can click to redirect to a website.
Note:
Ignoring this type of note might result in a malfunction or damage to the device.
More Info
• Specications can be found on the product page at https://www.tapo.com.
• Our Technical Support and troubleshooting information can be found at https://www.tapo.com/support/.
• Setup video can be found at https://www.tp-link.com/support/setup-video/#smart-hub.
2
Introduction
Smart living starts here with up to 64 smart sensors + 16 cameras or video doorbells connected to your smart home ecosystem.
• Local Storage – With 16GB of built-in storage, expandable up to16TB via an
additional hard drive, you can store massive video clips locally. Save money by
avoiding extra SD cards and monthly fees for your security cameras.
• 4-Channel Live View – Watch live views and playback on your phone or pad, or
monitor up to 4 channels in real-time on a large screen via the HDMI port.
• Enhanced Smart AI Detection – Provides multiple free enhanced AI functions such
as facial recognition, person & pet & vehicle detection, and more. Eectively lters
invalid alerts from non-human and non-vehicle sources.
• Multi-layer Encryption – Use multi-layer encryption technology like AES 128-bit and
TLS 1.2 encryption protocols, and store videos locally to keep your privacy safe.
• Home Security at Ease – Real-time viewing, event playback, and daily summary
viewing of all connected cameras on an app page. Quickly nd the events you want
by tag.
• Facial Recognition – Identies strangers, family, and friends, categorizing them to
trigger alarms selectively, enhancing accuracy and minimizing false alarms.
• AI Empowerment – Empower your compatible cameras and doorbells with enhanced
AI capability like facial recognition, providing a higher level of security and elevated
user experience.
• Oine Recording – Enjoy secure oine storage for all recordings, ensuring your data
remains intact even during network interruptions.
• USB Sharing – Share recorded videos with other devices on your network.
3
Appearance
Back
1
Type-C Port
5V/1.5A type-C port for charging your devices (e.g.,
battery-powered cameras). This port cannot transfer any data.
2
USB 2.0 Port
5V/0.5A USB port for exporting data to another device.
3
HDMI Port
Output port for high-denition audio and video signals. You can
connect it to a TV or monitor to project camera videos.
Connect to a router or a switch using an Ethernet cable.
4
LAN Port
5
RESET
Press and hold for 10 seconds to restore factory default settings.
7
Speaker
6
12V/2A Power Port
1 2 3 5 64
7
4
Front
13
Status LED
12
Pad Holder
Easily place your pad here.
14
LAN LED
15
Disk LED
9
Answer/SYNC Button
10
Decline/Mute Button
Decline the video call, or silence the alarm.
11
Volume Button
Volume up or down.
Press once: Answer the video call.
Press and hold for 3 seconds: Enter pairing mode.
8
Microphone
Switch to the previous or next channel when using HDMI output.
9 11
9
8
10 11 12
13 14
15
5
Status LED Indications
Blinking red and green
Blinking red quickly
Solid red
Blinking green quickly
O
Starting up
Connecting to Wi-Fi
HomeBase resetting
HomeBase updating
Pairing
HomeBase powered o
Blinking red slowly
Blinking amber slowly
Ready for setup
Blinking green slowly
Connected to Wi-Fi (Wireless)
Connected to router (Ethernet)
Solid green Connected to the cloud
Disconnected from router
Ethernet network working properly
LAN LED Indications
On
O Ethernet cable not connected
Disk LED Indications
Solid green
Hard drive working properly
Solid red Hard drive malfunction
No hard drive connectedO
6
Install Hard Drive
Install an extra HDD/SSD drive (2.5“) to expand local storage.
Note:
1. Back up all the data on your hard drive before installation as Tapo may need to format your hard drive.
2. The HomeBase must be powered o when you install or remove a hard drive.

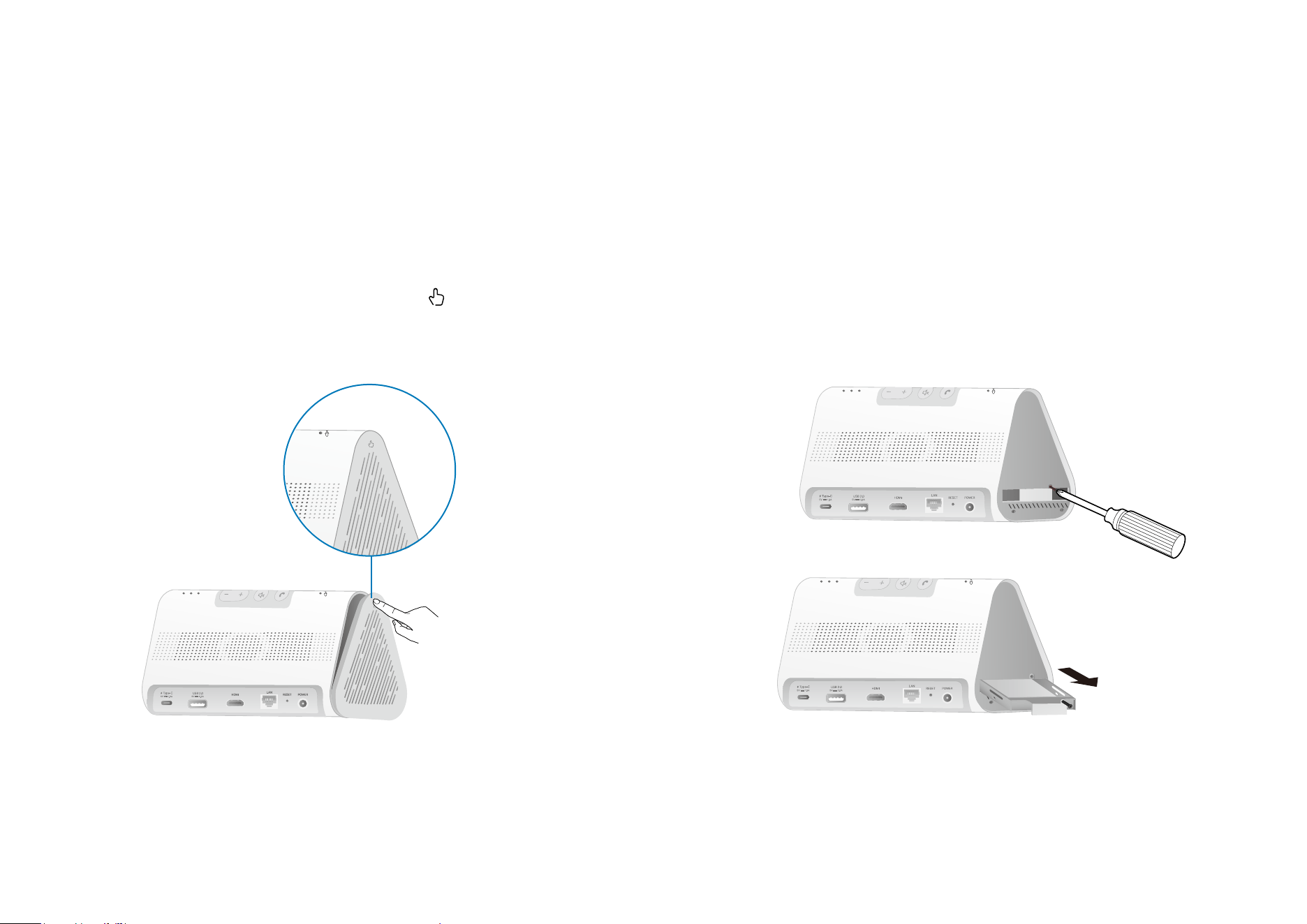

1. Push down the cover to remove it. The sign shows the
place where you should press.
2. Loosen the screw and pull out the hard drive bracket.
7

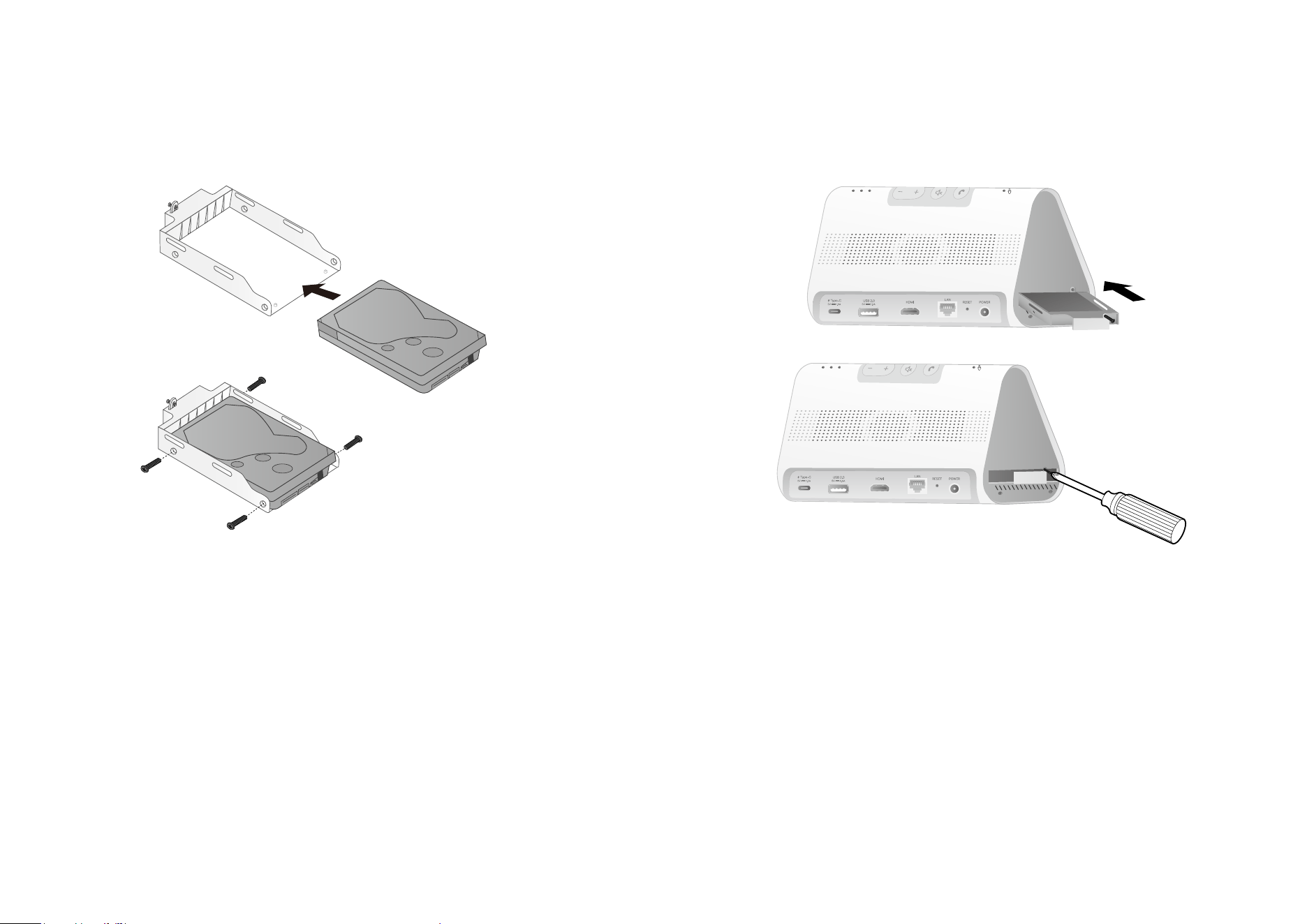

3. Put in your hard drive and secure it with the provided
screws.
4. Insert the bracket back into the HomeBase. Secure it with
the screw. Then replace the cover.
Note: Initialize the hard drive in the Tapo app.
8
Set Up Your HomeBase
Follow the steps below to set up your HomeBase.
Step 1. Download Tapo App
Get the Tapo app from the App Store or
Google Play, or by scanning the QR code
below.
Step 2. Log In
Open the app, and log in with your TP-Link ID.
If you don't have an account, create one rst.
Step 3. Add Your HomeBase
Tap the button in the app, select Hubs/
HomeBase and then your model. Follow the
app instructions to set up your HomeBase
and add accessories to it.
9
Use Your HomeBase
After setup, your device will be listed on the Home page. You can tap your device to manage it.
1. Home Page
You can check your battery, favorite/unfavorite, and remove
your device on the Home page.
2. Status Page
Check/manage connected devices, check facial recognition report,
have access to the storage, AI Empowerment, USB access, screen
mirror, camera playback, and ring log. You can also play the ringtone
on this page.
10
Check/Manage Connected Devices
Check/manage what devices are connected to your HomeBase.
1. Check Connected Devices
Tap the Connected Devices card. The connected devices are categorized into two types: paired devices and accessible devices.
Paired Devices: Sub-G devices like sensors and cameras/doorbells that need to be bridged through the HomeBase to connect to the Wi-Fi network.
Accessible Devices: Cameras/doorbells that only utilize the storage or the hotspot of your HomeBase. They can be AI empowered by the HomeBase to
enhance their AI capabilities.
11
2. Add Connected Devices
Tap the + icon. Choose what devices you want to add to the HomeBase.
Set Up a New Device: Set up a new Tapo or third-party Matter device.
Connect Existing Devices: Bind your existing camera/doorbell to the HomeBase for the HomeBase storage and AI Empowerment.
12
3. Manage Matter Devices
Tap Manage Matter Devices at the bottom. You can manage your third-party Matter devices that have been added to Tapo.
13
Facial Recognition
The HomeBase can recognize faces captured by the connected cameras and track their activities.
1. Manage Familiars and Strangers
Tap the Facial Recognition card. You can add or delete familiars, delete strangers in batch, and check their activities.
14
2. Check Facial Recognition Report
You can check the daily/weekly/monthly activities detected of the familiars and strangers. You can set whether to receive the facial recognition report
notications and the notications frequency.
15
3. Check Devices with Facial Recognition Enabled
Tap Eective Devices and then you can see the cameras/doorbells with Facial Recognition enabled. There devices are AI empowered to support Facial
Recognition.
16
4. Facial Recognition Notications Settings
Ta p Recognition Notications and then you can see the cameras/doorbells with Facial Recognition enabled. There devices are AI empowered to
support Facial Recognition.
17
Storage Settings
The connected cameras/doorbells can leverage the HomeBase's storage to store recorded videos.
Manage HomeBase Storage
Tap the Storage card. Check how much storage space is used, information of the hard drive, and what devices are using HomeBase's storage. You can
also enable Loop Recording to let new recordings overwrite previous recordings.
18
AI Empowerment
Enhance the AI capabilities of the connected cameras/doorbells with AI Empowerment.
Enhance Your Cameras/Doorbells
Tap Add Devices and select the cameras/doorbells to be enhanced.
Tap your AI-empowered devices to select the empowered detection types.
19
Camera Playback
Play back videos recorded by the connected cameras.
Check Camera Playback
Select your cameras and play back the recordings.
20
Screen Mirror
Cast your cameras to a TV or monitor and create dashboards to for easier management.
Explore Screen Mirroring Capabilities
Cast your cameras to a TV or monitor for streamlined management via dashboards.
21
Start HDMI Screen Mirroring
Use an HDMI cable to connect your HomeBase to your streaming device like a TV or monitor. Make sure you have selected the HDMI input on your
streaming device. Then tap HDMI Mirror and follow app instructions to start mirroring your cameras.
22
USB Access
Connect a USB device to back up or share the recorded videos.
Back Up & Share Videos
Tap Start a New Backup. Select your camera to be backed up, what types of videos within what time range will be backed up.
Tap Share Now to share videos of a USB device to others on the internet.
23
Manage Device Settings
Go to the Device Settings page and congure the settings as you need.
1. Set Ringtones
Set the ringtone and its playing duration.
24
2. Check Network Connection
Check whether your HomeBase is connected to a Wi-Fi network or to your router via an Ethernet cable.
You can also test Wi-Fi signal and switch to another Wi-Fi network.
25
3. Bind to Matter
Add your HomeBase and its connected devices to other Matter-compatible ecosystems via a setup code. Please complete pairing before the
countdown ends. If timed out, revisit this page and then try again.
26
4. Smart Actions
Tapo provides recommended Automation templates for your HomeBase to simplify your daily routine.
You can also check the already congured smart actions that your HomeBase is involved in.
27
5. Auto Reboot
When enabled, your HomeBase will reboot automatically at your specied time.
28
Reset Your HomeBase
There are three ways to reset your HomeBase.
Method 1. Remove Device on the Device Settings Page
Go to the Device Settings page. Tap Remove down below.
29
Method 2. Remove Device on the Home Page
Go to the Home page. Long press your device card and then tap .
30

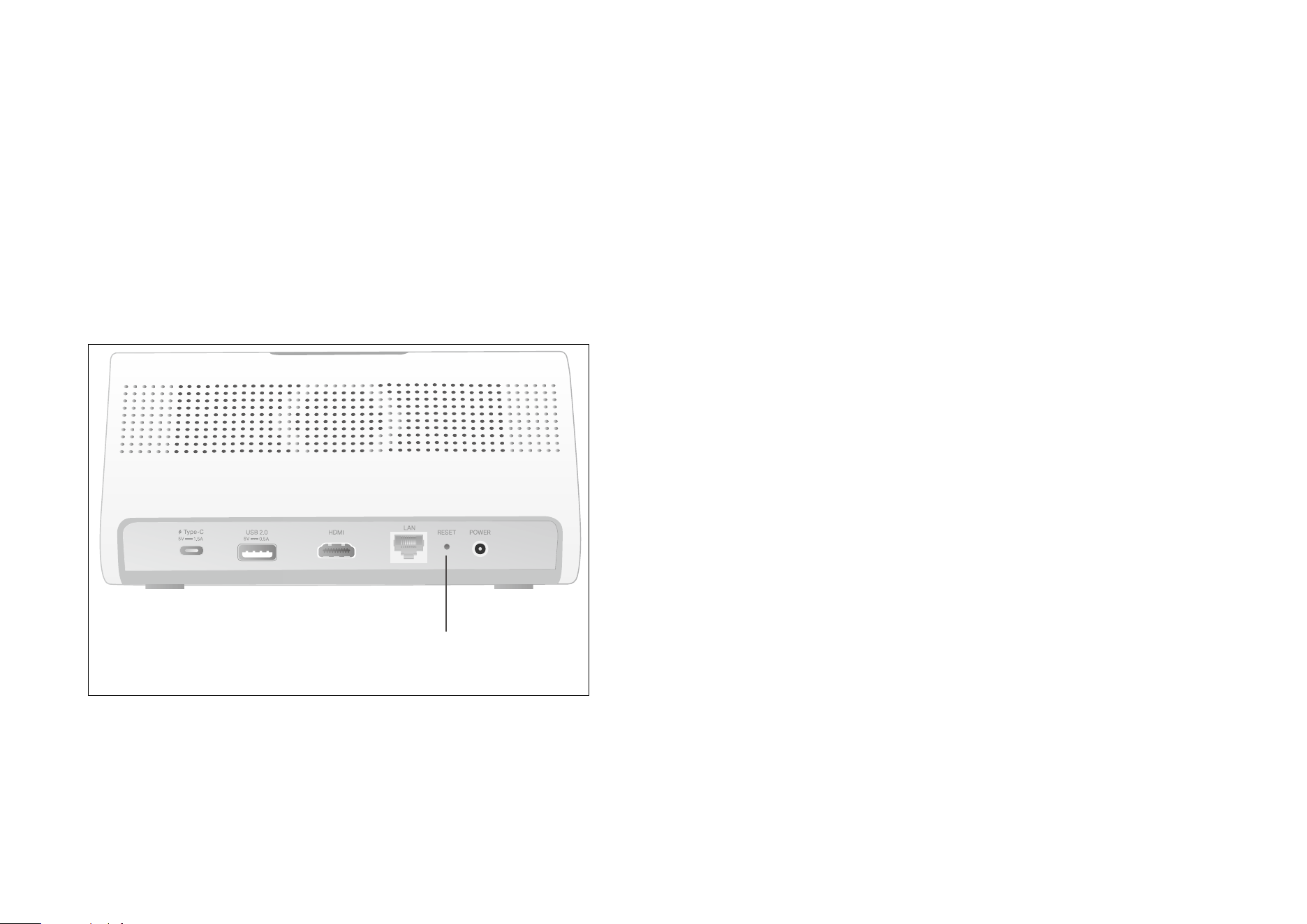

Method 3. Press the Reset Button on the HomeBase
Locate the Reset button at the back panel of your HomeBase. Use a pin to press and hold the Reset button for 10 seconds to restore factory default
settings.
Reset
31
Authentication
FCC compliance information statement
Product Name: Smart HomeBase
Model Number: Tapo H500
Component Name Model
I.T.E. Power T120200-2B4
Responsible Party:
TP-Link Systems Inc.
Address: 10 Mauchly, Irvine, CA 92618
Website: http://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: [email protected]om
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
32
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications
could void the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be
co-located or operating in conjunction with any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter.”
We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards,
FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
Issue Date: 2024-10-28
33
FCC compliance information statement
Product Name: I.T.E. Power
Model Number: T120200-2B4
Responsible Party:
TP-Link Systems Inc.
Address: 10 Mauchly, Irvine, CA 92618
Website: http://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: [email protected]om
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications
could void the user’s authority to operate the equipment.
34
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be
co-located or operating in conjunction with any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter.”
We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards,
FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
Issue Date: 2024-10-28
35
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take
adequate measures.
OPERATING FREQUENCY (the maximum transmitted power)
2400MHz~2483.5MHz / 20dBm
5150 MHz -5250 MHz / 23dBm
5250 MHz -5350 MHz / 23dBm
5470 MHz -5725 MHz / 23dBm
EU Declaration of Conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU,
2009/125/EC, 2011/65/EU and (EU)2015/863.
The original EU Declaration of Conformity may be found at https://www.tapo.com/en/support/ce/.
RF Exposure Information
This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way
of health protection.
The device complies with RF specifications when the device used at 20 cm from your body.
Frequency band: 5150 - 5250 MHz:
Indoor use: Inside buildings only. Installations and use inside road vehicles and train carriages are not permitted. Limited outdoor use: If used outdoors,
equipment shall not be attached to a fixed installation or to the external body of road vehicles, a fixed infrastructure or a fixed outdoor antenna. Use
by unmanned aircraft systems (UAS) is limited to within the 5170 - 5250 MHz band.
Frequency band: 5250 - 5350 MHz:
Indoor use: Inside buildings only. Installations and use in road vehicles, trains and aircraft are not permitted. Outdoor use is not permitted.
Frequency band: 5470 - 5725 MHz:
36
Installations and use in road vehicles, trains and aircraft and use for unmanned aircraft systems (UAS) are not permitted.
AT BE BG CH CY CZ DE DK
EE EL ES FI FR HR HU IE
IS IT LI LT LU LV MT NL
NO PL PT RO SE SI SK UK(NI)
UK
Attention: This device may only be used indoors in Great Britain.
UKCA Mark
UK Declaration of Conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment
Regulations 2017.
The original UK Declaration of Conformity may be found at https://www.tapo.com/support/ukca/.
Canadian Compliance Statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-
exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement
économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
1. l’appareil ne doit pas produire de brouillage;
2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement
37
Caution: The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel
mobile satellite systems;
Avertissement: Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une utilisation à l’intérieur afin de réduire les
risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être
installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
Industry Canada Statement
CAN ICES-3 (B)/NMB-3(B)
Korea Warning Statements:
당해 무선설비는 운용중 전파혼신 가능성이 있음.
38
NCC Notice & BSMI Notice
注意！
取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前述合法通信，指依電信管理法規定作業之無線電通信。
低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
應避免影響附近雷達系統之操作。
安全諮詢及注意事項
• 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
• 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
• 注意防潮，請勿將水或其他液體潑灑到本產品上。
• 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
• 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
• 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。
限用物質含有情況標示聲明書
設備名稱：Tapo 智慧網關 型號（型式）：Tapo H500
Equipment name Type designation (Type)
單元
Unit
限用物質及其化學符號
Restricted substances and its chemical symbols
鉛
Lead
(Pb)
汞
Mercury
(Hg)
鎘
Cadmium
(Cd)
六價鉻
Hexavalent chromium
(Cr
+6
)
多溴聯苯
Polybrominated biphenyls
(PBB)
多溴二苯醚
Polybrominated diphenyl ethers
(PBDE)
PCB ○ ○ ○ ○ ○ ○
外殼 ○ ○ ○ ○ ○ ○
39
電源供應器 − ○ ○ ○ ○ ○
其他及其
配件
− ○ ○ ○ ○ ○
備考 1.〝超出 0.1 wt %〞及〝超出 0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準值
Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance
exceeds the reference percentage value of presence condition.
備考 2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。
Note 2：“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value
of presence.
備考 3.〝−〞係指該項限用物質為排除項目。
Note 3：The “−” indicates that the restricted substance corresponds to the exemption.
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам,
що передбачені чинними законодавчими актами України.
40
Safety Information
• Never touch the product with wet hands.
• Do not disassemble, repair or modify the product.
• Do not use the device where wireless devices are not allowed.
• Do not use the product if the casing has been broken. Danger of electric shock.
• Keep the device away from water, fire, humidity or hot environments.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.
• Do not use the device where wireless devices are not allowed.
• Adapter shall be installed near the equipment and shall be easily accessible.
• Do not place near automatically controlled devices such as fire alarms. Radio waves emitted from this product may cause such devices to
malfunction resulting in an accident.
• Observe restrictions on using wireless products in fuel depots, chemical plants or when blasting operations are in progress.
• Do not use liquid to clean the product. Only use a dry cloth.
• Never put metal objects inside the product. If a metal object enters the product turn off the circuit breaker and contact an authorised electrician.
• This product is not intended to be used when providing medical care. Consult the manufacturer of any personal medical devices, such as pacemakers
or hearing aids to determine if they are adequality shielded from external RF (radio frequency) energy.
• Do not use this product in health care facilities. Hospitals or health care facilities may be using equipment that could be sensitive to external RF
energy.
• Do not use this product near water for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
• The product should be kept free from excessive smoke, dust or high temperature and vibration.
• This product should not be exposed to direct sunlight
• Do not place heavy objects on top of the product.
• This product may interfere with other electronic products such as TV, radios, personal computers, phones or other wireless devices.
• This equipment shall be installed at a height of fewer than 2 meters when sticking to a clean wall.
41
a) Remove and immediately recycle or dispose of used batteries according to local regulations and keep away from children. Do NOT dispose of
batteries in household trash or incinerate.
b) Even used batteries may cause severe injury or death.
c) Call a local poison control center for treatment information.
d) This product includes button/coin cell batteries of type CR1220.
e) The nominal voltage of the button/coin cell batteries is 3.0 V.
f) Non-rechargeable batteries are not to be recharged.
g) Do not force discharge, recharge, disassemble, heat above (manufacturer’s specified temperature rating) or incinerate. Doing so may result in
injury due to venting, leakage or explosion resulting in chemical burns.
This product contains non-replaceable button/coin cell batteries. In order to avoid unnecessary danger, please do not attempt to remove and replace
the button/coin cell batteries.
Doorbell Operating Temperature: -20 °C ~ 45°C (-4°F ~ 113°F)
Chime Operating Temperature: 0 °C ~ 40°C (32°F ~ 104°F)
Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to
improper use of the device. Please use this product with care and operate at your own risk.
42
Explanation of the symbols on the product label
Note: The product label is on the bottom of the product. Symbols may vary from products.
Symbol Explanation
Class II equipment
Class II equipment with functional earthing
Alternating current
DC voltage
Polarity of output terminals
Indoor use only
Dangerous voltage
Caution, risk of electric shock
Energy efficiency Marking
Protective earth
Earth
43
Symbol Explanation
Frame or chassis
Functional earthing
Caution, hot surface
Caution
Operator’s manual
Stand-by
“ON”/”OFF” (push-push)
Fuse
Fuse is used in neutral N
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means
that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to
minimize its impact on the environment.
User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new
electrical or electronic equipment.
44
Symbol Explanation
Caution, avoid listening at high volume levels for long periods
Disconnection, all power plugs
m Switch of mini-gap construction
µ
Switch of micro-gap construction (for US version)
Switch of micro-gap / micro-disconnection construction (for other versions except US)
ε Switch without contact gap (Semiconductor switching device)
