User Manual

This is the main product document for model MAW24RV1CWT.

The file format is pdf, 44 pages, you can download this manual here .

background
MAW18RV1CWT
MAW24RV1CWT
background
2
THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
functions that your new air conditioner offers in a safe way.
CONTENTS
THANK YOU LETTER ....................................................................................... 2
Safety Precautions .......................................................................................... 3
Confirm your package contents .................................................................... 7
Before you get start ........................................................................................ 8
Install your product ......................................................................................... 9
Get to know your AC ......................................................................................18
Get to know the features ...............................................................................19
REMOTE CONTROL INSTRUCTIONS ........................................................... 21
Cleaning & maintenance ...............................................................................30
TROUBLESHOOTING ..................................................................................... 31
CONNECTION INSTRUCTIONS .................................................................... 33
WARRANTY .................................................................................................... 40
background
3
Safety Precautions
Must read the warning message.
Inside you will find many helpful hints on how to use and maintain your air condi-
tioner properly. Just a little preventive care on your part can save you a great deal
of time and money over the life of your air conditioner. You'll find many answers to
common problems in the chart of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call for service at all.
To prevent injury to the user or other people and property damage, the following
instructions must be followed.Incorrect operation due to ignoring of instructions
may cause harm or damage. The seriousness is classified by the following indica-
tions.
Explanation of Symbols
Warning
The signal word indicates a hazard with a medium level of risk which, if
not avoided, may result in death or serious injury.
Caution
The signal word indicates a hazard with a low degree of risk which, if
not avoided, may result in minor or moderate injury.
Never do this
The signal word indicates a hazard with a low degree of risk which, if
not avoided, may result in minor or moderate injury.
Always do this
This signal means that the operation can be performed.
WARNING
Plug in power plug properly. Otherwise, it may cause electric shock or fire due
to excess heat generation. Do not operate or stop the unit by inserting or pull-
ing out the power plug.It may cause electric shock or fire due to heat gener-
ation. Do not damage or use an unspecified power cord.It may cause electric
shock or fire. If the power cord is damaged, it must be replaced by the manu-
facturer or an authorised service centre or a similarly qualified person in order
to avoid a hazard.
Always install circuit breaker and a dedicated power circuit. Incorrect instal-
lation may cause fire and electric shock. Do not operate with wet hands or in
damp environment. It may cause electric shock . Do not direct airflow at room
occupants only. This could damage your health.
Always ensure e ective grounding.Incorrect grounding may cause electric
shock. Do not allow water to run into electric parts.It may cause failure of ma-
chine of electric shock. Do not modify power cord length or share the outlet
with other appliances. It may cause electric shock or fire due to heat genera-
tion.
Unplug the unit if strange sounds, smell, or smoke comes from it. It may cause
background
4
fire and electric shock. Do not use the socket if it is loose or damaged. It may
cause fire and electric shock. Do not open the unit during operation. It may
cause electric shock.
Keep firearms away. It may cause fire. Do not use the power cord close to heat-
ing appliances.It may cause fire and electric shock. Do not use the power cord
near flammable gas or combustibles, such as gasoline, benzene, thinner, etc. It
may cause an explosion or fire.
Ventilate room before operating air conditioner if there is a gas leakage from
another appliance. It may cause explosion, fire and, burns. Do not disassemble
or modify unit. It may cause failure and electric shock.
CAUTION
When the air filter is to be removed, do not touch the metal parts of the unit. It
may cause an injury.
Ventilate the room well when used together with a stove, etc. An oxygen short-
age may occur.
Do not use strong detergent such as wax or thinner but use a soft cloth. Ap-
pearance may be deteriorated due to change of product color or scratching
of its surface. Do not clean the air conditioner with water. Water may enter the
unit and degrade the insulation. It may cause an electric shock. Do not use for
special purposes. Do not use this air conditioner to preserve precision devices,
food, pets, plants, and art objects.lt may cause deterioration of quality, etc.
Stop operation and close the window in storm or hurricane. Operation with
windows opened may cause wetting of indoor and soaking of household furni-
ture. When the unit is to be cleaned, switch off , and turn off the circuit breaker.
Do not clean unit when power is on as it may cause fire and electric shock, it
may cause an injury.
Always insert the filters securely. It can be caused failure if operated without
filters. Please clean filter once every two weeks.
CAUTION
Hold the plug by the head of the power plug when taking it out. It may cause
electric shock and damage. Turn off the main power switch when not using the
unit for a long time. It may cause failure of product or fire.
Do not place obstacles around air-inlets or inside of air-outlet. It may cause
failure of appliance or accident. Do not place heavy object on the power cord
and ensure that the cord is not compressed. There is danger of fire or electric
shock. Don’t drink water drained from air conditioner. It contains contaminants
and could make you sick.
Use caution when unpacking and installing. Sharp edges could cause injury.
If water enters the unit, turn the unit off at the power outlet and switch o the
circuit breaker. Isolate supply by taking the power-plug out and contact a qual-
ified service technician.
This appliance is not intended for use by persons(including children) with re-
duced physical ,sensory or mental capabilities or lack of experience and knowl-
edge, unless they have been given super vision or instruction concerning use of
the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appli-
ance.
background
5

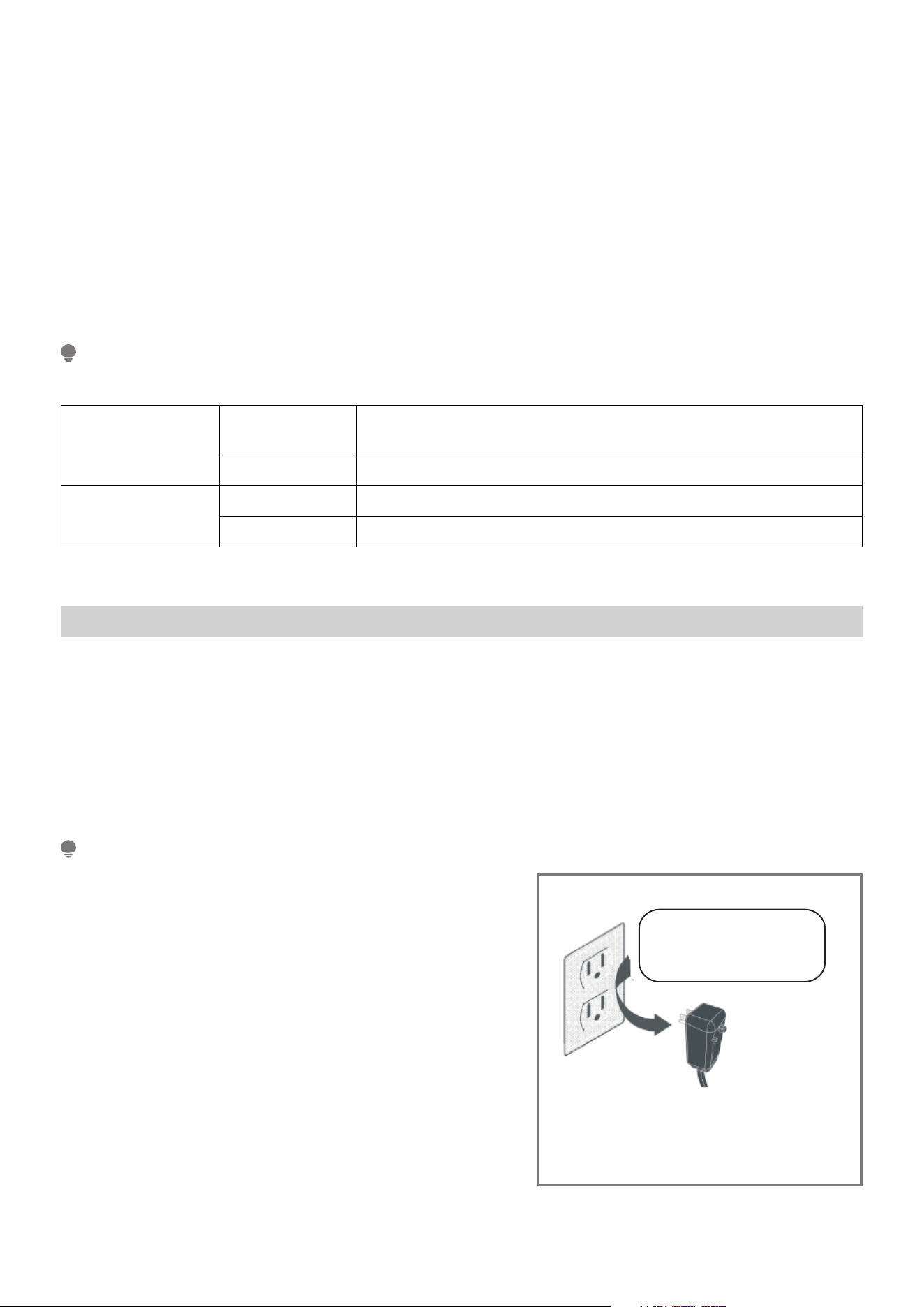

If the supply cord is damaged, it must be replaced by the manufacturer, its ser-
vice agent or similarly qualified persons in order to avoid a hazard.
The appliance shall be installed in accordance with national wiring regulations.
Installation must be performed in accordance with the requirement of NEC and
CEC by authorized personnel only.
Do not operate your air conditioner in a wet room such as a bathroom or laun-
dry room.
The appliance with electric heater shall have at least 1 meter space to the com-
bustible materials.
Contact the authorised service technician for repair or maintenance of this unit.
Contact the authorised installer for installation of this unit.
NOTE
This air conditioner is designed to be operated under the following conditions:
Cooling operation
Outdoor temp:
64-109
O
F/18-43
O
C
(64-125
O
F/18-52
O
C for special tropical models)
Indoor temp: 62-90
O
F/ 17-32
O
C
Heating operation
Outdoor temp: 23-76
O
F/-5-24
O
C
Indoor temp: 32-80
O
F/0-27
O
C
Note:Performance may be reduced outside of these operating temperatures.
Operation of Current Device
The power supply cord contains a current device that senses damage to the power
cord. To test your power supply cord do the following:
Plug in the Air Conditioner.
The power supply cord will have TWO buttons on the plug head. Press the
TEST button, you will notice a click as the RESET button pops out.
Press the RESET button again, you will notice a click as the button engages.
The power supply cord is now supplying electricity to the unit. (On some prod-
ucts this is also indicated by a light on the plug head).
NOTE
The power supply cord with this air condi-
tioner contains a current detection device
designed to reduce the risk of fire.
In the event that the power cord is damaged,
it cannot be repaired – it must be replaced
with a cord from the product manufacturer.
Do not use this device to turn the unit on or
off.
Always make sure the RESET button is
pushed in for correct operation.
The power supply cord must be replaced if
it fails to reset when either the TEST button
is pushed or if it cannot be reset. A new one
can be obtained from the product manufac-
turer.
Grounding type wall receptacle
Power supply cord with 3-prong
grounding plug and current
detection device.
Do not, under any
circumstances, cut,
remove, or bypass
the grounding prongs.
background
6
WARNING
Electrical Information
The complete electical rating of your new room air conditioner is stated on the se-
rial plate. Refer to the rating when checking the electrical requirements.
Be sure the air conditioner is properly grounded. To minimize shock and fire
hazards, proper grounding is important. The power cord is equipped with a
three-prong grounding plug for protection against shock hazards.
Your air conditioner must be used in a properly grounded wall receptacle. If the
wall receptacle you intend to use is not adequately grounded or protected by a
time delay fuse or circuit breaker, have a qualified electrician install the proper
receptacle. Ensure the receptacle is accessible after the unit installation.
Do not run air conditioner without side protective cover in place.This could re-
sult in mechanical damage within the air conditioner.
Do not use an extension cord or an adapter plug.
Avoid fire hazard or electric shock. Do not use an extension cord or an adapter
plug. Do not remove any prongs from the power cord.
For Your Safety
Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
Prevent Accidents
To reduce the risk of fire, electrical shock, or injury to persons when using your air
conditioner, follow basic precautions, including the following:
Be sure the electrical service is adequate for the model you have chosen. This
information can be found on the serial plate, which is located on the side of the
the cabinet and behind the grille.
If the air conditioner is to be installed in a window,you will probably want to
clean both sides of the glass first. If the window is a triple-trackty pew it has
creen panel included, remove the screen completely before installation.
Be sure the air conditioner has been securely and correctly in stalled according
to the installation instructions in this manual.
Save this manual for possible future use in removing or installing this unit.
When handling the air conditioner, be careful to avoid cuts from sharp metal
fins on front and rear coils.
Electronic Work
NOTE:
Please strictly follow the wiring label at-
tached to the machine for all wiring connec-
tions. The wiring diagram may vary for differ-
ent unit. Please refer to the wiring diagram
on the machine you have purchased. The
above wiring diagram is a simplified version
for preliminary illustration purposes only.
WARNING:
BEFORE PERFORMING ANY ELECTRICAL OR WIRING WORK, TURN
OFF THE MAIN POWER TO THE SYSTEM.
Main Control
Compressor
Fan Motor
Display
Power
Supply
L/AC L/L1/L-IN
N/AC N/L2/N-IN
Other
Electronic Type
background
7

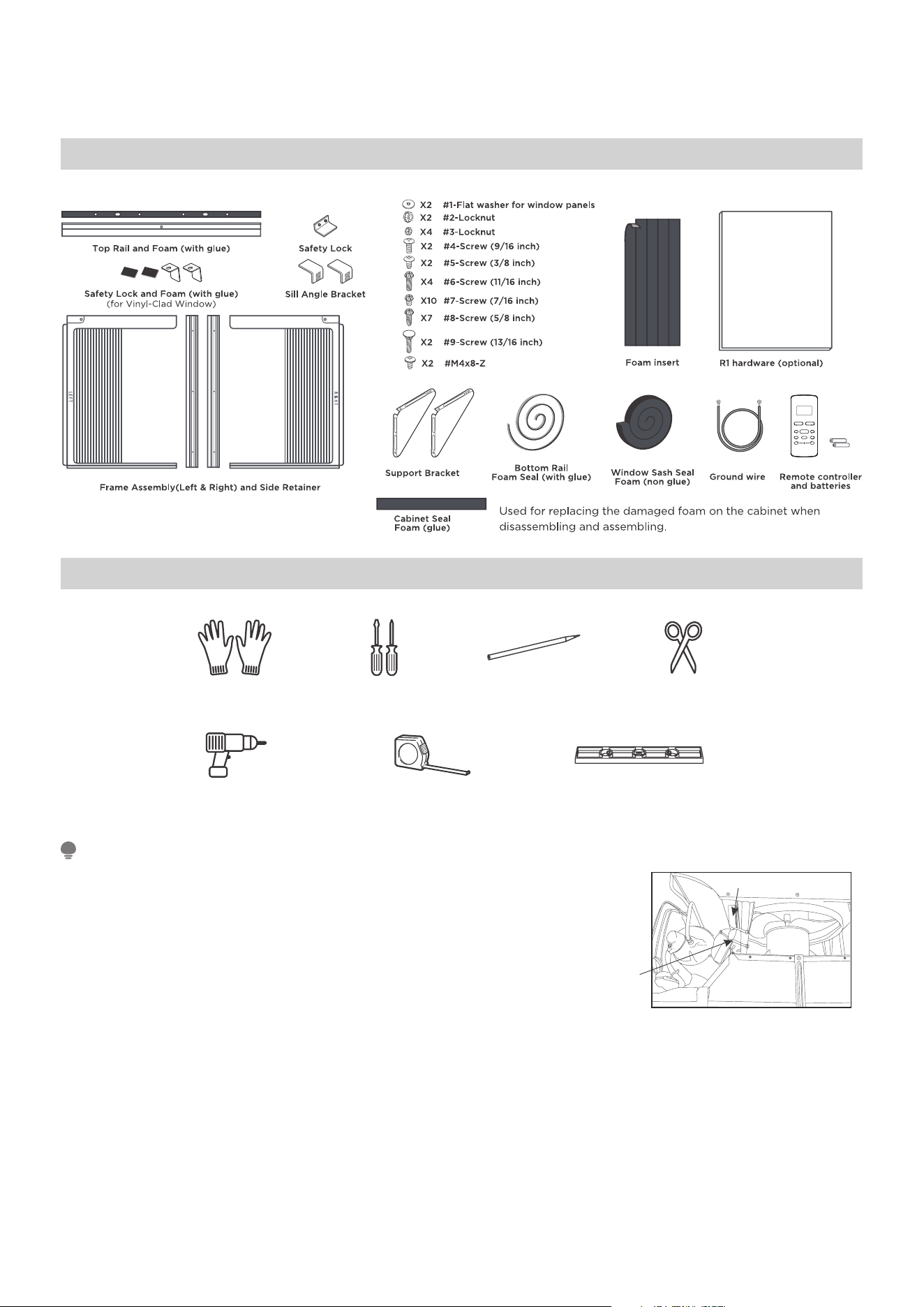

Confirm your package contents
Unpacking inspection
Prepare the following tools
LevelRuler or tape measureDrill
PencilGloves Screwdriver Scissors
*Not Included
NOTE
The unit you purchased may be look like some-
thing different, please refer to the material in
kind.
Your unit may come with internal packaging.
This packaging must be removed prior to install-
ing the air conditioner back into the cabinet as
shown.
Shipping Packaging
Plastic tie
background
8
Before you get start
Preparations before installation
The installation must be carried out in
strict accordance with the instructions in
this manual.
We recommend doing this with a helper
Installing your AC should take about 60
minutes.
We’re here if you need us, please contact
your local distributor for assistance.
NOTE
Save Carton and these Installation Instructions for future reference. The carton is
the best way to store unit during winter, or when not in use.
WINDOW REQUIREMENTS
Your air conditioner is designed to install in a wooden sill double-hung window. All
wood parts of window must be in good shape and able to firmly hold the needed
screws. If not, make repairs before installing unit. If your storm window frame does
not allow the clearance required, correct by adding a piece of wood,or by removing
storm window while room air conditioner is being installed. The standard parts are
for window dimensions listed below
Unit height Unit width
Min. window
opening
Min. window
width
Max. window
width
17-5/8in(447mm) 23-5/8in(600mm) 18-1/2in(470mm) 28in(711mm) 40-1/2in(1029mm)
18-5/8in(473mm) 26-1/2in(673mm) 19-1/2in(495mm) 31in(787mm) 42in(1067mm)
W
H
CAUTION
Do not, under any circumstances, cut or remove the third (ground) prong from
the power cord.
Do not change the plug on the power cord of the air conditioner. Aluminum
house wiring may present special problems consult a qualified electircian.
When handling unit, be careful to avoid cuts from sharp metal edges and
aluminum fins on front and rear coils.
The rear of the unit must be outdoors, not inside a building or garage.
Manual
background
9
Install your product

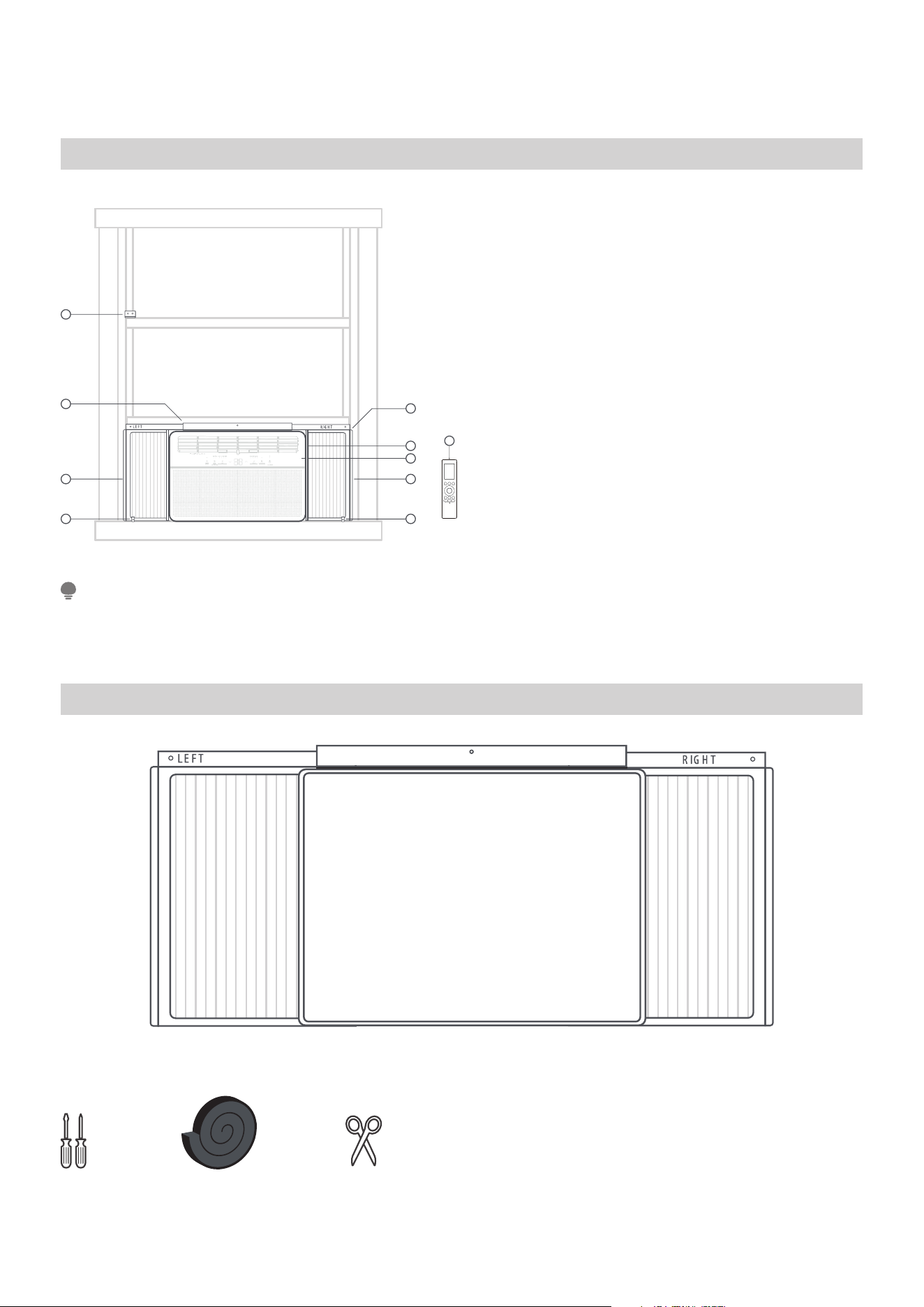

Installation overview
1. Safety Lock and 5/8in Screws
2. Top Rail and 3/8in Screws
3. Frame Assembly(Left)
4. Safety Lock and 5/8in Screw
5. Frame Assembly(Right)
6. Air Conditioner unit
7. Side Retainer(both side)
8. Window Sash Seal Foam
9. Remote controller
NOTE
Illustrations in this manual are for explanatory purposes. The actual shape of your
indoor unit may be slightly different. The actual shape shall prevail.
STEP 1: Assemble your AC Cabinet.
What you need.
1
2
3
4 4
5
7
6
8
9
background
10
Assemble your AC Cabinet.

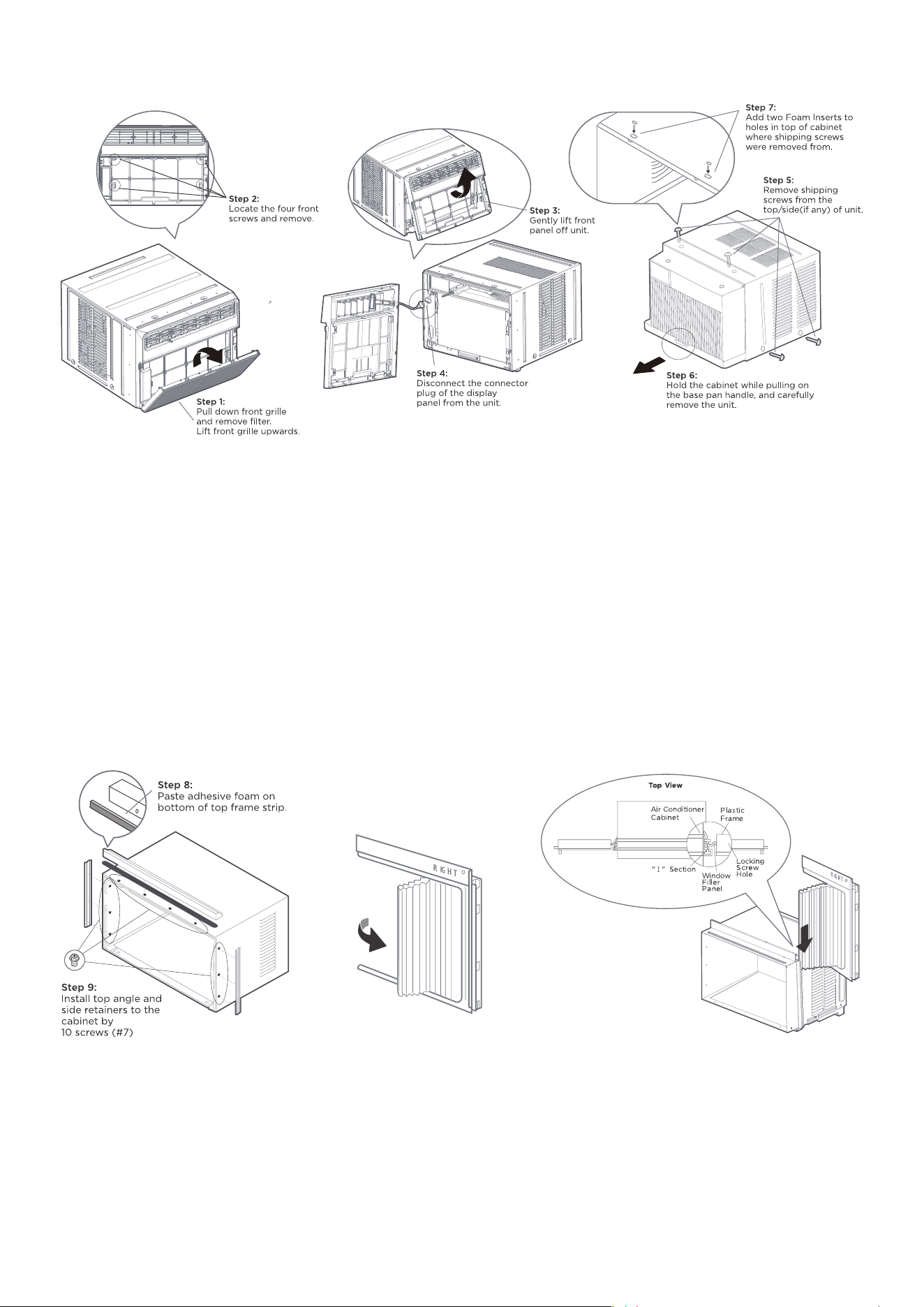

(1) Remove the front panel from the unit.
Pull down front grille and remove filter. Lift front grille upwards and place to one
side. Locate the four front screws and remove. These screws will be needed to
re-install the front panel. Push metal cabinet side to release plastic tabs on each
side of front panel. Gently lift front panel o unit. Disconnect the connector plug of
the display panel from the unit and place front panel to one side.
(2) Remove Air Conditioner from Cabinet.
Remove shipping screws from top of unit and also on the side by the base if in-
stalled. Hold the cabinet while pulling on the base pan handle, and carefully remove
the unit. Add two foam inserts to holes in top of cabinet where shipping screws
were removed from.
(3) Install top angle and side Bracket
Attach foam gasket to top angle above holes. Install top angle and side retainers to
cabinet (10 screws)
(4) Pull the panels out around.
Pull the Left&Right window filler Panels out half way around.
background
11
(5) Install the panels.
Place cabinet on floor, a bench, or a table. Slide “I “ section of window filler panel
into side retainer on the both side of the cabinet.
NOTE:
Top rail and Sliding Panels at each side are offset to provide the proper pitch to the
rear of (5/16”). This is necessary for proper condensed water utilization and drain-
age. If you are not using the Side Panels for any reason, this pitch to the rear must
be maintained.
A
A
C C
B
A
A
(6) Fasten the panels to the cabinet
Stretch the wind screen outward and insert the upper and lower frame strips of the
Panels into the cabinet card slot

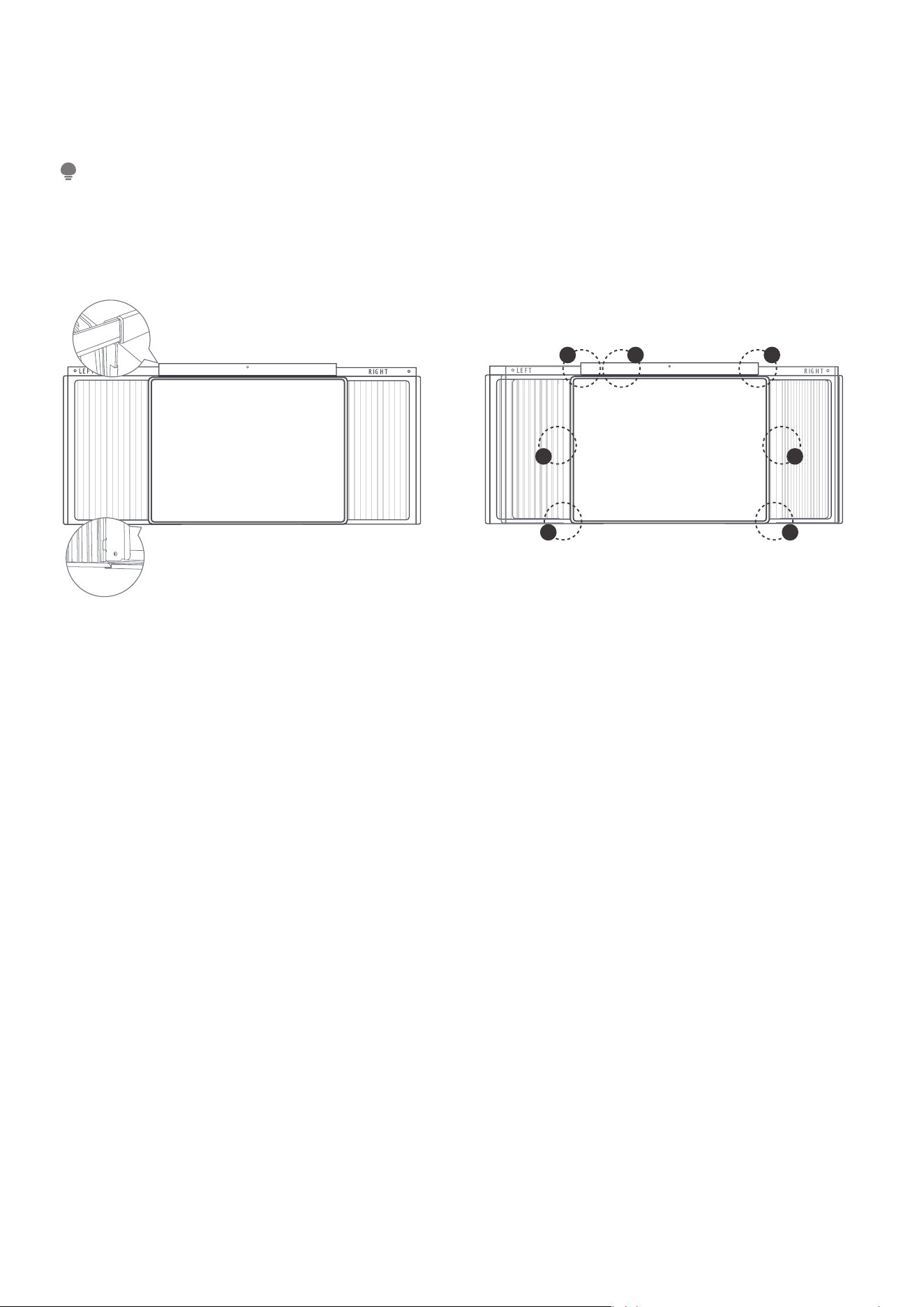

(7) The cabinet is done
Before you rush to the next installation phase, please first confirm the following
installation is in place.
A. Insert the upper and lower frame strips of the panels into the cabinet card slot.
B. Top Rail on the cabinet with 4 Screws.
C. Insert the card slot on the side of the cabinet.
background
12
STEP 2: Insulate your window.
What you need.

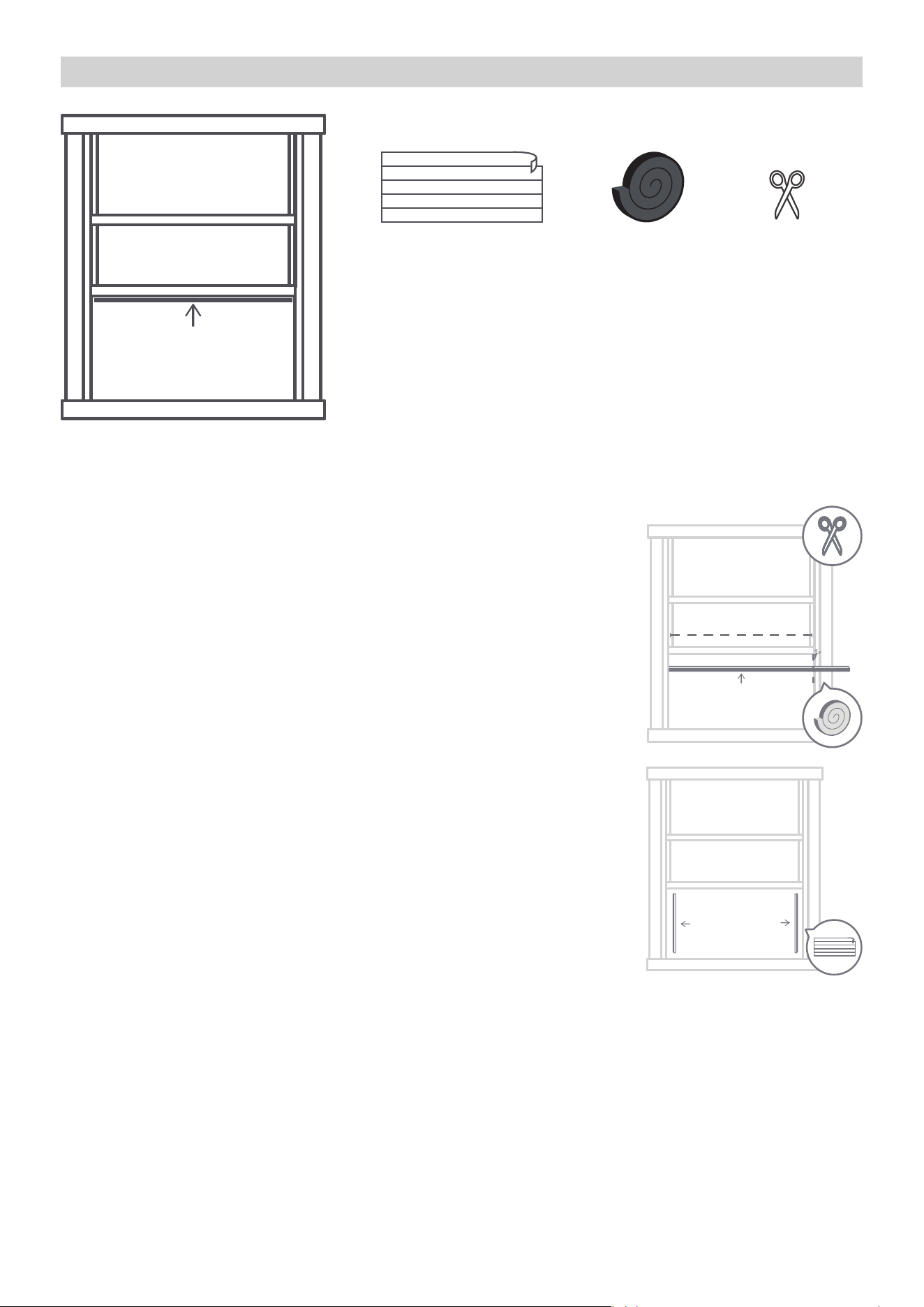

Insulate your window:
(1) Cut the seal foam to the width of your window, and
stick it of the underside.
You should cut the foam to be the width of your window
from the left to the right side. Make sure you’re cutting the
foam with the adhesive, and stick it of the underside.
(2) Insert the foam to the gaps.
In order to improve the operation of the equipment and
reduce the noise generated during operation, you need to
foam seal the gaps.
If your window already has a liner or insulation strip,
you can skip the above steps.
background
13

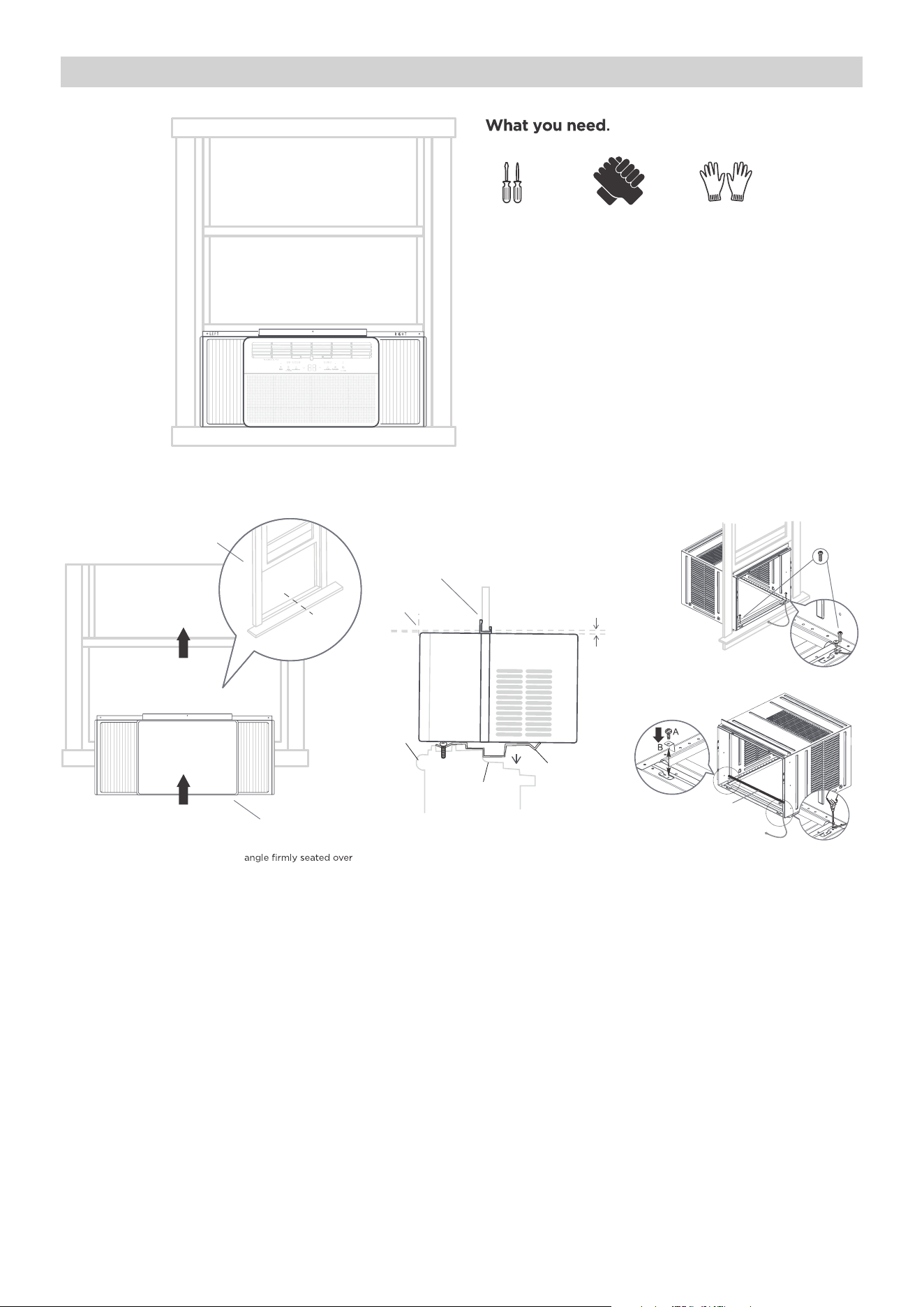

STEP 3: Install the AC on the window.
Install the cabinet on the window.
Angle3-4˚
Outside
Inside
••••
••••
Step 1:
Make sure your cabinet
is centered on the windowsill.
Step 2:
Place cabinet
in window with bottom sill
window sill.
Step 3:
Bring window down
temporarily behind top
angle to hold cabinet in place.
Step 4:
Screw the cabinet
to the sill according
to the type of window
you have. Screw the
ground wire on the
cabinet.
A. 1/4” Pan-head Phillips Screws
B. Safety Lock (Only for Vinly-Clad windo
w)
C. Bottom Rail Foam Seal
D
.Ground wire and #M4x8-Z screw
Window
inner Sill
Sill
Angle
Window
outer Sill
Measure from
the cabinet edge.
For wooden window:
For Vinyl-Clad window:
Apply Bottom Rail Foam
Seal (#C) over screws fastening
bottom rail to window inner sill.
Screw the ground wire on the
cabinet .
C
D
(1) Place the assembled cabinet on the window frame.
Mark center of window inner sill. Place cabinet in window with bottom sill angle
firmly seated over window sill. Bring window down temporarily behind top angle to
hold cabinet in place.
(2) Screw the cabinet to the window sill. (Wooden Window or Vinyl-Clad Window).
Shift cabinet left or right as needed to line up center of cabinet on center line
marked on inner sill.
For wooden window:
Fasten cabinet to window inner sill with two screws(#6) into holes (You may wish
to pre-drill pilot holes).
For Vinyl-Clad window:
Place two safety locks into the holes located in the bottom of the cabinet and drive
two 1/4” pan-head Phillips locking screws through the safety locks into the cabinet.
background
14
Install the support bracket:
Angle3-4˚
Outside
Inside
Step 5:
Assemble sill angle
bracket to support brackets
at the marked position.
(both side)
Window Sill
Sill Angle Bracket
Measure from
the cabinet edge.
#3-Locknut
#8-Screw
#8-Screw
Sill Angle
Bracket
2 Each Required For
Each Support Bracket
Locknut
Left
Righ
t
(3) Install the sill angle bracket and support bracket.
Hold each support bracket flush against outside of sill, and tight to bottom of cabi-
net as shown. Mark brackets at top level of sill and remove.
Assemble sill angle bracket to support brackets at the marked position(as shown
above). Hand tighten, but allow for any changes later.
Install support brackets(with sill angle brackets attached) to correct hole in bottom
of cabinet. Tighten all 6 bolts securely.
NOTE:
Check that air conditioner is tilted back about 1-1/4”to 1-5/8” (tilted about 3° to
4°downward to the outside). After proper installation, condensate should not drain
from the overflow drain hole during normal use,correct the slope otherwise.
Slide AC into the Cabinet and Install Front panel.
(4) Install Chassis into Cabinet and Install Front panel to Unit
Lift air conditioner and carefully slide into cabinet leaving 6 inches protruding.
DO NOT push on controls or finned coils. Be sure chassis is firmly seated towards
rear of cabinet. Installation of front is the reverse of removal outlined in Section 1.
(5) INSTALL R1 HARDWARE (only applicable to Energy star models)
background
15
In order to minimize air leaks and ensure optimal insulation, it is necessary to install
the included R1 hardware to the side curtain. Follow the instructions below.
After the unit is installed to the window, measure the inner width of the side cur-
tain. Cut the R1 fitting according to the measured width, and the width is measured
in units of every 1/8 “(3mm). Slide the R1 insulation panel into the side curtain, the
side with pattern should facing the indoor. Finally, Repeat on the other side.

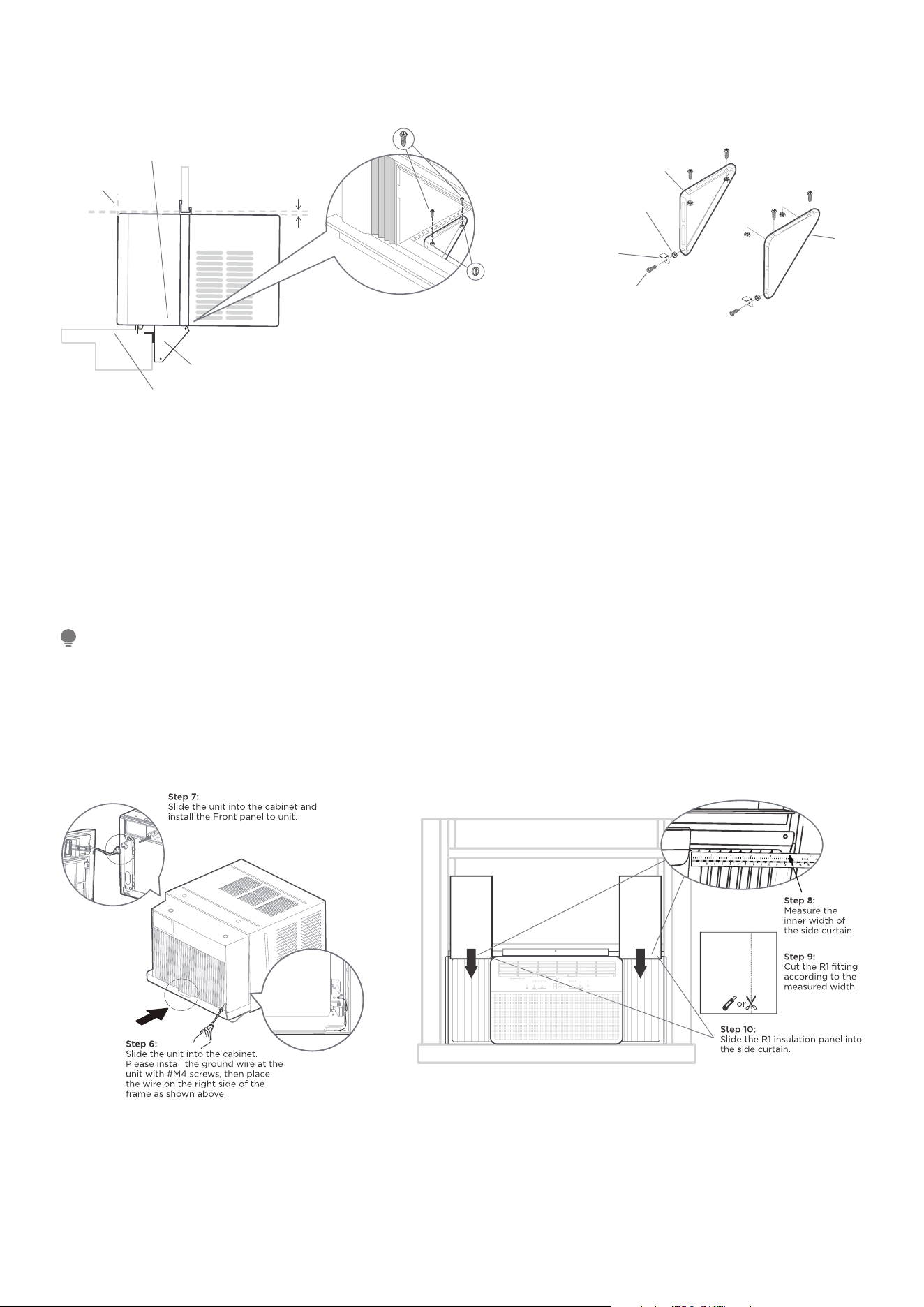

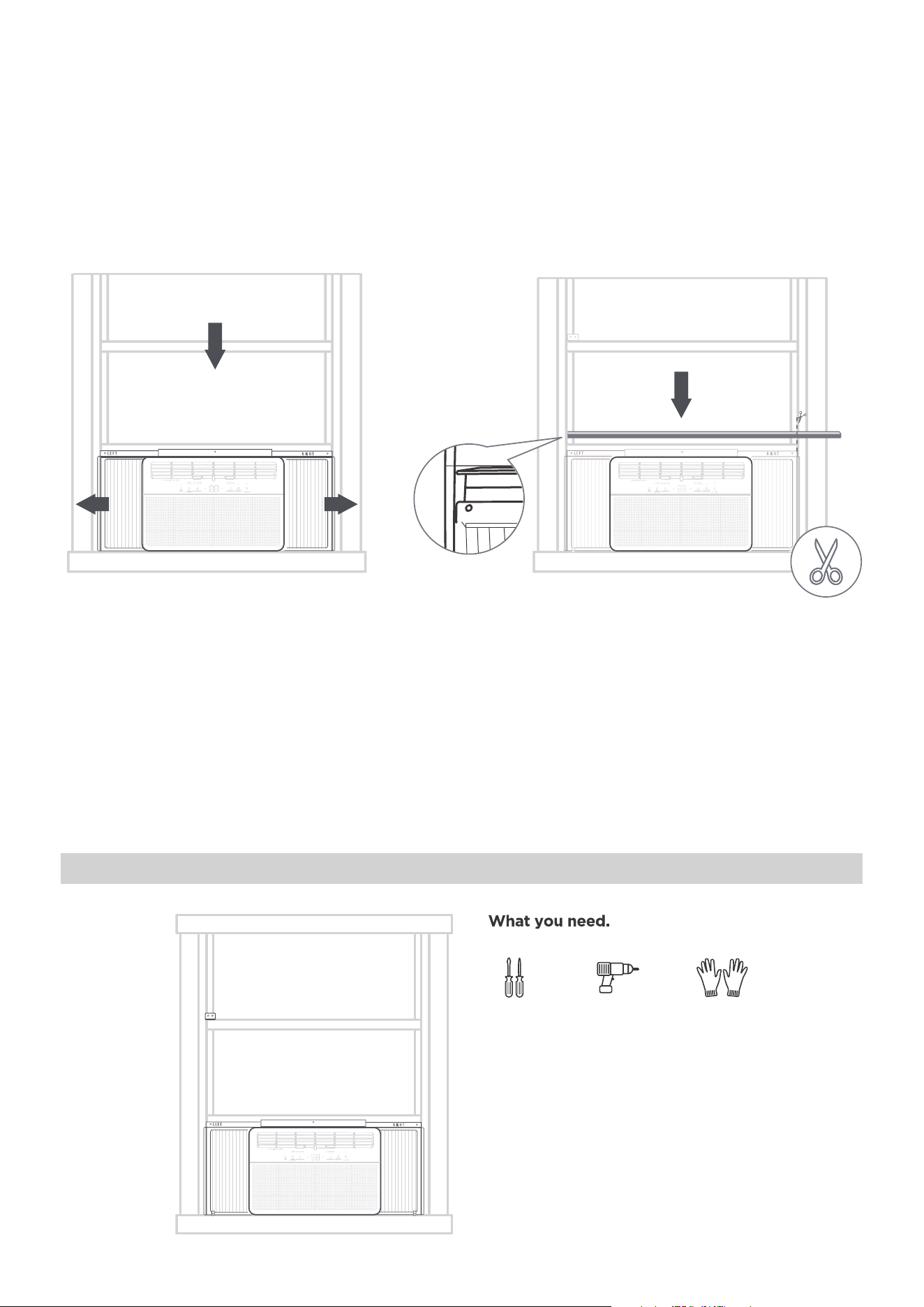

Lift the AC onto the window:
(6) Close the window down onto the AC, and pull the panels to the side of the win-
dow
Once the AC is centered and the bottom bar is successfully positioned, close the
window down onto the AC, behind the top bar. See diagram above. Pull the panels
to the side of the window.
(7) INSTALL WEATHER STRIPPING (only applicable to Energy star models )
In order to minimize air leaks between the room air conditoner and the window
opening, trim the weather stripping with a proper length, peel o the protective
backing and plug any gaps if needed.
STEP 4: Secure the AC.
background
16

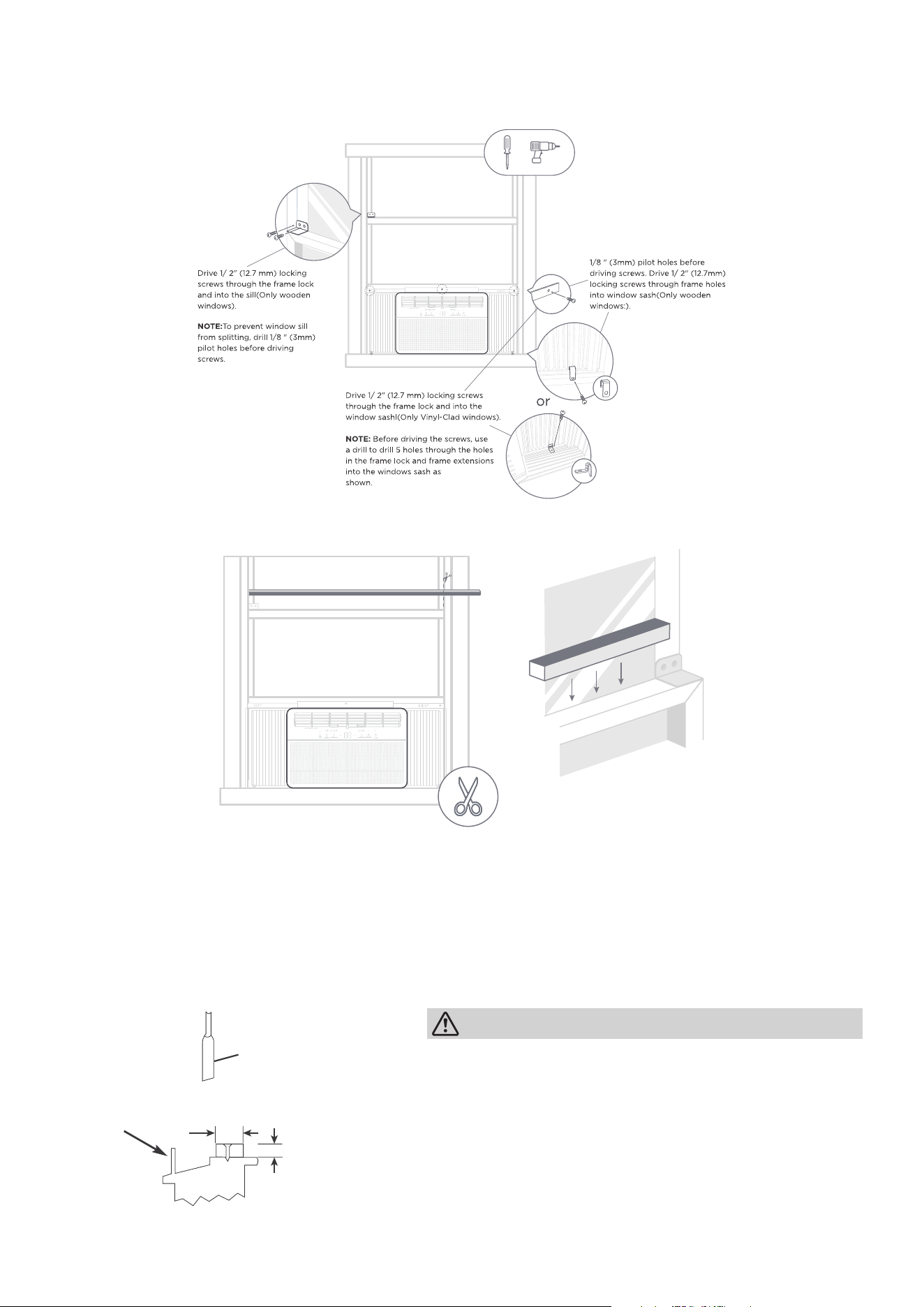

(1) Drive locking screws.
Follow the above instructions and drive the screws.
The final details:
(1) Cut the non-adhesive insulation foam to fit the width of your window.
Make sure you are cutting the foam with the non-adhesive sides. Measure and cut
the foam to be the width of your window from the left to right side.
(2) Use the nonadhesive foam to fill the gaps in your window.
Stuff it between the gap of the upper and lower sashes of your window.
This will plug any air gaps and help keep out bugs and draft.
Storm window
frame or other
obstruction.
SASH
1-1/2"min
(38 mm)
Board
thickness
as required,
for proper
pitch to rear,
along entire
sill. Fasten
with nails or
screws.
CAUTION
If storm window blocks AC, Please install ac-
cording to the figure above.
background
17
One More Thing-Additional Notes
1. If AC is Blocked by Storm Window.
Add wood as shown in Caution illustration on page 16, or remove storm window
before air conditioner is installed. If Storm Window Frame must remain, be sure the
drain holes or slots are not caulked or painted shut. Accumulated Rain Water or
Condensation must be allowed to drain out.
Removing AC From Window
Turn AC o , and disconnect power cord. Remove sash seal from between windows,
and unscrew safety sash lock. Remove screws installed through frame and frame-
lock. Keeping a firm grip on air conditioner, raise sash and carefully remove. Be
carefully not to spill any remaining water while lifting unit from window. Store parts
with air conditioner.
2. Normal Sounds
High Pitched Chatter
High e ciency compressors may have a high pitched chatter during the cooling cy-
cle.
Sound of Rushing Air
At the front of the unit, you may hear the sound of rushing air being moved by the
fan.
Gurgle/Hiss
“Gurgling or hissing”noise may be heard due to refrigerant passing through evapo-
rator during normal operation.
Vibration
Unit may vibrate and make noise because of poor wall or window construction or
incorrect installation.
Pinging or Switching
Droplets of water hitting condenser during normal operation may cause “pinging
or swishing” sounds. This noise can be reduce by removing the water plug at the
bottom of unit’s rear as shown below. Removing this plug will lower the Energy E
ciency of your unit.
Note:
Don’t try to drill any holes on the base pan to eliminate the normal sounds, other-
wise it will void the warranty.
background
18
Get to know your AC
AC unit overview
NOTE
The following two types of product appearance for reference only, The machine
you purchase may be a little different.

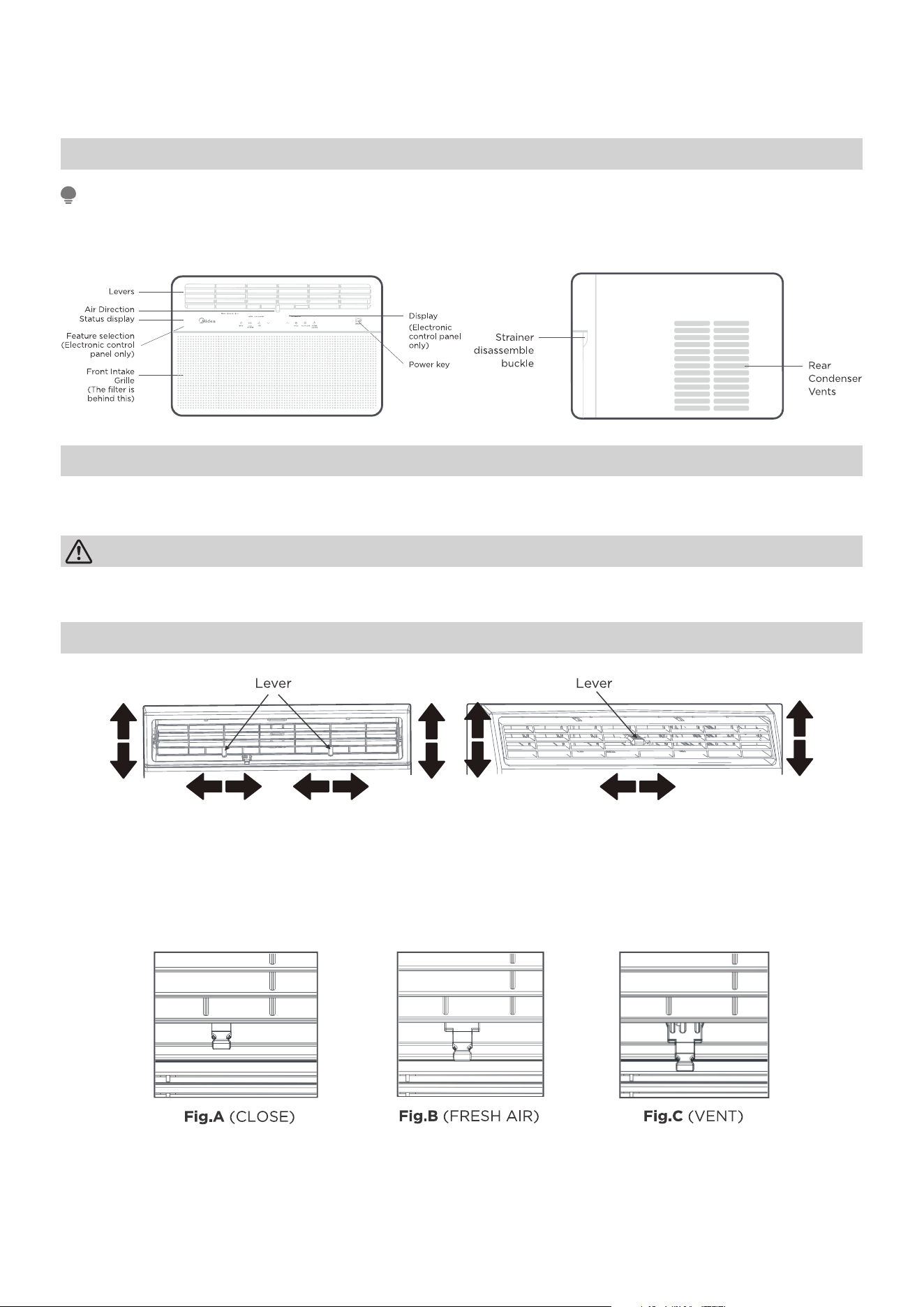

Adjust your air conditioning direction.
Air conditioning louvers:
CAUTION
Do not stick your fingers in the air outlet, it may cause an injury.
Four-way adjustment (up or down,left or right)
The louvers will allow you to direct the air flow Up or Down(on some models) and
Left or Right throughout the room as needed. Pivot horizontal louvers until the de-
sired Up/Down direction is obtained. Move the Lever(s) from side to side until the
desired Left/Right direction is obtained.
Fresh air vent control
The Fresh Air Vent allows the air conditioner to:
1. Recirculate inside air - Close (See Fig.A)
2. Draw fresh air into the room- Fresh air (see Fig.B)
3. Exhaust air from the room - Vent (see Fig.C)
background
19
Get to know the features
Air conditioner features
Electronic control operating instructions
NOTE
Different models have different control buttons and indicator lights. Not all the
control buttons and indicator lights describing below are available for the unit
you purchased. Please check the control panel of the unit you purchased. The
unit can be controlled by the unit control alone or with the remote.
The outline of the operation panel is based on typical model, the function is the
same with your air conditioner while some difference may exist in appearance.
8
4
12
53
67

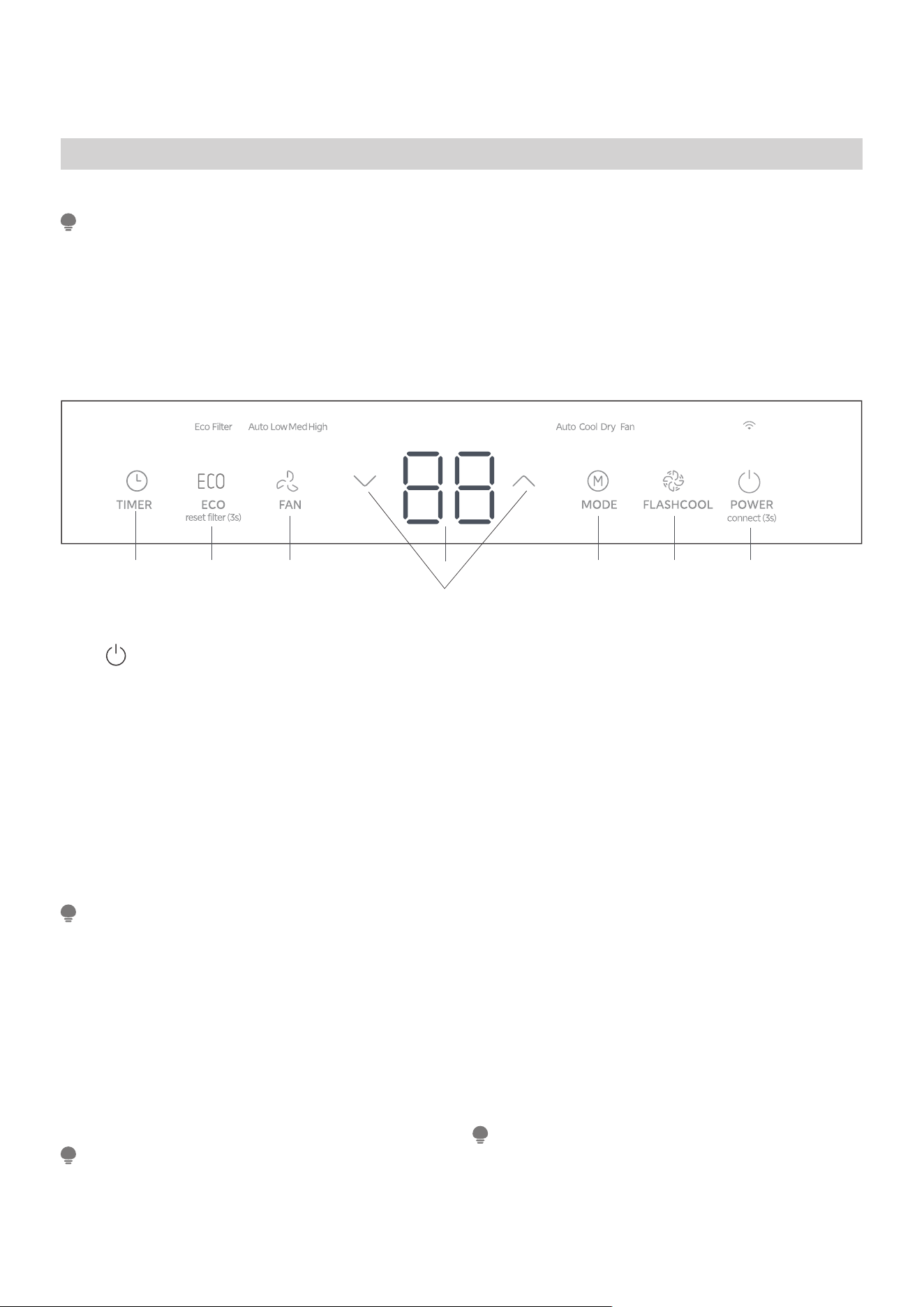

1. TO TURN UNIT ON OR OFF:
Press button to turn unit on or off.
Wireless button
Press and hold on the POWER button for 3
seconds to initiate the Wireless connection mode.
2. FLASHCOOL FUNCTION:
Press this button to initiate the FlashCool function.
FlashCool provides maximum cooling and sets the
fan to the highest speed. The unit will operate in
this mode until change mode ,adjust fan speed or
the function is turned off. The unit will then return
to normal cooling operation with the fan speed set
to high.
NOTE:
The FlashCool function will turn o when the
mode or fan speed are adjusted.
3. TO ADJUST FAN SPEEDS:
Press Fan button to select the Fan Speed in four
steps-Auto, Low, Med or High. Each time the but-
ton is pressed, the fan speed mode is shifted.For
some models, the fan speed can’t be adjusted.
4. TO CHANGE TEMPERATURE SETTING:
Press UP/DOWN button to change temperature
setting.
NOTE:
Press or hold either UP or DOWN button until the
desired temperature is shown on the display. This
temperature will be automatically maintained an-
ywhere between 60°F (16°C ) and 86°F (30°C). If
you want the display to read the actual room tem-
perature, see“ To Operate on Fan Only ’’section.
5. TO SELECT THE OPERATING MODE:
To choose operating mode, press Mode button.
Each time you press the button, a mode is se-
lected in a sequence that goes from Auto, Cool,
Dry ,heat (cooling only models without) and Fan.
The indicator light beside will be illuminated and
remained on once the mode is selected.The unit
will initiate automatically the Energy Saver func-
tion under Cool, Dry, Auto (only Auto-Cooling and
Auto-Fan) modes.
To operate on COOL mode :
Choose Cool Mode to set the cooling function.
Use the Up and Down buttons to choose the
desired temperature. When Cool Mode is se-
lected, the fan speed can be adjusted by press-
ing the fan button.
To operate on HEAT mode (cooling only models
without) :
Choose Heat Mode to set the heating function.
Use the Up and Down buttons to choose the
desired temperature .When heat Mode is select-
ed, the fan speed can be adjusted by pressing
the fan button.
NOTE:
For some models, the fan speed can not be ad-
justed under HEAT mode.
To operate on Auto feature:
When you set the air conditioner in AUTO
mode, it will automatically select cooling, heat-
background
20
ing (cooling only models without) , or fan only
operation depending on what temperature you
have selected and the room temperature.
The air conditioner will control room tempera-
ture automatically round the temperature point
set by you.
In this mode, the fan speed cannot be adjusted,
it starts automatically at a speed according to
the room temperature.
Use this function only when cooling is not de-
sired,such as for room air circulation or to ex-
haust stale air (on some models) . (Remember
to open the vent during thisfunction, but keep
it closed during cooling for maximum cooling
effciency.) You can choose any fan speed you
prefer.
NOTE:
The unit will initiate automatically the Energy Sav-
er function under Cool, Dry and Auto modes.
During this function, the display will show the
actual room temperature, not the set tempera-
ture as in the cooling mode.
In Fan only mode ,the temperature is not ad-
justed.
To operate on Dry mode:
In this mode, the air conditioner will generally
operate in the form of a dehumidifier. Since the
conditioned space is a closed or sealed area,
some degree of cooling will continue. On Dry
mode,the fan speed is controlled at Auto auto-
matically.
6. ENERGY SAVER FEATURE:
Press Energy saver button to initiate this function.
This function is available on COOL, DRY, AUTO
(only AUTO-COOLING and AUTO-FAN) modes.
The fan will continue to run for 3 minutes after the
compressor shuts o .The fan then cycles on for 2
minutes at 10 minute intervals until the room tem-
perature is above the set temperature, at which
time the compressor turns back on and Cooling
Starts.
Press and hold on the ECO button for 3 seconds
to initiate the reset filter connection mode.
This feature is a reminder to clean the Air Filter for
more effcient operation. The LED (light) will illu-
minate after 250 hours of operation. To reset after
cleaning the filter, press the ECO button and the
light will go off.

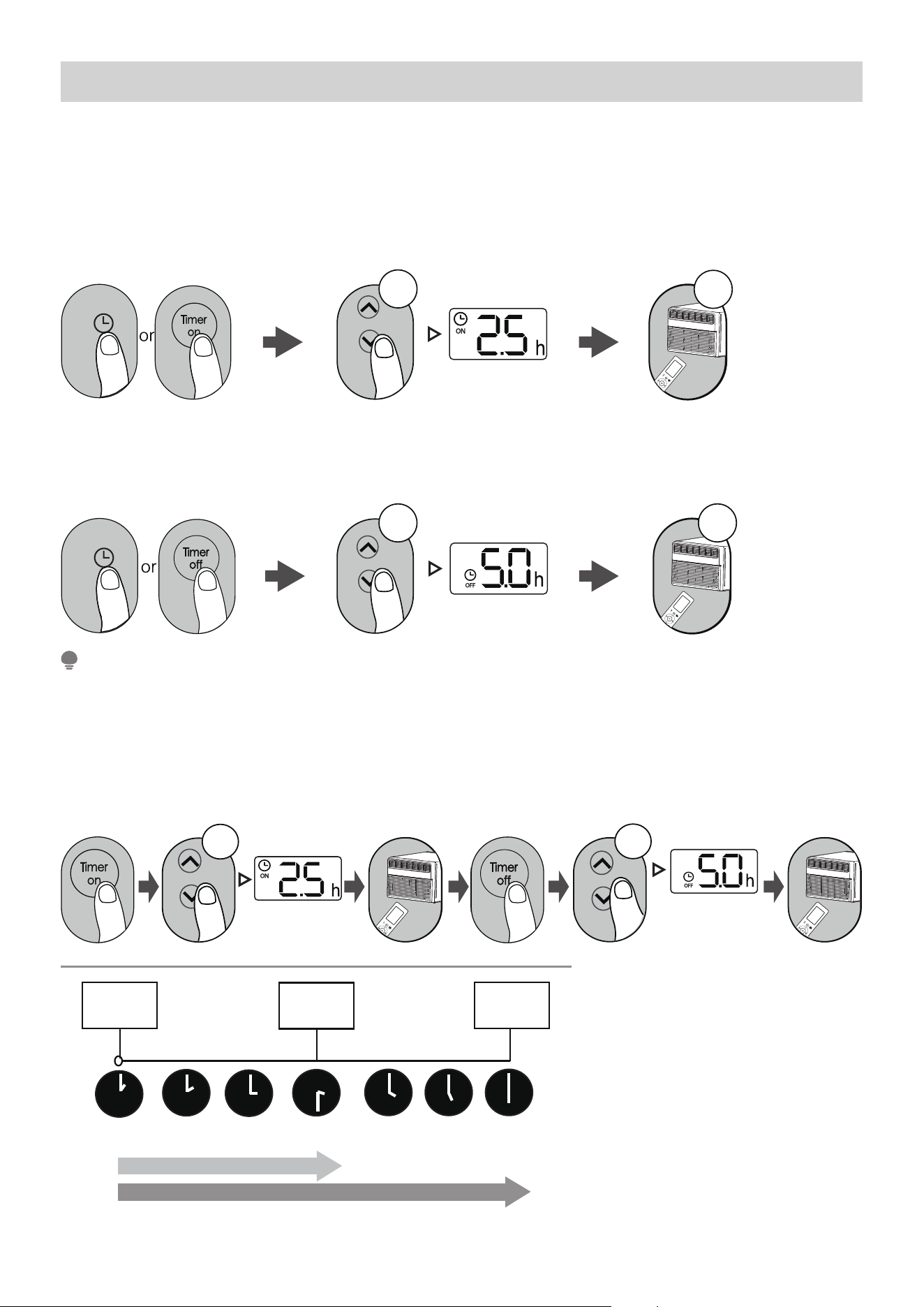

7. TIMER: AUTO START/STOP FEATURE:
Press Timer button, the TIMER ON or TIMER
OFF indicator light illuminates. It indicates the
Auto Start or Auto Stop program is initiated.
For some units, keep pressing the Timer button
will cancel the timer settings.
Press or hold the UP or DOWN button to
change the Auto time by 0.5 hour increments,
up to 10 hours,then at 1 hour increments up to
24 hours. The control will count down the time
remaining until start.
The selected time will register in 5 seconds, and
the system will automatically revert back to dis-
play the previous temperature setting or room
temperature when the unit is on. (when the unit
is off ,there is no display).
Turning the unit ON or OFF at any time or a
djusting the timer setting to 0.0 will cancel the
Auto Start/Stop timed program.
8. DISPLAYS:
Shows the set temperature in ” °C” or ” °F” and
the Auto-timer settings.While on Fan only mode,
it shows the room temperature. If the room tem-
perature is too high or low, it will display “ HI” or “
LO”.
Error codes:
The unit may stop operation or continue to run
safely. If the error codes appear, wait for about
10 minutes. The problem may resolve itself. If not,
disconnect the power, then connect it again. Turn
the unit on.
If the problem persists, disconnect the power and
contact your nearest customer service center.
Error code appears andbegins with the letters as
the following in the window display of indoor unit:
EH ( xx ) , EL ( xx ) , EC ( xx ) , PH ( xx ) , PL ( xx )
, PC ( xx ) .
NOTE:
If your problem persists after performing the
checks and diagnostics above, turn off your unit
immediately and contact an authorized service
center.
NOTICE
If the unit breaks o unexpectedly due to the power
cut, it will restart with the previous function set-
ting automatically when the power resumes.
ADDITIONAL THINGS YOU SHOULD KNOW
Now that you have mastered the operating proce-
dure, here are more features in your control that
you should become familiar with.
The Cool circuit has an automatic 3 minutes
time delayed start if the unit is turned o and on
quickly.
This prevents overheating of the compressor
and possible circuit breaker tripping.The fan will
continue to run during this time.
The control is capable of displaying tempera-
ture in degrees Fahrenheit or degrees Celsius.
To convert from one to the other, press and
hold the Up and Down buttons at the same
time for 3 seconds.
background
21
20

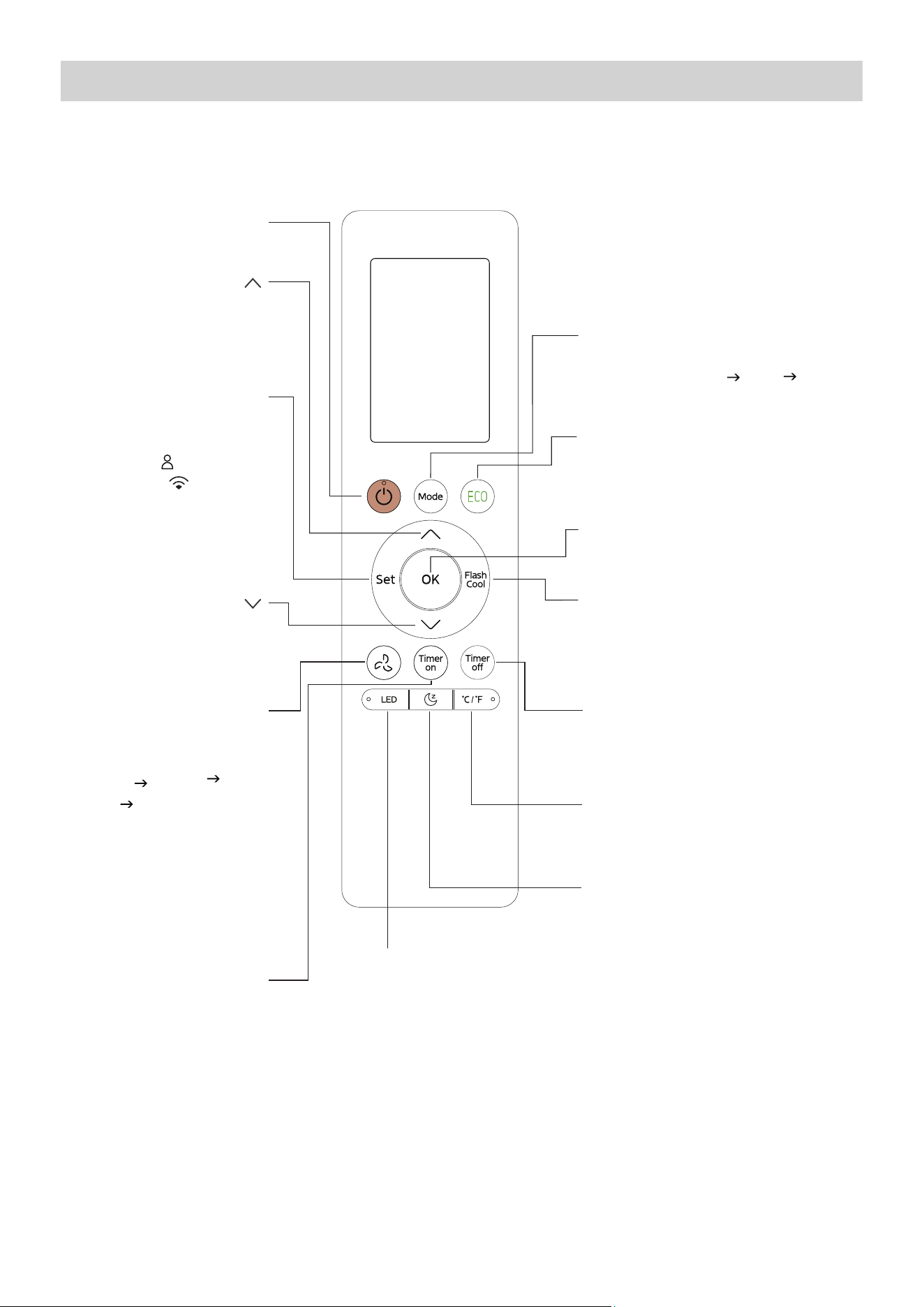

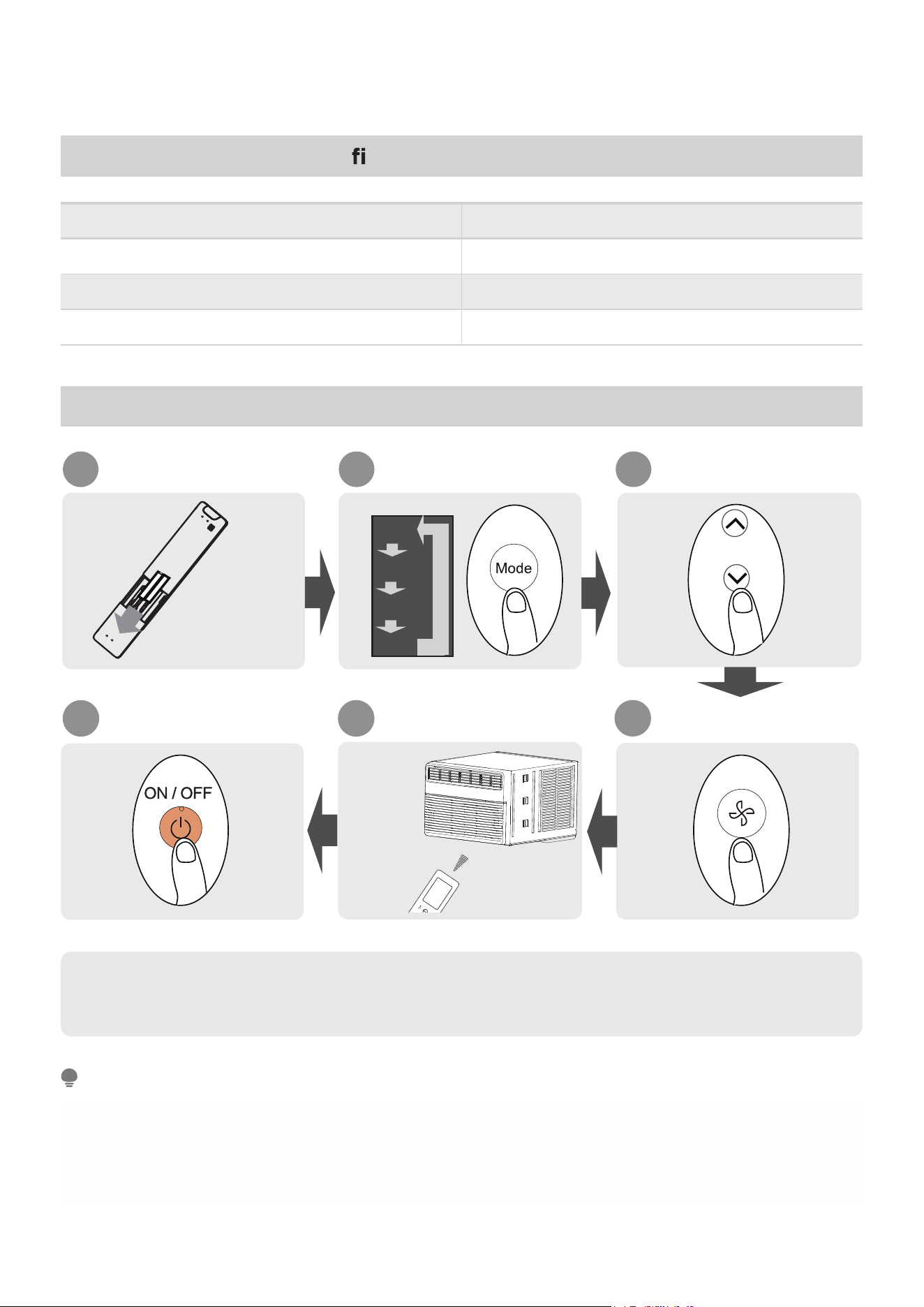

REMOTE CONTROL INSTRUCTIONS
Remote Controller Speci cations
Quick Start Guide
Not Sure What A Function Does?
Refer to the How to Use Basic Functions and How to Use Advanced Functions sections of this manual
for a detailed description of how to use your air conditioner.
Model RG10G5(B2)/BGCEFU1
Rated Voltage 3.0V (Dry batteries R03/LR03x2)
Signal Receiving Range Maximum 8m (vertical distance)
Environment -5 °C ~ 60 °C (23°F ~ 140°F)
Button design on your unit may differ slightly from the example shown.
If the indoor unit does not have a particular function, pressing that function’s button on the remote control
will have no effect.
When there are wide differences in function description between the Remote Control Manual and the
User’s Manual, the description in the User’s Manual shall prevail.
SPECIAL NOTE
FIT BATTERIES
POINT REMOTE
TOWARD UNIT
PRESS POWER BUTTON
SELECT MODE
SELECT TEMPERATUR
SELECT FAN SPEED
1
6
2
5
4
3
AUTO
COOL
DRY
FAN
SELECT TEMPERATURE
ADD
BATTERIES
background
22
21
For optimum product performance:
Do not mix old and new batteries, or batteries of different types.
Do not leave batteries in the remote control if you don’t plan on using the device for more than 2 months.
BATTERY NOTE
INSERTING AND REPLACING BATTERIES
Your air conditioning unit may come with two batteries (some units only).
Put the batteries in the remote control before use.

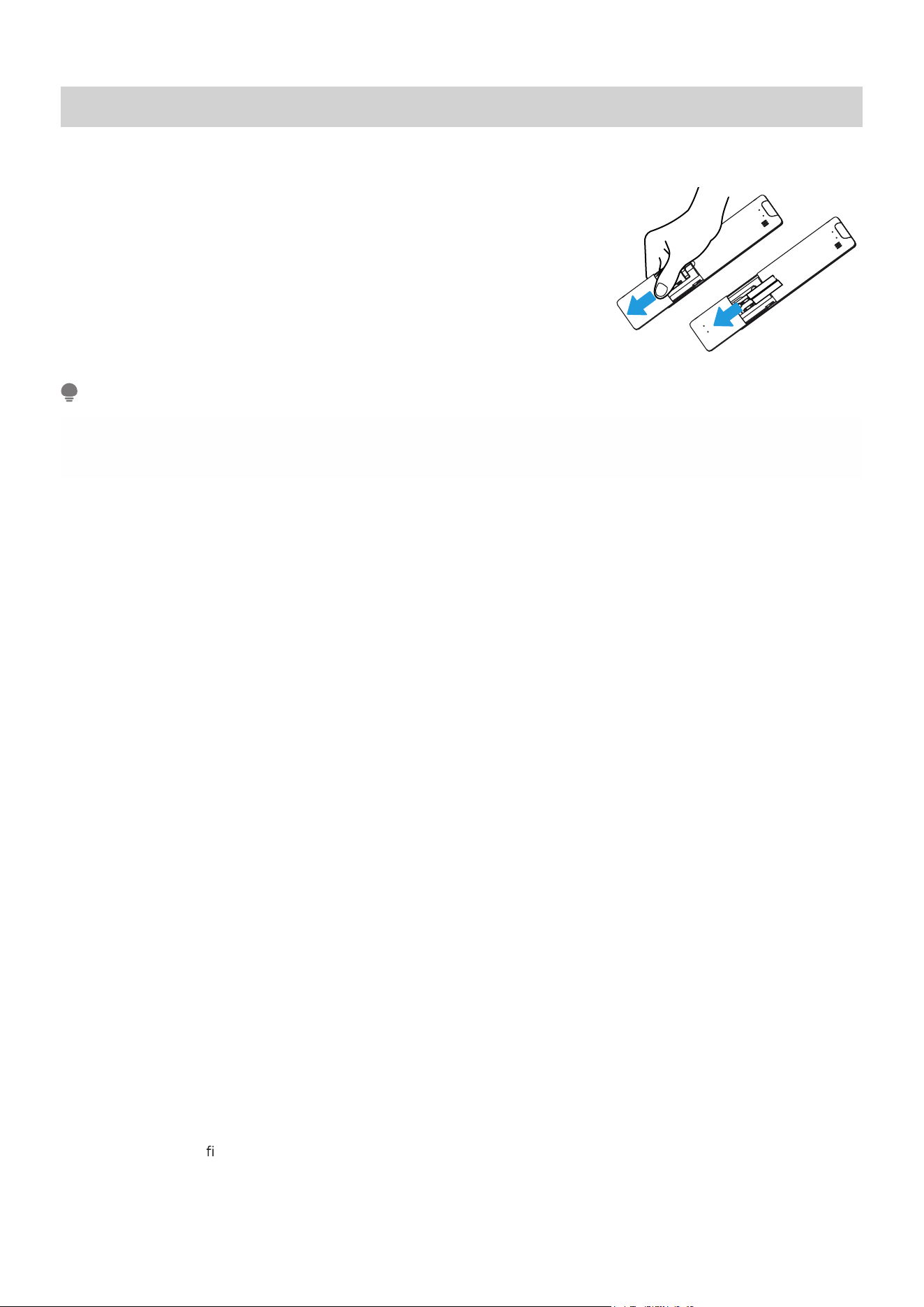

1. Slide the back cover downward, exposing the battery compartment.
2. Insert the batteries, carefully matching the (+) and (-) ends of the
batteries with the symbols inside the battery compartment.
3. Slide the battery cover back into place.
BATTERY DISPOSAL
Do not dispose of batteries as unsorted municipal waste. Refer to local laws for proper disposal of batteries.
TIPS FOR USING REMOTE CONTROL
The remote control must be used within 8 meters of the unit.
The unit will beep when remote signal is received.
Curtains, other objects, and direct sunlight can interfere with the infrared signal receiver.
Remove batteries if the remote will not be used for more than 2 months.
NOTES FOR USING REMOTE CONTROL
The device could comply with local and national regulations.
In Canada, it should comply with CAN ICES-3(B)/NMB-3(B).
In USA, this device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modi
cations not approved by the party responsible for compliance could void user’s authority to
operate the equipment.
Handling The Remote Controller
background
23
22
Buttons and Function
Increases temperate in
Turns the unit on or off.
1°F (1°C) increments.
Max. temperature is
86°F (30°C).
Decreases temperature
in 1 °F (1 °C) increments.
Min. temperatur
e is
°F (16 °C).
Scrolls through operation
functions as follows:
I SENSE ( )
The selected symbol will
flash on the display.
Press the OK button to
confirm.
AUTO LOW
MED HIGH
Selects fan speeds in
the following order:
Turns indoor unit’s LED display and
air conditioner buzzer on and off
(model dependent), which creates a
comfortable and quiet environment.
LED
°C/°F
Switches temperature display
between °C & °F.
SLEEP
Saves energy during sleeping
hours.
ON/OFF
SET
MODE
OK
Scrolls through operation modes
as follows:
AUTO
DRY
FAN
TIMER OFF
TEMP
TEMP
Used to confirm the selected
functions.
Sets timer to turn unit off
(see How to Use Basic
Functions for instructions).
FAN SPEED
ECO
Press this button to activate the
energy saving function. Press it
again to stop the function.
FlashCool
Enables unit to reach preset
temperature in shortest possible
time.
60
AP
mode ( )
Before you begin using your new air conditioner, make sure to familiarize yourself with its remote control.
The following is a brief introduction to the remote control itself. For instructions on how to operate your air
conditioner, refer to the How to Use Basic Functions section of this manual.
Keep pressing Fan button
for more than 2 seconds
to activate/disable Silence
function. Due to low
frequency operation of
compressor, it may result
in insufficient cooling
capacity.
TIMER ON
Sets timer to turn unit
on (see How to Use Basic
Functions for instructions).
background
24
23
Buttons and Function

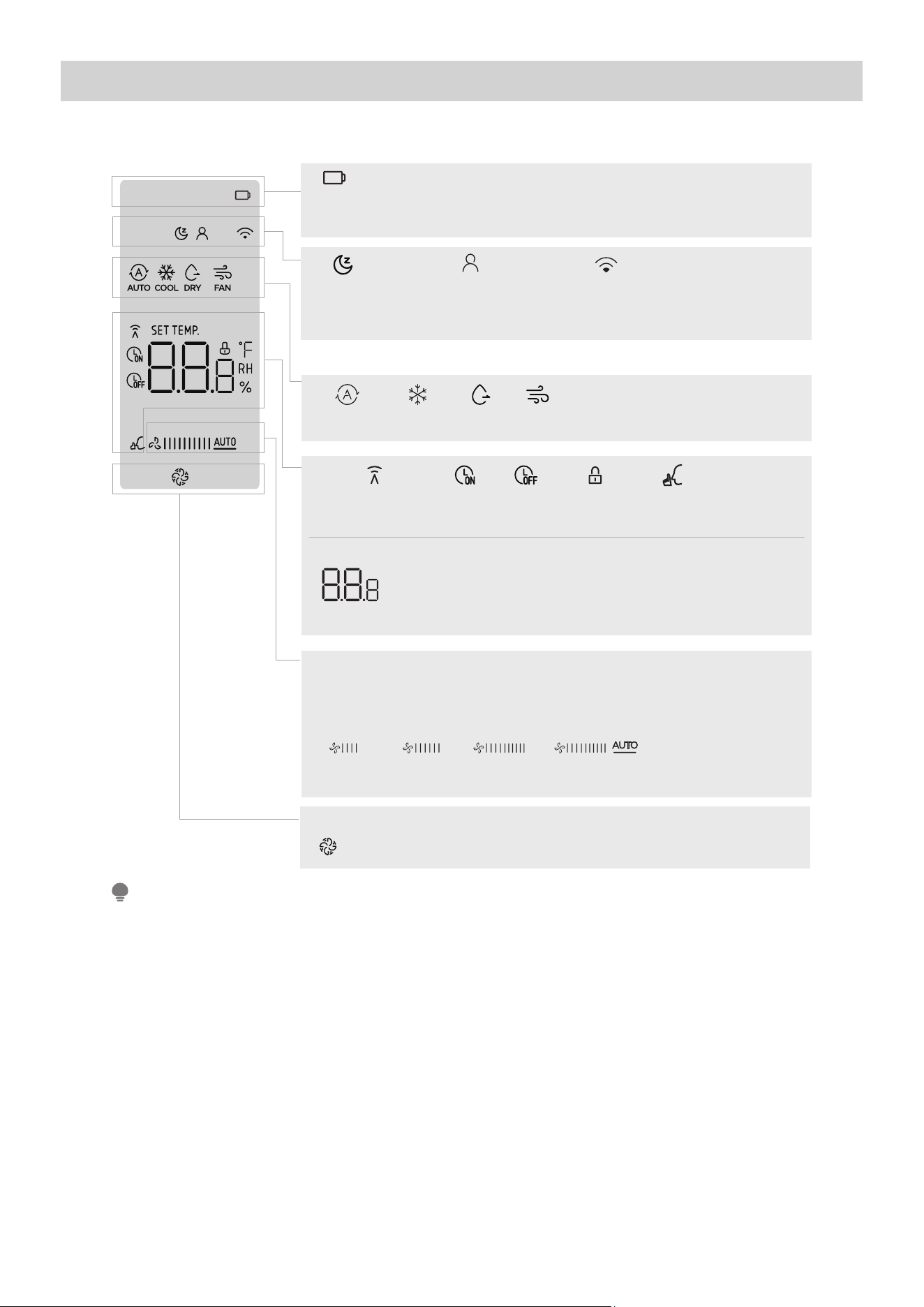

Temperature/Timer/Fan speed display
Displays the set temperature (by default),
fan speed, or timer setting (when using
TIMER ON/OFF functions).
MODE Display displays the current mode
COOLAUTO
Transmission
Indicator
Slience
Feature
Lock
Feature
LOW MED HIGH
Timer
OFF
Timer
ON
DRY FAN
[*]: Model dependent
Sleep
mode
Wireless
control
FAN SPEED display
AUTO
Displays selected fan speed:
The fan speed cannot be adjusted in AUTO or DRY mode.
(if flashing)
Low battery
I sense
Flash Cool
Information displayed when remote controller is powered on.
All indicators shown above are for information purposes. During the actual operation, only the
relevant indicators will be shown on the display.
NOTE
background
25
24
In DRY mode, fan speed cannot be set since it has already been automatically controlled.
NOTE
In FAN mode, you can’t set the temperature. As a result, no temperature displays on the remote screen.
NOTE

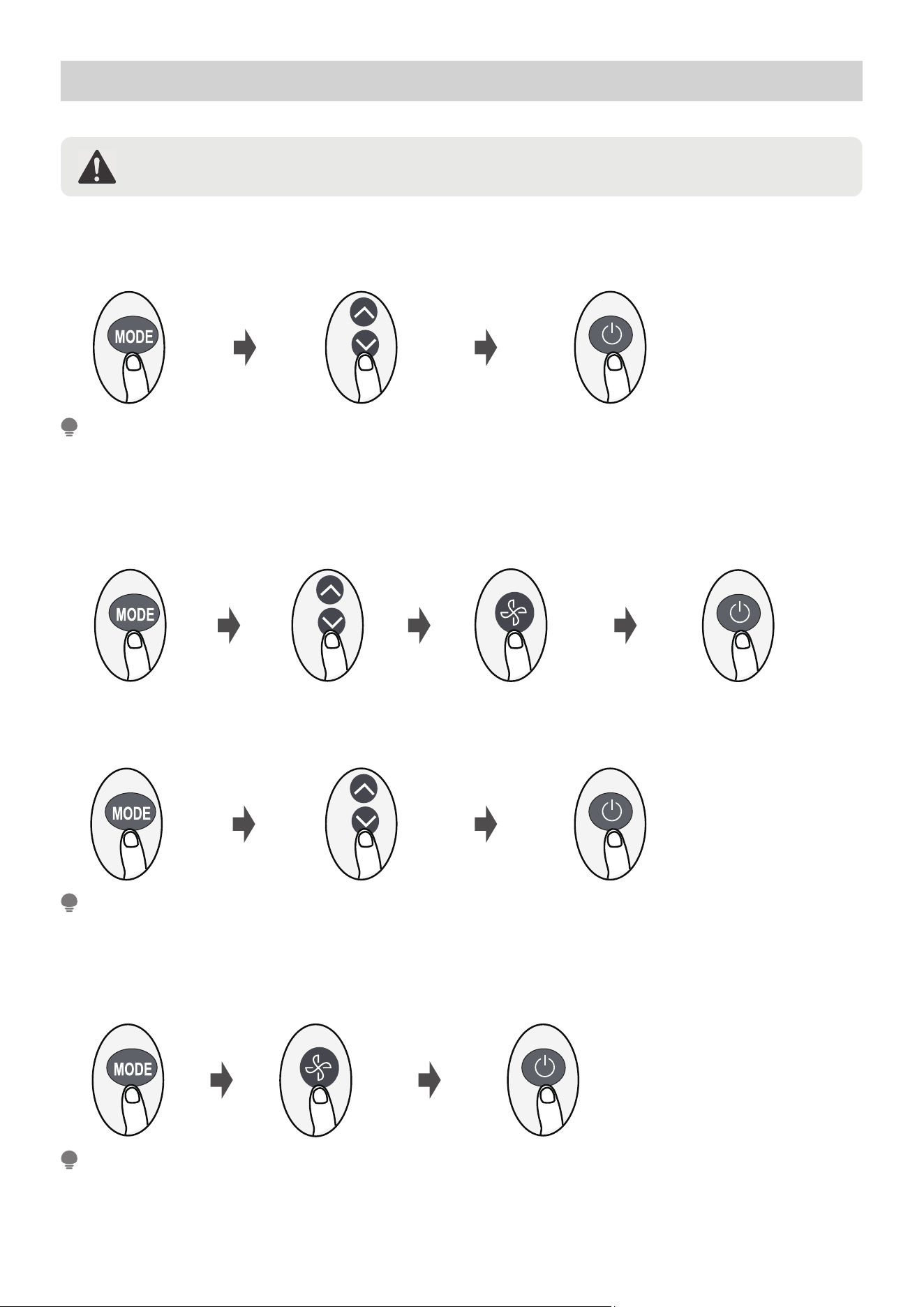

How to Use Basic Functions
ATTENTION
Before operation, please ensure the unit is plugged in and power is available.
AUTO Mode
COOL Mode
Select AUTO mode Set your desired temperature Turn on the air conditioner
Select COOL mode Set the temperature Set the fan speed Turn on the air conditioner
1. In AUTO mode, the unit will automatically select the COOL or FAN, function based on the set temperature.
2. In AUTO mode, fan speed cannot be set.
NOTE
DRY Mode
FAN Mode
Select DRY mode Set your desired temperature Turn on the air conditioner
Select FAN mode Set the fan speed Turn on the air conditioner
background
26
25
Setting the TIMER
TIMER ON/OFF
TIMER ON Setting
TIMER OFF Setting
Set the amount of time after which the unit will automatically turn on/off.
Press TIMER ON button to
initiate the ON time sequence.
Press TIMER OFF button to
initiate the OFF time sequence.
Press Temp. up or down button
multiple times to set the desired
time until turning on the unit.
Press Temp. up or down button
multiple times to set the desired
time until turning off the unit.
Point remote to unit and wait
1 sec. TIMER ON will be activated.
Point remote to unit and wait
1 sec. TIMER OFF will be activated.
1. When setting TIMER ON or TIMER OFF, the time will increase by 30 minutes increments with each press, up
to 10 hours. From 10 to 24 hours it will increase in 1 hour increments. (For example, press 5 times to get 2.5h,
and press 10 times to get 5h,). The timer will revert to 0.0 if pressed after reaching 24 hours.
2. Cancel either function by setting the timer to 0.0h.
NOTE
TIMER ON & OFF Setting (example)
Keep in mind that the time periods you set for both functions refer to hours after the current time.
Example: If the current time is
1:00 PM and the timer is set as
show above, the unit will turn on
2.5h later (3:30PM) and turn off at
6:00PM.
1
1secx10
x5
1sec
TIMER
TIMER
Current
time 1PM
2:00PM 3:00PM
4PM 5PM
6PM
Timer
starts
Unit turns
ON
Unit turns
OFF
2.5 hours later
5 hours later
3:30PM
xn
xn
background
27
26
The SLEEP function is not available in FAN or DRY mode.
NOTE

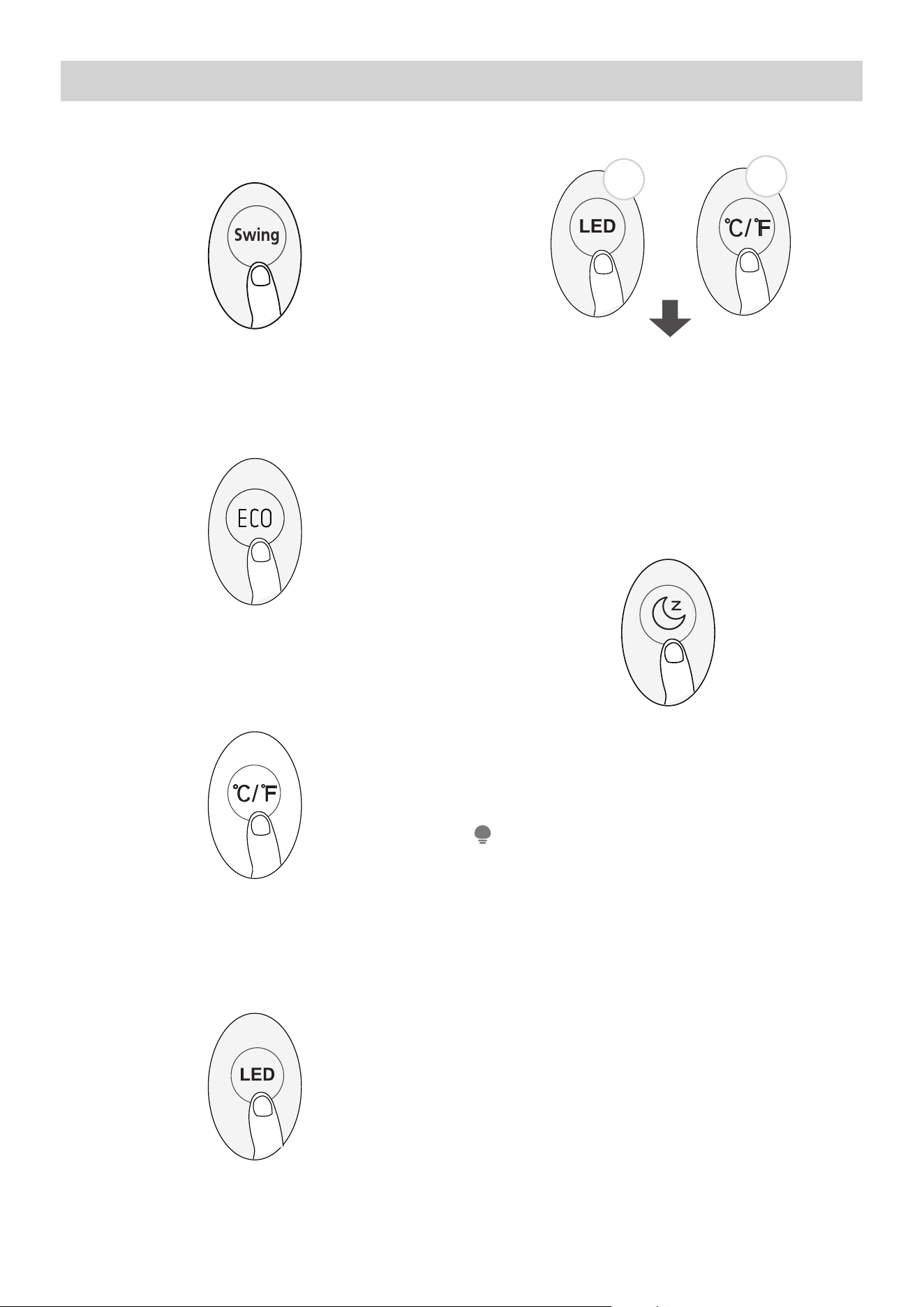

How to Use Advanced Functions
SLEEP Function
LOCK Function
Press SLEEP button.
Press the LED button and °C/°F button at the same
time for more than 5 seconds to activate the Lock
function.
Once Lock is activated, buttons will not respond until
you press these two buttons for two seconds again to
disable locking.
The SLEEP function is used to decrease energy while
you sleep (and dont need the same temperature
settings to stay comfortable).
The User Manual doesn’t say anything about the
sleep function.
SWING Function
Press Swing button.
The horizontal louver will swing up and down
automatically after pressing the Swing button.
Press again to make it stop.
ECO Function
Press the ECO button to turn on this function.
This function is available on COOL, DRY, and AUTO
modes.
°CF
Press this button to alternate the temperature display
between the °C & °F.
LED DISPLAY
Press LED button.
Press this button to turn on and turn off the display
on the indoor unit.
5s
5s
+
background
28
27

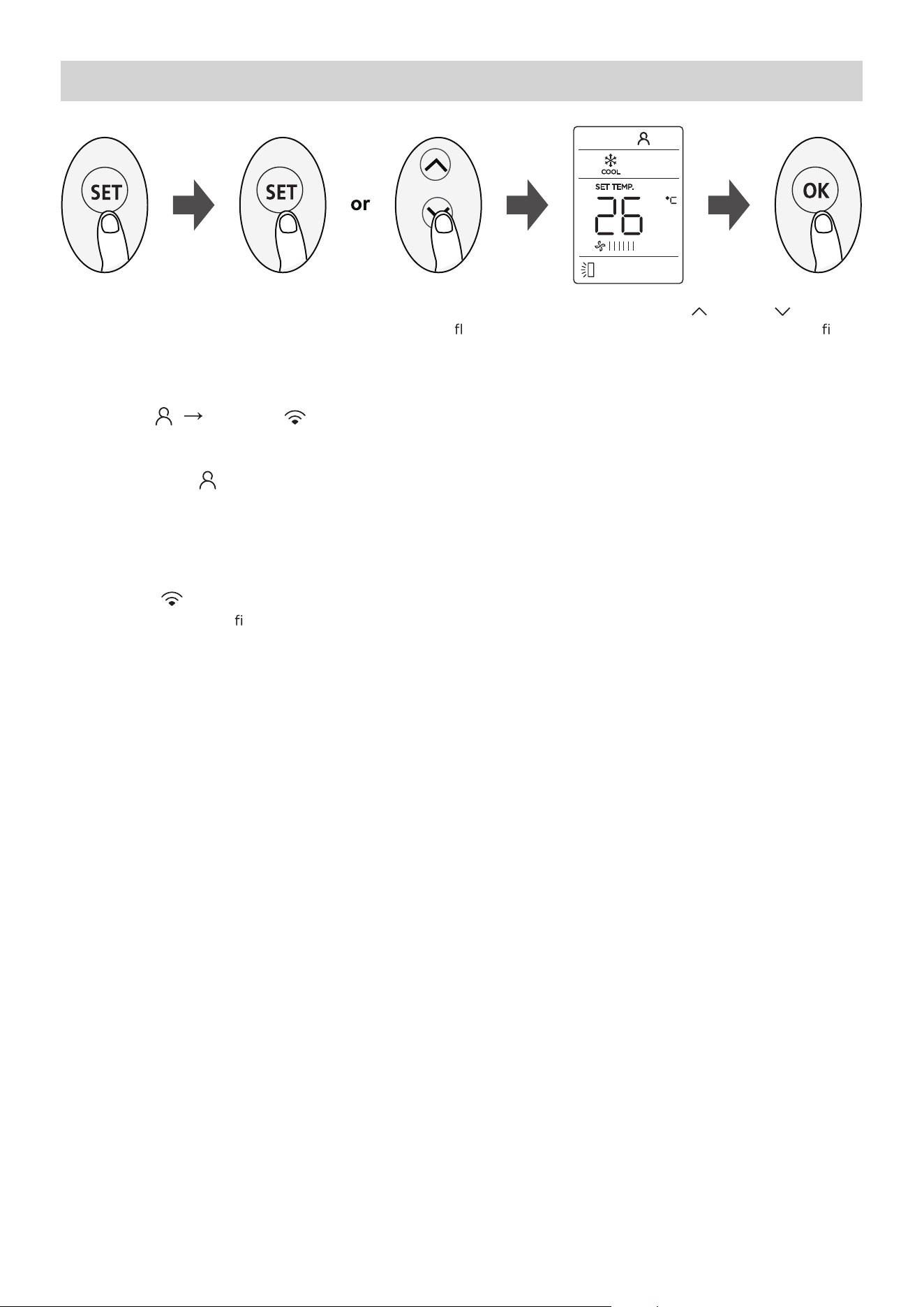

SET Function
Press the SET button to enter the function setting, then press the SET button or TEMP or TEMP button to
select the desired function. The selected symbol will
ash on the display area. Press the OK button to con rm.
To cancel the selected function, just perform the same procedures as above and select your original
function.
Press the SET button to scroll through operation function as follow:
I SENSE (
) AP mode ( )*
[*]: Model-dependent.
I SENSE Function (
):
The I SENSE function enables the remote control to measure the temperature at its current location and send
this signal to the air conditioner every 3 minutes. When using AUTO and COOL modes, measuring ambiente
temperature from the remote control (instead of from the indoor unit itself) will enable the air conditioner to
optmize the temperature around you and ensure maximum comfort.

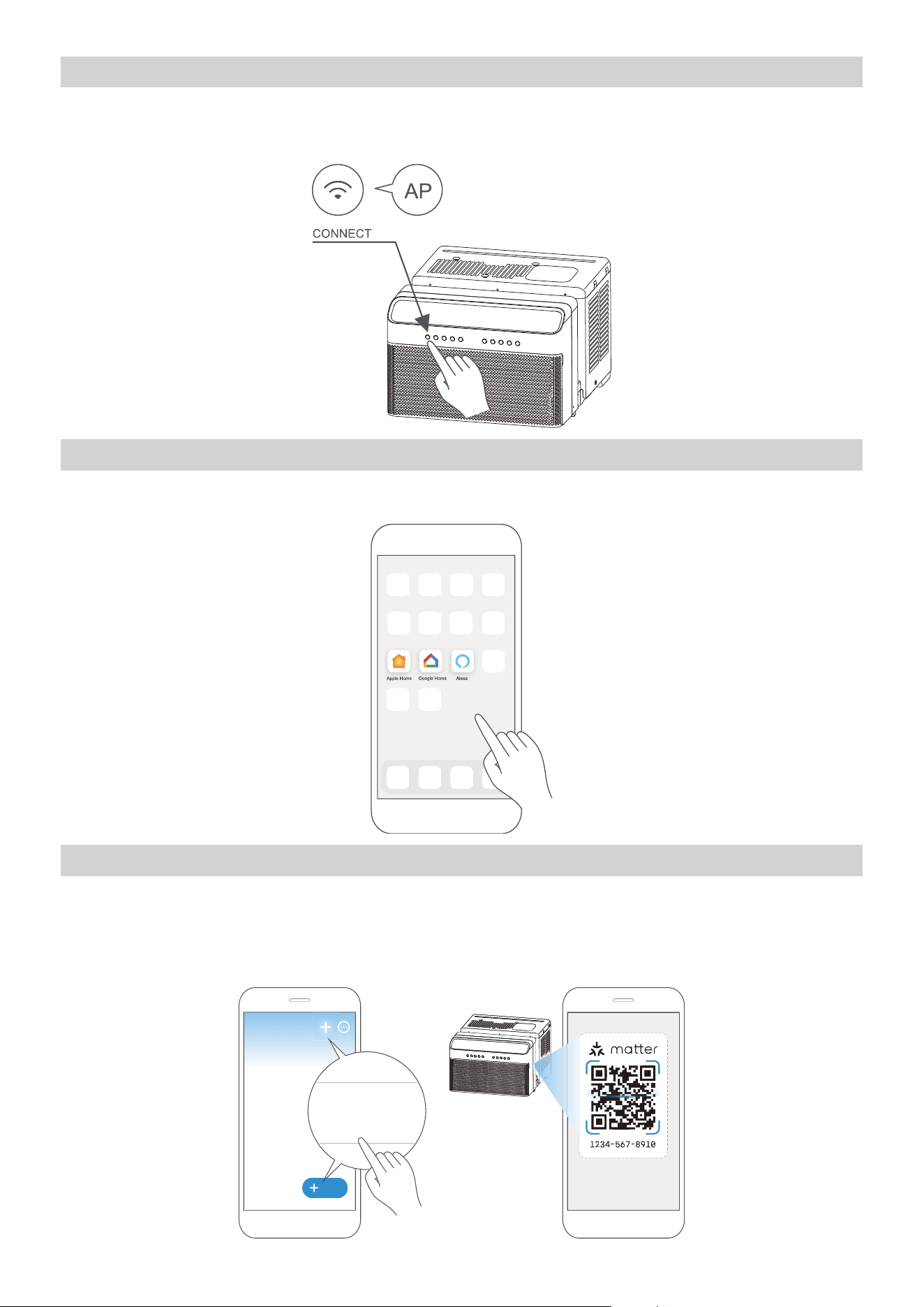

AP Function (
):
Choose AP mode to con
gure the wireless network. For some units, AP mode cannot be selected with the SET
button. Instead, press the LED button seven times in 10 seconds to enter AP mode.
background
29
32

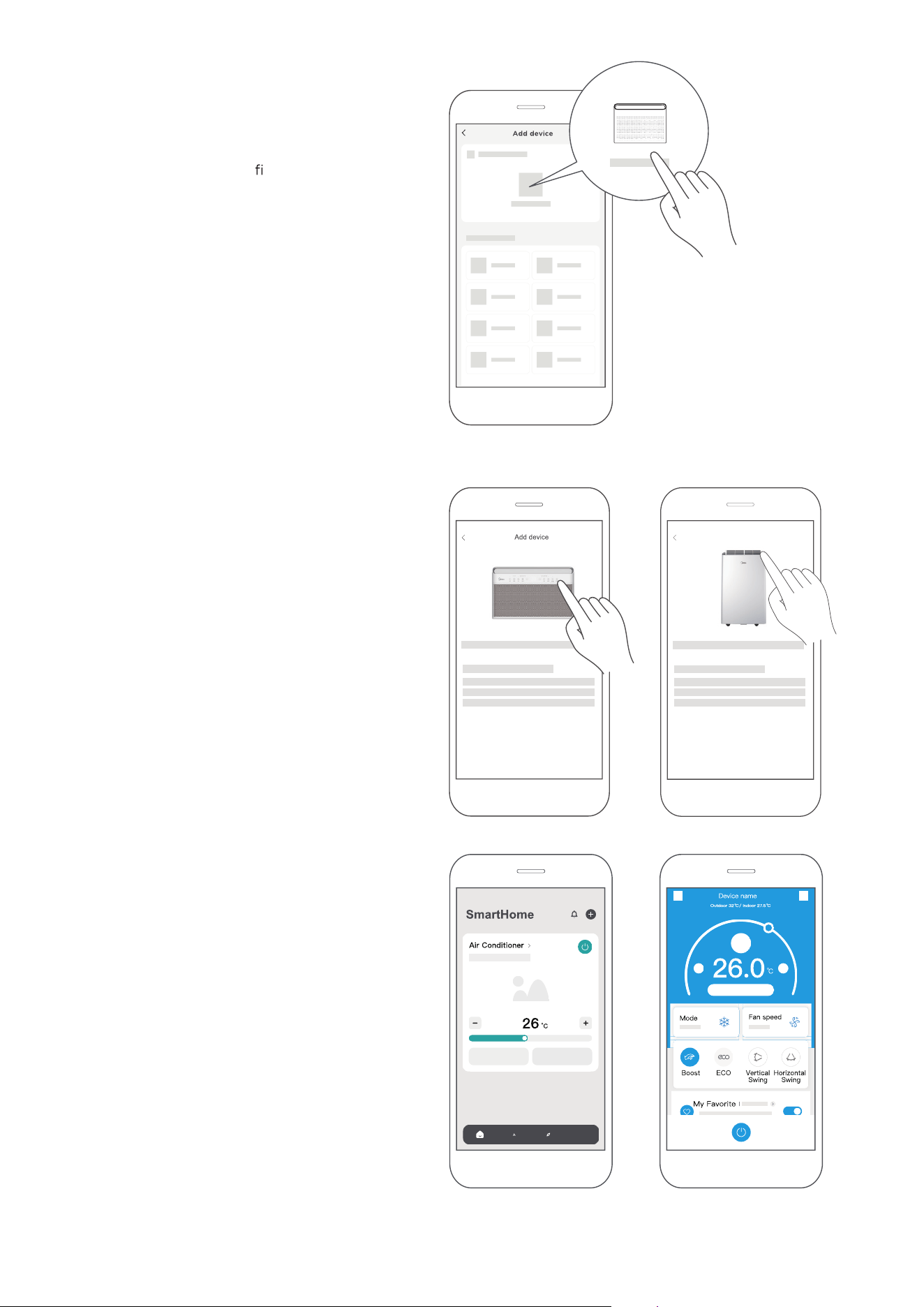

2) If no such message appears, proceed as
follows: Tap on “
+
” and select your device in
the list of nearby available devices.
If your device is not listed, please add your
device manually. Select the device category
(e.g. Window AC) and nd your device
model in the list.
3) Follow the steps in the app to connect
your device to the wireless network. If your
device fails to connect, follow the additional
instructions in the app.

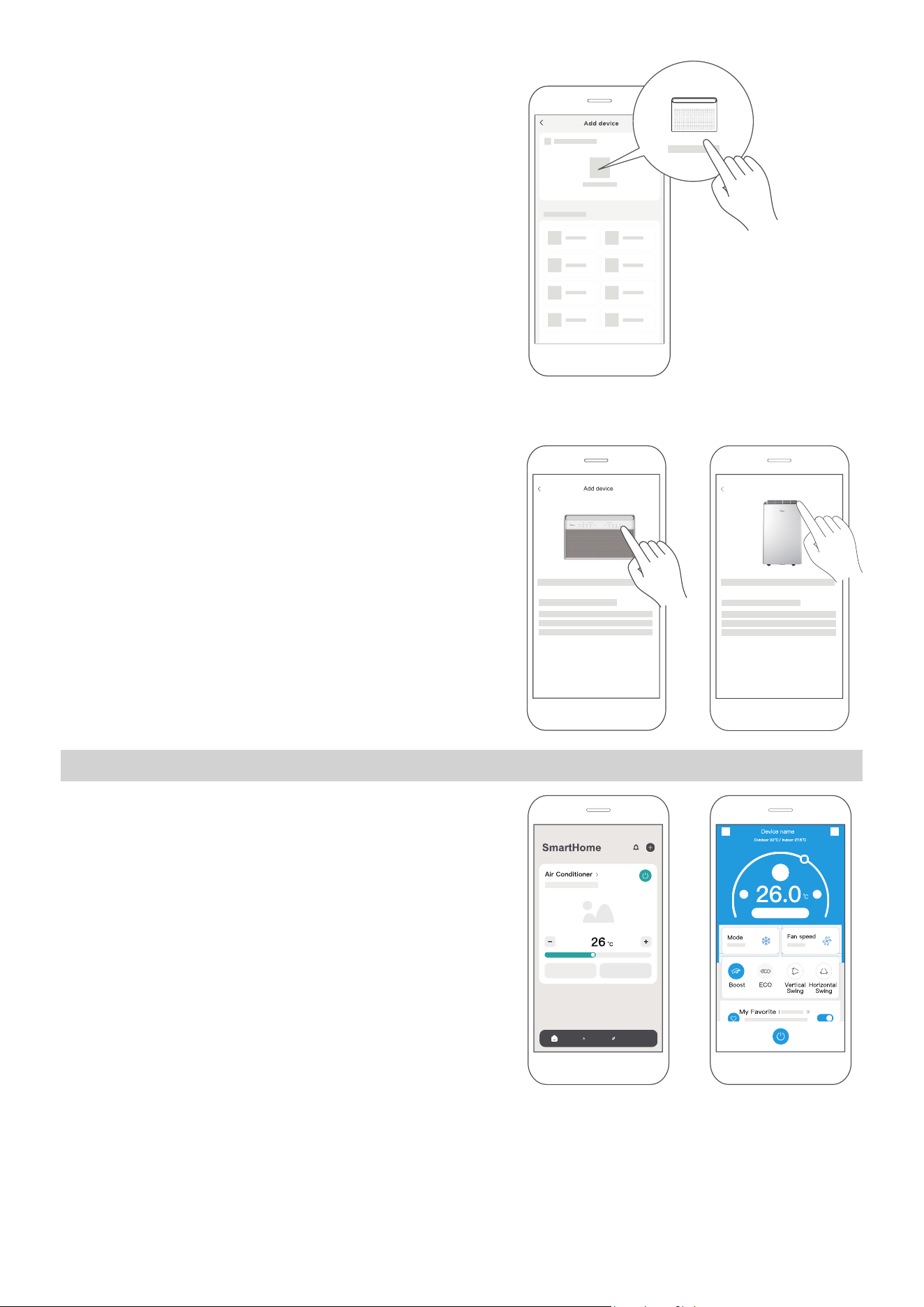

STEP 4: Controlling the Device
After pairing successfully, a card will be created
for the device in the SmartHome app.
Shortcuts for basic functions will appear on
the card, such as changing the temperature or
switching the device on or off.
Tapping on the card will reveal additional
features and settings. The actual UI design may
look different from examples due to app updates.
For Window AC For Portable AC
Add device
background
30

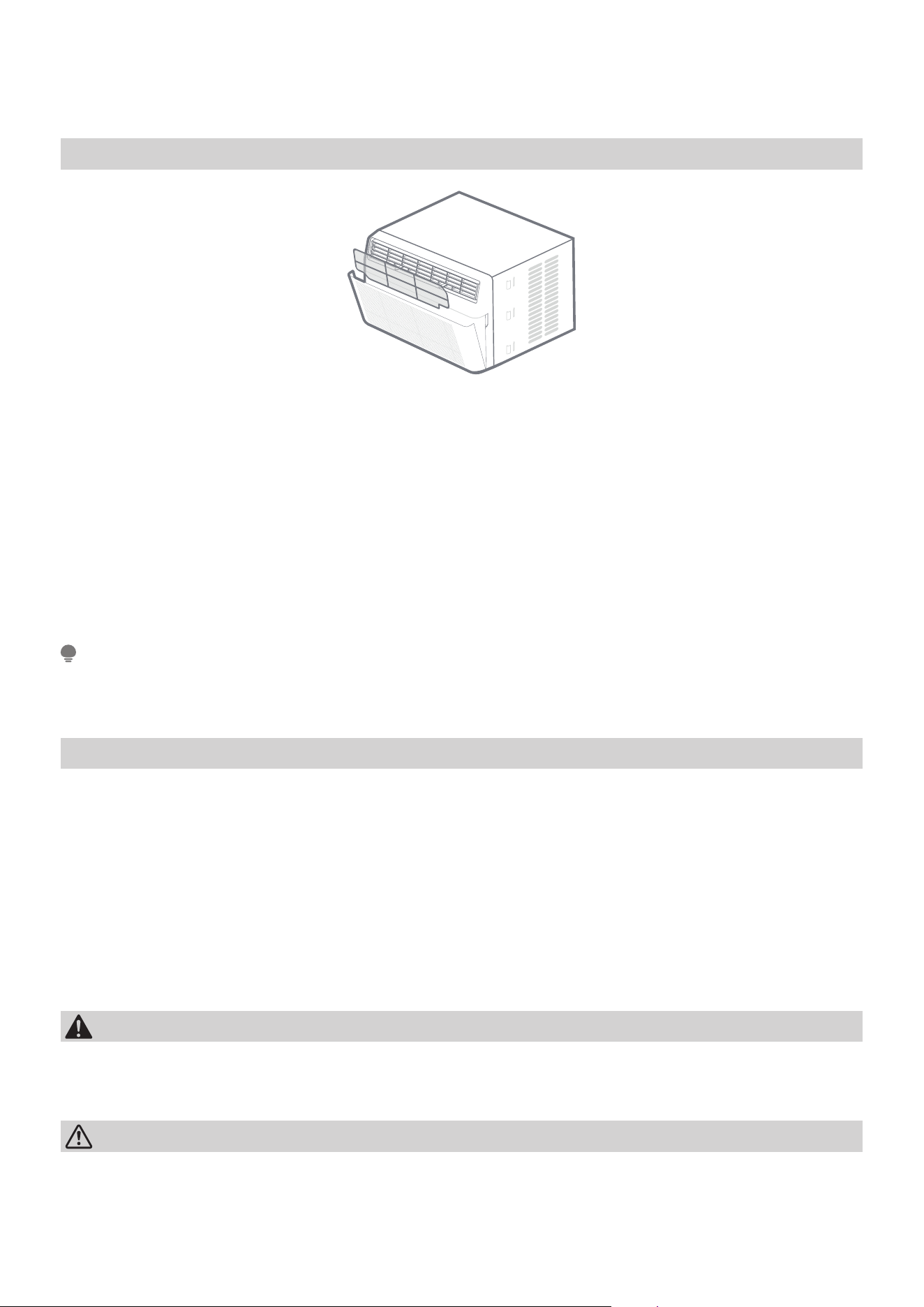

Cleaning & maintenance
How to clean & change your filter.
Check the air filter once a month to see if cleaning is necessary.
The air filter should be checked at least once a month to see if cleaning is neces-
sary. Trapped particles in the filter can build up and cause an accumulation of frost
on the cooling coils.
Push the vent handle to the Vent Closed position (where applicable). Open the
front panel.
Grip the tab on the filter and lift it up, then pull it out.
Wash the filter using liquid dishwashing detergent and warm water. Rinse fil-
ter thoroughly. Gently shake excess water from the filter. Be sure the filter is
thoroughly dry before replacing. Instead of washing, you may vacuum the filter
clean.
Note:
Never use hot water over 40°C(104°F) to clean the air filter. Never attempt to oper-
ate the unit without the air filter.
Cabinet Cleaning
Be sure to unplug the air conditioner to prevent shock or fire hazard. The cab-
inet and front may be dusted with an oil-free cloth or washed with a cloth
dampened in a solution of warm water and mild liquid dishwashing detergent.
Rinse thoroughly and wipe dry.
Never use harsh cleaners, wax or polish on the cabinet front.
Be sure to wring excess water from the cloth before wiping around the con-
trols. Excess water in or around the controls may cause damage to the air con-
ditioner.
Plug in air conditioner.
WARNING
Clean your air conditioner occasionally to keep it looking new. Be sure to unplug
the unit before cleaning to prevent chock or fire hazards.
CAUTION:
If you plan to store the air conditioner during the winter, remove it carefully from
the window according to the installation instructions. Cover it with plastic or return
it to the original carton.
background
31
TROUBLESHOOTING
Problem Solving
Before calling for service, review this list. It may save your time and expense. This
list includes common occurrences that are not the result of defective
workman-ship or materials in this appliance.
Problem Solution
Air conditioner does not start.
Wall plug disconnected. Push plug firmly into wall outlet.
House fuse blown or circuit breaker tripped. Replace fuse with time
delay type or reset circuit breaker.
Plug Current Device Tripped. Press the RESET button.
Power is OFF. Turn power ON.
Air from unit does not feel
cold enough.
Room temperature below 62°F(17°C). Cooling may not occur until
room temperature rises above 62°F(17°C).
Temperature sensing behind air filter element touching cold coil.
Keep it from the cold coil.
Set to a Lower temperature.
Compressor stopped when changing modes. Wait for 3 minutes
after set to the COOL mode.
Air conditioner cooling, but
room is too warm-ice
forming on cooling coil behind
decorative front.
Outdoor temperature below 64°F(18°C). To defrost the coil, set FAN
ONLY mode.
Air filter may be dirty. Clean filter. Refer to Care and Cleaning sec-
tion. To defrost, set to FAN ONLY mode.
Thermostat set too cold for night-time cooling. To defrost the coil,
set to FAN ONLY mode. Then, set temperature to a Higher setting.
Air conditioner cooling, but
room is too warm-NO ice
forming on cooling coil behind
decorative front.
Dirty air filter- air restricted. Clean air filter. Refer to Care and Clean-
ing section.
Temperature is set too High, set temperature to a Lower setting.
Air directional louvers positioned improperly. Position louvers for
better air distribution.
Front of units is blocked by drapes, blinds, furniture, etc. - restricts
air distribution. Clear blockage in front of unit.
An open doors, windows,or register may allow cold air to escape.
Close any doors, winows, or registers.
The room may be too warm. Allow additional time to remove
“Stored heat” from walls, ceiling, floor and furniture.
Air conditioner turns on and o
rapidly
Dirty air filter- air restricted. Clean air filter.
Outside temperature extremely hot. Set FAN speed to a Higher set-
ting to bring air past cooling coils more frequently.
background
32
Problem Solution
Noise when unit is cooling
Air movement sound. This is normal . If too loud, set to a slower FAN
setting.
Window vibration - poor installation. Refer to installation instruc-
tions or check with installer.
For better cooling effect,The wind wheel outside the window ma-
chine will make a splash,If you don’t want to hear it,The rear side
drain plug can be removed.(Standard installation Angle of window
machine 3
o
-5
o
degrees)
Noise when unit is working
When you use the mute mode to start the unit. due to the compres-
sor being hot. the sound of the compressor may be more prominent.
lasting for about 3 minutes. It is normal.
A“da-da” sound may occur for thirty seconds when the unit is
turned on due to the compressor starting. It is normal.
Water dripping INSIDE when
unit is cooling.
Improper installation. Tilt air conditioner slightly to the outside to
allow water drainage. Refer to installation instructions - check with
installer.
Water dripping OUTSIDE when
unit is cooling.
Unit removing large quantity of moisture from humid room. This is
normal during excessively humid days.
Remote Sensing
Deactivating Prematurely
(Only remote models)
Remote control not located within range. Place remote control with-
in 20 feet and pointed in the general direction of the air conditioner
unit.
Remote control signal obstructed. Remove obstruction.
Room too cold Set temperature too low. Increase set temperatur.
The design and specifications are subject to change without prior notice for prod-
uct improvement. Any updates to the manual will be uploaded to the Midea web-
site (www.midea.com/us), please check for the current version.

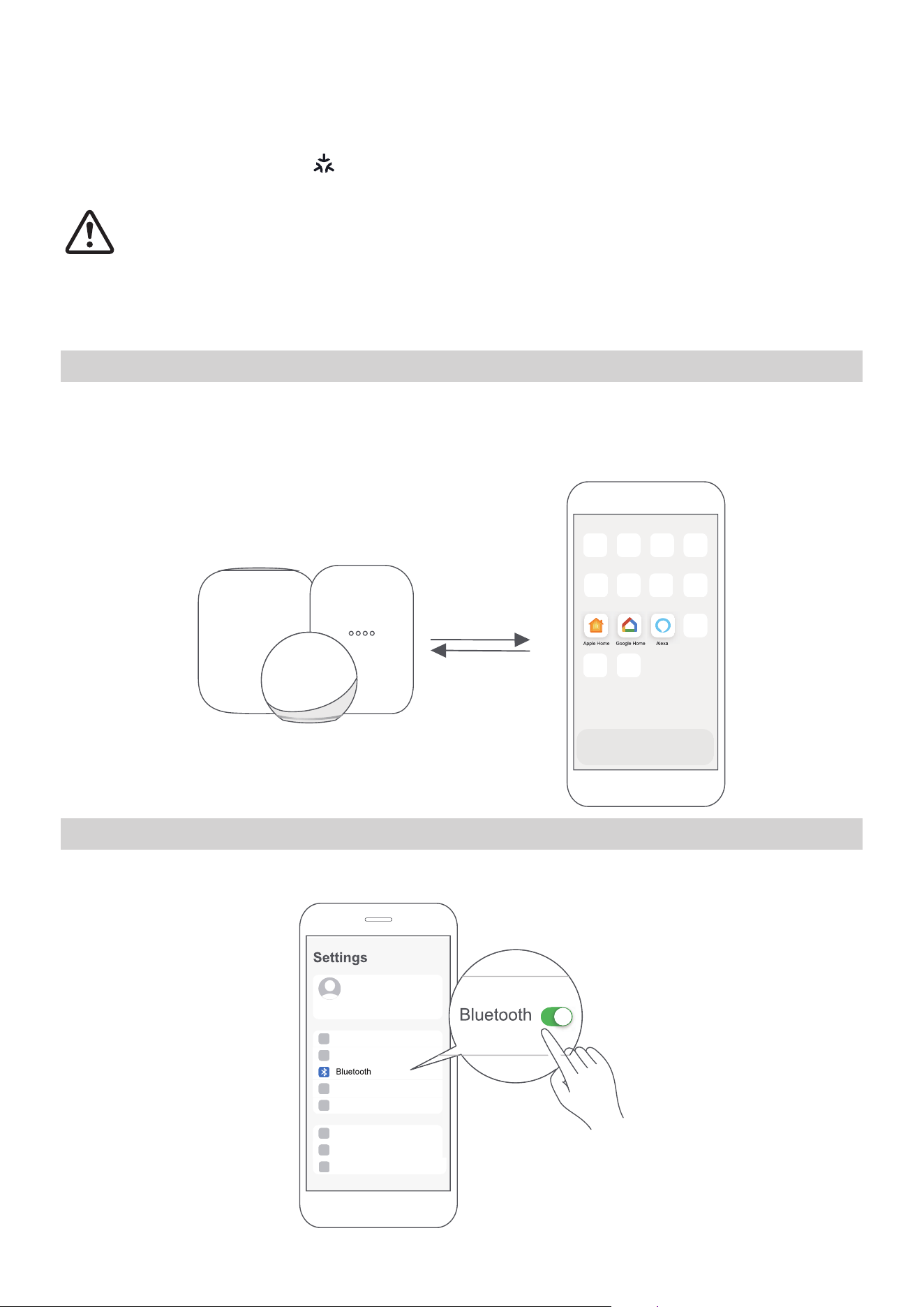

background
33
CONNECTION INSTRUCTIONS
1. How to Use Matter
Connect Your Air Conditioner Through Matter
Make sure your mobile device is connected to your wireless router.
The wireless router should support and turn on IPv6. Please make sure your
smartphone is connected to the 2.4G, not the 5G network.
For the best Matter compatibility, connect the AC to the Alexa, Google
Home or Apple Home ecosystems, along with at least one of their respec-
tive Matter-enabled smart speakers.
STEP 1: Connect to Smart Speakers
Select your preferred ecosystems (Alexa, Google Home or Apple Home) and make
sure you’ve got one of their Matter-enabled products (such as their smart speak-
ers) connected to your wireless router.
STEP 2: Turn On Bluetooth
Turn on Bluetooth on your mobile device.
background
34
STEP 3: Enter AP Mode
Hold down the CONNECT button for 3 seconds to begin the pairing process (“AP
will appear on the AC’s display).
STEP 4: Open App
Open the Alexa, Google Home or Apple Home app on your mobile device.
STEP 5: Scan Matter QR code
Tap the “+” and “Add Device/ Accessory” or tap “+Add” in your app, select Matter
device and scan the Matter QR code found on the side of the AC device.
Follow the respective instructions in the Alexa, Google Home or Apple Home app
to complete the pairing process.
Add
Add Device/Accessory
scan
Matter QR code
background
35
STEP 6: Control Device
After pairing is successful, you can control your AC’s temperature and mode set-
tings, etc. through the respective ecosystem app and/or smart speaker.
Air conditioner
App & Smart Speakers can support Matter only when using these versions or
above.
Device Version
iPhone iOS 16.5
Apple Home Pod 16.5
Android
Google Play services min version: 22.36.15
Google Home app (GHA) min version: 2.58.24.1 - dogfood
Google Home Hub
Google Hub firmware min version: 1.56.324896 (appears on hub as
Chromecast firmware version)
Alexa App 2.2.536317
Alexa Echo Device 9094439556
NOTE
Setup processes and features may vary between ecosystems.
Make sure the Matter-enabled app is up to date to ensure the best experience.
Periodically, we will update the device’s software to improve the experience.
Device software updates can be accomplished through the SmartHome app.

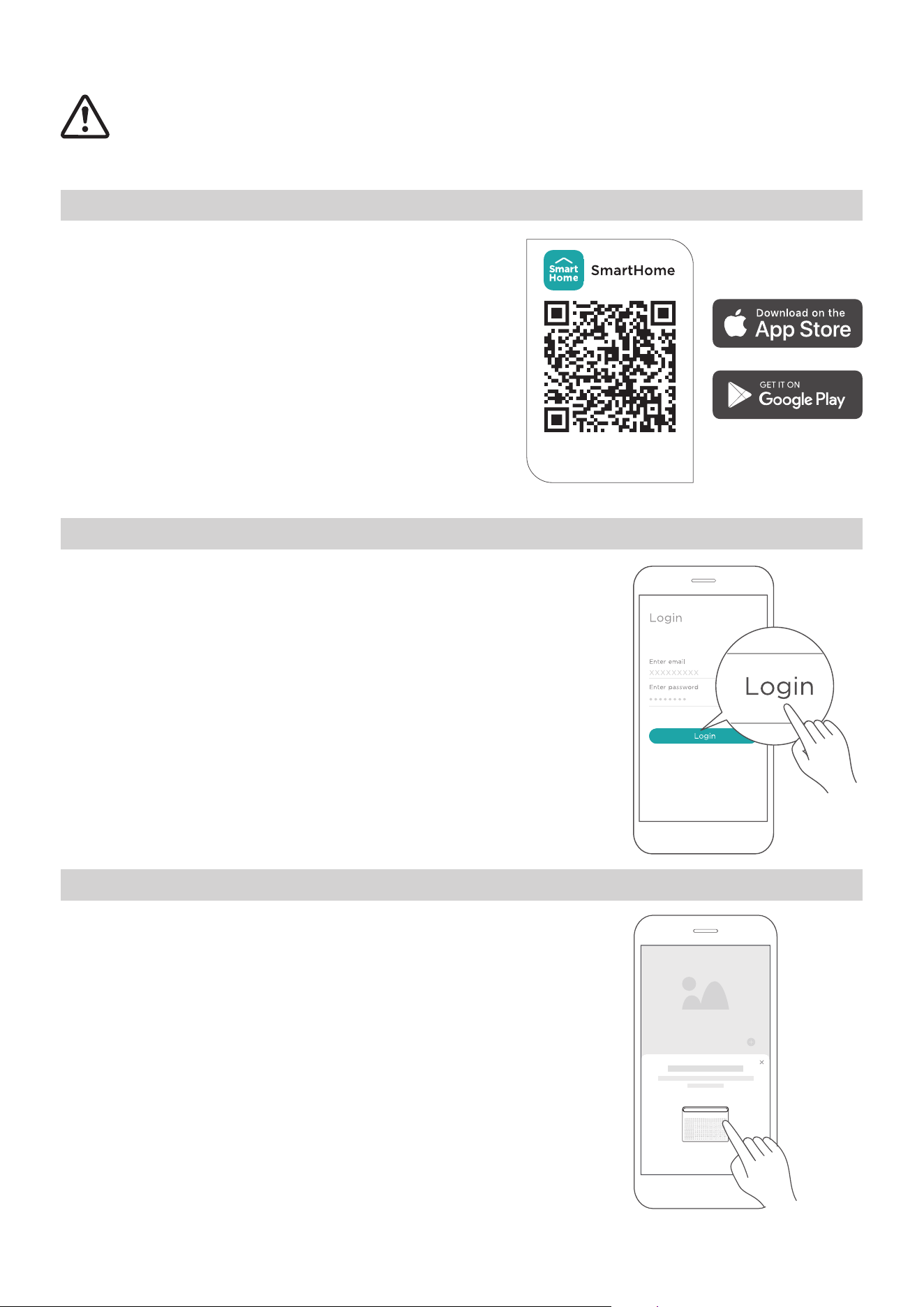

background
36
2. How to Use SmartHome
Ensure that your mobile phone is connected to the wireless network. Blue-
tooth must be turned on. The device must also be powered on.
STEP 1: Download the SmartHome App
Scan the QR code below to download the
SmartHome app from the app store or search
for it directly on the Google Play Store or Ap-
ple’s App Store.
STEP 2: Log in
Open the SmartHome app. Log in directly if you have an
existing SmartHome account or create a new account.
Alternatively, you can also use a 3rd party login platform.
STEP 3: Connecting the Device
(1) When you log in, you may see the message “Smart
devices discovered nearby”.Tap to add your device.
Download the app
& activate product
background
(2) If no such message appears, proceed as
follows: Tap on “+” and select your device
in the list of nearby available devices.
If your device is not listed, please add your
device manually. Select the device catego-
ry (e.g. Window AC) and find your device
model in the list.
(3) Follow the steps in the app to connect
your device to the wireless network. If your
device fails to connect, follow the addi-
tional instructions in the app.
STEP 4: Controlling the Device
After pairing successfully, a card will be creat-
ed for the device in the SmartHome app.
Shortcuts for basic functions will appear on
the card, such as changing the temperature or
switching the device on or off.
Tapping on the card will reveal additional fea-
tures and settings. The actual UI design may
look different from examples due to app up-
dates.
For Window AC For Portable AC
Add device
37
background
Unit model: MAW18RV1CWT,MAW24RV1CWT Operation Temperature: 0°C ~ 45°C / 32°F ~ 113°F
Wireless Module Model: US-SK109 Operation Humidity: 10% ~ 85%
Antenna Type: Printed PCB Antenna Power Input: DC 5V/500 mA
Wireless: 2400 - 2483.5MHz, TX Power: < 20dBm BLE: 2402 - 2480MHz, TX Power: < 10dBm
Declaration of Conformity
Specifications
FCC ID: 2ADQOMDNA23
IC: 12575A-MDNA23
This device complies with Part 15 of the FCC Rules and Industry Canada’s licence exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference;
(2) This device must accept any interference, including interference that may cause undesired operation of
the device.
Only operate the device in accordance with the instructions supplied.
Changes or modifications to this unit not expressly approved by the party responsible for compliance could
void the users authority to operate the equipment.
This device complies with FCC radiation exposure limits set forth for
an uncontrolled environment. In order
to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the
antenna shall not be less than 20cm (8 inches) during normal operation.
This device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
In order to avoid the possibility of exceeding the radio frequency exposure limits, human proximity to the antenna
shall not be less than 20cm during normal operation. (European Union products only)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
NOTE
38
background
39
Supplier’s Declaration of Conformity
Per FCC Part 2 Section 2.1077
Unique Identifier: Midea brand, RG10G5(B2)/BGCEFU1
Responsible Party – U.S. Contact Information
Midea America Corporation
300 Kimball Dr
Parsippany NJ
07054
Telephone number or internet contact information: Midea.com/us
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause un-
desired operation.
background
WARRANTY
Air Conditioner Limited Warranty
Your product is protected by this Limited Warranty:
Warranty service must be obtained from Midea Consumer Services or an authorized Midea servicer.
Warranty
Three Year Full warranty from the date of delivery or the purchase date, whichever is later.
The date of delivery establishes the warranty period, should service be required.
Midea, through its authorized servicers will:
Pay all costs for reparing or replacing parts of this appliance which prove to be defective in materials
or workmanship.
Consumer will be responsible for:
Diagnostic
s, removal, transportation and reinstallation cost required because of service.
Costs of service calls that are a result of items listed under NORMAL RESPONS
ABILITIES OF THE CONSUMER**
Midea replacement parts shall be used and will be warranted only for the original warranty.
NORMAL RESPONSABILITIES OF THE CONSUMER**
This warranty applies only to products in ordinary household use, and the consumer is responsible for
the items listed below:
1. Proper use of the appliance in acor
dance with instructions provi
ded with the product.
2. Routine maintenance and cleaning necessary to keep the good working condition.
3. Proper installation by an authorized service professional in accordance with instructions provided with the
appliance and in accordance with all local plumbing, electrical and/or gas codes.
4. Proper connection to a grouded power supply of sufficient voltage, replacement of blown fuses, repair of
loosen connections or defects in house wiring.
5. Expenses for making the appliance accessible for servicing.
6. Damages to finish after installation.
EXCLUSIONS
This warranty does not cover the following:
1) Failure caused by damage to the unit while in your possesion (other than damage caused by
defect or malfunction), by its
improper installation, or by unreasonable use of the unit, including
without limitation, failure to provide reasonable
and necessary maintenance or to follow the written
installation and Operating Instructions.
2) Damages caused by services performed by persons other than those authorized by Midea customer
service; or external causes such as abuse, misuse, inadequate power supply or acts of God.
3) If the unit is put to commercial, business, rental, or other use or application other than for consumer
use, we make no warranties, express or implied, including but not limited to, any implied warranty of
merchantability or fitness for use or purpose.
4) Products without original serial numbers or products that have serial numbers which have been altered
or cannot be readily determined.
NOTICE: Some states do not allow the exclusions or limitation of incidental or consequential damages.
So this limitation or exclusion may not apply to you.
IF YOU NEED SERVICE
Keep your bill of sale, delivery slip, or some other appropriate payment Record.
The date on the bill establishes the warranty period, should service be required.
If service is performed, its your best interest to obtain and keep all receipts.
This written warranty gives you specific legal rights. Y
ou may also have other rights that v
ary
from state to state.
Service under this warranty must be obtained by following these steps, in order:
1) Contact Midea Consumer Services or an authorized Midea services at 1 866 646 4332.
2) If there is a question as to where to obtain service, contact our consumer relations Departament.
40
background
background
background
background

Specifications

Midea MAW24RV1CWT Questions and Answers
