HARBOR BREEZE and logo design are
trademarks or registered trademarks of LF, LLC.
All rights reserved.
1
Purchase Date
SS23607
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also
contact us at [email protected].
4007498
ITEM #5497058
CALVERTON
CEILING FAN
MODEL #CAL52WW5LR
Español p. 18
ATTACH YOUR RECEIPT HERE
ADJUNTE SU RECIBO AQUÍ
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference
received, including interference that may cause undesired operation.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
NOTE: Dimmable to 10%.
SAFETY INFORMATION
2
Safety Information .................................................................................................................2
Package Contents ...............................................................................................................
.
.5
Hardware Contents ...............................................................................................................6
Preparation .......................................................................................................................
.
..
.
.6
Initial Installation ....................................................................................................................6
Wiring ..............................................................................................................................
.
..
....
.9
Final Installation ...................................................................................................................10
Operating Instructions .........................................................................................................13
Care and Maintenance ......................................................................................................
.
.15
Troubleshooting ..................................................................................................................16
Limited Lifetime Warranty ...................................................................................................17
Replacement Parts List .....................................................................................................
.
.17
TABLE OF CONTENTS
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate
the product. Review the accompanying assembly diagrams.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for repairs,
it must be shipped in its original packaging to ensure proper protection against damage that might
exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code
and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you
are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 15.43 lbs.
SAFETY INFORMATION
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the support of
lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic
outlet box. Secure the outlet box directly to the building structure. The outlet box and its support must
be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan are
designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire
is larger than 12-gauge or there is more than one house wire to connect to the corresponding fan lead
wires, consult an electrician for the proper size wire connectors to use.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
3
SAFETY INFORMATION
CAUTION
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this specific
application and should not be serviced by untrained personnel. If any servicing is required, call our
customer service department.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when installing or
balancing them or when cleaning the fan. Do not insert objects between the rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
4
5

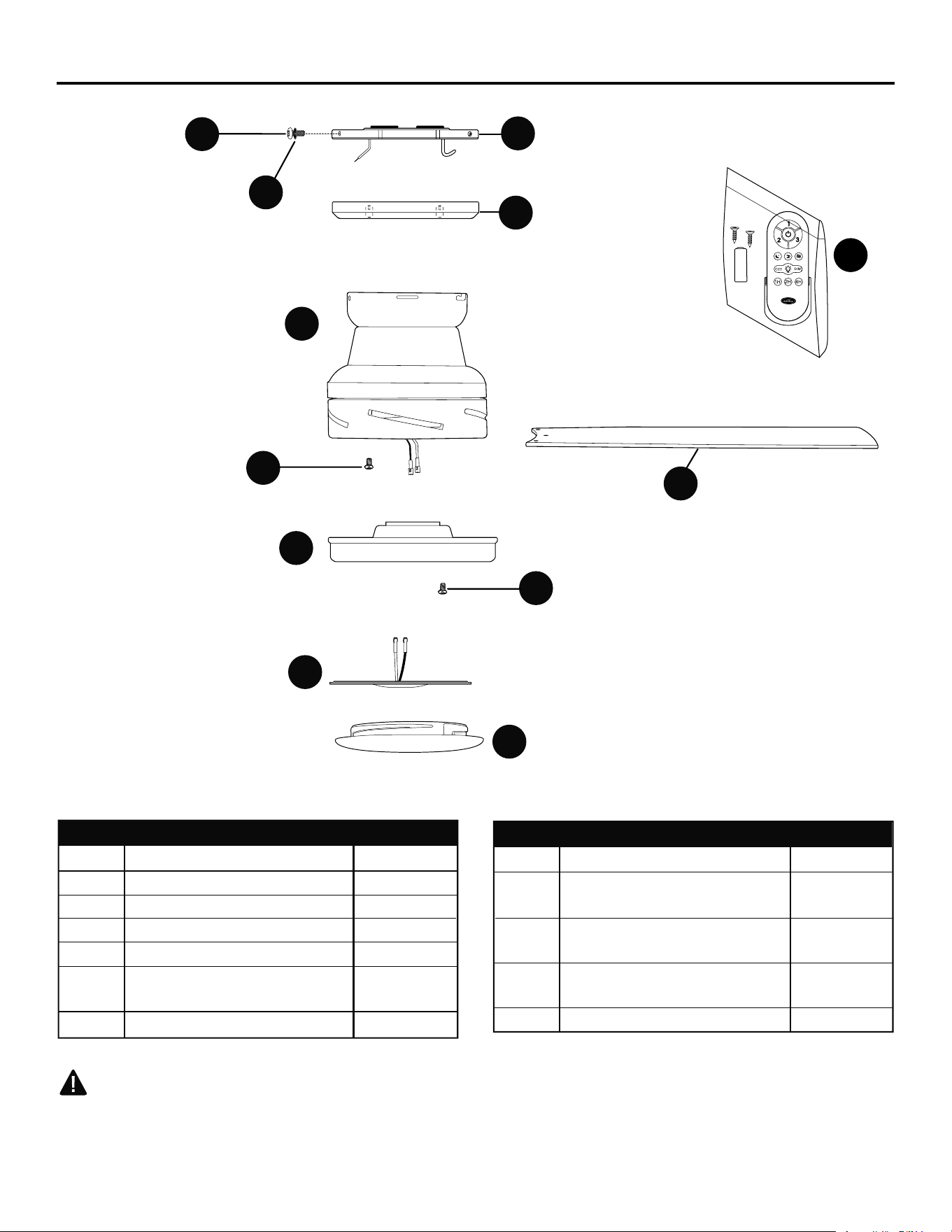

PACKAGE CONTENTS
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
A Mounting Plate 1
B Canopy Ring 1
C Motor Assembly 1
D Fitter Plate 1
E Shade 1
F Fitter Plate Screw 3
(preassembled)
G Blade 5
PART DESCRIPTION QUANTITY
B
G
I
H
K
C
E
A
J
D
F
L
H LED Light Kit 1
I Mounting Plate Lock 4
Washer (preassembled)
J Mounting Plate Screw 4
(preassembled)
K Motor Plate Screw 3
(preassembled)
L Remote Pack
1
DESCRIPTIONPART
QUANTITY

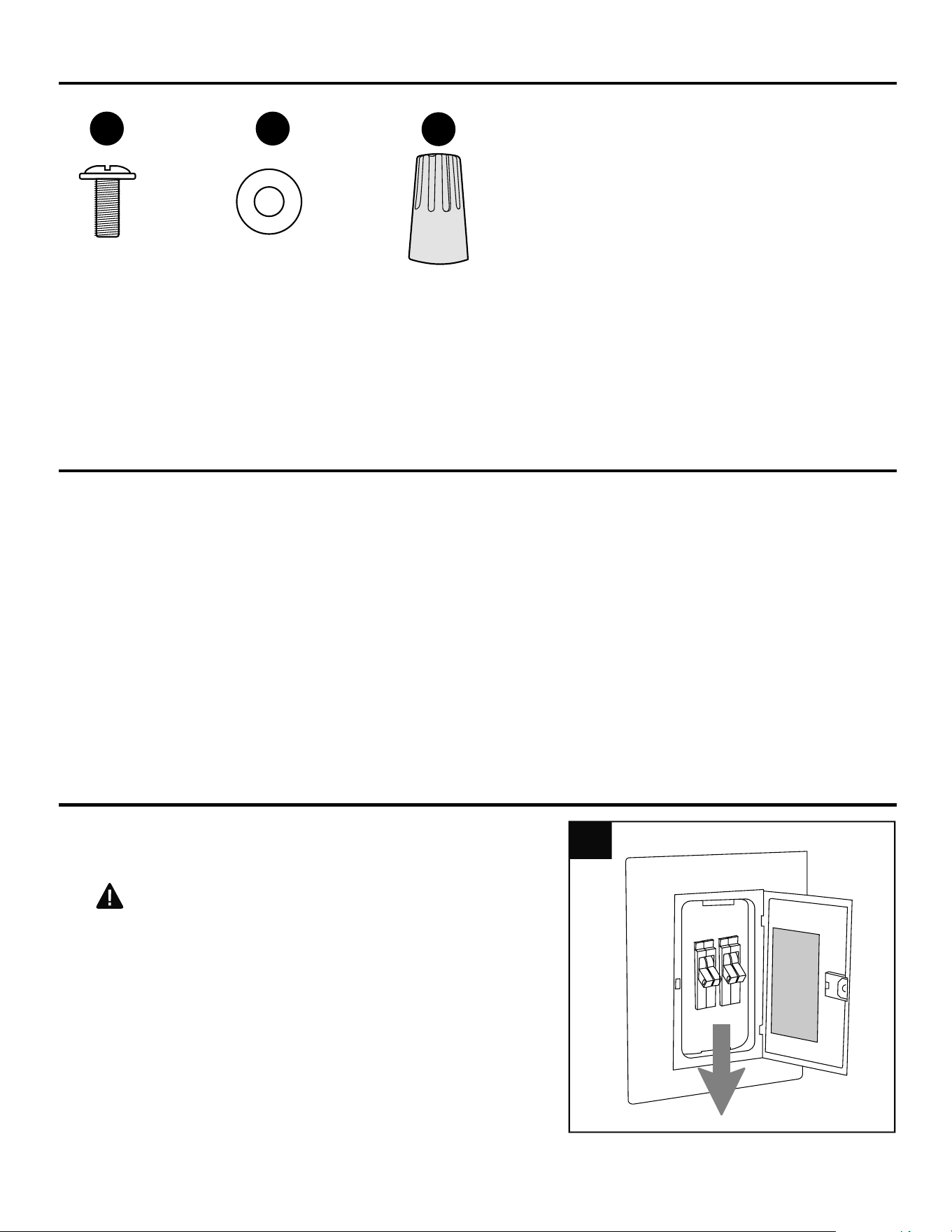

HARDWARE CONTENTS (shown actual size)
6
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble
the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety Glasses,
Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself-Wiring Handbook and Wire
Cutters
PREPARATION
AA
CC
Wire
Connector
Qty. 3
+ 1 extra
CC
Blade
Screw
Qty. 15
+ 1 extra
Fiber Blade
Washer
Qty. 15
+ 1 extra
BB
INITIAL INSTALLATION
Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
ON
OFF
ON
OFF
1
7
INITIAL INSTALLATION

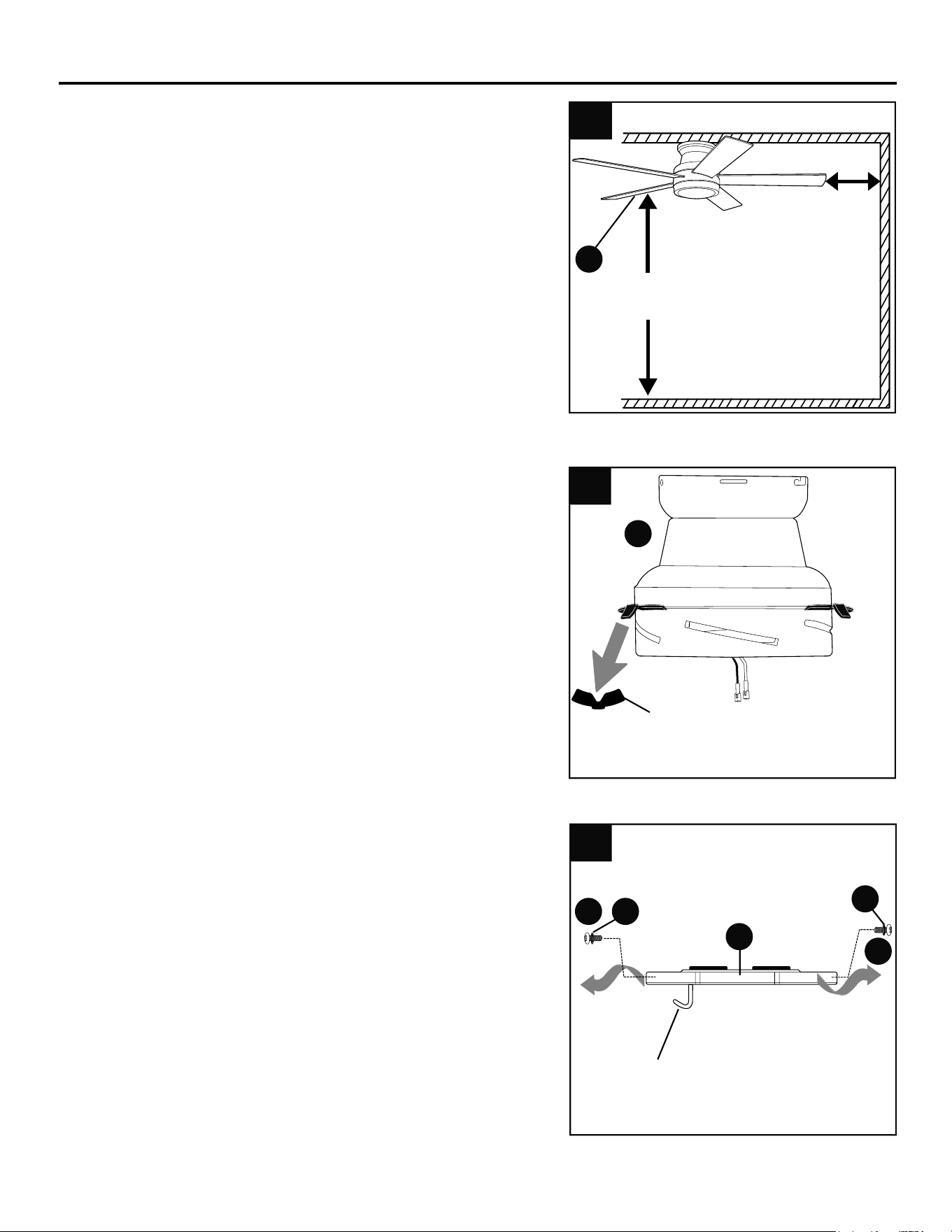

Remove all three preassembled motor stabilization
pieces from motor assembly (C). The motor
stabilization pieces may be discarded at this time.
"J" Hook
3.
This fan can be mounted as a flushmount on a
regular (no-slope) ceiling only.
Check to make sure blades (G) will be at least
30 inches from any obstruction and at least 7 ft.
above the floor.
2.
3
4
Locate mounting plate screw (J) (with mounting
plate lock washer (I)) on outer edge of mounting
plate (A) that is closest to the j-hook and remove
that mounting plate screw (J) (with mounting
plate lock washer (I)). Also, remove mounting
plate screw (J) (with mounting plate lock washer
(I)) on outer edge of mounting plate (A) directly
opposite the one that was just removed. Partially
loosen the other two mounting plate screws (J)
(with mounting plate lock washers (I)).
4.
A
J
J
I
I
2
7 ft.
min.
30 in.
min.
G
3
3
C
Motor
Stabilization
Piece

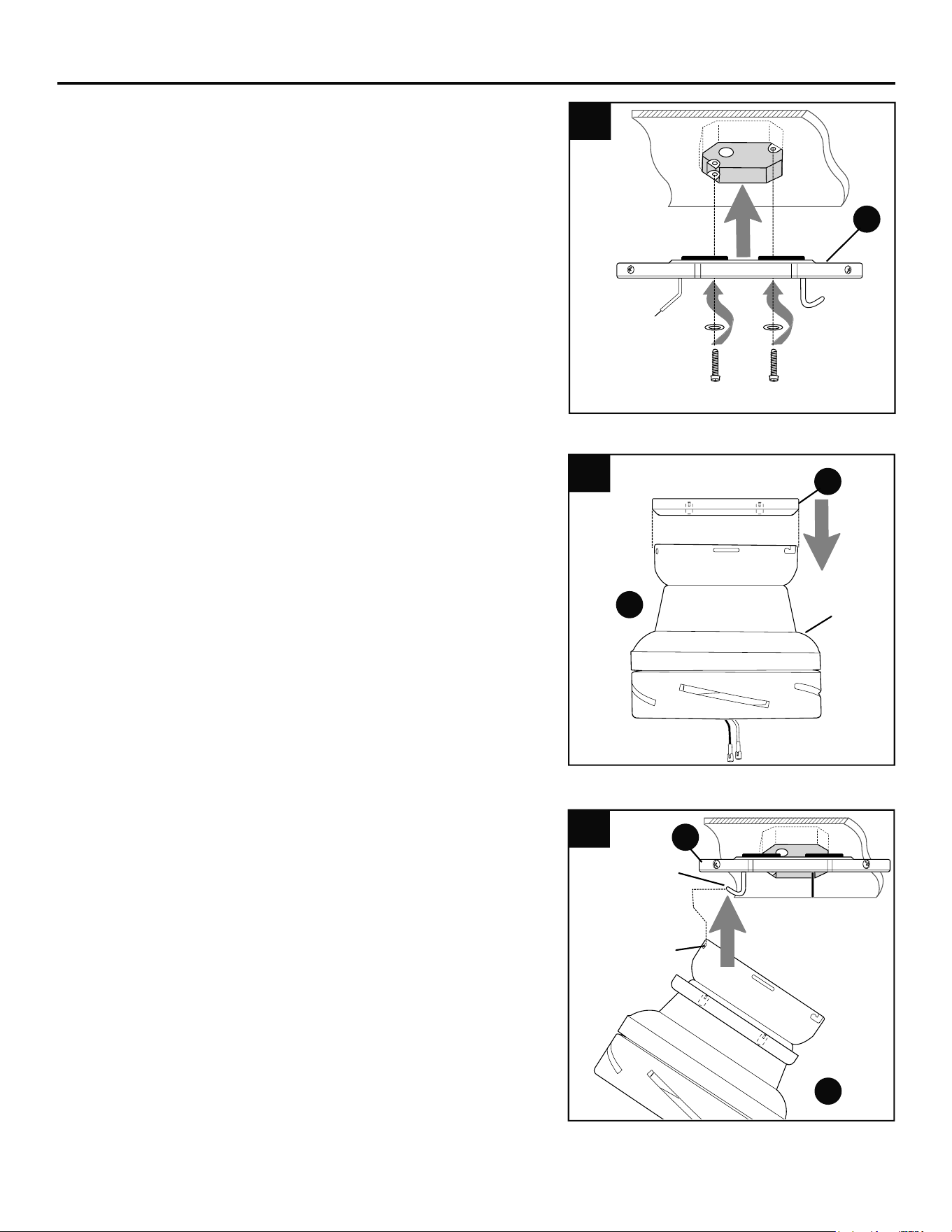

Lift motor assembly (C) to mounting plate (A).
Hang motor assembly (C) on j-hook on underside
of mounting plate (A). [IMPORTANT: Use one of
the non-slotted holes on the rim of the motor
assembly (C) to do so.]
This will allow motor assembly (C) to hang out of
the way while wiring.
With wider opening facing up, place canopy
ring (B) over top of motor assembly (C).
Allow canopy ring (B) to rest on top of motor
for the time being.
Motor
8
6.
7.
INITIAL INSTALLATION
3
6
B
Secure mounting plate (A) to outlet box using
screws, spring washers, and flat washers provided
with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting plate (A) as
this will support the fan.
Pull electrical wiring from outlet box through center
hole in the mounting plate (A).
5.
3
5
3
7
Non-slotted
Hole
"J" Hook
C
C
A
A
WIRING
9

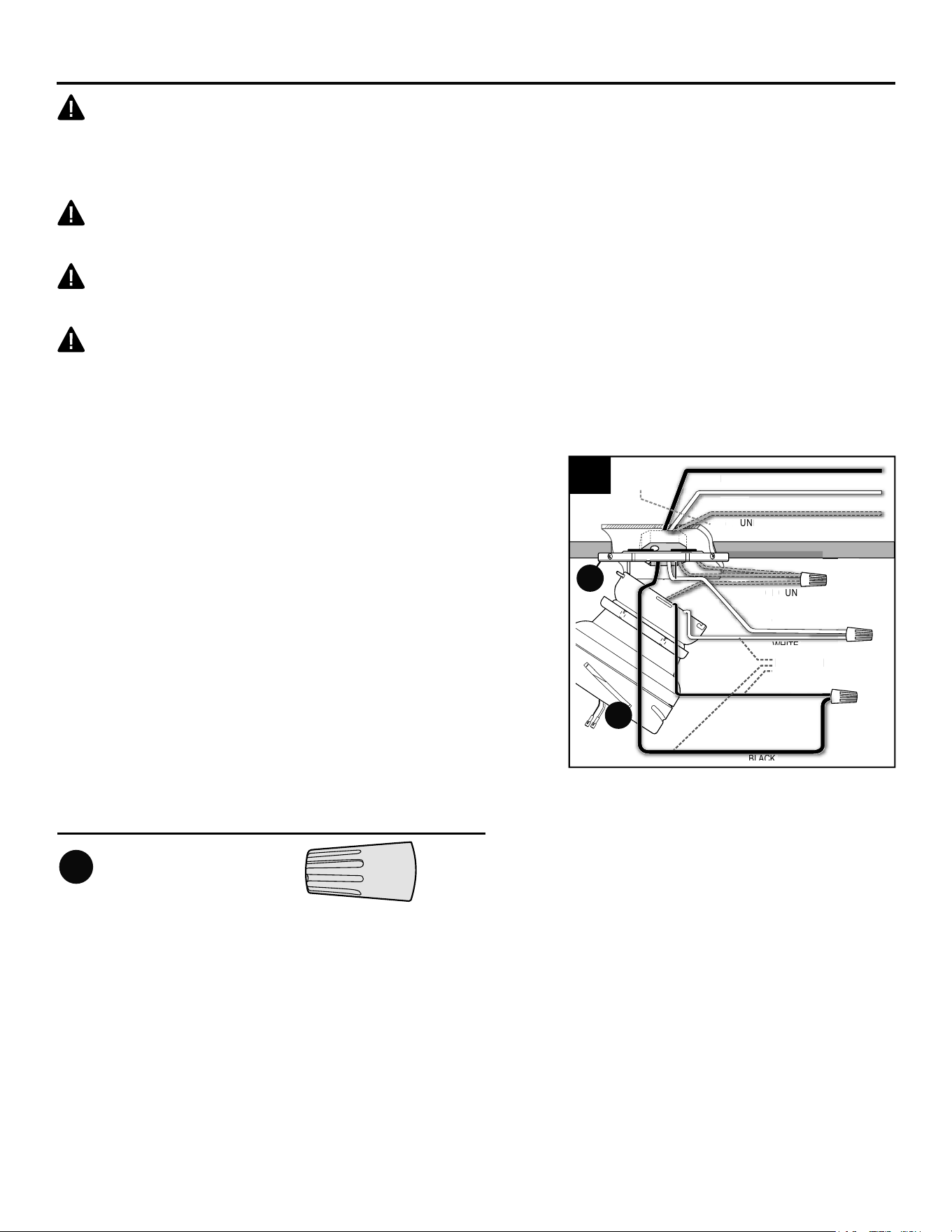

1.
IMPORTANT: For each wire connection
below, use one of the wire connectors (CC)
provided, making sure to screw wire
connector (CC) on in a clockwise direction.
Connect BLACK wire from fan to BLACK
wire from ceiling. Connect WHITE wire
from fan to WHITE wire from ceiling.
Connect all GROUND (GREEN) wires
together from fan (on motor assembly (C)
and mounting plate (A)) to BARE/GREEN
wire from ceiling.
NOTE: Black wire is hot power for fan.
White wire is common for fan and light kit.
Green or bare wire is ground.
GROUND/GREEN (BARE)
WHITE
BLACK
B
LA
C
K
W
HITE
G
R
O
U
N
D
/GREEN
(
BARE
)
GROUND/GREEN
BLACK
WHITE
WHITE
FROM FAN
BLACK
WHITE
FRO
M F
AN
WHITE
G
REE
N
G
R
O
U
N
D/G
WHITE
BLACK
120 V Power
from ceiling
1
C
A
Wire Connector x 3
Hardware Used
CC
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
WIRING

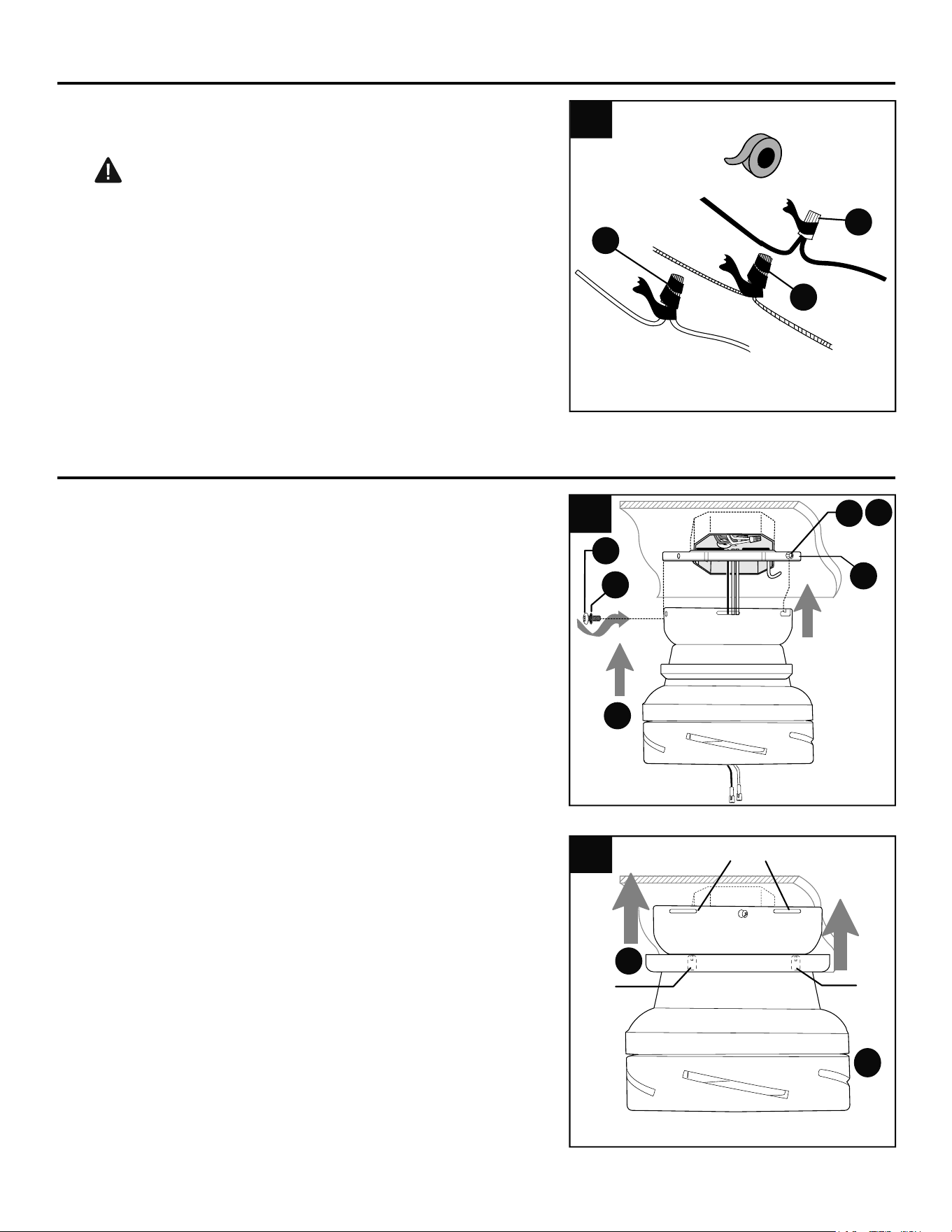

Wrap electrical tape around each individual wire
connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections.
Place green and white connections on opposite
side of box from the black and blue (if applicable)
connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors (CC) into outlet box.
10
2.
CC
2
CC
CC
Locate four tabs inside canopy ring (B). Align tabs
in canopy ring (B) with four grooves at top of motor
assembly (C) and raise canopy (B) until you hear
tabs snap into grooves.
NOTE: Canopy ring (B) should fit flush to ceiling
when done correctly.
Remove motor assembly (C) from "J" hook and
slide top of motor assembly (C) over mounting
plate (A), aligning slotted holes in motor assembly
(C) with loosened mounting plate screws (J) (with
mounting plate lock washers (I)) in mounting plate
(A). Twist motor assembly (C) to lock. Re-insert
the other two mounting plate screws (J) (with
mounting plate lock washers (I)) previously
removed (Step 4, page 7) to secure motor
assembly (C). Tighten all mounting plate screws
(J) securely.
1.
2.
1
2
C
J
I
A
J
C
I
FINAL INSTALLATION
Tab
B
Grooves
Tab
11
FINAL INSTALLATION

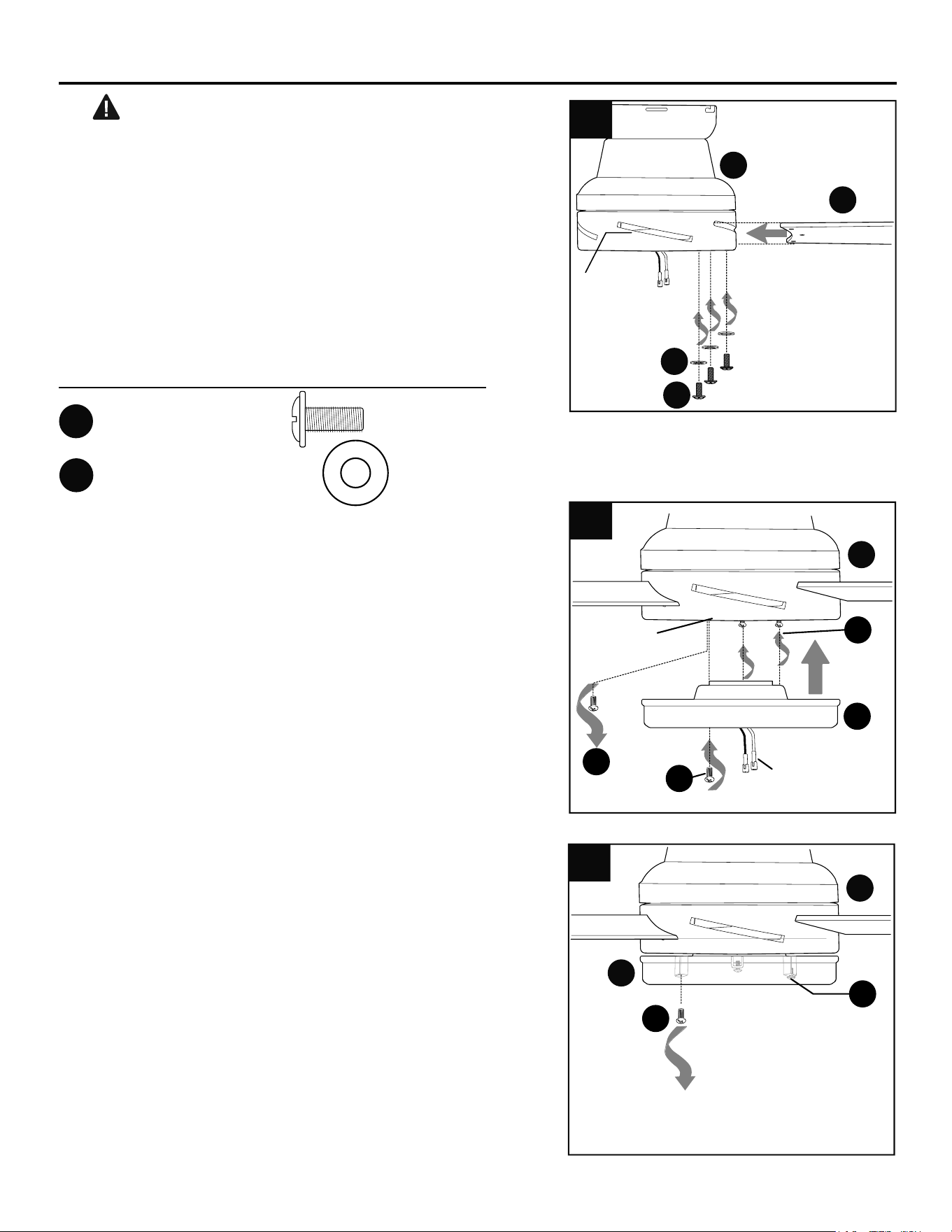

DANGER: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades (G). If screws are overtightened, blades (G)
may crack and break.
Insert the blade (G) through the slot on the band of
the motor assembly (C). Align holes in blade (G)
with holes in plate on underside of motor. Attach the
blade (G) with blade screws (AA) and fiber blade
washers (BB). Then, tighten each blade screw (AA),
starting with the one in the middle. Repeat for
remaining blades (G).
3.
C
G
BB
AA
AA
Blade Screw x 15
Fiber Blade Washer x 15
BB
Hardware Used
Band
5.
Remove one fitter plate screw (F) from fitter
plate (D) and partially loosen the other two fitter
plate screws (F).
4.
3
5
Remove one motor plate screw (K) from motor
plate preassembled on the underside of the motor
assembly (C) and partially loosen the other two
motor plate screws (K). Align slotted holes in fitter
plate (D) with loosened motor plate screws (K),
allowing molex connections from motor assembly
(C) to come through hole in fitter plate (D). Twist
fitter plate (D) to lock. Re-insert the motor plate
screw (K) that was removed and securely tighten
all three motor plate screws (K).
4
Molex
Connections
I
K
I
K
I
K
D
F
F
C
C
D
Motor
Plate
3
FINAL INSTALLATION
12

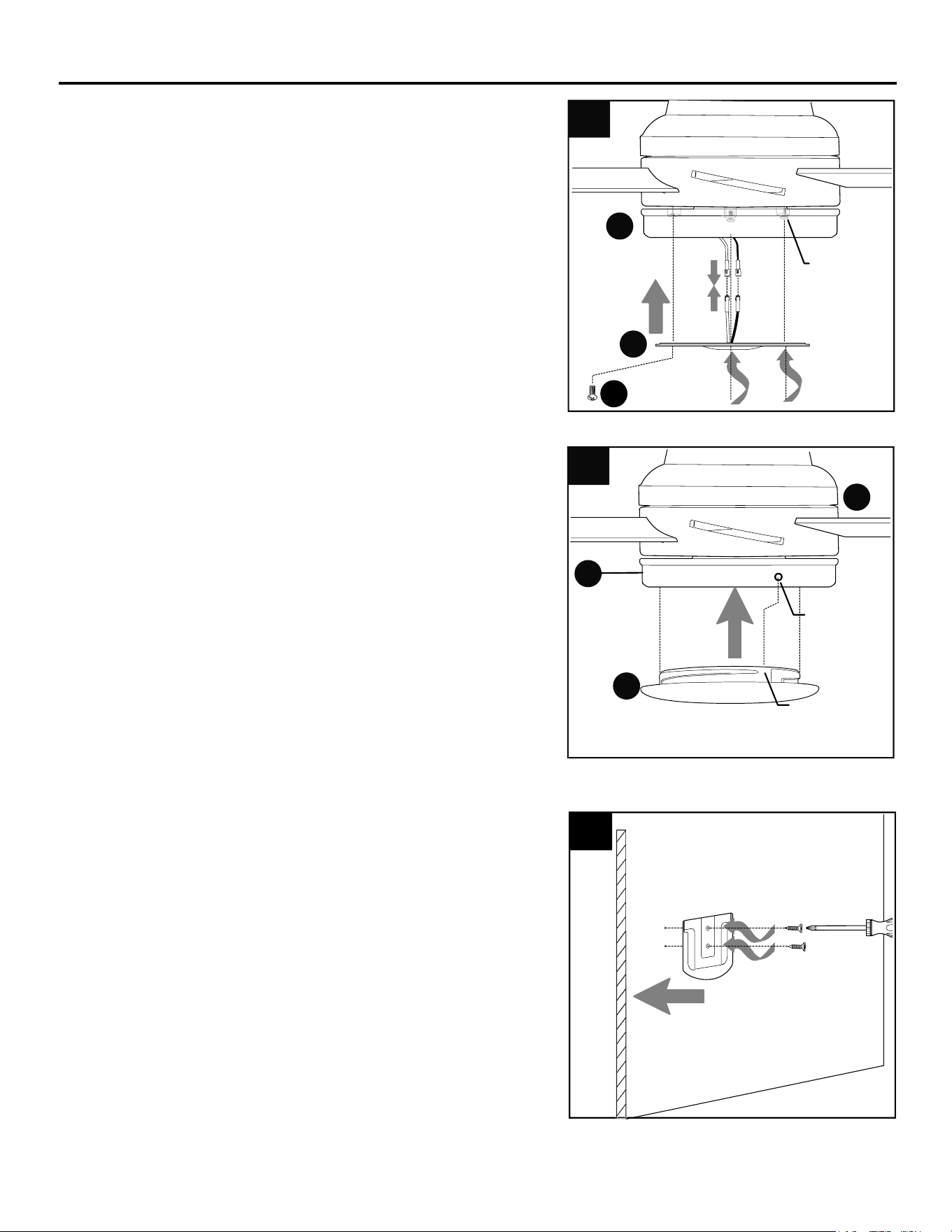

Locate BLUE and WHITE wires in fitter plate (D).
Connect WHITE wire from LED light kit (H) to
WHITE wire from fitter plate (D). Connect BLUE
wire from LED light kit (H) to BLUE wire from fitter
plate (D). Make sure molex connections are
secure.
Carefully arrange wires inside fitter plate (D).
Align slotted holes in LED light kit (H) with
loosened screws in fitter plate (D). Re-insert fitter
plate screw (F) previously removed. Tighten all
three fitter plate screws (F) securely.
6.
3
6
BLUE
WHITE
WHITE
BLUE
Loosened
Screws
H
D
F
Align slots on shade (E) with protrusions on the
inside of the fitter plate (D). Turn shade (E) to the
right (clockwise) until it no longer turns.
NOTE: Pull down gently on the shade (E) to make
sure that it is secured completely.
7.
3
7
C
E
8
Remote Control
Bracket
Wall
8.
If you wish to use the remote control bracket from
remote pack (L), install screws from remote pack (L)
through bracket and into the desired installation site.
The remote control transmitter from remote pack (L)
rests inside the bracket.
Bracket
Screws
Protrusions
Slot
D
13
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is
not desired, turn wall switch off to any other programmable receiver or fan.
OPERATING INSTRUCTIONS
FCC Compliance Notice for Remote Control
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Remove contents of remote pack (L). Remove
battery cover from back of remote control transmitter.
Remove protective covering from battery--protective
covering may be discarded. Install battery with
positive (+) end toward left side of remote control
transmitter.
WARNING: Battery is to be inserted with the
correct polarity.
Replace battery cover on remote control transmitter.
WARNING: Choking/Ingestion Hazard - Small
parts. Keep battery away from children.
NOTE: Battery is NOT rechargeable. Remove battery
with low or no charge and dispose of properly.
1.
(back
side)
1
Battery
Cover
L
Remote
Control
Transmitter
Battery
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR LEAK.”
- When disposing of household alkaline batteries, it is best to check with your local and state recycling or
household hazardous waste coordinators concerning the specifics of the program in your area. You may
also locate a recycling center by calling 1-800-8-BATTERY or 1-877-2-RECYCLE or visit
www.epa.gov/epawaste/index.htm or www.earth911.org for more information.
23A
OPERATING INSTRUCTIONS
14

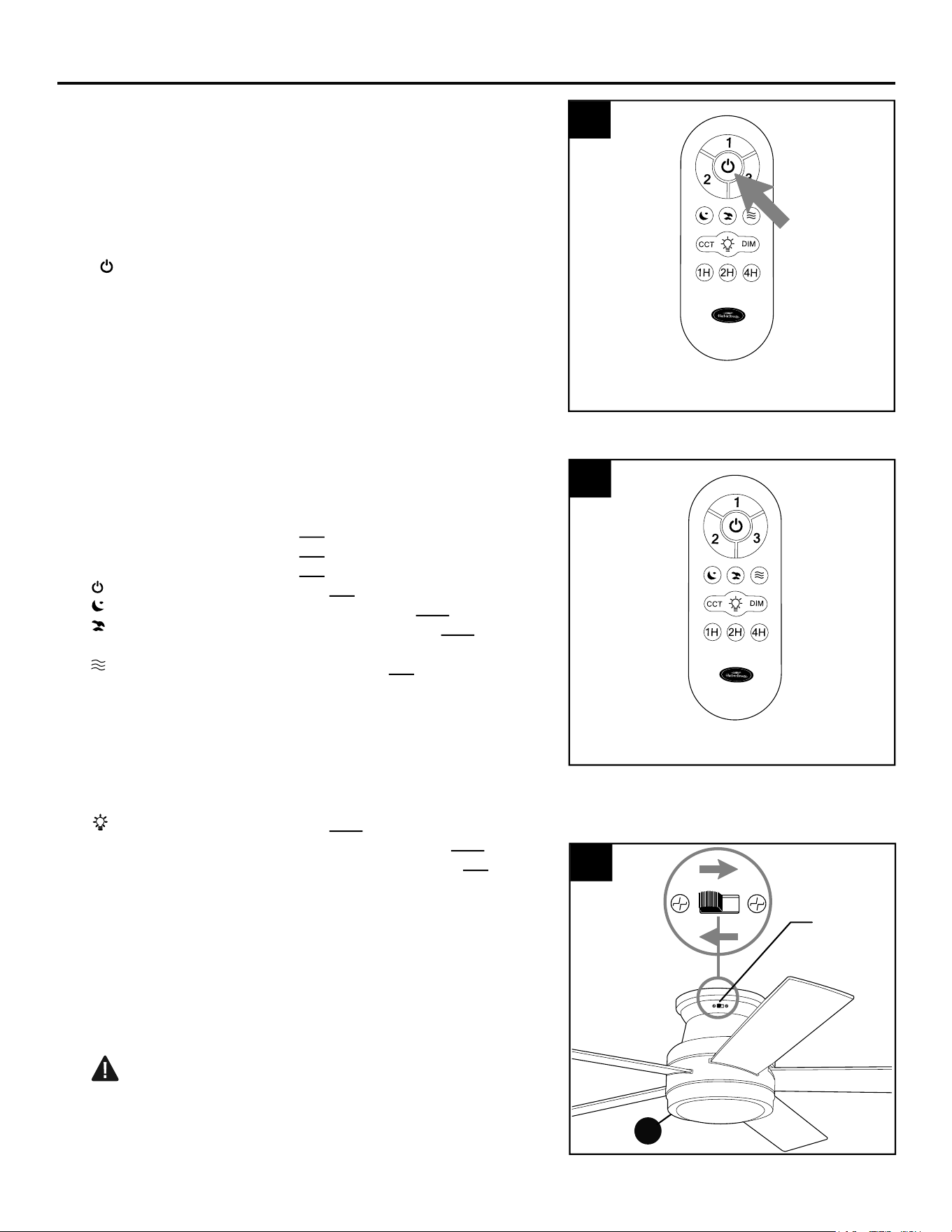

2.
NOTE: Remove protective covering from front of
remote control transmitter and discard.
If fan and/or remote control fail(s) to operate or you
have purchased a new remote control transmitter,
make sure to turn the power off first. Restore
electrical power. Within 30 seconds of restoring
electrical power, press and hold the ON/OFF button
( ) on the remote control transmitter for 5 seconds
until light blinks twice. Use the remote control
transmitter to test the light and fan functions to
confirm the learning process is complete.
IMPORTANT: To prevent damage to remote control
transmitter, remove the battery if not used for long
periods. Store the remote control transmitter away
from excess heat or humidity.
2
Remote Control Transmitter
Operation buttons on the panel of the remote control
transmitter:
3 button for fan HIGH speed
2 button for fan MEDIUM speed
1 button for fan LOW speed
button to turn fan OFF
button night mode: dims light
button vacation mode turns light on
for 5 minutes every 2 hours
button breeze mode: fan automatically
cycles between all speeds
CCT button to change/select color mode:
– warm white
– bright warm white
– natural white
– bright white
– daylight
button to turn light ON or OFF
DIM button press and hold to dim light
1H/2H/4H button timer may be set to run fan for
one, two or four hours
3.
3
Remote Control Transmitter
4.
Use the fan reverse switch located on the top part of
the motor assembly (C) to optimize the fan for
seasonal performance. A ceiling fan will allow you to
raise your thermostat setting in summer and lower
your thermostat setting in winter without feeling a
difference in your comfort.
CAUTION: Turn fan off at wall switch and let
blades (G) come to a complete stop before
manually activating the reverse switch.
4
Reverse
Switch
C
OPERATING INSTRUCTIONS
15
CARE AND MAINTENANCE
4a
4b
4c

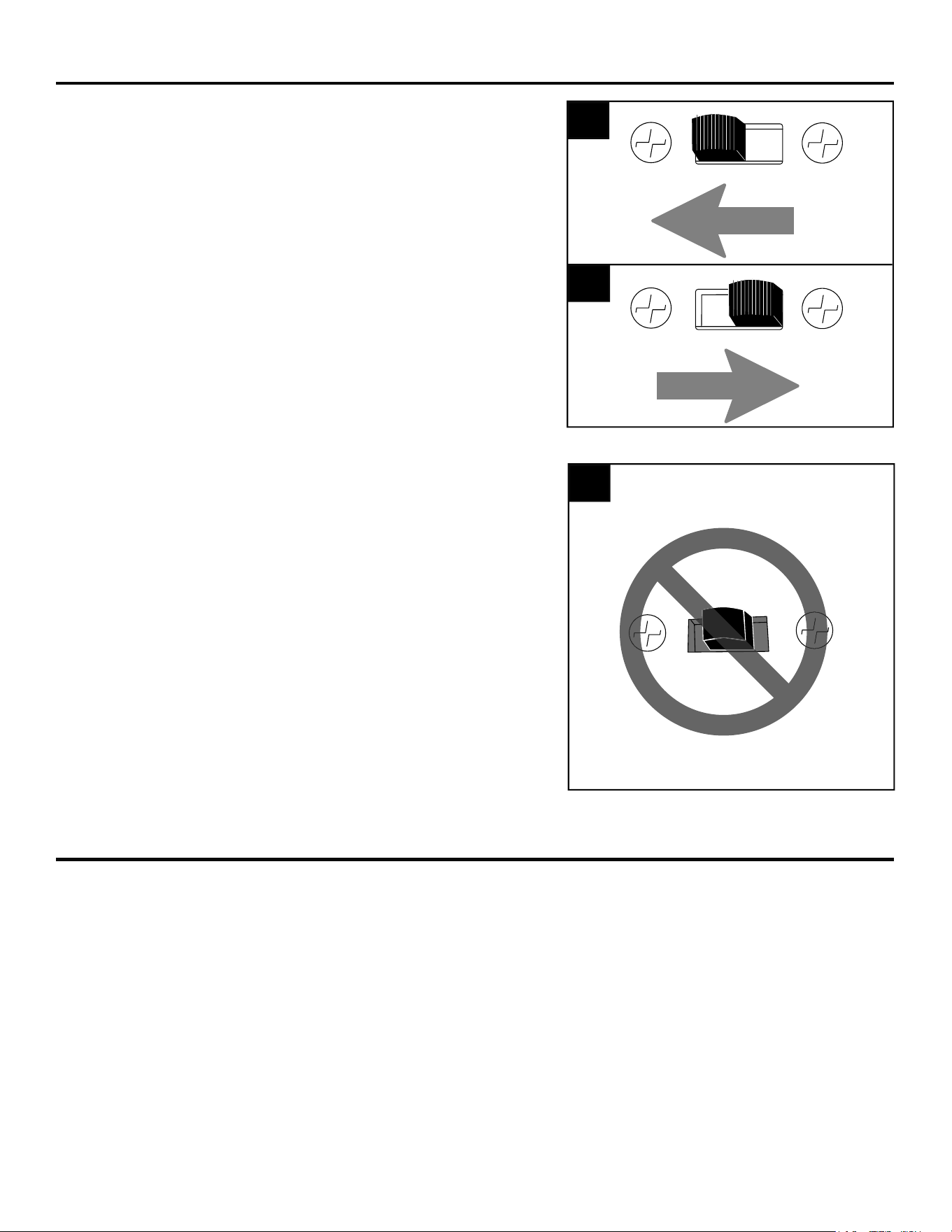

4c. IMPORTANT: Reverse switch must be set
either completely LEFT or completely
RIGHT for fan to function. If the reverse
switch is set in the middle position, fan will not
operate.
4a. In warmer weather, setting the reverse switch
in the LEFT position will result in downward
airflow creating a wind chill effect.
4b. In cooler weather, setting the reverse switch
in the RIGHT position will result in upward
airflow that can help move stagnant, hot air off
the ceiling area.
At least twice each year, check mounting plate screws (J) and then tighten all screws on the fan. Clean
motor assembly (C) with only a soft brush or lint-free cloth to avoid scratching the finish. Clean blades
(G) with a lint-free cloth.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
• Total wattage for the light kit for this fan is 20 watts; do not attempt to replace the LEDs.
16
1. Push switch firmly either left or right.
2. Turn power on or check fuse at
circuit breaker.
3. Turn power off. Loosen motor
assembly and check all connections.
4. Turn off power and repeat
instructions in Step 2 on page 14.
1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
4. Learning code process between fan
and remote control transmitter may
not have been successful and
learning code was not activated.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move.
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
5. Motor assembly is loose.
1. Tighten all blade screws.
2. Replace blade.
3. Use only with included speed control
device.
4. Allow fan a “break in” period of a few
days, especially when running the
fan at Medium and High speeds.
5. Verify mounting plate screws are
secure according to instructions on
page 10.
TROUBLESHOOTING
Excessive wobbling.
1. Blades are loose.
2. Blade incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
1. Tighten all blade screws.
2. Re-install blades.
3. Switch one blade with a blade from
the opposite side.
4. Verify mounting plate is secure.
1. Check wires in outlet box and, if
necessary, re-wire according to
instructions on page 9.
2. Make sure wall switch to light is on.
3. Check that molex connections in
LED light kit are connected
properly according to instructions
on page 12.
1. Wires in outlet box not wired
properly.
2. Wall switch to light is off.
3. Wires in fitter plate not wired
correctly.
Fan operates but
light fails.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
17
LIMITED LIFETIME WARRANTY
Printed in China
REPLACEMENT PARTS LIST
GGLI2307
For replacement parts, call our customer service department at 888-251-1003, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected].
5497058-A
5497058-B
5497058-D
5497058-E
5497058-G
A Mounting Plate
B Canopy Ring
D Fitter Plate
E Shade
G Blade
PART DESCRIPTION PART #
D
E
G
A
B
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one year
after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the date
of purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are
not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including
any incidental or consequential damages resulting directly or indirectly, from any breach of warranty,
express or implied, or any other failure of this product. Some states do not allow the exclusion or
limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior
model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of fitness for a particular purpose and the implied warranty of merchantability are disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
