RLK12-50 0WB4
5MP 12CH Dual-Band Wi-Fi
Surveillance System, 12-
Channel NVR with 1TB HDD,
4pcs of 5MP Cameras,
Intelligent Detection, 24/7
Recording, IP67 Weatherproof
Rating, and More.
• 5MP HD with Dual-Band WiFi
• Person/Vehicle/Animal Detection
• 12-Channel NVR Recorder with 1TB HDD
Speciications
Video & Audio
Image Sensor
1/2.7" CMOS Sensor
Resolution
2560 x 1920 (5 megapixels) @20fps
Lens
f=4.0 mm ixed; F=2.0, with IR Cut
Video Compression
H.264/H.265
Field of View
Horizontal: 80 °; Diagonal: 100 °; Vertical:
42°
Day/Night Mode
Auto-switching
NightVision
Up to 30 meters (100ft) ; LED: 18 pcs/
1 4 mil/ 8 5 0 nm
Frame Rate
Mainstream: 2fps–20fps (Standard:
20fps); Sub stream: 4fps–15fps
(Standard: 10fps)
Code Rate
Mainstream: 10 2 4 Kbps– 51 2 0 Kbps
(Standard: 40 96 Kbps); Sub stream:
64 Kbps–512Kbps (Standard: 256Kbps)
Audio
Audio recording
Pow er Requ irements
Power Requirements
DC 12.0V
23
93
1A, <12W
Interface
Power Port
DC power port
Reset Button
YES
Ethernet Port
One 10M/100Mbps; RJ45
Storage
Reolink NVR
Audio In/Out
Built-in microphone
Wi-Fi
Wireless Standard
IEEE 802.11a/b/g/n
Operating Frequency
2.4GHz/5GHz
Wireless Security
WPA-PSK/WPA2-PSK
Software
Browsers Supported
Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone:
iOS, Android
Protocols & Standards
SSL, TCP/IP, UDP, UPNP, NTP, DHCP,
DNS, DDNS
User Access
Max. 20 users (1 admin & 19 users); Max. 12
simultaneous streams (2 main & 10 sub
streams)
Other Feature(s)
Smart Alarm
Motion detection; person detection;
vehicle detection; animal detection
Recording Modes
Motion-triggered recording (default);
scheduled recording, 24/7 recording
Wo r kin g En v iron m e n t
Temperature
-10℃ – +55℃ (14℉ – 131℉) C
Humidity
10% – 90%
Weatherproof
IP67
Mechanical
Dimensions
。67 x 186mm
Weig ht
415g
Warra nt y
Limited Warranty
2-year limited warranty.
Gallery & Specs
1. Power LED
2. HDD LED
3. USB Port
1. Antenna
2. Reset Button
3. Power Input
4. USB Port
5. HDMI Port
6. VGA Port
7. Audio Output
8. LAN Port (For Internet)
9. LAN Port (For IP
Cameras)

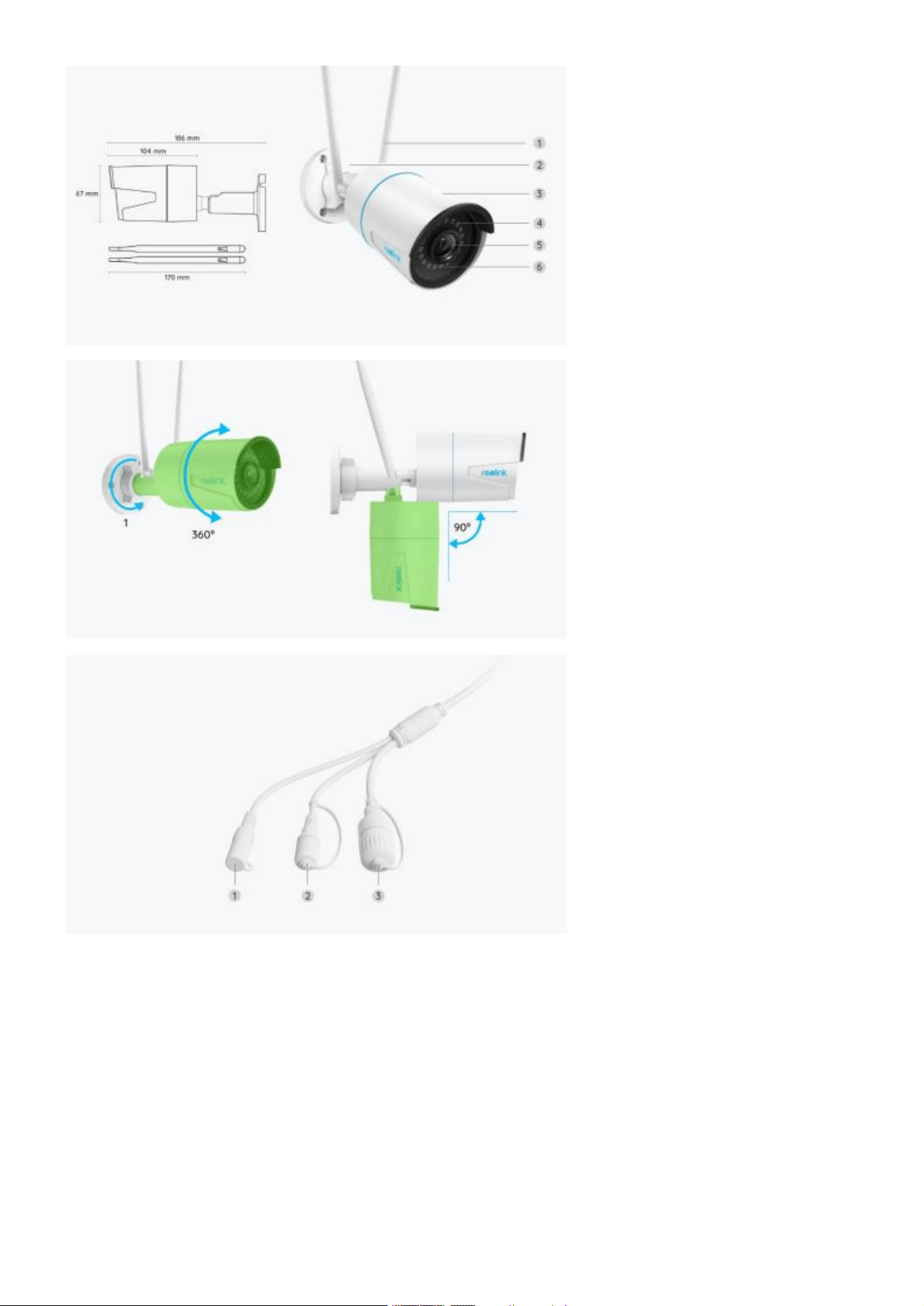

1. Antenna
2. Bracket
3. Metal-Aluminum
Housing
4. IR LEDs
5. High-Resolution Lens
6. Daylight Sensor
1. Turn the adjustment
knob counterclockwise to
loosen the bracket and
adjust the camera in any
direction. <br>2. After
adjustment, rotate the
adjustment knob back to
secure and fixthe camera in
place.
1. Power Port
2. Reset Button
3. Network Port
