CATALOG OF
REPLACEMENT PARTS
3600 NORTH POINT BLVD.
BALTIMORE, MD 21222
V SERIES HEATED HOLDING
INSULATED CABINETS
V SERIES HOLDING CABINETS REPLACEMENT PARTS
F-37126 Rev. C (February 2023) - 2 - © VULCAN-HART COMPANY 2023

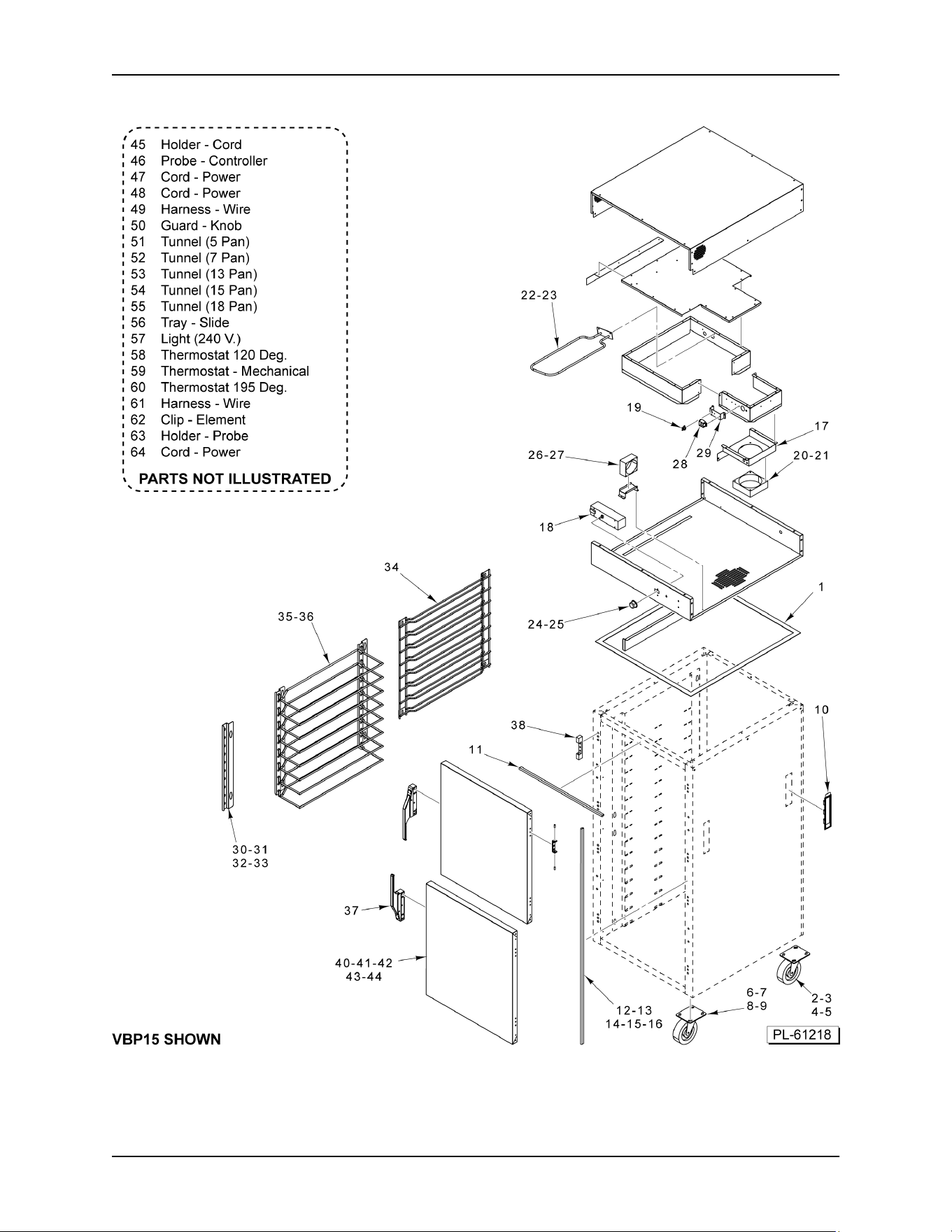

CABINET (VBP/VHP/VPT)
V SERIES HOLDING CABINETS REPLACEMENT PARTS
F-37126 Rev. C (February 2023) - 4 -
CABINET (VBP/VHP/VPT)
ILLUS.
PL-61218
PART NO. NAME OF PART AMT.
1 00-961263 Gasket - Top Gasket - Top......................................................................................................AR
2 00-497001-00003 Caster W/O Brake, Rigid (5 In.) (7/13/15/18 Pan) (Starting 2019).............................................2
3 00-960519 Caster W/O Brake, Rigid (5 In.) (7/13/15/18 Pan) (Before 2019)...............................................2
4 00-961974 Caster 3 In. Caster W/O Brake, Rigid (3 In.) (5 Pan) (Starting 2019)........................................2
5 00-960514 Caster W/O Brake, Rigid (3 In.) (5 Pan) (Before 2019)..............................................................2
6 00-497001-00002 Caster W/ Brake, Swivel (5 In.) (7/13/15/18 Pan) (Starting 2019)..............................................2
7 00-960520 Caster W/ Brake, Swivel (5 In.) (7/13/15/18 Pan) (Before 2019)...............................................2
8 00-961975 Caster 3 In. Caster W/ Brake, Swivel (3 In.) (5 Pan) (Starting 2019).........................................2
9 00-960516 Caster W/ Brake, Swivel (3 In.) (5 Pan) (Before 2019)..............................................................2
10 00-960606 Handle - Recessed (Black).........................................................................................................4
11 00-960579 Gasket - Door (Top)................................................................................................................AR
12 00-960577 Gasket - Door (Side) (5 Pan)...................................................................................................AR
13 00-960571 Gasket - Door (Side) (7 Pan)...................................................................................................AR
14 00-961153 Gasket - Door (Side) (13 Pan).................................................................................................AR
15 00-961154 Gasket - Door (Side) (15 Pan).................................................................................................AR
16 00-961155 Gasket - Door (Side) (18 Pan).................................................................................................AR
17 00-961062 Holder - Fan...............................................................................................................................1
18 00-960903 Controller....................................................................................................................................1
19 00-960748 High Limit Thermostat................................................................................................................1
20 00-961086 Fan 4-3/4 In. (120 V.).................................................................................................................1
21 00-961230 Fan 4-3/4 In. (240 V.).................................................................................................................1
22 00-960564 Element - Heating (1500 Watt) (120 V.).....................................................................................1
23 00-960568 Element - Heating (1500 Watt) (240 V.).....................................................................................1
24 00-960644 Knob (13/15/18 Pan)..................................................................................................................1
25 00-961170 Knob (5/7 Pan)...........................................................................................................................1
26 00-960833 Fan - Vent, 3-1/8 In. (120 V.)......................................................................................................1
27 00-960834 Fan 3-1/8 In. (240 V.) Fan 3-1/2 In. (240 V.)..............................................................................1
28 00-960507 Terminal - Block.........................................................................................................................1
29 00-961643 Bracket - Standoff.......................................................................................................................1
30 00-961059 Support - Rack (5 Pan)...............................................................................................................4
31 00-960761 Support - Rack (7/15 Pan).......................................................................................................AR
32 00-961085 Support - Rack (13 Pan).............................................................................................................4
33 00-961058 Support - Rack (18 Pan).............................................................................................................4
34 00-960705 Rack Rack - Lip Load (LL Models)..........................................................................................AR
35 00-960706 Rack - Pan - Side Load (SL Models).......................................................................................AR
36 00-960707 Rack - Shelf (SL Models)........................................................................................................AR
37 00-960663 Latch - Door.............................................................................................................................AR
38 00-960616 Hinge Assy..............................................................................................................................AR
39 00-961138 Bracket - Fan...........................................................................................................................AR
*40 00-962446-00005 Door Assy. (SST) (VBP5/VPT5).................................................................................................1
*41 00-962446-00007 Door Assy. (SST) (VBP7/VBP15) (VPT7/VPT15)...................................................................AR
*42 00-962446-00013 Door Assy. (SST) (VBP13/VPT13).............................................................................................1
*43 00-965446-00018 Door Assy. (SST) (VBP18/VPT18).............................................................................................1
*44 00-962446-00VHP Door Assy. (SST) (VHP7/VHP15)...........................................................................................AR
45 00-960532 Holder - Cord..............................................................................................................................1
46 00-960904 Probe - Controller.......................................................................................................................1
47 00-405016-000G1 Cord Assy. (All Except VBP/VPT18)..........................................................................................1
48 00-960539 Cord - Power (240 V.)................................................................................................................1
49 00-960797 Harness - Wire...........................................................................................................................1
50 00-961459 Guard - Knob (5/7 Pan)..............................................................................................................1
51 00-960938 Tunnel (5 Pan)............................................................................................................................1
52 00-961205 Tunnel (7 Pan)............................................................................................................................1
53 00-961083 Tunnel (13 Pan)..........................................................................................................................1
54 00-960944 Tunnel (15 Pan)..........................................................................................................................1
55 00-961174 Tunnel (18 Pan)..........................................................................................................................1
V SERIES HOLDING CABINETS REPLACEMENT PARTS
- 5 - F-37126 Rev. C (February 2023)
CABINET (VBP/VHP/VPT)
ILLUS.
PL-61218
PART NO. NAME OF PART AMT.
56 00-960753 Tray - Slide.................................................................................................................................1
57 00-960672 Light - Indicator (240 V.) (VHP7/VHP15)....................................................................................1
58 00-960743 Thermostat 120 Deg. (VHP7/VHP15)........................................................................................1
59 00-960736 Temp Gage, Dial Type (VHP7/VHP15)......................................................................................1
60 00-960741 Thermostat 195 Deg. (VHP7/VHP15)........................................................................................1
61 00-960799 Harness - Wire (VHP7/VHP15)..................................................................................................1
62 00-961113 Clip - Element (VHP7/VHP15)....................................................................................................1
63 00-961372 Holder - Probe (VHP7/VHP15)...................................................................................................1
64 00-405016-000G4 Cord - Power (VBP/VPT18)........................................................................................................1
* One Door, No Hardware
V SERIES HOLDING CABINETS REPLACEMENT PARTS
F-37126 Rev. C (February 2023) - 6 -
NOTES
V SERIES HOLDING CABINETS REPLACEMENT PARTS
- 7 - F-37126 Rev. C (February 2023)
TOP
(STARTING 5/10/21 S/N 481995932)
V SERIES HOLDING CABINETS REPLACEMENT PARTS
F-37126 Rev. C (February 2023) - 8 -

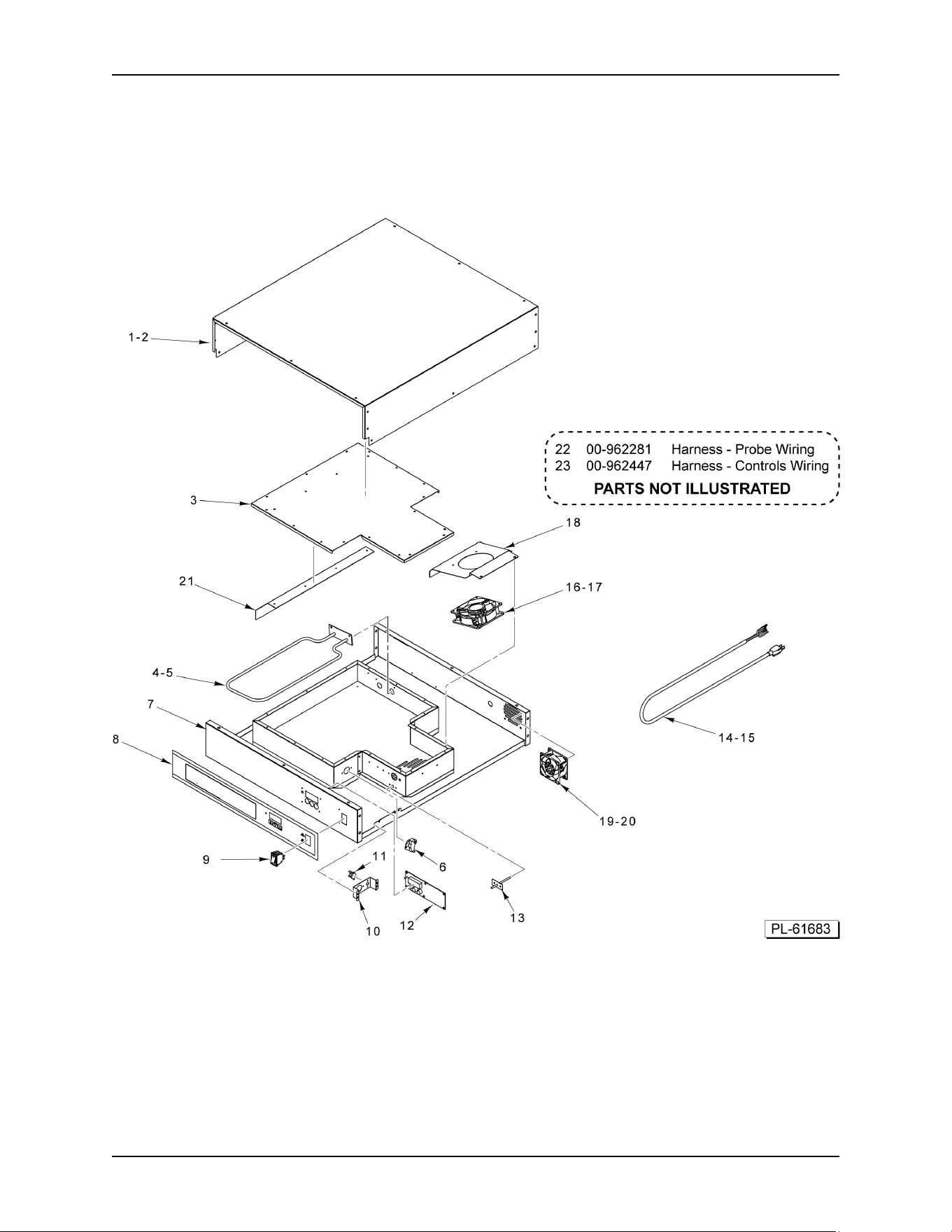

TOP
(STARTING 5/10/21 S/N 481995932)
ILLUS.
PL-61683
PART NO. NAME OF PART AMT.
1 00-962489 Cover - Top (Rear Fan)..............................................................................................................1
2 00-961991 Cover - Top (Side Fan)...............................................................................................................1
3 00-962479 Cover - Element Box..................................................................................................................1
4 00-960564 Element - Heating (1500 Watt) (120 V.).....................................................................................1
5 00-960568 Element - Heating (1500 Watt) (240 V.).....................................................................................1
6 00-960743 Thermostat 120 Deg...................................................................................................................1
7 00-962665-000G1 Liner - Top..................................................................................................................................1
8 00-962106 Overlay.......................................................................................................................................1
9 00-962322-00002 Switch - Rocker..........................................................................................................................1
10 00-962483 Bracket - Standoff.......................................................................................................................1
11 00-960748 High Limit Thermostat................................................................................................................1
12 00-962280 Board - Control...........................................................................................................................1
13 00-962282 Probe - Temperature..................................................................................................................1
14 00-405016-000G1 Cord Assy. (120 V.)....................................................................................................................1
15 00-960539 Cord - Power (240 V.)................................................................................................................1
16 00-961086 Fan 4-3/4 In. (120 V.).................................................................................................................1
17 00-961230 Fan 4-3/4 In. (240 V.).................................................................................................................1
18 00-961973 Holder - Fan...............................................................................................................................1
19 00-960833 Fan - Vent, 3-1/8 In. (120 V.)......................................................................................................1
20 00-960834 Fan 3-1/8 In. (240 V.).................................................................................................................1
21 00-961066 Deflector.....................................................................................................................................1
22 00-962281 Harness - Probe Wiring..............................................................................................................1
23 00-962447 Harness - Controls Wiring..........................................................................................................1
V SERIES HOLDING CABINETS REPLACEMENT PARTS
- 9 - F-37126 Rev. C (February 2023)
V SERIES HOLDING CABINETS REPLACEMENT PARTS
FORM 37126 Rev. C FEBRUARY 2023 PRINTED IN U.S.A.
