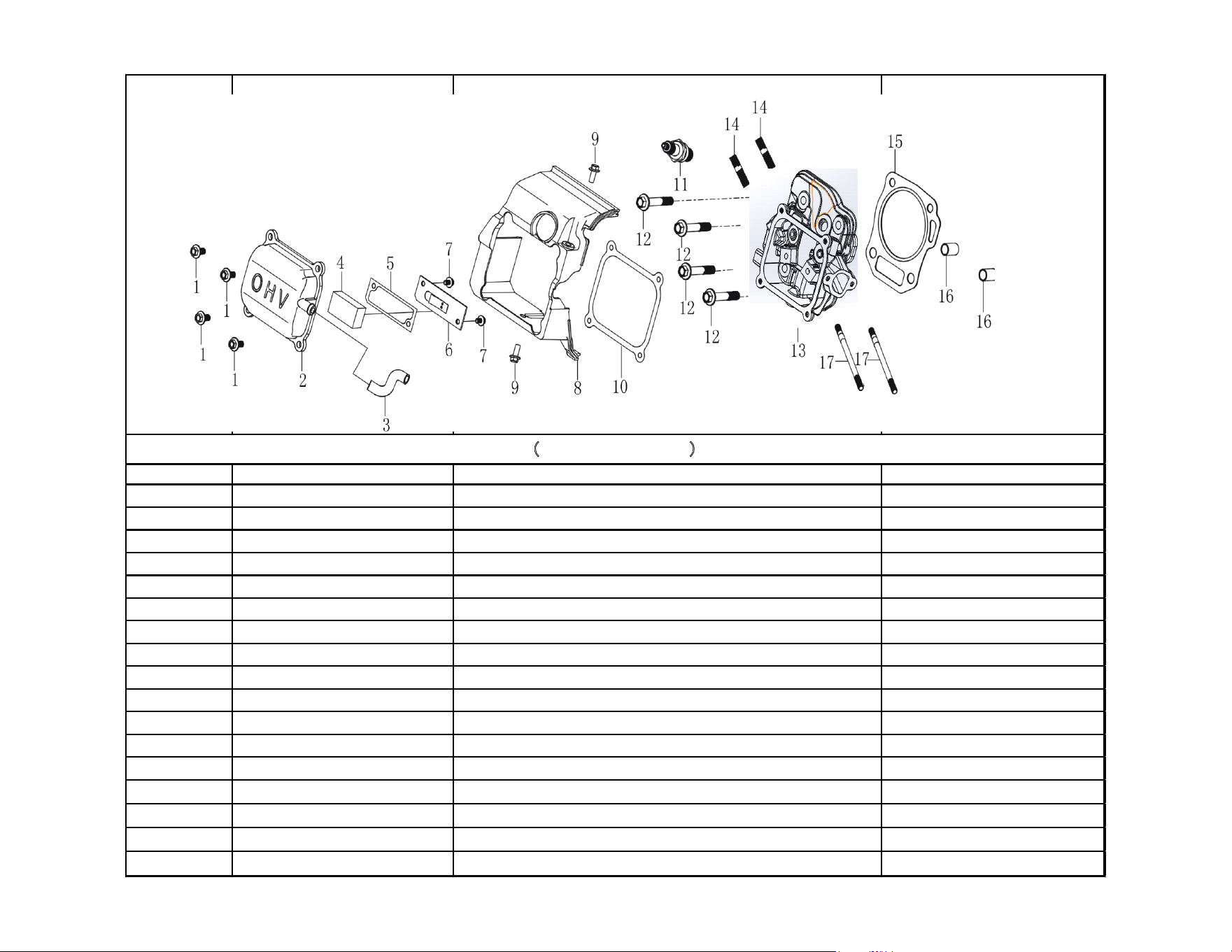

Ser.No Part No. Description Quantity
1
5787.06020.00.01 BOLT ,FLANGE M6X20 4
2
T70.0001.001.00.01 COVER , HEAD 1
3
T70.2370.001.00.00 TUBE , BREATHER 1
4
165.7080.001.00.00 FILTER, HEAD COVER 1
5
T70.7061.001.00.01 GASKET, CAP, BREATHER 1
6
T70.7061.001.00.00 CAP, BREATHER CHAMBER 1
7
5789.05012.00.01 BOLT ,FLANGE M5X12 2
8
T70.2190.001.00.00 SHROUD COMP 1
9
5787.06012.00.01 BOLT , FLANGE , 6X12 2
10
T70.3000.001.00.00 PACKING , HEAD COVER 1
11
168.2160.004.00.00 PLUG , SPARK 1
12
5789.08060.00.01 BOLT , FLANGE ,M8X60 4
13
T70.0010.C01.00.00 HEAD COMP .,CYLINDER 1
14
0900.08035.00.01 BOLT , STUD , EX. M8X35 2
15
T70.3020.001.00.00 GASKET , CYLINDER 1
16
168.3170.002.00.00 PIN,DOWEL10*14 2
17
0900.06095.00.01 BOLT,STUD,IN M6X95 2
（ CYLINDER HEAD）
Ser.No Part No. Description Quantity
1
T70.1000.001.00.00 CRANK CASE 1
2
168.0270.002.00.00 BEARING 6205 1
3
168.3150.001.00.00 OIL SEAL 25×41.25×6 1
4
168.1260.001.66.00 WASHER,DRAIN PLUG 10×16×1.5 1
5
168.1250.001.00.20 BOLT ,DRAIN PLUG M10×1.25×15 1
6
T70.1230.001.16.00 CAP ASSY. 1
7
T70.2230.001.00.00 WIND GUIDE 1
8
0845.42013.00.01 SELT THREADING SCREW 2
9
5789.05012.00.01 SCREW,PAN 2

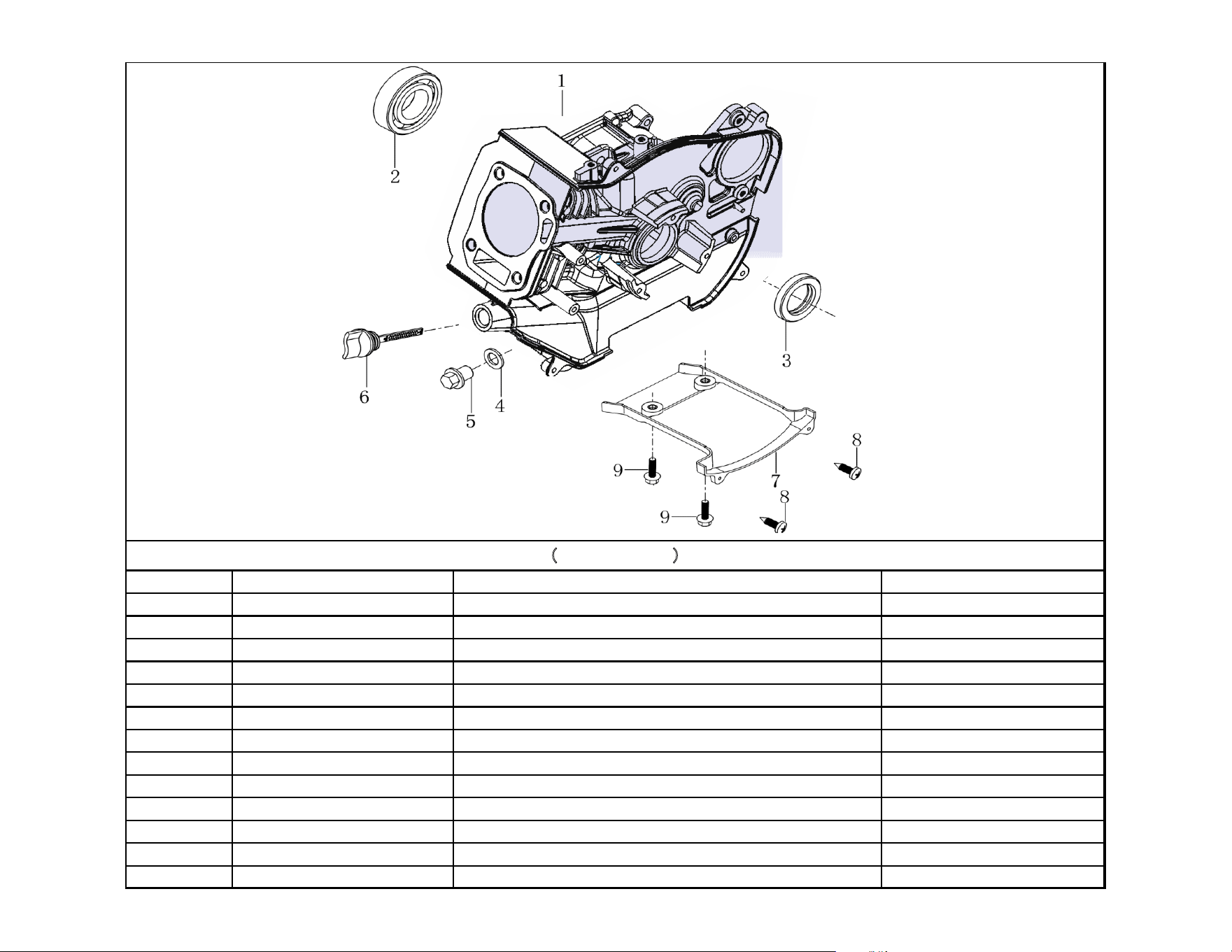

（ CRANK CASE）

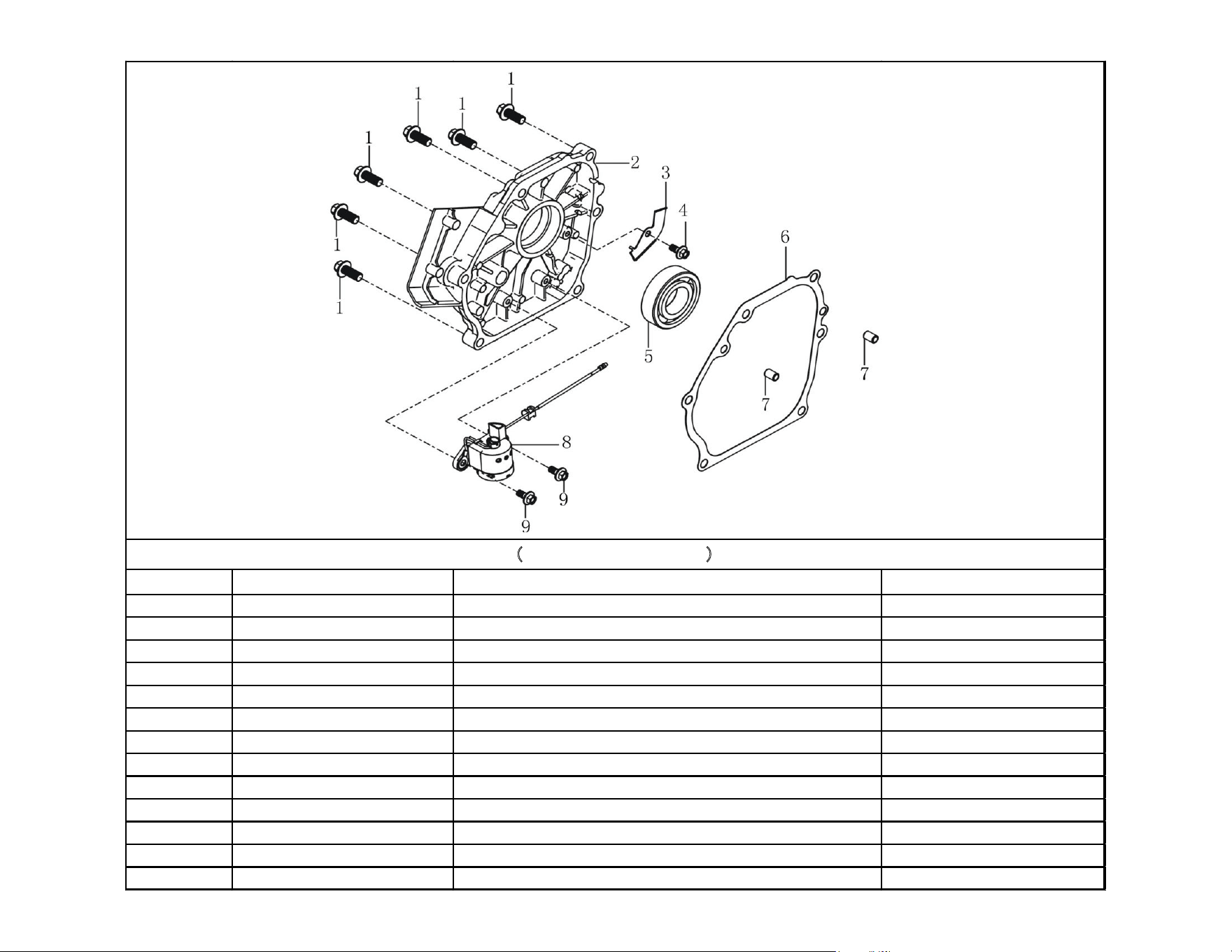

Ser.No Part No. Description Quantity
1
5787.08030.00.01 BOLT ,FLANGE M8×30
6
2
T70.1010.001.00.00 COVER ,CRANKCASE
1
3
T70.2090.001.00.00 PLATE 1
4
5787.06012.00.01 BOLT , FLANGE M6×12
1
5
168.0270.002.00.00 BEARING 6205 1
6
T70.3040.001.00.00 PACKING ,CASE COVER 1
7
168.3170.001.00.00 PIN ,DOWEL 8×14 2
8
148.1020.001.00.00 OIL LEVEL SWITCH 1
9
5787.06014.00.01 BOLT , FLANGE M6×14 2
（ CRANKCASE COVER）
Ser.No Part No. Description Quantity
1

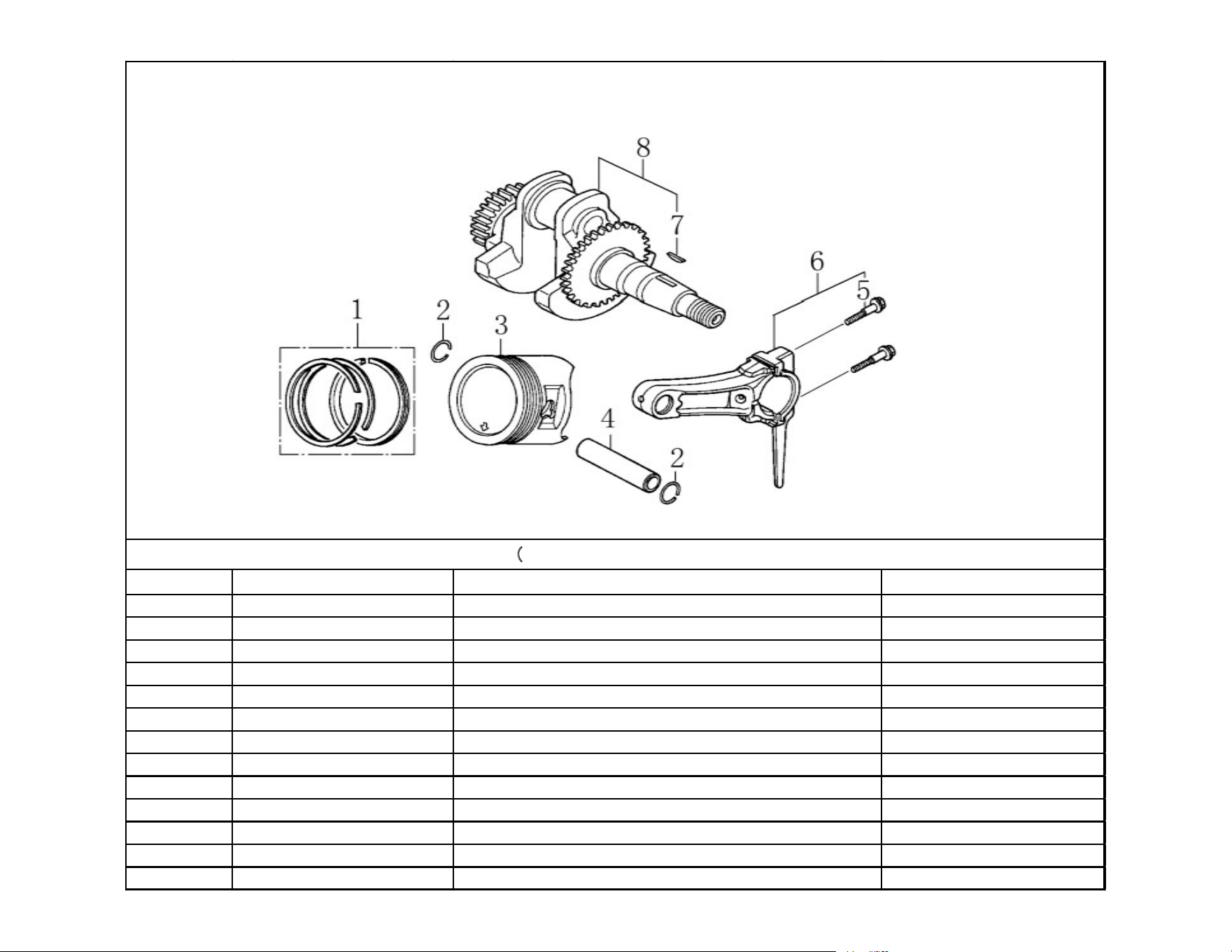

T70.0210.001.00.00 RING SET 1
2
168.0230.001.00.00 CLIP , PISTON PIN 2
3
T70.0200.001.00.00 PISTON 1
4
168.0220.001.00.00 PIN , PISTON 1
5
168.0190.001.00.01 BOLT,CONNECTING ROD 2
6
168.0190.001.00.00 ROD ASSY ., CONNECTING 1
7
T70.0180.001.60.01 KEY 1
8
T70.0180.001.60.00 CRANKSHAFT COMP 1
（ CRANK SHAFT/PISTON)

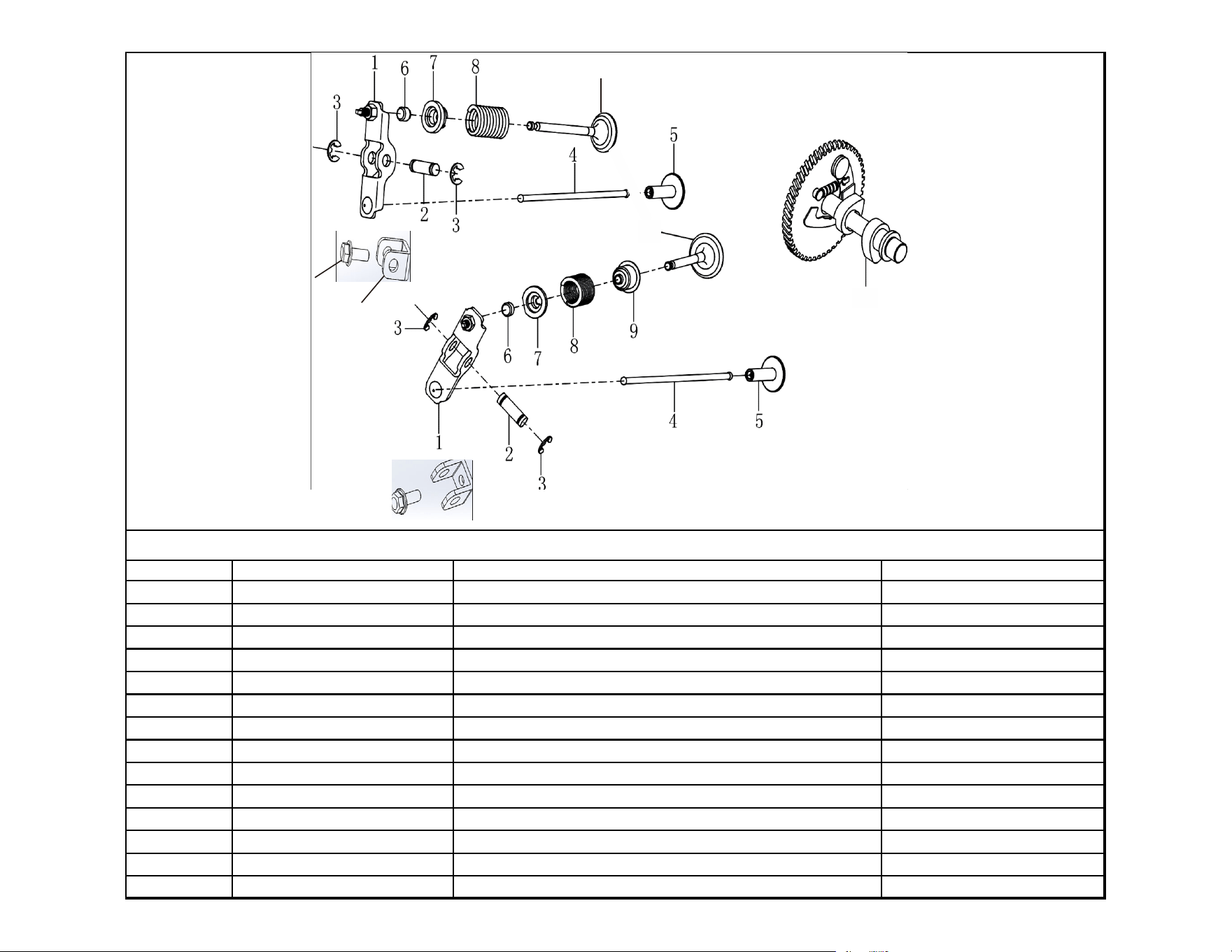

Ser.No Part No. Description Quantity
1
165.0100.001.00.00 ARM COMP. 2
2
165.0100.001.00.01 VALVE ROCKER SHAFT 2
3
487.1176.001.00.00 LOCKER 4
4
165.0160.001.00.00 ROD,PUSH 2
5
F68.1030.001.00.00 LIFTER VALVE 2
6
168.0090.001.00.00 Cap,Exhaust valve 2
7
168.0070.001.00.00 RETAINER,VALVE SPRING 2
8
165.0040.001.00.00 SPRING , VALVE 2
9
165.0085.001.00.00 SEAL,GUIDE 1
10
T70.0030.001.00.00 Exhaust valve 1
11
T70.0020.001.00.00 Intake valve 1
12
F68.1040.001.60.00 CAMSHAFT ASSY. 1
13
165.0100.001.00.02 Rocker arm bracket 2
14
5787.06012.00.01
BOLT ,FLANGE M6×20
2
(ROCKER,CAMSHAFT)
10
11
12
13
1
4

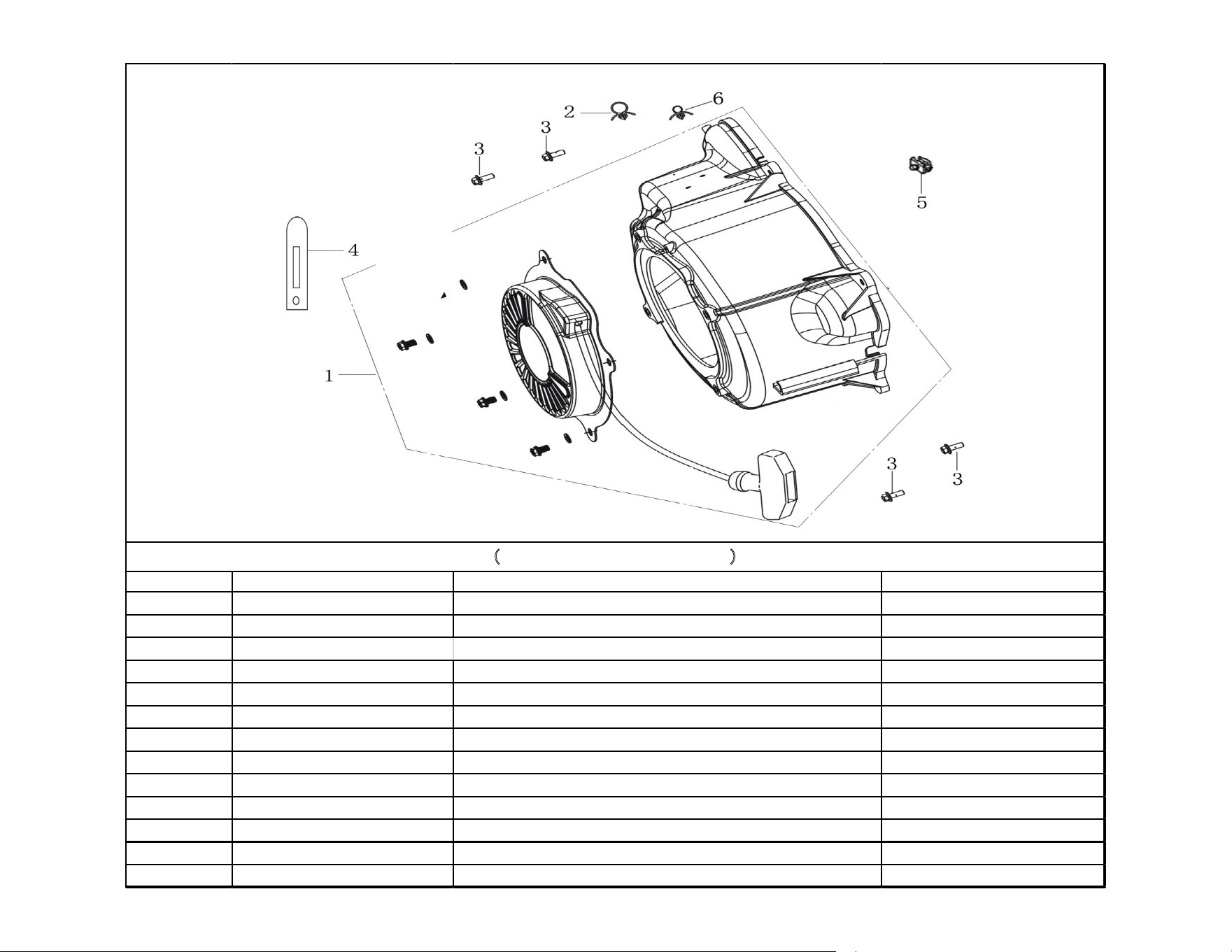

Ser.No Part No. Description Quantity
1
T70.2000.001.00.00 COVER COMP., FAN 1
2
5787.06020.00.01 BOLT ,FLANGE M6×20 4
（
STARTER SUBASSEMBLY
）
2
2
Ser.No Part No. Description Quantity
1
T70.3060.001.00.00 Inlet gasket 1
2
T70.2300.001.00.00 Carburetor block 1
3
T70.3080.001.00.00 PACKING ., CARBURETOR 1
4
T70.2260.001.00.00 CARBURETOR 1
5
T70.3101.001.00.00 Damper bracket gasket 1
6
T70.3219.001.00.00 BRACKET CHOKE 1
7
T70.3090.001.00.00 Air filter gasket 1
8
487.1531.001.00.00
BRACKET，ELETROMOTOR
1
9
0818.04010.00.01 SCREW , TAPPING , M4*10 2
10
T70.4000.001.00.00 SPEED VARIABLE STEPPER MOTOR 1
11
0818.04008.10.01 SCREW, M4*5(S=6) 2
（
CARBURETOR
）
Ser.No Part No. Description Quantity
1
5787.06025.00.01 BOLT, FLANGE M6×25 2
2
487.2110.002.00.00 COIL ASSY., IGNITION 1
3
T70.2070.A01.00.00 STARTER MOTOR 1
4
5787.06030.00.01 BOLT, FLANGE M6×30 2
5
0845.42016.00.01 Self tapping screw ST4.2*16 2
（
IGNITION COMP/STARTER MOTOR.
）
Ser.No Part No. Description Quantity
1
T70.2280.001.00.00 AIR CLEANER 1
2
T70.2280.001.00.01 FILTER,OUTER 1
3
6177.06000.00.01 NUT,FLANGE 3
4
5787.06012.00.01 BOLT, FLANGE 1
5
T70.2290.001.00.00 STAY, AIR CLEANER 1
6
5787.06012.00.01 BOLT, FLANGE,M6×12 1
（ AIR CLEANER)

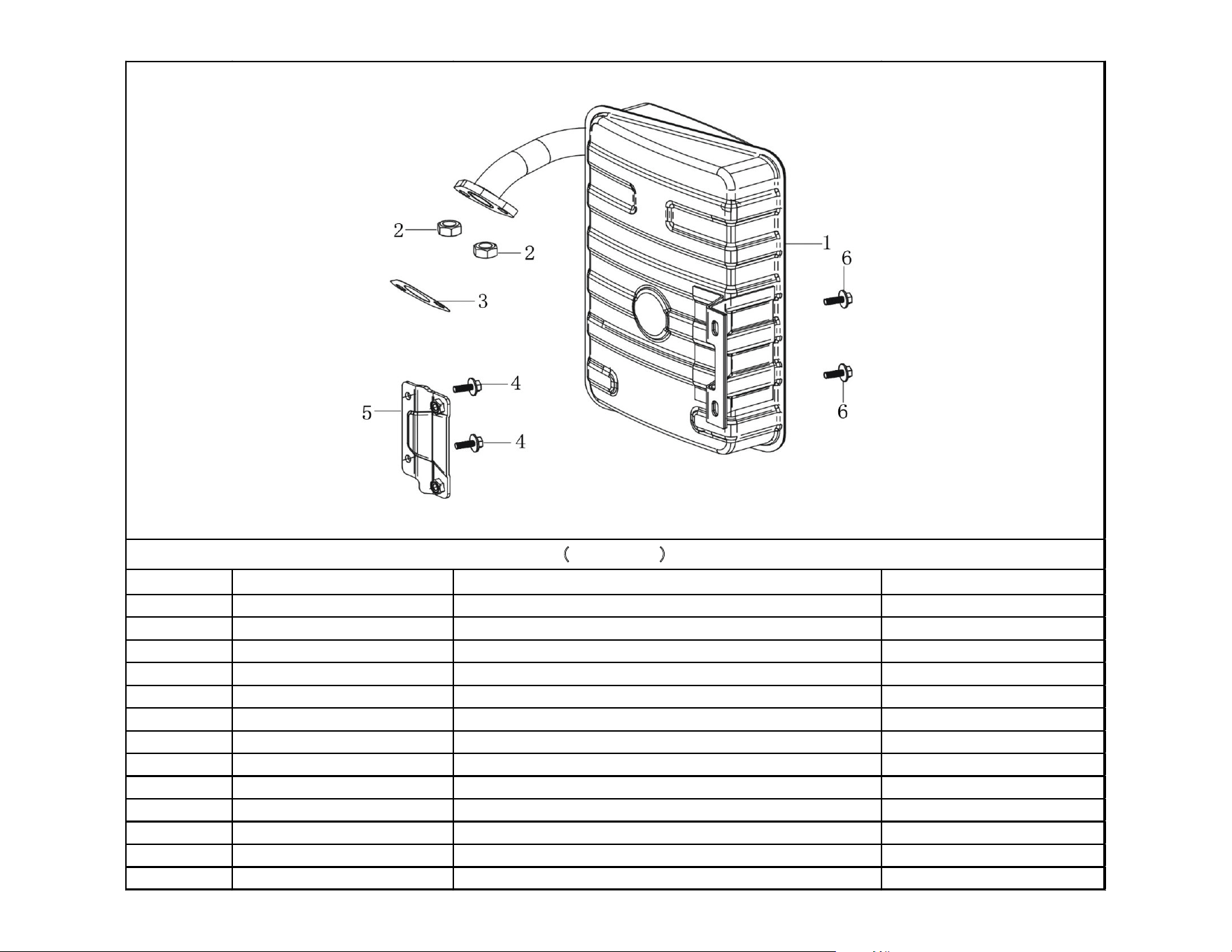

Ser.No Part No. Description Quantity
1
T70.2400.001.00.00 MUFFLER COMP 1
2
6177.08000.00.01 NUT M8 2
3
T70.3100.001.00.00 GASKET , MUFFLER 1
4
5787.06012.00.01 BOLT, FLANGE M6X12 2
5
T70.2403.001.00.00 MUFFLER BRACKET 1
6
5787.08014.00.01 BOLT, FLANGE M8*14 2
（ MUFFLER）

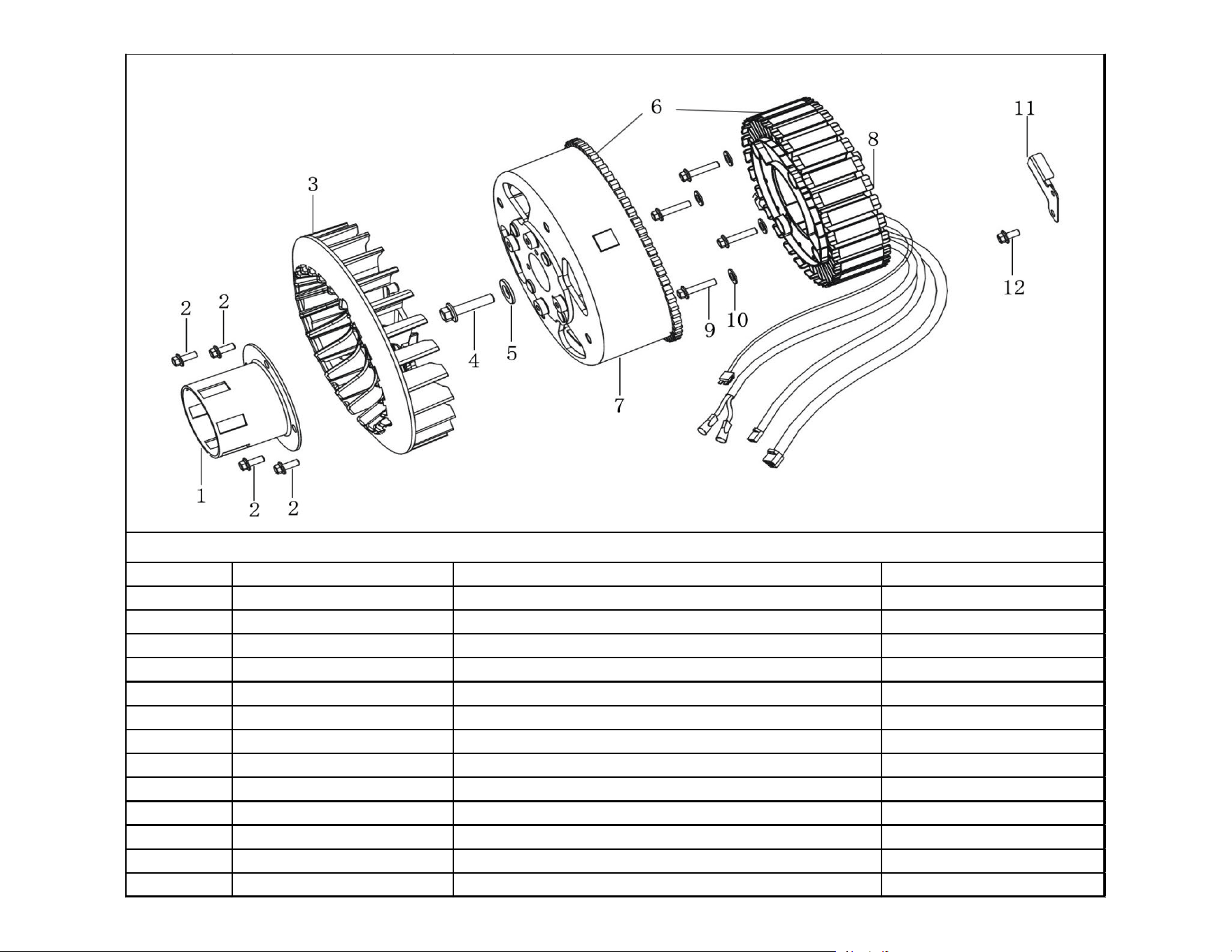

Ser.No Part No. Description Quantity
1
T70.2020.001.00.00 PULLEY, STARTER 1
2
5787.06014.00.01 BOLT,FLANGE M6×14 4
3
T70.2030.001.63.00 MOTOR FAN 1
4
5787.08030.00.01 BOLT,FLANGE M8×30 1
5
T70.4100.001.00.00 WASHER 8*34*4 1
6
487.4000.005.00.00 ALTERNATOR ASSY. 1
7
487.4000.005.00.01 MOTOR ROTOR 1
8
487.4000.005.00.02 MOTOR STATOR 1
9
0070.06050.00.04 INNER SIX ANGLE SCREW 3
10
0093.06000.00.01 WASHER,SPRING 3
11
T70.2090.002.00.00 PRESSING LINE PLATE 1
12
5787.06012.00.01 BOLT, FLANGE 6*12 1
(ROTOR.STATOR)
Ser.No Part No. Description Quantity
1
5787.06012.00.01 BOLT ,FLANGE M6×12 5
2
487.2471.001.00.00 Inverter fixing plate 1
3
5787.06020.00.01 BOLT ,FLANGE M6×20 2
4
487.4695.001.00.00 Battery tape 1
5
487.2460.001.00.00 Battery 7Ah 1
6
487.6854.001.00.00 Voltage regulating rectifier 10A 1
7
6177.06000.00.01 Disc nut M6 4
8
487.3330.001.00.10 Battery box 1
9
487.6497.001.15.00 Inverter damper 1
10
5789.05012.00.01 BOLT ,FLANGE M5×12 2
11
Inverter cover 2
12
487.2470.001.00.00 inverter 1
13

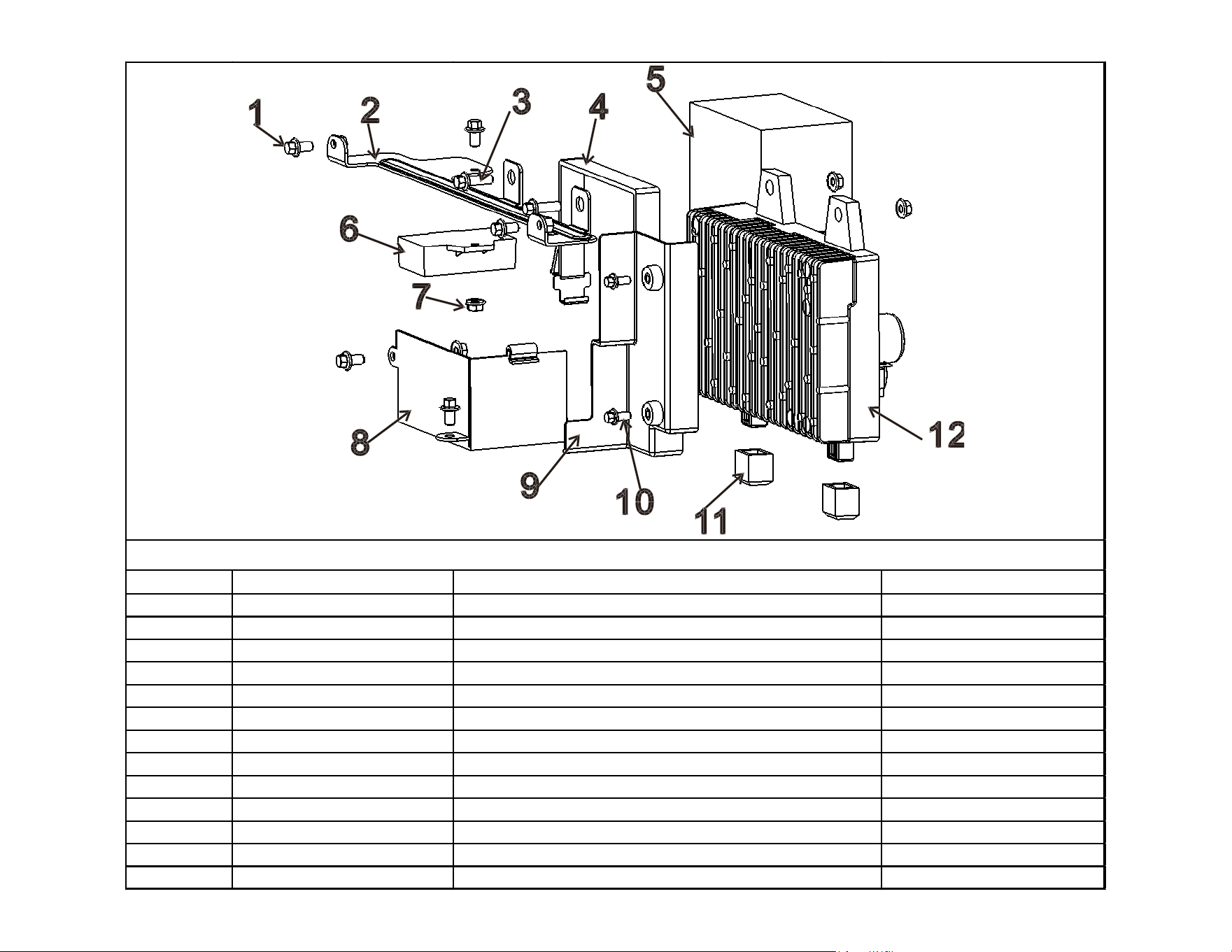

(INVERTER ASSY)

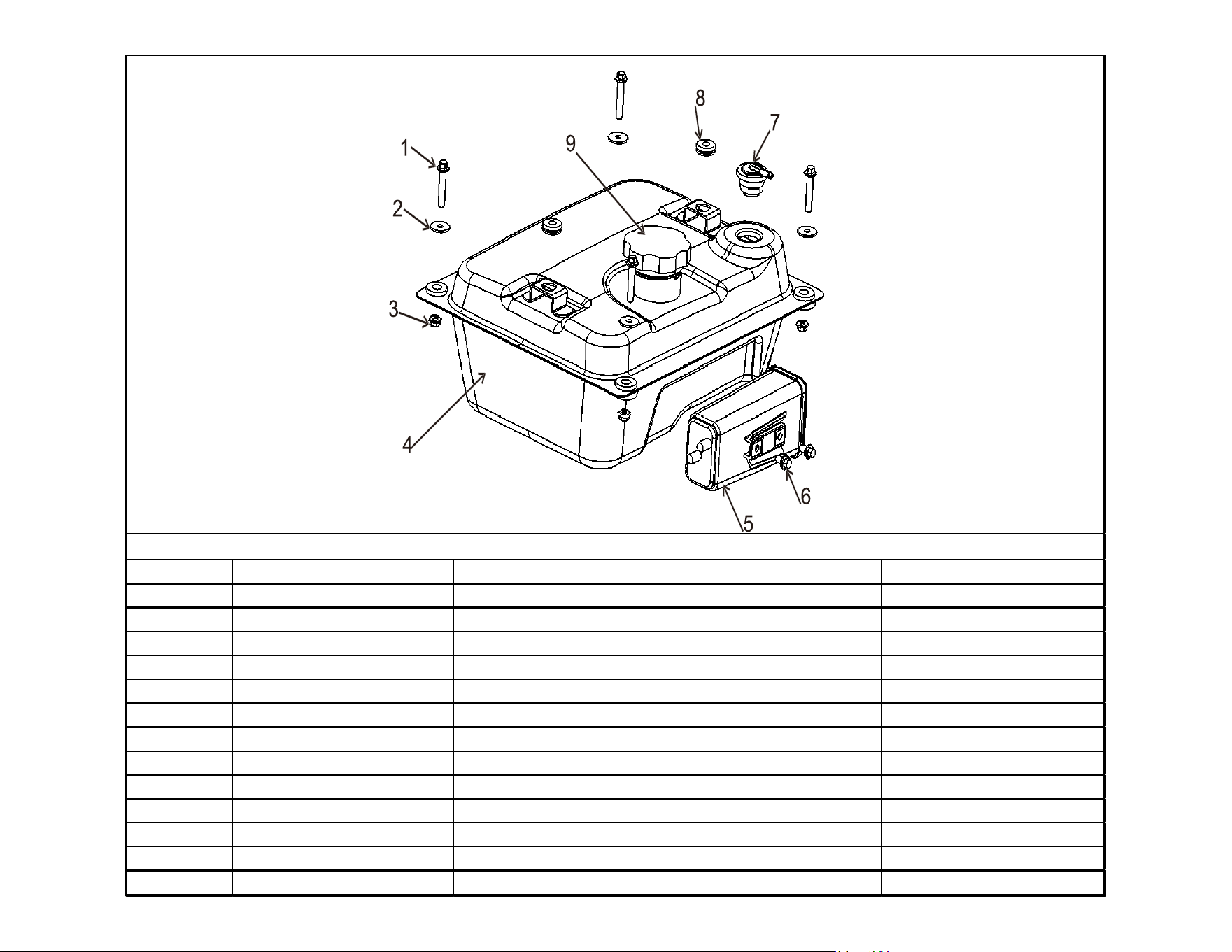

Ser.No Part No. Description Quantity
1
5787.06040.00.01 BOLT ,FLANGE M6×40 4
2
460.4100.001.20.00 Flat pad 6*25*1.5 4
3
6177.06000.00.01 Disc nut M6 4
4
487.3200.003.00.00 tank 1
5
487.4440.001.00.00 Carbon canister 380cc 1
6
5787.06012.00.01 BOLT ,FLANGE M6×12 2
7
188.3200.C01.00.01 Check valve 1
8 467.5522.001.00.00
Tank support pad 2
9
487.3200.003.00.01 Tank cap 1
10
11
12
13
(FUEL TANK)
Ser.No Part No. Description Quantity
1
520.3385.007.00.00 Socket 1
2
520.3385.007.00.00 Socket 1
3
487.7744.001.D7.00 Three in one switch handle 1
4
0818.05016.00.07 Cross recessed countersunk head screws M4*12 4
5
487.3370.007.00.01 Electric start switch 1
6
487.7590.001.00.00 Multifunctional digital display meter 1
7
487.3370.007.00.02 Ground terminal 1
8
487.3370.007.00.03 Energy-saving switch 1
9
487.6854.001.00.00 rectifier 1
10
487.3370.007.00.04 Cut-off switch 1
11
487.3370.007.00.07 DC socket (with over-current protection) 1
12
487.3370.007.00.00 panel 1
13
0818.05016.00.07 Cross recessed countersunk head screws M5*16 12
14
487.3370.001.04.01 Rear panel cover 1
15
487.3370.001.00.04 Terminal 1
16
487.2140.002.00.00 Three in one switch 1
17
487.3210.001.00.00 Oil switch 1
18
5787.06012.00.01 BOLT ,FLANGE M6×12 1
19
0845.42016.00.01 Self tapping screw ST4.2*16 3
20
487.3370.001.03.02 Wire harness 1
(CONTROL PANEL)

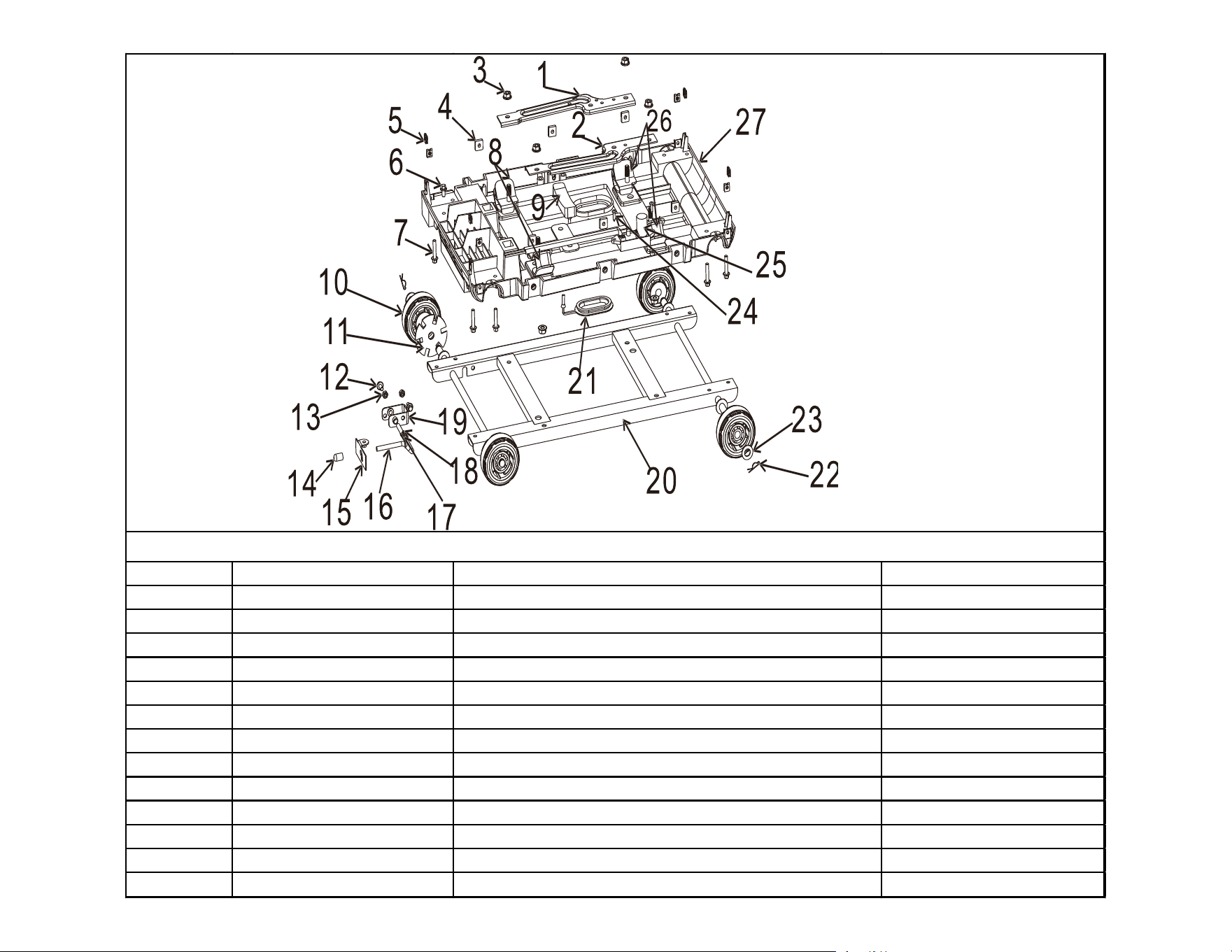

Ser.No Part No. Description Quantity
1 487.3340.001.00.00 Power plate 1 1
2 487.3340.002.00.00 Power plate 2 1
3 6177.08000.00.01 Disc nut M8 8
4 467.5926.001.00.00 Square nut M6 6
5 6178.05000.00.04 Clip nut M5 8
6 5787.06012.00.01 BOLT,FLANGE M6×12 1
7 5787.06030.00.01 BOLT,FLANGE M6×30 8
8
487.3360.001.00.00 Shock pad 1 2
9 487.3355.001.00.00 Dynamic support pad 1
10
487.3332.001.00.00 Wheels 3 inches 4
11 487.7721.002.00.00 Brake plate 1
12 5787.06012.00.01 Six angle flange bolt M6*12 2
13 0052.06000.00.02 Six angle nut M6 2

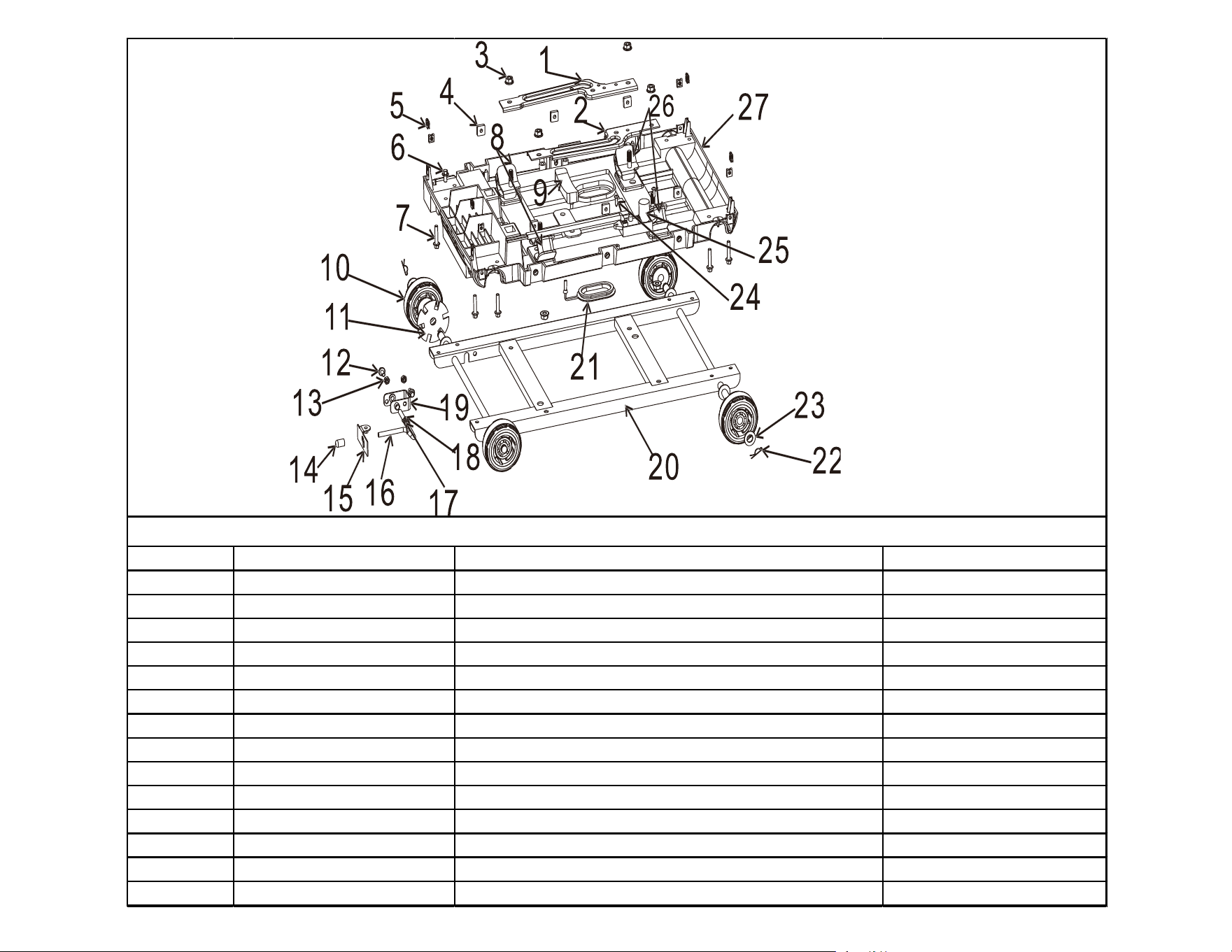

(FRAME)
Ser.No Part No. Description Quantity
14
487.7722.001.00.01
Brake pull sleeve 1
15
487.7721.001.00.00
Brake gear plate 1
16
487.2272.001.00.00
Brake rail 1
17
487.1150.001.00.00
Brake spring 1
18
487.1176.001.00.00
Open circlip 1
19
487.7722.001.00.00
Brake mounting plate 1
20
487.3532.001.00.00
Floor assembly 1
21
487.3356.001.00.00
Chassis oil drain pad 1
22
168.1120.001.00.00
Swing lever lock 4
23
460.4100.002.20.00
Flat washer 13*24*2 4
24
0845.42016.00.01
Self tapping screw ST4.2*16 2
25
487.2110.002.00.00
Igniter 1
26
487.3360.003.00.00
Shock pad 3 2
27
487.4085.001.00.00
chassis 1
(FRAME)
Ser.No Part No. Description Quantity
1
487.3330.002.B6.00 Frame 1
2
5787.06012.00.01 BOLT,FLANGE M6×12 2
3
5787.06020.00.01 BOLT,FLANGE M6×20 2
4
487.4821.001.J6.00 Handle tube 2
5
5787.06028.00.01 BOLT,FLANGE M6×28 4
6
487.3330.002.B6.01 Support foot 1 1
7
487.3330.002.B6.02 Support foot 2 1
8
487.3330.002.B6.03 Support foot 3 1
9
487.3330.002.B6.04 Support foot 4 1
(FRAME)

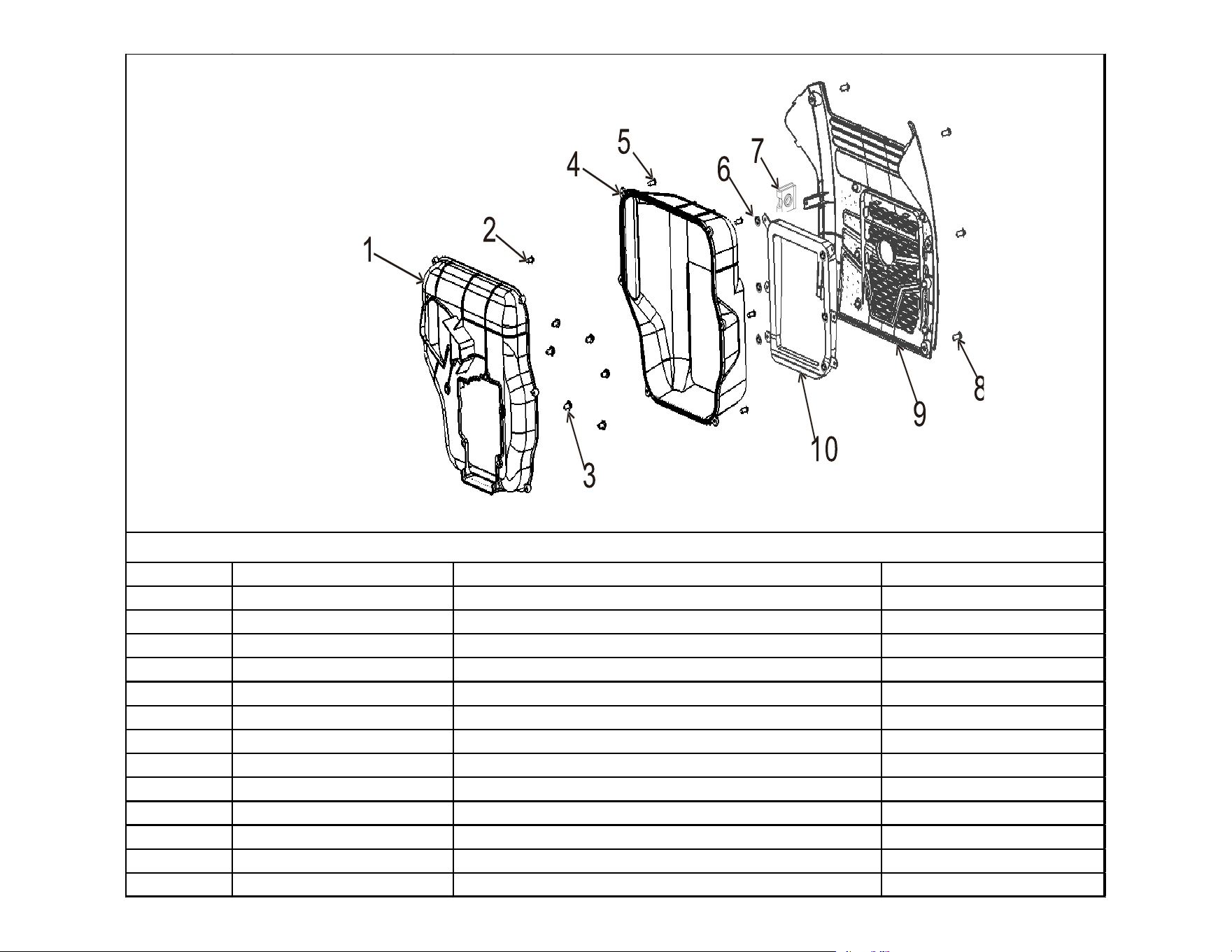

Ser.No Part No. Description Quantity
1
T70.2435.001.00.00 Muffler rear cover 1
2
0845.42013.00.01 Self tapping screw ST4.2*13 1
3
5789.05012.00.01 BOLT,FLANGE M5×12 6
4
T70.2402.001.00.00 Muffler front cover 1
5
0845.42013.00.01 Self tapping screw ST4.2*13 6
6
487.4100.001.00.00 Bearing thrust washerΦ5XΦ14X0.4 6
7
6178.05000.00.04 Clip nut M5 1
8
0818.05016.00.07
Cross recessed countersunk head screws (M5*16 Hei Xin)
5
9
487.4060.001.04.00 Tail cover 1
10
487.2450.001.00.00 Muffler insulation pad 1
(PROTECTOR,MUFFLER)

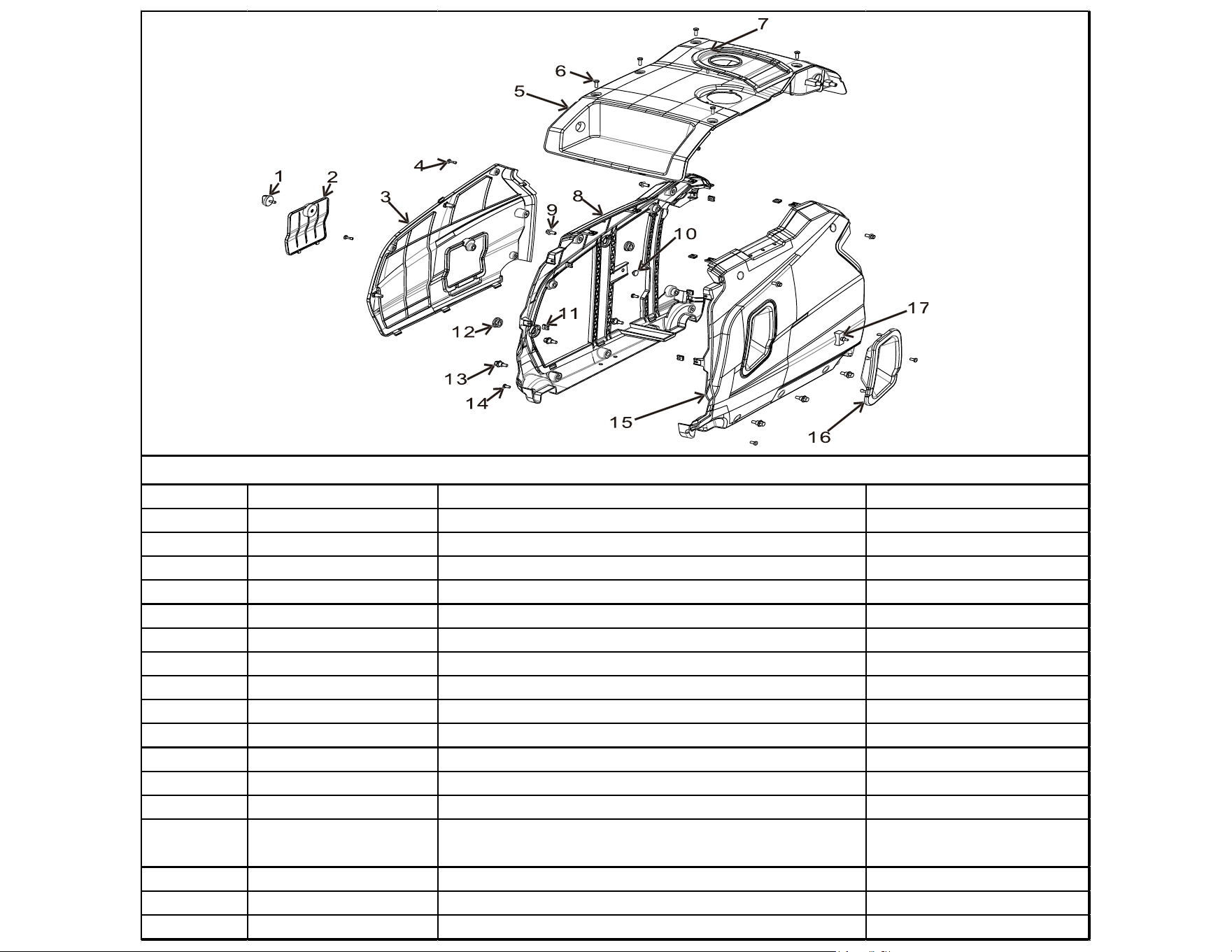

Ser.No Part No. Description Quantity
1 487.5572.001.00.01
Oil window handle 1
2 487.5572.001.00.00
Oil window 1
3 487.5576.003.00.00
Maintenance cover 1
4 0949.05014.00.07
M5*14.5 screw 4
5 487.5576.001.15.00
On the cover 1
6 0818.05016.00.07
Cross recessed countersunk head screws M5*16 5
7 487.4482.001.00.00
Oil guide rubber pad 1
8 487.5576.002.15.00
left cover 1
9 5787.06012.00.01
Plate boltM6*12 4
10 487.6612.001.00.00
Crash pad (cylinder head) 1
11 6178.05000.00.04
Clip nut M5 12
12 467.5522.002.00.00
Tank support pad B 2
13 467.4789.001.00.00
Step bolt M6 6
14 0818.05010.00.07
Cross recessed countersunk head screws
M5*10/S=10.5
4
15 487.5576.004.15.00
Right cover 4
16 487.4629.001.00.00
Handle limit plate 1
17 487.6612.002.00.00
Crash pad (starting motor) 1
(APPEARANCE COVER)
