User Manual
Gas Hobs
BG3xA - BG6xA - BG6xB - BG6xD
BG6xE - BG7xA - BG7xB - BG7xC
BG7xD - BG9xA - BG9xB - BG9xD
BG9xE
The following symbols are used throughout the manual, and they have the following meanings:
INFORMATION!
Information, advice, tip, or recommendation
WARNING!
Warning – general danger
GAS CONNECTION!
Warning – gas connection
ELECTRIC SHOCK!
Warning – danger of electric shock
HOT SURFACE!
Warning – danger of hot surface
DANGER OF FIRE!
Warning – danger of fire
RIGHT!
WRONG!
It is important that you carefully read the instructions.
Contents
4Safety regulations ...................................................................................................................
4READ CAREFULLY AND KEEP IT FOR FUTURE REFERENCE! ..............................................
7Gas hob ....................................................................................................................................
8Safe use ...................................................................................................................................
9User Manual ............................................................................................................................
9Models ......................................................................................................................................
11Description ................................................................................................................................
12Information according to regulation (EU only) 66/2014 ............................................................
13Use ............................................................................................................................................
14Burner position: ........................................................................................................................
14Cleaning: ...................................................................................................................................
14Faults table ...............................................................................................................................
16Installation instruction ............................................................................................................
16Safety regulations .....................................................................................................................
16..................................................................................................................................................
17Preparations for installation ......................................................................................................
18Sealing tape ..............................................................................................................................
18Gas connection .........................................................................................................................
19Accessibility ..............................................................................................................................
19Built-in .......................................................................................................................................
19Connecting & testing ................................................................................................................
20Conversion instruction ...........................................................................................................
20Conversion table .......................................................................................................................
21Contents of conversion set .......................................................................................................
21Tools needed: ...........................................................................................................................
22Converting nozzles ...................................................................................................................
22Converting by-pass screws ......................................................................................................
23Check for gas tightness and operation .....................................................................................
23Startup ......................................................................................................................................
23Checking operation ...................................................................................................................
24Environmental considerations ...............................................................................................
24Disposal of the appliance and packaging .................................................................................
3
Safety regulations
READ CAREFULLY AND KEEP IT FOR FUTURE
REFERENCE!
General
• The manufacturer cannot be held liable for any damage
resulting from failure to follow the safety instructions and
warnings.
• Damage caused by incorrect connection, incorrect fitting,
or incorrect use is not covered by the warranty.
WARNING!
This appliance and the accessible parts will become hot
during use. Do not touch hot parts. Keep children younger
than 8 away from the appliance unless they are under
continuous supervision.
WARNING!
Use only hob guards designed by the manufacturer of the
cooking appliance or indicated by the appliance
manufacturer in the instructions for use as suitable or hob
guards incorporated in the appliance. The use of
inappropriate guards can cause accidents.
4
DANGER OF FIRE!
• WARNING: Danger of fire: do not store items on the
cooking surfaces.
• WARNING: Cooking with fat or oil on a hob without
supervision can be dangerous and can lead to a fire.
• CAUTION! The cooking process has to be supervised. A
short-term cooking process has to be supervised
continuously.
• NEVER try to extinguish a fire with water. Instead, switch the
appliance off and then cover the flames with, for example,
a lid or a fire blanket.
• The hob is only to be used for the preparation of food.
• The appliance is not designed for heating rooms.
• Do not warm closed tins on the hob. There will be a build-up
of pressure that will cause tins to explode. You might get
injured or scalded.
• The appliance is not intended to be operated by means of
an external timer or separate remote control system.
• Never open the casing of the appliance.
• Never use a pressure cleaner or steam cleaner to clean the
hob.
• The ceramic top is extremely strong but not unbreakable.
For example, a spice jar or sharp utensil falling on it could
cause it to break.
5
• If a drawer underneath the appliance is permitted (see the
installation instructions), without an intermediate bottom,
this should not be used to store highly flammable
objects/materials. Ensure that there is adequate clearance
of a few centimetres between the bottom of the hob and the
contents of any drawers.
ELECTRIC SHOCK!
WARNING! In case of hotplate glass breakage:
• Shut immediately off all burners and any electrical heating
element and isolate the appliance from the power supply.
• Do not touch the appliance surface.
• Do not use the appliance.
WARNING!
• This appliance can be used by children aged 8 years and
over, as well as by people with reduced physical, sensory
or mental capabilities or lack of experience and
knowledge, provided they are supervised and instructed
in the safe use of the appliance and understand the
hazards involved.
• Do not allow children to play with the appliance.
• Do not allow children to clean or maintain the appliance
unless supervised.
• Do not keep objects that children might find interesting in
cupboards above or behind the appliance.
6
• The cooking zones/burners heat up during use and stay hot
for a while afterwards. Keep young children away from the
hob during and immediately after cooking.
Gas hob
• CAUTION! The use of a gas cooking appliance results in the
production of heat, moisture and products of combustion in
the room in which it is installed. Ensure that the kitchen is
well ventilated especially when the appliance is in use. Keep
natural ventilation holes open or install a mechanical
ventilation device (mechanical extractor hood).
• The burner components are hot during and immediately after
use. Do not touch them, and avoid contact with non-heat
resistant materials.
• The distance between the pan and a knob or non-heat
resistant wall should always be greater than one centimetre.
In the case of smaller distances, the high temperature may
cause the knobs or wall to discolour and/or deform.
7
Safe use
• Never cover the appliance with a cloth or something similar. If the appliance is still hot or is switched
on, there is a risk of fire.
• Do not use the appliance as a worktop. The appliance may accidentally be switched on or still be
hot, which means objects could melt, become hot or catch fire.
• Do not use the appliance in temperatures below 5 °C.
• The appliance should not be placed or used outdoors.
• When you use the hob for the first time, you will notice a “new smell”. Don’t worry, this is normal.
If the kitchen is well ventilated, the smell will soon disappear.
• Never flambé under a cooker hood. The high flames can cause a fire, even if the cooker hood is
switched off.
• Always place the pan on the pan support. Placing the pan directly on the burner cap can result
in dangerous situations.
• Aluminium trays or foil are not suitable as cooking utensils. They can burn into the burner caps
and pan supports.
• The hob can only function effectively if the burner components have been assembled using the
guide ridges. Ensure that the pan supports lie properly against each other and flat on the drip tray.
Only then can the pans be positioned stably.
• Keep oven gloves or oven cloths away from the flame.
• Do not use griddle plates or baking plates.
• Clean the burner parts regularly for the safe and correct operation of the burners.
• Missing rubber feet from the pan supports can cause scratches on the drip tray or poor combustion
of the burner. If the rubber feet are missing, please contact our service department.
• Always use the pan supports and suitable cookware.
• Never immerse hot burner caps and pan supports in cold water. Rapid cooling can damage the
enamel.
8
User Manual

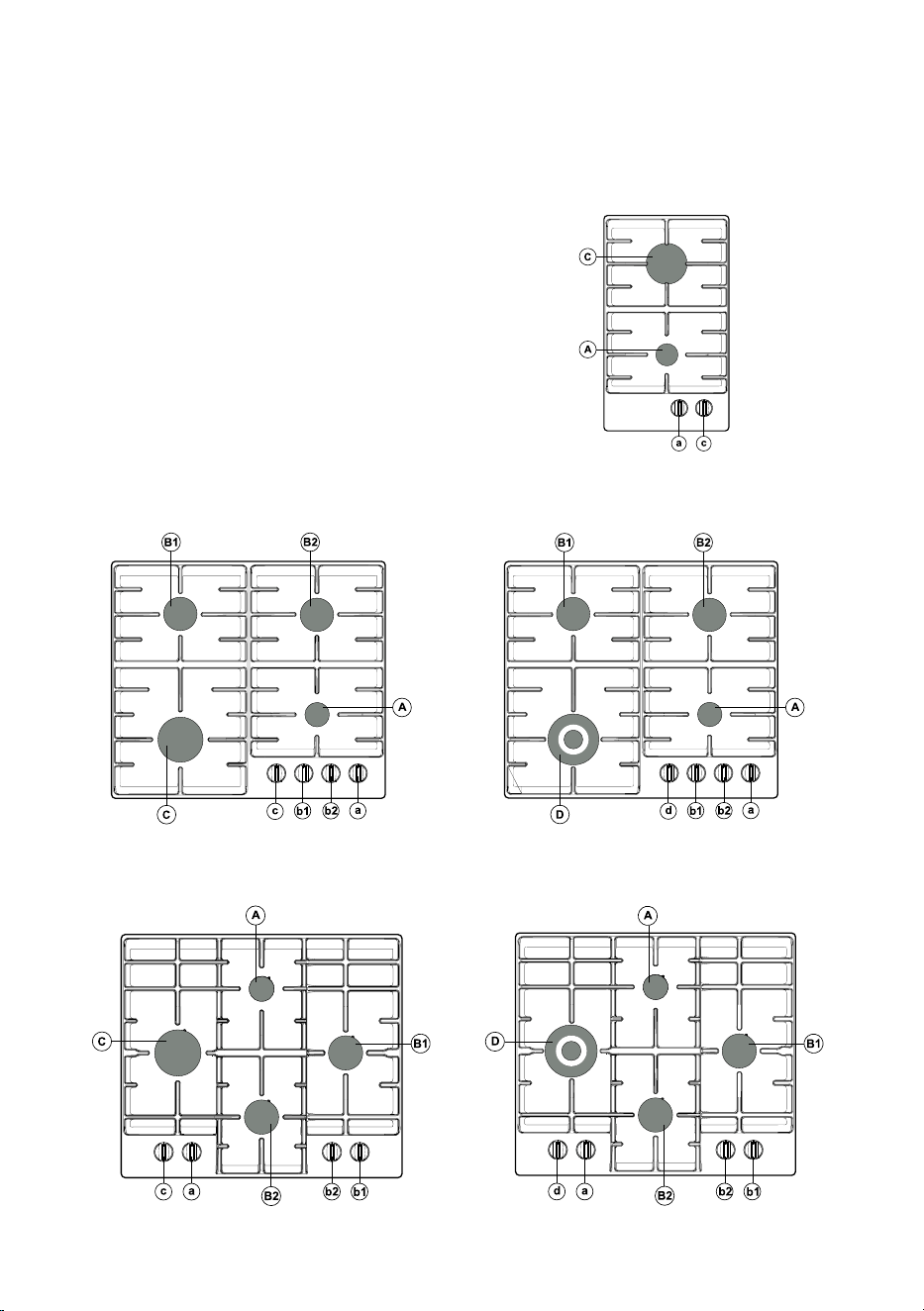

Models
BG3xA
Aa - Auxiliary burner
Bb - Semi-rapid burner
Cc - Rapid burner
Dd - Wok burner
BG6xBBG6xA
BG6xEBG6xD
9

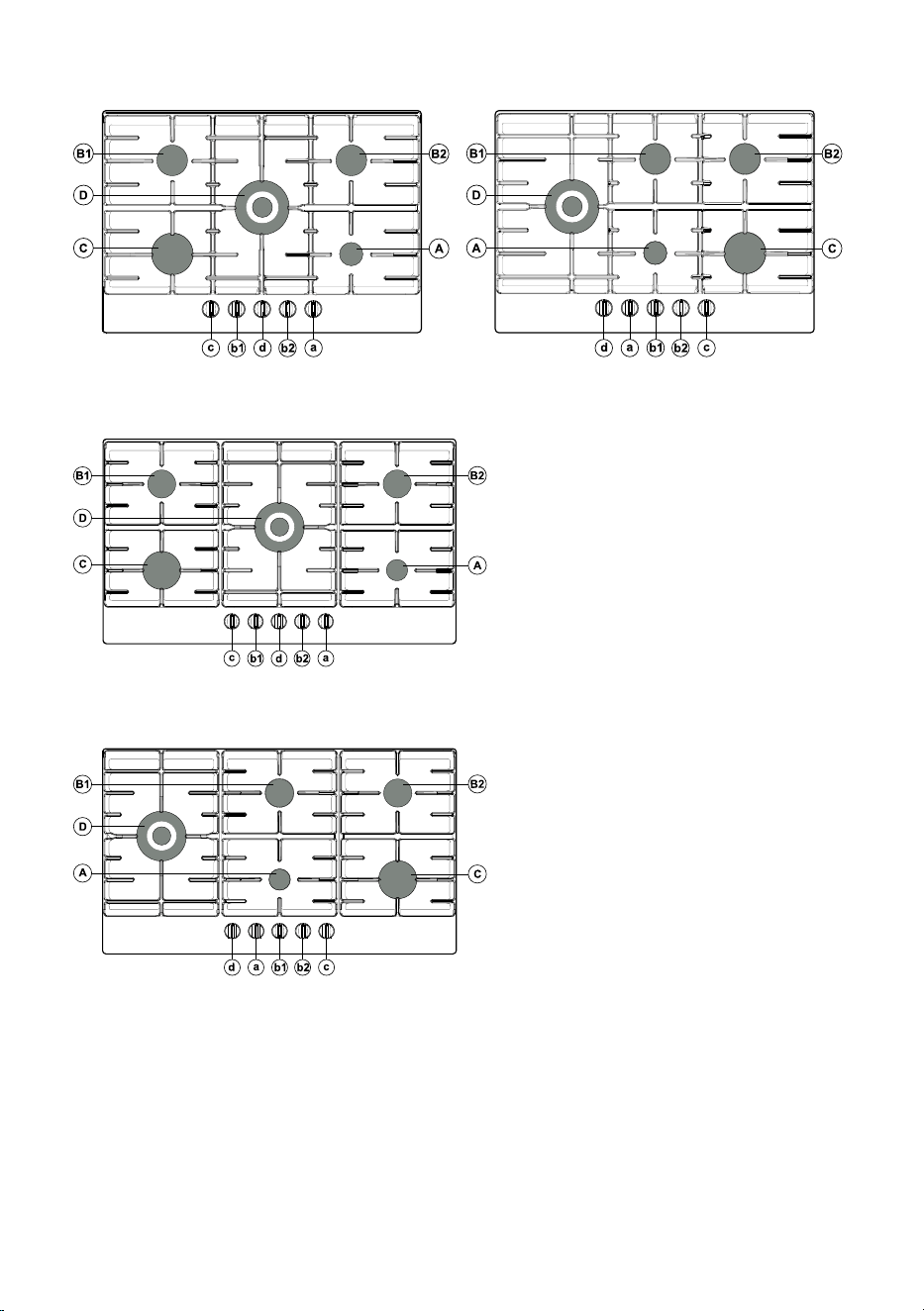

BG7xB / BG7xDBG7xA / BG7xC
BG9xA / BG9xD
BG9xB / BG9xE
10
Description
G20 - 20 mbar
BG7XC
BG7xD
BG9xD
BG9xE
BG7xA
BG7xB
BG9xA
BG9xB
BG6xB
BG6xE
BG6xA
BG6xD
BG3xAPowerBurner
xxxxx1.05 kWAuxiliaryAa
xxxx1.80 kWSemi-rapidBb
xxxx3.00 kWRapidCc
xx3.50 kWWokDd
x4.05 kWWokDd
G30/G31 - 28-30/37 mbar
BG7xC
BG7xD
BG9xD
BG9xE
BG7xA
BG7xB
BG9xA
BG9xB
BG6xB
BG6xE
BG6xA
BG6xD
BG3xAPower / Mass flowBurner
xxxxx1.05 kW / 76 g/hAuxiliaryAa
xxxx1.70 kW / 122 g/hSemi-rapidBb
xxxx3.00 kW / 216 g/hRapidCc
xx3.50 kW / 252 g/hWokDd
x3.90 kW / 281 g/hWokDd
G30/G31 - 50 mbar
BG7xC
BG7xD
BG9xD
BG9xE
BG7xA
BG7xB
BG9xA
BG9xB
BG6xB
BG6xE
BG6xA
BG6xD
BG3xAPower / Mass flowBurner
xxxxx1.00 kW / 72 g/hAuxiliaryAa
xxxx1.90 kW / 137 g/hSemi-rapidBb
xxxx3.00 kW / 216 g/hRapidCc
xx3.50 kW / 252 g/hWokDd
x3.80 kW / 274 g/hWokDd
11
G20 - 25 mbar (HU)
BG7xC
BG7xD
BG9xD
BG9xE
BG6xB
BG6xE
BG6xA
BG6xD
BG3xAPower / Mass flowBurner
xxxx1.15 kWAuxiliaryAa
xxx2.00 kWSemi-rapidBb
xxx3.30 kWRapidCc
xx3.90 kWWokDd
G30 /G31 - 37 mbar (PL)
BG7xC
BG7xD
BG9xD
BG9xE
BG6xB
BG6xE
BG6xA
BG6xD
BG3xAPower / Mass flowBurner
xxxx1.15 kW / 83 g/hAuxiliaryAa
xxx1.95 kW / 140 g/hSemi-rapidBb
xxx3.30 kW / 238 g/hRapidCc
xx3.90 kW / 281 g/hWokDd
Information according to regulation (EU only) 66/2014
Measurements according to EN60350-2
BG7xA
BG7xB
BG7xC
BG7xD
BG9xA
BG9xB
BG9xD
BG9xE
BG6xB
BG6xE
BG6xA
BG6xD
BG3xAModel identification
Gas hobGas hobGas hobGas hobType of hob
5442Number of gas burners
Gas burnerGas burnerGas burnerGas burnerHeating technology
58.158.158.1-Semi-rapid burner:Energy efficiency per
gas burner (EE
gas
burner
) in %
57.1
55.1
-
55.1
57.1
-
57.1
-
Rapid burner:
Wok burner:
57.157.157.857.1Energy efficiency for the gas hob (EEgas
hob) in %
12

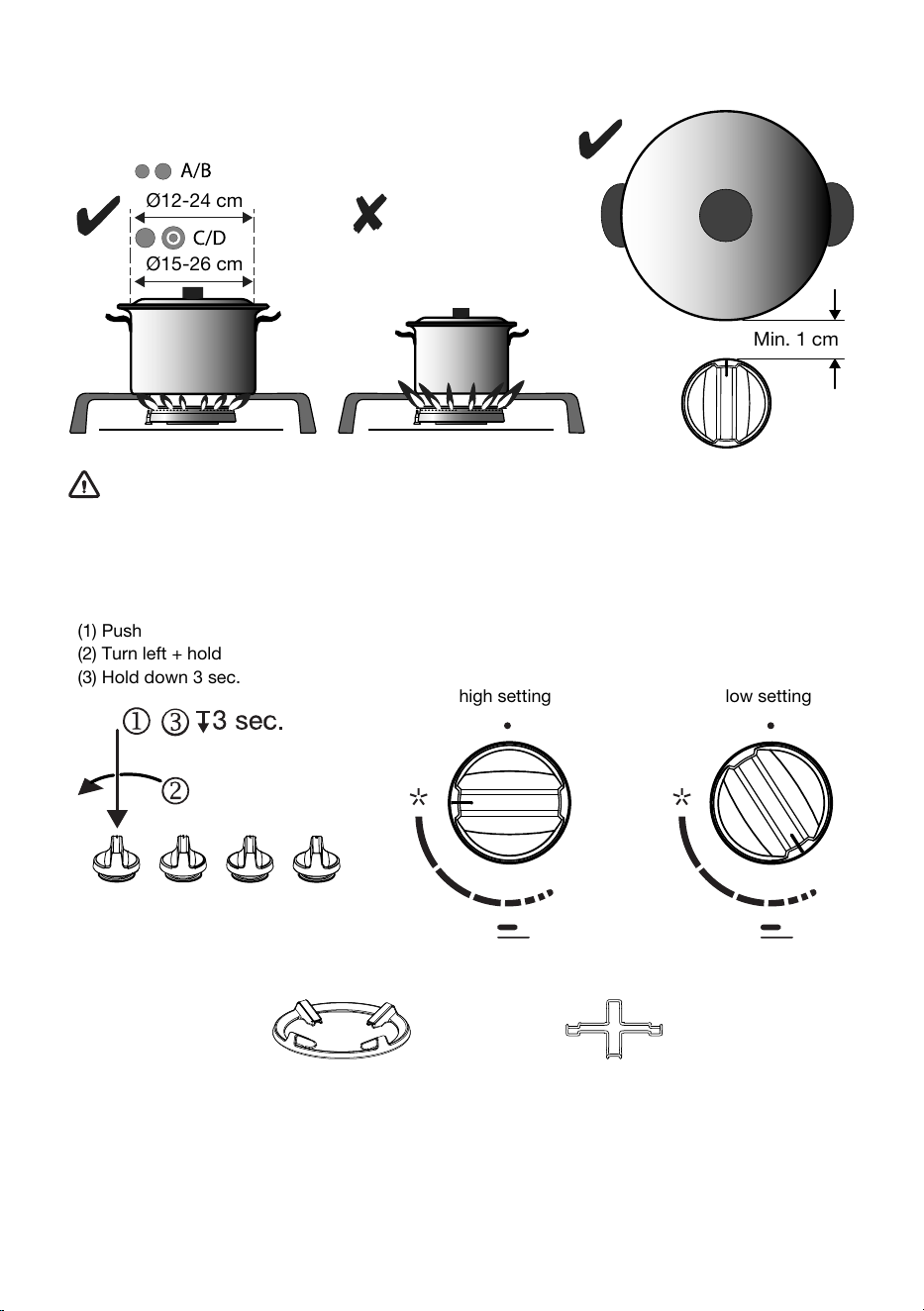

Use
Min. 1 cm
Ø12-24 cm
Ø15-26 cm
WARNING!
The distance between the pan and a non-heat resistant wall should always be greater than one
centimetre. In the case of smaller distances, the high temperature may cause the knobs or wall
to discolour and/or deform.
Control:
(1) Push
(2) Turn left + hold
(3) Hold down 3 sec.
high setting low setting
Accessories (to be obtained via After Sales):
Suits Auxiliary burner
Suits wok burner
Code: 537584
(BG6Ax/BG6Bx/BG6Hx/BG6Fx/BG6Ix)
Code: 806206
Code: 819356 (BG6Jx/BG7Dx)
13

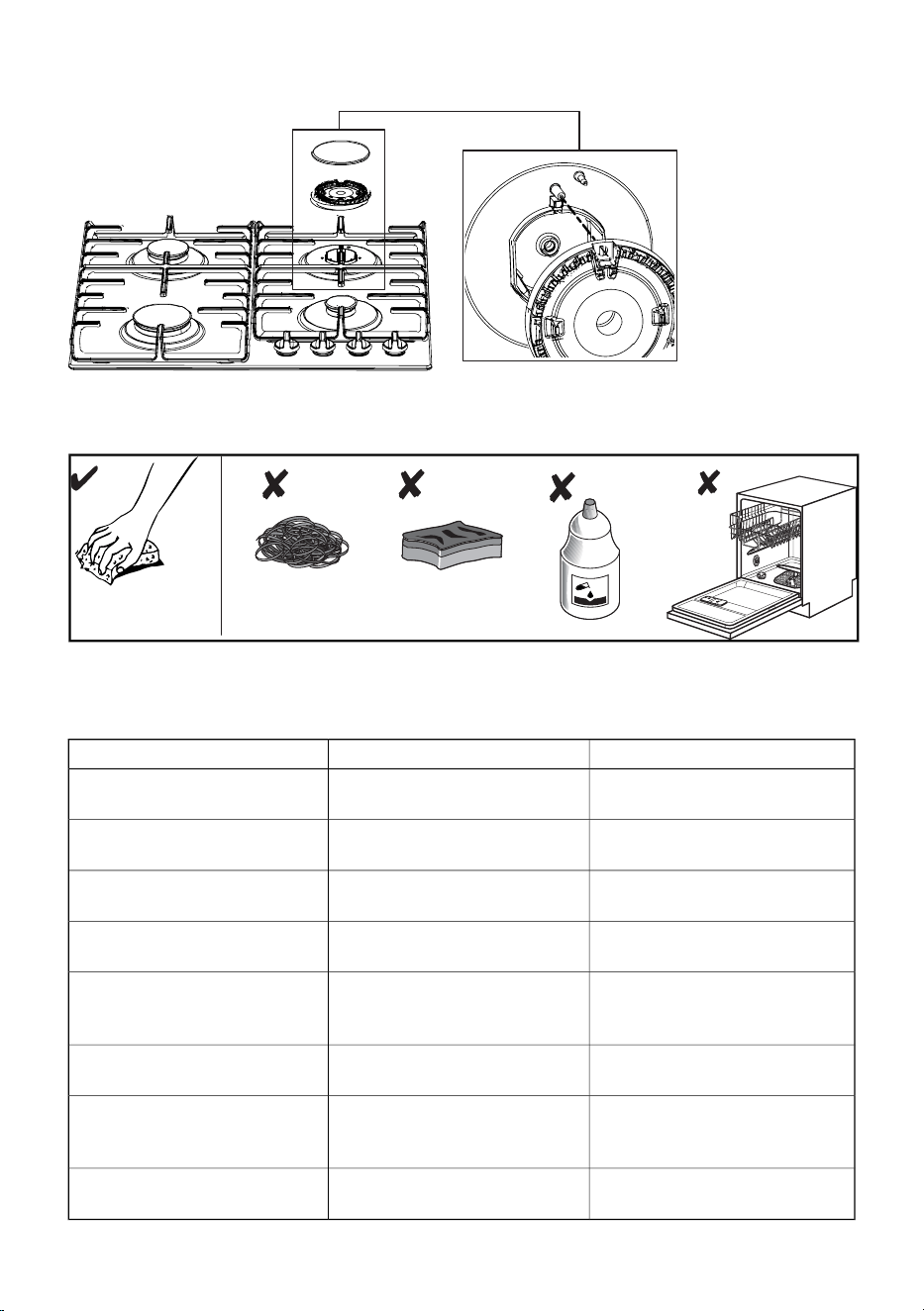

Burner position:
Cleaning:
Faults table
Following is some advice on rectifying some common problems.
What to do?Possible causeWhat happened...?
Have an expert check the gas
pipeline!
The flame is uneven due to a
wrong gas power setting.
The burners will not burn.
The flame is uneven/unstable.
Assemble the burner correctly.Wrongly assembled parts of the
kitchen hob.
The flame from the burners
suddenly changes.
Assemble the burner correctly.Wrongly assembled parts of the
kitchen hob.
Burner ignition takes more time.
Keep the knob pressed for a
longer period of time.
Knob pressed too short or too
weakly.
The flame is extinguished
shortly after ignition.
Clean the grid with a metal care
detergent.
This is a commonplace phe-
nomenon resulting from high
temperatures.
The grid has discoloured in the
burner area?
Check the fuse in the fuse box
and replace it if it is blown.
The fuse may be blown.Electric power supply, in gener-
al, is interrupted?
Open and carefully clean the
opening between the spark plug
and the burner.
There are food or detergent
residues between the spark
plug and the burner.
Electric ignition of the burners
no longer works?
Clean the burner covers with a
metal care detergent.
Regular dirt.The burner cover looks unap-
pealing.
14
A visit by a service technician during the warranty period will be charged if the appliance is not
functioning because of improper use. Store these instructions in a place where they are always readily
accessible; if you pass the appliance on to another person, the instructions should also be included.
NOTE!
If the problem persists despite observing the instructions above, call an authorized service
technician. Elimination of any errors or warranty claims that resulted from an improper connection
or use of the appliance is not covered by our warranty. In such cases, the costs of repair are
borne by the user.
15
Installation instruction
Safety regulations
•
Faulty parts may only be replaced by original parts.
The manufacturer can only guarantee that original parts meet
safety requirements.
•
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
• This appliance should only be connected by a registered installer.
• Prior to installation, ensure that the local distribution conditions (voltage, frequency, nature of the
gas and gas pressure) and the adjustment of the appliance are compatible.
• This appliance must be earthed.
• The voltage, frequency, power, type of gas and the country for which the appliance has been
designed are shown on the appliance rating plate.
• Electrical connection Class I - 220-240 V - 50/60 Hz -
max 1 W.
• The electrical connection must comply with national and local regulations.
• The wall plug socket and plug should always be accessible.
• If a stationary appliance is not fitted with a supply cord and a plug, or with other means for
disconnection from the supply mains having a contact separation in all poles that provide full
disconnection under overvoltage category III conditions, the means for disconnection must be
incorporated in the fixed wiring in accordance with the wiring rules. Using an omnipolar switch
with a contact separation of at least 3 mm fitted in the supply cable will fulfil this requirement.
• The supply cord must hang freely and should not be fed through a drawer.
• Gas connection 1/2” ISO 228 / ISO 7-1 / EN 10226-1
(1/2” ISO 228 / 1/2” ISO 228 FR only).
• The gas connection must comply with national and local regulations. See appliance label for
technical gas data.
• This appliance is not connected to a combustion products evacuation device. It shall be installed
and connected in accordance with current installation regulations. Particular attention shall be
given to the relevant requirements regarding ventilation.
• We recommend that the gas hob be connected by means of a fixed pipe. Connection using a
specially designed safety hose is also permitted.
• The pipe behind the oven must be made entirely out of metal.
16
• A safety hose may not be bent and must not come into contact with moving parts of kitchen units.
• The gas supply valve must always be placed in an easily accessible position.
• The worktop into which the hob is fitted should be flat.
• The walls and the worktop surrounding the appliance must be heat resistant up to at least 105 °C.

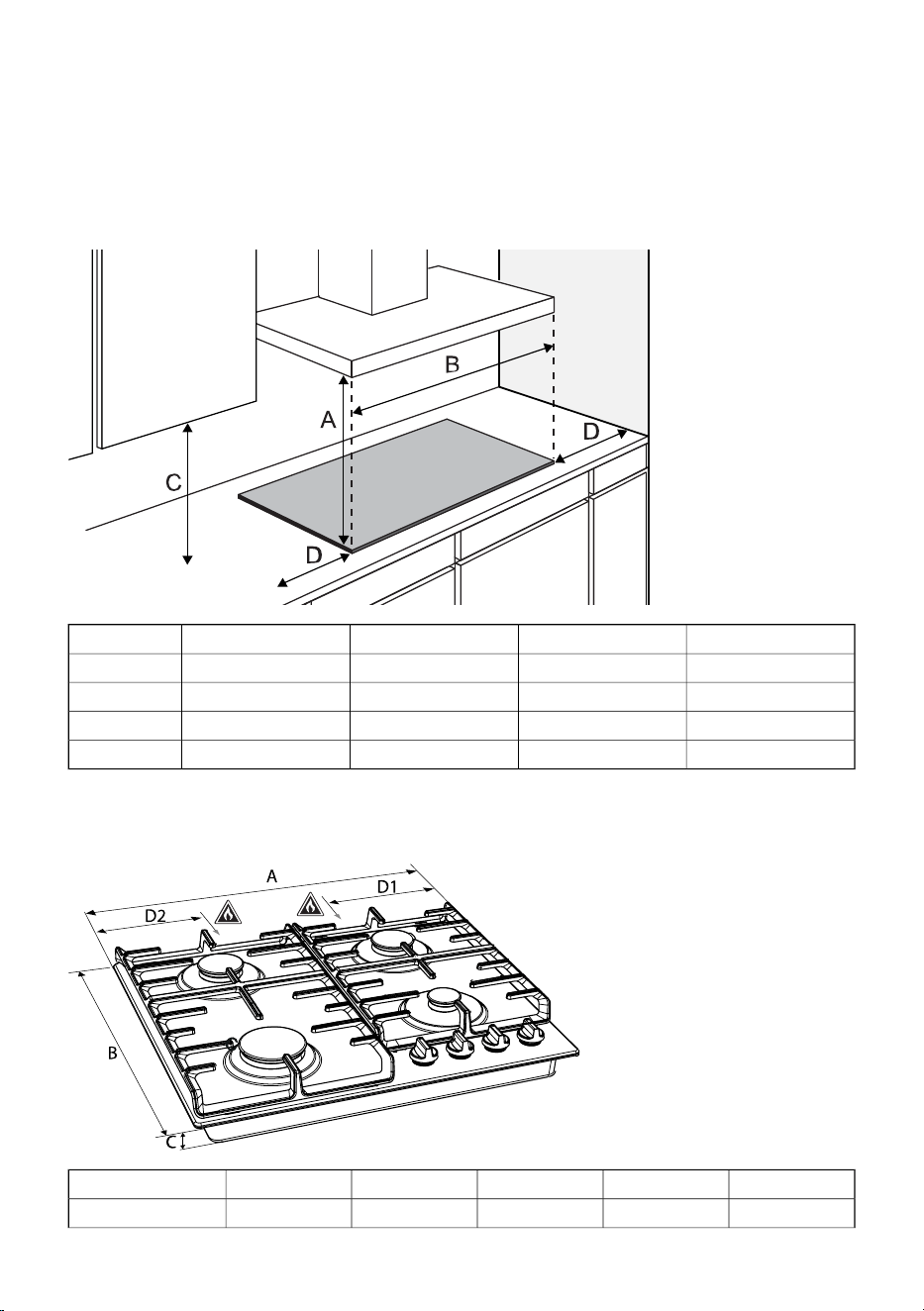

Preparations for installation
Free space around the appliance
D (mm)C (mm)B (mm)A (mm)
min. 120min. 450min. 600min. 650BG3
min. 120min. 450min. 600min. 650BG6
min. 120min. 450min. 750min. 650BG7
min. 120min. 450min. 900min. 650BG9
Dimensions
Appliance:
D2 (mm)D1 (mm)C (mm)B (mm)A (mm)
138-52520300BG3
17

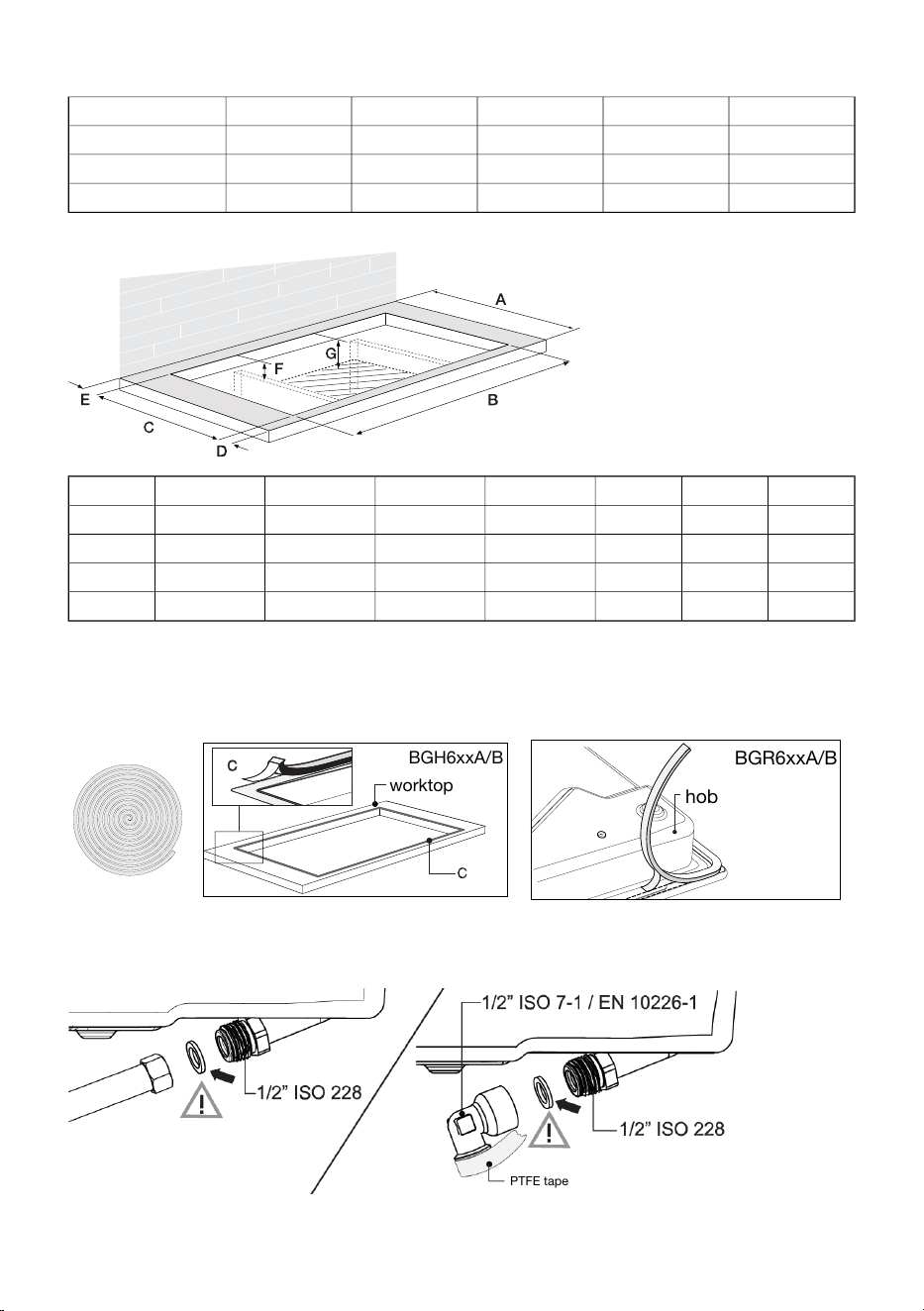

Table continued from last page
138-52520600BG6xA/B
-13852520600BG6xD/E
-13852520750BG7
-13852520900BG9
G (mm)F (mm)E (>mm)D (mm)C (mm)B (mm)A (mm)
100905060490260600BG3
100905060490560600BG6
100905060490715600BG7
100905060490860600BG9
Sealing tape
Glass drip trayStainless steel drip tray
hob
BGR6xxA/B
worktop
BGH6xxA/B
Gas connection
PTFE tape
18

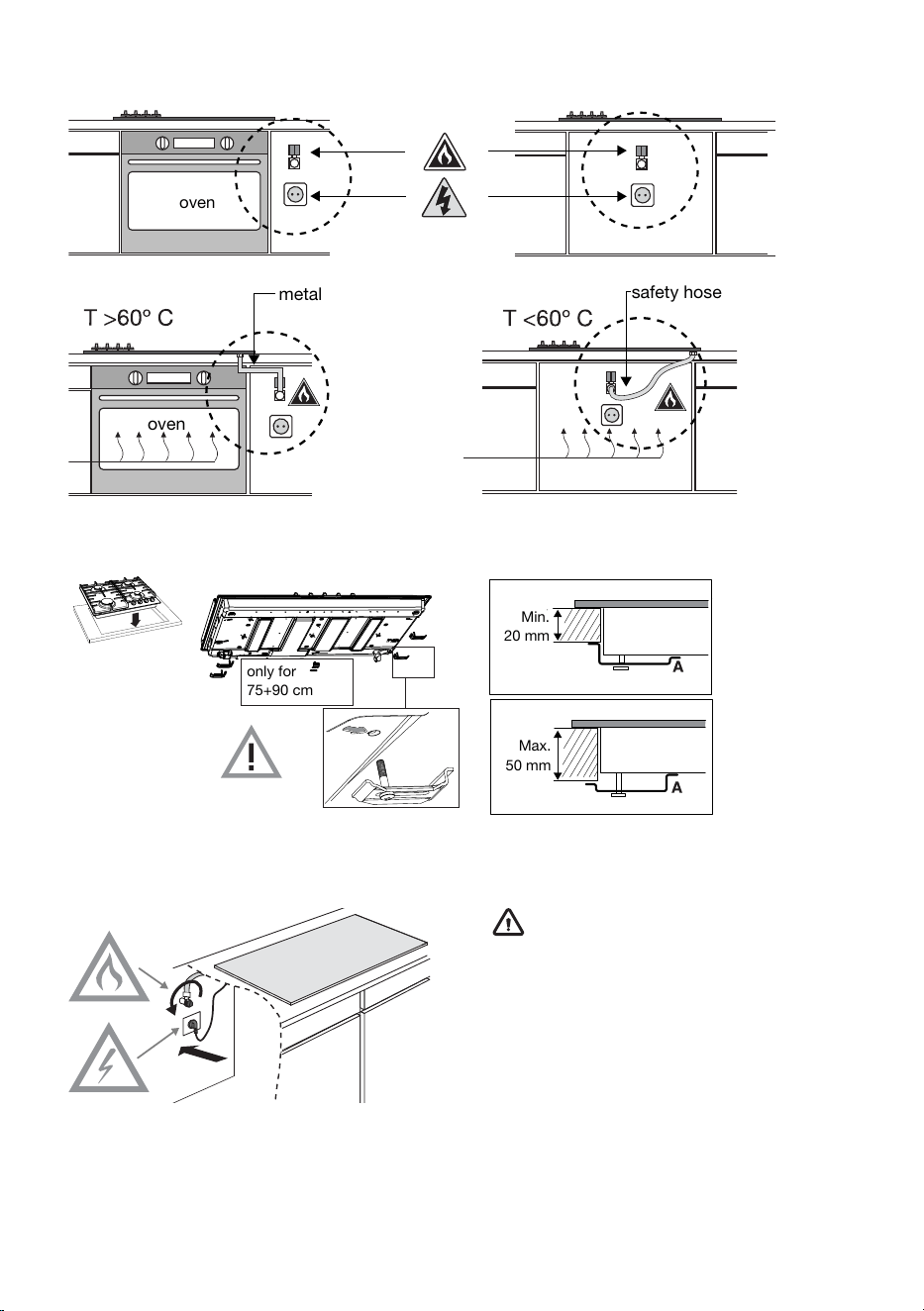

Accessibility
oven
oven
safety hose
metal
Built-in
Min.
20 mm
Max.
50 mm
only for
75+90cm
Connecting & testing
WARNING!
Check if connections are gas-tight.
19
Conversion instruction
WARNING!
Adjusting for a different gas type!
WARNING!
Attention! Performing these instructions by a non-qualified person can lead to dangerous
situations. The supplier is not responsible for the consequences (the arising of a hazardous
situation and/or damage to persons or goods) caused by the incorrect performance of these
instructions by engineers who are not employees of the supplier. Consequential damage arising
through the inexpert performance of these instructions is not accepted.
With this conversion set, your gas hob can be converted to different gasses. See the conversion table.
Conversion table
RapidSemi rapidAuxiliaryModificationP mbarGas type
nozzlenozzlenozzle
1289772-20 / 25G20
Convert from G20 - 20 mbar to:
856550Replace nozzle & screw in
bypass (see 3A)
28-30/37G30/G31
856550Replace nozzle & screw in
bypass (see 3A)
37(PL)
G30/G31
756043Replace nozzle & screw in
bypass (see 3A)
50G30/G31
RapidSemi rapidAuxiliaryModificationP mbarGas type
nozzlenozzlenozzle
856550-28-30/37G30/G31
Convert from G30/G31 - 28-30/37 mbar to:
1289772Replace nozzle &
adjust bypass (see
3C)
20 / 25G20
20
Wok
BG7xA/B /
BG9xA/B
Wok
BG6xB/E /
BG7xC/D /
BG9xD/E
ModificationP mbarGas type
nozzlenozzle
150142-20 / 25G20
Convert from G20 - 20 mbar to:
10094Replace nozzle & screw in
bypass (see 3A)
28-30/37G30/G31
9494Replace nozzle & screw in
bypass (see 3A)
37(PL)
G30/G31
7876Replace nozzle & screw in
bypass (see 3A)
50G30/G31
WokWokModificationP mbarGas type
BG7xA/B / BG9xA/BBG6xB/E /
BG7xC/D /
BG9xD/E
nozzlenozzle
10094-28-30/37G30/G31
Convert from G30/G31 - 28-30/37 mbar to:
150 (not for G20 25
mbar)
142Replace nozzle & adjust
bypass (see 3C)
20G20
142142Replace nozzle & adjust
bypass (see 3C)
25G20 (HU)
Contents of conversion set
• Nozzles for burners and (if applicable) by-pass screws for gas taps.
• Data label with the modified gas specifications and setting.
Tools needed:
T1 Socket spanner (7 mm)
T2 Screwdriver flat blade (4 mm)
T3 Nose pliers
T4 Open-end spanner (7 mm)
T5 Leak test spray
21

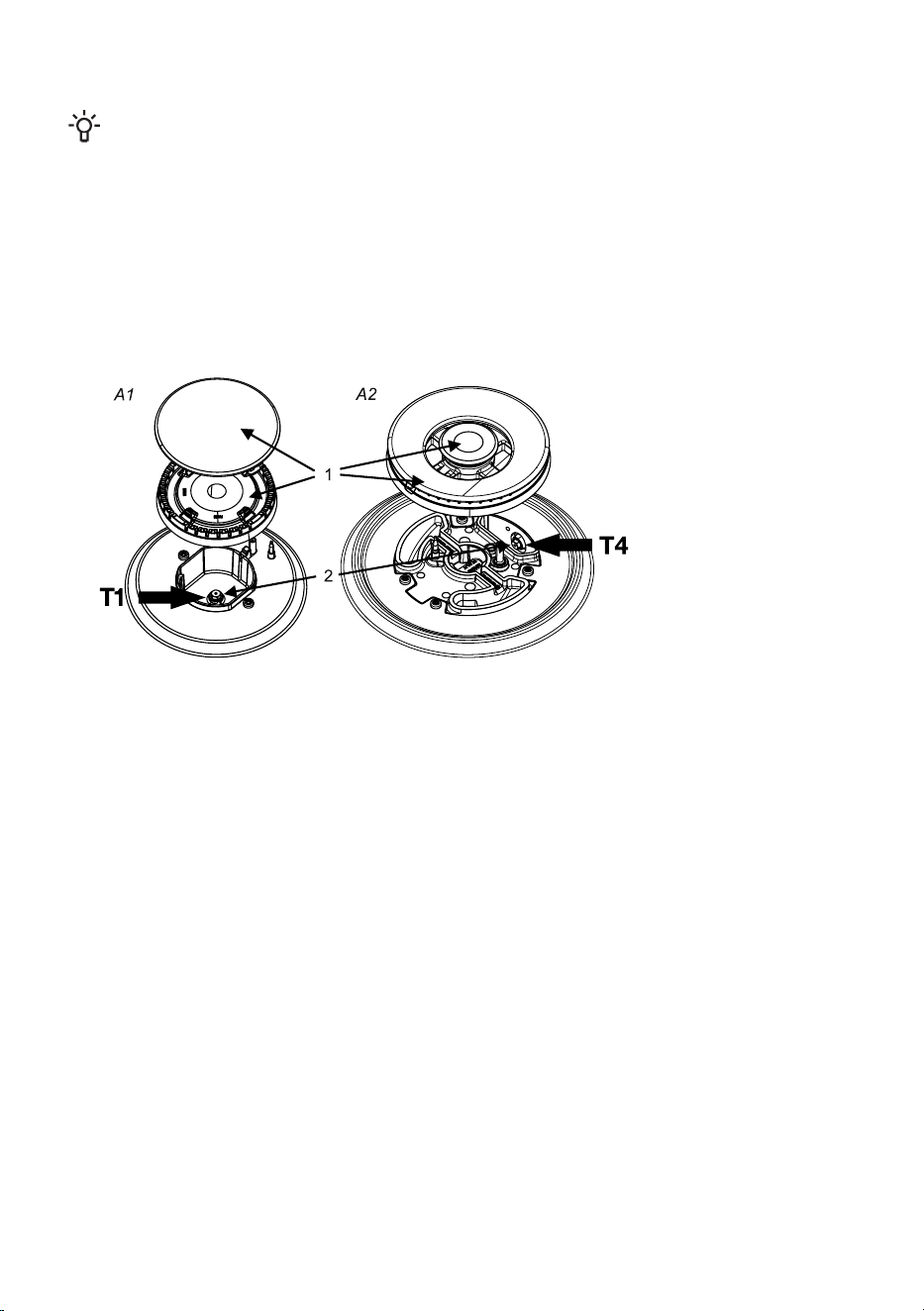

Converting nozzles
NOTE!
Please note: disconnect the appliance from the power supply.
Prevent damage of the worktop. Lay down parts of the appliance on a protected base.
For converting to a different type of gas, the nozzles have to be changed.
The values are also marked on the nozzle.
1. Remove pan supports, burner heads, crowns and covers (see pictures A1 and A2).
Pull off the control knobs vertically.
2. Use the socket (T1) or open-end spanner (T4) to remove the old nozzles and place the new nozzles
inside the burner cups (see pictures A1 and A2).

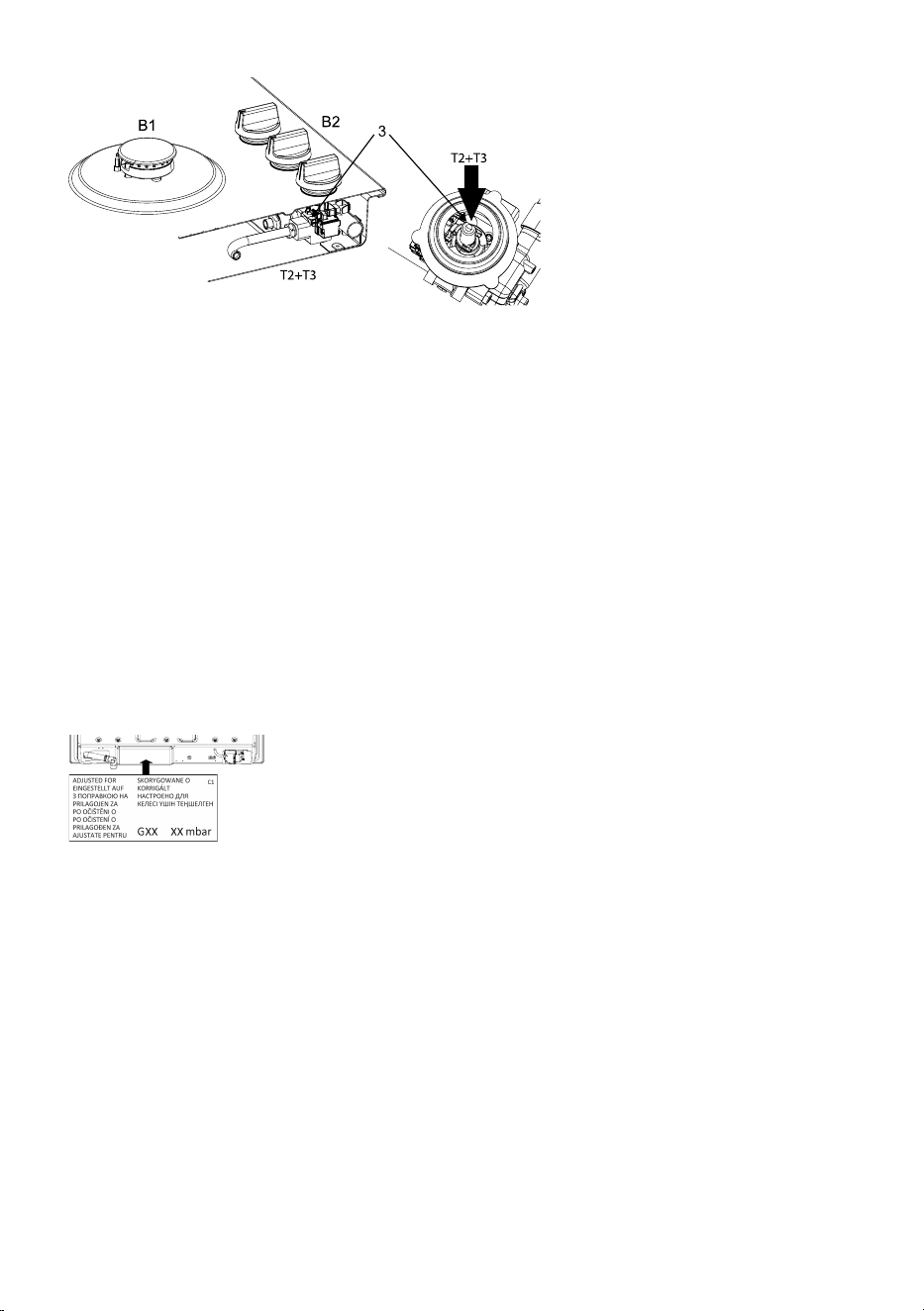

Converting by-pass screws
Depending on the gas type to which the appliances will be converted, there are two ways to adjust
the by-pass screws.
Please check the conversion table in the column “Modification” if the by-pass screws have to be
screwed completely in (see action 3A), replaced by a different by-pass screw (see action 3B) or adjusted
(see action 3C).
The values are also indicated on the top of the by-pass screws. The by-pass screws can be reached
from the top of the hob when the knobs are removed (B2).
3A. Screw the by-pass screws (3) of all gas taps completely in by using the flat-blade screwdriver
(T2).
3B. Remove the by-pass screws by using the flat-blade screwdriver (T2) and the nose pliers (T3).
Place the new by-pass screws with the nose pliers and screw the by-pass screws of all gas taps in,
by using the flat-blade screwdriver.
3C. Adjust the by-pass screws (3) of all gas taps by using the flat-blade screwdriver (T2) until a stable
flame is established with a minimal gas flow. Please check if the flame is stable in the cold and hot
conditions of the burner.
22
Check for gas tightness and operation
When the appliance is connected to the gas supply, use leak test spray to check the gas tightness.
1. Seal the injector.
2. Open the gas tap. Attention: press and open the tap to override the thermo-electric safety device
and keep it pressed down.
3. Spray leak test spray over all gas connections and check for gas tightness.
4. Repeat for every burner.
Startup
1. Reinstall the knobs, burner parts and pan supports.
2. Check if the appliance is connected to the correct gas type and pressure.
3. Open the main gas valve.
4. Insert the plug into the power socket.
Checking operation
1. Ignite the burners.
2. Check whether the flame profile is normal, uniform and stable for the
complete ratio:
3. • Check if the flame does not smother in simmer rate;
• Check if the flames are not ‘blowing off’ at maximum rate;
• No long, yellow flames should be visible during operation.
4. Paste the data label with the modified gas specifications and setting
over the current data label with the old specification (at the underside
of the appliances nearby the gas connection).
23
Environmental considerations
Disposal of the appliance and packaging
Sustainable materials have been used during the manufacture of this appliance.
The appliance packaging is recyclable. The following may have been used:
• cardboard;
• paper;
• polyethylene film (PE);
• CFC-free polystyrene (PS-rigid foam);
• polypropylene tape (PP).
Dispose of these materials in a responsible manner and in accordance with government regulations.
To designate the requirement for a separate collection of household elec-
trical appliances, the symbol of a crossed-out dustbin is applied to the
product.
This means that at the end of its working life, the product must not be
disposed of as urban waste. It must be taken to a special local authority
differentiated waste collection centre or to a dealer providing this service.
Disposing of a household appliance such as this hob separately avoids
possible negative consequences for the environment and health and en-
ables the constituent materials to be recovered, resulting in significant
savings in energy and resources.
NOTE!
Please note! Do not throw a broken ceramic glass plate in the glass recycling bin but take
this to the Municipality's waste recycling centre.
Declaration of conformity
We hereby declare that our products satisfy the applicable European directives, orders and regu-
lations, as well as the requirements stated in the referenced standards.
24
Your notes
25
Your notes
26
Your notes
27
www.gorenje.com
830202-a27
