PRECAUTIONS - 391477B920/B
e
PRECAUTIONS 3
General safety instructions 3
Installation 6
Appliance purpose 7
This user manual 8
Manufacturer’s liability 8
Identification plate 8
Disposal 8
Energy efficiency information 8
To save energy 8
Information on power consumption in off/stand-
by mode 9
How to read the user manual 9
DESCRIPTION 9

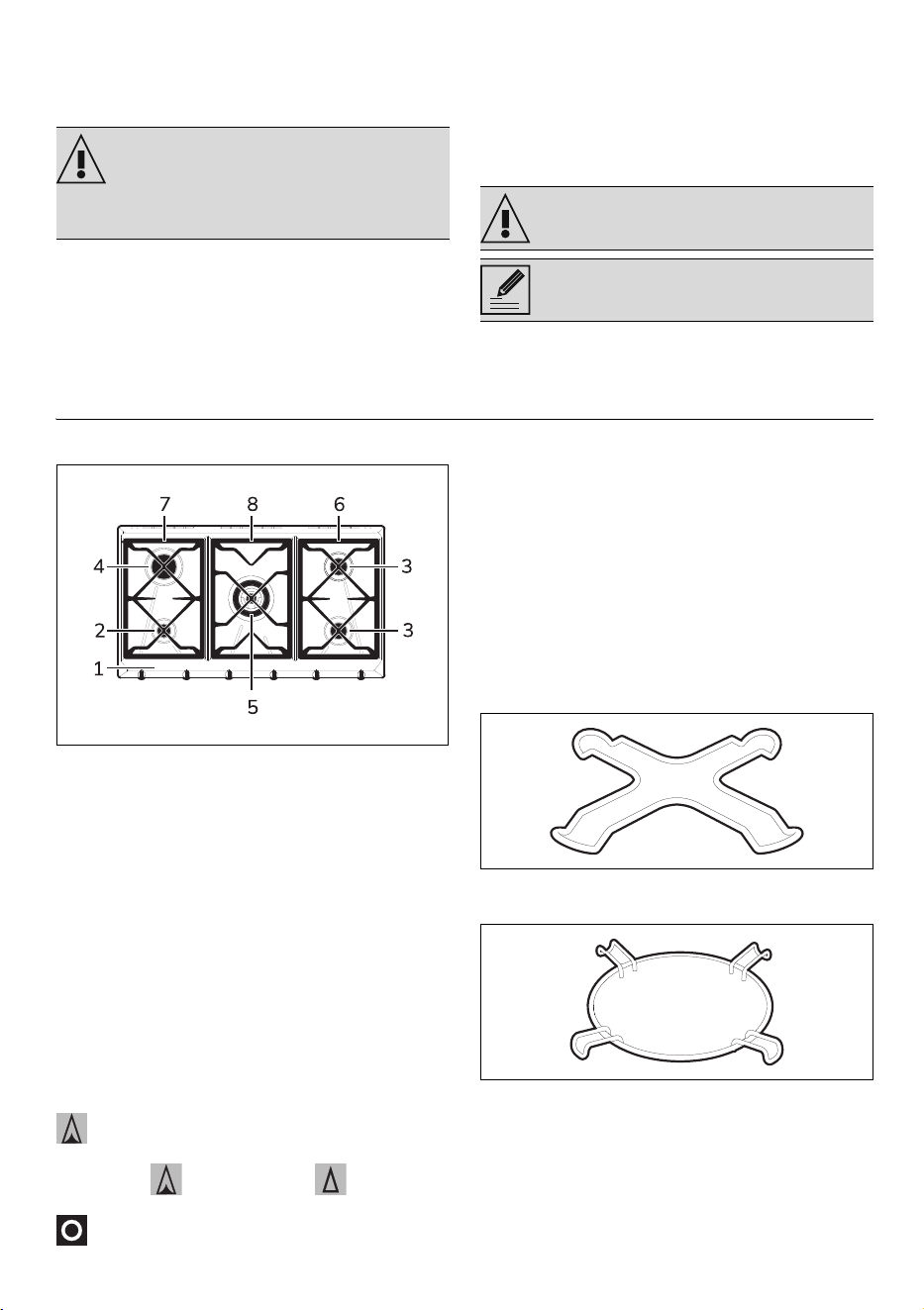

General description 9
Accessories 9
USE 10
Precautions 10

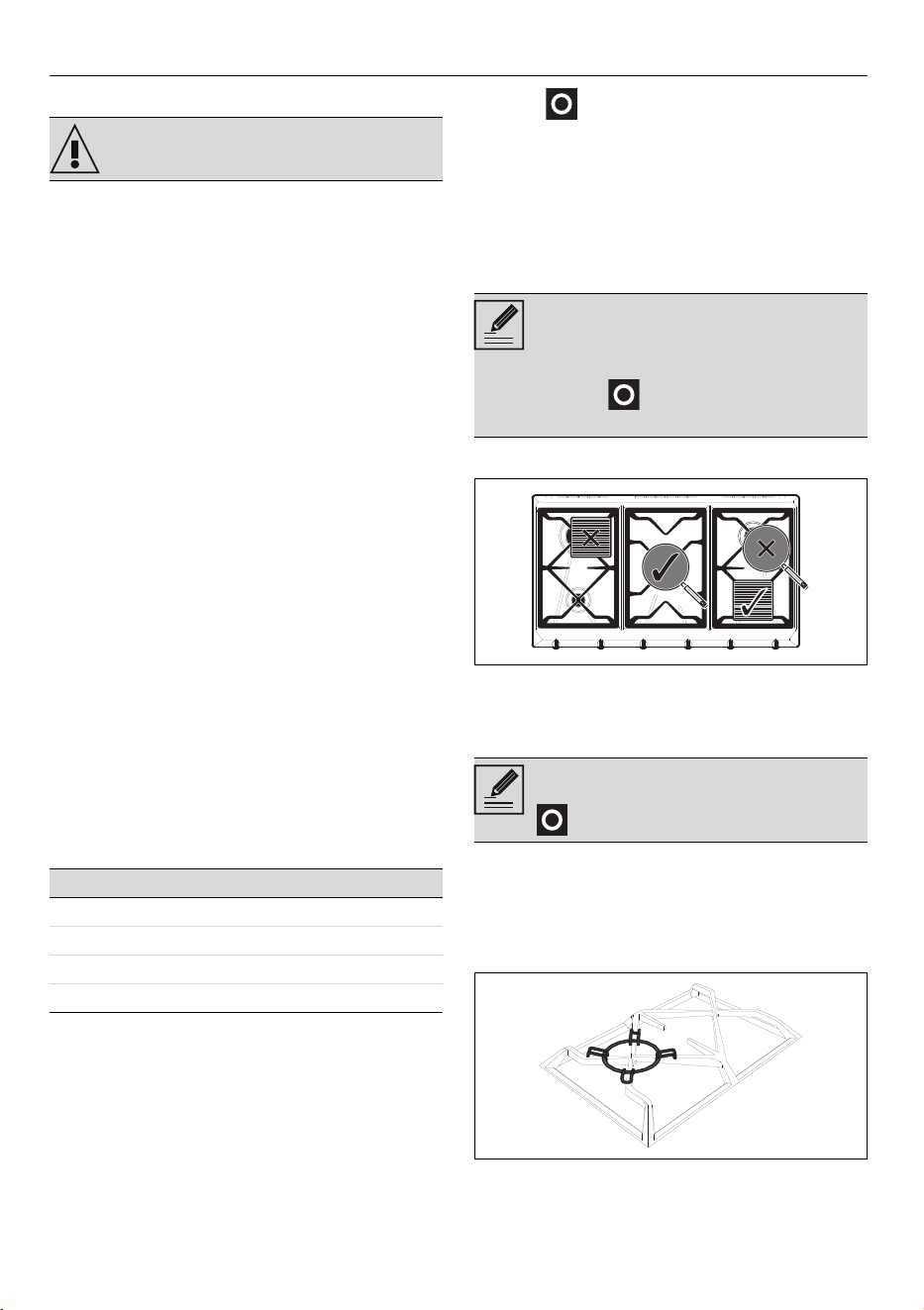

Using the hob 10
Using the accessories 10
CLEANING AND MAINTENANCE 11
Cleaning the hob 11
Cleaning the surfaces 12
What to do if... 12
INSTALLATION 12
Gas connection 12

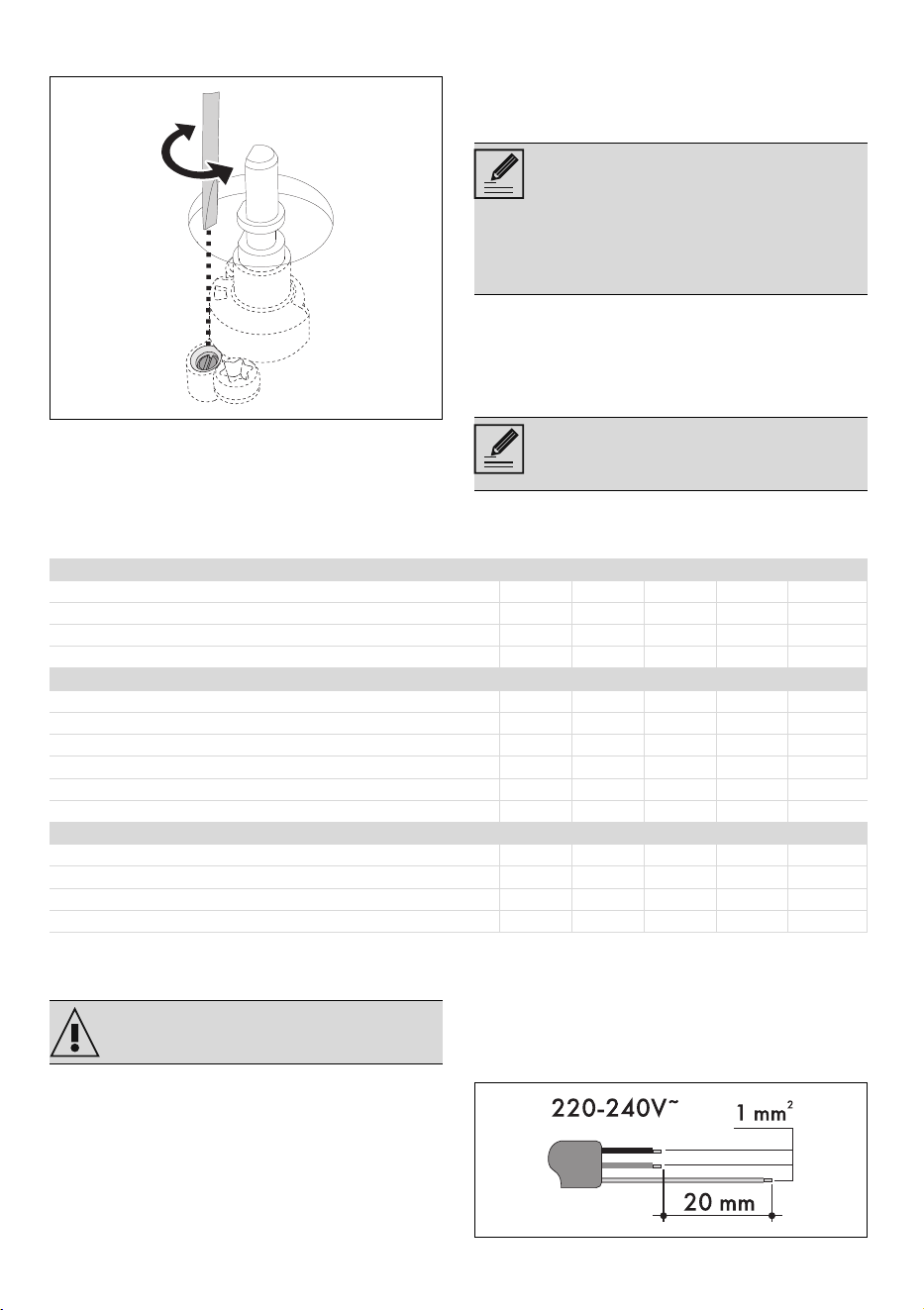

Burner and nozzle specifications tables 16
The nozzles where not provided are available at
Authorised Service Centres. 16
Electrical connection 16

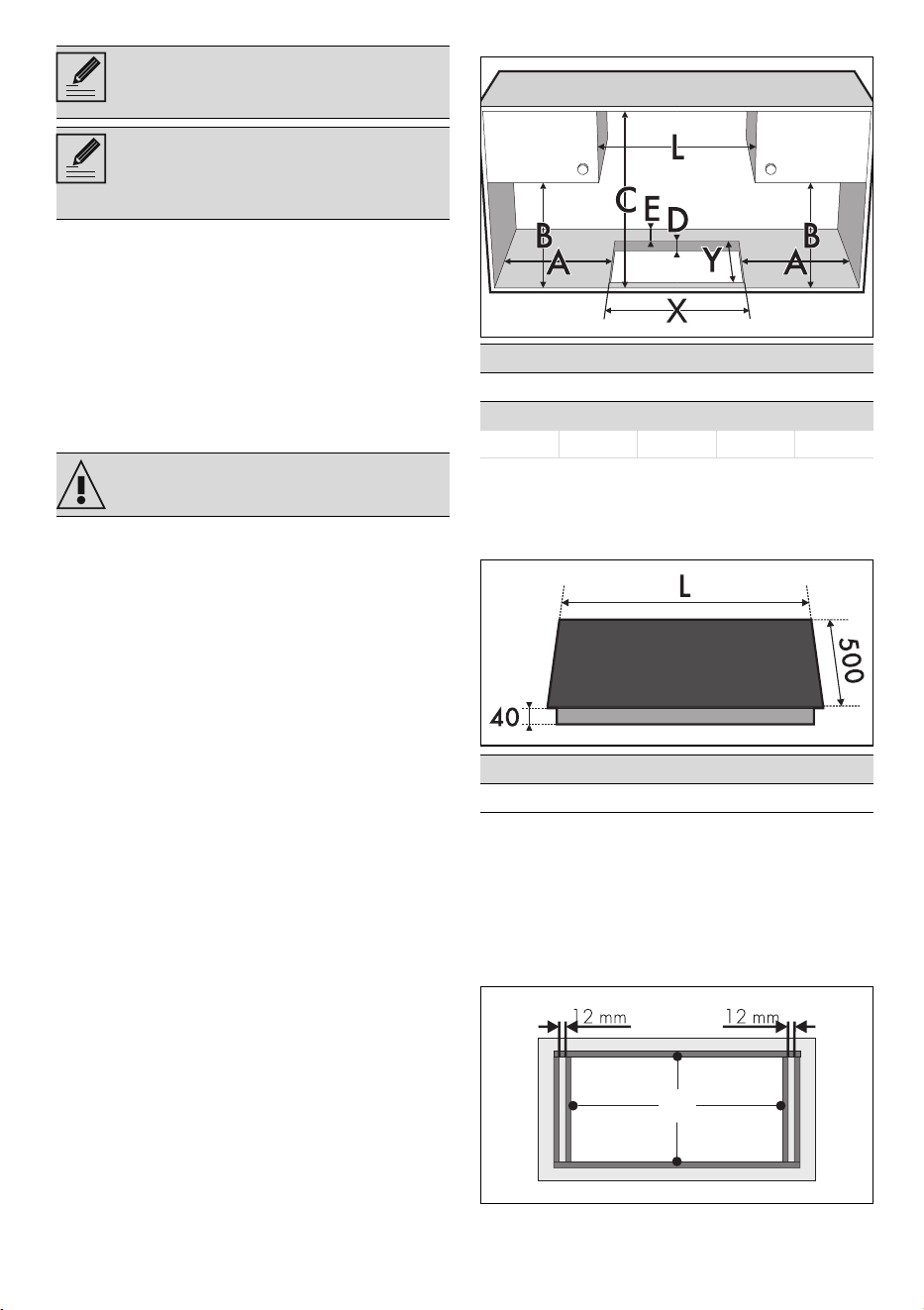

Section cut from the countertop 17

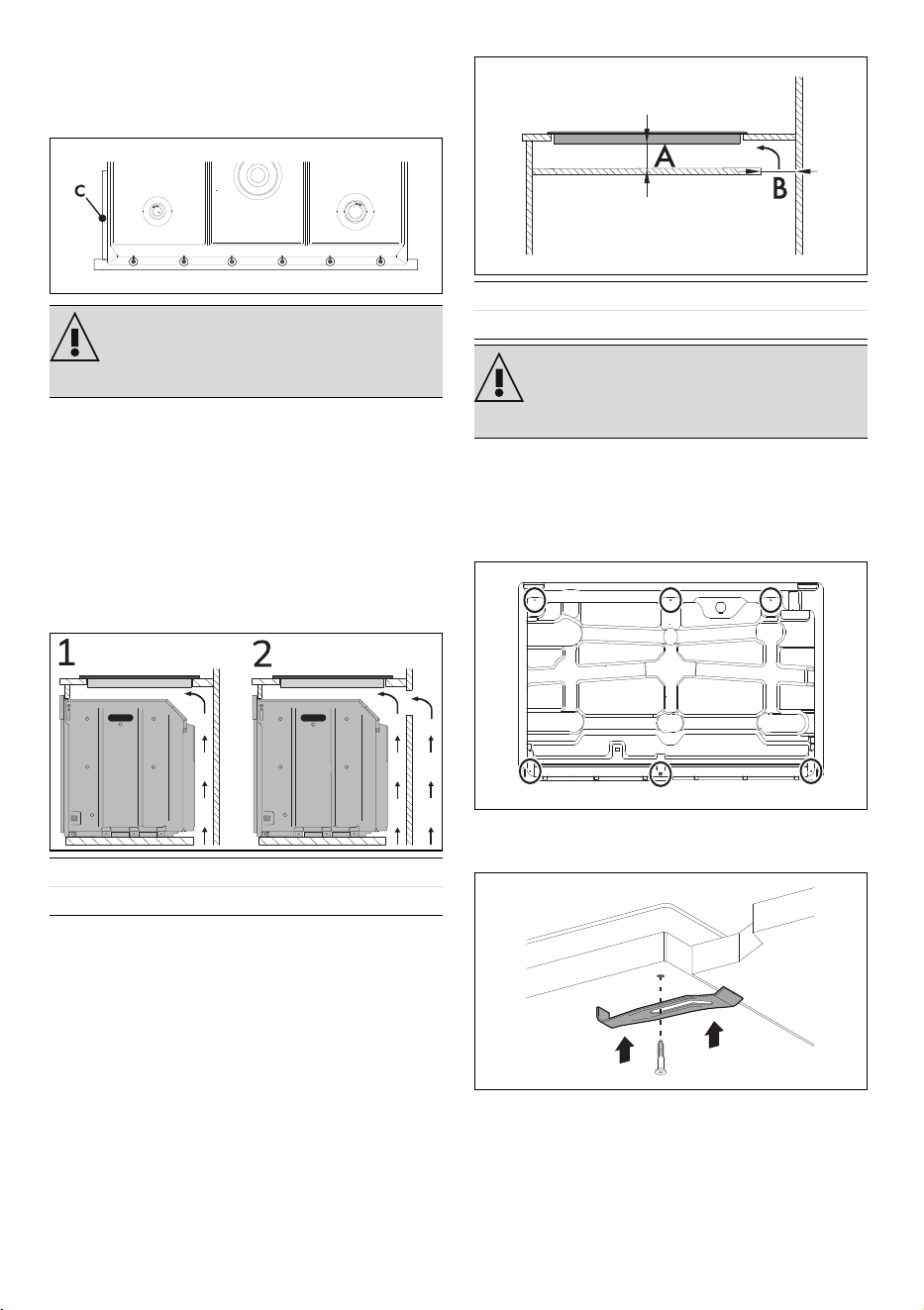

Mounting 18
Fixing to the built-in cabinet 18
Instructions for the installer 18
These instructions apply only to the destination countries listed on the appliance's data
plate.
This is a class 3 built-in hob.
PRECAUTIONS
General safety instructions
Risk of personal injury
•CAUTION: During use the
appliance and its accessible
parts become very hot.
Keep children well away
from the appliance.
• Protect hands with heat
resistant gloves during use.
• Never try to put out a fire or
flames with water: Turn off
the appliance and smother
the flames with a fire
blanket or other appropriate
cover.
• This appliance may only be
used by children aged 8
years and over, and by
people of reduced physical,
sensory or mental capacity,
or lacking in experience in
the use of electrical
appliances, provided that
they are supervised or have
been given instructions on
the safe use of the
appliance and of the
hazards associated with it.
• Children must not play with
the appliance.
• Keep children under the age
of eight at a safe distance
unless they are constantly
supervised.
• Keep children under the age
of 8 away from the
appliance when it is in use.
• Cleaning and maintenance
must not be carried out by
unsupervised children.
• Make sure that the flame-
spreader crowns are
4 - PRECAUTIONS 91477B920/B
correctly positioned in their
housings with their
respective burner caps.
• The cooking process must
always be kept under
control. A short cooking
process must be
continuously monitored.
•CAUTION: Cooking foods
containing fat and/or oil
without monitoring them
can be dangerous and can
cause a fire.
• Fats and oils can catch fire
if they overheat. Do not
leave the appliance
unattended while preparing
foods containing oils or fats.
If fats or oils catch fire,
never put water on them.
Place the lid on the
saucepan and turn off the
burner.
• Do not place metal objects,
such as dishes or cutlery, on
the surface of the hob
during cooking as they may
overheat.
• WARNING: leaving food
unattended when cooking
using fat or oil can be
dangerous and can cause a
fire. DO NOT attempt to
extinguish a fire with water.
Turn off the appliance and
smother the flames, for
example with a lid or a
blanket.
• Do not cook foods in closed
tins or containers or plastic
containers.
• Do not insert pointed metal
objects (cutlery or utensils)
into the slots in the
appliance.
• Do not use or store
flammable materials near
the appliance or directly
underneath the hob.
• Switch off the appliance
immediately after use.
• Do not pull the cable to
unplug the appliance (if
present).
•DO NOT USE AEROSOLS
IN THE VICINITY OF THIS
APPLIANCE WHILST IT IS
IN USE.
• DO NOT MODIFY THIS
APPLIANCE.
• Always wear personal
protective equipment (PPE)
before carrying out any
work on the appliance
(installation, maintenance,
positioning or moving).
• Do not clean the appliance
if it is still hot or in
operation.
• Before performing any work
on the appliance, switch off
the power supply.
• Do not try to repair the
appliance yourself or
without the assistance of a
qualified technician.
• If the power cable becomes
damaged, contact technical
support immediately to
arrange for it to be replaced
in order to avoid possible
hazards.
• CAUTION: A gas cooking
appliance produces heat,
PRECAUTIONS - 591477B920/B
e
humidity and combustion
products in the room where
it is installed. Make sure
there is good ventilation,
especially when the
appliance is in use: keep the
natural ventilation openings
open or install a mechanical
ventilation device.
• Intensive and prolonged
use of the appliance may
require additional
ventilation, for example
opening a window or more
effective ventilation; for
example by increasing the
power of any mechanical
suction devices.
• This appliance is not
designed to be installed or
operated with aftermarket
lids or covers.
Risk of damaging the appliance
• Do not sit on the appliance.
• Do not use the appliance as
a support surface.
• Do not obstruct ventilation
openings and heat
dispersal slots.
• Do not use the hob if the
pyrolytic cycle is taking
place inside any oven
installed below.
• Do not use steam jets to
clean the appliance.
• Never leave the appliance
unattended during cooking
operations where fats or
oils could be released, as
these could then heat up
and catch fire. Be very
careful.
• Fire hazard: Never leave
objects on the cooking
surfaces.
• DO NOT FOR ANY
REASON USE THE
APPLIANCE AS A SPACE
HEATER.
• Cooking vessels or griddle
plates should be placed
inside the perimeter of the
hob.
• All pans must have smooth,
flat bottoms.
• If any liquid does boil over
or spill, remove the excess
from the hob.
• Take care not to spill acid
substances such as lemon
juice or vinegar on the hob.
• Do not spill sugar or sweet
mixtures on the hob during
cooking.
• Do not place materials or
substances that could melt
or catch fire (paper, plastic
or aluminium foil) on the
appliance while it is in use.
• Place the cookware directly
onto the grids above the
burners.
• Do not put empty pans or
frying pans on burners that
are lit.
• Do not use rough or
abrasive materials or sharp
metal scrapers.
• Do not use cleaning
products containing
chlorine, ammonia or
bleach on parts made of
steel or that have metallic
6 - PRECAUTIONS 91477B920/B
surface finishes (e.g.
anodizing, nickel- or
chromium-plating).
• Do not wash removable
parts such as the hob pan
support grids, flame-
spreader crowns and
burner caps in the
dishwasher.
• This appliance is not
designed to operate with
external timers or with
remote-control systems.
• To avoid damaging the
racks, do not drag the pans;
lift and reposition them
instead.
Installation
• THIS APPLIANCE MUST
NOT BE INSTALLED IN
BOATS OR CARAVANS.
• This appliance must not be
installed on a dishwasher.
• Position the appliance into
the cabinet cut-out with the
help of a second person.
• Before installation, make
sure that the local
distribution conditions (type
and pressure of the gas)
and the regulation of the
appliance are compatible.
• This appliance is not
connected to a system for
extracting combustion
products. It should be
installed and connected in
compliance with current
installation regulations. Pay
particular attention to the
requirements regarding
ventilation.
•The settings for this
appliance are shown on the
gas settings label.
• Have the gas connection
performed by authorised
personnel.
• Have the electrical
connection performed by
authorised technical
personnel.
• Installation using a hose
must be carried out so that
the length of the hose does
not exceed 2 metres when
fully extended for steel
hoses and 1.5 metres for
rubber hoses.
• The gas connection hoses
must not come into contact
with moving parts of the
built-in module (for
example a drawer) and
must not be routed through
a space that could cause it
to be pinched.
• If required, use a pressure
regulator that complies
with current regulations.
• After carrying out any
operation, check that the
tightening torque of gas
connections is between 10
Nm and 15 Nm.
• At the end of the
installation, check for any
leaks with a soapy solution,
never with a flame.
• Check that the carcase has
the required openings.
• Check that the carcase
material is heat resistant.
• Installation and servicing
PRECAUTIONS - 791477B920/B
e
should be carried out by
qualified personnel in
accordance with current
standards.
• The appliance must be
connected to earth in
compliance with electrical
system safety standards.
• Use cables that can
withstand temperatures of
at least 90°C.
• Run the power cable in the
rear part of the unit. Make
sure that it does not come
into contact with the lower
part of the hob or a built-in
oven below it.
• Be careful when connecting
additional electrical
appliances. Connection
cables must not come into
contact with hot cooking
zones.
• The tightening torque of the
screws of the terminal
supply wires must be 1.5 -
2 Nm.
• The power cable must only
be installed or replaced by a
qualified technician.
• If the power cable becomes
damaged, contact technical
support immediately to
arrange for it to be replaced
in order to avoid possible
hazards.
• Always use any necessary/
required personal
protective equipment (PPE)
before performing any work
on the appliance
(installation, maintenance,
positioning or movement).
• Before performing any work
on the appliance, switch off
the power supply.
• Allow the appliance to be
disconnected after
installation, via an
accessible plug or a switch
in the case of a fixed
connection.
• Fit the power line with an
all-pole circuit breaker with
a contact separation
distance sufficient to
provide complete
disconnection in category III
overvoltage conditions,
pursuant to installation
regulations.
• You should make sure that
the appliance is working
correctly (rotation of knobs,
positioning of the pan
supports etc.) only once it
has been installed and
secured to the unit.
• This appliance can be used
up to a maximum altitude of
2,000 metres above sea
level.
Appliance purpose
This appliance is intended for
cooking food in the home
environment. Every other use
is considered improper. It
must also not be used:
• In kitchen areas provided
for employees in shops,
offices and other work
environments.
• in farms/farmhouses.
• By guests in hotels, motels
8 - PRECAUTIONS 91477B920/B
and other types of
residential environments.
• In bed and breakfasts.
This user manual
• This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and within the user's
reach for the whole working life of the
appliance.
• Read this user manual carefully before
using the appliance.
• The explanations in this manual include
images, which describe all that regularly
appears on the display. However, it
should be kept in mind that the
appliance may be equipped with an
updated version of the system, and as
such, all that appears on the display
may differ from those in the manual.
Manufacturer’s liability
The manufacturer declines all liability for
damage to persons or property caused by:
• use of the appliance other than that
specified;
• failure to comply with the instructions in
the user manual;
• tampering with any part of the
appliance;
• use of non-original spare parts.
Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
Disposal
This appliance conforms to the WEEE
European directive (2012/19/EU) and
must be disposed of separately from
other waste at the end of its service life.
The appliance does not contain substances
in quantities sufficient to be considered
hazardous to health and the environment,
in accordance with current European
directives.
To dispose of the appliance:
• Cut the power cable and remove it.
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it
to the retailer when purchasing an
equivalent product, on a one for one
basis.
Our appliances are packaged in non-
polluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
Energy efficiency information
The information according to the European
ecodesign directive can be found in a
separate document together with the
product instructions.
This information can be found in the
"Product information sheet" that can be
downloaded from the page for the specific
product on the website.
To s ave energy
• The diameter of the base of the pan
must not extend beyond the lines
printed on the glass ceramic surface.
• Pans must not be placed outside the
perimeter of the hob or on the display.
• When buying a pan, check whether the
diameter indicated is that of the base or
the top of the pan, as the top is almost
always larger than the base.
• When preparing dishes with long
cooking times, you can save time and
energy by using a pressure cooker,
which also helps to retain vitamins
contained in the food.
• Make sure that the pressure cooker
contains enough liquid as, if there is not
enough and it overheats, this may cause
damage to both the pressure cooker and
the cooking zone.
• If possible, always cover pans with a
suitable lid.
This appliance may only
be installed and used
indoors.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the plastic
bags.
Power voltage
Danger of electrocution
DESCRIPTION - 991477B920/B
e
• Choose a pan suitable for the quantity
of food to be cooked. A large, half-
empty saucepan leads to a waste of
energy.
Information on power
consumption in off/stand-by
mode
Technical data on the appliance's power
consumption in off/stand-by mode can be
found at www.smeg.com under the page
corresponding to the product in question.
How to read the user manual
This user manual uses the following reading
conventions:
DESCRIPTION
General description
1 Control panel
2 Auxiliary burner (AUX)
3 Semi-rapid burner (SR)
4 Rapid burner (R)
5 Ultra-rapid double crown burner
(UR2)
6 Right grid
7 Left grid
8 Central grid
Burner knobs
For lighting and adjusting the hob burners.
Press and turn the knobs anti-clockwise to
in order to light the relative burners.
Turn the knobs to the zone between the
maximum and minimum setting to
adjust the flame. Return the knobs to the
position to turn off the burners.
Accessories
• Not all accessories are available on
some models.
• The accessories intended to come into
contact with food are made of materials
that comply with the provisions of
current legislation.
• Original supplied and optional
accessories can be requested to
Authorised Assistance Centres. Use only
original accessories supplied by the
manufacturer.
Trivet
Useful when using small cookware.
Trivet
Useful when using a wok.
Under certain circumstances, if the
hob and the oven are used at the
same time, the maximum power
limit of the electrical system might
be exceeded.
Warning/Caution
Information/Advice
10 - USE 91477B920/B
USE
Precautions
A gas leak can cause an explosion.
If you smell gas or there are faults in the gas
system:
• Immediately turn off the gas supply or
close the valve on the gas cylinder.
• Extinguish all naked flames and
cigarettes.
• Do not turn on power switches or
appliances and do not remove plugs
from power sockets. Do not use phones
or mobile phones inside the building.
• Open the window in order to ventilate
the room.
• Call customer assistance services or
your gas supplier.
Malfunctions
Any of the following indicate a malfunction
and you should contact a service centre.
• The burners do not ignite properly.
• It is difficult to keep the burners lit.
• The burners go out when the appliance
is in use.
• It is difficult to turn the gas cocks.
Practical advice for using the hob
For better burner efficiency and to minimise
gas consumption, use pans with lids and of
suitable size for the burner, so that the
flames do not reach up the sides of the pan.
Once the contents come to the boil, turn
down the flame far enough to ensure that
the liquid does not boil over.
Using the hob
All the appliance’s control and monitoring
devices are located together on the front
panel. The burner controlled by each knob is
shown next to the knob. The appliance is
equipped with an electronic ignition device.
Simply press the knob and turn it anti-
clockwise to the maximum flame symbol,
until the burner ignites. If the burner does
not light in the first 15 seconds, turn the
knob to and wait 60 seconds before
trying again. After lighting, keep the knob
pressed in for a few seconds to allow the
thermocouple to heat up. The burner may
go out when the knob is released: In this
case, the thermocouple has not heated up
sufficiently.
Wait a few moments and repeat the
operation. Keep the knob pressed in longer.
Use of containers
When cooking, to avoid burns, damage to
the hob or top, all containers or steak pans
must be positioned within the perimeter of
the hob.
Using the accessories
Ring reducers
The ring reducers must be placed on the
hob grids. Make sure they are placed
properly.
See General safety instructions.
Burner Pan diameter
AUX 12 - 14 cm
SR 16 - 20 cm
R 22 - 26 cm
UR2 22 - 26 cm
In case of an accidental switching
off, a safety device will be tripped,
cutting off the gas supply, even if
the gas cock is open. Return the
knob to and wait at least 60
seconds before lighting it again.
At the end of each use, always
check that the knobs are in position
(off).
CLEANING AND MAINTENANCE - 1191477B920/B
e

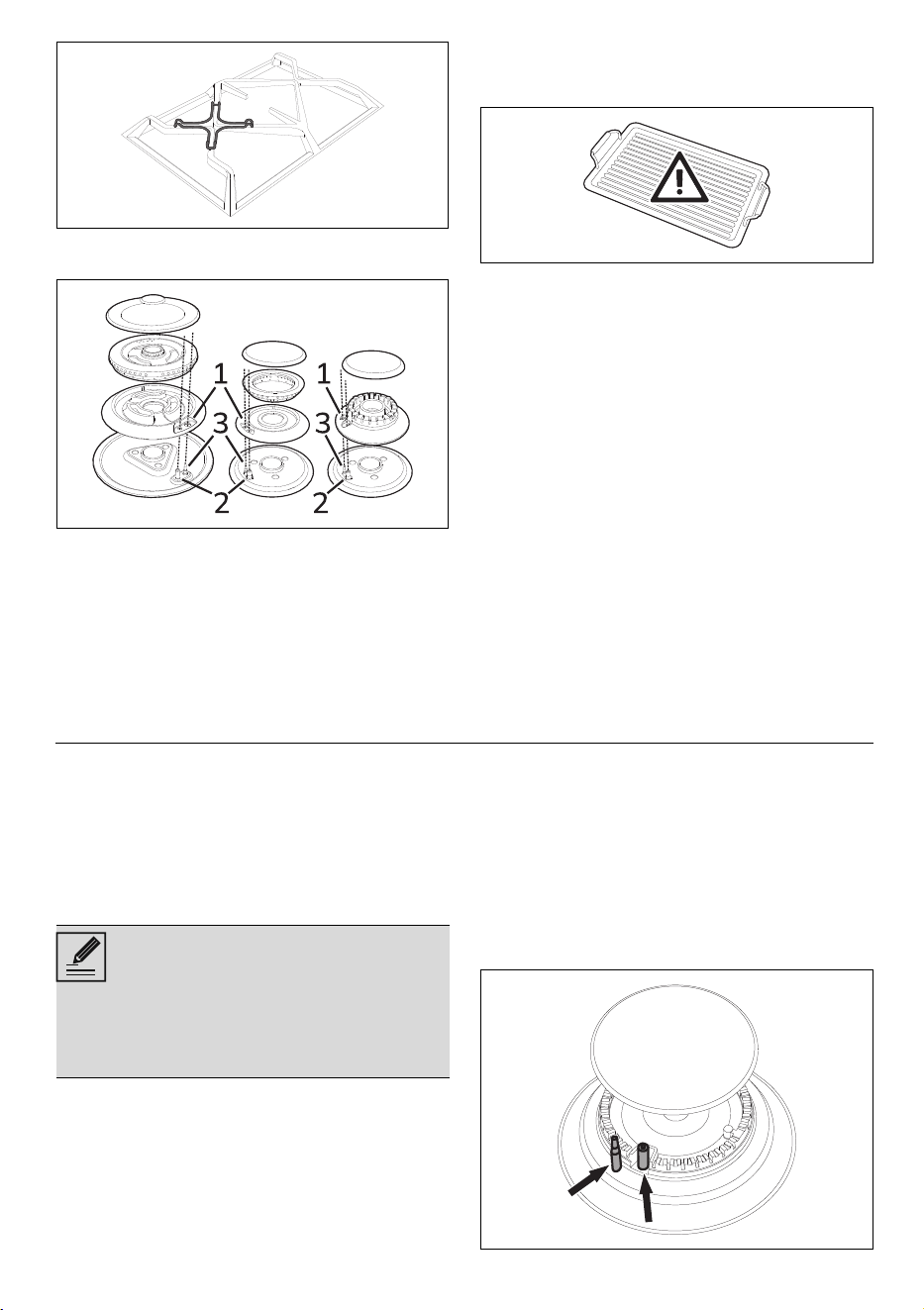

Correct positioning of the flame-spreader
crowns and burner caps
Before lighting the hob burners, make sure
that the flame-spreader crowns are
correctly positioned in their housings with
their respective burner caps. Make sure that
the holes 1 in the flame-spreader crowns
are aligned with the igniters 3 and
thermocouples 2. Also ensure that the
flame-spreader crowns are correctly
engaged in the burner holes.
Precautions when using the griddle
A few precautions are necessary if you wish
to use a griddle:
• The griddle must not extend beyond the
edge of the hob.
• Do not place the griddle over more than
one burner at the same time.
• The griddle can be pre-heated on the
burner at maximum power for no more
than 10 minutes.
• Make sure that the burner flame does
not extend beyond the edge of the
griddle.
• Keep a distance of at least 160 mm
between the griddle and the side and/or
rear wall, especially if it is placed on an
Ultra-Rapid burner.
• Never use the griddle for more than 40
minutes.
CLEANING AND MAINTENANCE
Cleaning the hob

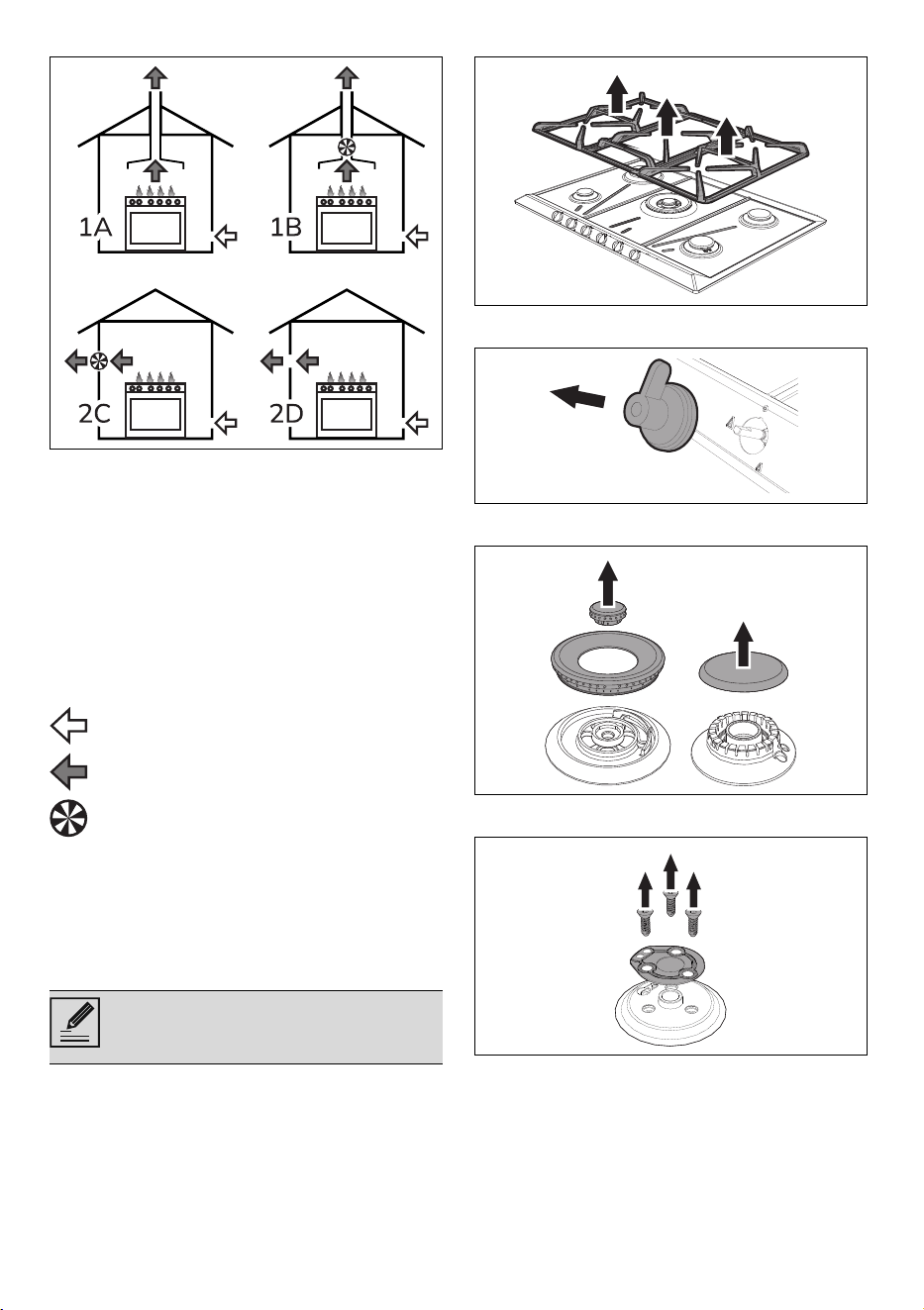

Cooking hob pan support grids
Remove the pan support grids and clean
them in lukewarm water and non-abrasive
detergent. Make sure to remove any
encrustations. Dry them thoroughly and
return them to the hob.
Flame-spreader crown and burner caps
For easier cleaning, the flame-spreader
crowns and the burner caps can be
removed. Wash them in hot water and non-
abrasive detergent. Carefully remove any
encrustation, then wait until they are
perfectly dry. Replace the flame-spreader
crowns, making sure that they are correctly
positioned in their housings with their
respective burner caps.
Igniters and thermocouples
For correct operation the igniters and
thermocouples must always be perfectly
clean. Check them frequently and clean
them with a damp cloth if necessary.
Remove any dry residues with a wooden
toothpick or a needle.
The continuous contact between the
pan supports and the flame can
cause modifications to the enamel
over time in those parts exposed to
heat. This is a completely natural
phenomenon which has no effect on
the operation of this component.
12 - INSTALLATION 91477B920/B
Cleaning the surfaces
To keep the surfaces in good condition, they
should be cleaned regularly after use. Let
them cool first.
Ordinary daily cleaning
Always and only use specific products that
do not contain abrasives or chlorine-based
acids. Pour the product onto a damp cloth
and wipe the surface, rinse thoroughly and
dry with a soft cloth or a microfibre cloth.
Food stains or residues
Do not use steel sponges and sharp
scrapers as they will damage the surface.
Use normal, non-abrasive products and a
wooden or plastic tool, if necessary. Rinse
thoroughly and dry with a soft cloth or a
microfibre cloth.
What to do if...
The hob does not work:
• Make sure that the hob is connected and
that the main switch is turned on.
• Make sure that there is no power failure.
• Make sure that the fuse has not blown.
In this case replace the fuse.
• Make sure that the circuit breaker of the
residential electrical system has not
tripped. In this case, reset the circuit
breaker.
The cooking results are unsatisfactory:
• Make sure that the hob is properly
ventilated and that the air inlets are
unobstructed.
The hob smokes:
• Let the hob cool down and clean it once
cooking is complete.
• Make sure that the food has not spilled
out of the pan and use a larger cooking
vessel, if needed.
The fuses blow or the circuit breaker of the
residential electrical system trips
repeatedly.
• Call Technical Support or an electrician.
INSTALLATION
Gas connection
Connection to the gas mains can be made
using a continuous wall steel hose in
compliance with the guidelines established
by the standards in force. To use other
types of gas, see the chapter “Adaptation to
different types of gas”. The appliance's gas
connector has a ½” external thread (ISO
228-1).
Connection with a steel hose
Make the connection to the gas mains using
a continuous wall steel hose whose
specifications comply with the applicable
standard.
Carefully screw the connector 3 to the gas
connector 1 of the appliance, placing the
seal 2 between them.
Connection with a steel hose with bayonet
fitting
Carry out the connection to the gas mains
using a steel hose with bayonet fitting
The appliance must be installed by a
qualified technician and according
to the regulations in force.
Appliance factory set for: LPG (G30/
31) at a pressure of 30-37 mbar.
See General safety instructions.
INSTALLATION - 1391477B920/B
e
compliant with B.S. 669.
Apply insulating material to the thread of
the gas hose connector 4 and screw the
adapter 3 onto it. Screw the assembly onto
the movable connector 1 of the appliance,
inserting the seal provided 2 between them.
Connection with a steel hose with conical
fitting
Make the connection to the gas mains using
a continuous wall steel hose whose
specifications comply with the applicable
standard.
Carefully screw the hose connector 3 to the
appliance’s gas connector 1 (½” thread ISO
228-1), placing the seal 2, provided,
between them. Apply insulating material to
the thread of connector 3 and then screw
the steel hose 4 onto the connector 3.
Connection to LPG
Use a pressure regulator and make the
connection on the gas cylinder following the
guidelines set out in the standards in force.
The supply pressure must comply with the
values indicated in the “Burner and nozzle
characteristics table”.
Room ventilation
The appliance should be installed in rooms
that have a permanent air supply in
accordance with the standards in force. The
room where the appliance is installed must
have enough air flow for the regular
combustion of gas and the necessary air
change in the room itself. The air vents,
protected by grilles, must be the right size to
comply with current regulations and
positioned so that no part of them is
obstructed, not even partially.
The room must be kept adequately
ventilated in order to eliminate the heat and
humidity produced by cooking: In particular,
after prolonged use, you are recommended
to open a window or to increase the speed
of any fans.
Extraction of the combustion products
The combustion products may be extracted
by means of hoods connected to a natural
draught chimney whose efficiency is certain
or via forced extraction. An efficient
extraction system requires precision
planning by a specialist qualified in this
area and must comply with the positions
and clearances indicated by the applicable
standards.
When the job is complete, the installer must
14 - INSTALLATION 91477B920/B
issue a certificate of conformity.
Adaptation to different types of gas
If other types of gas are to be used, the
nozzles must be replaced and the primary
air must be adjusted. The top of the hob has
to be removed in order to replace the
nozzles and adjust the burners.
Removing the hob top
1. Remove the grids from the hob.
2. Remove the knobs lifting them from their
housing.
3. Remove the flame-spreader crowns and
relative burner caps.
4. Unscrew the screws under each burner
to remove the fixing plate.
1 Extraction using a hood
2 Extraction without a hood
A Extraction with a single natural
draught chimney
B Extraction with a single chimney with
extractor fan
C Extraction directly outdoors with wall-
or window-mounted extractor fan
D Extraction directly outdoors through
wall
Air
Combustion products
Extractor fan
In order to be able to replace the
nozzles, the appliance must be
removed from the built-in unit.
INSTALLATION - 1591477B920/B
e

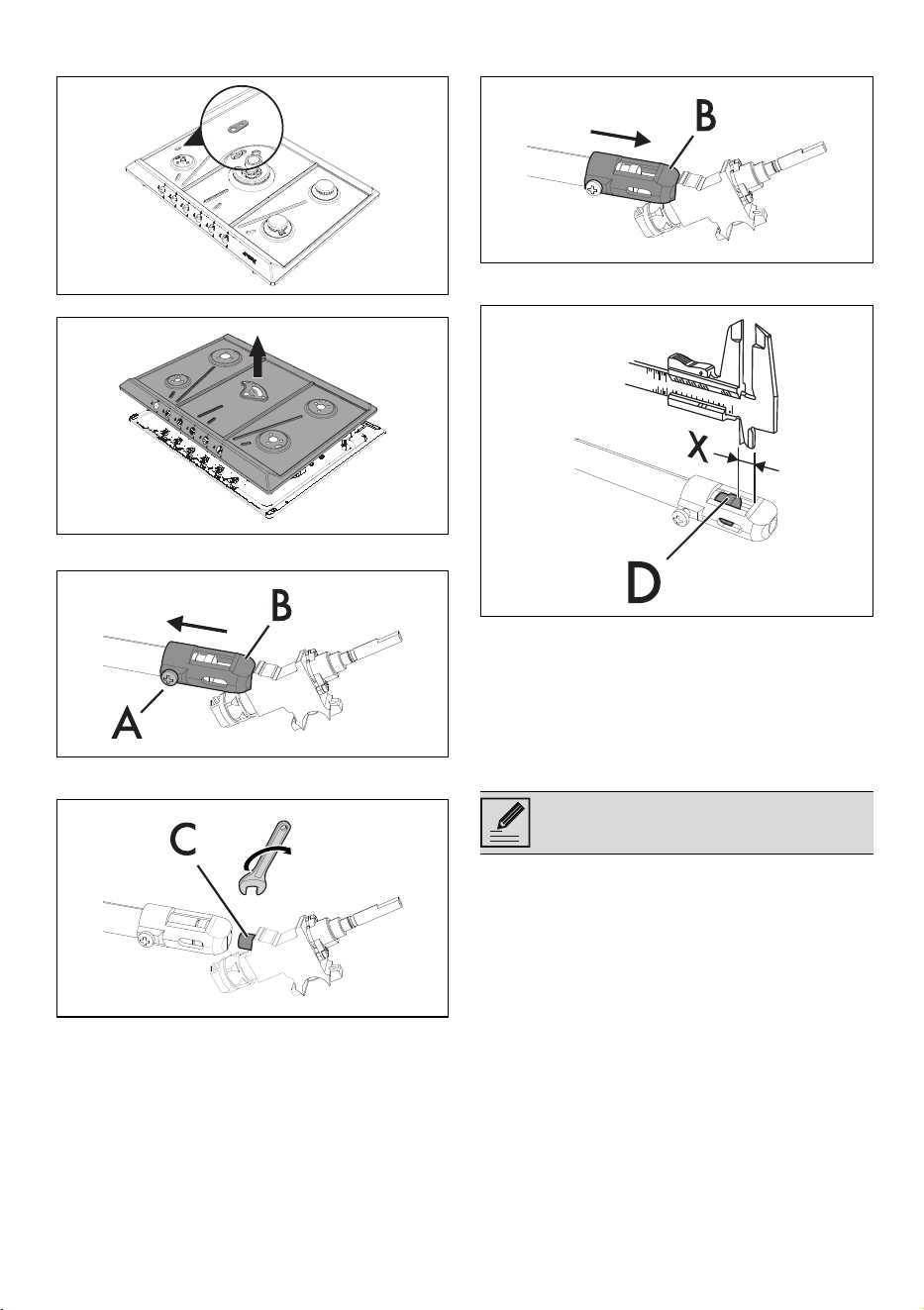

5. Remove the gasket on each burner's
thermocouple and igniter.
6. Remove the top.
Replacing the nozzles/air regulation
7. Unscrew screw "A" and push air
regulator "B" as far as it will go.
8. Use a spanner to remove the nozzles "C"
and install the new ones for the required
gas supply, following the indications
given in the relevant table (see "Gas
types and countries").
9. Reposition support "B" so that nozzle
"C" is covered completely.
10. Move the Venturi tube "D" to adjust the
air flow until distance "X" is reached as
indicated in the paragraph (see Table
"Burner and nozzle characteristics" -
"Primary air adjustment (mm)") and then
secure the tube by means of screw "A".
11. After adjusting each burner, reassemble
the appliance correctly.
Adjusting the minimum setting for natural
or town gas
1. Light the burner and turn it to the
minimum position.
2. Remove the gas tap knob and turn the
adjustment screw next to the gas cock
The nozzle tightening torque must
be no more than 3 Nm.
16 - INSTALLATION 91477B920/B
spindle (depending on the model) until
the correct minimum flame is achieved.
3. Refit the knob and verify that the burner
flame is stable.
4. Turn the knob rapidly from the
maximum to the minimum setting: The
flame should not go out.
5. Repeat the operation on all the gas taps.
Adjusting the minimum setting for LPG
Tighten the screw located at the side of the
cock spindle clockwise all the way.
Lubricating the gas cocks
Over time the gas cocks may become
difficult to turn and get blocked. Clean them
internally and replace the lubrication
grease.
Burner and nozzle specifications tables
The nozzles where not provided are available at Authorised Service Centres.
Electrical connection
General information
Check the mains characteristics against the
data indicated on the plate.
The identification plate bearing the
technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
The appliance must be connected to ground
using a wire that is at least 20 mm longer
than the other wires.
The appliance can work in the following
modes:
• 220-240 V 1N~
Following adjustment to a gas other
than the one originally set in the
factory, replace the gas setting label
on the appliance with the one
corresponding to the new gas. The
label is inserted inside the nozzle
pack (where present).
Lubrication of the gas cocks should
be performed by a specialised
technician.
Natural Gas G20 - 20 mbar AUX SR R UR2 int. UR2 ext.
Rated heating capacity (kW) 1.10 1.7 3.10 1.10 3.90
Nozzle diameter (1/100 mm) 73 92 126 73 140
Primary air (mm) 1.5 1.5 2.5 2 2
Reduced flow rate (W) 400 450 750 400 1200
LPG G30/31 - 30/37 mbar AUX SR R UR2 int. UR2 ext.
Rated heating capacity (kW) 1.10 1.70 3.10 110 3.90
Nozzle diameter (1/100 mm) 48 62 85 48 92
Primary air (mm) 2 2 10 4 10
Reduced flow rate (W) 400 450 750 400 1200
Rated flow rate G30 (g/h) 80 124 225 80 284
Rated flow rate G31 (g/h) 79 121 221 79 279
Town gas G110 – 8 mbar AUX SR R UR2 int. UR2 ext.
Rated heating capacity (kW) 1.10 1.70 3.10 1.10 3.80
Nozzle diameter (1/100 mm) 132 165 240 132 290
Primary air (mm) 1 1 1 1 1
Reduced flow rate (W) 400 450 750 400 1200
See General safety instructions.
INSTALLATION - 1791477B920/B
e
Connection with plug and socket
Make sure that the plug and socket are of
the same type.
Avoid using adapters, gang sockets or
shunts as these could cause overheating
and a risk of burns.
Section cut from the countertop
Safety instructions for positioning and
installation
• Installation can be carried out on various
materials such as masonry, metal, solid
wood or plastic laminated wood as long
as they are heat resistant (>90°C).
• Veneers, adhesives or plastic coatings
on adjacent furniture should be
temperature-resistant (>90°C),
otherwise they might warp over time.
• If the piece of furniture does not have
the required recess opening, either it will
have to be cut or masonry work carried
out by a competent technician.
• The minimum clearance between
exhaust hoods and the cooking surface
must be at least the distance indicated
in the exhaust hood installation
instructions.
• The minimum clearances must also be
respected for the edges of the hob on
the back as indicated in the assembly
instructions.
• If the appliance is to be installed above
an oven, the oven must be fitted with a
cooling fan.
Built-in cabinet dimensions (mm)
*If there is a piece of furniture above the
hob. In case of hood, refer to the values on
the dedicated manual.
Appliance overall dimensions (mm)
Hob seal
To prevent leakage of liquid between the
frame of the hob and the countertop, place
the adhesive seal provided along the entire
outer edge of the hob before assembly.
1. Refer to the dimensions in the figure,
bearing in mind that all the sides of the
internal seal must be flush with the hole.
The values indicated refer to the
cross-section of the internal
conductor.
The aforementioned power cables
are sized taking into account the
coincidence factor (in compliance
with standard EN 60335-2-6).
See General safety instructions.
Mod. (mm) X (mm) Y (mm)
900 839 ÷ 844 478 ÷ 482
A (mm) B (mm) C (mm)* D (mm) E (mm)
min. 150 min. 460 min. 750 20÷ 40 min. 50
L
90 cm models 886
18 - INSTALLATION 91477B920/B
2. Use light pressure to make the seal stick
to the edge around the hole cut in the
worktop.
3. Carefully trim the surplus away from
edge (C) beyond the seal.
Mounting
Over built-in oven unit
The clearance between the hob and the
kitchen units or other built-in appliances
must be enough to ensure sufficient
ventilation and air discharge. If installed
above an oven, a space must be left
between the bottom of the hob and the top
of the appliance installed below.
On an empty kitchen
If there are other pieces of furniture under
the hob, a double-layer wooden base must
be installed at least 20 mm from the bottom
of the hob to avoid any accidental contact. It
must only be possible to remove the
double-layer base using suitable
equipment.
Fixing to the built-in cabinet
In order to ensure fixing to the built-in
cabinet and optimum centring, the supplied
fixing brackets must be screwed into the
holes in the bottom casing.
Screw the fixing brackets into the dedicated
holes as shown to properly fasten the hob
to the built-in structure.
Instructions for the installer
• If you use a plug to connect to the power
supply, the plug must be accessible after
installation.
• Do not bend or trap the power cable.
• The appliance must be installed
Do not use silicone to secure the
hob. This would make it impossible
to remove the hob without
damaging it.
1 Opens on bottom
2 Opens on bottom and back
A min. 20 mm - max. 50 mm
B min. 150 mm
Failure to install the double-layer
wooden base exposes the user to
possible accidental contact with
sharp or hot parts.
INSTALLATION - 1991477B920/B
e
according to the installation diagrams.
• Do not try to unscrew or force the
threaded elbow of the fitting. You may
damage this part of the appliance,
which may void the manufacturer’s
warranty.
• Use soap and water to check for gas
leaks on all connections. DO NOT use
naked flames to search for leaks.
• Turn on all the burners separately and
at then all together to make sure that
the gas valve, burner and ignition are
working properly.
• Turn the burner knobs to the minimum
position and check that the flame is
stable for each individual burner and all
the burners together.
• If the appliance does not work correctly
after having carried out all the checks,
contact your local Authorised Service
Centre.
• Once the appliance has been installed,
please explain to the user how to use it
correctly.
