CONTENTS
INTRODUCTION
This comprehensive planning guide provides you with the
framework and tools to achieve your desired design outcome with
Fisher & Paykel appliances. In this guide, you will find a range of
conceptual, detailed, and dimensional product information to bring
your ideas to life and create spaces that truly reflect your vision.
NOTES
The models shown in this Planning Guide may not be available in all
markets and are subject to change at any time. Refer to our website
fisherpaykel.com for the latest document version. Product
specifications may vary from those shown.
This Planning Guide should not be used as installation guidance for
any product. Specific installation guidance will be available with the
product on delivery and on our website.
CONTENTS | DISHDRAWER™ DISHWASHER
DESIGN CHOICE
Style overview 4
Integrated 5
Contemporary and professional 6
SPECIFICATION GUIDE
INTEGRATED
Series 9 DD24S4I2 8
Series 9 DD24ST4I2, DD24ST4HI2 10
Series 9 DD24D4I2 12
Series 9 DD24DT4I2, DD24DT4HI2 14
CONTEMPORARY
Series 9 DD24ST4DX2 16
Series 7 DD24S2CX2 18
Series 7 DD24ST2CX2 20
Series 7 DD24D2CX2 22
Series 7 DD24DT2CX2 24
Series 9 DD24DT4DX2 26
PROFESSIONAL
Series 9 DD24ST4PX2 28
Series 9 DD24DT4PX2 30
<< CONTENTS
PAGE 3© FISHER & PAYKEL APPLIANCES LIMITED 2026PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - AUGUST 202690006282A
DESIGN CHOICE
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 490006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
DESIGN CHOICE | DISHDRAWER™ DISHWASHER STYLES
CUSTOM PANEL READY OR ACCESSORY HANDLE
OPTIONS
INTEGRATED DISHDRAWER™ DISHWASHER PROFESSIONAL DISHDRAWER™ DISHWASHER
PROFESSIONAL PROUD HANDLE
CONTEMPORARY DISHDRAWER™ DISHWASHER
CONTEMPORARY PROUD HANDLE POCKET HANDLE
With minimal installation gaps for a precise, flush
fit, Integrated style DishDrawer™ Dishwashers
blend effortlessly into surrounding cabinetry.
Choose to fully conceal with custom panels or
contrast with stainless steel finishes for a
cohesive, considered kitchen design.
The pocket handle offers versatile styling,
designed to align with a wide range of appliance
aesthetics, whether specified for a replacement
appliance or a new kitchen design.
The professional proud handle provides a
confident visual statement, with a tactile element
that complements the overall design aesthetic.
The proud handle adds visual definition and a
tactile element that enhances both the look and
usability of the design.
Defined by clean lines and timeless design cues, Contemporary style DishDrawer™ Dishwashers bring a sense of balance and refinement to the kitchen.
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 590006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

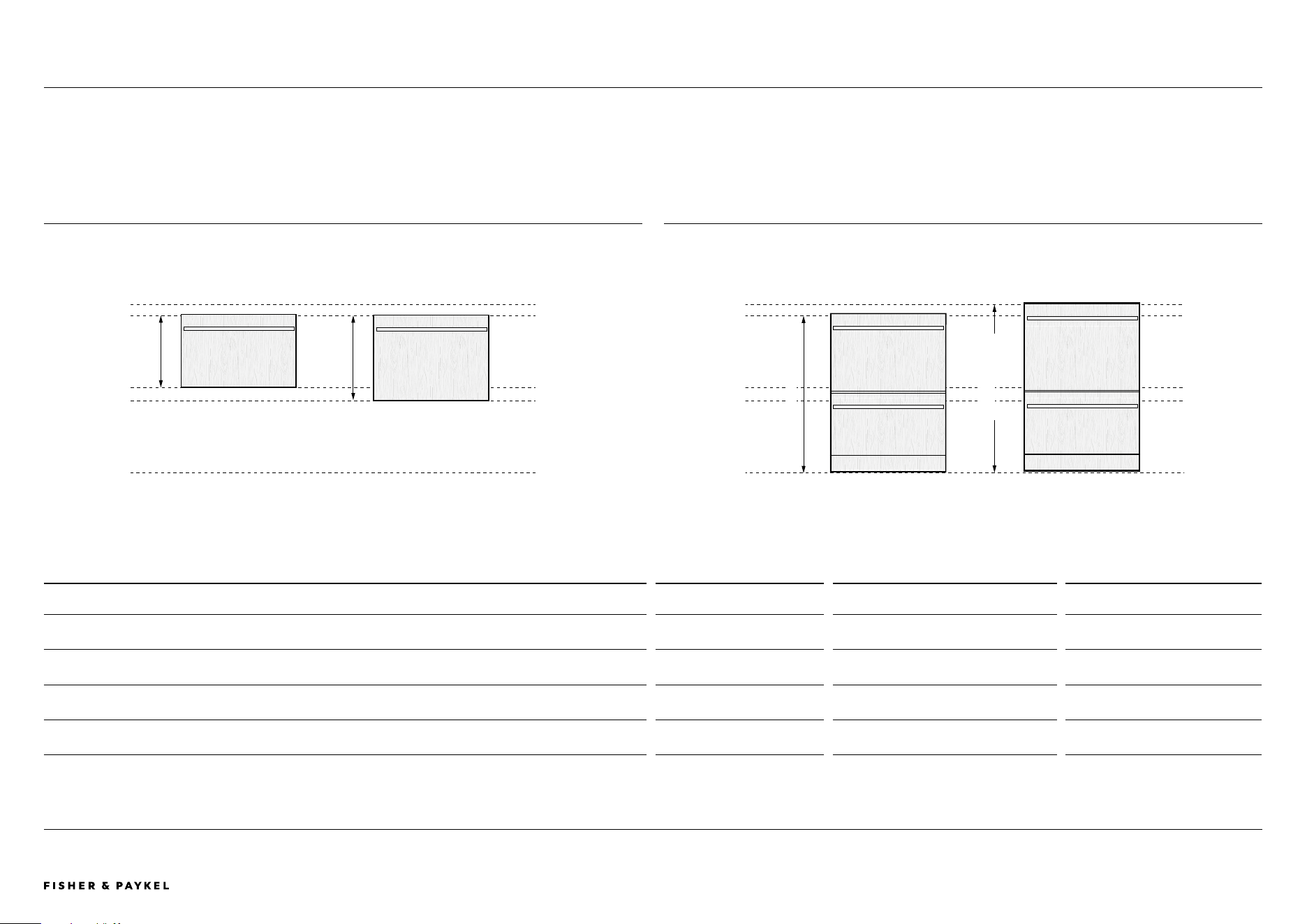

DESIGN CHOICE | DISHDRAWER™ DISHWASHER
SINGLE DRAWER DOUBLE DRAWER
INTEGRATED
STYLE MODELS PANEL OPTIONS HANDLE OPTIONS
1 Integrated Single DishDrawer™ Dishwasher
Series 9
DD24S4I2 Custom panel
Single Stainless Steel, ADDD24SPX
Custom handle,
Accessory handles*
2 Integrated Tall Single DishDrawer™ Dishwasher
Series 9
DD24ST4I2
DD24ST4HI2
Custom panel
Tall Single Stainless Steel, ADDD24STPX
Custom handle,
Accessory handles*
3 Integrated Double DishDrawer™ Dishwasher
Series 9
DD24D4I2 Custom panel
Double Stainless Steel, ADDD24DPX
Custom handle,
Accessory handles*
4 Integrated Tall Double DishDrawer™ Dishwasher
Series 9
DD24DT4I2
DD24DT4HI2
Custom panel
Tall Double Stainless Steel, ADDD24DTPX
Custom handle,
Accessory handles*
*Contemporary Brushed Aluminium AHD7DDDW24S, Contemporary Brushed Aluminium Black AHD7DDDW24B, Minimal Grey Handle
AHM1DDDW24G, Minimal Black Handle AHM1DDDW24B, Professional Flush P3 Stainless Steel AHP3-DWDD-SX, Professional Flush
P3 Dark Copper AHP3DDDW24DC, Professional Flush P3 Brass AHP3DDDW24BA.
Floor
TallStandard
16 1/8"
17 7/8"
34 - 36 3/8"
1
2
Floor
32 1/4 - 34 5/8"
TallStandard
3
4
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 690006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
DESIGN CHOICE | DISHDRAWER™ DISHWASHER PRE-FINISHED
STYLE MODELS FINISH HANDLE STYLE
1 Contemporary Single DishDrawer™ Dishwasher
Series 7
DD24S2CX2 Stainless Steel Contemporary Pocket handle
2 Contemporary Tall Single DishDrawer™ Dishwasher
Series 7
DD24ST2CX2 Stainless Steel Contemporary Pocket handle
3 Contemporary Tall Single DishDrawer™ Dishwasher
Series 9
DD24ST4DX2 Stainless Steel Contemporary Proud handle
4 Professional Tall Single DishDrawer™ Dishwasher Series 9
DD24ST4PX2 Stainless Steel Professional Proud handle
5 Contemporary Double DishDrawer™ Dishwasher
Series 7
DD24D2CX2 Stainless Steel Contemporary Pocket handle
6 Contemporary Tall Double DishDrawer™ Dishwasher
Series 7
DD24DT2CX2 Stainless Steel Contemporary Pocket handle
7 Contemporary Tall Double DishDrawer™ Dishwasher
Series 9
DD24DT4DX2 Stainless Steel Contemporary Proud handle
8 Professional Tall Double DishDrawer™ Dishwasher
Series 9
DD24DT4PX2 Stainless Steel Professional Proud handle
SINGLE DRAWER DOUBLE DRAWER
Floor
TallStandard
16 1/8"
17 7/8"
34-36 3/8"
1
2
Floor
32 1/4 - 34 5/8"
TallStandard
5
6
Tall
3
Tall
4
Tall
7
Tall
8
<< CONTENTS
PAGE 7© FISHER & PAYKEL APPLIANCES LIMITED 2026PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - AUGUST 202690006282A
SPECIFICATION GUIDE
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 890006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
The Series 9 Integrated Single DishDrawer™ Dishwasher is
designed for true half-load dish care in a single drawer format.
Panel-ready for seamless cabinetry integration, it supports flexible
placement within the kitchen, while advanced wash technology and
intuitive controls help support improved energy and water
efficiency.
PRODUCTS
Series 9 Integrated Single DishDrawer™ Dishwasher
DD24S4I2
SERIES & STYLE
Series 9
Custom and accessory handle options
SPECIFICATION GUIDE | INTEGRATED SINGLE DISHDRAWER™ DISHWASHER
FEATURES
1 Single drawer designed for true half-load dish care.
2 Panel-ready design supports seamless integration within custom
cabinetry.
3 Capacitive touch controls make everyday operation simple and
intuitive.
4 Standard-height drawer fits full-size dinner plates and everyday
cookware.
5 Designed to suit everyday dish loads without needing to fill a full
dishwasher.
6 Designed for counter-height installation to support ergonomic
access.
7 Advanced wash technology supports improved energy and
water efficiency.
8 Versatile wash cycles and modifiers support varied dish care
needs.
9 Fan-assisted drying helps leave dishes ready to use.
10 Can be paired with other DishDrawer™ Dishwasher models or
installed on its own.
11 New Door installation adjustment system allows fast and
accurate door alignment to the surrounding cabinetry. Designed
to fit, perfect results, beautiful to use.
DD24S4I2
DD24S4I2
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 990006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

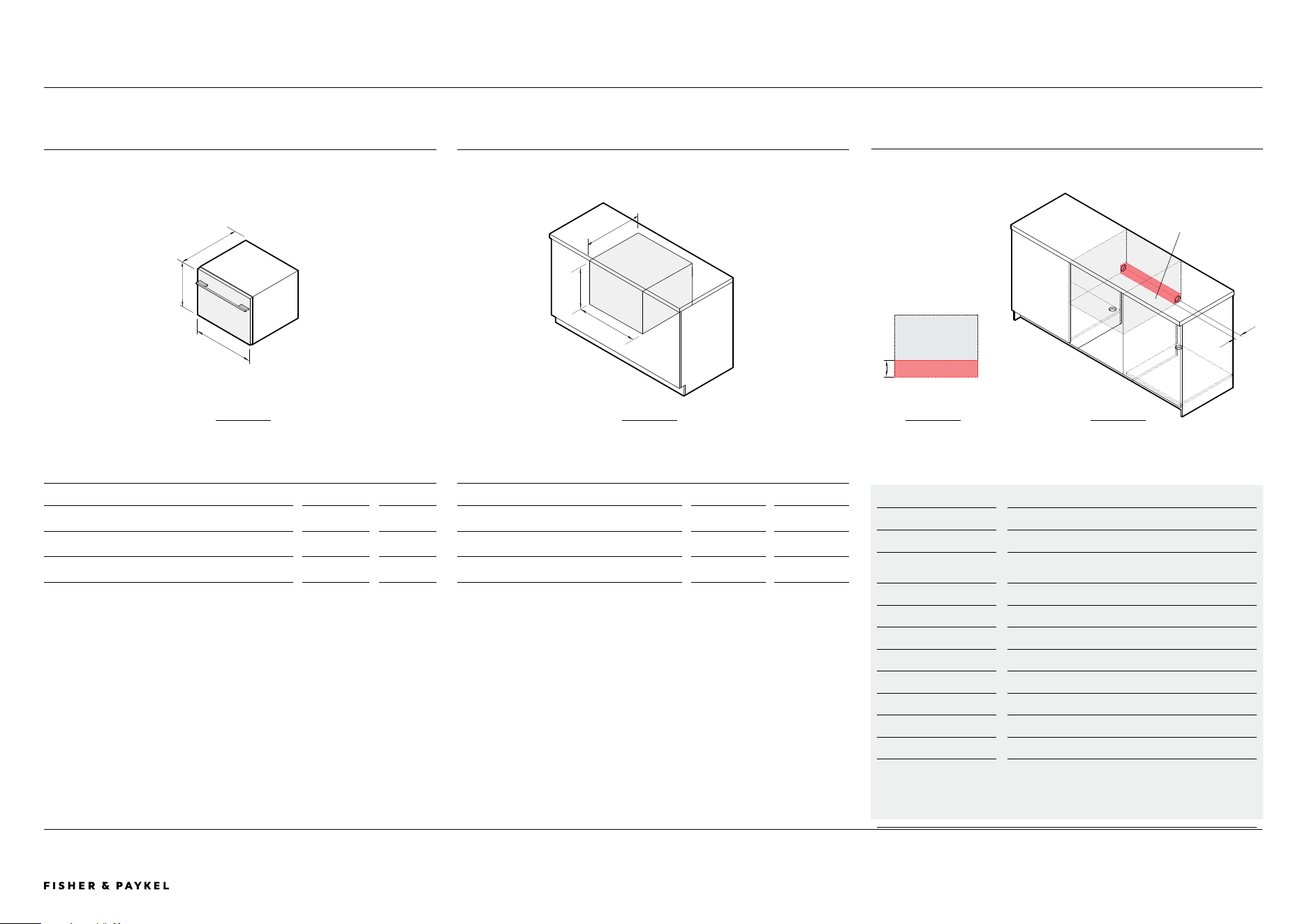

SPECIFICATION GUIDE | INTEGRATED SINGLE DISHDRAWER™ DISHWASHER DD24S4I2

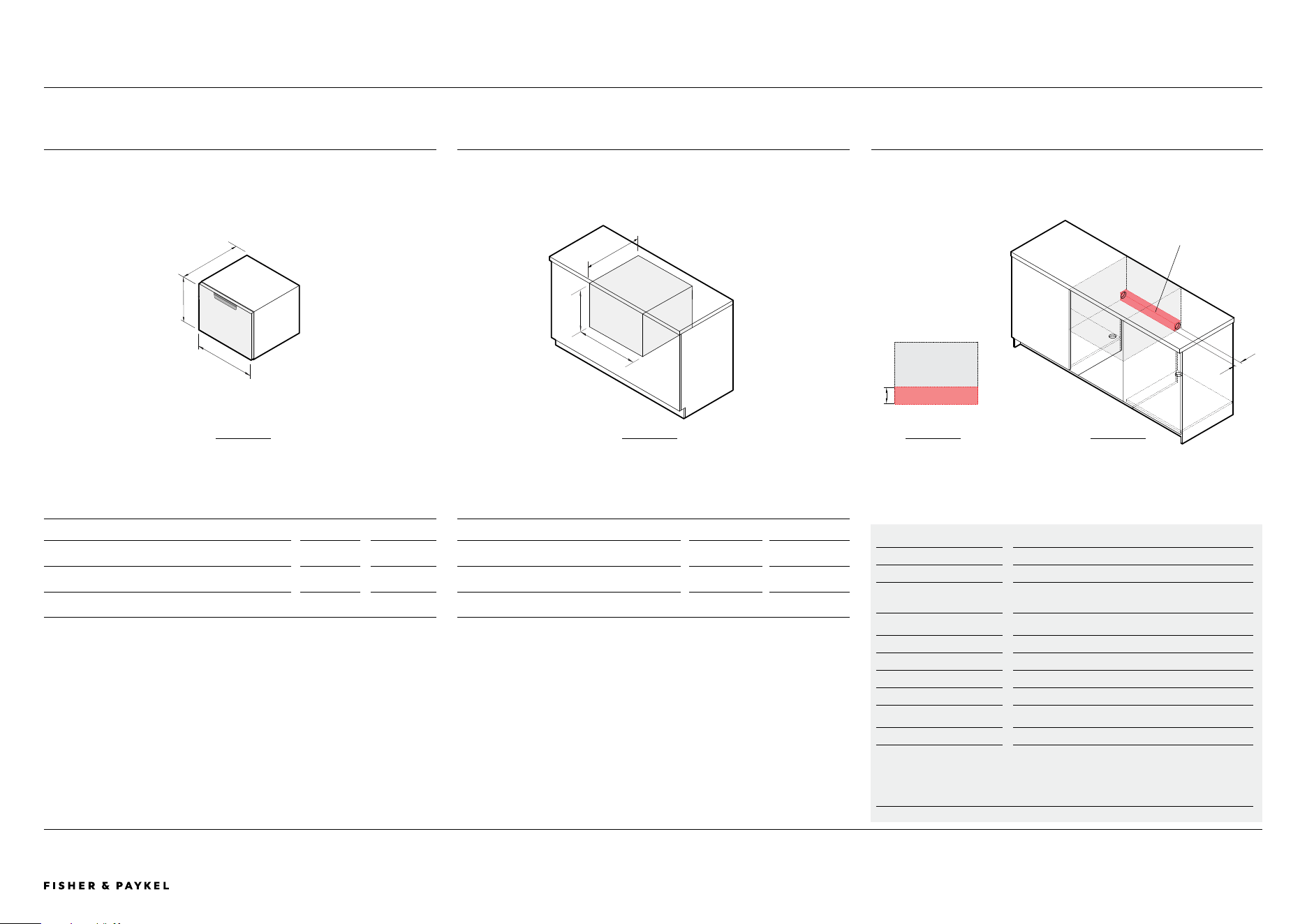

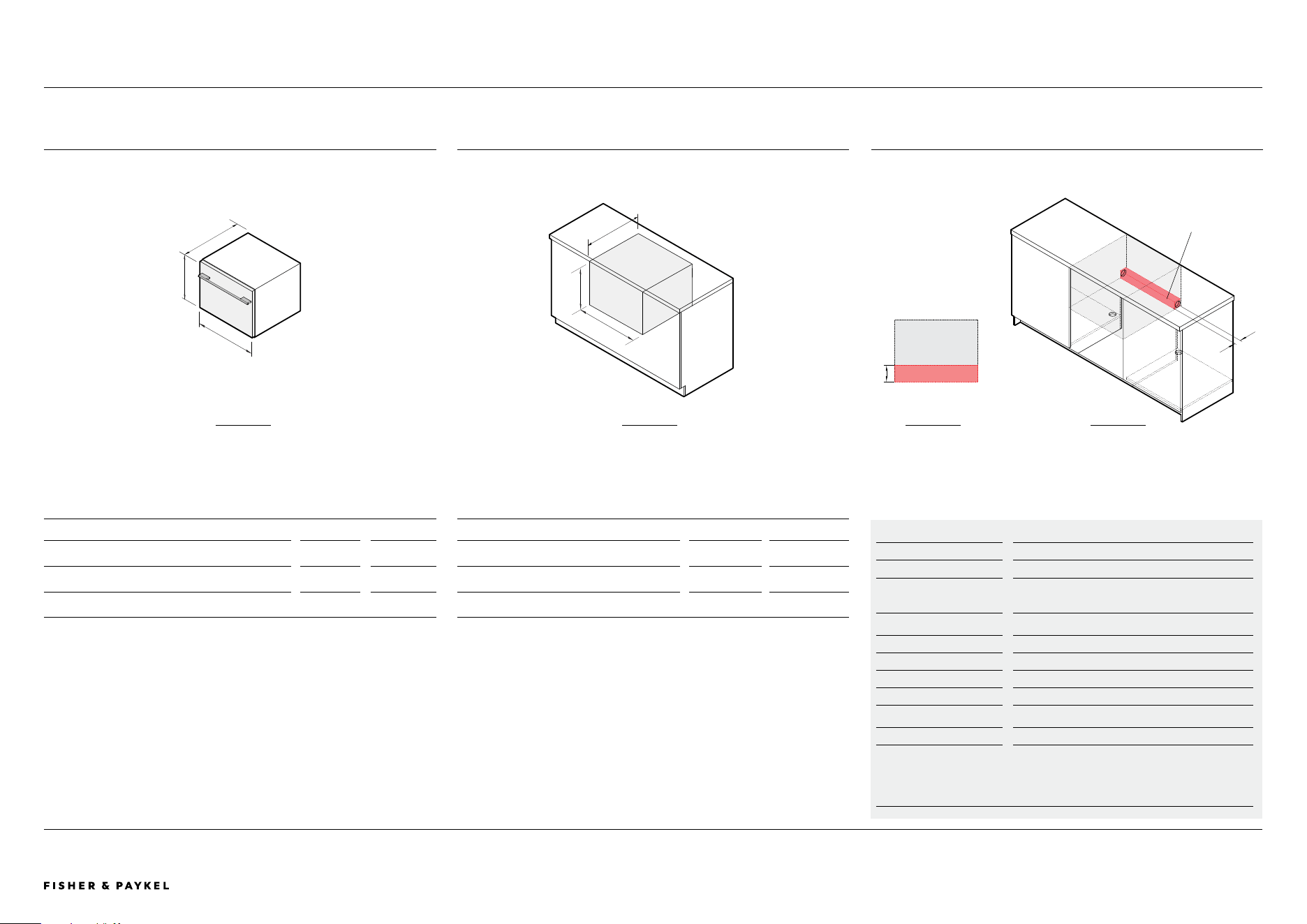

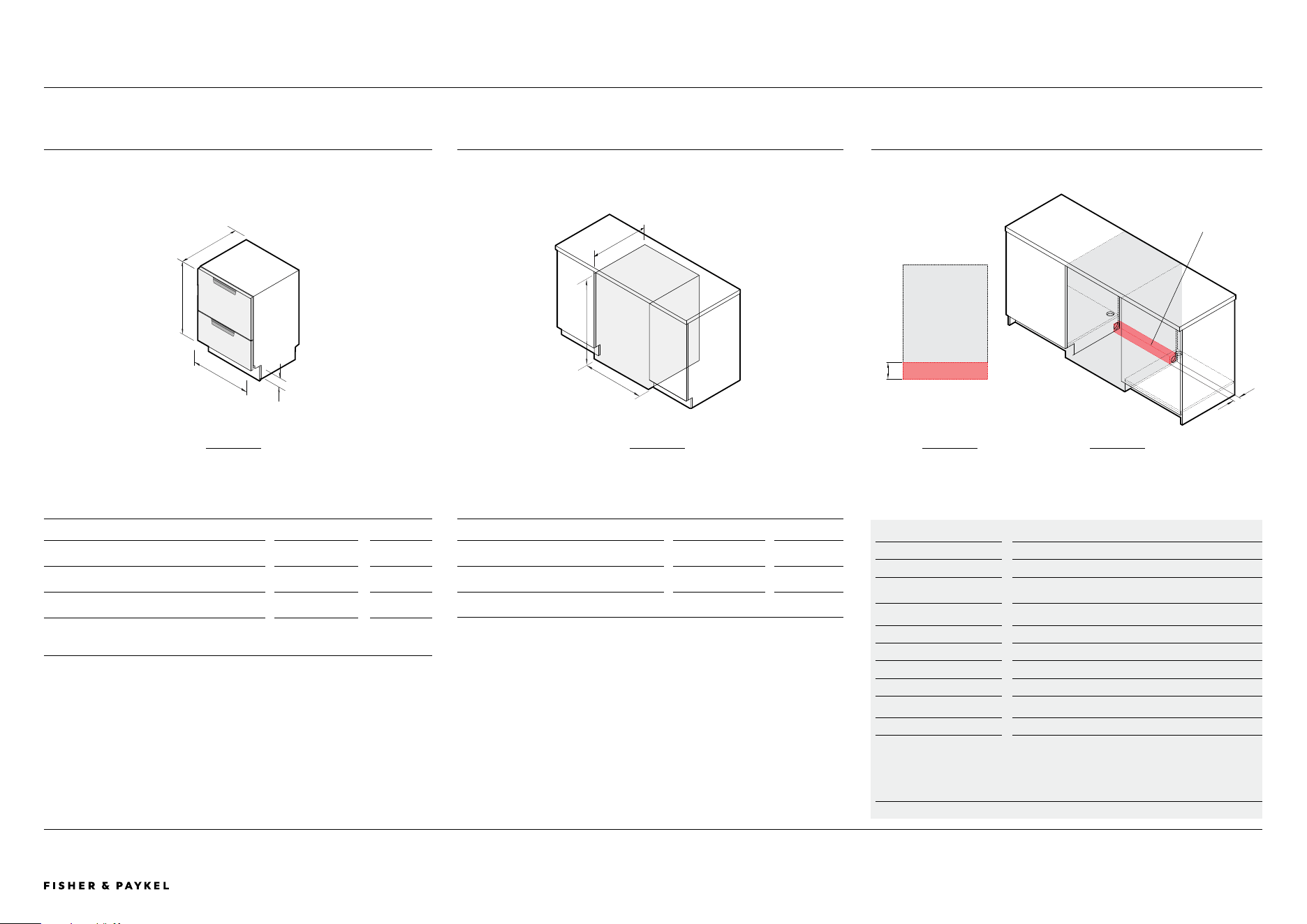

PRODUCT DIMENSIONS
In mm
A Overall height
16 1/8 410
B Overall width
23 9/16 599
C Overall depth*
21 3/4 553
*Does not include integrated door panel.
CAVITY DIMENSIONS
In mm
A Overall height
min 16 1/4 min 412
B Overall width
min 23 5/8 min 600
C Overall depth
min 22 5/8 min 575
C
B
A
C
B
A
ISO VIEW ISO VIEW
PLUMBING AND ELECTRICAL
REAR VIEW ISO VIEW
2 7/16"
3 15/16 – 6 5/16"
PRODUCT SPECIFICATIONS
Weight 72 lbs (33 kg)
Packaged Weight 88 lbs (40 kg)
Packaged dimensions
H 20 1/2" (520mm) x W 27 9/16" (700mm) x D 28 3/8
(720mm)
Electrical
Dedicated Service (A) 5A
Rated Power (W) 600
Supply (Hz) 60
Rated Power (W) 600
Voltage (V) 120
Plumbing
Supply 3/8” male compression fitting or Nut 9/16".
Pressure
Min 0.03 Mpa (4.35psi), Max 1 Mpa (145psi) Cold water
connection @ 20⁰C
Service outlet at rear extends both
sides, hoses and cords can be
routed to either or both sides.
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1090006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
The Series 9 Integrated Tall Single DishDrawer™ Dishwasher
extends the drawer format with added height to accommodate
larger dishes and cookware. Designed for true half-load dish care,
it supports flexible kitchen planning and counter-height installation,
while advanced wash technology and intuitive controls help
support improved energy and water efficiency.
PRODUCTS
Series 9 Integrated Tall Single DishDrawer™ Dishwasher
DD24ST4I2, DD24ST4HI2 (water softener model)
SERIES & STYLE
Series 9
Custom and accessory handle options
SPECIFICATION GUIDE | INTEGRATED TALL SINGLE DISHDRAWER™ DISHWASHER
FEATURES
1 Tall single drawer designed for true half-load dish care.
2 Panel-ready design supports seamless integration within custom
cabinetry.
3 Capacitive touch controls make everyday operation simple and
intuitive.
4 Extra height fits larger dishes and cookware, including full-size
dinner plates up to 12" in diameter.
5 Designed to suit everyday dish loads without needing to fill a full
dishwasher.
6 Designed for counter-height installation to support ergonomic
access.
7 Advanced wash technology supports improved energy and
water efficiency.
8 Versatile wash cycles and modifiers support varied dish care
needs.
9 Fan-assisted drying helps leave dishes ready to use.
10 Can be paired with other DishDrawer™ Dishwasher models or
installed on its own.
11 New Door installation adjustment system allows fast and
accurate door alignment to the surrounding cabinetry. Designed
to fit, perfect results, beautiful to use.
DD24ST4I2, DD24ST4HI2
DD24ST4I2, DD24ST4HI2
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1190006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

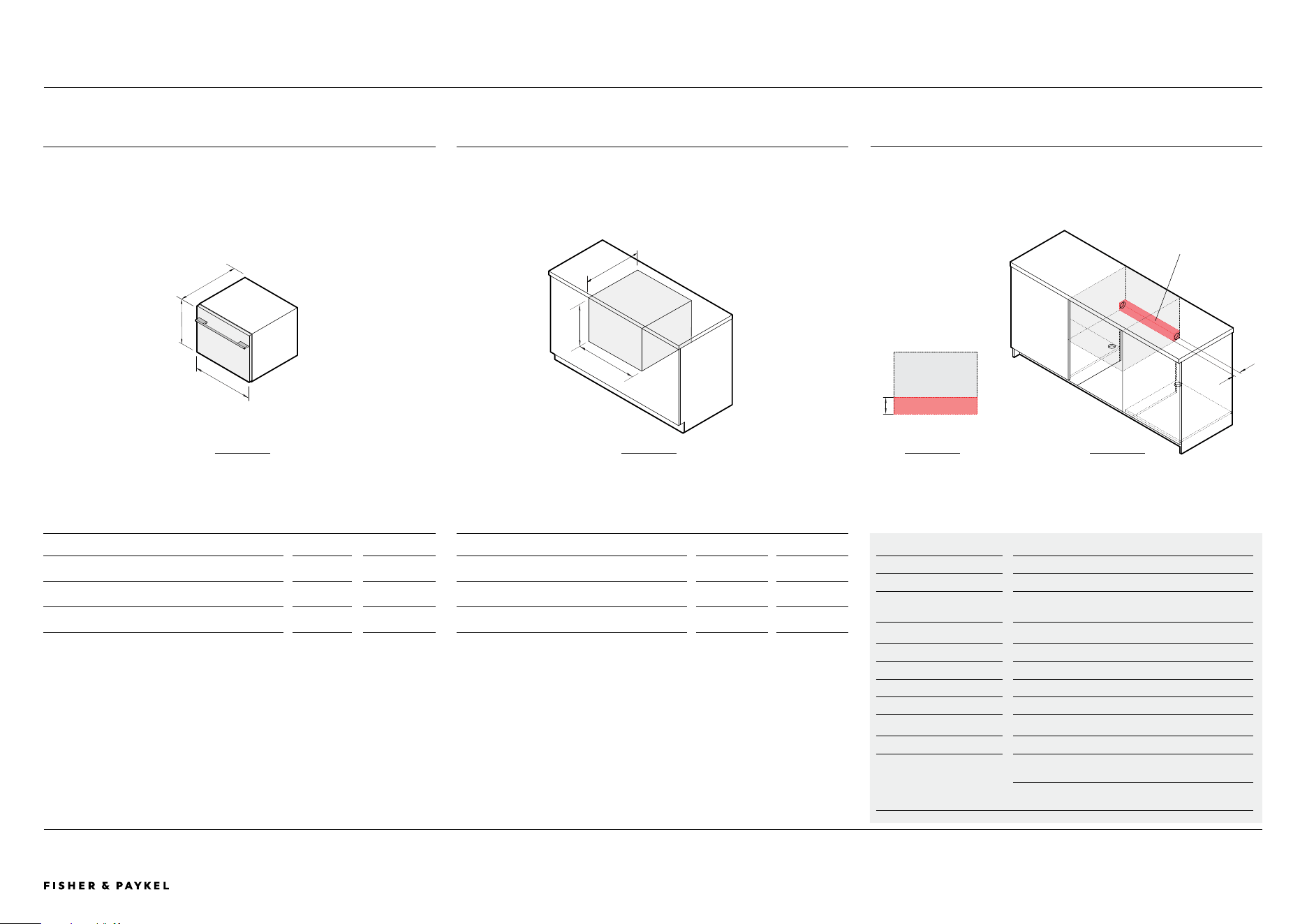

PRODUCT DIMENSIONS
In mm
A Overall height
17 7/8 454
B Overall width
23 9/16 599
C Overall depth*
21 3/4 553
*Does not include integrated door panel.
CAVITY DIMENSIONS
In mm
A Overall height
min 18 min 457
B Overall width
min 23 5/8 min 600
C Overall depth
min 22 5/8 min 575
SPECIFICATION GUIDE | INTEGRATED TALL SINGLE DISHDRAWER™ DISHWASHER
C
B
A
C
B
A
ISO VIEW ISO VIEW
PLUMBING AND ELECTRICAL
REAR VIEW ISO VIEW
DD24ST4I2, DD24ST4HI2
PRODUCT SPECIFICATIONS
Weight 72 lbs (33 kg)
Packaged Weight 88 lbs (40 kg)
Packaged dimensions
H 20 1/2" (520mm) x W 27 9/16" (700mm) x D 28 3/8
(720mm)
Electrical
Dedicated Service (A) 5A
Supply (Hz) 60
Rated Power (W) 600
Voltage (V) 120
Plumbing
Supply 3/8” male compression fitting or Nut 9/16".
Pressure
Min 0.03 Mpa (4.35psi), Max 1 Mpa (145psi) Cold water
connection @ 20⁰C
Water softener model: Min 0.1 Mpa (14.5psi), Max 1 Mpa
(145psi) Cold water connection @ 20⁰C
2 7/16"
3 15/16 – 6 5/16"
Service outlet at rear extends both
sides, hoses and cords can be
routed to either or both sides.
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1290006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
The Series 9 Integrated Double DishDrawer™ Dishwasher is
designed for seamless integration within custom cabinetry.
Independent drawers support flexible dish care, while advanced
wash technology and intuitive controls help support improved
energy and water efficiency.
PRODUCTS
Series 9 Integrated Double DishDrawer™ Dishwasher
DD24D4I2
SERIES & STYLE
Series 9
Custom and accessory handle options
SPECIFICATION GUIDE | INTEGRATED DOUBLE DISHDRAWER™ DISHWASHER
FEATURES
1 Independent drawers can run separately or together.
2 Panel-ready design supports seamless integration within custom
cabinetry.
3 Designed for counter-height installation to support ergonomic
access.
4 Capacitive touch controls make everyday operation simple and
intuitive.
5 Advanced wash technology supports improved energy and
water efficiency.
6 Each drawer fits full-size dinner plates up to 11" in diameter.
7 Adaptable racking accommodates a range of dishware and
cookware.
8 Versatile wash cycles and modifiers support varied dish care
needs.
9 Fan-assisted drying helps leave dishes ready to use.
10 SmartHQ™ connectivity offers remote control and notifications
through the app.
11 New Door installation adjustment system allows fast and
accurate door alignment to the surrounding cabinetry. Designed
to fit, perfect results, beautiful to use.
DD24D4I2
DD24D4I2
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1390006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
SPECIFICATION GUIDE | INTEGRATED DOUBLE DISHDRAWER™ DISHWASHER
PRODUCT DIMENSIONS
In mm
A Overall height*
32 1/4-34 5/8 820 – 880
B Overall width
23 9/16 599
C Overall depth**
21 3/4 553
D Height from bottom of door to
floor*
4-6 5/16 101 - 161
* Depending on adjustment of levelling feet
**Does not include integrated door panel.
Black toe kick supplied; custom toe kick optional
CAVITY DIMENSIONS
In mm
A Overall height*
32 3/8 - 34 3/4 822 - 882
B Overall width
min 23 5/8 min 600
C Overall depth
min 22 13/16 min 580
*Depending on adjustment of levelling feet
C
A
ISO VIEW ISO VIEW
PLUMBING AND ELECTRICAL
REAR VIEW ISO VIEW
DD24D4I2
PRODUCT SPECIFICATIONS
Weight 130 lbs (59 kg)
Packaged Weight 147 lbs (67 kg)
Packaged dimensions
H 36 7/8" (937mm) x W 27 9/16" (700mm) x D 28 3/8
(720mm)
Electrical
Dedicated Service (A) 10A
Rated Power (W) 1200
Supply (Hz) 60
Voltage (V) 120
Plumbing
Supply 3/8” male compression fitting or Nut 9/16"
Pressure
Min 0.03 Mpa (4.35psi), Max 1 Mpa (145psi)
Cold water connection @ 20⁰C
D
B
C
B
A
2 7/16"
3 15/16 – 6 5/16"
Service outlet at rear extends both
sides, hoses and cords can be
routed to either or both sides.
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1490006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
The Series 9 Integrated Tall Double DishDrawer™ Dishwasher
combines independent double drawers with added height to
accommodate larger dishes and cookware. Designed for flexible,
counter-height installation, it supports varied dish care needs while
advanced wash technology and intuitive controls help support
improved energy and water efficiency.
PRODUCTS
Series 9 Integrated Tall Double DishDrawer™ Dishwasher
DD24DT4I2, DD24DT4HI2 (water softener model)
SERIES & STYLE
Series 9
Custom and accessory handle options
SPECIFICATION GUIDE | INTEGRATED TALL DOUBLE DISHDRAWER™ DISHWASHER
FEATURES
1 Independent drawers can run separately or together to suit
varied dish loads.
2 Panel-ready design supports seamless integration within custom
cabinetry.
3 Extra height fits full-size dinner plates up to 12" in diameter.
4 Designed for counter-height installation to support ergonomic
access.
5 Capacitive touch controls make everyday operation simple and
intuitive.
6 Advanced wash technology supports improved energy and
water efficiency.
7 Adaptable racking accommodates a range of dishware and
cookware.
8 Versatile wash cycles and modifiers support varied dish care
needs.
9 Fan-assisted drying helps leave dishes ready to use.
10 SmartHQ™ connectivity offers remote control and notifications
through the app.
11 New Door installation adjustment system allows fast and
accurate door alignment to the surrounding cabinetry. Designed
to fit, perfect results, beautiful to use.
DD24DT4I2, DD24DT4HI2
DD24DT4I2, DD24DT4HI2
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1590006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

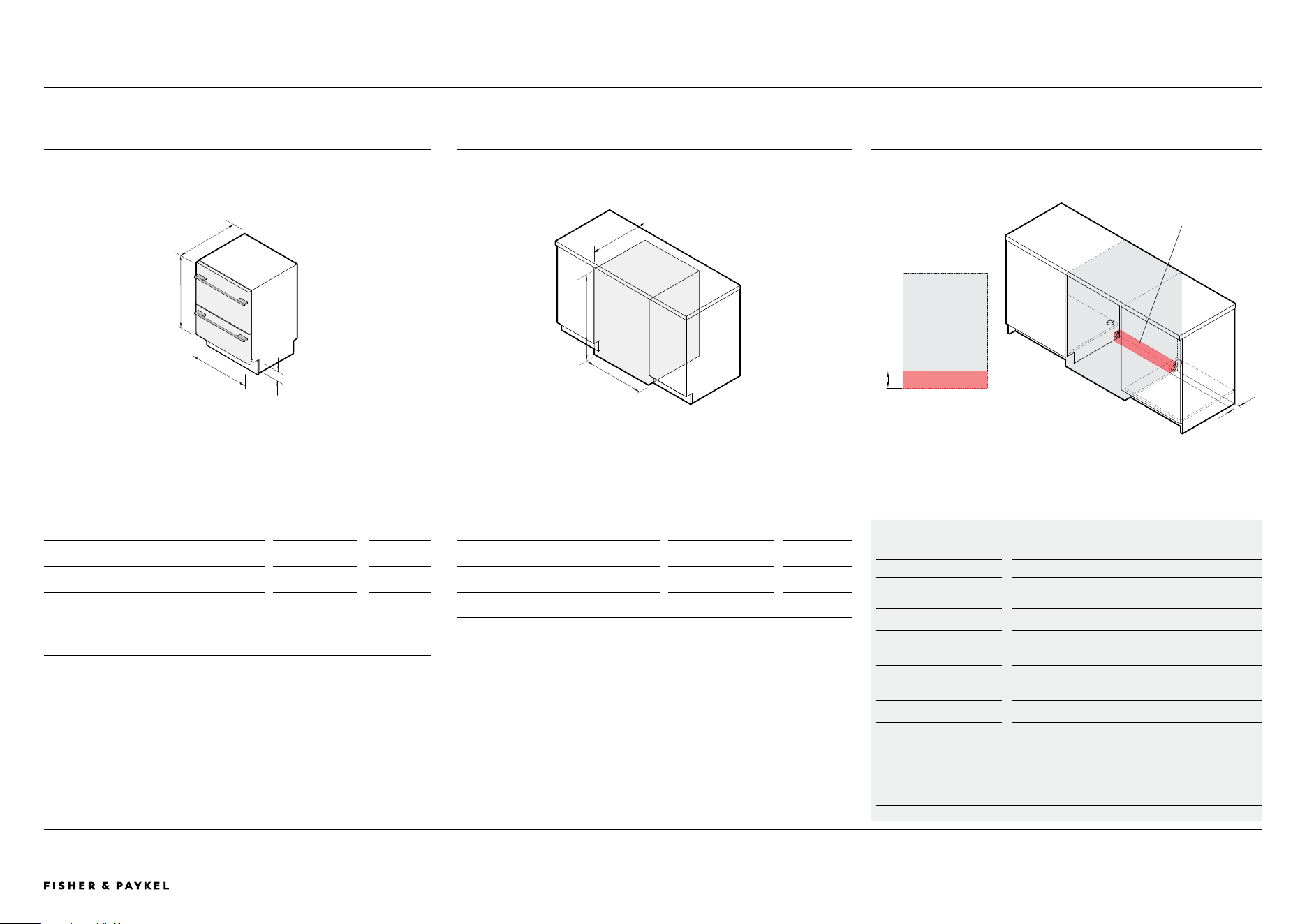

SPECIFICATION GUIDE | INTEGRATED TALL DOUBLE DISHDRAWER™ DISHWASHER DD24DT4I2, DD24DT4HI2
PRODUCT DIMENSIONS
In mm
A Overall height*
34-36 3/8 865-925
B Overall width
23 9/16 599
C Overall depth**
21 3/4 553
D Height from bottom of door to
floor*
4-6 5/16 101 - 161
* Depending on adjustment of levelling feet
**Does not include integrated door panel.
Black toe kick supplied; custom toe kick optional
CAVITY DIMENSIONS
In mm
A Overall height*
min 34 1/8 - 36 1/2 867 - 927
B Overall width
min 23 5/8 min 600
C Overall depth
min 22 13/16 min 580
*Depending on adjustment of levelling feet
C
A
ISO VIEW ISO VIEW
PLUMBING AND ELECTRICAL
REAR VIEW ISO VIEW
PRODUCT SPECIFICATIONS
Weight 130 lbs (59 kg)
Packaged Weight 147 lbs (67 kg)
Packaged dimensions
H 36 7/8" (937mm) x W 27 9/16" (700mm) x D 28 3/8
(720mm)
Electrical
Dedicated Service (A) 10A
Rated Power (W) 1200
Supply (Hz) 60
Voltage (V) 120
Plumbing
Supply 3/8” male compression fitting or Nut 9/16"
Pressure
Min 0.03 Mpa (4.35psi), Max 1 Mpa (145psi)
Cold water connection @ 20⁰C
Water softener model: Min 0.1 Mpa (14.5psi), Max 1 Mpa
(145psi) Cold water connection @ 20⁰C
D
B
C
B
A
Service outlet at rear extends both
sides, hoses and cords can be
routed to either or both sides.
2 7/16"
3 15/16 – 6 5/16"
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1690006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
The Series 9 Contemporary Tall Single DishDrawer™ Dishwasher
extends the drawer format with added height to accommodate
larger dishes and cookware. Designed for true half-load dish
care, it supports flexible placement within the kitchen while
advanced wash technology and intuitive controls help support
improved energy and water efficiency.
PRODUCTS
Series 9 Contemporary Tall Single DishDrawer™ Dishwasher
DD24ST4DX 2
SERIES & STYLE
Series 9
Contemporary Proud Handle
SPECIFICATION GUIDE | CONTEMPORARY TALL SINGLE DISHDRAWER™ DISHWASHER
FEATURES
1 Tall single drawer designed for true half-load dish care.
2 Designed to suit everyday dish loads without needing to fill a full
dishwasher.
3 Extra height fits larger dishes and cookware, including full-size
dinner plates up to 12" in diameter.
4 Capacitive touch controls make everyday operation simple and
intuitive.
5 Designed for counter-height installation to support ergonomic
access.
6 Advanced wash technology supports improved energy and
water efficiency.
7 Versatile wash cycles and modifiers support varied dish care
needs.
8 Fan-assisted drying helps leave dishes ready to use.
9 Contemporary stainless steel finish suits modern kitchen
designs.
10 Can be paired with other DishDrawer™ Dishwasher models or
installed on its own.
DD24ST4DX2
DD24ST4DX2
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1790006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PRODUCT DIMENSIONS
In mm
A Overall height
17 7/8 454
B Overall width
23 9/16 599
C Overall depth
22 9/16 573
SPECIFICATION GUIDE | CONTEMPORARY TALL SINGLE DISHDRAWER™ DISHWASHER DD24ST4DX2
C
B
A
C
B
A
ISO VIEW ISO VIEW
PLUMBING AND ELECTRICAL
REAR VIEW ISO VIEW
PRODUCT SPECIFICATIONS
Weight 72 lbs (33 kg)
Packaged Weight 88 lbs (40 kg)
Packaged dimensions
H 20 1/2" (520mm) x W 27 9/16" (700mm) x D 28 3/8
(720mm)
Electrical
Dedicated Service (A) 5A
Supply (Hz) 60
Rated Power (W) 600
Voltage (V) 120
Plumbing
Supply 3/8” male compression fitting or Nut 9/16".
Pressure
Min 0.03 Mpa (4.35psi), Max 1 Mpa (145psi) Cold water
connection @ 20⁰C
CAVITY DIMENSIONS
In mm
A Overall height
min 18 min 457
B Overall width
min 23 5/8 min 600
C Overall depth
min 22 5/8 min 575
Service outlet at rear extends both
sides, hoses and cords can be
routed to either or both sides.
2 7/16"
3 15/16 – 6 5/16"
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1890006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
The Series 7 Contemporary Single DishDrawer™ Dishwasher
represents the next evolution of drawer design, delivering
advanced performance, quiet operation and true half-load dish
care. Its single-drawer format supports flexible kitchen planning,
while updated wash technology enables efficient use of energy and
water to suit everyday living.
PRODUCTS
Series 7 Contemporary Single DishDrawer™ Dishwasher
DD24S2CX2
SERIES & STYLE
Series 7
Pocket Handle
SPECIFICATION GUIDE | CONTEMPORARY SINGLE DISHDRAWER™ DISHWASHER
FEATURES
1 Single drawer format supports true half-load dish care.
2 Designed to suit everyday dish loads without needing to fill a
full dishwasher.
3 Can be installed at counter height for easy access with
minimal bending.
4 Accommodates full-size dinner plates within a single drawer.
5 Adaptable racking allows flexibility for different dishware and
cookware.
6 Versatile wash cycles and modifiers support varied dish care
needs.
7 Fan-assisted drying helps leave dishes ready to use.
8 Quiet operation suits open-plan kitchen environments.
9 SmartHQ™ connectivity offers remote control and
notifications through the app.
10 Can be paired with other DishDrawer™ Dishwasher models
or installed on its own.
DD24S2CX2
DD24S2CX2
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 1990006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

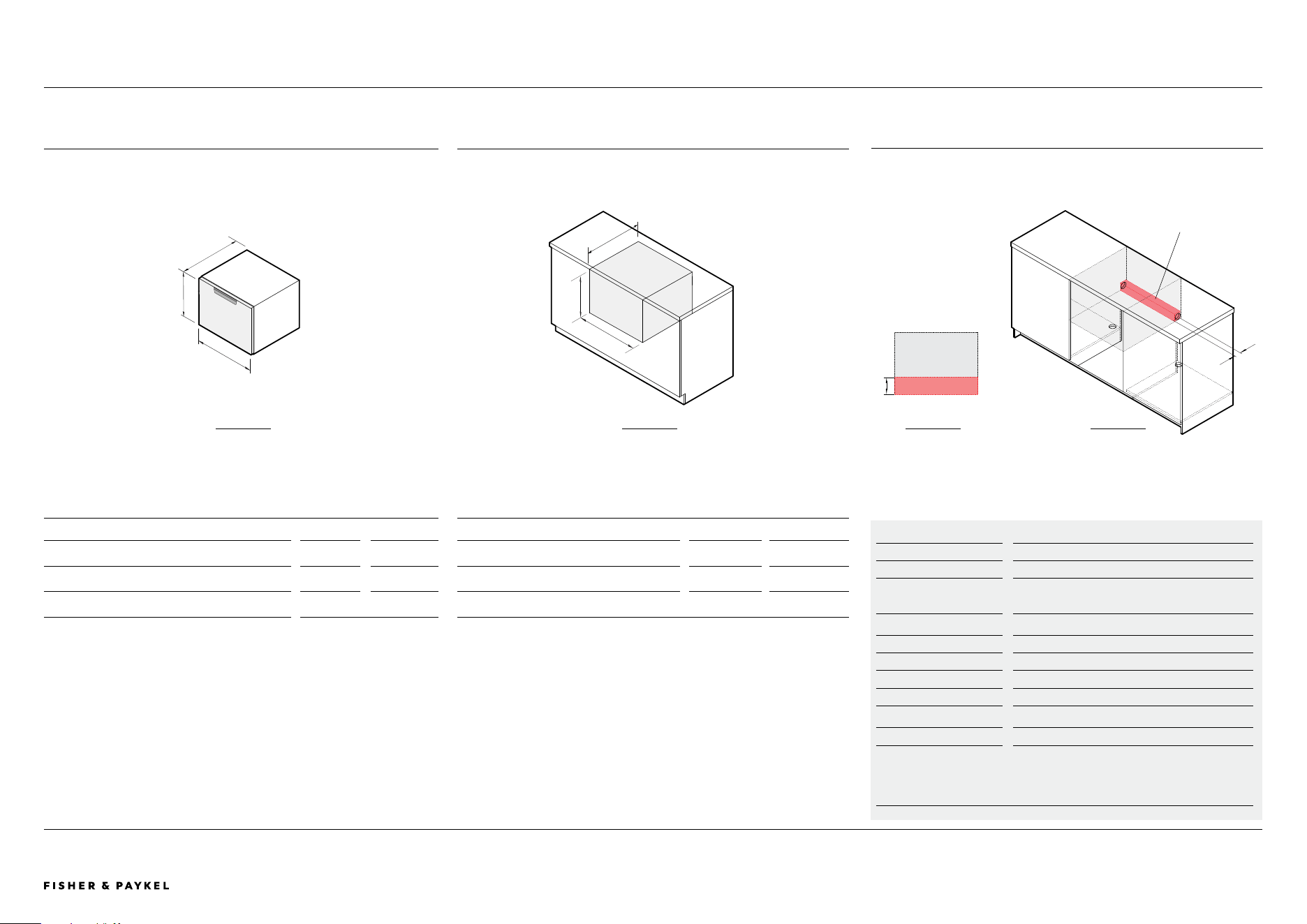

SPECIFICATION GUIDE | CONTEMPORARY SINGLE DISHDRAWER™ DISHWASHER DD24S2CX2
PRODUCT DIMENSIONS
In mm
A Overall height
16 1/8 410
B Overall width
23 9/16 599
C Overall depth
22 9/16 573
CAVITY DIMENSIONS
In mm
A Overall height
min 16 1/4 min 412
B Overall width
min 23 5/8 min 600
C Overall depth
min 22 5/8 min 575
C
B
A
C
B
A
ISO VIEW ISO VIEW
PLUMBING AND ELECTRICAL
REAR VIEW ISO VIEW
PRODUCT SPECIFICATIONS
Weight 72 lbs (33 kg)
Packaged Weight 88 lbs (40 kg)
Packaged dimensions
H 20 1/2" (520mm) x W 27 9/16" (700mm) x D 28 3/8
(720mm)
Electrical
Dedicated Service (A) 5A
Supply (Hz) 60
Rated Power (W) 600
Voltage (V) 120
Plumbing
Supply 3/8” male compression fitting or Nut 9/16".
Pressure
Min 0.03 Mpa (4.35psi), Max 1 Mpa (145psi) Cold water
connection @ 20⁰C
Service outlet at rear extends both
sides, hoses and cords can be
routed to either or both sides.
2 7/16"
3 15/16 – 6 5/16"
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 2090006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
The Series 7 Contemporary Tall Single DishDrawer™ Dishwasher
builds on the drawer format with added height to accommodate
larger plates and cookware. Designed for true half-load dish
care, it supports flexible kitchen planning and everyday use,
while updated wash technology enables efficient use of energy
and water.
PRODUCTS
Series 7 Contemporary Tall Single DishDrawer™ Dishwasher
DD24ST2CX2
SERIES & STYLE
Series 7
Pocket Handle
SPECIFICATION GUIDE | CONTEMPORARY TALL SINGLE DISHDRAWER™ DISHWASHER
FEATURES
1 Single drawer format supports true half-load dish care.
2 Designed to suit everyday dish loads without needing to fill a full
dishwasher.
3 Extra height fits larger dishes and cookware, including full-size
dinner plates up to 12" in diameter.
4 Can be installed at counter height for easy access with minimal
bending.
5 Adaptable racking allows flexibility for different dishware and
cookware.
6 Versatile wash cycles and modifiers support varied dish care
needs.
7 Fan-assisted drying helps leave dishes ready to use.
8 Quiet operation suits open-plan kitchen environments.
9
Contemporary stainless steel finish suits modern kitchen
designs.
10 Can be specified on its own or paired with other DishDrawer™
Dishwasher models.
DD24ST2CX2
DD24ST2CX2
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 2190006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PRODUCT DIMENSIONS
In mm
A Overall height
17 7/8 454
B Overall width
23 9/16 599
C Overall depth
22 9/16 573
SPECIFICATION GUIDE | CONTEMPORARY TALL SINGLE DISHDRAWER™ DISHWASHER DD24ST2CX2
C
B
A
C
B
A
ISO VIEW ISO VIEW
PLUMBING AND ELECTRICAL
REAR VIEW ISO VIEW
PRODUCT SPECIFICATIONS
Weight 72 lbs (33 kg)
Packaged Weight 88 lbs (40 kg)
Packaged dimensions
H 20 1/2" (520mm) x W 27 9/16" (700mm) x D 28 3/8
(720mm)
Electrical
Dedicated Service (A) 5A
Supply (Hz) 60
Rated Power (W) 600
Voltage (V) 120
Plumbing
Supply 3/8” male compression fitting or Nut 9/16".
Pressure
Min 0.03 Mpa (4.35psi), Max 1 Mpa (145psi) Cold water
connection @ 20⁰C
CAVITY DIMENSIONS
In mm
A Overall height
min 18 min 457
B Overall width
min 23 5/8 min 600
C Overall depth
min 22 5/8 min 575
Service outlet at rear extends both
sides, hoses and cords can be
routed to either or both sides.
2 7/16"
3 15/16 – 6 5/16"
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 2290006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
The Series 7 Contemporary Double DishDrawer™ Dishwasher
represents the next evolution of drawer design, offering advanced
performance and everyday flexibility. Its double-drawer format
allows each drawer to operate independently or together, while
updated wash technology supports efficient use of energy and
water to suit the demands of everyday living.
PRODUCTS
Series 7 Contemporary Double DishDrawer™ Dishwasher
DD24D2CX2
SERIES & STYLE
Series 7
Pocket Handle
SPECIFICATION GUIDE | CONTEMPORARY DOUBLE DISHDRAWER™ DISHWASHER
FEATURES
1 Independent drawers can run separately or together.
2 Two drawers allow flexible dish care across multiple loads.
3 Can be installed at counter height for easy access with minimal
bending.
4 Each drawer fits full-size dinner plates up to 11" in diameter.
5 Adaptable racking accommodates a range of dishware and
cookware.
6 Versatile wash cycles and modifiers support varied dish care
needs.
7 Fan-assisted drying helps leave dishes ready to use.
8 Quiet operation suits open-plan kitchen environments.
9
Contemporary stainless steel finish suits modern kitchen
designs.
10 SmartHQ™ connectivity offers remote control and notifications
through the app.
DD24D2CX2
DD24D2CX2
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 2390006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
PRODUCT DIMENSIONS
In mm
A Overall height*
32 1/4-34 5/8 820-880
B Overall width
23 9/16 599
C Overall depth
22 9/16 573
D Height from bottom of door to
floor*
4-6 5/16 101 - 161
* Depending on adjustment of levelling feet
CAVITY DIMENSIONS
In mm
A Overall height*
32 3/8 - 34 3/4 822 - 882
B Overall width
min 23 5/8 min 600
C Overall depth
min 22 13/16 min 580
*Depending on adjustment of levelling feet
SPECIFICATION GUIDE | CONTEMPORARY DOUBLE DISHDRAWER™ DISHWASHER DD24D2CX2
C
A
ISO VIEW ISO VIEW
PLUMBING AND ELECTRICAL
REAR VIEW ISO VIEW
D
B
C
B
A
PRODUCT SPECIFICATIONS
Weight 130 lbs (59 kg)
Packaged Weight 147 lbs (67 kg)
Packaged dimensions
H 36 7/8" (937mm) x W 27 9/16" (700mm) x D 28 3/8
(720mm)
Electrical
Dedicated Service (A) 10A
Rated Power (W) 1200
Supply (Hz) 60
Voltage (V) 120
Plumbing
Supply 3/8” male compression fitting or Nut 9/16"
Pressure
Min 0.03 Mpa (4.35psi), Max 1 Mpa (145psi)
Cold water connection @ 20⁰C
Service outlet at rear extends both
sides, hoses and cords can be
routed to either or both sides.
2 7/16"
3 15/16 – 6 5/16"
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 2490006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
The Series 7 Contemporary Tall Double DishDrawer™ Dishwasher
extends the drawer format with added height and dual-drawer
flexibility. Independent drawers support varied dish care needs,
while the taller configuration accommodates larger dishes and
cookware. Designed for counter-height installation, it supports
ergonomic access and flexible kitchen planning in contemporary
spaces.
PRODUCTS
Series 7 Contemporary Tall Double DishDrawer™ Dishwasher
DD24DT2CX2
SERIES & STYLE
Series 7
Pocket Handle
SPECIFICATION GUIDE | CONTEMPORARY TALL DOUBLE DISHDRAWER™ DISHWASHER
FEATURES
1 Tall double drawer format supports flexible dish care across two
independent drawers.
2 Independent drawers can run separately or together to suit
everyday dish care needs.
3 Can be installed at counter height for easy access with minimal
bending.
4 Extra height in the top drawer fits larger dishes and cookware,
including full-size dinner plates up to 12" in diameter.
5 Adaptable racking accommodates a range of dishware and
cookware.
6 Versatile wash cycles and modifiers support varied dish care
needs.
7 Fan-assisted drying helps leave dishes ready to use.
8 Quiet operation suits open-plan kitchen environments.
9 Contemporary stainless steel finish suits modern kitchen
designs.
10 SmartHQ™ connectivity offers remote control and notifications
through the app.
DD24DT2CX2
DD24DT2CX2
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 2590006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
CAVITY DIMENSIONS
In mm
A Overall height*
min 34 1/8 - 36 1/2 867 - 927
B Overall width
min 23 5/8 min 600
C Overall depth
min 22 13/16 min 580
*Depending on adjustment of levelling feet
PRODUCT DIMENSIONS
In mm
A Overall height*
34-36 3/8 865-925
B Overall width
23 9/16 599
C Overall depth
22 9/16 573
D Height from bottom of door to
floor*
4-6 5/16 101 - 161
* Depending on adjustment of levelling feet
SPECIFICATION GUIDE | CONTEMPORARY TALL DOUBLE DISHDRAWER™ DISHWASHER
DD24DT2CX2
C
A
ISO VIEW ISO VIEW
PLUMBING AND ELECTRICAL
REAR VIEW ISO VIEW
D
B
C
B
A
PRODUCT SPECIFICATIONS
Weight 130 lbs (59 kg)
Packaged Weight 147 lbs (67 kg)
Packaged dimensions
H 36 7/8" (937mm) x W 27 9/16" (700mm) x D 28 3/8
(720mm)
Electrical
Dedicated Service (A) 10A
Rated Power (W) 1200
Supply (Hz) 60
Voltage (V) 120
Plumbing
Supply 3/8” male compression fitting or Nut 9/16"
Pressure
Min 0.03 Mpa (4.35psi), Max 1 Mpa (145psi)
Cold water connection @ 20⁰C
Service outlet at rear extends both
sides, hoses and cords can be
routed to either or both sides.
2 7/16"
3 15/16 – 6 5/16"
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 2690006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
The Series 9 Contemporary Tall Double DishDrawer™ Dishwasher
combines independent double drawers with added height to
accommodate larger dishes and cookware. Designed for flexible,
counter-height installation, it supports varied dish care needs while
advanced wash technology and intuitive controls help support
improved energy and water efficiency.
PRODUCTS
Series 9 Contemporary Tall Double DishDrawer™ Dishwasher
DD24DT4DX2
SERIES & STYLE
Series 9
Contemporary Proud Handle
SPECIFICATION GUIDE | CONTEMPORARY TALL DOUBLE DISHDRAWER™ DISHWASHER
FEATURES
1 Independent drawers can run separately or together to suit
varied dish loads.
2 Tall double drawer format supports flexible dish care across two
independent drawers.
3 Extra height fits full-size dinner plates up to 12" in diameter.
4 Designed for counter-height installation to support ergonomic
access.
5 Capacitive touch controls make everyday operation simple and
intuitive.
6 Advanced wash technology supports improved energy and
water efficiency.
7 Adaptable racking accommodates a range of dishware and
cookware.
8 Versatile wash cycles and modifiers support varied dish care
needs.
9 Fan-assisted drying helps leave dishes ready to use.
10 SmartHQ™ connectivity offers remote control and notifications
through the app.
DD24DT4DX2
DD24DT4DX2
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 2790006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

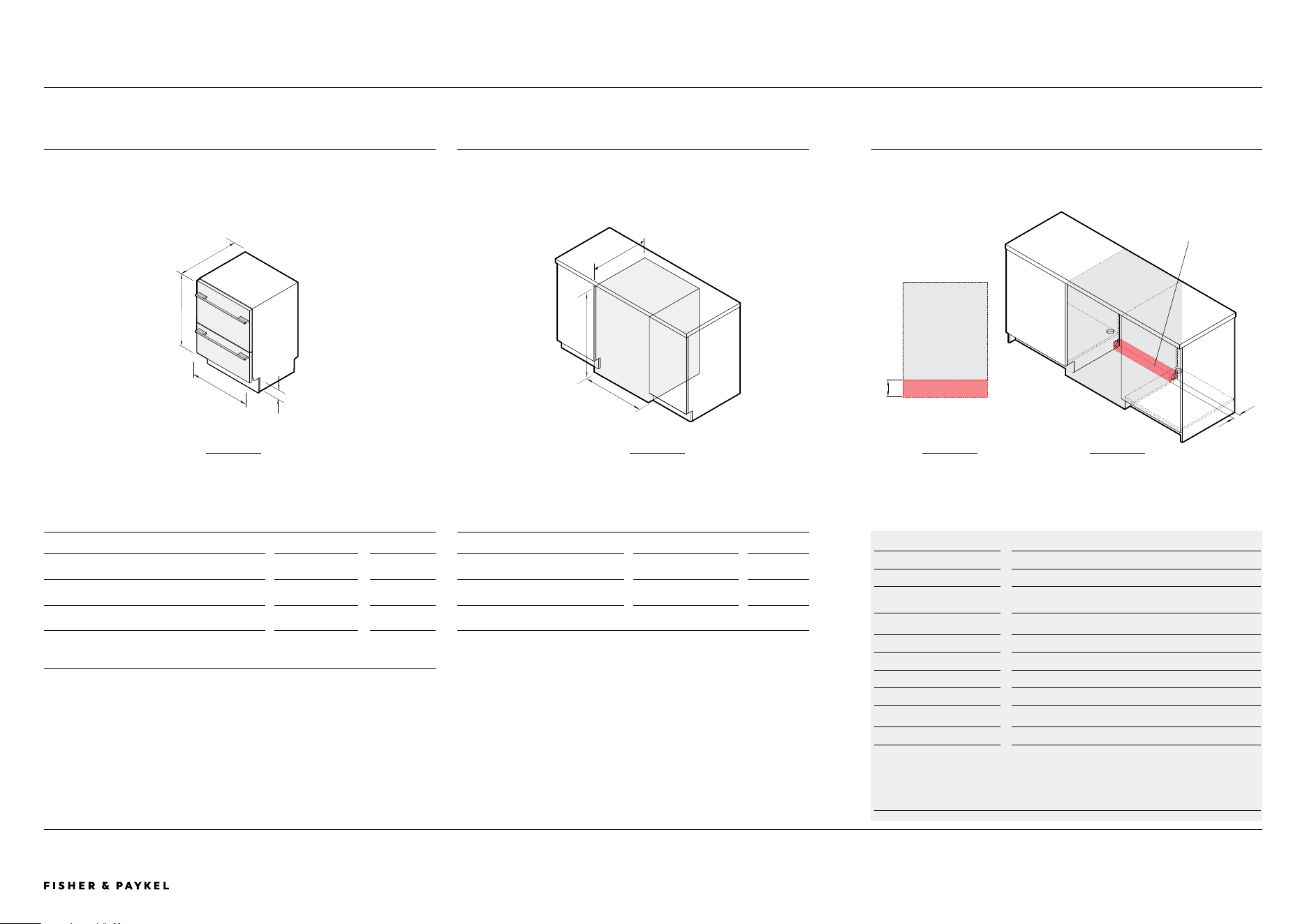

CAVITY DIMENSIONS
In mm
A Overall height*
min 34 1/8 - 36 1/2 867 - 927
B Overall width
min 23 5/8 min 600
C Overall depth
min 22 13/16 min 580
*Depending on adjustment of levelling feet
PRODUCT DIMENSIONS
In mm
A Overall height*
34-36 3/8 865-925
B Overall width
23 9/16 599
C Overall depth
22 9/16 573
D Height from bottom of door to
floor*
4-6 5/16 101 - 161
* Depending on adjustment of levelling feet
SPECIFICATION GUIDE | CONTEMPORARY TALL DOUBLE DISHDRAWER™ DISHWASHER DD24DT4DX2
C
A
ISO VIEW ISO VIEW
PLUMBING AND ELECTRICAL
REAR VIEW ISO VIEW
D
B
C
B
A
PRODUCT SPECIFICATIONS
Weight 130 lbs (59 kg)
Packaged Weight 147 lbs (67 kg)
Packaged dimensions
H 36 7/8" (937mm) x W 27 9/16" (700mm) x D 28 3/8
(720mm)
Electrical
Dedicated Service (A) 10A
Supply (Hz) 60
Rated Power (W) 1200
Voltage (V) 120
Plumbing
Supply 3/8” male compression fitting or Nut 9/16"
Pressure
Min 0.03 Mpa (4.35psi), Max 1 Mpa (145psi)
Cold water connection @ 20⁰C
Service outlet at rear extends both
sides, hoses and cords can be
routed to either or both sides.
2 7/16"
3 15/16 – 6 5/16"
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 2890006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
The Series 9 Professional Tall Single DishDrawer™ Dishwasher
extends the drawer format with added height to accommodate
larger dishes and cookware. Designed for true half-load dish care,
it supports flexible placement within the kitchen while advanced
wash technology and intuitive controls help support improved
energy and water efficiency.
PRODUCTS
Series 9 Professional Tall Single DishDrawer™ Dishwasher
DD24ST4PX2
SERIES & STYLE
Series 9
Professional Proud Handle
SPECIFICATION GUIDE | PROFESSIONAL TALL SINGLE DISHDRAWER™ DISHWASHER
FEATURES
1 Tall single drawer designed for true half-load dish care.
2 Professional-style stainless steel finish suits premium kitchen
designs.
3 Extra height fits larger dishes and cookware, including full-size
dinner plates up to 12" in diameter.
4 Capacitive touch controls make everyday operation simple and
intuitive.
5 Designed for counter-height installation to support ergonomic
access.
6 Advanced wash technology supports improved energy and
water efficiency.
7 Adaptable racking accommodates a range of dishware and
cookware.
8 Versatile wash cycles and modifiers support varied dish care
needs.
9 Fan-assisted drying helps leave dishes ready to use.
10 Can be paired with other DishDrawer™ Dishwasher models or
installed on its own.
DD24ST4PX2
DD24ST4PX 2
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 2990006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

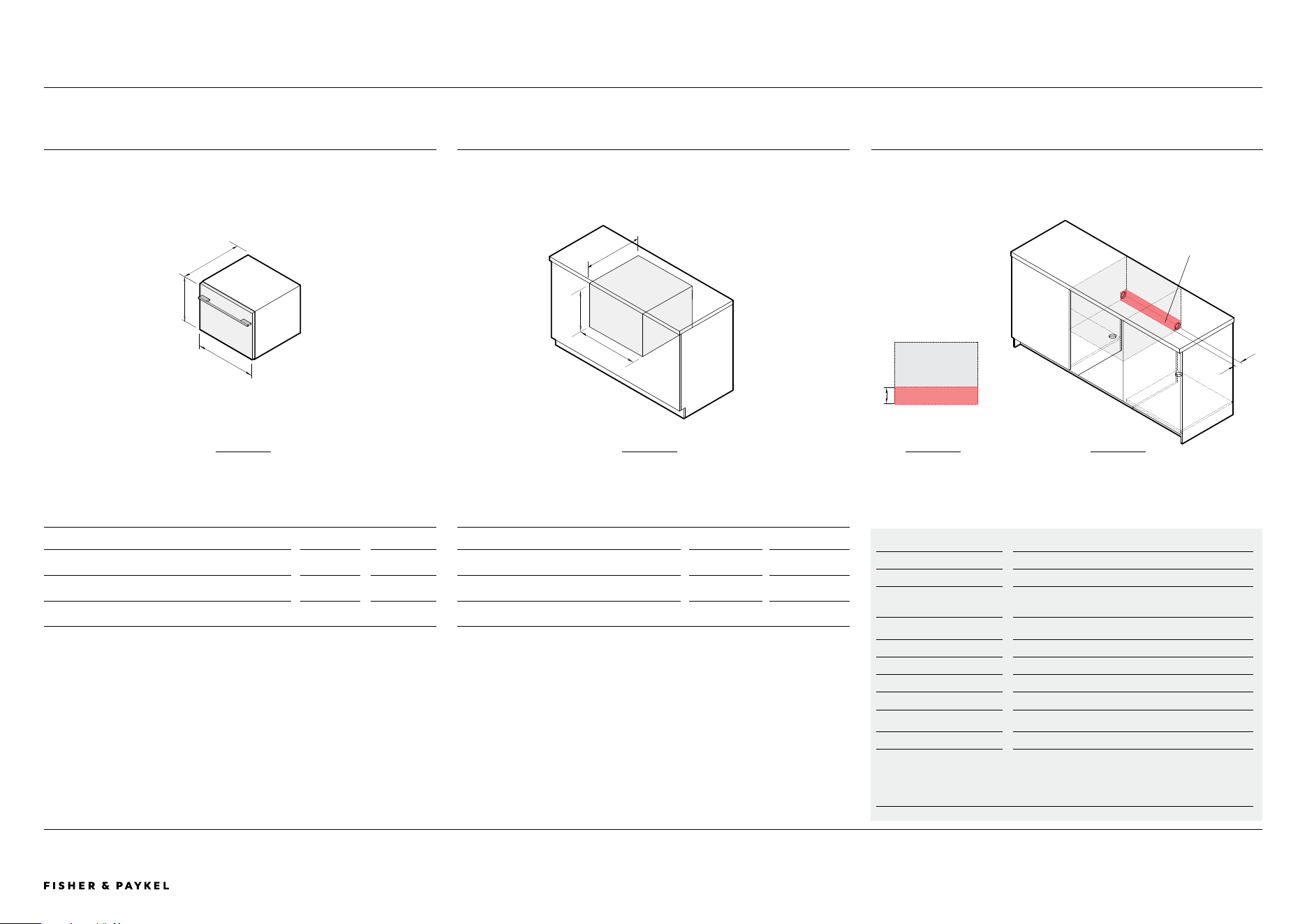

PRODUCT DIMENSIONS
In mm
A Overall height
17 7/8 454
B Overall width
23 9/16 599
C Overall depth
22 9/16 573
CAVITY DIMENSIONS
In mm
A Overall height
min 18 min 457
B Overall width
min 23 5/8 min 600
C Overall depth
min 22 5/8 min 575
SPECIFICATION GUIDE | PROFESSIONAL TALL SINGLE DISHDRAWER™ DISHWASHER DD24ST4PX2
C
B
A
C
B
A
ISO VIEW ISO VIEW
PLUMBING AND ELECTRICAL
REAR VIEW ISO VIEW
PRODUCT SPECIFICATIONS
Weight 72 lbs (33 kg)
Packaged Weight 88 lbs (40 kg)
Packaged dimensions
H 20 1/2" (520mm) x W 27 9/16" (700mm) x D 28 3/8
(720mm)
Electrical
Dedicated Service (A) 5A
Supply (Hz) 60
Rated Power (W) 600
Voltage (V) 120
Plumbing
Supply 3/8” male compression fitting or Nut 9/16".
Pressure
Min 0.03 Mpa (4.35psi), Max 1 Mpa (145psi) Cold water
connection @ 20⁰C
Service outlet at rear extends both
sides, hoses and cords can be
routed to either or both sides.
2 7/16"
3 15/16 – 6 5/16"
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 3090006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
OVERVIEW
The Series 9 Professional Tall Double DishDrawer™ Dishwasher
combines independent double drawers with added height to
accommodate larger dishes and cookware. Designed for flexible,
counter-height installation, it supports varied dish care needs while
advanced wash technology and intuitive controls help support
improved energy and water efficiency.
PRODUCTS
Series 9 Professional Tall Double DishDrawer™ Dishwasher
DD24DT4PX2
SERIES & STYLE
Series 9
Professional Proud Handle
SPECIFICATION GUIDE | PROFESSIONAL TALL DOUBLE DISHDRAWER™ DISHWASHER
FEATURES
1 Independent drawers can run separately or together to suit
varied dish loads.
2 Professional-style stainless steel finish suits premium kitchen
designs.
3 Extra height fits full-size dinner plates up to 12" in diameter.
4 Designed for counter-height installation to support ergonomic
access.
5 Capacitive touch controls make everyday operation simple and
intuitive.
6 Advanced wash technology supports improved energy and
water efficiency.
7 Adaptable racking accommodates a range of dishware and
cookware.
8 Versatile wash cycles and modifiers support varied dish care
needs.
9 Fan-assisted drying helps leave dishes ready to use.
10 SmartHQ™ connectivity offers remote control and notifications
through the app.
DD24DT4PX2
DD24DT4PX2
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2026 PAGE 3190006282A PLANNING GUIDE DISHDRAWER™ DISHWASHER VERSION A - APRIL 2026
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products
featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com

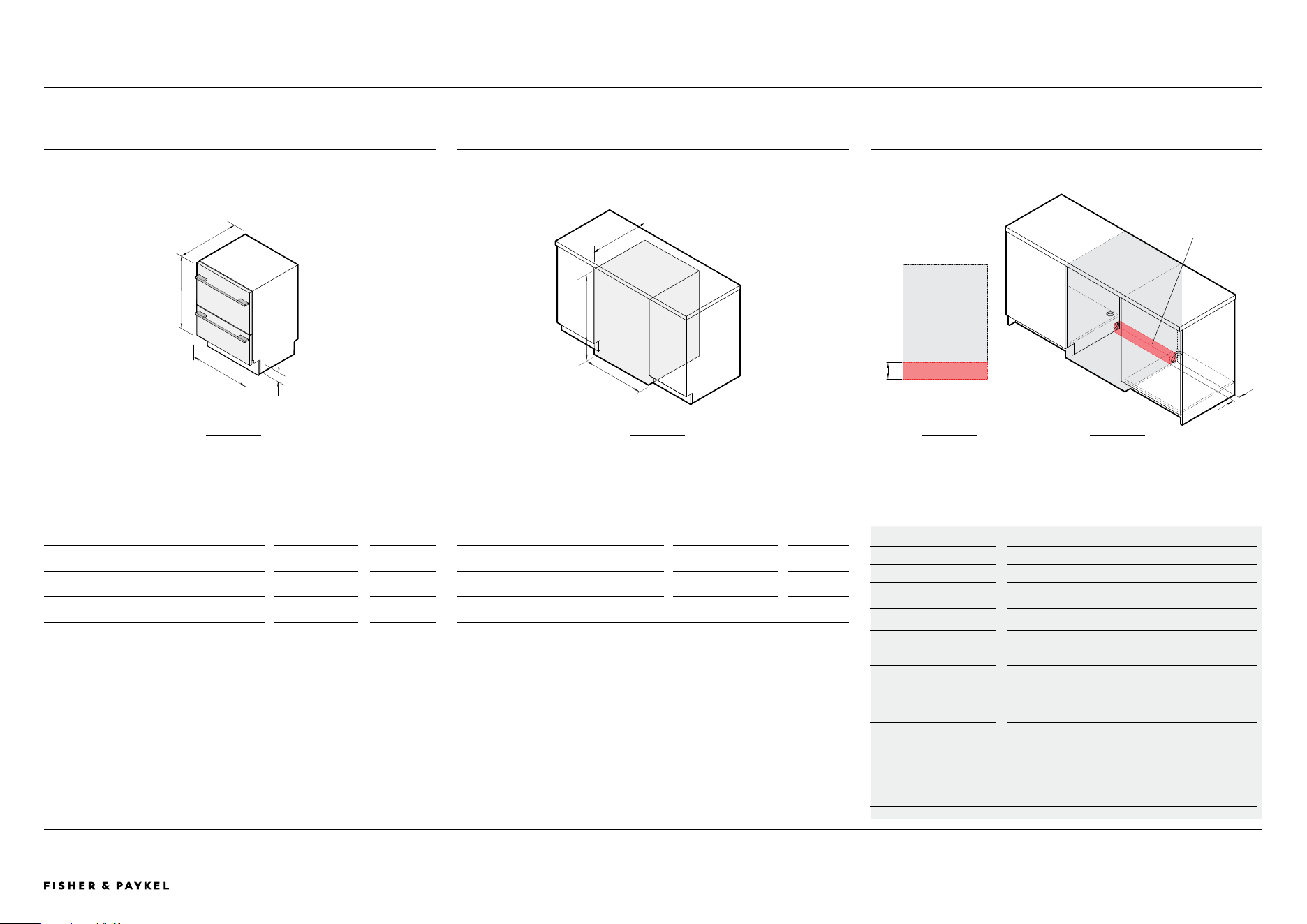

PRODUCT DIMENSIONS
In mm
A Overall height*
34-36 3/8 865-925
B Overall width
23 9/16 599
C Overall depth
22 9/16 573
D Height from bottom of door to
floor*
4-6 5/16 101 - 161
* Depending on adjustment of levelling feet
CAVITY DIMENSIONS
In mm
A Overall height*
min 34 1/8 - 36 1/2 867 - 927
B Overall width
min 23 5/8 min 600
C Overall depth
min 22 13/16 min 580
*Depending on adjustment of levelling feet
SPECIFICATION GUIDE | PROFESSIONAL TALL DOUBLE DISHDRAWER™ DISHWASHER DD24DT4PX2
C
A
ISO VIEW ISO VIEW
PLUMBING AND ELECTRICAL
REAR VIEW ISO VIEW
D
B
C
B
A
PRODUCT SPECIFICATIONS
Weight 130 lbs (59 kg)
Packaged Weight 147 lbs (67 kg)
Packaged dimensions
H 36 7/8" (937mm) x W 27 9/16" (700mm) x D 28 3/8
(720mm)
Electrical
Dedicated Service (A) 10A
Supply (Hz) 60
Rated Power (W) 1200
Voltage (V) 120
Plumbing
Supply 3/8” male compression fitting or Nut 9/16"
Pressure
Min 0.03 Mpa (4.35psi), Max 1 Mpa (145psi)
Cold water connection @ 20⁰C
Service outlet at rear extends both
sides, hoses and cords can be
routed to either or both sides.
2 7/16"
3 15/16 – 6 5/16"
<< CONTENTS
