ASSEMBLY INSTRUCTIONS
Modular Bag–n–Box
EG9977 Revised 09/23
Note: Quantities of components vary, depending on order.
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE
. SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
shelf
shelf
split sleeve
front ledge
post
slanted shelf

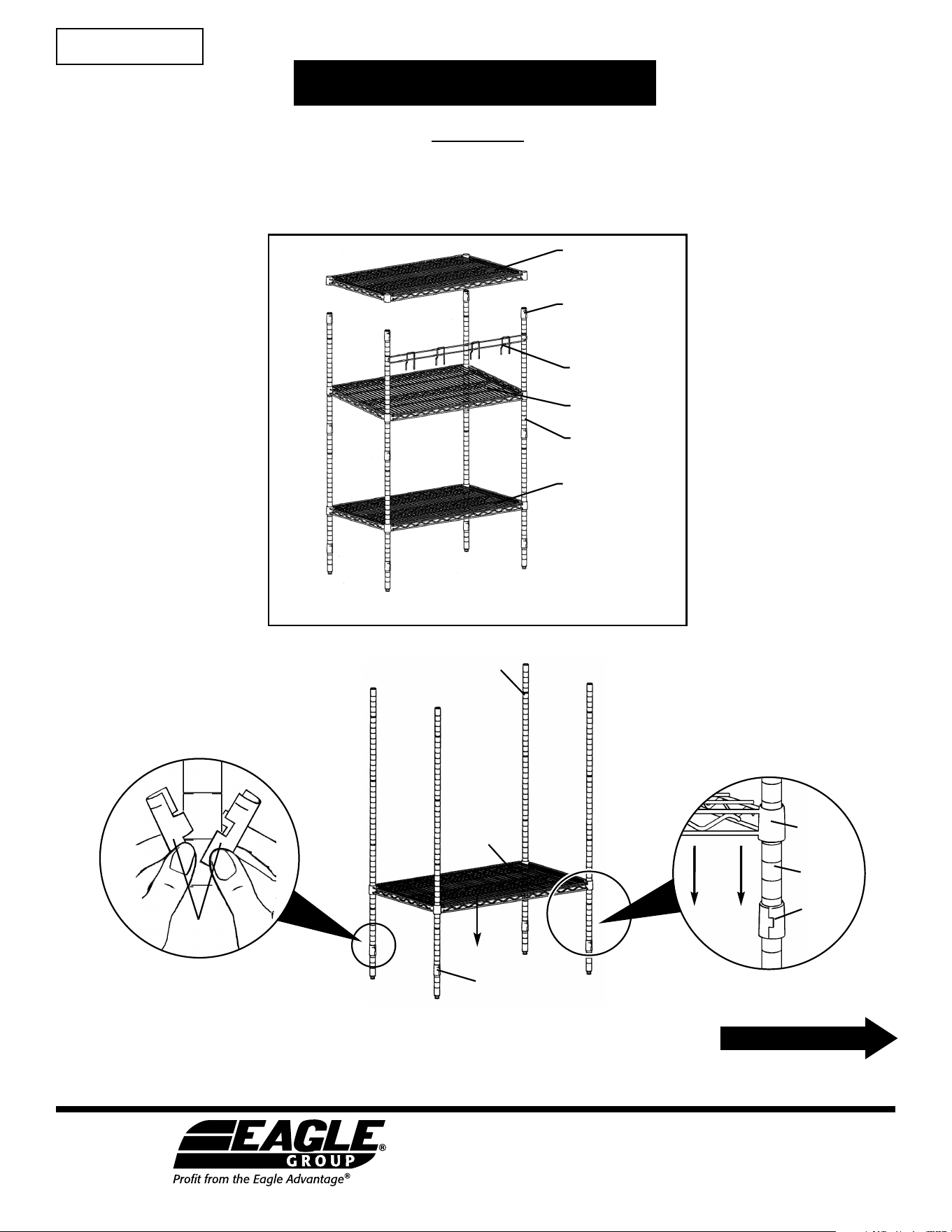

Step 2 - Assemble bottom shelf.
split
sleeves
bottom
shelf
split
sleeve
post
Step 1 - Attach split sleeves
(for bottom shelf) to posts.
Note: the wider part of the taper
goes toward the bottom.
split
sleeve
shelf
collar
post
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2023 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440
• Fax: 302/653-2065 • www.eaglegrp.com
INSTRUCTION SHEET
#A218844
(continued on back page)

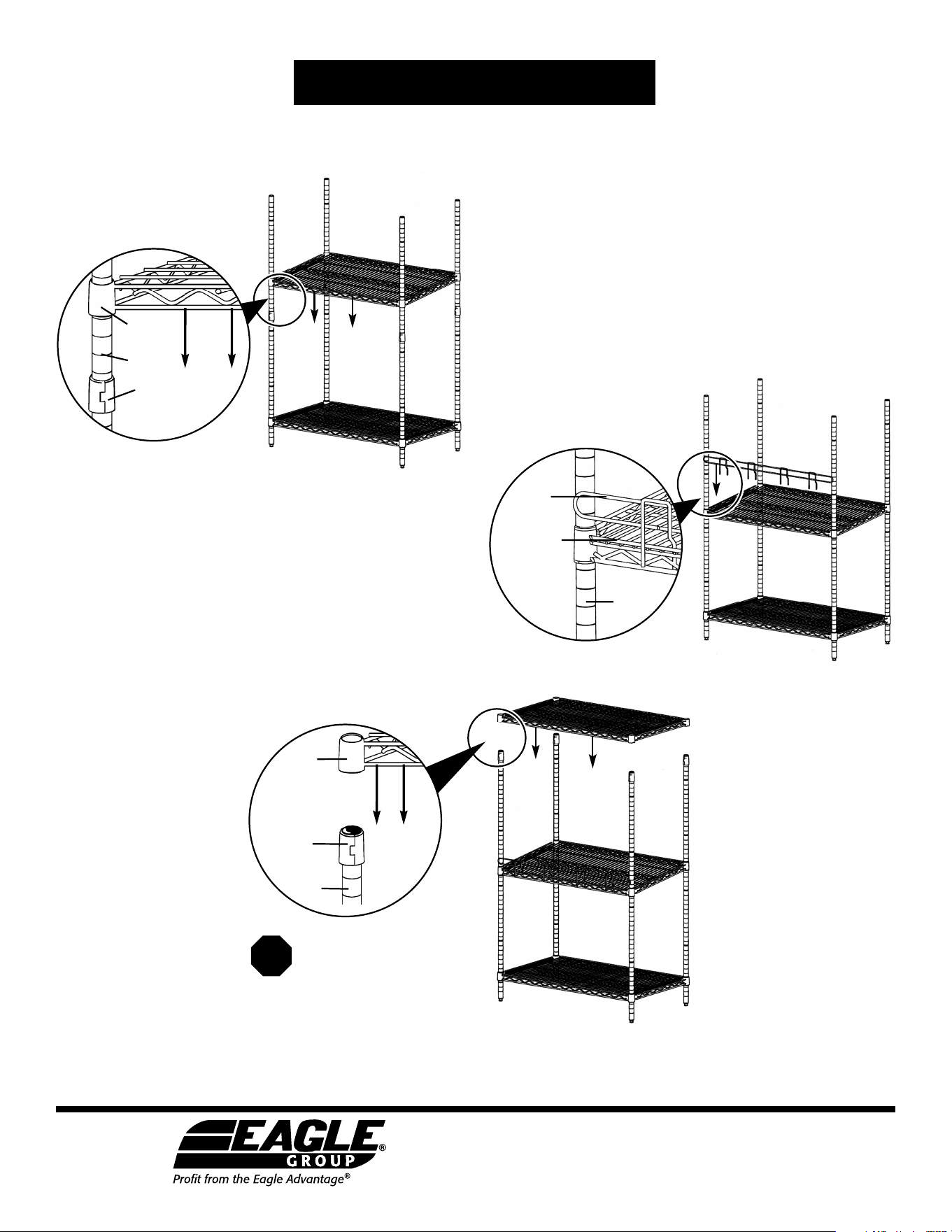

Step 3 - Assemble slanted shelf.
