Installation
Instructions
Front Mounting Faucet
Model 934GN-LF, 934-10LF, 934-6LF and 934DJ-LF
Form No. Z2464
07.17.2017
934GN-LF
2
Front Mounting Faucet Installation Instructions

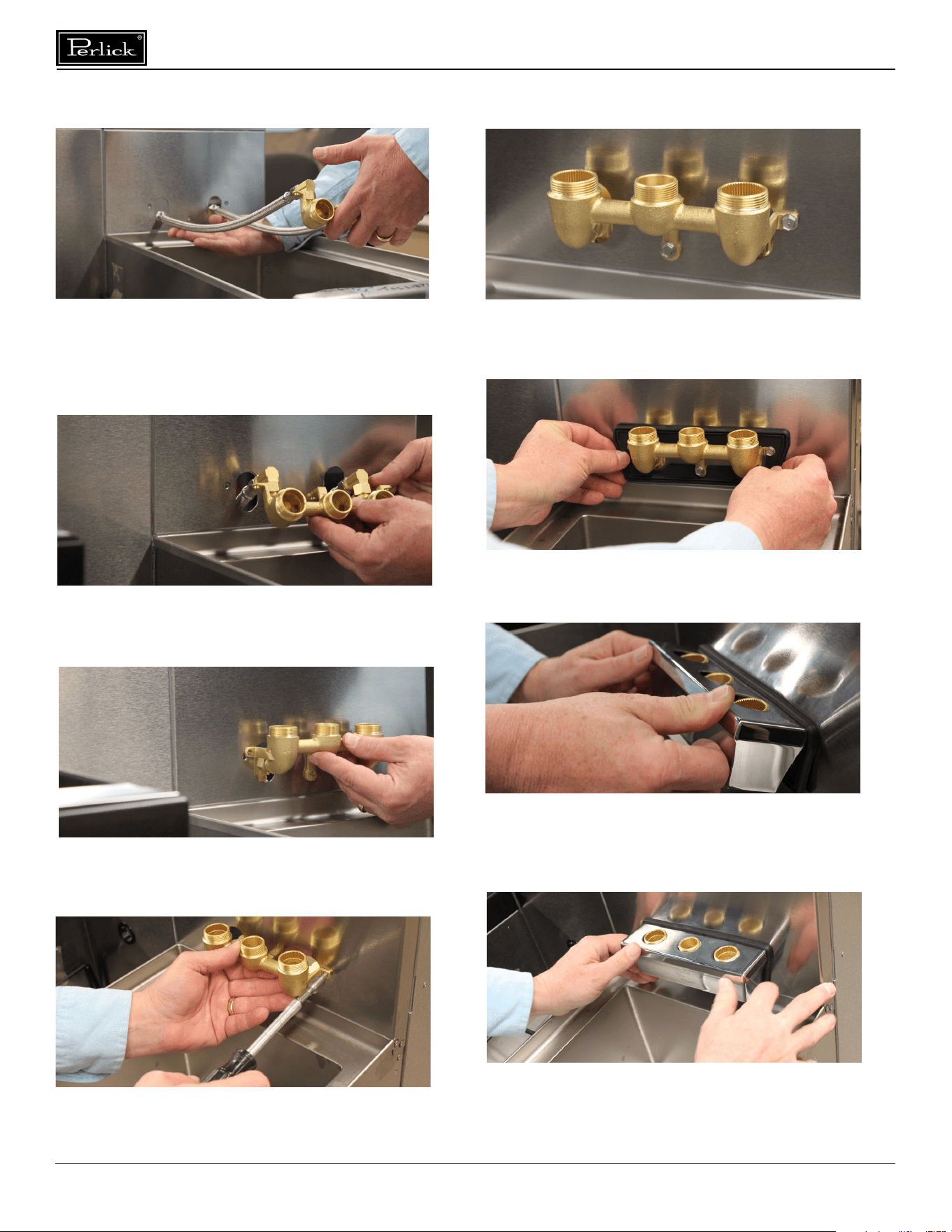

Installation of Front Mounting Faucet
4. Secure faucet body with screws.
1. Check to make sure elbows are tight to faucet
body. Attach exible supply lines to elbows. Hand
tighten and maximum 1/4 turn with wrench. Feed
supply lines through mounting holes.
2. Feed brass elbows attached to faucet body
through mounting holes.
3. Hold faucet body rmly against backsplash
aligned with screw holes as shown.
5. Completed faucet body installation.
6. Install faucet cover gasket as shown.
7. Insert top edge of cover into gasket groove. Align
holes in top cover with openings in faucet body.
8. Press faucet cover into place so the faucet cover
is fully seated within the rim in the gasket, as
shown here.
3
Front Mounting Installation Instructions

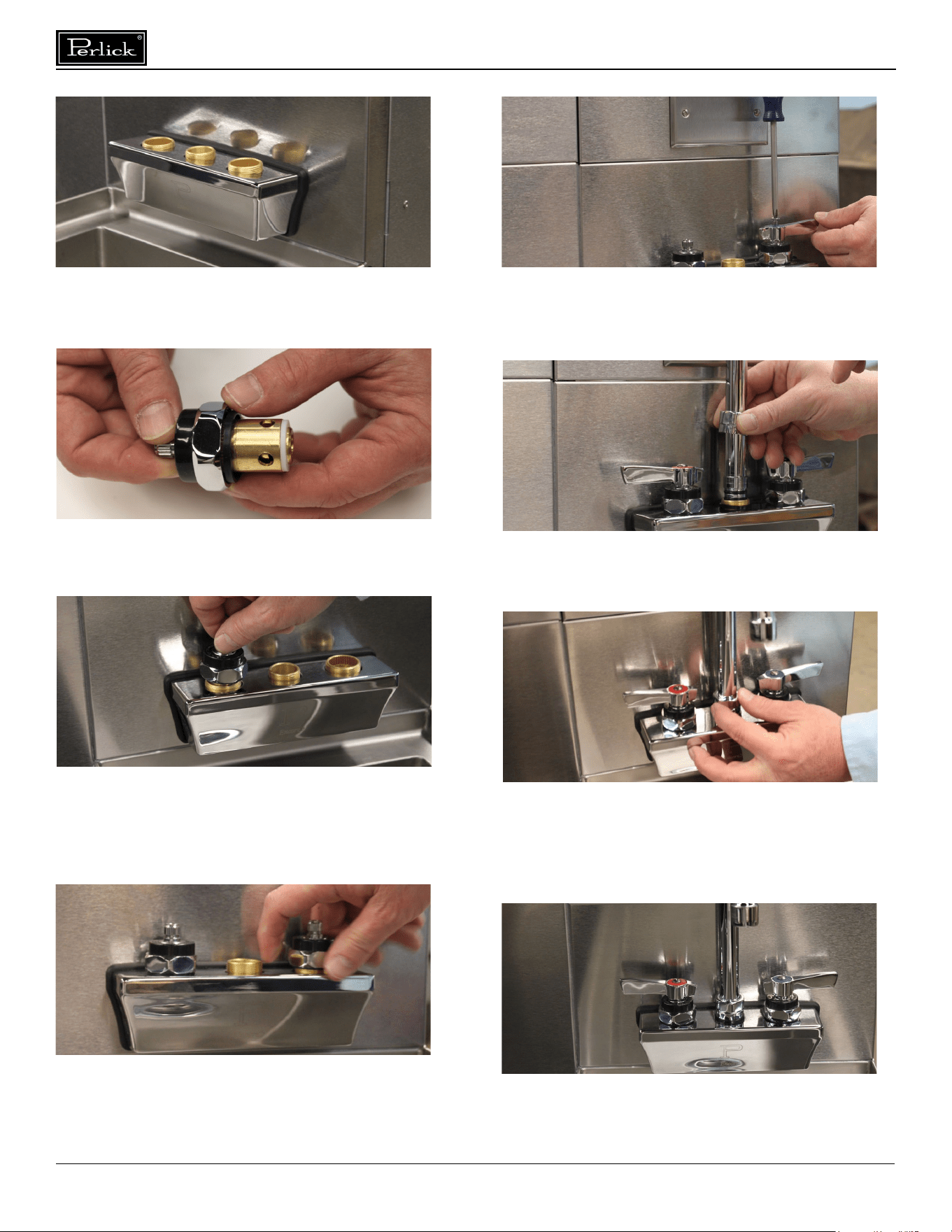

9. Completed faucet cover installation. When seated
correctly, the valve body threads protrude
through cover as shown.
10. Faucet valve assembly. Turn handle stem to close
the valve before installing. Attach handle to stem
if needed to close valve.
11. Insert hot water valve assembly in the left
opening in the faucet body. Note: Hot and cold
valves are identied with”Hot” or “Cold” stamped
in valve body. Turn chrome nut on top of valve to
tighten. Note: Torque spec is 25 ft. lbs.
12. Note valve seal must be seated in valve nut
before assembly. Insert cold water faucet valve
assembly in the right opening in the faucet body.
Turn chrome nut on top of valve to tighten.
Note: Torque spec is 25 ft. lbs.
13. Secure faucet handles to the stem of the faucet
valve assembly with screws provided. Red (Hot)
on the left, Blue (Cold) on the right.
14. Insert the bottom of the spout (goose neck spout
shown) into center opening of faucet body.
15. Secure the goose neck spout by turning the
threaded retention collar clockwise until snug.
Finish tightening with an adjustable wrench or
channel locks. Do not overtighten.
16. Stand back and admire your ne work. Well done!

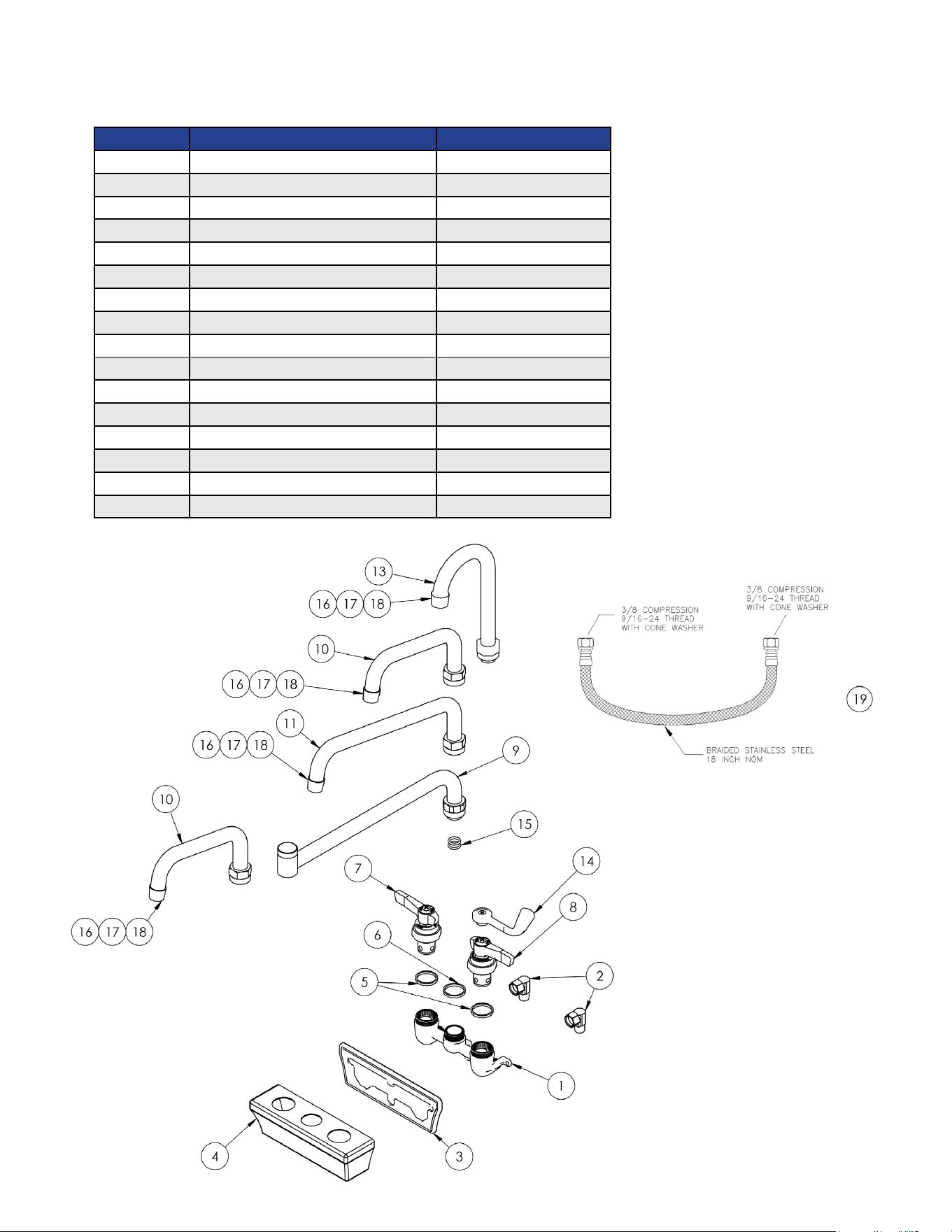

Part No. Description Items Included
69878 FAUCET 1, 2, 2, 3, 4, 5, 5, 6, 7, 8
69878EL FAUCET ELBOW 2
69878CV COLD VALVE 8, 5
69878HV HOT VALVE 7, 5
69878SK SEAL KIT 3, 5, 5, 6
69878CK COVER KIT 3, 4, 5, 5, 6
43690 SPOUT ASSEMBLY GOOSE NECK 13, 15, 15, 16
40137-6 SPOUT ASSEMBLY 6” 10, 15, 15, 16
40137-10 SPOUT ASSEMBLY 10” 11, 15, 15, 16
40138 SPOUT EXTENSION ASSEMBLY 12” 9, 15, 15, 16
43705 WRIST BLADE HANDLE SET 14
43689 “O” -RING 15
43688 AERATOR 2.2 GPM 16
43688A AERATOR 0.5 GPM 17
43688F AERATOR 1.5 GPM 18
43638A SUPPLY LINE FLEXIBLE 19
Front Mounting Faucet Parts List
