Thank you for purchasing an iBUYPOWER Trace X Case. These
instructions should help you with assembly and upgrades,
whether these cases were purchased standalone or config-
ured with an iBUYPOWER Gaming PC.
Trace X
448 mm L x 250 mm W x 501 mm
This case will fit a 360 mm radiator on the side of the case, up
to 3 x 120 mm fans on the top, 1 x 120 mm fan at the rear, and
1x 120 mm fan on the bottom.
ITX, mATX, ATX
Side: 3x 120 mm aRGB Fans (included)
Rear: 1x 120 mm aRGB Fans (included)
Top: 3x 120 mm fans
Bottom: 1x 120 mm Fan
Side: 360/240/120 mm
Rear: 120 mm
GPU Length: 415 mm
PSU Length: 230 mm
CPU Cooler Height: 165 mm
Side, Top, Bottom

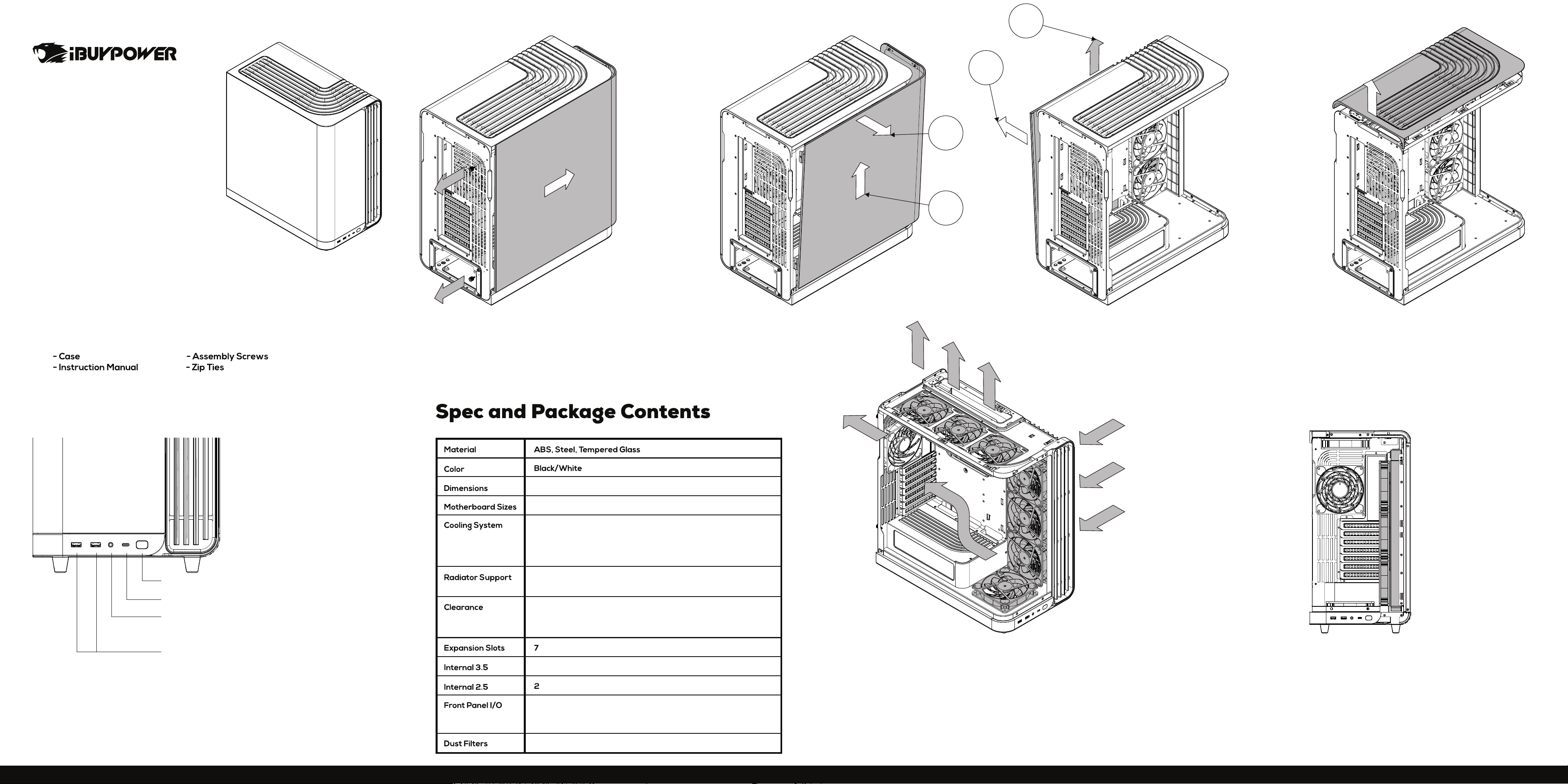

The rear metal side panel can be removed by pulling away from the PC on a tab located at the
rear of the case.
The top metal panel can be removed by pulling up on a tab located at the rear of the case.
The combined thickness of the radiator and fans should be
less than 55 mm to avoid conflict with the graphics card or
motherboard.
USB 3.2 Gen 1 Type A x 2
USB 3.2 Gen 2 Type C x 1
Audio
Removing Side Panels
Power Button
USB 3.2 Gen 2 Type - C
Combo Audio
USB 3.2 Gen 1 Type - A (x2)
2
1
2
1
Removing Other Panels
Radiator Placement Radiator Clearance
The main glass panel can be removed by unscrewing 2 thumb
screws at the rear, sliding the glass panel toward the front of
the case, tilting slightly away, then lifting out of the case.
Package Includes
1
The case comes by default with 4 aRGB fans that connect with
daisy-chained standard connectors. To power the fans there
are PWM cables that connect to the motherboard. The con-
nector provides both power and RPM signal and can be
chained together up to 4 fans on a single header.
The fans in this case feature addressable RGB LEDs. They
receive their signal from a standard addressable RGB header
which should be connected to the motherboard. Each fan can
daisy-chain to an additional fan. Plastic clips are used to keep
the connectors together during transport.
The case features 3 dust filters. The side filter is integrated
into the metal side panel. The top filter is integrated into the
top panel. The bottom filter is integrated into the bottom of
the case and cannot be removed.

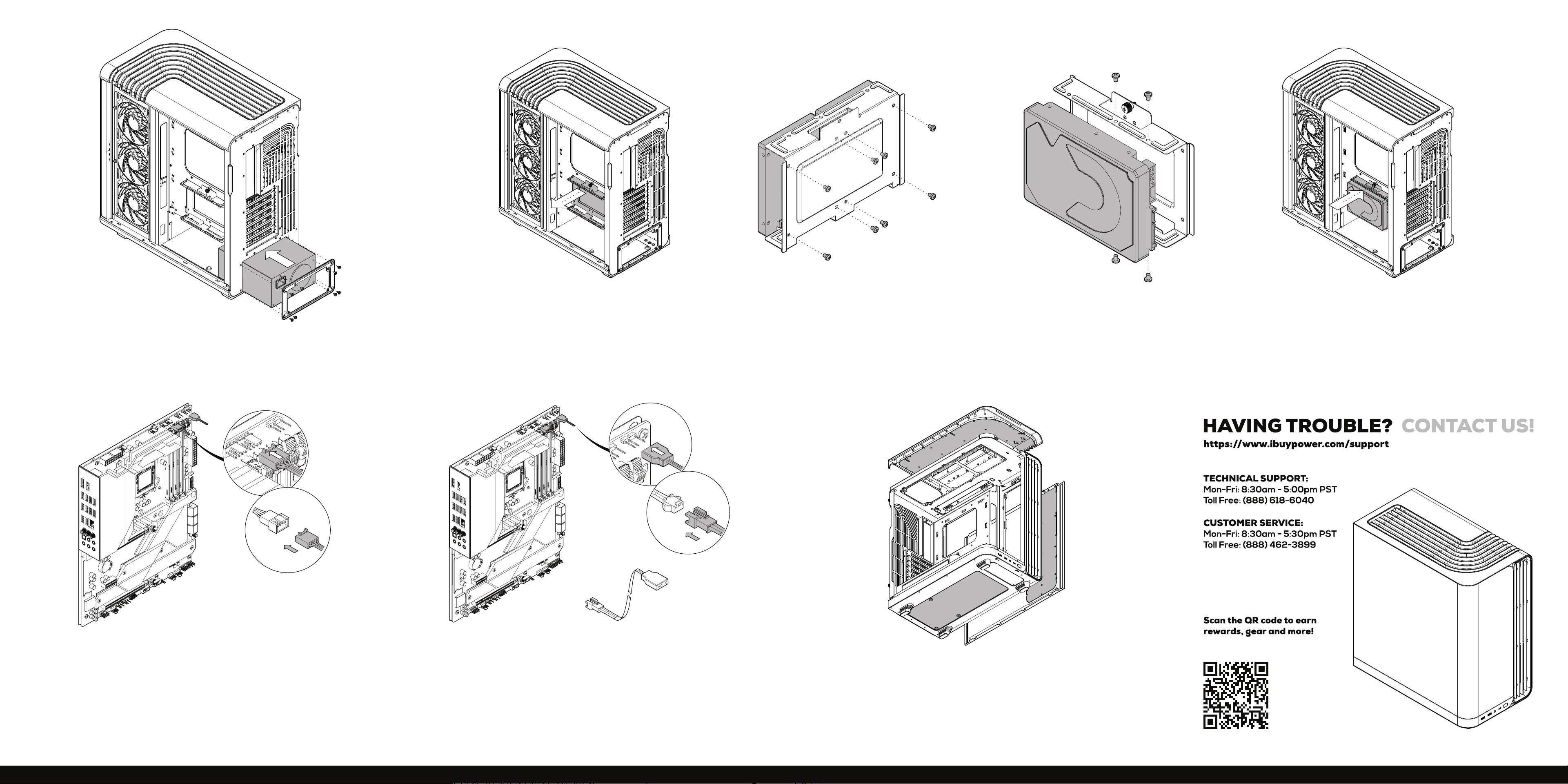

The storage tray behind the motherboard can be accessed by
removing a thumb screw at the top and pulling up and out of
the case. The 3.5" drive cannot be installed at the same time
as 2.5" drives.
2.5" drives mount inside the storage tray with connectors
facing downward.
The 3.5" drive installs inside the storage tray with connectors
facing towards the rear of the case.
Dust FiltersWiring aRGBWiring Fan
Installing PSU Installing Drives
The power supply installs through the rear of the case with a
separate bracket.
