MAG Series
Power Supply Unit
MAG A650GL
MAG A750GL PCIE5
MAG A750GL PCIE5 II
MAG A850GL PCIE5
MAG A850GL PCIE5 WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY STORY EDITION
User Guide
1
English
Contents
Specifications ..................................................................................................................2
Dimensions ......................................................................................................................3
Number of Power Connectors .......................................................................................4
Detachable Connectors ..................................................................................................5
Connectivity and Cable Lengths ...................................................................................6
PCIe 16 Pin Cable Installation ........................................................................................8
2
Specifications
850W
Voltage +5V +3.3V +12V -12V +5Vsb
Max load 20.0A 20.0A 70.5A 0.3A 2.5A
Combined power 110W 846W 3.6W 12.5W
Total Power 850W
Regulation ±3% ±3% ±3% ±10% ±3%
Ripple & Noise 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
750W
Voltage +5V +3.3V +12V -12V +5Vsb
Max load 20.0A 20.0A 62.0A 0.3A 2.5A
Combined power 110W 744W 3.6W 12.5W
Total Power 750W
Regulation ±3% ±3% ±3% ±10% ±3%
Ripple & Noise 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
650W
Voltage +5V +3.3V +12V -12V +5Vsb
Max load 20.0A 20.0A 54.0A 0.3A 2.5A
Combined power 100W 648W 3.6W 12.5W
Total Power 650W
Regulation ±3% ±3% ±3% ±10% ±3%
Ripple & Noise 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
3

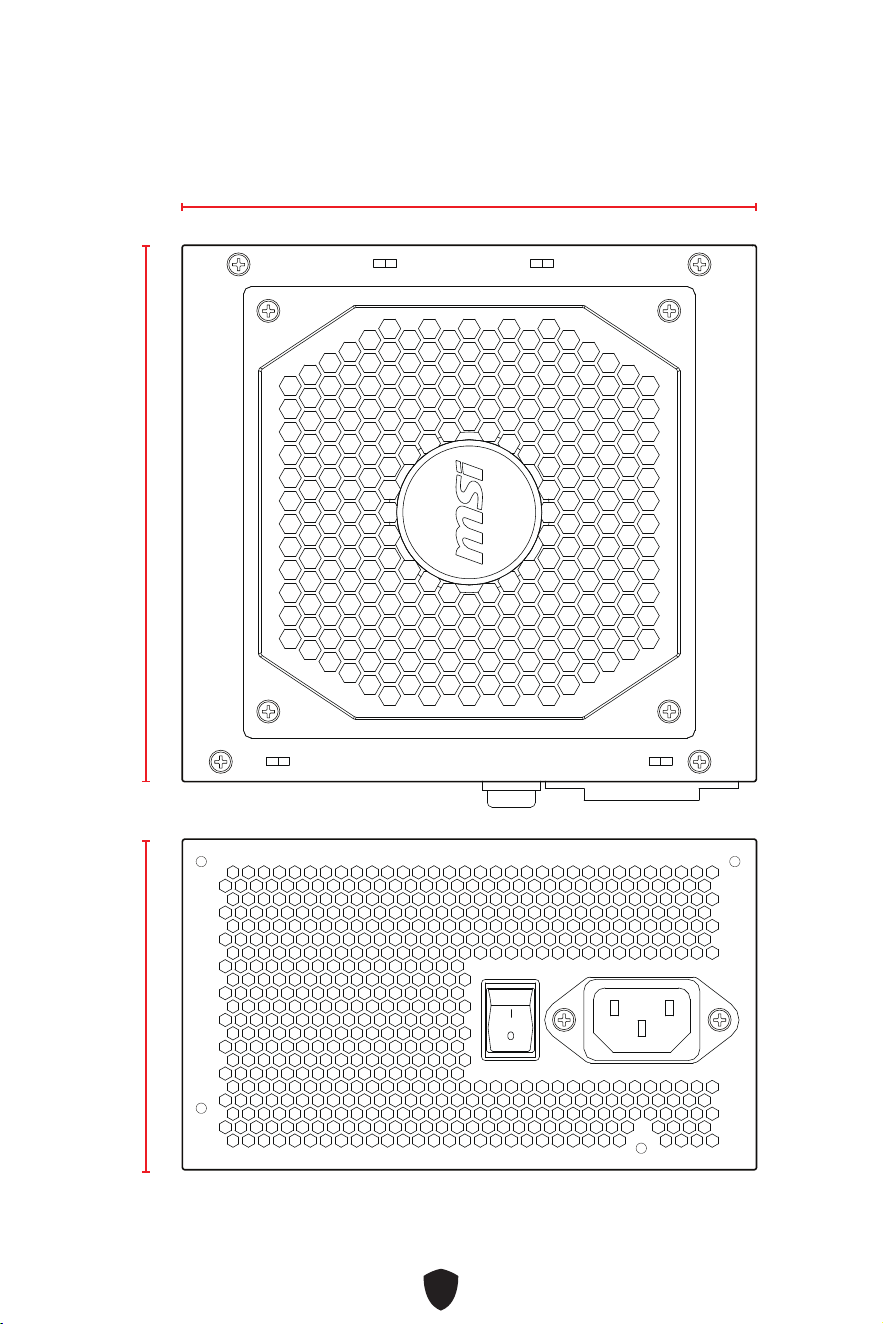

Dimensions
150mm
140mm 86mm
4
Number of Power Connectors
Power Connectors A850GL A750GL A650GL
ATX12V (Motherboard) 20+4 pin 1 1 1
PCIe 16 pin 1 1 0
EPS12V (CPU) 4+4 pin 2 2 2
PCIe (VGA) 6+2 pin 4 3 4
SATA 15 pin 8 8 6
Peripheral (PATA) 4 pin 4 4 3
FDD 4 pin 1 1 1
5

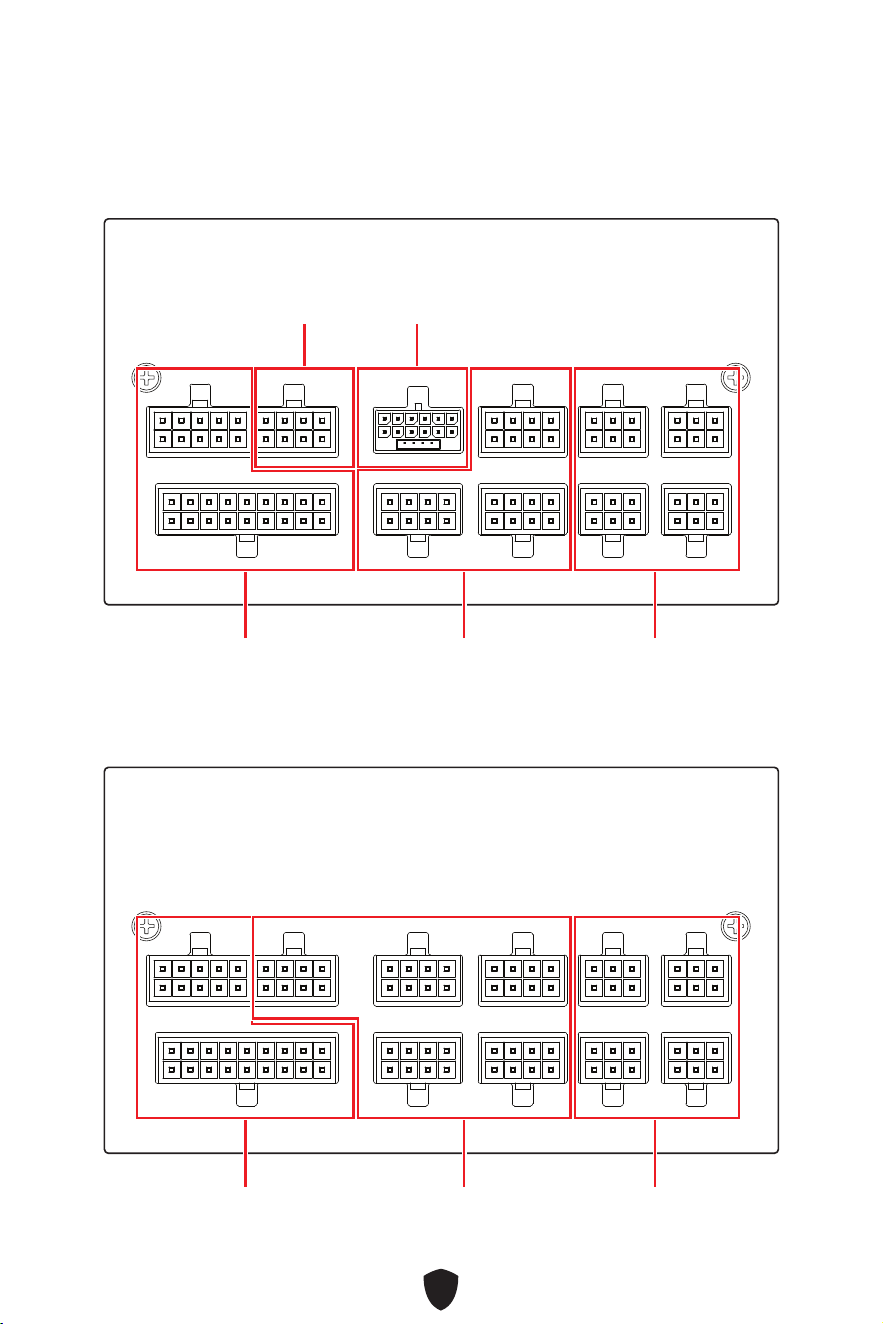

Detachable Connectors
A850GL & A750GL
CPU & PCI-E
CPU & PCI-E PCIe 16 Pin
ATX 24P SATA & MOLEX
A650GL
CPU & PCI-EATX 24P SATA & MOLEX
6

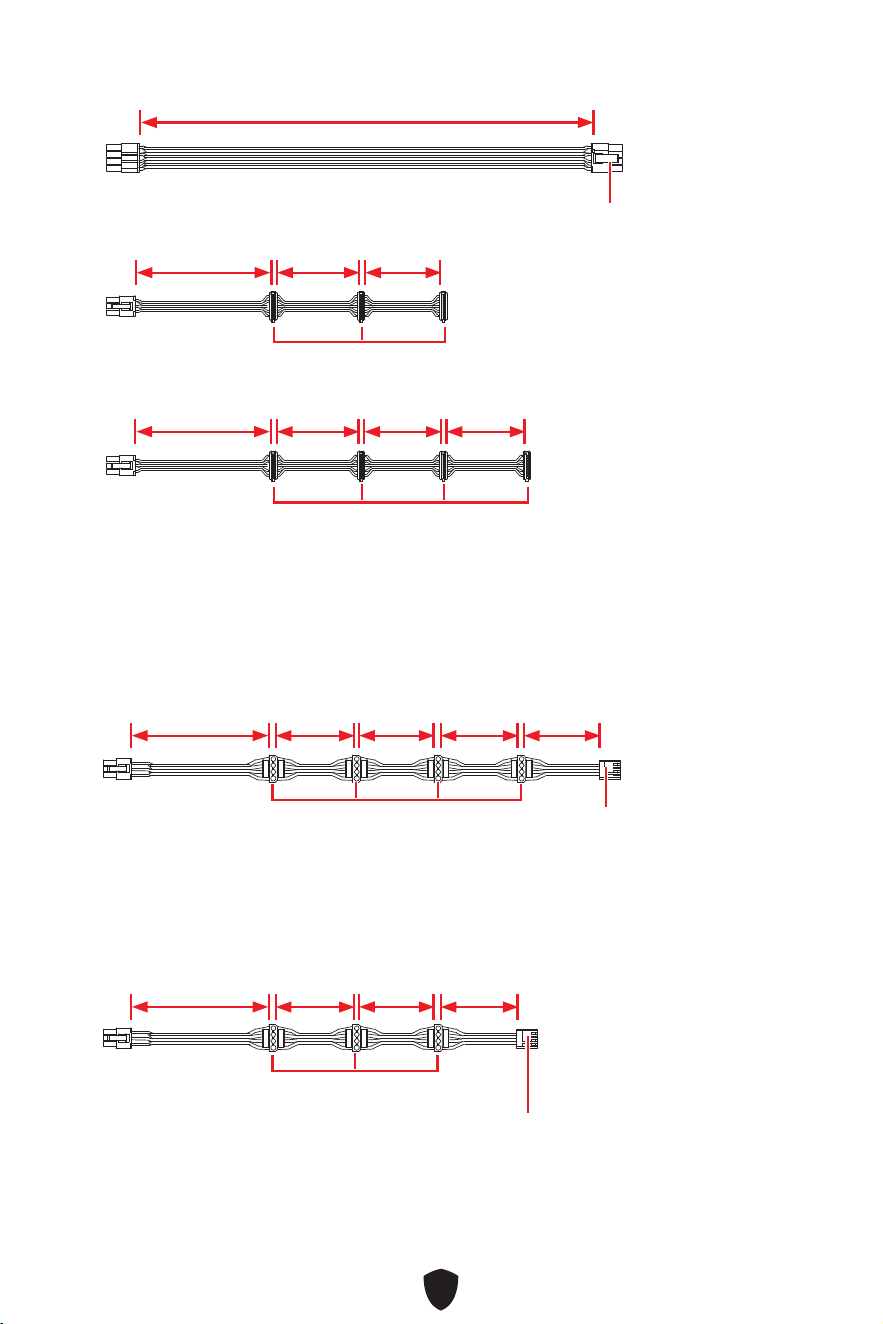

Connectivity and Cable Lengths
600mm
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A650GL
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
750mm
600mm
600mm
150mm
X 1
X 2
ATX12V
20+4 pin
CPU
4+4 pin
PCIe 16 pin
PCIe 6+2 pin
7
600mm
PCIe 6+2 pin
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
500mm
150mm 150mm
SATA 15 pin
500mm
150mm 150mm 150mm
SATA 15 pin
500mm
500mm
150mm
150mm
150mm
150mm
150mm
150mm
150mm
PATA 4 pin
PATA 4 pin
FDD 4 pin
FDD 4 pin
X 2
MAG A650GL
X 1
MAG A650GL
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5 WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY STORY
EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
8

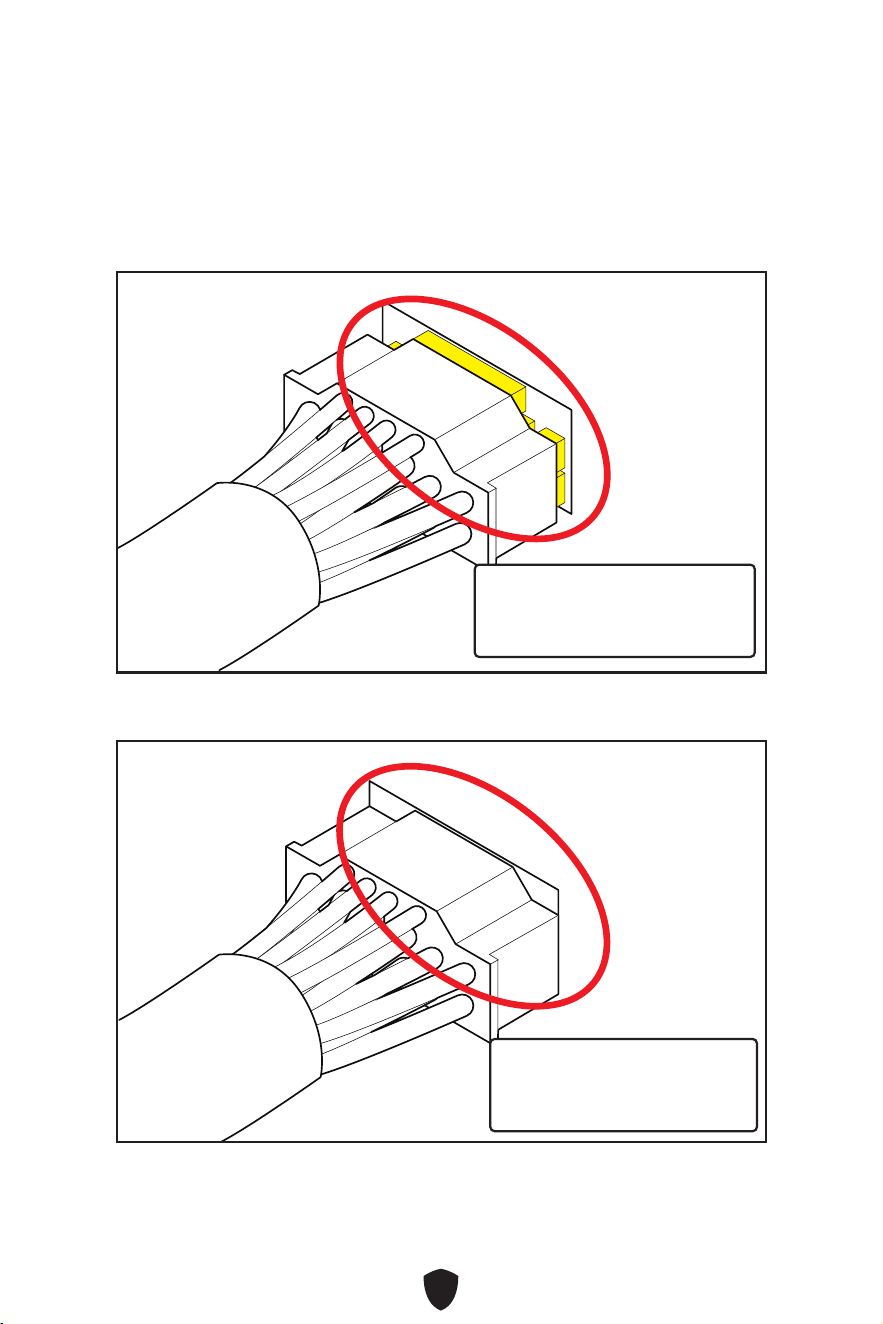

PCIe 16 Pin Cable Installation
⚠
CAUTION
Please fully insert the cable before use.
Not Fully Inserted
Fully Inserted
1
Deutsch
Inhalt
Spezifikationen ...............................................................................................................2
Abmessungen ..................................................................................................................3
Zahl der Stromanschlüsse .............................................................................................4
Lösbare Steckverbinder .................................................................................................5
Konnektivität und Kabellängen ....................................................................................6
Installation des PCIe 16 Pin Kabels ...............................................................................8
2
Spezifikationen
850W
Spannung +5V +3,3V +12V -12V +5Vsb
Max. Belastung 20,0A 20,0A 70,5A 0,3A 2,5A
Kombinierte
Leistung
110W 846W 3,6W 12,5W
Gesamtleistung 850W
Lastregelung ±3% ±3% ±3% ±10% ±3%
Restwelligkeit 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
750W
Spannung +5V +3,3V +12V -12V +5Vsb
Max. Belastung 20,0A 20,0A 62,0A 0,3A 2,5A
Kombinierte
Leistung
110W 744W 3,6W 12,5W
Gesamtleistung 750W
Lastregelung ±3% ±3% ±3% ±10% ±3%
Restwelligkeit 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
650W
Spannung +5V +3,3V +12V -12V +5Vsb
Max. Belastung 20,0A 20,0A 54,0A 0,3A 2,5A
Kombinierte
Leistung
100W 648W 3,6W 12,5W
Gesamtleistung 650W
Lastregelung ±3% ±3% ±3% ±10% ±3%
Restwelligkeit 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
3
Abmessungen
150mm
140mm 86mm
4
Zahl der Stromanschlüsse
Stromanschlüsse A850GL A750GL A650GL
ATX12V (Motherboard) 20+4 Pin 1 1 1
PCIe 16 Pin 1 1 0
EPS12V (CPU) 4+4 Pin 2 2 2
PCIe (VGA) 6+2 Pin 4 3 4
SATA 15 Pin 8 8 6
Peripheriegerät (PATA) 4 Pin 4 4 3
Diskettenlaufwerk (FDD) 4 Pin 1 1 1
5
Lösbare Steckverbinder
A850GL & A750GL
CPU & PCI-E
CPU & PCI-E PCIe 16 Pin
ATX 24P SATA & MOLEX
A650GL
CPU & PCI-EATX 24P SATA & MOLEX
6
Konnektivität und Kabellängen
600mm
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A650GL
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
750mm
600mm
600mm
150mm
X 1
X 2
ATX12V
20+4 pin
CPU
4+4 pin
PCIe 16 pin
PCIe 6+2 pin
7
600mm
PCIe 6+2 pin
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
500mm
150mm 150mm
SATA 15 pin
500mm
150mm 150mm 150mm
SATA 15 pin
500mm
500mm
150mm
150mm
150mm
150mm
150mm
150mm
150mm
PATA 4 pin
PATA 4 pin
FDD 4 pin
FDD 4 pin
X 2
MAG A650GL
X 1
MAG A650GL
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5 WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY STORY
EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
8

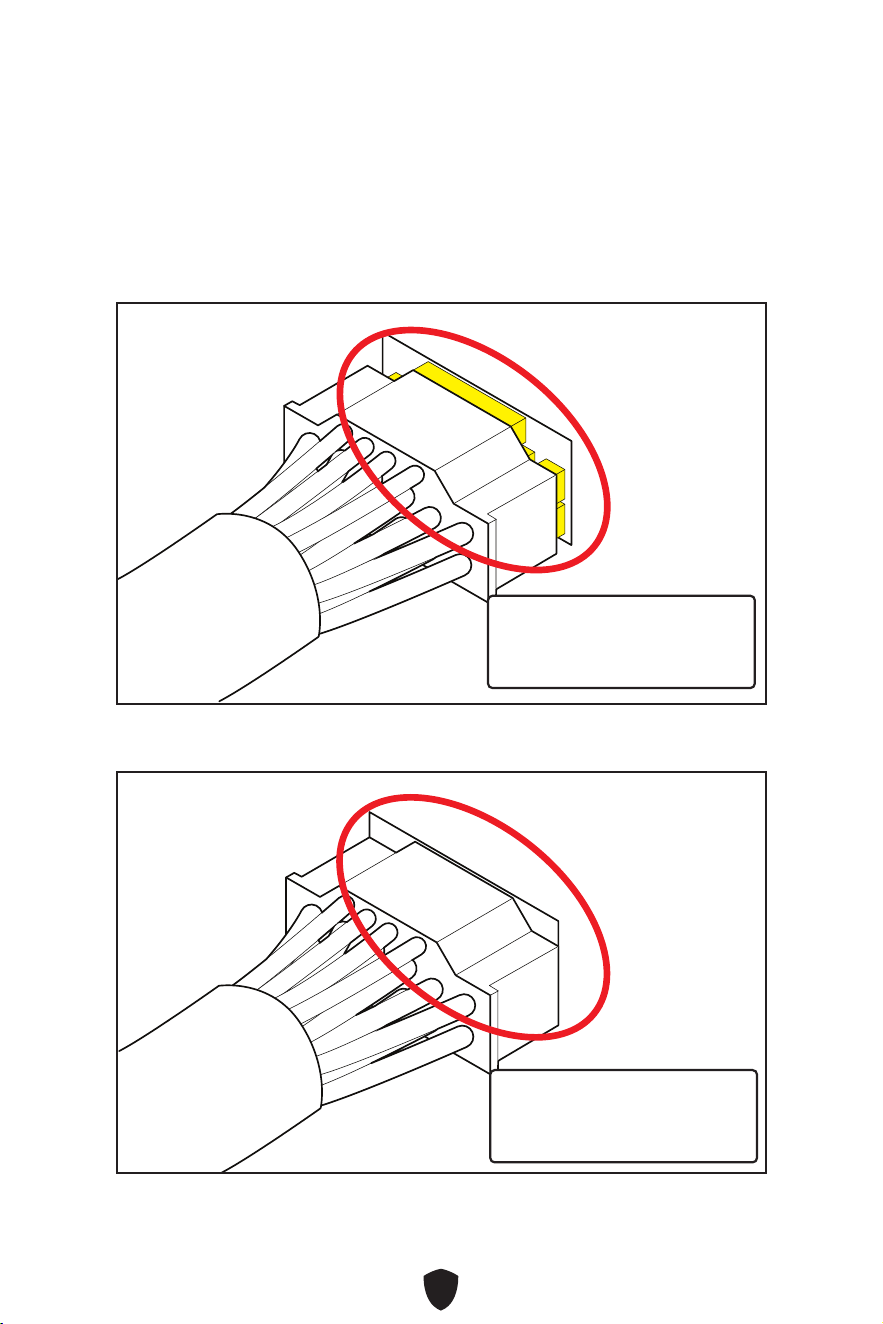

Installation des PCIe 16 Pin Kabels
⚠
ACHTUNG
Vor der ersten Verwendung führen Sie bitte das Kabel
vollständig in eine der Buchsen ein.
Nicht vollständig
eingeführt
Vollständig
eingeführt
1
Français
Contents
Caractéristiques .............................................................................................................2
Dimensions ......................................................................................................................3
Nombre de connecteurs d’alimentation .....................................................................4
Connecteurs détachables ..............................................................................................5
Connectique et longueur des câbles ...........................................................................6
Installation du câble PCIe 16 broches ...........................................................................8
2
Caractéristiques
850 W
Tension +5 V +3,3 V +12 V -12 V +5 Vsb
Charge maximale 20,0 A 20,0 A 70,5 A 0,3 A 2,5 A
Puissance combinée 110 W 846 W 3,6 W 12,5 W
Puissance totale 850 W
Régulation ±3 % ±3 % ±3 % ±10 % ±3 %
Ondulation et bruit 40 ｍVp-p 40 ｍVp-p 60 ｍVp-p 80 ｍVp-p 40 ｍVp-p
750 W
Tension +5 V +3,3 V +12 V -12 V +5 Vsb
Charge maximale 20,0 A 20,0 A 62,0 A 0,3 A 2,5 A
Puissance combinée 110 W 744 W 3,6 W 12,5 W
Puissance totale 750 W
Régulation ±3 % ±3 % ±3 % ±10 % ±3 %
Ondulation et bruit 40 ｍVp-p 40 ｍVp-p 60 ｍVp-p 80 ｍVp-p 40 ｍVp-p
650 W
Tension +5 V +3,3 V +12 V -12 V +5 Vsb
Charge maximale 20,0 A 20,0 A 54,0 A 0,3 A 2,5 A
Puissance combinée 100 W 648 W 3,6 W 12,5 W
Puissance totale 650 W
Régulation ±3 % ±3 % ±3 % ±10 % ±3 %
Ondulation et bruit 40 ｍVp-p 40 ｍVp-p 60 ｍVp-p 80 ｍVp-p 40 ｍVp-p
3
Dimensions
150 mm
140 mm 86 mm
4
Nombre de connecteurs d’alimentation
Connecteurs d’alimentation A850GL A750GL A650GL
ATX12V (Carte mère) 20+4 broches 1 1 1
PCIe 16 broches 1 1 0
EPS12V (CPU) 4+4 broches 2 2 2
PCIe (VGA) 6+2 broches 4 3 4
SATA 15 broches 8 8 6
Périphérique (PATA) 4 broches 4 4 3
FDD 4 broches 1 1 1
5
Connecteurs détachables
A850GL & A750GL
CPU & PCI-E
CPU & PCI-E PCIe 16 broches
ATX 24P SATA & MOLEX
A650GL
CPU & PCI-EATX 24P SATA & MOLEX
6
Connectique et longueur des câbles
600mm
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A650GL
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
750mm
600mm
600mm
150mm
X 1
X 2
ATX12V
20+4
broches
CPU
4+4
broches
PCIe 16 broches
PCIe 6+2 broches
7
600mm
PCIe 6+2 broches
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
500mm
150mm 150mm
SATA 15 broches
500mm
150mm 150mm 150mm
SATA 15 broches
500mm
500mm
150mm
150mm
150mm
150mm
150mm
150mm
150mm
PATA 4 broches
PATA 4 broches
FDD 4 broches
FDD 4 broches
X 2
MAG A650GL
X 1
MAG A650GL
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5 WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY STORY
EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
8

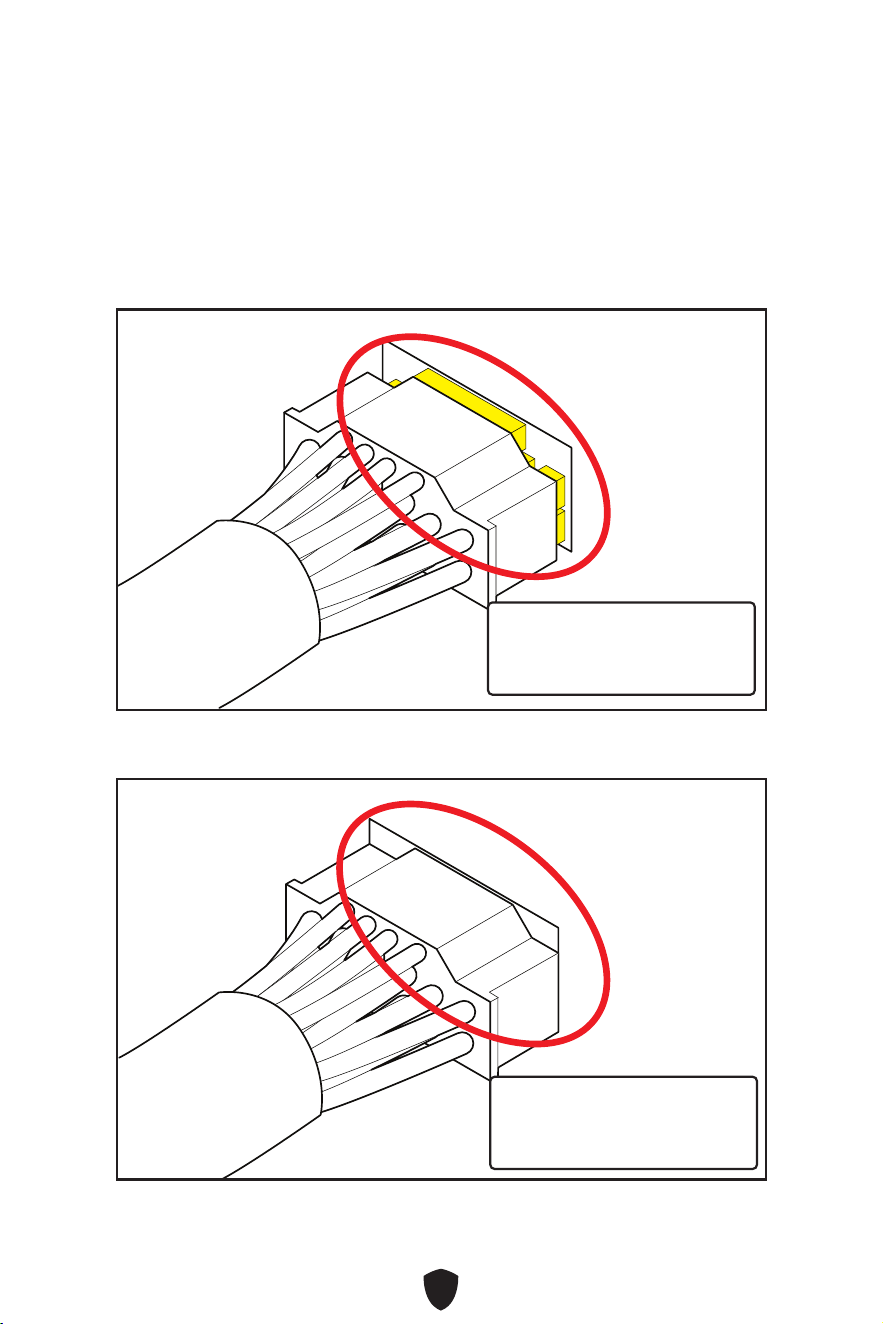

Installation du câble PCIe 16 broches
⚠
ATTENTION
Veuillez totalement insérer le câble avant de l’utiliser.
Pas totalement
inséré
Totalement
inséré
1
Русский
Содержание
Спецификация ..............................................................................................................2
Размеры ..........................................................................................................................3
Кол-во силовых соединителей ..................................................................................4
Кабельные интерфейсы ..............................................................................................5
Подключение и длина кабелей .................................................................................6
Подключение кабеля PCIe 16 Pin ...............................................................................8
2
Спецификация
850W
Напряжение +5V +3.3V +12V -12V +5Vsb
Максимальная
загрузка
20.0A 20.0A 70.5A 0.3A 2.5A
Комбинированная
мощность
110W 846W 3.6W 12.5W
Общая мощность 850W
Регулирование ±3% ±3% ±3% ±10% ±3%
Пульсации и шумы 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
750W
Напряжение +5V +3.3V +12V -12V +5Vsb
Максимальная
загрузка
20.0A 20.0A 62.0A 0.3A 2.5A
Комбинированная
мощность
110W 744W 3.6W 12.5W
Общая мощность 750W
Регулирование ±3% ±3% ±3% ±10% ±3%
Пульсации и шумы 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
650W
Напряжение +5V +3.3V +12V -12V +5Vsb
Максимальная
загрузка
20.0A 20.0A 54.0A 0.3A 2.5A
Комбинированная
мощность
100W 648W 3.6W 12.5W
Общая мощность 650W
Регулирование ±3% ±3% ±3% ±10% ±3%
Пульсации и шумы 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
3
Размеры
150mm
140mm 86mm
4
Кол-во силовых соединителей
Разъем питания A850GL A750GL A650GL
ATX12V (Материнская плата)
20+4 pin
1 1 1
PCIe 16 pin 1 1 0
EPS12V (CPU) 4+4 pin 2 2 2
PCIe (VGA) 6+2 pin 4 3 4
SATA 15 pin 8 8 6
Периферийные устройства
(PATA) 4 pin
4 4 3
FDD 4 pin 1 1 1
5
Кабельные интерфейсы
A850GL & A750GL
CPU & PCI-E
CPU & PCI-E PCIe 16 Pin
ATX 24P SATA & MOLEX
A650GL
CPU & PCI-EATX 24P SATA & MOLEX
6
Подключение и длина кабелей
600mm
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A650GL
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
750mm
600mm
600mm
150mm
X 1
X 2
ATX12V
20+4 pin
CPU
4+4 pin
PCIe 16 pin
PCIe 6+2 pin
7
600mm
PCIe 6+2 pin
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
500mm
150mm 150mm
SATA 15 pin
500mm
150mm 150mm 150mm
SATA 15 pin
500mm
500mm
150mm
150mm
150mm
150mm
150mm
150mm
150mm
PATA 4 pin
PATA 4 pin
FDD 4 pin
FDD 4 pin
X 2
MAG A650GL
X 1
MAG A650GL
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5 WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY STORY
EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
8
Подключение кабеля PCIe 16 Pin
⚠
Внимание
Перед использованием убедитесь, что кабель полностью
вставлен.
Не полностью
вставлен
Полностью
вставлен
1
日本語
目次
仕様 ...................................................................................................................................2
外形寸法 ...........................................................................................................................3
電源コネクター数 .............................................................................................................4
電源コネクター配置図 .....................................................................................................5
コネクター & ケーブル長さ ...............................................................................................6
PCIe 16ピン ケーブルの取り付け .....................................................................................8
2
仕様
850W
電圧 +5V +3.3V +12V -12V +5Vsb
最大電流 20.0A 20.0A 70.5A 0.3A 2.5A
最大電力 110W 846W 3.6W 12.5W
最大総合電力 850W
レギュレ ー ション ±3% ±3% ±3% ±10% ±3%
リップ ルノイズ 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
750W
電圧 +5V +3.3V +12V -12V +5Vsb
最大電流 20.0A 20.0A 62.0A 0.3A 2.5A
最大電力 110W 744W 3.6W 12.5W
最大総合電力 750W
レギュレ ー ション ±3% ±3% ±3% ±10% ±3%
リップ ルノイズ 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
650W
電圧 +5V +3.3V +12V -12V +5Vsb
最大電流 20.0A 20.0A 54.0A 0.3A 2.5A
最大電力 100W 648W 3.6W 12.5W
最大総合電力 650W
レギュレ ー ション ±3% ±3% ±3% ±10% ±3%
リップ ルノイズ 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
3
外形寸法
150mm
140mm 86mm
4
電源コネクター数
電源コネクター A850GL A750GL A650GL
ATX12V (マザーボード) 20+4ピン 1 1 1
PCIe 16ピン 1 1 0
EPS12V (CPU) 4+4ピン 2 2 2
PCIe (VGA) 6+2ピン 4 3 4
SATA 15ピン 8 8 6
ペリフェラル (PATA) 4ピン 4 4 3
FDD 4ピン 1 1 1
5
電源コネクター配置図
A850GL & A750GL
CPU & PCI-E
CPU & PCI-E PCIe
16ピン
ATX 24P SATA & MOLEX
A650GL
CPU & PCI-EATX 24P SATA & MOLEX
6
コネクター & ケーブル長さ
600mm
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A650GL
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
750mm
600mm
600mm
150mm
X 1
X 2
ATX12V
20+4ピン
CPU
4+4ピン
PCIe 16ピン
PCIe 6+2ピン
7
600mm
PCIe 6+2ピン
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
500mm
150mm 150mm
SATA 15ピン
500mm
150mm 150mm 150mm
SATA 15ピン
500mm
500mm
150mm
150mm
150mm
150mm
150mm
150mm
150mm
PATA 4ピン
PATA 4ピン
FDD 4ピン
FDD 4ピン
X 2
MAG A650GL
X 1
MAG A650GL
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5 WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY STORY
EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
8
PCIe 16ピン ケーブルの取り付け
⚠
警告
ケーブルを奥までしっかりと挿し込んでください。
挿し込みが不完全な
状態
奥までしっかりと
挿し込んだ状態
1
한국어
목차
사양 ...................................................................................................................................2
치수 ...................................................................................................................................3
전원 커넥터 수 ...................................................................................................................4
탈착식 커넥터 ....................................................................................................................5
연결 및 케이블 길이 ...........................................................................................................6
PCIe 16 핀케이블 설치 .......................................................................................................8
2
사양
850W
전압 +5V +3.3V +12V -12V +5Vsb
최대 하중 20.0A 20.0A 70.5A 0.3A 2.5A
결합 전원 110W 846W 3.6W 12.5W
토탈 전원 850W
규격 ±3% ±3% ±3% ±10% ±3%
리플 & 노이즈 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
750W
전압 +5V +3.3V +12V -12V +5Vsb
최대 하중 20.0A 20.0A 62.0A 0.3A 2.5A
결합 전원 110W 744W 3.6W 12.5W
토탈 전원 750W
규격 ±3% ±3% ±3% ±10% ±3%
리플 & 노이즈 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
650W
전압 +5V +3.3V +12V -12V +5Vsb
최대 하중 20.0A 20.0A 54.0A 0.3A 2.5A
결합 전원 100W 648W 3.6W 12.5W
토탈 전원 650W
규격 ±3% ±3% ±3% ±10% ±3%
리플 & 노이즈 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
3
치수
150mm
140mm 86mm
4
전원 커넥터 수
전원 커넥터 A850GL A750GL A650GL
ATX12V (메인보드) 20+4 핀 1 1 1
PCIe 16 핀 1 1 0
EPS12V (CPU) 4+4 핀 2 2 2
PCIe (VGA) 6+2 핀 4 3 4
SATA 15 핀 8 8 6
주변기기(PATA) 4핀 4 4 3
FDD 4 핀 1 1 1
5
탈착식 커넥터
A850GL & A750GL
CPU & PCI-E
CPU & PCI-E PCIe 16
핀
ATX 24P SATA & MOLEX
A650GL
CPU & PCI-EATX 24P SATA & MOLEX
6
연결 및 케이블 길이
600mm
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A650GL
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
750mm
600mm
600mm
150mm
X 1
X 2
ATX12V
20+4 핀
CPU
4+4 핀
PCIe 16 핀
PCIe 6+2 핀
7
600mm
PCIe 6+2 핀
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
500mm
150mm 150mm
SATA 15 핀
500mm
150mm 150mm 150mm
SATA 15 핀
500mm
500mm
150mm
150mm
150mm
150mm
150mm
150mm
150mm
PATA 4 핀
PATA 4 핀
FDD 4 핀
FDD 4 핀
X 2
MAG A650GL
X 1
MAG A650GL
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5 WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY STORY
EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
8
PCIe 16 핀케이블 설치
⚠
주의
사용하기 전에 케이블을 완전히 삽입하십시오.
완전히 삽입되지 않음
완전히 삽입됨
1
繁體中文
目錄
規格 ...................................................................................................................................2
尺寸 ...................................................................................................................................3
電源接頭數量 ...................................................................................................................4
可拆卸接頭 .......................................................................................................................5
連接頭和電纜長度 ............................................................................................................6
PCIe 16 針線材安裝..........................................................................................................7
2
規格
850W
電壓 +5V +3.3V +12V -12V +5Vsb
最大負載 20.0A 20.0A 70.5A 0.3A 2.5A
結合功率 110W 846W 3.6W 12.5W
總功率 850W
調節 ±3% ±3% ±3% ±10% ±3%
紋波雜訊 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
750W
電壓 +5V +3.3V +12V -12V +5Vsb
最大負載 20.0A 20.0A 62.0A 0.3A 2.5A
結合功率 110W 744W 3.6W 12.5W
總功率 750W
調節 ±3% ±3% ±3% ±10% ±3%
紋波雜訊 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
650W
電壓 +5V +3.3V +12V -12V +5Vsb
最大負載 20.0A 20.0A 54.0A 0.3A 2.5A
結合功率 100W 648W 3.6W 12.5W
總功率 650W
調節 ±3% ±3% ±3% ±10% ±3%
紋波雜訊 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
3
尺寸
150mm
140mm 86mm
4
電源接頭數量
電源接頭 A850GL A750GL A650GL
ATX12V (主機板) 20+4 針 1 1 1
PCIe 16 針 1 1 0
EPS12V (CPU) 4+4 針 2 2 2
PCIe (VGA) 6+2 針 4 3 4
SATA 15 針 8 8 6
週邊設備 (PATA) 4 針 4 4 3
FDD 4 針 1 1 1
5
可拆卸接頭
A850GL & A750GL
CPU & PCI-E
CPU & PCI-E PCIe
16 針
ATX 24P SATA & MOLEX
A650GL
CPU & PCI-EATX 24P SATA & MOLEX
6
連接頭和電纜長度
600mm
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A650GL
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
750mm
600mm
600mm
150mm
X 1
X 2
ATX12V
20+4 針
CPU
4+4 針
PCIe 16 針
PCIe 6+2 針
7
600mm
PCIe 6+2 針
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
500mm
150mm 150mm
SATA 15 針
500mm
150mm 150mm 150mm
SATA 15 針
500mm
500mm
150mm
150mm
150mm
150mm
150mm
150mm
150mm
PATA 4 針
PATA 4 針
FDD 4 針
FDD 4 針
X 2
MAG A650GL
X 1
MAG A650GL
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5 WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY STORY
EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
8
PCIe 16 針線材安裝
⚠
注意
使用前請確實插好插頭。
未完全插入
完全插入
1
简体中文
目录
产品规格 ...........................................................................................................................2
尺寸 ...................................................................................................................................3
电源接口数量 ...................................................................................................................4
可拆卸接口 .......................................................................................................................5
连接口和电缆的长度 ........................................................................................................6
PCIe 16 针电缆安装..........................................................................................................8
2
产品规格
850W
电压 +5V +3.3V +12V -12V +5Vsb
最大负载 20.0A 20.0A 70.5A 0.3A 2.5A
组合功率 110W 846W 3.6W 12.5W
总功率 850W
调节 ±3% ±3% ±3% ±10% ±3%
波纹噪声 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
750W
电压 +5V +3.3V +12V -12V +5Vsb
最大负载 20.0A 20.0A 62.0A 0.3A 2.5A
组合功率 110W 744W 3.6W 12.5W
总功率 750W
调节 ±3% ±3% ±3% ±10% ±3%
波纹噪声 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
650W
电压 +5V +3.3V +12V -12V +5Vsb
最大负载 20.0A 20.0A 54.0A 0.3A 2.5A
组合功率 100W 648W 3.6W 12.5W
总功率 650W
调节 ±3% ±3% ±3% ±10% ±3%
波纹噪声 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
3
尺寸
150mm
140mm 86mm
4
电源接口数量
电源接口 A850GL A750GL A650GL
ATX12V (主板) 20+4 针 1 1 1
PCIe 16 针 1 1 0
EPS12V (CPU) 4+4 针 2 2 2
PCIe (VGA) 6+2 针 4 3 4
SATA 15 针 8 8 6
外围设备 (PATA) 4 针 4 4 3
FDD 4 针 1 1 1
5
可拆卸接口
A850GL & A750GL
CPU & PCI-E
CPU & PCI-E PCIe 16
针
ATX 24P SATA & MOLEX
A650GL
CPU & PCI-EATX 24P SATA & MOLEX
6
连接口和电缆的长度
600mm
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A650GL
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
750mm
600mm
600mm
150mm
X 1
X 2
ATX12V
20+4 针
CPU
4+4 针
PCIe 16 针
PCIe 6+2 针
7
600mm
PCIe 6+2 针
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
500mm
150mm 150mm
SATA 15 针
500mm
150mm 150mm 150mm
SATA 15 针
500mm
500mm
150mm
150mm
150mm
150mm
150mm
150mm
150mm
PATA 4 针
PATA 4 针
FDD 4 针
FDD 4 针
X 2
MAG A650GL
X 1
MAG A650GL
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5 WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY STORY
EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
8
PCIe 16 针电缆安装
⚠
警告
使用前请确认将电缆完全插入。
未完全插入
完全插入
1
Italiano
Contenuti
Specifiche ............................................................................................................................. 2
Dimensioni ........................................................................................................................... 3
Numero di connettori di alimentazione......................................................................... 4
Connettori rimovibili .......................................................................................................... 5
Connettività e lunghezza dei cavi .................................................................................... 6
Installazione del cavo PCIe a 16 pin ................................................................................ 8
2
Specifiche
850 W
Tensione +5 V +3,3 V +12 V -12 V +5 Vsb
Carico max. 20,0 A 20,0 A 70,5 A 0,3 A 2,5 A
Potenza
combinata
110 W 846 W 3,6 W 12,5 W
Potenza totale 850 W
Regolazione ±3% ±3% ±3% ±10% ±3%
Ondulazione e
rumore
40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
750 W
Tensione +5 V +3,3 V +12 V -12 V +5 Vsb
Carico max. 20,0 A 20,0 A 62,0 A 0,3 A 2,5 A
Potenza
combinata
110 W 744 W 3,6 W 12,5 W
Potenza totale 750 W
Regolazione ±3% ±3% ±3% ±10% ±3%
Ondulazione e
rumore
40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
650 W
Tensione +5 V +3,3 V +12 V -12 V +5 Vsb
Carico max. 20,0 A 20,0 A 54,0 A 0,3 A 2,5 A
Potenza
combinata
100 W 648 W 3,6 W 12,5 W
Potenza totale 650 W
Regolazione ±3% ±3% ±3% ±10% ±3%
Ondulazione e
rumore
40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
3
Dimensioni
150 mm
140 mm 86 mm
4
Numero di connettori di alimentazione
Connettori di alimentazione A850GL A750GL A650GL
ATX12V (scheda madre) 20+4 pin 1 1 1
PCIe 16 pin 1 1 0
EPS12V (CPU) 4+4 pin 2 2 2
PCIe (VGA) 6+2 pin 4 3 4
SATA 15 pin 8 8 6
Periferica (PATA) 4 pin 4 4 3
FDD 4 pin 1 1 1
5
Connettori rimovibili
A850GL & A750GL
CPU & PCI-E
CPU & PCI-E PCIe 16 pin
ATX 24P SATA & MOLEX
A650GL
CPU & PCI-EATX 24P SATA & MOLEX
6
Connettività e lunghezza dei cavi
600mm
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A650GL
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
750mm
600mm
600mm
150mm
X 1
X 2
ATX12V
20+4 pin
CPU
4+4 pin
PCIe 16 pin
PCIe 6+2 pin
7
600mm
PCIe 6+2 pin
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
500mm
150mm 150mm
SATA 15 pin
500mm
150mm 150mm 150mm
SATA 15 pin
500mm
500mm
150mm
150mm
150mm
150mm
150mm
150mm
150mm
PATA 4 pin
PATA 4 pin
FDD 4 pin
FDD 4 pin
X 2
MAG A650GL
X 1
MAG A650GL
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5 WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY STORY
EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
8
Installazione del cavo PCIe a 16 pin
⚠
ATTENZIONE
Inserire completamente il cavo prima dell’uso.
Non completamente
inserito
Completamente
inserito
1
Język polski
Spis treści
Dane techniczne ................................................................................................................. 2
Wymiary ............................................................................................................................... 3
Liczba złączy zasilania ........................................................................................................ 4
Odłączane złącza ................................................................................................................ 5
Połączenia i długość kabli ................................................................................................. 6
Podłączanie 16-pinowego kabla PCIe ............................................................................ 8
2
Dane techniczne
850W
Napięcie +5V +3,3V +12V -12V +5Vsb
Maks. obciążenie 20,0A 20,0A 70,5A 0,3A 2,5A
Łączna moc 110W 846W 3,6W 12,5W
Całkowita moc 850W
Regulacja ±3% ±3% ±3% ±10% ±3%
Tętnienia i szumy 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
750W
Napięcie +5V +3,3V +12V -12V +5Vsb
Maks. obciążenie 20,0A 20,0A 62,0A 0,3A 2,5A
Łączna moc 110W 744W 3,6W 12,5W
Całkowita moc 750W
Regulacja ±3% ±3% ±3% ±10% ±3%
Tętnienia i szumy 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
650W
Napięcie +5V +3,3V +12V -12V +5Vsb
Maks. obciążenie 20,0A 20,0A 54,0A 0,3A 2,5A
Łączna moc 100W 648W 3,6W 12,5W
Całkowita moc 650W
Regulacja ±3% ±3% ±3% ±10% ±3%
Tętnienia i szumy 40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
3
Wymiary
150 mm
140 mm 86 mm
4
Liczba złączy zasilania
Złącza zasilania A850GL A750GL A650GL
ATX12V (płyta główna) 20+4 piny 1 1 1
PCIe 16 pinyów 1 1 0
EPS12V (procesor) 4+4 piny 2 2 2
PCIe (VGA) 6+2 piny 4 3 4
SATA 15 pinyów 8 8 6
Peryferyjne (PATA) 4 piny 4 4 3
FDD 4 piny 1 1 1
5
Odłączane złącza
A850GL & A750GL
CPU & PCI-E
CPU & PCI-E PCIe 16 pinyów
ATX 24P SATA & MOLEX
A650GL
CPU & PCI-EATX 24P SATA & MOLEX
6
Połączenia i długość kabli
600mm
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A650GL
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
750mm
600mm
600mm
150mm
X 1
X 2
ATX12V
20+4 piny
CPU
4+4 piny
PCIe 16 piny
PCIe 6+2 piny
7
600mm
PCIe 6+2 piny
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
500mm
150mm 150mm
SATA 15 piny
500mm
150mm 150mm 150mm
SATA 15 piny
500mm
500mm
150mm
150mm
150mm
150mm
150mm
150mm
150mm
PATA 4 piny
PATA 4 piny
FDD 4 piny
FDD 4 piny
X 2
MAG A650GL
X 1
MAG A650GL
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5 WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY STORY
EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
8
Podłączanie 16-pinowego kabla PCIe
⚠
PRZESTROGA
Kabel należy włożyć do końca gniazda.
Niewłożony do
końca
Włożony do
końca
1
Português
Índice
Especificações ..................................................................................................................... 2
Dimensões ........................................................................................................................... 3
Número de conectores de alimentação ........................................................................ 4
Conectores amovíveis ....................................................................................................... 5
Conectividade e comprimentos dos cabos ................................................................... 6
Instalação do cabo PCIe de 16 pinos .............................................................................. 8
2
Especificações
850W
Tensão +5V +3,3V +12V -12V +5Vsb
Carga máx. 20,0A 20,0A 70,5A 0,3A 2,5A
Potência
combinada
110W 846W 3,6W 12,5W
Potência total 850W
Regulação ±3% ±3% ±3% ±10% ±3%
Ruído e
ondulação
40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
750W
Tensão +5V +3,3V +12V -12V +5Vsb
Carga máx. 20,0A 20,0A 62,0A 0,3A 2,5A
Potência
combinada
110W 744W 3,6W 12,5W
Potência total 750W
Regulação ±3% ±3% ±3% ±10% ±3%
Ruído e
ondulação
40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
650W
Tensão +5V +3,3V +12V -12V +5Vsb
Carga máx. 20,0A 20,0A 54,0A 0,3A 2,5A
Potência
combinada
100W 648W 3,6W 12,5W
Potência total 650W
Regulação ±3% ±3% ±3% ±10% ±3%
Ruído e
ondulação
40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
3
Dimensões
150 mm
140 mm 86 mm
4
Número de conectores de alimentação
Conectores de alimentação A850GL A750GL A650GL
ATX12V (placa principal) 20+4
pinos
1 1 1
PCIe 16 pinos 1 1 0
EPS12V (CPU) 4+4 pinos 2 2 2
PCIe (VGA) 6+2 pinos 4 3 4
SATA 15 pinos 8 8 6
Periférico (PATA) 4 pinos 4 4 3
FDD 4 pinos 1 1 1
5
Conectores amovíveis
A850GL & A750GL
CPU & PCI-E
CPU & PCI-E PCIe 16 pinos
ATX 24P SATA & MOLEX
A650GL
CPU & PCI-EATX 24P SATA & MOLEX
6
Conectividade e comprimentos dos cabos
600mm
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A650GL
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
750mm
600mm
600mm
150mm
X 1
X 2
ATX12V
20+4 pinos
CPU
4+4 pinos
PCIe 16 pinos
PCIe 6+2 pinos
7
600mm
PCIe 6+2 pinos
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
500mm
150mm 150mm
SATA 15 pinos
500mm
150mm 150mm 150mm
SATA 15 pinos
500mm
500mm
150mm
150mm
150mm
150mm
150mm
150mm
150mm
PATA 4 pinos
PATA 4 pinos
FDD 4 pinos
FDD 4 pinos
X 2
MAG A650GL
X 1
MAG A650GL
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5 WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY STORY
EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
8
Instalação do cabo PCIe de 16 pinos
⚠
ATENÇÃO
Introduza o cabo totalmente antes de utilizar.
Não está totalmente
introduzido
Totalmente
introduzido
1
Español
Contenido
Especificaciones .................................................................................................................. 2
Dimensiones ........................................................................................................................ 3
Número de conectores de alimentación ....................................................................... 4
Conectores desmontables ................................................................................................ 5
Conectividad y longitud de los cables ............................................................................ 6
Instalación del cable PCIe de 16 contactos ................................................................... 8
2
Especificaciones
850W
Tensión +5V +3,3V +12V -12V +5Vsb
Carga máxima 20,0A 20,0A 70,5A 0,3A 2,5A
Potencia
combinada
110W 846W 3,6W 12,5W
Potencia total 850W
Regulación ±3% ±3% ±3% ±10% ±3%
Pulso y ruido 40mVp-p 40mVp-p 60mVp-p 80mVp-p 40mVp-p
750W
Tensión +5V +3,3V +12V -12V +5Vsb
Carga máxima 20,0A 20,0A 62,0A 0,3A 2,5A
Potencia
combinada
110W 744W 3,6W 12,5W
Potencia total 750W
Regulación ±3% ±3% ±3% ±10% ±3%
Pulso y ruido 40mVp-p 40mVp-p 60mVp-p 80mVp-p 40mVp-p
650W
Tensión +5V +3,3V +12V -12V +5Vsb
Carga máxima 20,0A 20,0A 54,0A 0,3A 2,5A
Potencia
combinada
100W 648W 3,6W 12,5W
Potencia total 650W
Regulación ±3% ±3% ±3% ±10% ±3%
Pulso y ruido 40mVp-p 40mVp-p 60mVp-p 80mVp-p 40mVp-p
3
Dimensiones
150mm
140mm 86mm
4
Número de conectores de alimentación
Conectores de alimentación A850GL A750GL A650GL
ATX12V (placa base) de 20+4
contactos
1 1 1
PCIe de 16 contactos 1 1 0
EPS12V (CPU) de 4+4 contactos 2 2 2
PCIe (VGA) de 6+2 contactos 4 3 4
SATA de 15 contactos 8 8 6
Periférico (PATA) de 4 contactos 4 4 3
FDD de 4 contactos 1 1 1
5
Conectores desmontables
A850GL y A750GL
CPU y PCI-E
CPU y PCI-E PCIe de 16 contactos
ATX 24P SATA y MOLEX
A650GL
CPU y PCI-EATX 24P SATA y MOLEX
6
Conectividad y longitud de los cables
600mm
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A650GL
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
750mm
600mm
600mm
150mm
X 1
X 2
ATX12V
20+4
contactos
CPU
4+4
contactos
PCIe 16 contactos
PCIe 6+2 contactos
7
600mm
PCIe 6+2 contactos
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
500mm
150mm 150mm
SATA 15 contactos
500mm
150mm 150mm 150mm
SATA 15 contactos
500mm
500mm
150mm
150mm
150mm
150mm
150mm
150mm
150mm
PATA 4 contactos
PATA 4 contactos
FDD 4 contactos
FDD 4 contactos
X 2
MAG A650GL
X 1
MAG A650GL
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5 WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY STORY
EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
8
Instalación del cable PCIe de 16
contactos
⚠
PRECAUCIÓN
Inserte completamente el cable antes de utilizarlo.
No totalmente
insertado
Totalmente
insertado
1
Türkçe
İçindekiler
Teknik Özellikler .................................................................................................................. 2
Boyutlar ................................................................................................................................ 3
Güç Konektörü Sayısı ......................................................................................................... 4
Ayrılabilir Konektörler ........................................................................................................ 5
Bağlantı ve Kablo Uzunlukları .......................................................................................... 6
PCIe 16 Pin Kablo Kurulumu ............................................................................................ 8
2
Teknik Özellikler
850W
Voltaj +5V +3,3V +12V -12V +5Vsb
Maks. yük 20,0A 20,0A 70,5A 0,3A 2,5A
Birleşik güç 110W 846W 3,6W 12,5W
Toplam Güç 850W
Regülasyon ±%3 ±%3 ±%3 ±%10 ±%3
Dalgalanma ve
Gürültü
40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
750W
Voltaj +5V +3,3V +12V -12V +5Vsb
Maks. yük 20,0A 20,0A 62,0A 0,3A 2,5A
Birleşik güç 110W 744W 3,6W 12,5W
Toplam Güç 750W
Regülasyon ±%3 ±%3 ±%3 ±%10 ±%3
Dalgalanma ve
Gürültü
40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
650W
Voltaj +5V +3,3V +12V -12V +5Vsb
Maks. yük 20,0A 20,0A 54,0A 0,3A 2,5A
Birleşik güç 100W 648W 3,6W 12,5W
Toplam Güç 650W
Regülasyon ±%3 ±%3 ±%3 ±%10 ±%3
Dalgalanma ve
Gürültü
40ｍVp-p 40ｍVp-p 60ｍVp-p 80ｍVp-p 40ｍVp-p
3
Boyutlar
150 mm
140 mm 86 mm
4
Güç Konektörü Sayısı
Güç Konektörleri A850GL A750GL A650GL
ATX12V (Anakart) 20+4 pin 1 1 1
PCIe 16 pin 1 1 0
EPS12V (CPU) 4+4 pin 2 2 2
PCIe (VGA) 6+2 pin 4 3 4
SATA 15 pin 8 8 6
Çevresel (PATA) 4 pin 4 4 3
FDD 4 pin 1 1 1
5
Ayrılabilir Konektörler
A850GL & A750GL
CPU & PCI-E
CPU & PCI-E PCIe 16 Pin
ATX 24P SATA & MOLEX
A650GL
CPU & PCI-EATX 24P SATA & MOLEX
6
Bağlantı ve Kablo Uzunlukları
600mm
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A650GL
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
750mm
600mm
600mm
150mm
X 1
X 2
ATX12V
20+4 pin
CPU
4+4 pin
PCIe 16 pin
PCIe 6+2 pin
7
600mm
PCIe 6+2 pin
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
500mm
150mm 150mm
SATA 15 pin
500mm
150mm 150mm 150mm
SATA 15 pin
500mm
500mm
150mm
150mm
150mm
150mm
150mm
150mm
150mm
PATA 4 pin
PATA 4 pin
FDD 4 pin
FDD 4 pin
X 2
MAG A650GL
X 1
MAG A650GL
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5 WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY STORY
EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
8
PCIe 16 Pin Kablo Kurulumu
⚠
DİKKAT
Kullanmadan önce kabloyu lütfen sonuna kadar takın.
Tam Takılmamış
Tam Takılmış
1
Čeština
Obsah
Technické údaje .................................................................................................................. 2
Rozměry ............................................................................................................................... 3
Počet napájecích konektorů ............................................................................................. 4
Odnímatelné konektory .................................................................................................... 5
Možnosti připojení a délka kabelů .................................................................................. 6
Instalace 16 kolíkového kabelu PCIe .............................................................................. 8
2
Technické údaje
850 W
Napětí +5 V +3,3 V +12 V -12 V +5Vsb
Maximální
zatížení
20,0 A 20,0 A 70,5 A 0,3 A 2,5 A
Kombinovaný
výkon
110 W 846 W 3,6 W 12,5 W
Celkový výkon 850 W
Regulace ±3% ±3% ±3% ±10% ±3%
Zvlnění a šum 40 mVp-p 40 mVp-p 60 mVp-p 80 mVp-p 40 mVp-p
750 W
Napětí +5 V +3,3 V +12 V -12 V +5Vsb
Maximální
zatížení
20,0 A 20,0 A 62,0 A 0,3 A 2,5 A
Kombinovaný
výkon
110 W 744 W 3,6 W 12,5 W
Celkový výkon 750 W
Regulace ±3% ±3% ±3% ±10% ±3%
Zvlnění a šum 40 mVp-p 40 mVp-p 60 mVp-p 80 mVp-p 40 mVp-p
650 W
Napětí +5 V +3,3 V +12 V -12 V +5Vsb
Maximální
zatížení
20,0 A 20,0 A 54,0 A 0,3 A 2,5 A
Kombinovaný
výkon
100 W 648 W 3,6 W 12,5 W
Celkový výkon 650 W
Regulace ±3% ±3% ±3% ±10% ±3%
Zvlnění a šum 40 mVp-p 40 mVp-p 60 mVp-p 80 mVp-p 40 mVp-p
3
Rozměry
150mm
140mm 86mm
4
Počet napájecích konektorů
Napájecí konektory A850GL A750GL A650GL
ATX12V (základní deska) 20+4
kolíky
1 1 1
PCIe 16 kolíků 1 1 0
EPS12V (CPU) 4+4 kolíky 2 2 2
PCIe (VGA) 6+2 kolíky 4 3 4
SATA 15 kolíků 8 8 6
Periferní (PATA) 4 kolíky 4 4 3
FDD 4 kolíky 1 1 1
5
Odnímatelné konektory
A850GL a A750GL
CPU a PCI-E
CPU a PCI-E PCIe 16 kolíků
ATX 24P SATA & MOLEX
A650GL
CPU a PCI-EATX 24P SATA & MOLEX
6
Možnosti připojení a délka kabelů
600mm
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A650GL
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
750mm
600mm
600mm
150mm
X 1
X 2
ATX12V
20+4
kolíky
CPU
4+4
kolíky
PCIe 16 kolíky
PCIe 6+2 kolíky
7
600mm
PCIe 6+2 kolíky
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
500mm
150mm 150mm
SATA 15 kolíky
500mm
150mm 150mm 150mm
SATA 15 kolíky
500mm
500mm
150mm
150mm
150mm
150mm
150mm
150mm
150mm
PATA 4 kolíky
PATA 4 kolíky
FDD 4 kolíky
FDD 4 kolíky
X 2
MAG A650GL
X 1
MAG A650GL
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5 WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY STORY
EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
8
Instalace 16 kolíkového kabelu PCIe
⚠
POZOR
Před použitím kabel zcela zasuňte.
Není zcela
zasunuto
Zcela zasunuto
1
Slovenčina
Obsah
Technické údaje .................................................................................................................. 2
Rozmery ............................................................................................................................... 3
Počet napájacích konektorov ........................................................................................... 4
Odpojiteľné konektory....................................................................................................... 5
Možnosti pripojenia a dĺžky káblov ................................................................................. 6
Inštalácia kábla PCIe so 16 kolíkmi ................................................................................. 8
2
Technické údaje
850 W
Napätie +5V +3,3V +12V -12V +5Vsb
Max. záťaž 20,0 A 20,0 A 70,5 A 0,3 A 2,5 A
Kombinovaný
výkon
110 W 846 W 3,6 W 12,5 W
Celkový výkon 850 W
Regulácia ±3% ±3% ±3% ±10% ±3%
Zvlnenie a šum 40 mVš-š 40 mVš-š 60 mVš-š 80 mVš-š 40 mVš-š
750 W
Napätie +5V +3,3V +12V -12V +5Vsb
Max. záťaž 20,0 A 20,0 A 62,0 A 0,3 A 2,5 A
Kombinovaný
výkon
110 W 744 W 3,6 W 12,5 W
Celkový výkon 750 W
Regulácia ±3% ±3% ±3% ±10% ±3%
Zvlnenie a šum 40 mVš-š 40 mVš-š 60 mVš-š 80 mVš-š 40 mVš-š
650 W
Napätie +5V +3,3V +12V -12V +5Vsb
Max. záťaž 20,0 A 20,0 A 54,0 A 0,3 A 2,5 A
Kombinovaný
výkon
100 W 648 W 3,6 W 12,5 W
Celkový výkon 650 W
Regulácia ±3% ±3% ±3% ±10% ±3%
Zvlnenie a šum 40 mVš-š 40 mVš-š 60 mVš-š 80 mVš-š 40 mVš-š
3
Rozmery
150mm
140mm 86mm
4
Počet napájacích konektorov
Napájacie konektory A850GL A750GL A650GL
ATX12V (základná doska) 20+4
kolíkov
1 1 1
PCIe 16 kolíkov 1 1 0
EPS12V (CPU) 4+4 kolíkov 2 2 2
PCIe (VGA) 6+2 kolíkov 4 3 4
SATA 15 kolíkov 8 8 6
Periférne zariadenia (PATA) 4
kolíky
4 4 3
FDD 4 kolíky 1 1 1
5
Odpojiteľné konektory
MAG A850GL & MAG A750GL
CPU a PCI-E
CPU a PCI-E PCIe 16 kolíkov
ATX 24P SATA a MOLEX
MAG A650GL
CPU a PCI-EATX 24P SATA a MOLEX
6
Možnosti pripojenia a dĺžky káblov
600mm
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A650GL
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
750mm
600mm
600mm
150mm
X 1
X 2
ATX12V
20+4
kolíkov
CPU
4+4
kolíkov
PCIe 16 kolíkov
PCIe 6+2 kolíkov
7
600mm
PCIe 6+2 kolíkov
X 1
MAG A750GL PCIE5
MAG A750GL PCIE5 II
500mm
150mm 150mm
SATA 15 kolíkov
500mm
150mm 150mm 150mm
SATA 15 kolíkov
500mm
500mm
150mm
150mm
150mm
150mm
150mm
150mm
150mm
PATA 4 kolíkov
PATA 4 kolíkov
FDD 4 kolíkov
FDD 4 kolíkov
X 2
MAG A650GL
X 1
MAG A650GL
X 2
MAG A850GL PCIE5
MAG A850GL PCIE5 WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY STORY
EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
X 1
MAG A850GL PCIE5
MAG A850GL PCIE5
WHITE
MAG A850GL PCIE5 II
MAG A850GL PCIE5 TOY
STORY EDITION
MAG A750GL PCIE5
MAG A750GL PCIE5 II
8
Inštalácia kábla PCIe so 16 kolíkmi
⚠
UPOZORNENIE
Pred použitím úplne pripojte kábel.
Pripojený
neúplne
Pripojený úplne
i
Regulatory Notices
KC인증서
MAG A850GL PCIE5, MAG A850GL PCIE5 WHITE,
MAG A850GL PCIE5 II, MAG A850GL PCIE5 TOY STORY EDITION
제품명: 컴퓨터용 전원공급장치
모델: MAG A850GL PCIE5
A/S TEL: 1644-4038
제조자: Channel Well Technology (Guangzhou) Co., Ltd.
제조국가: 중국
XU100111-23113A
R-R-MSI-MAGA850GL
MAG A750GL PCIE5, MAG A750GL PCIE5 II
제품명: 컴퓨터용 전원공급장치
모델: MAG A750GL PCIE5
A/S TEL: 1644-4038
제조자: Channel Well Technology (Guangzhou) Co., Ltd.
제조국가: 중국
XU100111-23112A
R-R-MSI-MAGA850GL
MAG A650GL
제품명: 컴퓨터용 전원공급장치
모델: MAG A650GL
A/S TEL: 1644-4038
제조자: Channel Well Technology (Guangzhou) Co., Ltd.
제조국가: 중국
XU100111-23111A
R-R-MSI-MAGA650GL
Model Number
Model No.: 7ZP8A. 7ZP8B. 7ZP8C
製造商資料
製造商：微星科技股份有限公司
地址：新北市中和區立德街69號
電話：02-3234-5599
