WASHER DRYER
MODEL:
MFV3ED80BA10
CAUTION: HOT SURFACE !
CAUTION: RISK OF FIRE !
01
CAUTION: HOT SURFACE !
CAUTION: RISK OF FIRE !
Thank you for choosing us! Before using your new product, please read
this user manual thoroughly to ensure that you know how to operate the
features and functions that your new washer dryer offers in a safe way.
THANK YOU LETTER
CONTENTS
THANK YOU LETTER
SAFETY INSTRUCTIONS
SPECIFICATIONS
PRODUCT OVERVIEW
QUICK START GUIDE
PRODUCT INSTALLATION
OPERATION INSTRUCTIONS
CLEANING AND MAINTENANCE
TROUBLE SHOOTING
TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT
DISPOSAL AND RECYCLING
DATA PROTECTION NOTICE
WARRANTY CARD
01
02
06
07
08
11
15
30
35
36
37
38
39
The product is intended only for home use and for textiles in household amounts
suitable for washing. This appliance is for indoor use only and not intended for built in
use. Only use according to these instructions. The appliance is not intended for
commercial use.
Any other use is considered as improper use. The producer is not responsible for any
damage or injury that may result from it.
This appliance is intended to be used in household and similar applications such as:
- Staff kitchen areas in shops, offices and other working environments;
- Farm houses;
- By clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments;
- Areas for communal use in blocks of flats.
DANGER
This symbol indicates that there are dangers to the life and health of
persons due to extremely flammable gas.
WARNING OF ELECTRICAL VOLTAGE
This symbol indicates that there is a danger to life and health of
persons due to voltage.
WARNING
The signal word indicates a hazard with a medium level of risk which, if
not avoided, may result in death or serious injury.
CAUTION
The signal word indicates a hazard with a low degree of risk which, if
not avoided, may result in minor or moderate injury.
NOTE
The signal word indicates important information (e.g. damage to
property), but not danger.
OBSERVE INSTRUCTIONS
This symbol indicates that a service technician should only operate and
maintain this appliance in accordance with the operating instructions.
Explanation of Symbols
Intended Use
SAFETY INSTRUCTIONS
02
Please read the following safety information thoroughly and follow it strictly to
minimize the risk of fire or explosion, electric shock and to prevent property
damage, personal injury or loss of life. Failing to follow these instructions shall
void any warranty.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
03
Electric Shock Hazard
• If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
• If the machine is damaged, it must not be operated unless repaired by the
manufacturer, its service agent or similarly qualified persons.
• Risk of electric shock!
• The appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children without
supervision.
• Children should be supervised that they do not play with the appliance.
• Children 3 years and under shall be kept away from the appliance or continuously
supervised.
• Animals and children may climb into the machine. Check the machine before every
operation.
• Do not climb or sit on the appliance.
WARNING:
• All washing and additional substances are to be kept in a safe place out of the reach
of children.
• Do not install the machine on a carpet floor.
• The obstruction of the openings by a carpet can damage the machine.
• Keep the appliance clear from heating sources and direct sunlight to avoid plastic and
rubber parts to corrode.
• Do not use the appliance in humid environments or rooms containing explosive or
caustic gas. In case of water leakage or water splashes, let the appliance dry in the
open air.
• The appliance must not be installed behind a lockable door, a sliding door or a door
with a hinge on the opposite side to that of the machine .
• Do not operate the machine in rooms with a temperature of below 5°C. This can cause
damages to parts of it. If it is unavoidable, make sure to drain the water completely
from the appliance after every use (see“Maintenance - Cleaning of drain pump filter”)
to avoid damages caused by frost.
• Never use flammable sprays or substances in the immediate proximity of the
appliance.
• That lint must not to be allowed to accumulate around the washer dryer (not
applicable for appliances intended to be vented to the exterior of the building).
Installation Location and Surrounding

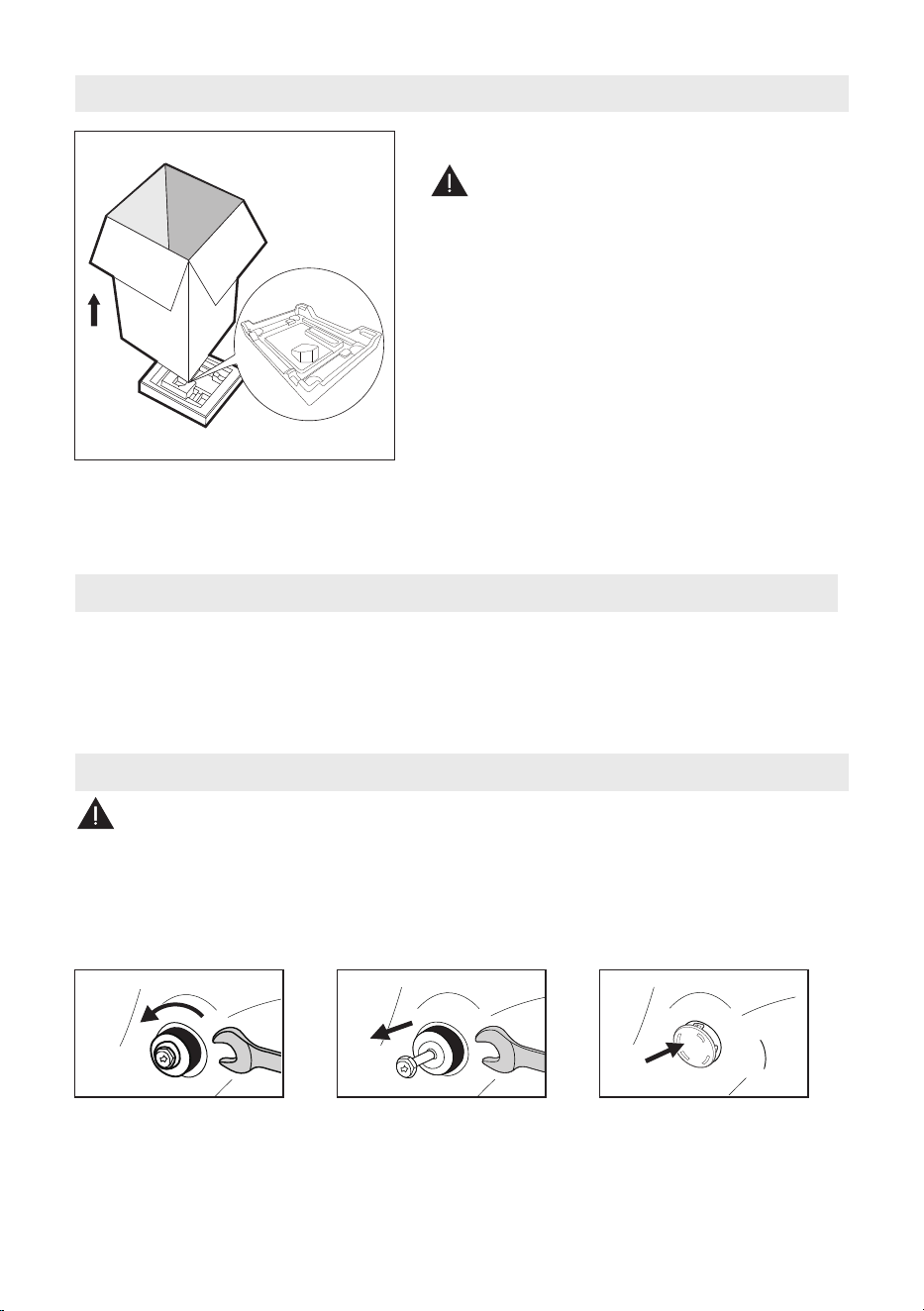

• Remove all packaging material and transport bolts before using the appliance.
Otherwise, serious damage may result.
• This appliance is equipped with a single inlet valve and can be connected to the cold
water supply only.
• Mains plug must be accessible after installation.
• Before washing clothes for the first time, the product shall be operated once
throughout all the procedures without any clothes inside.
• Before using the machine, the product shall be calibrated.
• Do not put any excessively heavy objects on the appliance, like water containers or
heating devices.
Installation
• The new hose-sets supplied with the appliance are to be used and that old hose-sets
should not be reused.
• Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.05 MPa.
• Make sure the supply cable is not trapped by the machine, or it can get damaged.
• Connect the product to a grounded outlet protected by a fuse complying with the
values in the "Technical specifications” table. The grounding installation has to be
made by a qualified electrician. Ensure that the machine is installed in accordance
with the local regulations.
• Water and electrical connections must be carried out by a qualified technician in
accordance with the manufacturer's instructions and local safety regulations.
Electrical Connection
• Don´t use multiple plugs or extension cords.
• The appliance must not have an external switching device such as a timer or
connected to a circuit that is regularly switched on and off.
• Do not pull the plug out of the mains outlet if there is flammable gas around.
• Never pull out power plug with wet hands.
• Always pull at the plug, not at the cable.
• Always unplug the appliance if it is not being used.
WARNING:
• Check the connections of the water inlet tubes, the water tap and the outlet hose for
possible problems due to changes of water pressure. If the connections loosen or leak,
close the water tap and get it repaired.
• Do not use the appliance before the pipes and hoses are installed properly by
qualified persons.
• Glass door may become very hot during the operation. Keep children and pets far
away from the machine while it is operating.
• The water inlet and outlet hoses have to be safely installed and remain undamaged.
• Otherwise, water leakage can occur.
• Do not remove the drain pump filter while there is still water in the appliance. Big
quantities of water can leak out, and there is a risk of scalding due to hot water.
Water Connections
04
Operation and Maintenance
• Never stop the machine before the end of the drying cycle unless all items are
quickly removed and spread out so that the heat can dissipate.
• The machine is not to be used if industrial chemicals have been used for cleaning.
Risk of explosion.
WARNING:
• Never use any flammable, explosive or toxic solvents. Do not use gasoline and alcohol
etc. as detergents. Only select detergents that are suitable for machine washing.
• Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches,
nails, screws, stones etc. may cause serious damages to this machine.
• Remove all objects from pockets such as lighters and matches before use the
appliance.
• Thoroughly rinse items that have been washed by hand.
• Do not dry unwashed items in the appliance.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol,
petrol, kerosene, spot removers, turpentine, wax and wax removers should be washed
in hot with an extra amount of detergent before being dried in the appliance.
• Items containing foam rubber (latex foam), shower caps, water proof textiles, rubber
backed articles and clothes or pillows fitted with foam rubber pads should not be
dried in the machine.
• Fabric softeners or similar products should be used are recommended in their
instructions.
• Never try to open the door forcefully.
• The door will unlock shortly after the end of a cycle.
• Please do not close the door with excessive force. If it is found difficult to close the
door, please check if the clothes are properly inserted and distributed.
• Always unplug the appliance and close the water tap before cleaning and
maintenance and after each use.
• Never pour water over the appliance for cleaning purpose. Risk of electric shock!
• Repairs shall only be carried out by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
• The producer will not be responsible for damages caused by the intervention of not
authorized persons.
Transport
• Before Transport:
-Bolts shall be reinstalled to the machine by a specialized person;
-Accumulated water shall be drained out of the machine.
• This appliance is heavy. Transport with care. Never hold any protruding part of the
machine when lifting. The machine door can not be used as a handle.
05

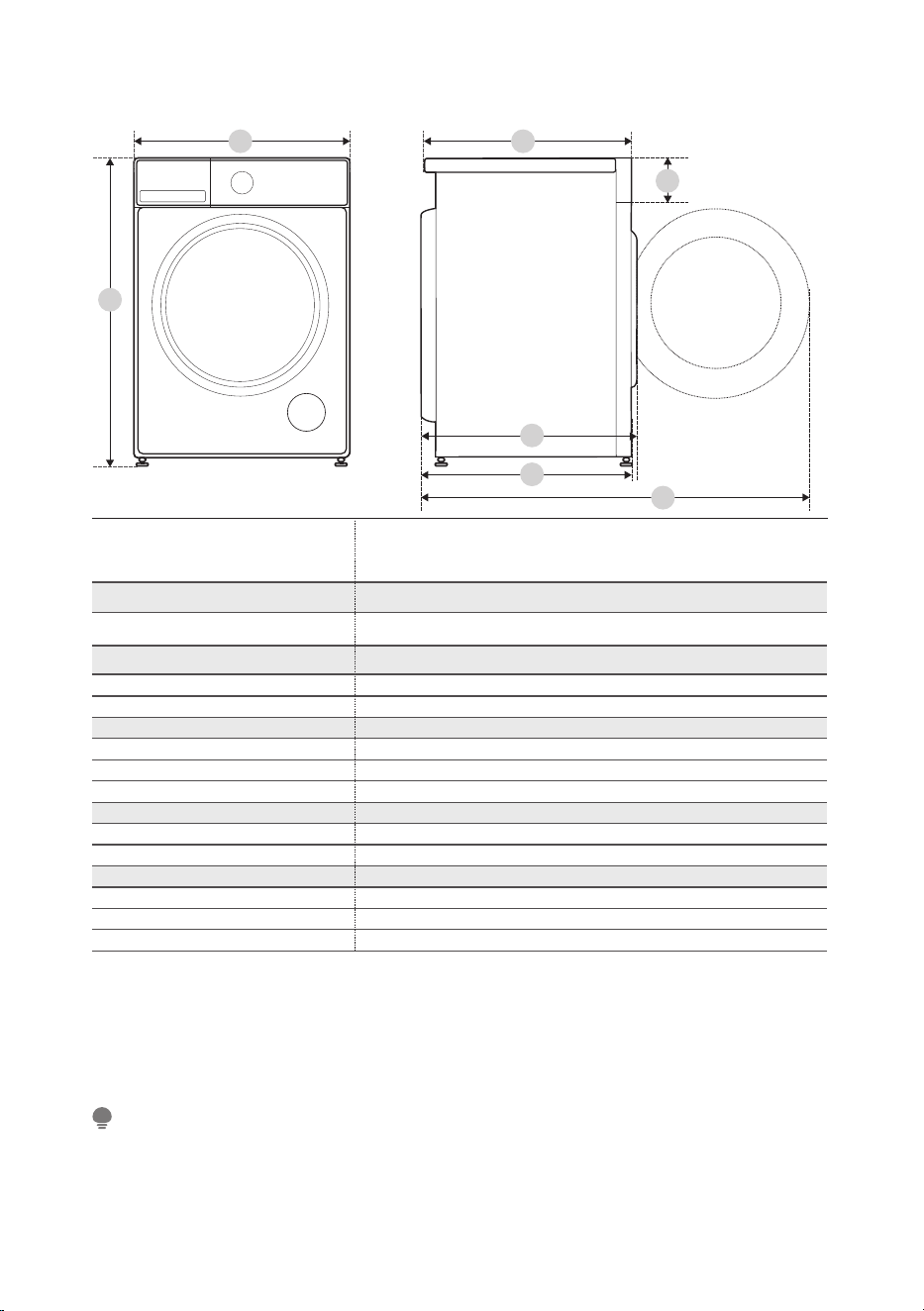

Model Washing/Drying Capacity
8.0/6.0kg
MFV3ED80BA10
SPECIFICATIONS
06
Model
MAX.Current
Standard Water Pressure
Power Supply
Washing Capacity
Drying
Dimension
A
B
C
Capacity
D
E
F
G
Weight
Rated Power
Drying Power
8.0kg
6.0kg
595mm
850mm
475mm
545mm
521mm
985mm
135mm
63kg
1900W
1300W
MFV3ED80BA10
220-240V~, 50Hz
0.05MPa~1MPa
10A
A
B
E
F
D
G
C
The washing capacity is the maximum load quantity in kg dry weight that can be washed at one time.
Make sure that the laundry loaded into the appliance does not exceed the rated capacity.
NOTE

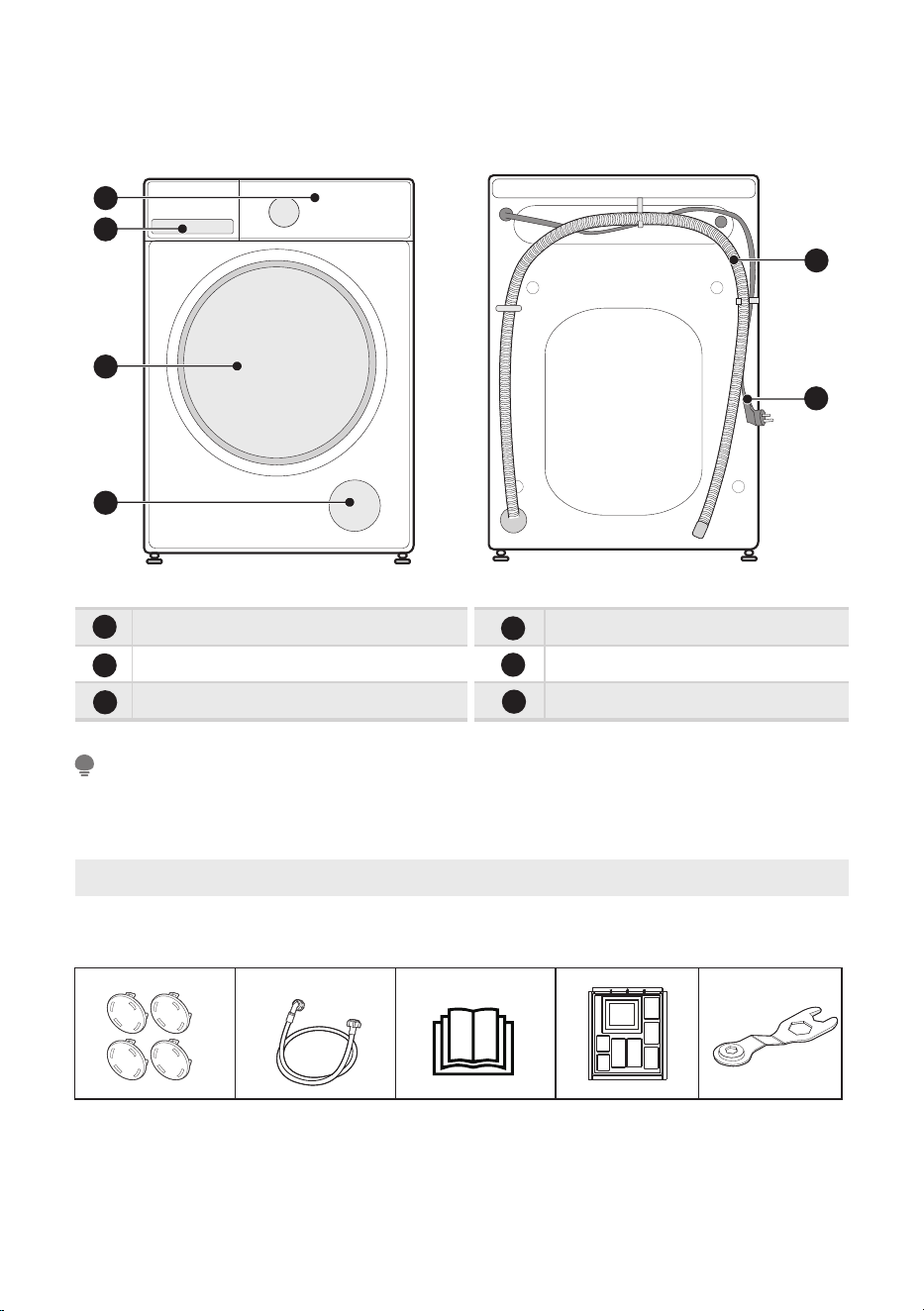

PRODUCT OVERVIEW
1
2
3
5
6
1
2
3
4
5
6
Service flap
Door
Detergent dispenser
Control panel
Drain hose
Power supply cord
The product picture is for illustration only, please refer to real product as reference.
Accessories
NOTE
07
4
4 x Cover
caps
1 x Supply hose
cold water
1 x User Manual
Spanner
(optional)
Acoustic panel
(optional)
08

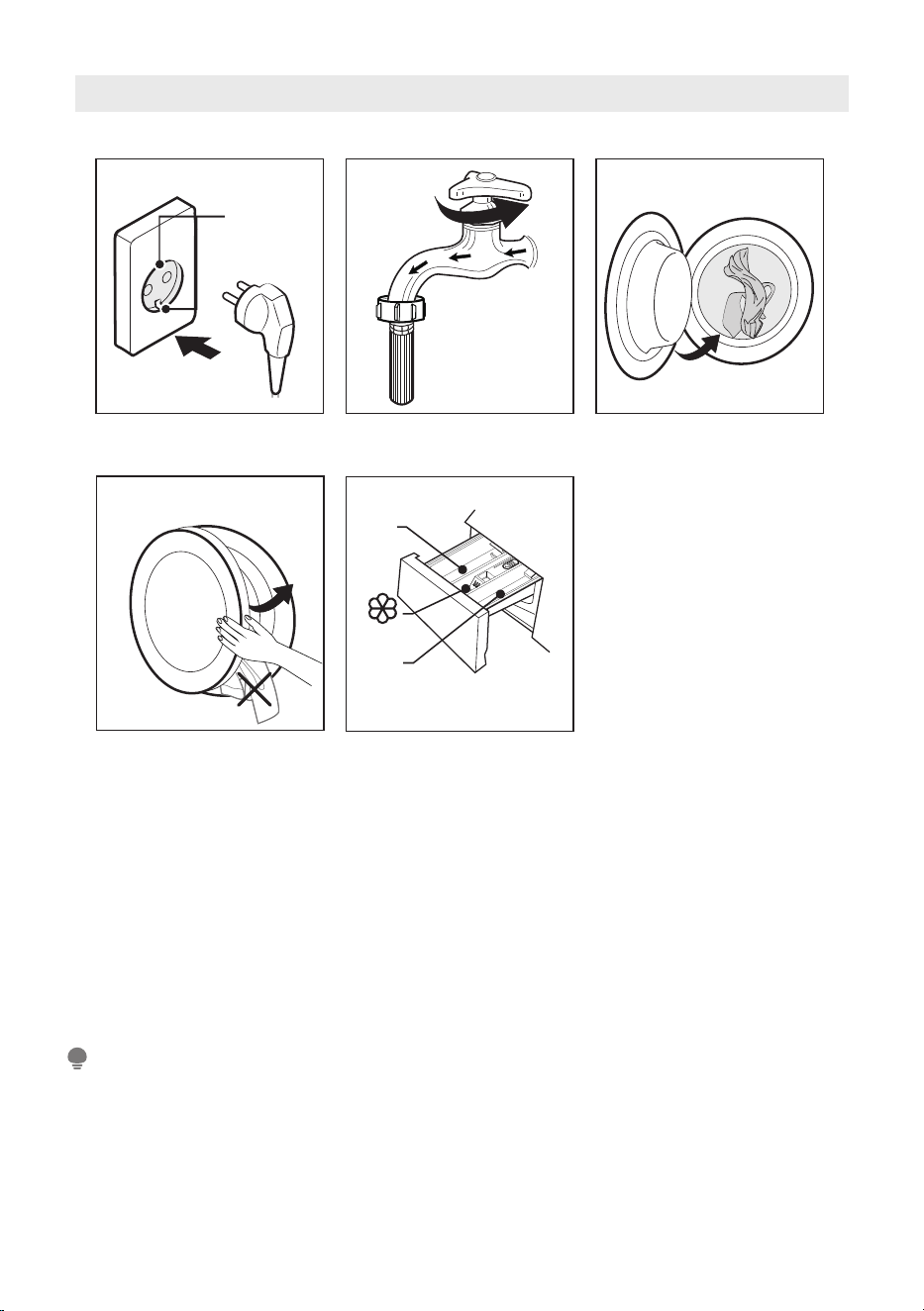

QUICK START GUIDE
Before operation, please make sure the machine is installed properly. See chapter
product installation.
Calibration of Washer Dryer
WARNING
The washer dryer is able to detect the amount of laundry loaded to optimize performance
by minimizing energy and water consumption, saving you money and time. For this
reason, it’s recommended to calibrate the washer dryer for best use.
1. Remove all accessories from the drum and close the door.
2. Insert the mains plug to the socket.
3. Switch on the washer dryer, press the option “Water Level” and “Spin”
simultaneously until “t19” is displayed.
4. Start the calibration program by pressing .
The washer dryer is successfully calibrated when “PAS” will be displayed.
CAUTION
When “FAL” will be displayed, the calibration of washer dryer failed. Repeat the
calibration of washer dryer. If situation persists, please contact the customer service.
Drum Clean
Your washer dryer was thoroughly checked before it left the factory. To remove any
residual water and to neutralize potential odors, it’s recommended to clean your washer
dryer before first use. For this reason, clean the washer dryer by running the "DRUM
CLEAN" program or “COTTON” program with the optional temperature of 90°C. Always
run the DRUM CLEAN program without laundry and add 1 table spoon of heavy-duty
detergent.
09
4. Close the door
5. Add the detergents and
washing aids
1. Before Washing
1. Insert the mains plug 2. Open the water tap 3. Load the laundry
Earth
terminal
NOTE
When closing the door, please make sure that your clothing does not get caught
between the sealing ring and the washer dryer door to prevent water from leaking
during operation or damaging the sealing ring by pulling.
•
Ⅱ
I
Main
wash
Prewash
Softener
10
3. After Washing
An acoustic signal is given and “End” will be displayed.
2. Washing
The illustration above is for reference only. Please take the appearance of the
actual product as reference.
NOTE
1.Select program
2.Select function or remain
default settings
3.Press Start/Pause to
start the program
PRODUCT INSTALLATION
11

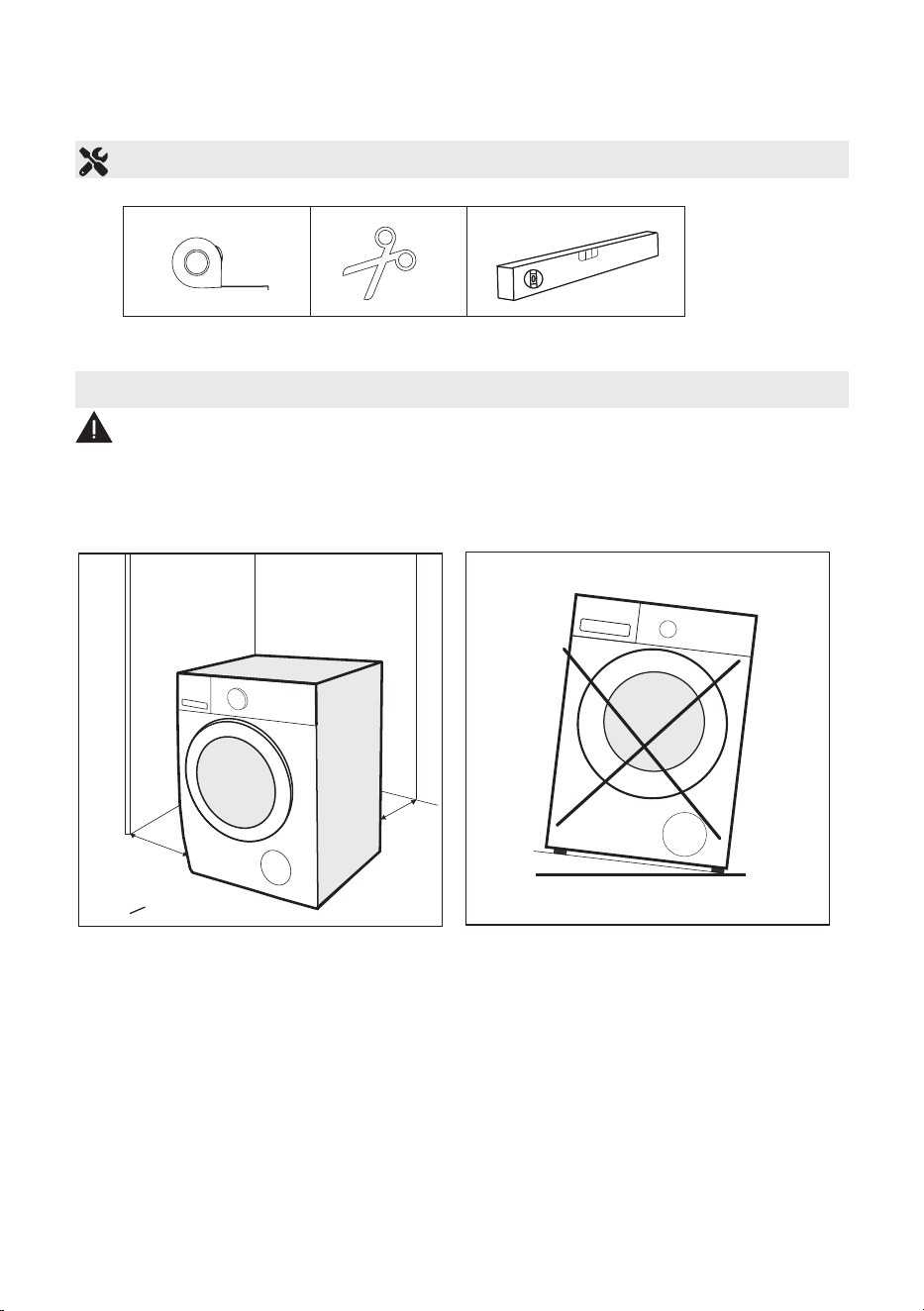

Tools Needed If Installation By Yourself
Tape measure
Spirit level
Scissors or Knife
Before installing the , the location characterized as follows shall be
selected:
1. Rigid, dry, and level surface.
2.Avoid direct sunlight.
3.Sufficient ventilation.
4.Room temperature is above 5 °C .
5.Keep far away from the heat sources such as coal or gas burning washer dryers.
washer dryer
•
•
•
•
Stability is important to prevent the product from moving!
Make sure the washer dryer is standing leveled and stable.
Make sure that the product does not stand onto the power cord.
Make sure to maintain the minimum distances from the walls as shown in the picture.
Installation Area
w
w
W> 20mm
WARNING
12
1. Remove the cardboard box and styrofoam packing.
2. Lift the washer dryer and remove the base packaging.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
Unpacking the Washer Dryer
WARNING
• Packaging material (e.g. foils, styrofoam)
can be dangerous for children.
• There is a risk of suffocation! Keep all
packaging well away from children.
Children can become entangled in the
packaging film or swallow small parts and
suffocate. Do not allow children to play
with the packaging.
•

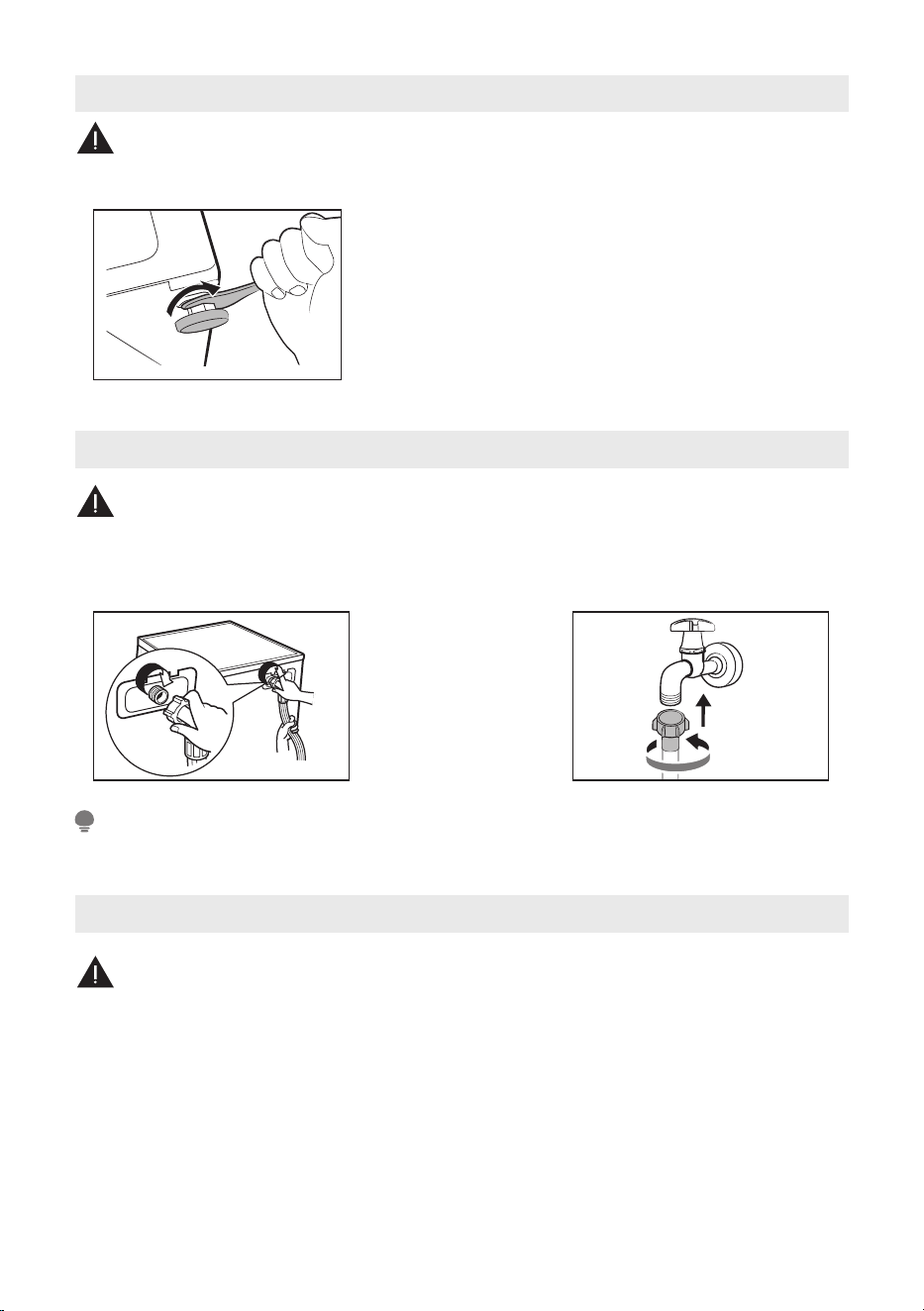

You must remove the transport bolts from the backside before using the product.
Remove Transport Bolts
WARNING
1. Loosen the 4
transport bolts with
a spanner.
3. Close the holes by
using the cover caps.
2. Remove the bolts
including the rubber
parts and keep them
for future use.
Disposal of packaging material
The packaging is designed to protect the washer dryer from damage during
transportation. The packaging materials are environmentally friendly and
should be recycled. Recycling the packaging can reduce the use of raw
materials in the manufacturing process and the amount of waste in landfill
sites.
•
13
Levelling the Washer Dryer
The lock nuts on all four feet must be screwed tightly against the housing.
1. Loosen the lock nut.
2. Turn the feet until it reaches the floor.
3. Adjust the feet and lock the nuts with a spanner.
Make sure the washer dryer is level using a
spirit level.
Connect the Water Supply Hose
To prevent leakage or water damage, follow the instructions in this chapter.
• Do not kink, crush or modify water inlet hose.
Connect the angled
end of the water supply
hose to the water inlet
valve of the washer
dryer.
Connect the other end
of the water inlet hose
to the cold water tap
connection.
• Tighten the connecting screw hand-tight. Check if the connections are tight.
•
•
•
Do not kink or protract the drain hose.
Position drain hose properly, otherwise damage might result in water leakage.
It is not allowed to remove the buckle of drain pipe.
NOTE
Drain Hose
WARNING
WARNING
WARNING
14

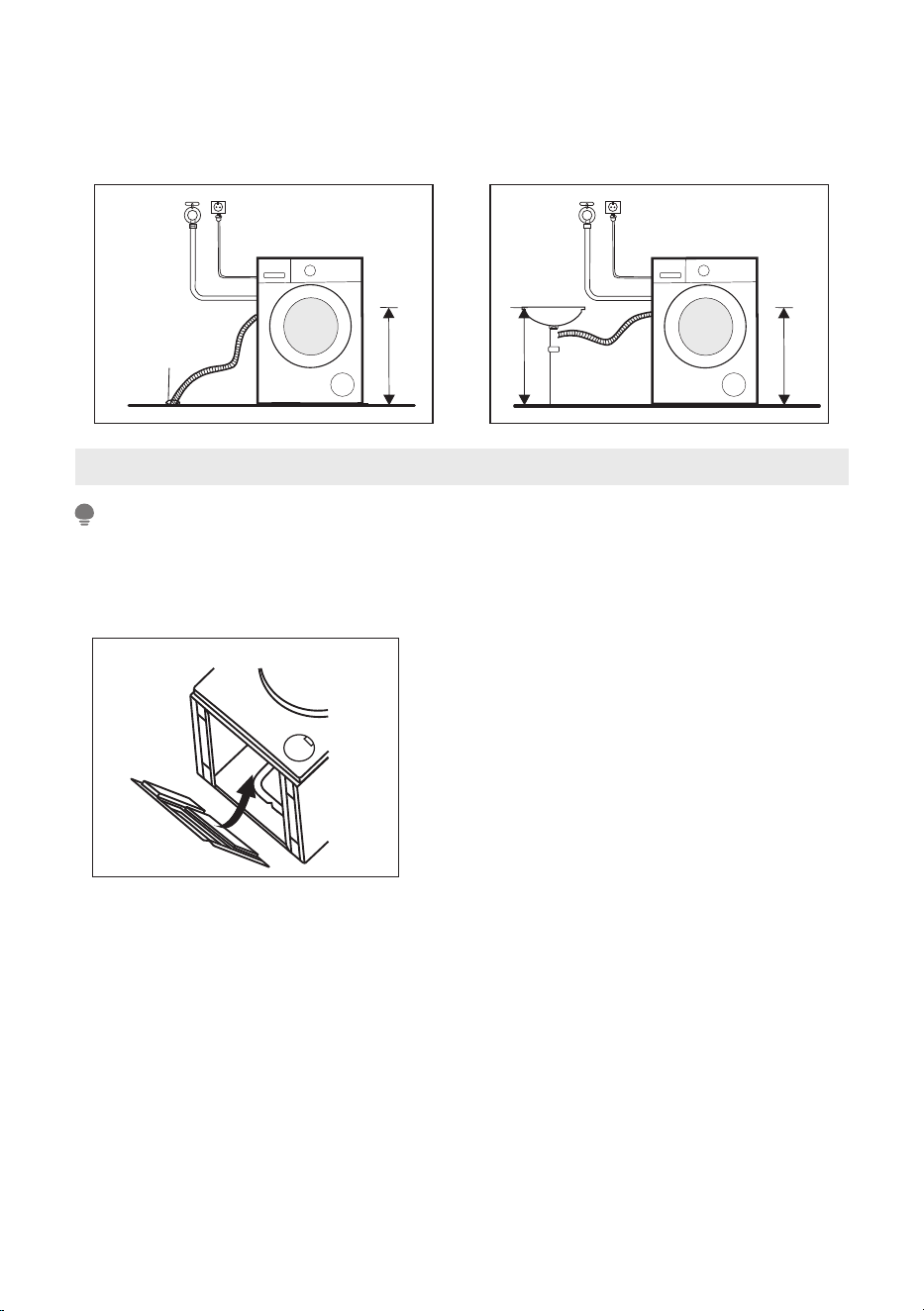

There are two ways to place the end of drain hose:
2. Connect it to the branch drain
pipe of a sink.
M
a
x
.
1
00
cm
Mi
n. 60
cm
Ma
x.
100
c
m
Water
drain
Max
.
10
0cm
Mi
n.
6
0
cm
1.Put it into the water drain.
NOTE
•
noise caused by the machine while working, in order to provide you with a more
peaceful and quiet living environment.
Please make sure to assemble the acoustic panel, which can effectively reduce the
Acoustic Panel
1. Get the machine laid on the floor, using some soft material like foam or clothes
between the machine and floor for a protection;
2. Stick the acoustic panel to the bottom of machine.
OPERATION INSTRUCTIONS
•
suggested to add one or two more laundry items to the wash so that spin can be done
smoothly.
Do not wash, spin or dry water-proof seats, mats, or clothing.
• Do not wash textiles to which adhered any volatile or flammable substance such as
cleaning agent, dry cleaning agent, spot remover, acetone, gasoline, kerosene, beauty
oil, massage oil, animal oil, machinery oil, dry cleaning oil, volatile agent, alcohol,
turpentine, wax, wax remover, banana water, disinfectant tablets, resin, etc.
•
Washing single clothes items may easily create big eccentricity. Therefore it is
15
WARNING

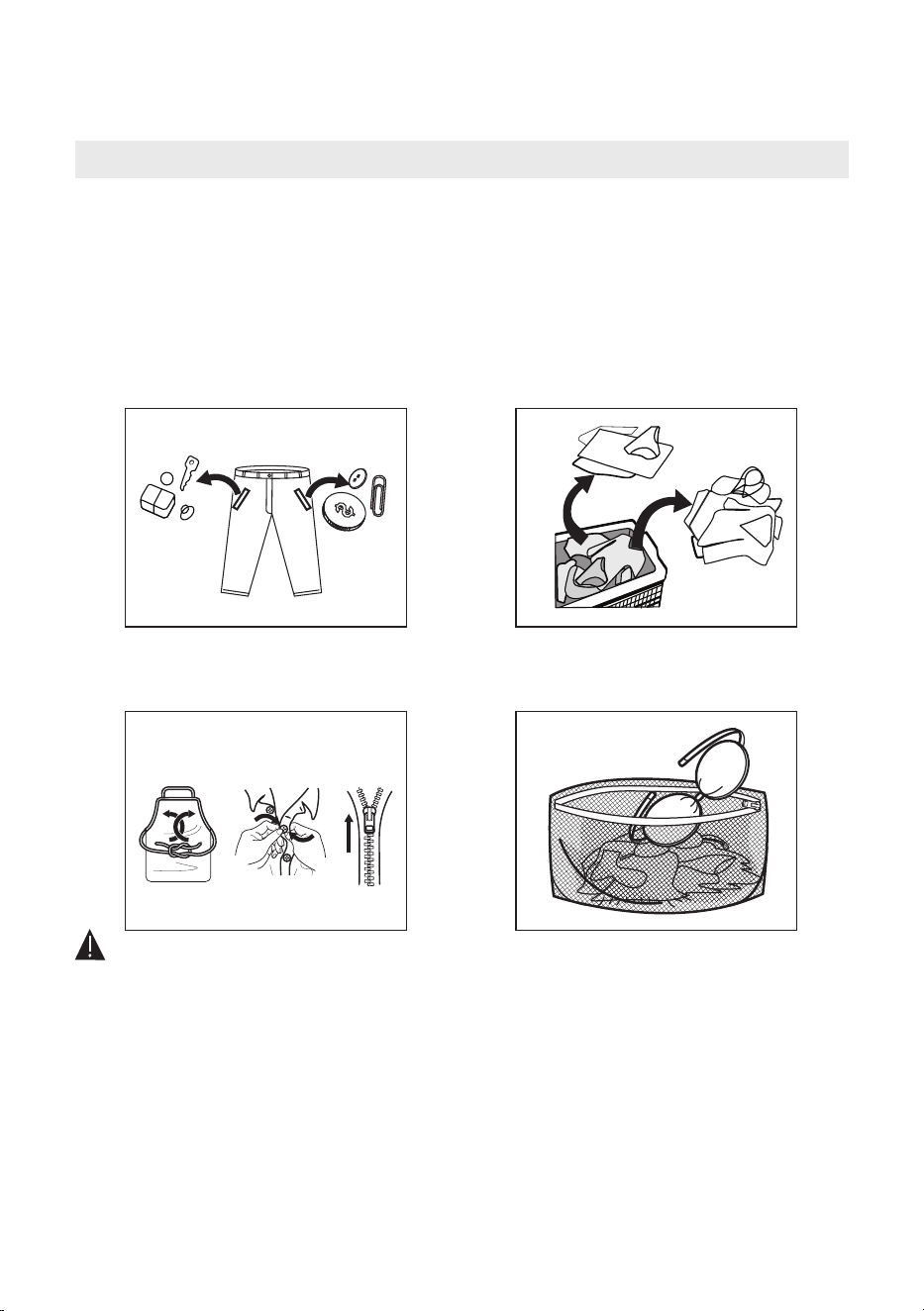

3. Tie together long textile
strips and belts, close
zips and button
1. Take all items out of the
pockets
4. Put small items into a
laundry bag
2. Sort laundry according to
color and type of fabric
• The ambient temperature of the washer dryer should be between 5°C and 40°C. If
used under 0°C, the inlet valve and draining system may be damaged. If the washer
dryer is installed under freezing conditions, it should be transferred to normal
ambient temperature to ensure the water supply hose and drain hose can unfreeze
before use.
• Please check your laundry care labels and the dosing recommendation of the
detergent manufacture before wash. Use non-foaming or less-foaming detergent
suitable for properly.washer dryer
Before Each Washing
16
Means must ○ Means optional

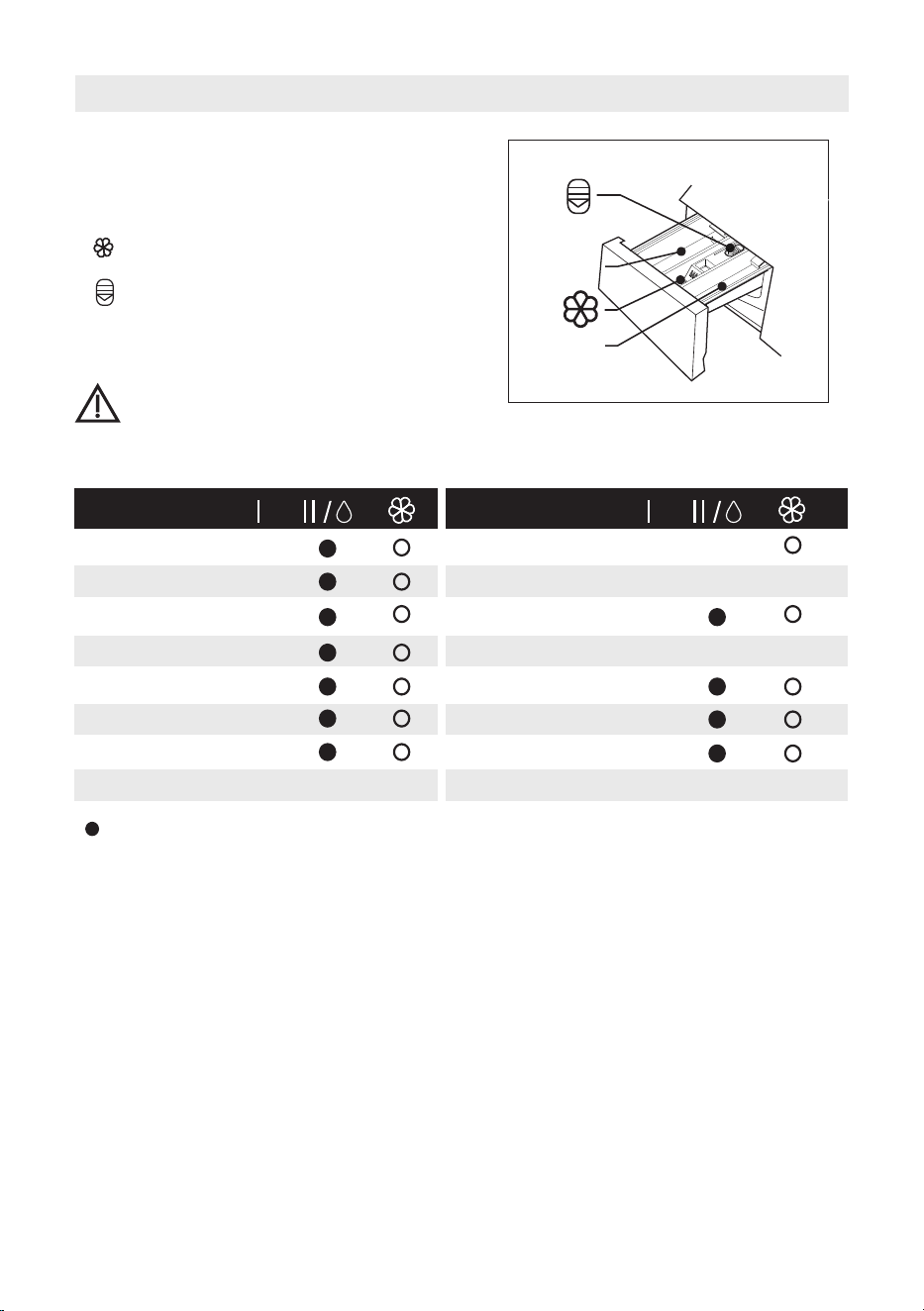

Detergent Dispenser
• If you use detergent pods or similar, place them directly in the washer dryer
drum.
CAUTION
Pre wash
Main wash
Softener
Release button to
pull out the dispenser
I
Ⅱ
Ⅱ
I
Program
COTTON
MIX
SPORTS
WOOL
DELICATE
20°C
HEALTH GUARD
DRUM CLEAN
Program
RINSE & SPIN
SPIN ONLY
WASH AND DRY
DRY ONLY
BED LINEN
ECO40-60
QUICK 15'
Detergent Recommendation
Agglomerating or ropy detergent or additive can be diluted in some water before
pouring it into the detergent dispenser, to avoid its inlet to get blocked and thus cause
a water overflow.
• Please choose the suitable type of detergent to get a maximum of washing
performance and a minimum of water and energy consumption.
• To achieve the best cleaning result a proper detergent dosing is important.
• Use a reduced detergent amount if the drum is not filled completely.
• Always adjust the amount of detergent to the water hardness, if your tap water is soft,
use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less detergent.
• Highly concentrated (compact detergent) requires particularly accurate dosing.
Following symptoms are a sign of detergent overdosing:
- heavy foam formation
- poor washing and rinsing result
Following symptoms are a sign of detergent under dosing:
- laundry turns grey
- built-up of limescale deposits on the drum, the heating element and/or the laundry
•
Heavy-duty detergent
with bleaching agents
and optical brighteners
Colour detergent without
bleaching agent and
optical brighteners
Color or mild
detergent without
optical brighteners
Mild washing detergent
Special wool detergent
COTTON, ECO 40-60,
MIX
COTTON, ECO 40-60,
MIX
20°C
QUCIK 15'
WOOL
40
Cold
40
Washing
temp. °C
Wash cycles
Recommended washing
detergent
Type of laundry
and textile
White laundry made
from boil-proof
cotton or linen
Coloured laundry
made from cotton
or linen
Coloured laundry
made from easy
care fibres or
synthetic materials
Delicate textiles,
silk, viscose
Wool
20
40
NOTE
17
18
Control Panel
NOTE
•
product as reference.
The illustration above is for reference only. Please take the appearance of the actual
5
1
1
2
1
4
3
OFF
Turn the appliance off.
Start/Pause
Program
Option
This allows you to select additional functions.
5
Display
Start or pause your program.
Choose appropriate program according to the laundry type.
The display shows settings, estimated remaining time, options and status
messages.
41
3
2
19
Display
Wash Time Delay end
Speed End
Error Temp
Display
A
Mute
B
Steam
D
Perfume+
C
Door Lock
E
Child Lock
F
G
Delay end
A
B C
D
EG F
20
programs will contribute to energy and water savings.
• The washing capacity is the maximum load quantity in kg dry weight that can be washed at one
time. Make sure that the laundry loaded into the appliance does not exceed the rated capacity.
• Loading the household appliance up to the load quantity indicated for the respective
NOTE
Program Settings
Program
Display Time (h:min)
3:00
1:30
0:47
1:03
0:50
1:01
2:39
1:18
0:20
0:12
5:16
4:09
1:48
3:38
0:15
8.0/6.0
8.0/6.0
4.0/--
2.0/--
2.5/--
4.0/--
4.0/3.0
--
8.0/--
8.0/--
6.0/6.0
--/6.0
8.0/6.0
8.0/--
2.0/1.0
8.0/6.0
COTTON
MIX
SPORTS
WOOL
DELICATE
20
HEALTH GUARD
DRUM CLEAN
RINSE & SPIN
SPIN ONLY
WASH AND DRY
DRY ONLY
BED LINEN
ECO40-60
QUICK 15’
°C
8.0
Wash/Dry Load (kg)
Cycle
Nominal capacity in
kg
Temperature setting
in ℃
Cycle duration in
hours and minutes
Energy consumption
in kWh/operating
cycle
Water consumption
in liter/operating
cycle
Highest temperature
1)
in ℃
Residual moisture in
2)
% /spin speed
3)
ECO 40-60
MFV3ED80BA10
COTTON
8.0
2.0
8.0
1:48
0:15
1:30
0.803
0.030
0.772
71
31
71
65%/1000
70%/800
53%/1400
40
40
2020°C
MIX
8.0 3:05 1.429
71
53%/1400
Cold
QUICK 15'
4.0 1:01 0.183
44
65%/1000
60
BED LINEN
4)
WASH AND DRY
21
•
actual use conditions.
• The values given for program other than the ECO 40-60 program and the
WASH AND DRY cycle are indicative only.
• Concerning to
The EU energy efficiency class is: D
Energy test program: ECO 40-60. Other as the default.
Energy test program: Wash and Dry; Dry level: d-3 (Extra Dry).
The above data is for reference only, and the data may change due to different
• 20°C able to clean lightly soiled cotton laundry, at a nominal temperature
of 20°C, which complies with the regulation (EU) 2019/2023.
EN IEC 62512:2020/A12:2023，EN 60456:2016/A12:2023
With (EU)2019/2014, (EU)2019/2023, (EU)2021/340, (EU)2021/341,
Half load for 8.0Kg machine: 4.0Kg.
Quarter load for 8.0Kg machine: 2.0Kg.
Other as the default.
Dry load for 8.0Kg machine: 6.0Kg, Half dry load machine: 3.0Kg.
is
Consumption Data
The listed consumption data are measured in accordance with EN 60456. The
actual consumption data may vary from the given data. The load quantity, type of
fabric, composition of the laundry, selected level of soiling and options as well as
ambient conditions can influence the consumption data.
8.0
4.0
2.0
--
--
--
3:38
2:48
2:48
0.695
0.354
0.186
37
28
24
63.0
43.0
35.0
53.9%/1351
53.9%/1351
53.9%/1351
6.0
3.0
--
--
9:30
7:00
3.825
28 104.0
3%/1400
1.948
25
69.0
3%/1400
40
40
20
Cold
60
22
• If there is any break in the power supply while the machine is operating, a special
memory stores the selected program. The machine will continue the program
when the power supply is re-established.
CAUTION
1.
minutes.
2. Residual moisture after the wash cycle in water content percent and the spin
speed at which this was achieved.
3. The ECO 40-60 program is able to clean normally soiled cotton laundry declared
to be washable at 40°C or 60°C, together in the same cycle. This program is used
to assess the compliance with the regulation (EU) 2019/2014, (EU) 2019/2023, (EU)
2021/340, (EU) 2021/341.
4. The Wash and Dry program, dry level setting d-3 (Extra Dry) is able to clean
normally soiled cotton laundry declared to be washable at 40°C, together in the
same cycle, and to dry it in such a way that it can be immediately stored in a
cupboard. This program is used to assess the compliance with the regulation (EU)
2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU) 2021/341.
The most efficient programs in terms of energy consumption are generally those
that perform at lower temperatures and longer duration.
Loading the household machine up to the capacity indicated for the respective
programs will contribute to energy and water savings.
Noise and remaining moisture content are influenced by the spinning speed: the
higher the spinning speed in the spinning phase, the higher the noise and the lower
the remaining moisture content.
The highest temperature reached by the laundry in the wash cycle for at least 5
Consumption Data
23
The chart describes the characteristics of the individual programs.
Program Description
HEALTH GUARD
For washing mixed loads made of cotton, synthetic including mixed fabric.
Particularly suitable for increased hygiene requirements.
Note:
Do not exceed the maximum loading quantity.
Able to clean normally soiled cotton laundry. For loads that can be washed at
40 °C or 60 °C in the same program.
Energy saving washing program.
ECO 40-60
20°C
Able to clean lightly soiled cotton laundry at a nominal temperature of 20 °C.
Note:
Do not exceed the maximum loading quantity.
DRY ONLY
Select it to dry clothes. The drying time according to the load.
WASH AND DRY
The standard energy program for washing and drying.
SPORTS
Special program for iron-free sportswear and active wear.
Note:
Do not use fabric softener.
Close hook and loop fasteners and zippers.
Programs
COTTON
This program is suitable for washing heavy-duty cotton items.
Note:
Use Mix program to wash mixed loads type made of cotton and synthetics.
MIX
For washing mixed loads made of cotton, synthetic including mixed fabric.
WOOL
Gentle wash program to prevent shrinkage for machine-washable wool or wool
blend fabrics.
Note:
Reduce the spin speed for very delicate woolen garments.
DELICATE
For washable delicates, e.g. made of silk, satin, viscose fiber or blended fabrics.
Note:
Reduce the spin speed for crease sensitive delicates.
Special cleaning program for your washing machine to remove dirt and
limescale deposits. Clean your washing machine regularly to keep laundry
washing sustainable.
Note:
Always run the Drum Clean program without laundry and add 1 table spoon of
heavy-duty detergent.
DRUM CLEAN
RINSE&SPIN
For barely worn and new garments that need to be rinsed.
Note:
You can use fabric softener to freshen up your garments.
SPIN ONLY
For textiles that need to be spun.
Note:
Only pumping takes place at a set spin speed of 0 rpm.
BED LINEN
This program is specially designed for washing bed linen.
For drying bed linen, it is recommended to select the “DRY ONLY”
program or use the “Dry” function and set the dry level to “d-3”.
Note:
QUICK 15'
An extra short program for barely worn and new garments that need to be rinsed.
Note:
You can use fabric softener to freshen up your garments.
The wool wash cycle of this machine has been
tested and approved by The Woolmark Company
for the washing of wool garments labelled as “hand
wash” provided that the products are washed
according to the instructions on the garment label
and those issued by the manufacturer of this
washing machine.
M1909: MFV3ED80BA10
24
Option
Default
Temperature(℃)
Default spin
speed(rpm)
Program
Additional
Options
The charts shows which program offers which option for adjustment.
COTTON
MIX
SPORTS
WOOL
DELICATE
20
HEALTH GUARD
DRUM CLEAN
RINSE & SPIN
SPIN ONLY
WASH AND DRY
DRY ONLY
BED LINEN
ECO40-60
QUICK 15’
°C
40
40
20
Cold
30
20
60
90
--
--
40
--
40
--
Cold
1400
14-
14-
800
800
800
10-
800
--
10-
10-
--
12-
10-
--
800
In "Default spin speed" 14-, 12-, and 10- mean speeds of 1400, 1200, and 1000.
NOTE
25
Spinning
If needed, the spin speed can be adjusted in the following steps by pressing the
button: 0-400-600-800-1000-1200-1400.
Temperature
If needed, the washing temperature can be adjusted in the following steps by
pressing the button: Cold - 20°C - 30°C - 40°C - 60°C - 90°C.
Temp
Spin
Water Level
Adjust the water level of the main wash.
Water Level: AU, L-1, L-2, L-3, L-4
Water
Level
Perfume+
The function helps to modify the water flow mode and time. Then help the fibers
to absorb softener more efficiently. As a result, with dosing the same amount of
softener, we can achieve better fragrance left on the cloths.
Perfume+
Steam
Special pre-treatment of textiles in which warm steam penetrates deep into the
textile fibers to increase the effectiveness of the washing performance.
Steam
Delay end
1. Select a program.
2. Press the water level button for 3 seconds and select a time between 0 and
24 hours.
3. Press [Start/Pause] to start the time-delayed end program.
This function is used to set a time-delayed end of the wash program.
Water
Level
To cancel the delayed end function, press the “Water Level” button
again before starting the program until the display shows 0 hours.
for 3 seconds
Choose program Setting time Start
Child Lock
The child lock is intended to prevent children from using the controls
inappropriately.
This setting deactivates the function of all buttons with the exception of the
On/Off button.
When the Child Lock is activated, the display will alternately show “CL” and the
remaining time.
Pressing any other button will cause the Child Lock indicator to flash. When the program
ends, “CL” and “End” will alternate on the display.
Temp
Spin
Press and simultaneously for 3 seconds until
the buzzer beeps. The child lock is now activated.
The child lock can only be deactivated again by pressing
the two buttons simultaneously again!
[Temp] [Spin]
CAUTION
Press the Dry button for 3 seconds until the Steam
indicator lights up. The Steam function is now activated.
Dry
26
Mute the buzzer
To act the buzzer function, press the two buttons again for 3 seconds. The
setting until the next reset.will be kept
• MuAfter ting the buzzer function, the sounds will not be activated any more.
CAUTION
Press [Spin] and [Perfume+] simultaneously
for 3 seconds, until the buzzer is mute.
Choose the Program
Reload
You can use this function to add forgotten laundry items. After starting the wash
program, the door releases, provided the water level and temperature do not
pose a risk.
1. press the [Add Item 3 sec] button for 3 seconds
2. the washing program is paused and the door is released
3. reload the laundry and close the door
4. press the [Start/Pause] button and the wash program will continue
Clothes
Press Reload Reload the laundry
Start
• Don't use the Reload function when the water level over the edge of the
inner tub or the temperature is higher.
CAUTION
Usage counter
NOTE
1 Please press “Water Level” and “ on control panel
continuously for around 5 seconds until the device display shows digits--the value
can indicate the times of equipment usage.
2.Press “Water Level” and “ ” on control panel simultaneously and continuously for
around 5 seconds and customer can resume to normal operation.
. Dry” simultaneously and
Dry
27
• Drying hints
- Clothes could be dried after spinning
- To ensure quality dry the textiles,please classify them according to their
kinds and the drying temperature.
- Synthetic should be set the proper drying time .
- If you want to iron the clothes after drying,please put them for a while.
• Clothes not suitable for drying
- Particularly delicate items such as synthetic curtains,woolen and silk,
clothes with metal inserts,nylon stockings,bulky clothes,such as
anoraks,bedcovers,quilts,sleeping bags and duvets must not be dried.
- Clothes padded with foam-rubber or materials similar to foam-rubber
must not be machine dried.
- Fabrics containing residues of setting lotions or hair sprays, nail
solvents or similar solutions must not be machine dried in order to avoid
the formation of harmful vapours.
NOTE
Dry
Press the Dry button continuously to choose the dry level: Less Dry /
Normal Dry/ Extra Dry/ Time Dry.
d-1:
d-2:
d-3:
Less Dry
Normal Dry
Extra Dry
Time Dry: Drying your laundry and finish within given time
(30/60/90/120/180 minutes). This program contains 10 minutes of
default dehydration time, so the actual display time is
40/70/100/130/190 minutes.
28
Product Information Sheet
Rated capacity(kg)
a d
Dimensions in cm( ),( )
Height
Width
Depth
Energy efficiency index
Energy efficiency class
Washing efficiency index
Rinsing effectiveness
(g/kg dry textile)
Maximum temperature inside
b
the treated textile ( )(℃)
Rated
washing
capacity
Half
Quarter
Weighted remaining moisture
b
content (%)( )
Spin speed(rpm)
b
( )
b
Spin-drying efficiency class ( )
Eco 40-60 programme
duration (h:min)
Type
Airborne acoustical noise
emissions during the spinning
phase for the eco 40-60
washing cycle at rated washing
capacity (dB(A) re 1 pW)
Off-mode (W) (if applicable)
Delay start (W) (if applicable)
Standby mode (W)(if applicable)
Networked standby (W)(if applicable)
a d
Minimum duration of the guarantee offered by the supplier ( ),( ):
This product has been designed to release silver
ions during the washing cycle
Additional information:
Weblink to the supplier's website, where the information in point 9 of Annex ll to Commission Regulation
(EU)2019/2023 is found:
Rated
washing
capacity
Half
Quarter
Rated
washing
capacity
Half
Quarter
6.0
66.9
1.031
0.424
37
28
24
1351
1351
1351
3:38
2:48
2:48
72
0.50
4.00
NO
N/A
N/A
A
e
( )
free-standing
B
d
( )
53.9
3.074
5.0
A
85
60
48
Energy consumption in kWh per kg
per cycle, for the wash and dry cycle
of the household washer-dryer at a
combination of full and half loads.
Actual energy consumption will
depend on how the appliance is used
Rated
c
capacity( )
Rated
washing
b
capacity( )
b
EEI ( )
W
c
EEI ( )
WD
b
I ( )
W
c
J ( )
W
46.6
8.0
b
I ( )
R
c
J ( )
R
b
EEI ( )
W
c
EEI ( )
WD
5.0
1.031
Energy consumption in kWh
per kg per cycle, for the
washing cycle of the household
washer-dryer, using the eco 40-
60 programme at a
combination of full and partial
loads. Actual energy
consumption will depend on
how the appliance is used
Water consumption in litre per
cycle, for the eco 40-60
programme at a combination of
full and partial loads. Actual
water consumption will depend
on how the appliance is used
and on the hardness of the
water
Water consumption in litre per cycle,
for the wash and dry cycle of the
household washer-dryer at a
combination of full and half loads.
Actual water consumption will
depend on how the appliance is used
and on the hardness of the water
Maximum temperature inside the
treated textile (°C) for the washing
cycle of the household washer-dryer,
using the wash and dry cycle
Rated
capacity
Half
wash and dry cycle duration
(h:min)
Rated
capacity
Half
Airborne acoustical noise emission
class for the spinning phase for the
eco 40-60 programme at rated
washing capacity
D
48
90
28
9:30
7:00
25
a d
Supplier's name or trade mark( ),( ):
a d
Supplier's address( ),( ):
a
Model identifier( ):
General product parameters:
MFV3ED80BA10
Parameter Value Parameter Value
29
a
( ) this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369.
b
( ) for the eco 40-60 program.
© for the wash and dry cycle.
d
( ) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation
(EU) 2017/1369.
e
( ) if the product database automatically generates the definitive content of this cell the supplier shall not enter
these data.
Dry level: d-3 (Extra Dry).
1) The actual energy consumption will depend on how the appliance is used.
2) The actual water consumption will depend on how the appliance is used
and on the hardness of the water.
3) Delivery of the spare parts within 15 working days after having received
the order.
Product Data Sheet concerning (EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340,
(EU) 2021/341.
The product data sheet for your appliance can be found online.
Go to https://eprel.ec.europa.eu and enter the model identifier for your appliance to
download the data sheet.
The model identifier for your appliance can be found in the technical specifications
section.
30

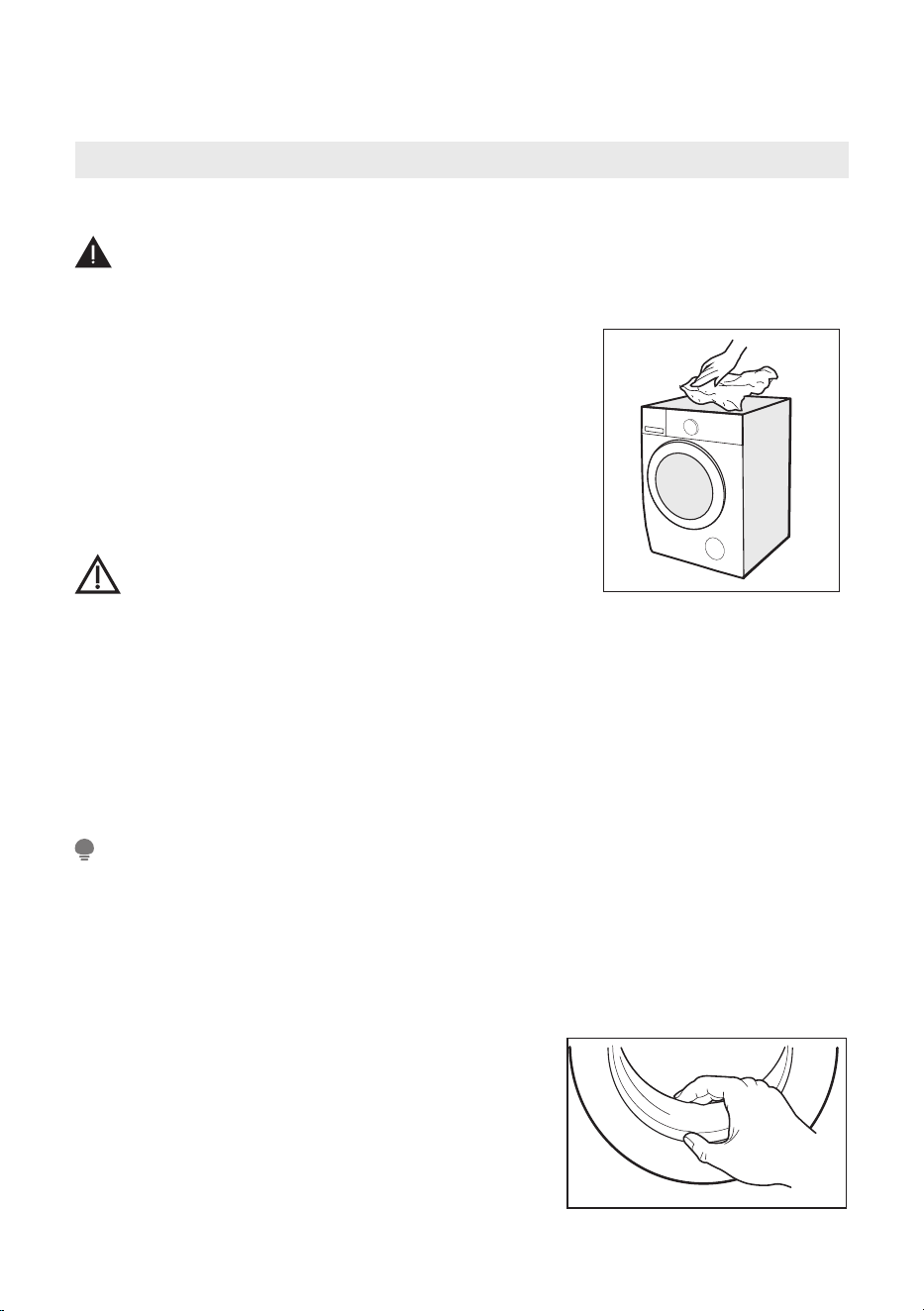

CLEANING AND MAINTENANCE
• Always unplug the appliance and close the water tap before cleaning and maintenance.
Cleaning the Cabinet
Cleaning and Care
Proper maintenance of the appliance can extend its
working life. The surface can be cleaned with diluted non-
abrasive neutral detergents when necessary. If there is
any water overflow, use a towel to wipe it off immediately.
Never use sharp items to clean the appliance. It's
recommended to clean the cabinet as needed.
• Never use abrasive or caustic agents. Such as formic acids or its diluted solvents or
similar substances, like alcohol or chemical products.
Cleaning the Drum
• Keep any laundry away from the machine while cleaning the drum.
Cleaning the Door Seal and Glass
Any rust stains left inside the drum must be removed immediately using
chlorine-free cleaning agents. Never use steel wool for cleaning the drum!
NOTE
Clean your appliance regularly to keep laundry washing sustainably. The cleaning
recommendation is described in the corresponding chapter.
WARNING
CAUTION
Wipe the glass and seal after each wash to
remove lint and stains. If lint builds up it can
cause leakages.
Remove any coins, buttons and other objects
from the seal after each wash.
After 60 wash programs, U01 is displayed as a
reminder on the control panel. Please follow the
reminder and carry out the cleaning of the door
seal to ensure normal operation of the appliance.
After 60 wash programs, U01 is displayed as a reminder on the control panel.
Please follow the reminder and carry out the cleaning of the drum to ensure normal
operation of the appliance.
31

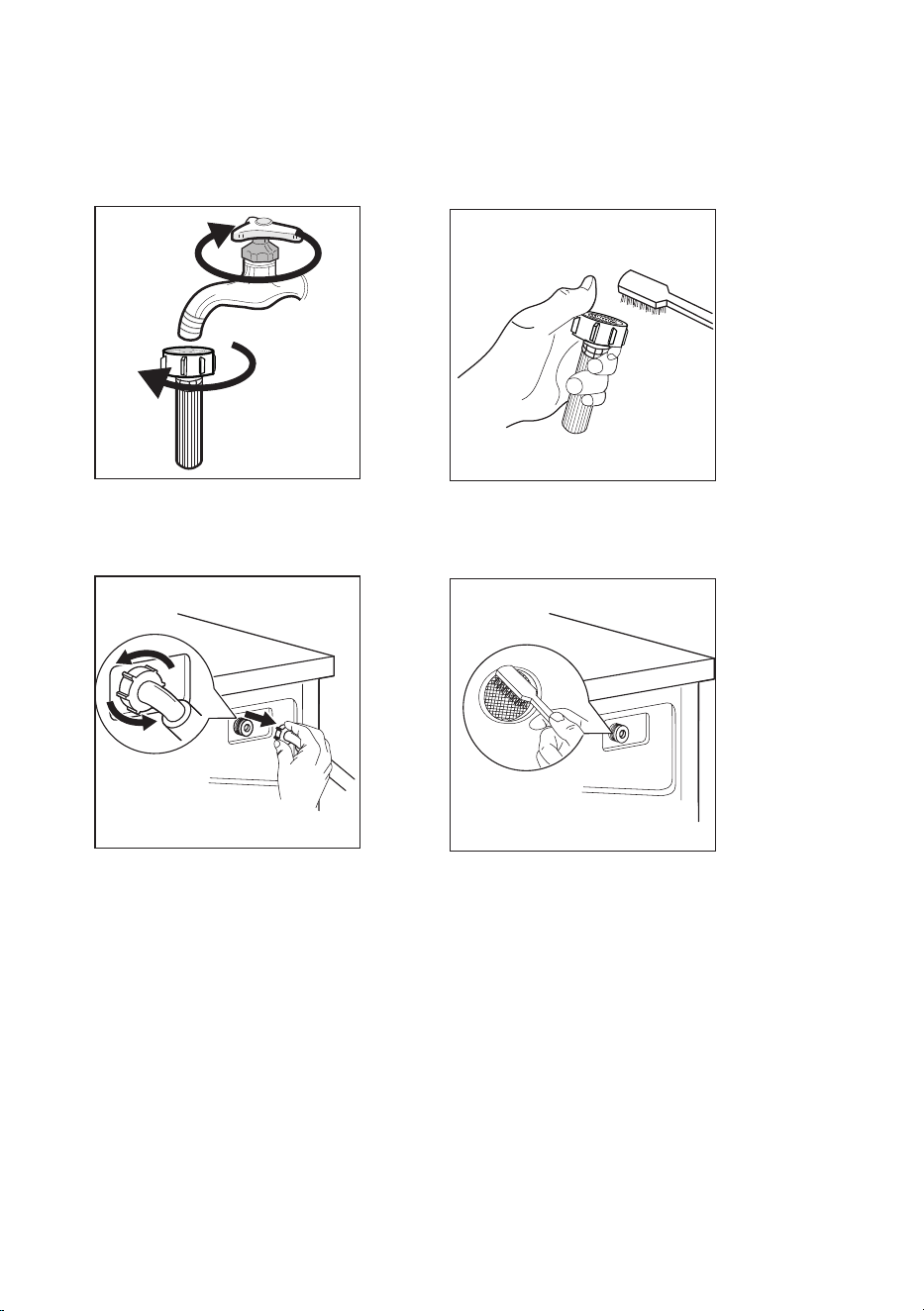

Cleaning the Inlet Filter
1. Close the tap and remove
the water supply hose from it.
2. Clean the filter with a brush.
3. Unscrew the water supply
hose from the backside of
the appliance.
4. Clean the filter with a brush.
Clean the filter as needed. A diminishing water flow is a sign that the filter may be blocked.
5. Reconnect the water supply hose again.
6. After 60 wash programs, U01 is displayed as a reminder on the control panel. Please
follow the reminder and carry out the cleaning of the inlet filter to ensure normal
operation of the appliance.
32
NOTE

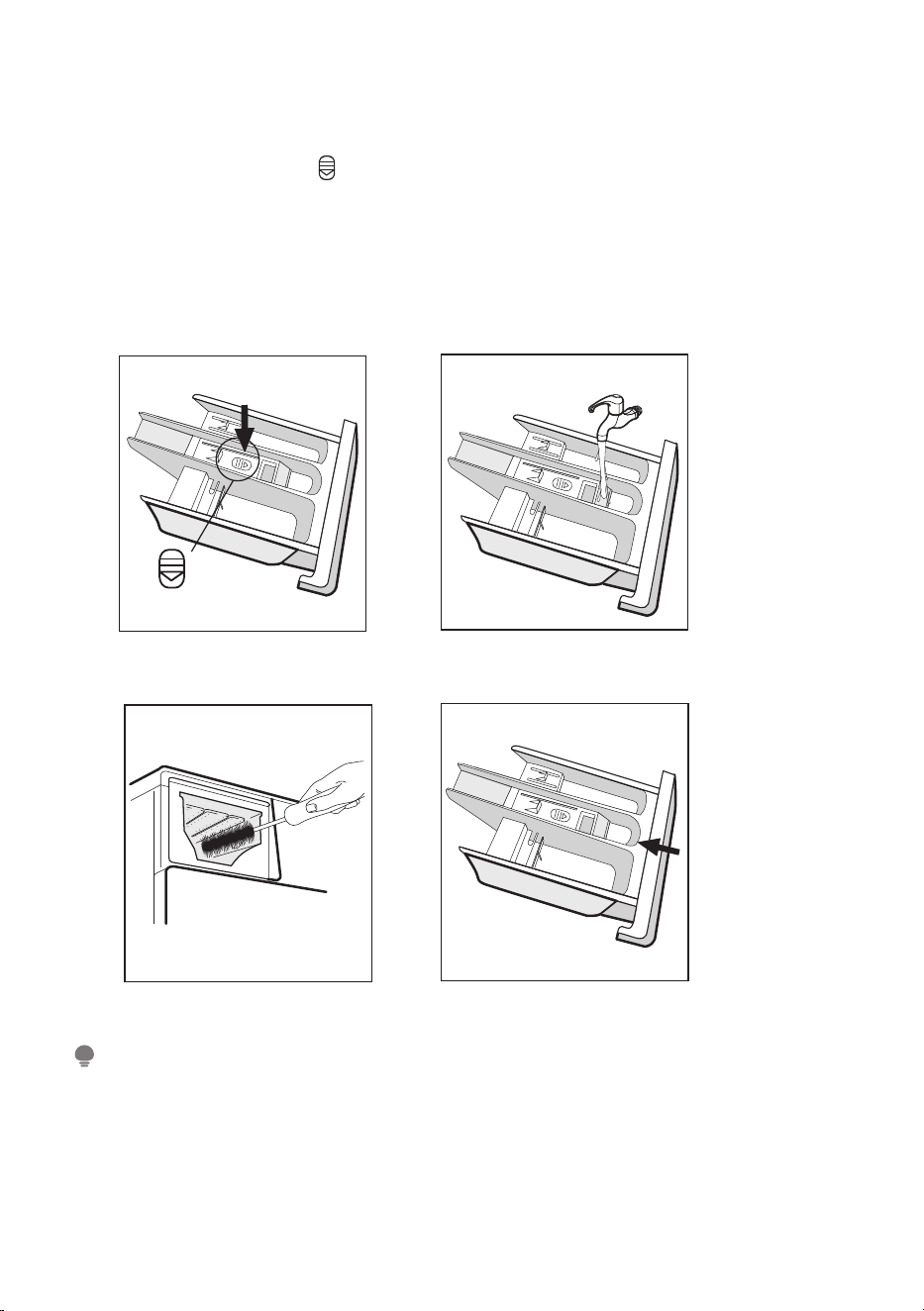

Cleaning the Detergent Dispenser
•
•
• Clean the inside of the detergent box with a brush.
•
Press down the release [ ] on the softener cover and pull the detergent dispenser
out of the detergent box.
Lift the softener cover off the detergent dispenser and wash both items with water.
Restore the softener cover and push the dispenser back into the detergent box.
Limescale and detergent residues can build up on the detergent dispenser. It's therefore
recommended to clean the detergent dispenser if needed.
1. Press the release and
remove the detergent
dispenser
2. Clean the detergent
dispenser and the softener
cover under water
3. Clean the detergent box
with a soft brush
4. Insert the detergent
dispenser
• Do not use abrasive or caustic agents to clean plastic parts.
•
Always leave the detergent drawer slightly open so that it can dry properly.
After 60 wash programs, U01 is displayed as a reminder on the control panel. Please
follow the reminder and carry out the cleaning of the detergent dispenser to ensure
normal operation of the appliance.
•
33

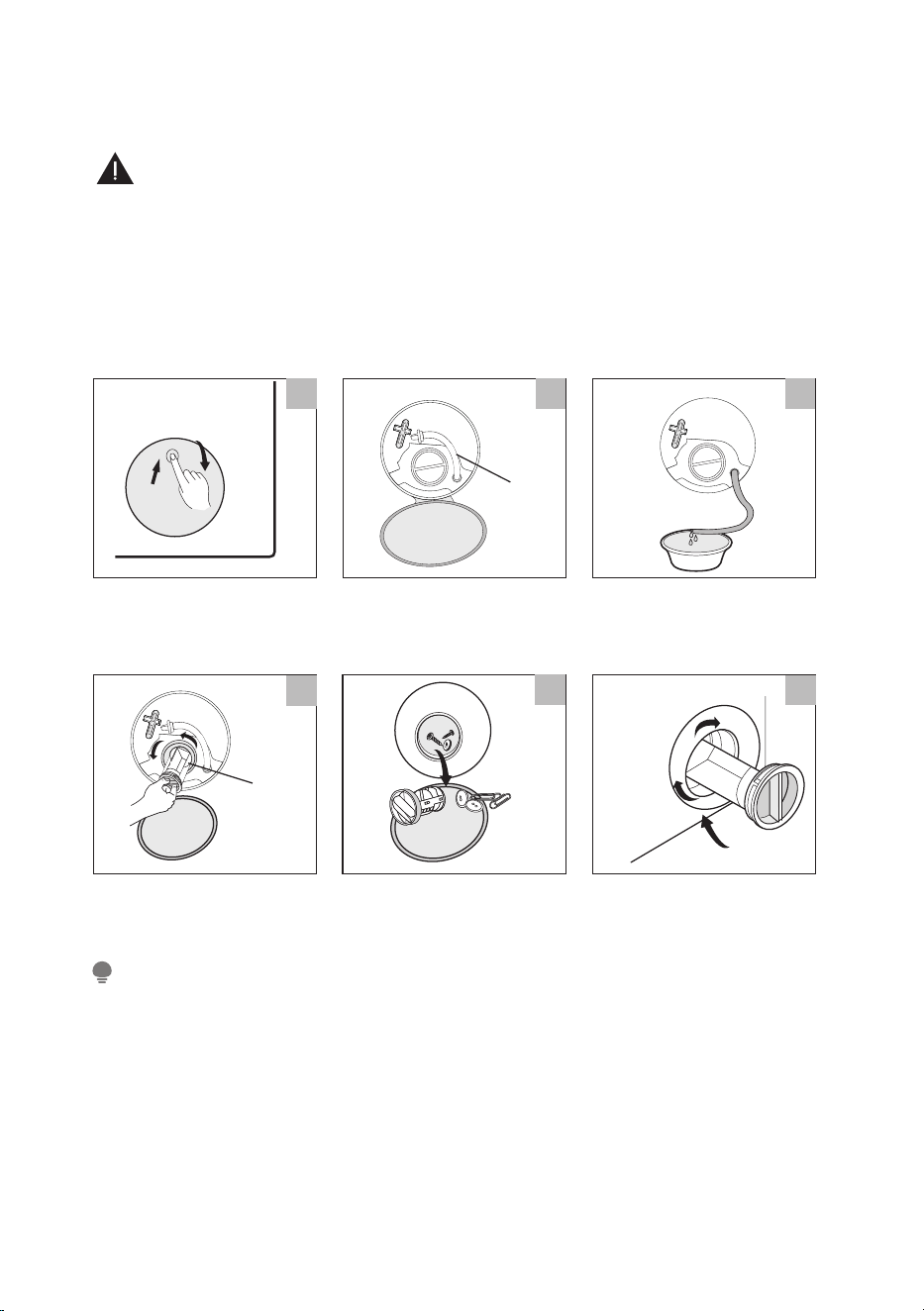

Cleaning the Drain Pump Filter
• Make sure that the appliance has finished the washing program and
load is removed of drum. Switch it off and unplug the appliance
before cleaning the drain pump filter.
• Be careful of hot water. Wait for water cooling down. Risk of scalding!
• After 60 wash programs, U01 is displayed as a reminder on the control panel.
Please follow the reminder and carry out the cleaning of the drain pump filter
to ensure normal operation of the appliance.
Open the lower cover
cap
Pull out the emergency
drain hose, and take
off the hose cap
After the water has
flown out completely,
reinsert the drain hose
5
6
Open the pump filter by
turning to the counter
clockwise
Remove extraneous
objects
Carefully reinsert the
pump filter and screw
the lower cover cap in
clockwise
• Make sure that hose cap of emergency drain hose are reinstalled properly,
otherwise water may leak.
• Some appliances don’t have emergency drain hose, so step 2 and step 3 can be
skipped.
• When the appliance is under operation and depending on the program selected
there can be hot water in the pump. Never remove the pump cover during a
washing program, always wait until the appliance has ended the operation and load
is removed of drum.
If there is a problem with the drain pump, clean it according to the following cleaning
instructions.
NOTE
WARNING
2
3
4
Emergency
drain hose
Filter cap
1

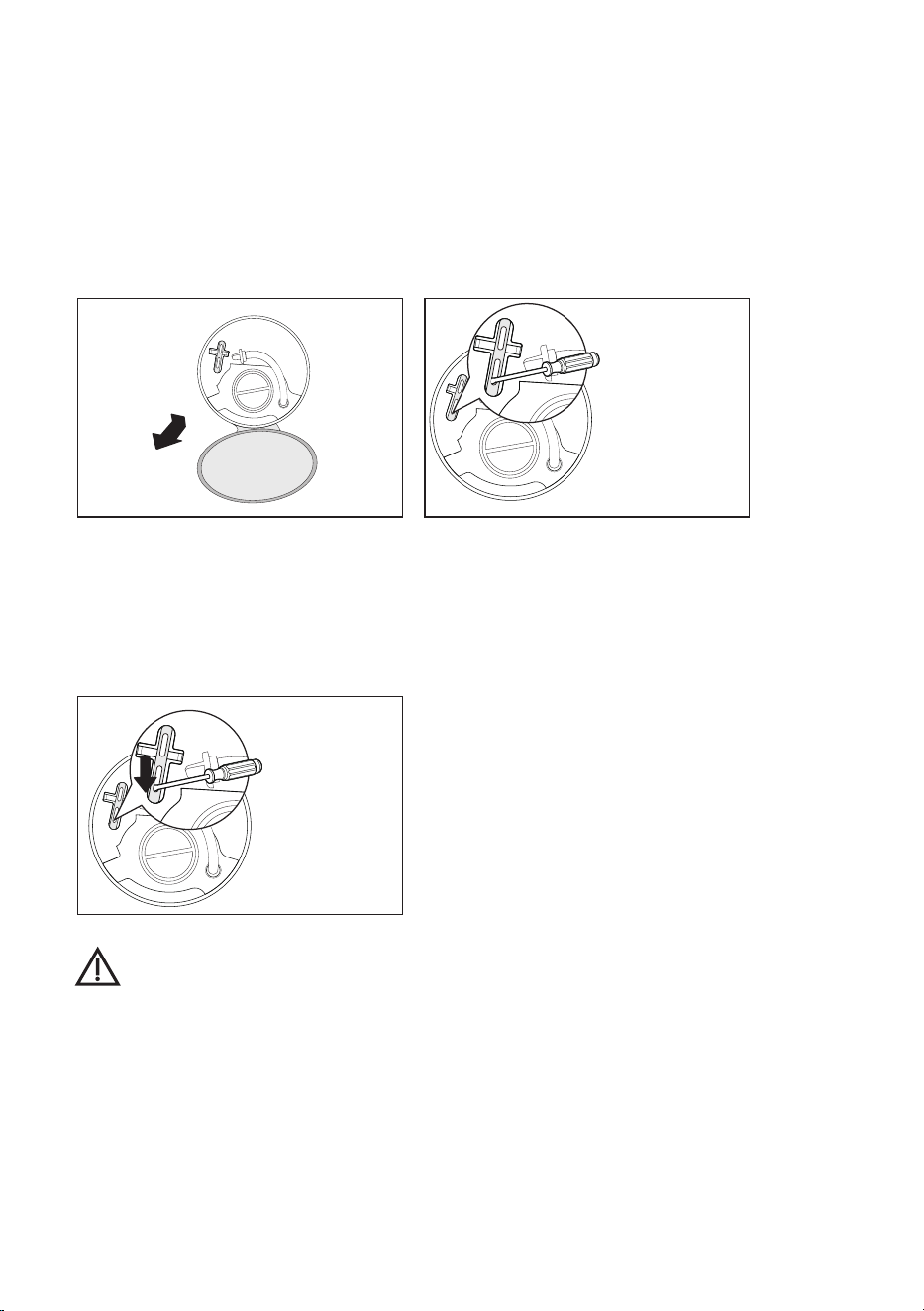

1.Open filter door.
Emergency door pull cord
2.Using a straight screwdriver
(or other non-sharp tool),
insert into the emergency door
pull cord.
Emergency Door Release
In case of power failure or other circumstances and door cannot be opened.
If it is necessary to open the door under this circumstances, please pull
down the pull cord inside emergency door and restore the pull cord after
opening the door.
The machine is not allowed to use the emergency switch pull cord
during washing. If need to run machine urgently, it is recommended to
open door after water is cooled, to avoid getting burn caused by high
temperature residual water outflow from the machine tub.
3.Pull down the emergency door
pull cord (refer to direction of the
arrow in the picture).
If unlocked successfully, you will
find the door lock icon will go out.
34
CAUTION
35
Whenever there is a problem with the appliance, check if you can solve it following the
tables below. If the problem persists, please contact the customer service.
Description
Possible Cause
Solution
Check if the water pressure
is high enough.
Straighten the water pipe.
Clean the inlet valve filter.
Check the drain hose and pump
filter for blockage.
Water injecting
problem during
washing program.
Overtime water
draining
Restart the appliance. If
problem persists, please
contact the customer service.
Others
Water overflow
Restart the appliance.
Close the door properly
and restart.
Door is not closed
properly.
Description
Possible Cause
Solution
Check the laundry.
Close the door properly
and restart.
Door is not closed
properly. Clothes are
stuck.
Safety protection
is activated.
Disconnect the power and
restart.
Water leakage
Connections are
not tight enough.
Check and fasten the water
inlet hose.
Check and clean the outlet hose.
Clean and wipe the
detergent dispenser dry.
Abnormal noise
Check if the fixing bolts
have been removed.
Make sure the appliance is
installed on a solid and
level floor.
Leveling the appliance again.
Indicator or display
does not work
PC board or harness
have connection
problems.
Switch off the power and
check if the mains plug
is connected properly.
Appliance does
not start
Detergent residues
in the detergent
dispenser
Detergent is damp
and/or clotted.
Door can´t be
opened
Fixing bolts are still in
place.
Floor is not solid or level.
Error Codes
TROUBLE SHOOTING
TRADEMARKS, COPYRIGHTS
AND LEGAL STATEMENT
logo, word marks, trade name, trade dress and all versions thereof are valuable
assets of Midea Group and/or its affiliates (“Midea”), to which Midea owns trademarks,
copyrights and other intellectual property rights, and all good will derived from using
any part of an Midea trademark. Use of Midea trademark for commercial purposes
without the prior written consent of Midea may constitute trademark infringement or
unfair competition in violation of relevant laws.
This manual is created by Midea and Midea reserves all copyrights thereof. No entity or
individual may use, duplicate, modify, distribute in whole or in part this manual, or
bundle or sell with other products without the prior written consent of Midea.
All the described functions and instructions were up to date at the time of printing this
manual. However, the actual product may vary due to improved functions and designs.
36
DISPOSAL AND RECYCLING
Important Instructions for Environment
This symbol indicates that this product shall not be disposed with
other household wastes at the end of its service life. Used device
must be returned to offcial collection point for recycling of
electrical electronic devices. To find these collection systems
please contact to your local authorities or retailer where the
product was purchased. Each household performs important role
in recovering and recycling of old appliance. Appropriate disposal
of used appliance helps prevent potential negative consequences
for the environment and human health.
Compliance with RoHS Directive
The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does
not contain harmful and prohibited materials specified in the Directive.
Package Information
Packaging materials of the product are manufactured from recyclable
materials in accordance with our National Environment Regulations. Do not
dispose of the packaging materials together with the domestic or other
wastes. Take them to the packaging material collection points designated
by the local authorities.
Compliance with the WEEE Directive and Disposing of the Waster Product:
This product complies with EU WEEE Directive (2012/19/EU). This product bears a
classification symbol for waster electrical and electronic equipment (WEEE).
37
DATA PROTECTION NOTICE
For the provision of the services agreed with the customer,
we agree to comply without restriction with all stipulations of applicable data protection
law, in line with agreed countries within which services to the customer will be delivered,
as well as, where applicable, the EU General Data Protection Regulation (GDPR).
Generally, our data processing is to fulfil our obligation under contract with you and for
product safety reasons, to safeguard your rights in connection with warranty and
product registration questions. In some cases, but only if appropriate data protection is
ensured, personal data might be transferred to recipients located outside of the
European Economic Area.
Further information are provided on request. You can contact our Data Protection
Officer via MideaDPO@midea.com. To exercise your rights such as right to object your
personal date being processed for direct marketing purposes, please contact us via
[email protected]om. To find further information, please follow the QR Code.
38
Your device / serial number
Purchase date:
Place of purchase:
We provide a guarantee for this machine in accordance with the
following conditions: You have a manufacturer’s warranty of
years from the date of purchase (proof of purchase must be
provided). Our General Terms and Conditions apply.
WARRANTY CARD
NOTES
Do you have any questions ?
We are happy to support you !
http://www.midea.com
39
40
In case of questions, please contact our local customer service center.
Never try to repair an appliance which is defective or presumed to
defective. You may put your own and future users' lives in danger.
Only authorised specialists are allowed to carry out this repair work.
• Improper repair will void the warranty and subsequent damages
can't be recognized!
Risk of electric shock
•
Spare parts for your appliance are available for a minimum of 10 years
.
following EU COMMISSION REGULATION 2019/2023 ANNEX II Ecodesign
requirements
Transport
IMPORTANT STEPS WHEN MOVING THE APPLIANCE
•
• Check if the door and the detergent dispenser are closed properly.
• Remove the water inlet pipe and the outlet hose from the house
installations.
• Let the water drain completely from the appliance (see “
”)
• Important: Re-install the 4 transport bolts in the back of the appliance.
• This appliance is heavy. Transport with care. Never hold any protruding
part of the appliance when lifting. The appliance door can not be used as a
handle.
Unplug the appliance and close the water inlet tap.
Cleaning the
Drain Pump Filter
Customer Service
WARNING
•
When lifting the machine, there is a risk of cuts in the lower area.
Protective gloves must be worn.
CAUTION
xxx
