Bins, Condensers, and Accessories
Service Parts
February 2009
Page 1
Table of Contents
B90/BX87.................................................................................................................................. page 2
HTB250/350 & BH250/350 & BH450....................................................................................... page 3
B230P ....................................................................................................................................... page 4
BH360S..................................................................................................................................... page 5
SB480, SBX470, SBX215 ........................................................................................................ page 6
HTB500/BH500A ...................................................................................................................... page 7
B222, B322, B330, B530, B842, B948 .................................................................................... page 8
HTB555..................................................................................................................................... page 9
BH800/BH550........................................................................................................................... page 10
BH801....................................................................................................................................... page 11
BH900....................................................................................................................................... page 12
BH1000..................................................................................................................................... page 13
BH1100, BH1300, BH1600 ...................................................................................................... page 14
BH1351/BH1352/BH1360......................................................................................................... page 15
BH1370..................................................................................................................................... page 16
BH1356, BH1650, BH1366 & BH1666 Ice Storage Bin .......................................................... page 17
SLB150, SLB260/BH260, SLB375/BH375............................................................................... page 18

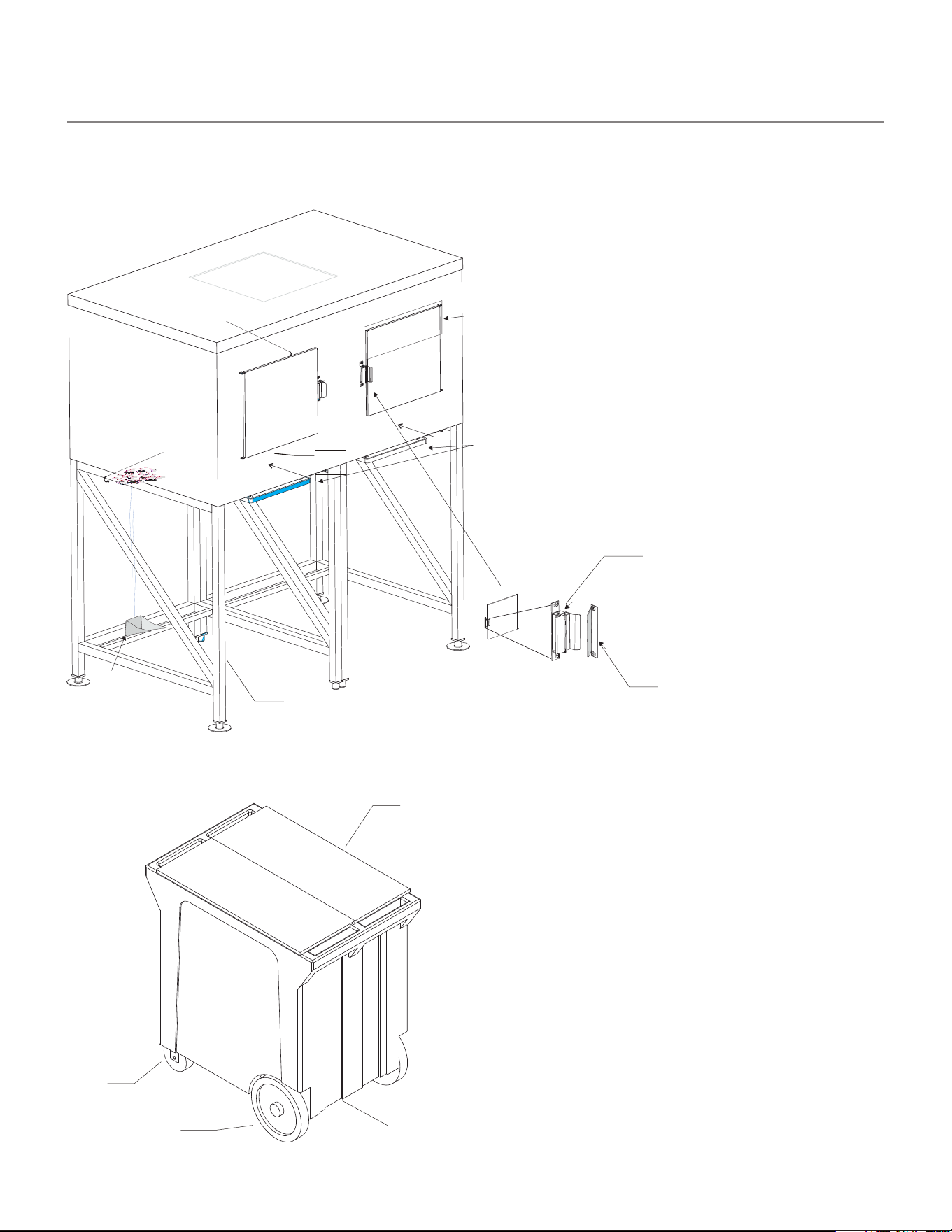

Ice Cart Systems (ICS1, ICS2, ICS3)...................................................................................... page 19

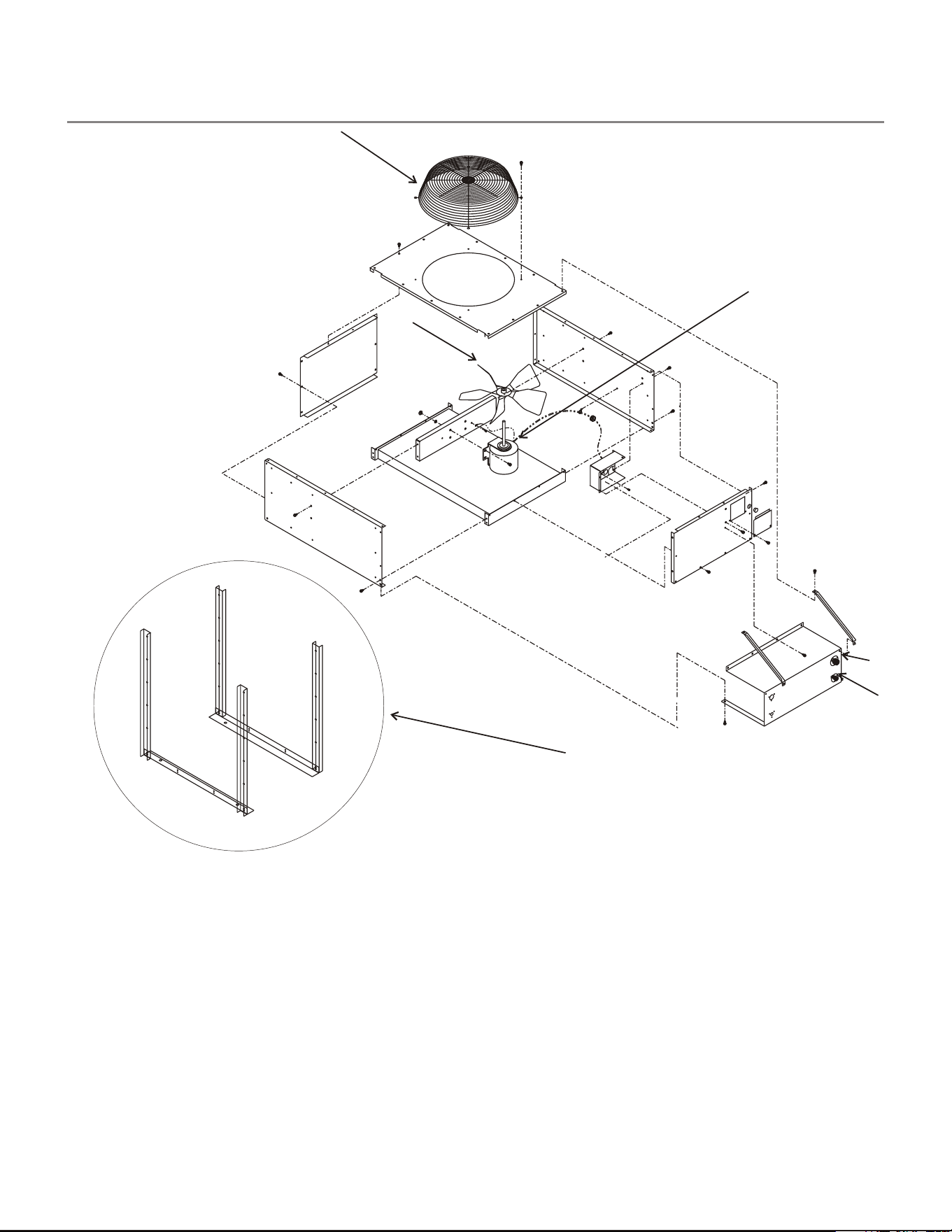

ERC Horizontal Coil Condenser .............................................................................................. page 20
ERC V Coil Condenser ERC111, 211, 311, 411, ERC680, ERC1086................................... page 21
ERC V Coil Condenser, ERC611, ERC2086, ER2C6810, ER2C1316................................... page 22

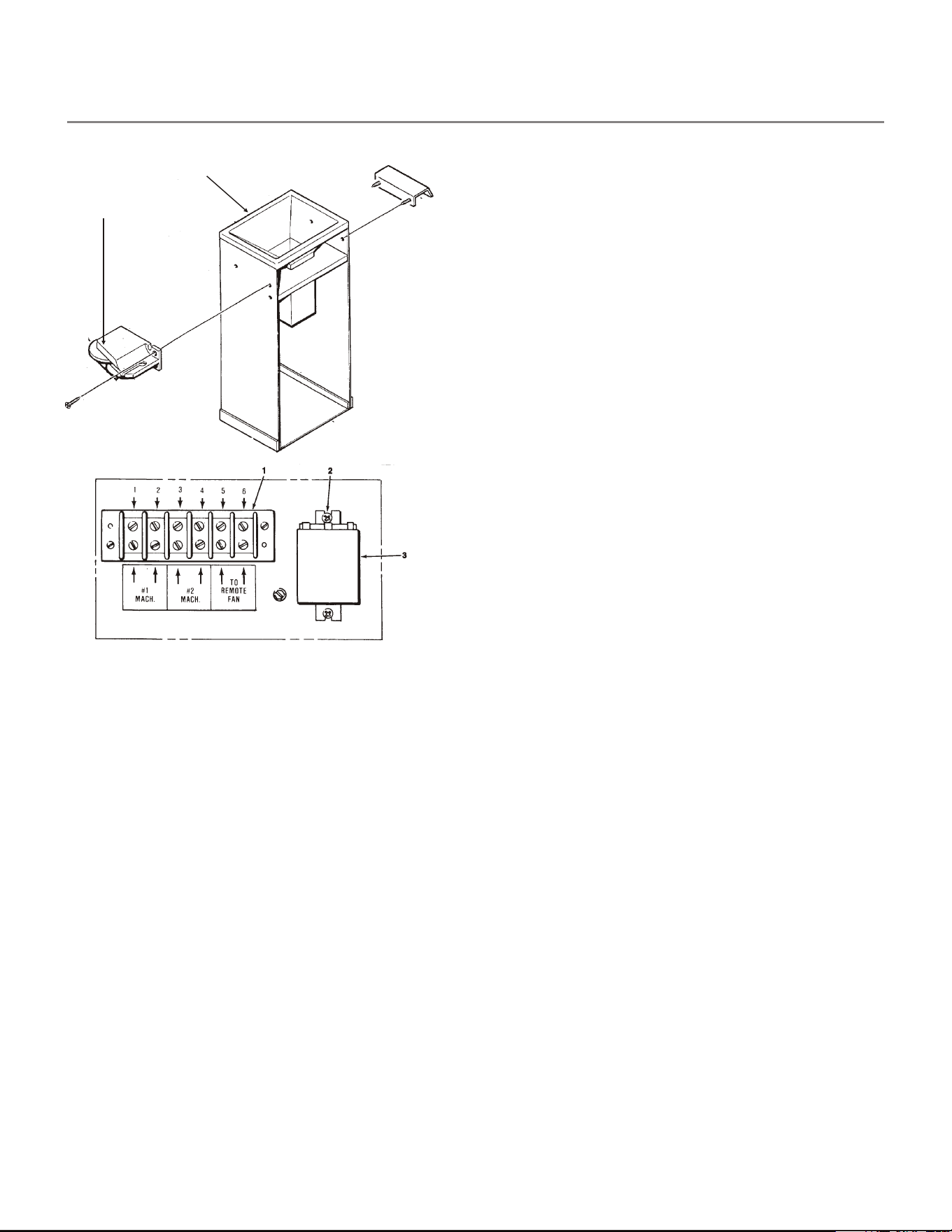

Bagger; Fan Relay Box, KDIL Thermostats ............................................................................ page 23
Water Filters ............................................................................................................................. page 24
Accessories .............................................................................................................................. page 25
1
Bins, Condensers, and Accessories
Service Parts
February 2009
Page 2

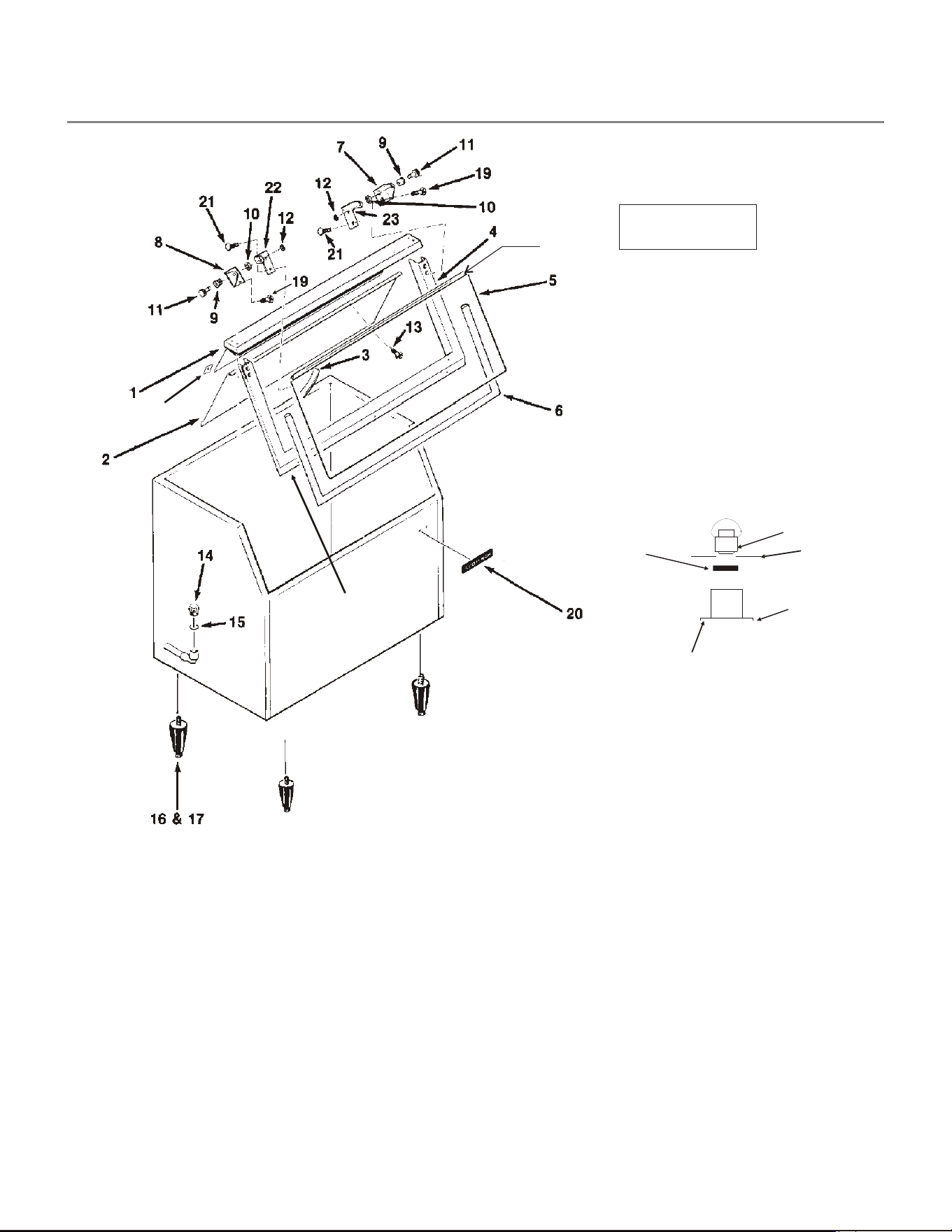

17
1
2
3
4
5
6
8
9
10
11
12
16
15
13
11
7
18
14
19
20
ITEM PART
NUMBER NUMBER DESCRIPTION
1 A15114-000 Baffle
2 A18300-013 Complete Door-brown
A18300-032 Complete door, gray
A18300-010 Complete Door,
sandalwood.
A18300-002 Complete door, SS
02-1000-00 Plastic door liner
3 15-0711-01 Emblem for sandalwood
15-0808-01 Emblem for gray
4 A17342-000 Spill Door
5 no number Awning
6 no number Door Trim Cap
7 A25931-001 Door Trim side
8 03-1285-00 Screw, into door
03-1419-28 Screw, into cabinet
9 02-2658-03 Hinge
02-2658-04 Hinge Cover
10 02-2658-01 Latch
02-1285-00 Screw, into door
11 03-1419-28 Screw, into cabinet
12 02-2658-02 Strike
13 A25929-001 Spill door hinge
14 A17302-000 Button storage
03-1403-15 Screw
15 13-0617-11 O-ring
16 02-2809-01 Drain top
17 19-0503-04 Foam tape
18 03-0727-01 Thumb screw
19 13-0264-00 Door gasket
20 A25932-001 Door trim
21 A26449-001 Cube chute
21
B90/BX87

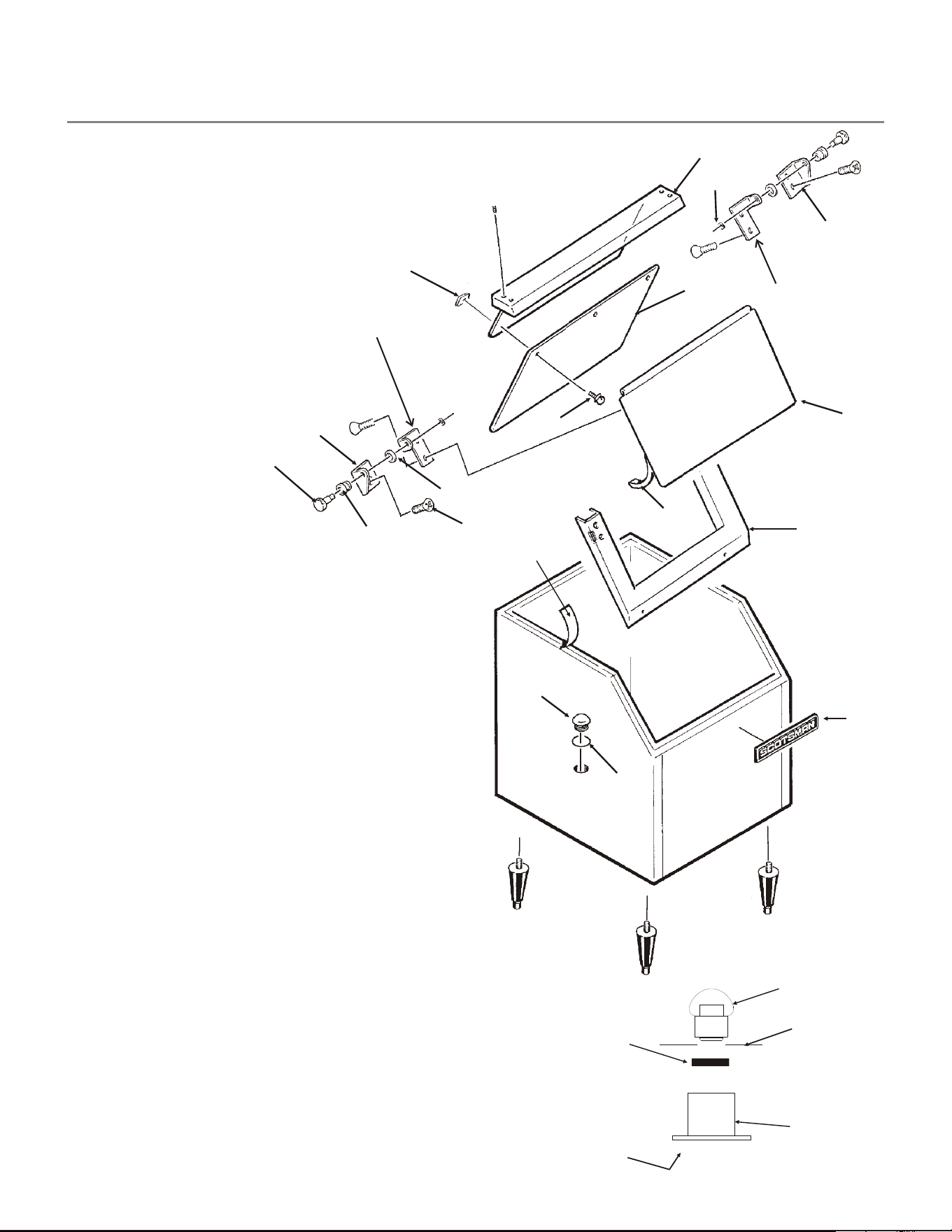

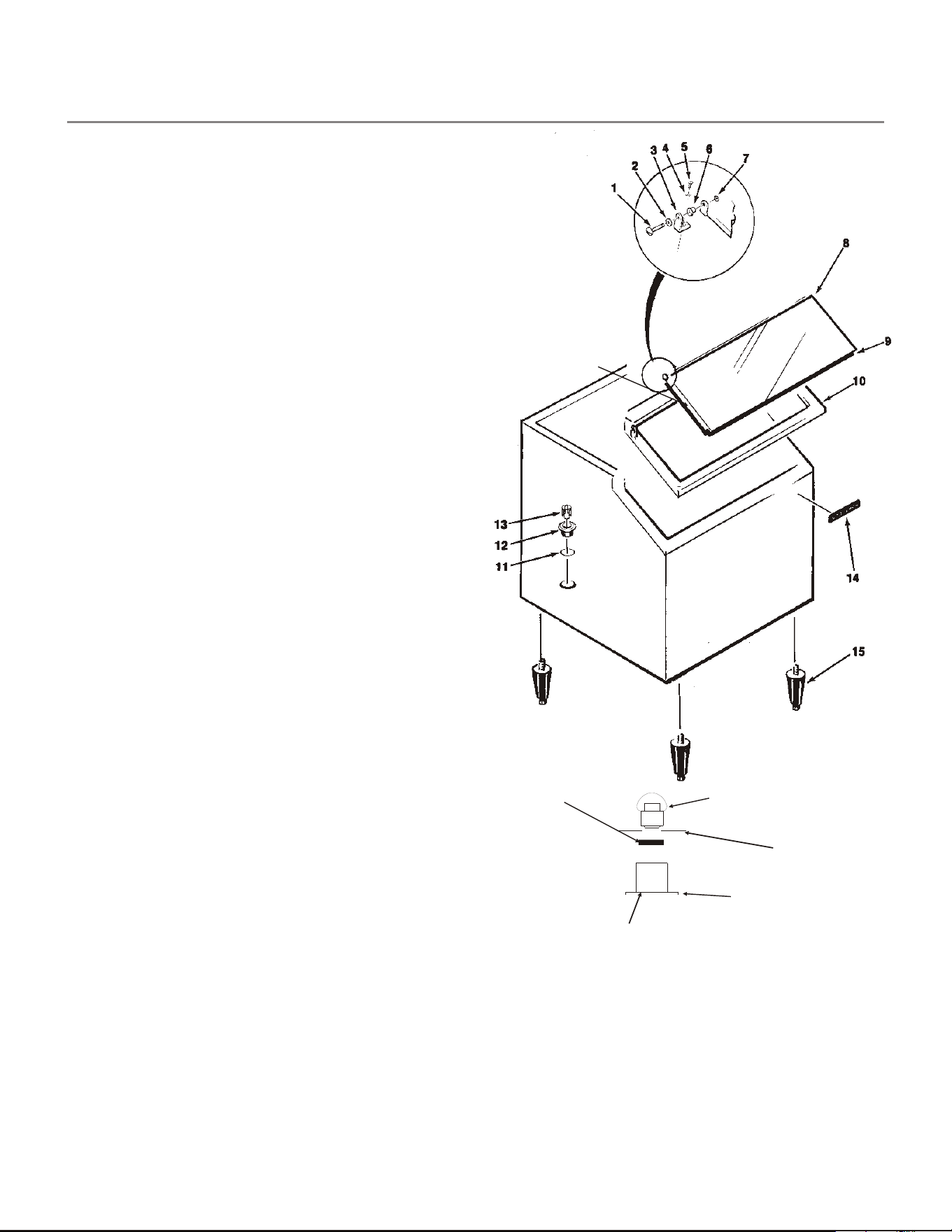

HTB250/350 & BH250/350 & BH450
Bins, Condensers, and Accessories
Service Parts
February 2009
Page 3
17
Item Part
Number Number Description
1 02-2806-01 Shoulder screw
2 02-2380-02 Spacer
3 A25259-001 BH450 Hinge member
A31248-001 Hinge member, all but BH450
4 03-1417-14 Washer
5 03-1404-26 Screw
6 02-2380-01 Hinge bushing
7 03-1539-09 E ring
8 A32648-001 Door - brown
A32648-002 Door - gray
9 13-0595-00 Door gasket (49" req.)
10 02-2857-01 HTB250/350 Door frame, brown
02-2857-32 HTB250/350 door frame, gray
A30820-001 BH450 Door frame & canopy
02-2857-32 BH250AE/BH350AE Door frame
11 13-0617-11 O-ring
12 02-2809-01 Drain top, all but BH450
A18090-000 BH450 drain top
13 A06448-000 BH450 strainer
14 15-0711-01 Emblem - for sandalwood
15-0711-02 Emblem for gray
15 KLP7 Legs, black
KLP8S Legs, nickel plated
16 A32580-001 Baffle HTB only
03-0727-06 Thumb screw for baffle
03-1423-07 Speed nut for baffle
17 A32317-001 Canopy, all but BH450
18 02-3201-01 Drain bottom, HTB250/350 after Nov. 91 (05K)
02-2809-02
Drain Top
02-4193-01
02-3201-01
Drain Bottom
DRAIN FITTING DETAIL
after serial numbers
HTB250 489378-05K
HTB350 488666-05K
03-1404-07
Screw (3)
Position of Cabinet
(for reference)

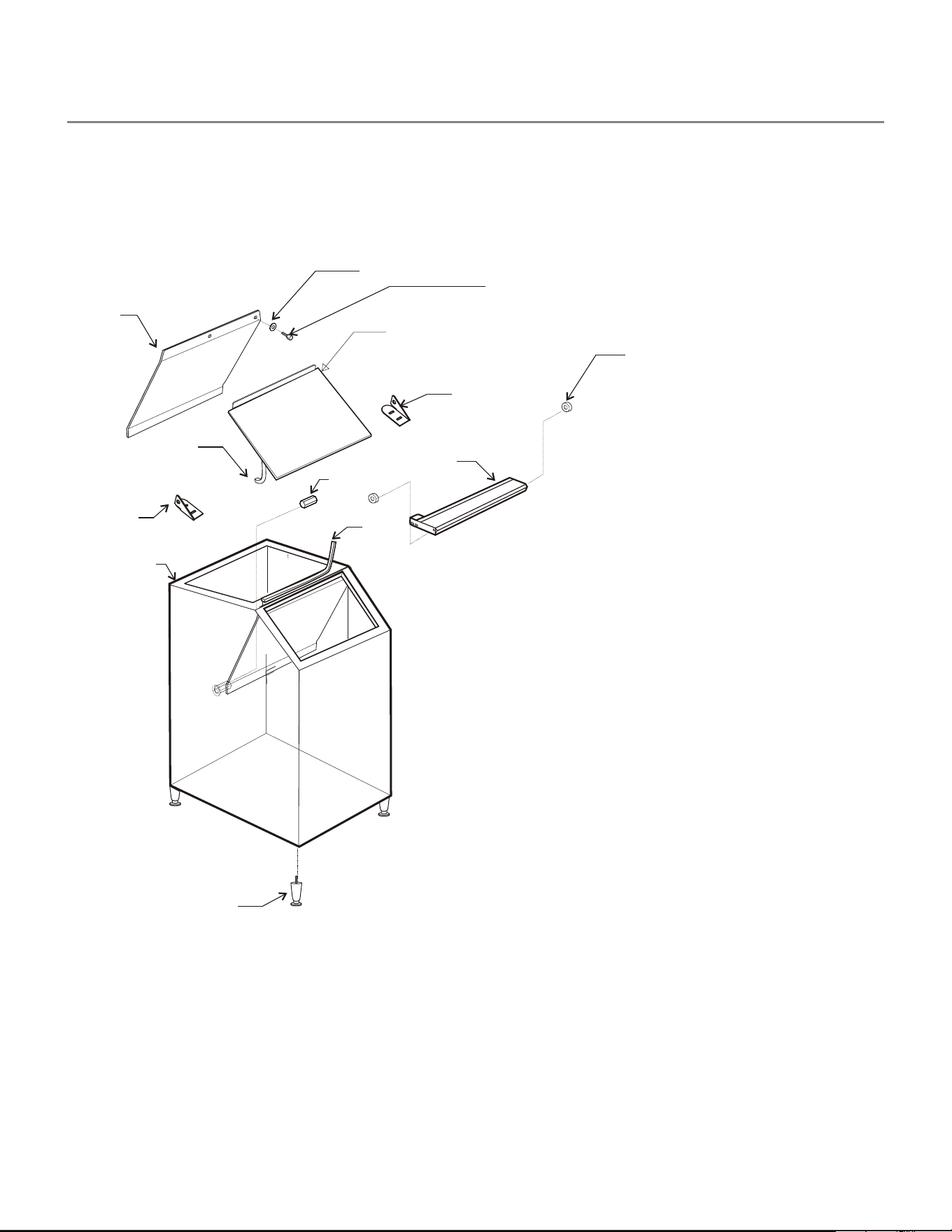

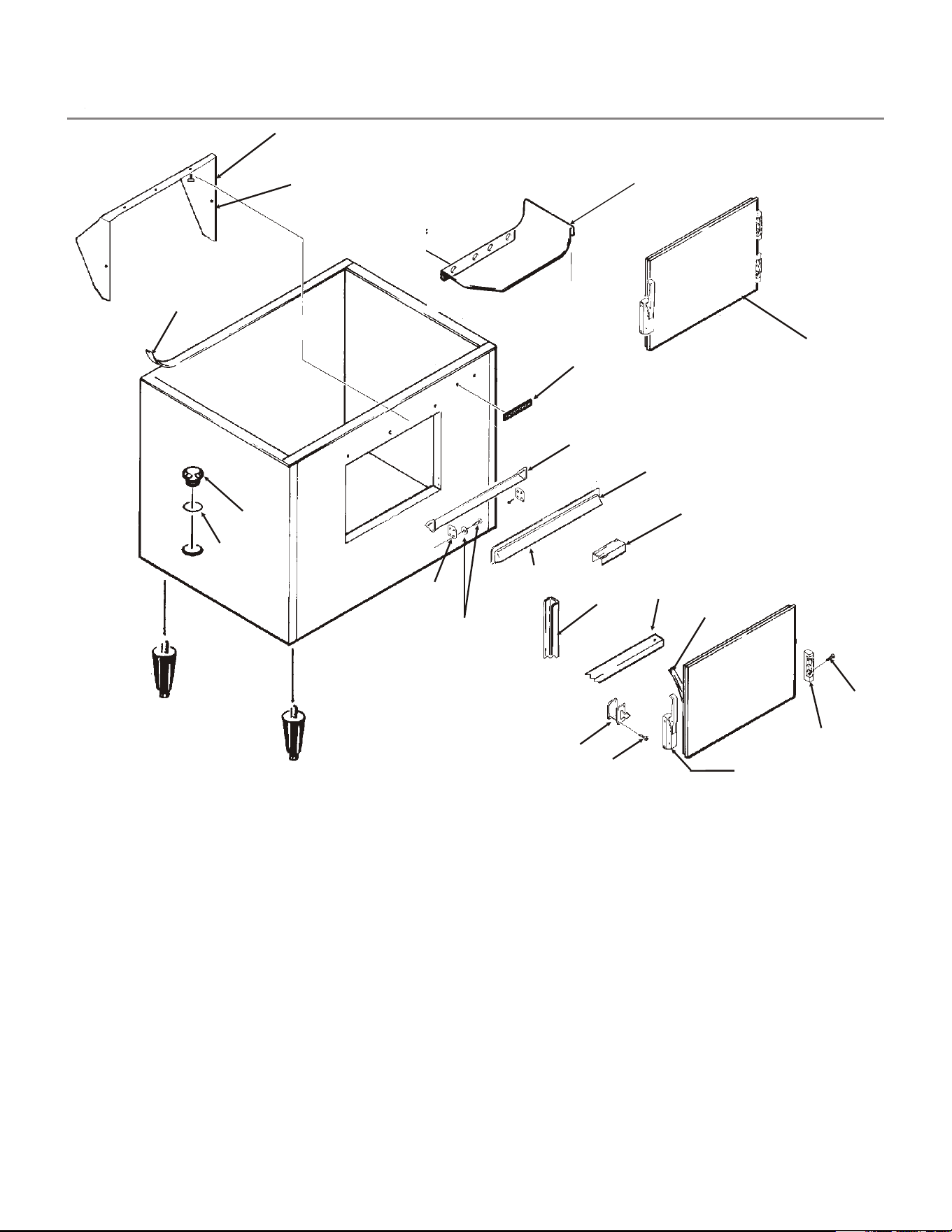

B230P
Bins, Condensers, and Accessories
Service Parts
October 2014
Page 4
Item Part
Number Number Description
1 02-4732-02 Door only
2 02-4654-21 Door assembly , includes door, baffle, gasket and hinges
3 02-3943-10* Set of 4 legs for bins with "1280" in the serial number.
KLP7 Set of 4 legs for bins with "1320" in the serial number.
1
2
* Note: Leg Threads are ½ - 13. These legs
will not interchange with any other Scotsman
leg or caster.

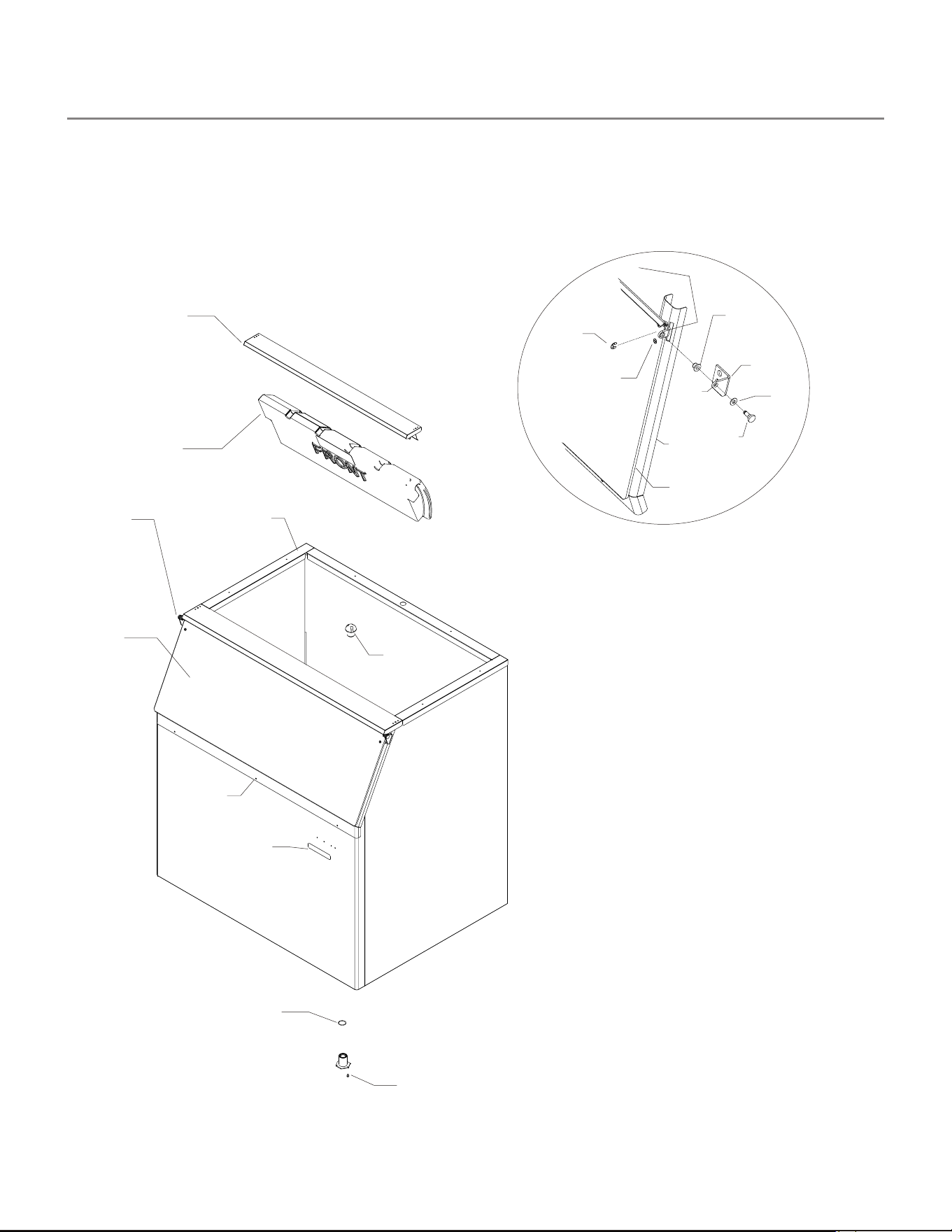

BH360S
Bins, Condensers, and Accessories
Service Parts
December 2010
Page 5
Item Part
Number Number Description
1 02-3943-05 Ice deflector
2 02-3943-14 Rubber washer
3 02-3943-15 Thumbscrew
4 02-3943-03 Door w/gasket, w/out hinges
5 02-3943-02 Right hinge
02-3943-11 Screw, hinge to door
6 02-3943-16 Nylon bearing
7 02-3943-04 Canopy
02-3943-12 Screw, canopy to bin
8 02-3943-07 Gasket (per foot)
9 02-3943-13 Hex stand off
10 13-0943-02 Bin gasket tape (per foot)
11 02-3943-06 Door gasket
12 02-3943-01 Left hinge
02-3943-11 Screw, hinge to door
13 02-3943-10 Set of 4 legs
14 02-3943-09 Connecting strap, IM to bin
1
2
3
5
11
4
12
7
8
13
10
9
6
Note: Leg Threads are ½ - 13. The legs for
this bin will not interchange with any other
Scotsman leg or caster.

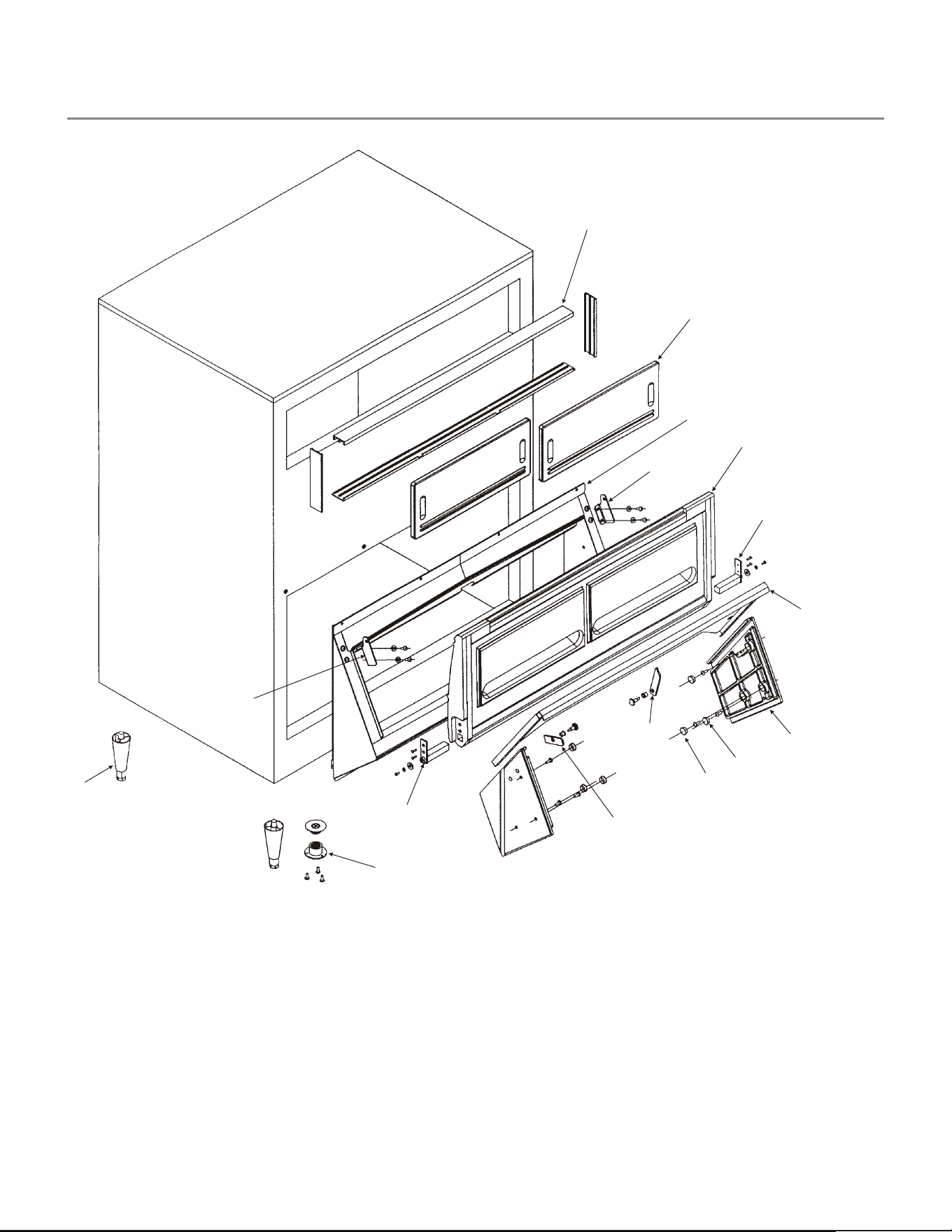

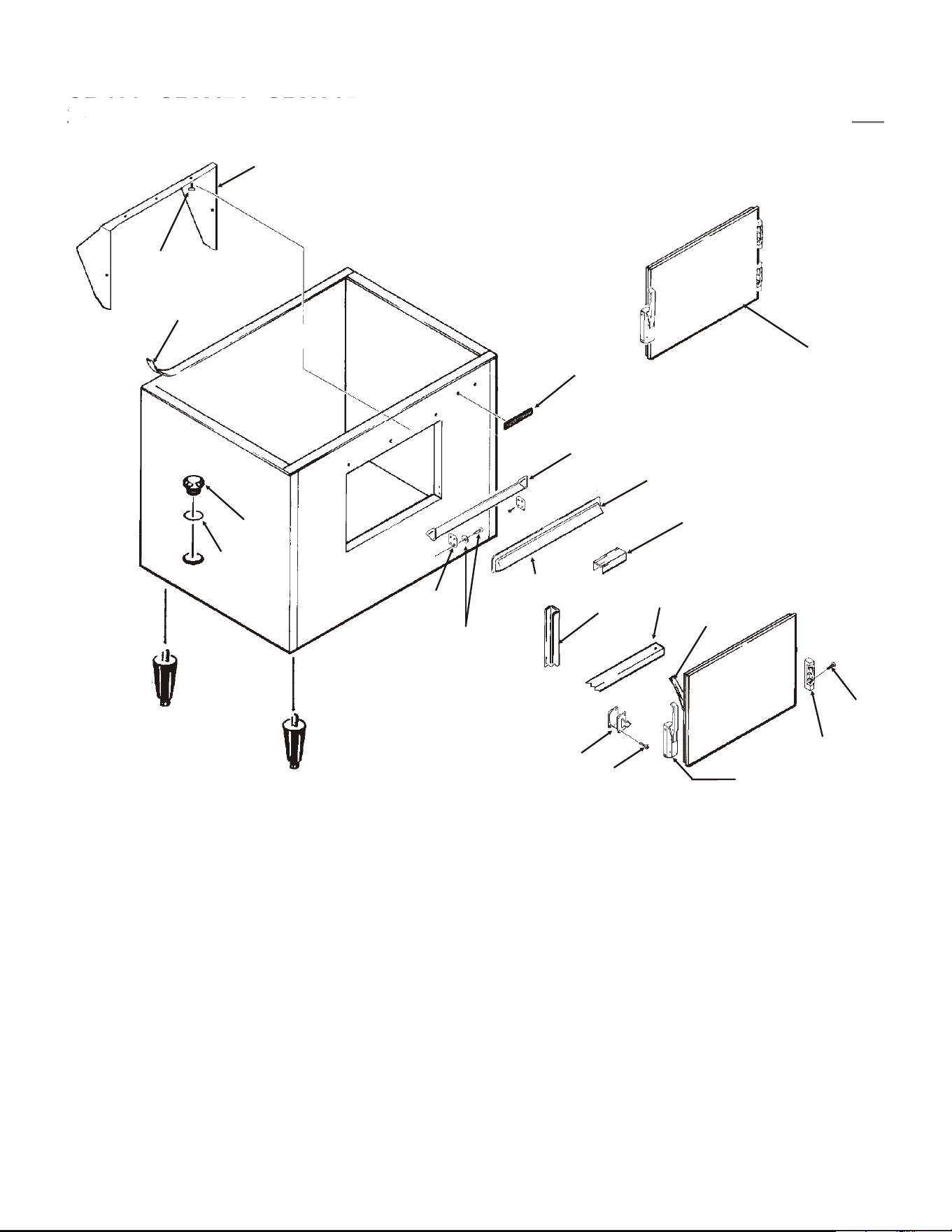

SB480, SBX470, SBX215
Bins, Condensers, and Accessories
Service Parts
February 2009
Page 6
17
1
2
3
4
5
6
8
9
10
11
12
16
15
13
11
7
18
14
19
20
ITEM PART
NUMBER NUMBER DESCRIPTION
1 02-3991-01 Baffle
2 02-3991-02 Complete door, SS
02-3991-03 Plastic door liner
3 15-0711-02 Emblem for gray
4 02-3991-04 Spill Door
5 02-3991-05 Awning
6 02-3991-06 Door Trim Cap
7 02-3991-07 Door Trim side
02-3991-17 Support, attaches to
item 7
8 02-3991-08 Screw, into door or
cabinet
9 02-2658-03 Hinge
02-2658-04 Hinge Cover
ITEM PART
NUMBER NUMBER DESCRIPTION
10 02-2658-01 Latch
02-3991-12 Screw, into door
11 02-3991-13 Screw, into cabinet
12 02-2658-02 Strike
13 02-3991-15 Spill door hinge
14 02-3991-16 Screw
15 13-0617-11 O-ring
16 02-2809-01 Drain top
17 19-0503-04 Foam tape
18 03-0727-01 Thumb screw
19 02-3991-18 Door gasket
20 02-3991-19 Door trim

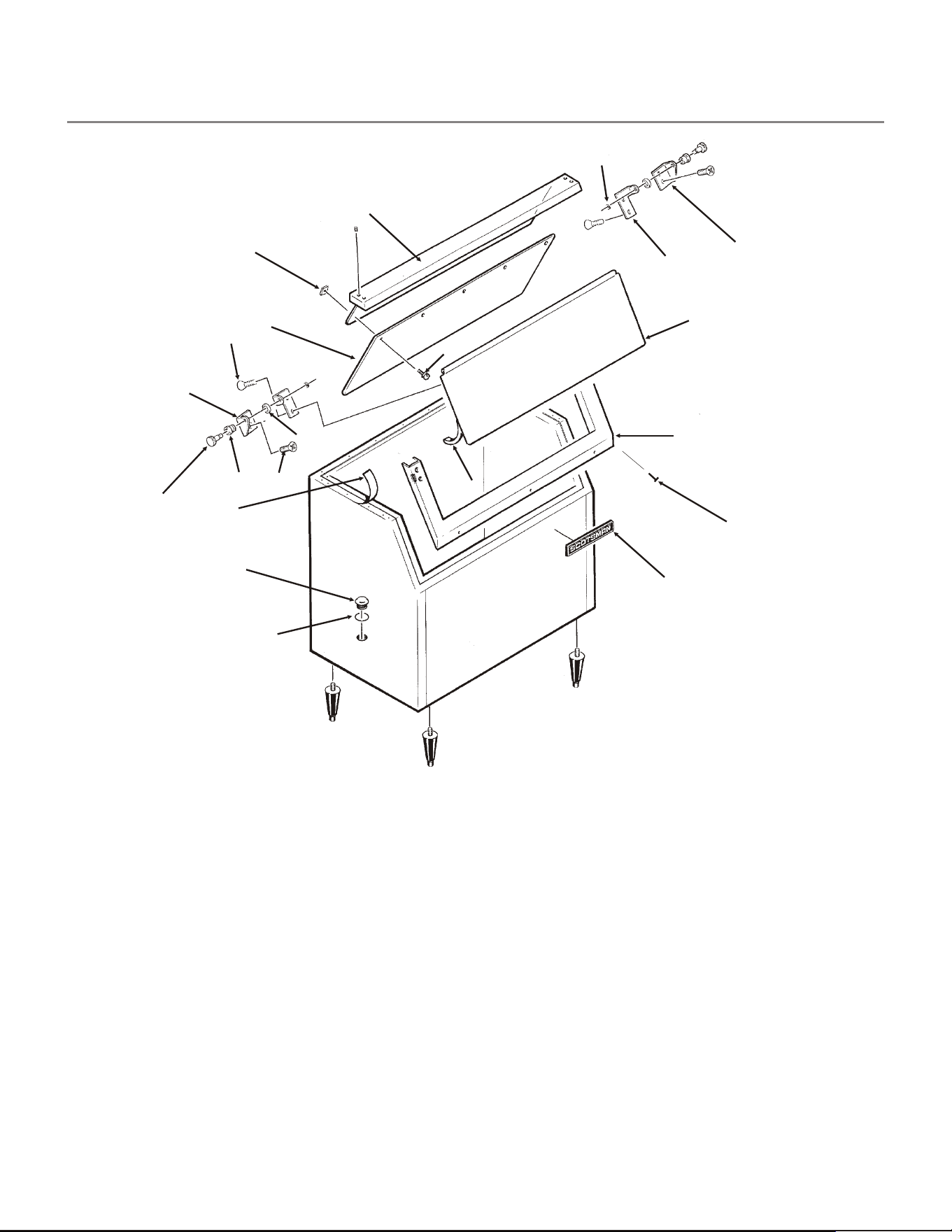

HTB500/BH500A
Bins, Condensers, and Accessories
Service Parts
February 2009
Page 7
1
3
2
4
5
8
9
7
15
16
12
6
3
14
11
13
10
17
ITEM PART
NUMBER NUMBER DESCRIPTION
1 02-2806-01 Shoulder Screw
2 02-2380-02 Spacer
3 A31248-001 Hinge Member
4 03-1404-07 Screw
5 02-2380-01 Hinge Bushing
6 03-1539-09 E-Ring
7 A32648-001 Door (brown)
A32648-002 Door (gray)
(includes gasket)
8 13-0595-00 Door Gasket (5’)
9 02-2857-01 Door Frame
10 15-0711-01 Emblem
11 02-2809-01 Drain Top
12 A32317-001 Canopy for HTB500
no number Canopy for BH500A
13 13-0617-11 O-Ring
14 A32580-001 Baffle
15 03-0727-06 Thumbscrews
16 03-1423-07 Speed Clips
17 19-0503-04 Gasket order by ft.
02-2809-02
Drain Top
02-4193-01
02-3201-01
Drain Bottom
DRAIN FITTING DETAIL
after serial number
488826-05K
03-1404-07
Screw (3)
Position of Cabinet
(for reference)
Door Hinge Part of Door,
not available separately
Door Hinge Part
of Door, not
available
separately

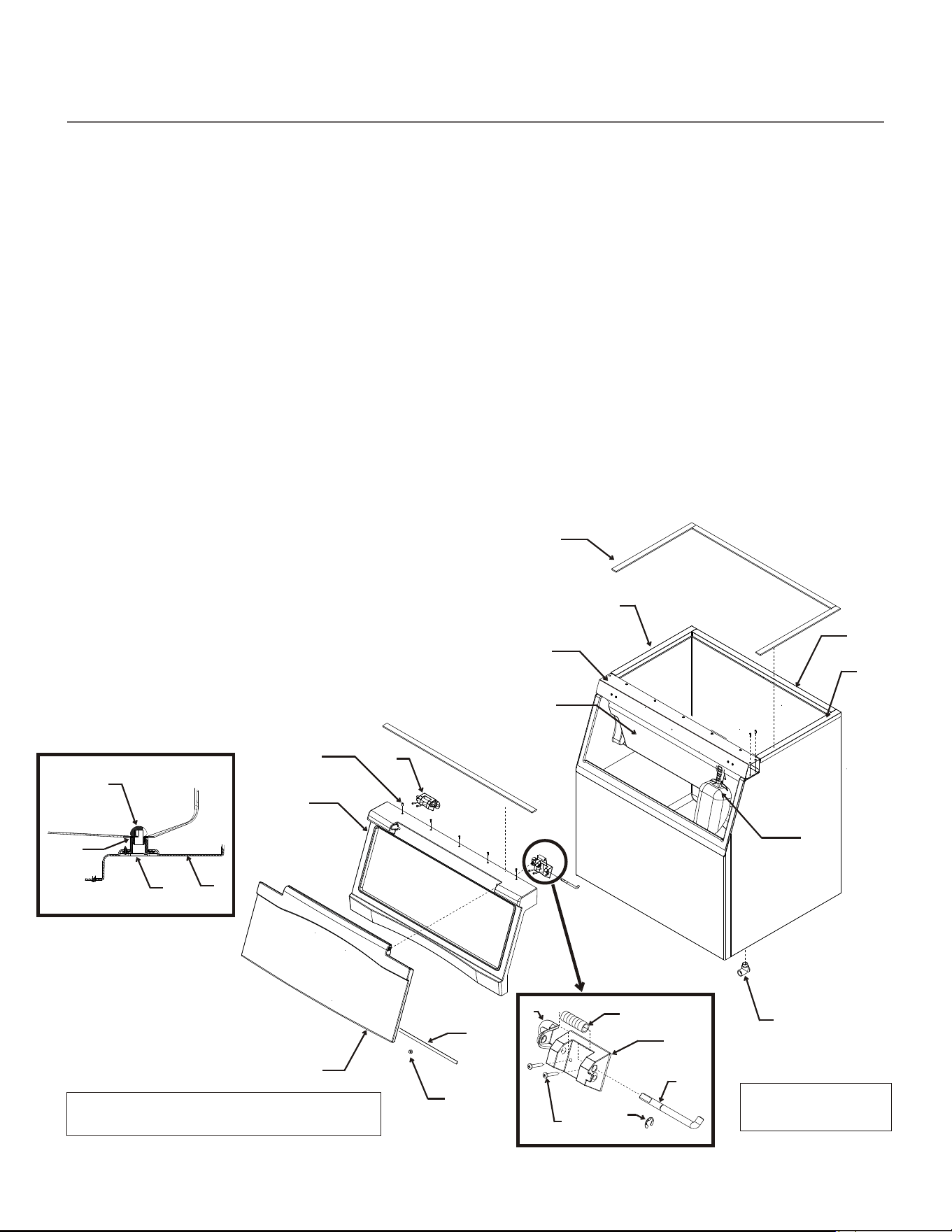

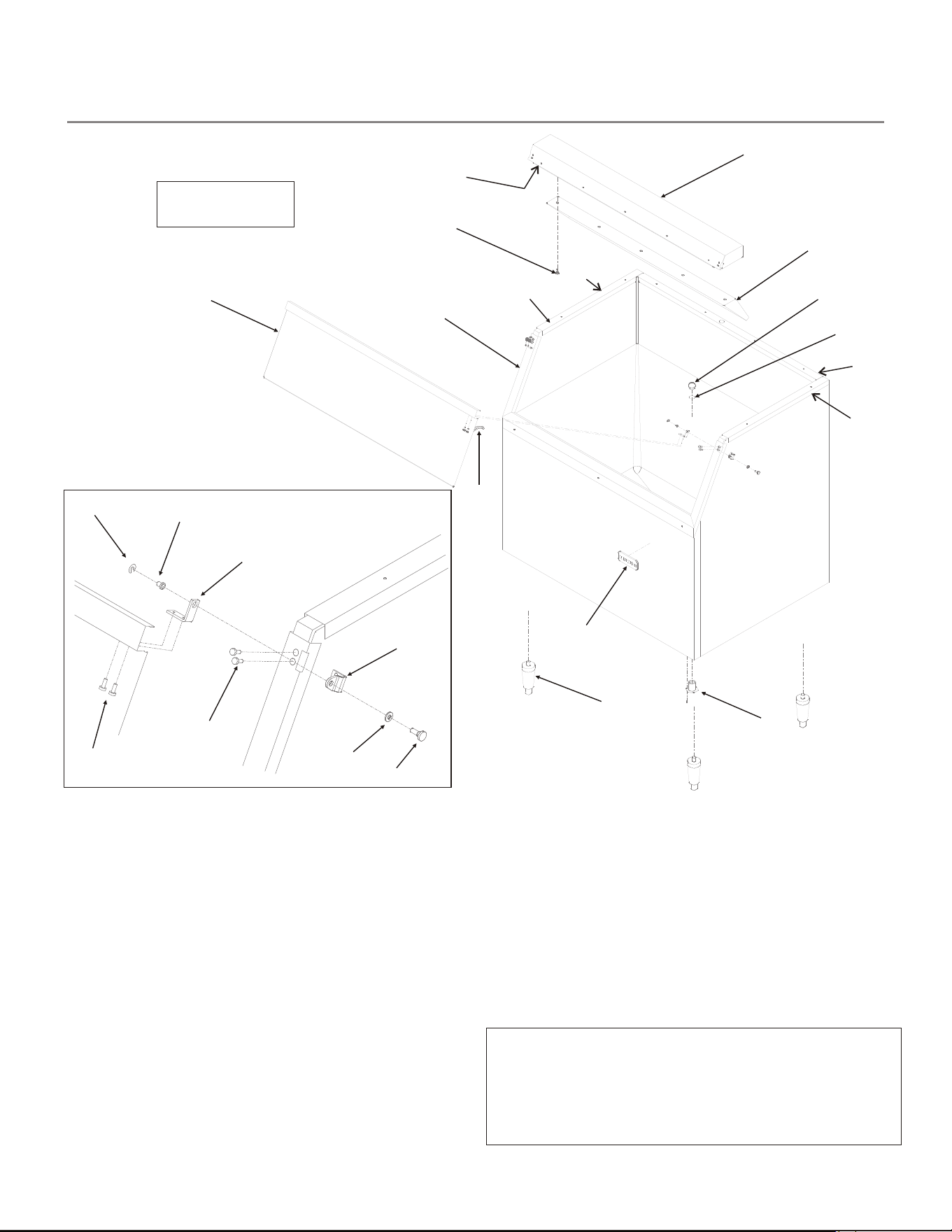

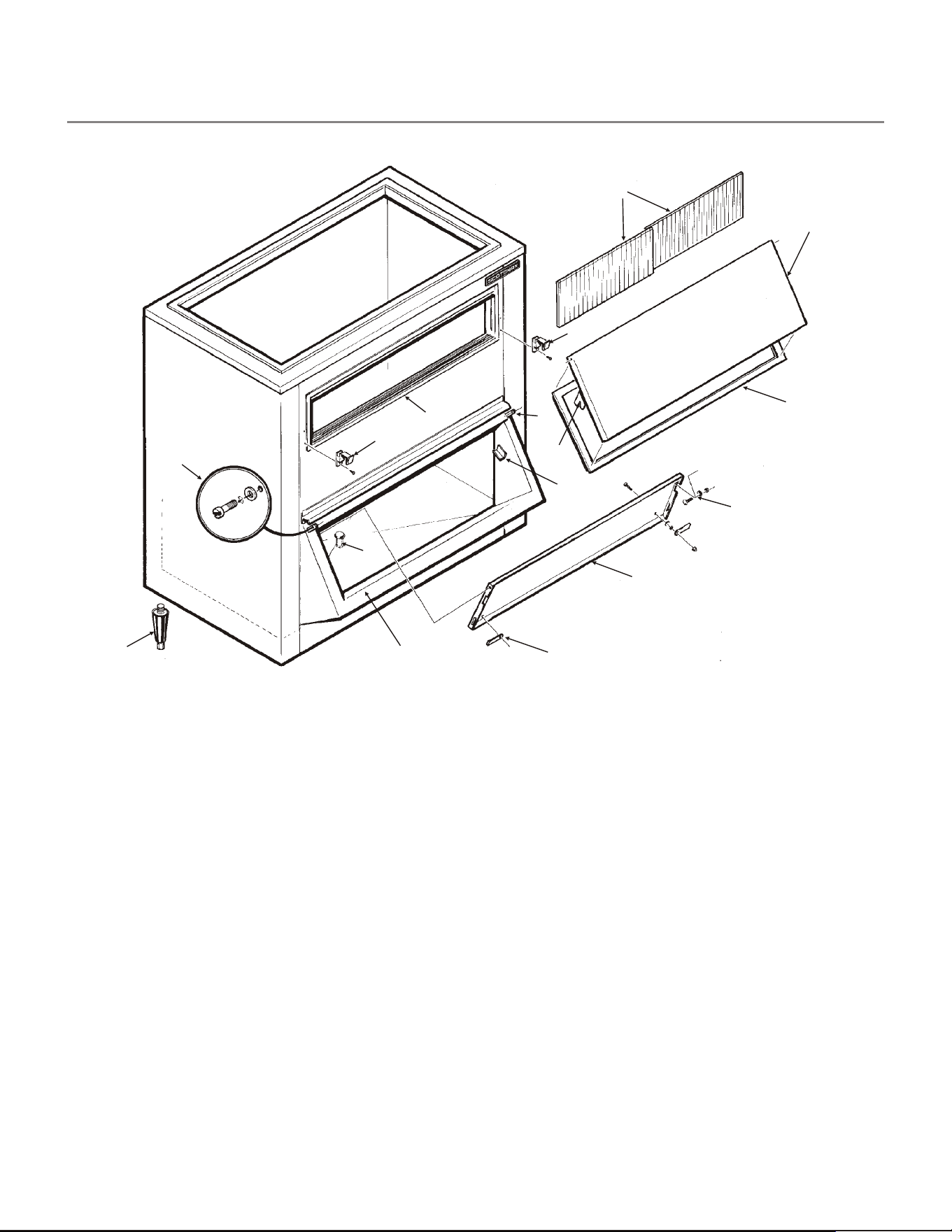

B222, B322, B330, B530, B842, B948
Bins, Condensers, and Accessories
Service Parts
Jan 2017
Page 8
Hinge Detail
7
6
14
11
15
16
10
17
5
19
17 A38920-001 Canopy, B222, B322
A38921-001 Canopy, B330, B530
A38922-001 Canopy, B842
A38923-001 Canopy, B948
18 A38910-001
Baffle 18.25", B222, B322
A38911-001
Baffle 26.25", B330, B530
A38912-001
Baffle 38.25", B842
A38913-001
Baffle 44.25", B948
19 13-0943-02 Gasket, 22" use 86"
Gasket, 30" use 102"
Gasket, 42" use 126"
Gasket, 48" use 136"
20 A40299-001 Left cap - SS bin
A39976-001
Left cap - plastic bin
21 A40299-002 Right cap - SS bin
A39977-001
Right cap - plastic bin
22 A40300-001 22" back cap
A39979-001
30" back cap
A40302-001 42" back cap
A40303-001 48" back cap
13
Drain Detail
15a
15b
Order kit KLP7 for
a set of 4 legs.
12
9
* Replacement of frame recommended
when servicing hinge parts.
20
22
1
3
2
4
18
15c
8
21
Item Part
Number Number Description
1
2
3
4
02-28
09-02 Drain top
02-3108-01 Drain fitting
02-4193-01 Drain gasket
02-4234-01 Drain panel, SS only
5 02-0540-01 Scoop
6 03-3876-01 Spring*
7 03-3874-01 Hinge pin*
8 13-0946-01 Hinge gasket
9 03-1539-12 E clip*
10 05-0586-01 Elbow for drain
11 03-1403-71 Screw, hinge to canopy
12 03-1418-30 Screw, frame to canopy
13 02-4232-01 Left hinge mount*
14 02-4233-01 Right hinge mount*
15 A40611-021 Door, B222, B322
A40612-021 Door, B330, B530
A40613-021 Door, B842
15a 13-0595-00 B842 door gasket, use 27.5"
A40614-021 Door, B948
15b 13-0595-00 B948 door gasket, use 33.5"
15c 02-4235-01 Bumper, 22"and 30" only
16 02-4236-01 Frame, B222, B322
02-4237-01 Frame, B330, B530
02-4238-01 Frame, B842
02-4239-01 Frame, B948

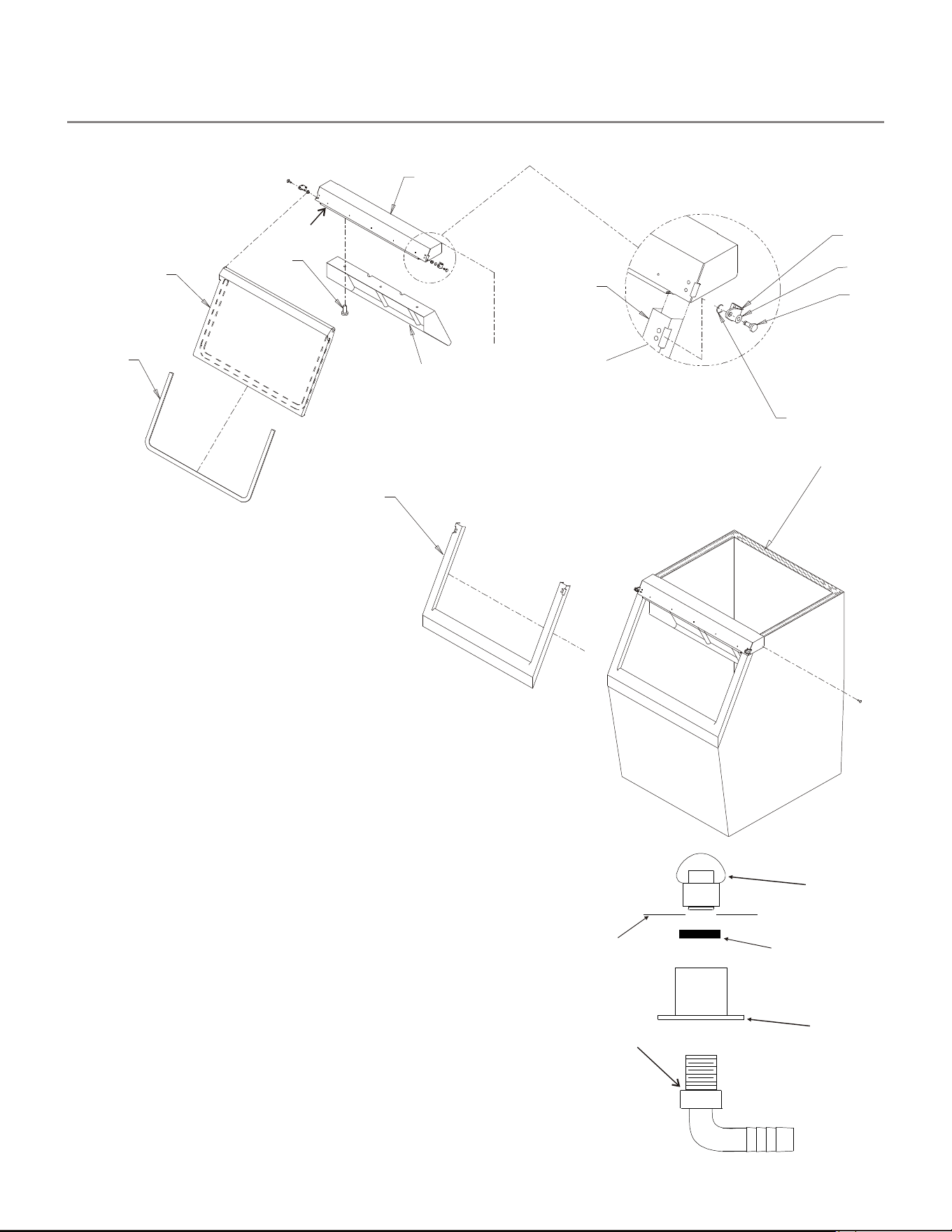

HTB555
Bins, Condensers, and Accessories
Service Parts
December 2011
Page 9
10
1
2
3
4
5
9
8
7
11
6
15
Item Part
Number Number Description
1 02-2380-02 Spacer
2 02-3196-01 Hinge
3 02-2806-01 Shoulder screw
4 03-1539-09 E-Ring
5 19-0503-04 Gasket - 9 ft.*
6 02-3274-01 Door frame -Brown
02-3274-32 Door frame - Grey
7 13-0909-01 Door gasket - 58"
8 A36481-021 Door - Brown incl #7
A36481-022 Door - Grey incl #7
9 03-0727-11 Thumb screw
10 A35637-001 Canopy
11 A37310-001 Baffle
12 02-2809-02 Drain top
13 02-4193-01 Flat washer
14 02-3108-01 Drain bottom
15 03-1418-07 Screw for hinge
16 02-3202-02 Trim guard
17 05-0586-01 Drain elbow
18 A40021-021 Hinge kit, includes 2 of items 1,
2, 3 and 4; plus 4 of item 15.
Not shown
02-0540-01 Scoop
12
14
DRAIN FITTINGS
DETAIL
13
Bin
Liner
16
17
See Item 18 for Hinge Kit

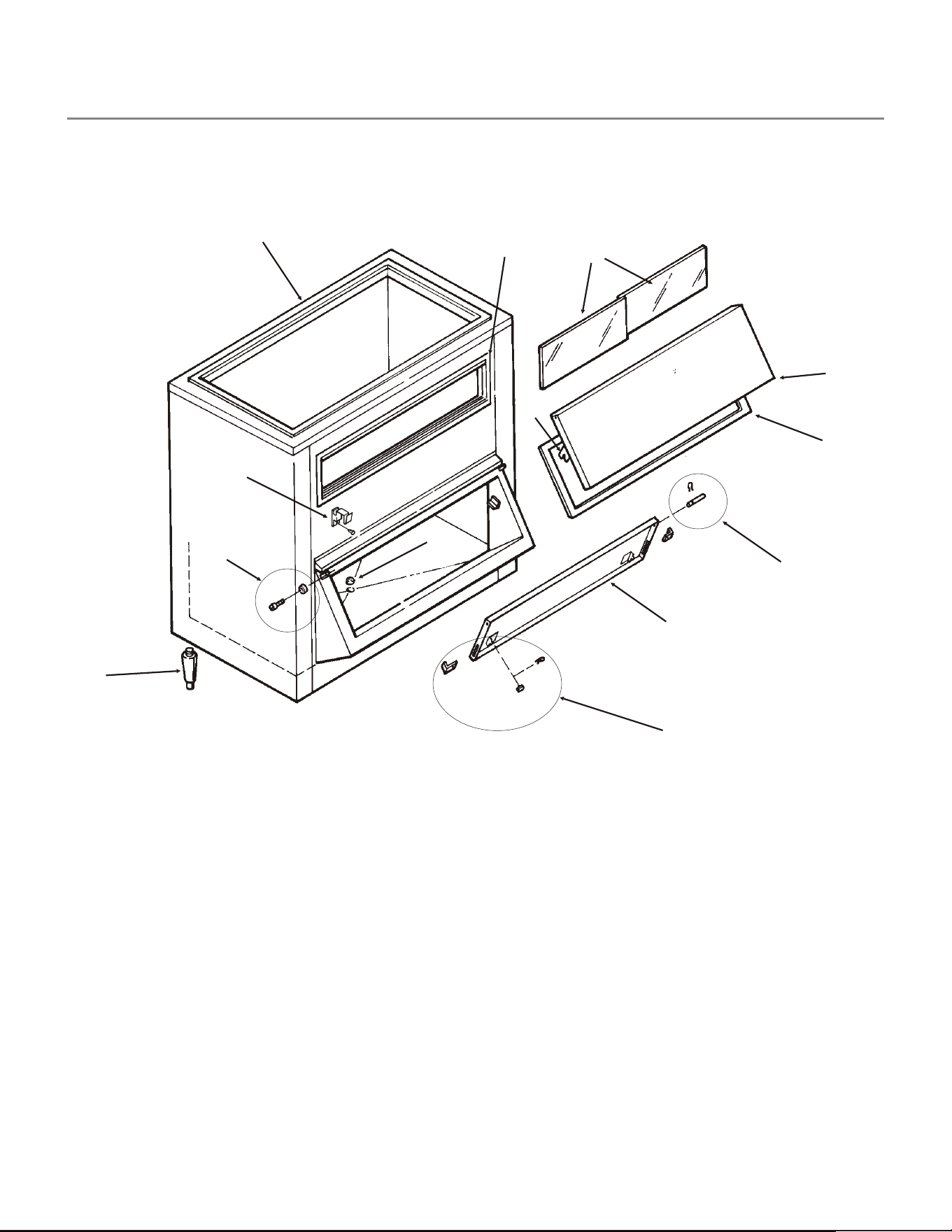

BH800/BH550
Bins, Condensers, and Accessories
Service Parts
February 2011
Page 10
18
24
BH800 BH550
ITEM PART PART
NUMBER NUMBER NUMBER DESCRIPTION
1 A32408-001 A33921-001 Canopy
2 A32410-001 A32580-001 Baffle
3 19-0503-04 same Gasket
order per foot
4 A32418-020 A33922-020 Door Frame
A37640-021 A37639-021 Door Frame, C series
5 A32419-020 A33938-020 Door, incl 5a, 6, 22, 23
5a 02-2881-02 02-2881-03 Drip molding
6 13-0595-00 same Door Gasket
(10’) (6’) order per foot
7 A32396-002 same Hinge Rt.
8 A32396-001 same Hinge Left
9 02-2380-01 same Hinge Bushing
10 02-2380-02 same Hinge Spacer
11 02-2806-01 same Shoulder Screw
BH800 BH550
ITEM PART PART
NUMBER NUMBER NUMBER DESCRIPTION
12 03-1539-09 same E-Clip
13 03-0727-00 same Thumb Screw
14 02-2809-01 same Drain Top
15 13-0617-11 same O-Ring
16 KLP7 same Legs, painted
17 KLP8S same Legs, S.S.
18 03-1404-07 same Screw
19 03-1360-02 same Screw
20 15-0711-01 same Emblem
21 03-1418-41 same Screw
22 A32546-001 same Door Hinge Lft
23 A32546-002 same Door Hinge Rt.
24 03-1423-07 same Speed Nut for
Baffle
02-2809-02
Drain Top
02-4193-01
02-3201-01
Drain Bottom
DRAIN FITTING DETAIL
after serial numbers
BH550 487440-05K
BH800 487479-05K
03-1404-07
Screw (3)
Position of Cabinet
(for reference)
Note: C series has
rounded corners
Left Bin Channel: A35506-001
Right Bin Channel: A35507-001
Rear Bin Channel: A35508-001
5a
Bins, Condensers, and Accessories
Service Parts
February 2009
Page 11
1
2
3
24
5
6
7
9
10
311
12
13
14
18
7, 8, 21
17
20
18
17
20
BH801
ITEM PART
NUMBER NUMBER DESCRIPTION
1 A38434-001 Canopy
2 A38476-001 Baffle
3 19-0503-04 Gasket order per foot
4 A37640-021 Door Frame,
5 A32419-020 Door, incl 5a, 6, 21, 22
5a 02-2881-02 Drip molding
6 13-0595-00 Door Gasket (10’)*
7 A32396-002 Hinge Rt.
8 A32396-001 Hinge Left
9 02-2380-01 Hinge Bushing
10 02-2380-02 Hinge Spacer
11 02-2806-01 Shoulder Screw
12 03-1539-09 E-Clip
13 02-2809-02 Drain Top
14 02-4193-01 Flat washer
15 02-3201-01 Drain bottom
16 KLP7 Legs, painted set of 4
KLP8S Legs, S.S. set of 4
17 03-1404-07 Screw - frame to bin
18 03-1419-09 Screw - hinge to frame
19 15-0808-01 Emblem
20 03-1418-24 Screw - hinge to door
21 A32546-001 Door Hinge Lft
22 A32546-002 Door Hinge Rt.

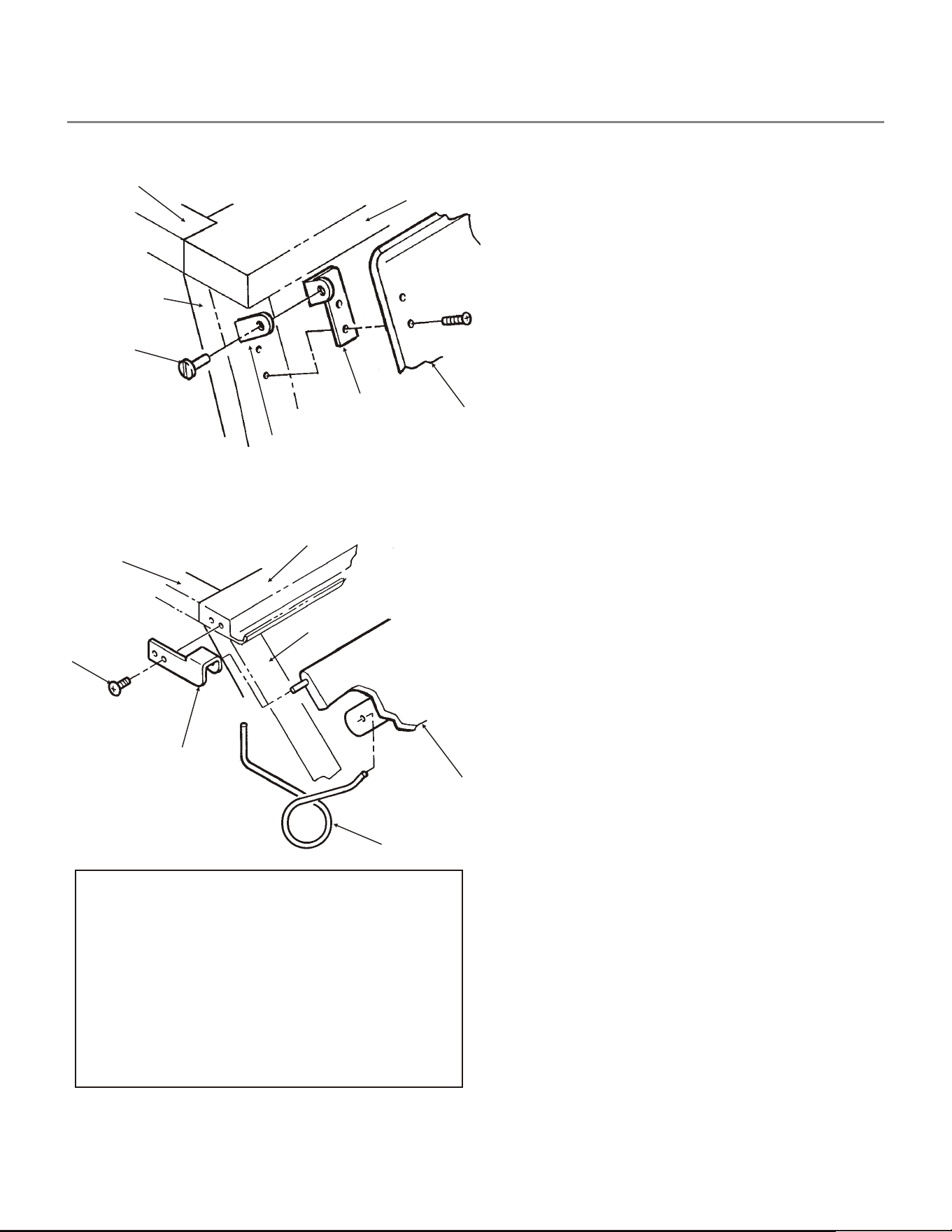

BH900
Bins, Condensers, and Accessories
Service Parts
January 2014
Page 12
13
14
15
16
20
19
18
17
8
12
11
10
1
2
3
4
9
7
6
5
Note: C series has
rounded corners
22
21a
21b
21
ITEM PARTS
NUMBER NUMBER DESCRIPTION
1 A35322-020 Canopy Assembly
2 A35152-001 Ice Baffle
3 02-2809-01 Drain Top
4 02-4193-01 Flat washer
5 02-3201-01 Drain casting
6 KLP7 Leg Kit, Black
7 15-0711-01 Emblem
8 13-0595-00 Door gasket (6.25’ reg.)
9 19-0503-04 Bin gasket / ft
10 03-0727-11 Baffle screw
11 A35275-001 Door frame assy.
A37641-021 Door frame, BH900S-C
12 A35323-020 Door w/gasket - BH900
13 03-1539-09 “E” ring
14 02-2380-01 Hinge bushing
15 02-3195-01 Door hinge
ITEM PARTS
NUMBER NUMBER DESCRIPTION
16 02-3196-01 Bin hinge
17 02-2806-01 Shoulder screw
18 02-2380-02 Spacer
19 03-1403-29 Screw 10-24
20 03-1403-24 Screw 10-24
21 A35280-001 Left bin channel
21a A35311-001 Back bin channel
21b A35279-001 Right bin channel
22 02-3202-02 Trim guard - order 2
and trim to fit.
Note: There were a few BH900CE/CS bins made in
the early 1990s that used a different door, hinge &
pin: Most BH900s did NOT use these parts.
12 02-3222-01 Door, BH900CE or CS
02-3225-01 Hinge kit, BH900CE
02-3226-01 Pivot pin set, BH900CE
BH1000
Bins, Condensers, and Accessories
Service Parts
February 2009
Page 13
17
5
7
16
15
20
18
9
19
17
12
1
14
13
2
3
8
11
4
6
10
ITEM PART
NUMBER NUMBER DESCRIPTION
1 19-0503-04 Insulating Tape
2. 15-0711-01 Emblem
3. A32521-001 Door Frame
4. 03-1360-02 Screw
5. A32546-002 Right Door Hinge
6. 03-1404-07 Screw
7. A32518-020 Door
8. 13-0595-00 Door gasket, req.7’
9. A32546-001 Left Door Hinge
10. 02-2380-01 Hinge Bushing
11. 02-2380-02 Bushing
12. 02-2806-01 Screw
13. 13-0617-11 O-Ring
14. 02-2809-01 Drain top
15. A32395-001 Canopy Assembly
16. 03-1539-09 E-Ring
17. A32396-001 Hinge Member Left
A32396-002 Hinge Member Right
18 A32399-001 Baffle
19 03-0727-06 Screw
20 03-1423-07 Speed Clip
Note: There are three dis tinct BH1000
bins:
· BH1000 with a stainless steel liner uses
bin door size 49.5" x 15" part number
A32572-020.
· BH1000A - (plastic liner) is as illustrated,
using the parts list to the right. Door size
= 52 x 15
· BH1000C - door is 51 x 15
02-3223-01 Door
13-0595-00 Gasket / ft
02-3225-01 Hinge kit
02-3226-01 Pivot pin set

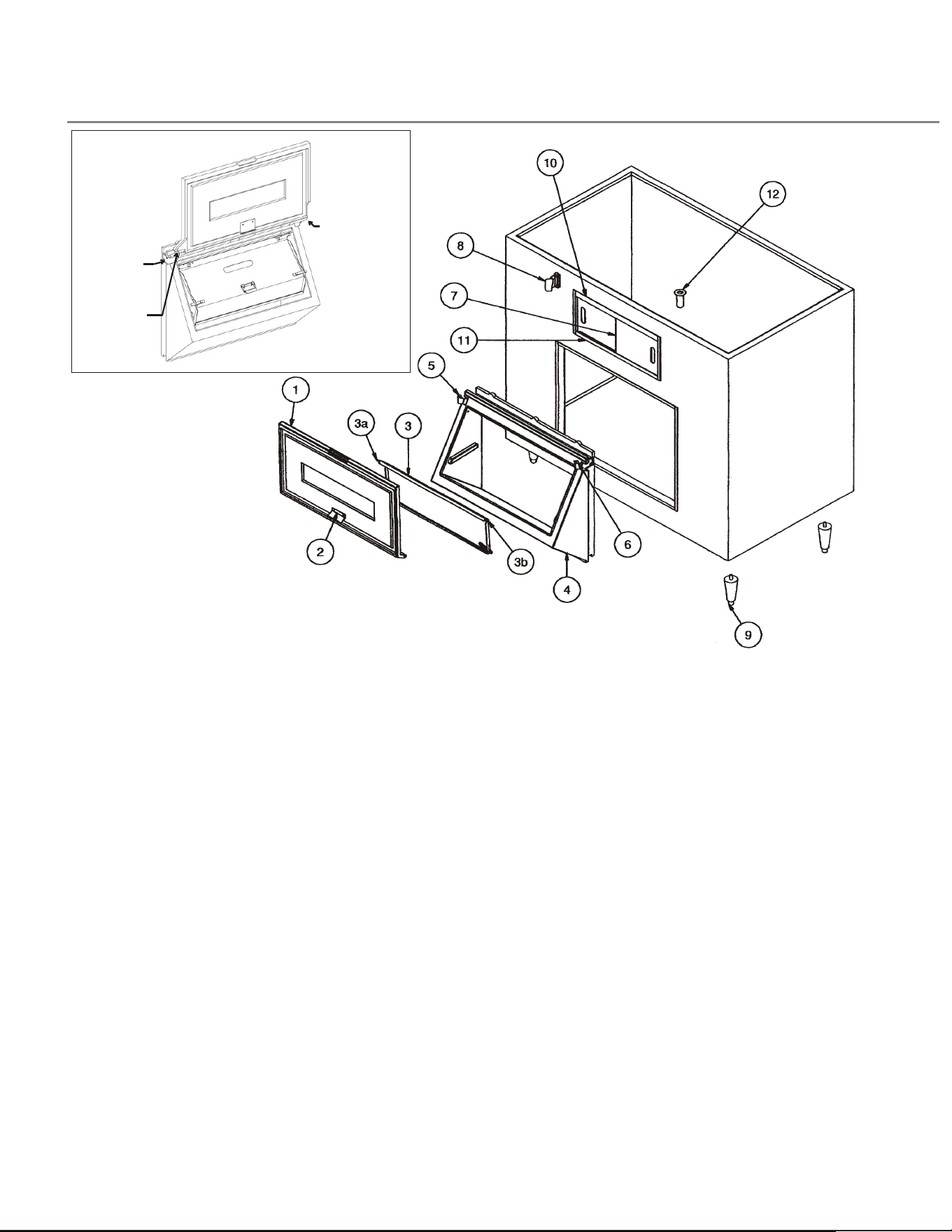

BH1100, BH1300, BH1600
Bins, Condensers, and Accessories
Service Parts
August 2016
Page 14
Item Part
Number Number Description
1 02-4008-27 Door, requires items 14
and 16 when replacing non-spring loaded doors.
2 02-4008-03 Baffle latch bracket
3 02-4737-21 Baffle assembly
3a 02-4008-23 LH & RH spring loaded
hinge kit
4 02-4008-07 Snout
5 02-4008-24 LH & RH door hinges
6 part of item 5 RH door hinge
7 02-4008-10 Window (set of 2)
8 02-4008-11 Door latch, not used on A
9 02-4987-01 1/2 Leg - each (current as
of Jan of 2016)
02-4008-12 5/8 Leg - each
KLP7 5/8 Leg, kit
10 02-4008-25 Upper & lower window
tracks
11 part of item 10 Lower window track
12 02-4008-15 1” plastic drain- includes
nut and washer
A Series Parts Not Interchangeable with prior
14 02-4008-28 LH hinge bracket
15 02-4008-26 LH spring loaded hinge
16 02-4008-29 RH hinge bracket
17 02-4008-32 RH spring loaded hinge
Not Shown
02-4008-16 SS 34"x48" Top Support
Frame
02-4008-17 48" Plastic Top*
02-4008-18 60" Plastic Top*
02-4008-19 9" Filler Panel
02-4008-20 13 1/2" Filler Panel
Note: Above filler panels are 21.5" long and changed in
late 2005 to these:
02-4008-21 - 20.5" long 9 inch filler panel
02-4008-22 - 20.5" long 13.5 inch filler panel
Check serial number date code or opening size to
confirm which filler panel to use.
* hole 45" wide x 20.5 deep
Hole in plastic top changed in late 2005, prior top no
longer available.
14
15
16 ,17
Unique A Series Parts
BH1351/BH1352/BH1360
Bins, Condensers, and Accessories
Service Parts
February 2009
Page 15
14
2
5 9
7
8
4
1
11
3
6
15
12
3
13
10
Item Part
Number Number Description
1 A34447-001 Lift door
2 A34448-001 Pivot pin kit
3 A34449-001 Lift door catch
4 A34450-001 Gasket
5 A34451-001 Frame assembly
6 A34452-001 Hinge
7 A34453-001 Ice check door
8 A34454-001 Pivot pin kit for ice check door
9 0501304 Lock bar for ice check door
10 A34456-001 Bumper bracket
11 02-3769-16 Inspection door
12 A34458-001 Track assembly
13 A34459-001 Drain fitting
14 A34460-001 Legs, set of 4
15 0501304 Catch
Bins, Condensers, and Accessories
Service Parts
February 2014
Page 16
11
13
1
2
3
4
5
8
12
10
9
KLP7
6
Item Part
Number Number Description
1 02-3769-16 Inspection door
2 A34447-001 Lift door
3 A34450-001 Gasket
4 02-3603-01 Check door pin kit, set of 2
5 02-3602-01 Ice check door
6 02-3604-01 Lock bar kit, set of 2
7 02-3601-01 Door frame and chute
8 02-3607-01 Drain fitting
9 A34448-001 Door pin kit
10 A34449-001 Lift door catch
11 19-0503-04 Gasket, order by the foot
12 02-3609-01 Check door catch
13 A34458-001 Track kit, complete set
BH1370
Bins, Condensers, and Accessories
Service Parts
February 2009
Page 17
1
3
2
4
5
6
7
8
9
10
11
12
13
4
15
Item Part
Number Number Description
1 02-3769-02 Track
2 02-3769-16 Window
3 02-3769-04 Lower frame assy,
BH1356 or BH1650
02-3769-20 Lower frame assy,
BH1366 or BH1666
4 02-3769-08 Left & right hinges (pair)
5 02-3769-05 Door with door hinges
6 02-3769-07 Right hinge
7 02-3769-09 Ice gate, BH1356 or
BH1650
02-3769-21 Ice gate, BH1366 or
BH1666
8 02-3769-12 End plate guide (pair)
9 02-3769-13 Screws for end plate
10 02-3769-14 Plugs for end plate
11 02-3769-10 Catch for end plate
12 02-3769-15 Ice gate retainer
13 02-3769-06 Left hinge
14 02-3769-01 Plastic drain
15 KLP7 Legs
Not Illustrated
02-3769-18 Optional Probe tool
02-3769-19 Optional Plastic ice shovel
02-3775-01 Z brackets
03-1645-01 Screw for Z brackets
02-3769-17 Gasket
(only for BH1366 or BH1666)
BH1356, BH1650, BH1366 & BH1666 Ice Stor age Bin
14
SLB150, SLB260/BH260, SLB375/BH375
Bins, Condensers, and Accessories
Service Parts
February 2009
Page 18
Item Part
Number Number Description
1 C80211705 Canopy
2 C80230902 Bin door assembly
(includes hinge)
3 C80206901 Hinge pin
4 C80209504 Door frame assembly
5 19-0503-04 Gasket tape, 90"
6 C80206601 Hinge for door, rt
C80206602 Hinge for door, left
Not illustrated:
7 C80399201 Clear button
8 C80511301 Baffle
SLB150 & SLB260 or BH260
5
4
3
2
1
6
7
Item Part
Number Number Description
1 C19475304 Door Assembly
2 C19629100 Door spring
3 C80299602 Left door hinge
C80299601 Right door hinge
4 C19632604 Hinge pin
5 19-0503-04 Gasket tape, 90"
6 C80307602 Canopy
7 C80309002 Door frame assy
SLB150 Only
C34196203 Bin thermo bracket
Bin Drain Parts:
BH375, SLB375, BH260 and SLB260
Female fitting, pn C80205501
Male fitting, pn C80205301
Flanged hex nut, pn C80205401
SLB150
Drain fitting, pn C36619500
Drain cup, pn C36619600
Dran cap, pn C36619400
5
4
3
1
2
SLB375 or BH375
6
Part of Frame
Not Shown
KSLDK Key Mech. Kit (Slimline)
Item Part
Number Number Desription
1 C26203100 Micro switch
2 C42647900 Brass lock housing
3 C42792800 Switch bracket
4 C80417803 Key mech
5 C80575503 Coin mech cover
KSLDC, Coin Mech Kit (Slimline)
1 C18223900 Term. board
2 12-2858-02 Control Relay
3 C80457301 Coin slide mech.
4 C80457401 Coin box
5 C80457501 Mounting plate
6 C80565701 Timer
Ice Cart Sys tems (ICS1, ICS2, ICS3)
Bins, Condensers, and Accessories
Service Parts
November 2016
Page 19
L
Item Part
Number Number Description
1 02-4032-09 Door gasket
2 02-4032-10 Baffle
3 02-4032-11 Drop control
4 02-4032-12 Latch
5 02-4032-13 Catch
6 02-4032-14 Lower drain pan
7 02-4032-15 Upper drain pan
8 02-4032-16 Door
9 02-4032-19 ICS-1 Base Assembly
Includes legs
2
3
1
4
5
Item Part
Number Number Description
1 02-4032-01 Hinge Bracket
2 02-4032-02 Lid set
3 02-4032-03 Drain knob
02-4032-05 Valve & rod
4 02-4032-04 Rear wheel
02-4032-06 Axle & hardware
5 02-4032-07 Swivel caster, no brake
02-4032-08 Swivel caster w/brake
8
7
6
1
3
4
5
9
ERC Hor i zon tal Coil Con denser
Bins, Condensers, and Accessories
Service Parts
February 2009
Page 20
ITEM PART
NUMBER NUMBER DESCRIPTION
1 02-3575-01 Fan guard
2 18-8800-01 Fan blade
3 18-8796-01 Fan motor ERC101
18-8796-32 Fan motor ERC151, ERC201, ERC302, ERC401, ERC402
18-8797-32 Fan motor ERC301
4 16-0850-01 Quick connect, discharge
5 16-0850-03 Quick connect, liquid
6 A36990-001 Leg kit for ERC101, 151, 201, 301, 302
not available Leg kit for ERC401, 402
1
2
3
5
4
6

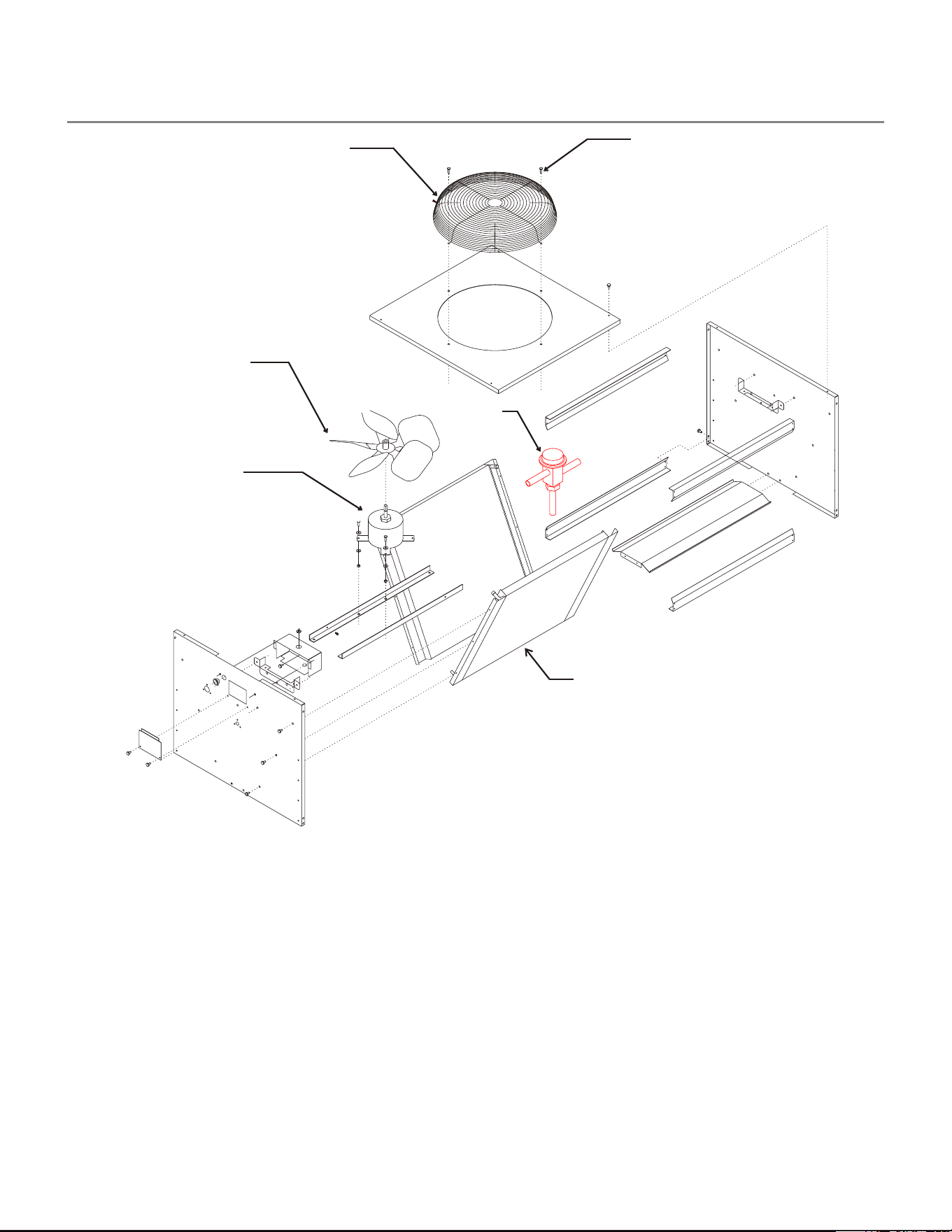

ERC V Coil Con denser ERC111, 211, 311, 411, ERC680, ERC1086
Bins, Condensers, and Accessories
Service Parts
January 2013
Page 21
Item Part
Number Number Description
1 03-1645-03 Screw
2 02-3575-01 Fan guard,
3 16-1025-01 Headmaster, ERC411
16-1044-01 Headmaster, all others
4 18-8816-01 Fan blade
5 12-2651-01 Fan motor, ERC311, 411,
680, 1086
12-2651-02 Fan motor, ERC111, 211
6 18-8815-01 Coil for ERC111/1086/411
18-8827-01 Coil for ERC311/680
Not Shown:
A37169-001 Leg - fits all
A37170-001 Leg brace, ERC111, 211,
311, 411, 680, 1086
03-1645-01 Screw for legs
ERC111, 211, 311, 411
16-0850-01 Quick connect, discharge
16-0850-03 Quick connect, liquid
ER680, 1086, ER2C6810, 1316:
16-1057-04 Quick connect, discharge
16-1057-03 Quick connect, liquid...........
Fan motor run capacitor: 18-8878-01
Line set ends: KTE4 (set of all 4)
Eclipse line set ends: KTE6 (set of all 6)
EH Eclipse Line Set Ends; KTE6-EH
2
4
3
5
1
6
ERC V Coil Con denser, ERC611, ERC2086, ER2C6810, ER2C1316
Bins, Condensers, and Accessories
Service Parts
February 2009
Page 22
Item Part
Number Number Description
1 03-1645-01 Screw
2 02-3770-01 Fan guard
3 16-1044-01 Headmaster, ERC611
4 18-8820-01 Fan blade
5 12-2717-01 Fan motor
6 18-8819-01 Coil for ERC611/2086/6810
Not Shown:
A37169-001 Leg - fits all
A37296-001 Leg brace,
03-1645-01 Screw for legs
ERC611:
16-0850-01 Quick connect, discharge
16-0850-03 Quick connect, liquid
ER680, 1086, ER2C6810, 1316:
16-1057-04 Quick connect, discharge
16-1057-03 Quick connect, liquid
Fan motor run capacitor: 18-8878-01
Line set ends: kTE4 (set of all 4)
Eclipse line set ends: KTE6 (set of all 6)
2
4
3
5
1
6
Bagger; Fan Re lay Box, KDIL Thermostats
Bins, Condensers, and Accessories
Service Parts
December 2014
Page 23
SPEEDY BAGGER
Item Part
Number Number Description
1 02-3261-01 Holder, tape roll
2 02-3259-01 Ice chute
2
1
KCMR230 & KCMR-115 Fan Relay Kit: Two
Remote Ice Makers on One Condenser
ITEM PART
NUMBER NUMBER DESCRIPTION
1 12-0813-03 Terminal Strip
2 03-1403-21 Screw
3 12-2070-04 Relay - 230 volt
12-2070-01 Relay - 115 volt
KDIL Thermostats
KDIL-N - thermostat part number is 11-0353-23
KDIL-C - thermostat part number is 11-0427-23
Modular Hardware - cabinet to bin
A30911-015 Mounting Straps
03-1405-13 Mounting bolt
Thermostat brackets
02-3740-01 CM3 1056 & up
03-1675-03 Bolt (plastic head)
CM
3
Thermostats
11-0427-23 thin cap tube
11-0521-21 bulb cap tube
Wa ter Fil ters
Bins, Condensers, and Accessories
Service Parts
June 2012
Page 24

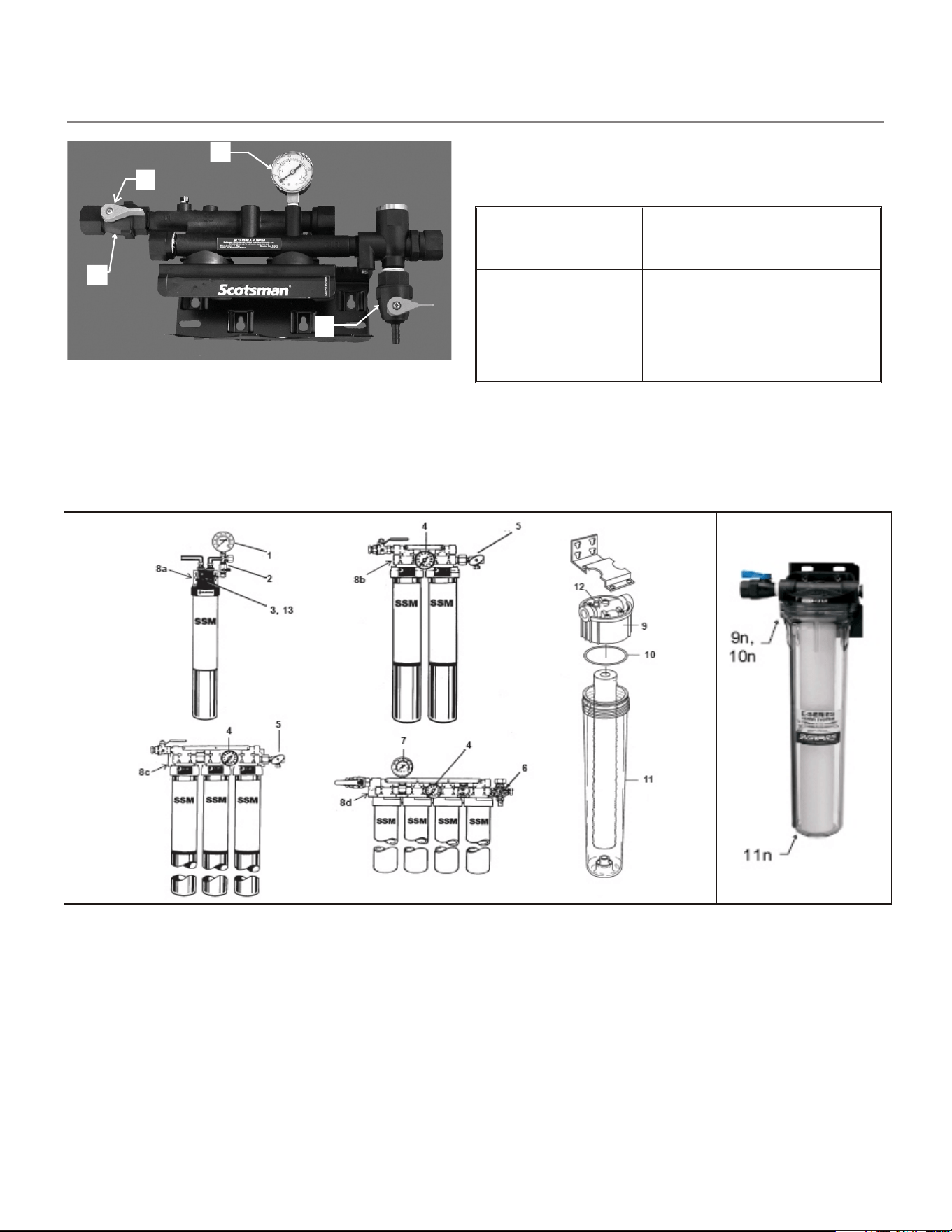

SSM1, SSM2, or SSM3 Water Filters Parts
Current Version
Item SSM1 SSM2, 3 Description
1 02-3790-15 02-3790-15 Gauge
2 02-3790-16 02-3790-19
Flushing
Valve
3 - 02-3790-20 Inlet Valve
4 02-3790-21 - Valve handle
Pre-Filter Parts - Current Version
9n 02-3790-22 Head assembly
10n 02-3790-23 O-ring
11n 02-3790-24 20" bowl
02-3790-25 10" bowl
1
2
Prior Version Parts
Item Part
Number Number Description
1 02-3790-15 Outlet gauge
2 02-3790-16 Activation valve, single
3 02-3790-12 Valve stem
4 02-3790-14 Outlet gauge
5 02-3790-17 Activation valve
6 02-3790-18 Activation valve, quad
7 02-3790-13 Pressure gauge
8a 02-3790-01 Single bracket
8b 02-3790-02 Dual bracket
8c 02-3790-03 Triple bracket
8d 02-3790-04 Quad bracket
02-3790-05 Screw for bracket
9 02-2790-06 Prefilter head
10 02-3790-07 Ring seal
11 02-3790-08 20” bowl
02-3790-09 10” bowl
12 02-3790-10 Pressure relief kit
13 02-3790-11 Valve handle
Current Pre Filter
Prior Versions
3
4
Ac ces so ries & DMS Parts
Bins, Condensers, and Accessories
Service Parts
December 2014
Page 25
Description Part Number
Ice Scoop, large 02-0540-01
Ice scoop, small 02-3070-01
Scoop holder (wire) 02-3647-01
Scoop holder (SS) A35447-001
Water inlet strainer ¼” 16-0162-00
Cleaners:
Clear 1 Scale Remover - non-diluted liquid
Case of 12 (16) ounce bottles 19-0653-12
Pre-mixed liquid Scale Remover
Case of 12 squirt bottles 19-0664-12
Sanitizer:
Case of 100 two oz packets 14-0382-01
Lubricants
Gear oil, 1 pint A32379-027
Food grade grease 19-0569-03
Bearing grease needle 02-3559-01
Tube of large flaker grease A36808-001
AFE/MDT Top bearing grease 19-0662-02
Quick connect lube packet 14-0378-01
Sealant
Food grade sealant 19-0529-01
Legs:
6" leg kit (set of 4) for most Scotsman Bins:
Black, 5/8 -11 thread KLP7
6 inch stainless steel security 02-4731-01
8 inch stainless security 02-4731-02
12 inch kit for
CU1526, CU2026 A40134-002
CU3030 A40134-001
B330P, B530P, B530S A40134-003
Plastic leg bolts (5/8-11) 03-3915-01
part of KPUFM floor mounting kits
ID Adapter Baffle Parts:
Dispenser model and ice machine model required
to identify KBT adapter. See equipment price list
for adapter models.
R620042921 – used on KBT40 – no hardware
needed
R620042913 – used on KBT41 – no hardware
needed
*R620042928 - used on KBT42
*R620042927 – used on KBT43, 44, and 46.
*Use 2 each of hardware R620701903,
R620701901, and R620701902 to attach the baffle.
KBT42 manual fill door: R52944
KBT46, KBT43 and KBT44 manual fill door:
R53003
Misc:
Inlet water valve (white body type) rebuild kit
12-2636-20
Blue body valve rebuild kit: 12-2912-01
Water regulating valve rebuild kit: 11-0559-01 (3/8"
only, will not work with Danfoss)
DMS Machine Stand Panels
DMS31
A34670-003 Left side
A34670-004 Right side
A34671-002 Front
A34673-002 Top
A34666-002 Bottom
DMS21
A33405-001 Left side
A33405-002 Right side
A34659-001 Front
A33407-002 Bottom
A34661-001 Top
Nugget Dispensing
02-4715-01 Diverter for Cornelius Flavor Fusion
A40403-021 Baffle kit, fits N0422, 0622, 0922
and 1322 at chute. Directs ice away from drop
zone.
