Water Detector Specification
V1.0
1.Introduction

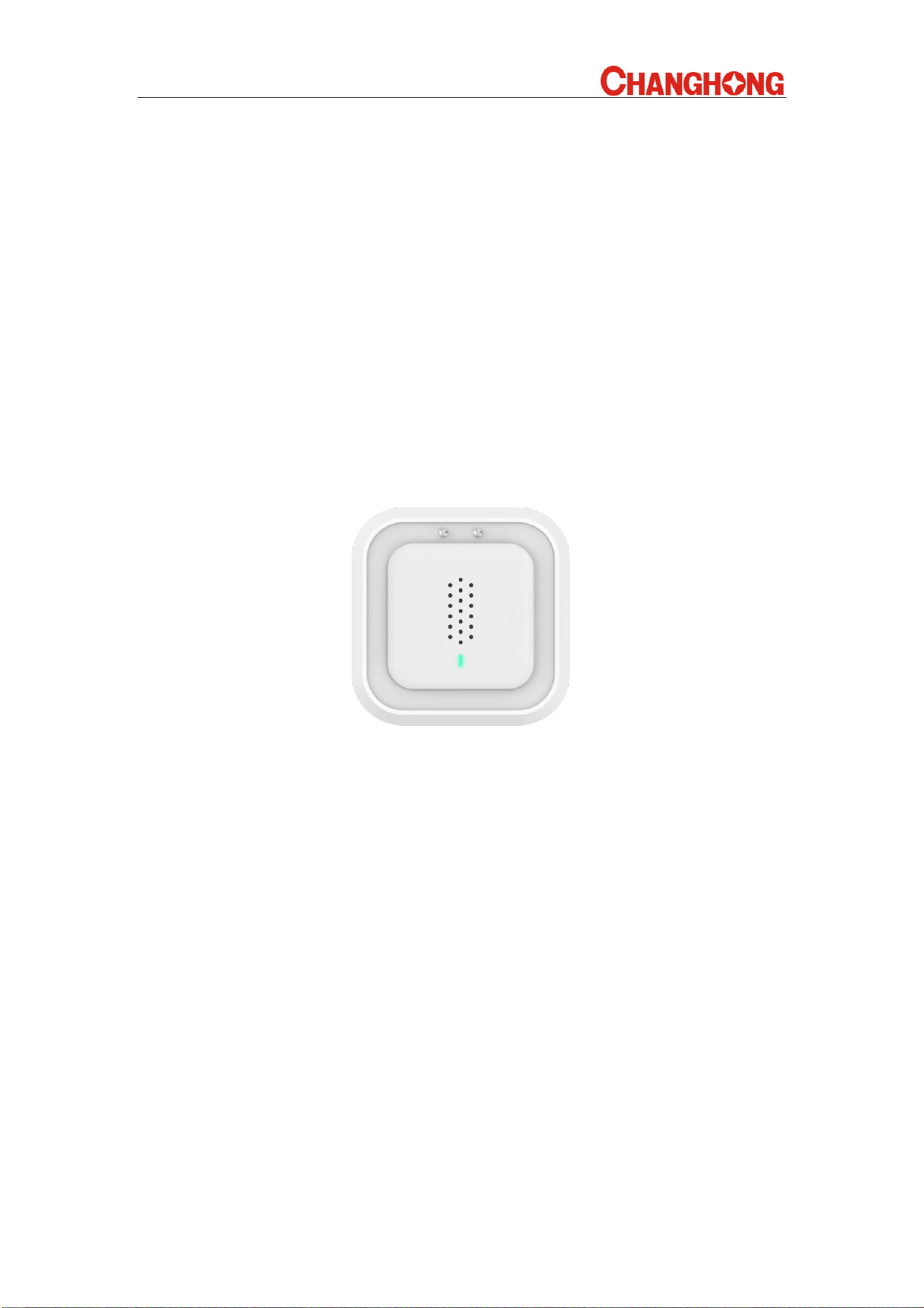

Water detector is a wireless, battery-powered sensor to detect water leaks in hard-to-reach
locations, gives you peace of mind by protecting your home against potential water damage. you
can receive notification or check its status on smart phone when events occur. besides the
Bottom probe, there are 2 probes on the top, it can detect water leak from the top. and it has a
buzzer that can provide local alarms
With Matter, Users are no longer tied to specific platforms ,It works with all certified smart home
platforms, such as Apple Home, Alexa, Google Home and SmartThings.
2. Features
Waterproof/dustproof：IP66
ExcSound and real-time Alert
lusive pair mechanism : Easy setup / Pairing
Detectable liquid: water
Detection range: ≥0.3mm
Low power consumption
Battery: 2*AAA（replaceable）
3. Specification
Item Description
Model number HWL-B103
Communication
LED
1（Green / white）
Button 1 for reset
Detectable liquid Water
Detection range
≥ 0.3mm
Alarm Loudness
≥ 90 dB (1m)
Battery 2*AAA
Standby duration 5 years
Dimension 63*63*27(mm)
IEEE 802.15.4
FCC Warning
Model Number: HWL-B103
FCC ID: 2BXYIHWLB103
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
