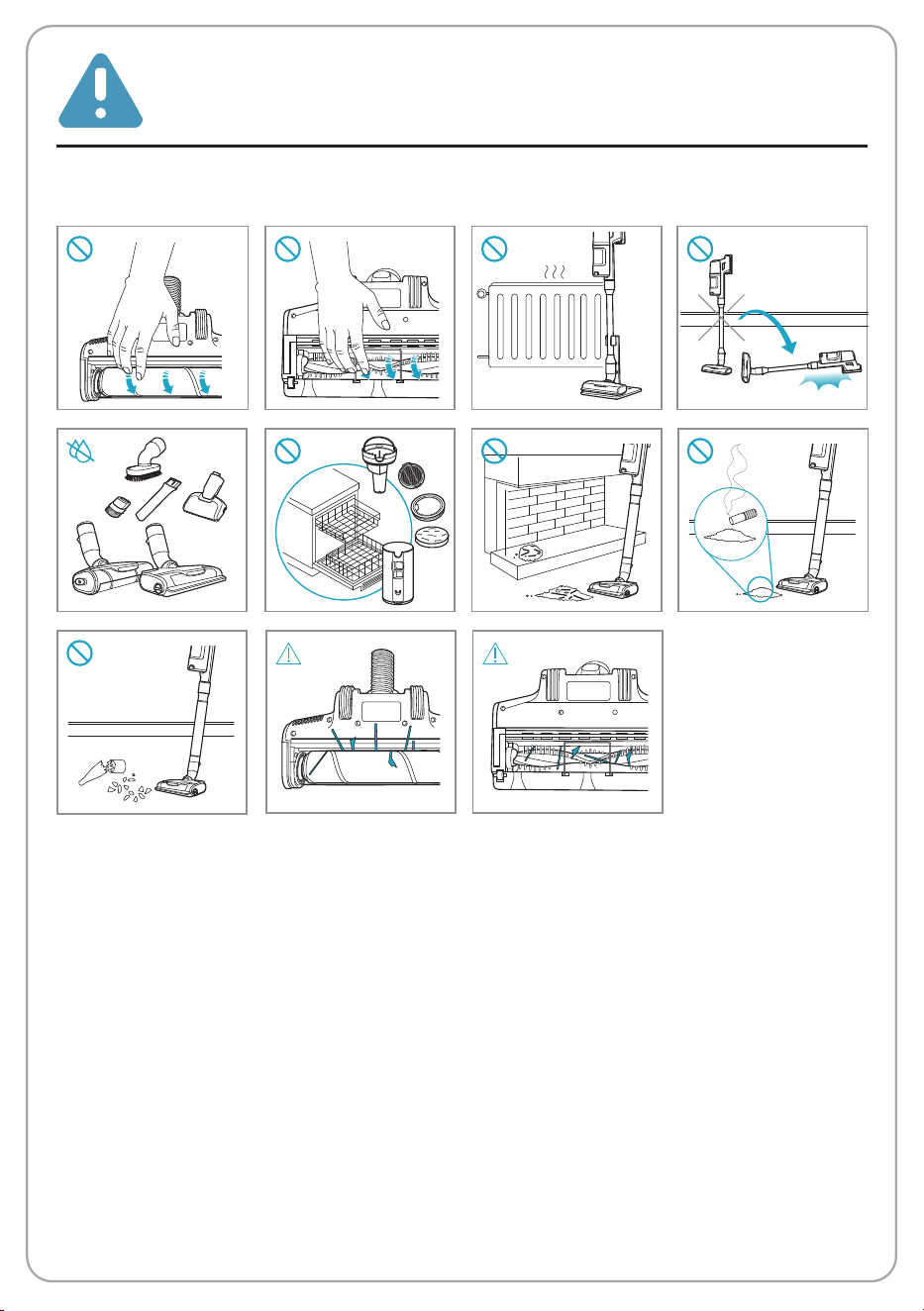

IMP O RTANT SAFEGUARDS
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury
• Do not use outdoors or on wet surfaces.
• Do not operate the vacuum cleaner or charger if it has been damaged in any way. If cleaner is not working as it
should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• To avoid excessive heat and damage to the unit or batteries, do not operate the vacuum cleaner while charging.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Only use the charging adapt
er that was provided with the product.
• Do not handle the charger or vacuum cleaner with wet hands.
• DO NOT MUTILATE OR INCINERATE BATTERIES AS THEY WILL EXPLODE AT HIGH TEMPERATURES.
• While there is no shock hazard from electrical terminals located on the vacuum, a burn could result from metal objects
being inserted into the terminal areas. Vacuum cleaner terminals should always be kept free of objects.
• This vacuum cleaner creates suction and has a revolving brushroll. Keep hair, loose clothing, fingers, and all parts of
body away from openings and moving parts.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything
that may reduce air flow.
• Do not pick up anything tha
t is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without a filter in place. When servicing the unit, never put fingers or other objects into the fan chamber in
case the unit would accidentally be turned on.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline, or use on areas where they may be
present.
• Do not expose the appliance to fire or excessive temperature. Exposure to fire or temperature above 265 °F may
cause explosion.
• Locate charger indoors in a cool, dry area, not exposed to weather to avoid electrical shock and/or cleaner damage.
• Keep your work area well lighted.
• Unplug electrical appliances bef
ore vacuuming them.
• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the
safety of the product is maintained
• Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use
and care.
• Always turn off this appliance before connecting or disconnecting motorized nozzle.
To reduce the risk of fire, electric shock, or injury:
WARNING
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause
irritation or burns. (This advice is considered correct for conventional NiMh, NiCd, lead acid and lithium-ion cell
types. If this advice is incorrect for a cell design that differs from these, then the correct advice may be substituted.)
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up
or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have
the switch on invites accidents.
• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range
specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage
the battery and increase the risk of fire.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery
pack may create a risk of fire when used with another battery pack.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or
other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals
together may cause burns or a fire.
• Turn off all controls before unplugging.
To protect the motor, battery and electronics the product should not be operated in:
• An ambient temperature below 41 °F or exceeding 95 °F.
• A humidity level below 20 % or exceeding 80 % (noncondensing).
If the product is stored for an extended time period (without usage or continuous charging), we recommend to store
the product
• indoors and in temperature between 41 °F to 95 °F , and at a humidity between 20 % to 80 %.
• with the batteries charged at 50 % capacity or more.
• Do not pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated
surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Changes or modifications of this product is not expressly appr
oved by the party responsible for compliance could
void the user's authority to operate the equipment.
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accord
ance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
• Disconnect the battery pack from the appliance before making any adjustments, changing
accessories, or storing
appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
• Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of
injury and fire.
• Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit
unpredictable behavior resulting in fire, explosion or risk of injury.
SAVE THESE INSTRUCTIONS
Household use only !
Caution:
Follow Manufacturer’s instructions. Risk of Fire and Burns.
Do Not Open, Crush, Heat Above 140 °F or Incinerate
Accessories may vary from model to model.
Les accessoires peuvent varier d’un modèle à l’autre.
Los accesorios pueden variar según el modelo.
Carpet Hard Floor

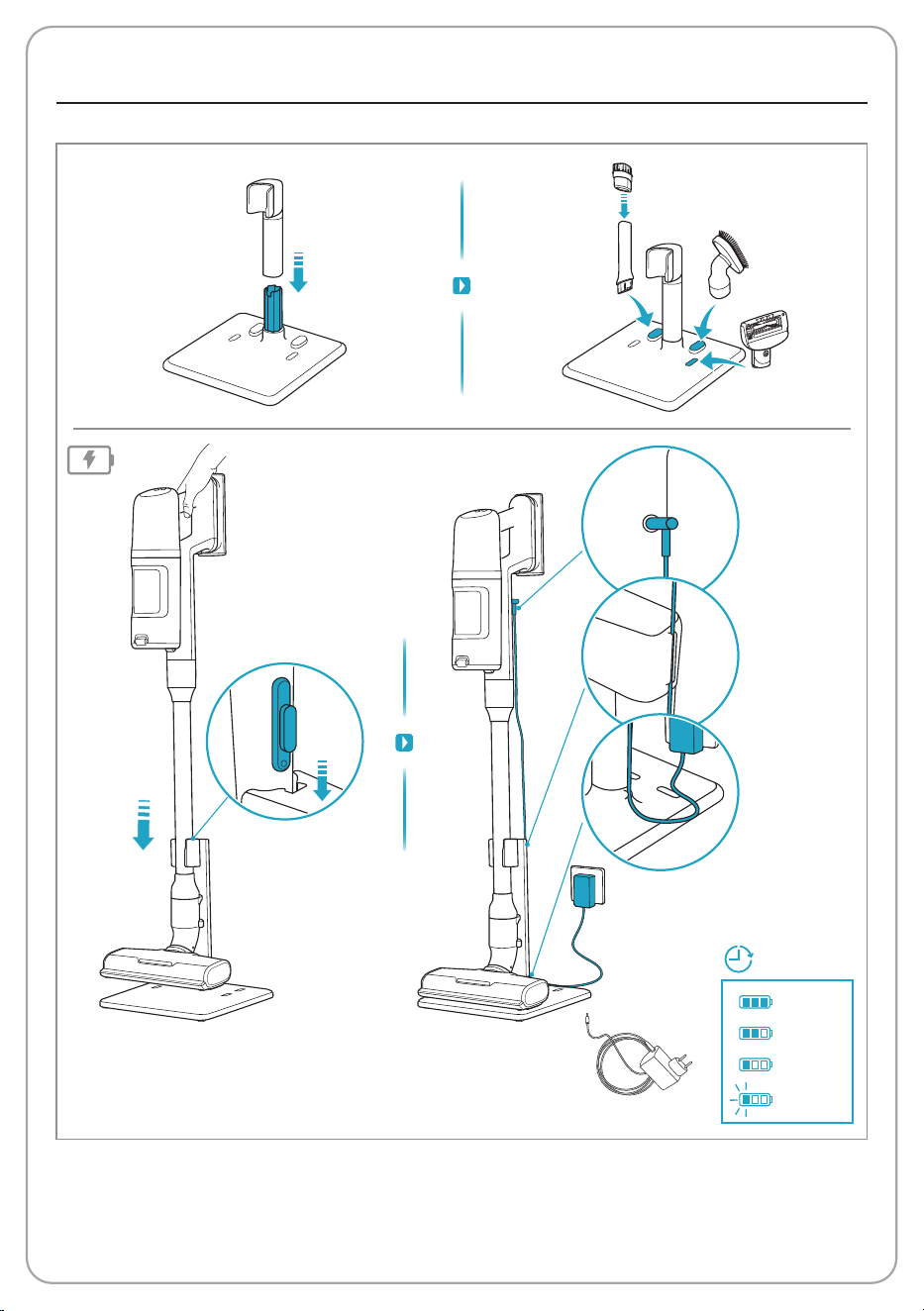

Product Assembly & Charging / Assemblage et chargement du produit /
Armado y carga del producto
75-100%
50-75%
25-50%
0-25%
4.5h 100%
KSD-18W-265060HU
WKZS21625PG-25
(6INR19/66)

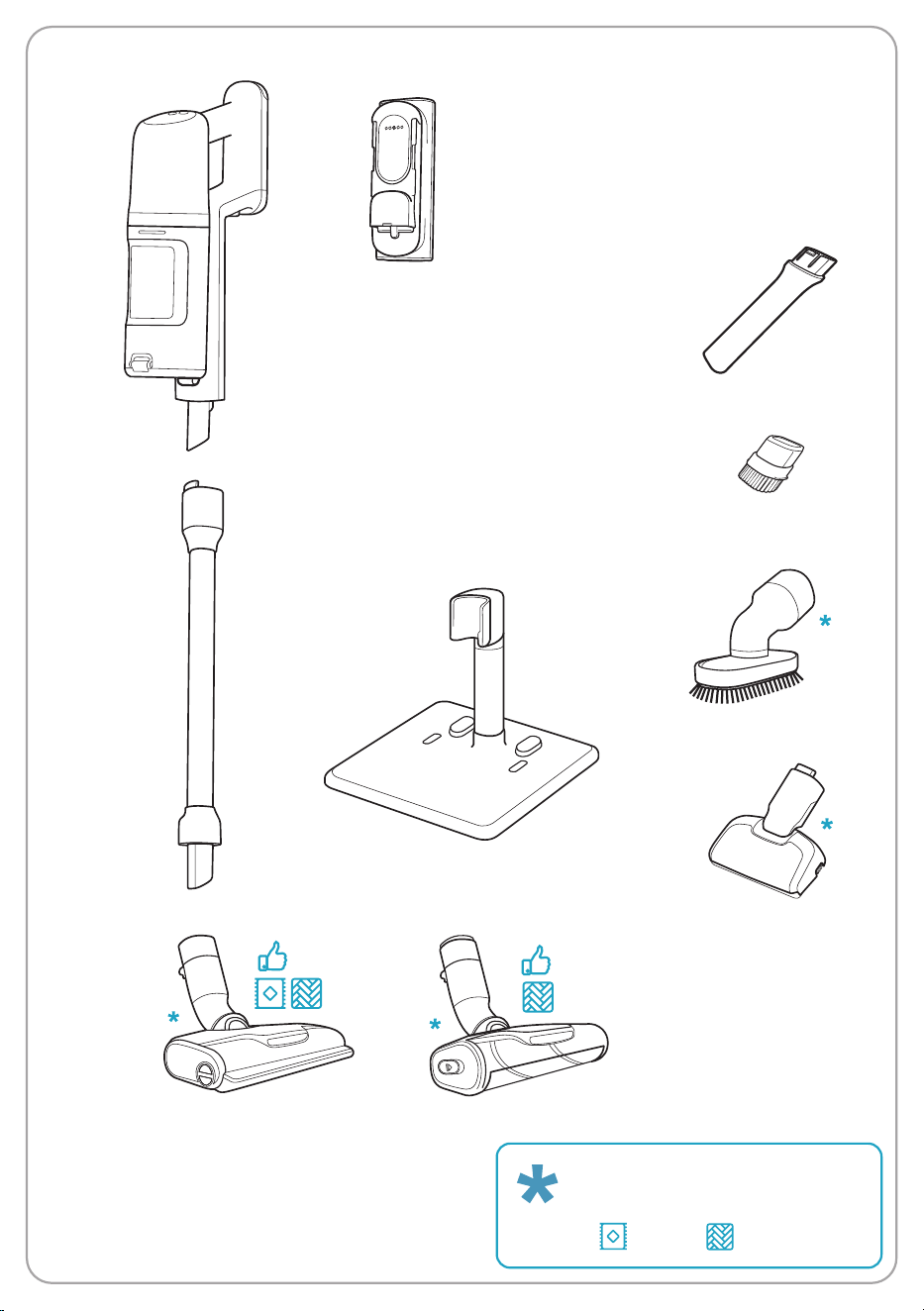

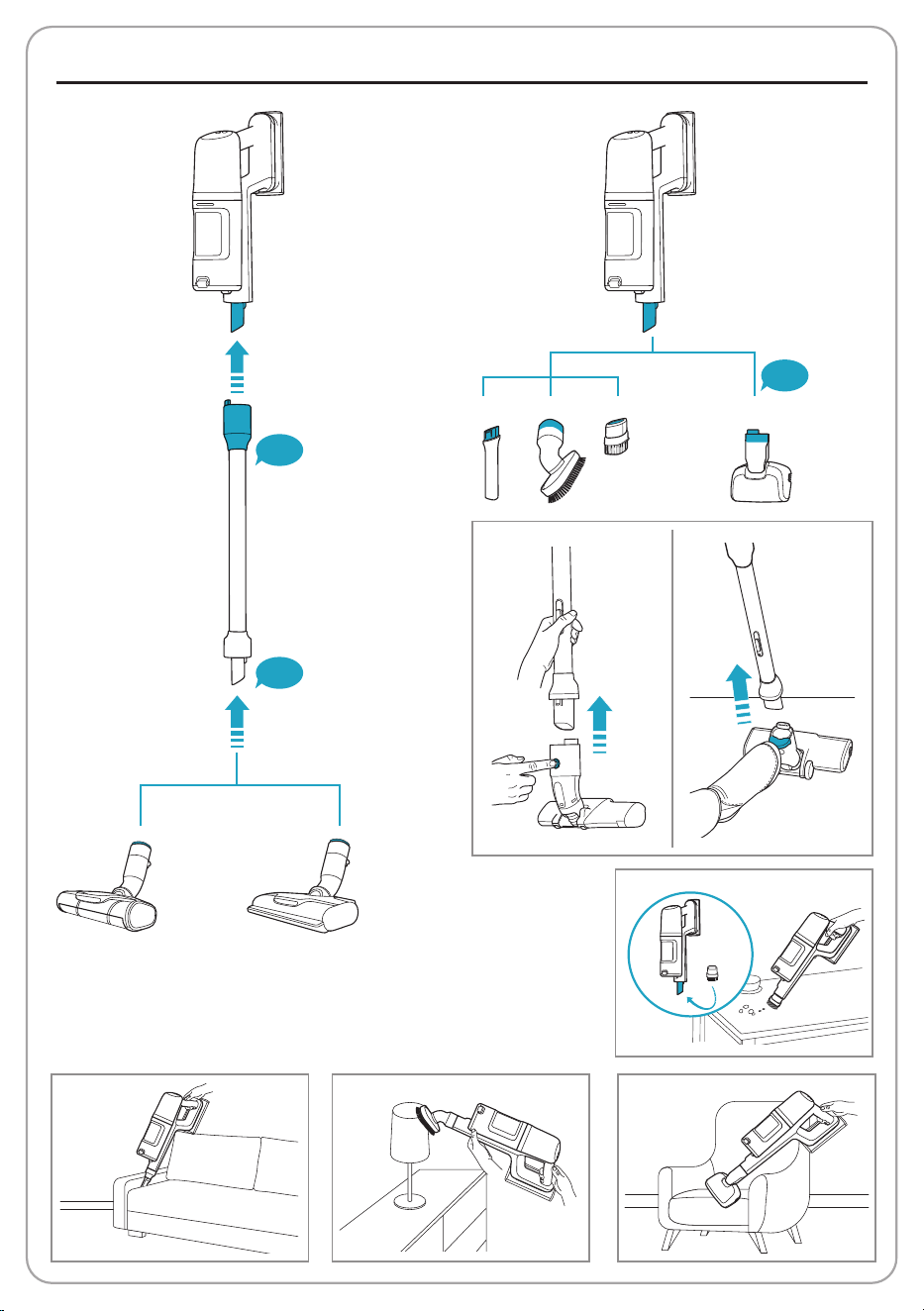

Accessories / Accessoires / Accesorios
CLICK
CLICK
CLICK
1 2 3 4
2
3
1
4

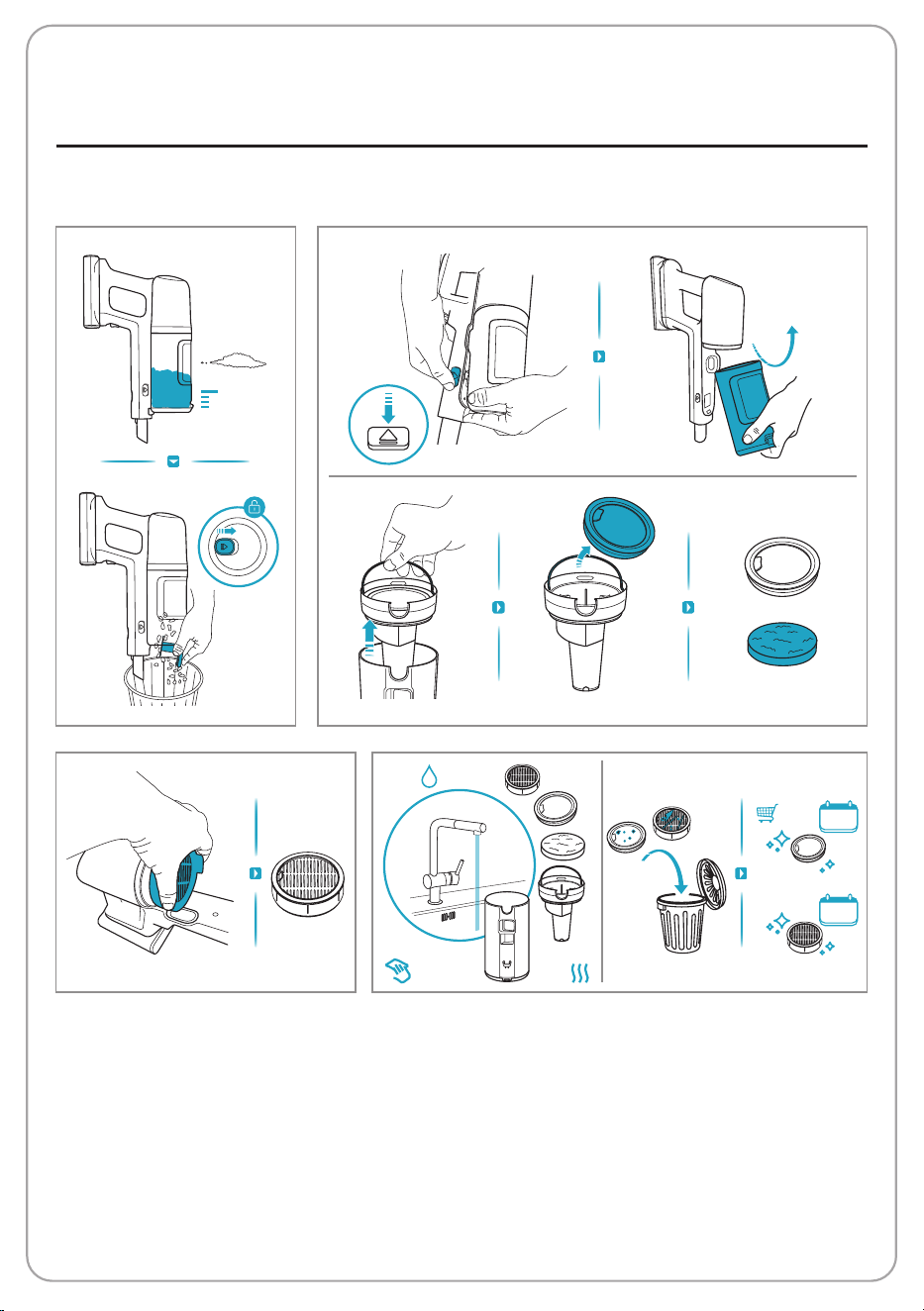

Dust Bin & Filter Maintenance
Entretien du récipient et du filtre à poussière
Mantenimiento del contenedor de basura y filtro
Max
24h
6M
12M
Max 40°C

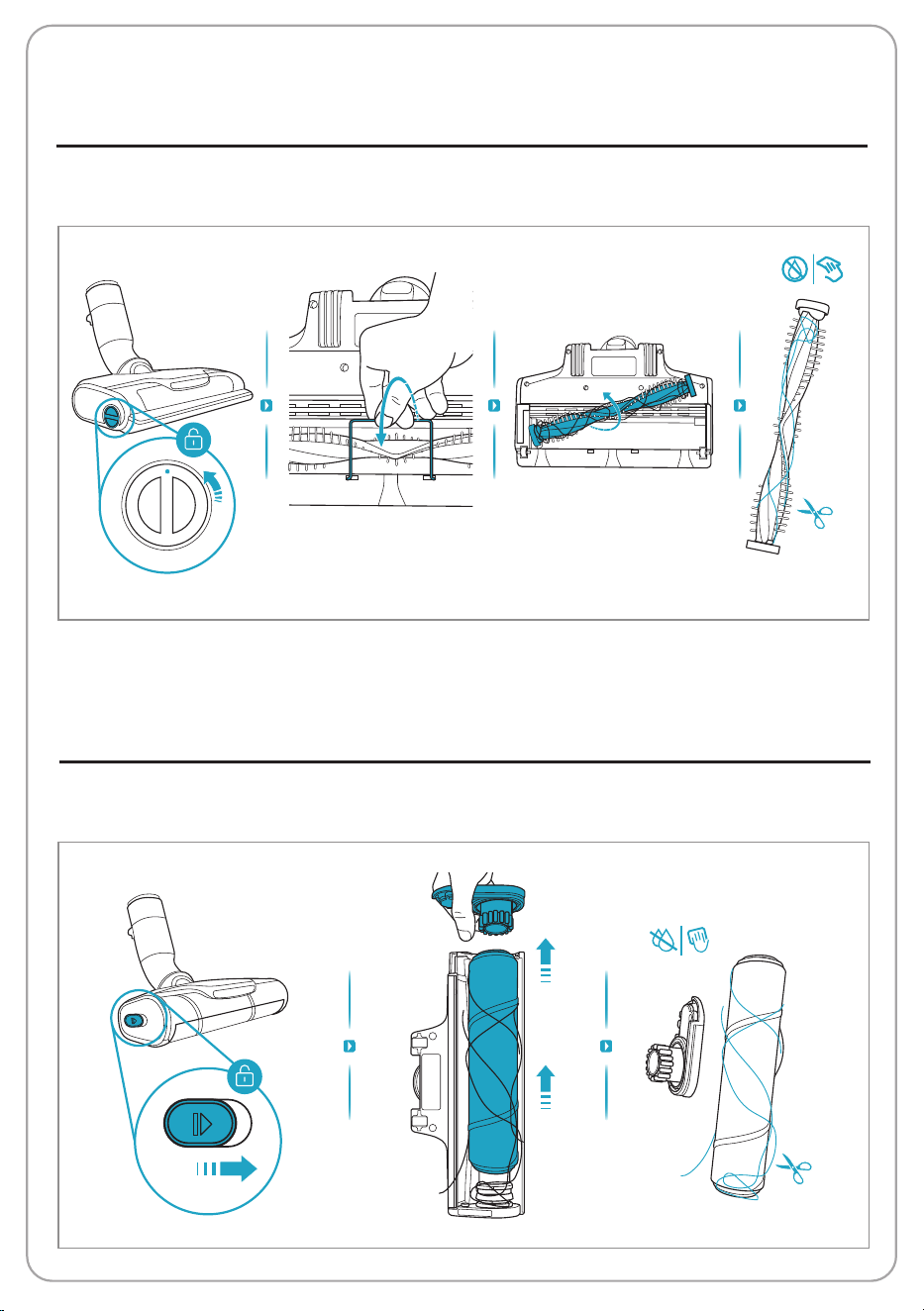

Hard Floor Nozzle Maintenance
Entretien de la buse pour plancher de bois
Mantenimiento de la boquilla para pisos duros
Allfloor Nozzle Maintenance
Entretien de la buse à soies Allfloor Nozzle
Mantenimiento de la boquilla de cerdas Allfloor Nozzle
REMOVE
BRUSH

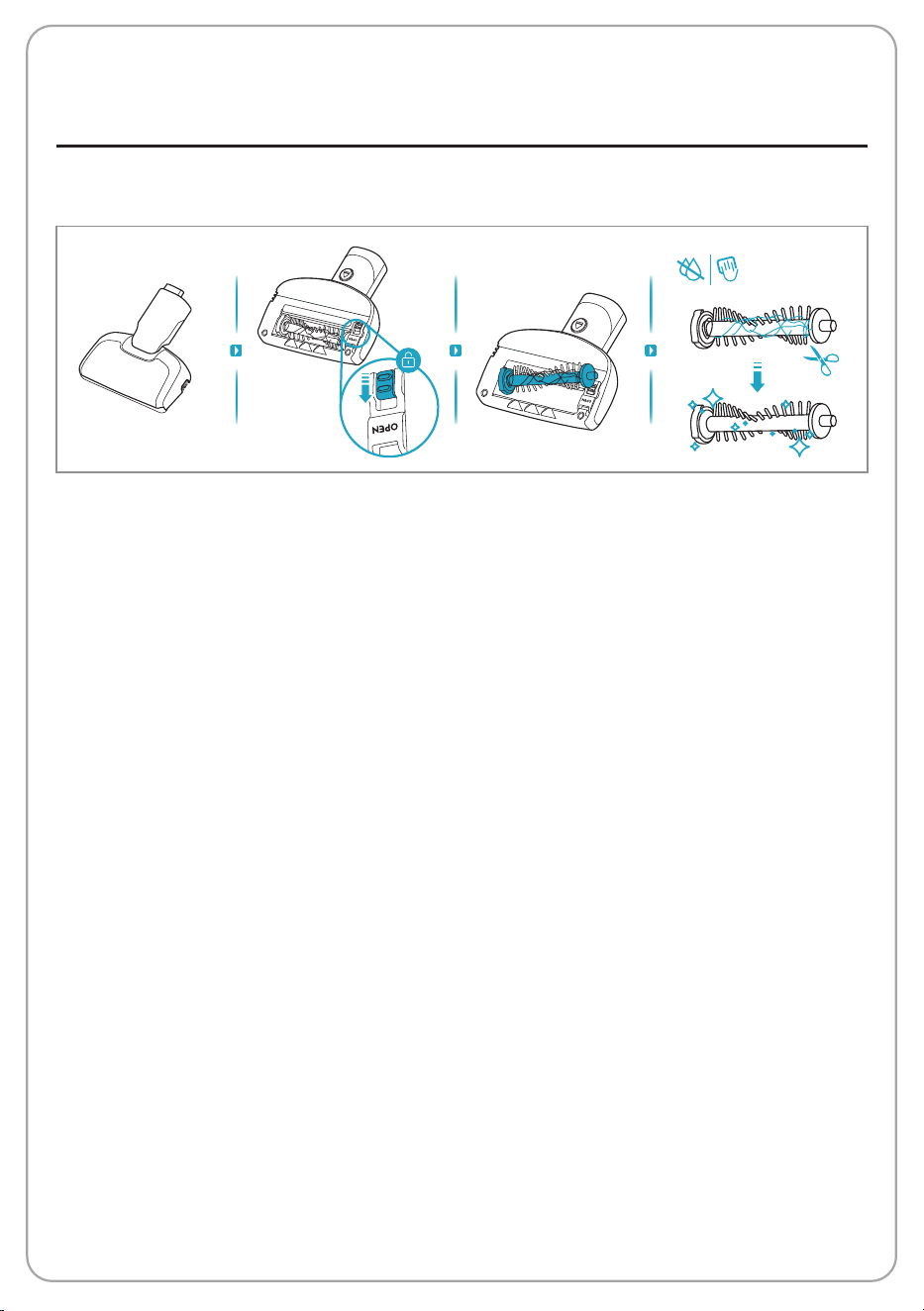

PetPro+ Nozzle Maintenance
Entretien de la buse PetPro+
Mantenimiento de la boquilla PetPro+

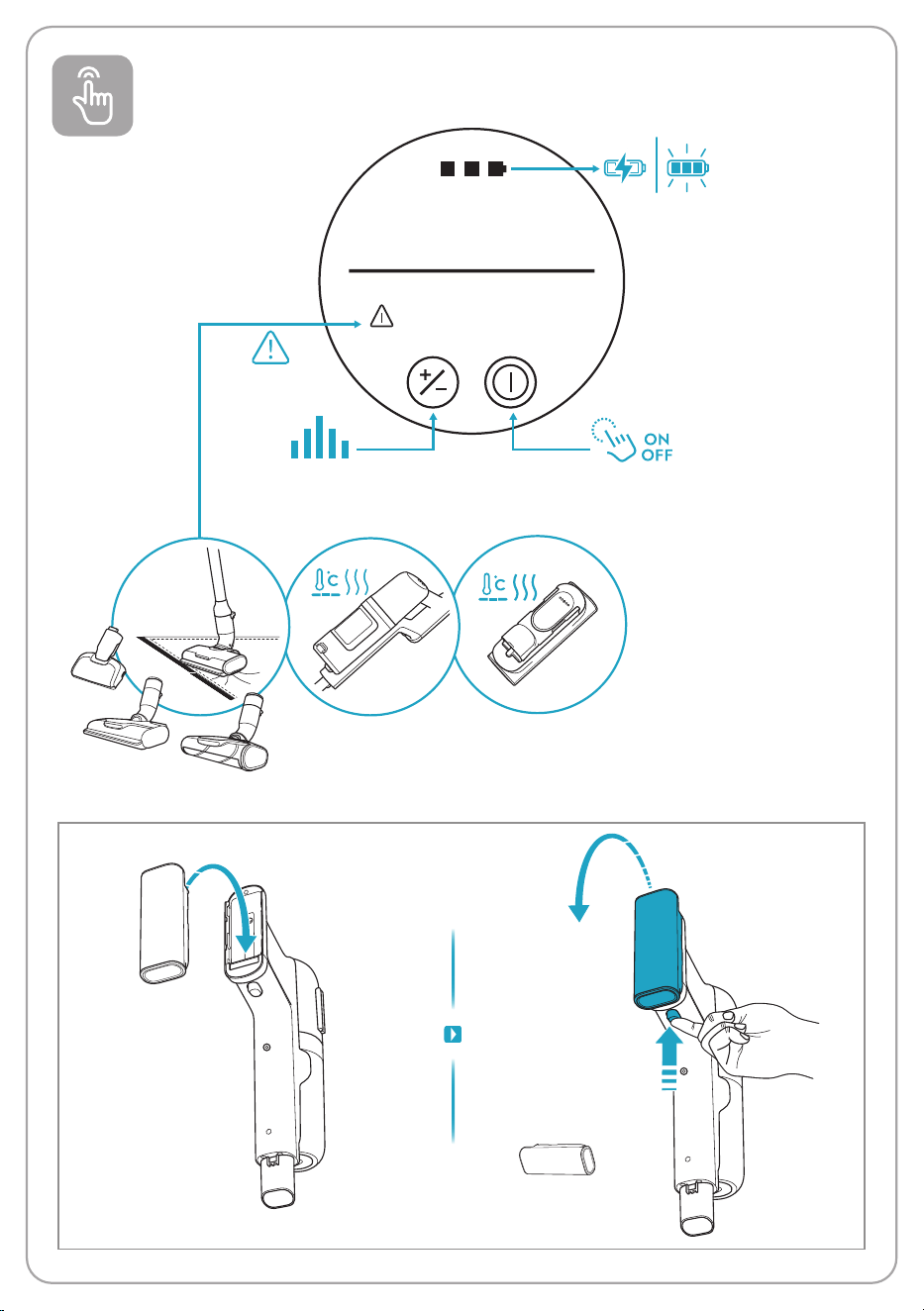

T R OUB L E S HOO TING
Problem
The product stops or
doesn't start
Loss of performance
The battery is empty (last LED blinks)
Water / Liquid has been sucked
into the product.
Charge the vacuum cleaner.
Stop the product and let it dry for 48h.
Do not put the product in the charging stand!
If the product is still not working anymore contact an
authorized Electrolux service center.
Note: Damage to the motor caused by water or liquids
is not covered by the warranty.
Cause
Solution
Nozzle does not pick up dust or dirt
as expected
Nozzle brush or fluffy roll is blocked
with hair and dirt.
Tube and/or nozzle neck is blocked
Brush roll doesn't
rotate
Product is
not charging /
No charging indication
on hand unit display
Filter icon appear on
hand unit display
Warning triangle
appear on hand unit
display
Dust bin may be full or filters has
been clogged or are dirty
Brush roll stops when user detaches
the previous nozzle & changes to
another nozzle while the vaccum
cleaner is still on. This is a protection
mode.
Product is not placed correctly in the
charging stand and tube is
not in
shortest posistion. Cleaner is falling
down from charging stand.
Charging will not occur if room
temperature is below 41 ºF or over
95 ºF to protect battery and
electronics
Hand unit display is dark and all LED
are off after battery pack is fully
charged
Battery Pack temperature is
too high (~113ºF)/low (~41ºF),
charging not yet started
Filter indication that filters needs to be
cleaned
The product may be overheated in
motor or battery pack
Nozzle or tube can be clogged
Charger plug is not plugged in
Make sure that the contact plates on the back side of
vaccum cleaner are in contact with contact plates on
charging
stand.
Make sure charger plug is connected to charging stand
socket and charging adpater is plugged into wall socket.
Store/charge the product indoor and in room temperature
between 41-95 ºF
Take out cleaner from charging stand, press the on/off button
or +/- speed button to view Battery level indication. Put
cleaner back in charging stand.
Put appliance at ambient temperature condition, wait until
temperature cool down/ raised up
Clean filters according to instruction manual. After cleaning
press ON/OFF button for 3 sec and filter icon will disappear.
If need to replace and buy new filters (w
ww.electrolux.com)
Let product rest and cool down
Check if any clogging happened in nozzle/tube
Empty dust bin and wash filters according to instruction
manual. If need to replace and buy new filters
(www.electrolux.com)
Turn off cleaner and re-start "ON" button to activate the
brushroll spinning.
Check if any clogging happened in nozzle/tube
Make sure to use correct nozzle for each floor type.
Hard floor - bristle nozzle, fluffy nozzle
Carpet - bristle nozzle
Remove floor nozzle and clean brush roll according to
instruction manual
WARNING
This product contains Lithium-ion rechargable batteries. Do not dispose of Lithium-ion batteries with household waste. Federal
and State regulations required proper recycling or disposal of Lithium-ion batteries. Contact your State and Local goverment
agencies for recycle and disposal instructions.
Problem Cause
Solution
No charging indication
on charge stand
Charging is taking
more than longer than
4.5 hours
Headlights on floor
nozzle do not work
Hand unit battery pack is not fully
charged and will not start charging
extra battery pack on charging stand
until hand unit battery pack is fully
charged ( up to 2.5 hours)
Battery Pack temperature is too high
(~113ºF)/low (~41ºF), charging not yet
started
Battery pack is broken, need to be
replaced.
Wrong battery pack is being used for
this product.
Room temperture is over 95 ºF
Battery pack not fully inserted
Take out battery pack and insert again
This can only happen to products with possible to charge in
the base plate of charging stand.
Battery pack on hand unit will always start charging first and
then charging will start for the battery pack in charging
stand base and the LED indication should start to light up.
Put appliance at ambient temperature condition, wait until
temperature cool down/ raised up
Charging time will be longer if temperature is high, which is
normal, Store/charge product in a normal room temperature
Brush roll is jammed
Remove brush roll and clean brush roll from hair
and fibers.
Contact Electrolux service center. If need to replace and buy
new battery pack (www.electrolux.com)
Make sure correct battery pack is being used
Limited Warranty
Exclusions
This warranty does not cover the following:
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
If You Need Service
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Products used in a commercial setting.
6. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in
ordinary household use or used other than in accordance with the provided instructions.
7. Service call
s to correct the installation of your appliance or to instruct you how to use your appliance.
8. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which
are not a part of the appliance when it is shipped from the factory.
9. Service calls to repair or replace appliance light bulbs, air filters, other consumables, or knobs, handles, or other
cosmetic parts.
10. Pickup and delivery costs; your appliance is designed to be repaired in the home.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or
mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance o
r home incurred during transportation or installation, including but not limited
to floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine
Electrolux parts or parts obtained from persons other than authorized service companies; or external
causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE REPAIR OR
REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST
PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR
CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME
ST
ATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY
ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should
service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under
this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico, your appliance is
warranted by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada,
your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any
obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux
or an authorized service company. Product features or specifications as described or illustrated are subject to change
without notice.
Web: electrolux.com (USA) ; electrolux.ca (Canada) Phone: (800)-896-9756
Your appliance is covered by a two year limited warranty. For two years from your original date of purchase,
Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in
materials or workmanship when such appliance is installed, used and maintained in accordance with the provided
instructions.
electrolux.com (USA)
electrolux.ca (Canada)
(800)-896-9756
ORDER GENIUNE ACCESSORIES AND REPLACEMENT PARTS
COMMANDE ACCESSOIRES ET PIÈCES DE RECHANGE D’ORIGINE
PEDIDO ACCESORIOS Y REPUESTOS LEGÍTIMOS
Part No.:
ELPAVAF89A
Description:
Electrolux Ultimate600
TM
and 800
TM
Vacuum Filter Set
Model index:
EHVS65S1AD
EHVS65S1AO
EHVS65W1AW
USA
(800)-896-9756
Electrolux Appliances North America
10200 David Taylor Drive
Charlotte, NC 28262
A27940412
Canada
(800)-896-9756
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario,
Canada L5V 3E4
