RUNVA wireless remote works lets you operat
e your winch from up to 50 ft without
cables or switches. Just press the remote transmitter and
you're ready to operate your winch
Start, stop, in or out.
◆ Remote range up to 50 ft.
◆ Transmitter equipped with long life.
◆ battery and power saver circuit.
◆ transmitter & receiver.
◆ Visual indicator light shows remote operation.
◆ Additional transmitters available to operate receiver.
◆ Installs in minutes.
◆ Transmitter replacement battery readily available.
WARNING: The Wireless Remote is designed for use on front mount self-recovery winches
only. The remote is not designed for and should not be used on winches or hoists in
industrial applications (commercial car haulers/carriers, wreckers, cranes, etc.) or for any
other remote controlled applications.
Type:
RWRC①－②－③－④－⑤
①：Signed as 01, 02. ”01” : Code learning Type; “02” : Code Fixed.
②：Using Range admited. Signed as E, C. ”E” : European Using Style;
”C” Common style, this letter is always leave out;
③：Power Voltage, Signed as 12VDC or 24VDC.
④：Connector Style, using solely out of the winches control box.Signed as 03, 04. “03” :
three cores connector;
“04” : four cores of connector.
⑤: mount type, Signed as 05.
“05” :small remote can fix in the winches control box.
Part List:
1. one transmitter.
2. one receiver with three or four cores of line with connector.
Installation and operating instructions:
There are two kinds of different connect way for the reason of different kinds winches’
solenoid female connector. You can choice a suitable type of wireless remote control as
RWRC－03 or RWRC－04. showing as the following connection drawing.
RWRC－03: While you insert the receiver plug to the winches’ solenoid female connector,
you shold connect the earth line to the battery negative. Be sure of the earth line connect
exactly, then you can operate your winch by press the button on the transmitter.
RWRC－04: While you are ready to operate a winch, just connect the four cores of the
recever to the winches’ solenoid female connector. And then you can operate your winch by
press the button on the transmitter. NOTE: Make sure one of the four pole receptacle is
connected to earth.
Remote Control Instructions

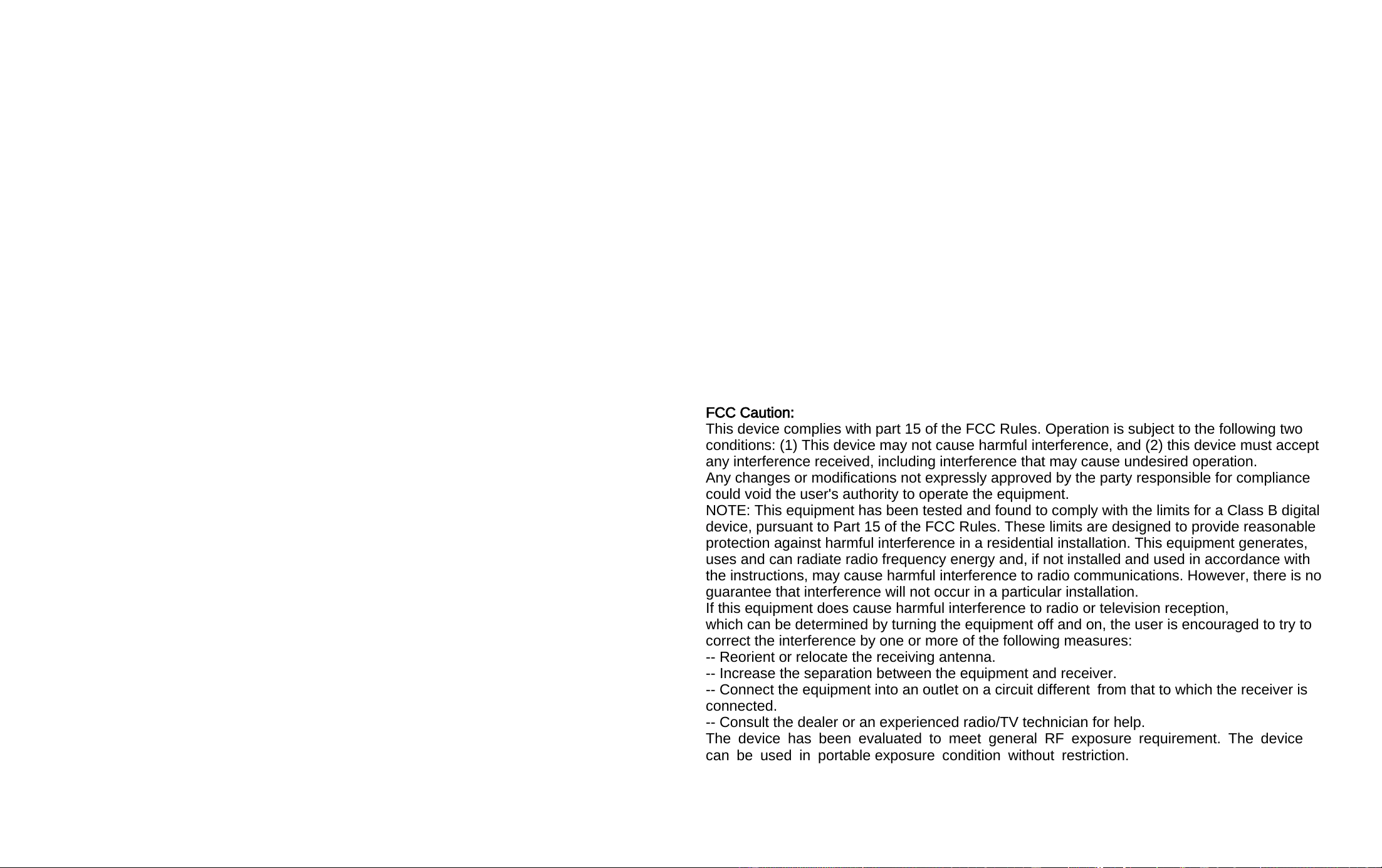

FCC Caution:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure
condition without restriction.
There is a small remote can be fixed in the winches control box:

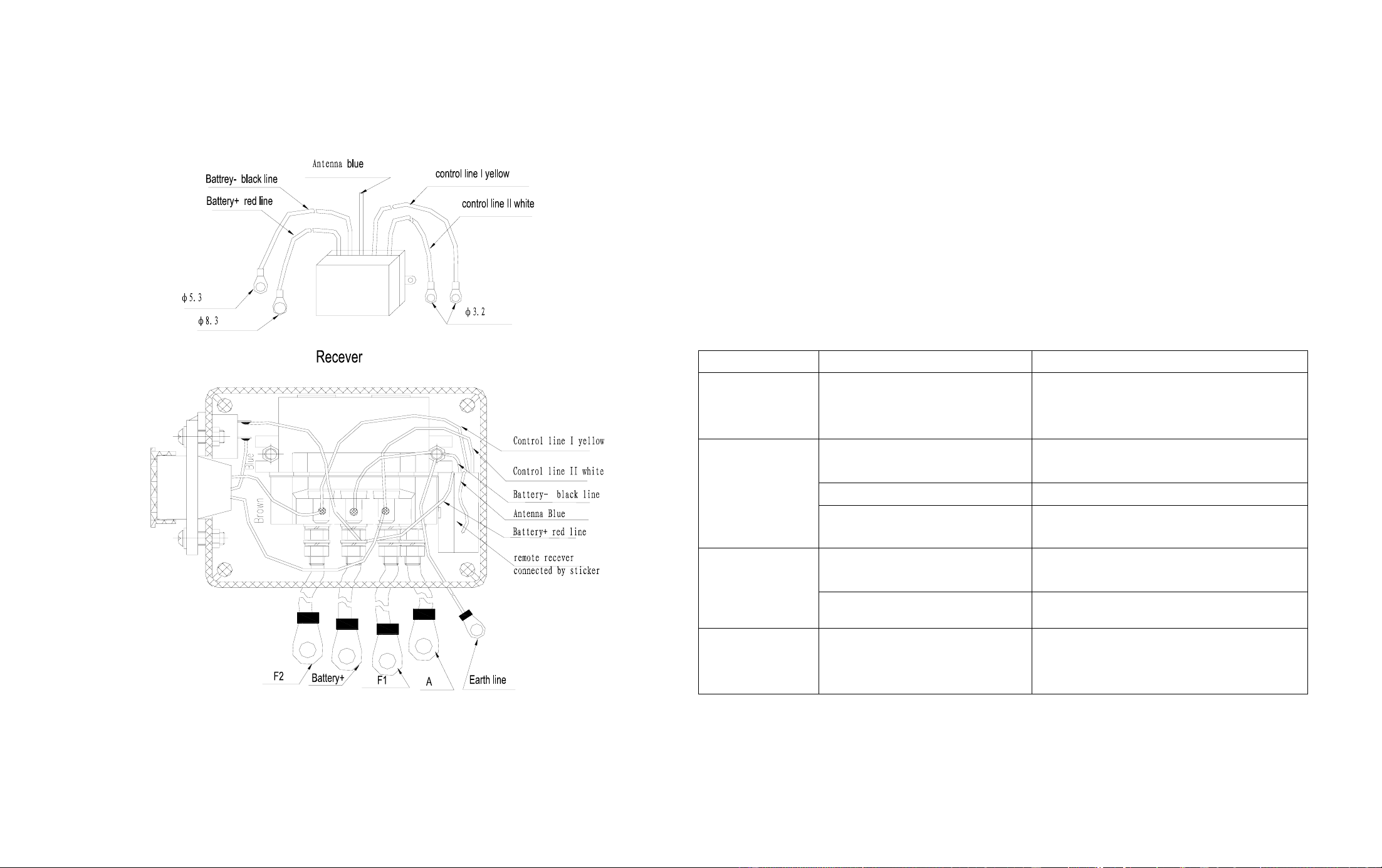

RWRC－05: while your fixing according to the drawings showing as follows:
We suggest operate your winch as follows:
1. Disengage the clutch of your winch.
2. Pull out the winch wire rope about 1.5 meters.
3. Reengage the clutch of your winch.
4. Insert the plug of remote control recever into the winches’ solenoid control box
female connector, if your wireless remote control is －03 type, you should properly
connect the black earth line to the battery negative.
5. Put your receiver at a certain place.
6. Keep the antenna of receiver out and straight.
7. Pull out the antenna of transmitter, and move down the cover of your transmitter,
bare out the control button.
8. Press the button, you can operate your winch start, stop, in and out.
Trouble Shooting:
SYMPTOM POSSIBLE CAUSE SUGGESTED ACTION
Motor turns,
but Winch
does not work,
Defective winch. Check the winch Operating instructions.
Receiver Loose connections
to the winch.
Reinsert all the way.
False Earth line cinnection Ensure the earth connections.
Motor does not
turn, but you
can hear “Click”
sound in the
receiver
Defective winch. Check the winch Operating instructions.
Receiver Loose connections
to the winch.
Reinsert all the way.
Motor runs in
one direction
only
Defective winch. Check the winch Operating instructions.
No actions
Receiver and transmitter does
not matching.
“01” Type : Code learn.
“02” Type : return to the manufacture to
rematch.
