User's Manual
Automatic Water Exchange Module for
Narwal Freo Robot Vacuum and Mop
Automatic Water Exchange Module
TM
Product Components
WARNINGS
Automatic Water Exchange Module
• To avoid water leakage, please use a dedicated pipe cuer and avoid bending the pipe.
• To avoid electric shocks, please connect the water supply BEFORE connecting the
electricity.
• Please ensure the self-test has been properly completed before using the module.
01

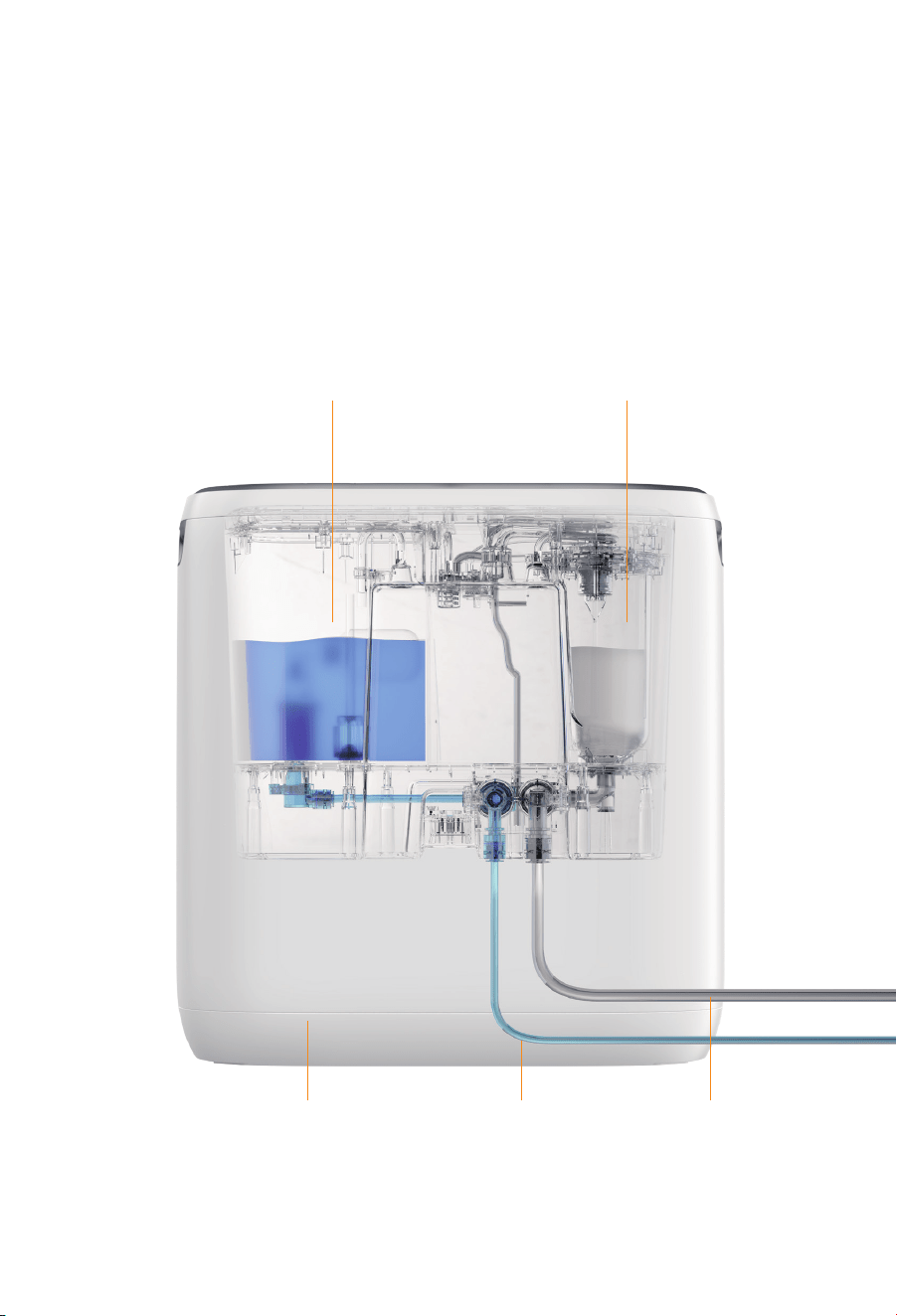

Clean Water Tank
Base Station Clean Water Inlet Pipe Dirty Water Outlet Pipe
Dirty Water Tank

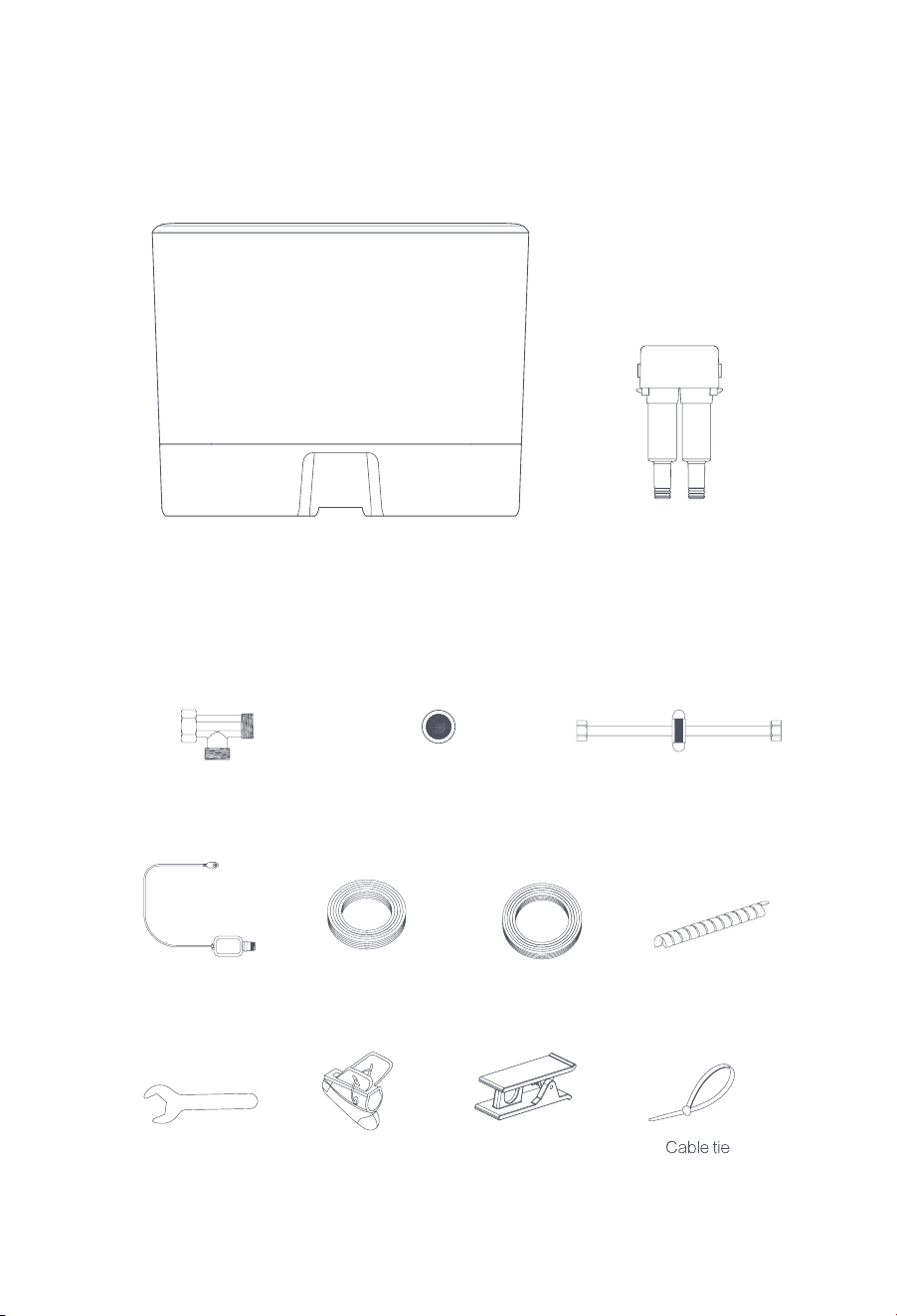

Package Contents
Main Unit
"VUPNBUJD8BUFS&YDIBOHF.PEVMF 8BUFS1JQF"EBQUFS
&YQMPTJPOQSPPG1JQF$MFBO8BUFS5KPJOU $MFBO8BUFS'JMUFS
$MFBO8BUFS1JQFN %JSUZ8BUFS1JQFN %FDPSBUJWF1JQF$POUSPM#PY
8SFODI $BCMFPSHBOJ[FS 1JQFDVUUFS
Automatic Water Exchange Module
Standard Accessories
02
①
②
③
⑥
⑩ ⑪ ⑫ ⑬
⑦ ⑧ ⑨
④ ⑤

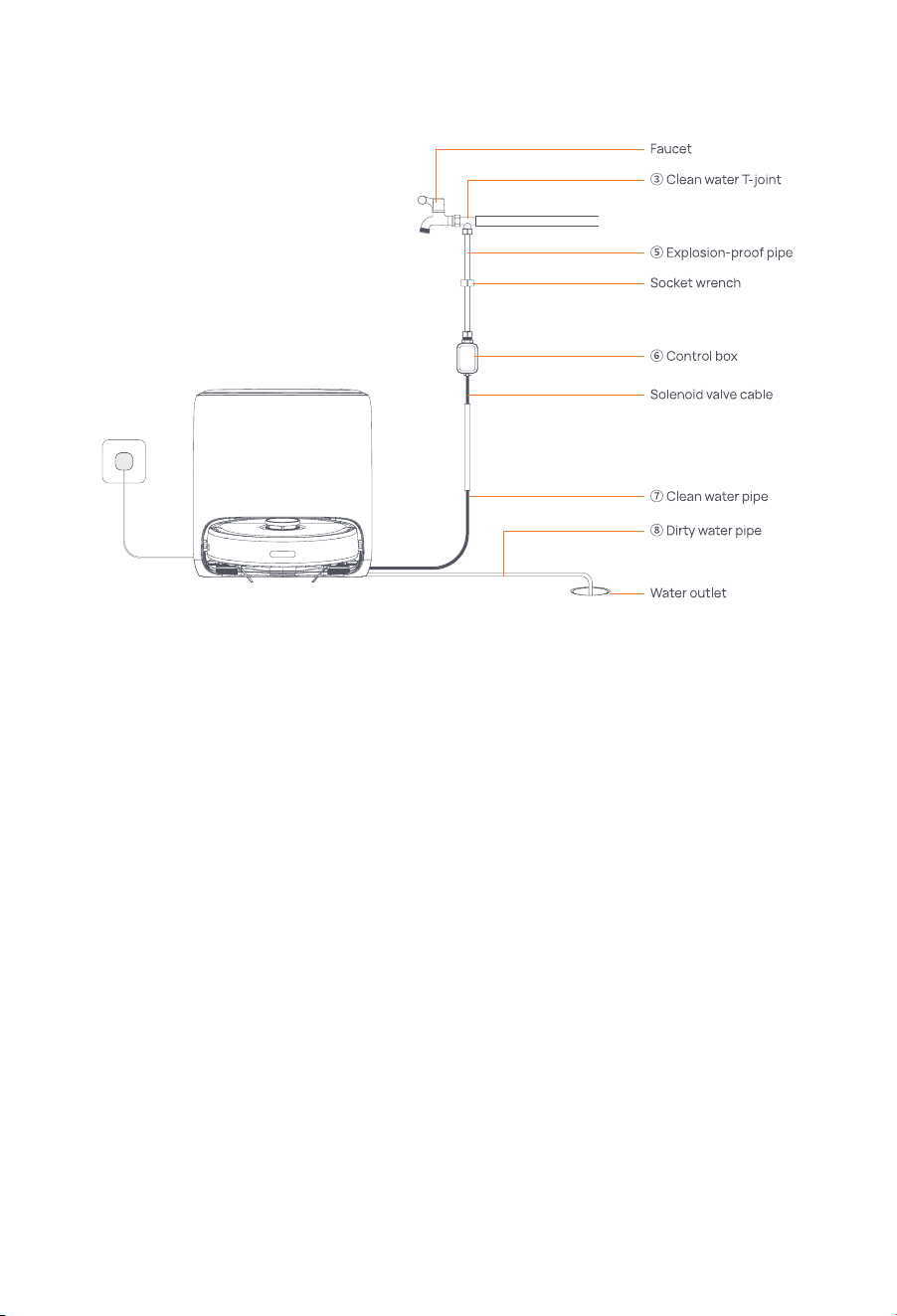

Instruction of the pipeline installation
Installing the water pipeline
Installation Environment
1. Ensure that the pipeline distance between the water supply and the base station is
≤19.7ft to ensure a reliable connection between them. At the same time, ensure that
the pipeline distance between the dirty water outlet and the base station is ≤19.7ft,
and the whole height of the dirty water pipe from the ground is ≤2.6ft to ensure smooth
drainage.
2. PT 1/2-14 should be used at the connection of the water supply. Otherwise, please
purchase a compatible adapter to obtain the desired size.
3. The pressure of the water supply should range from 0.14 MPa to 0.8 MPa. It is
recommended to add a booster pump when the pressure is below this value range or
add an extra pressure relief valve when the pressure is above this value range.
4. Do not use pipe valves prone to rusting or leakage at the water source to avoid water
leakage during operation.
Start using 03

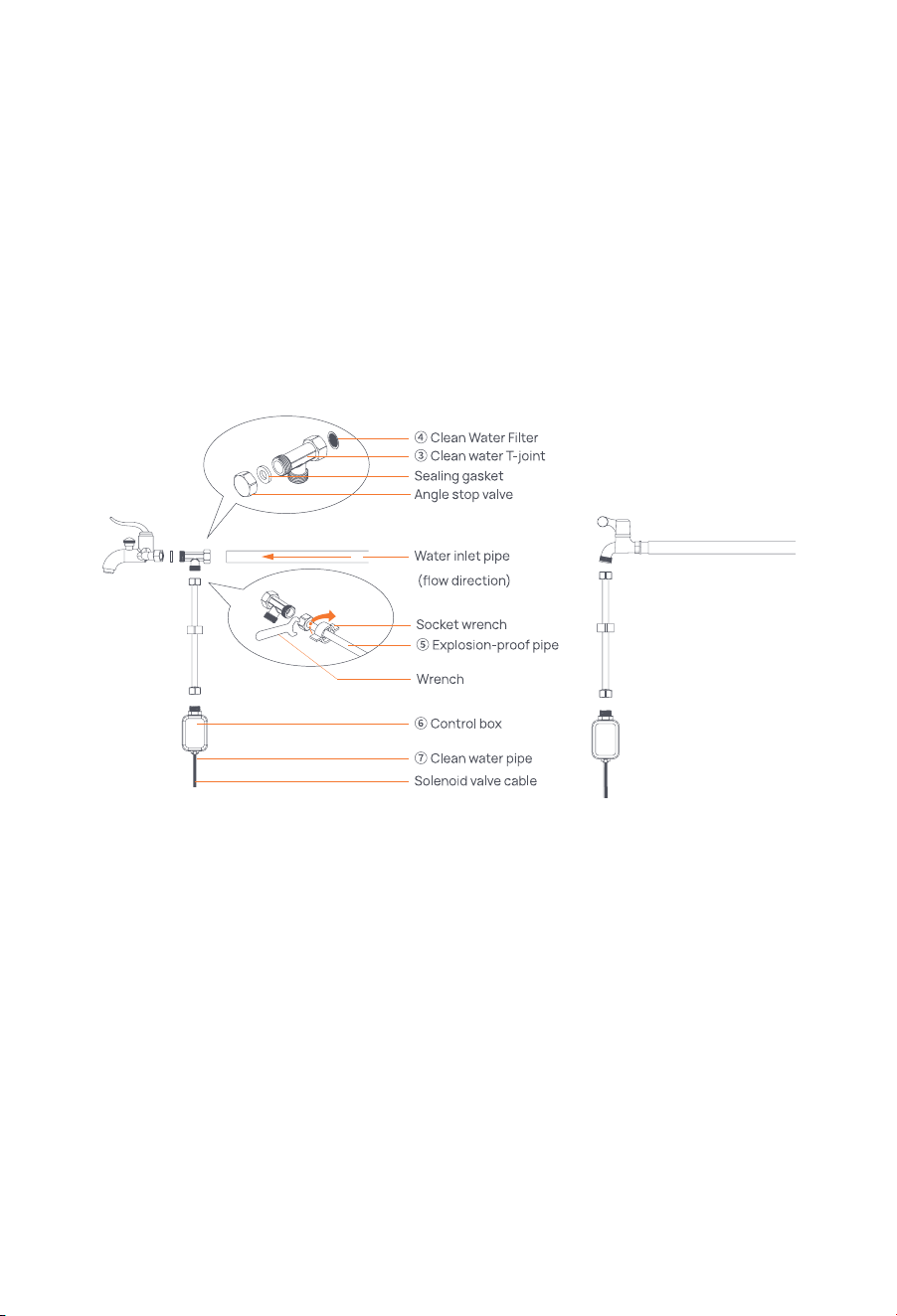

Installing the clean water T-joint
③
and explosion-proof pipe
⑤
1. Turn o the water supply.
2. Locate the installation place and select the best installation option according to the
specific conditions. (Refer to the figure below)
3. Remove the faucet, angle valve, or other water supply joints with the wrench supplied
.
4. Check whether the filter inside the T-joint is properly installed, and then install the
T-joint onto the water supply joint with the wrench.
5. Make sure that the filter
④
is installed inside the clean water T-joint and it is on the side
where water enters the T-joint
③
.
6. Use the socket wrench on the explosion-proof pipe
⑤
to tighten the clean water T-joint
③
.
Installing the control box
1. Check that the filter is installed in the inlet pipe of the control box
⑥
.
2. Connect the other end of the explosion-proof pipe
⑤
to the male thread end of the
control box
⑥
.
3. Use the socket wrench on the explosion-proof pipe
⑤
to tighten it clockwise.
Option
①
: The female thread end is connected to the water supply, and the male thread end is installed with 1/2 dual-
female thread coupling and connected to the faucet.
Option
②
: The female thread end is connected to the outlet pipe of the faucet, and the male thread end is connected
to the water fiing of the washing machine.
Start using 04
Protection cover
Blowhole protection cover
Pin protection cover
Socket wrench
Filter
Control box
Solenoid valve cable
connector

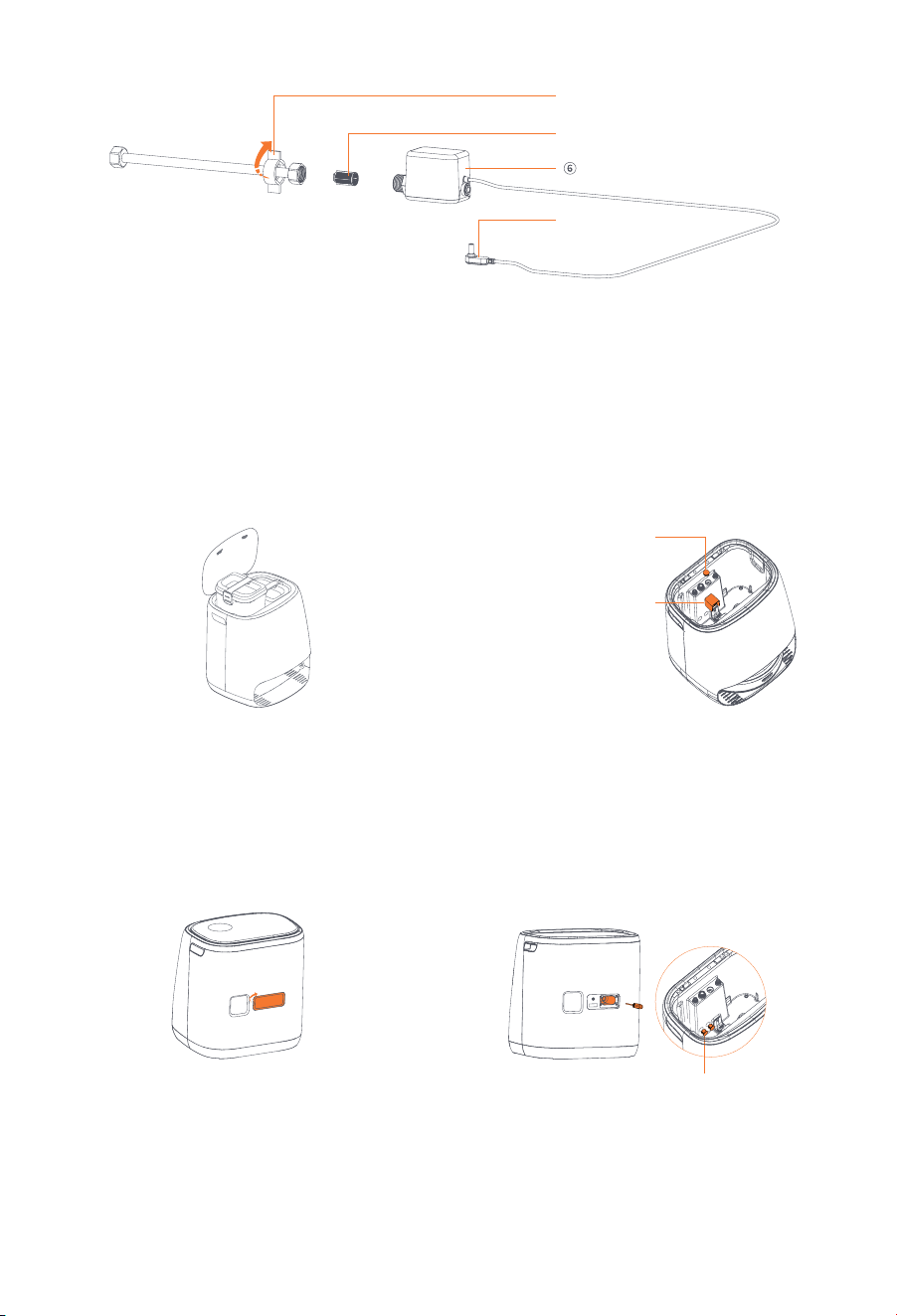

Installing the automatic water exchange unit
1. Open the top lid of the base station
and remove the dirty water tank and
clean water tank.
2. First, remove the cover of the pin and
blowhole protection.
3. Pry o the rear protection cover by
with your hand or a screwdriver.
4. Insert the screwdriver into the inlet
pipe and outlet pipe of the base station
until the inner protection cover comes
out.
Start using 05
Marker line
5. Place the automatic water exchange
module vertically into the base station
along the rear panel to ensure proper
installation.
6. Pack the spare parts into the base
station for further use.

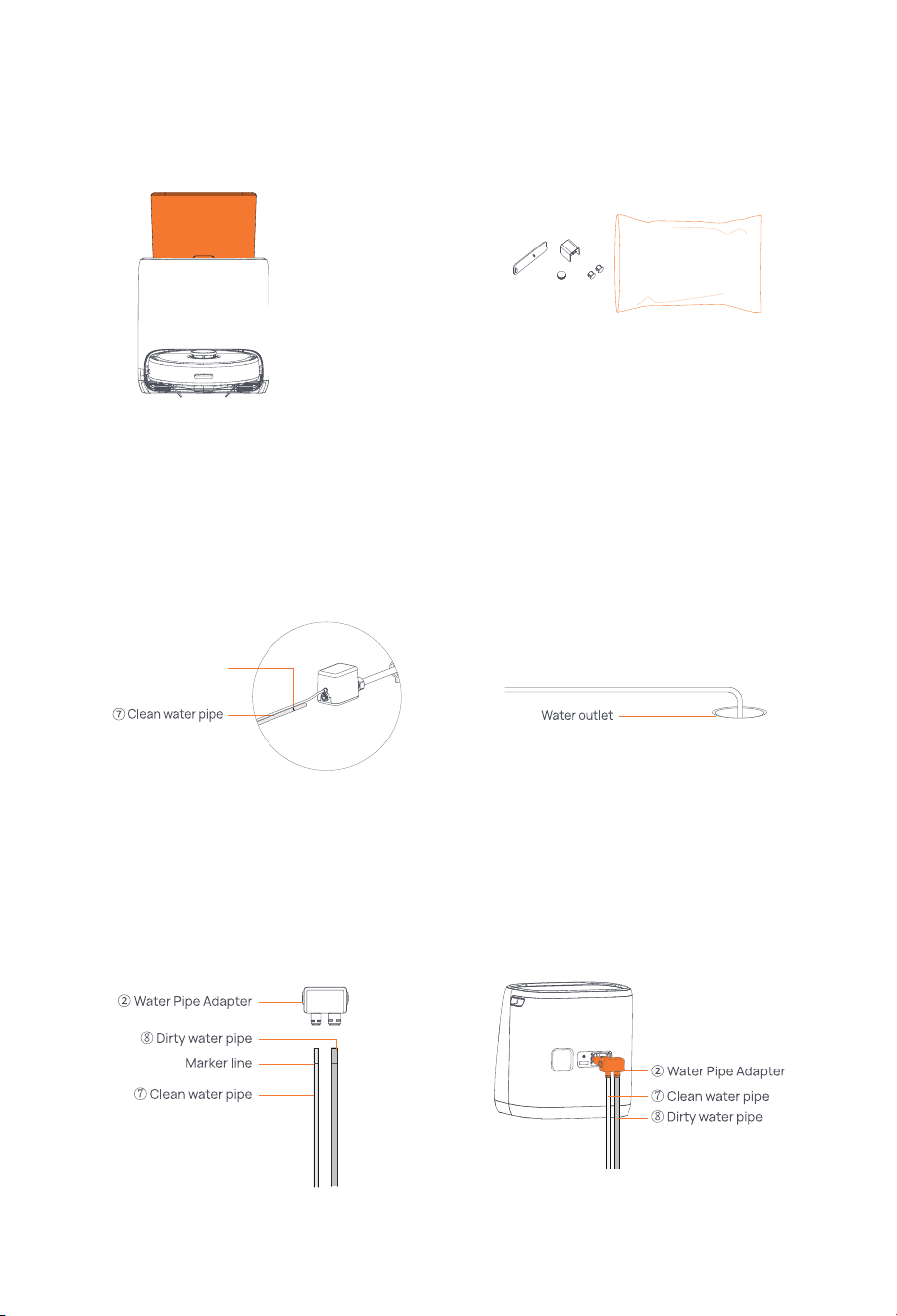

Installing the pipeline
1. Insert the clean water pipe firmly into
the quick connector of the control box
until the marker line disappears. (If
the marker line is still visible, the clear
water pipe is not installed properly.)
3. Connect the other ends of the clean
water pipe
⑦
and dirty water pipe
⑧
to
the corresponding adapters and insert
the pipes until the marker line cannot
be seen.
2. Determine the length of the dirty
water pipe based on the position of
the sewage outlet, and then cut o
the excess part of the pipe with the
pipe cuer. (Sewage discharge may be
aected if the pipeline is too long).
4. Insert the adapter
②
into the base
station until you hear a click. (Check
the condition of the O-ring before
connecting. For your convenience,
moderately apply the neutral cleaning
liquid to the O-ring for lubrication
purposes)
Start using 06
Start using

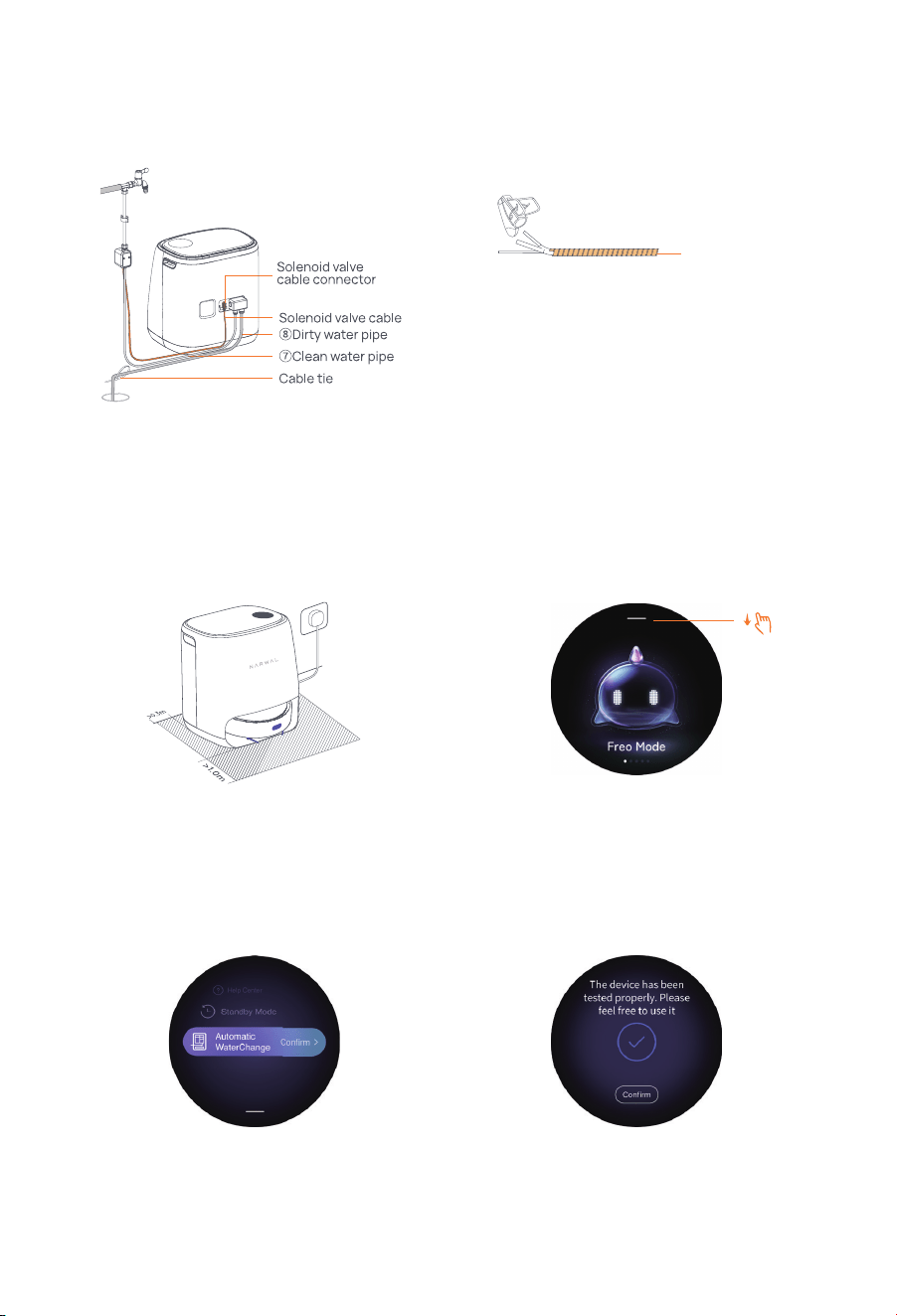

6. Use the cable clip to wrap the clean
water pipe and dirty water pipe into the
storage pipe as illustrated, and cut o
any excess parts of the storage pipe.
⑨Decorative pipe
Installation Self-test
1. Make sure the power supply is reliably
connected and there is enough space
around it.
3. Swipe to the "Automatic Water Change
Self-test" function and click "Confirm" on
the right to start the self-test.
2. Swipe "—" down on the homepage to
access the drop-down setup menu.
4. After all checks are completed,
the page displays "Automatic Water
Change Completed". If there is any
abnormality, check the corresponding
position according to the on-screen
instructions.
5. Connect the solenoid valve cable
of the control box to the back of the
base station.
（
Secure the dirty water
pipe with a cable tie to prevent it from
slipping out of the sewage outlet.
）
07

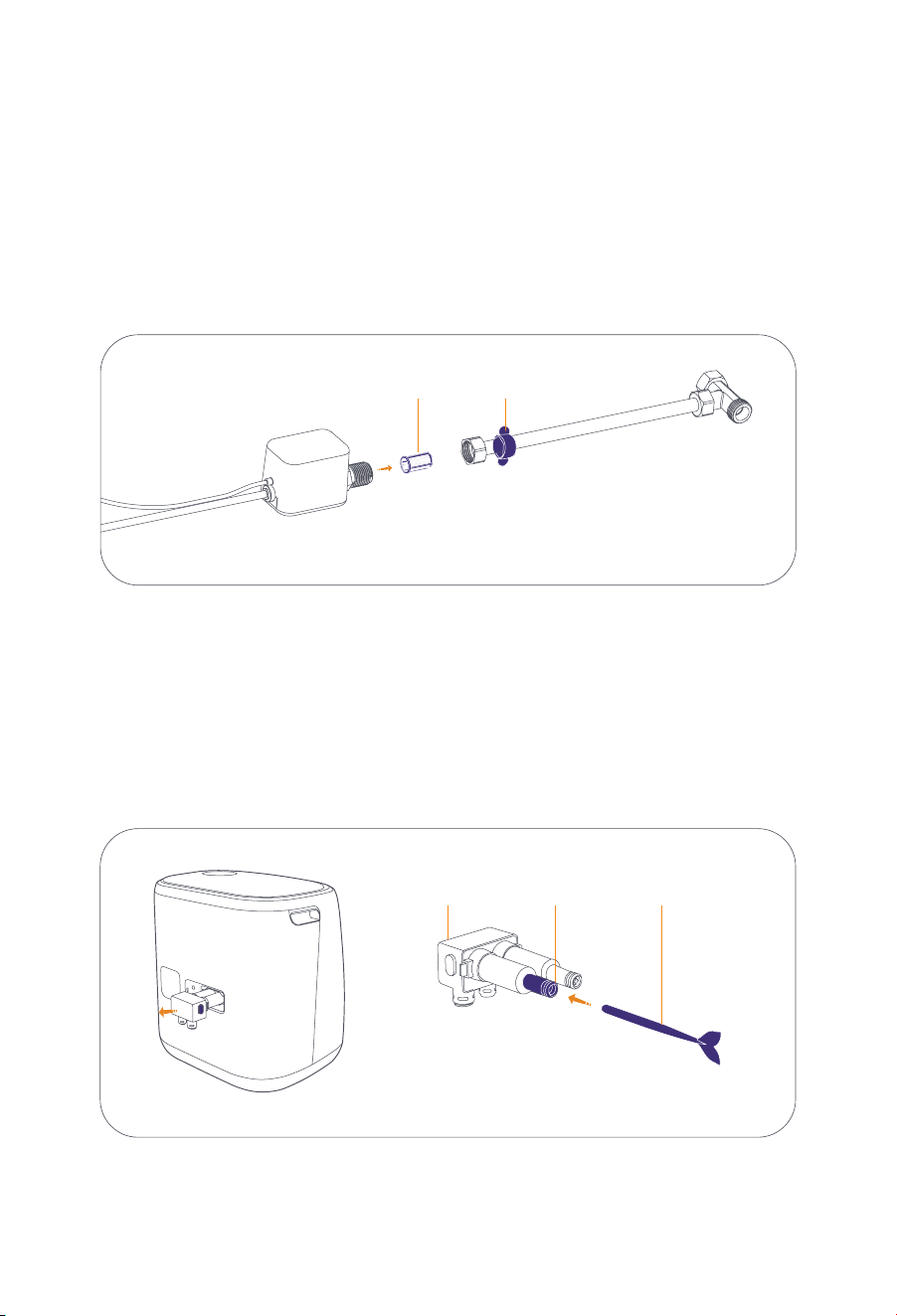

Accessories Maintenance
Filter Maintenance
1. Turn o the water supply, and unscrew the explosion-proof pipe with a socket wrench in
the direction shown in the figure below.
2. Remove the filter from the connector of the control box, and rinse it with clean water.
3. Reinstall the filter. Tighten the explosion-proof pipe with the socket wrench to ensure it
is securely connected. Then open the clean water valve.
Duckbill Valve Maintenance
1. Take out the drain cleaning stick under the top lid of the automatic water exchang module.
2. Press the buon on the quick adapter to pull out the water pipe adapter.
3. Insert the drain cleaning stick in the outlet and out. Repeat it 3-5 times.
4. Reinstall the quick connector and the drain cleaning stick.
Start using 08
Filter
Drain OutletWater Pipe Adapter
Socket Wrench
Drain Cleaning Stick
Start using
Notes
Specifications
Model
：
YJMA002 Dimensions
：
335*110*260mm
Weight:
approx. 1.2 kg
Color: white Maximum pressure of
inlet water: 1.0 MPA
Before installing/removing the automatic water exchange module, make sure that it is
o the power.
Error Codes and Prompts
If there is an error with the automatic water exchange unit, please check the error
code on the screen and the corresponding troubleshoot shown in the table below.
Error Code
Base Station
Touchscreen
Prompt
Robot Voice
Prompt
Solution
3000
Automatic water
exchange module
error. Scan the
code for help.
Automatic water
exchange module
error. Scan the code
for help.
1. Check if the water supply is turned o.
2. Check if the pipeline is damaged or
leaking.
3. Check if the filter in the clean water
tank is blocked.
3001
Automatic water
exchange module
error. Scan the
code for help.
Automatic water
exchange module
error. Scan the code
for help.
Please contact the after-sales service.
3002
Automatic water
exchange module
error. Scan the
code for help.
Automatic water
exchange module
error. Scan the code
for help.
1. Check if the cleaning components are
blocked.
2. Check if the dirty water duckbill valve is
completed closed.
3. Check if the pipeline is blocked (diicult
for the user to troubleshoot).
4. Check if the ventilation valve doesn't
work. (cannot be troubleshot by the user)
3003
Automatic water
exchange module
error. Scan the
code for help.
Automatic water
exchange module
error. Scan the code
for help.
Please contact the after-sales service.
09
3004
No waterpipe
control module
detected.
Reinstall it
properly.
No waterpipe
control module
detected. Reinstall
it properly.
1. Check if the waterpipe control module
is correctly installed on the clean water
pipe.
2. Check if all valves of the clean water
pipe are opened and the house's water
supply is enabled.
3. If the error persists, please contact the
after-sales service.
3005
Water spray
system error. Scan
the code for help.
Water spray system
error. Scan the code
for help.
1. Check if the clean water pipe is properly
connected.
2. Check if all valves of the clean water
pipe are opened and the house's water
supply is enabled.
3. If the error persists, please contact the
after-sales service.
3006
Automatic water
exchange module
error. Scan the
code for help.
Automatic water
exchange module
error. Scan the code
for help.
1. Check if the cleaning components are
blocked.
2. Check if the dirty water duckbill valve is
completed closed.
3. Check if the pipeline is blocked (diicult
for the user to troubleshoot).
4. Check if the ventilation valve doesn't
work (cannot be troubleshot by the user)
3007
Pumping system
error. Check the
quick connector.
Automatic water
exchange module
error. Scan the code
for help.
Please contact the after-sales service.
3008
Drainage system
error. Check the
dirty water pipe.
Automatic water
exchange module
error. Scan the code
for help.
1. Please check if the dirty water pipe is
bent or pressed by a heavy object.
2. Use the drain cleaning stick to dredge
the duckbill valve in the quick connector.
3. If the error persists, please contact the
after-sales service.
Start using 10
IMPORTANT: Narwal oers a Limited Warranty which does not aect your statutory rights under
the laws relating to the sale of consumer products. This Limited Warranty only applies to Narwal
products you purchased in the United States (US) from Narwal or its authorized retailers for your
own use and not for resale.
Any updates to this Policy will be posted on Narwal.com and we encourage you to periodically
review this Policy to ensure you are familiar with the most current version. If there is any
inconsistency between this Policy on Narwal.com and any other documents included with or
relating to Narwal products, the latest version of this Policy on Narwal.com shall govern.
These Policies are available in other languages at Narwal.com. In the event of a conflict between
dierent translations of these terms, the English version shall prevail.
One (1) Year Limited Warranty
Under this Limited Warranty, Narwal warrants that each Narwal product that you purchase will
be free from material and workmanship defects under normal use in accordance with Narwal's
published product materials during the period of one (1) year from the date of delivery (the
“Warranty Period”). Narwal's published product materials include, but not limited to, user manuals,
specifications, in-app notifications, and service communications.
How to Obtain Warranty Service
If a product does not function as warranted during the warranty period, please contact us at
[email protected]om or submit your request through Narwal.com. You will need to provide the
serial number of your Product and the original invoice or receipt showing the date of purchase and
all details of the Product for the after-sales service.
Please note that the warranty service is only available in the respective Narwal service regions
where you purchased your Narwal product.
What Will Narwal Do
If your request is received within the Warranty Period and the Product is found to have failed to
function as warranted, Narwal will, at our option:
• repair the Product using new or refurbished parts that are equivalent to new in performance and
reliability, or
• exchange the Product with a product that is new or which has been manufactured from new or
refurbished parts and is at least functionally equivalent to the original product, or
• exchange the Product with a product that is new and upgraded model which has at least
equivalent or upgraded function to the original product.
Where permied by applicable laws, the Warranty Period will not be extended or updated or
otherwise aected by subsequent replacement, resale, repair or replacement of the product. Parts
repaired or replaced during the Warranty Period will be warranted for the remainder of the original
warranty period. The replaced or repaired product, as applicable, will be returned to you as soon as
it is commercially feasible. All parts of the product or other equipment that we replace will become
our property.
To resolve the problem, you understand that you may be required to deliver the product to Narwal
for further examination. We will arrange for repair or replacement service at no cost if the problem
falls under this Limited Warranty.
（
notice
：
If you have taken the products to regions outside the
US, we will not bear the international freight, transportation charge, customs and other costs of
transporting the relevant products to the US, and the above costs and related risks are borne by
Warranty Policy
•
for products purchased in the US only
11Warranty Policy
you; Moreover, we are not responsible for sending the repaired or replaced products to regions
outside the US.) If it is found that the product is not covered by this Limited Warranty, we (and our
authorized service company) reserve the right to charge the cost of postage, labour and materials.
When repairing or replacing products, we may use new, equivalent to new or refurbished products
or parts.
WHAT’S NOT COVERED
Unless agreed in writing, the Limited Warranty will not apply if the defect(s) relate to:
(a) normal wear and tear (including, without limitation, wear and tear of baeries),
(b) defects caused by rough or inappropriate handling or use or damage caused by accident,
misuse, neglect, fire, water, lightning or other acts of nature,
(
c
) the fact that the baery has been short-circuited, if the seals of the baery enclosure or the
cells are broken or show evidence of tampering or if the baery has been used in equipment other
than those for which it has been specified,
(d) non-compliance with the Product instructions,
(e) willful or deliberate damage, neglect or negligence,
(f) use of spare parts or other replacement items (including consumables) which are not provided
or recommended by us,
(g) any alteration or modification to the Product which has been carried out by you or a third party
not authorized by us,
(h) any failure to adequately package the Product for transportation,
(i) extreme or external causes beyond our reasonable control including, but not limited to,
breakdowns, fluctuations, or interruptions in electric power, ISP (internet service provider) service,
or wireless networks,
(j) weak and/or inconsistent wireless signal strength in your home,
(k) any Product(s) purchased from unauthorized distributors.
This Limited Warranty does not apply to consumable items. Please find a list of such consumable
items at Narwal.com.
This Limited Warranty will be invalid if (a) the Product's serial number has been removed, erased,
defaced, altered or is illegible in any way (as determined in our sole discretion), or (b) you are in
breach of the terms of this Limited Warranty or your contract with us.
LIMITATION OF LIABILITY
THIS LIMITED WARRANTY IS YOUR SOLE AND EXCLUSIVE REMEDY AGAINST NARWAL AND NARWAL'S SOLE
AND EXCLUSIVE LIABILITY IN RESPECT OF DEFECTS IN YOUR PRODUCT. THIS LIMITED WARRANTY REPLACES
ALL OTHER NARWAL WARRANTIES AND LIABILITIES, WHETHER ORAL, WRITTEN, (NON-MANDATORY)
STATUTORY, CONTRACTUAL, IN TORT OR OTHERWISE, INCLUDING, WITHOUT LIMITATION, AND WHERE
PERMITTED BY APPLICABLE LAW TO THE MAXIMUM EXTENT, ANY IMPLIED CONDITIONS, WARRANTIES
OR OTHER TERMS AS TO SATISFACTORY QUALITY OR FITNESS FOR PURPOSE. HOWEVER, THIS LIMITED
WARRANTY SHALL NEITHER EXCLUDE NOR LIMIT ANY OF YOUR LEGAL (STATUTORY) RIGHTS UNDER THE
APPLICABLE NATIONAL LAWS.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW(S) NARWAL DOES NOT ASSUME ANY LIABILITY
FOR LOSS OF OR DAMAGE TO OR CORRUPTION OF DATA, FOR ANY LOSS OF PROFIT, LOSS OF USE OF
PRODUCTS OR FUNCTIONALITY, LOSS OF BUSINESS, LOSS OF CONTRACTS, LOSS OF REVENUES OR LOSS
OF ANTICIPATED SAVINGS, INCREASED COSTS OR EXPENSES OR FOR ANY INDIRECT LOSS OR DAMAGE,
CONSEQUENTIAL LOSS OR DAMAGE OR SPECIAL LOSS OR DAMAGE.
TO THE EXTENT PERMITTED BY APPLICABLE LAW, NARWAL'S LIABILITY SHALL BE LIMITED TO THE
PURCHASE VALUE OF THE PRODUCT. THE ABOVE LIMITATIONS SHALL NOT APPLY IN CASE OF GROSS
NEGLIGENCE OR INTENTIONAL MISCONDUCT OF NARWAL OR IN CASE OF DEATH OR PERSONAL INJURY
RESULTING FROM NARWAL'S PROVEN NEGLIGENCE.
Should you have any issue unsolved, do not hesitate to contact us at [email protected]om
12Warranty Policy
IMPORTANT:Narwal oers a Limited Warranty which does not aect your statutory rights under
the laws relating to the sale of consumer products. This Limited Warranty only applies to Narwal
products you purchased in Canada from Narwal or its authorized retailers for your own use and not
for resale.
Any updates to this Policy will be posted on Narwal.com and we encourage you to periodically
review this Policy to ensure you are familiar with the most current version. If there is any
inconsistency between this Policy on Narwal.com and any other documents included with or
relating to Narwal products, the latest version of this Policy on Narwal.com shall govern.
These Policies are available in other languages at Narwal.com. In the event of a conflict between
dierent translations of these terms, the English version shall prevail.
One (1) Year Limited Warranty
Under this Limited Warranty, Narwal warrants that each Narwal product that you purchase will
be free from material and workmanship defects under normal use in accordance with Narwal's
published product materials during the period of one (1) year from the date of delivery (the
“Warranty Period”). Narwal's published product materials include, but not limited to, user manuals,
specifications, in-app notifications, and service communications.
How to Obtain Warranty Service
If a product does not function as warranted during the warranty period, please contact us at
[email protected]om or submit your request through Narwal.com. You will need to provide the
serial number of your Product and the original invoice or receipt showing the date of purchase and
all details of the Product for the after-sales service.
Please note that the warranty service is only available in the respective Narwal service regions
where you purchased your Narwal product.
What Will Narwal Do
If your request is received within the Warranty Period and the Product is found to have failed to
function as warranted, Narwal will, at our option:
• repair the Product using new or refurbished parts that are equivalent to new in performance and
reliability, or
• exchange the Product with a product that is new or which has been manufactured from new or
refurbished parts and is at least functionally equivalent to the original product, or
• exchange the Product with a product that is new and upgraded model which has at least
equivalent or upgraded function to the original product.
Where permied by applicable laws, the Warranty Period will not be extended or updated or
otherwise aected by subsequent replacement, resale, repair or replacement of the product. Parts
repaired or replaced during the Warranty Period will be warranted for the remainder of the original
warranty period. The replaced or repaired product, as applicable, will be returned to you as soon as
it is commercially feasible. All parts of the product or other equipment that we replace will become
our property.
To resolve the problem, you understand that you may be required to deliver the product to Narwal
for further examination. We will arrange for repair or replacement service at no cost if the problem
falls under this Limited Warranty.(notice:If you have taken the products to regions outside
Canada, we will not bear the international freight, transportation charge, customs and other
costs of transporting the relevant products to Canada, and the above costs and related risks are
Warranty Policy
•
for products purchased in Canada only
13Warranty Policy
borne by you; Moreover, we are not responsible for sending the repaired or replaced products to
regions outside Canada.) If it is found that the product is not covered by this Limited Warranty, we
(and our authorized service company) reserve the right to charge the cost of postage, labour and
materials. When repairing or replacing products, we may use new, equivalent to new or refurbished
products or parts.
WHAT’S NOT COVERED
Unless agreed in writing, the Limited Warranty will not apply if the defect(s) relate to:
(a) normal wear and tear (including, without limitation, wear and tear of baeries),
(b) defects caused by rough or inappropriate handling or use or damage caused by accident,
misuse, neglect, fire, water, lightning or other acts of nature,
(
c
)
the fact that the baery has been short-circuited, if the seals of the baery enclosure or the
cells are broken or show evidence of tampering or if the baery has been used in equipment other
than those for which it has been specified,
(d) non-compliance with the Product instructions,
(e) willful or deliberate damage, neglect or negligence,
(f) use of spare parts or other replacement items (including consumables) which are not provided
or recommended by us,
(g) any alteration or modification to the Product which has been carried out by you or a third party
not authorized by us,
(h) any failure to adequately package the Product for transportation,
(i) extreme or external causes beyond our reasonable control including, but not limited to,
breakdowns, fluctuations, or interruptions in electric power, ISP (internet service provider) service,
or wireless networks,
(j) weak and/or inconsistent wireless signal strength in your home,
(k) any Product(s) purchased from unauthorized distributors.
This Limited Warranty does not apply to consumable items. Please find a list of such consumable
items at Narwal.com.
This Limited Warranty will be invalid if (a) the Product's serial number has been removed, erased,
defaced, altered or is illegible in any way (as determined in our sole discretion), or (b) you are in
breach of the terms of this Limited Warranty or your contract with us.
LIMITATION OF LIABILITY
THIS LIMITED WARRANTY IS YOUR SOLE AND EXCLUSIVE REMEDY AGAINST NARWAL AND NARWAL'S SOLE
AND EXCLUSIVE LIABILITY IN RESPECT OF DEFECTS IN YOUR PRODUCT. THIS LIMITED WARRANTY REPLACES
ALL OTHER NARWAL WARRANTIES AND LIABILITIES, WHETHER ORAL, WRITTEN, (NON-MANDATORY)
STATUTORY, CONTRACTUAL, IN TORT OR OTHERWISE, INCLUDING, WITHOUT LIMITATION, AND WHERE
PERMITTED BY APPLICABLE LAW TO THE MAXIMUM EXTENT, ANY IMPLIED CONDITIONS, WARRANTIES
OR OTHER TERMS AS TO SATISFACTORY QUALITY OR FITNESS FOR PURPOSE. HOWEVER, THIS LIMITED
WARRANTY SHALL NEITHER EXCLUDE NOR LIMIT ANY OF YOUR LEGAL (STATUTORY) RIGHTS UNDER THE
APPLICABLE NATIONAL LAWS.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW(S) NARWAL DOES NOT ASSUME ANY LIABILITY
FOR LOSS OF OR DAMAGE TO OR CORRUPTION OF DATA, FOR ANY LOSS OF PROFIT, LOSS OF USE OF
PRODUCTS OR FUNCTIONALITY, LOSS OF BUSINESS, LOSS OF CONTRACTS, LOSS OF REVENUES OR LOSS
OF ANTICIPATED SAVINGS, INCREASED COSTS OR EXPENSES OR FOR ANY INDIRECT LOSS OR DAMAGE,
CONSEQUENTIAL LOSS OR DAMAGE OR SPECIAL LOSS OR DAMAGE.
TO THE EXTENT PERMITTED BY APPLICABLE LAW, NARWAL'S LIABILITY SHALL BE LIMITED TO THE
PURCHASE VALUE OF THE PRODUCT. THE ABOVE LIMITATIONS SHALL NOT APPLY IN CASE OF GROSS
NEGLIGENCE OR INTENTIONAL MISCONDUCT OF NARWAL OR IN CASE OF DEATH OR PERSONAL INJURY
RESULTING FROM NARWAL'S PROVEN NEGLIGENCE.
Should you have any issue unsolved, do not hesitate to contact us at [email protected]om
14Warranty Policy
Email:[email protected]om
Product Warranty Card
User Name
Address
Phone No.
Product Name and
Model Model
Serial Number
Purchase Date
Maintenance records
Maintenance
Date
Fault Description and
part Replacement
Maintenance
Center
Maintenance
Engineer
1
2
3
Manufacturer:Yunjing Intelligence Innovation (Shenzhen) Co., Ltd.
Address:Room A2901, Yunzhongcheng, Building 1, Vanke Yuncheng
VI, Dashi 2nd Road, Xili Community, Xili Street, Nanshan District,
Shenzhen, Guangdong, China
