WINDOW TYPE ROOM AIR CONDITIONER
Owner’s Manual
IMPORTANT NOTE:
Before using your air conditioner, please read
this manual carefully and keep it for future reference.
EN
EHWR08BE
EHWR10BE
EHWR12BE
EHWR14BE
Cleaning & maintenance
Troubleshooting
01
12
33
34
27
29
CONTENTS
Operation instructions
Installation instructions
Safety precautions

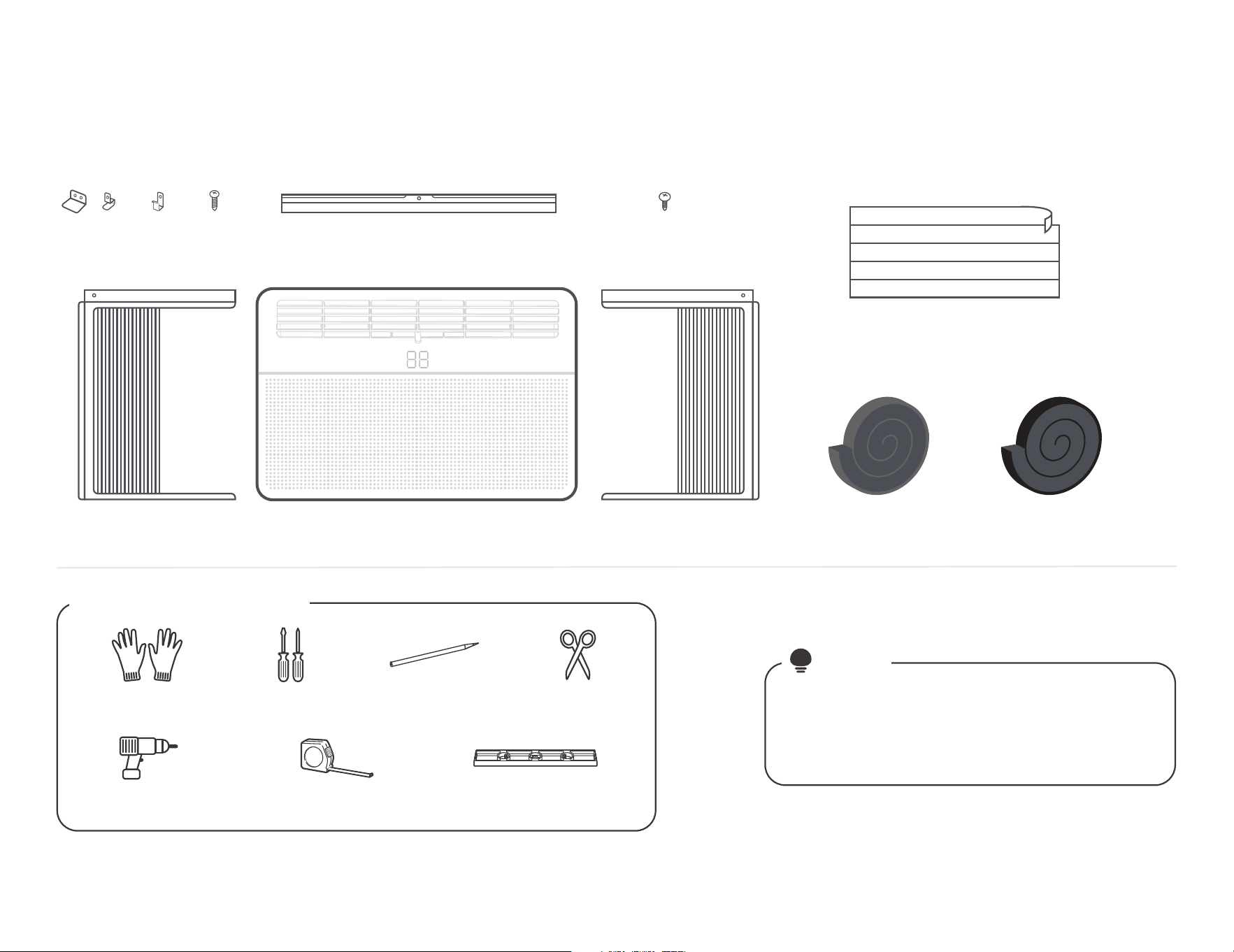

What is in the Box
13
14
Before you get start

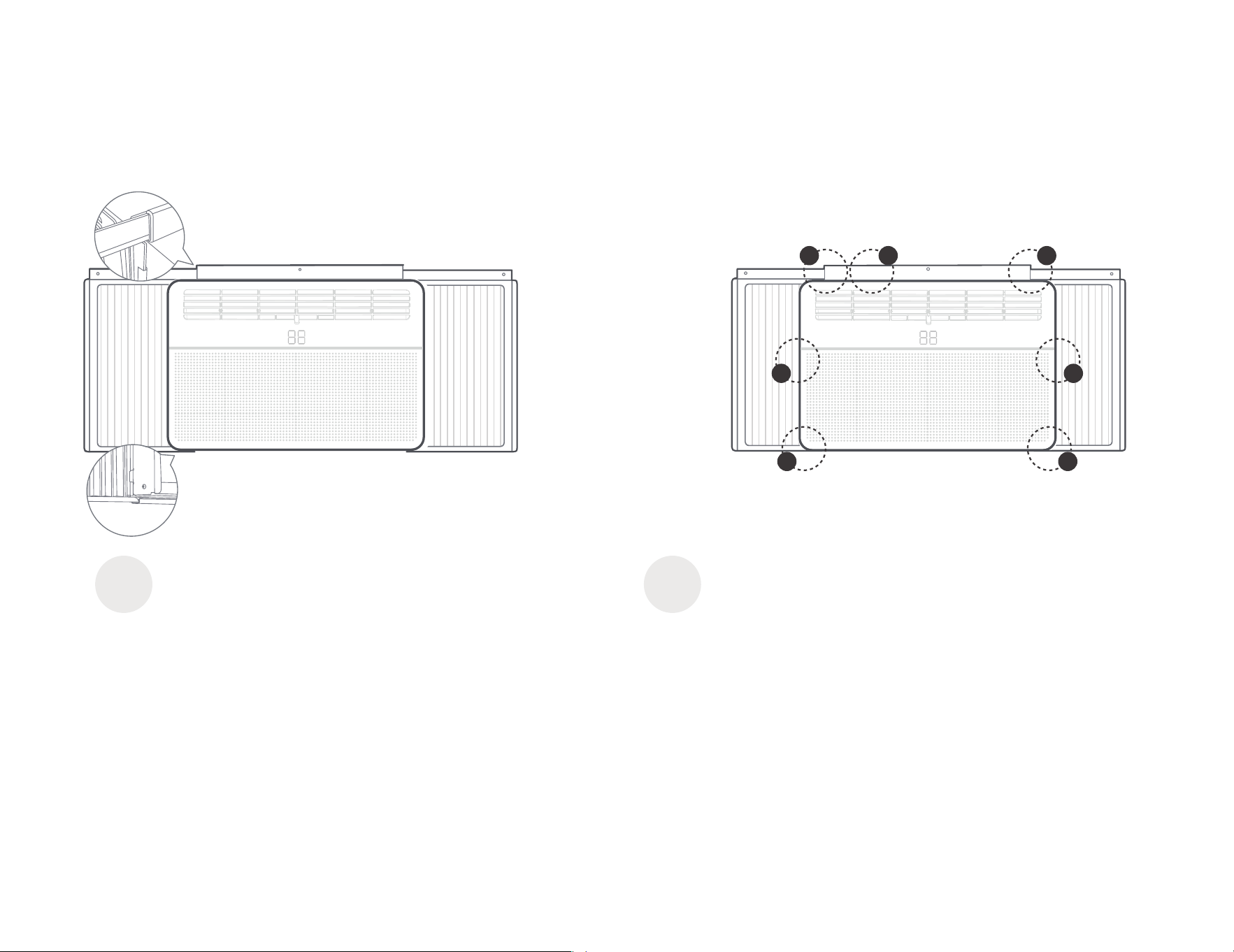

Installation overview.

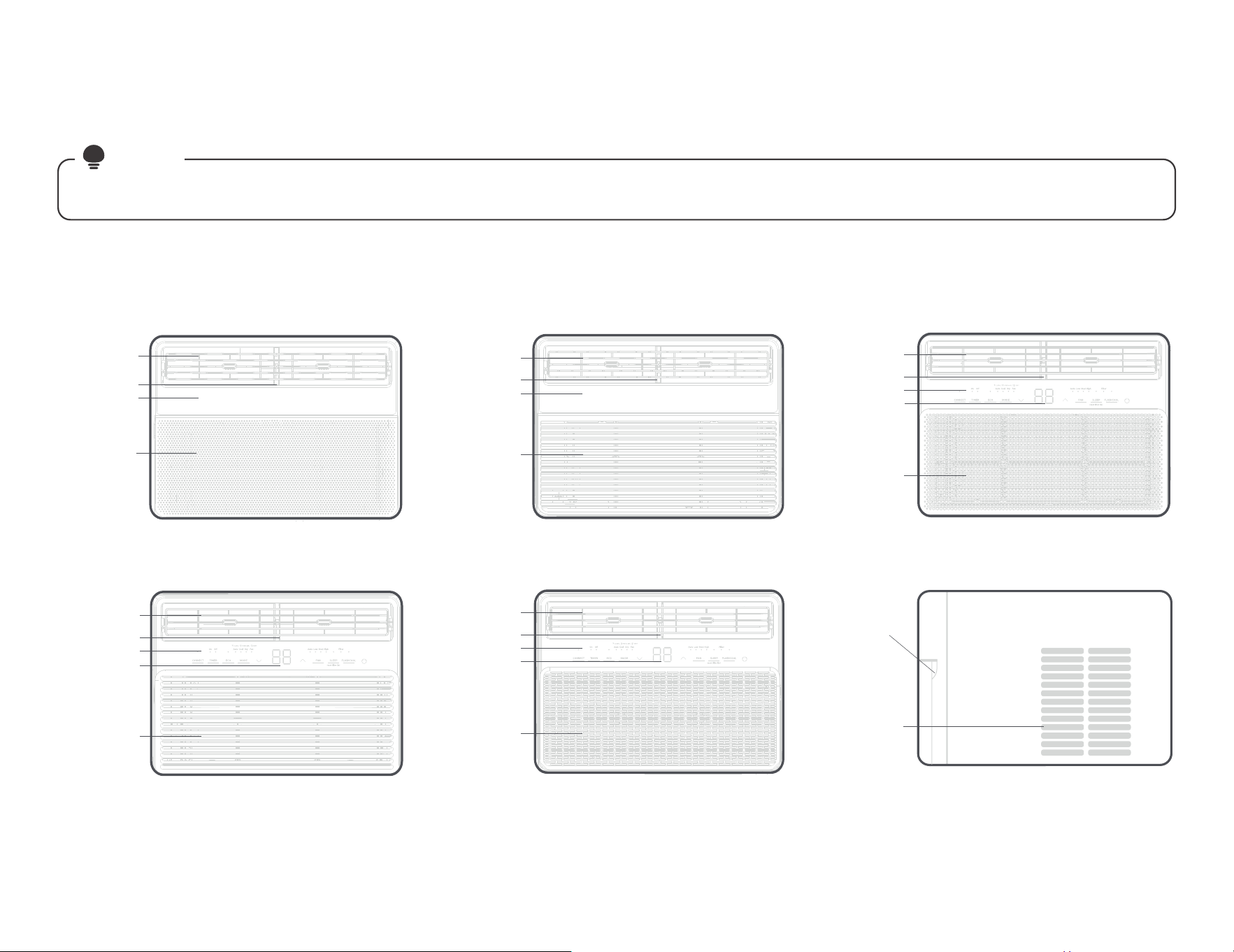

Get to know your AC.
Get to know the features.
01
Inside you will find many helpful hints on how to use and maintain
your air conditioner properly. Just a little preventive care on your
part can save you a great deal of time and money over the life of
your air conditioner. You'll find many answers to common problems
in the chart of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call for service at all.
To prevent injury to the user or other people and property
damage, the following instructions must be followed.
Incorrect operation due to ignoring of instructions may
cause harm or damage. The seriousness is classified by the
following indications.
Safety Precautions
WARNING
The signal word indicates a hazard with a medium level of risk which, if not avoided, may result in serious or injury death.
CAUTION
The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.
Explanation of Symbols
Must read the warning message.
02
Plug in power plug properly. Otherwise, it may cause electric shock
or fire due to excess heat generation. Do not operate or stop the unit
by inserting or pulling out the power plug.It may cause electric shock
or fire due to heat generation. Do not damage or use an unspecified
power cord.It may cause electric shock or fire. If the power cord is
damaged, it must be replaced by the manufacturer or an authorized
service centre or a similarly qualified person in order to avoid a hazard.
Always install a circuit breaker and a dedicated power circuit. Incorrect
installation may cause fire and electric shock. Do not operate with wet
hands or in damp environment. It may cause electric shock . Do not
direct airflow at room occupants only. This could damage your health.
electric shock. Do not allow water to run into electric parts.It may
cause failure of machine of electric shock. Do not modify power cord
length or share the outlet with other appliances. It may cause electric
shock or fire due to heat generation.
WARNING
Unplug the unit if strange sounds, smell, or smoke
comes from it. It may cause fire and electric shock.
Do not use the socket if it is loose or damaged. It
may cause fire and electric shock. Do not open the
unit during operation. It may cause electric shock.
Keep firearms away. It may cause fire. Do not use
the power cord close to heating appliances.It may
cause fire and electric shock. Do not use the power
cord near flammable gas or combustibles, such as
gasoline, benzene, thinner, etc. It may cause an
explosion or fire.
Ventilate room before operating air conditioner if
there is a gas leakage from another appliance. It may
cause explosion, fire and, burns. Do not disassemble
or modify unit. It may cause failure and electric shock.
When the air filter is to be removed, do not touch the metal parts of
the unit. It may cause an injury. Ventilate the room
well when used
together with a stove, etc. An oxygen shortage may occur.
Do not use strong detergent such as wax or thinner but use a soft cloth.
Appearance may be deteriorated due to change of product color or
scratching of its surface. Do not clean the air conditioner with water.
Water may enter the unit and degrade the insulation. It may cause an
electric shock. Do not use for special purposes. Do not use this air
conditioner to preserve precision devices, food, pets, plants, and art
objects.lt may cause deterioration of quality, etc.
CAUTION
Stop operation and close the window in storm or
hurricane. Operation with windows opened may cause
wetting of indoor and soaking of household furniture.
the circuit breaker.
Do not clean unit when power is on as it may cause fire
and electric shock, it may cause an injury.
Always insert the filters securely. It can cause
failure if operated without filters. Please clean filter
once every two weeks.
03
Cooling
operation
Outdoor temp:
Indoor temp:
Heating
operation
Outdoor temp:
O
O
23-76 F/ C-5-24
Indoor temp:
O
32-80 F/
O
0-27 C
O O O O
64-109 F/18-43
C (64-125
F/18-52 C
for special tropical models)
O
60-90 F/
O
16-32 C
NOTE
Note:Performance may be
reduced outside of these
operating temperatures.
This air conditioner is designed to be operated under the following conditions:
Do not place obstacles around air-inlets or inside of air-outlet.
It may cause failure of appliance or accident. Do not place
heavy object on the power cord and ensure that the cord is
not compressed. There is danger of fire or electric shock. Don’t
drink water drained from air conditioner. It contains
contaminants and could make you sick.
Use caution when unpacking and installing. Sharp edges could
cause injury.
power-plug out and contact a qualified service technician.
This appliance is not intended for use by persons (including
children) with reduced physical ,sensory or mental capabilities
or lack of experience and knowledge,
CAUTION
Hold the plug by the head of the power plug when taking
main power switch when not using the unit for a long time.
It may cause failure of product or fire.
Installation must be performed in accordance with the
requirement of NEC and CEC by authorized personnel only.
Do not operate your air conditioner in a wet room such as a
bathroom or laundry room.
The appliance with electric heater shall have at least 3 feet of
space to the combustible materials.
Contact the authorized service technician for repair or
maintenance of this unit.
Contact the authorized installer for installation of this unit.
unless they have been given super vision or instruction
concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play
with the appliance.
If the supply cord is damaged, it must be replaced by t
he
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
The appliance shall be installed in accordance with national
wiring regulations.
04
NOTE

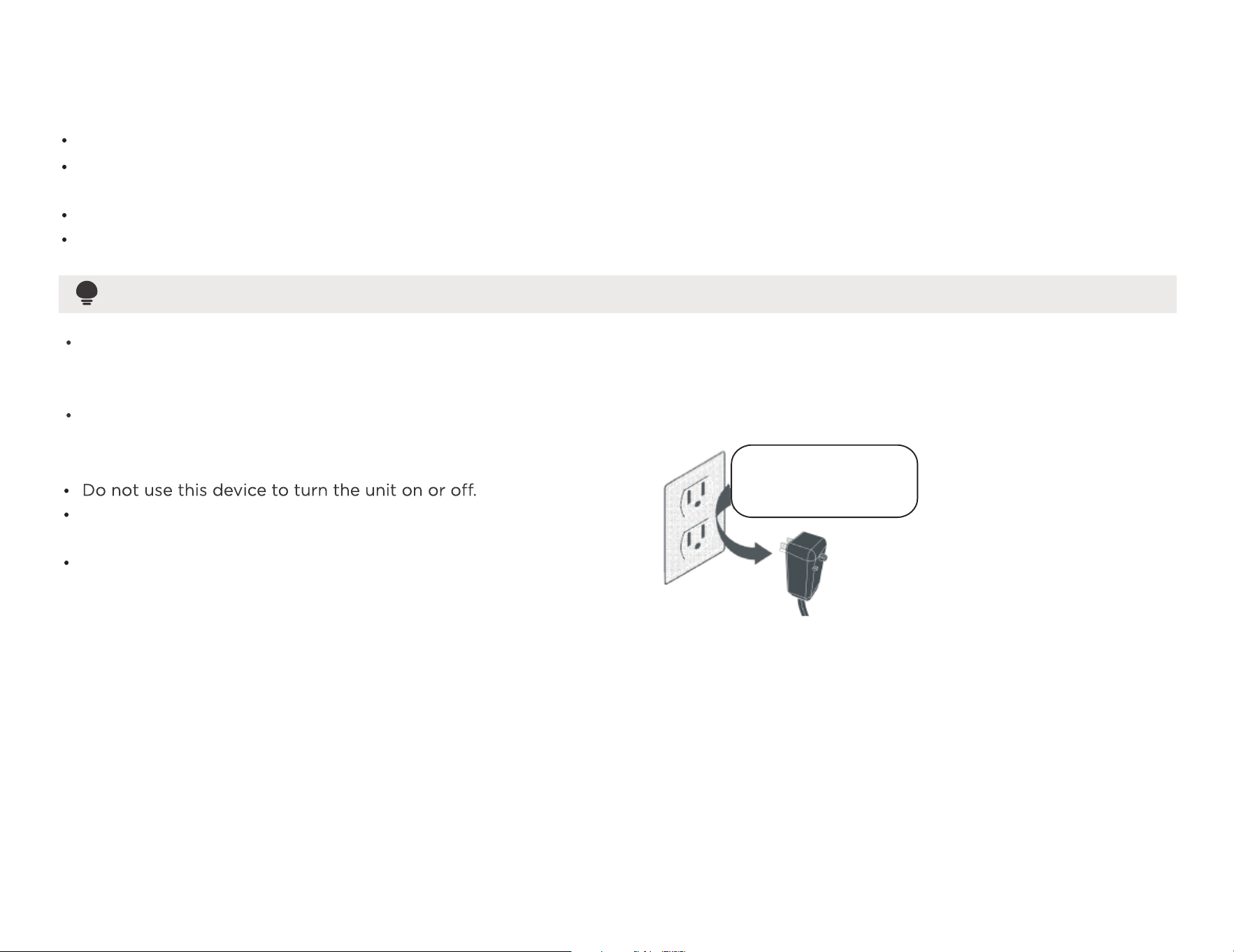

Operation of Current Device
The power supply cord contains a current device that senses damage to the power cord. To test your power supply cord do
the following:
Plug in the Air Conditioner.
The power supply cord will have TWO buttons on the plug head. Press the TEST button, you will notice a click as the
RESET button pops out.
Press the RESET button again, you will notice a click as the button engages.
The power supply cord is now supplying electricity to the unit. (On some products this is also indicated by a light on the plug head) .
Do not, under any
circumstances, cut,
remove, or bypass
the grounding prongs.
Grounding type wall receptacle
Power supply cord with
3-prong grounding plug
and current detection
device.
Always make sure the RESET button is pushed in for
correct operation.
The power supply cord must be replaced if it fails to
reset when either the TEST button is pushed or if it
cannot be reset.
The power supply cord with this air conditioner
contains a current detection device designed to reduce
the risk of fire.
In the event that the power cord is damaged, it cannot
be repaired – it must be replaced with a cord from the
product manufacturer.
05
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
To reduce the risk of fire, electrical shock, or injury to persons
when using your air conditioner, follow basic precautions,
including the following:
Be sure the electrical service is adequate for the model you
have chosen. This information can be found on the serial
plate, which is located on the side of the the cabinet and
behind the grille.
For Your Safety
Prevent Accidents
If the air conditioner is to be installed in a window, you will
probably want to clean both sides of the glass first. If the
window is a triple-trackty pew it has a screen panel included,
remove the screen completely before installation.
Be sure the air conditioner has been securely and correctly
installed according to the installation instructions in this manual.
Save this manual for possible future use in removing or
installing this unit. When handling the air conditioner, be
careful to avoid cuts from sharp metal fins on front and rear
coils.
WARNING
The complete electical rating of your new room air conditioner
is stated on the serial plate. Refer to the rating when checking
the electrical requirements.
Be sure the air conditioner is properly grounded. To minimize
shock and fire hazards, proper grounding is important. The
power cord is equipped with a three-prong grounding plug
for protection against shock hazards.
Your air conditioner must be used in a properly grounded
wall receptacle. If the wall receptacle you intend to use is not
adequately grounded or protected by a time delay fuse or
circuit breaker, have a qualified electrician install the proper
receptacle. Ensure the r
eceptacle is accessible after the unit
installation.
Do not run air conditioner without side protective cover in
place.This could result in mechanical damage within the air
conditioner.
Do not use an extension cord or an adapter plug.
Electrical Information
Avoid fire hazard or electric shock. Do not use an extension
cord or an adapter plug. Do not remove any prongs from
the power cord.
Electronic Work
WARNING:
BEFORE PERFORMING ANY ELECTRICAL OR WIRING
WORK, TURN OFF THE MAIN POWER TO THE SYSTEM.
NOTE:
Please strictly follow the wiring label attached to the machine for
Please refer to the wiring diagram on the machine you have purchased.
The above wiring diagram is a simplified version for preliminary illustra-
tion purposes only.
Main Control
Compressor
Fan Motor
Display
Power
Supply
L/AC L/L1/L-IN
N/AC N/L2/N-IN
Other
Electronic Type
CAUTION:
Risk of fire
flammable materials
IMPORTANT NOTE:Read this manual
carefully before installing or operating
your new air conditioning unit. Make sure
to save this manual for future reference.
Explanation of symbols displayed on the unit
CAUTION
This symbol shows that the operation manual should be read carefully.
CAUTION
This symbol shows that a service personnel should be handling this equipment with
reference to the installation manual.
CAUTION
This symbol shows that information is available such as the operating manual or
installation manual.
WARNING:
- Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the
assistance of other skilled personnel shall be carried out under the supervision of a person competent in the use of flammable
refrigerants.
- DO NOT modify the length of the power cord or use an extension cord to power the unit.
- DO NOT share a single outlet with other electrical appliances. Improper power supply can cause fire or electrical shock.
- Please follow the instruction carefully to handle, install, clear, service the air conditioner to avoid any damage or hazard.
Flammable Refrigerant R32 is used within the air conditioner.
- When maintaining or disposing the air conditioner, the refrigerant (R32) shall be recovered properly.
Do not discharge to the air directly.
- Compliance with national gas regulations shall be observed.
- Keep ventilation openings clear of obstruction.
- The appliance shall be stored so as to prevent mechanical damage from occurring.
- The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.
06
- Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certi˜cate from an
industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an
industry recognized assessment specification. All training shall follow the ANNEX HH requirements of UL 60335-2-40 4th Edition.
Examples for such working procedures are:
• breaking into the refrigerating circuit;
• opening of sealed components;
• opening of ventilated enclosures.
- No open fire or device-like switch which may generate spark/ arcing shall be around the air conditioner to avoid causing ignition of
the flammable refrigerant used. Please follow the instructions carefully to store or maintain the air conditioner to prevent
mechanical damage from occurring.
- Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
- The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating
gas appliance) and ignition sources or (for example: an operating electric heater) close to the appliance.
- Do not pierce or burn.
- Be aware that the refrigerants may not contain an odor.
See transport regulations.
1.Transport of equipment containing flammable refrigerants
See local regulations.
2.Marking of equipment using signs
See national regulations.
3.Disposal of equipment using flammable refrigerants
The storage of the appliance should be in accordance with the applicable regulations or instructions, whichever is more
stringent.
4.Storage of equipment/appliances
Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not
cause a leak of the refrigerant charge. The maximum number of pieces of equipment permitted to be stored together will be
determined by local regulations.
5.Storage of packed (unsold) equipment
07
1)Checks to the area
Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of
ignition is minimized. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting
work on the system.
2)Work procedure
Work shall be undertaken under a controlled procedure so as to minimize the risk of a flammable gas or vapor being present while
the work is being performed.
3)General work area
All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out.
Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within
the area have been made safe by control of flammable material.
4)Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerating detector prior to and during work to ensure the technician is aware of
potentially flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with flammable
refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.
5)Presence of fire extinguisher
If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing
equipment shall be available. Have a dry powder or CO2 fire extinguisher adjacent to the charging area.
6)No ignition sources
No person carrying out work in relation to a refrigerating system which involves exposing any pipe work that contains or has
contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion.
All possible ignition sources, including cigarette smoking, should be kept far away from the site of installation, repairing, removing,
and disposal, during which flammable refrigerant can possibly be released to the surrounding space.
Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards
or ignition risks. No Smoking signs shall be displayed.
7)Ventilated area
Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work.
A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any
released refrigerant and preferably expel it externally into the atmosphere.
8)Checks to the refrigerating equipment
Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times
the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical
department for assistance. The following checks shall be applied to installations using flammable refrigerants:
-The actual refrigerant charge is in accordance with the room size where the refrigerant containing parts are installed;
-The ventilation machinery and outlets are operating adequately and are not obstructed;
-If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant;
-Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected;
6.Information on servicing
08
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse
environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as
compressors or fans.
9.Cabling
Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide
torch (or any other detector using a naked flame) shall not be used. The following leak detection methods are deemed acceptable
for systems containing flammable refrigerants.
Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need
re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area).
Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall
be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate
percentage of gas (25 % maximum) is confirmed.
Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as
the chlorine may react with the refrigerant and corrode the copper pipe work.If a leak is suspected, all naked flames shall be
removed/extinguished. If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the
system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Removal of refrigerant shall be
according to Removal and Evacuation.
10.Detection of flammable refrigerants
When breaking into the refrigerant circuit to make repairs – or for any other purpose–conventional procedures shall be used.
However, for flammable refrigerants it is important that best practices be followed, since flammability is a consideration. The
following procedure shall be adhered to:
a) Safely remove refrigerant following local and national regulations.
b) Evacuate.
11.Removal and evacuation
7.Sealed electrical components shall be replaced
8.Intrinsically safe components must be replaced
-Refrigerating pipe or components are installed in a position where they are unlikely to be exposed to any substance which may
corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to
being corroded or are suitably protected against being so corroded.
9)Checks to electrical devices
Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures.
If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily
dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution
shall be used. This shall be reported to the owner of the equipment so all parties are advised. Initial safety checks shall include:
-That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;
-That there no live electrical components and wiring are exposed while charging, recovering or purging the system;
That there is continuity of earth bonding.
09
c) Purge the circuit with inert gas. (optional for A2L)
d) Evacuate. (optional for A2L)
e) Continuously flush or purge with inert gas when using flame to open circuit.
f) Open the circuit.
The refrigerant charge shall be recovered into the correct recovery cylinders if venting is not allowed by local and national codes.
For appliances containing flammable refrigerants, the system shall be purged with oxygen-free nitrogen to render the appliance
safe for flammable refrigerants. This process might need to be repeated several times.
Compressed air or oxygen shall not be used for purging refrigerant systems. For appliances containing flammable refrigerants,
refrigerant purging shall be achieved by breaking the vacuum in the system with oxygen-free nitrogen and continuing to fill until
the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum (optional for A2L). This
process shall be repeated until no refrigerant is within the system (optional for A2L). When the final oxygen-free nitrogen charge
is used, the system shall be vented down to atmospheric pressure to enable work to take place. Ensure that the outlet for the
vacuum pump is not close to any potential ignition sources and that ventilation is available.
In addition to conventional charging procedures, the following requirements shall be followed.
• Ensure that contamination of different refrigerants does not occur when using charging equipment
• Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in them
• Cylinders shall be kept in an appropriate position according to the instructions.
• Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
• Label the system when charging is complete (if not already).
• Extreme care shall be taken not to overfill the refrigeration system.
• Prior to recharging the system it shall be pressure tested with nitrogen.
• The system shall be leak tested on completion of charging but prior to commissioning.
• A follow up leak test shall be carried out prior to leaving the site.
12.Charging procedures
Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is
recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant
sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is
available before the task is commenced.
• Become familiar with the equipment and its operation.
• Isolate the system electrically.
• Before attempting the procedure ensure that:
-Mechanical handling equipment is available, if required, for handling refrigerant cylinders.
-All personal protective equipment is available and being used correctly.
-The recovery process is supervised at all times by a competent person.
-Recovery equipment and cylinders conform to the appropriate standards.
13.Decommissioning
10
• Pump down the refrigerant system, if possible.
• If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
• Make sure that cylinder is situated on the scales before recovery takes place.
• Start the recovery machine and operate in accordance with instructions.
• Do not overfill cylinders. (No more than 80 % volume liquid charge).
• Do not exceed the maximum working pressure of the cylinder, even temporarily.
• When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are
removed from site promptly and all isolation valves on the equipment are closed off.
• Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.
Equipment shall be labeled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and
signed.
Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.
14.Labeling
• When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all
refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery
cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available. All cylinders
to be used are designated for the recovered refrigerant and labeled for that refrigerant (i.e. special cylinders for the recovery of
refrigerant).
• Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery
cylinders are evacuated and, if possible, cooled before recovery occurs.
• The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and
shall be suitable for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall be available and
in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition.
• Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any
associated electrical components are sealed to prevent ignition in the event of a refrigerant release.
• Consult manufacturer if in doubt. The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery
cylinder, and the relevant Waste Transfer Note arranged.
• Do not mix refrigerants in recovery units and especially not in cylinders.
• If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain
that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the
compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil
is drained from a system, it shall be carried out safely.
• Non-duct connected appliances containing A2L refrigerants with the supply and return air openings in the conditioned space may
have the body of the appliance installed in open areas such as false ceilings not being used as return air plenums, as long as the
conditioned air does not directly communicate with the air of the false ceiling.
15.Recovery
11
What is in the Box.
Package content
12
The unit you purchased may be look like
something dierent, please refer to the
material in kind.
ＬＥＦＴ
ＲＩＧＨＴ
X4
X2
X2
X7
Top Rail 3/8in Screws
1/2in Screws and
Safety Lock(3 Types)
Frame Assembly(Left)
Frame Assembly(Right)
Foam insert(E-Star model only)
Window Sash Seal
Foam (with glue)
Window Sash Seal
Foam (non glue)
Window Type Room
Air Conditioner unit
NOTE
Level
Ruler or tape measureDrill
*Not Included
PencilGloves Screwdriver Scissors
Prepare the following tools
Before you get start.
NOTE
Installing your AC should take about
60 minutes.
The installation must be carried out
in strict accordance with the instructions
in this manual.
Manual
We recommend doing this with a helper.
We’re here if you need us, please contact
your local distributor for assistance.
Save the carton and these Installation
Instructions for future reference.
The carton is the best way to
store unit during winter, or when
not in use.
Preparations before installation
13

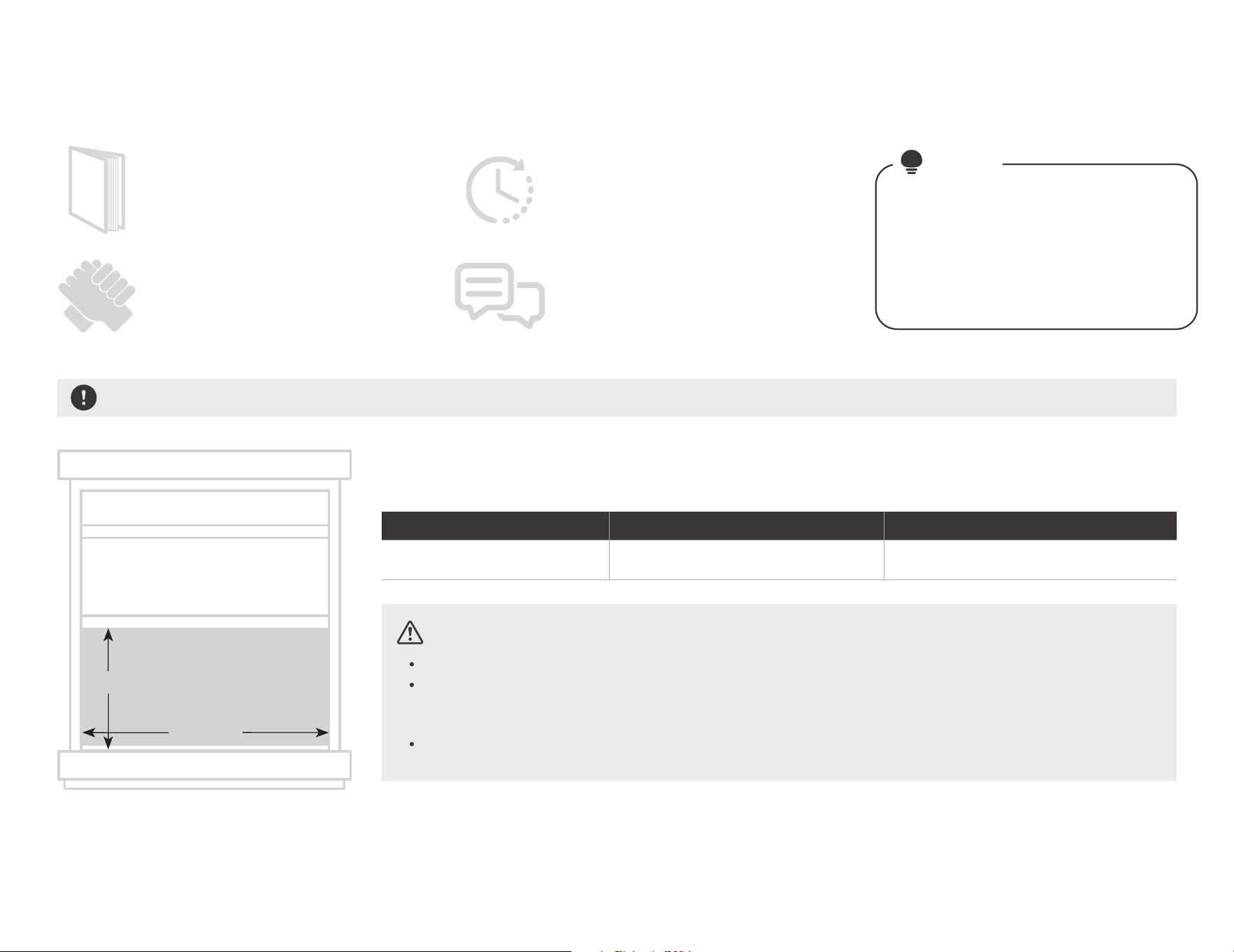

WINDOW REQUIREMENTS
23in to 36in
(584mm to 914mm)
H
Your air conditioner is designed to install in standard double hung windows with opening widths of
23 to 36 inches (584mm to 914mm).
CAUTION
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
Do not change the plug on the power cord of the air conditioner. Aluminum house wiring may
present special problems- consult a qualified electircian.When handling unit, be careful to avoid
cuts from sharp metal edges and aluminum fins on front and rear coils.
The rear of the unit must be outdoors, not inside a building or garage.
14in (356mm)
15-1/2in (394mm)
Window opening height
8000~10000Btu/h
12000~14500Btu/h
H
14
Installation overview.
ＲＩＧＨＴ
ＬＥＦＴ
1
2
3
4 4
5
6
7
8
Top Rail and 3/8in Screws
Air Conditioner unit
1
2
3
4
5
6
7
8
Safety Lock and 1/2in Screws
Safety Lock and 1/2in Screw
Frame Assembly (Left)
Frame Assembly (Right)
Window Sash Seal Foam
Remote controller
Illustrations in this manual are for
explanatory purposes. The actual
shape of your indoor unit may be
slightly dierent. The actual shape
shall prevail.
NOTE
Installation Completion Display
15
1Step
Install
your AC unit.
What you need.
ＲＩＧＨＴ
ＬＥＦＴ
16
Install you AC.

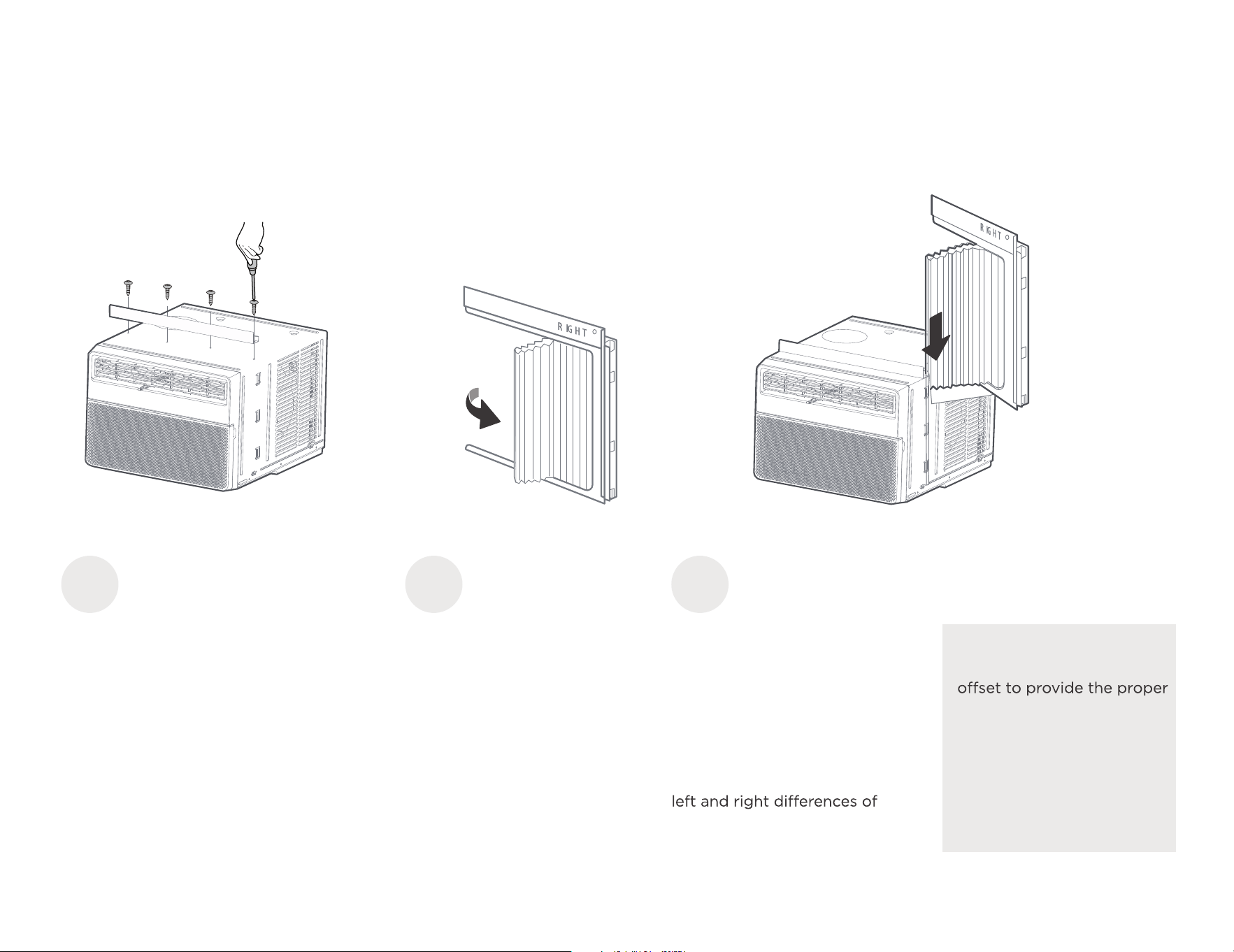

Install the top rail
on the AC.
Install the Top Rail on the AC with 4
Screws (3/8in) , For safety reasons, all
4 screws MUST be securely fastened.
1
Pull the panels
out around.
2
Install the
accordion panels.
3
Pull the Left & Right Panels
out half way around.
Insert the card slot on the side
of the AC, pay attention to the
the Panel.
NOTE: Top rail and Sliding
Panels at each side are
pitch to the rear of (5/16 ").
This is necessary for proper
condensed water utilization
and drainage. If you are not
using the Side Panels for
any reason, this pitch to the
rear must be maintained.
17
ＲＩＧＨＴ
ＬＥＦＴ
4 5
Fasten the panels to the AC.
Stretch the wind screen outward and insert the upper
and lower frame strips of the Panels into the AC
card slot.
ＲＩＧＨＴ
ＬＥＦＴ
A
A
C C
B
A
A
The AC unit is done.
Before you rush to the
next installation phase,
please first confirm the
following installation is
in place.
A. the upper and lower frame strips of the
Panels into the AC card slot.
B. Top Rail on the AC with 4 Screws.
C. Insert the card slot on the side of the AC.
Install you AC.
18
2Step
Insulate
your window.

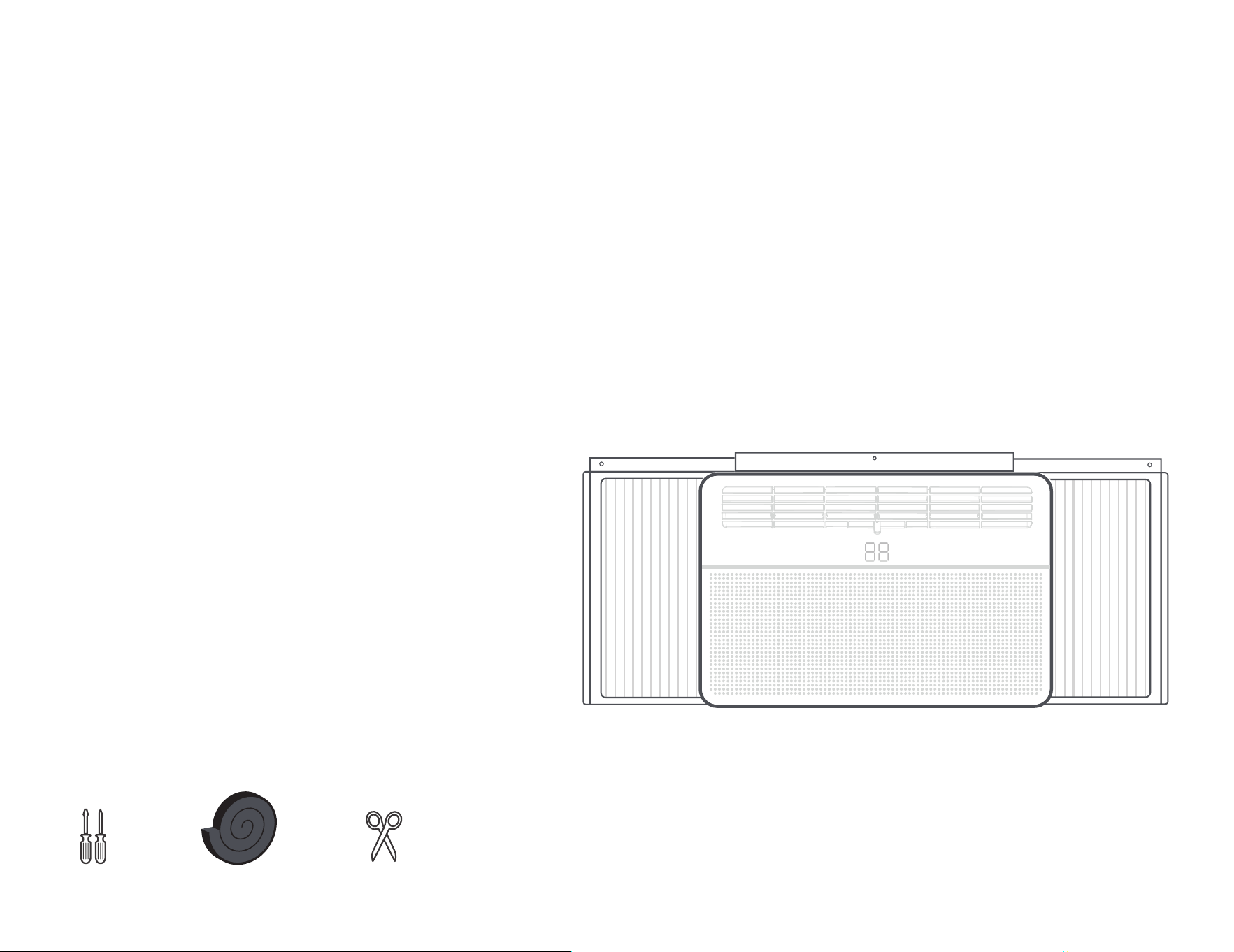

What you need.
19
1 2

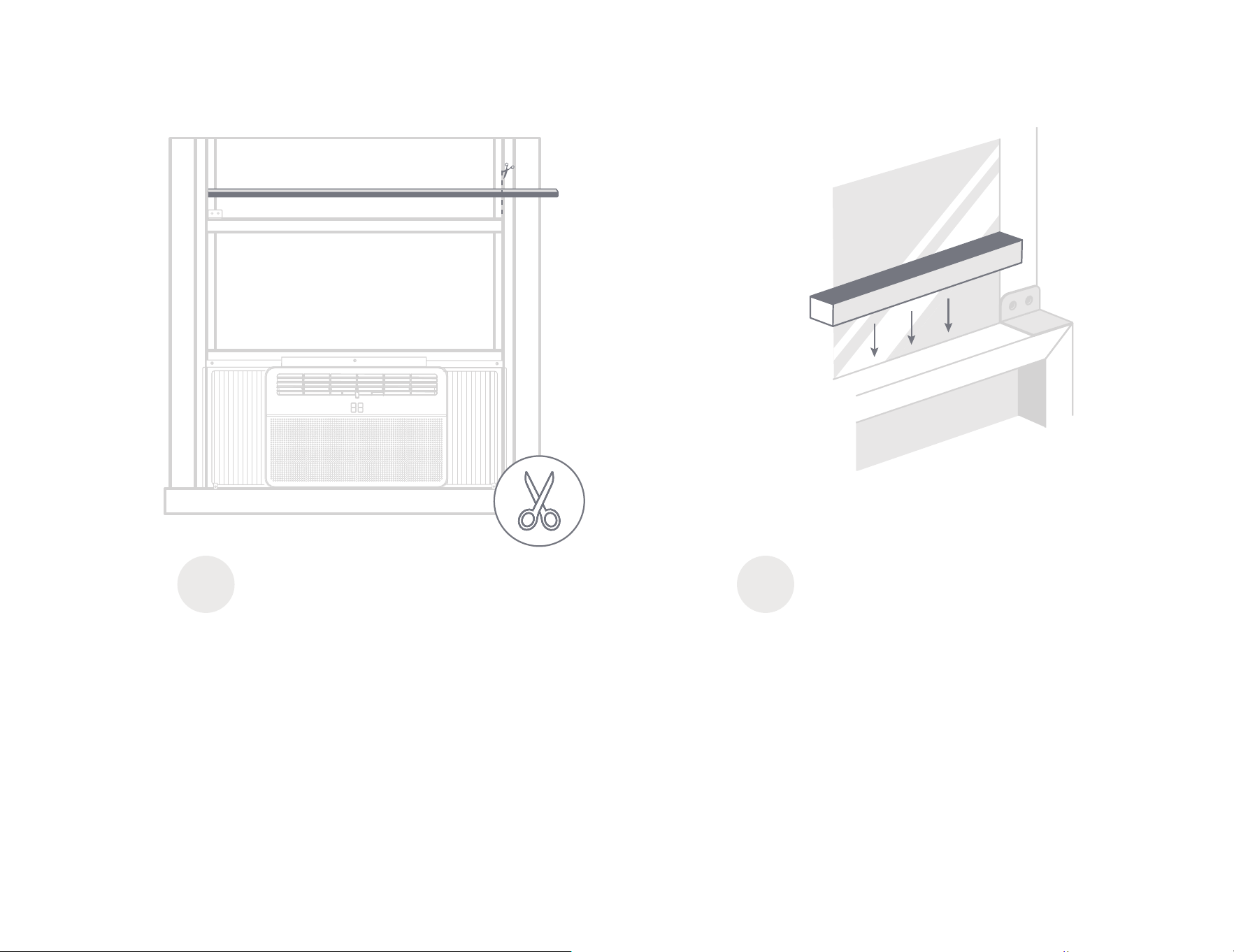

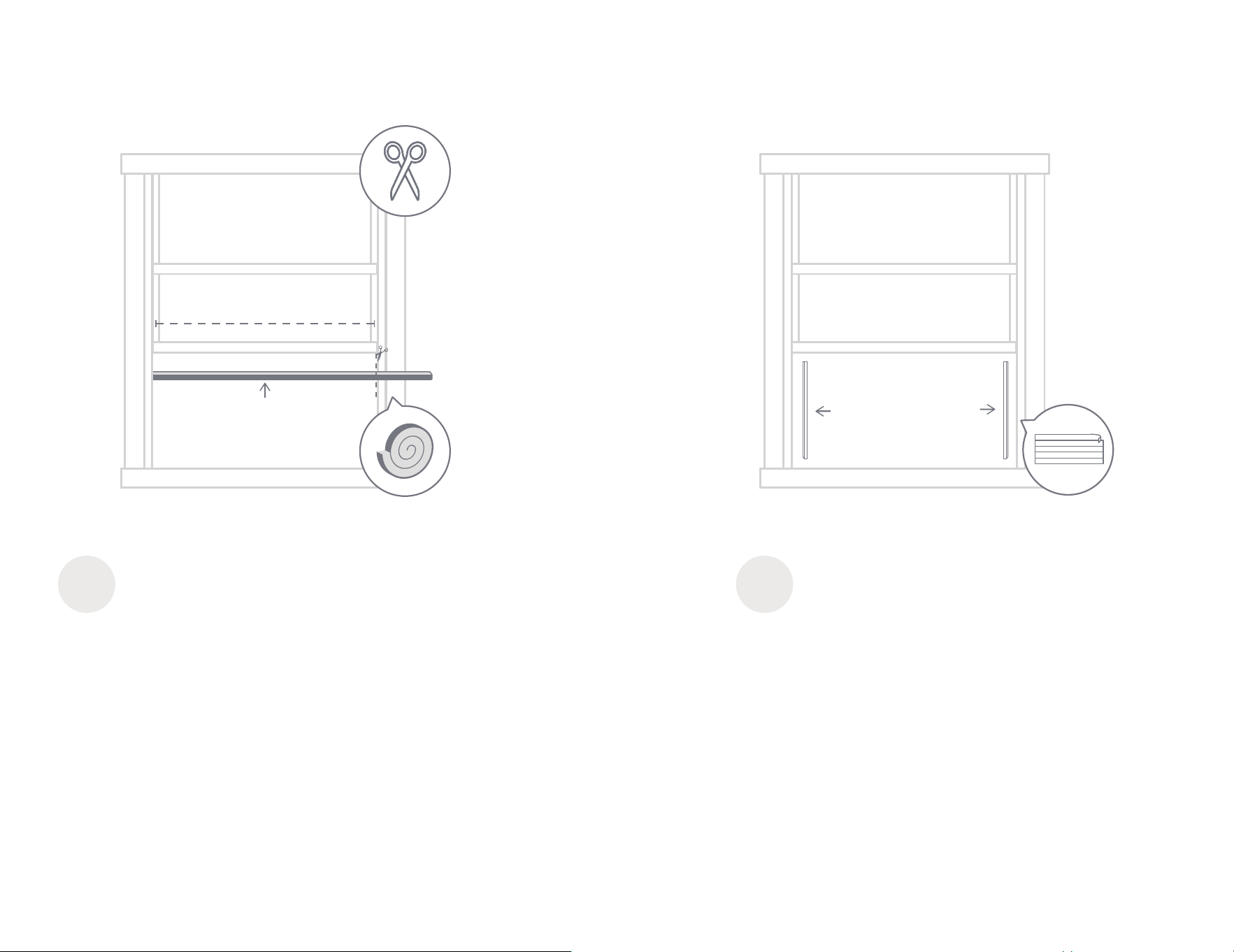

Cut the seal foam to the
width of your window,
and stick it of the underside.
You should cut the foam to be the width of your window
from the left to the right side. Make sure you’re cutting the
foam with the adhesive, and stick it of the underside.
In order to improve the operation of the equipment and
reduce the noise generated during operation, you need
to foam seal the gaps.
Insert the foam to the gaps.
*If your window already has a liner or insulation strip,
you can skip the above steps.
Insulate your window.
20
ＲＩＧＨＴ
ＬＥＦＴ
3Step
Lift the AC into
the window.
What you need.
21
1

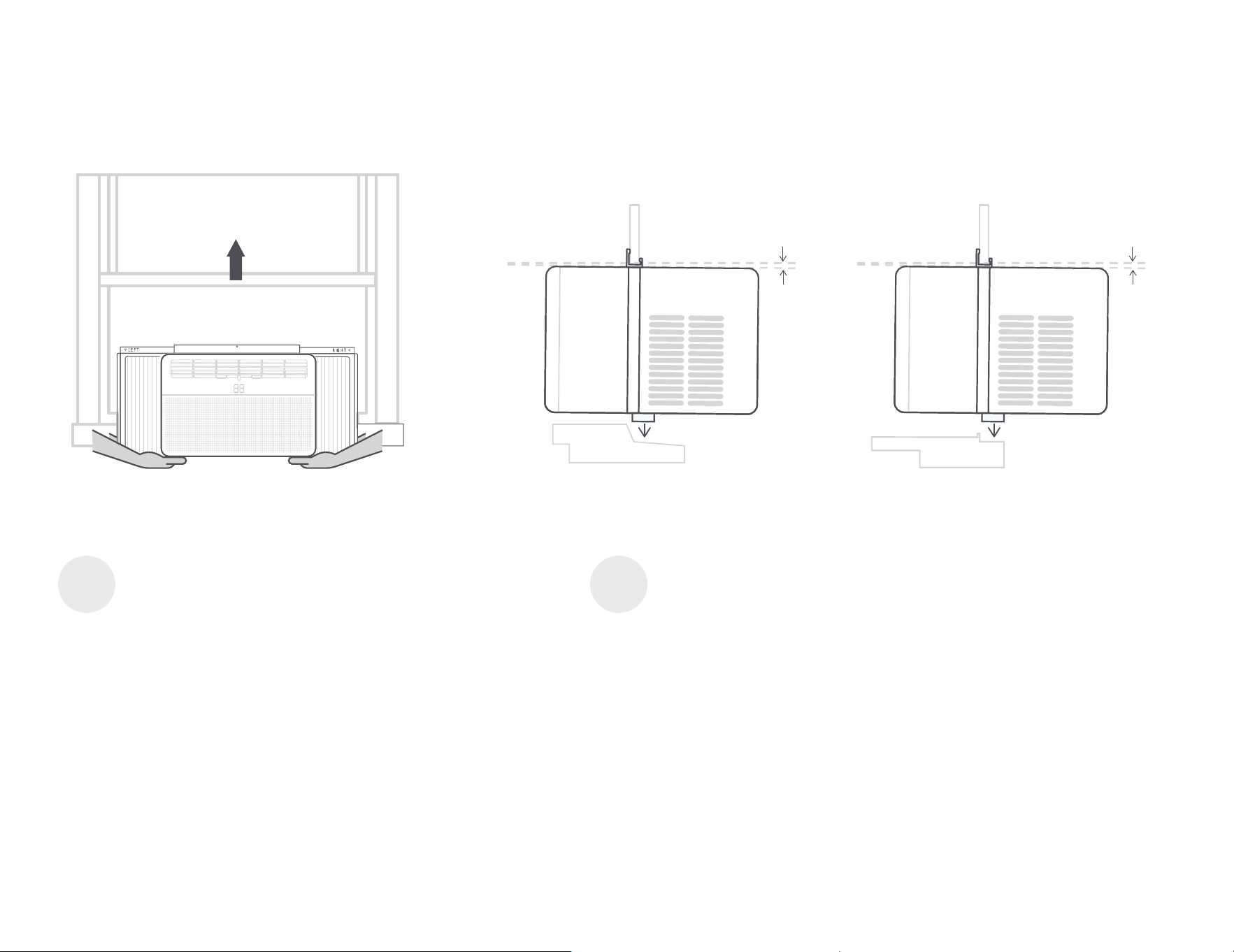

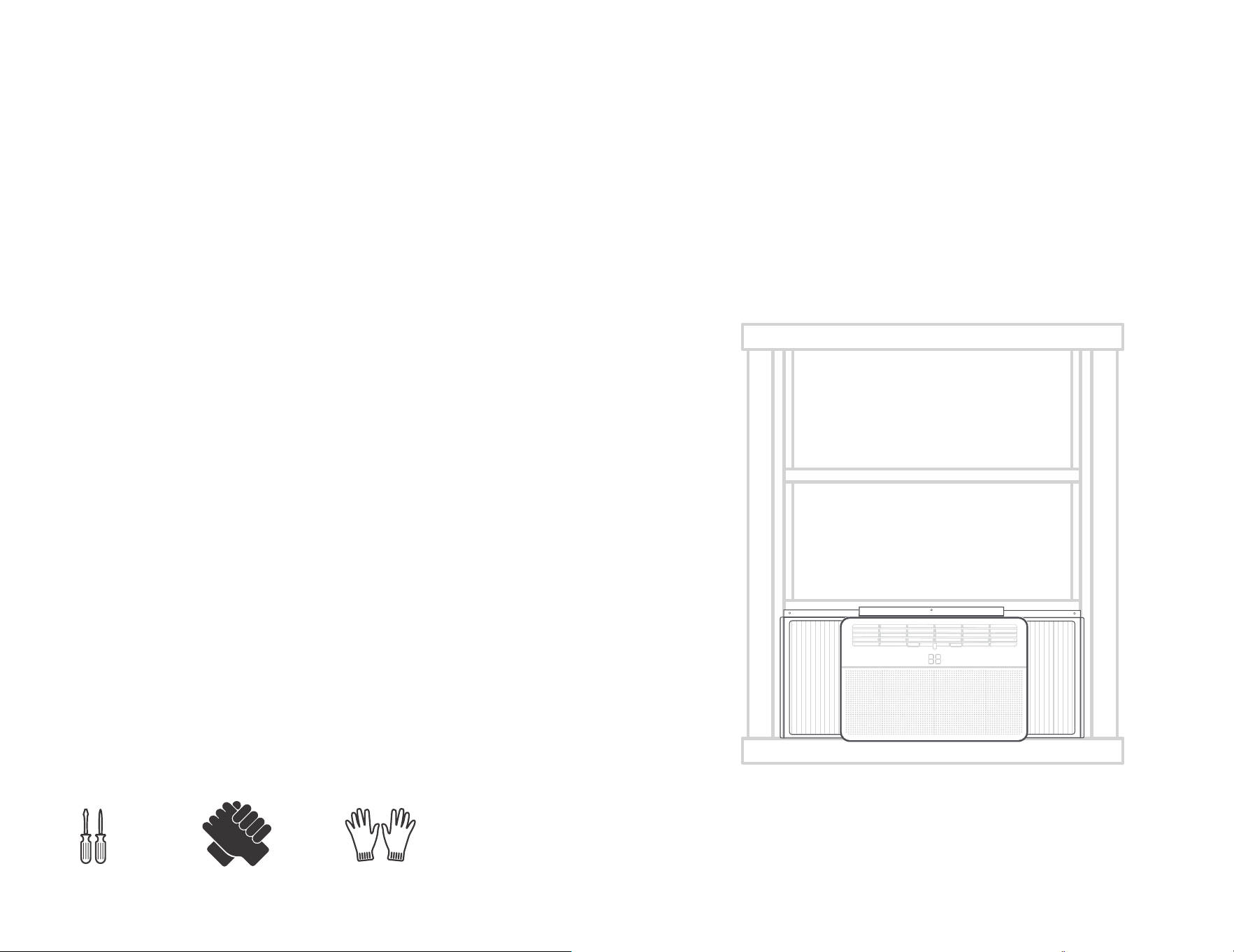

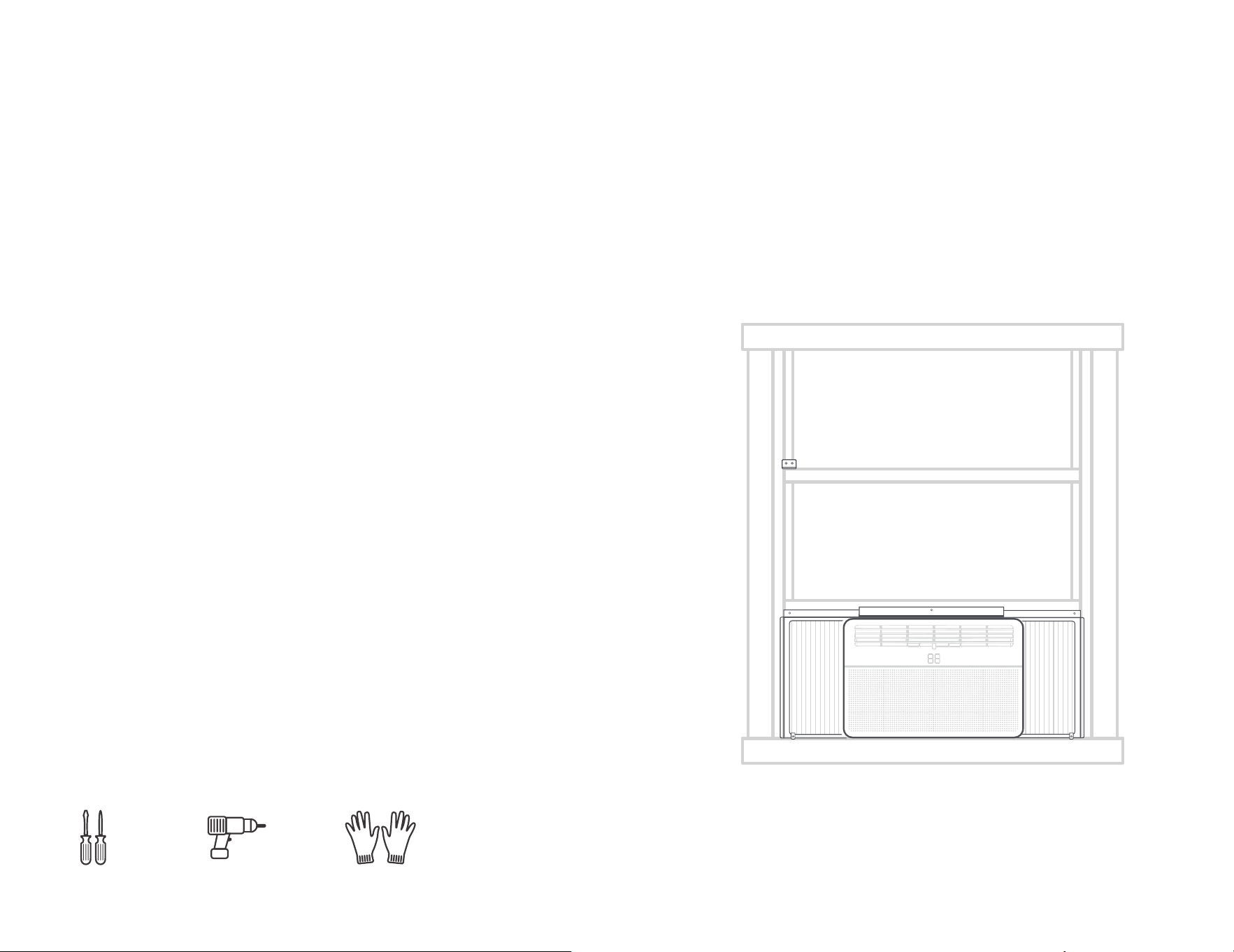

Together with your helper,
lift the assembled AC into
the window frame.
Make sure you do this step with a helper. Very carefully, lift
the assembled AC into the window frame. Make sure someone
is holding the back of the unit securely.
*It’s helpful to rest the unit on the inside window sill until you’re
ready to reposition it correctly. Injury (to you and others) and
property damage can occur if not done correctly.
*Check that air conditioner is tilted back about 3°to 4°downward to the
outside. After proper installation, condensate should not drain from the
overflow drain hole during normal use, correct the slope otherwise.
2
Properly position the bottom bar
BEHIND the inside window sill.
Properly position the bottom bar behind the inside window sill and into the
bottom horizontal channel of the window frame. The front of the bottom bar
should be pressing up against the back edge of the sill.
Wooden Windows
Angle：3-4°
Outside
Outside
Inside
Inside
Vinyl-Clad Windows
Angle：3-4°
Lift the AC into the window.
22
ＲＩＧＨＴ
ＬＥＦＴ
Storm window
frame or other
obstruction.
SASH
1-1/2"min
(38 mm)
Board
thickness
as required,
for proper
pitch to rear,
along entire
sill. Fasten
with nails or
screws.

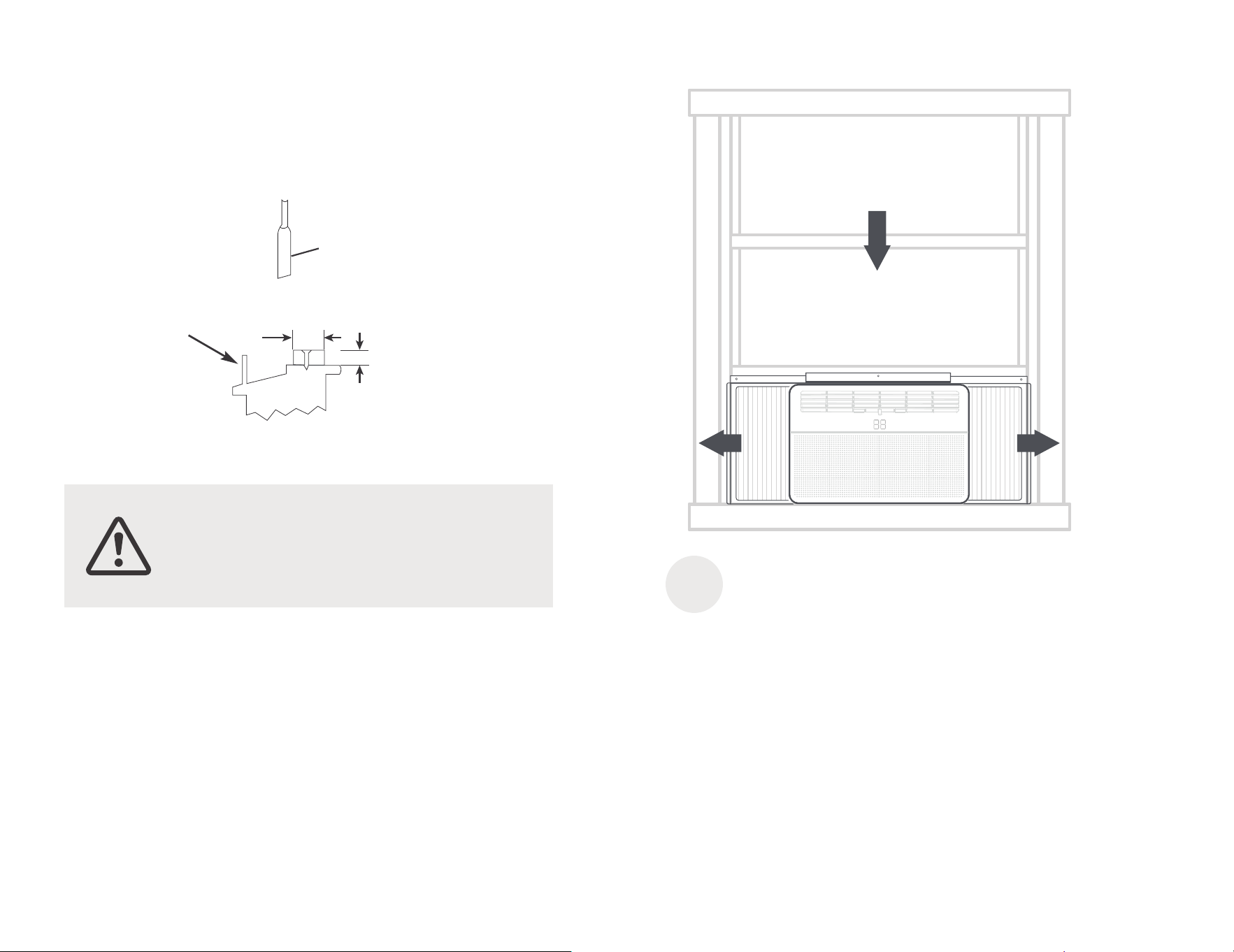

CAUTION: If storm window blocks AC,
Please install according to the figure above.
3
Once the AC is centered and the bottom bar is successfully
positioned, close the window down onto the AC, behind
the top bar. See diagram above. Pull the panels to the side
of the window.
Close the window down onto
the AC, and pull the panels to
the side of the window.
Lift the AC into the window.
23
ＲＩＧＨＴ
ＬＥＦＴ
4Step
What you need.
Secure the AC.
24

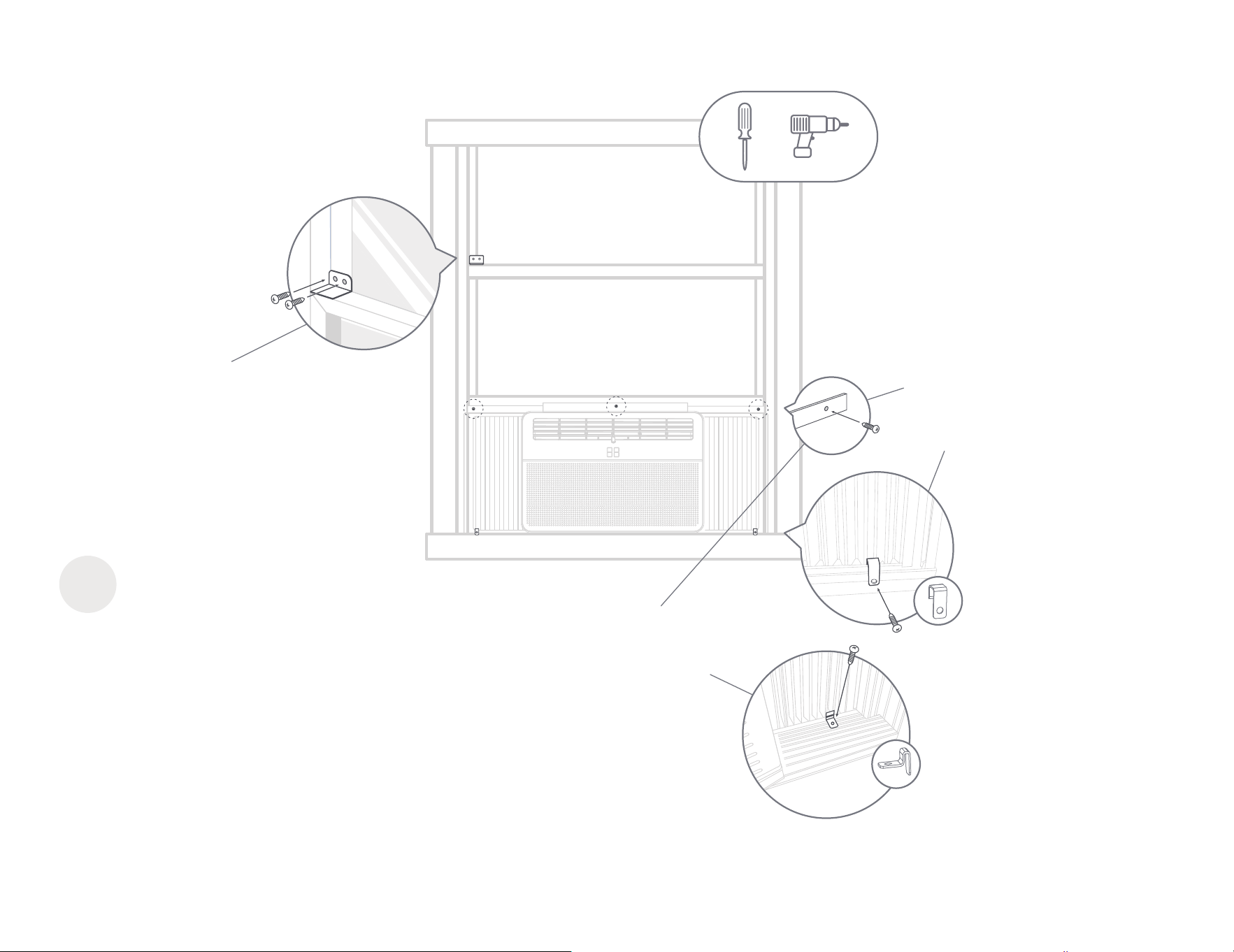

Follow the above instructions
and drive the screws.
ＲＩＧＨＴ
ＬＥＦＴ
Secure the AC.
or
DRIVE LOCKING
SCREWS.
1
Drive 1/ 2" (12.7 mm) locking
screws through the frame lock
and into the sill (Only wooden
windows) .
NOTE:To prevent window sill
from splitting, drill 1/8 " (3mm)
pilot holes before driving
screws.
1/8 " (3mm) pilot holes before
driving screws. Drive 1/ 2" (12.7mm)
locking screws through frame holes
into window sash (Only wooden
windows:) .
Drive 1/ 2" (12.7 mm) locking screws
through the frame lock and into the
window sashl (Only Vinyl-Clad windows).
NOTE: Before driving the screws, use
a drill to drill 5 holes through the holes
in the frame lock and frame extensions
into the windows sash as
shown.
25
Make sure you are cutting the foam with the
non-adhesive sides. Measure and cut the foam
to be the width of your window from the left
to right side.
Cut the non-adhesive
insulation foam to fit the
width of your window.
1
Stu it between the gap of the upper and lower sashes of
your window.
This will plug any air gaps and help keep out bugs
and draft.
Use the nonadhesive foam
to fill the gaps in your window.
2
ＲＩＧＨＴ
ＬＥＦＴ
The final details
26
1 2
One more thing
Add wood as shown in Caution illustration on page 16, or remove
storm window before air conditioner is installed. If storm window
frame must remain, be sure the drain holes or slots are not caulked
or painted shut. Accumulated rain water or condensation must be
allowed to drain out.
Removing AC From Window
Remove sash seal from between windows, and unscrew safety
sash lock. Remove screws installed through frame and frame- lock.
Keeping a firm grip on air conditioner, raise sash and carefully
remove. Be carefully not to spill any remaining water while lifting
unit from window. Store parts with air conditioner.
High Pitched Chatter
cooling cycle.
Sound of Rushing Air
At the front of the unit, you may hear the sound of rushing air being
moved by the fan.
Gurgle/Hiss
“Gurgling or hissing”noise may be heard due to refrigerant passing
through evaporator during normal operation.
Vibration
Unit may vibrate and make noise because of poor wall or window
construction or incorrect installation.
Pinging or Switching
Droplets of water hitting condenser during normal operation may cause
“pinging or swishing” sounds. This noise can be reduce by removing the
water plug at the bottom of unit’s rear as shown below. Removing this
Note: Don’t try to drill any holes on the base pan to eliminate the normal
sounds, otherwise it will void the warranty.
If AC is Blocked by Storm Window. Normal Sounds
Additional Notes
Noise when unit is working
When you use the mute mode to start the unit. due to the compressor
being hot. the sound of the compressor may be more prominent. lasting
for about 3 minutes. It is normal.
A“da-da" sound may occur for thirty seconds when the unit is turned on
due to the compressor starting. It is normal.
cord.
27
Get to know your AC.

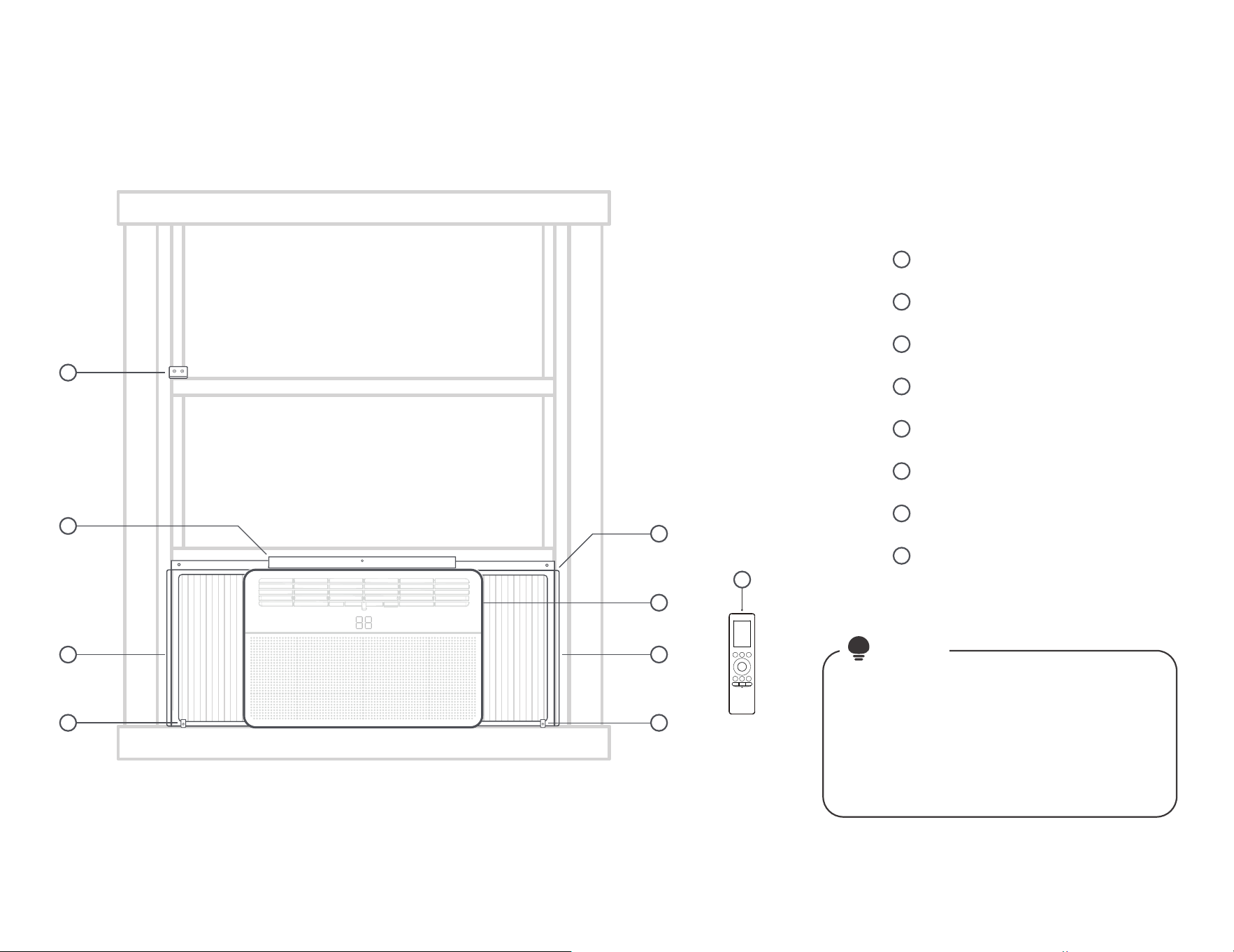

AC unit overview
The actual functions of your machine may dier to the example shown here..
NOTE
Strainer
disassemble
buckle
Rear
Condenser
Vents
W5
W6
W1
Air Direction
Status display
Levers
Front Intake
Grille
(The filter is
behind this)
W2
Air Direction
Status display
Levers
Front Intake
Grille
(The filter is
behind this)
Display
(Electronic
control panel
only)
W3
Air Direction
Status display
Levers
Front Intake
Grille
(The filter is
behind this)
Display
(Electronic
control panel
only)
Air Direction
Status display
Levers
Front Intake
Grille
(The filter is
behind this)
Display
(Electronic
control panel
only)
Air Direction
Status display
Levers
Front Intake
Grille
(The filter is
behind this)
28
Adjust your air conditioning direction.
Air conditioning louvers
Do not stick your fingers in the air outlet, it may cause an injury.
CAUTION

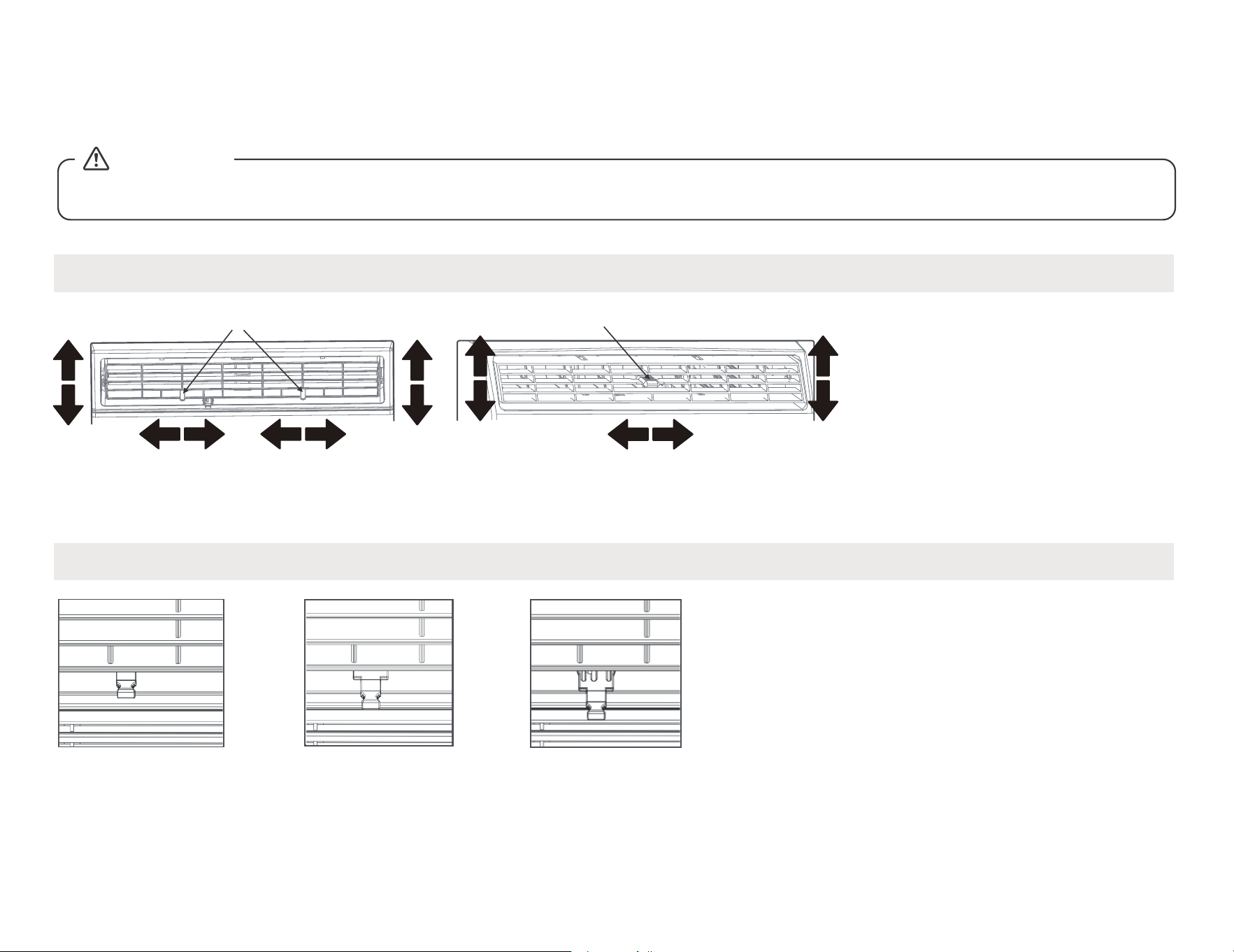

Four-way adjustment (up or down, left or right) - For 06K/08K/10K/12K/14K
Fresh air vent control - For 12/14K
The louvers will allow you to direct the
air flow Up or Down (on some models)
and Left or Right throughout the room
as needed. Pivot horizontal louvers until
the desired Up/Down direction is
obtained. Move the Lever (s) from side
to side until the desired Left/Right
direction is obtained.
Lever Lever
cord.
Fig.B (FRESH AIR)
Fig.A (CLOS)
Fig.C (VENT)
The Fresh Air Vent allows the air conditioner to:
1. Recirculate inside air - Close (See Fig.A)
2. Draw fresh air into the room- Fresh air (see Fig.B)
3. Exhaust air from the room - Vent (see Fig.C)
29
Get to know the features.
Air conditioner features
WARNING
To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.
Please always wait 3 minutes when turning unit o then on again, and when changing from cool to fan and back to cool. This prevents
compressor from overheating & possible circuit breaker tripping.

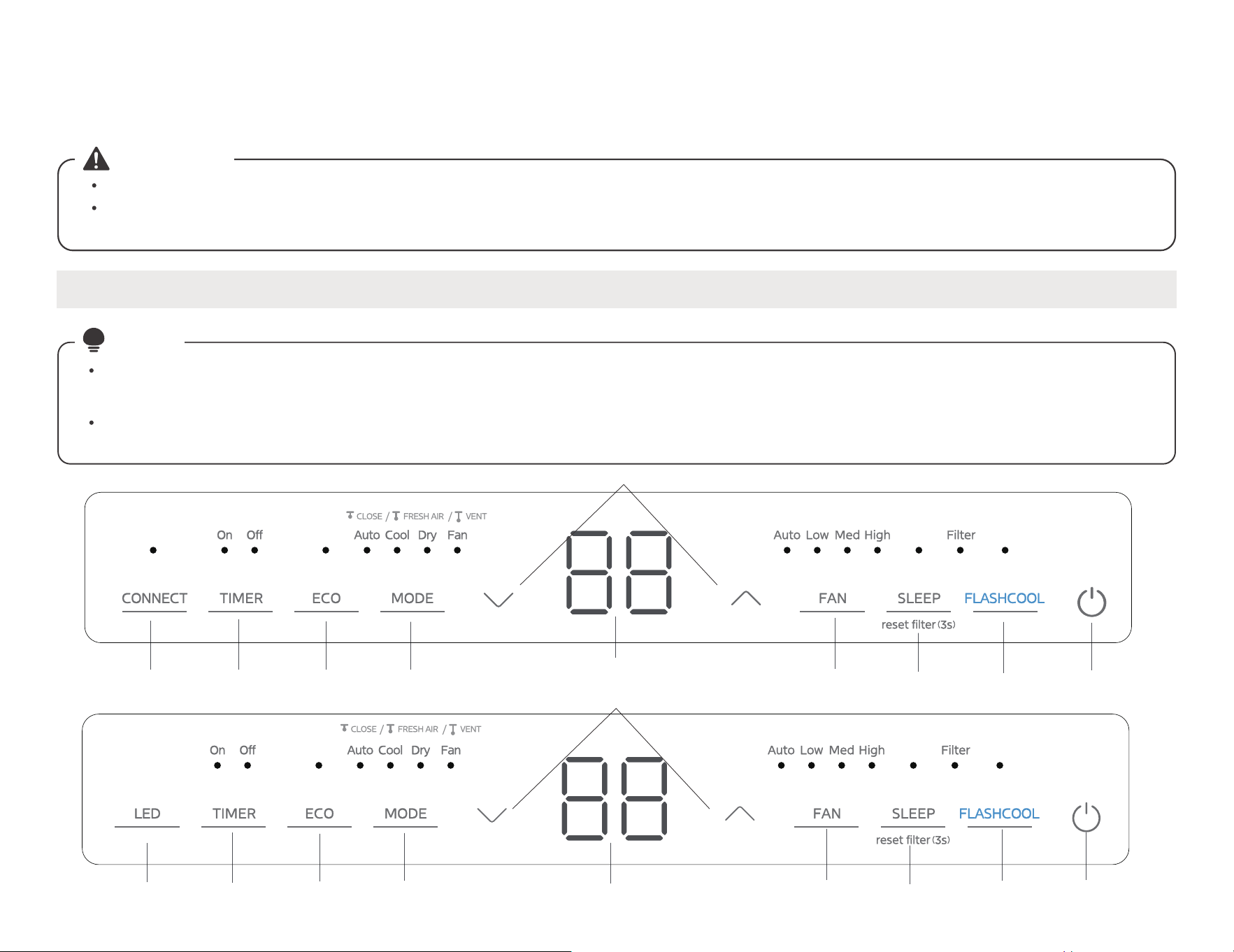

Electronic control operating instructions
Dierent models have dierent control buttons and indicator lights. Not all the control buttons and indicator lights describing below are
available for the unit you purchased. Please check the control panel of the unit you purchased. The unit can be controlled by the unit
control alone or with the remote controller.
The function of the operation panel is based on typical model, the function is the same with your air conditioner while some dierence may
exist in appearance.
NOTE
11
4
23 8
9
1
6
7
5
4
11
10
2
3
8
1
6
7
5
• During this function, the display will show
the actual room temperature, not the set
temperature as in the cooling mode.
• In Fan only mode, the temperature is
not adjusted.
To operate on Dry mode:
• In this mode, the air conditioner will
generally operate in the form of a
dehumidifier. Since the conditioned space
is a closed or sealed area, some
degree of cooling will continue. On Dry
mode,the fan speed is controlled at Auto
automatically.
30
Press Energy saver button to initiate this function.
This function is available on COOL, DRY, AUTO
(only AUTO-COOLING and AUTO-FAN) modes.
The fan will continue to run for 3 minutes after
the compressor shuts o.The fan then cycles on
for 2 minutes at 10 minute intervals until the
room temperature is above the set temperature,
at which time the compressor turns back on and
Cooling Starts.
6. ENERGY SAVER FEATURE:
1. TO TURN UNIT ON OR OFF:
Press POWER button to turn unit on or o.
2. FLASHCOOL FUNCTION:
Press this button to initiate the FlashCool
function.FlashCool provides maximum cooling
and sets the fan to the highest speed. The unit
will operate in this mode until change mode ,
adjust fan speed or the function is turned o.
The unit will then return to normal cooling
operation with the fan speed set to high.
Electronic control operating instructions
5. TO SELECT THE OPERATING MODE:
To choose operating mode, press Mode button.
Each time you press the button, a mode is
selected in a sequence that goes from Auto,
Cool, Dry ,heat (cooling only models without)
and Fan. The indicator light beside will be
illuminated and remained on once the mode is
selected.The unit will initiate automatically the
Energy Saver function under Cool, Dry, Auto
( only Auto-Cooling and Auto-Fan) modes.
To operate on COOL mode :
• Choose Cool Mode to set the cooling
function. Use the Up and Down buttons to
choose the desired temperature. When Cool
Mode is selected, the fan speed can be
adjusted by pressing the fan button.
To operate on HEAT mode (cooling only
models without) :
• Choose Heat Mode to set the heating function.
Use the Up and Down buttons to choose the
desired temperature .When heat Mode is selected,
the fan speed can be adjusted by pressing the
fan button.
NOTE: For some models, the fan speed can
not be adjusted under HEAT mode.
To operate on Auto feature:
• When you set the air conditioner in AUTO
mode, it will automatically select cooling,
heating (cooling only models without) , or
fan only operation depending on what
temperature you have selected and the
room temperature.
• The air conditioner will control room
temperature automatically round the
temperature point set by you.
• In this mode, the fan speed cannot be
adjusted, it starts automatically at a speed
according to the room temperature.
• Use this function only when cooling is not
desired, such as for room air circulation or
to exhaust stale air (on some models) .
(Remember to open the vent during
this function, but keep it close during cooling
for maximum cooling eciency. )
You can choose any fan speed you prefer.
4. TO CHANGE TEMPERATURE SETTING:
NOTE: Press or hold either UP or DOWN button
until the desired temperature is shown on the
display.
This temperature will be automatically maintained
anywhere between 60°F (16°C ) and 86°F (30°C).
If you want the display to read the actual room
temperature, see“ To Operate on Fan Only ’’section.
Press UP/DOWN button to change temperature
setting.
3. TO ADJUST FAN SPEEDS:
Press Fan button to select the Fan Speed in four
steps-Auto, Low, Med or High. Each time the
button is pressed, the fan speed mode is shifted.
For some models, the fan speed can’t be adjusted.
NOTE : If you use remote to enter in flashcool ,
you have to set cool mode first of the remote.
To operate in Fan Only
7. TIMER: AUTO START/STOP FEATURE:
• Press Timer button, the TIMER ON or TIMER OFF indicator light illuminates. It indicates the Auto Start or Auto Stop program is initiated. For some
units, keep pressing the Timer button will cancel the timer settings.
• Press or hold the UP or DOWN button to change the Auto time by 0.5 hour increments, up to 10 hours,then at 1 hour increments up to 24 hours.
The control will count down the time remaining until start.
• The selected time will register in 5 seconds, and the system will automatically revert back to display the previous temperature setting or room
• Turning the unit ON or OFF at any time or a djusting the timer setting to 0.0 will cancel the Auto Start/Stop timed program.
31
• Press and hold on the SLEEP button for 3 seconds to initiate the reset filter connection mode.
11. DISPLAYS:
Shows the set temperature in ” °C" or ” °F" and the Auto-timer settings.While on Fan only mode, it shows the room temperature.
If the room temperature is too high or low, it will display " HI" or " LO".
Displays
9. Wireless button
Press and hold on the POWER button for 3 seconds to initiate the Wireless connection mode.
10. LED button
8. SLEEP FEATURE:
• Press Sleep button to initiate the sleep mode. In this mode the selected temperature will increase (cooling) or decrease (heating) by 2°F/1°C 30
minutes after the mode is selected.
• The temperature will then increase (cooling) or decrease (heating) by another 2°F/1°C after an additional 30 minutes. This new temperature will
be maintained for 6 or 7 hours before it returns to theoriginally selected temperature.
• This ends the Sleep mode and the unit will continue to operate as originally programmed. The Sleep mode program can be cancelled at any time during
operation by pressing the Sleep button again.
•
NOTICE
If the unit breaks o unexpectedly due to the power cut, it will restart
with the previous function setting automatically when the
power resumes.
ADDITIONAL THINGS YOU SHOULD KNOW
Now that you have mastered the operating procedure, here are more features in your control that you should become familiar with.
• The Cool circuit has an automatic 3 minutes time delayed start if the unit is turned o and on quickly.
This prevents overheating of the compressor and possible circuit breaker tripping.The fan will continue to run during this time.
• The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert from one to the other, press and hold the
Up andDown buttons at the same time for 3 seconds.
32
Error codes:
The unit may stop operation or continue to run safely. If the error codes appear, wait for about 10 minutes.
The problem may resolve itself. If not, disconnect the power, then connect it again. Turn the unit on.
If the problem persists, disconnect the power and contact your nearest customer service center.
Error code appears andbegins with the letters as the following in the window display of indoor unit:
EH ( xx ) , EL ( xx ) , EC ( xx ) , PH ( xx ) , PL ( xx ) , PC ( xx ), HI.
NOTE:If your problem persists after performing the checks and diagnostics above, turn o your unit immediately and contact an authorized service
center.
NOTE: When the unit is operating under high temperature, the fan speed may be increased to ensure that the machine can operate normally. At
extreme high temperature, the fan speed is forced to the maximum fan speed, if you want to adjust the fan speed, 'HI' may display for 3 seconds
for some units.
How to clean & change your filter.
Cleaning & maintenance
Check the air filter once a month
to see if cleaning is necessary.
CAUTION: Clean your air conditioner occasionally to
keep it looking new. Be sure to unplug the unit before
cleaning to prevent shock or fire hazards.
CAUTION: If you plan to store the air conditioner during the winter,
remove it carefully from the window according to the installation
instructions. Cover it with plastic or return it to the original carton.
The air filter should be checked at least once a
month to see if cleaning is necessary. Trapped
particles in the filter can build up and cause an
accumulation of frost on the cooling coils.

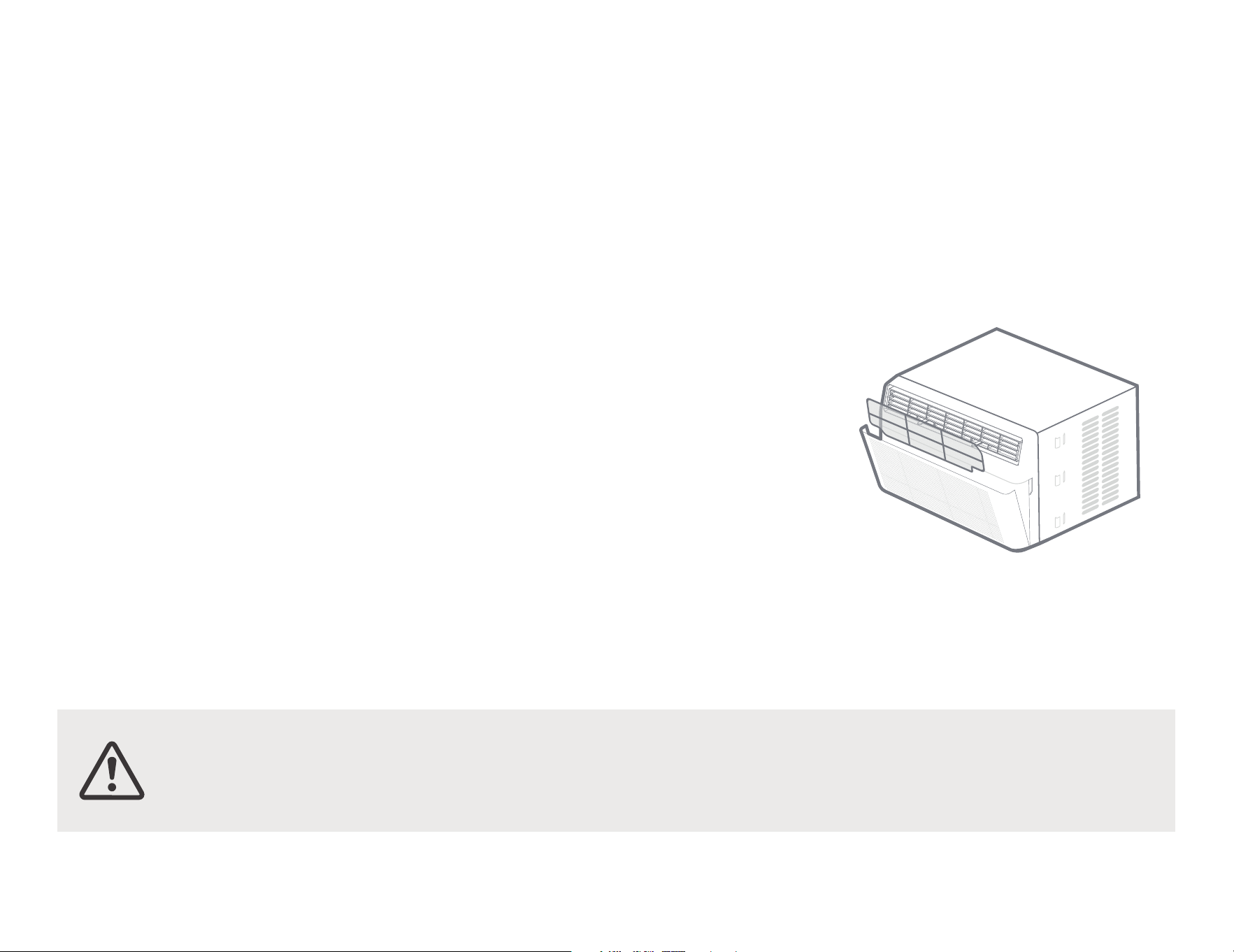

• Push the vent handle to the Vent Closed position
(where applicable). Open the front panel.
• Take the filter by the center and pull up and out.
• Wash the filter using l iquid dishwashing
detergent and warm water. Rinse filter
thoroughly. Gently shake excess water from the
filter. Be sure the filter is thoroughly dry before
replacing. Instead of washing, you may vacuum
the filter clean.
Note: Never use hot water over 104°F (40°C) to
clean the air filter. Never attempt to operate
the unit without the air filter.
Cabinet Cleaning
• The cabinet and front may be dusted with
an oil-free cloth or washed with a cloth
dampened in a solution of warm water and
mild liquid dishwashing detergent. Rinse
thoroughly and wipe dry.
• Never use harsh cleaners, wax or polish
on the cabinet front.
• Be sure to wring excess water from the
cloth
before wiping around the controls.
Excess water in or around the controls may
cause damage to the air conditioner.
• Plug in air conditioner.
33
34
Air conditioner
cooling, but room
is too warm- NO
ice forming on
cooling coil behind
decorative front.
Dirty air filter- air restricted. Clean air filter. Refer to Care and Cleaning section.
Temperature is set too High, set temperature to a Lower setting.
Air directional louvers positioned improperly. Position louvers for better air distribution.
Front of units is blocked by drapes, blinds, furniture, etc. - restricts air distribution. Clear blockage in front of unit.
Problem Solving
TROUBLESHOOTING
Before calling for service, review this list. It may save your time and expense. This list includes common occurrences that are not the result of
defective workman-ship or materials in this appliance.
Air conditioner
does not start.
Wall plug disconnected. Push plug firmly into wall outlet.
House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset circuit breaker.
Plug Current Device Tripped. Press the RESET button.
Power is OFF. Turn power ON.
Air from unit does
not feel cold
enough.
Room temperature below 60°F (16°C). Cooling may not occur until room temperature rises above 60°F (16°C).
Temperature sensing behind air filter element touching cold coil. Keep it from the cold coil.
Set to a Lower temperature.
Compressor stopped when changing modes. Wait for 3 minutes after set to the COOL mode.
Air conditioner
cooling, but room
is too warm- ice
forming on cooling
coil behind
decorative front.
Outdoor temperature below 64°F (18°C) . To defrost the coil, set FAN ONLY mode.
Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost, set to FAN ONLY mode.
Thermostat set too cold for night-time cooling. To defrost the coil, set to FAN ONLY mode. Then, set temperature to a
Higher setting.
Problem Solution
Water dripping
INSIDE when unit
is cooling.
Improper installation. Tilt air conditioner slightly to the outside to allow water drainage. Refer to installation
instructions - check with installer.
35
Problem Solution
Problem Solving
Air conditioner
rapidly
Noise when unit is
cooling
Noise when unit is
working
Dirty air filter- air restricted. Clean air filter.
Outside temperature extremely hot. Set FAN speed to a Higher setting to bring air past
cooling coils more frequently.
Air movement sound. This is normal . If too loud, set to a slower FAN setting.
Window vibration - poor installation. Refer to installation instructions or check with installer.
Water dripping
OUTSIDE when
unit is cooling.
Unit removing large quantity of moisture from humid room. This is normal during excessively humid days.
Remote Sensing
Deactivating
Prematurely (Only
remote models)
Remote control not located within range. Place remote control within 20 feet and pointed in the general direction of
the air conditioner unit.
Remote control signal obstructed. Remove obstruction.
Room too cold
Set temperature too low. Increase set temperature.
An open doors, windows,or register may allow cold air to escape. Close any doors, winows, or registers.
The room may be too warm. Allow additional time to remove “Stored heat” from walls, ceiling, floor and furniture.
rear side drain plug can be removed. (Standard installation Angle of window machine 3°-5° degrees)
When you use the mute mode to start the unit. due to the compressor being hot. the sound of the compressor may be
more prominent. lasting for about 3 minutes. It is normal.
A“da-da" sound may occur for thirty seconds when the unit is turned on due to the compressor starting. It is normal.
Element Appliance Limited Warranty
(the “Products” or “Product” when referencing a singular product herein)
This Product (including any accessories included in the original packaging) as supplied and distributed in new condition, is warranted by Element
Appliance Company, LLC ("Element") to the original customer who purchases the Product from an authorized Element retailer (the “Original
Customer” or “you”) against defects in material and workmanship under proper use, maintenance, and care according to the owner’s manual,
warnings, and instructions accompanying the Product (“Warranty”) as follows:
* PLEASE NOTE – Proof of purchase evidencing the date of purchase by the Original Purchaser from an authorized Element retailer (“Valid
Proof of Purchase”) is required for all Warranty service. The express Warranty set forth herein is subject to all terms and conditions set forth
below.
1. WARRANTY SERVICE:
A. ONE-YEAR WARRANTY: Except as provided in subpart 1.B below, for a period of one (1) year from the date of purchase by the
Original Customer (the “Warranty Period”), if the parts or components covered by this Warranty are determined by Element or Element’s
authorized service provider to be defective in material or workmanship, Element will, at its sole and absolute discretion and option: (i) repair
the defective part or component at no charge to the Original Customer, (ii) replace the defective Product with a new Product of similar or better
quality, at no charge to the Original Customer, or (iii) refund the documented purchase price paid by the Original Customer (excluding tax) to
the Original Customer upon return of the defective Product as directed by Element. After the Warranty Period expires, the Original Customer
must pay for all parts, components, shipping and handling, labor, and replacement costs associated with the Product or any part or component
thereof, regardless of any defects in the Product or any part or component thereof.
B. LIMITED EXTENDED WARRANTY THROUGH PRODUCT REGISTRATION: If and only if the Original Customer registers the
Product at www.elementelectronics.com within ninety (90) days of the date of purchase by the Original Customer, then the Warranty Period
discussed in subpart 1.A. above shall be extended an additional one (1) year to a new Warranty Period equaling two (2) years from the date of
purchase by the Original Customer. If the Product is not registered as provided for in this subpart 1.B, then the standard one-year Warranty
Period set forth in subpart 1.A shall apply.
C. TIMING AND PROCEDURE: Before Warranty service can commence, the Original Customer must contact either (i) the retailer
from whom the Original Customer purchased the Product, or (ii) Element directly, in either case for problem determination and service
procedures. Valid Proof of Purchase evidencing that the Product is within the Warranty Period MUST be presented by Original Customer in
order to obtain the requested Warranty service. Please have your model and serial number available, along with your date of purchase of the
Product. To remain eligible for Warranty service, Original Customer may not return the Product or any part or component thereof to the retailer
or Element without Element’s prior written consent.
2. EXCLUSIONS AND LIMITATIONS TO WARRANTY SERVICE
The Warranty covers manufacturing defects in materials and workmanship of the Product encountered in the normal, non-commercial use of
the Product, and does not cover (a) damages or malfunctions resulting from improper or unreasonable use or maintenance, abuse, negligence,
failure to follow instructions contained in any written materials that accompany the Product, deterioration by reason of excess moisture,
corrosive atmosphere, lightning, power surges, connections to improper voltage supply, unauthorized alteration, or other external causes such
as extremes in temperature or humidity, modifications, scratches or discoloration; (b) any damage caused by using non-authorized parts or
service facilities for repair of Products (however, for avoidance of doubt, using non-authorized parts or service facilities will not, in and of itself,
void the Warranty); (c) transportation, shipping, delivery, pickup, insurance, installation, or set-up costs; (d) ordinary wear and tear, cosmetic
damage, or damage due to acts of nature, including but not limited to, water, floods, wind, storm, tornado, earthquake, or fire, or due to
damage caused by extraordinary impact events, such as dropping, crushing, demolition or other extraordinary damage; (e) commercial use of
the Product, or use of the Product for anything other than single-family household or residential use; or (f) modification of the Product or any
part of the Product.
This Warranty is made to the Original Customer only and does not cover Products sold AS IS or WITH ALL FAULTS. The Warranty is invalid if the
factory-applied serial number has been altered or removed from the Product. This Warranty is valid only in the United States, and only applies
to Product if it was purchased and serviced in the United States. The addition of equipment or features to the Product that are not
manufactured or recommended by Element could affect the intended function of the Product, and therefore may void the Warranty.
Furthermore, the exposure of the Product to chemicals, heat, cold, humidity, or other elements can affect the Product components, and
therefore, the Warranty does not cover discoloration, fading, cosmetic changes, rust, or any damages or failure related to any such items. The
Warranty is contingent upon the proper use, maintenance, and care of the Product. The Warranty may be void if the Product has been used in
a manner contradictory to, or in violation of, the terms of the user’s manual, warnings, or instructions accompanying the Product.
THIS WARRANTY IS MADE IN LIEU OF AND SUPERSEDES ALL OTHER WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE OR GENERAL USE, WHETHER EXPRESS, IMPLIED, COLLATERAL, STATUTORY, OR PROVIDED BY COMMON LAW, THE
UNIFORM COMMERCIAL CODE, OR OTHERWISE. ELEMENT FURTHER DISCLAIMS ALL WARRANTIES AFTER THE END OF THE WARRANTY TERM
DEFINED ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY OTHER PERSON, FIRM, OR ENTITY WITH RESPECT TO THE
PRODUCT SHALL BE BINDING ON ELEMENT. REPAIR, REPLACEMENT, OR REFUND OF THE ORIGINAL PURCHASE PRICE, AT ELEMENT’S SOLE
DISCRETION, ARE THE EXCLUSIVE REMEDIES OF THE CUSTOMER.
ELEMENT SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE
THE PRODUCT. THESE INCLUDE, BUT ARE NOT LIMITED TO, ANY DAMAGES IN THE FORM OF LOST PROFITS, LOSS OF USE, LEGAL FEES,
ECONOMIC LOSS, PERSONAL INJURIES, OR ANY OTHER DAMAGES CAUSED BY CIRCUMSTANCES BEYOND THE CONTROL OF ELEMENT.
NOTWITHSTANDING THE FOREGOING, ELEMENT’S AGGREGATE LIABILITY TO ANY CUSTOMER SHALL NOT EXCEED THE ORIGINAL PURCHASE
PRICE OF THE PRODUCT. THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL CUSTOMER WHO PURCHASED THE
PRODUCT, AND IS NOT TRANSFERRABLE. NO PERSON IS AUTHORIZED TO ALTER, EXTEND, OR WAIVE THIS WARRANTY OR ANY OF ITS TERMS
OR CONDITIONS.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on warranties, so the above
limitations or exclusions may not apply to you. This Warranty gives you specific rights, and you may have other rights, which vary from state to
state. The exclusions and limitations to the Warranty apply to the maximum extent permitted by law and unless restricted or prohibited by
law. Where any term of this Warranty is prohibited by applicable law, it shall be null and void, but the remainder of this Warranty shall remain
in effect.
PLEASE DIRECT ALL CORRESPONDENCE TO:
Element Appliance Company, LLC
customerservice@elementelectronics.com
(888) 842-3577
https://elementelectronics.com
CWS003IU-TYBPN8(WA)DZ
16120300A37593
Element, the Element Logo, and Bring it home are trademarks of Element Brand
Holding, LLC. All other trademarks are the property of their respective owner,
who has not sponsored, endorsed, or approved this product. ©2025 Element
Appliance Company, LLC. All rights reserved.
Distributed by Element Appliance Company, LLC
Augusta, GA 30909
